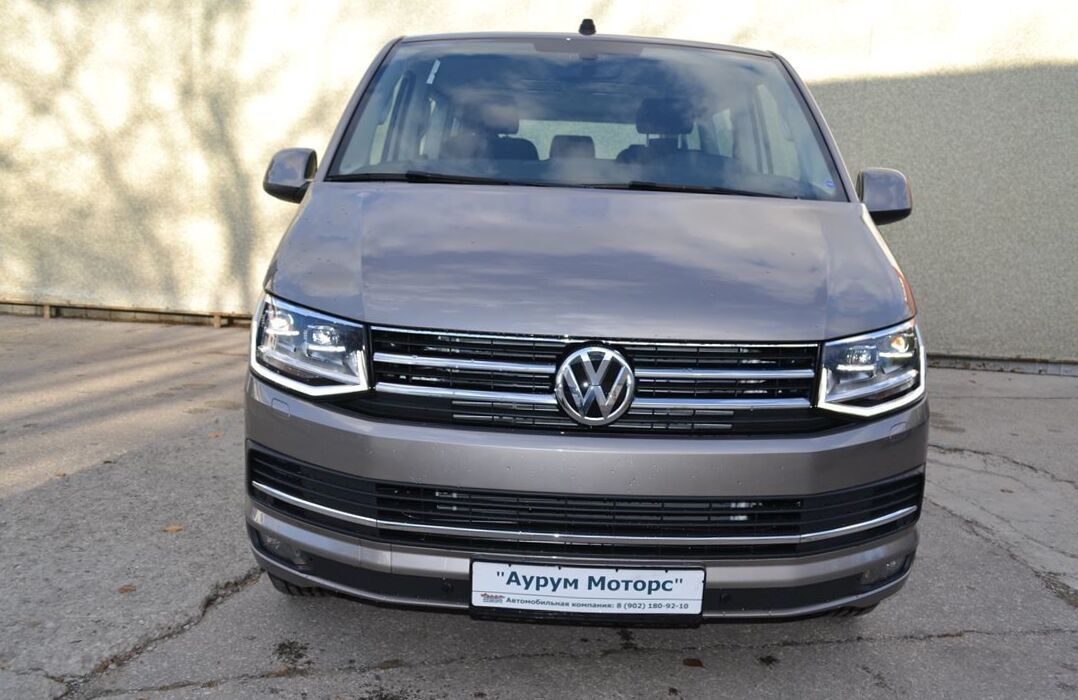

2019 Volkswagen Caravelle VI 2.0 TDI DSG City
More photos of Volkswagen Caravelle
Volkswagen Caravelle Problems
Injector pump diesel
1998, Fuel pump will not deliver into the
injectors will not start or runs it cranks but
no fu...
Auto Transmission has "burnt out" again
2001, We purchased the caravelle a year ago,
just after it had auto transmission replaced at
c...
Fuel tank spill
1993, my combi fuel gage is not working
properly. even if it is empty the needle stays
at quat...
Volkswagen Caravelle Problems
Injector pump diesel
1998, Fuel pump will not deliver into the
injectors will not start or runs it cranks but
no fu...
Auto Transmission has "burnt out" again
2001, We purchased the caravelle a year ago,
just after it had auto transmission replaced at
c...
Fuel tank spill
1993, my combi fuel gage is not working
properly. even if it is empty the needle stays
at quat...
| Body type | Minivan |
|---|---|
| Power | 140 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | beige |
| Transmission Gearbox | Automatic |
| Fuel Type | Diesel |
| Drive wheel | FF |
| Vin | WV2ZZZ7HZJH****90 |
| Price (out of date) | $46101 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2019 Volkswagen Caravelle VI? | Minivan, 8 Seats, 4 Doors |
| What is the fuel economy, Volkswagen Caravelle Minivan 2019? | 8 l/100 km |
| How fast is the car, Volkswagen Caravelle SGB 2019? | 173 km/h, 0-100 km/h: 14.7 sec |
| How much power, 2019 Volkswagen Caravelle 2.0 TDI DSG City? | 140 Hp |
| What is the engine size, Volkswagen Caravelle VI 2019 Minivan 2.0 TDI DSG City (140 Hp)? | 2L or 1968cm3 |
| How many gears, What type is the gearbox, 2019 Volkswagen Caravelle Minivan 2.0 TDI DSG City (140 Hp)? | Manual Transmission Automatically Shifted 7 |
| What is the drivetrain, 2019 Volkswagen Caravelle VI? | Front |
| How long is this vehicle, Volkswagen Caravelle Minivan 2019? | 5006 mm |
| How wide is the vehicle, Volkswagen Caravelle SGB 2019? | 1904 mm |
| What is the gross weigh, 2019 Volkswagen Caravelle 2.0 TDI DSG City? | 3080 kg |
| How much trunk (boot) space, Volkswagen Caravelle VI 2019 Minivan 2.0 TDI DSG City (140 Hp)? | 5800 l |
Volkswagen Caravelle VI SGB 2.0 TDI DSG City (140 Hp) 2018, 2019 Specs
General information | |
|---|---|
| Complectation name | 2.0 TDI DSG City |
| Production start year | 2018 |
| Production end year | 2019 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Manual Transmission Automatically Shifted 7 |
| Engine volume, cc | 1968 |
| Frame name | SGB |
| 0 to 100 time | 14.7 |
| Max speed | 173 |
| Clearance, mm | 193 |
| Manufacturing country | Germany |
| Diler name | 2.0 TDI DSG City SWB 140 |
| Doors | 4 |
| Winter complectation | yes |
Vehicle generation | |
| Generation name | T6 |
| Generation number | 6 |
| Production start year | 2015 |
| Production end year | 2019 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | CCHA, CAAC |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 140 |
| Max power RPM, rpm | 3500 |
| Max power, hp (kWt) / rpm | 140 (103) / 3500 |
| Max torque, N*m | 340 |
| Max torque RPM, rpm | 2500 |
| Max torque, N*m (kg*m) / rpm | 340 (35) / 2500 |
| Valves per cylinder | 4 |
| Compression ratio | 16.5 |
| Bore, mm | 81 |
| Stroke, mm | 95.5 |
| Engine additional info | Common-rail direct fuel injection |
| Eco type | Euro-5 |
| Start stop system | no |
Fuel consumption | |
| City | 10.2 |
| Country side | 6.7 |
| Combined | 8 |
| Co2 emission | 211 |
Steering | |
| Power steering | no |
| Electric power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5006 |
| Exterior width, mm | 1904 |
| Exterior height, mm | 1970 |
Interior dimensions | |
| Capacity | 8 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 3000 |
| Turning radius, m | 5.95 |
| Wheel spacing front | 1628 |
| Wheel spacing rear | 1628 |
| Front overhang | 908 |
| Rear overhang | 993 |
Weight and permissible load | |
| Mass, kg | 2029 |
| Max capacity | 924 |
| Max. weight | 3080 |
| Trailer max weight wobrakes | 750 |
| Trailer max weight wbrakes | 2500 |
| Front axe load | 1550 |
| Rear axe load | 1575 |
Volumes | |
| Fuel tank capacity, l | 80 |
| Trunk volume | 5800 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent on double wishbones |

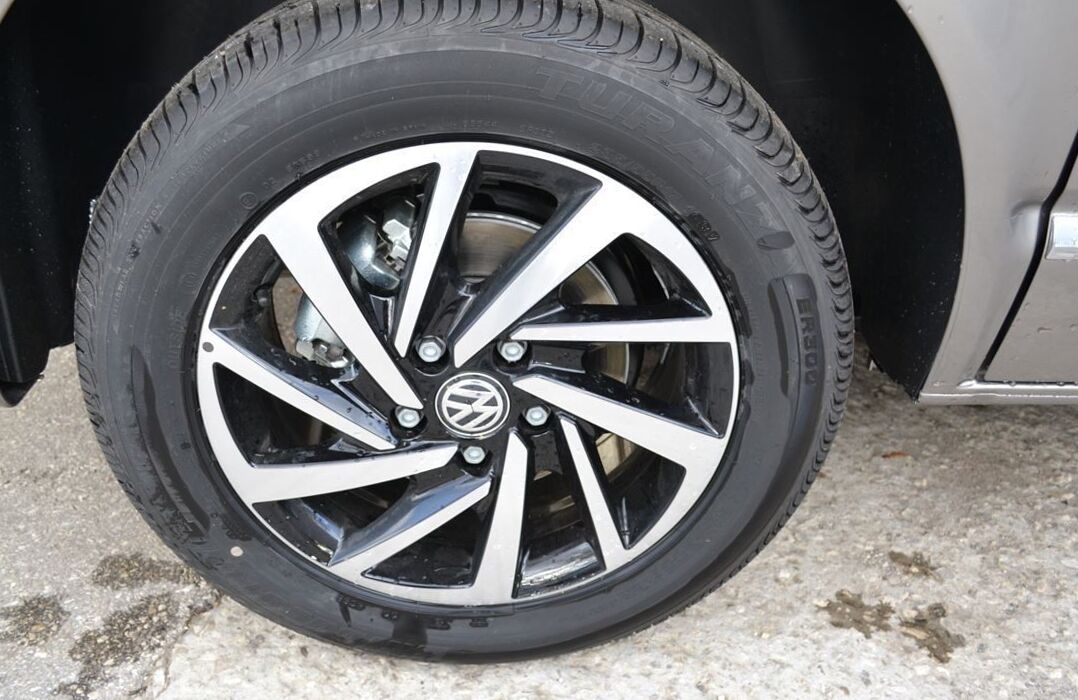

Wheel rims | |
| Aluminium wheel | option |
| Disc | 6,5 J x 16 |
Tires | |
| Front wheels | 205/65 R16 |
| Rear wheels | 205/65 R16 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Parking brake | manual |
| Parking brake new first | manual |
Exterior | |
Headlights | |
| Halogen headlights | no |
| Bixenon | no |
| Led lights | yes |
| Diod head lights | yes |
| Head lights washer | option |
| Front fog lamps | option |
| Led backlights | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |

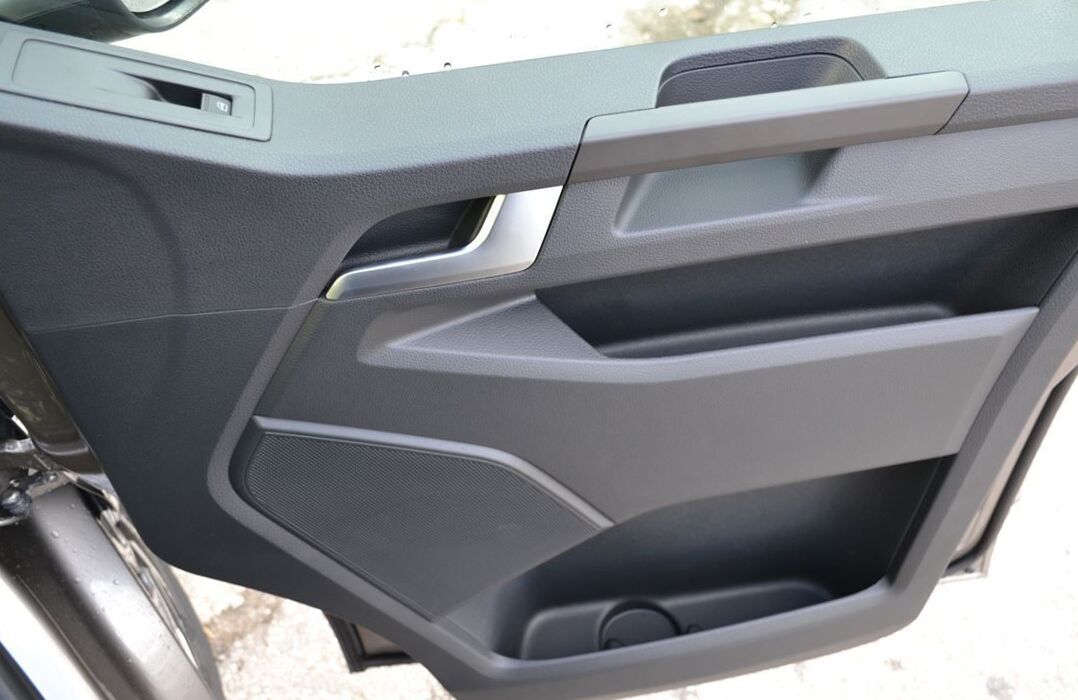

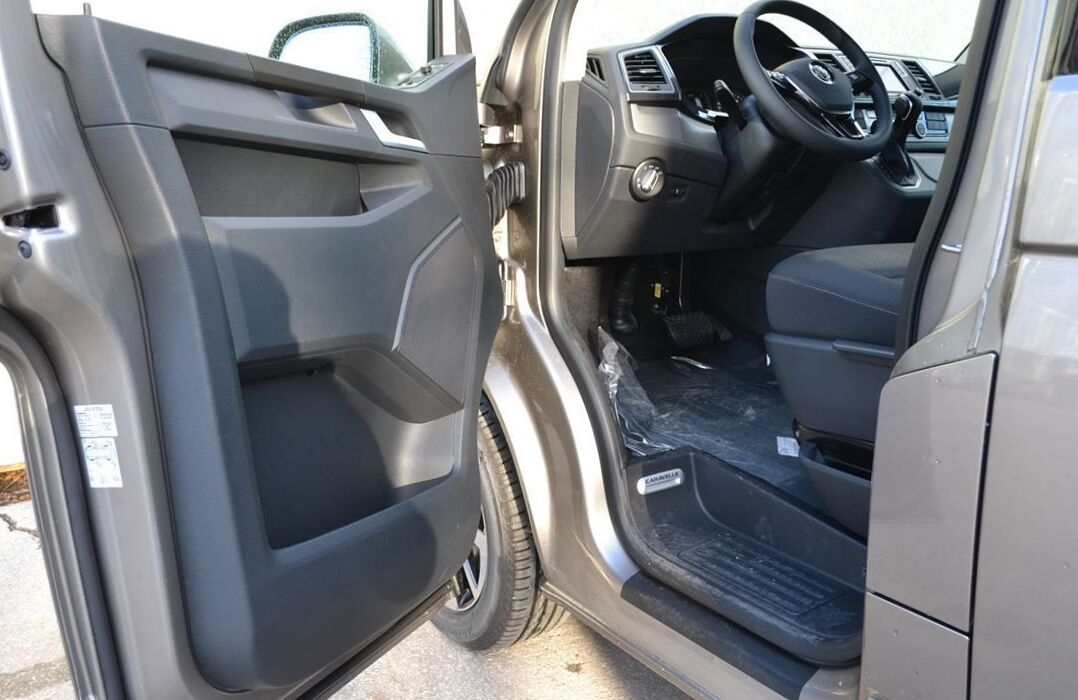

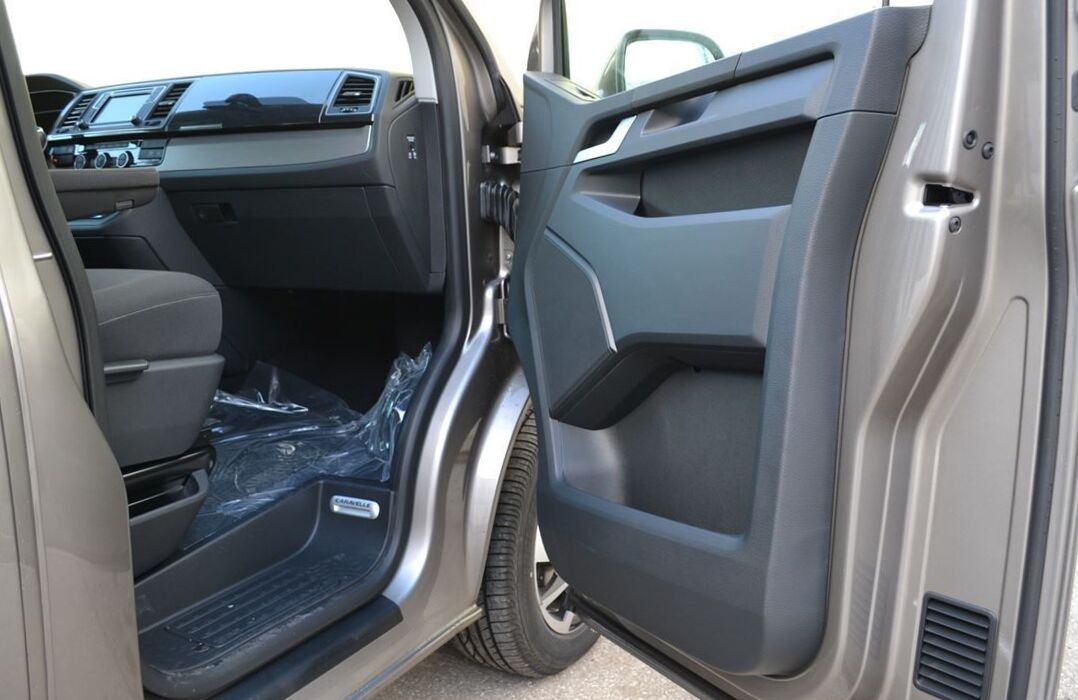

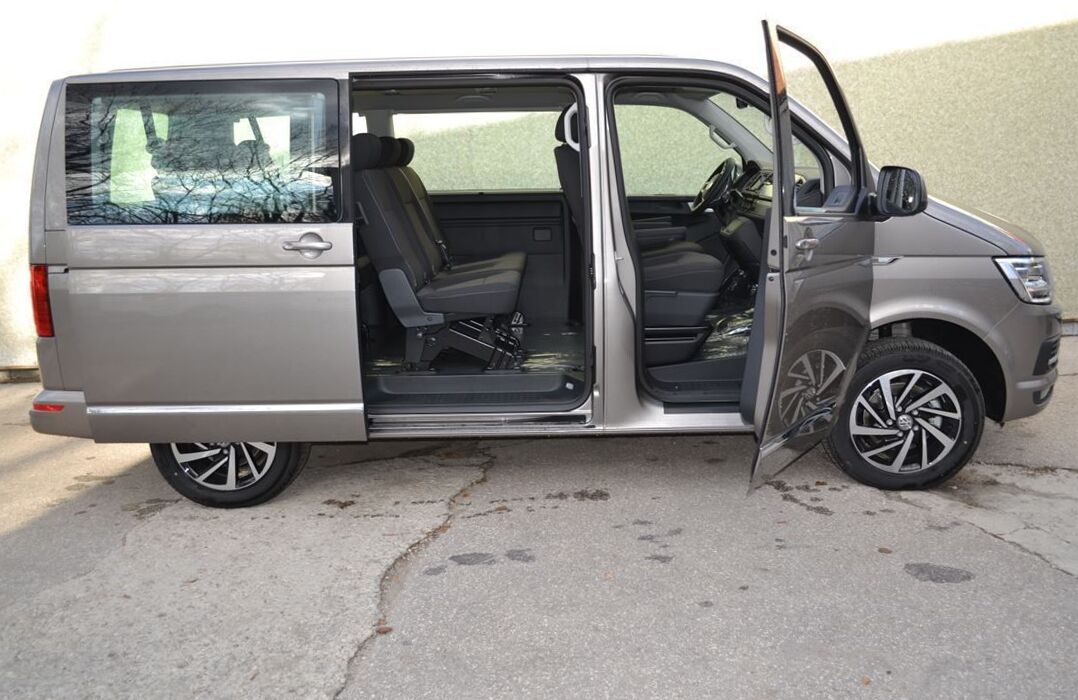

Doors | |
| Side sliding door | yes |
| Sliding doors | option |
| Sliding electric door | yes |
| Sliding electric doors | no |
| Door easy closer | yes |
| Door handles in body color | yes |
| Power rear door | yes |
Windows | |
| Privacy glass | option |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | option |
Accessories | |
| Roof rail | option |
| Bumpers | body color, black grille with three chrome plates |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |

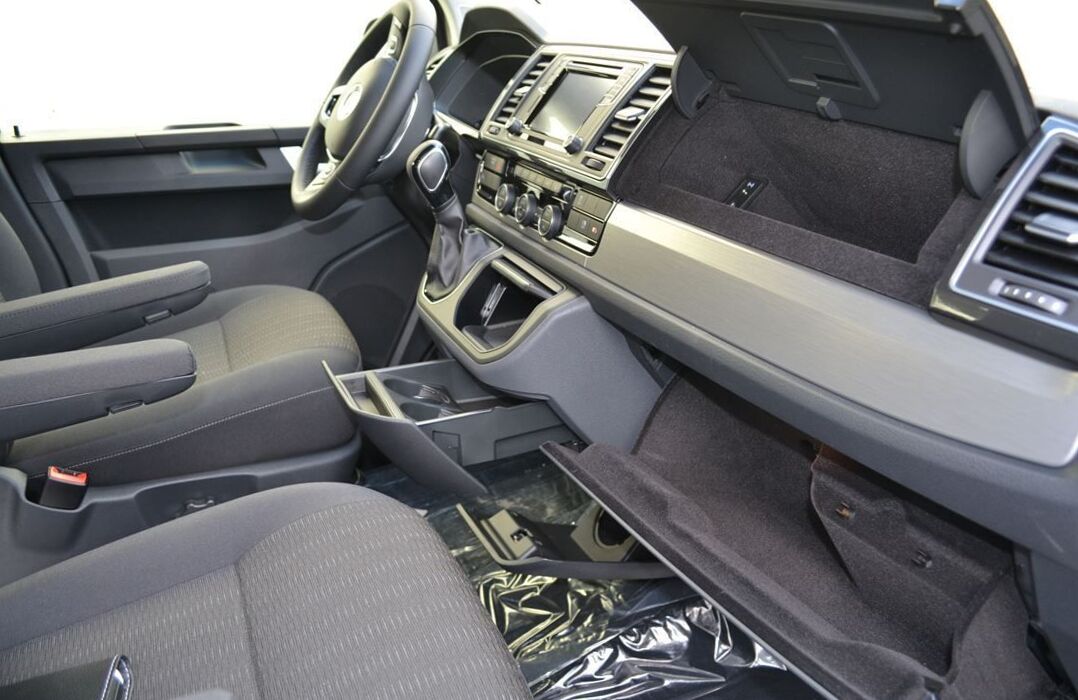

Interior | |

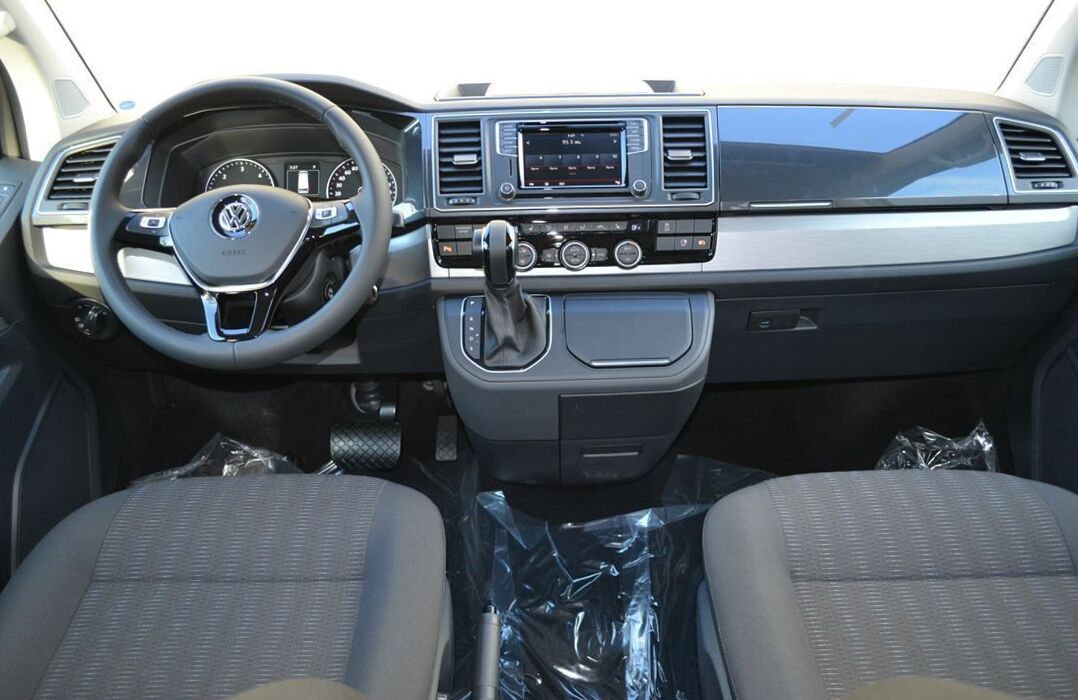

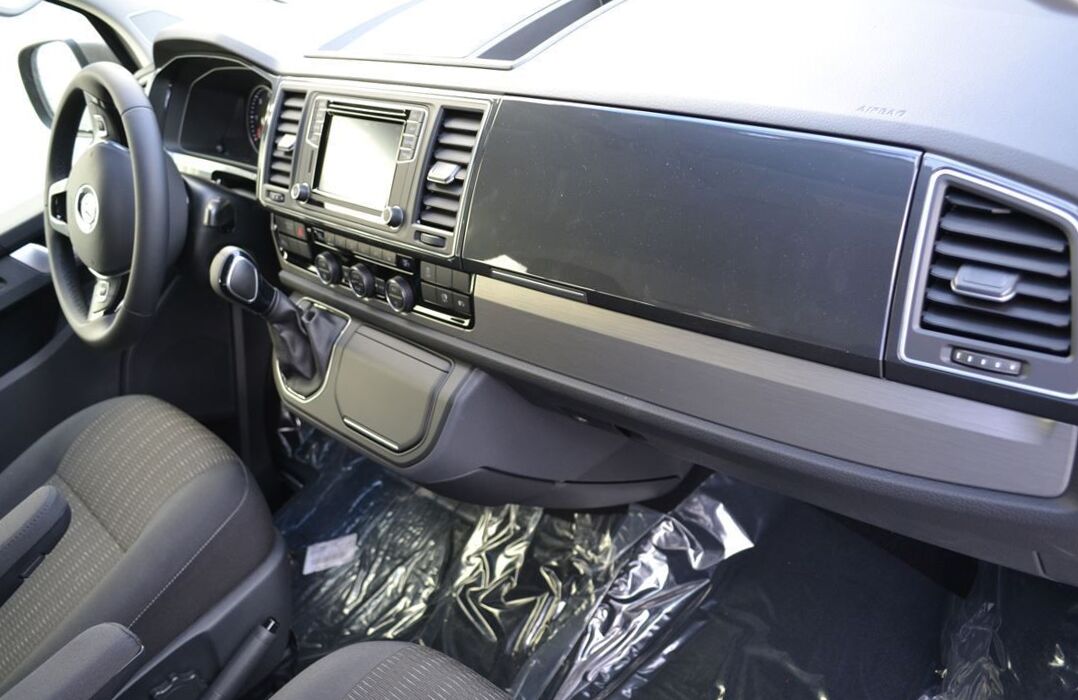

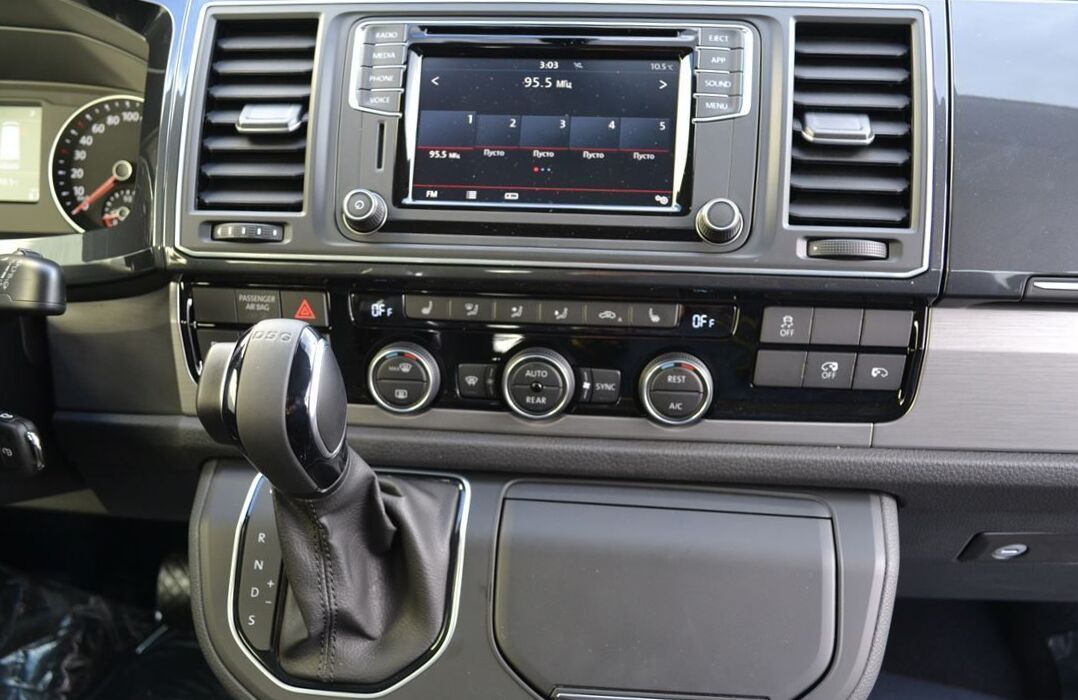

Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Audio control on steering wheel | option |
| Utility color display | yes |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | option |

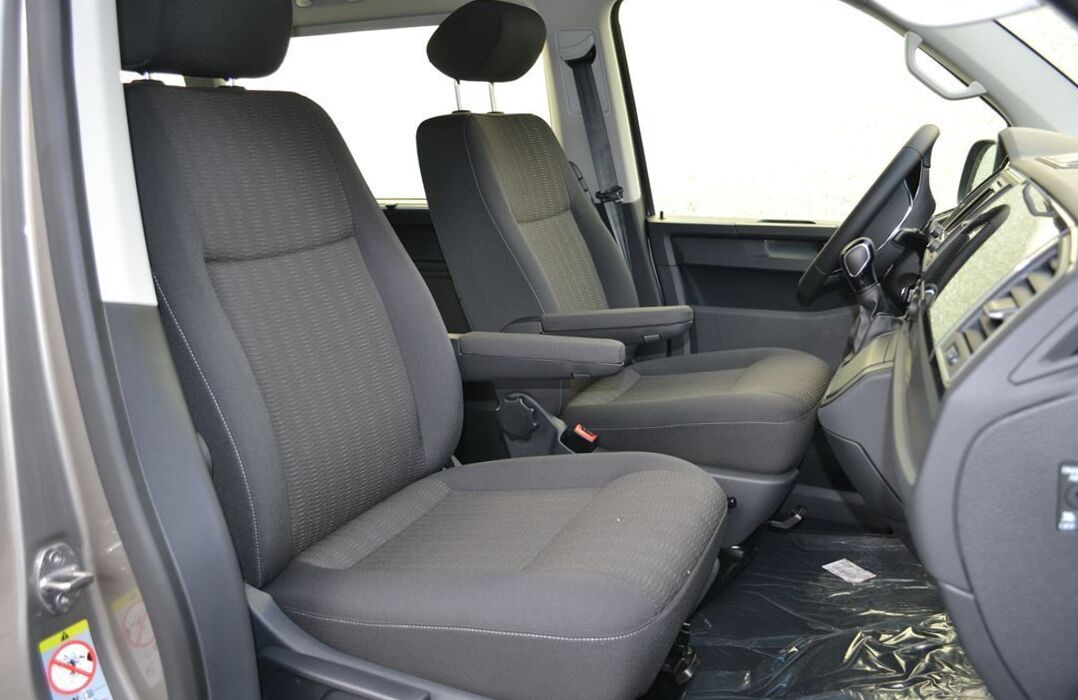

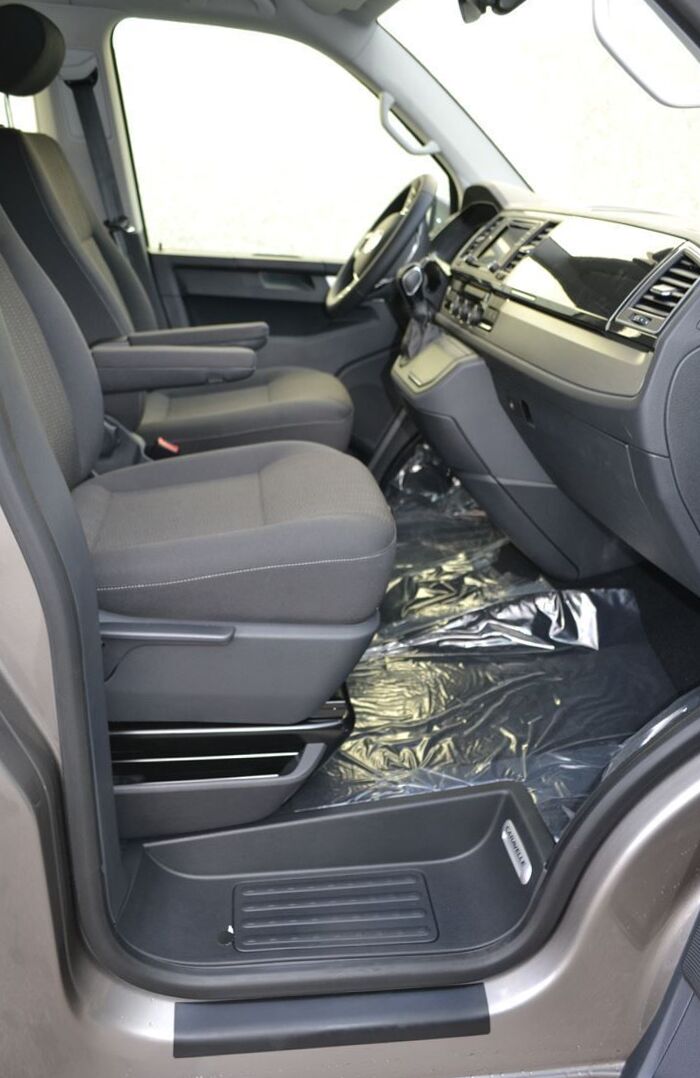

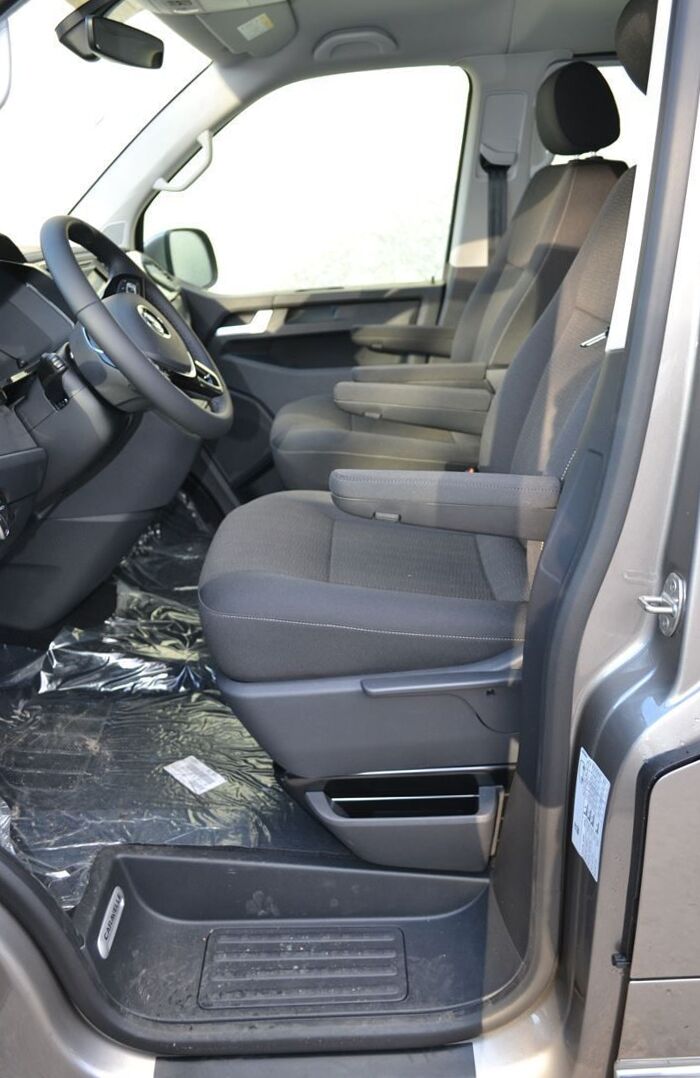

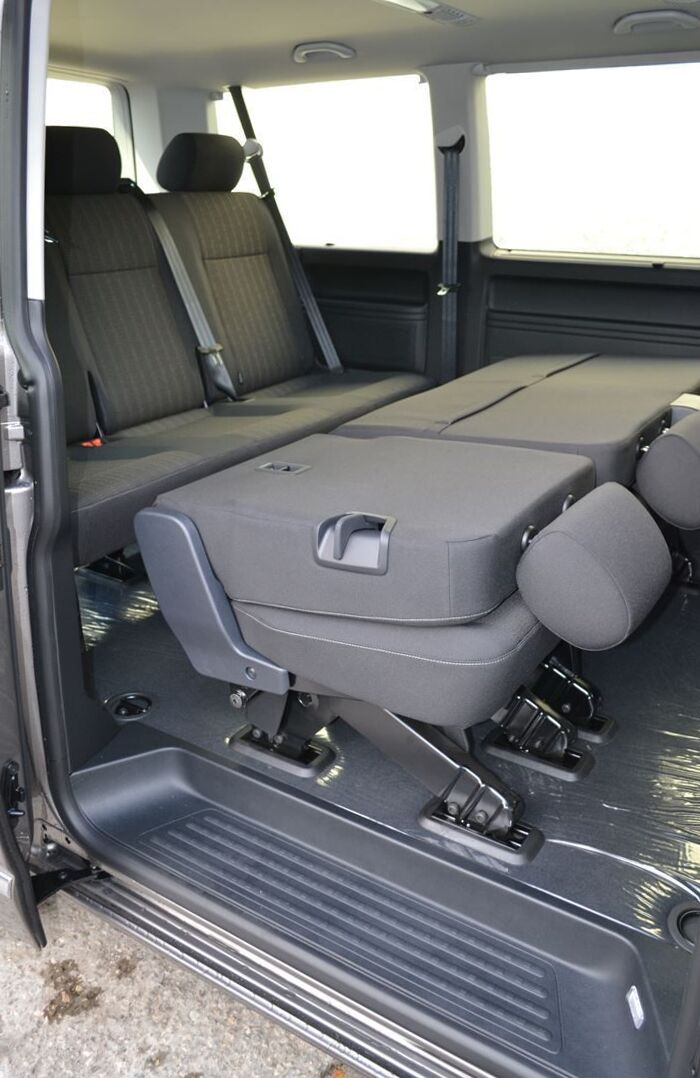

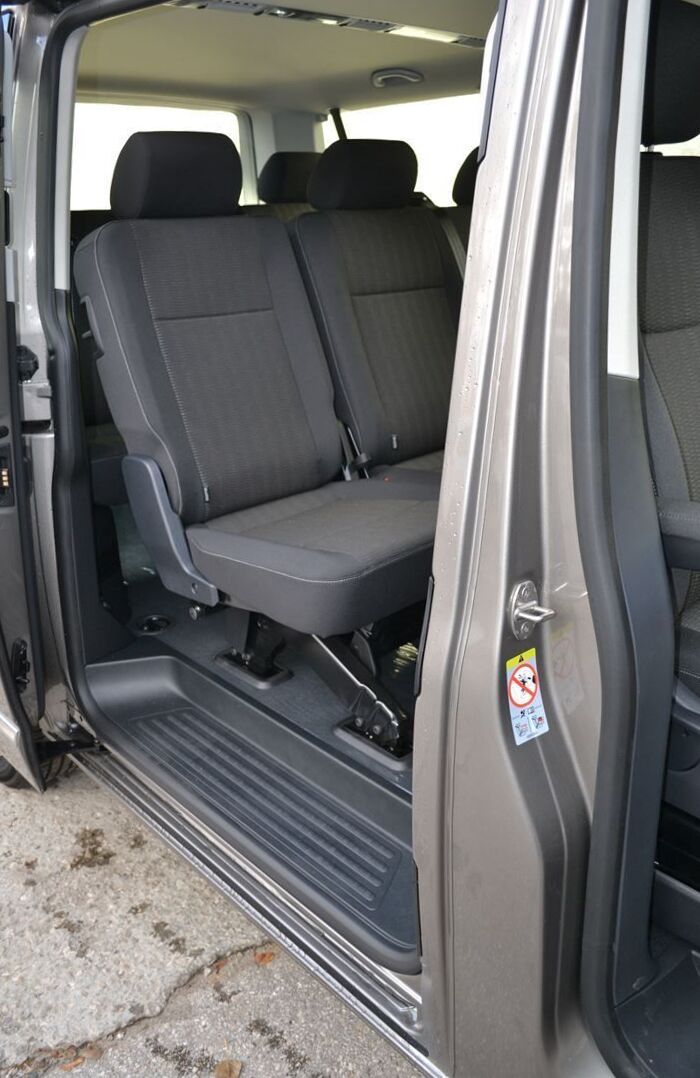

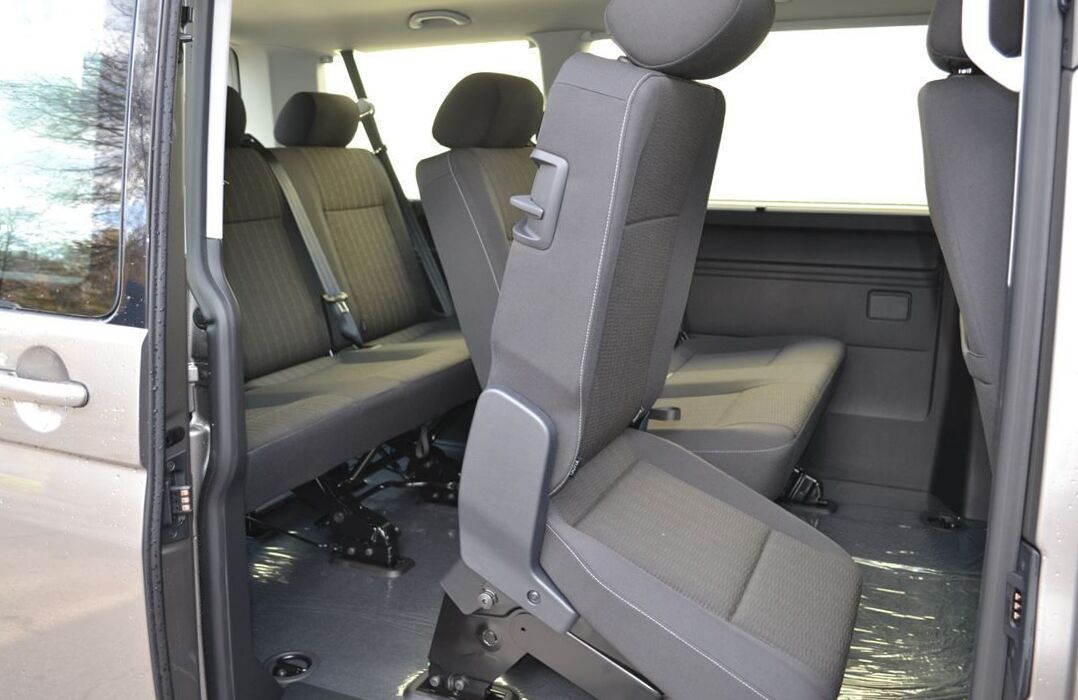

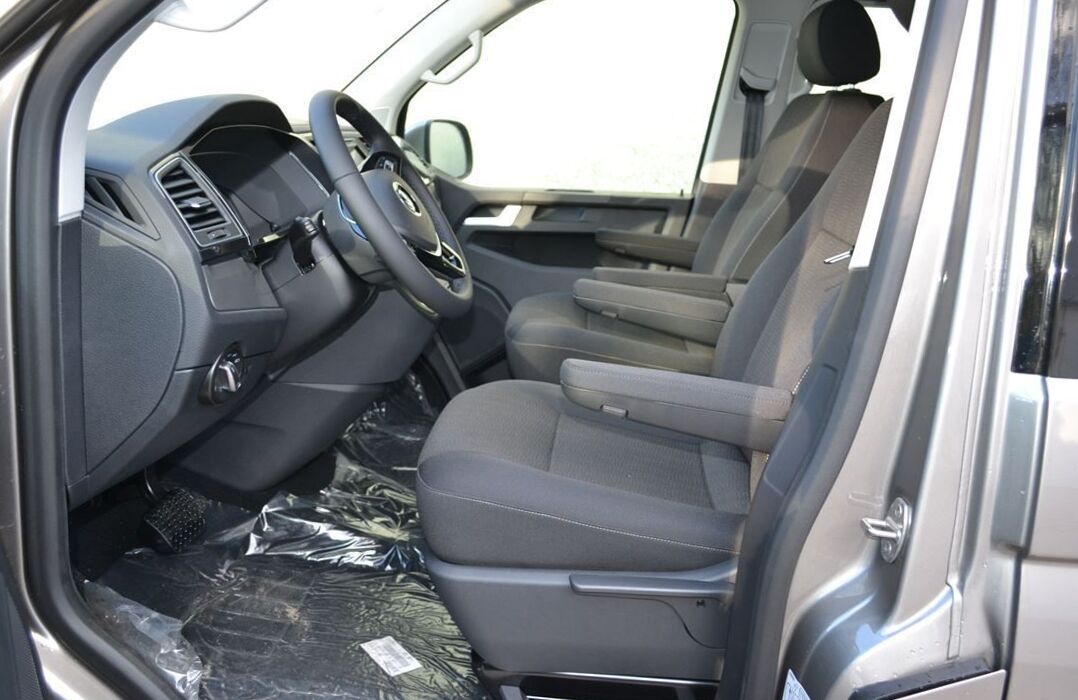

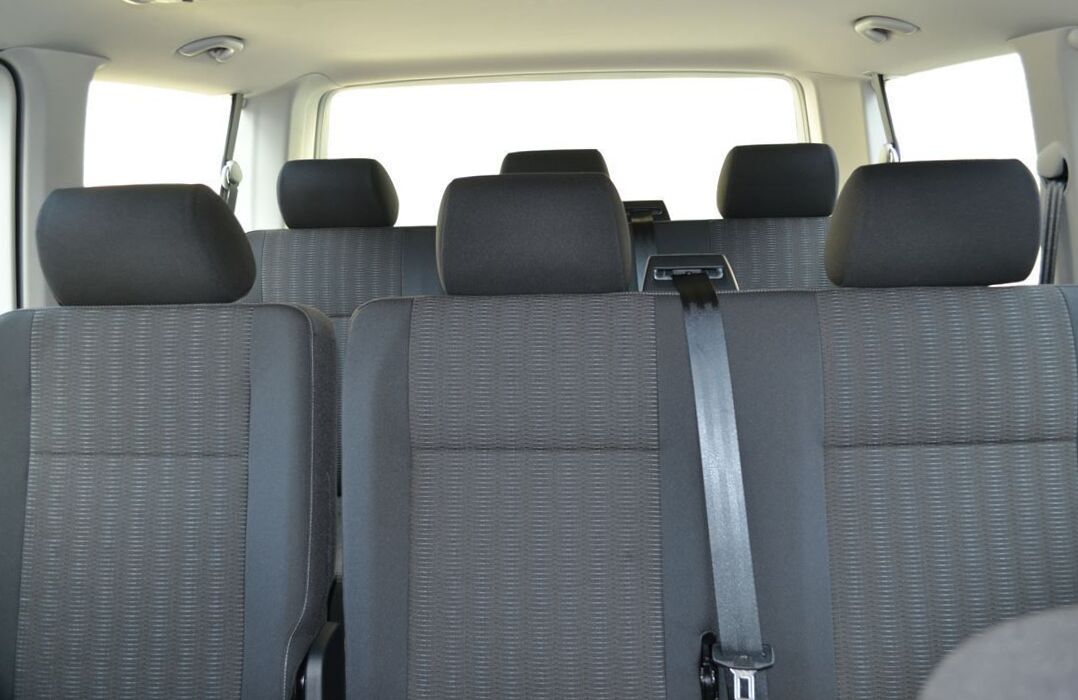

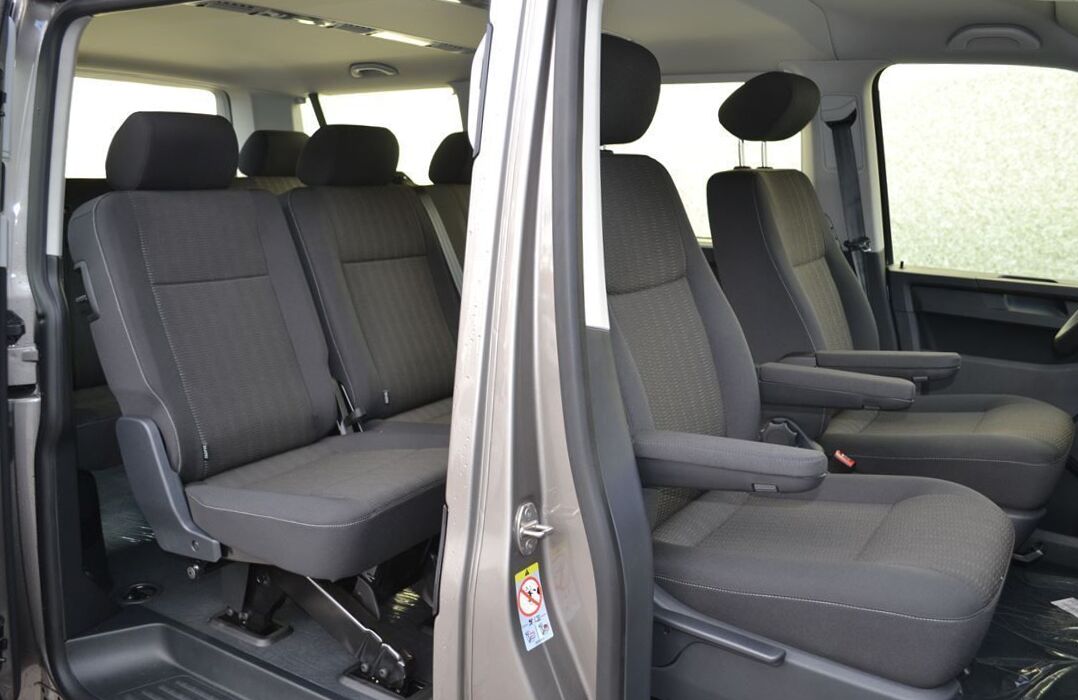

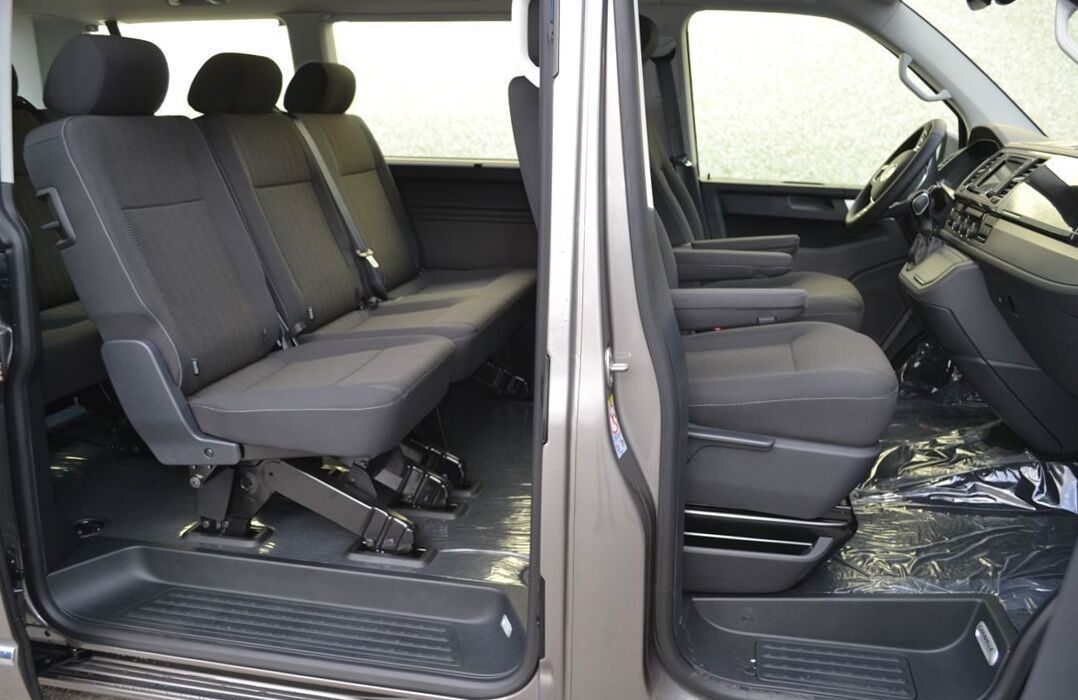

Seats | |
| Front seats ajust | Height-adjustable driver's seat |

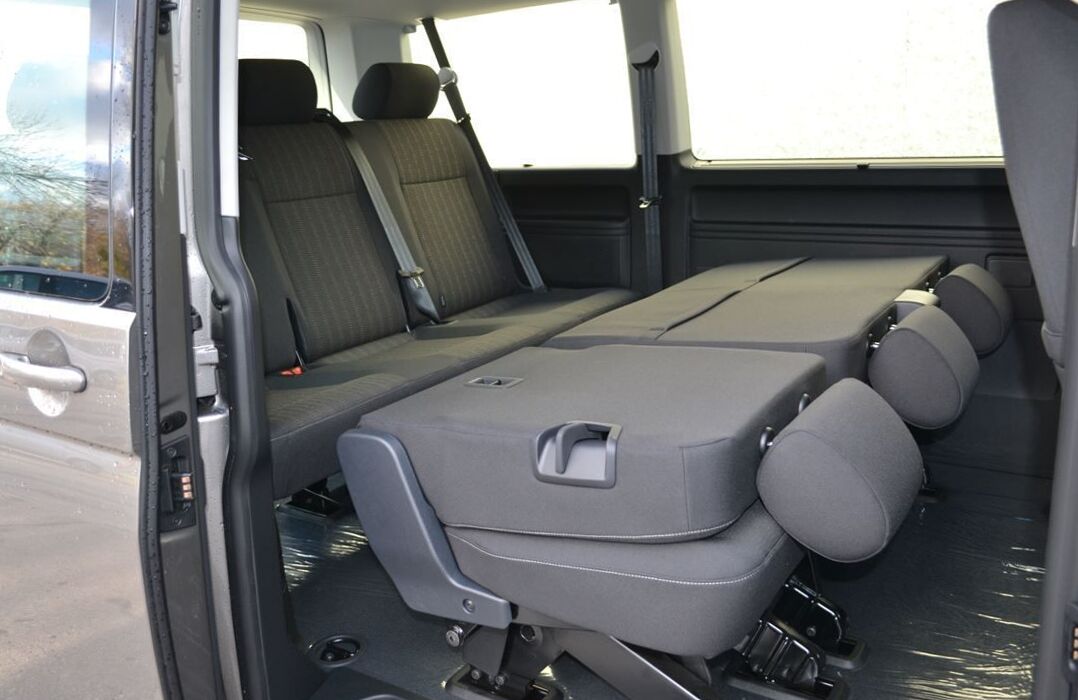

| 2nd row | adds up to a ratio of 2+1 |
| 3nd row | folds down in a 2+1 ratio (optional) |
| Loin reliance | yes |
| Separating armrest front | yes |
Electric interior package | |
| Power ajustable front seat | no |
| Front seat heater | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Power window rear | no |
| Front sheeld electro heater | yes |
| Injectors heat | yes |
Additional interior equipment | |
| Holders for bottles in doors | yes |
| Smokers packet | option |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Passenger airbag deactivation function with | yes |
| Side airbag | option |
| Curtain airbags | option |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Glonass | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| Damping Control System | option |
| Lane Keep Assist | option |
| Cruise control | option |
| Distance control system | no |
| Control system of a headlight | option |
| Intelligent AFS | option |
| Blind zone monitoring | option |
| Tires indicator | yes |
| Front sonar | yes |
| Rear sonars | yes |
| Intelligent parking assist | no |
| Collision mitigation system | no |
| Driver tired system | option |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Part climat equipment | 3 zones |
Audio systems | |
| Radio | yes |
| CD player | yes |
| DVD-audio | option |
| MP3 Support | yes |
| Hands free | yes |
| Additional sound equipment | 4 speakers, USB, AUX |

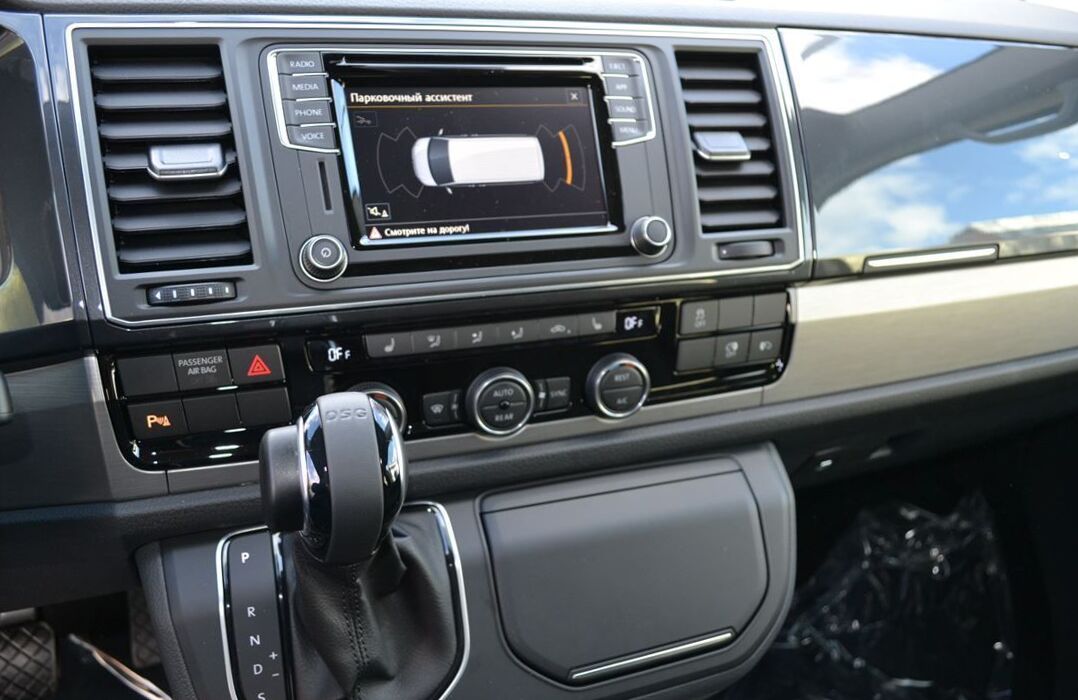

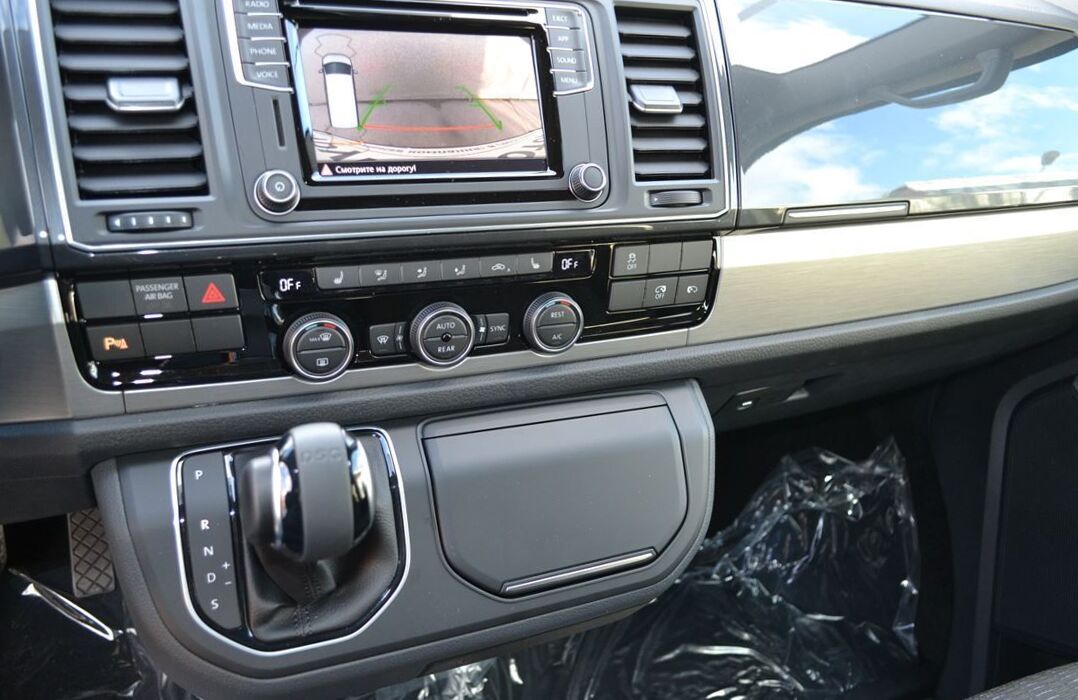

Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
| Back monitor | option |
Additional amenities | |
| Antidazzle rearview mirror | yes |
| Mirrors in sunshields | option |
| Onboard computer | option |

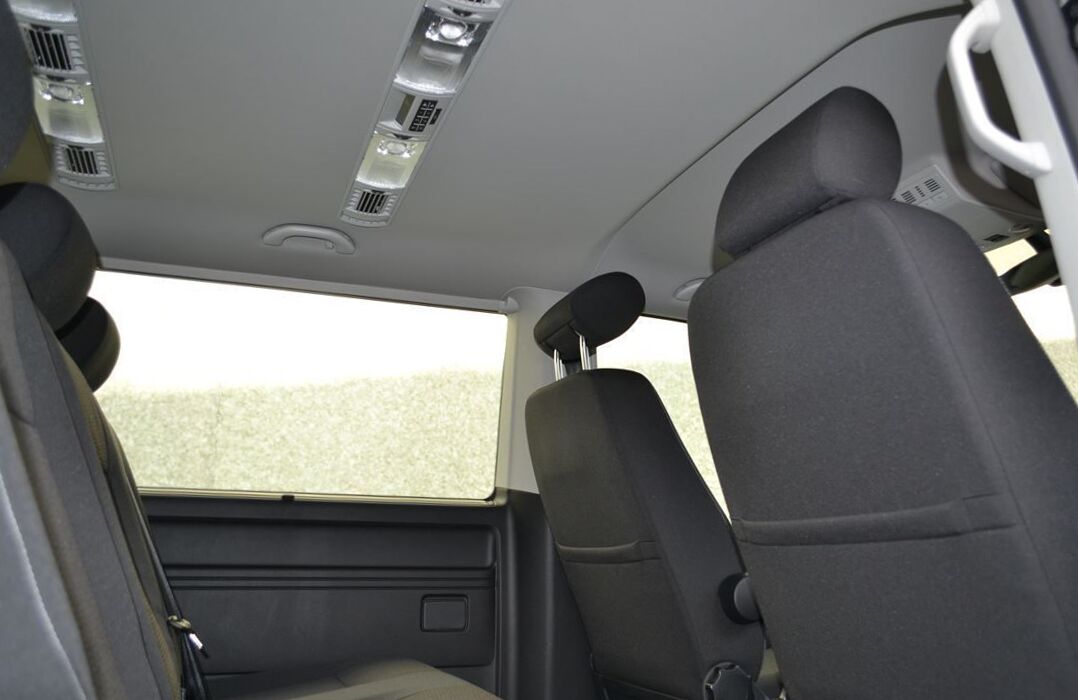

| Light | Deluxe interior lighting with lamps above each passenger |
Car safety | |
| Immobilizer | yes |
| Alarm system | option |
| Bolt-card | option |
Driver Kit | |

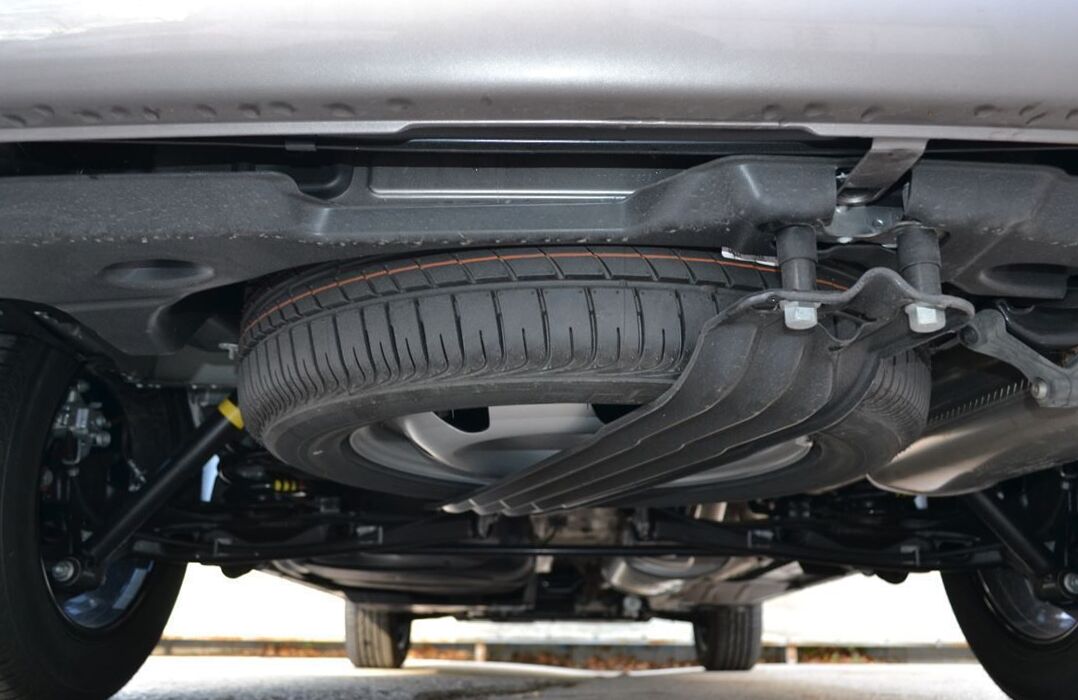

| Spare tire | yes |
2019 Volkswagen Caravelle VI SGB 2.0 TDI DSG City (140 Hp) specs
|
