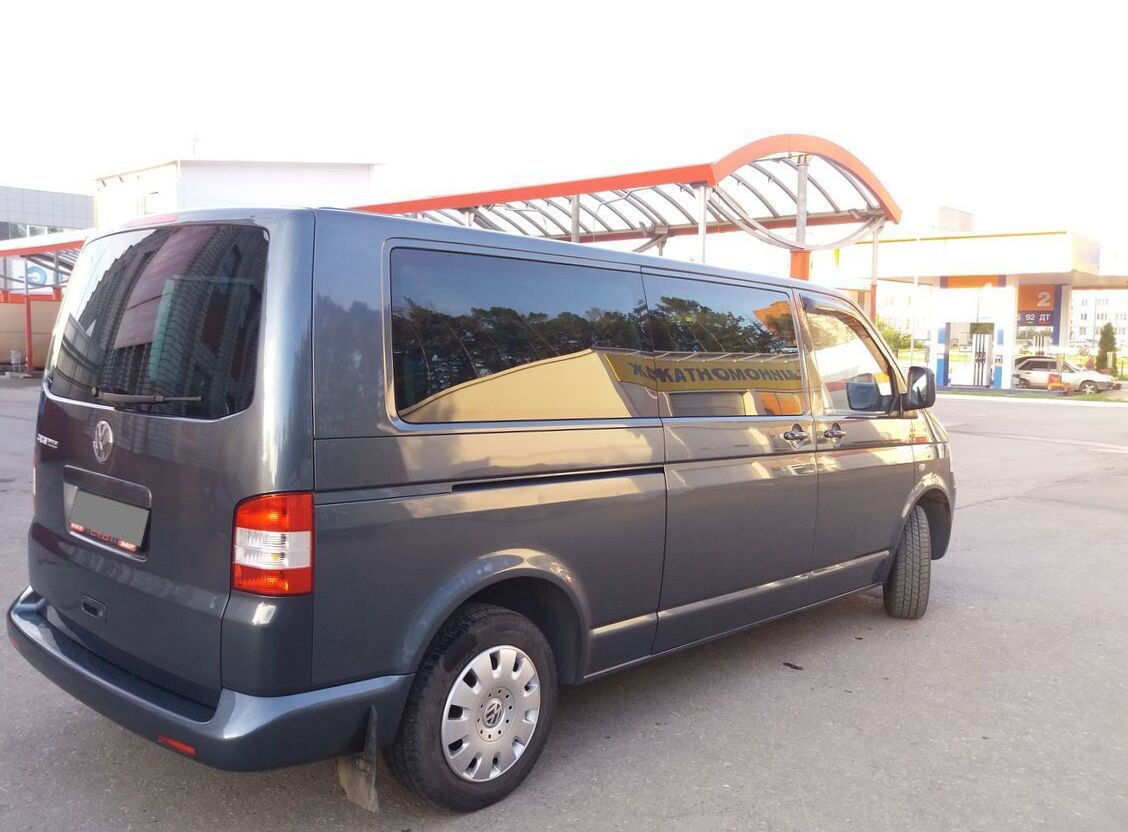

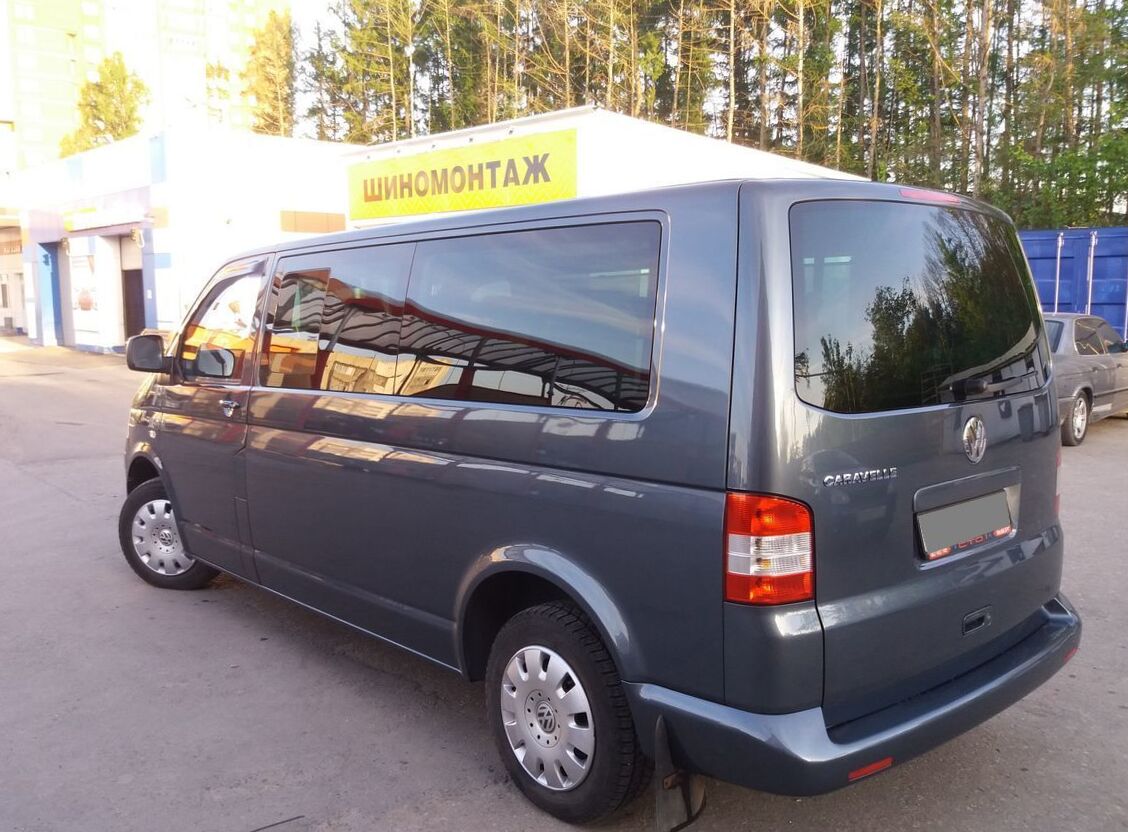

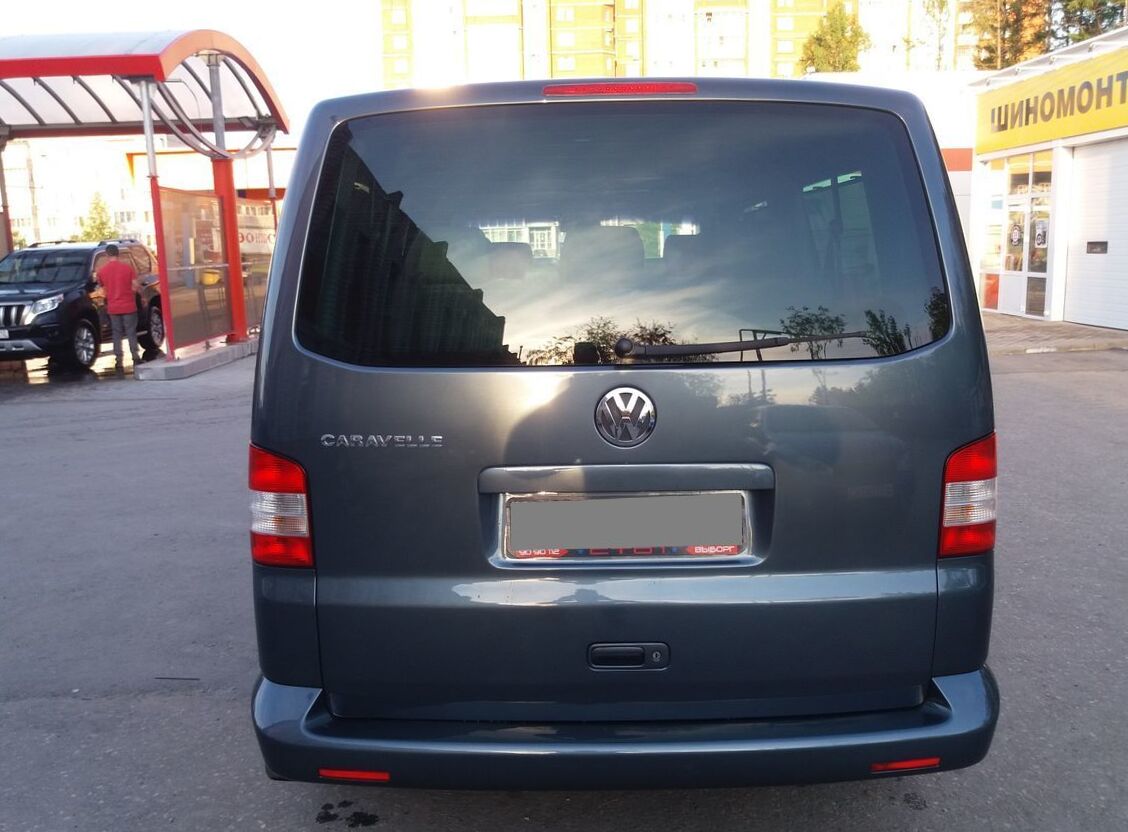

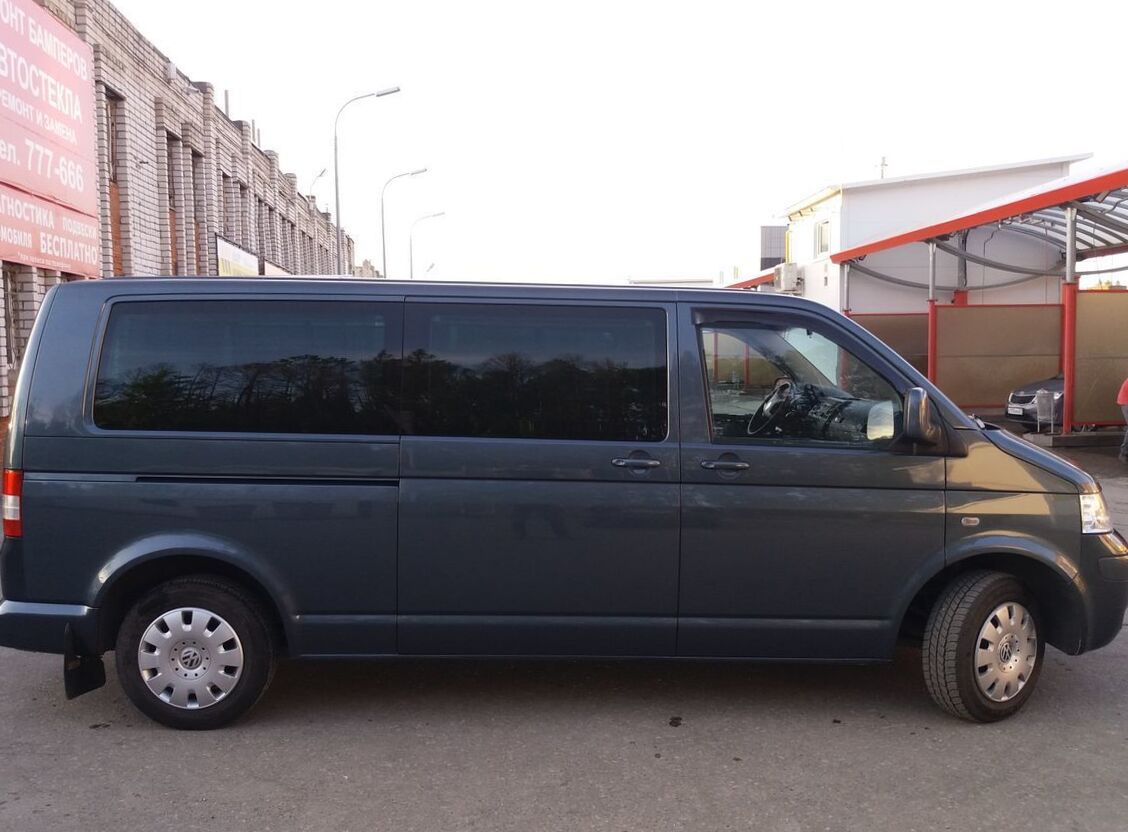

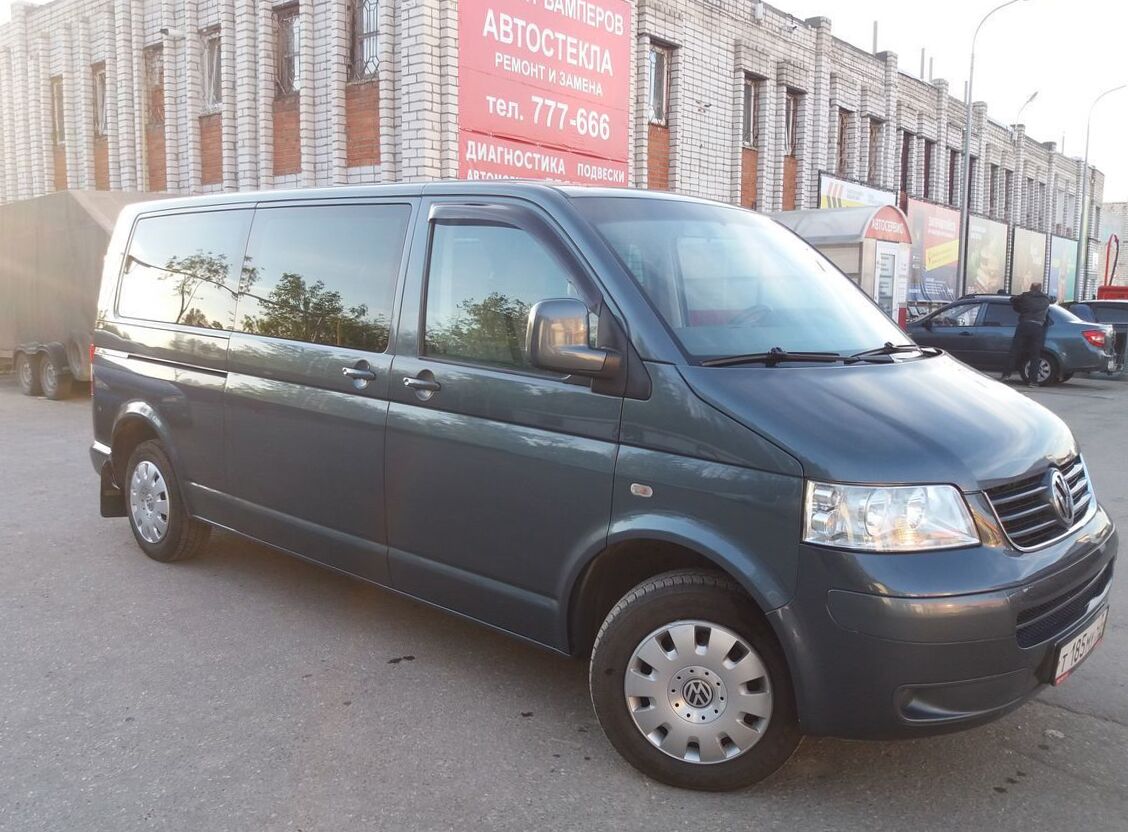

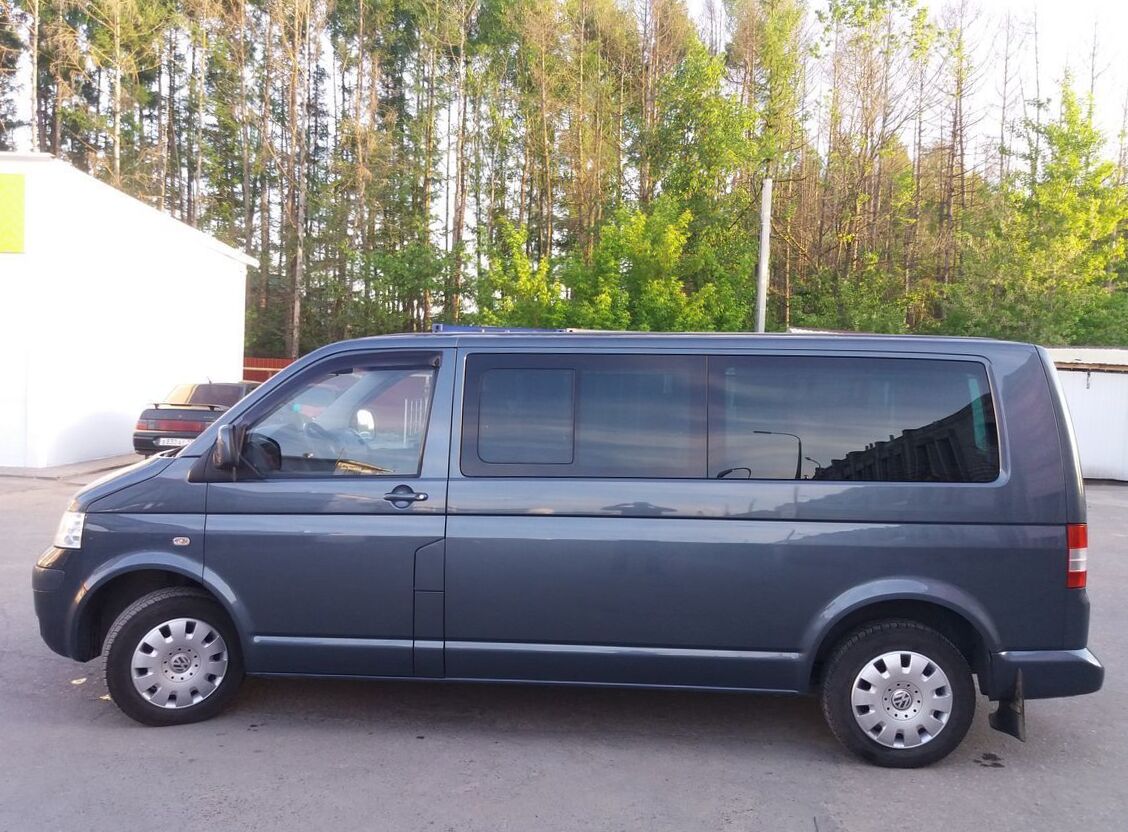

2007 Volkswagen Caravelle V 2.0 Comfortline
More photos of Volkswagen Caravelle
Volkswagen Caravelle Problems
Injector pump diesel
1998, Fuel pump will not deliver into the
injectors will not start or runs it cranks but
no fu...
Auto Transmission has "burnt out" again
2001, We purchased the caravelle a year ago,
just after it had auto transmission replaced at
c...
Fuel tank spill
1993, my combi fuel gage is not working
properly. even if it is empty the needle stays
at quat...
Volkswagen Caravelle Problems
Injector pump diesel
1998, Fuel pump will not deliver into the
injectors will not start or runs it cranks but
no fu...
Auto Transmission has "burnt out" again
2001, We purchased the caravelle a year ago,
just after it had auto transmission replaced at
c...
Fuel tank spill
1993, my combi fuel gage is not working
properly. even if it is empty the needle stays
at quat...
| Body type | Minivan |
|---|---|
| Power | 115 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | gray |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 155342 Miles |
| Vin | WV2ZZZ7HZ7H****39 |
| Price (out of date) | $13279 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2007 Volkswagen Caravelle V? | Minivan, 7 Seats, 3 Doors |
| What is the fuel economy, Volkswagen Caravelle Minivan 2007? | 10.5 l/100 km |
| How fast is the car, Volkswagen Caravelle 7HM, 7HF 2007? | 163 km/h, 0-100 km/h: 17.8 sec |
| How much power, 2007 Volkswagen Caravelle 2.0 Comfortline? | 115 Hp |
| What is the engine size, Volkswagen Caravelle V 2007 Minivan 2.0 Comfortline (115 Hp)? | 2L or 1984cm3 |
| How many gears, What type is the gearbox, 2007 Volkswagen Caravelle Minivan 2.0 Comfortline (115 Hp)? | 5 speed Manual |
| What is the drivetrain, 2007 Volkswagen Caravelle V? | Front |
| How long is this vehicle, Volkswagen Caravelle Minivan 2007? | 4890 mm |
| How wide is the vehicle, Volkswagen Caravelle 7HM, 7HF 2007? | 1904 mm |
| What is the gross weigh, 2007 Volkswagen Caravelle 2.0 Comfortline? | 2850 kg |
| How much trunk (boot) space, Volkswagen Caravelle V 2007 Minivan 2.0 Comfortline (115 Hp)? | 5800 l |
Volkswagen Caravelle V 7HM, 7HF 2.0 Comfortline (115 Hp) 2005, 2006, 2007, 2008, 2009 Specs
General information | |
|---|---|
| Complectation name | 2.0 Comfortline |
| Production start year | 2005 |
| Production end year | 2009 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1984 |
| Frame name | 7HM, 7HF |
| 0 to 100 time | 17.8 |
| Max speed | 163 |
| Clearance, mm | 165 |
| Manufacturing country | Germany |
| Doors | 3 |
Vehicle generation | |
| Generation name | T5 |
| Generation number | 5 |
| Production start year | 2002 |
| Production end year | 2009 |
Engine, transmission and steering specs | |

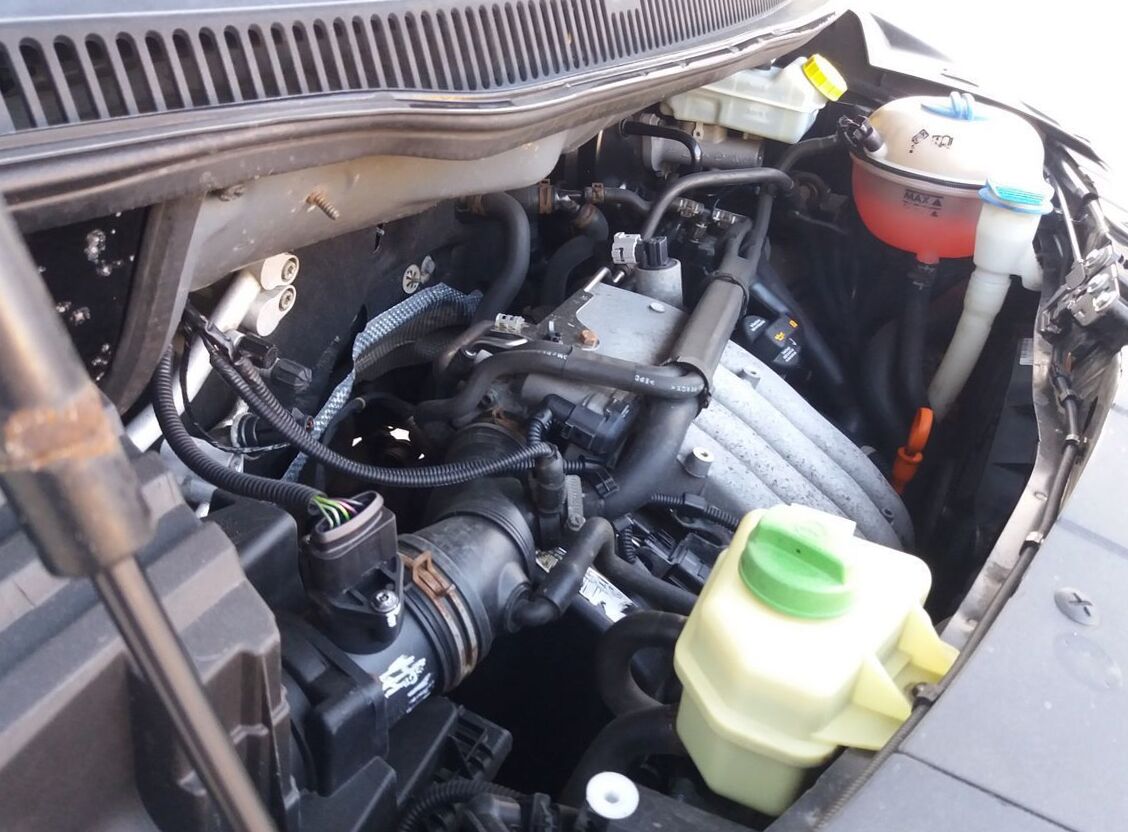

Engine specs | |
| Engine name | AXA |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 115 |
| Max power RPM, rpm | 5200 |
| Max power, hp (kWt) / rpm | 115 (85) / 5200 |
| Max torque, N*m | 170 |
| Max torque RPM, rpm | 4700 |
| Max torque, N*m (kg*m) / rpm | 170 (17) / 4700 |
| Valves per cylinder | 2 |
| Compression ratio | 10.5 |
| Bore, mm | 82.5 |
| Stroke, mm | 92.8 |
| Engine additional info | distributed fuel injection |
| Eco type | Euro-4 |
| Start stop system | no |
Fuel consumption | |
| City | 13.7 |
| Country side | 8.5 |
| Combined | 10.5 |
| Co2 emission | 253 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4890 |
| Exterior width, mm | 1904 |
| Exterior height, mm | 1990 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 3000 |
| Turning radius, m | 5.95 |
| Wheel spacing front | 1628 |
| Wheel spacing rear | 1628 |
| Front overhang | 894 |
| Rear overhang | 996 |
Weight and permissible load | |
| Mass, kg | 2017 |
| Max capacity | 833 |
| Max. weight | 2850 |
| Max roof weight | 100 |
| Max towbar effort | 100 |
| Trailer max weight wobrakes | 750 |
| Loading height | 572 |
| Front axe load | 1480 |
| Rear axe load | 1500 |
| Trailer maxweight 12deg | 2000 |
Volumes | |
| Fuel tank capacity, l | 80 |

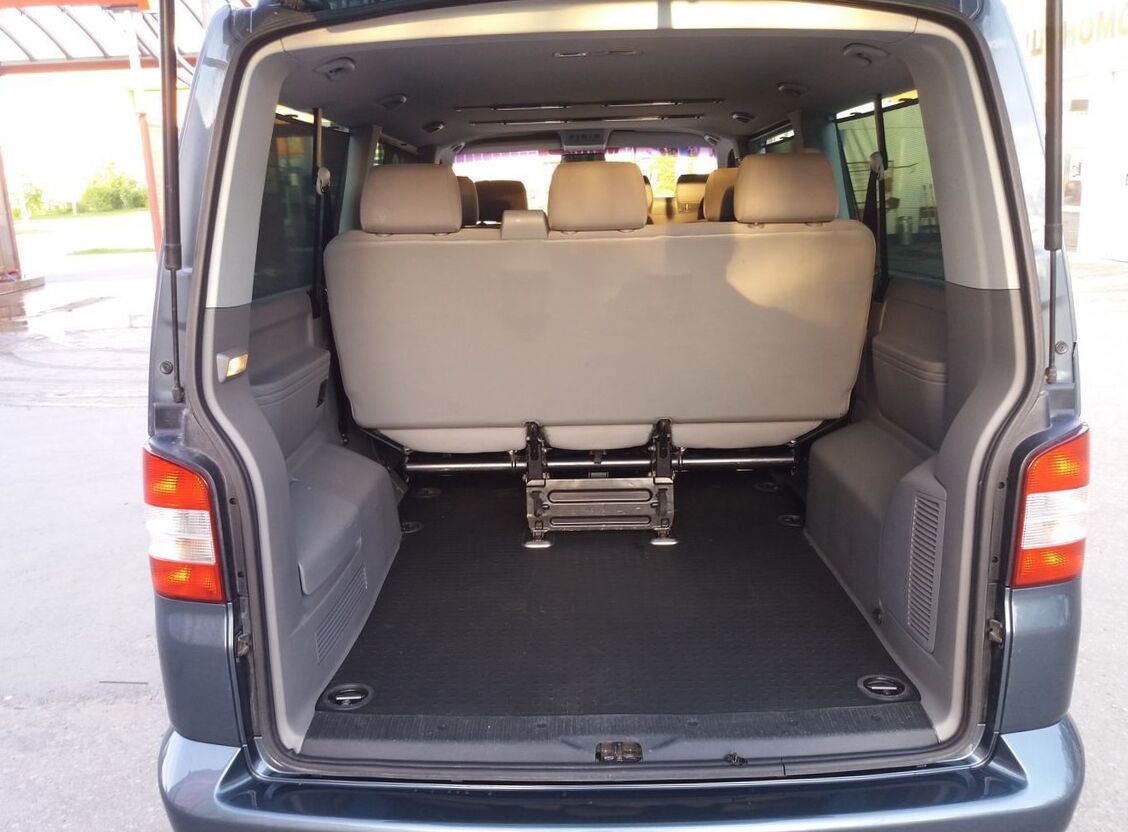

| Trunk volume | 5800 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent on double wishbones |
Wheel rims | |
| Aluminium wheel | option |
| Disc | 6J x 16 |

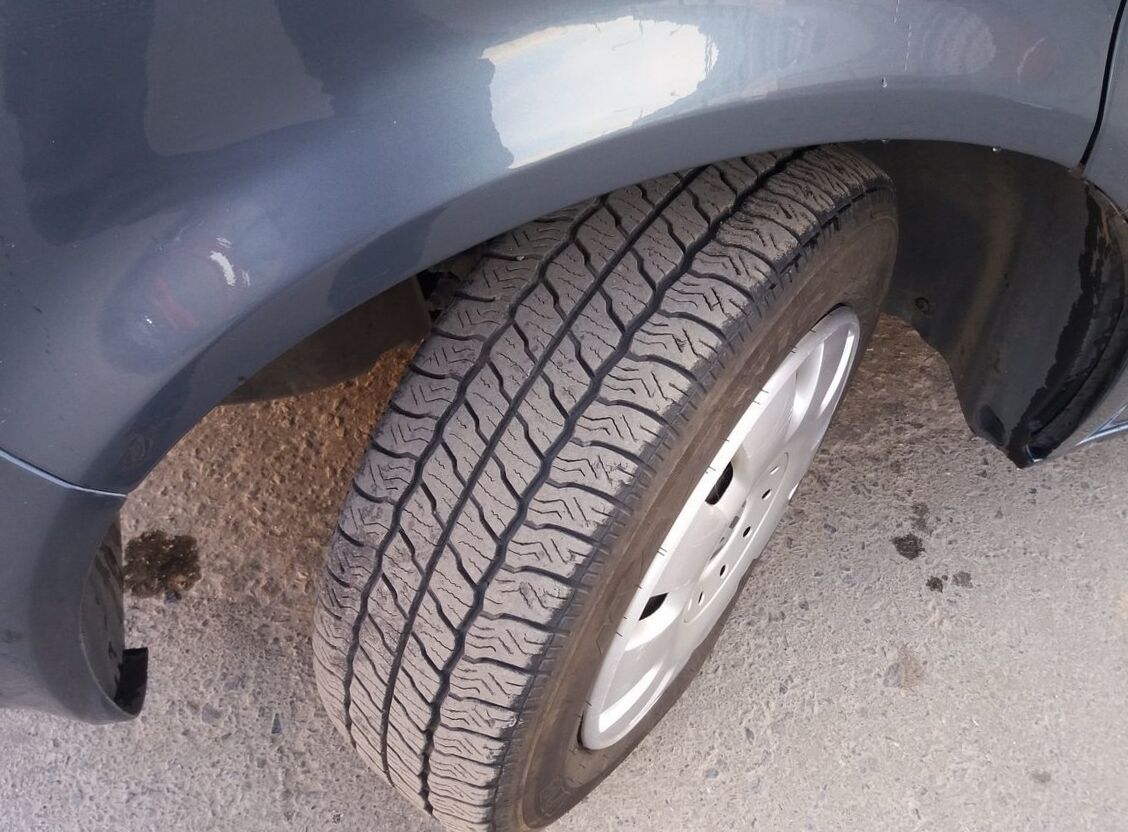

Tires | |
| Front wheels | 215/65 R 16 C 106/104 T |
| Rear wheels | 215/65 R 16 C 106/104 T |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
Exterior | |

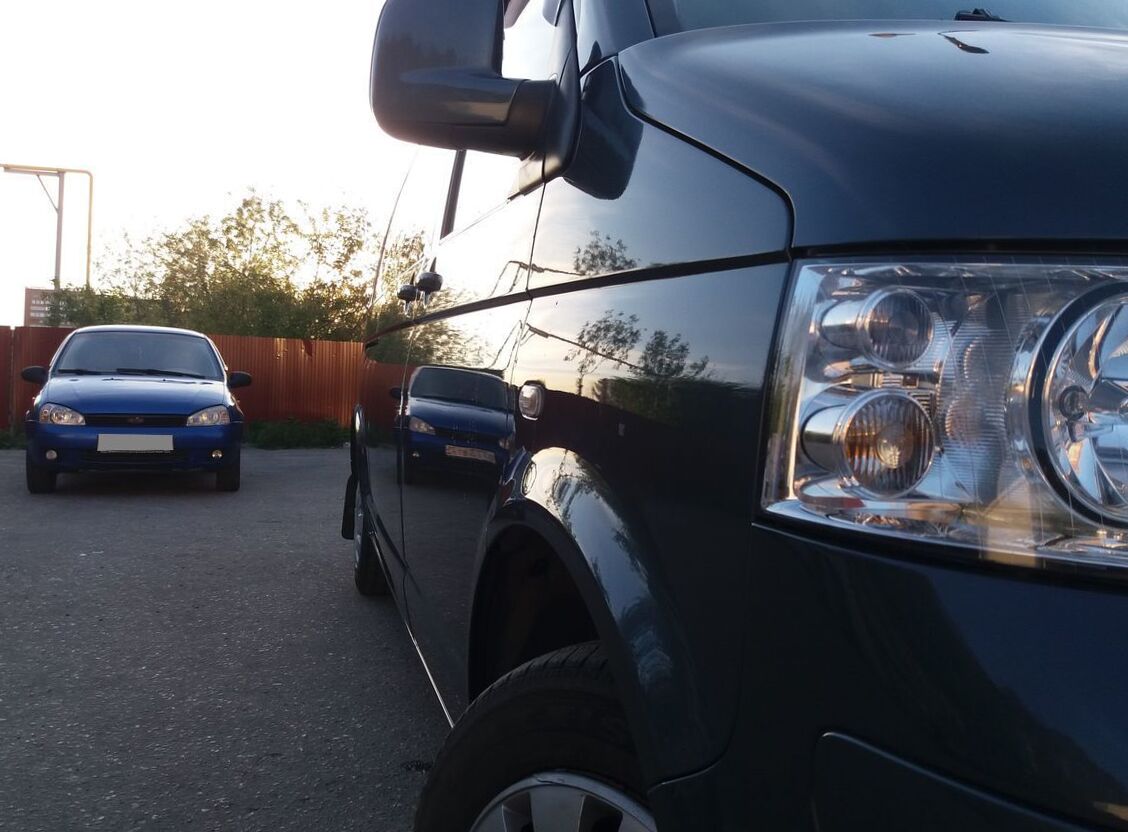

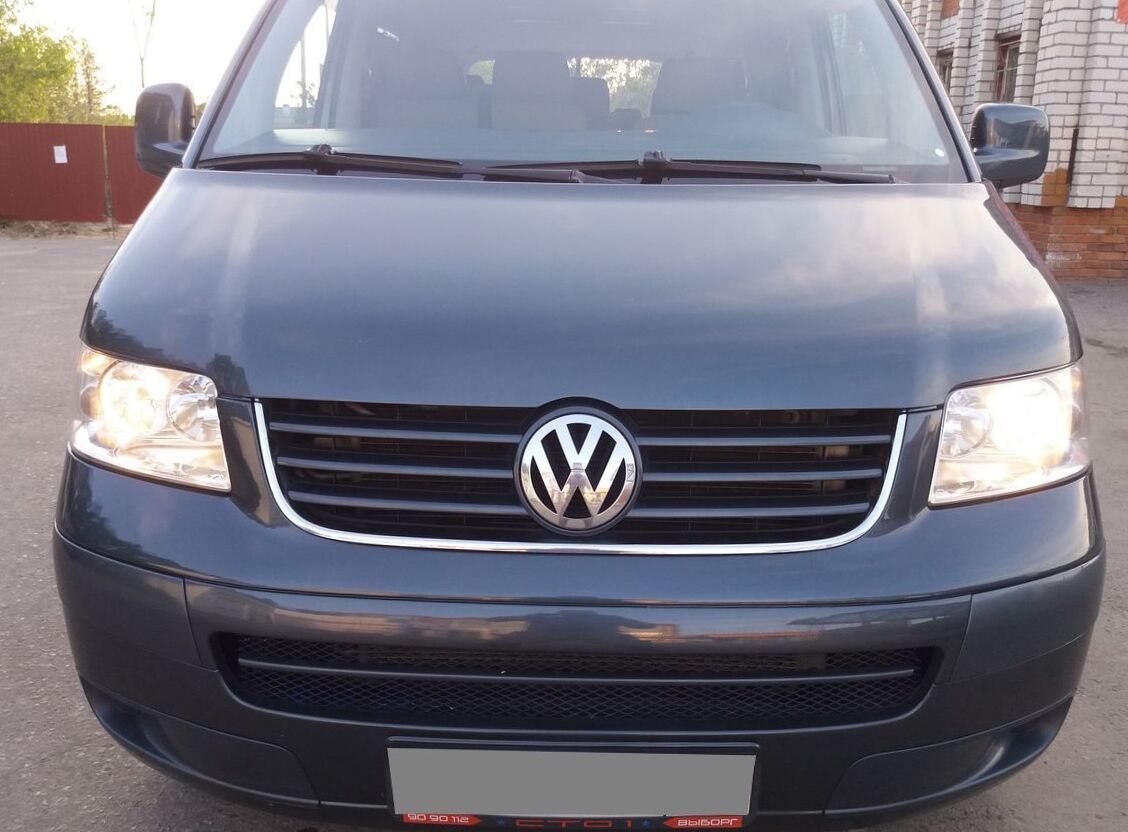

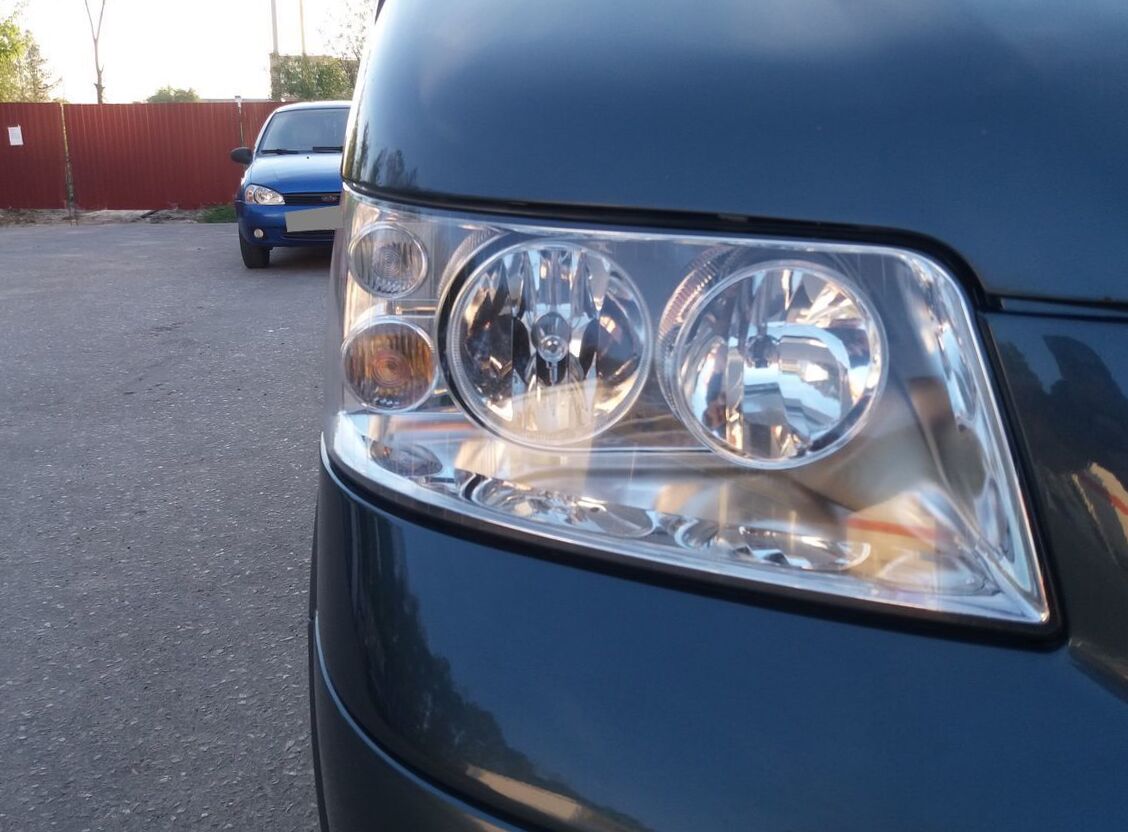

Headlights | |
| Halogen headlights | yes |
| Bixenon | no |
| Diod head lights | no |
| Head lights washer | option |
| Front fog lamps | option |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | no |
| Rain sensor | option |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Side sliding door | yes |
| Sliding doors | option |
| Sliding electric door | option |
| Sliding electric doors | option |
| Door handles in body color | yes |
Windows | |
| Privacy glass | option |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | option |
Accessories | |
| Roof rail | option |
| Bumpers | painted in body color |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |
Interior | |

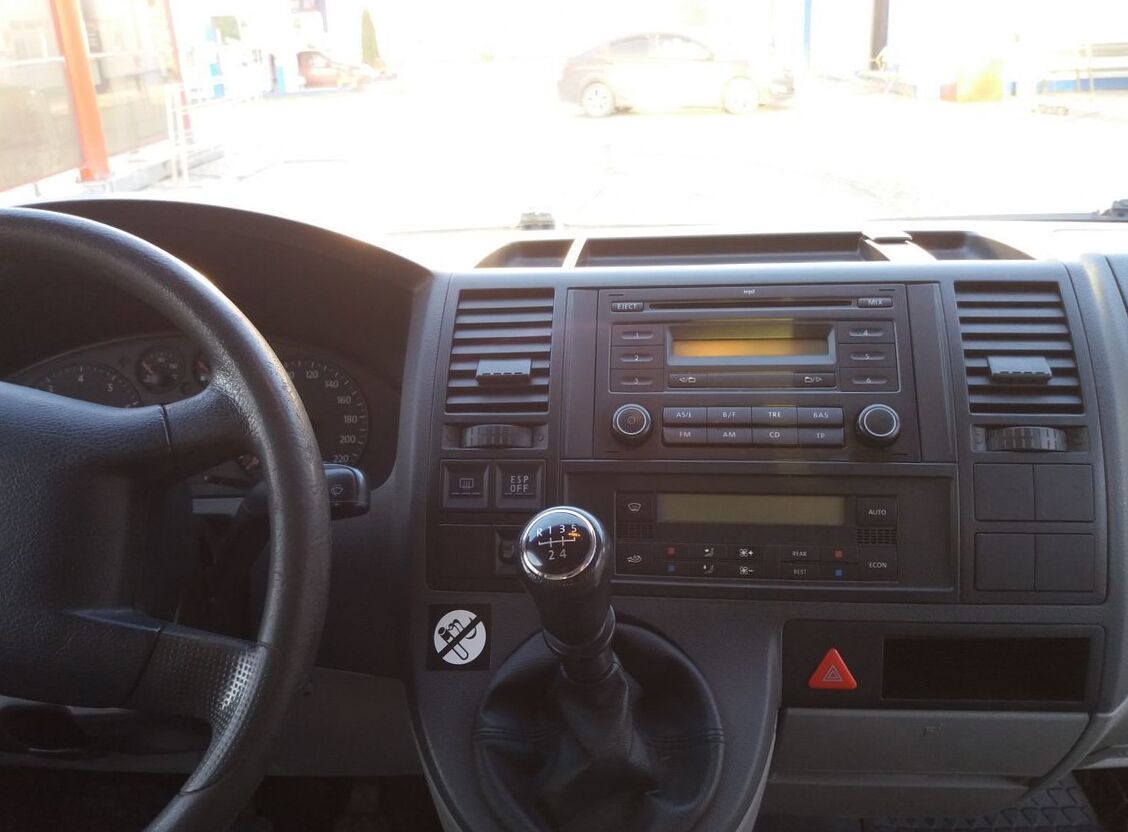

Steering wheel and center panel | |
| Leather winding | option |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | option |
| Utility color display | no |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | option |

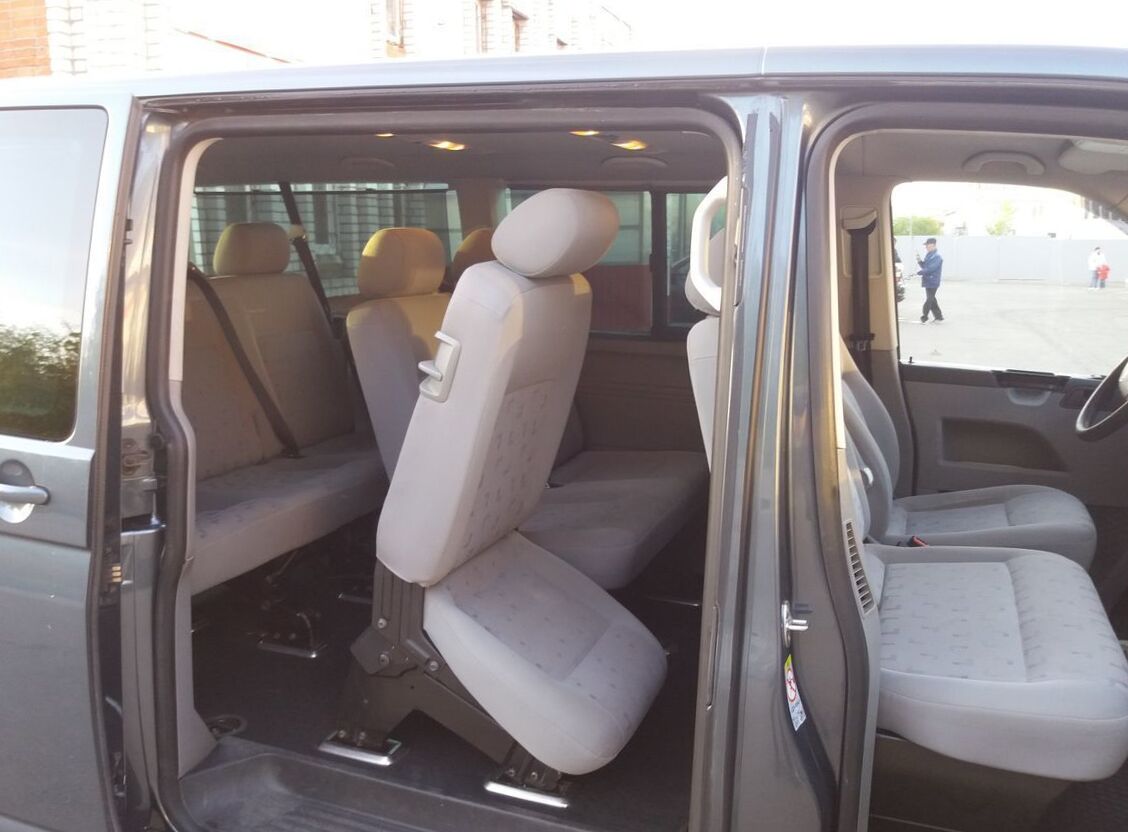

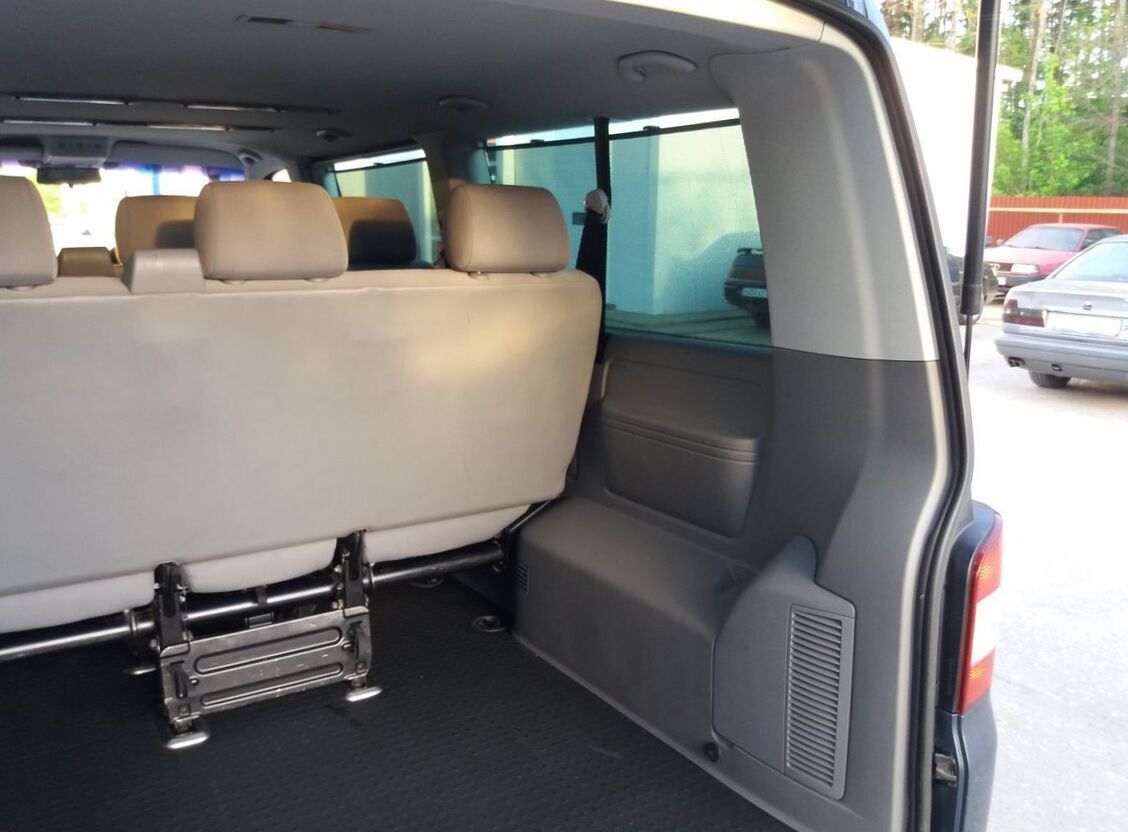

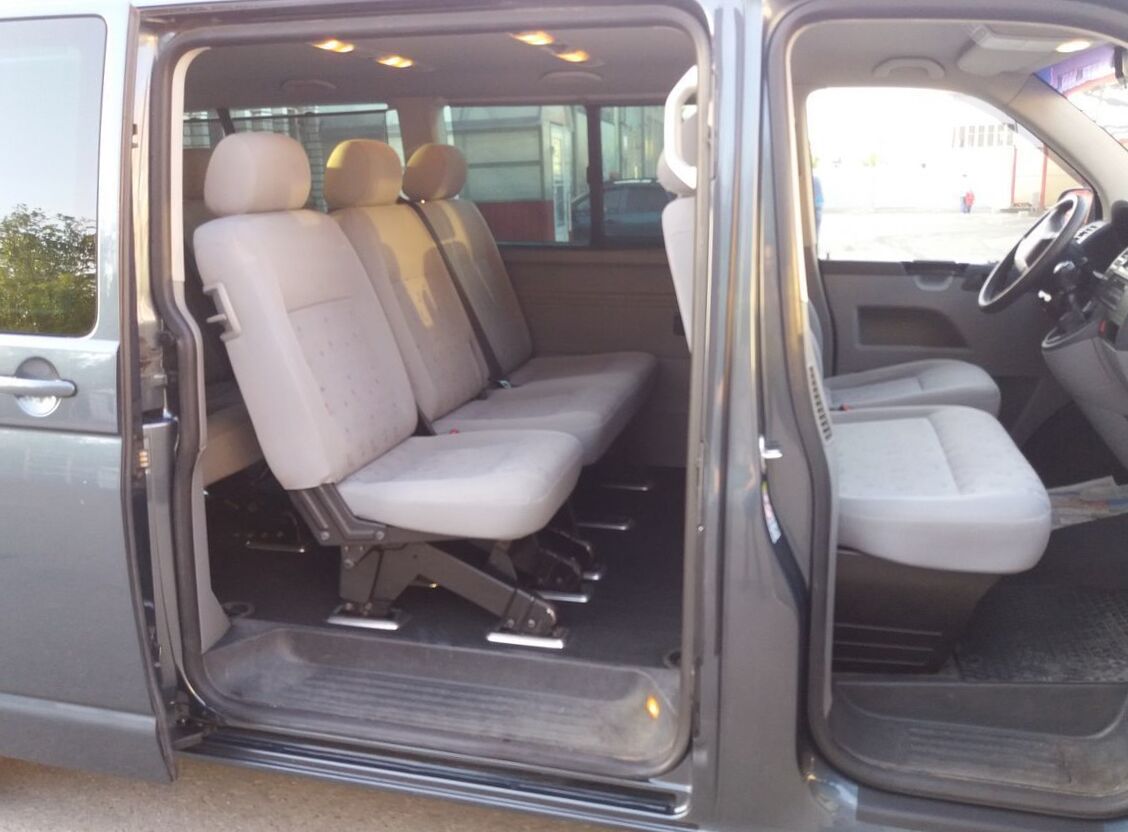

Seats | |
| Front seats ajust | Height-adjustable front seats |
| 2nd row | foldable, backrest is indivisible |
| 3nd row | adds up to a ratio of 2+1 |
| Loin reliance | yes |
| Separating armrest front | yes |
| Mats | yes |
Electric interior package | |
| Power ajustable front seat | no |
| Front seat heater | option |
| Centralized door lock | yes |
| Keyless enter | yes |

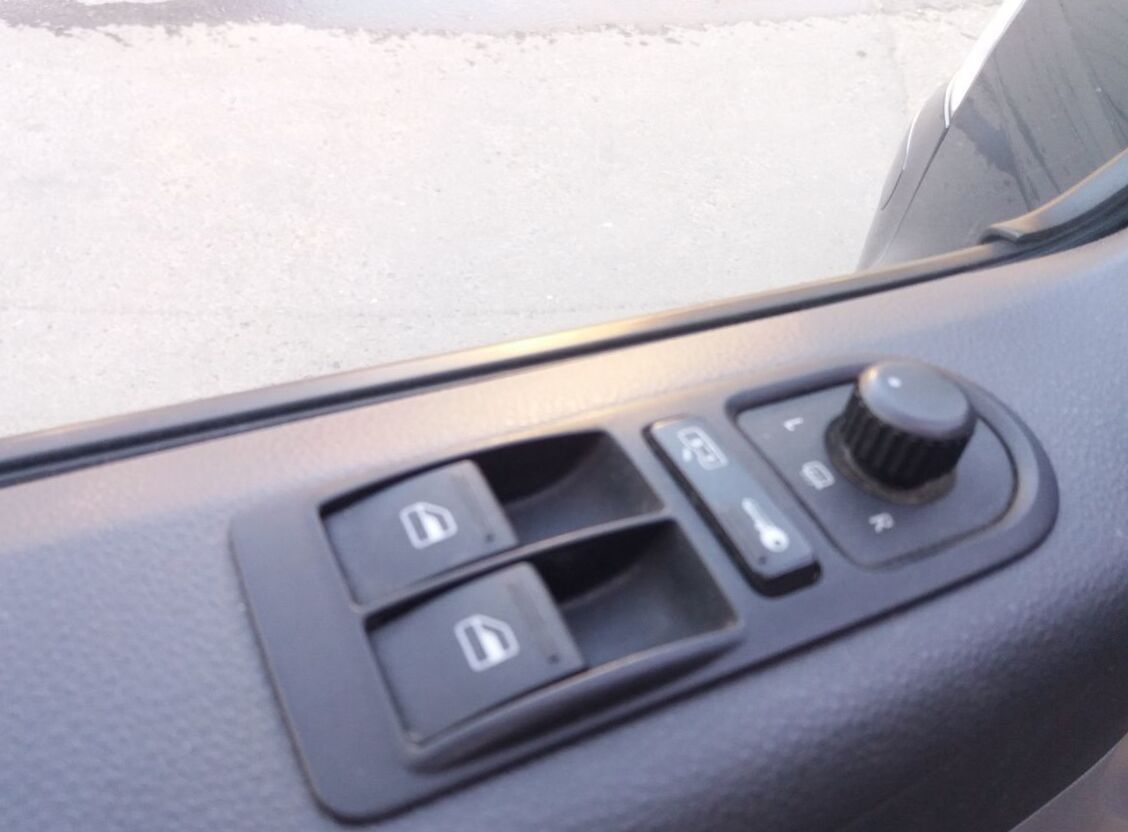

| Power window front | yes |
| Power window rear | no |
| Injectors heat | option |
Additional interior equipment | |
| Holders for bottles in doors | yes |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Passenger airbag deactivation function with | no |
| Side airbag | option |
| Curtain airbags | option |
Children safety | |
| isofix bar | option |
Electronic security and traffic control systems | |
| ABS | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | no |
| Damping Control System | no |
| Lane Keep Assist | no |
| Cruise control | option |
| Control system of a headlight | no |
| Intelligent AFS | no |
| Blind zone monitoring | no |
| Tires indicator | no |
| Front sonar | option |
| Rear sonars | option |
Amenity | |

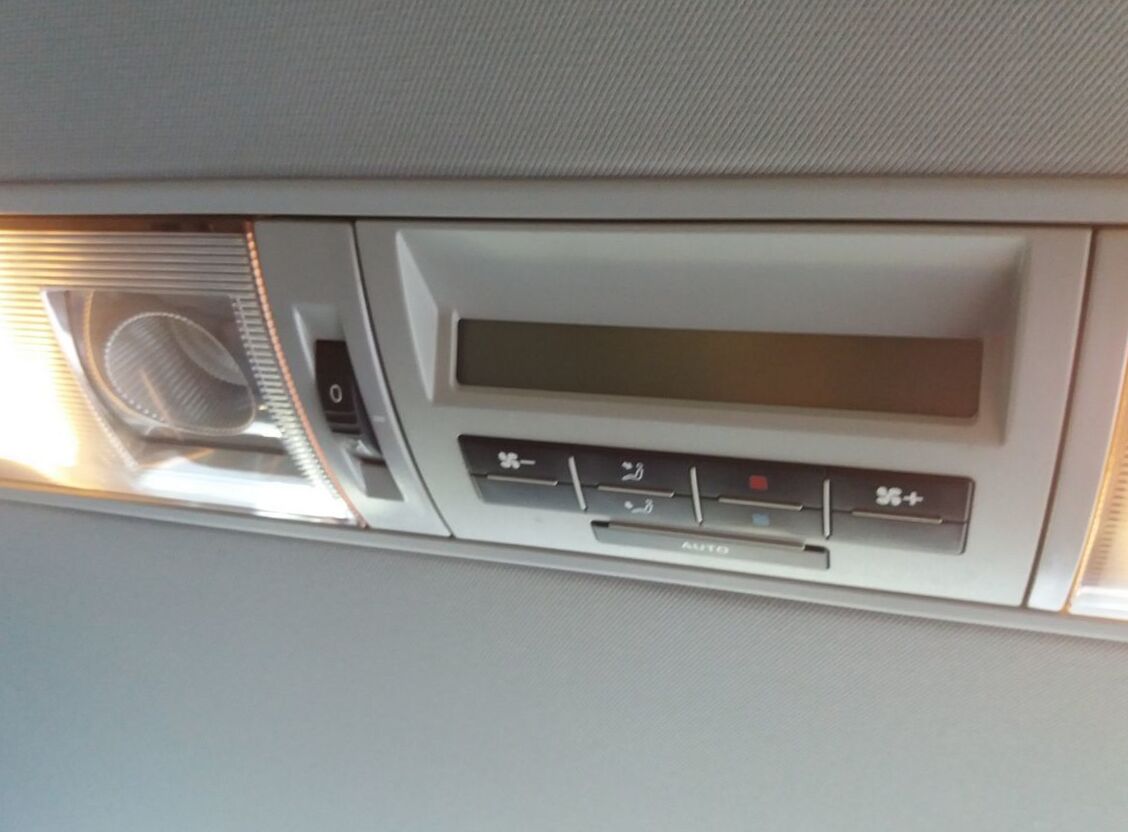

Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | option |
| Part climat equipment | 3 zones (optional) |
Audio systems | |
| Radio | option |
| Autoreverse casette | no |
| CD player | option |
| DVD-audio | no |
| MP3 Support | option |
| Hands free | option |
| Additional sound equipment | Audio equipment, 4 speakers |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
| Back monitor | no |
Additional amenities | |
| Antidazzle rearview mirror | option |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
| Alarm system | option |
| Bolt-card | option |
Driver Kit | |
| Spare tire | yes |
2007 Volkswagen Caravelle V 7HM, 7HF 2.0 Comfortline (115 Hp) specs
|
