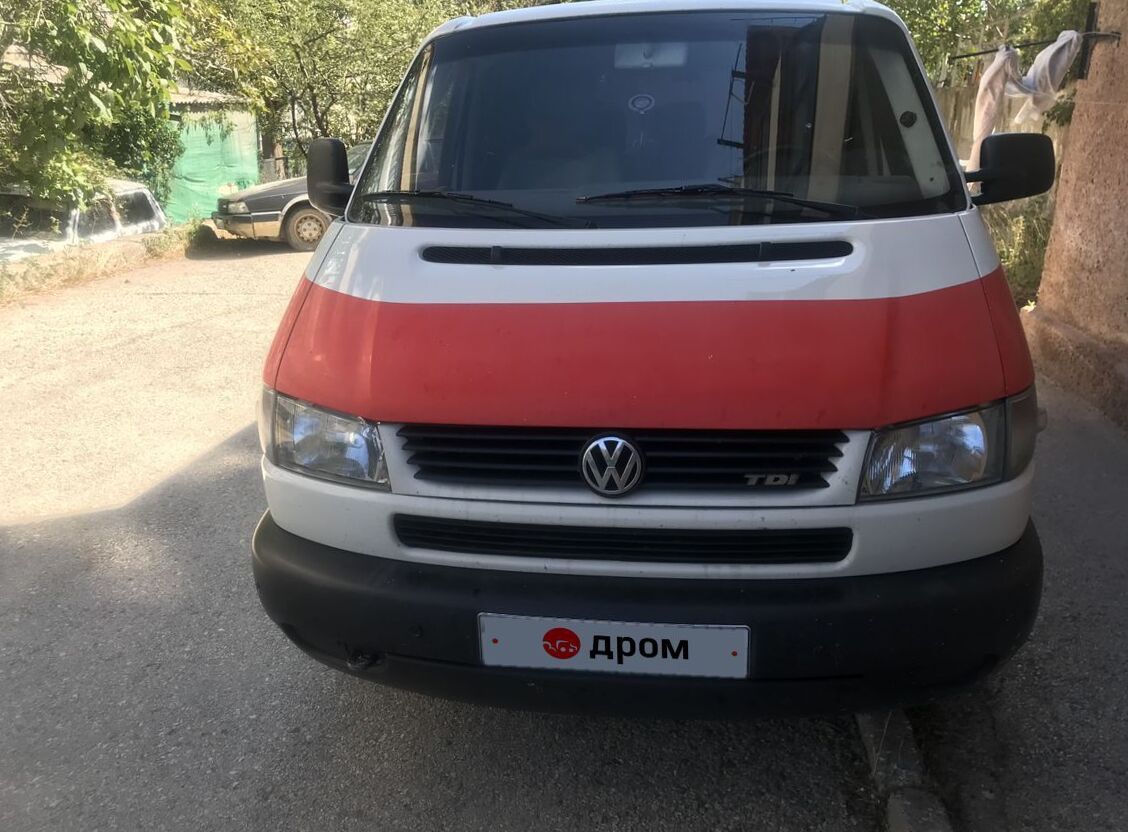

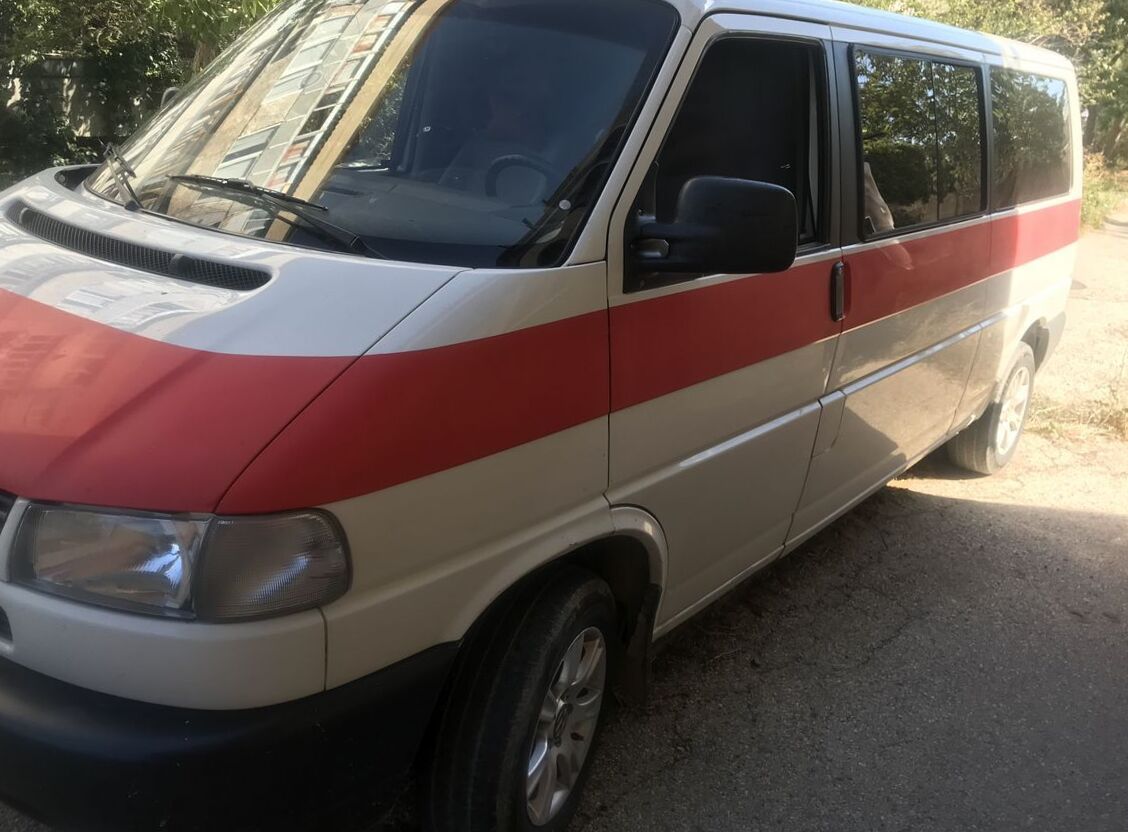

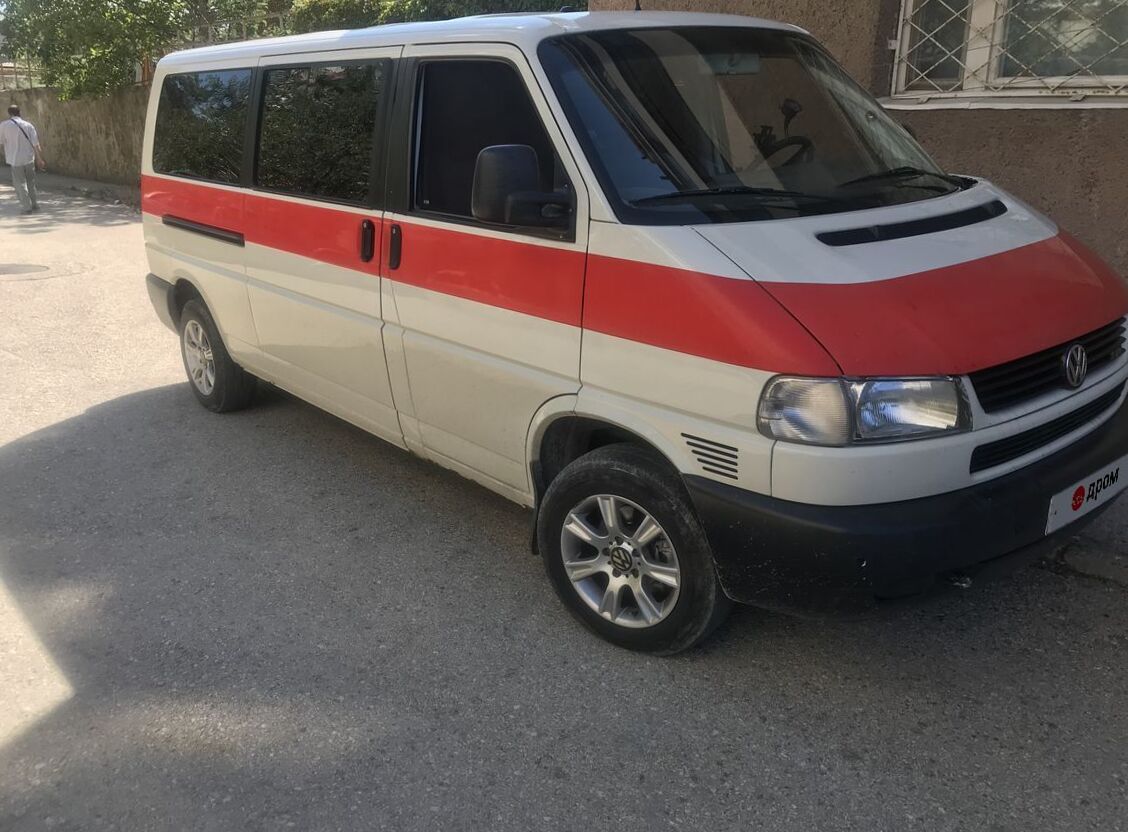

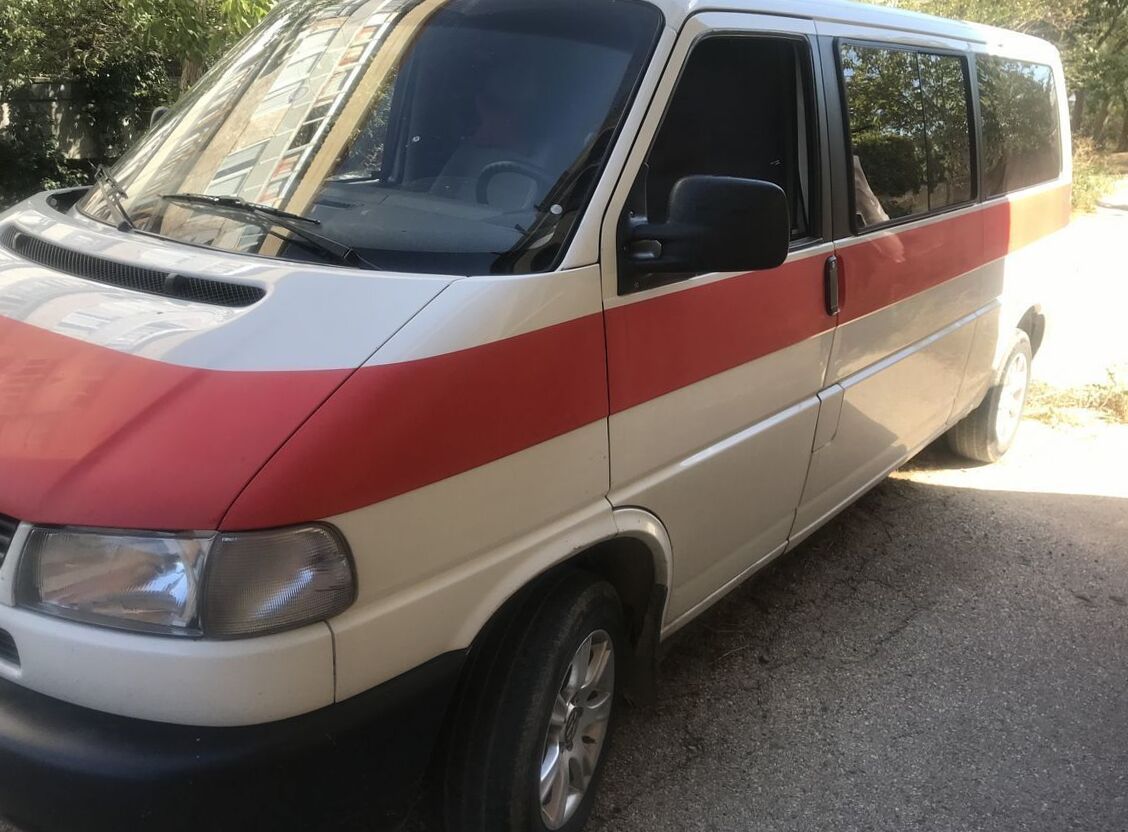

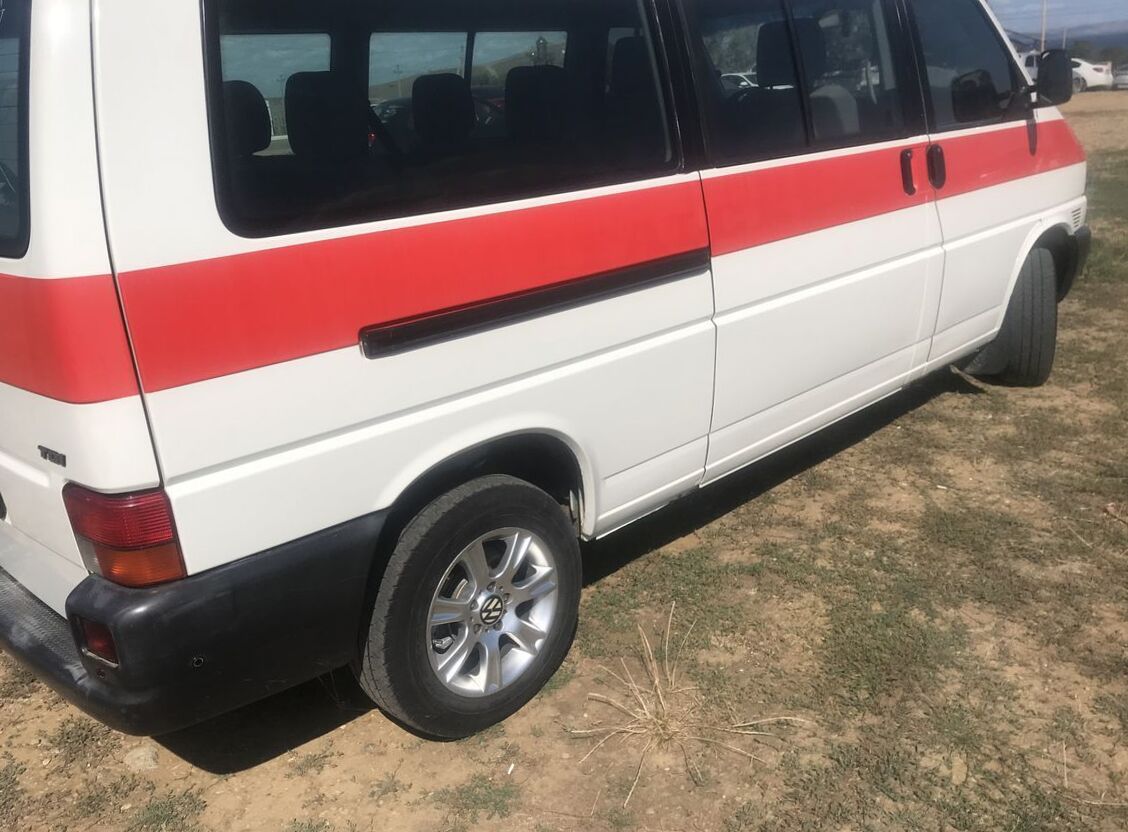

2002 Volkswagen Caravelle IV 2.5 TDI MT Long
More photos of Volkswagen Caravelle
Volkswagen Caravelle Problems
Injector pump diesel
1998, Fuel pump will not deliver into the
injectors will not start or runs it cranks but
no fu...
Auto Transmission has "burnt out" again
2001, We purchased the caravelle a year ago,
just after it had auto transmission replaced at
c...
Fuel tank spill
1993, my combi fuel gage is not working
properly. even if it is empty the needle stays
at quat...
Volkswagen Caravelle Problems
Injector pump diesel
1998, Fuel pump will not deliver into the
injectors will not start or runs it cranks but
no fu...
Auto Transmission has "burnt out" again
2001, We purchased the caravelle a year ago,
just after it had auto transmission replaced at
c...
Fuel tank spill
1993, my combi fuel gage is not working
properly. even if it is empty the needle stays
at quat...
| Body type | Minivan |
|---|---|
| Power | 102 Hp |
| Engine Displacement | 2500 cm3 or 2.5L or 152.5 cu-in |
| Color | white |
| Transmission Gearbox | Manual |
| Fuel Type | Diesel |
| Drive wheel | FF |
| Mileage | 167770 Miles |
| Vin | WV2ZZZ70Z3H****18 |
| Price (out of date) | $13225 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2002 Volkswagen Caravelle IV? | Minivan, 7 Seats, 3 Doors |
| What is the fuel economy, Volkswagen Caravelle Minivan 2002? | 7.9 l/100 km |
| How fast is the car, Volkswagen Caravelle 7DK 2002? | 157 km/h, 0-100 km/h: 18.1 sec |
| How much power, 2002 Volkswagen Caravelle 2.5 TDI MT Long? | 102 Hp |
| What is the engine size, Volkswagen Caravelle IV 2002 Minivan 2.5 TDI MT Long (102 Hp)? | 2.5L or 2461cm3 |
| How many gears, What type is the gearbox, 2002 Volkswagen Caravelle Minivan 2.5 TDI MT Long (102 Hp)? | 5 speed Manual |
| What is the drivetrain, 2002 Volkswagen Caravelle IV? | Front |
| How long is this vehicle, Volkswagen Caravelle Minivan 2002? | 5189 mm |
| How wide is the vehicle, Volkswagen Caravelle 7DK 2002? | 1840 mm |
| What is the gross weigh, 2002 Volkswagen Caravelle 2.5 TDI MT Long? | 2700 kg |
| How much trunk (boot) space, Volkswagen Caravelle IV 2002 Minivan 2.5 TDI MT Long (102 Hp)? | 540 l |
Volkswagen Caravelle IV 7DK 2.5 TDI MT Long (102 Hp) 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 Specs
General information | |
|---|---|
| Complectation name | 2.5 TDI MT Long |
| Production start year | 1995 |
| Production end year | 2003 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 2461 |
| Frame name | 7DK |
| 0 to 100 time | 18.1 |
| Max speed | 157 |
| Clearance, mm | 150 |
| Manufacturing country | Germany |
| Doors | 3 |
Vehicle generation | |
| Generation name | T4 |
| Generation number | 4 |
| Facelift number | 1 |
| Production start year | 1995 |
| Production end year | 2003 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | ACV, AUF, AXL, AYC |
| Fuel | Diesel |
| Engine type | In-line, 5-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 102 |
| Max power RPM, rpm | 3500 |
| Max power, hp (kWt) / rpm | 102 (75) / 3500 |
| Max torque, N*m | 250 |
| Max torque RPM, rpm | 2300 |
| Max torque, N*m (kg*m) / rpm | 250 (26) / 2300 |
| Valves per cylinder | 2 |
| Compression ratio | 19.5 |
| Bore, mm | 81 |
| Stroke, mm | 95.5 |
| Engine additional info | direct fuel injection |
| Start stop system | no |
Fuel consumption | |
| City | 9.9 |
| Country side | 6.8 |
| Combined | 7.9 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5189 |
| Exterior width, mm | 1840 |
| Exterior height, mm | 1940 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 3320 |
| Turning radius, m | 6.05 |
| Wheel spacing front | 1589 |
| Wheel spacing rear | 1554 |
Weight and permissible load | |
| Mass, kg | 1925 |
| Max capacity | 775 |
| Max. weight | 2700 |
| Max roof weight | 100 |
| Max towbar effort | 100 |
| Trailer max weight wobrakes | 700 |
| Trailer max weight wbrakes | 2000 |
| Front axe load | 1600 |
| Rear axe load | 1330 |
Volumes | |
| Fuel tank capacity, l | 80 |
| Trunk volume | 540 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear stablilizer | option |
| Rear suspension | Independent, spring-loaded |
Wheel rims | |
| Aluminium wheel | option |
| Disc | 6J x 15 |
Tires | |
| Front wheels | 205/65 R15 |
| Rear wheels | 205/65 R15 |
Brakes | |
| Front brake | Discs |
| Rear brake | Discs |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Head lights washer | option |
| Front fog lamps | option |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Rain sensor | no |
Side mirrors | |
| Exterior mirrors in body color | option |
| Power adjustable door mirrors | option |
| Door mirrors heating | option |
Doors | |
| Side sliding door | yes |
| Sliding doors | option |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door handles in body color | option |
Windows | |
| Privacy glass | option |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | option |
Accessories | |
| Roof rail | no |
| Bumpers | unpainted |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |
Interior | |
Steering wheel and center panel | |
| Leather winding | option |
| Adjustable steering | yes |
| Telescopic steering | no |
| Tilt steering | yes |
| Audio control on steering wheel | no |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | option |

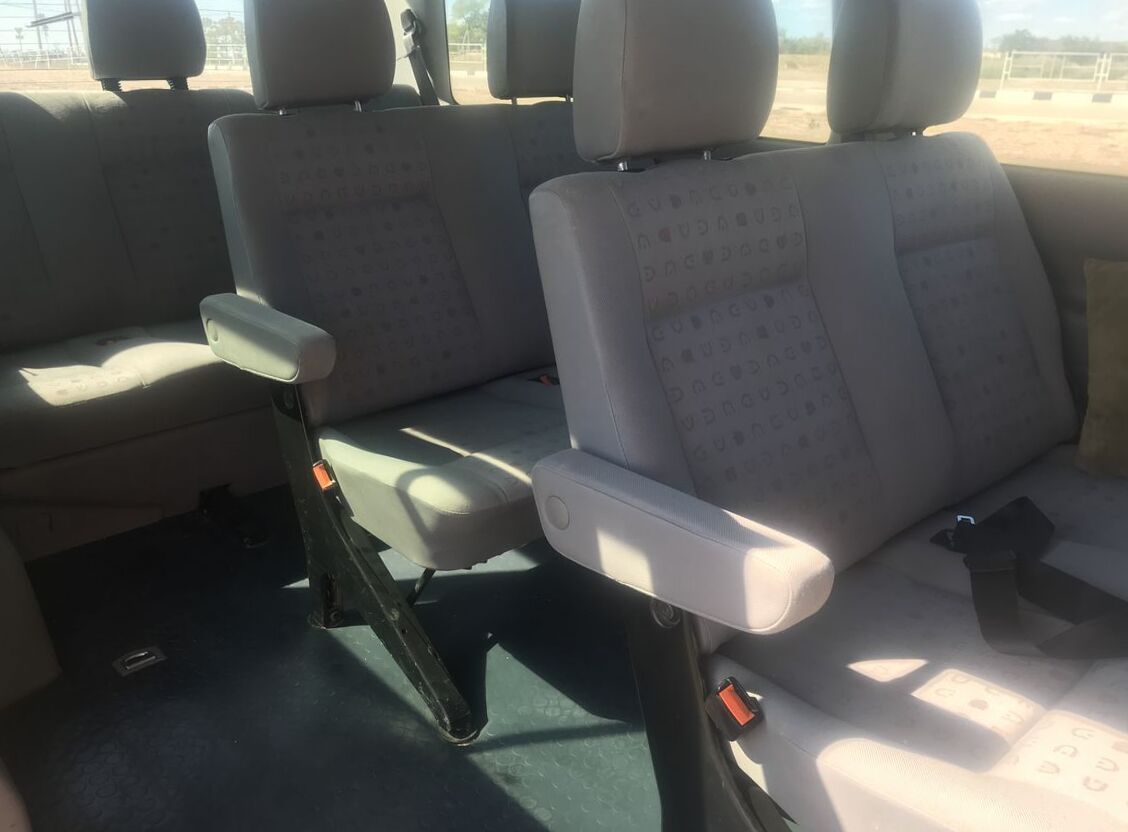

Seats | |
| Front seats ajust | Four-way adjustable front seats |
| 2nd row | foldable, backrest is indivisible |
| 3nd row | adds up to a ratio of 2+1 |
| Loin reliance | option |
| Separating armrest front | option |
| Mats | option |
Electric interior package | |
| Front seat heater | option |
| Centralized door lock | option |
| Keyless enter | option |
| Power window front | option |
| Power window rear | no |
| Injectors heat | option |
Additional interior equipment | |
| Holders for bottles in doors | yes |
| Smokers packet | option |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | option |
| Passenger airbag deactivation function with | no |
| Side airbag | no |
| Curtain airbags | no |
Children safety | |
| isofix bar | option |
Electronic security and traffic control systems | |
| ABS | option |
| ESP | option |
| traction control | option |
| Cruise control | option |
| Front sonar | no |
| Rear sonars | no |
Amenity | |
Microclimate | |
| Air conditioner | option |
| Automatic air conditioning | option |
Audio systems | |
| Radio | option |
| Autoreverse casette | option |
| CD player | option |
| MP3 Support | no |
| Hands free | no |
| Additional sound equipment | audio equipment, 2 speakers |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
Additional amenities | |
| Antidazzle rearview mirror | no |
| Mirrors in sunshields | yes |
| Onboard computer | option |
Car safety | |
| Immobilizer | no |
| Alarm system | option |
| Bolt-card | no |
Driver Kit | |
| Spare tire | yes |
2002 Volkswagen Caravelle IV 7DK 2.5 TDI MT Long (102 Hp) specs
|
