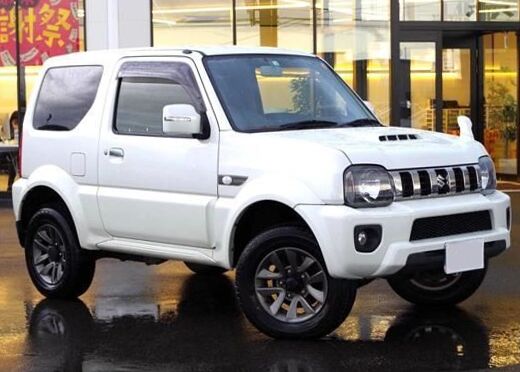

2018 Suzuki Jimny Sierra III 1.3 Land Venture 4WD
Suzuki Jimny Sierra Problems
Fuel Pump failure
1991, No fuel supply to carburetor. The car
engine will not start but after knocking the
car f...
Car engine
1993, the engine needs anew one-its a manual
car with 1300 cc engine type G13B. the old
engine...
Problum
1988, prob with my car is suzuki jimny sj413
1988 model. my problum is my car milage petrol
....
| Body type | SUV 3 Doors |
|---|---|
| Power | 88 Hp |
| Engine Displacement | 1300 cm3 or 1.3L or 79.3 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Vin | 635*** |
| Price (out of date) | $10341 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2018 Suzuki Jimny Sierra III? | SUV, 4 Seats, 3 Doors |
| What is the fuel economy, Suzuki Jimny Sierra SUV 2018? | 7.9 l/100 km |
| How much power, Suzuki Jimny Sierra ABA-JB43W 2018? | 88 Hp |
| What is the engine size, 2018 Suzuki Jimny Sierra 1.3 Land Venture 4WD? | 1.3L or 1328cm3 |
| How many gears, What type is the gearbox, Suzuki Jimny Sierra III 2018 SUV 1.3 Land Venture 4WD (88 Hp)? | Automatic transmission 4 |
| What is the drivetrain, 2018 Suzuki Jimny Sierra SUV 1.3 Land Venture 4WD (88 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2018 Suzuki Jimny Sierra III? | 3600 mm |
| How wide is the vehicle, Suzuki Jimny Sierra SUV 2018? | 1600 mm |
Suzuki Jimny Sierra III ABA-JB43W 1.3 Land Venture 4WD (88 Hp) 2014, 2015, 2016, 2017, 2018 Specs
General information | |
|---|---|
| Production start year | 2014 |
| Production end year | 2018 |
| Drive type | All wheel drive (4x4) |
| Frame type | SUV |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1328 |
| Frame name | ABA-JB43W |
| Clearance, mm | 190 |
| Manufacturing country | Japan |
| Doors | 3 |
| Steering locaton | right |
Vehicle generation | |
| Generation name | JB43 |
| Generation number | 3 |
| Facelift number | 1 |
| Production start year | 2012 |
| Production end year | 2018 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | M13A |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Max power, hp | 88 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 88 (65) / 6000 |
| Max torque, N*m | 118 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 118 (12) / 4000 |
| Valves per cylinder | 4 |
| Compression ratio | 9.5 |
| Bore, mm | 78 |
| Stroke, mm | 69.5 |
| Engine additional info | VVT, electronic fuel injection system |
Fuel consumption | |
| Combined | 7.9 |
Transmission | |
| 1st gear ratio | 2.875 |
| 2nd gear ratio | 1.568 |
| 3rd gear ratio | 1 |
| 4th fear ratio | 0.696 |
| Rear gear ratio | 2.3 |
| Main gear ratio | 4.09 |
| Shifter position | On the floor. |
Steering | |
| Electric power steering | yes |
| Steereing gear type | Ball nut screw |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3600 |
| Exterior width, mm | 1600 |
| Exterior height, mm | 1705 |
Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
| Interior length, mm | 1685 |
| Interior width, mm | 1220 |
| Interior height, mm | 1210 |
Chassis dimensions | |
| Wheel base, mm | 2250 |
| Front axle length, mm | 1355 |
| Rear axle length, mm | 1365 |
| Turning radius, m | 4.9 |
| Wheel spacing front | 1355 |
| Wheel spacing rear | 1365 |
Weight and permissible load | |
| Mass, kg | 1060 |
Volumes | |
| Fuel tank capacity, l | 40 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Dependent, spring loaded |
| Rear suspension | Dependent, spring loaded |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |
| Front wheels | 205/70R15 |
| Rear wheels | 205/70R15 |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
Exterior | |

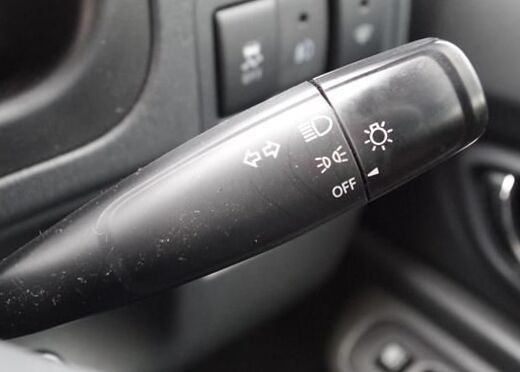

Headlights | |
| Halogen headlights | yes |
| Front fog lamps | yes |
| Additional stop light | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Door handles in body color | no |
| Chrome door handles | yes |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Accessories | |
| Roof rail | yes |
| Bumpers | painted |

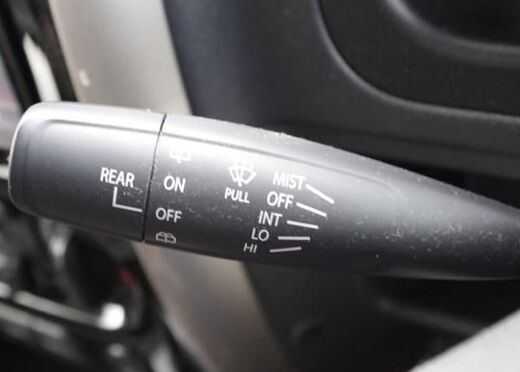

| Back wiper | yes |
| Rear mudflaps | yes |

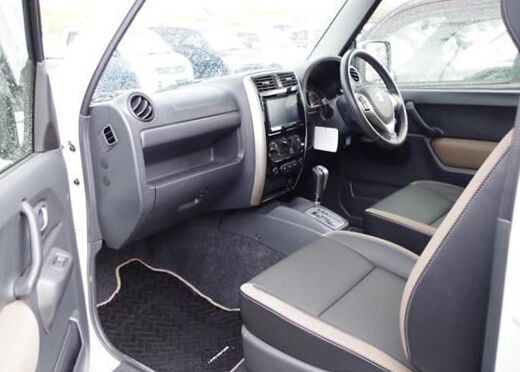

Interior | |

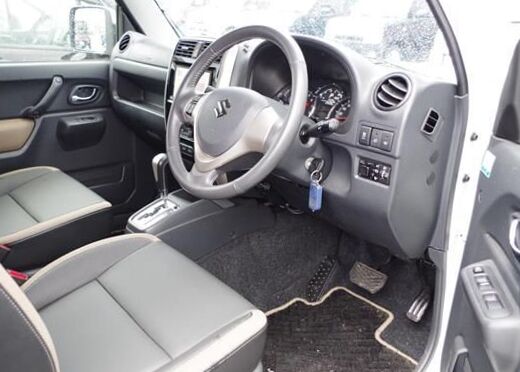

Steering wheel and center panel | |
| Leather winding | yes |

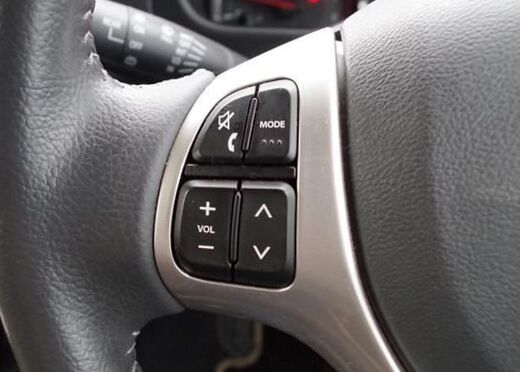

| Audio control on steering wheel | yes |
| Tachometer | yes |
Interior design | |
| Cloth upholstery | no |
| Combined obivka Salon | yes |
| Water-repellent | yes |

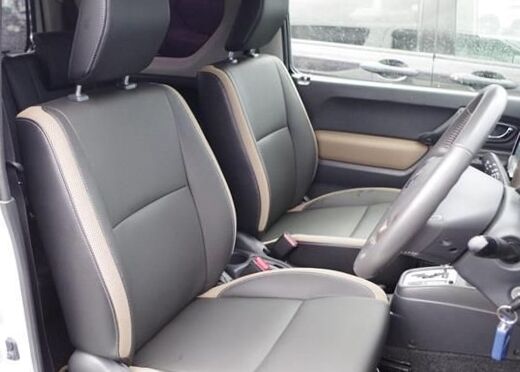

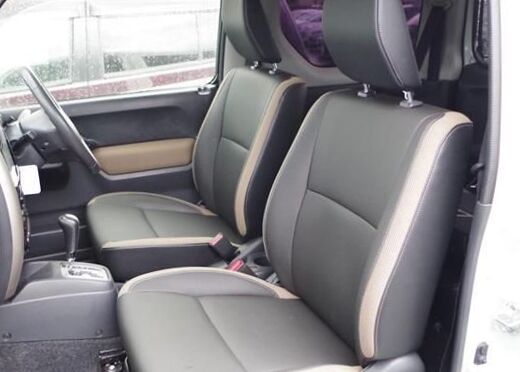

Seats | |
| 2nd row | 50/50 ratio fold seat |
| Headrests for seats | 4 |
Electric interior package | |
| Front seat heater | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window | yes |
Additional interior equipment | |
| Smokers packet | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Side impact bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air filter | yes |
Audio systems | |
| Radio | no |
| CD player | no |
| Additional sound equipment | 2 speakers |
Additional amenities | |
| Mirrors in sunshields | yes |
| Lagage box | yes |
| Onboard computer | yes |
Driver Kit | |
| Spare tire | yes |
2018 Suzuki Jimny Sierra III ABA-JB43W 1.3 Land Venture 4WD (88 Hp) specs
|
Jimny 55 Jimny 8 Jimny 550 SJ40 Jimny 1000 The SJ410 was introduced in 1982 as an updated version of the LJ80. It used a larger version of that LJ's 1.0 liter 4-cylinder engine. This engine produced 45hp (34kW) and it had a top speed of 68mph (109km/ h). A 4-speed manual transmission was standard, as were non-power assisted drum brakes front and rear. The SJ-410 came as a half-door convertible, pickup truck, 2-door hardtop, raised-roof hardtop, and no-glass hardtop. The SJ was produced in Spain by Santana Motors in their Linares, Jaén factory and sold as a domestic vehicle in Europe due to its over 60% native parts. JA51 Jimny 1300 In 1984, the SJ was revamped with the launch of the SJ413. The SJ413 included a larger 1.3 liter 4-cylinder engine, 5-speed manual transmission and power brakes all around. The body and interior were also redesigned, with a new dashboard, seats, and grille. The SJ410 remained in production through 1985 with the old specifications. » Read More About Suzuki Jimny Sierra |
