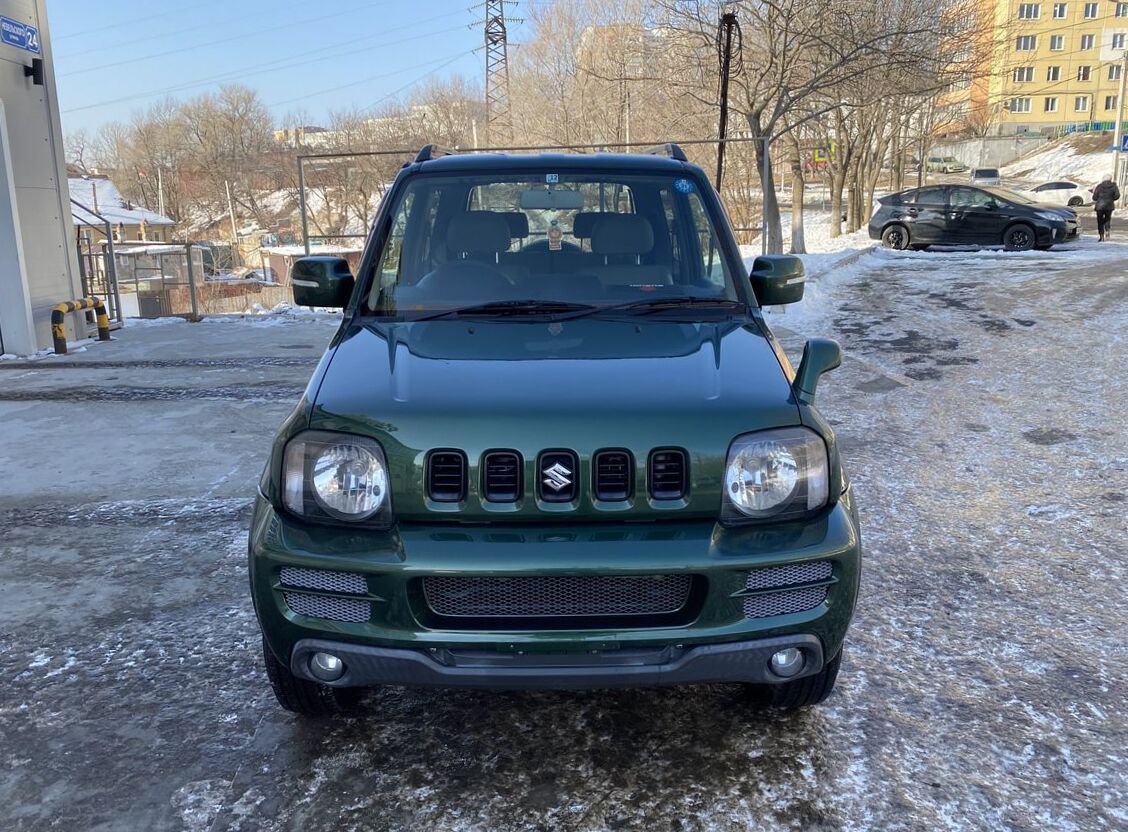

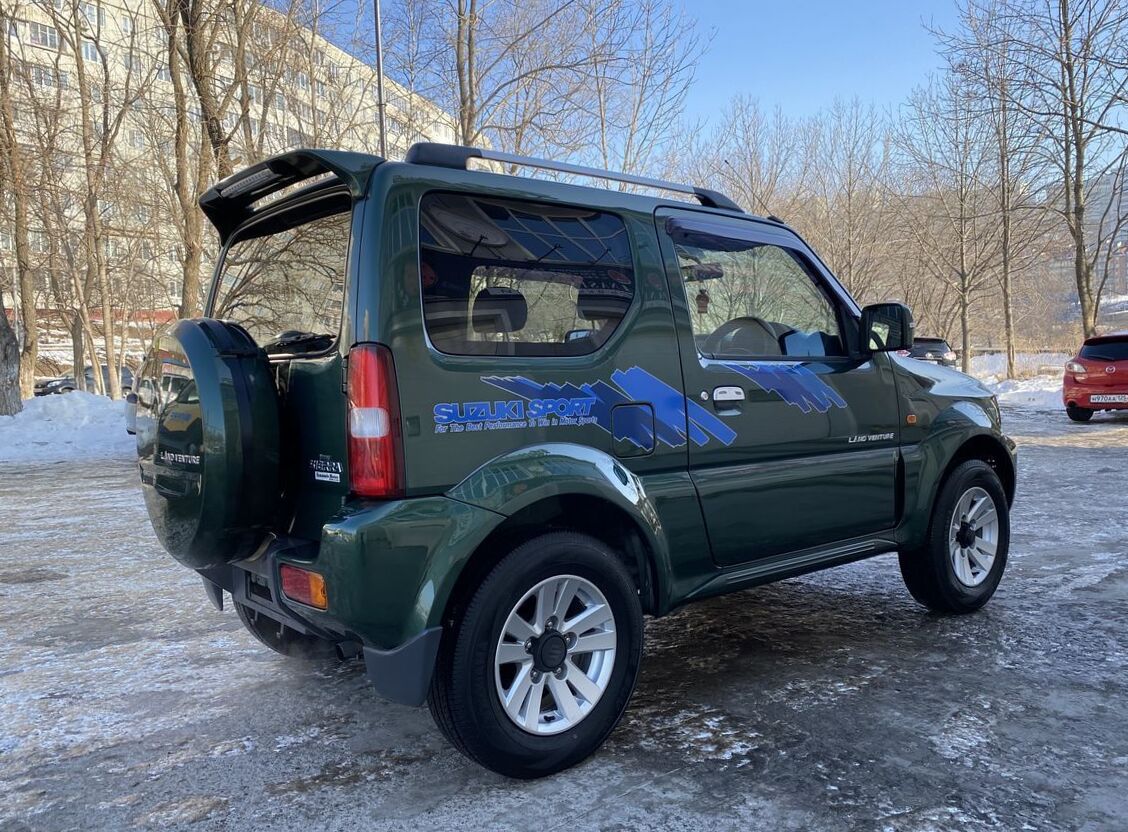

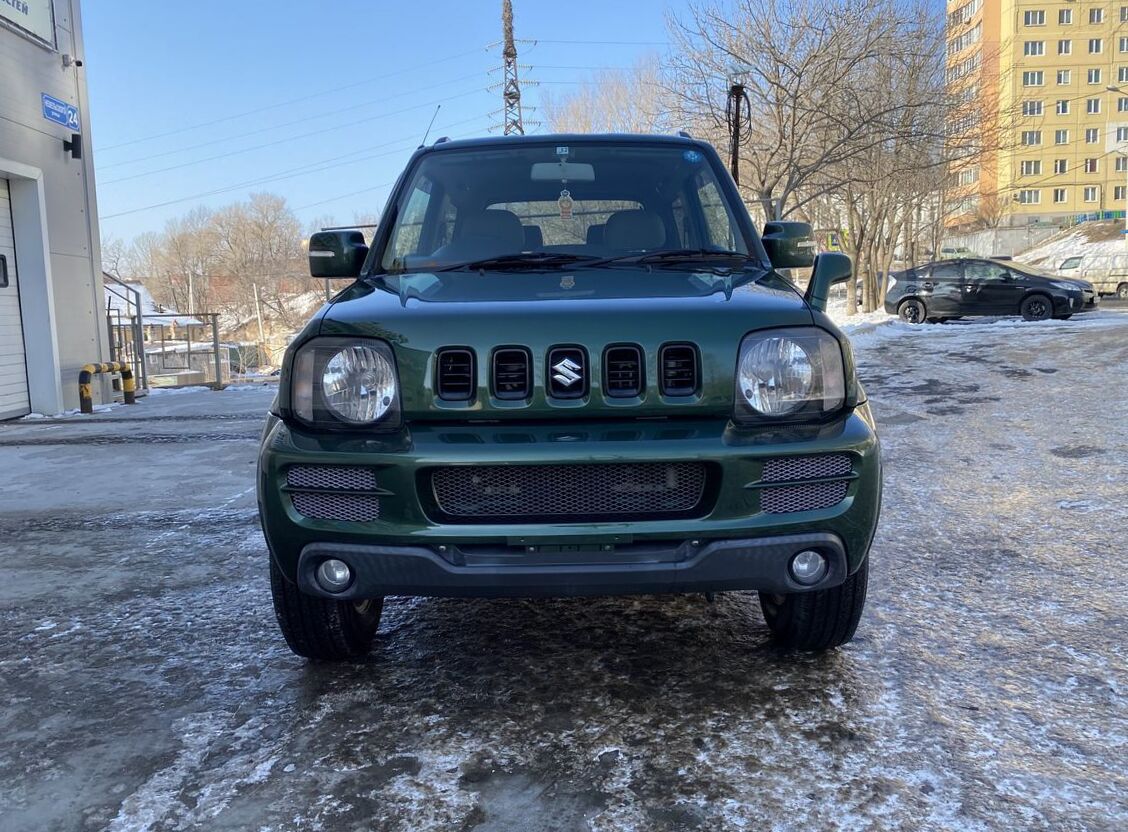

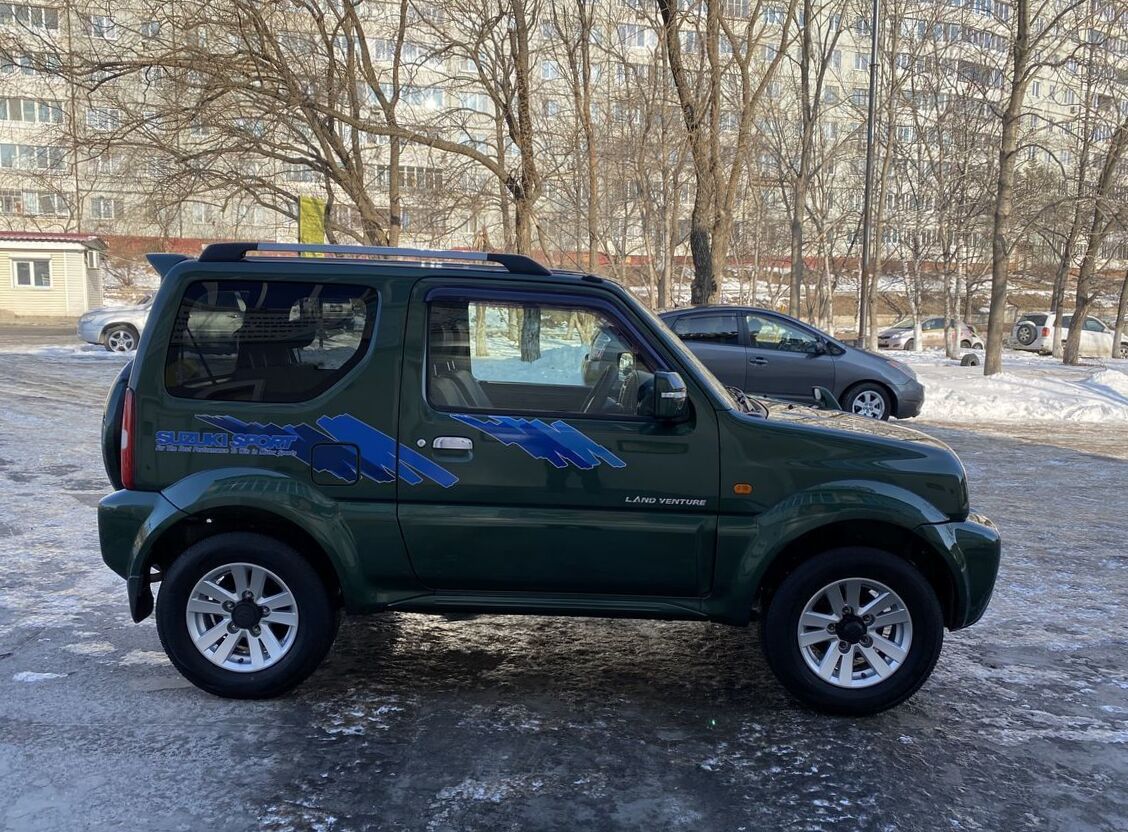

2010 Suzuki Jimny Sierra III 1.3 Land Venture 4WD
Suzuki Jimny Sierra Problems
Fuel Pump failure
1991, No fuel supply to carburetor. The car
engine will not start but after knocking the
car f...
Car engine
1993, the engine needs anew one-its a manual
car with 1300 cc engine type G13B. the old
engine...
Problum
1988, prob with my car is suzuki jimny sj413
1988 model. my problum is my car milage petrol
....
| Body type | SUV 3 Doors |
|---|---|
| Power | 88 Hp |
| Engine Displacement | 1300 cm3 or 1.3L or 79.3 cu-in |
| Color | green |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 56544 Miles |
| Vin | JB43W-****33 |
| Price (out of date) | $11426 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2010 Suzuki Jimny Sierra III? | SUV, 4 Seats, 3 Doors |
| How much power, Suzuki Jimny Sierra SUV 2010? | 88 Hp |
| What is the engine size, Suzuki Jimny Sierra ABA-JB43W 2010? | 1.3L or 1328cm3 |
| How many gears, What type is the gearbox, 2010 Suzuki Jimny Sierra 1.3 Land Venture 4WD? | Automatic transmission 4 |
| What is the drivetrain, Suzuki Jimny Sierra III 2010 SUV 1.3 Land Venture 4WD (88 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2010 Suzuki Jimny Sierra SUV 1.3 Land Venture 4WD (88 Hp)? | 3570 mm |
| How wide is the vehicle, 2010 Suzuki Jimny Sierra III? | 1600 mm |
Suzuki Jimny Sierra III ABA-JB43W 1.3 Land Venture 4WD (88 Hp) 2008, 2009, 2010, 2011, 2012 Specs
General information | |
|---|---|
| Production start year | 2008 |
| Production end year | 2012 |
| Drive type | All wheel drive (4x4) |
| Frame type | SUV |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1328 |
| Frame name | ABA-JB43W |
| Clearance, mm | 190 |
| Manufacturing country | Japan |
| Doors | 3 |
| Winter complectation | no |
| Steering locaton | right |
Vehicle generation | |
| Generation name | JB43 |
| Generation number | 3 |
| Production start year | 2002 |
| Production end year | 2012 |
Engine, transmission and steering specs | |
Engine specs | |

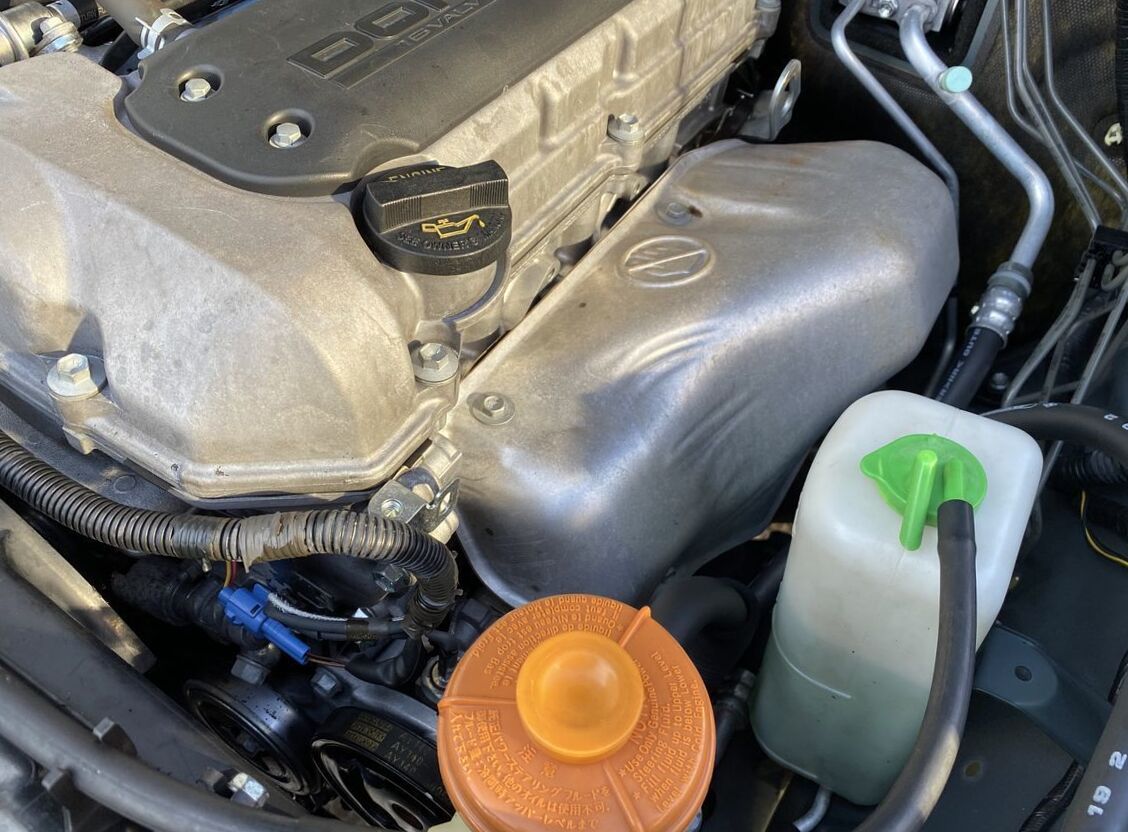

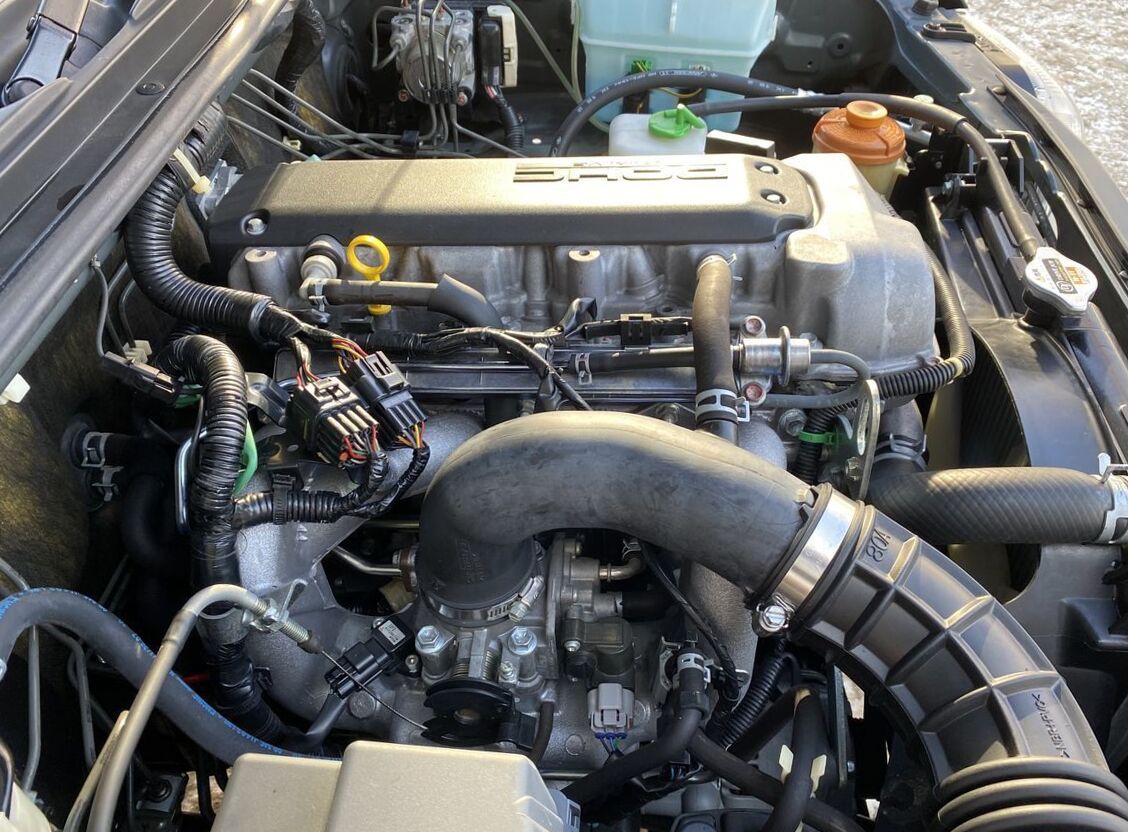

| Engine name | M13A |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 88 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 88(65)/6000 |
| Max torque, N*m | 118 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 118 (12) / 4000 |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 65?88?/6000 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 118?12?/4000 |
| Start stop system | no |
Fuel consumption | |
| Fuel consumption (10/15 mode), km/l | 12.8 |
| Fuel consumption (10/15 mode), l/100km | 7.8 |
Transmission | |
| Shifter position | On the floor. |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Ball nut screw |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3570 |
| Exterior width, mm | 1600 |
| Exterior height, mm | 1705 |
| Exterior size (L x W x H), mm | 3570x1600x1705?mm? |
Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
| Interior size (L x W x H), mm | 1660x1220x1210?mm? |
| Interior length, mm | 1660 |
| Interior width, mm | 1220 |
| Interior height, mm | 1210 |
Chassis dimensions | |
| Wheel base, mm | 2250 |
| Front axle length, mm | 1355 |
| Rear axle length, mm | 1365 |
| Turning radius, m | 4.9 |
| Front/rear axis length | 1355/1365?mm? |
| Wheel spacing front | 1355 |
| Wheel spacing rear | 1365 |
Weight and permissible load | |
| Mass, kg | 1070 |
Volumes | |
| Fuel tank capacity, l | 40 |

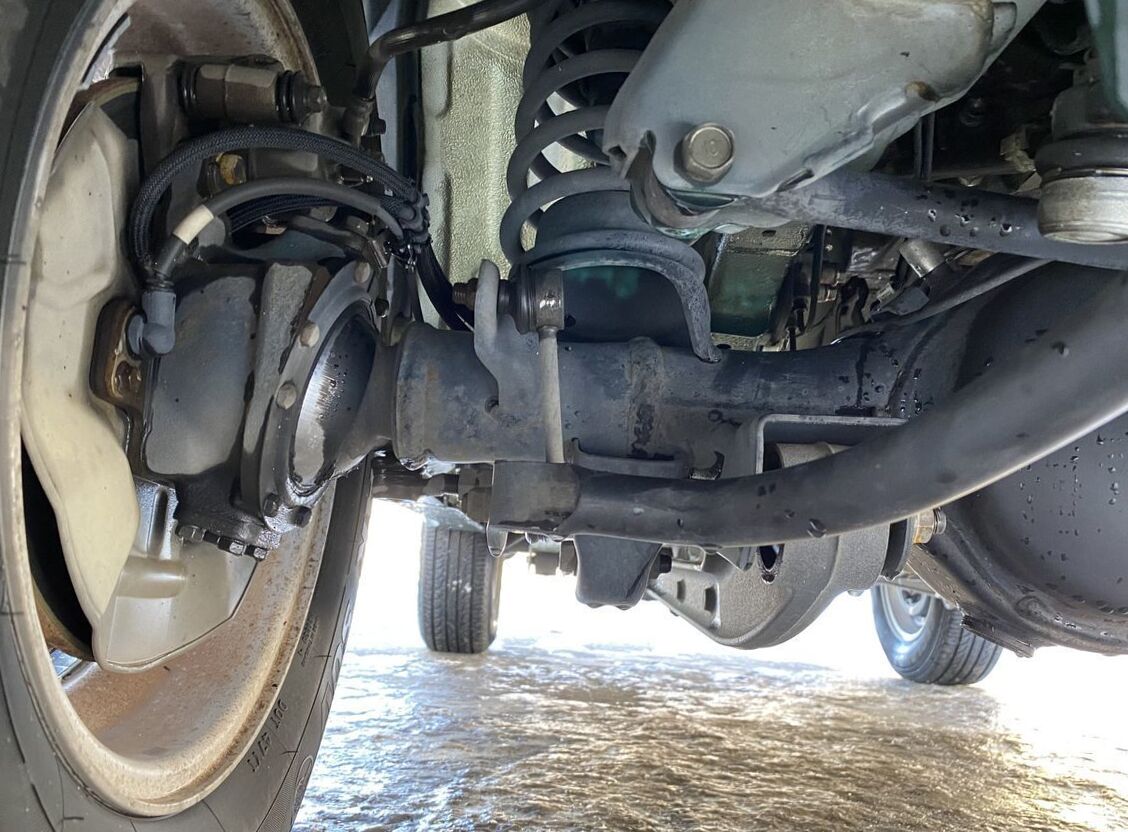

Suspension specs | |
Suspension specs | |

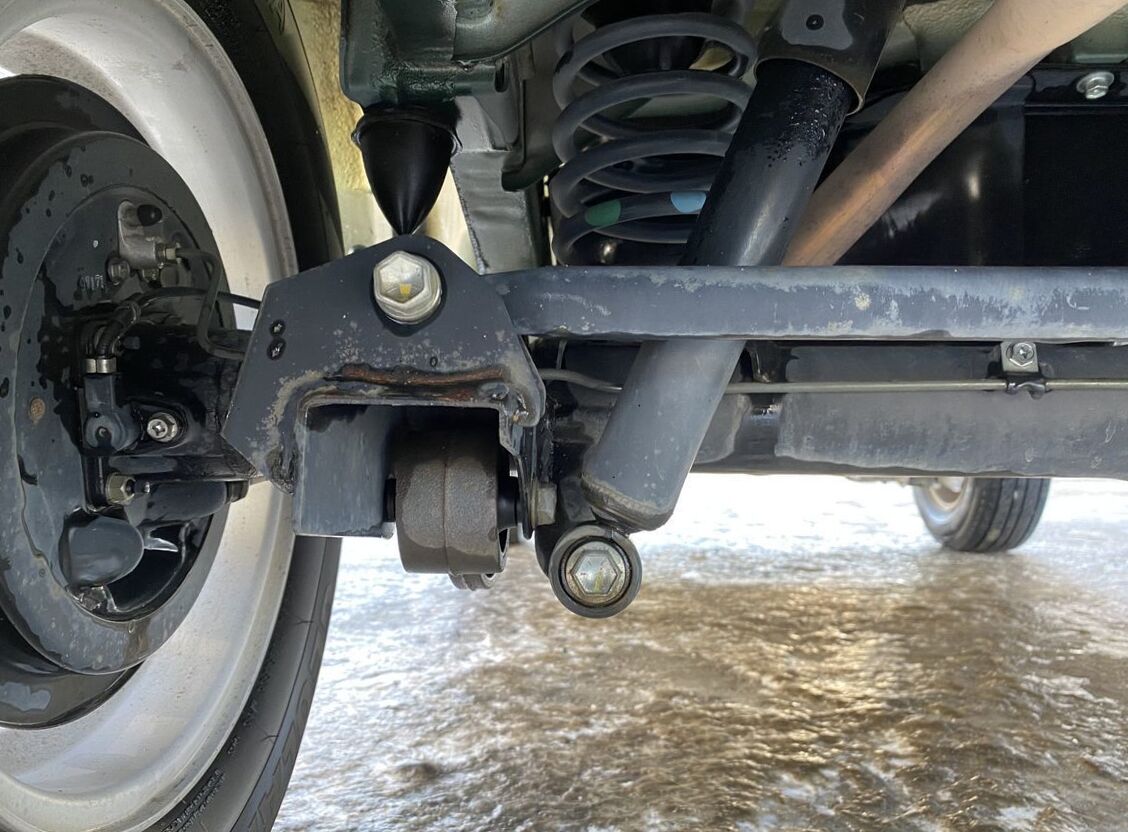

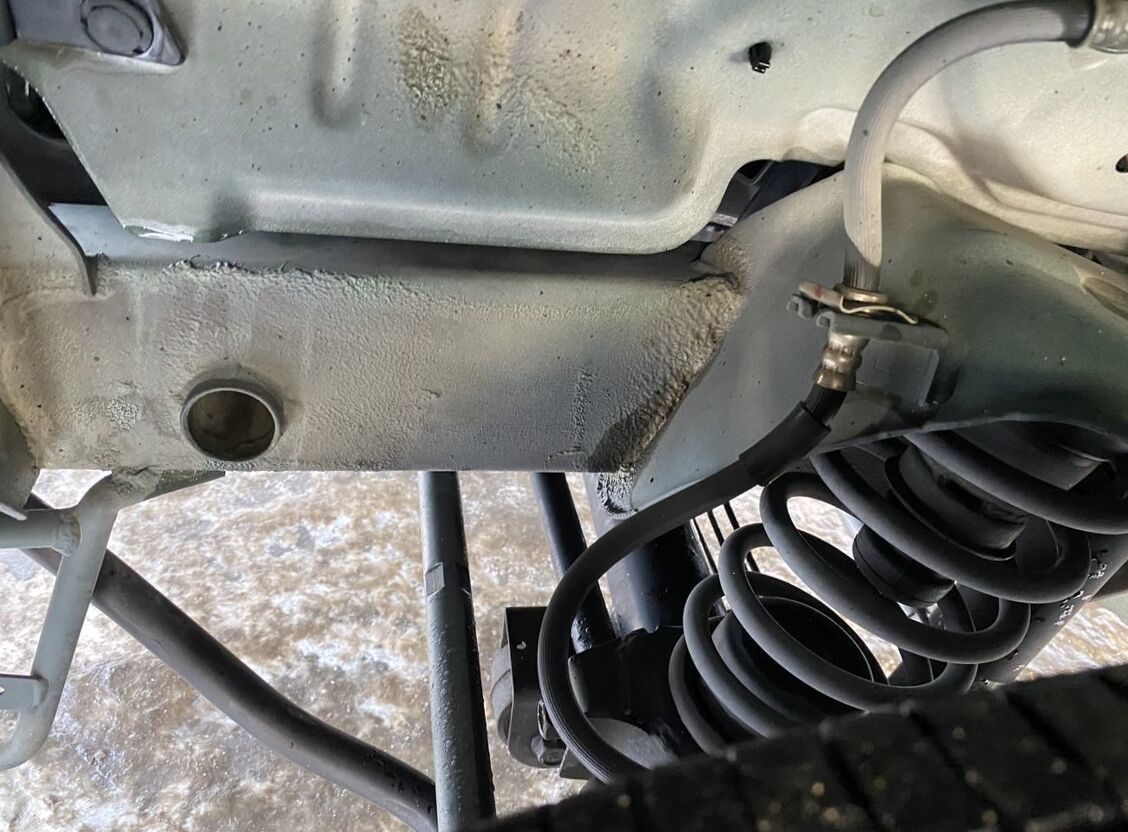

| Front suspension | Dependent, spring loaded |

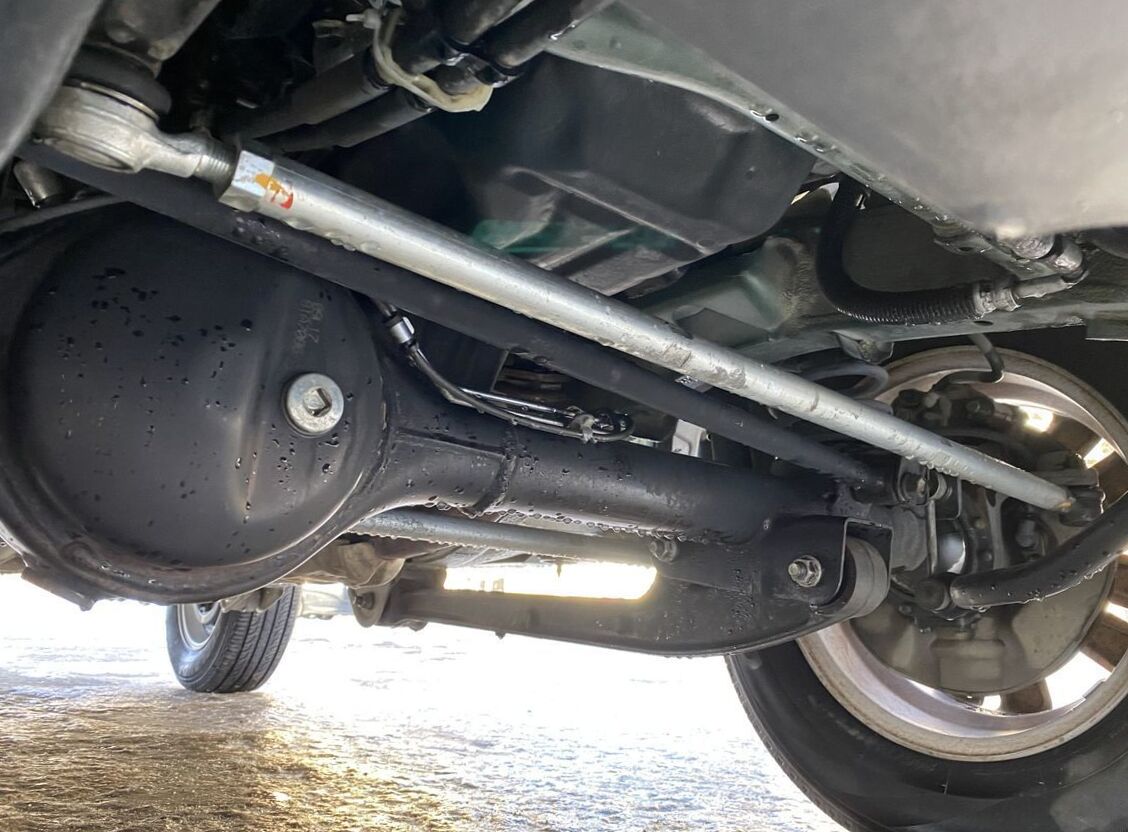

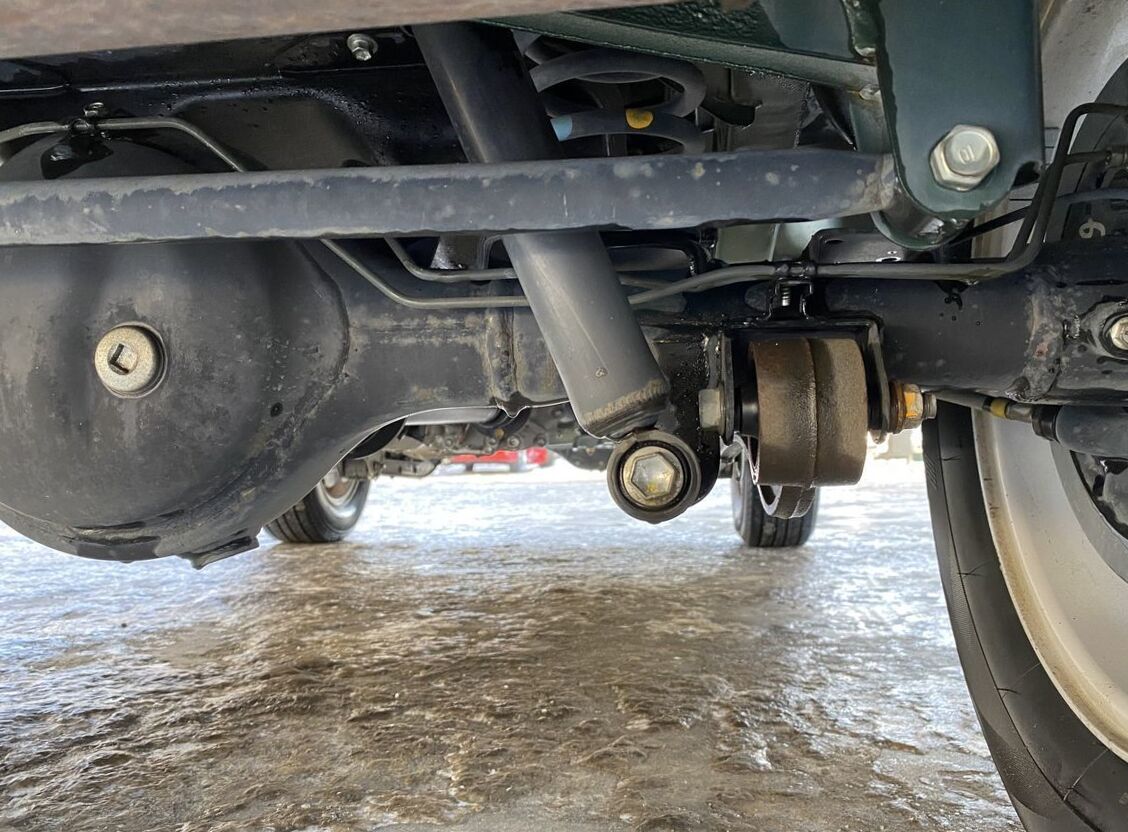

| Rear suspension | Dependent, spring loaded |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |

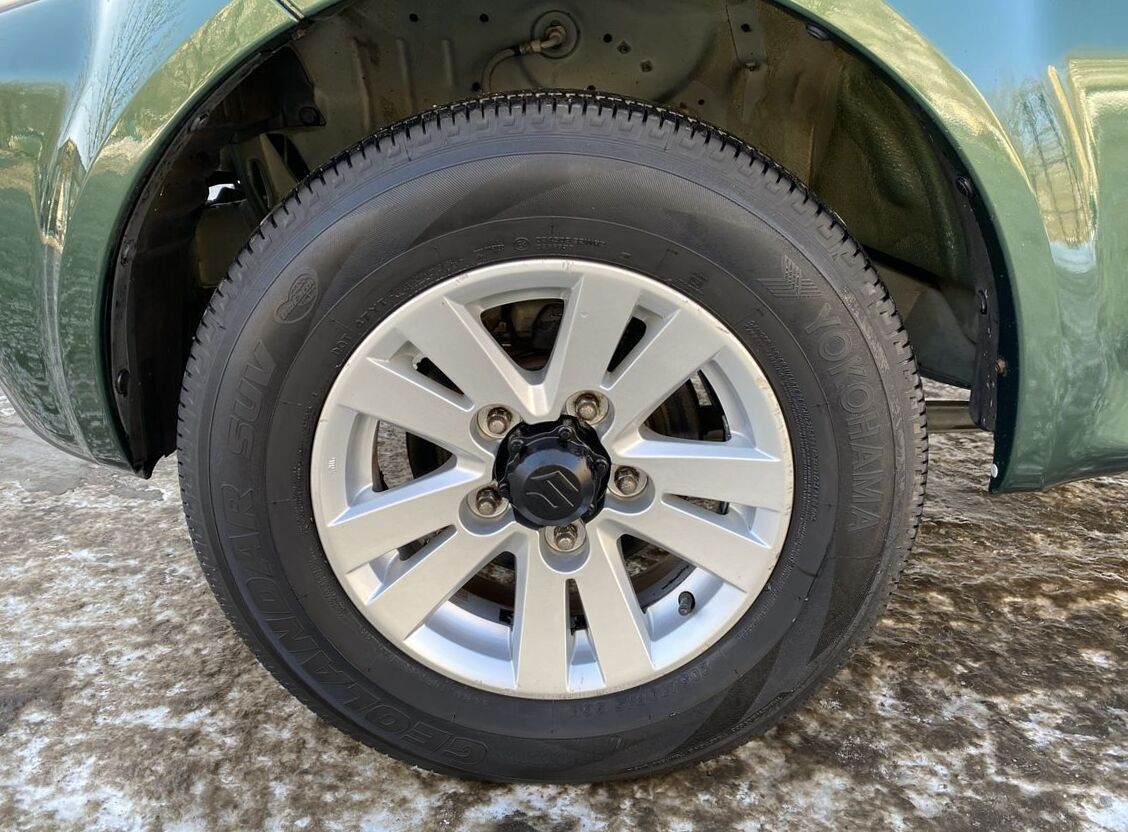

| Aluminium wheel | yes |
| Magnesium wheels | no |
Tires | |
| Front wheels | 205/70R15 |
| Rear wheels | 205/70R15 |
| Run flat tires | no |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
| Brakes equipment | no |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |

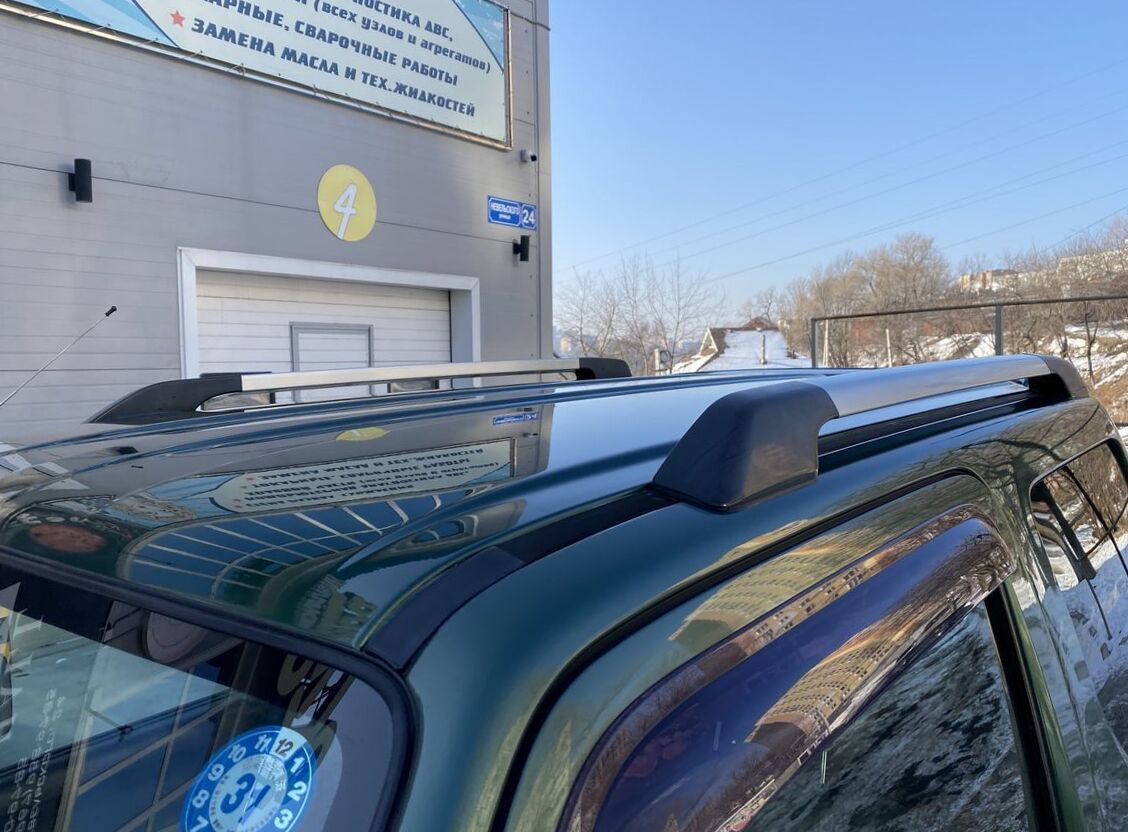

| Roof rail | yes |
| Front spoiler | no |
| Rear spoiler | no |
Body color | |
| Colors | 3092 3094 3093 |
Interior | |

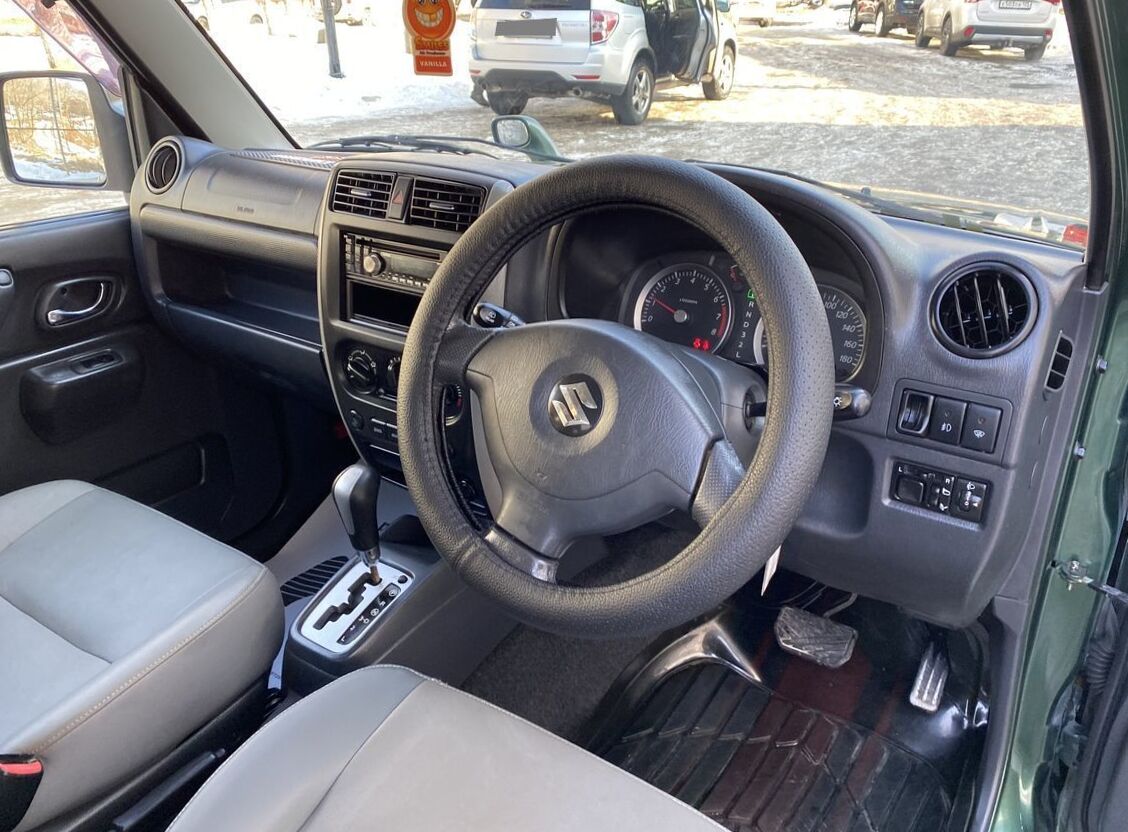

Steering wheel and center panel | |
| Engine start button | no |
Interior design | |
| Water-repellent | no |

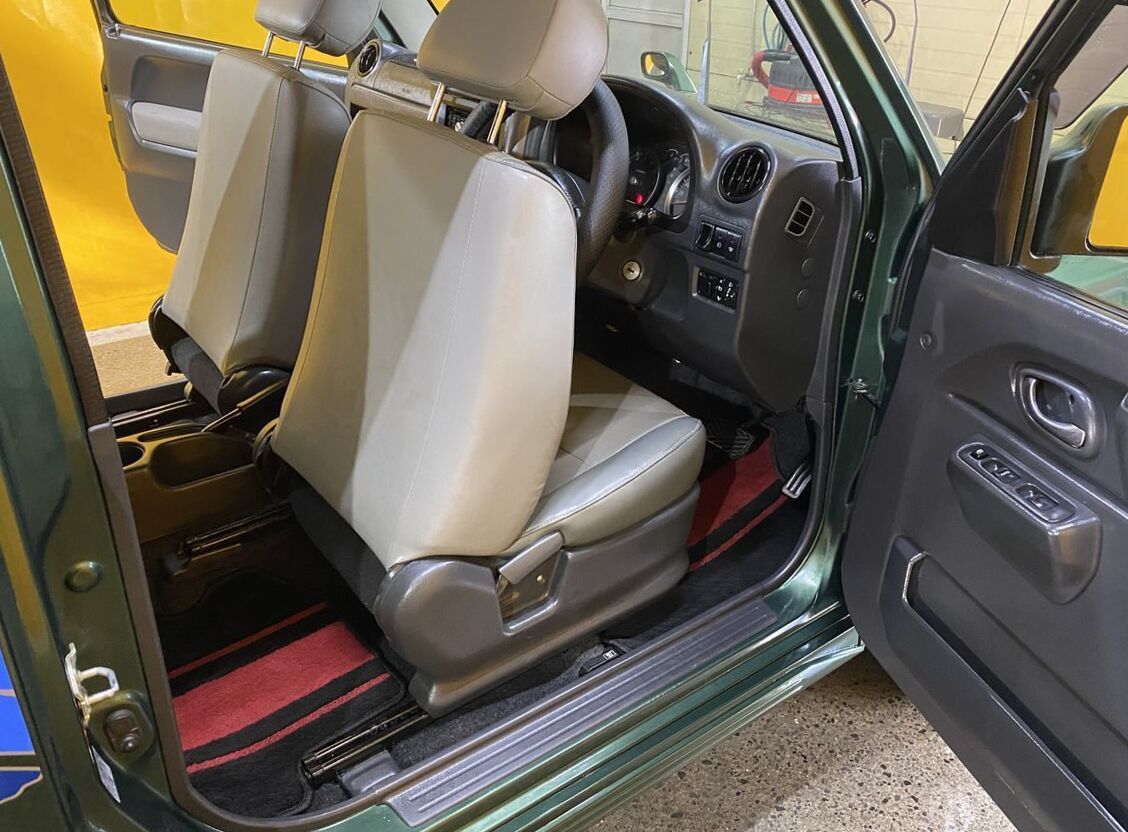

| Leather seat | yes |
| Antibacterial repellent | yes |

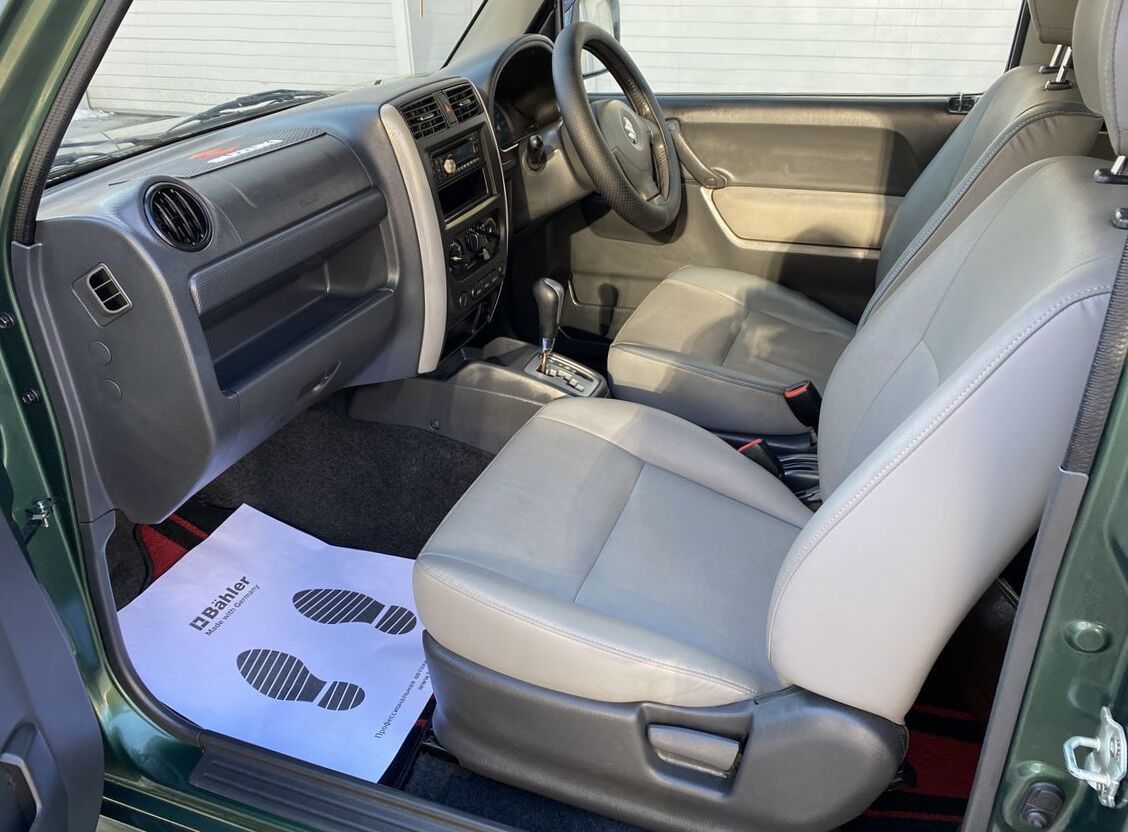

Seats | |
| Bucket seat | no |

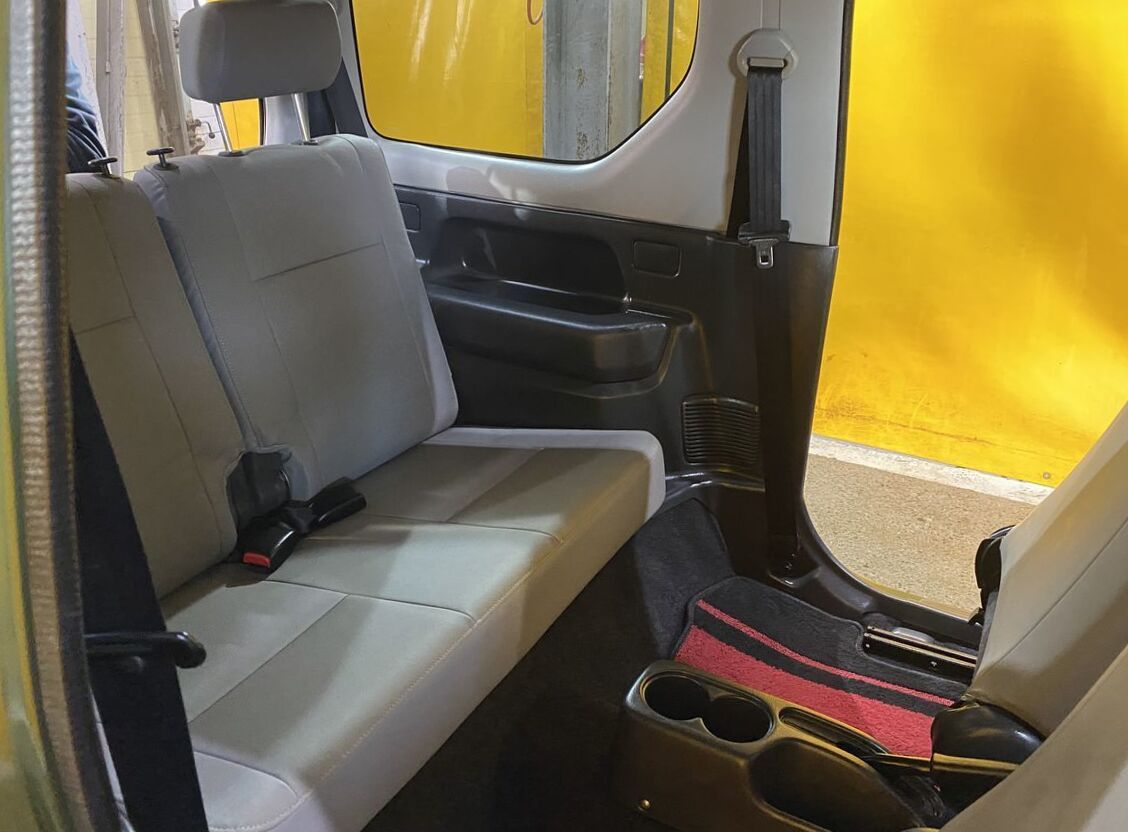

| 2nd row | 50/50 ratio fold seat |
| 3nd row | no |
| Seat lifter | no |
| Full flat seats | no |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | no |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | yes |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | no |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | no |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | no |
| ESP | no |
| traction control | no |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | no |
| Odor absorber | no |
Audio systems | |
| Radio | no |
| Autoreverse casette | no |
| CD player | no |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
| Optional navigation system | no |
| Parking assist system | no |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | no |
Additional amenities | |

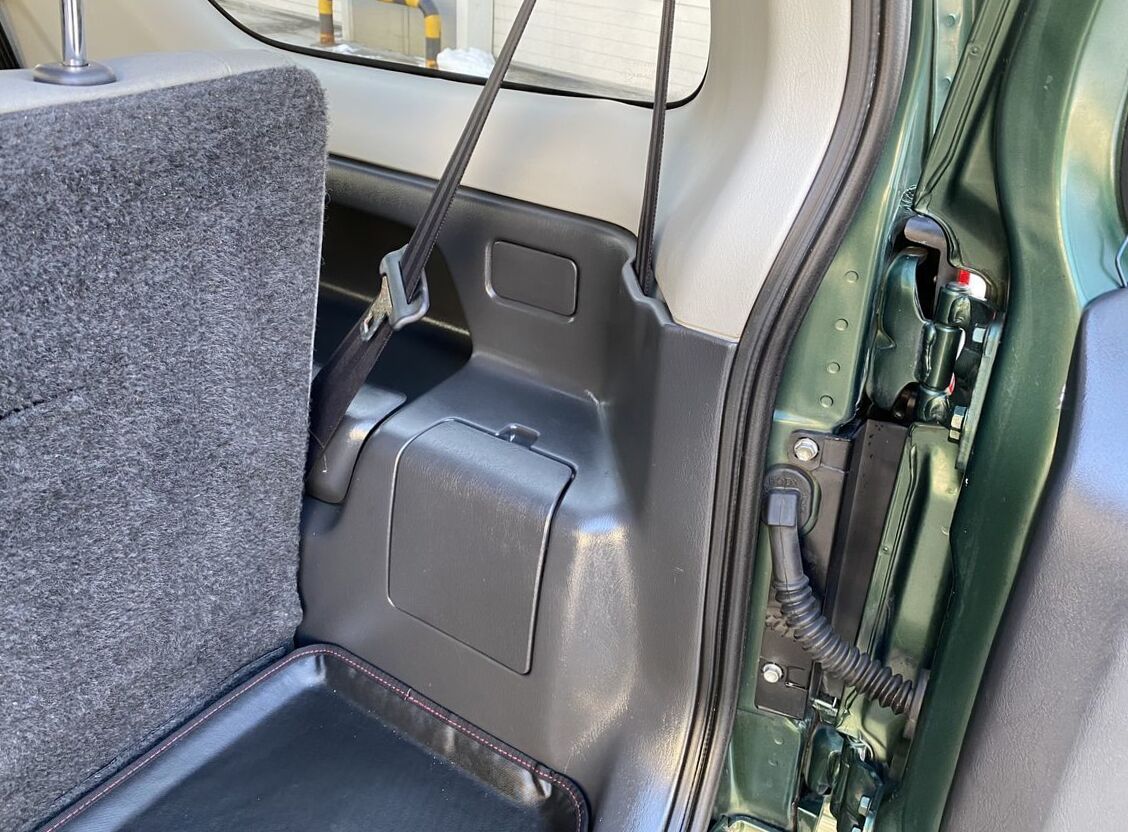

| Lagage box | yes |
| Etc | no |
Car safety | |
| Alarm system | no |
| Security alarm | no |
2010 Suzuki Jimny Sierra III ABA-JB43W 1.3 Land Venture 4WD (88 Hp) specs
|
Jimny 55 Jimny 8 Jimny 550 SJ40 Jimny 1000 The SJ410 was introduced in 1982 as an updated version of the LJ80. It used a larger version of that LJ's 1.0 liter 4-cylinder engine. This engine produced 45hp (34kW) and it had a top speed of 68mph (109km/ h). A 4-speed manual transmission was standard, as were non-power assisted drum brakes front and rear. The SJ-410 came as a half-door convertible, pickup truck, 2-door hardtop, raised-roof hardtop, and no-glass hardtop. The SJ was produced in Spain by Santana Motors in their Linares, Jaén factory and sold as a domestic vehicle in Europe due to its over 60% native parts. JA51 Jimny 1300 In 1984, the SJ was revamped with the launch of the SJ413. The SJ413 included a larger 1.3 liter 4-cylinder engine, 5-speed manual transmission and power brakes all around. The body and interior were also redesigned, with a new dashboard, seats, and grille. The SJ410 remained in production through 1985 with the old specifications. » Read More About Suzuki Jimny Sierra |
