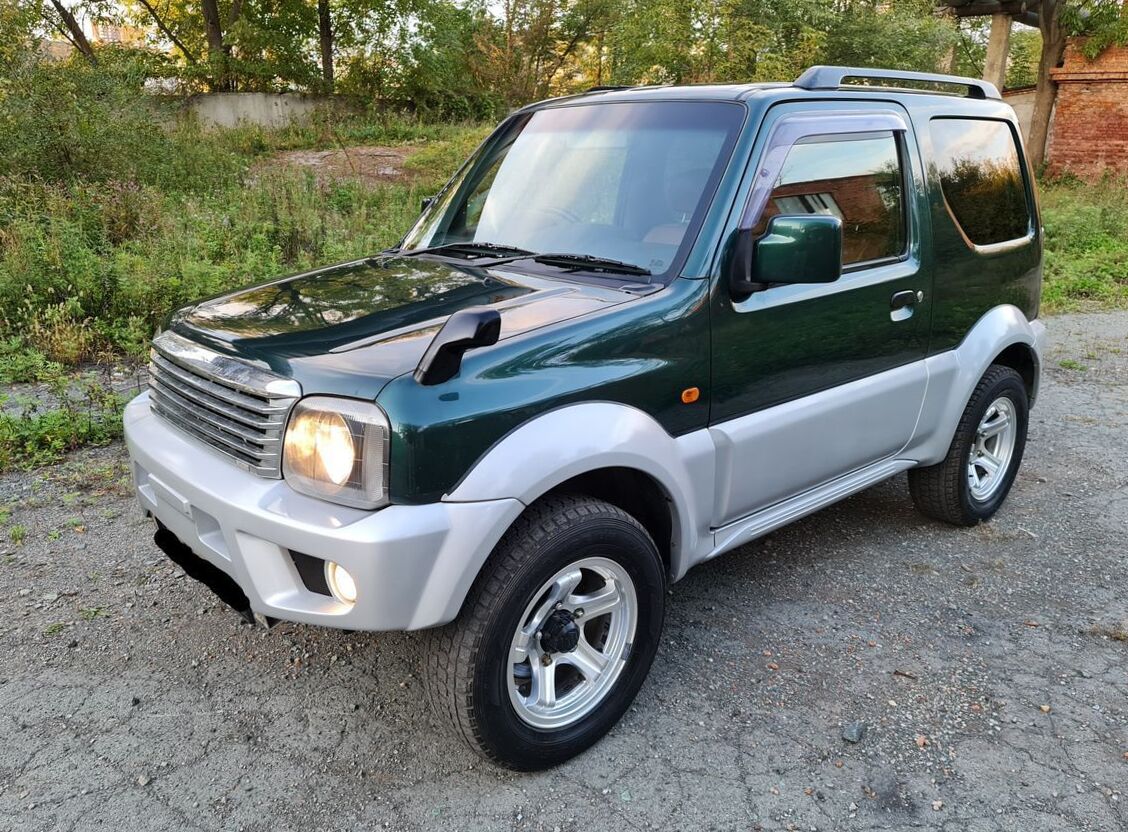

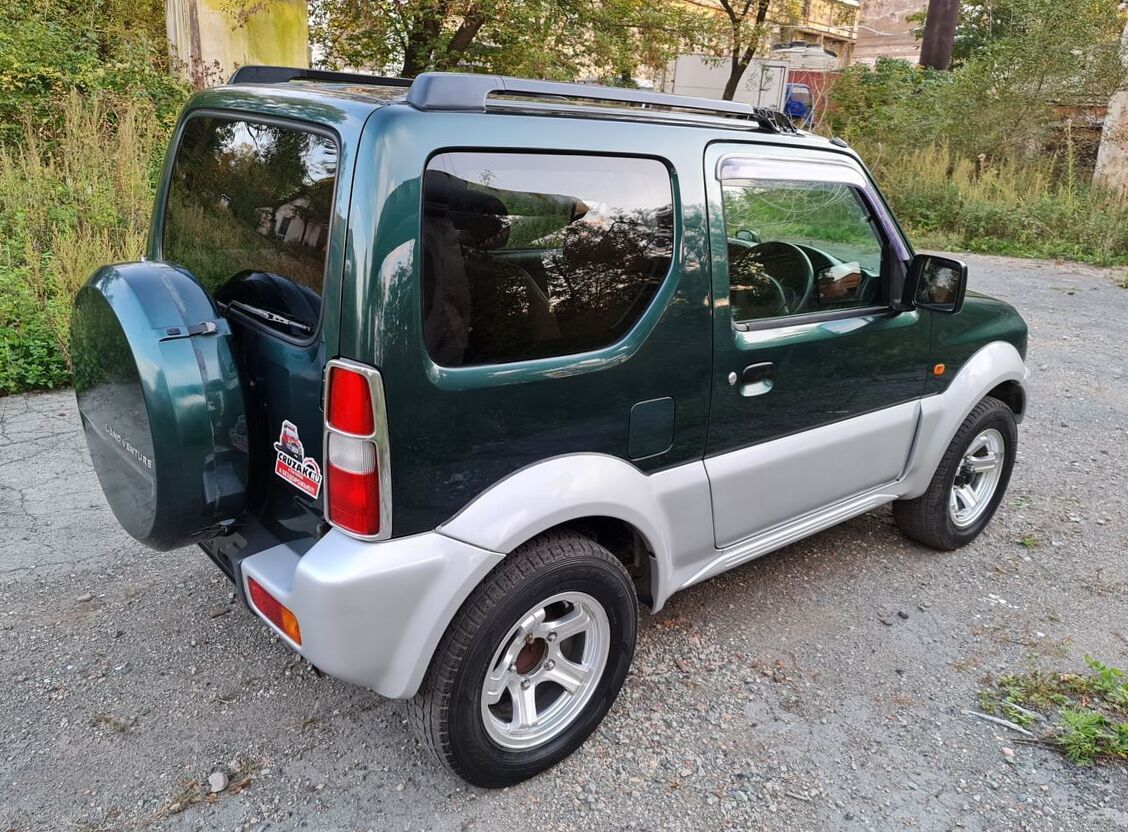

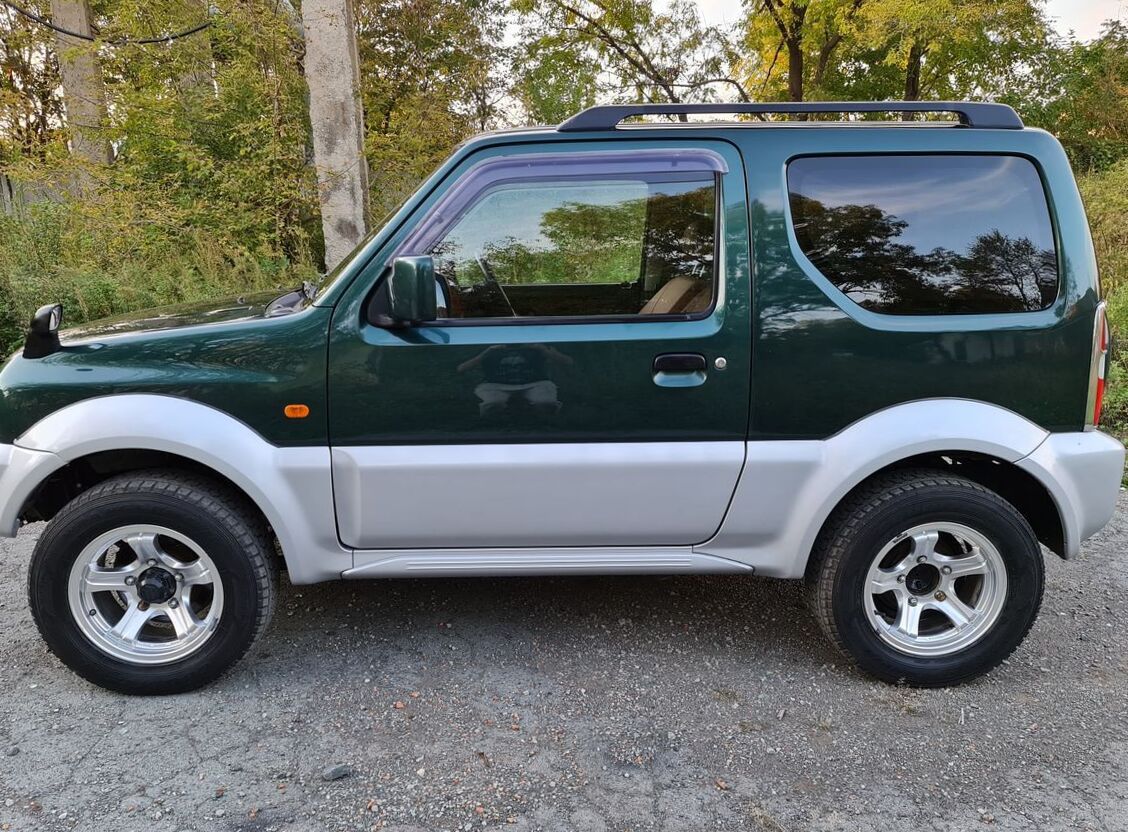

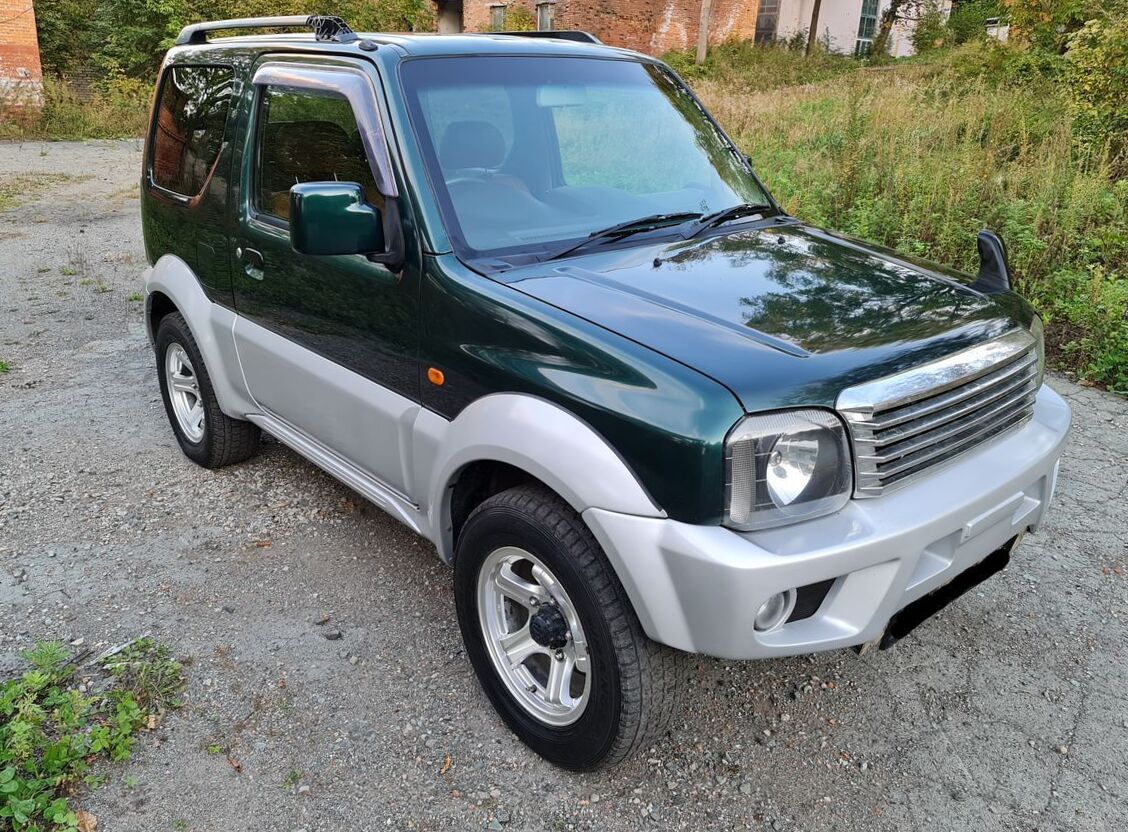

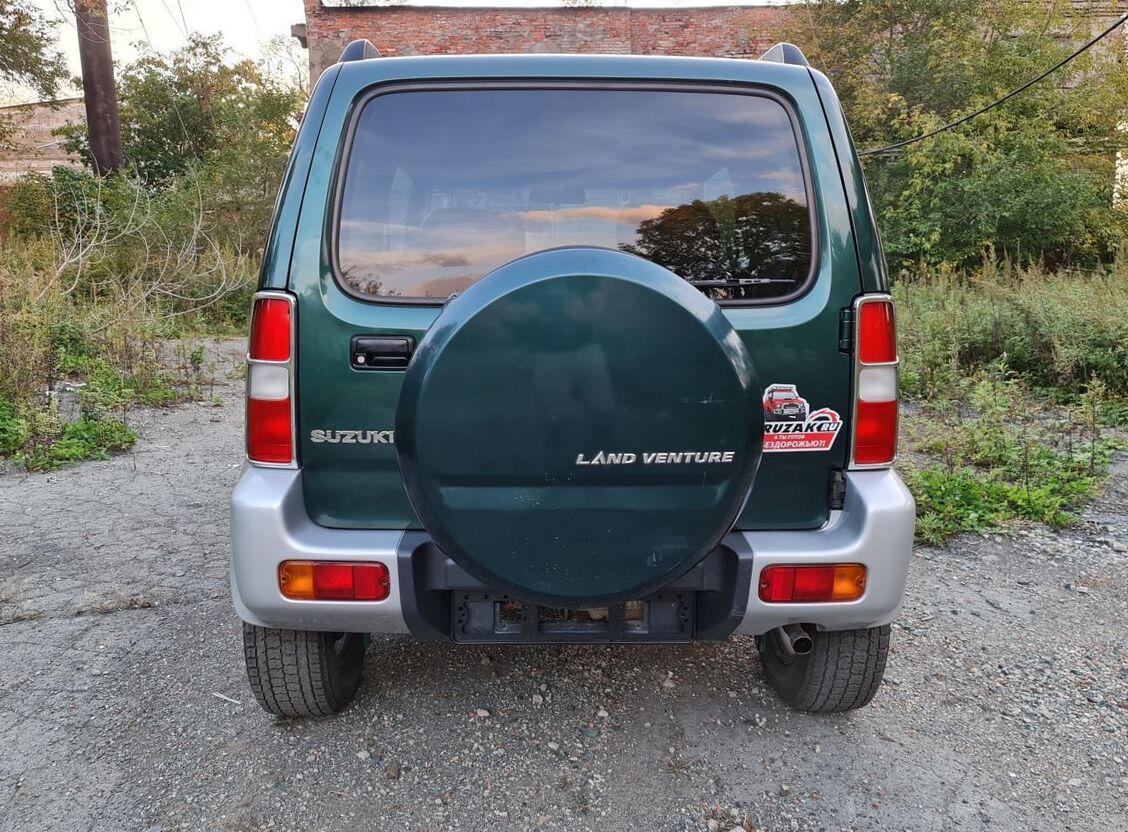

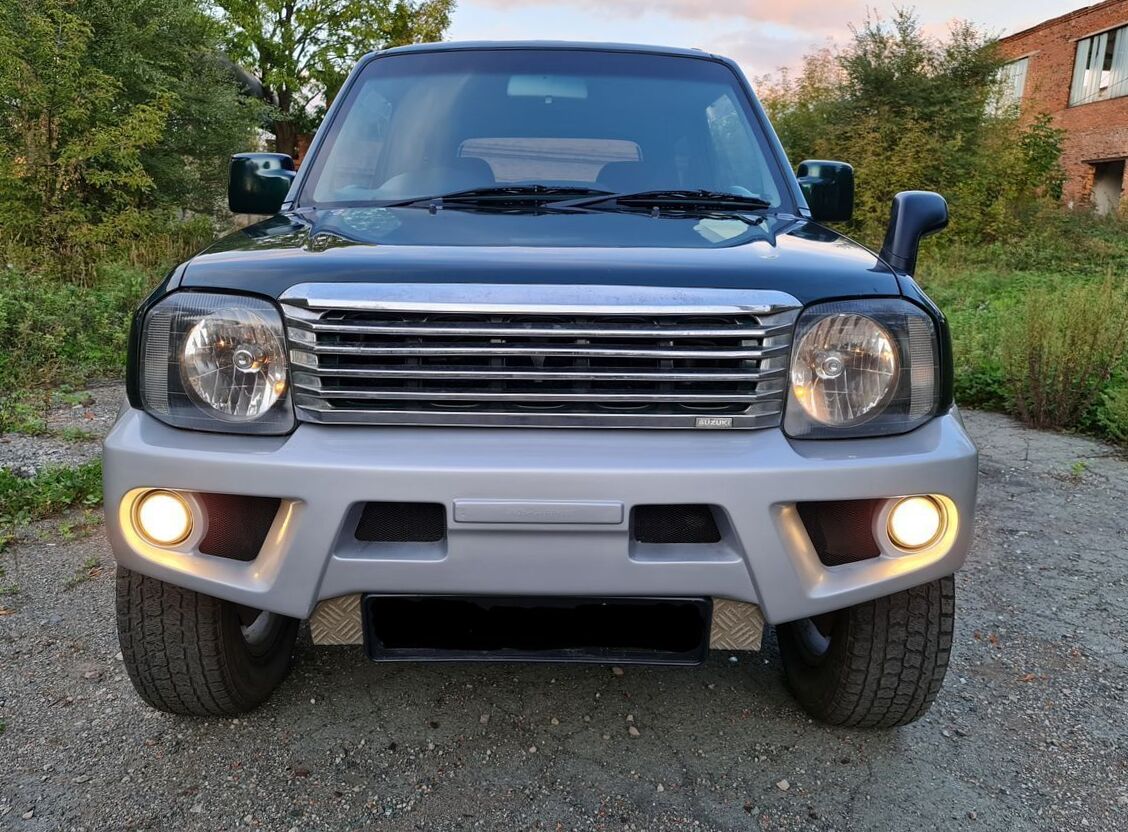

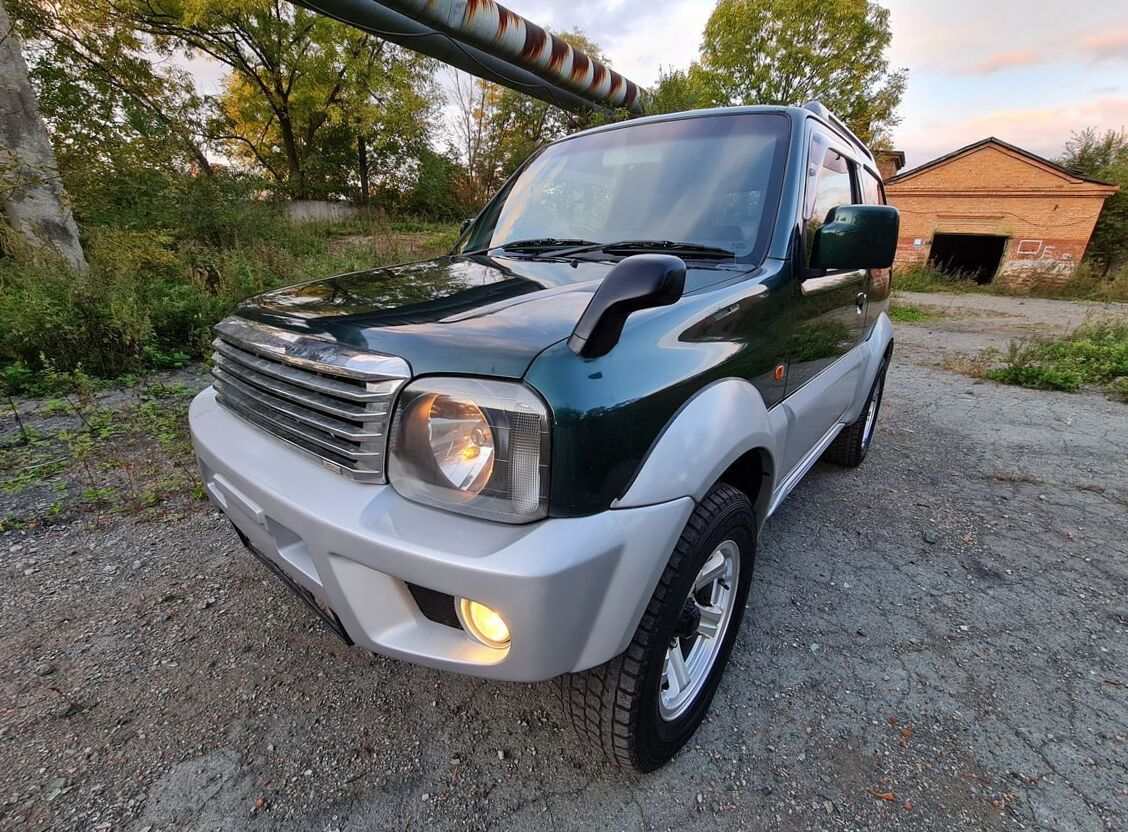

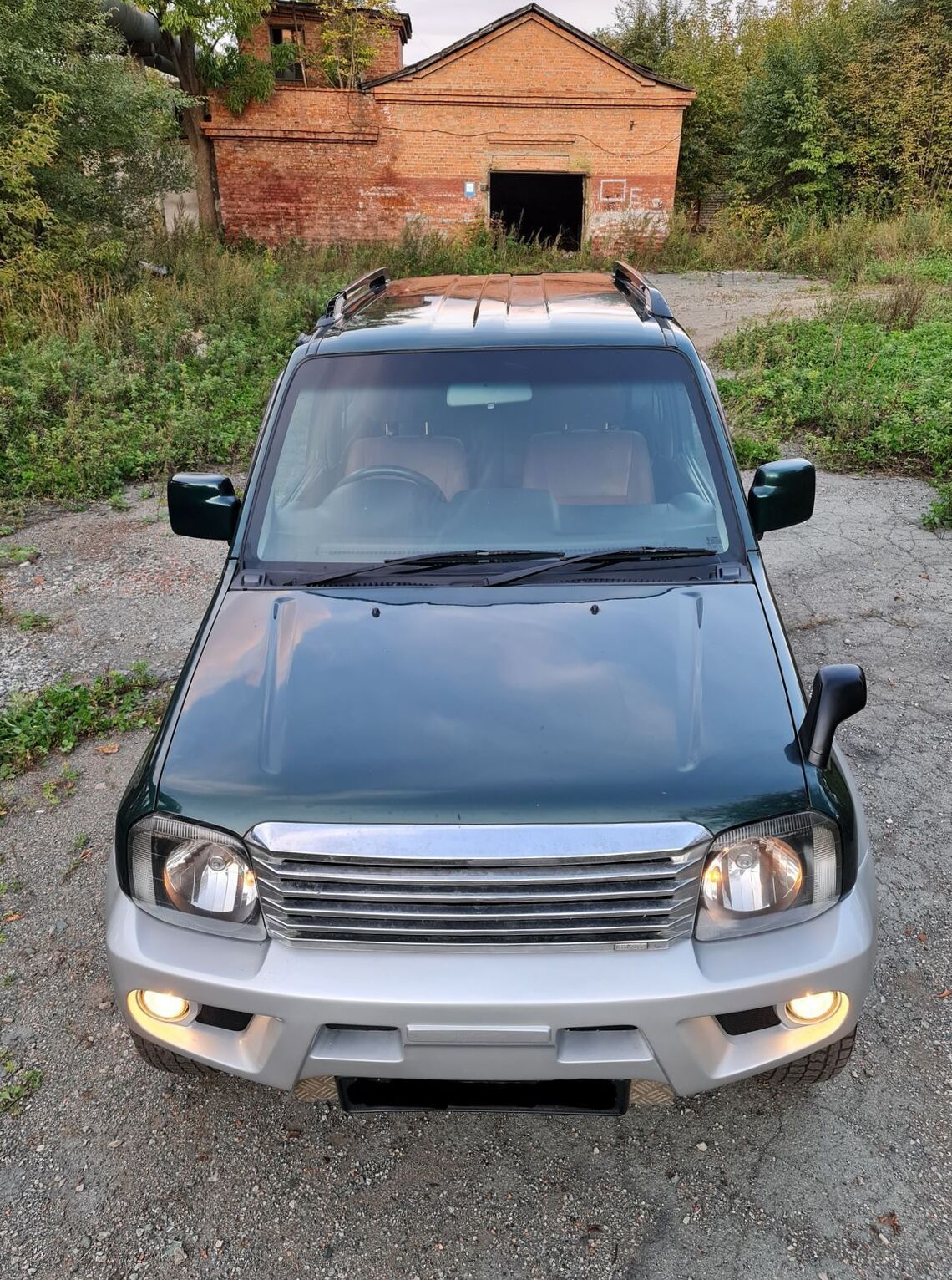

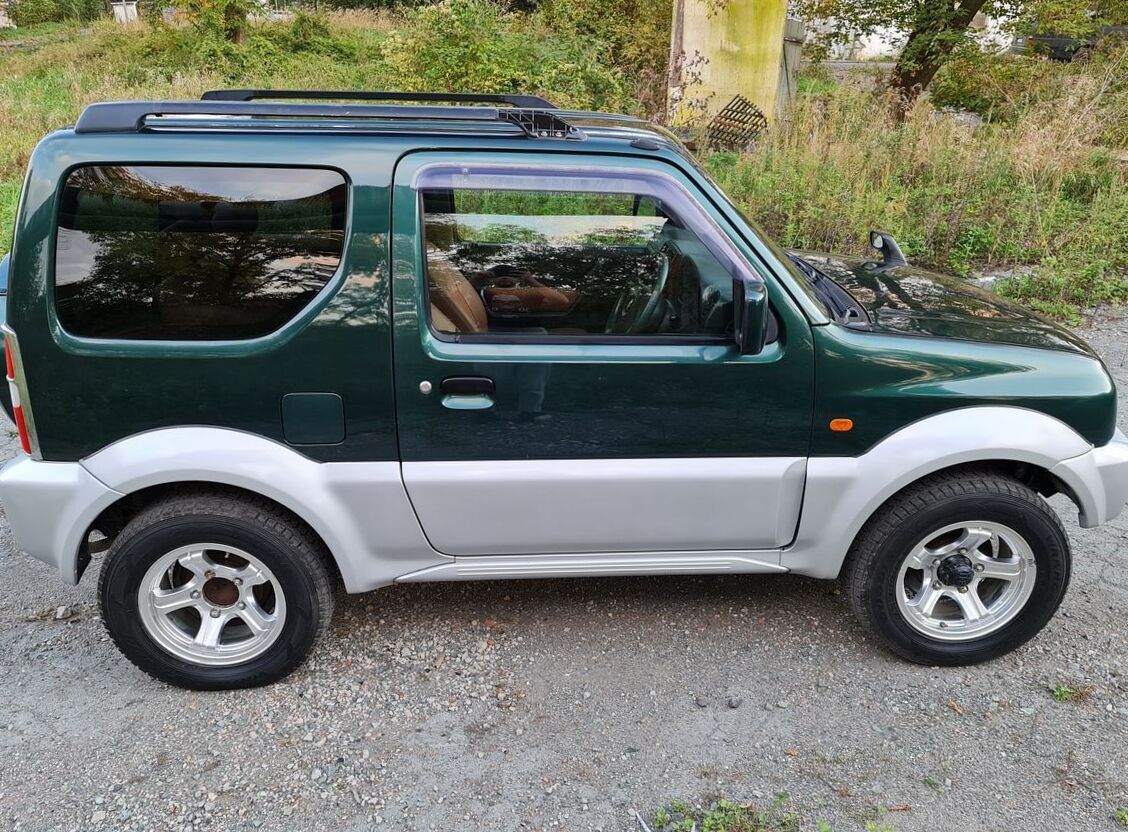

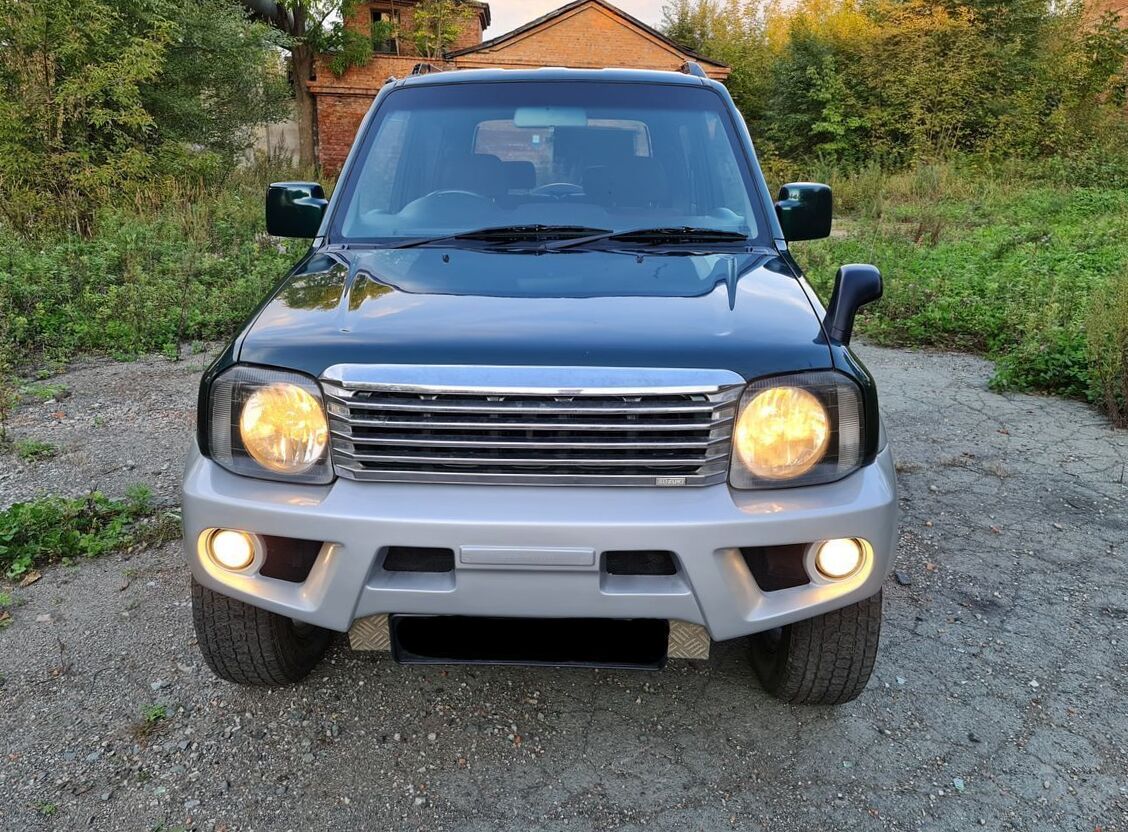

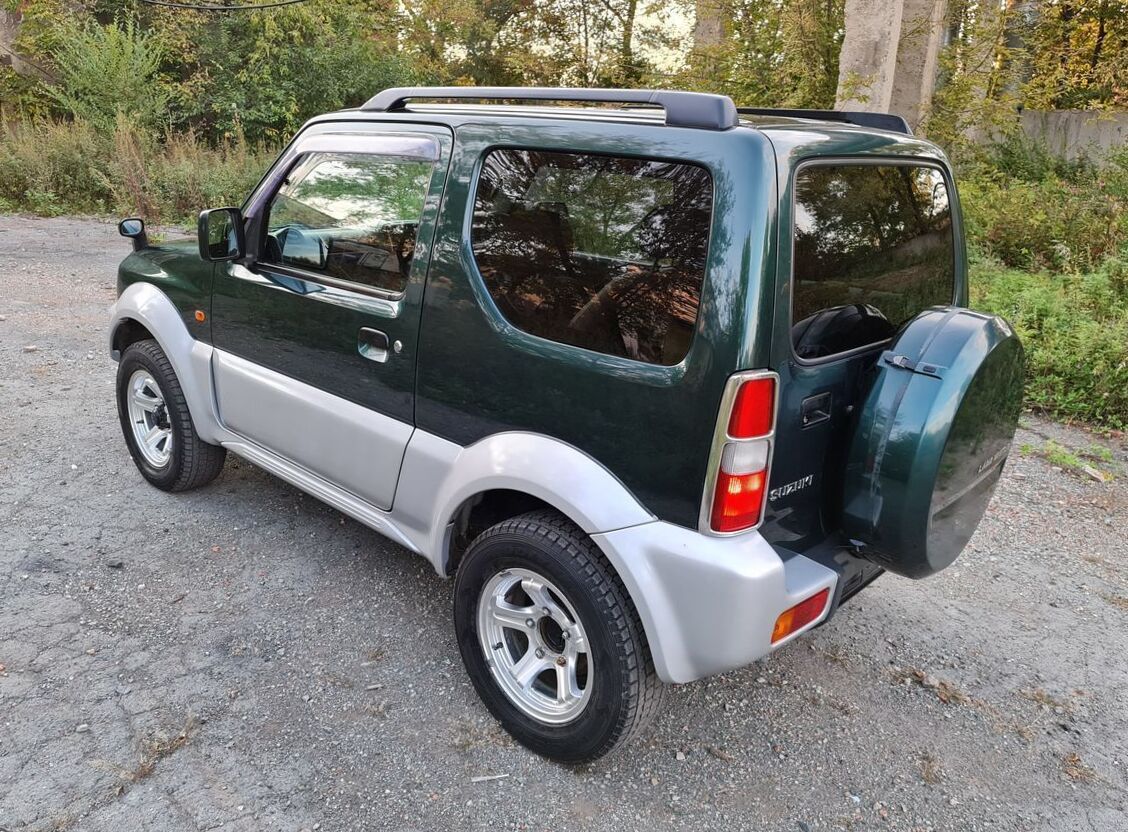

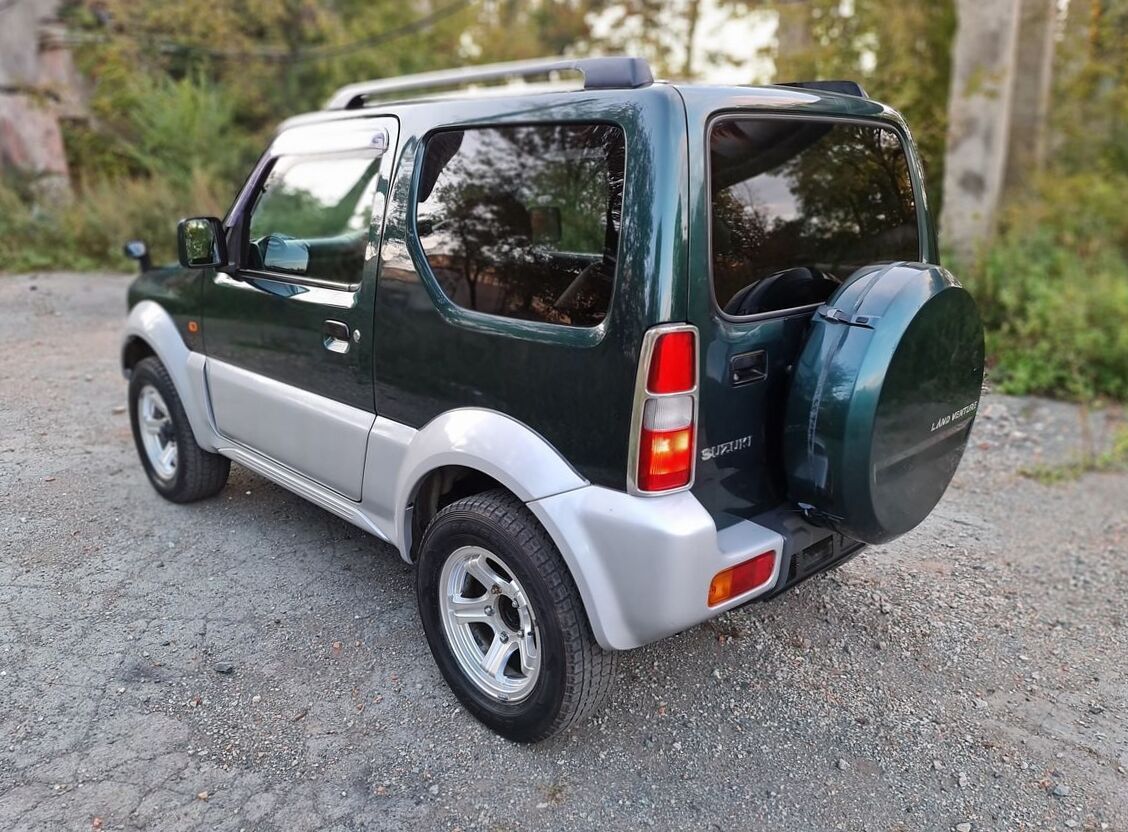

2006 Suzuki Jimny Sierra III 1.3 4WD
Suzuki Jimny Sierra Problems
Fuel Pump failure
1991, No fuel supply to carburetor. The car
engine will not start but after knocking the
car f...
Car engine
1993, the engine needs anew one-its a manual
car with 1300 cc engine type G13B. the old
engine...
Problum
1988, prob with my car is suzuki jimny sj413
1988 model. my problum is my car milage petrol
....
Body type | SUV 3 Doors |
---|---|
Power | 88 Hp |
Engine Displacement | 1300 cm3 or 1.3L or 79.3 cu-in |
Color | green |
Transmission Gearbox | Automatic |
Fuel Type | Gasoline |
Drive wheel | 4WD |
Vin | JB43W-****33 |
Price (out of date) | $7355 |
Frequently Asked Questions | |
---|---|
What is the body type, 2006 Suzuki Jimny Sierra III? | SUV, 4 Seats, 3 Doors |
How much power, Suzuki Jimny Sierra SUV 2006? | 88 Hp |
What is the engine size, Suzuki Jimny Sierra ABA-JB43W 2006? | 1.3L or 1328cm3 |
How many gears, What type is the gearbox, 2006 Suzuki Jimny Sierra 1.3 4WD? | Automatic transmission 4 |
What is the drivetrain, Suzuki Jimny Sierra III 2006 SUV 1.3 4WD (88 Hp)? | All wheel drive (4x4) |
How long is this vehicle, 2006 Suzuki Jimny Sierra SUV 1.3 4WD (88 Hp)? | 3550 mm |
How wide is the vehicle, 2006 Suzuki Jimny Sierra III? | 1600 mm |
Suzuki Jimny Sierra III ABA-JB43W 1.3 4WD (88 Hp) 2004, 2005, 2006, 2007, 2008 Specs
General information | |
---|---|
Complectation name | 1.3 4WD |
Production start year | 2004 |
Price of new car in Tokyo, yen | 1747440 |
Drive type | All wheel drive (4x4) |
Frame type | SUV |
Transmission type | Automatic transmission 4 |
Engine volume, cc | 1328 |
Frame name | ABA-JB43W |
Clearance, mm | 190 |
Manufacturing country | Japan |
Doors | 3 |
Right hand drive | yes |
Left hand drive | no |
Vehicle generation | |
Generation name | JB43 |
Generation number | 3 |
Production start year | 2002 |
Production end year | 2012 |
Engine, transmission and steering specs | |

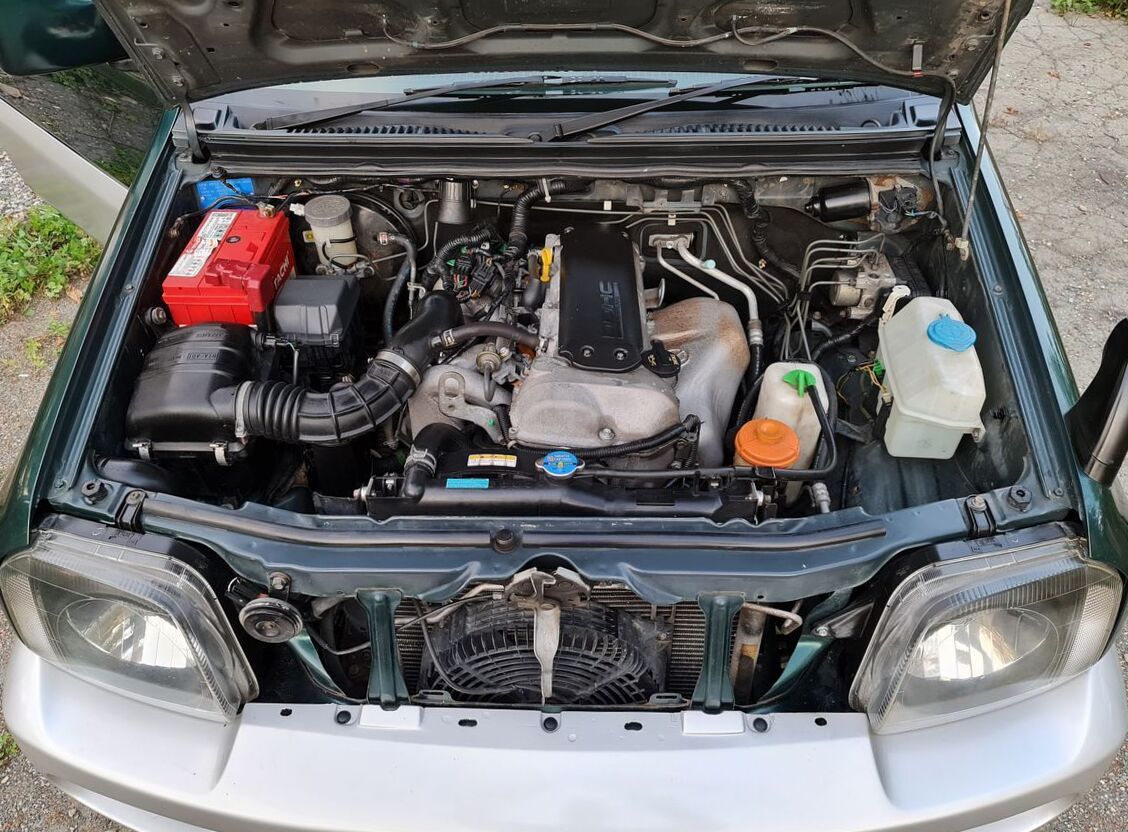

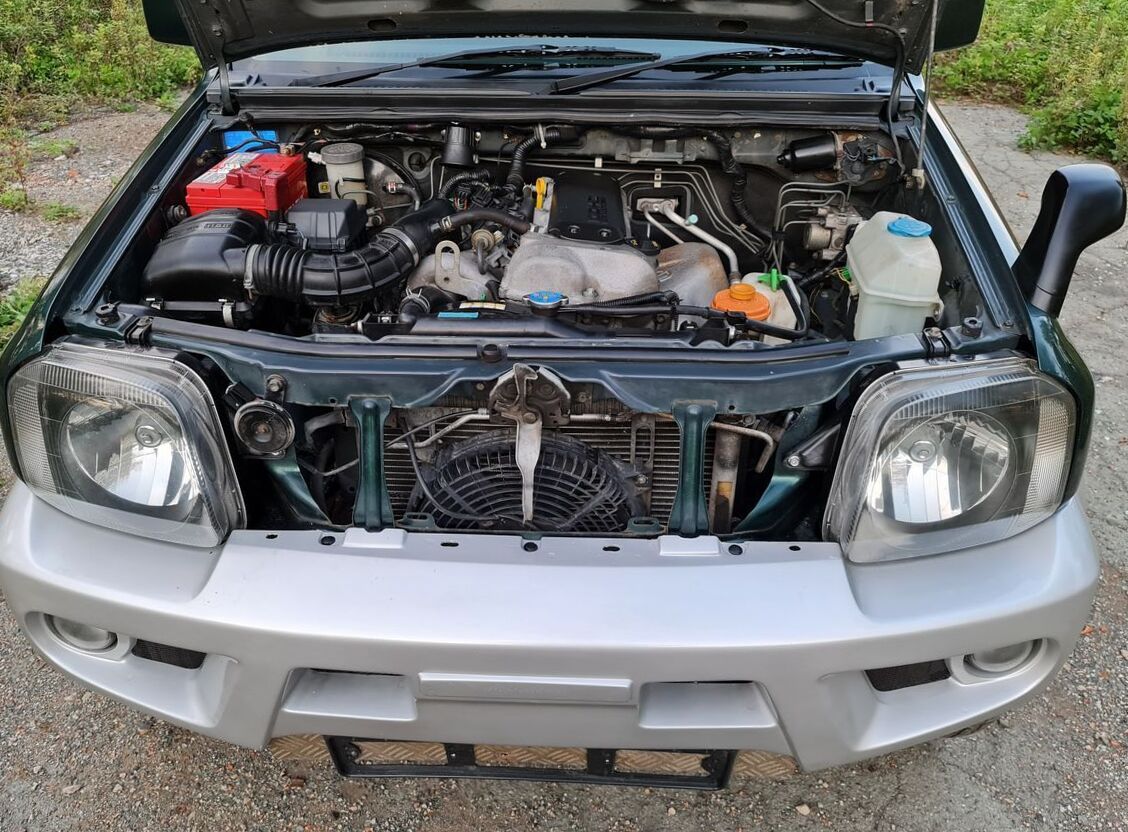

Engine specs | |
Engine name | M13A |
Fuel | Petrol (Gasoline) |
Engine type | In-line, 4-cylinder |
Has turbo | no |
Max power, hp | 88 |
Max power RPM, rpm | 6000 |
Max power, hp (kWt) / rpm | 88 (65) / 6000 |
Max torque, N*m | 118 |
Max torque RPM, rpm | 4000 |
Max torque, N*m (kg*m) / rpm | 118 (12) / 4000 |
Valves per cylinder | 4 |
Compression ratio | 9.5 |
Bore, mm | 78 |
Stroke, mm | 69.5 |
Actuator valves | DOHC |
Engine additional info | VVT |
Fuel consumption | |
Fuel consumption (10/15 mode), l/100km | 7.8 |
Transmission | |
1st gear ratio | 2.875 |
2nd gear ratio | 1.568 |
3rd gear ratio | 1 |
4th fear ratio | 0.696 |
Rear gear ratio | 2.3 |
Steering | |
Power steering | no |
Electric power steering | yes |
Dimensions | |
Frame dimensions | |
Exterior length, mm | 3550 |
Exterior width, mm | 1600 |
Exterior height, mm | 1705 |
Interior dimensions | |
Capacity | 4 |
Seat rows | 2 |
Interior length, mm | 1660 |
Interior width, mm | 1220 |
Interior height, mm | 1210 |
Chassis dimensions | |
Wheel base, mm | 2250 |
Front axle length, mm | 1355 |
Rear axle length, mm | 1365 |
Turning radius, m | 4.9 |
Wheel spacing front | 1355 |
Wheel spacing rear | 1365 |
Weight and permissible load | |
Mass, kg | 1070 |
Volumes | |
Fuel tank capacity, l | 40 |
Suspension specs | |
Suspension specs | |
Front stabilizer | yes |
Front suspension | Dependent, spring loaded |
Rear stablilizer | no |
Rear suspension | Dependent, spring loaded |
LSD | no |
Wheel rims | |
Aluminium wheel | no |
Tires | |
Front wheels | 205/70R15 95S |
Rear wheels | 205/70R15 95S |
Brakes | |
Front brake | Discs |
Rear brake | drum brakes |
Brake front search | 1 |
Rear brake | 2 |
Exterior | |
Headlights | |
Xenon lamps | no |
Front fog lamps | yes |
Rear fog lamps | no |
Additional stop light | no |
Cornering lamps | no |
Side mirrors | |
Power adjustable door mirrors | yes |
Windows | |
Ultraviolet glass protection | yes |
Roof | |
Sunroof | no |
Tilt sunroof | no |
Twin sunroof | no |
Accessories | |
Roof rail | yes |
Front spoiler | no |
Rear spoiler | no |
Back wiper | yes |
Body color | |
Colors | 6 1982 1983 |

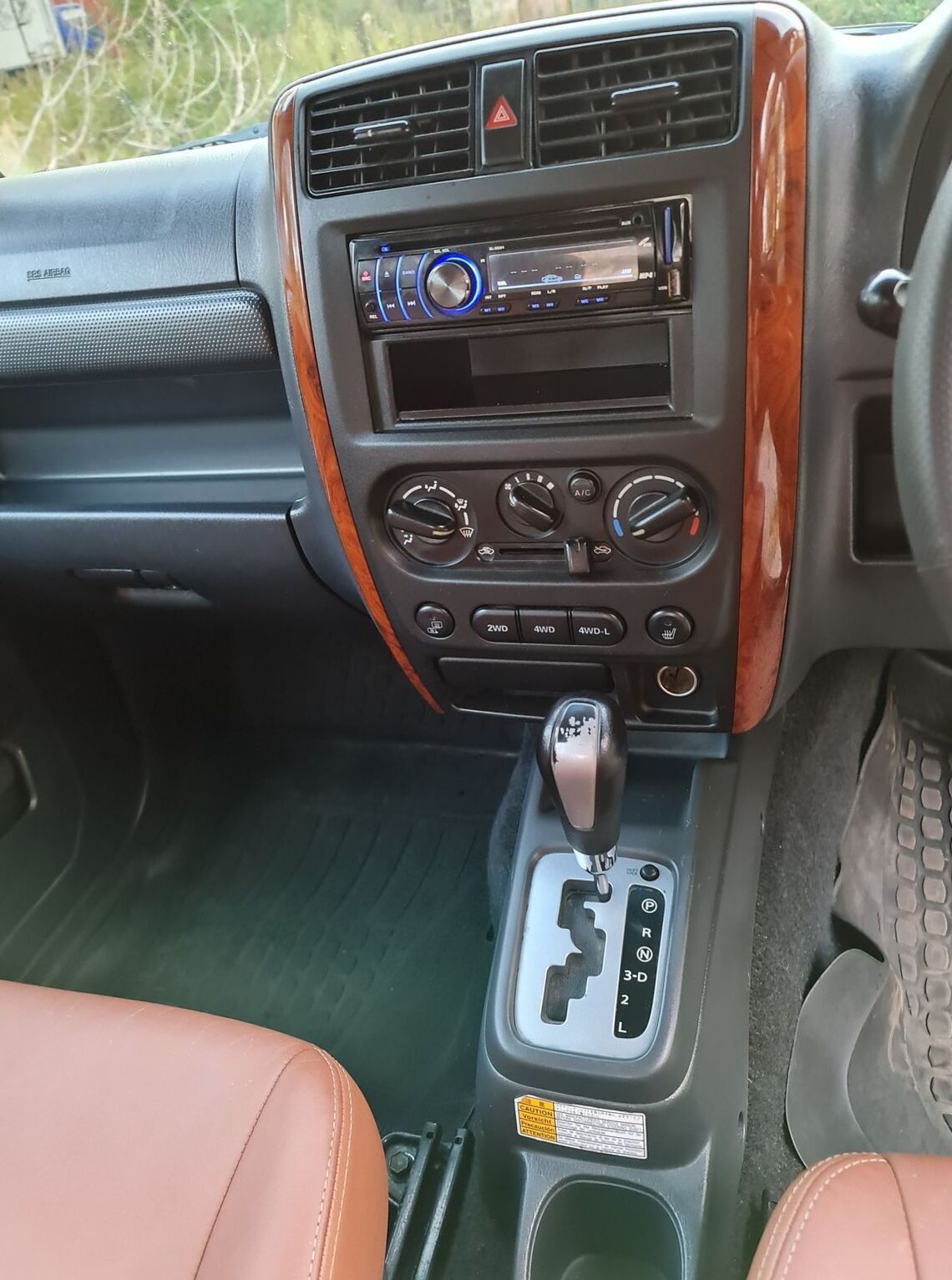

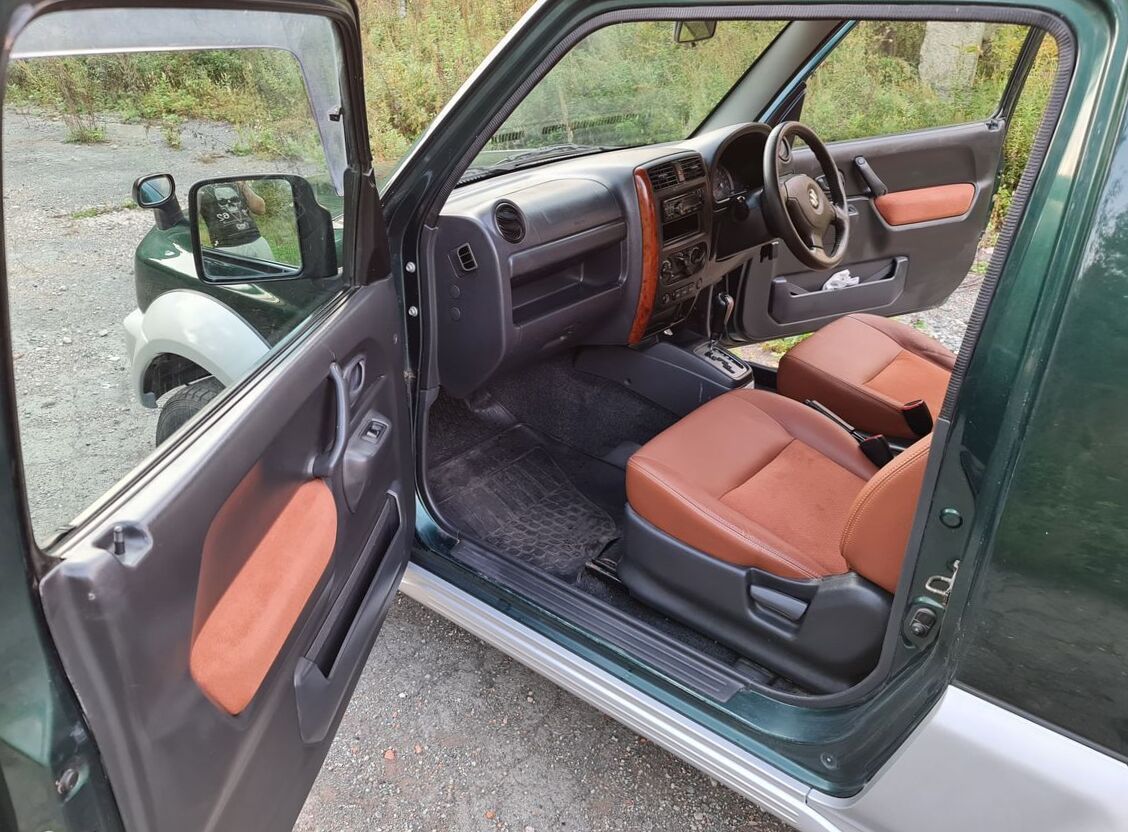

Interior | |

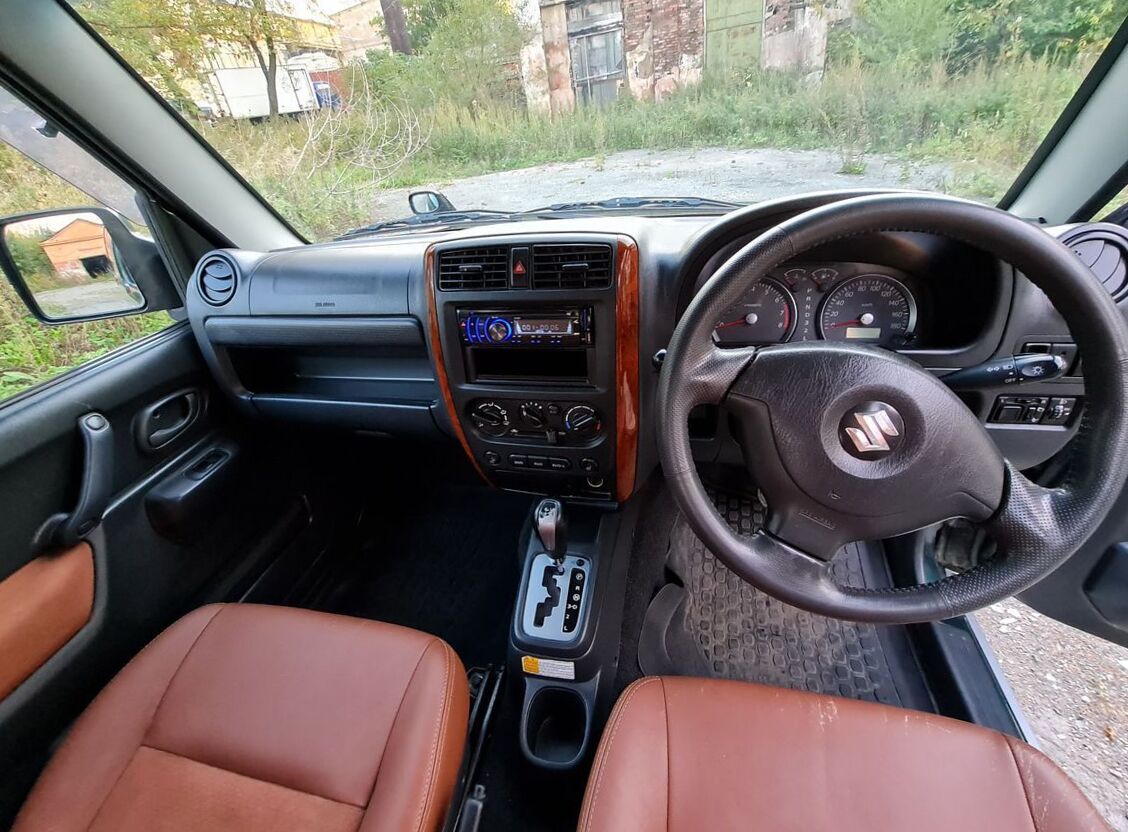

Steering wheel and center panel | |
Leather winding | no |
Telescopic steering | no |
Tilt steering | no |

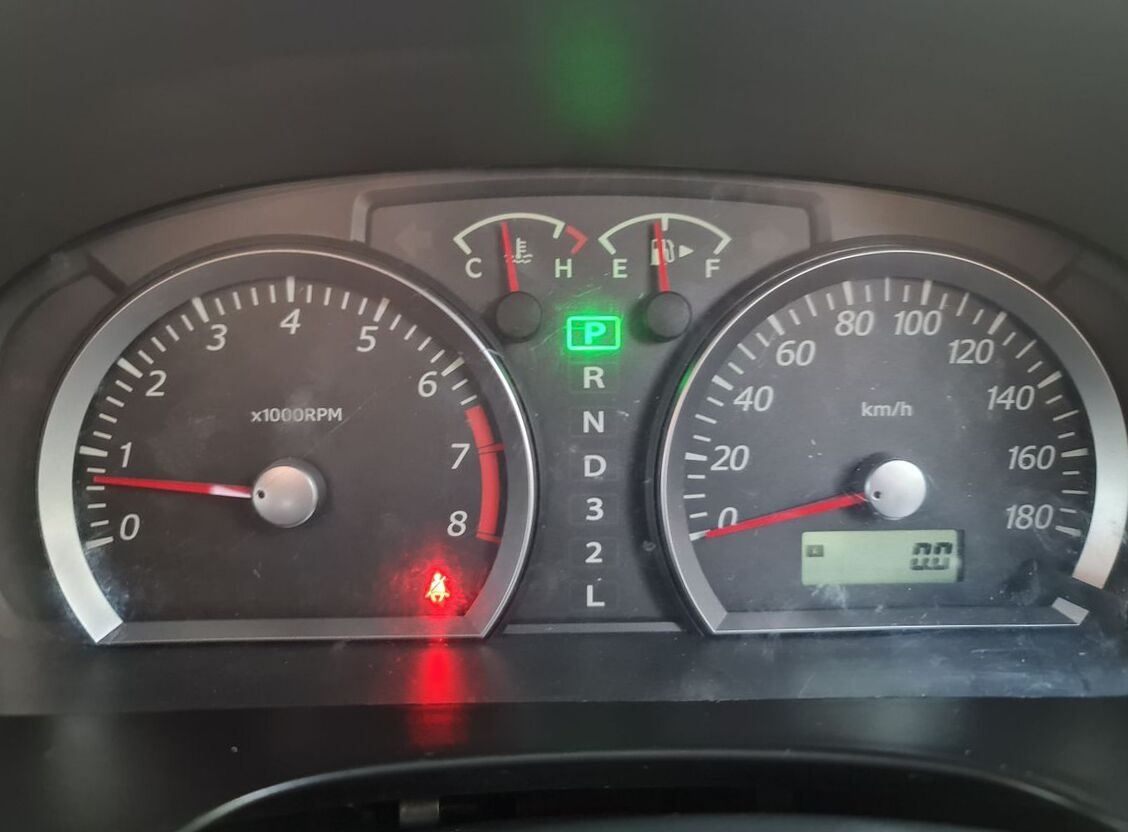

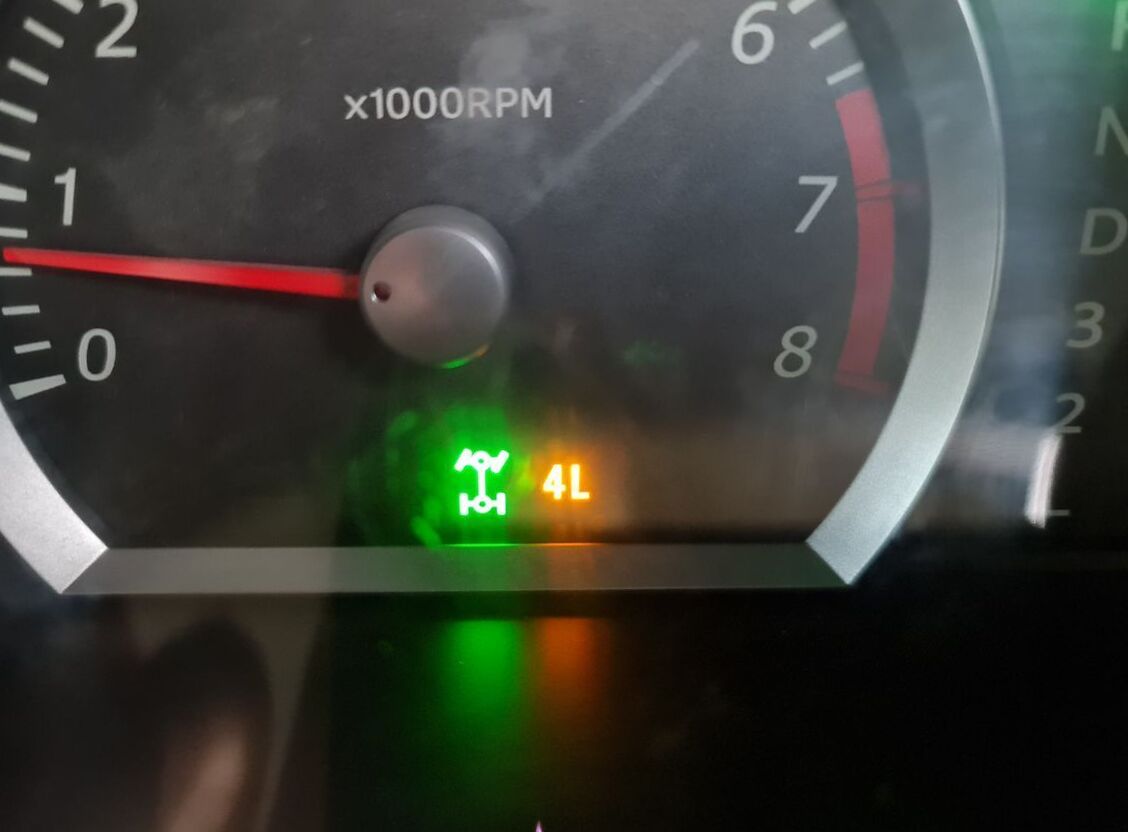

Tachometer | yes |
Interior design | |
Leather seat | no |
Wood panel | no |

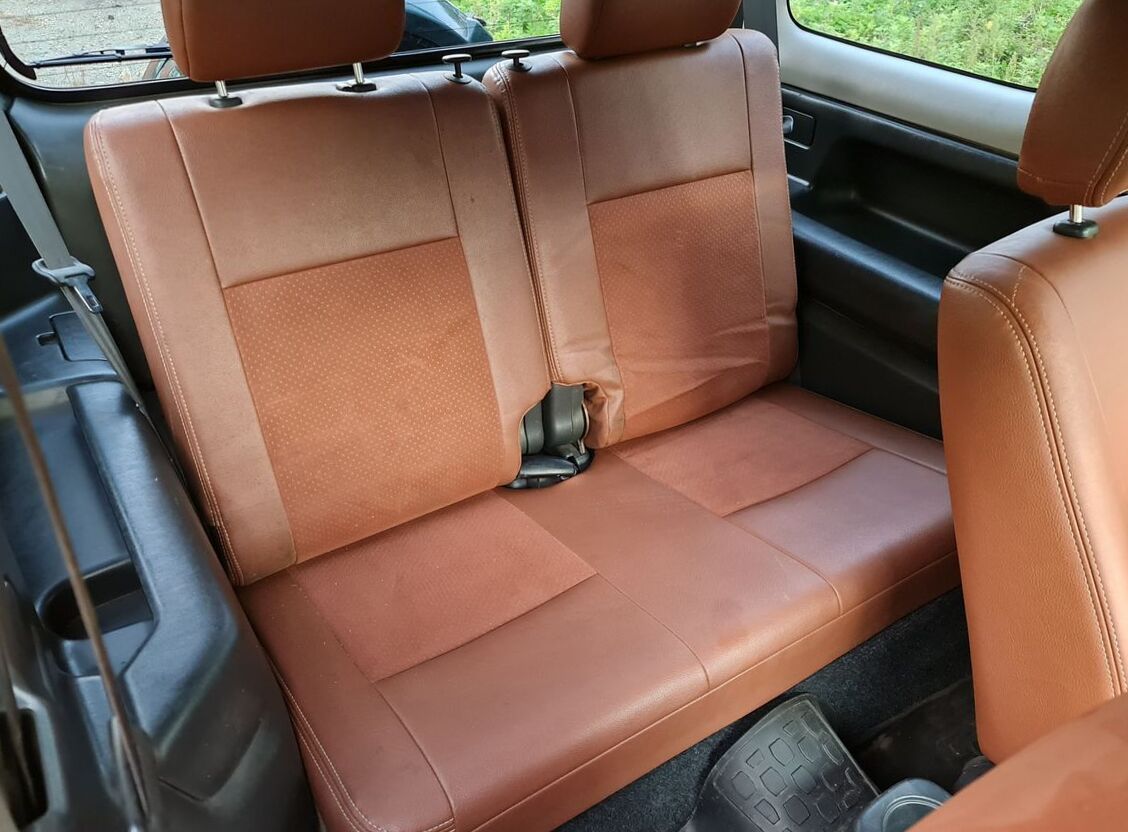

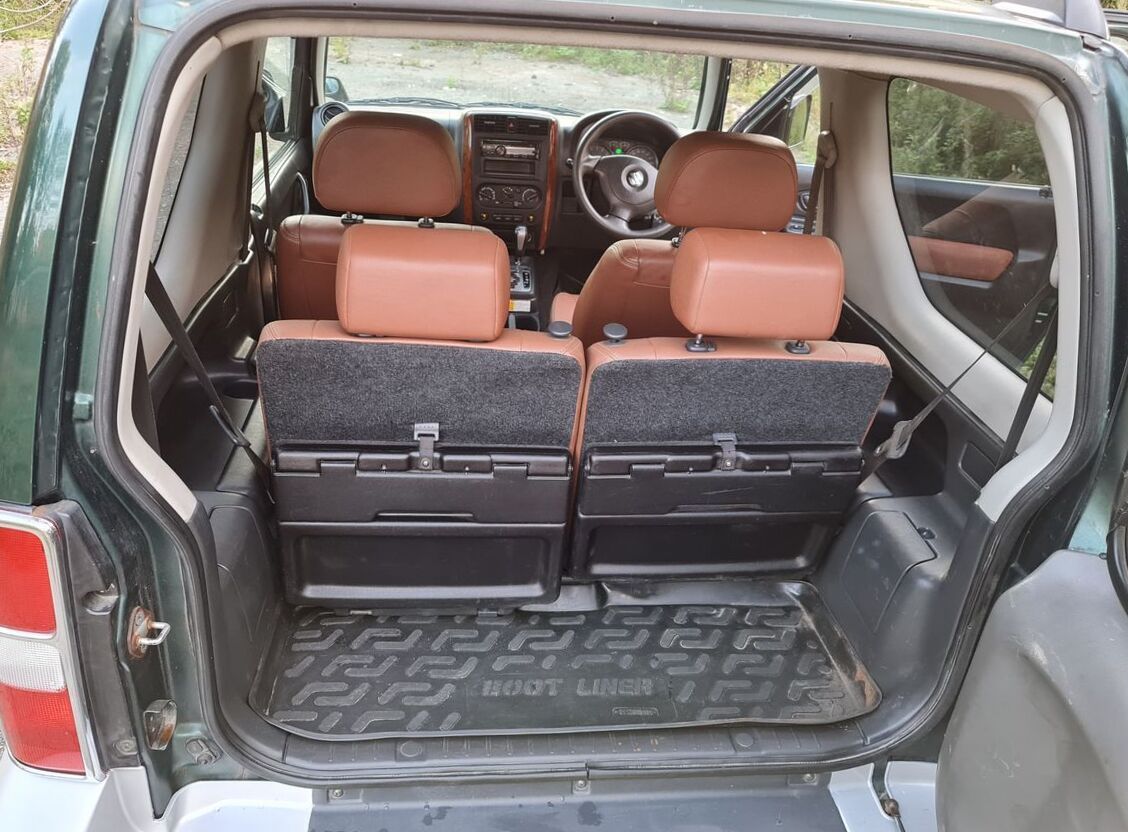

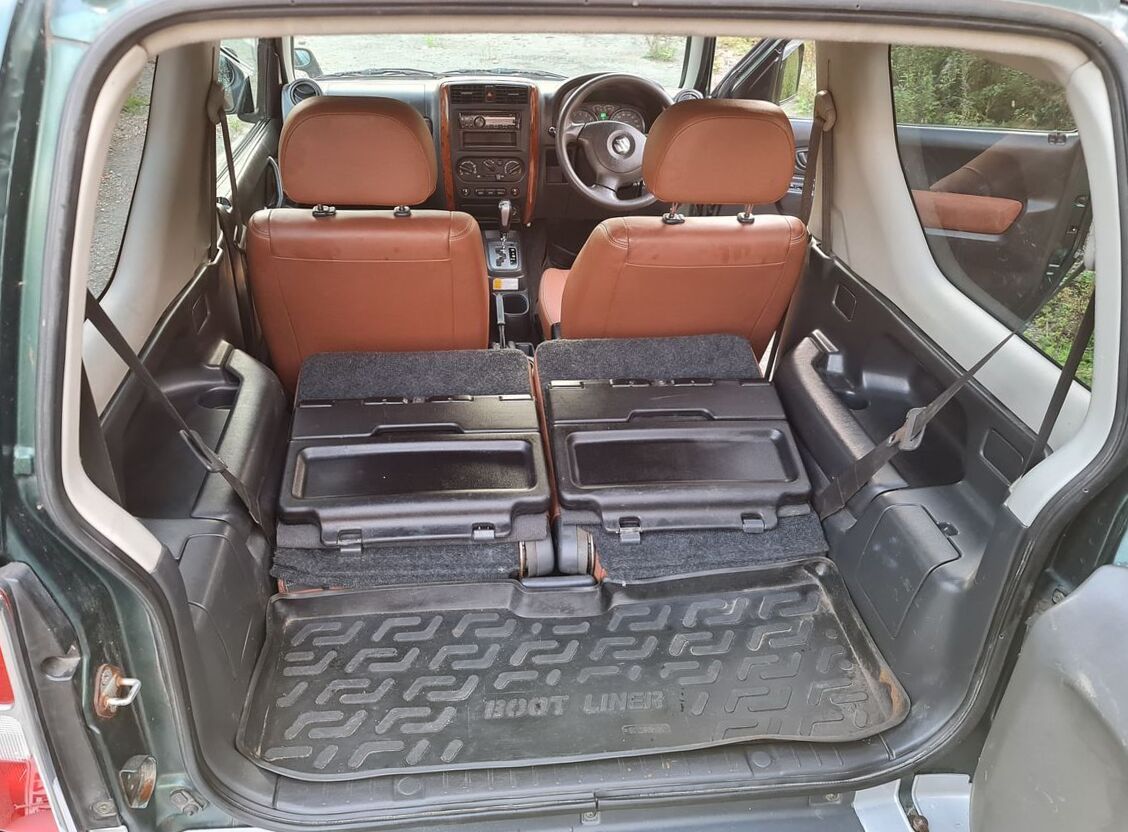

Seats | |
Reclining seats | no |
Removable seats | yes |
Turning seats | no |
Electric interior package | |
Power adjustable driver seat | no |
Power ajustable front seat | no |
Power ajustable back seat | no |
Centralized door lock | yes |
Keyless enter | yes |
Power window | yes |
Central power window control | yes |
Safety | |
Airbags | |
Drivers airbag | yes |
Passengers airbag | yes |
Side airbag | no |
Children safety | |
Child car restraints | yes |
Active and passive safety | |
Durable frame | yes |
Side impact bar | yes |
3 point safety belt | yes |
Safety belt pretensioner | yes |
Safety belt limiter | yes |
Electronic security and traffic control systems | |
Break assist | no |
traction control | no |
Cruise control | no |
Amenity | |

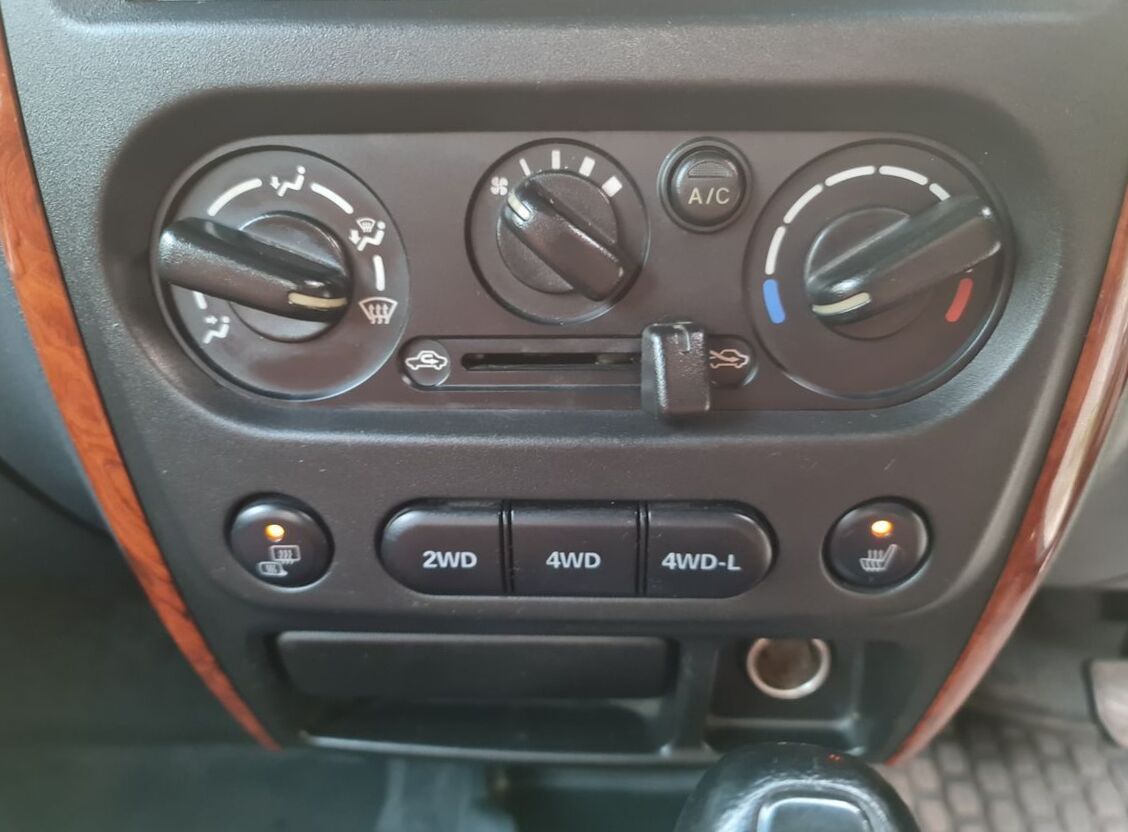

Microclimate | |
Cooler | no |
Automatic air conditioning | no |
Twin conditioning system | no |
Air purifier | no |
Audio systems | |
Radio | no |
Autoreverse casette | no |
CD player | no |
CD changer | no |
MD palyer | no |
MD changer | no |
Navigation and video equipment | |
Parking assist system | no |
2006 Suzuki Jimny Sierra III ABA-JB43W 1.3 4WD (88 Hp) specs
|
Jimny 55 Jimny 8 Jimny 550 SJ40 Jimny 1000 The SJ410 was introduced in 1982 as an updated version of the LJ80. It used a larger version of that LJ's 1.0 liter 4-cylinder engine. This engine produced 45hp (34kW) and it had a top speed of 68mph (109km/ h). A 4-speed manual transmission was standard, as were non-power assisted drum brakes front and rear. The SJ-410 came as a half-door convertible, pickup truck, 2-door hardtop, raised-roof hardtop, and no-glass hardtop. The SJ was produced in Spain by Santana Motors in their Linares, JaĆ©n factory and sold as a domestic vehicle in Europe due to its over 60% native parts. JA51 Jimny 1300 In 1984, the SJ was revamped with the launch of the SJ413. The SJ413 included a larger 1.3 liter 4-cylinder engine, 5-speed manual transmission and power brakes all around. The body and interior were also redesigned, with a new dashboard, seats, and grille. The SJ410 remained in production through 1985 with the old specifications. » Read More About Suzuki Jimny Sierra |
