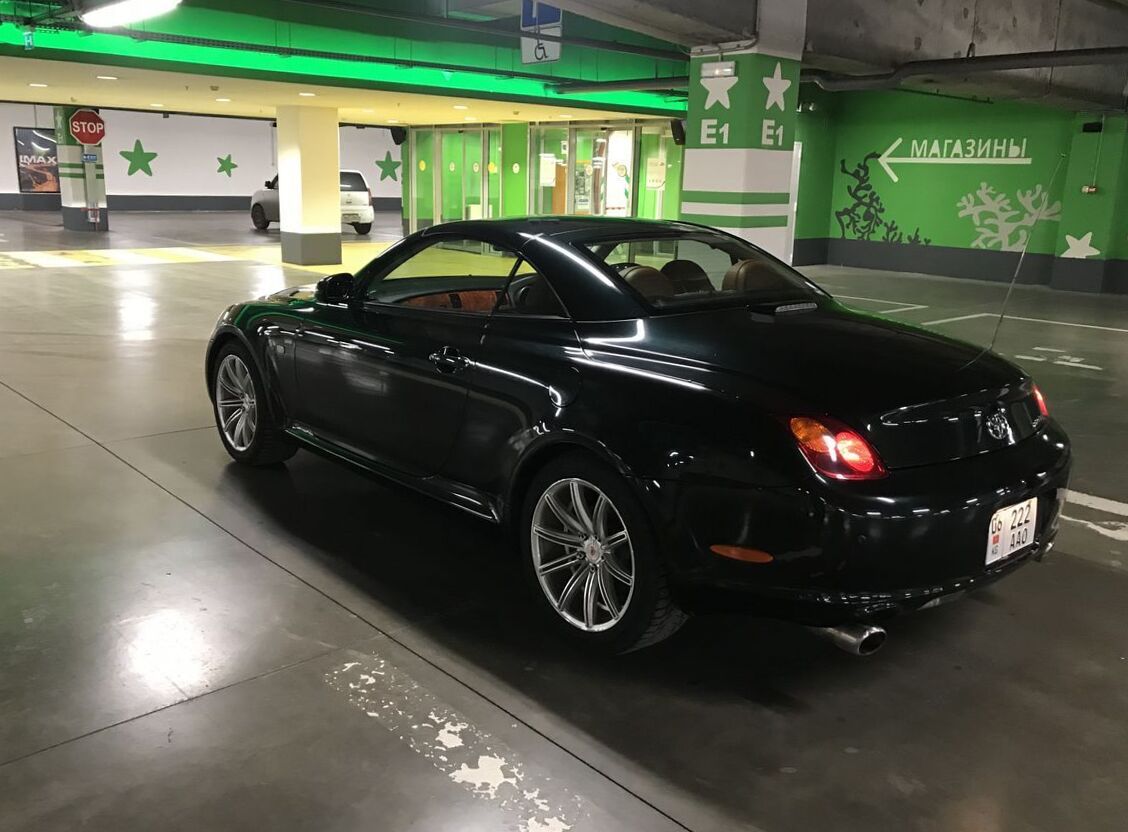

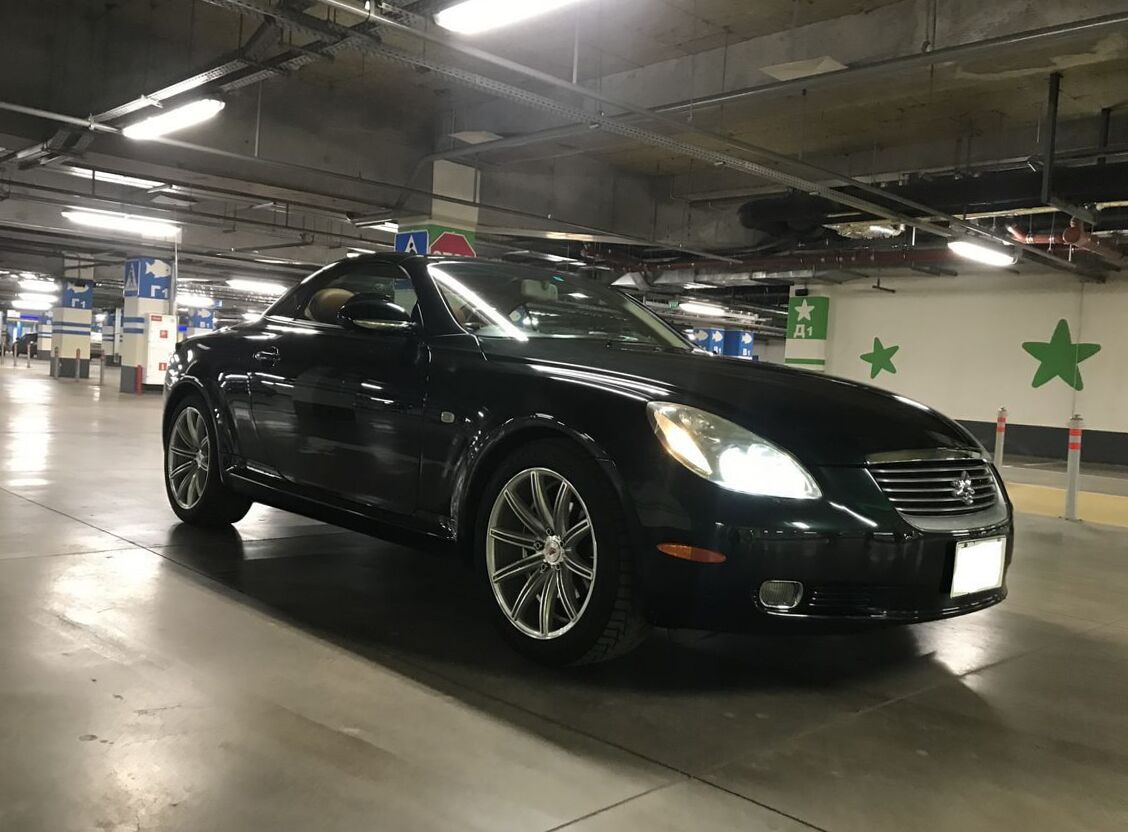

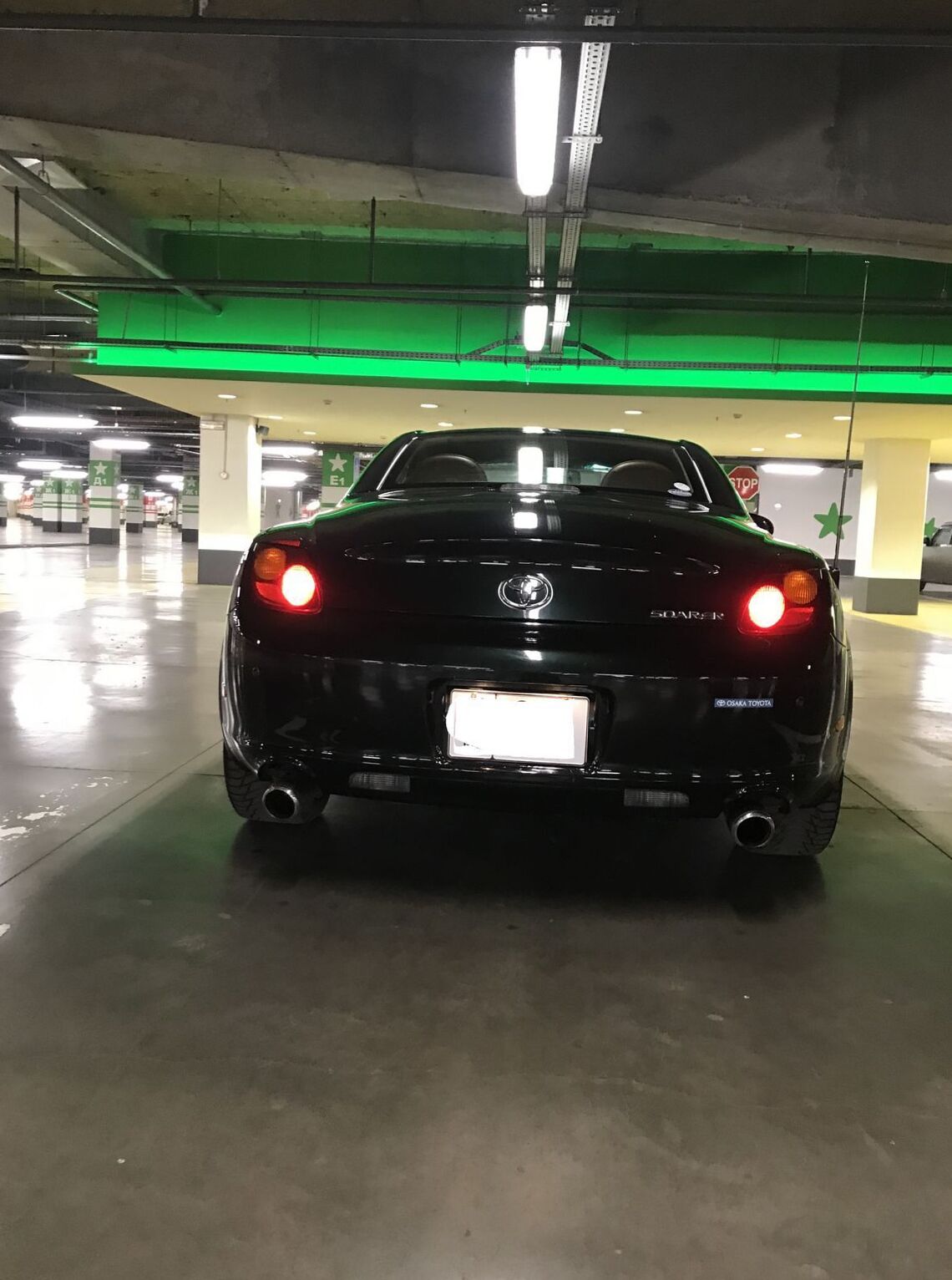

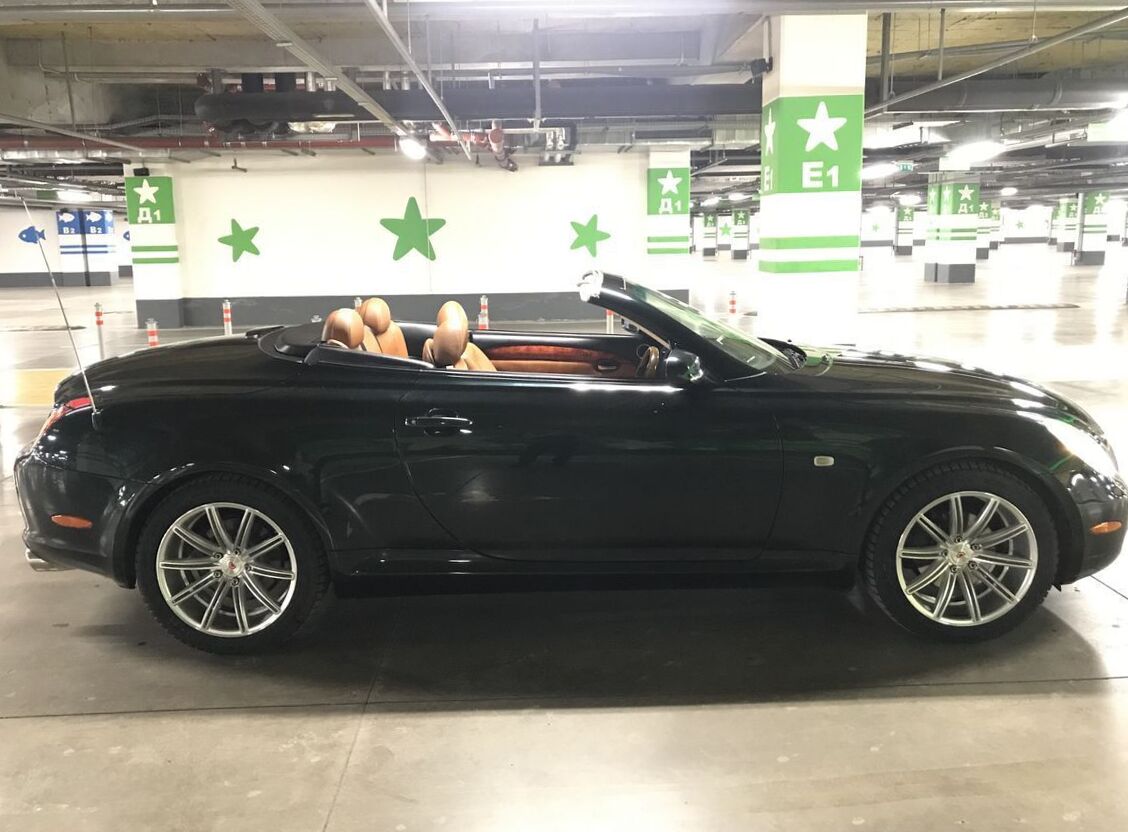

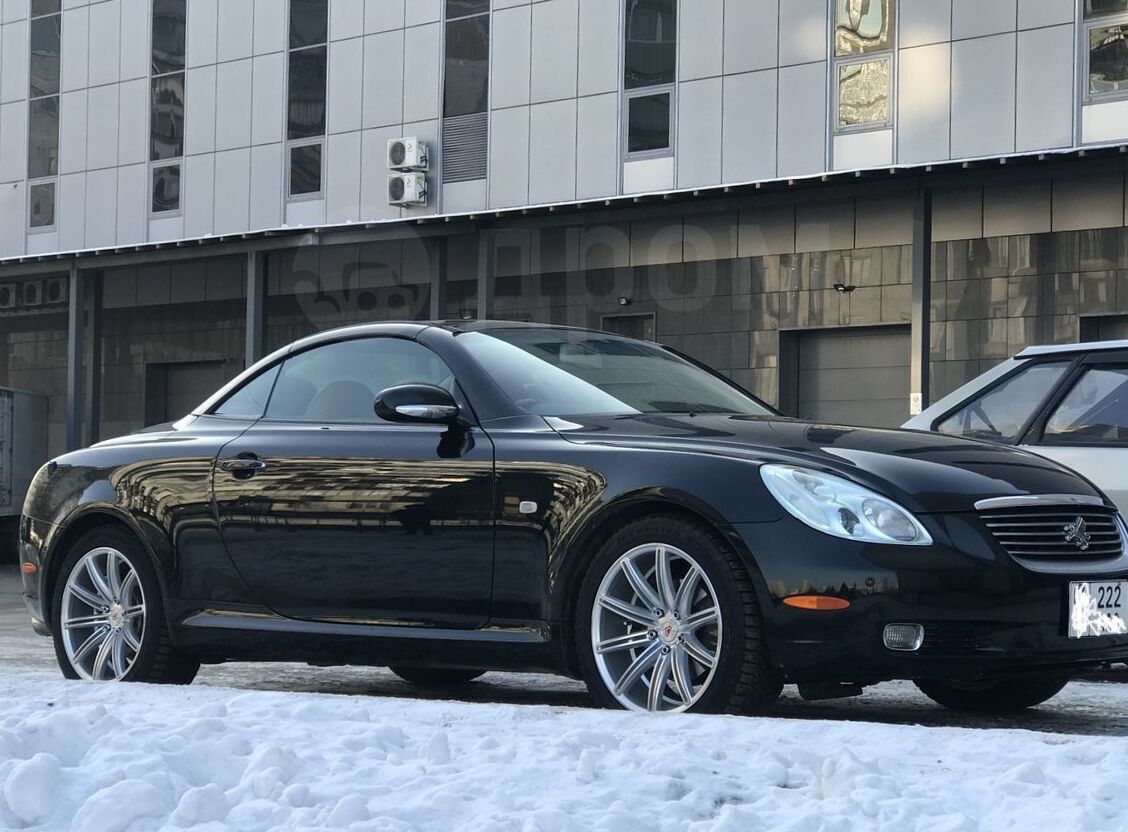

2005 Toyota Soarer IV 4.3 430SCV noble color edition
Toyota Soarer Problems
Water pump and Visca
1998, I can't find a visca and a water
pump for my soarer.Also the petrol gauge is not
wo...
I have Check engine electronic control system
1994, Has error on dash saying check engine
electronic control system. Cars tacho jumps
around...
Air intake
1992, when we get to 2000 revs it is like it is
missing or surging.It wont go past 2000 revs a...
| Body type | Open |
|---|---|
| Power | 280 Hp |
| Engine Displacement | 4300 cm3 or 4.3L or 262.4 cu-in |
| Color | green |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FR or RR |

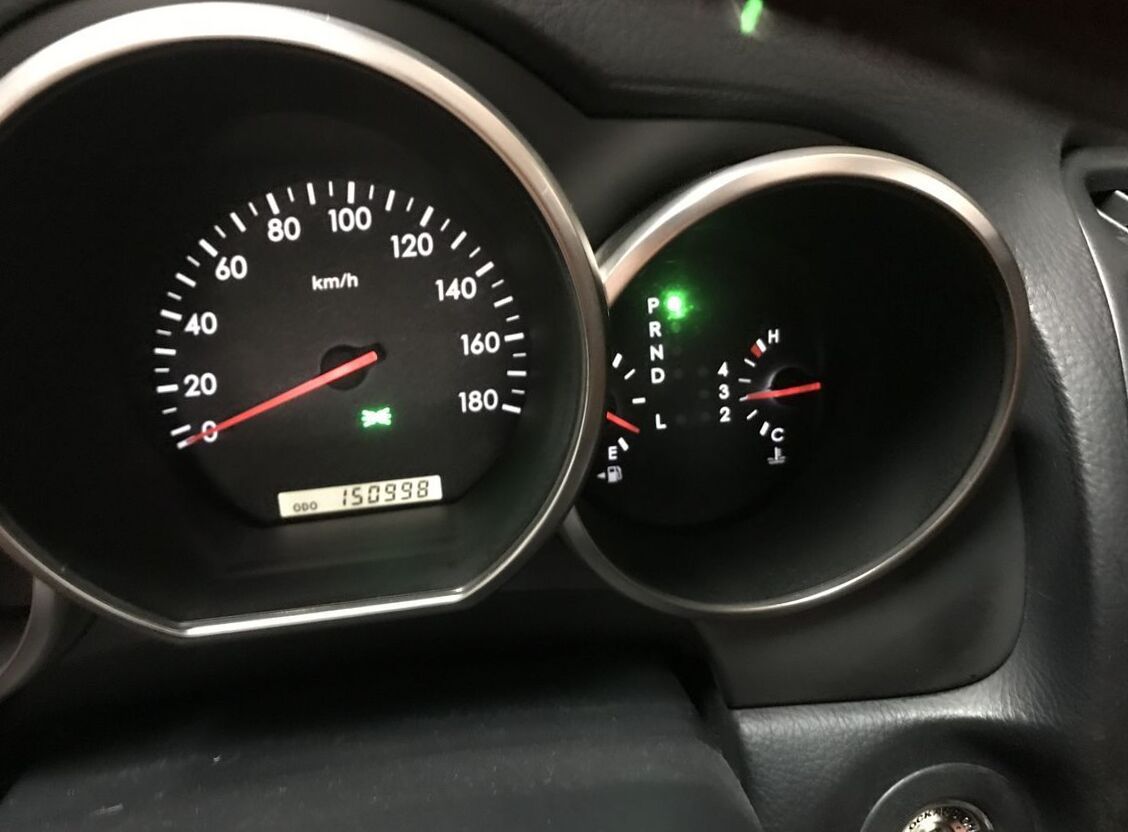

| Mileage | 93205 Miles |
| Vin | UZZ400****56 |
| Price (out of date) | $6516 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2005 Toyota Soarer IV? | Open body, 4 Seats, 2 Doors |
| How much power, Toyota Soarer Open body 2005? | 280 Hp |
| What is the engine size, Toyota Soarer CBA-UZZ40 2005? | 4.3L or 4292cm3 |
| How many gears, What type is the gearbox, 2005 Toyota Soarer 4.3 430SCV noble color edition? | Automatic transmission 5 |
| What is the drivetrain, Toyota Soarer IV 2005 Open body 4.3 430SCV noble color edition (280 Hp)? | Rear |
| How long is this vehicle, 2005 Toyota Soarer Open body 4.3 430SCV noble color edition (280 Hp)? | 4515 mm |
| How wide is the vehicle, 2005 Toyota Soarer IV? | 1825 mm |
Toyota Soarer IV CBA-UZZ40 4.3 430SCV noble color edition (280 Hp) 2004, 2005 Specs
General information | |
|---|---|
| Complectation name | 4.3 430SCV noble color edition |
| Production start year | 2004 |
| Price of new car in Tokyo, yen | 6804000 |
| Drive type | Rear |
| Frame type | Open body |
| Transmission type | Automatic transmission 5 |
| Engine volume, cc | 4292 |
| Frame name | CBA-UZZ40 |
| Clearance, mm | 140 |
| Manufacturing country | Japan |
| Doors | 2 |
| Right hand drive | yes |
| Left hand drive | no |
Vehicle generation | |
| Generation name | Z40 |
| Generation number | 4 |
| Production start year | 2001 |
| Production end year | 2005 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | 3UZ-FE |
| Fuel | High octane premium gasoline |
| Engine type | V8 |
| Has turbo | no |
| Max power, hp | 280 |
| Max power RPM, rpm | 5600 |
| Max power, hp (kWt) / rpm | 280 (206) / 5600 |
| Max torque, N*m | 430 |
| Max torque RPM, rpm | 3400 |
| Max torque, N*m (kg*m) / rpm | 430 (44) / 3400 |
| Compression ratio | 11.2 |
| Bore, mm | 91 |
| Stroke, mm | 82.5 |
| Actuator valves | DOHC |
| Engine additional info | VVT-i |
| LEV | 2005 exhaust standard 50% decrease level |
Fuel consumption | |
| Fuel consumption (10/15 mode), l/100km | 11.8 |
Transmission | |
| 1st gear ratio | 3.357 |
| 2nd gear ratio | 2.18 |
| 3rd gear ratio | 1.424 |
| 4th fear ratio | 1 |
| 5th gear ratio | 0.753 |
| Rear gear ratio | 3.431 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4515 |
| Exterior width, mm | 1825 |
| Exterior height, mm | 1355 |
Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
| Interior length, mm | 1495 |
| Interior width, mm | 1500 |
| Interior height, mm | 1085 |
Chassis dimensions | |
| Wheel base, mm | 2620 |
| Front axle length, mm | 1550 |
| Rear axle length, mm | 1530 |
| Turning radius, m | 5.4 |
| Wheel spacing front | 1550 |
| Wheel spacing rear | 1530 |
Weight and permissible load | |
| Mass, kg | 1730 |
Volumes | |
| Fuel tank capacity, l | 75 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear stablilizer | yes |
| Rear suspension | Independent on double wishbones |
| LSD | no |
Tires | |
| Front wheels | 245/40ZR18 |
| Rear wheels | 245/40ZR18 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Brake front search | 1 |
| Rear brake | 1 |
Exterior | |
Headlights | |
| Xenon lamps | yes |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Additional stop light | yes |
| Cornering lamps | no |
Side mirrors | |
| Power adjustable door mirrors | yes |
Windows | |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Tilt sunroof | no |
| Twin sunroof | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | option |
| Back wiper | no |
Body color | |
| Colors | 2289 |

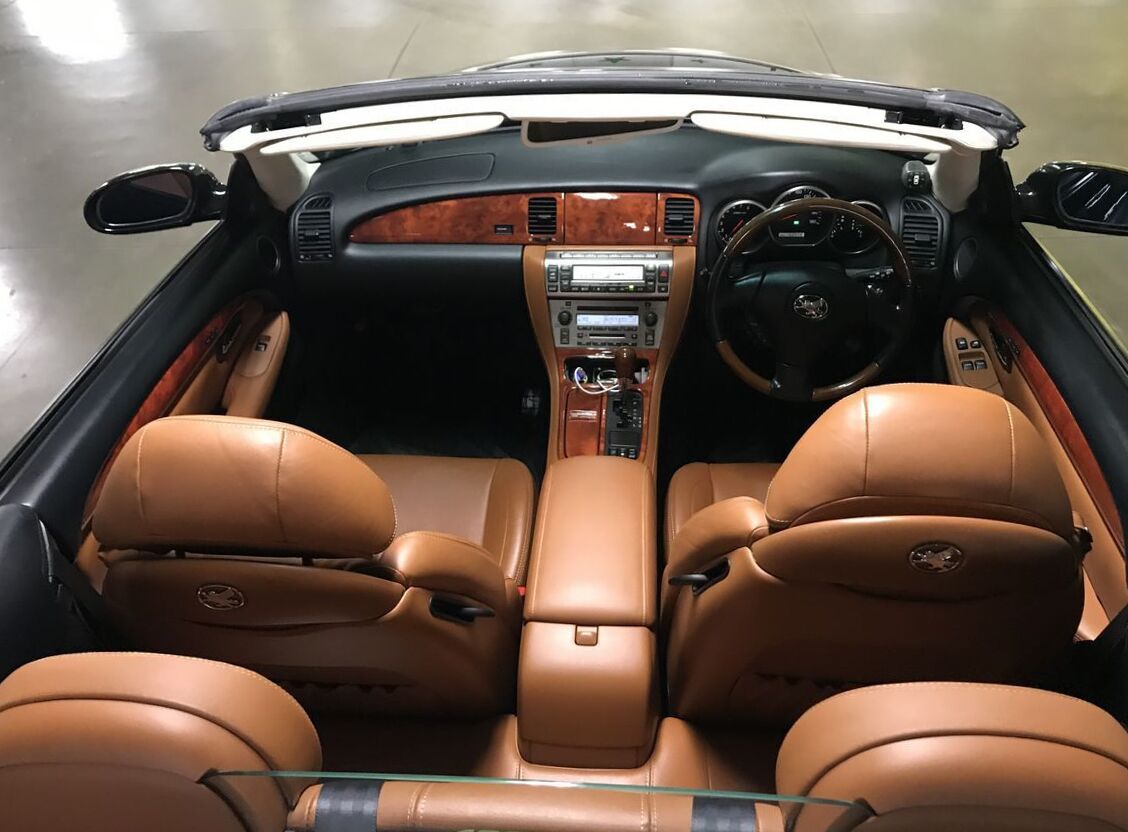

Interior | |
Steering wheel and center panel | |
| Leather winding | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Tachometer | yes |
Interior design | |

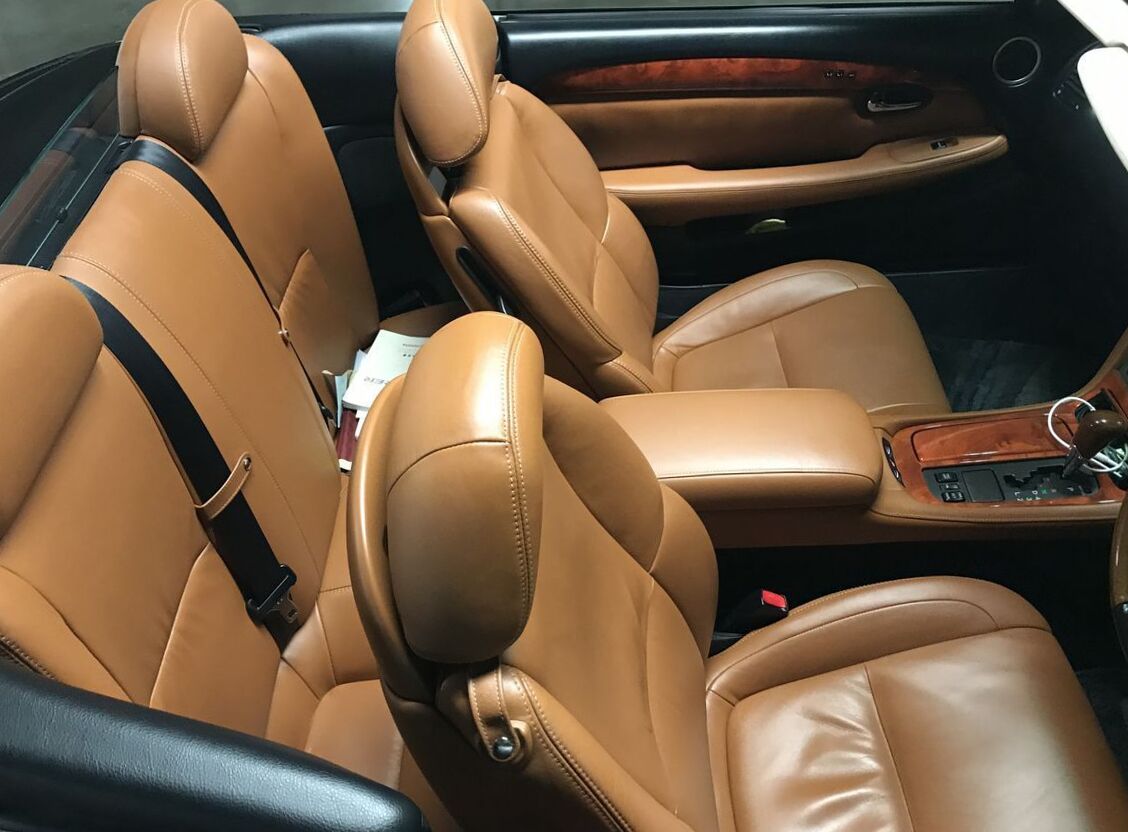

| Leather seat | yes |
| Wood panel | yes |
Seats | |
| Reclining seats | no |
| Removable seats | no |
| Turning seats | no |
Electric interior package | |
| Power adjustable driver seat | yes |
| Power ajustable front seat | yes |
| Power ajustable back seat | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window | yes |
| Central power window control | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
Children safety | |
| Child car restraints | yes |
Active and passive safety | |
| Durable frame | yes |
| Side impact bar | yes |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| Break assist | yes |
| traction control | yes |
| Cruise control | yes |
Amenity | |
Microclimate | |
| Cooler | no |
| Automatic air conditioning | yes |
| Twin conditioning system | no |
| Air purifier | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | no |
| CD player | no |
| CD changer | yes |
| MD palyer | yes |
| MD changer | no |
Navigation and video equipment | |
| Parking assist system | no |
2005 Toyota Soarer IV CBA-UZZ40 4.3 430SCV noble color edition (280 Hp) specs
|
The Soarer was a competitor to the Nissan Leopard coupe. All versions of the Soarer used a Griffin as the logo throughout the vehicle. In 2001, Toyota introduced a convertible successor which appeared in Japan as the fourth generation (40 series) Toyota Soarer, and elsewhere as the Lexus SC 430. In contrast to previous versions, the fourth generation Soarer and Lexus SC models were largely equivalent. In 2005, following the introduction of Lexus in Japan, sales of the Z40 series Soarer were discontinued and the Lexus SC 430 became available in the Japanese market. The Soarer made its first appearance at the 1980 Osaka International Motor Show with the name "EX-8", and the Z10 series Toyota Soarer was produced from February 1981 to December 1985, with 2.0L, 2.8L or 3.0L DOHC I-6 variants. The first generation Soarer debuted with a rear-wheel drive configuration . It boasted numerous technological items, such as touchscreen computer controlled air conditioning climate control, digital speed and tachometer display using LED, among other elecronic features. » Read More About Toyota Soarer |
