2014 Toyota Passo II 1.0 X L package
Toyota Passo Problems
Toyota passo not change gears
2004, Gears not change They fleak on D drive
so they it shows engen cheque light The car
not...
Passo fuel average not showing in meter
2005, I have changed the speed meter of passo
2005 it was not working then the mechanic also
c...
Passo breaks issue
2012, Passo breaks ka issue hai... Aik bar
barish mai passo ki breaks bilkul b nei lag rhy
thy...
| Body type | Hatchback |
|---|---|
| Power | 69 Hp |
| Engine Displacement | 1000 cm3 or 1L or 61 cu-in |
| Color | claret |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 14615 Miles |
| Vin | KGC30-0****69 |
| Price (out of date) | $7684 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2014 Toyota Passo II? | Hatchback, 5 Seats, 5 Doors |
| How much power, Toyota Passo Hatchback 2014? | 69 Hp |
| What is the engine size, Toyota Passo DBA-KGC30 2014? | 1L or 996cm3 |
| How many gears, What type is the gearbox, 2014 Toyota Passo 1.0 X L package? | Variator |
| What is the drivetrain, Toyota Passo II 2014 Hatchback 1.0 X L package (69 Hp)? | Front |
| How long is this vehicle, 2014 Toyota Passo Hatchback 1.0 X L package (69 Hp)? | 3640 mm |
| How wide is the vehicle, 2014 Toyota Passo II? | 1665 mm |
Toyota Passo II DBA-KGC30 1.0 X L package (69 Hp) 2012, 2013, 2014 Specs
General information | |
|---|---|
| Production start year | 2012 |
| Production end year | 2014 |
| Frame type | Hatchback |
| Drive type | Front |
| Transmission type | Variator |
| Engine volume, cc | 996 |
| Frame name | DBA-KGC30 |
| Clearance, mm | 140 |
| Doors | 5 |
| Winter complectation | option |
| Steering locaton | right |
Vehicle generation | |
| Generation name | XC30 |
| Generation number | 2 |
| Production start year | 2010 |
| Production end year | 2014 |
Engine, transmission and steering specs | |

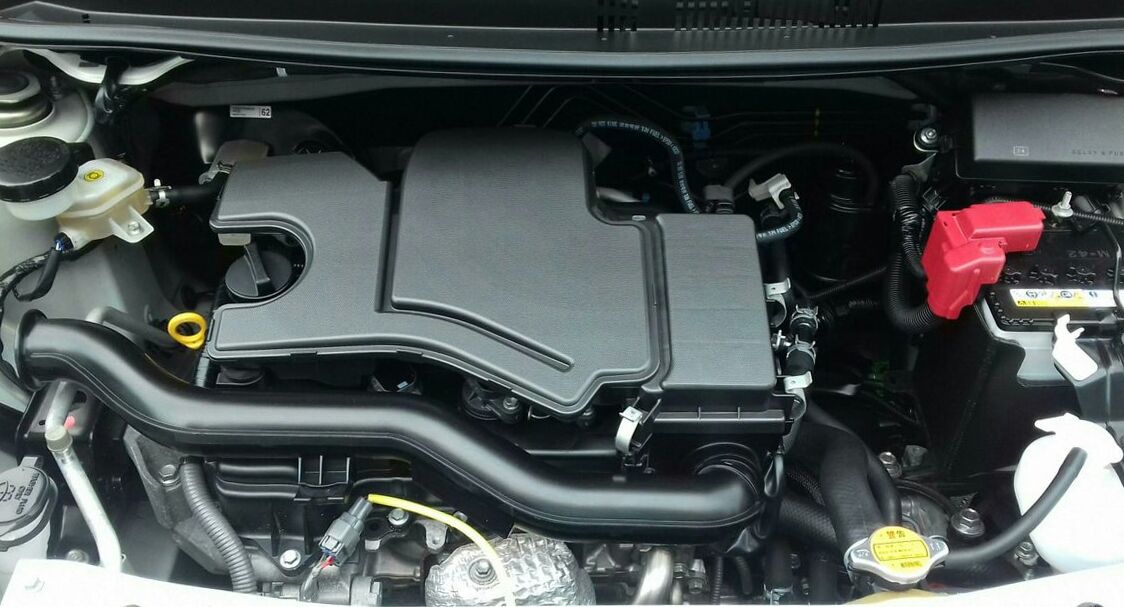

Engine specs | |

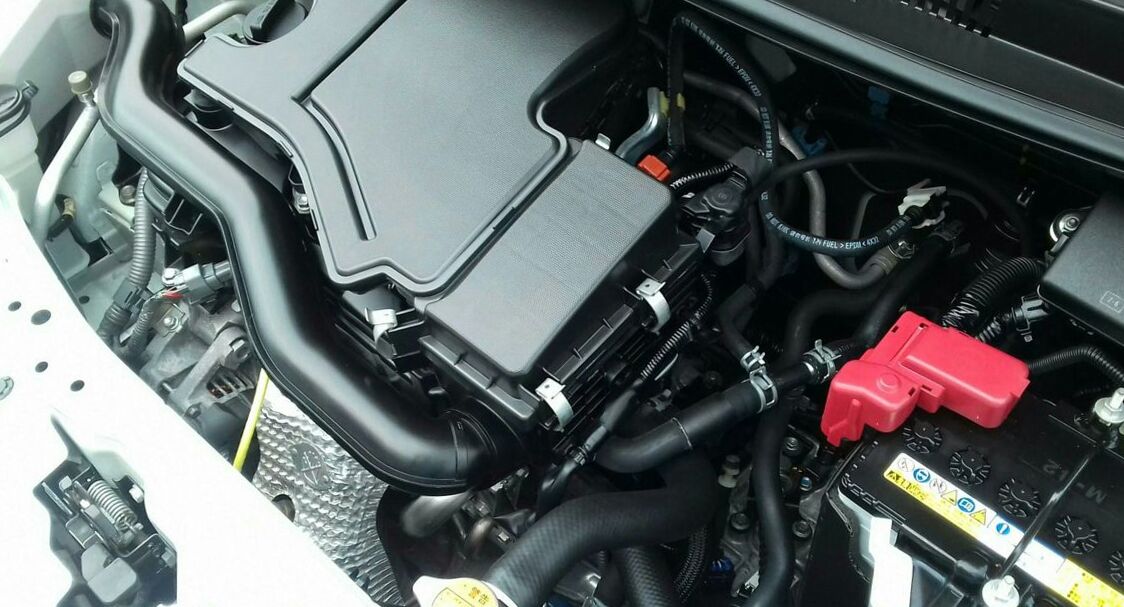

| Engine name | 1KR-FE |
| Fuel | Petrol (Gasoline) |
| Engine type | 3 cylinder DOHC |
| Max power, hp | 69 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 69(51)/6000 |
| Max torque, N*m | 92 |
| Max torque RPM, rpm | 3600 |
| Max torque, N*m (kg*m) / rpm | 92 (9.4) / 3600 |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 51?69?/6000 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 92?9.4?/3600 |
| Start stop system | option |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with the 2015 fuel consumption standard |
Transmission | |
| Shifter position | On the steering column |
Steering | |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3640 |
| Exterior width, mm | 1665 |
| Exterior height, mm | 1535 |
| Exterior size (L x W x H), mm | 3640x1665x1535?mm? |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior size (L x W x H), mm | 1830x1420x1280?mm? |
| Interior length, mm | 1830 |
| Interior width, mm | 1420 |
| Interior height, mm | 1280 |
Chassis dimensions | |
| Wheel base, mm | 2440 |
| Front axle length, mm | 1465 |
| Rear axle length, mm | 1475 |
| Turning radius, m | 4.3 |
| Front/rear axis length | 1465/1475?mm? |
| Wheel spacing front | 1465 |
| Wheel spacing rear | 1475 |
Weight and permissible load | |
| Mass, kg | 910 |
| Total weight | 1185 |
Volumes | |
| Fuel tank capacity, l | 40 |
Suspension specs | |
Suspension specs | |

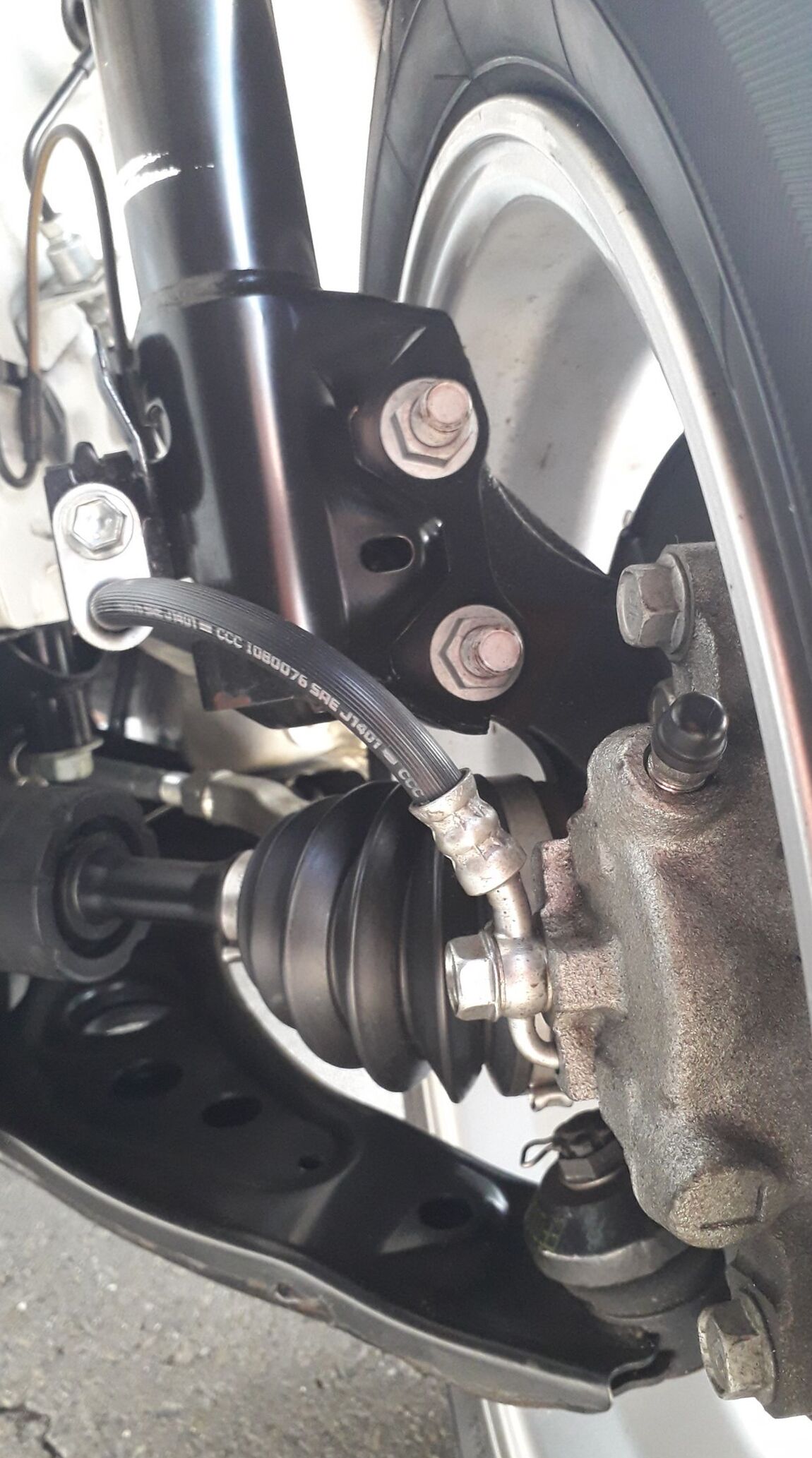

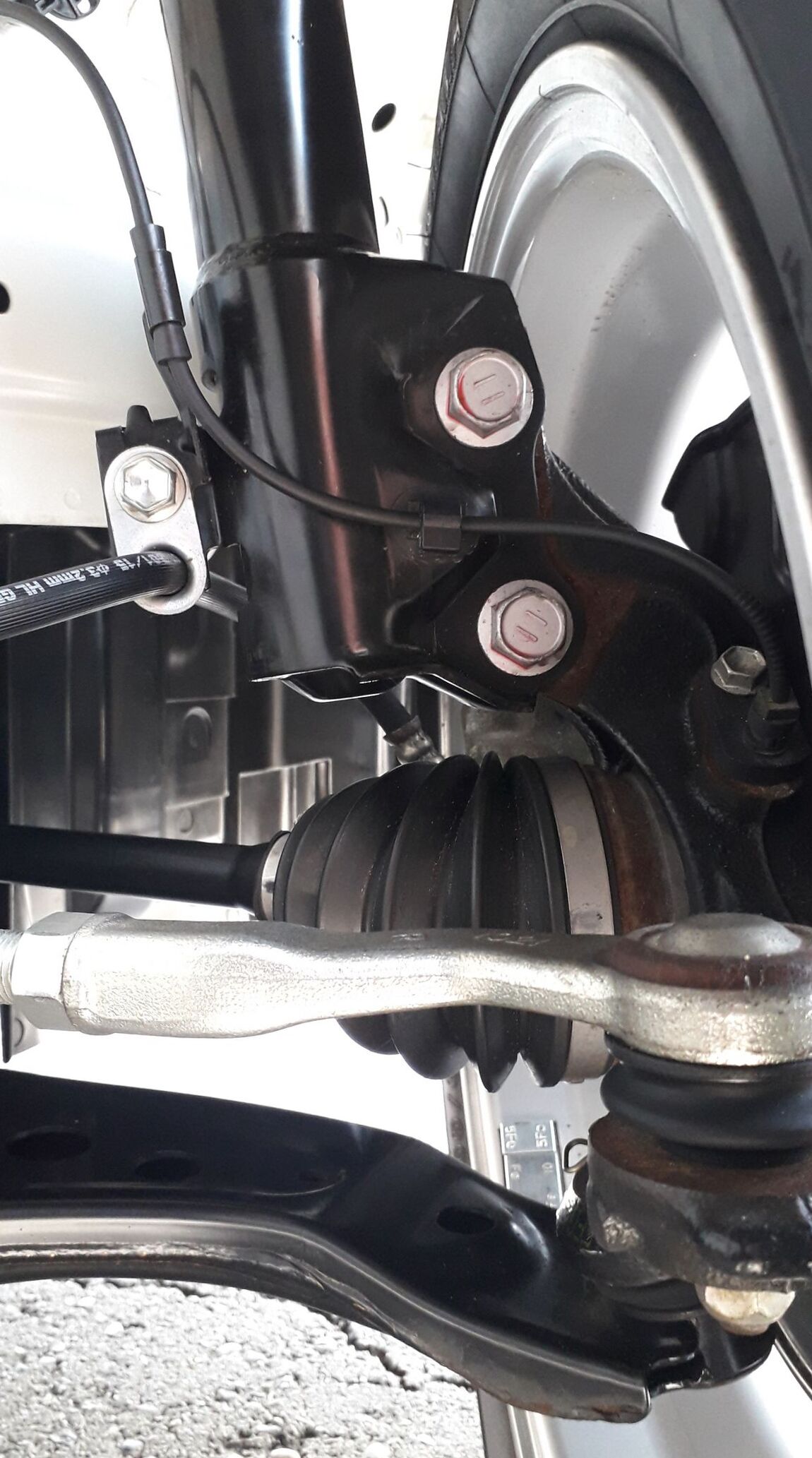

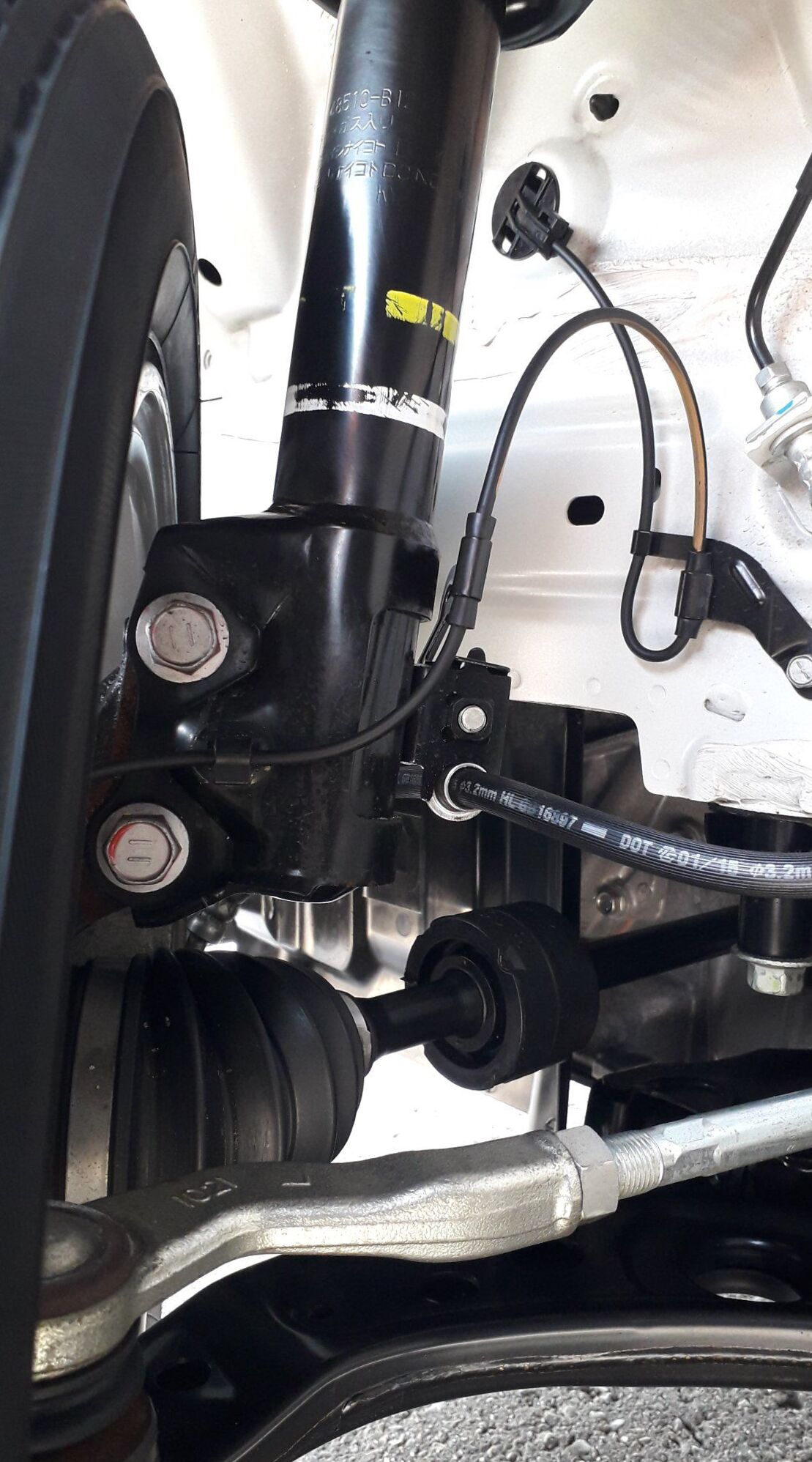

| Front suspension | Independent, Spring McPherson |

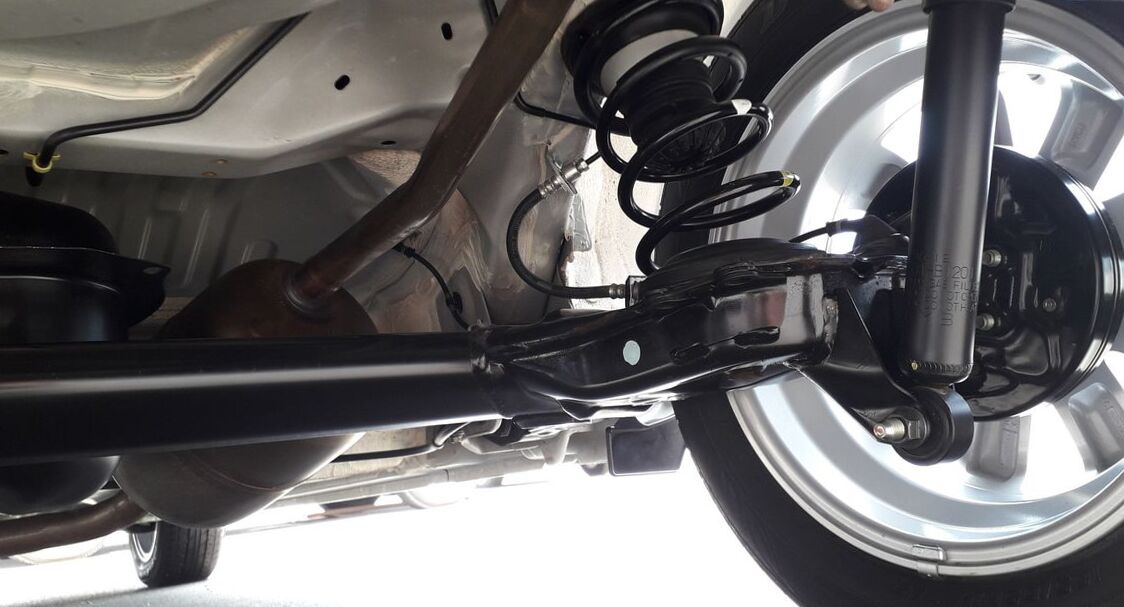

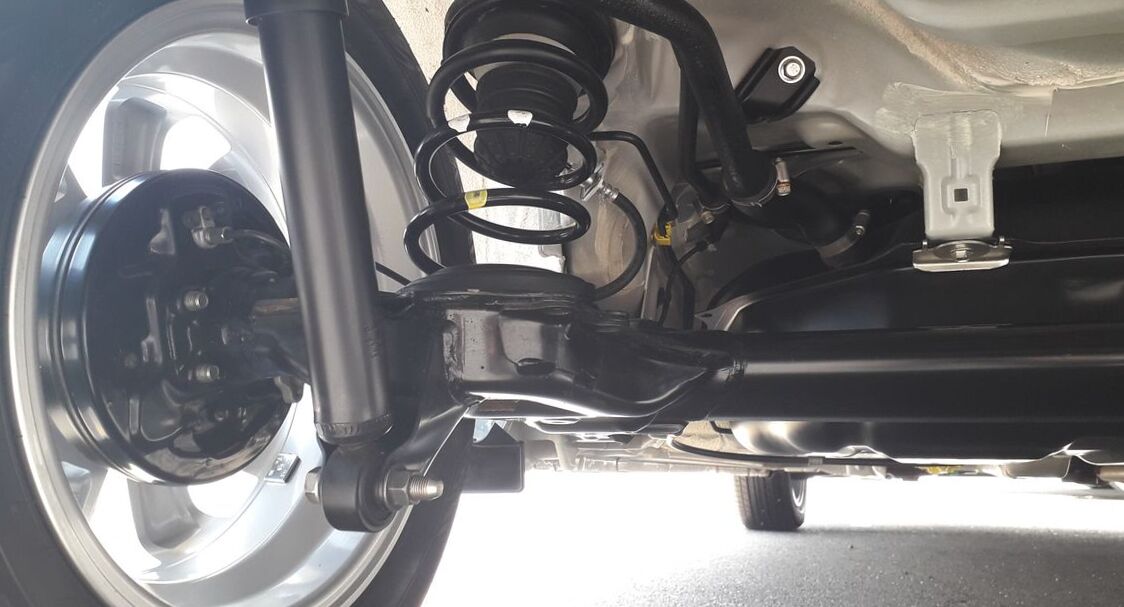

| Rear suspension | Semi-independent, torsion bar |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | no |
| Magnesium wheels | no |
Tires | |
| Front wheels | 155/80R13 |
| Rear wheels | 155/80R13 |
| Run flat tires | no |
Brakes | |

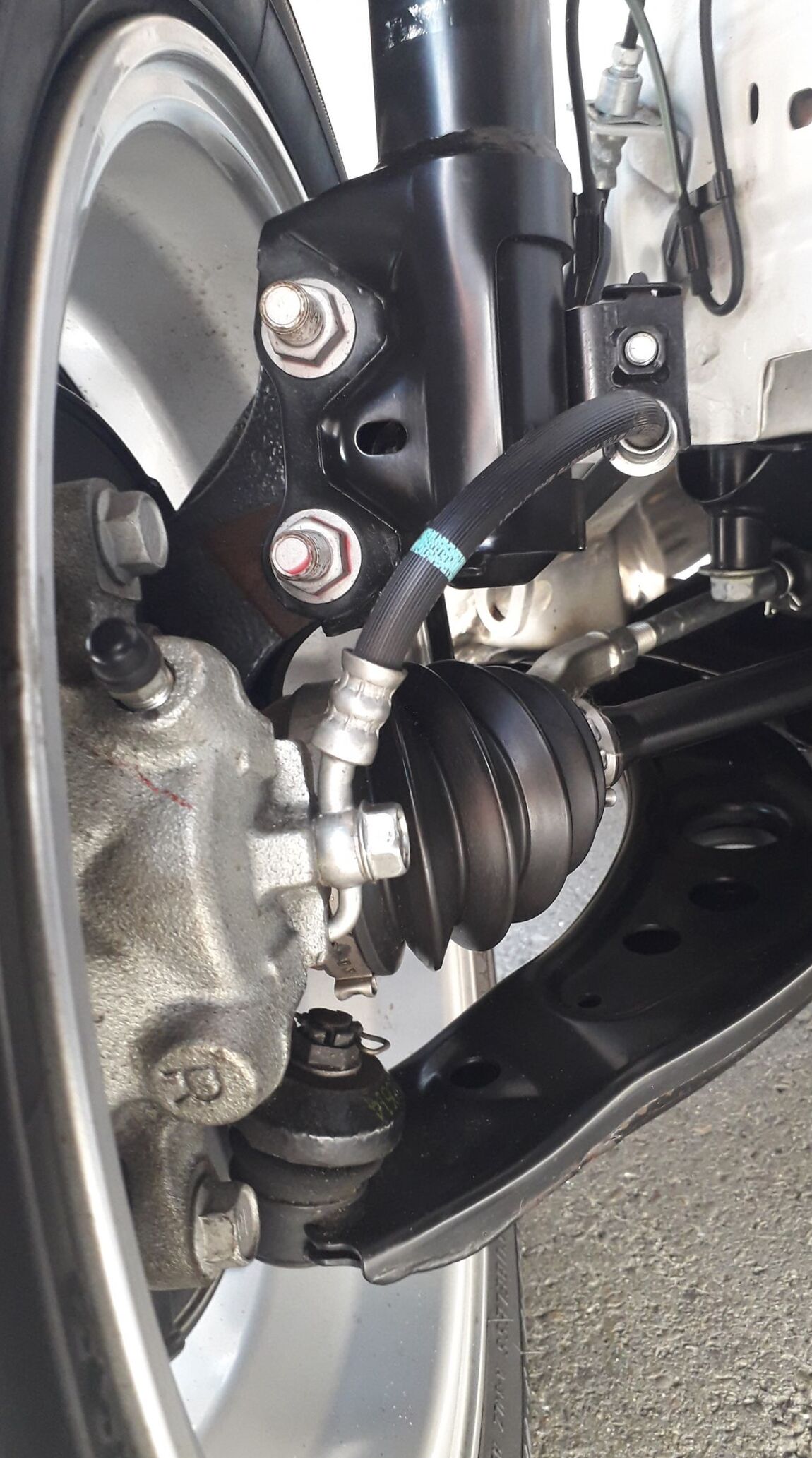

| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brakes equipment | no |
Exterior | |

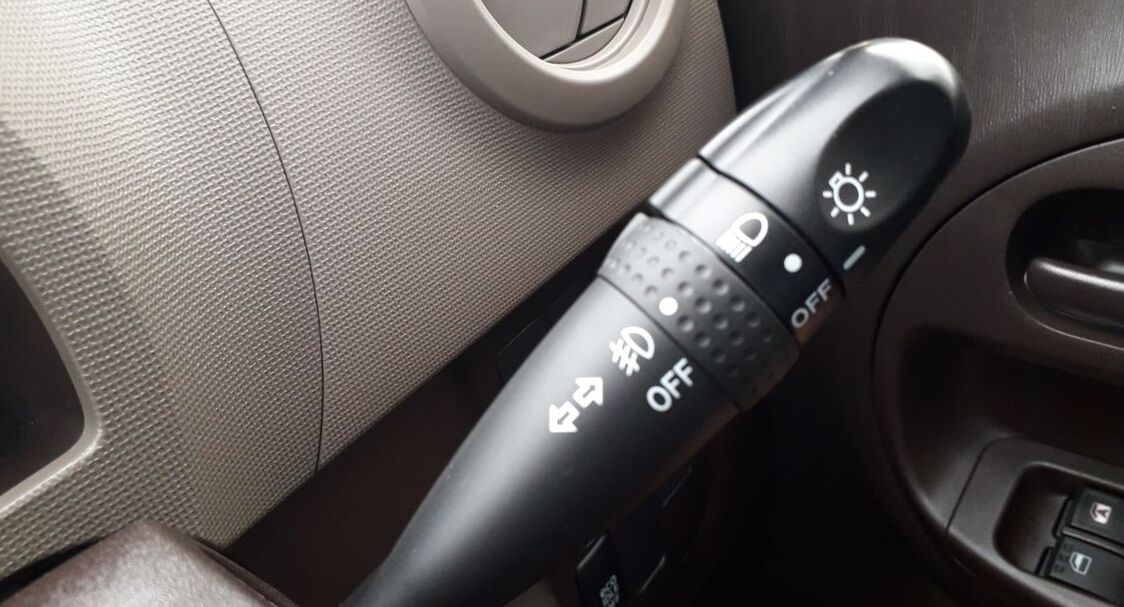

Headlights | |
| Xenon lamps | no |
| Head lights washer | no |
| Front fog lamps | no |
| Rear fog lamps | option |
| Rain sensor | no |

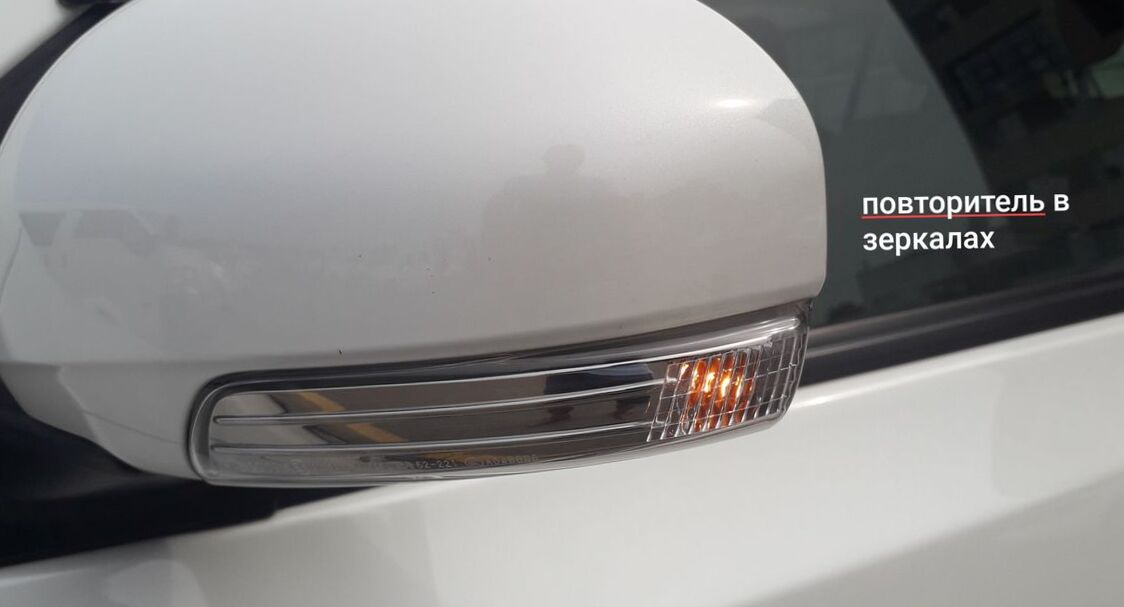

Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
Body color | |
| Colors | 3414 3419 3413 3418 3415 3416 3417 3420 |

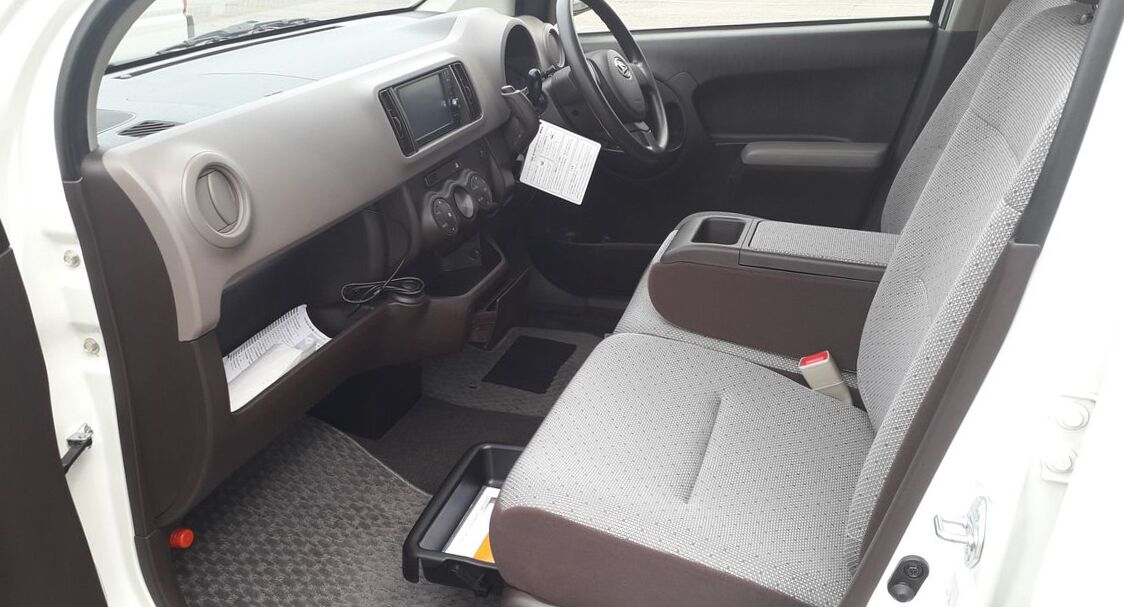

Interior | |
Steering wheel and center panel | |
| Engine start button | yes |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |
Seats | |
| Bucket seat | no |

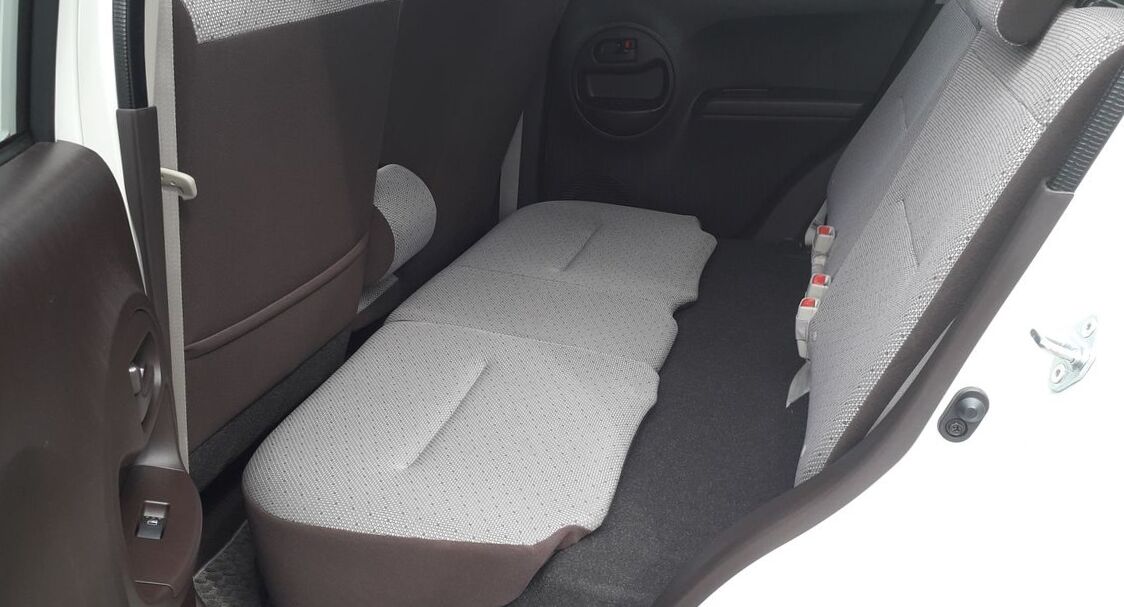

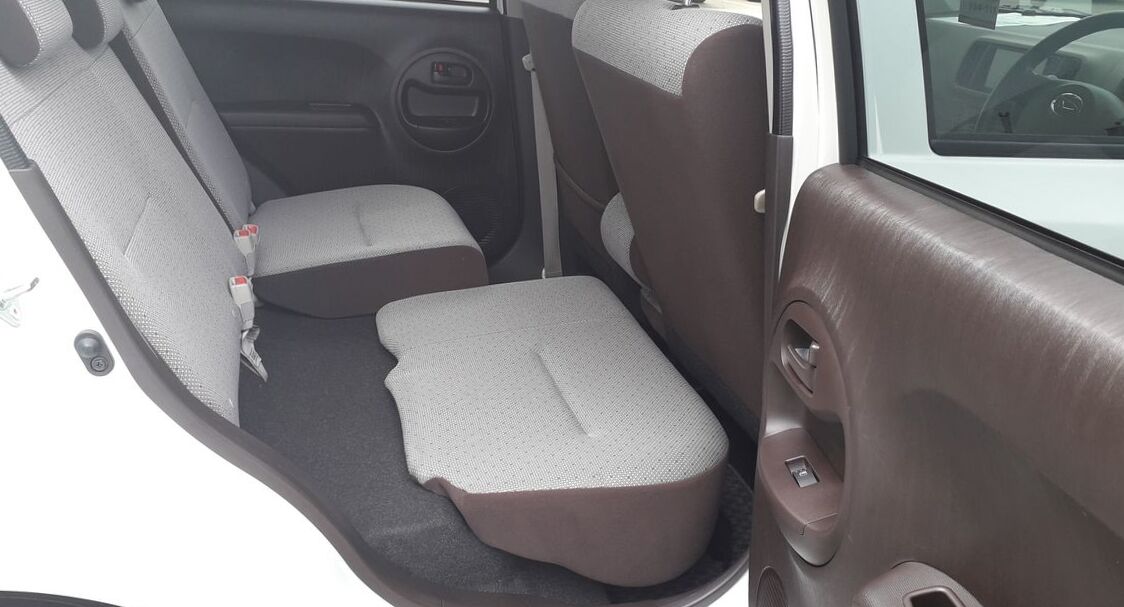

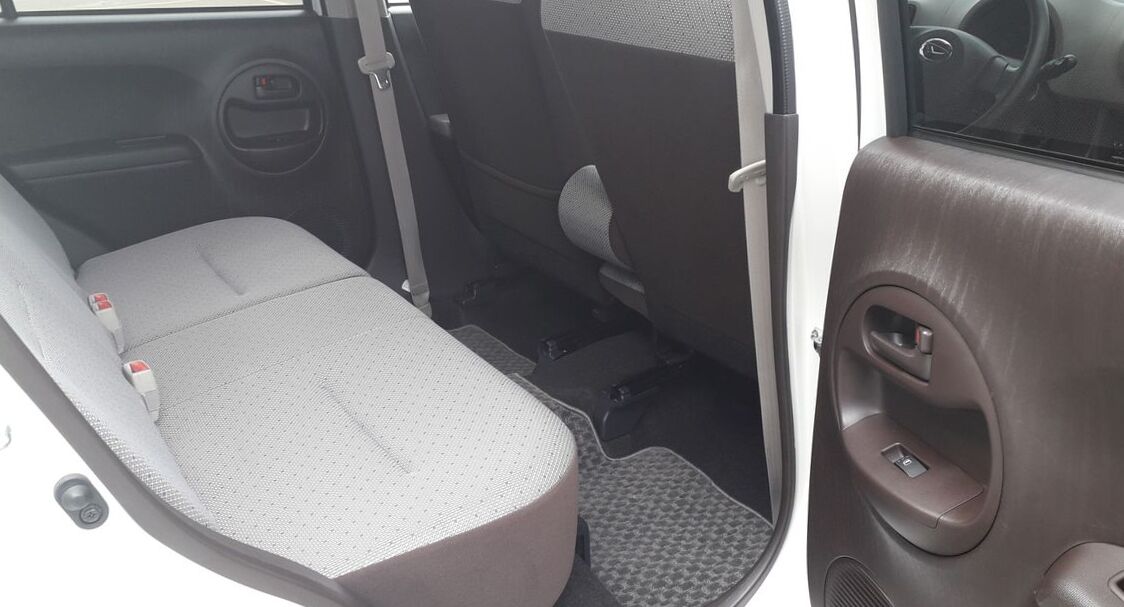

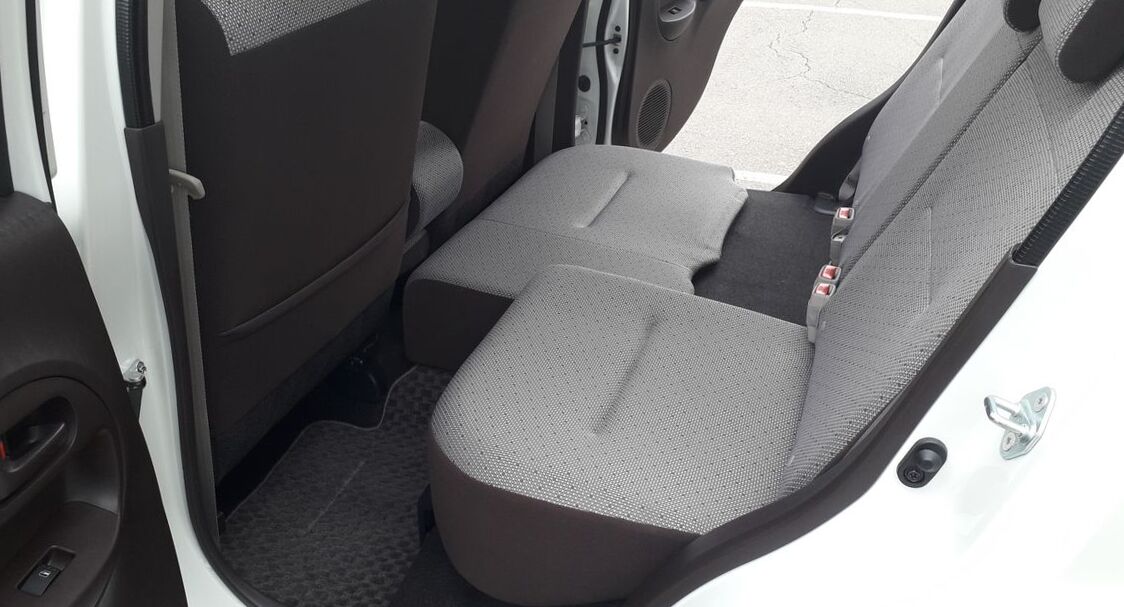

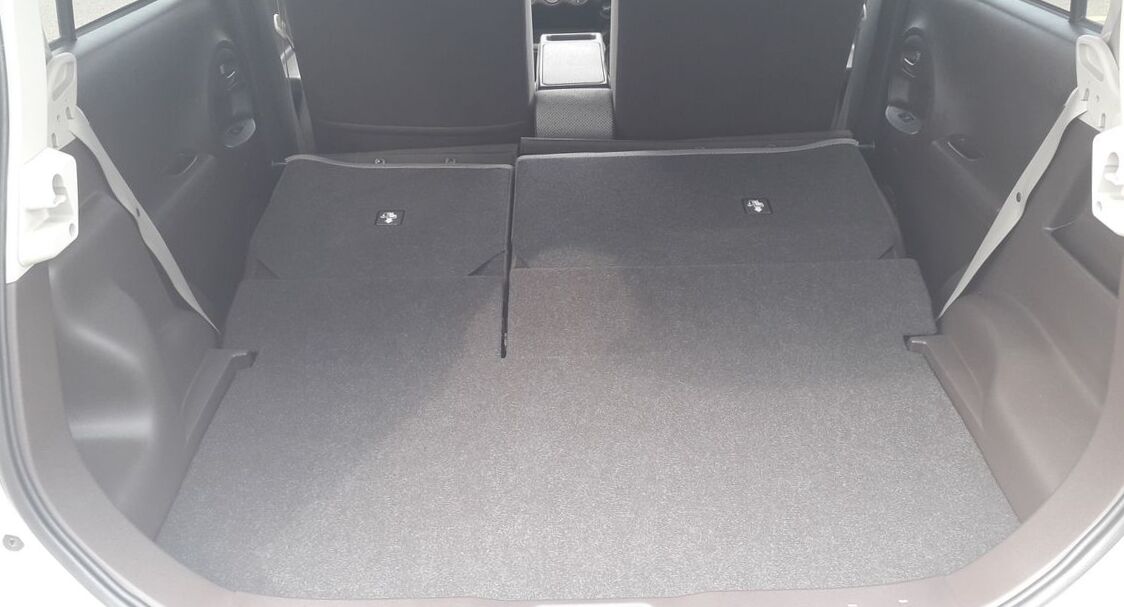

| 2nd row | foldable, backrest is indivisible |
| Seat lifter | no |
| Full flat seats | |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | yes |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |

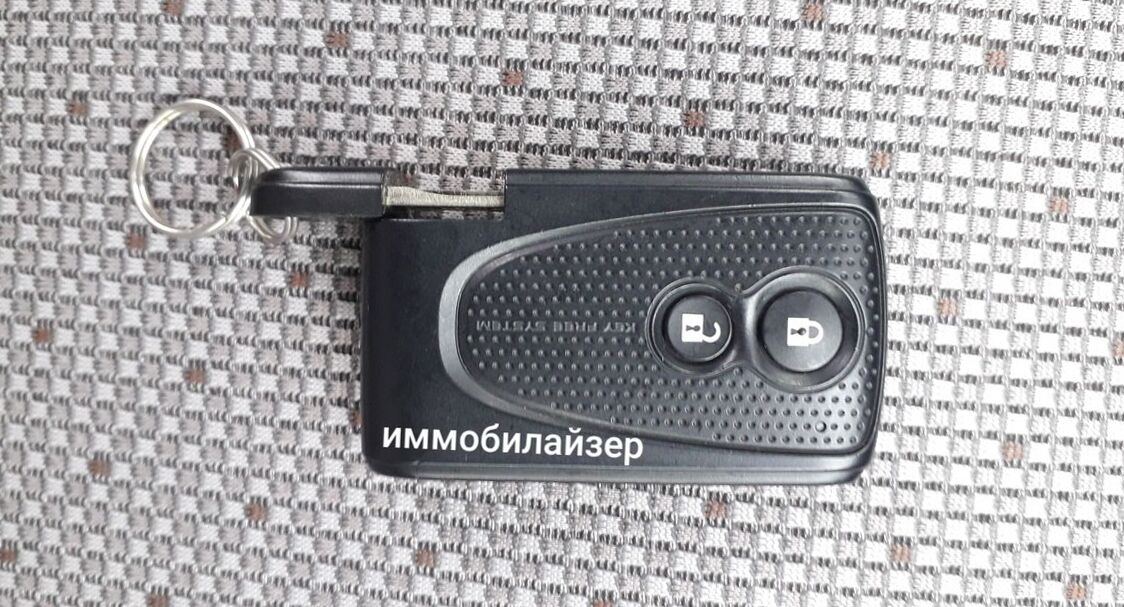

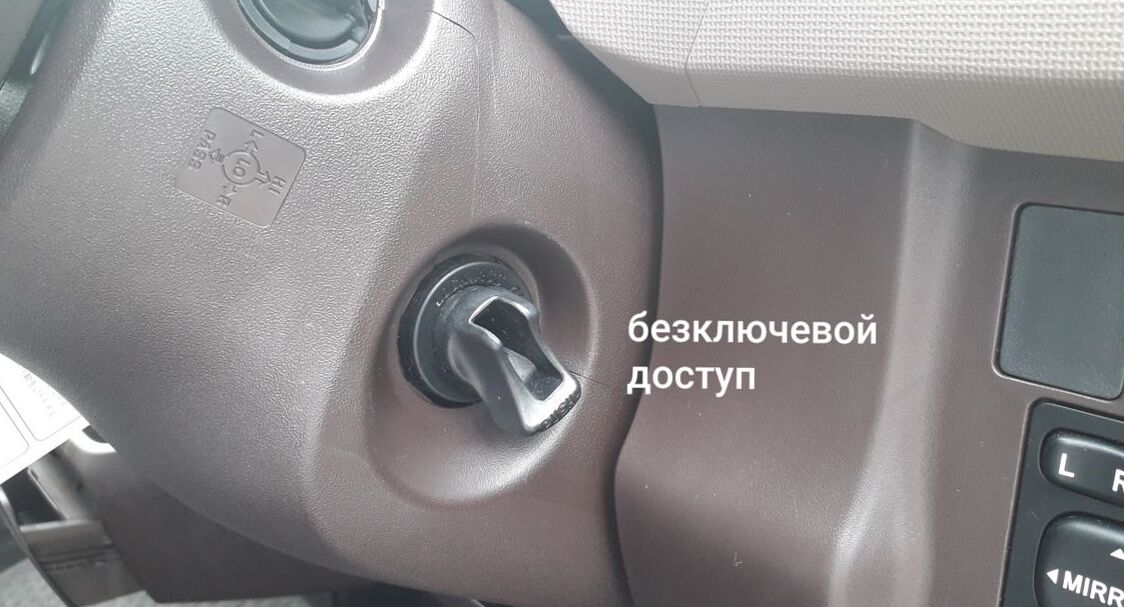

| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
| Curtain airbags | option |
| 2 airbags | no |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | yes |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | |
| Break assist | no |
| ESP | option |

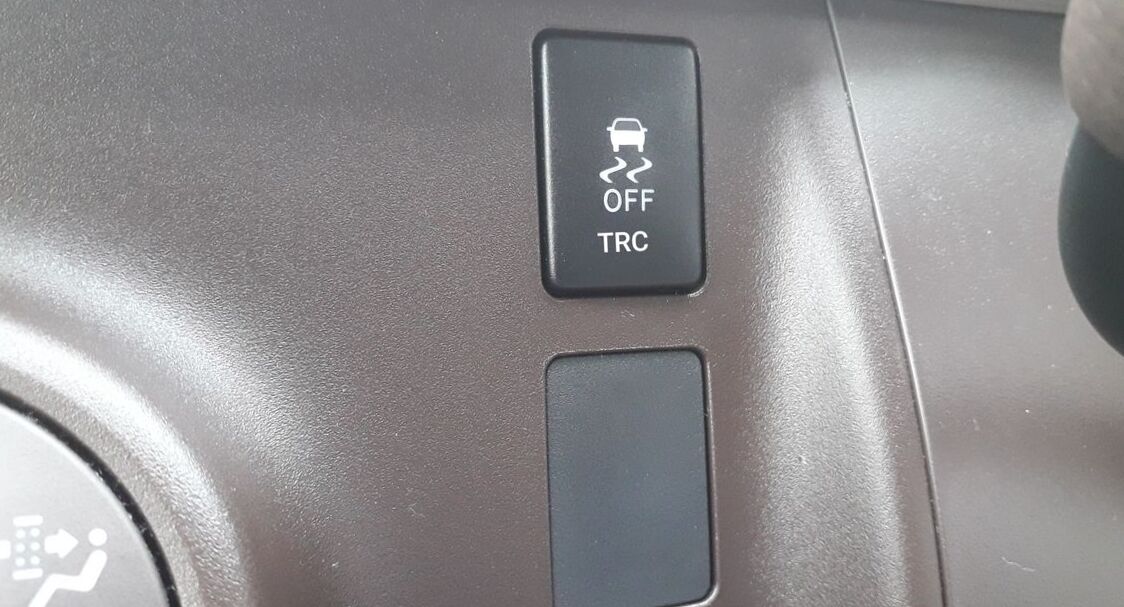

| traction control | option |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |

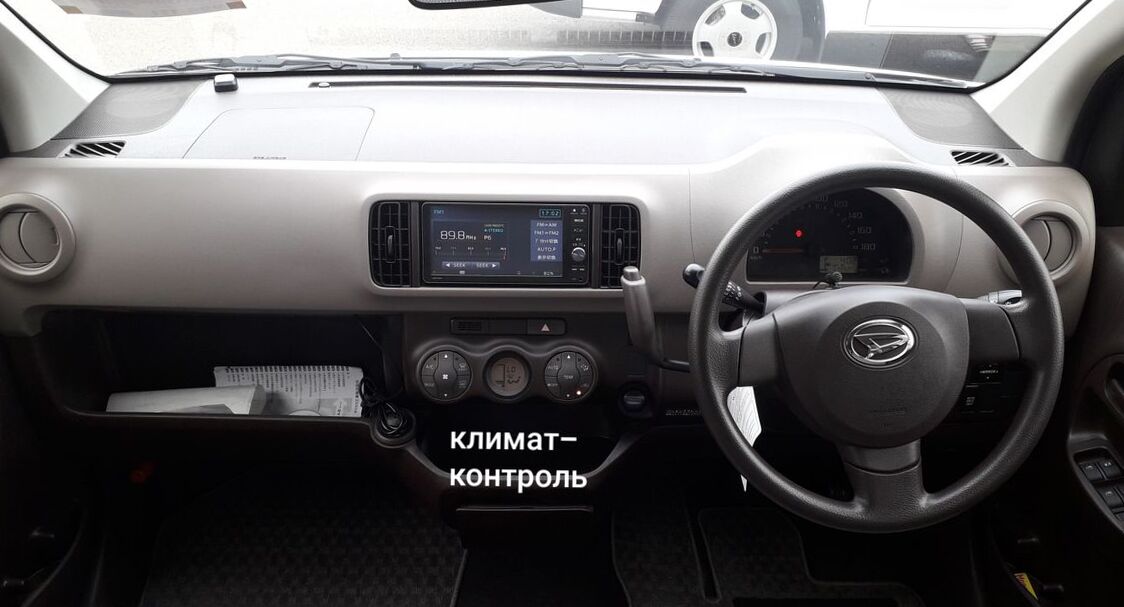

| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |

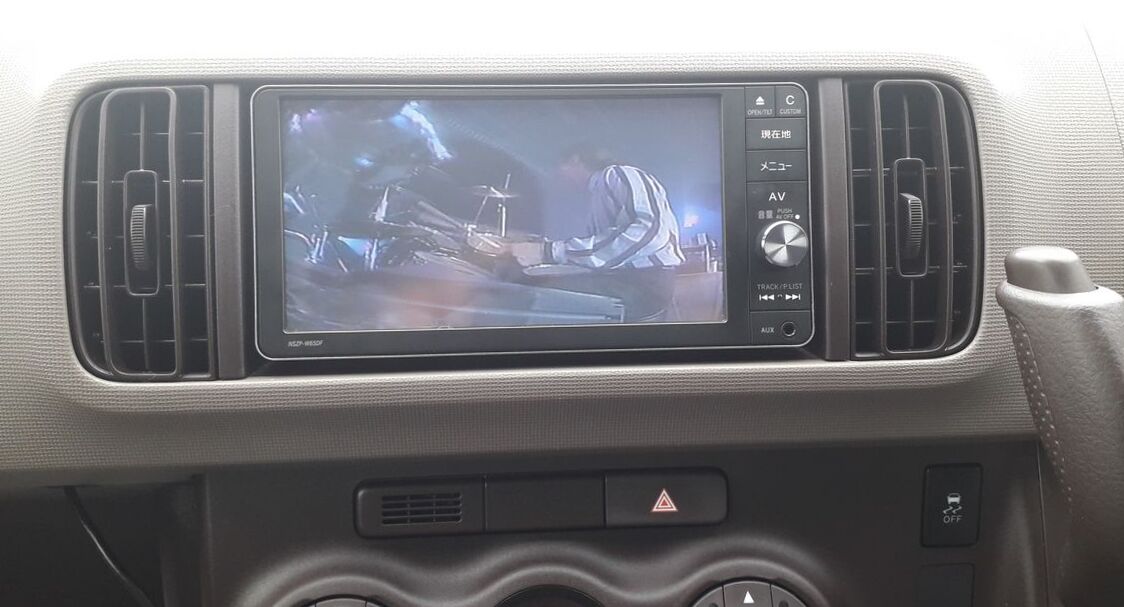

Audio systems | |
| Radio | yes |
| Autoreverse casette | no |
| CD player | yes |
| DVD-audio | option |
| MD palyer | no |
| Audio HDD | option |
| Speaker | option |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | |
| Optional navigation system | no |
| Parking assist system | no |
| Front monitor | no |
| Sides monitors | no |

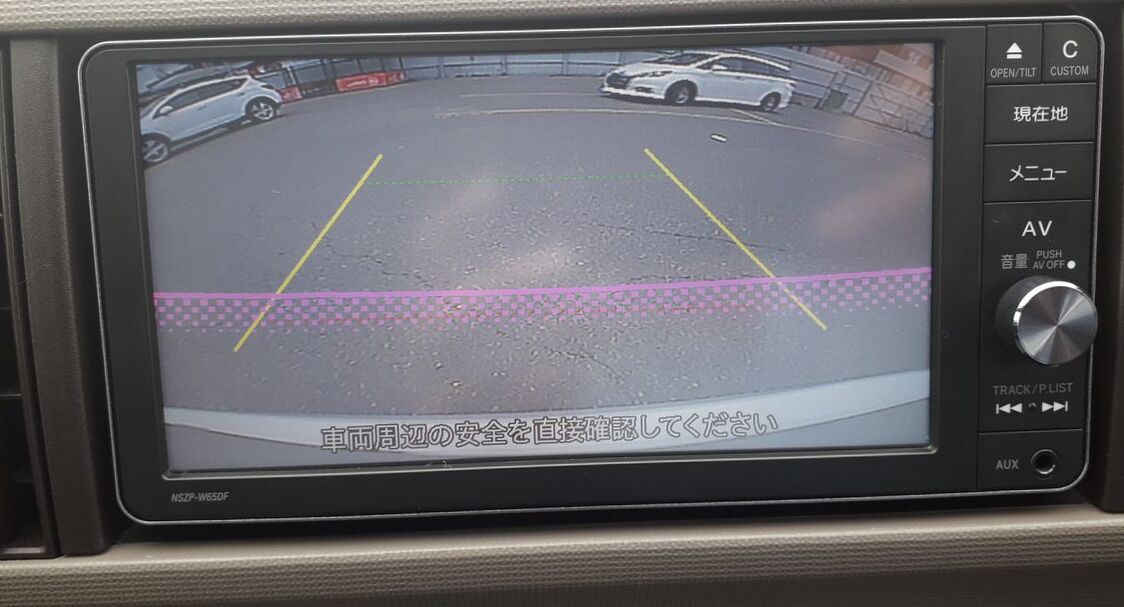

| Back monitor | option |
Additional amenities | |
| Lagage box | no |
| Etc | no |
Car safety | |
| Alarm system | yes |
| Security alarm | no |
2014 Toyota Passo II DBA-KGC30 1.0 X L package (69 Hp) specs
|
The 1998 incarnation of the Sirion came with two petrol engines (with multi-point fuel injection): a 1.0 litre 3-cylinder with 54bhp (40kW), and a 1.3 litre 4-cylinder 86bhp (64kW) unit (shared with the Toyota Yaris). Both were available with either a 5-speed manual or an automatic gearbox. As of 2001, 1.3L models have 102bhp (76kW) engines capable of accelerating from 0-60 mph in 9.6 seconds and reaching a top speed of 111mph (179km/ h). This engine is very fuel efficient with an average rating of 49.6 mpg[vague] and the 1.0 model averaging 51.4 mpg. There are two Rally versions of the Sirion: the Rally 2 and the Rally 4; the latter being the four-wheel drive version. The Rally models have a slightly increased engine output of 108bhp (81kW) and boast a class-leading 0-60 time of 8.1 seconds and reaching a top speed of 115mph (185km/ h), giving it 'hot hatch' credibility. The 4Track (or just 4WD in Europe) is the four-wheel drive version of the standard 1.3. The F-Speed model is equipped with Formula-1 style paddle gear changers. » Read More About Toyota Passo |
