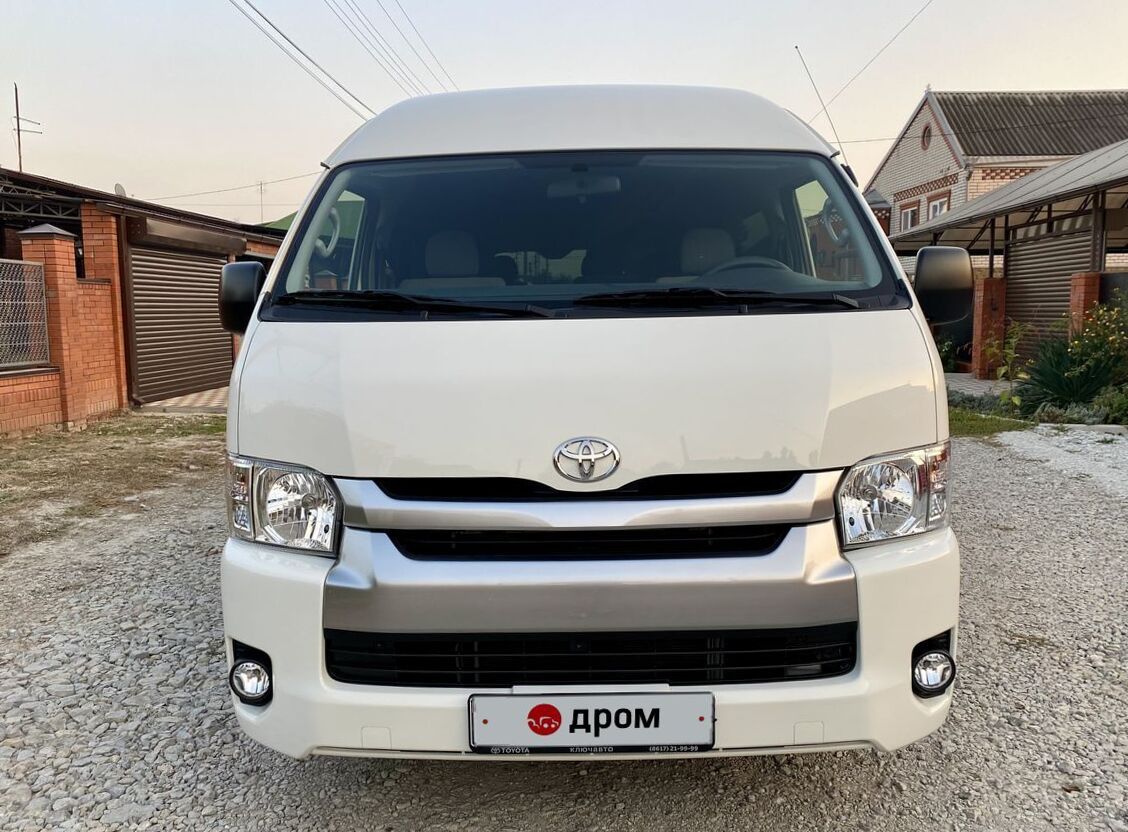

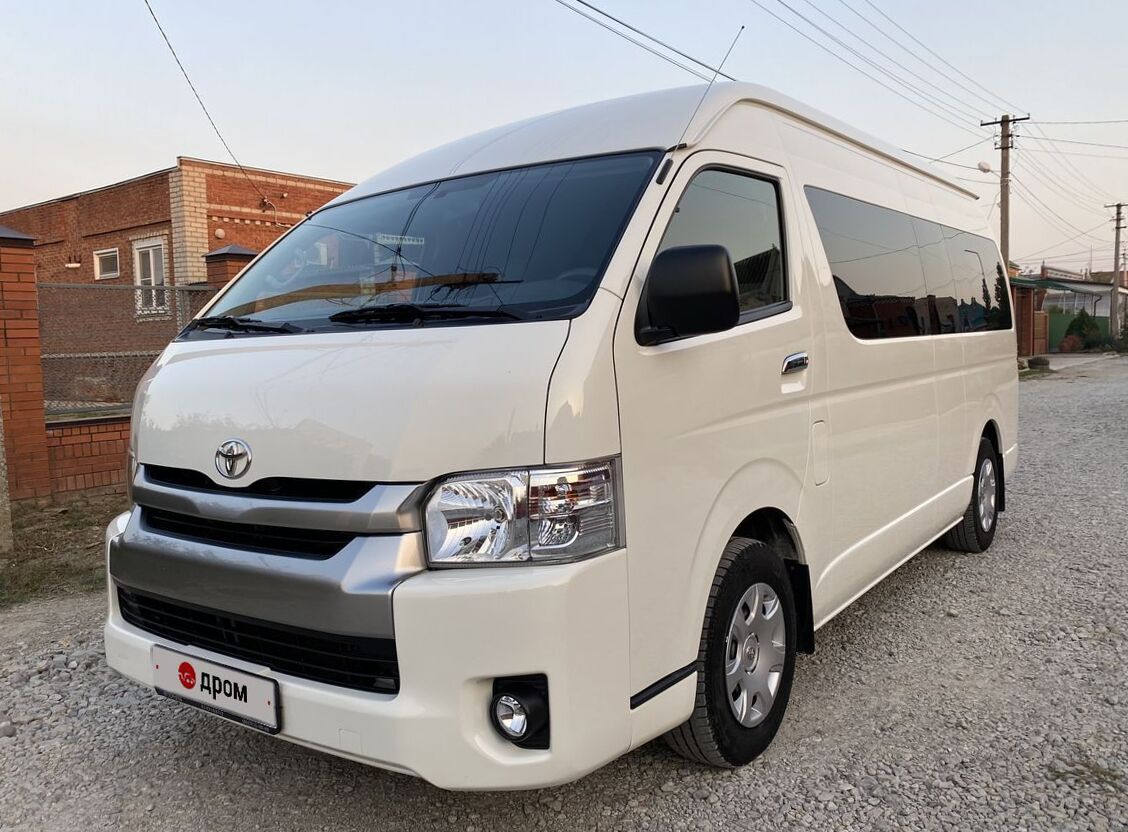

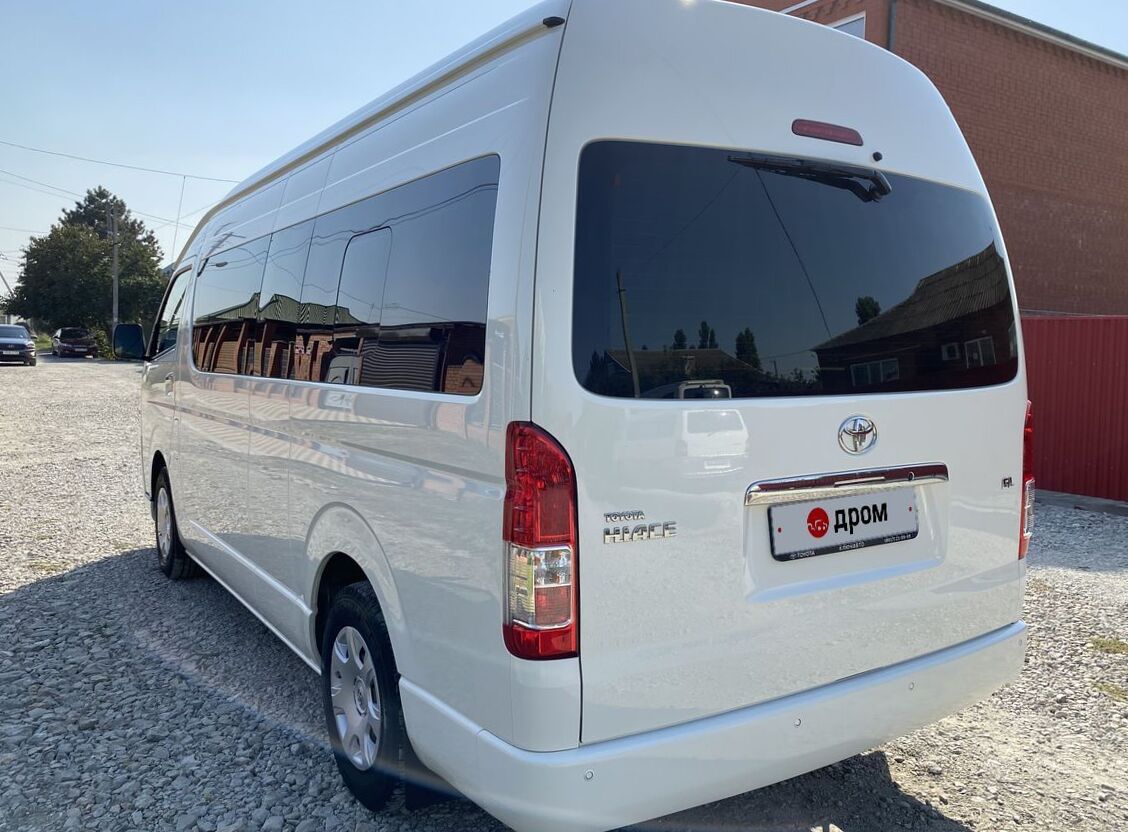

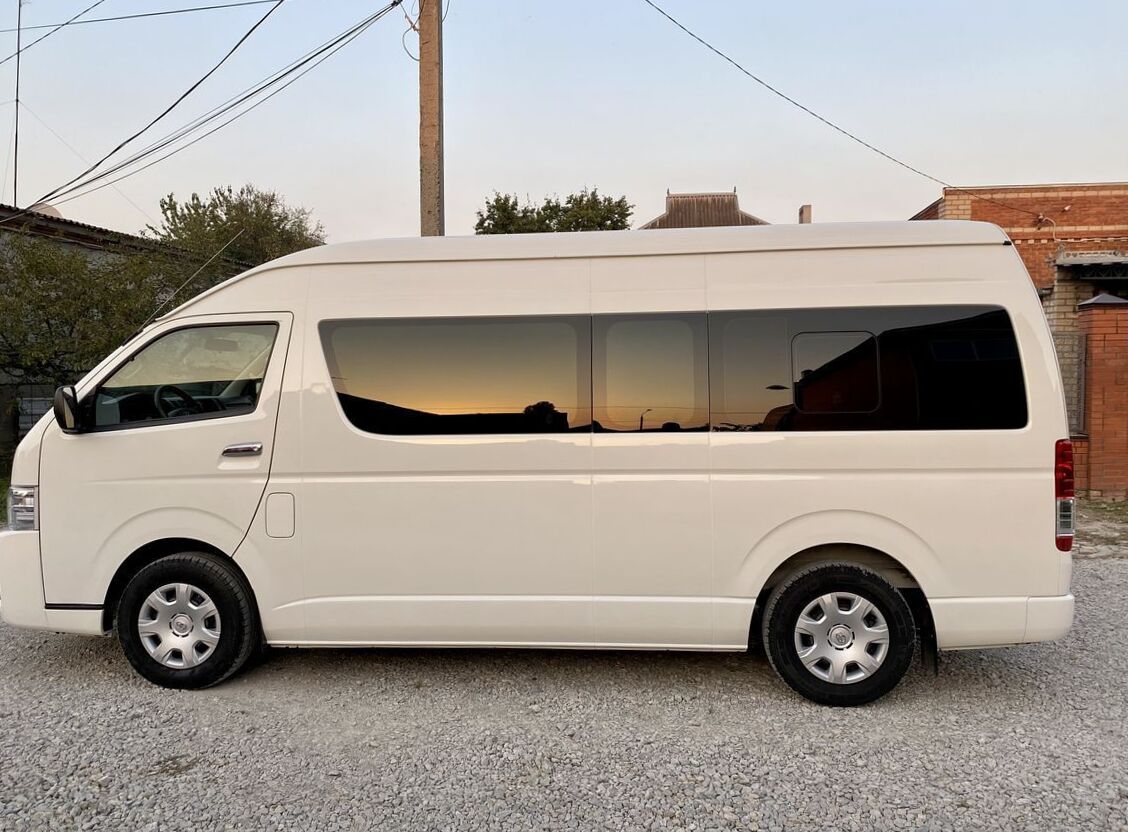

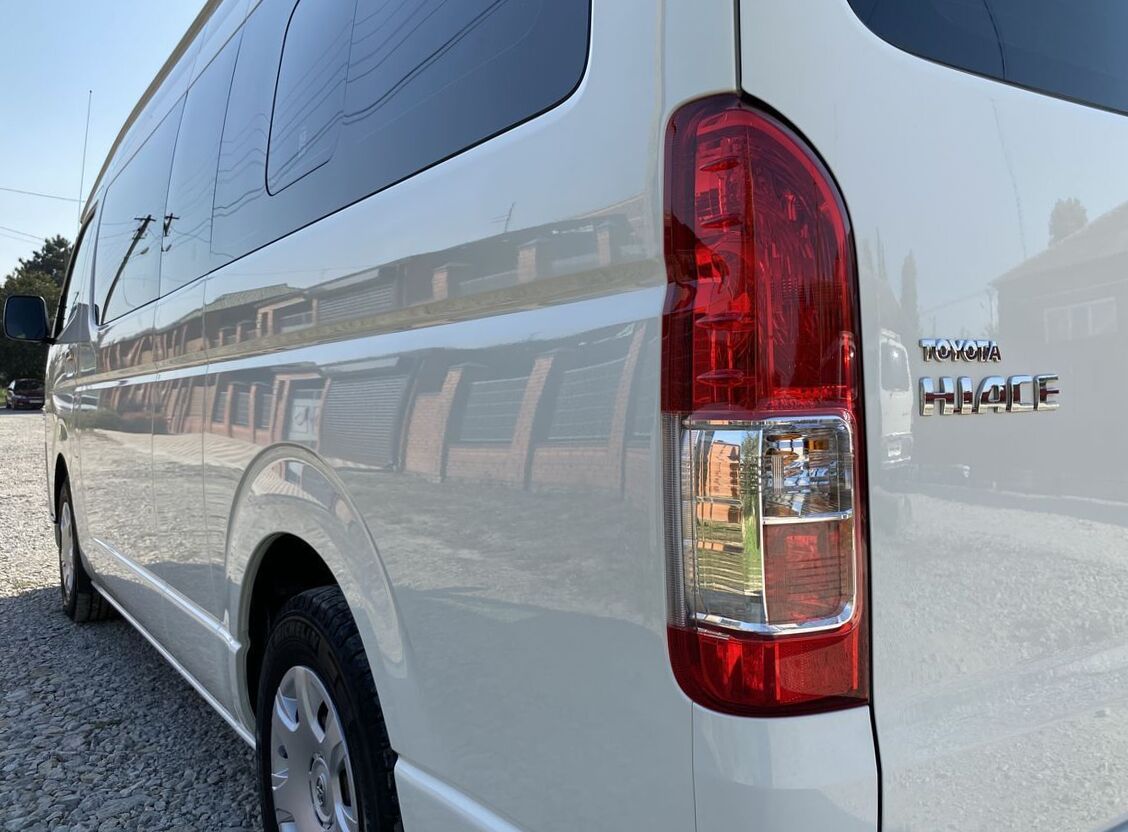

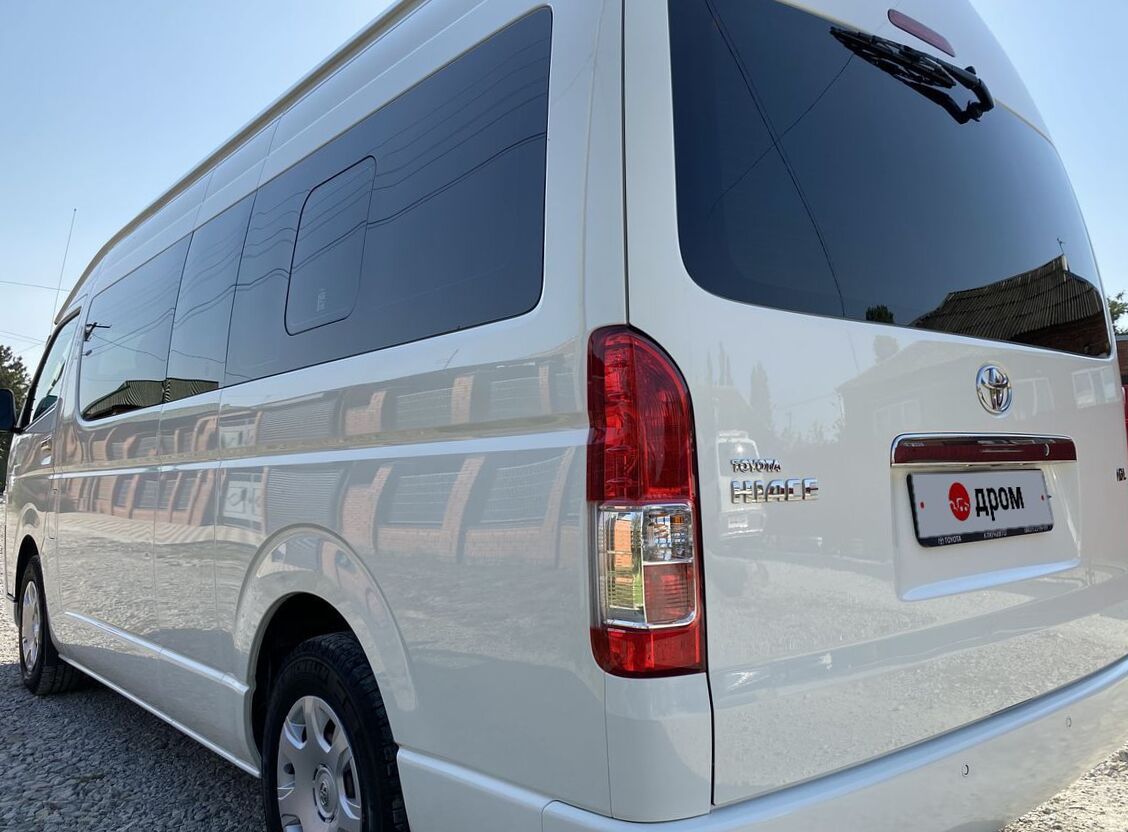

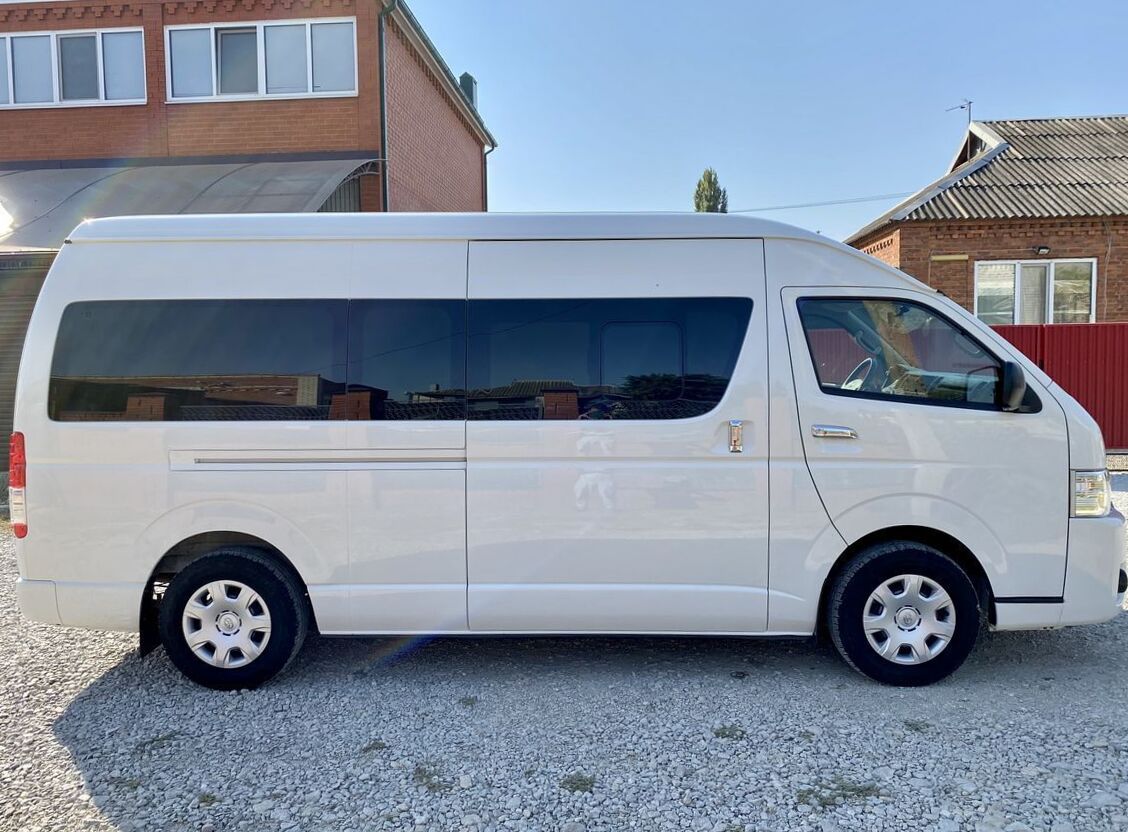

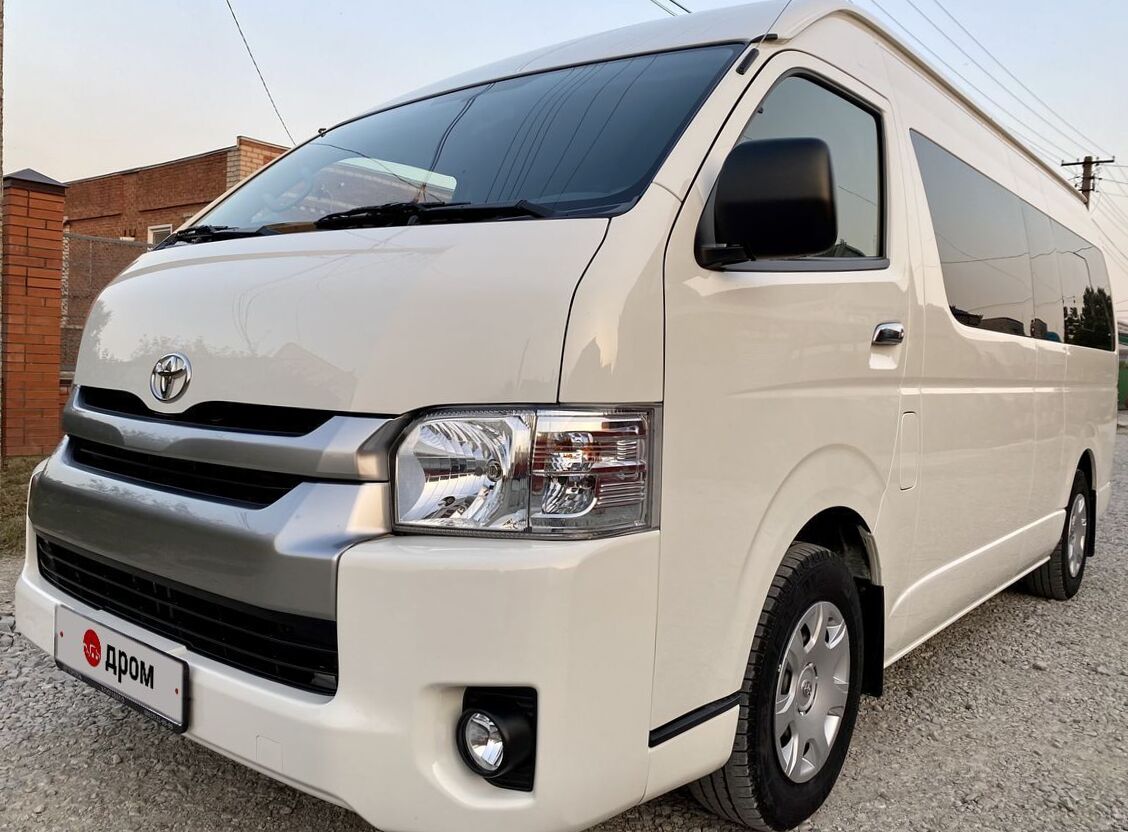

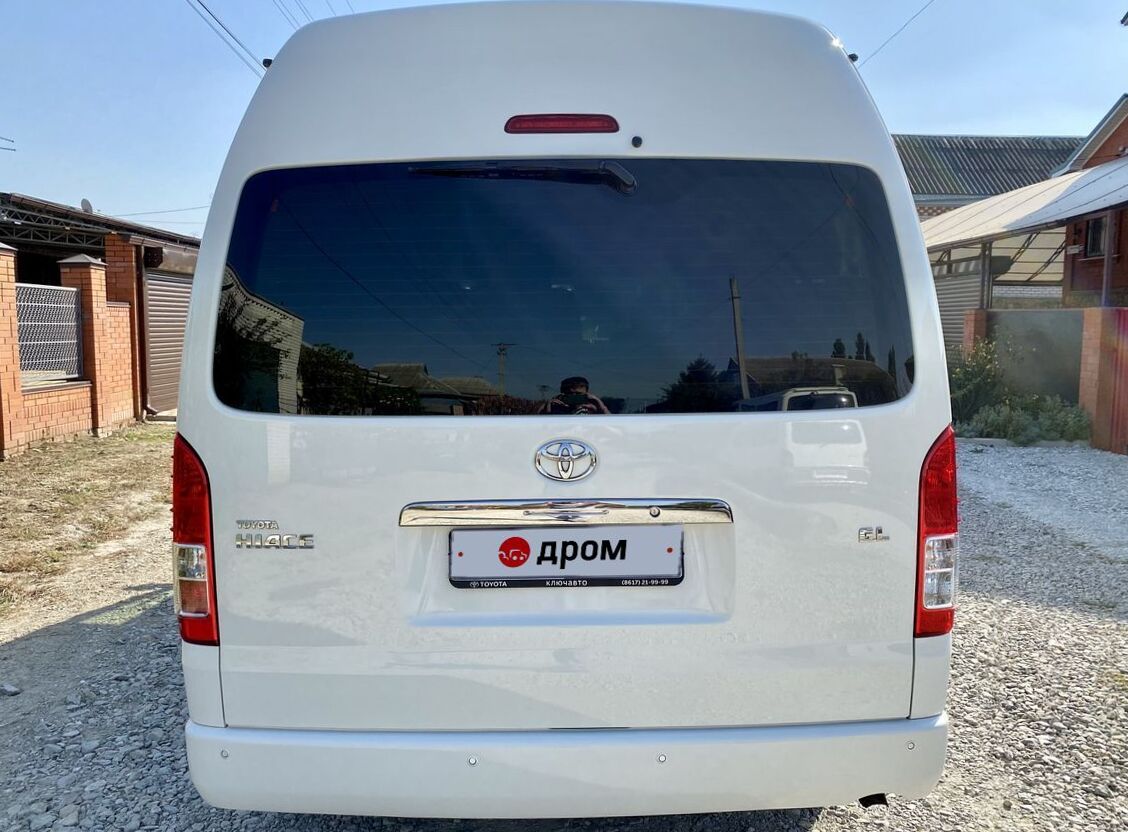

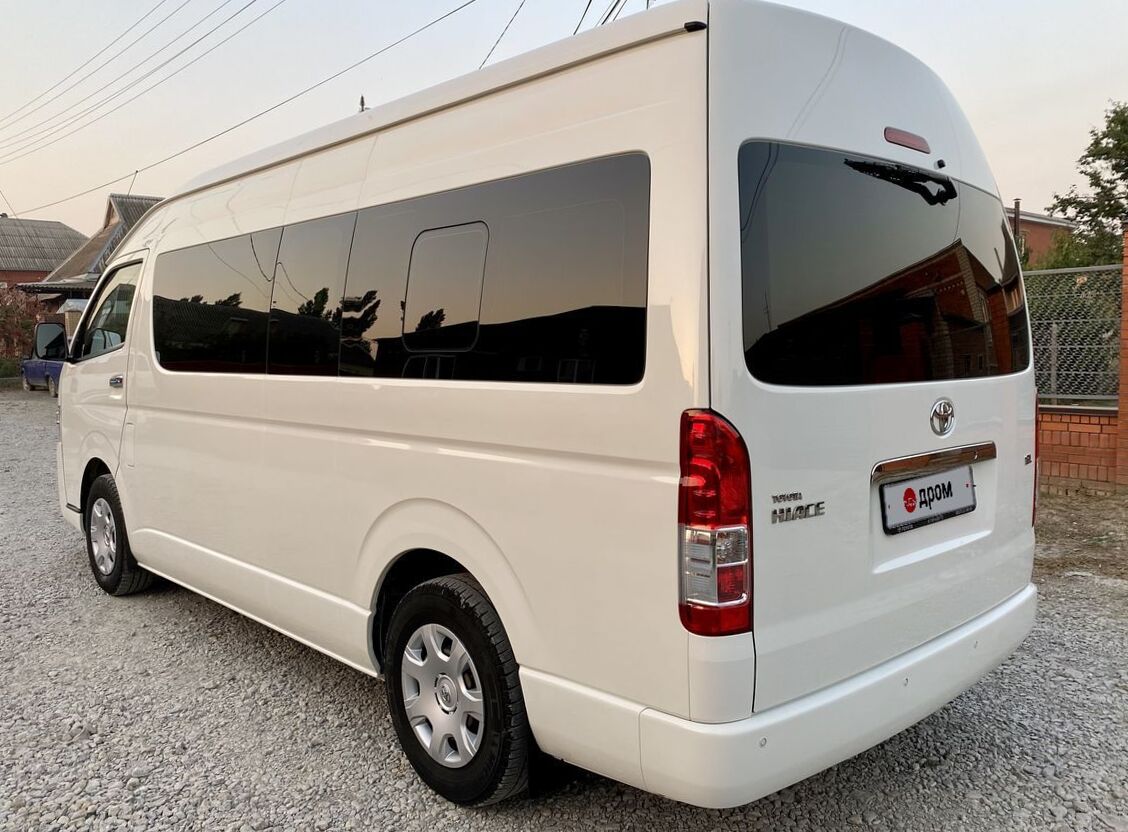

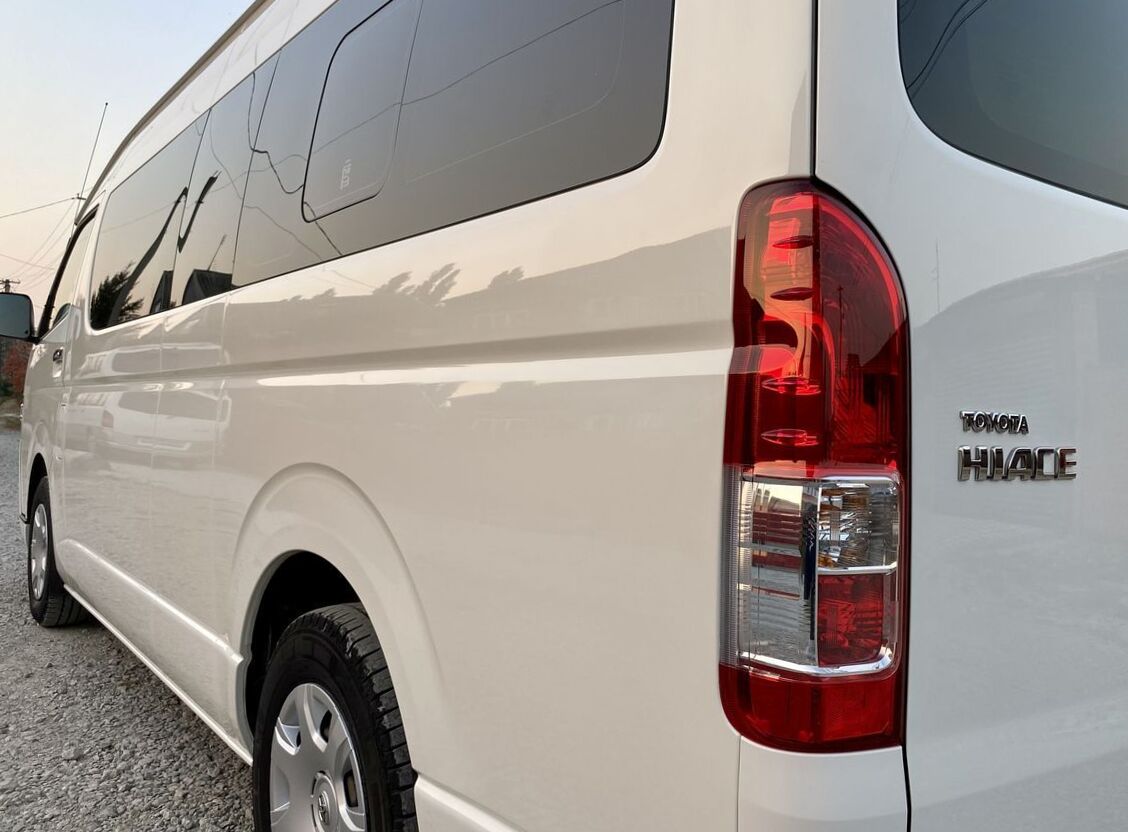

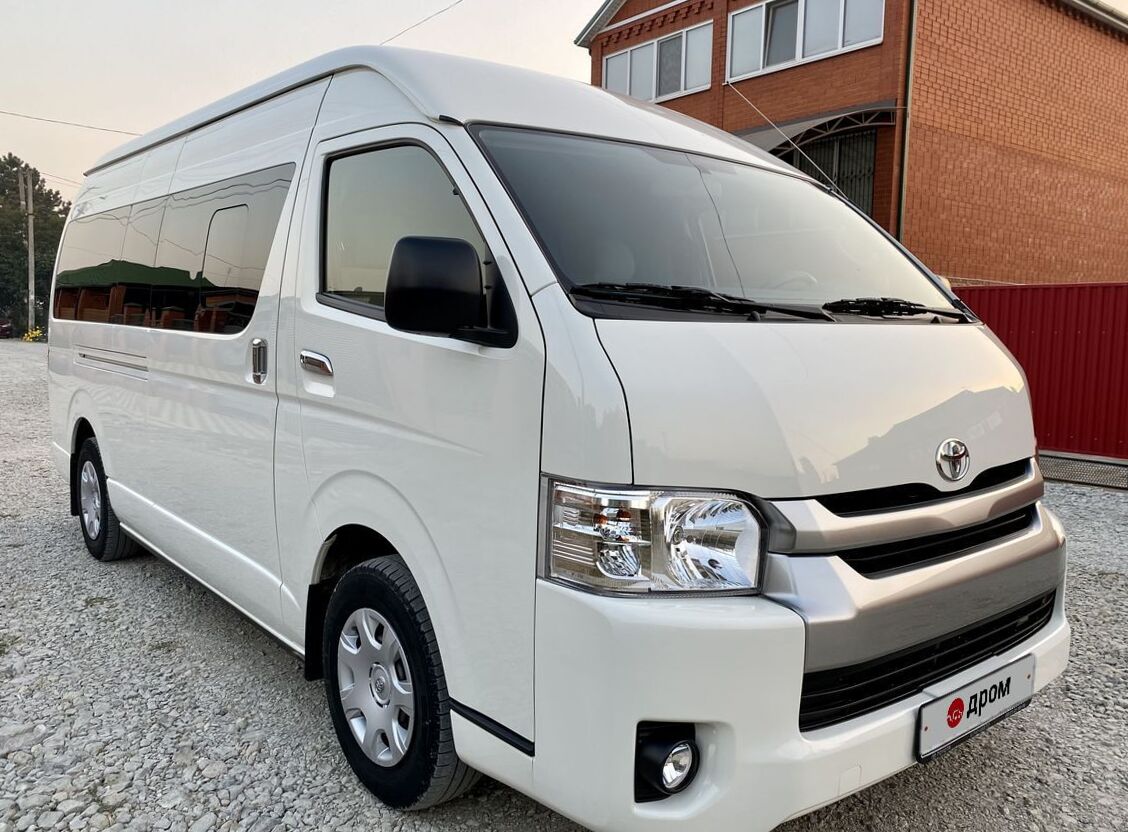

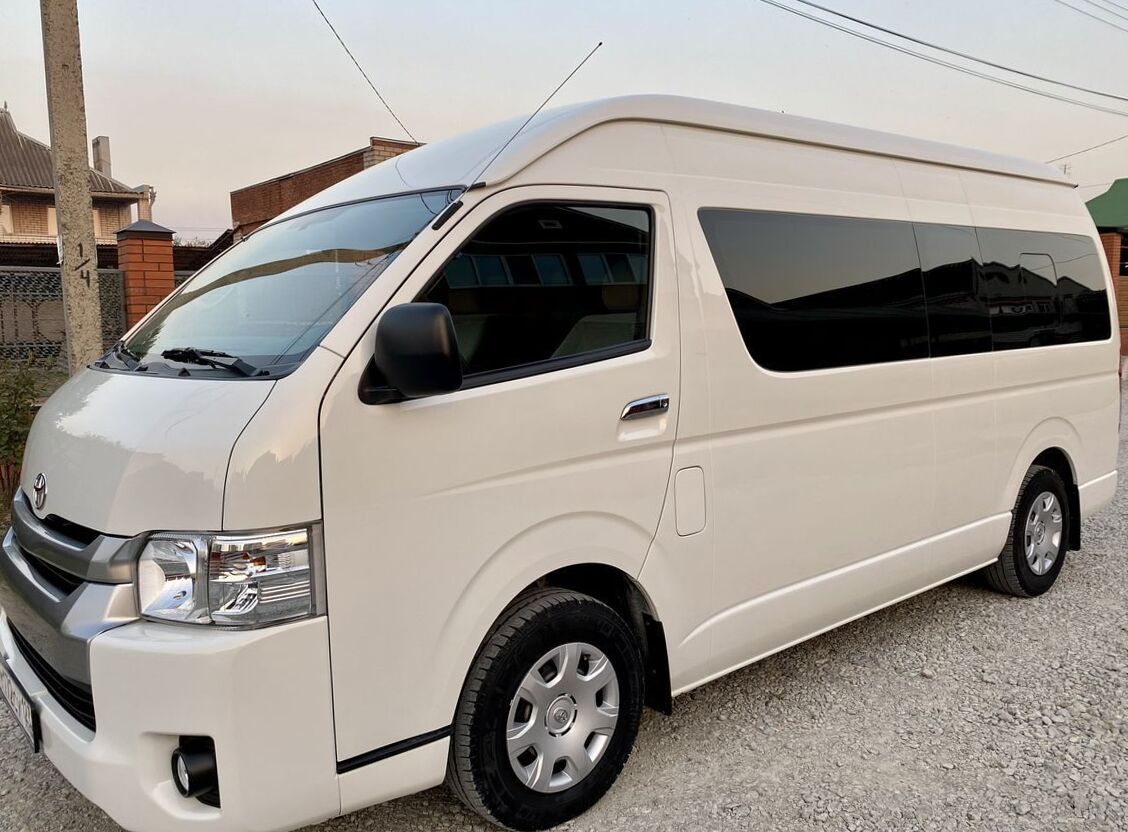

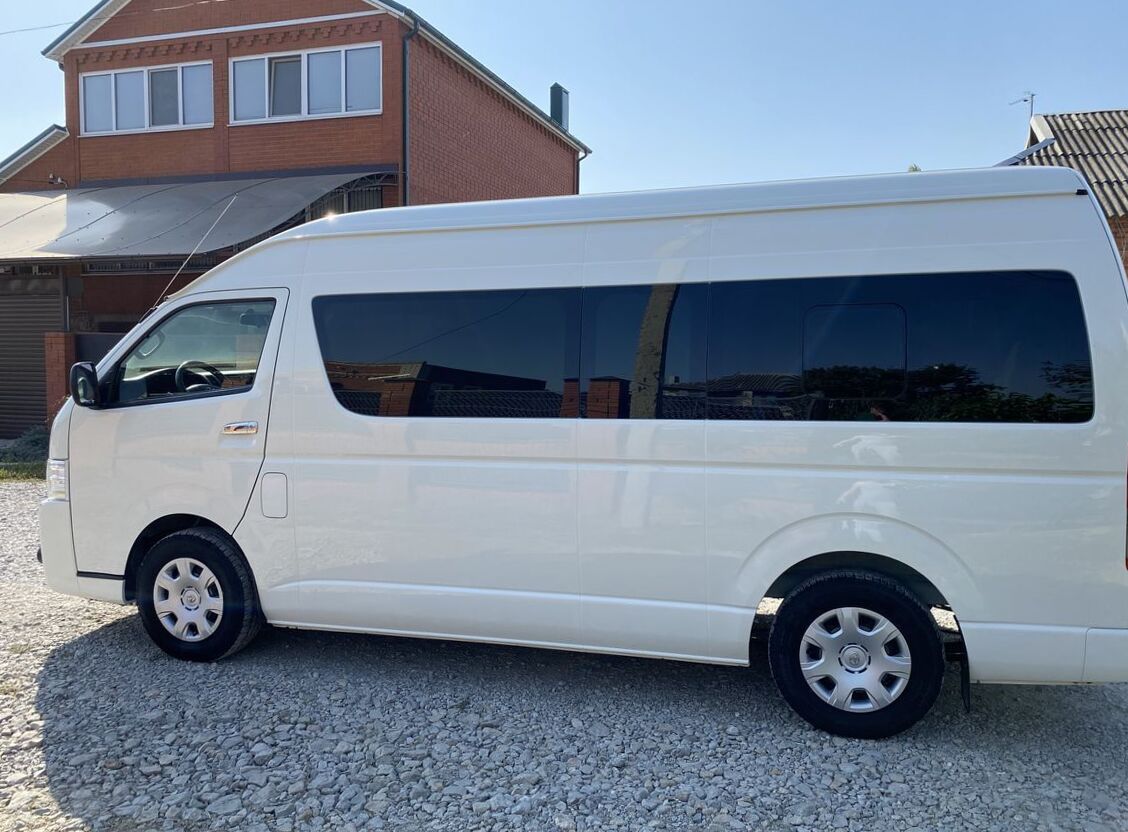

2016 Toyota Hiace V 2.7 MT Standard
Toyota Hiace Problems
Power draining from battery
2011, Battery losses power even before the
engine starts. Bought a new battery but the new
bat...
Electronic pump
1993, Due to the faulty electronic pump
(engine#:1KZ-TE 2982 CC)we swapped the
mechanical pu...
Transmission problem
1994, our 1994 toyota hiace ambulance, model
7D4920 with automatic transmission will not
shift...
| Body type | Minivan |
|---|---|
| Power | 151 Hp |
| Engine Displacement | 2700 cm3 or 2.7L or 164.7 cu-in |
| Color | white |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | FR or RR |
| Mileage | 48466 Miles |
| Vin | 888*** |
| Price (out of date) | $32310 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2016 Toyota Hiace V? | Minivan, 12 Seats, 4 Doors |
| What is the fuel economy, Toyota Hiace Minivan 2016? | 12.4 l/100 km |
| How fast is the car, Toyota Hiace TRH223L 2016? | 155 km/h, 0-100 km/h: 20.7 sec |
| How much power, 2016 Toyota Hiace 2.7 MT Standard? | 151 Hp |
| What is the engine size, Toyota Hiace V 2016 Minivan 2.7 MT Standard (151 Hp)? | 2.7L or 2693cm3 |
| How many gears, What type is the gearbox, 2016 Toyota Hiace Minivan 2.7 MT Standard (151 Hp)? | 5 speed Manual |
| What is the drivetrain, 2016 Toyota Hiace V? | Rear |
| How long is this vehicle, Toyota Hiace Minivan 2016? | 5380 mm |
| How wide is the vehicle, Toyota Hiace TRH223L 2016? | 1880 mm |
| What is the gross weigh, 2016 Toyota Hiace 2.7 MT Standard? | 3050 kg |
Toyota Hiace V TRH223L 2.7 MT Standard (151 Hp) 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 Specs
General information | |
|---|---|
| Complectation name | 2.7 MT Standard |
| Production start year | 2010 |
| Production end year | 2017 |
| Drive type | Rear |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 2693 |
| Frame name | TRH223L |
| 0 to 100 time | 20.7 |
| Max speed | 155 |
| Clearance, mm | 185 |
| Manufacturing country | Japan |
| Doors | 4 |
| Warranty | 3 years or 100,000 km of mileage |
Vehicle generation | |
| Generation name | H200 |
| Generation number | 5 |
| Facelift number | 1 |
| Production start year | 2010 |
| Production end year | 2017 |
Engine, transmission and steering specs | |

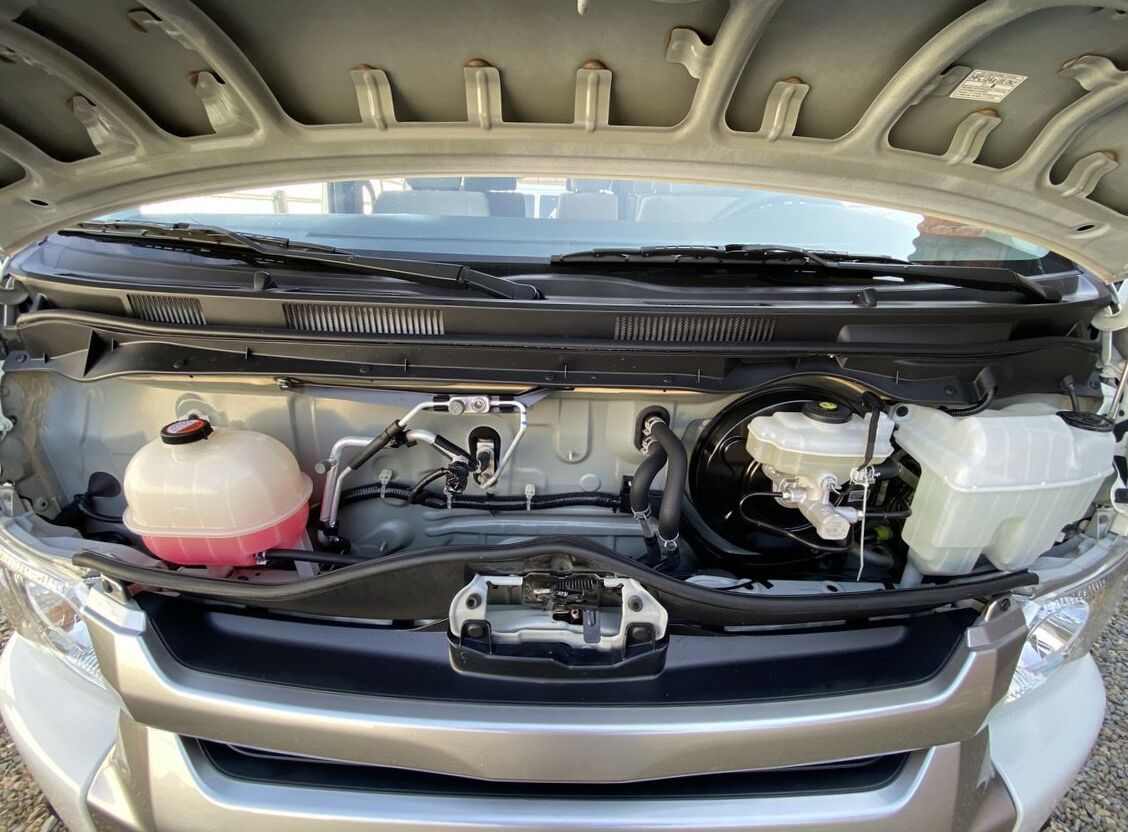

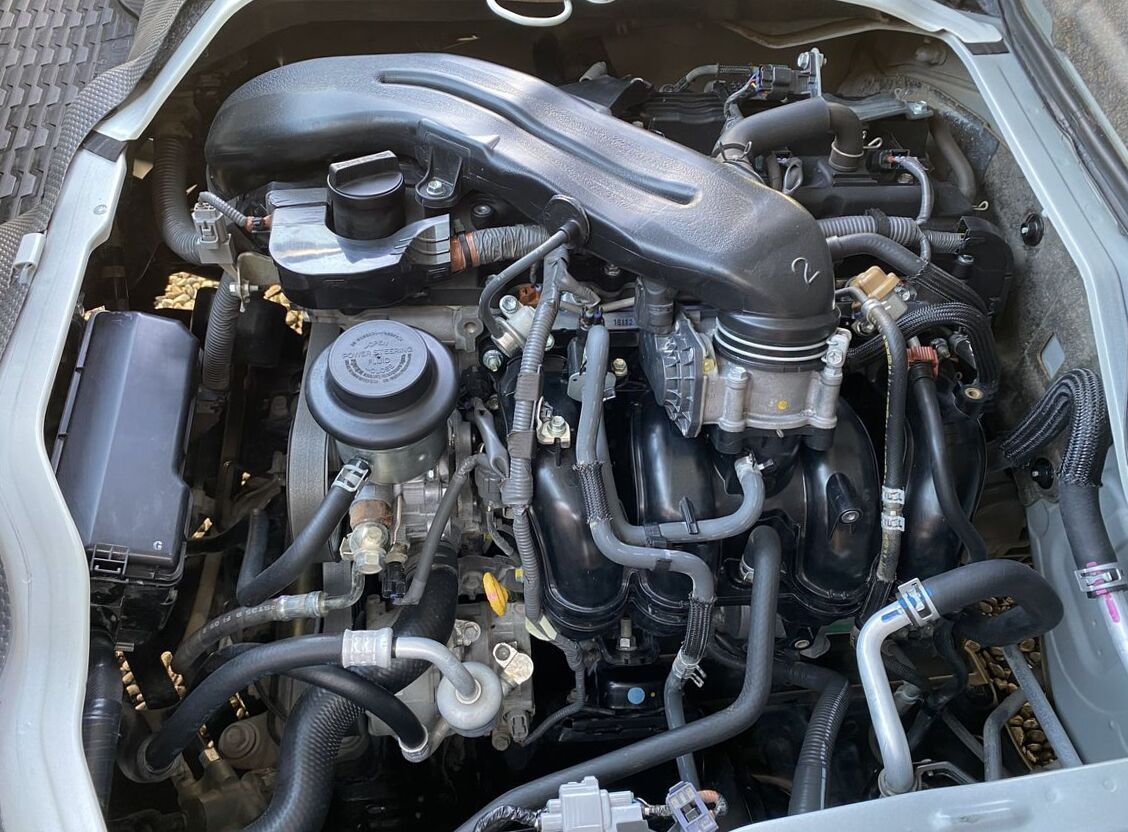

Engine specs | |
| Engine name | 2TR-FE |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 151 |
| Max power RPM, rpm | 4800 |
| Max power, hp (kWt) / rpm | 151 (111) / 4800 |
| Max torque, N*m | 241 |
| Max torque RPM, rpm | 3800 |
| Max torque, N*m (kg*m) / rpm | 241 (25) / 3800 |
| Valves per cylinder | 4 |
| Compression ratio | 9.6 |
| Bore, mm | 95 |
| Stroke, mm | 95 |
| Engine additional info | Distributed injection, VVT-i, DOHC |
| Eco type | Euro-5 |
Fuel consumption | |
| Combined | 12.4 |
Transmission | |
| 1st gear ratio | 4.313 |
| 2nd gear ratio | 2.33 |
| 3rd gear ratio | 1.436 |
| 4th fear ratio | 1 |
| 5th gear ratio | 0.838 |
| Rear gear ratio | 4.22 |
| Main gear ratio | 4.3 |
Steering | |
| Power steering | yes |
| Steereing gear type | Gear rail |
| Wheel ratio | 20.8 |
| Steering wheel turn | 4.1 |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5380 |
| Exterior width, mm | 1880 |
| Exterior height, mm | 2285 |
Interior dimensions | |
| Capacity | 12 |
| Seat rows | 5 |
| Interior length, mm | 4250 |
| Interior width, mm | 1695 |
| Interior height, mm | 1565 |

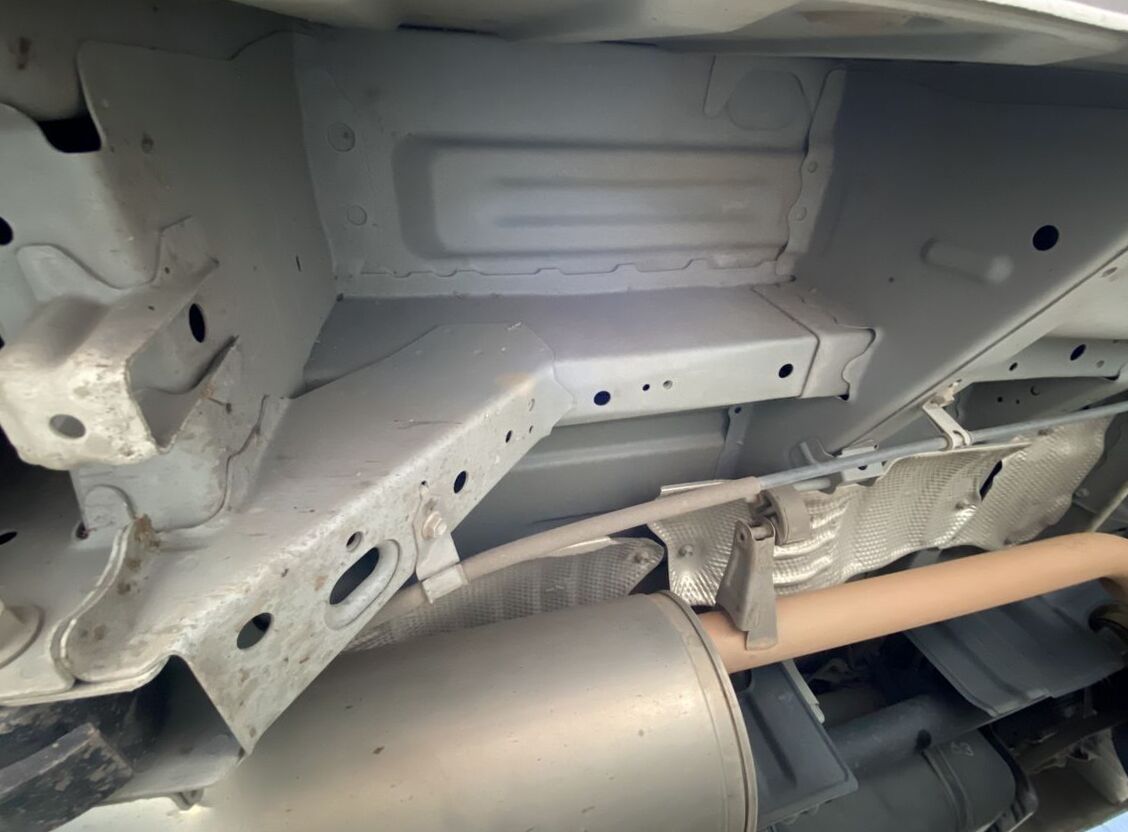

Chassis dimensions | |
| Wheel base, mm | 3110 |
| Turning radius, m | 6.2 |
| Wheel spacing front | 1655 |
| Wheel spacing rear | 1650 |
| Front overhang | 1185 |
| Rear overhang | 1080 |
Weight and permissible load | |
| Mass, kg | 2160 |
| Max capacity | 890 |
| Max. weight | 3050 |
Volumes | |
| Fuel tank capacity, l | 70 |
Other | |
| Addinfo | cab and cabin heater, non-slip floor covering, emergency hammer for breaking glass, seat belts for all seats |

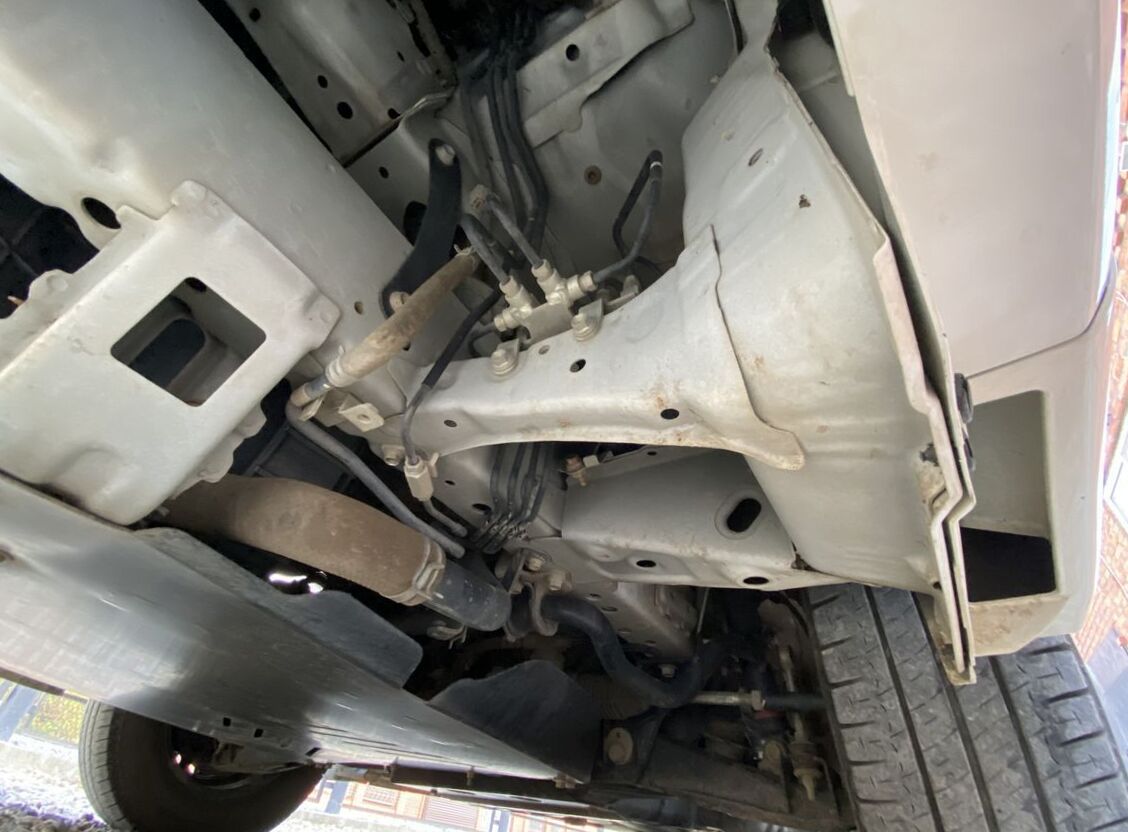

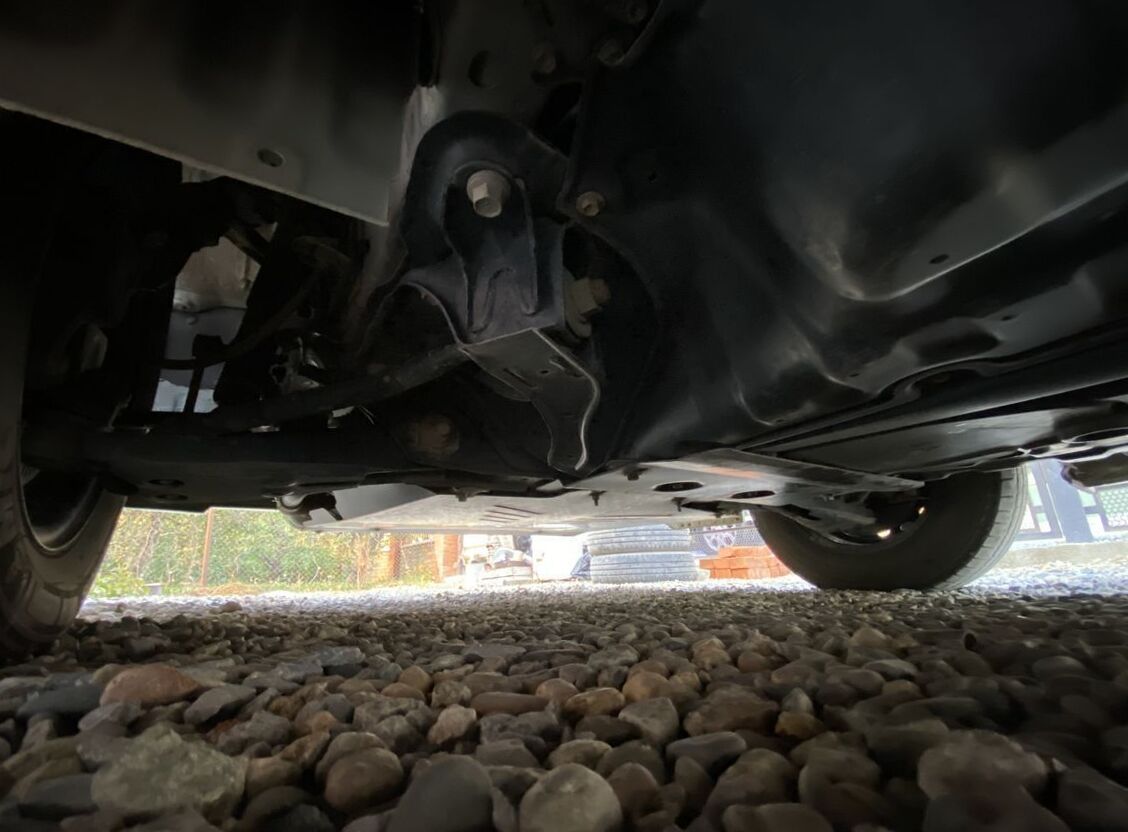

Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear suspension | Dependent, spring loaded |
Wheel rims | |
| Aluminium wheel | no |
Tires | |
| Front wheels | 195 R15 |
| Rear wheels | 195 R15 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Parking brake | manual |
| Brake front search | 2 |
| Rear brake | 2 |
| Parking brake new first | manual |
Exterior | |

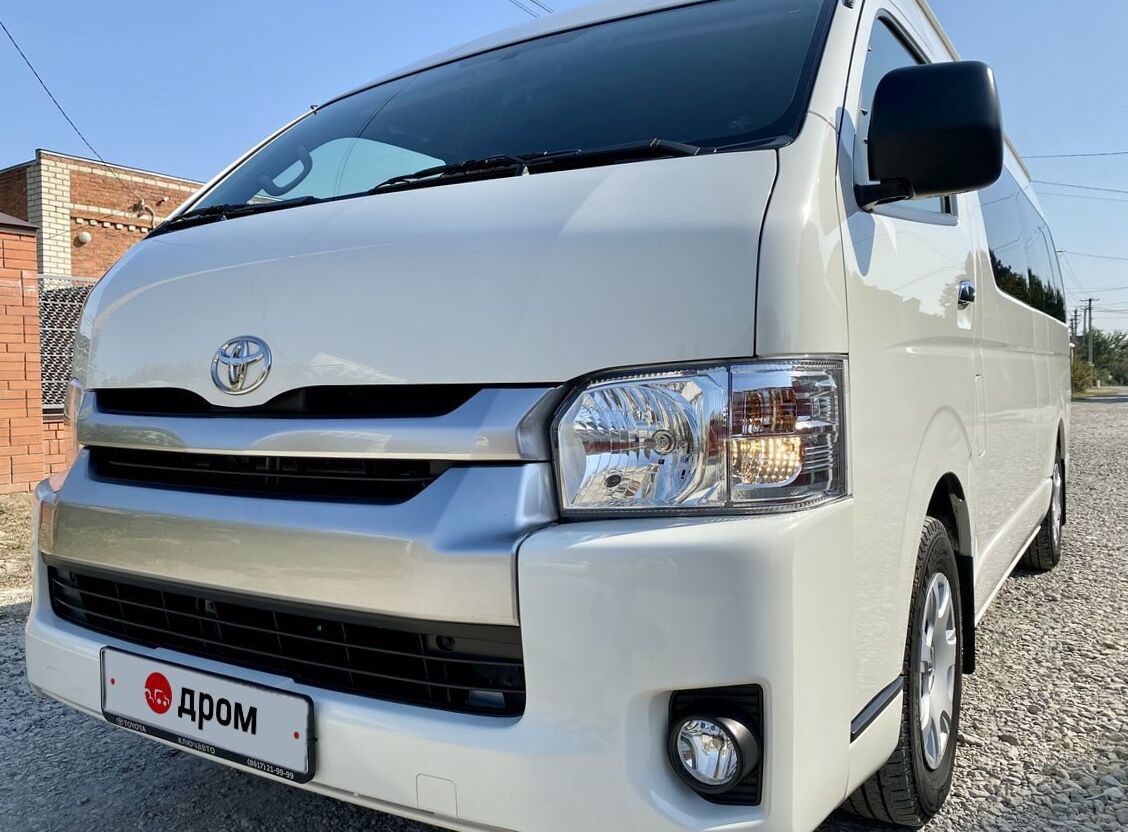

Headlights | |
| Halogen headlights | yes |
| Led lights | no |
| Diod head lights | no |
| Front fog lamps | yes |
| Diod fog lights | no |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | no |
| Rain sensor | no |
Side mirrors | |
| Exterior mirrors in body color | no |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |

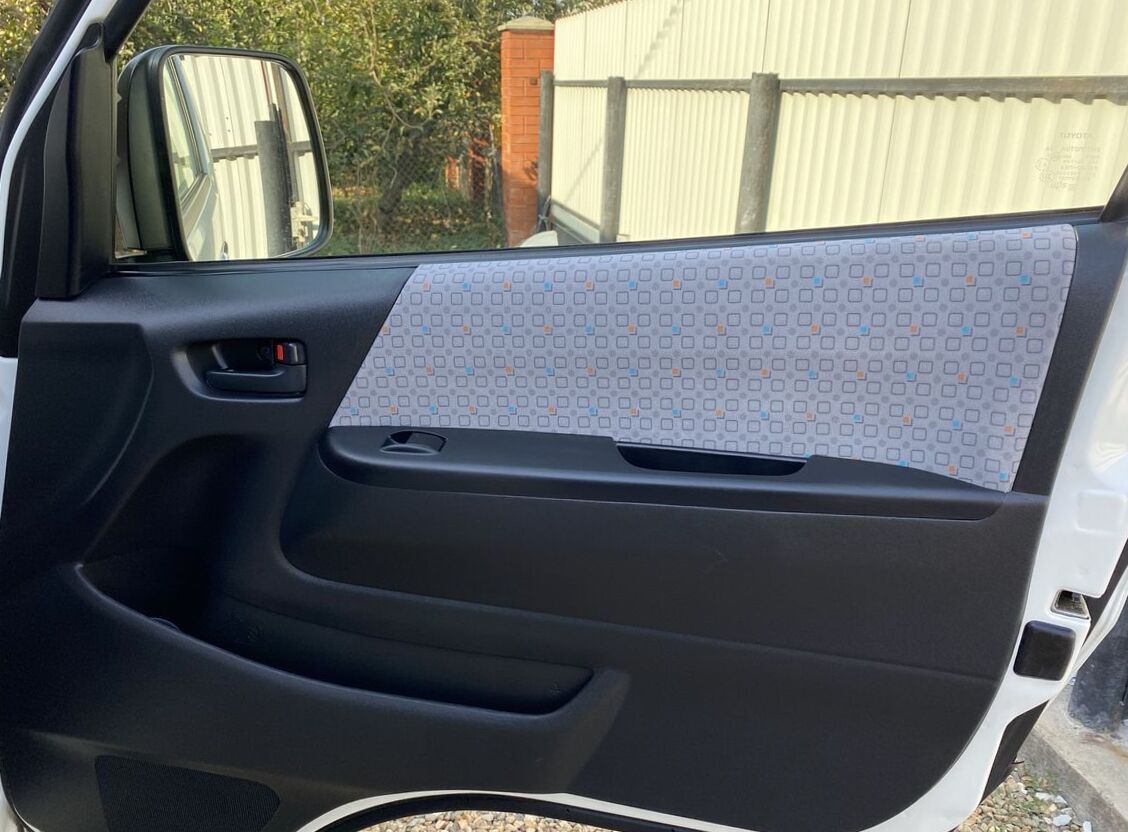

Doors | |
| Side sliding door | yes |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door handles in body color | yes |
Windows | |
| Rear glass heat | yes |
Accessories | |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |

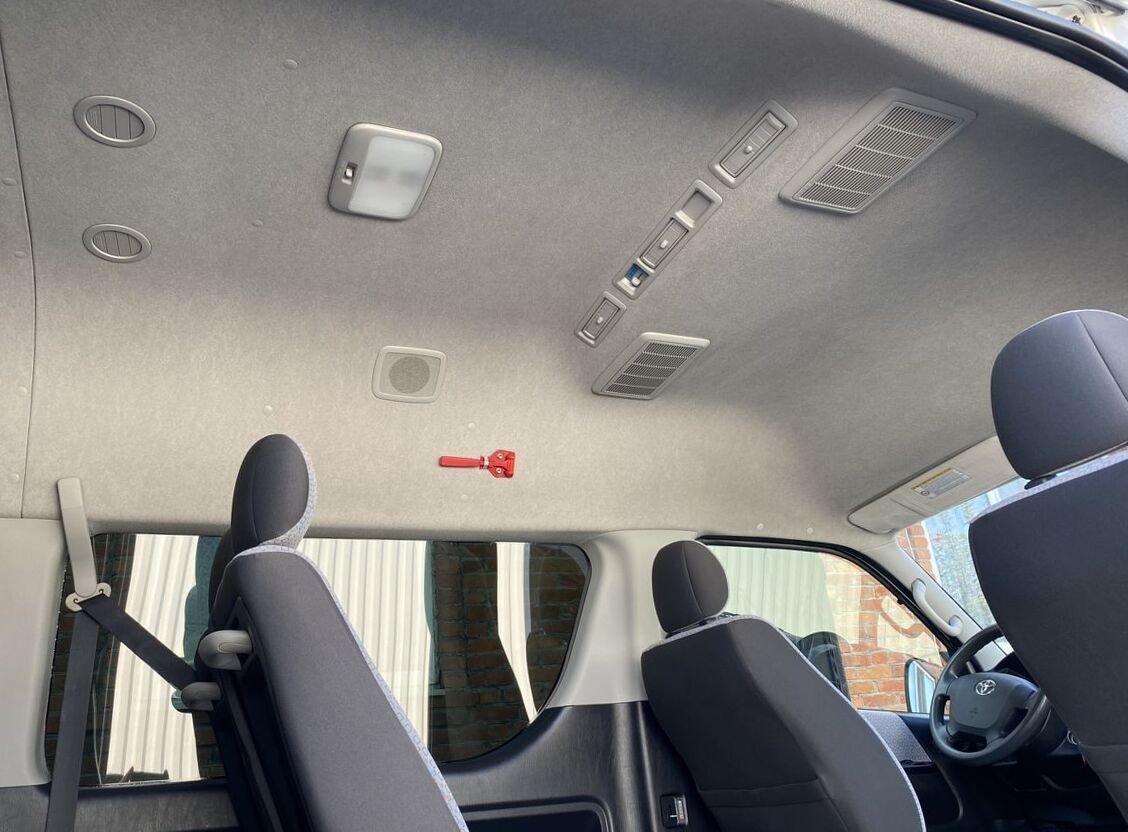

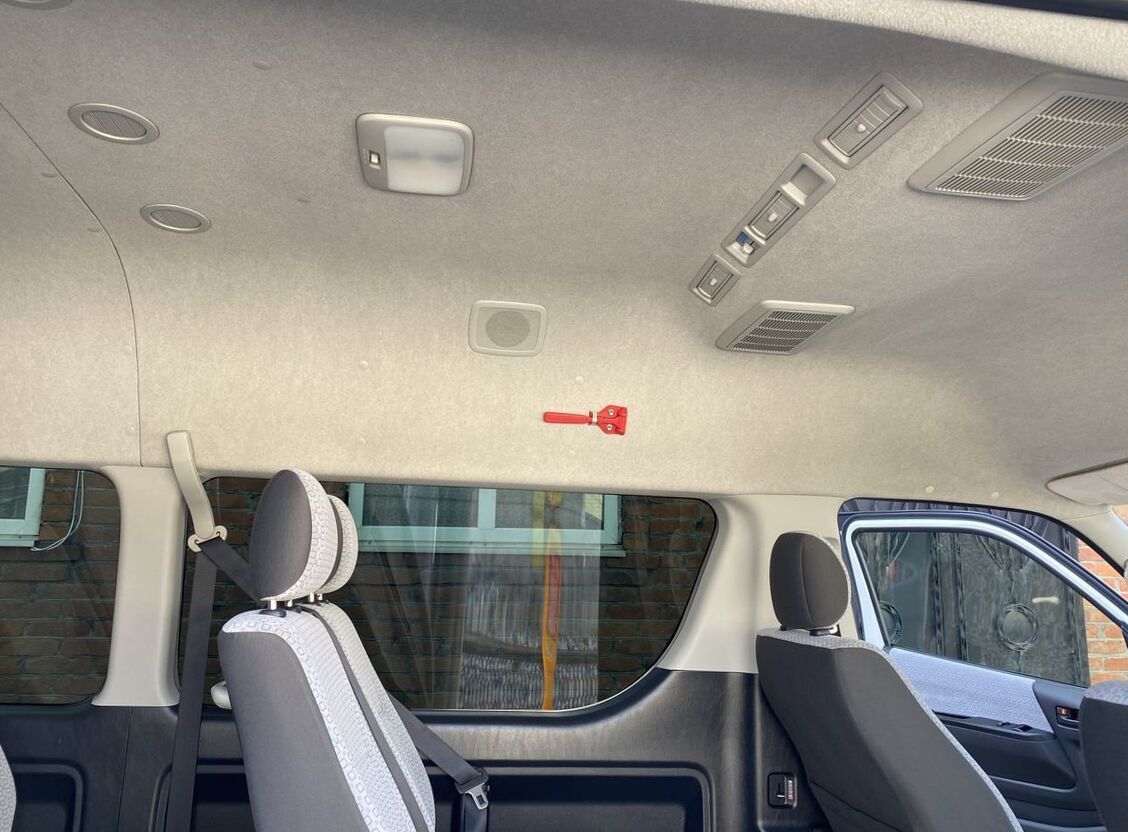

Interior | |
Steering wheel and center panel | |
| Adjustable steering | yes |
| Telescopic steering | no |
| Tilt steering | yes |
| Audio control on steering wheel | no |
| Utility color display | no |
| Engine start button | no |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | no |
| Veljurovaja upholstery of salon | no |

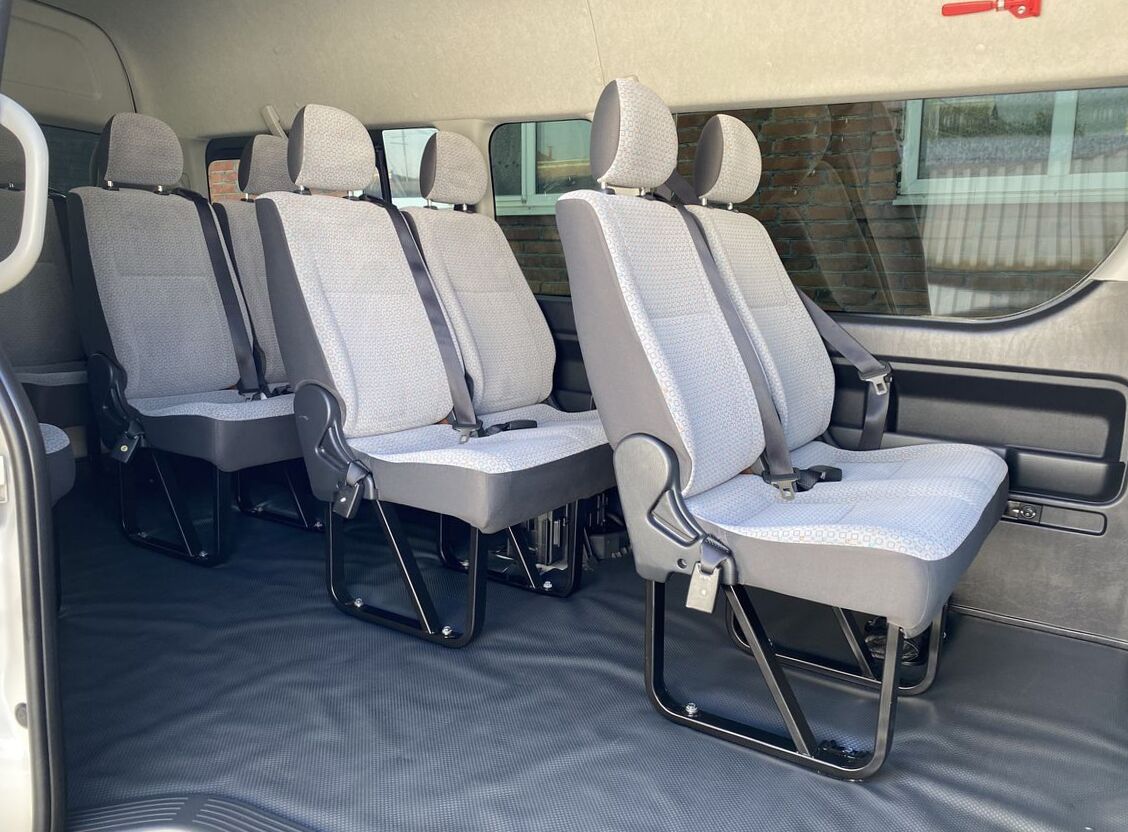

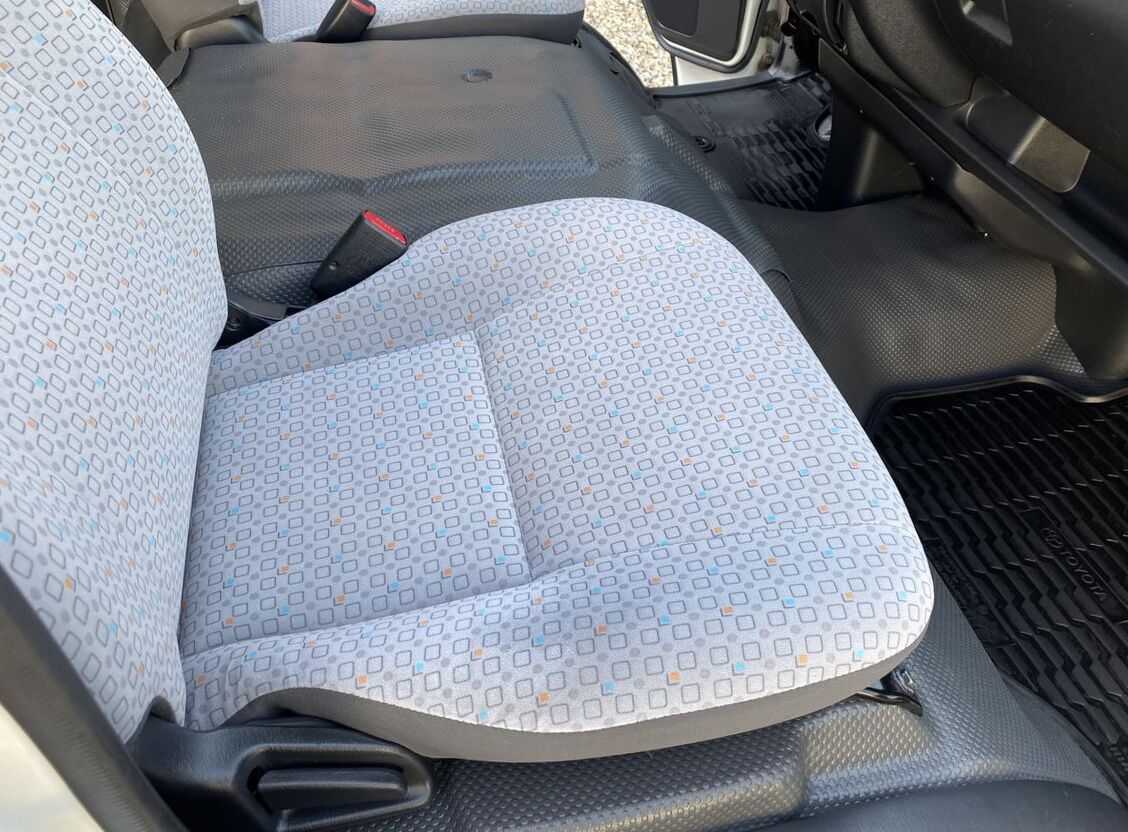

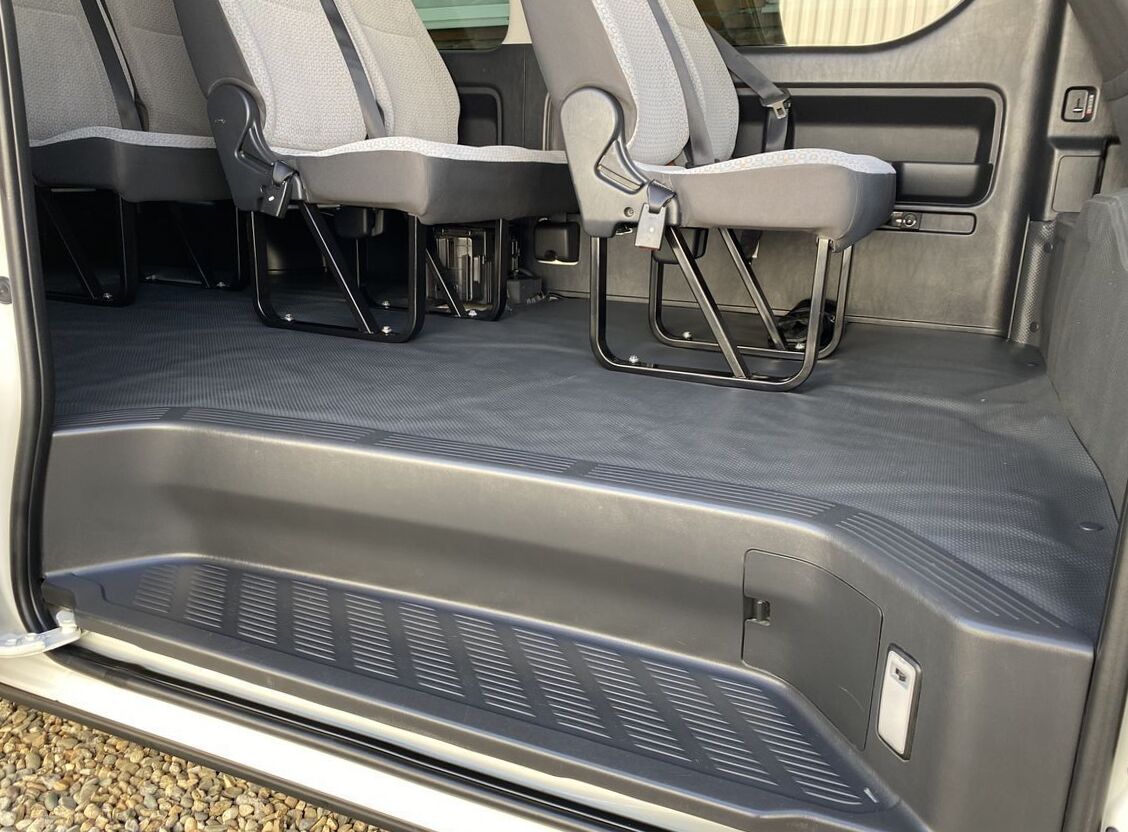

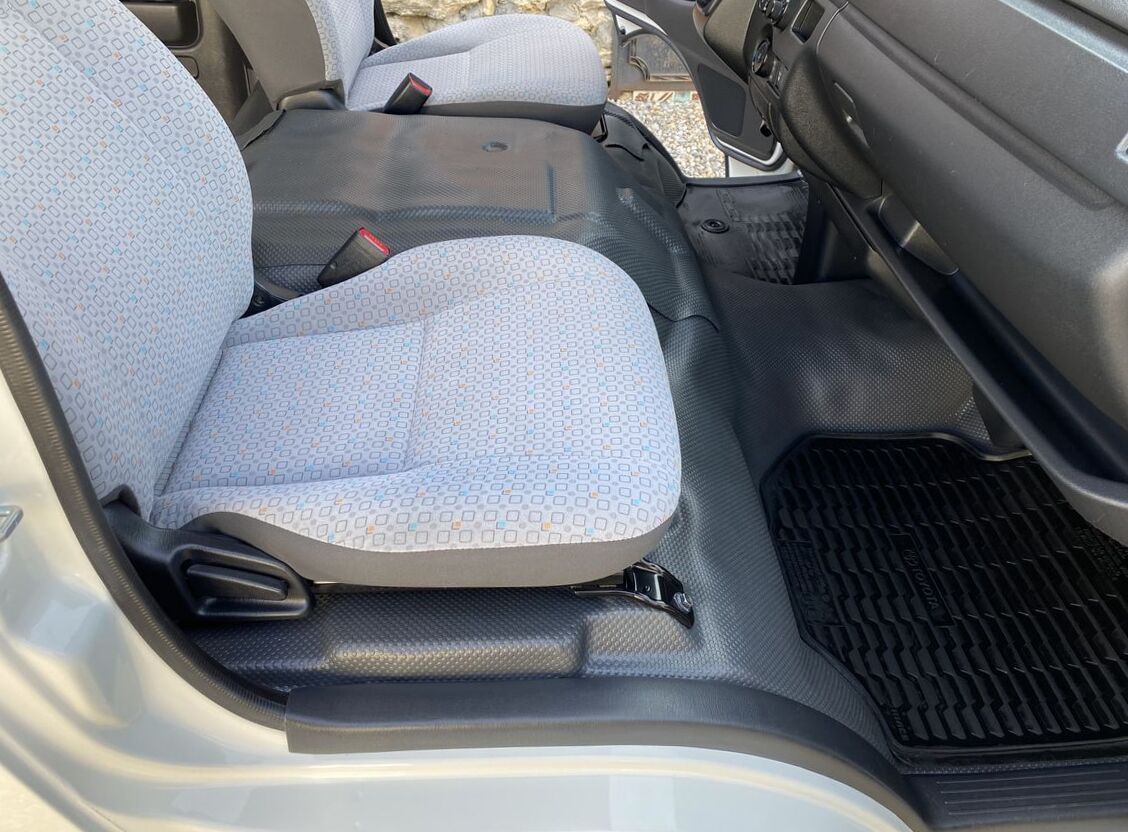

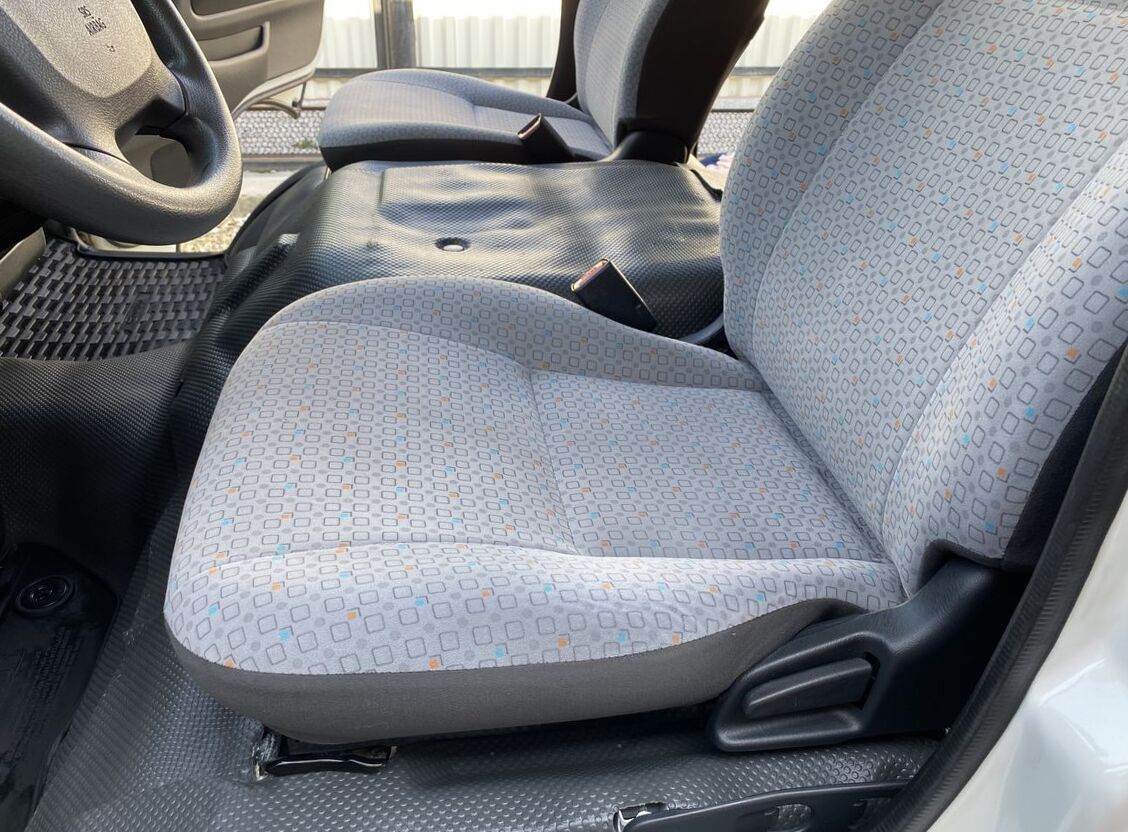

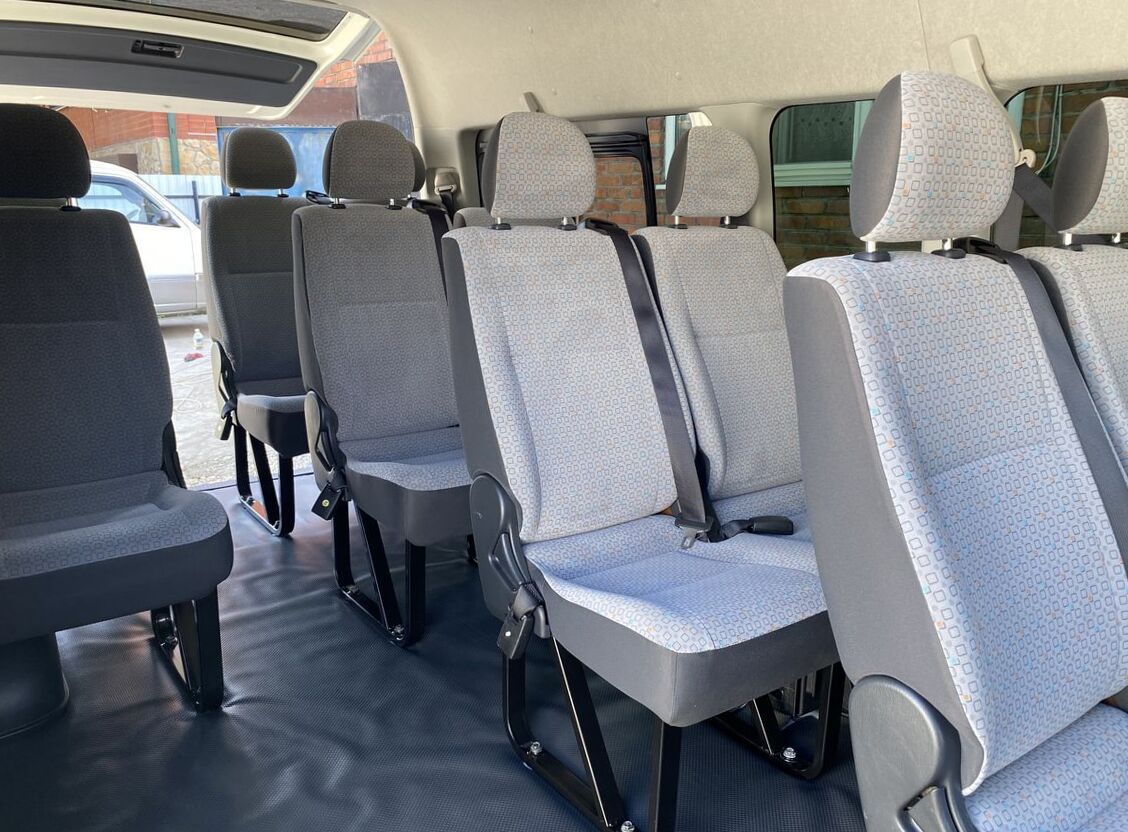

Seats | |
| Front seats ajust | Four-way adjustable front seats |
| 2nd row | foldable, backrest is indivisible |
| 3nd row | foldable, backrest is indivisible |
| Separating armrest front | yes |
| Seats pockets | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Front seat heater | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | no |
| Power window front | yes |
| Stearing wheel heater | no |
| Front sheeld electro heater | no |
Additional interior equipment | |
| Smokers packet | option |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Glonass | option |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Control system of a headlight | no |
| System tire pressure monitoring | no |
| Front sonar | no |
| Rear sonars | no |
| Collision mitigation system | no |
| Driver tired system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | no |
Audio systems | |
| Radio | yes |
| CD player | yes |
| DVD-audio | option |
| MP3 Support | yes |
| Hands free | option |
| Additional sound equipment | 6 speakers |
Navigation and video equipment | |
| Full color LCD display | 6.5" (optional) |
| Navigation system | option |
| Back monitor | no |
Additional amenities | |
| Anti-glare effect | yes |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
| Security alarm | no |
Driver Kit | |
| Spare tire | yes |
2016 Toyota Hiace V TRH223L 2.7 MT Standard (151 Hp) specs
|
1st generationIntroduced in 1967, the Hiace was offered as cab-over pick-up, delivery van, and Commuter. And also named Hiace Commercial as a campervan. A very rare model these days mostly because of weather wear and rust, in Europe most of the vans are exported to Africa as they enjoy a longer life there. 2nd generationThe new Hiace of 1977 featured a smoother cab with single headlights. In addition to the petrol engine, a 2.2-litre diesel engine was offered in certain markets. New for the "20-40 series" Hiace were double-cab pick-up, super-long-wheelbase van, and high-roof Commuter. When the third generation was released in 1982, certain variants of the 2nd generation were still built for several years after. 3rd generationA new Hiace van was launched in 1982, with the Hiace pick-up coming later; the cab was shared with the bigger Toyoace light truck, however with different frontal styling. The Van is coded 50-series for short wheelbase, 60 for long, and 70 for super long. The pick-up trucks are 80 and 90-series. The Toyota Mobile Lounge, displayed at the 1987 Tokyo Motor Show, is based on the Hiace high-roof Commuter. While the van and Commuter were redesigned in 1989, the pick-up lasted until mid-1990s. This was the last Hiace pick-up. » Read More About Toyota Hiace |
