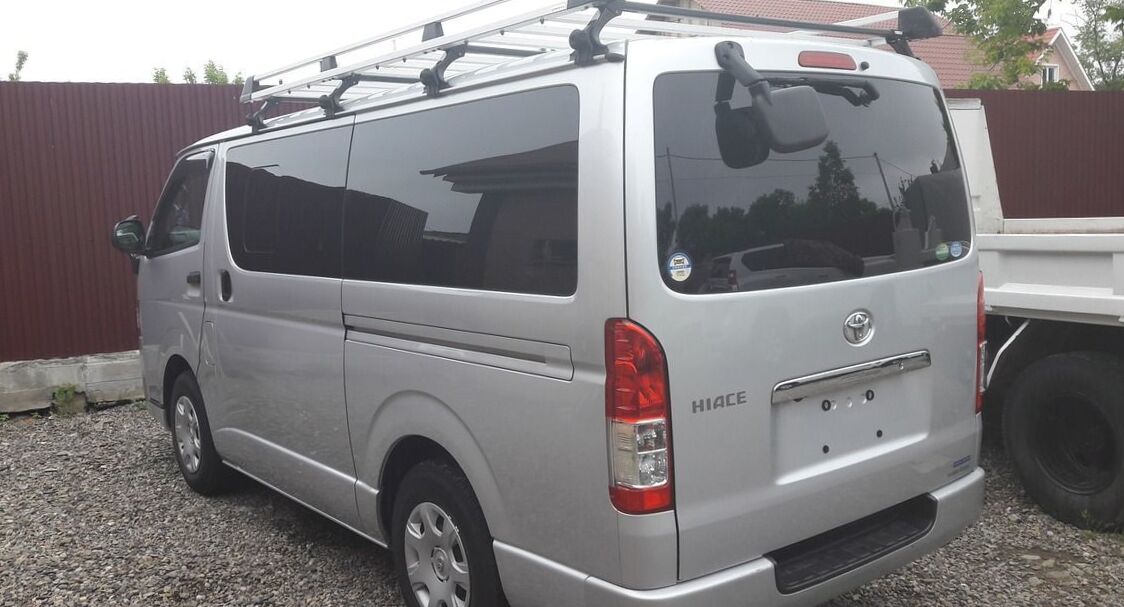

2014 Toyota Hiace V 2.0 DX Long GL Package (5 door 6 seat)
Toyota Hiace Problems
Power draining from battery
2011, Battery losses power even before the
engine starts. Bought a new battery but the new
bat...
Electronic pump
1993, Due to the faulty electronic pump
(engine#:1KZ-TE 2982 CC)we swapped the
mechanical pu...
Transmission problem
1994, our 1994 toyota hiace ambulance, model
7D4920 with automatic transmission will not
shift...
| Body type | Minivan |
|---|---|
| Power | 133 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | silver |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FR or RR |
| Mileage | 57166 Miles |
| Vin | TRH200-0****12 |
| Price (out of date) | $19859 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2014 Toyota Hiace V? | Minivan, 6 Seats, 5 Doors |
| What is the fuel economy, Toyota Hiace Minivan 2014? | 10.7 l/100 km |
| How much power, Toyota Hiace CBF-TRH200V 2014? | 133 Hp |
| What is the engine size, 2014 Toyota Hiace 2.0 DX Long GL Package (5 door 6 seat)? | 2L or 1998cm3 |
| How many gears, What type is the gearbox, Toyota Hiace V 2014 Minivan 2.0 DX Long GL Package (5 door 6 seat) (133 Hp)? | Automatic transmission 4 |
| What is the drivetrain, 2014 Toyota Hiace Minivan 2.0 DX Long GL Package (5 door 6 seat) (133 Hp)? | Rear |
| How long is this vehicle, 2014 Toyota Hiace V? | 4695 mm |
| How wide is the vehicle, Toyota Hiace Minivan 2014? | 1695 mm |
Toyota Hiace V CBF-TRH200V 2.0 DX Long GL Package (5 door 6 seat) (133 Hp) 2013, 2014 Specs
General information | |
|---|---|
| Production start year | 2013 |
| Production end year | 2014 |
| Drive type | Rear |
| Frame type | Minivan |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1998 |
| Frame name | CBF-TRH200V |
| Clearance, mm | 195 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | option |
| Steering locaton | right |
Vehicle generation | |
| Generation name | H200 |
| Generation number | 5 |
| Facelift number | 3 |
| Production start year | 2013 |
Engine, transmission and steering specs | |
Engine specs | |

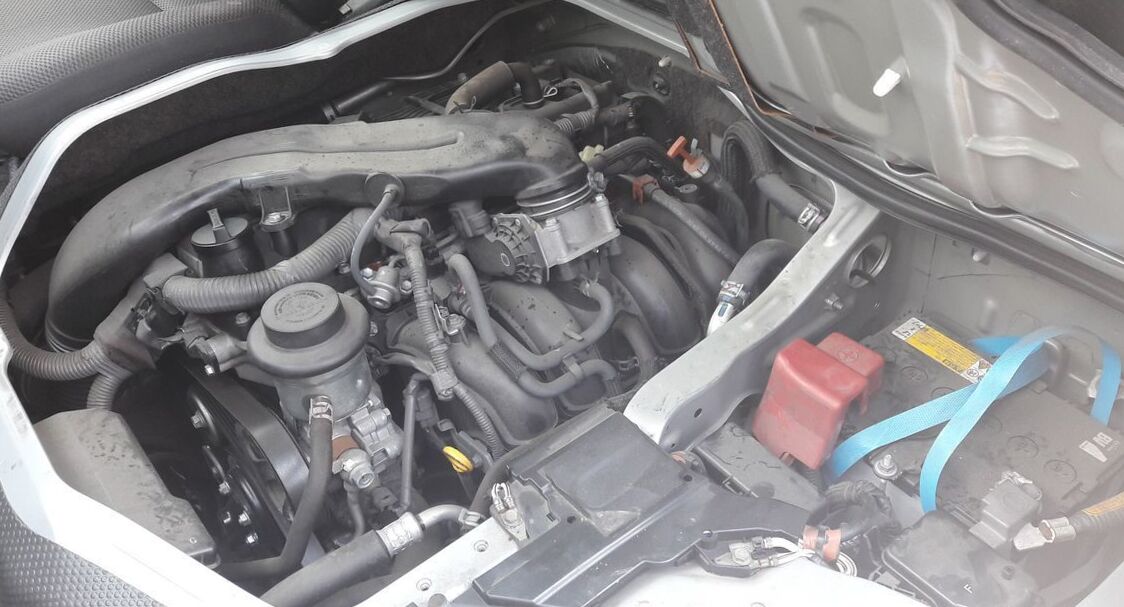

| Engine name | 1TR-FE |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 133 |
| Max power RPM, rpm | 5600 |
| Max power, hp (kWt) / rpm | 133 (98) / 5600 |
| Max torque, N*m | 182 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 182 (19) / 4000 |
| Eco type | 2005 emission regulation 50% reduction |
| Variable cylinder system | no |
| Start stop system | no |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with the 2015 fuel consumption standard |
| Combined | 10.7 |
Transmission | |
| Shifter position | On the dashboard |
Steering | |
| Power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4695 |
| Exterior width, mm | 1695 |
| Exterior height, mm | 1980 |
Interior dimensions | |
| Capacity | 6 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2570 |
| Front axle length, mm | 1470 |
| Rear axle length, mm | 1465 |
| Turning radius, m | 5 |
| Wheel spacing front | 1470 |
| Wheel spacing rear | 1465 |
Weight and permissible load | |
| Mass, kg | 1680 |
| Total weight | 3060 |

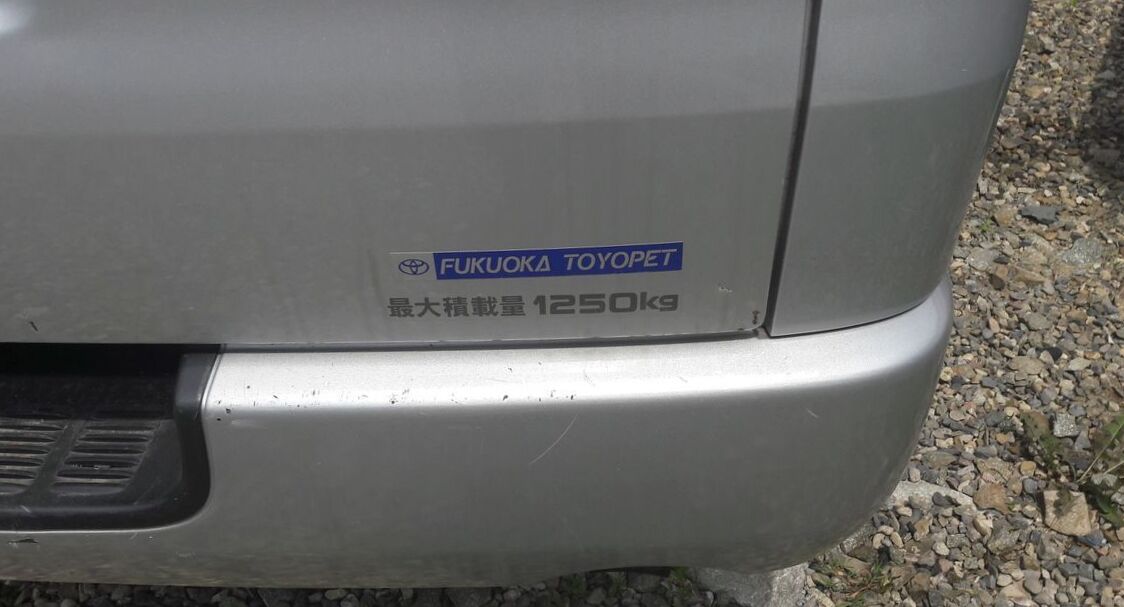

| Max capacity | 1250 |
Volumes | |
| Fuel tank capacity, l | 70 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent on double wishbones |
| Rear suspension | Dependent, spring loaded |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | option |
| Magnesium wheels | no |
Tires | |
| Front wheels | 195/80R15 |
| Rear wheels | 195/80R15 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brakes equipment | no |
Exterior | |

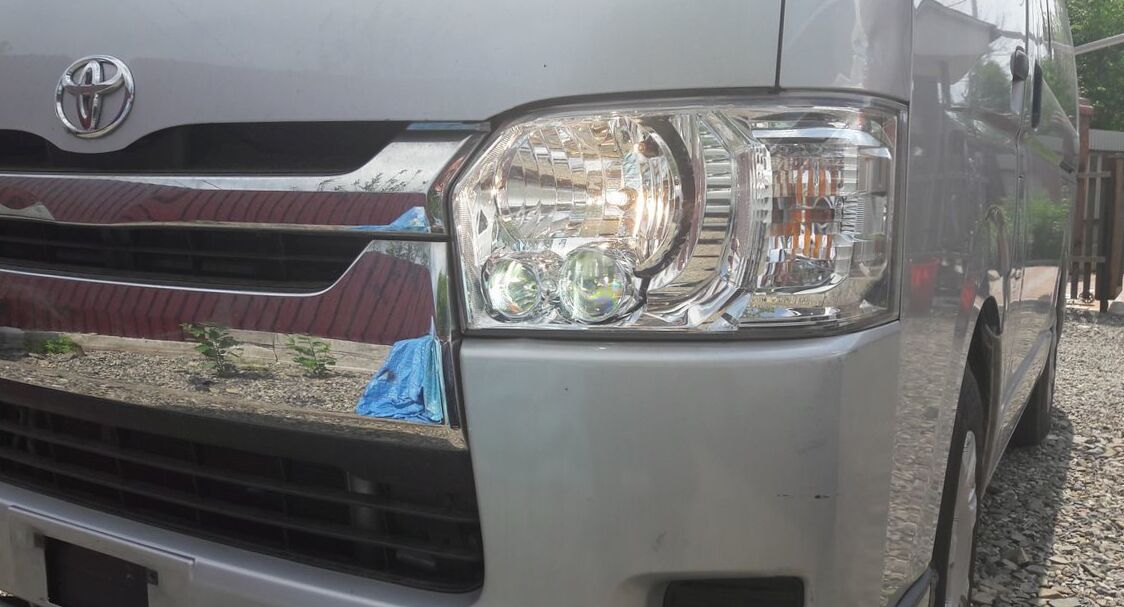

Headlights | |
| Xenon lamps | no |
| Head lights washer | no |
| Front fog lamps | no |
| Rear fog lamps | option |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | yes |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
Interior | |
Steering wheel and center panel | |
| Engine start button | no |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |
Seats | |
| Bucket seat | no |

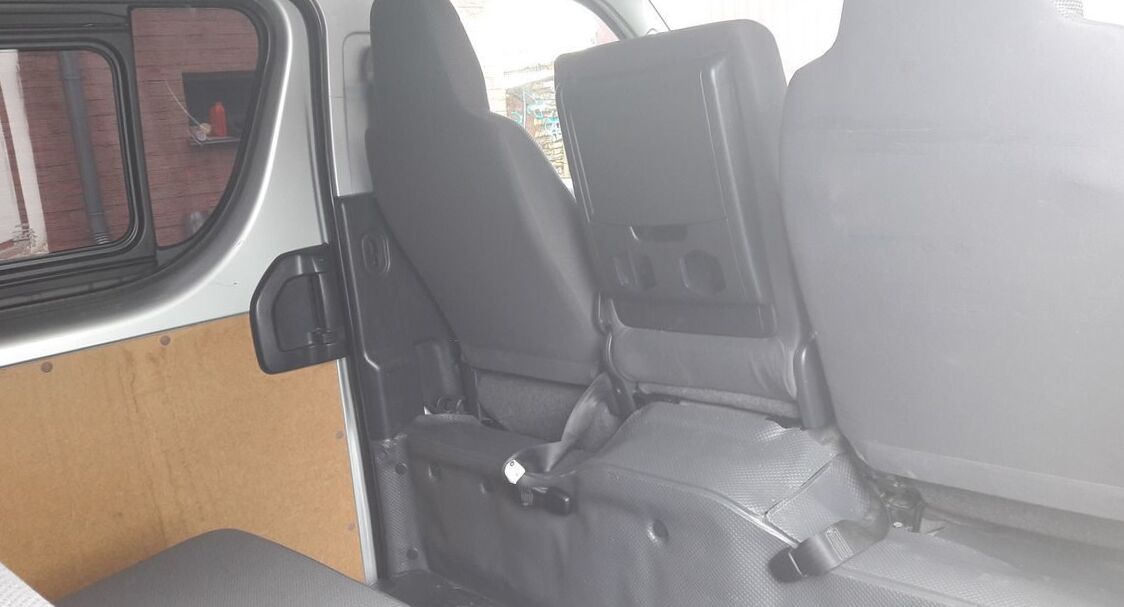

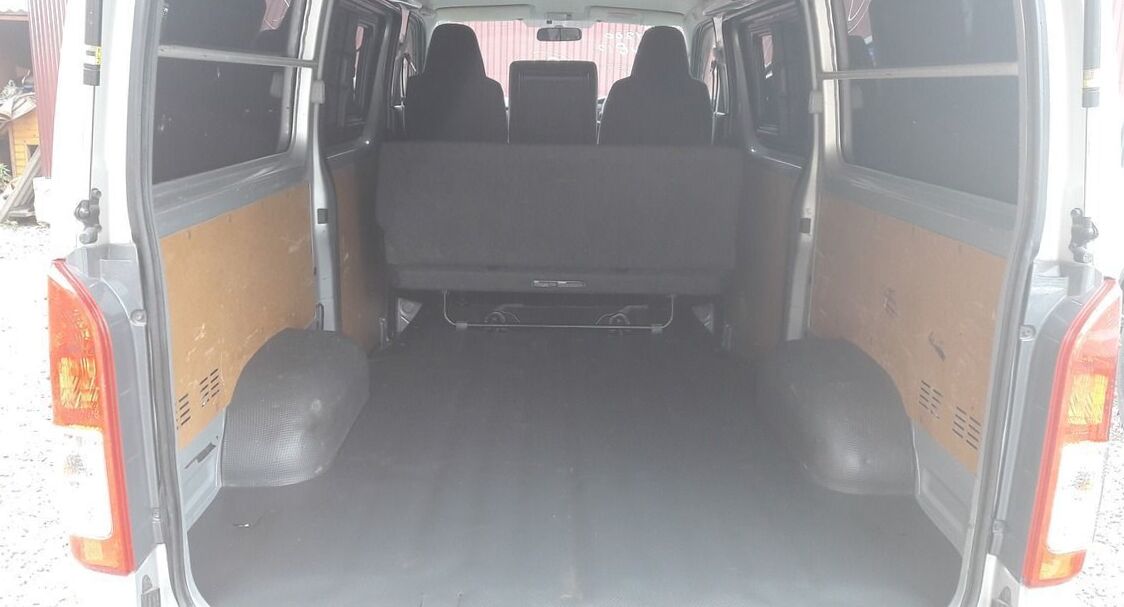

| 2nd row | foldable, backrest is indivisible |
| Seat lifter | no |
| Full flat seats | no |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | yes |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | option |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | option |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | no |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | no |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | no |
| traction control | no |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | no |
| Odor absorber | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | no |
| CD player | no |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
| Optional navigation system | no |
| Parking assist system | option |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | option |
Additional amenities | |
| Lagage box | no |
Car safety | |
| Alarm system | yes |
| Security alarm | no |
2014 Toyota Hiace V CBF-TRH200V 2.0 DX Long GL Package (5 door 6 seat) (133 Hp) specs
|
1st generationIntroduced in 1967, the Hiace was offered as cab-over pick-up, delivery van, and Commuter. And also named Hiace Commercial as a campervan. A very rare model these days mostly because of weather wear and rust, in Europe most of the vans are exported to Africa as they enjoy a longer life there. 2nd generationThe new Hiace of 1977 featured a smoother cab with single headlights. In addition to the petrol engine, a 2.2-litre diesel engine was offered in certain markets. New for the "20-40 series" Hiace were double-cab pick-up, super-long-wheelbase van, and high-roof Commuter. When the third generation was released in 1982, certain variants of the 2nd generation were still built for several years after. 3rd generationA new Hiace van was launched in 1982, with the Hiace pick-up coming later; the cab was shared with the bigger Toyoace light truck, however with different frontal styling. The Van is coded 50-series for short wheelbase, 60 for long, and 70 for super long. The pick-up trucks are 80 and 90-series. The Toyota Mobile Lounge, displayed at the 1987 Tokyo Motor Show, is based on the Hiace high-roof Commuter. While the van and Commuter were redesigned in 1989, the pick-up lasted until mid-1990s. This was the last Hiace pick-up. » Read More About Toyota Hiace |
