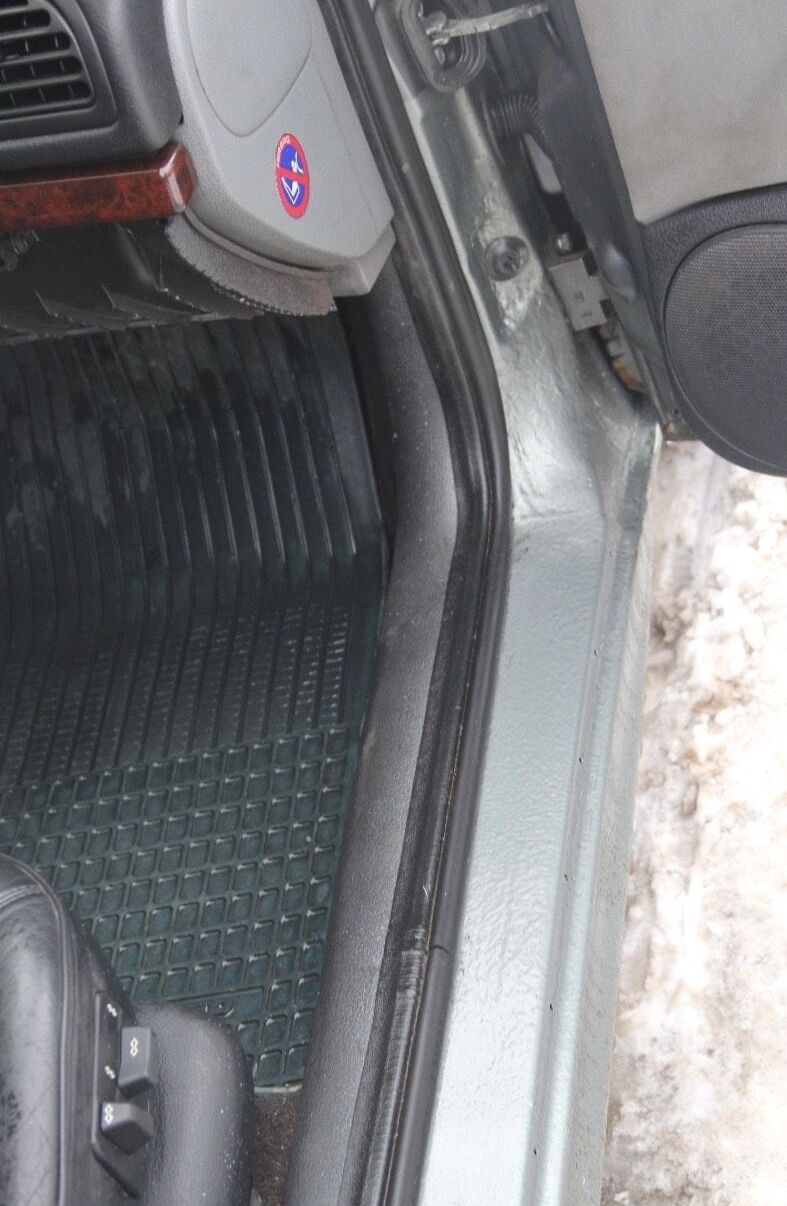

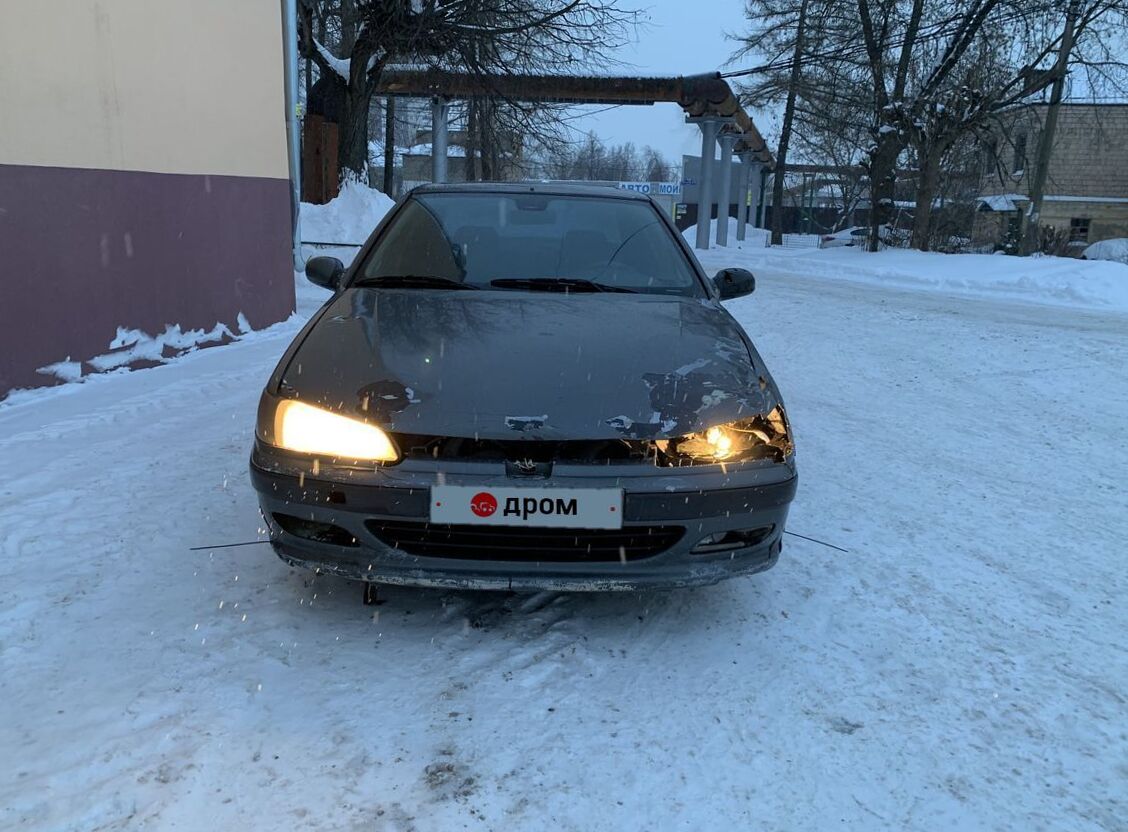

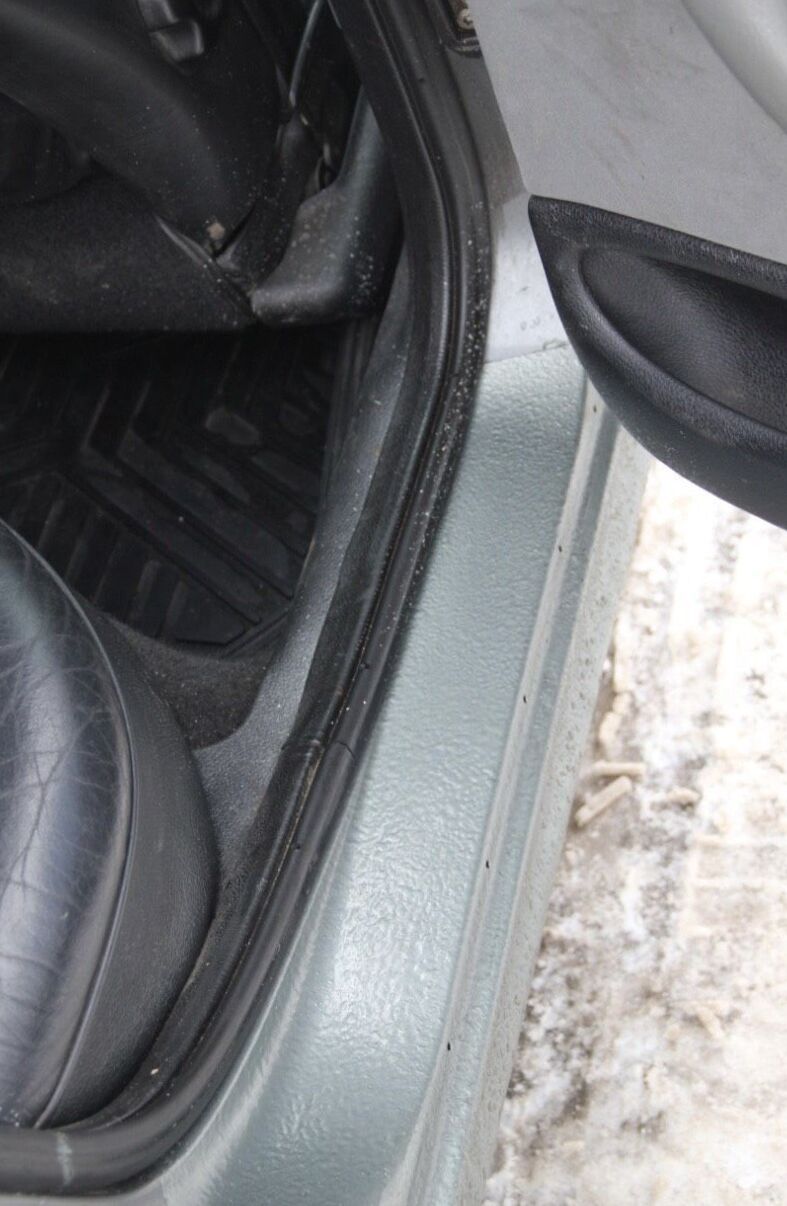

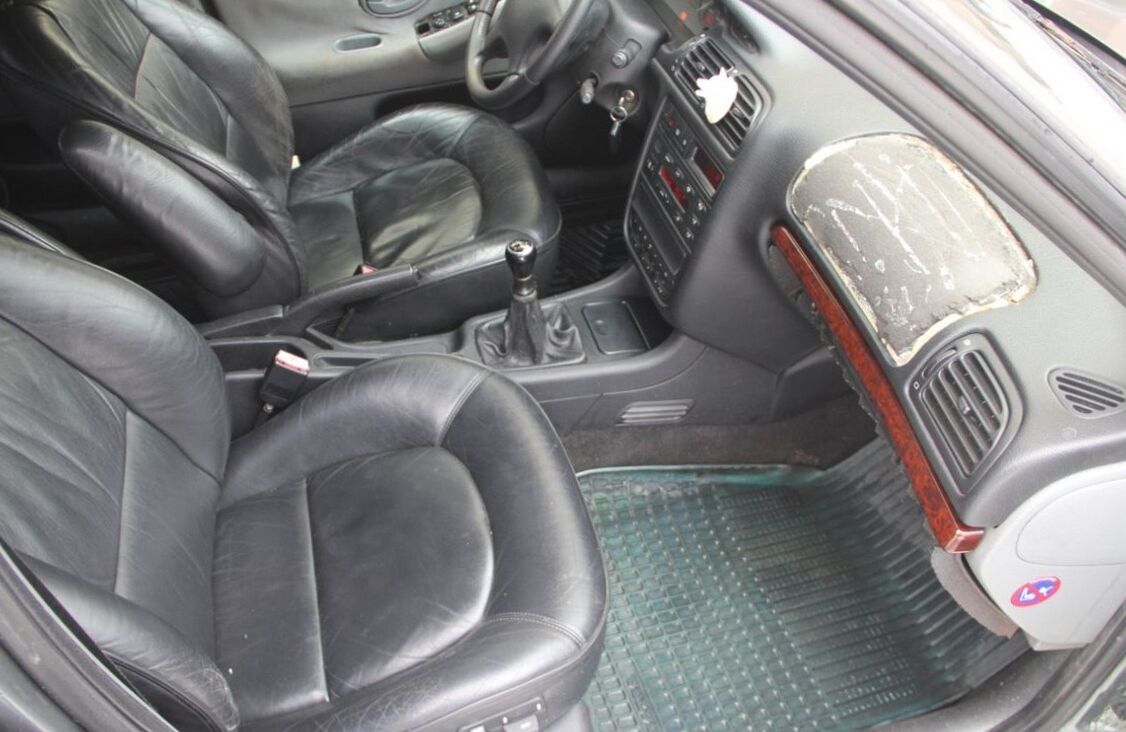

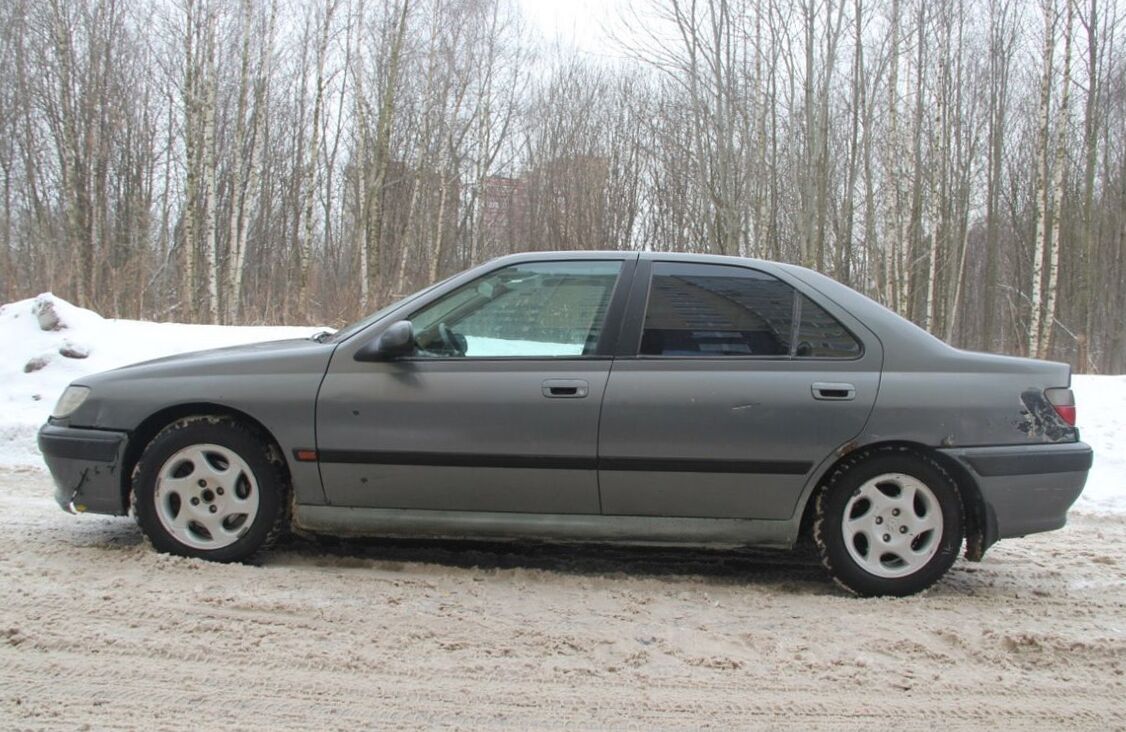

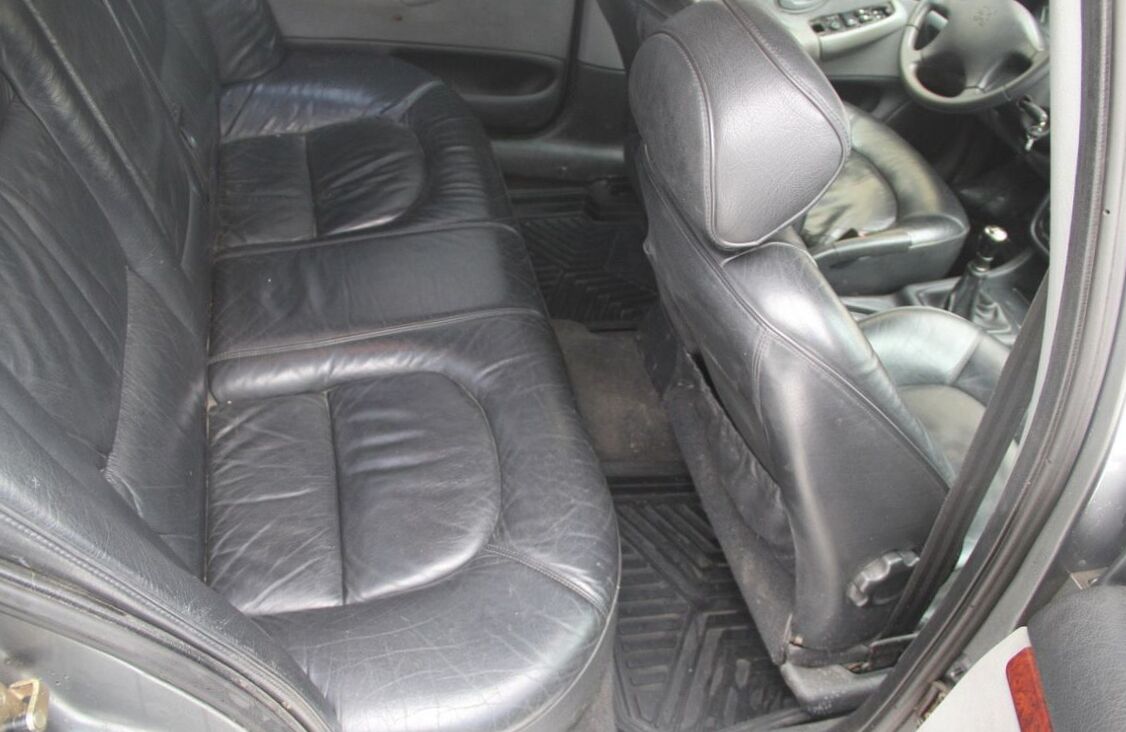

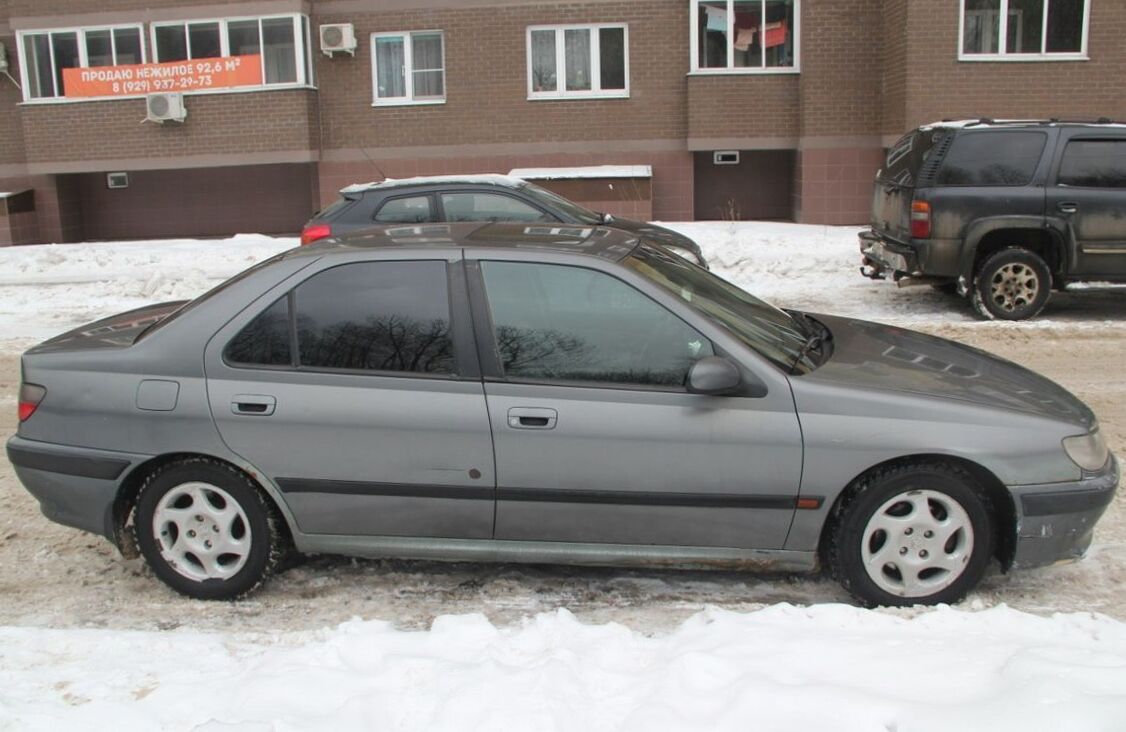

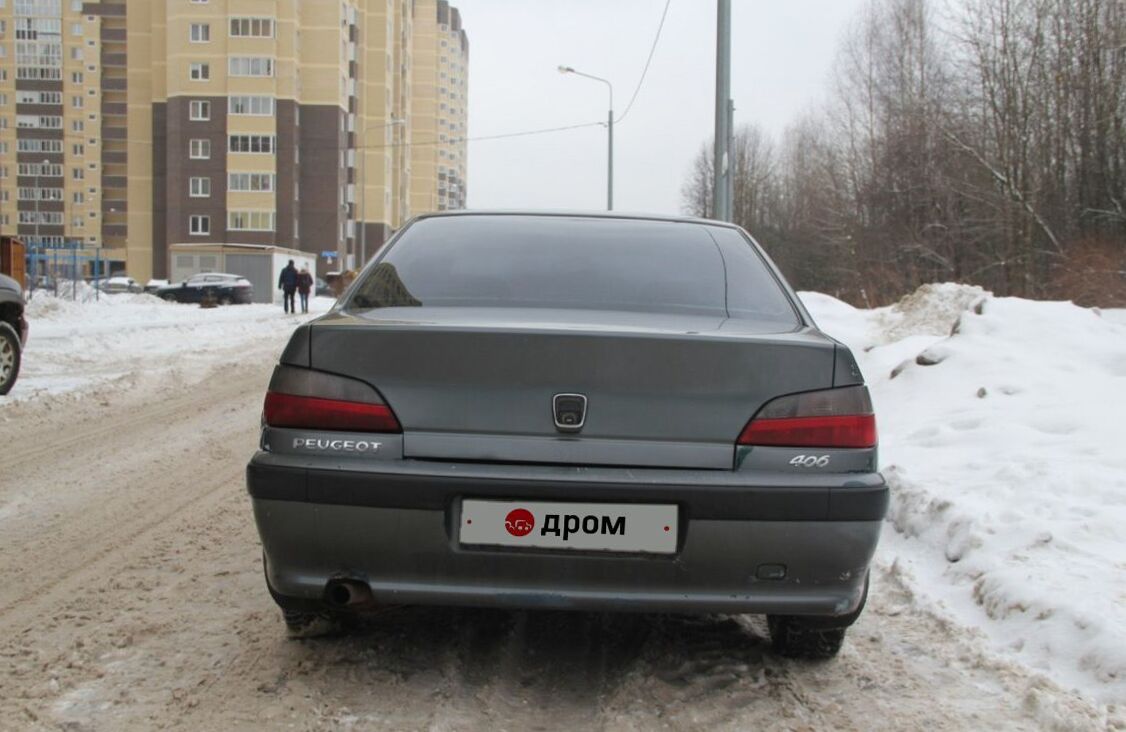

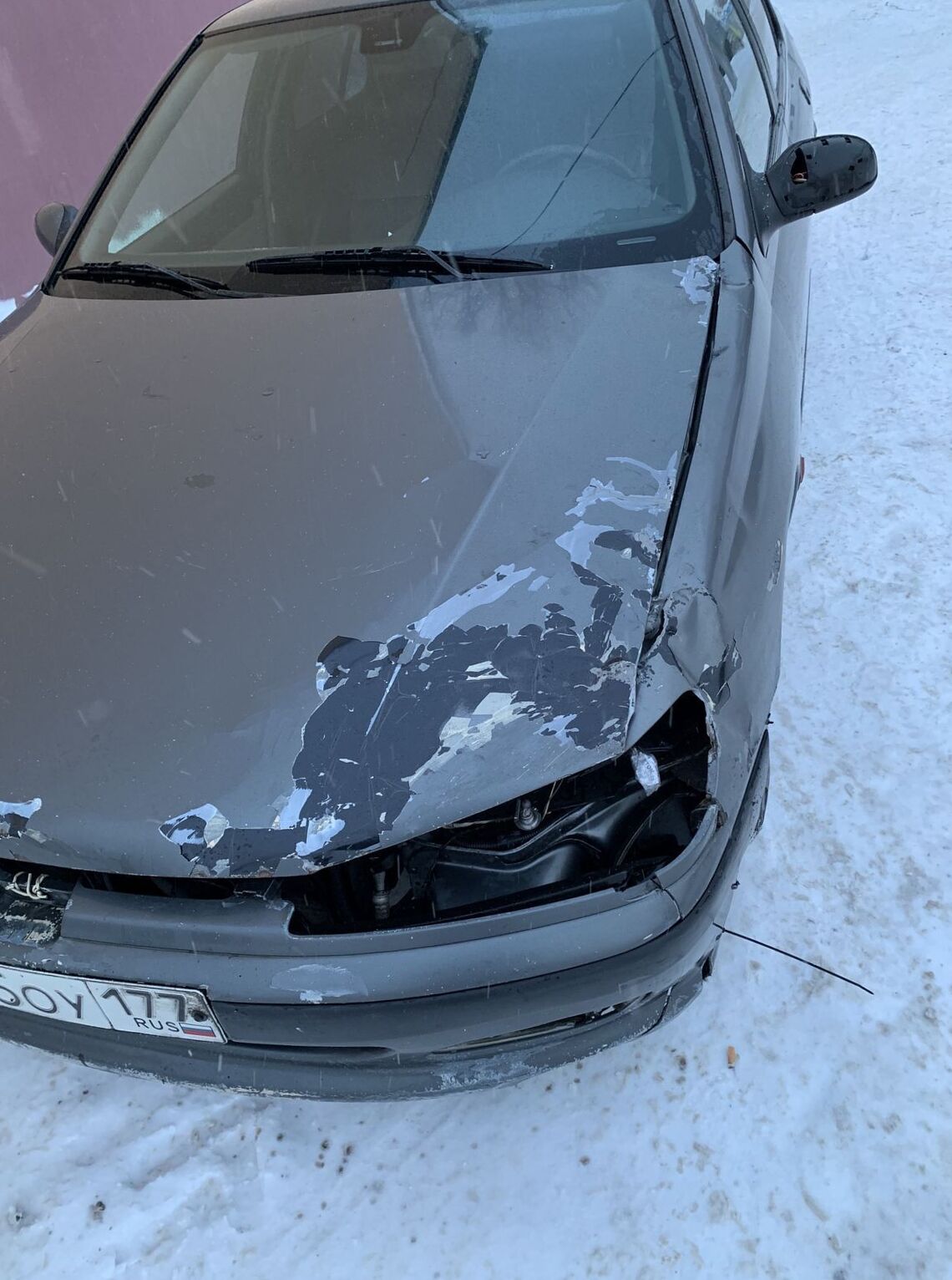

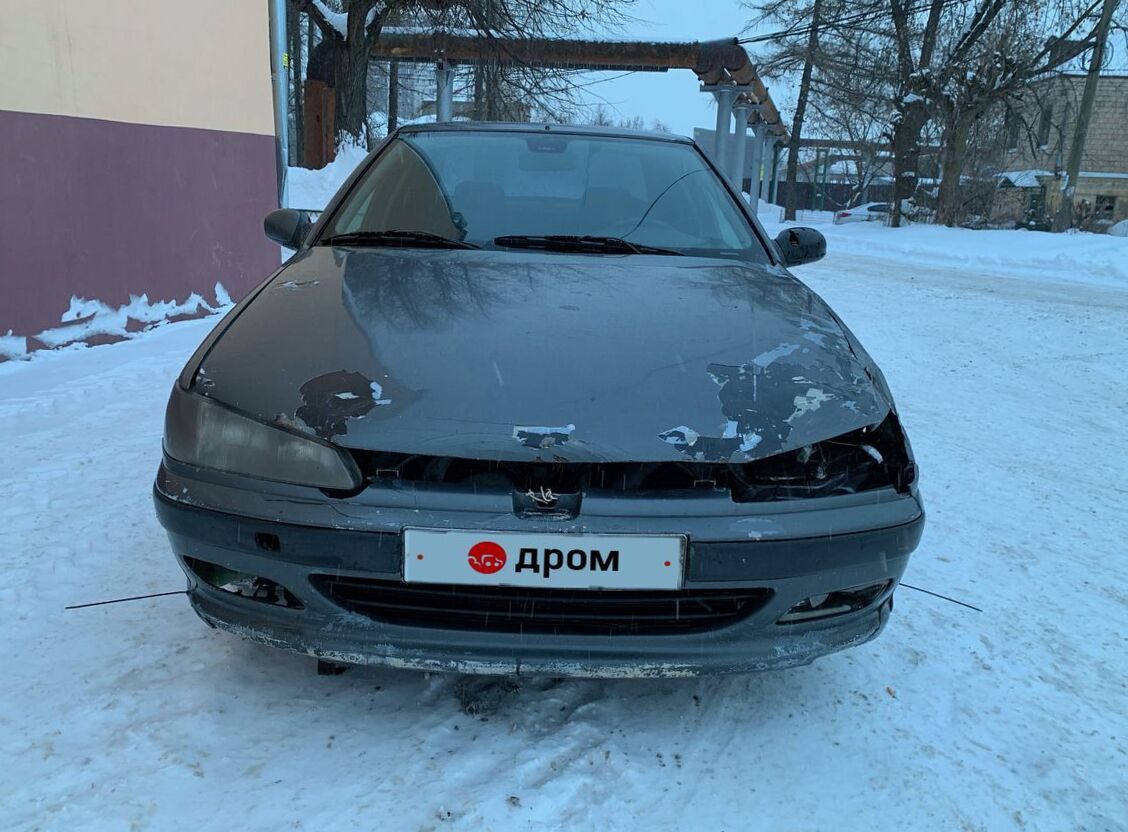

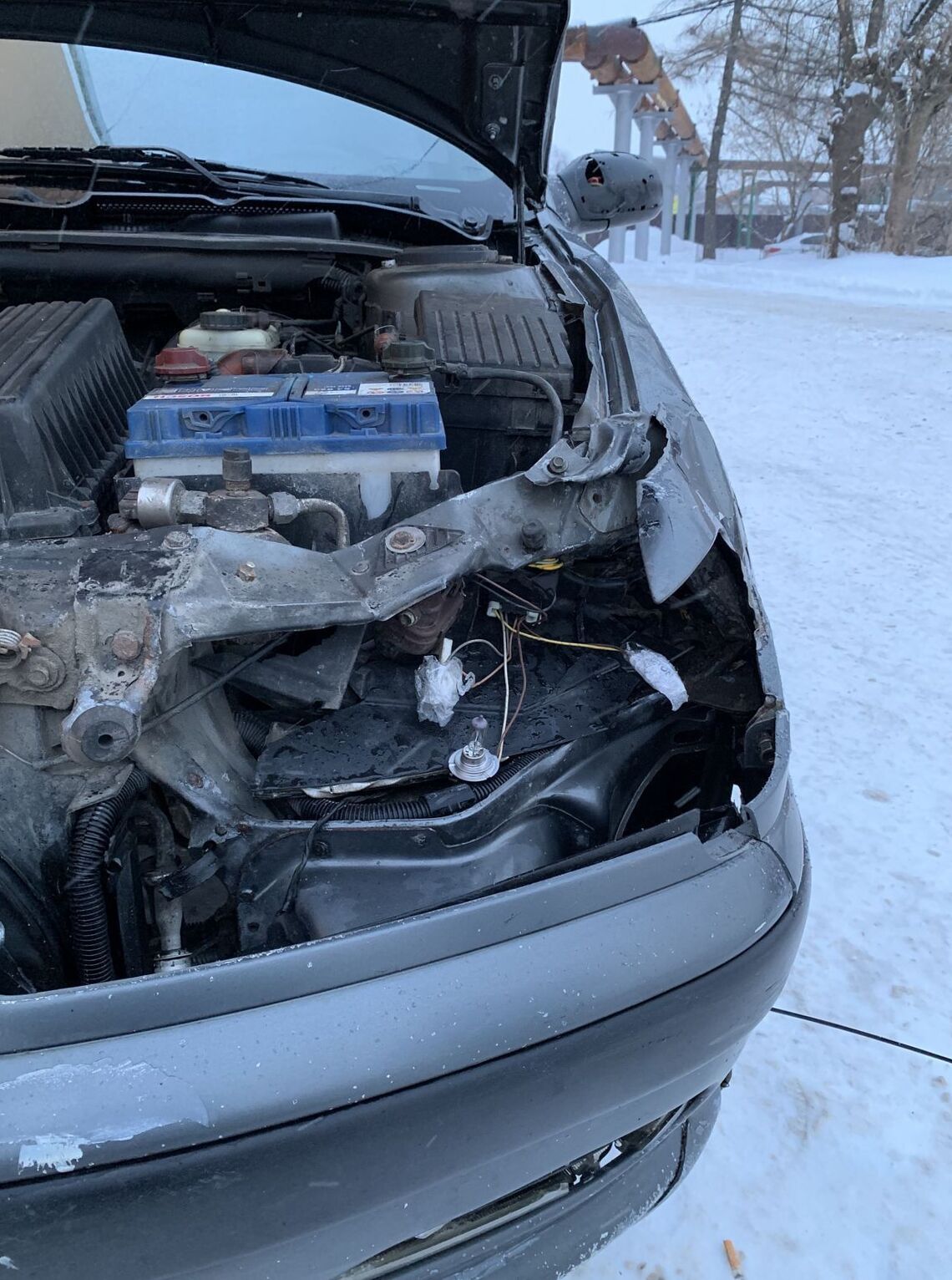

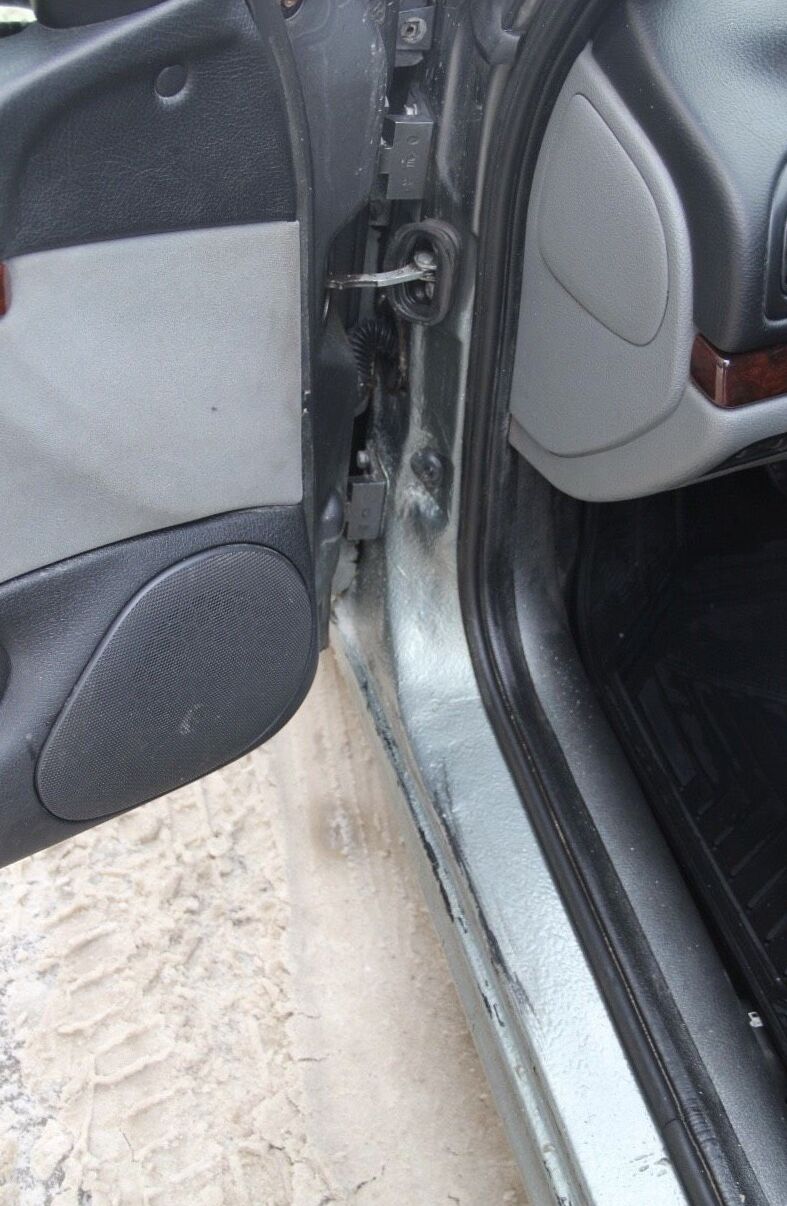

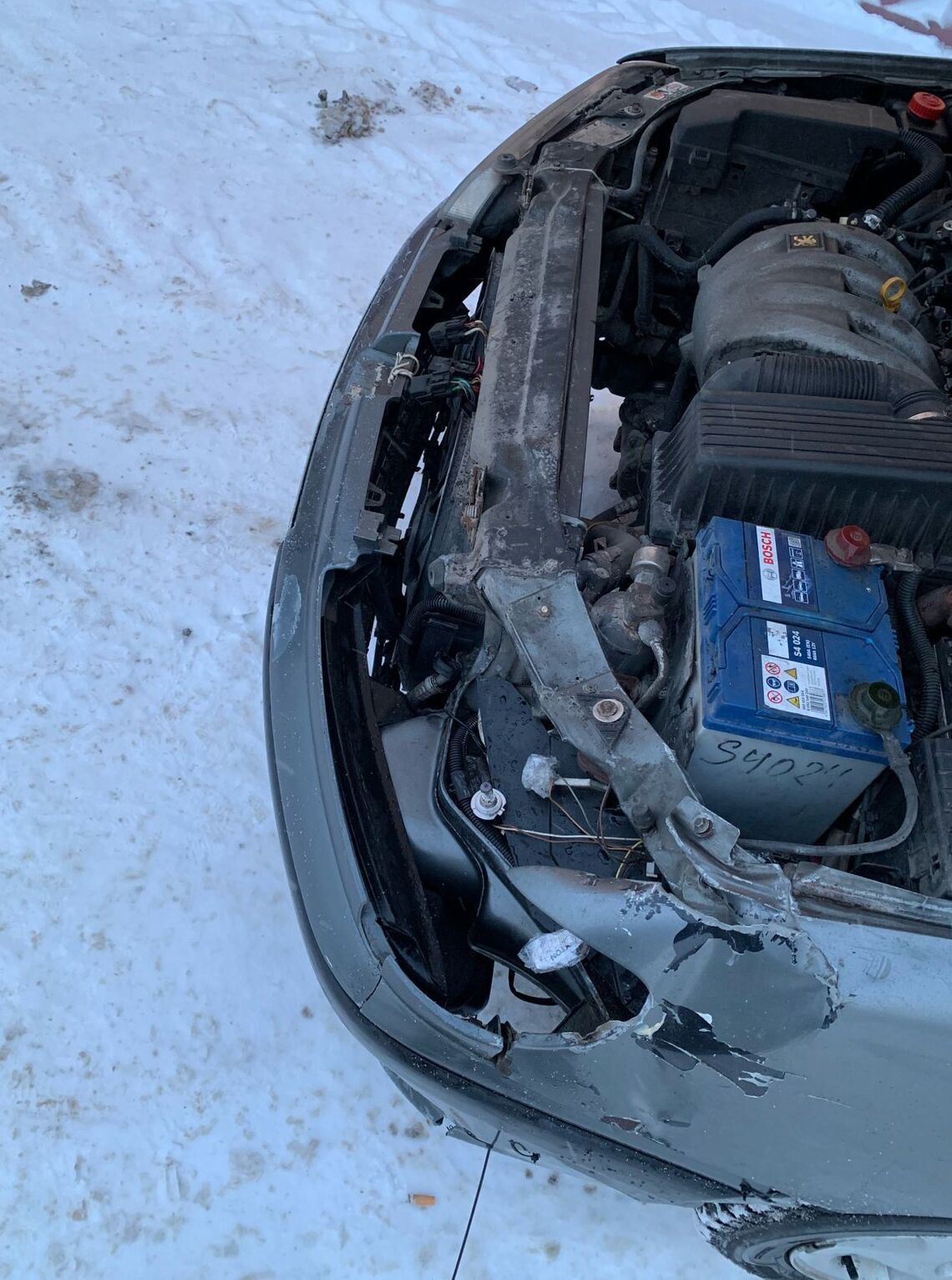

1996 Peugeot 406 2.0 MT SV


1996 Peugeot 406 8B 2.0 MT SV (132 Hp)
406 8B 2.0 MT SV (132 Hp)
1996 406 8B 2.0 MT SV (132 Hp)
Peugeot 406 8B 2.0 MT SV (132 Hp)
1996 Peugeot 406 8B 2.0 MT SV (132 Hp)
406 8B 2.0 MT SV (132 Hp)
1996 406 8B 2.0 MT SV (132 Hp)
Peugeot 406 8B 2.0 MT SV (132 Hp)
1996 Peugeot 406 8B 2.0 MT SV (132 Hp)
406 8B 2.0 MT SV (132 Hp)
1996 406 8B 2.0 MT SV (132 Hp)
Peugeot 406 8B 2.0 MT SV (132 Hp)
1996 Peugeot 406 8B 2.0 MT SV (132 Hp)
406 8B 2.0 MT SV (132 Hp)
1996 406 8B 2.0 MT SV (132 Hp)
Peugeot 406 8B 2.0 MT SV (132 Hp)
1996 Peugeot 406 8B 2.0 MT SV (132 Hp)
406 8B 2.0 MT SV (132 Hp)
1996 406 8B 2.0 MT SV (132 Hp)
Peugeot 406 8B 2.0 MT SV (132 Hp)
1996 Peugeot 406 8B 2.0 MT SV (132 Hp)

More photos of Peugeot 406

Peugeot 406 Problems
Starting problem
1998, Check engine light is off and the car
won't start. It started after overhauling
of ...
My lovely car
2004, when the breaks get hot or you get into
acrowded pleace and you want to press the
breaks...
Alarm K always came out when temprature above 90
2000, Temprature always above 100C... I have
change the radiator. water in radiator need to
be...

Body typeSedan
Power132 Hp
Engine Displacement2000 cm3 or 2L or 122 cu-in
Colorgray
Transmission GearboxManual
Fuel TypeGasoline
Drive wheelFF
Mileage186411 Miles
VinVF38BRFVE80****96
Price (out of date)$1075

Frequently Asked Questions

What is the body type, Peugeot 406 Sedan 1996?Sedan, 5 Seats, 4 Doors
What is the fuel economy, Peugeot 406 8B 1996?9.1 l/100 km
How fast is the car, 1996 Peugeot 406 2.0 MT SV?203 km/h, 0-100 km/h: 11 sec
How much power, Peugeot 406 1996 Sedan 2.0 MT SV (132 Hp)?132 Hp
What is the engine size, 1996 Peugeot 406 Sedan 2.0 MT SV (132 Hp)?2L or 1998cm3
How many gears, What type is the gearbox, Peugeot 406 Sedan 1996?5 speed Manual
What is the drivetrain, Peugeot 406 8B 1996?Front
How long is this vehicle, 1996 Peugeot 406 2.0 MT SV?4555 mm
How wide is the vehicle, Peugeot 406 1996 Sedan 2.0 MT SV (132 Hp)?1765 mm
What is the gross weigh, 1996 Peugeot 406 Sedan 2.0 MT SV (132 Hp)?1915 kg
How much trunk (boot) space, Peugeot 406 Sedan 1996?430 l

Peugeot 406 8B 2.0 MT SV (132 Hp) 1995, 1996, 1997, 1998, 1999 Specs

General information

Complectation name2.0 MT SV
Production start year1995
Production end year1999
Drive typeFront
Frame typeSedan
Transmission type5 speed Manual
Engine volume, cc1998
Frame name8B
0 to 100 time11
Max speed203
Clearance, mm170
Manufacturing countryFrance
Doors4

Engine, transmission and steering specs

Engine specs

Engine nameXU10J4R
FuelPetrol (Gasoline)
Engine typeIn-line, 4-cylinder
Has turbono
Max power, hp132
Max power RPM, rpm5500
Max power, hp (kWt) / rpm132 (97) / 5500
Max torque, N*m180
Max torque RPM, rpm4200
Max torque, N*m (kg*m) / rpm180 (18) / 4200
Valves per cylinder4
Compression ratio11
Bore, mm86
Stroke, mm86

Fuel consumption

City12.9
Country side6.9
Combined9.1

Steering

Power steeringyes

Dimensions

Frame dimensions

Exterior length, mm4555
Exterior width, mm1765
Exterior height, mm1396

Interior dimensions

Capacity5
Seat rows2

Chassis dimensions

Wheel base, mm2700
Turning radius, m5.5
Wheel spacing front1500
Wheel spacing rear1482

Weight and permissible load

Mass, kg1290
Max. weight1915

Volumes

Fuel tank capacity, l70
Trunk volume430

Suspension specs

Suspension specs

Front suspensionIndependent, Spring McPherson
Rear suspensionIndependent, spring multi-link

Wheel rims

Aluminium wheeloption

Tires

Front wheels195/65 R15
Rear wheels195/65 R15

Brakes

Front brakeVentilated discs
Rear brakedrum brakes


1996 Peugeot 406 8B 2.0 MT SV (132 Hp) specs

The Peugeot 406 is a large family car from the French automaker Peugeot from 1995 to 2004. Available in sedan, station wagon and coupé bodystyles with a choice of gasoline or turbodiesel engines, the 406 replaced the Peugeot 405 in Peugeot's lineup, and was itself replaced by the Peugeot 407. It used the same platform as the Citroën Xantia, though without that car's sophisticated hydropneumatic suspension system.


The diesel versions were very popular, and the 406 became one of Europe's best-selling diesel-powered cars.[citation needed] Initially, the car was available with 1.8 L and 2.0 L petrol and 1.9 L turbodiesel engines, followed by a 110 bhp 2.1 L turbodiesel, turbocharged 2.0 L and 3.0 L petrol V6 engines. The 2-door coupé was both designed and built by Italian designer Pininfarina, with choices of a 2.0 L 4-cylinder engine or a 3.0 L V6, and from 2001, a 2.2 L HDi diesel engine.

The 406 was notably successful in the UK. It broke into the key UK fleet sales market, with 90 percent of units becoming company cars.[citation needed]

The Facelifted 406 sedan was introduced in 1999 and it has changed in many aspects from the other 406 to make it safer, stronger and faster. The changes include the new and improved EW/ DW Engine Family which involves more power and fuel efficiency. Other parts have been changed such as transmission (ratio in fifth increased from 25 to 28 mph/ 1000rpm), wheels, suspension and brakes. On the exterior, the 406 got a whole new elegant look with more pronounced ribs, totally smooth glass headlights and a new honeycomb grill. The interior has been totally redesigned to create comfort and space as well as a new look. 406 ended production in 2004.
