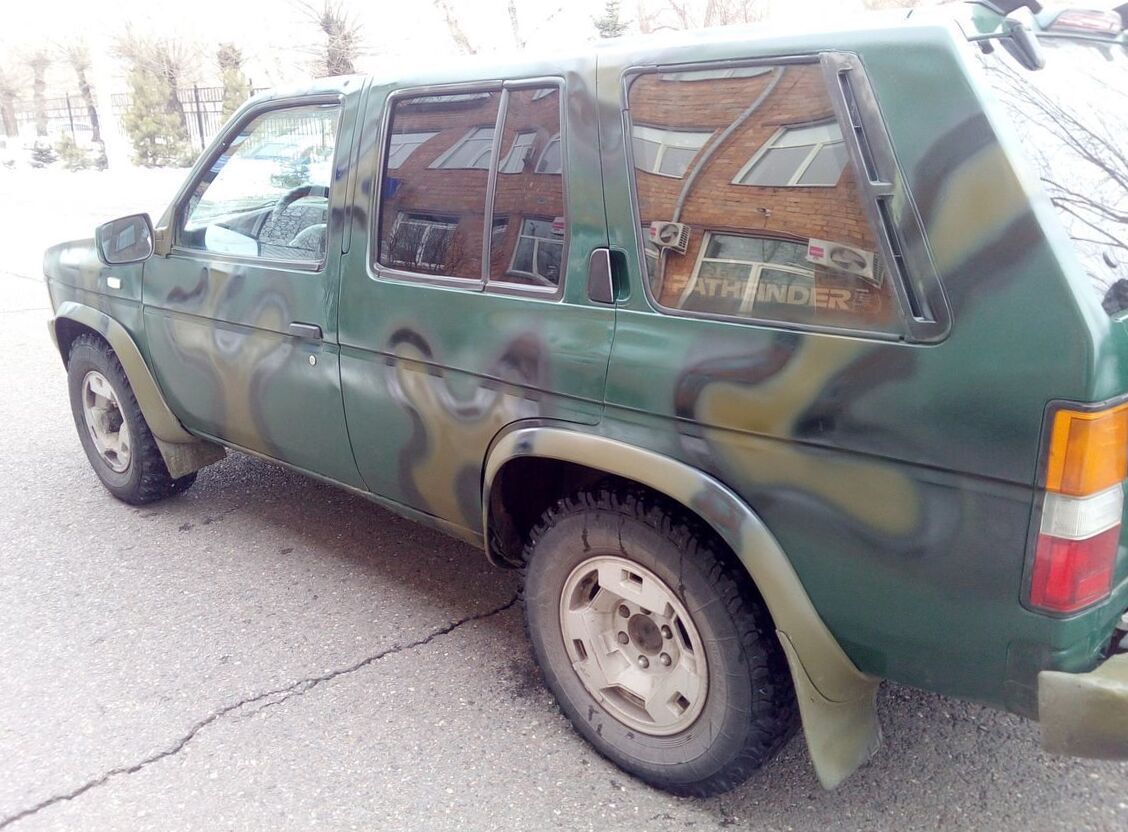

1994 Nissan Pathfinder 3.0 AT
Nissan Pathfinder Problems
Sluggish acceleration
2000, My vehicle started with reduced engine
running when idle and later swithes off. It
then...
Engine computer
2005, the engine computer needs to be new!
cannot find one here! MEC36-070 Nissan ECY
ECM ...
Engine motor
2005, the engine motor does not work, need new!
MEC36-070, have only this infos: nissan ecy ec...
Body type | SUV |
---|---|
Power | 155 Hp |
Engine Displacement | 3000 cm3 or 3L or 183 cu-in |
Color | green |
Transmission Gearbox | Automatic |
Fuel Type | Gasoline |
Drive wheel | 4WD |
Mileage | 6213 Miles |
Vin | JNBHD17Y3RW****09 |
Price (out of date) | $3217 |
Frequently Asked Questions | |
---|---|
What is the body type, Nissan Pathfinder SUV 1994? | SUV, 5 Seats, 5 Doors |
How fast is the car, Nissan Pathfinder WD21 1994? | 166 km/h, 0-100 km/h: 14 sec |
How much power, 1994 Nissan Pathfinder 3.0 AT? | 155 Hp |
What is the engine size, Nissan Pathfinder 1994 SUV 3.0 AT (155 Hp)? | 3L or 2960cm3 |
How many gears, What type is the gearbox, 1994 Nissan Pathfinder SUV 3.0 AT (155 Hp)? | Automatic transmission 4 |
What is the drivetrain, Nissan Pathfinder SUV 1994? | All wheel drive (4x4) |
How long is this vehicle, Nissan Pathfinder WD21 1994? | 4366 mm |
How wide is the vehicle, 1994 Nissan Pathfinder 3.0 AT? | 1690 mm |
Nissan Pathfinder WD21 3.0 AT (155 Hp) 1992, 1993, 1994, 1995 Specs
General information | |
---|---|
Complectation name | 3.0 AT |
Production start year | 1992 |
Production end year | 1995 |
Drive type | All wheel drive (4x4) |
Frame type | SUV |
Transmission type | Automatic transmission 4 |
Engine volume, cc | 2960 |
Frame name | WD21 |
0 to 100 time | 14 |
Max speed | 166 |
Clearance, mm | 205 |
Manufacturing country | Canada |
Doors | 5 |
Vehicle generation | |
Generation name | R50 |
Generation number | 1 |
Facelift number | 1 |
Production start year | 1992 |
Production end year | 1995 |
Engine, transmission and steering specs | |
Engine specs | |
Engine name | VG30E |
Fuel | Petrol (Gasoline) |
Engine type | V6 |
Has turbo | no |
Max power, hp | 155 |
Max power RPM, rpm | 4800 |
Max power, hp (kWt) / rpm | 155 (114) / 4800 |
Max torque, N*m | 244 |
Max torque RPM, rpm | 4000 |
Max torque, N*m (kg*m) / rpm | 244 (25) / 4000 |
Valves per cylinder | 2 |
Compression ratio | 9 |
Bore, mm | 87 |
Stroke, mm | 83 |
Steering | |
Power steering | yes |
Dimensions | |
Frame dimensions | |
Exterior length, mm | 4366 |
Exterior width, mm | 1690 |
Exterior height, mm | 1670 |
Interior dimensions | |
Capacity | 5 |
Seat rows | 2 |
Chassis dimensions | |
Wheel base, mm | 2650 |
Turning radius, m | 5.4 |
Wheel spacing front | 1445 |
Wheel spacing rear | 1430 |
Weight and permissible load | |
Mass, kg | 1780 |
Volumes | |
Fuel tank capacity, l | 80 |
Suspension specs | |
Suspension specs | |
Front stabilizer | yes |
Front suspension | Independent on double wishbones |
Rear stablilizer | yes |
Rear suspension | Dependent, multilever |
Wheel rims | |
Aluminium wheel | yes |
Tires | |
Front wheels | 235/75 R15 |
Rear wheels | 235/75 R15 |
Brakes | |
Front brake | Ventilated discs |
Rear brake | drum brakes |
The Pathfinder is powered with a 3.3-liter SOHC 12-valve V-6 with 168 hp and choice of 5-speed manual or 4-speed automatic transmission. Other options include 2 or 4 wheel drive.
1994 Nissan Pathfinder WD21 3.0 AT (155 Hp) specs
|
The North American first generation Pathfinder came in two different bodies, and shared styling and most components with the Nissan Hardbody Truck. In the US from 1986.5 to 1989 Pathfinders came in a two door body. In early 1990 it became a four door in the United States. Some US 1990 Pathfinder's came with the two door body, but they are rare. The 2-door version was available in Canada until 1992. From 86.5 to 1989 Pathfinders were available with either the Nissan VG30I V6 (145hp (108kW), 180lb·ft (244N·m) torque), or the Z24(106hp (79kW)) I4. In 1990 the V6 received an upgrade from throttle body injection to a multi point fuel injection system. This engine was known as the VG30E, and was rated at 153hp (114kW) and 180lb·ft (244N·m) torque. Also in 1990, the Z24 was replaced with the KA24E. The first generation continued until 1995. This generation also came out in the 2.7l I4 Diesel Engine known as the TD27 with the option of a turbocharger to increase the power rating. » Read More About Nissan Pathfinder |
