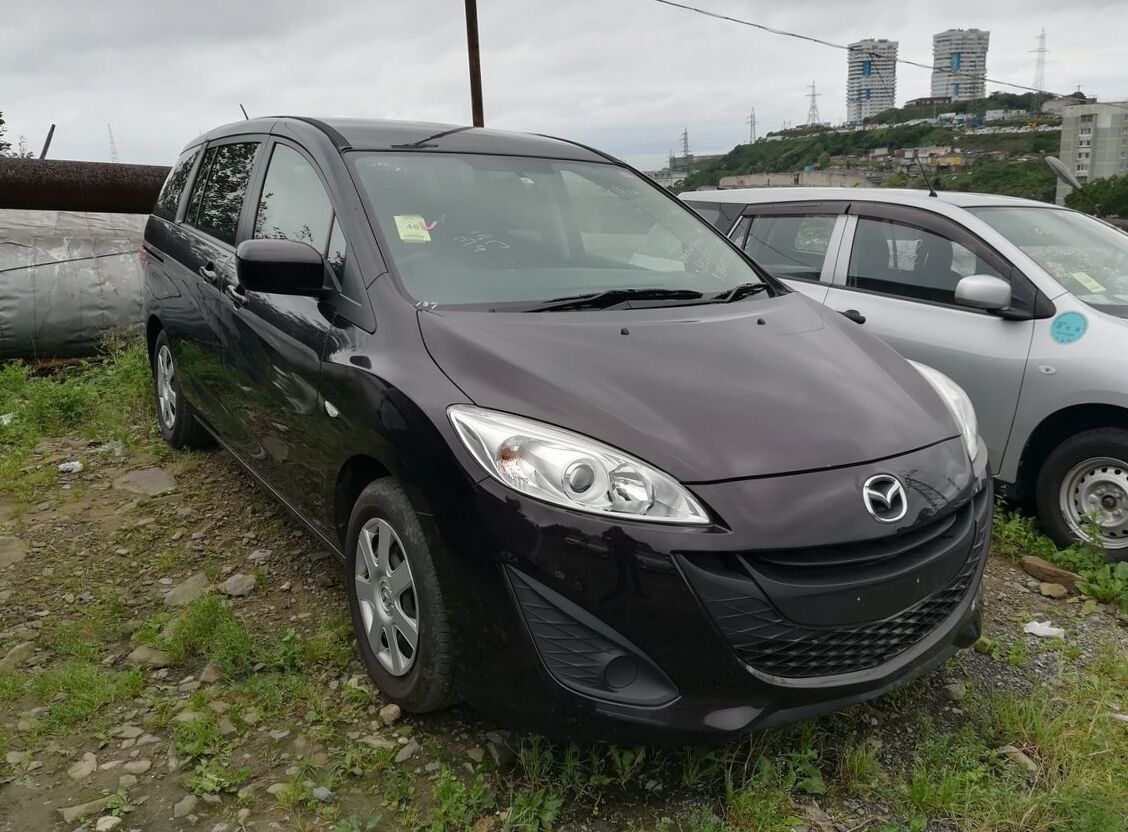

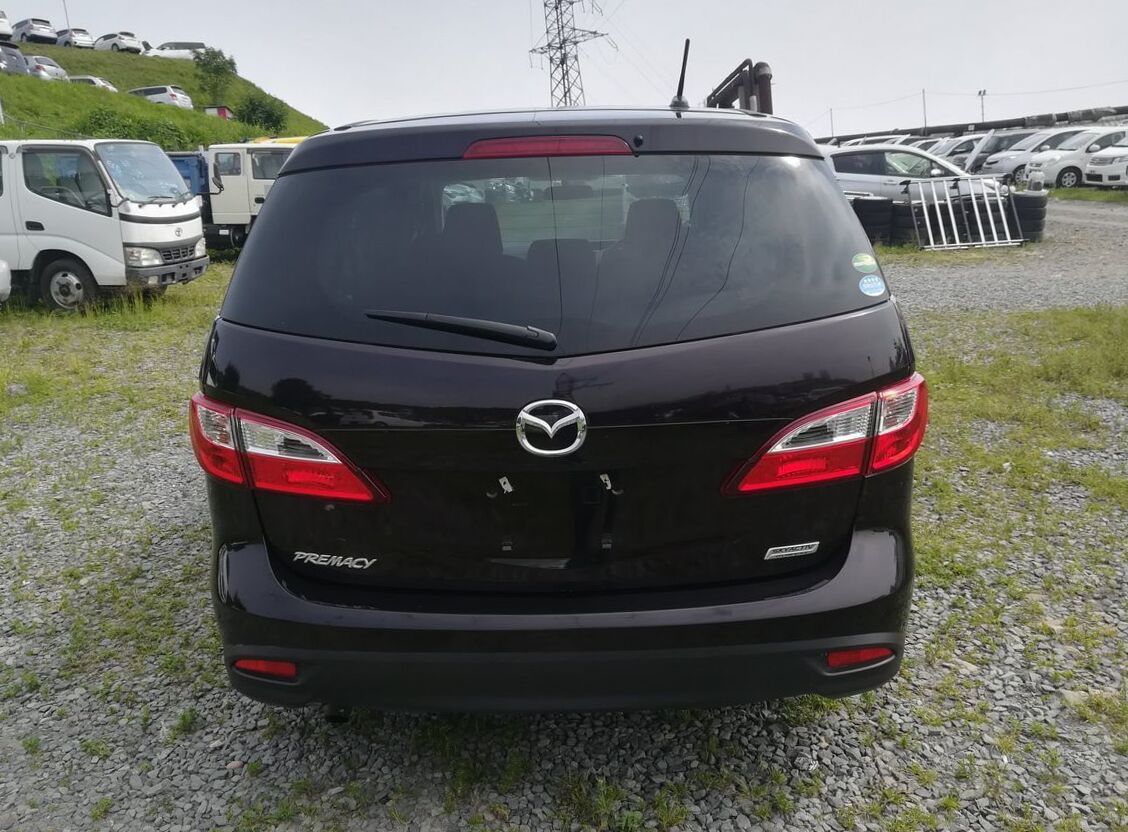

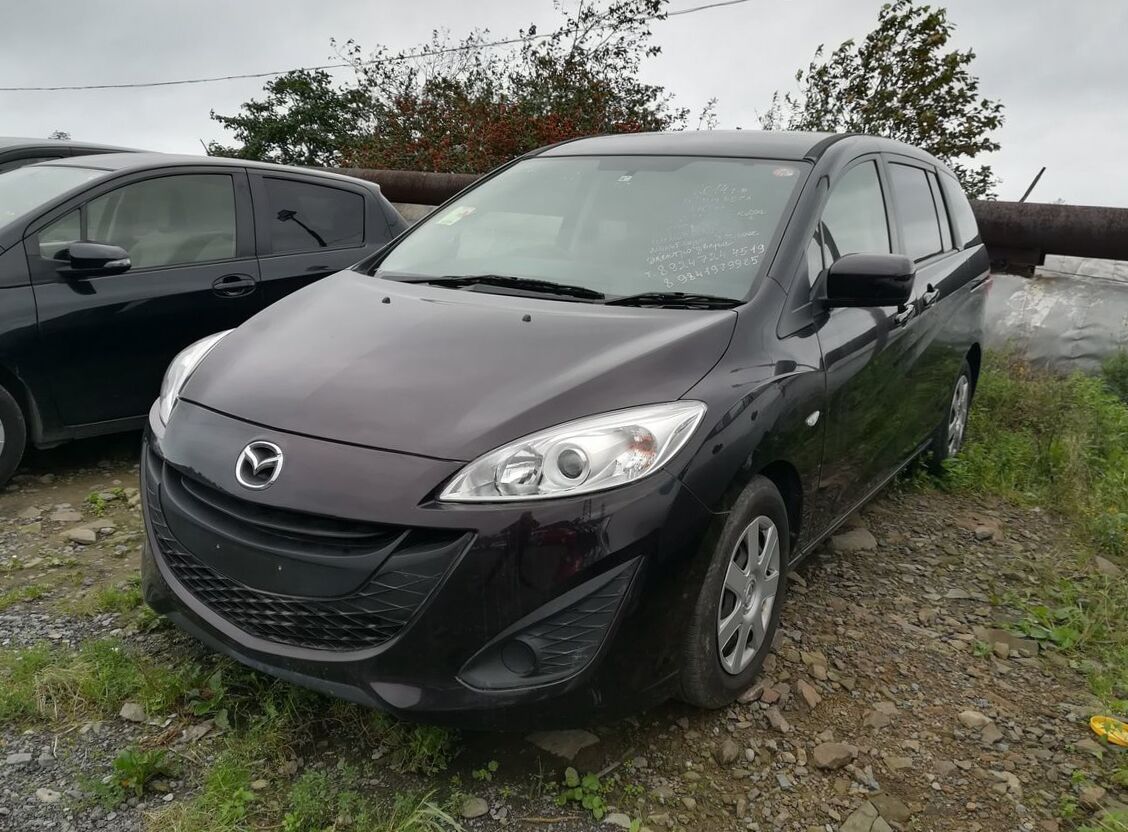

2014 Mazda Premacy III 2.0 20S SkyActiv L Package
Mazda Premacy Problems
Steering angle
2014, Check engine light on,lose of power.When
ascending a hill the rpm will move up to 4 but ...
AT and engine lights coming on; high revs follo...
2010, Car does a massive jerk, revs up high, AT
light comes on and then will go off and things...
Transmission
2006, The check engine light came on the AT
came on at same time she only driving in 4th
gre...
| Body type | Minivan |
|---|---|
| Power | 151 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | violet |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Vin | CWFFW-****33 |
| Price (out of date) | $10686 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2014 Mazda Premacy III? | Minivan, 7 Seats, 5 Doors |
| What is the fuel economy, Mazda Premacy Minivan 2014? | 6.6 l/100 km |
| How much power, Mazda Premacy DBA-CWFFW 2014? | 151 Hp |
| What is the engine size, 2014 Mazda Premacy 2.0 20S SkyActiv L Package? | 2L or 1997cm3 |
| How many gears, What type is the gearbox, Mazda Premacy III 2014 Minivan 2.0 20S SkyActiv L Package (151 Hp)? | Automatic transmission 6 |
| What is the drivetrain, 2014 Mazda Premacy Minivan 2.0 20S SkyActiv L Package (151 Hp)? | Front |
| How long is this vehicle, 2014 Mazda Premacy III? | 4585 mm |
| How wide is the vehicle, Mazda Premacy Minivan 2014? | 1750 mm |
Mazda Premacy III DBA-CWFFW 2.0 20S SkyActiv L Package (151 Hp) 2013, 2014, 2015, 2016, 2017, 2018 Specs
General information | |
|---|---|
| Production start year | 2013 |
| Production end year | 2018 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Automatic transmission 6 |
| Engine volume, cc | 1997 |
| Frame name | DBA-CWFFW |
| Clearance, mm | 135 |
| Doors | 5 |
| Steering locaton | right |
Vehicle generation | |
| Generation name | CW |
| Generation number | 3 |
| Production start year | 2010 |
| Production end year | 2018 |
Engine, transmission and steering specs | |

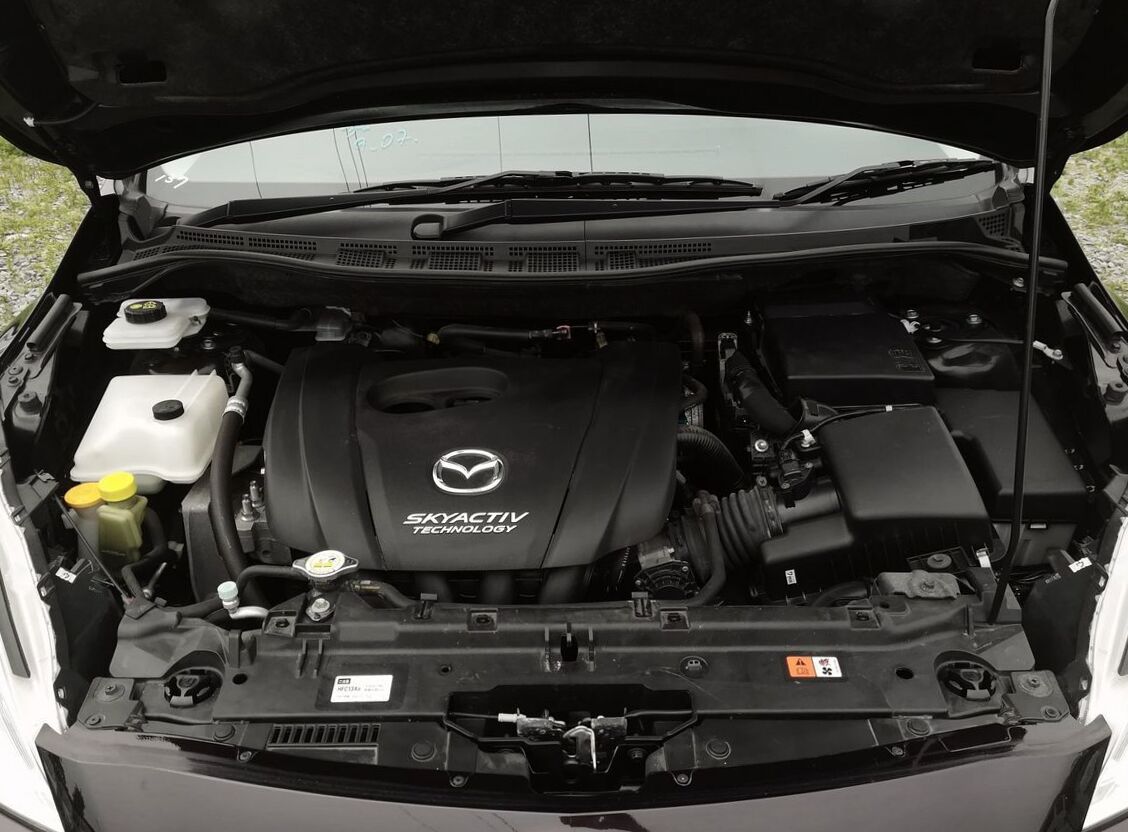

Engine specs | |
| Engine name | PE-VPS |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Max power, hp | 151 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 151 (111) / 6000 |
| Max torque, N*m | 190 |
| Max torque RPM, rpm | 4100 |
| Max torque, N*m (kg*m) / rpm | 190 (19) / 4100 |
| Valves per cylinder | 4 |
| Compression ratio | 12 |
| Bore, mm | 83.5 |
| Stroke, mm | 91.2 |
| Engine additional info | VVT, direct injection |
| Eco type | 2005 emission regulation 75% reduction |
| Start stop system | yes |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with the 2015 fuel consumption standard |
| Combined | 6.6 |
| Co2 emission | 153 |
Transmission | |
| 1st gear ratio | 3.552 |
| 2nd gear ratio | 2.022 |
| 3rd gear ratio | 1.452 |
| 4th fear ratio | 1 |
| 5th gear ratio | 0.708 |
| 6th gear ratio | 0.599 |
| Rear gear ratio | 3.893 |
| Main gear ratio | 4.325 |
| Shifter position | On the dashboard |
| Manual mode | yes |
Steering | |
| Steereing gear type | Gear rail |
| Electro-hydraulic power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4585 |
| Exterior width, mm | 1750 |
| Exterior height, mm | 1615 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
| Interior length, mm | 2565 |
| Interior width, mm | 1490 |
| Interior height, mm | 1240 |
Chassis dimensions | |
| Wheel base, mm | 2750 |
| Front axle length, mm | 1530 |
| Rear axle length, mm | 1520 |
| Turning radius, m | 5.3 |
| Wheel spacing front | 1530 |
| Wheel spacing rear | 1520 |
Weight and permissible load | |
| Mass, kg | 1500 |
Volumes | |
| Fuel tank capacity, l | 60 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, spring multi-link |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |
| Front wheels | 205/50R17 |
| Rear wheels | 205/50R17 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
Exterior | |

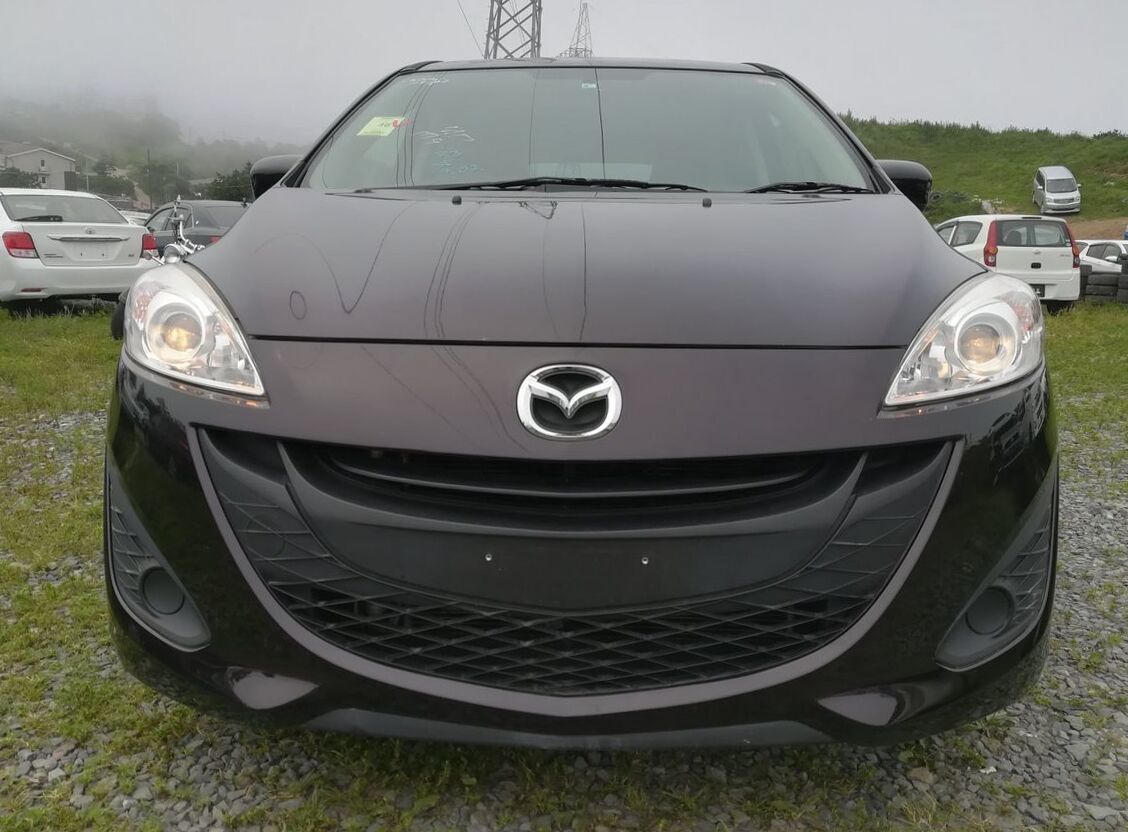

Headlights | |
| Halogen headlights | no |
| Xenon lamps | yes |
| Front fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | no |
Doors | |
| Sliding doors | yes |
| Sliding electric door | no |

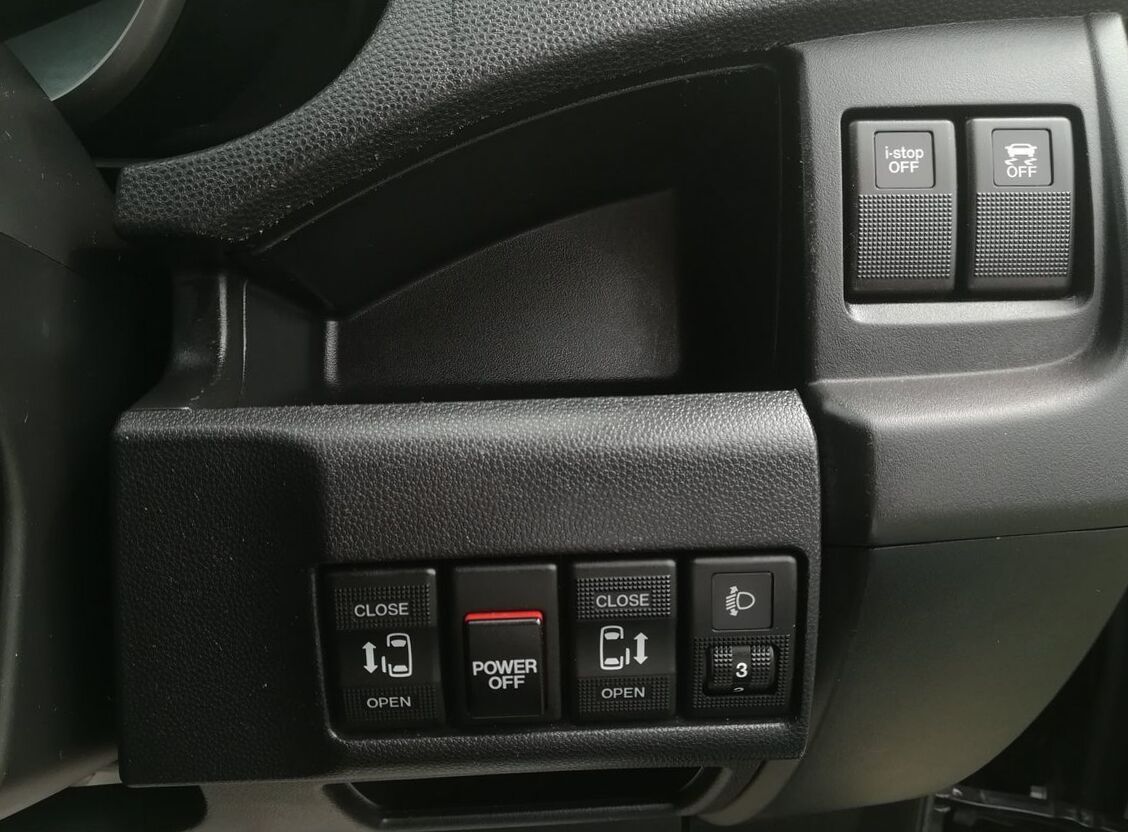

| Sliding electric doors | yes |
| Door easy closer | yes |
| Door handles in body color | no |
| Chrome door handles | yes |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Accessories | |
| Front spoiler | yes |
| Rear spoiler | yes |
| Back wiper | yes |
Interior | |

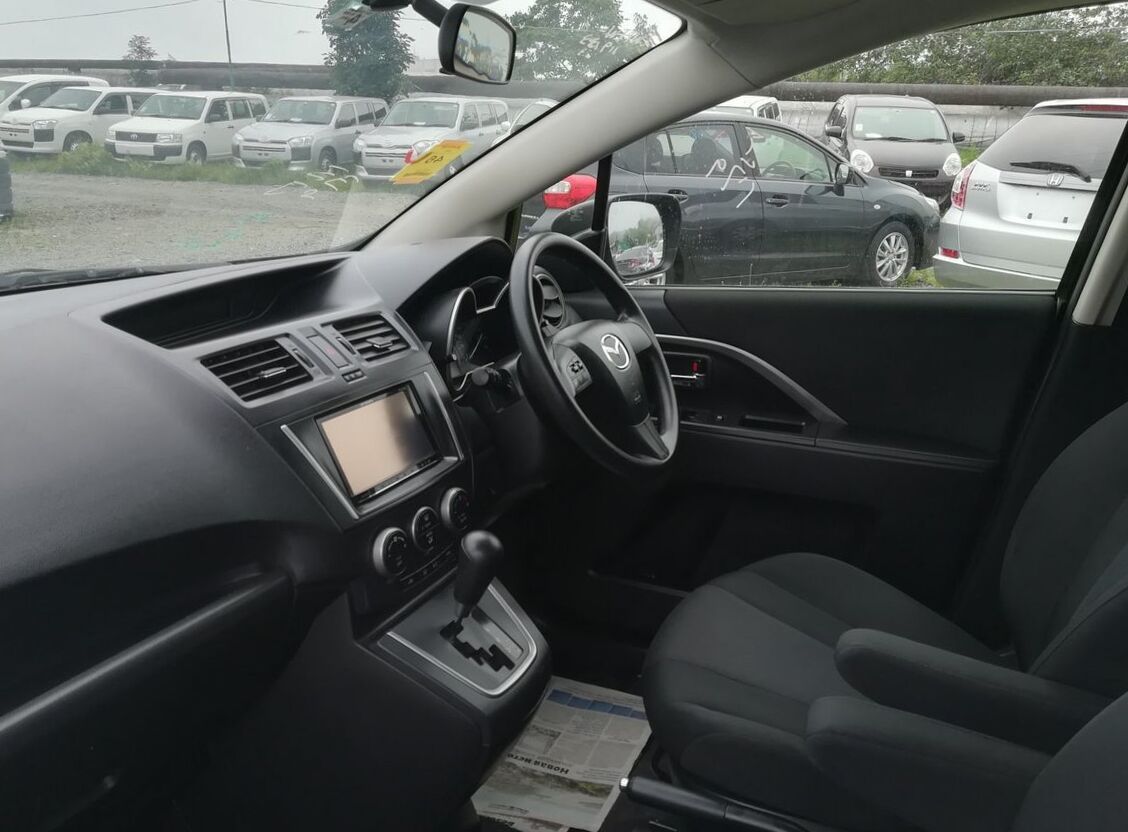

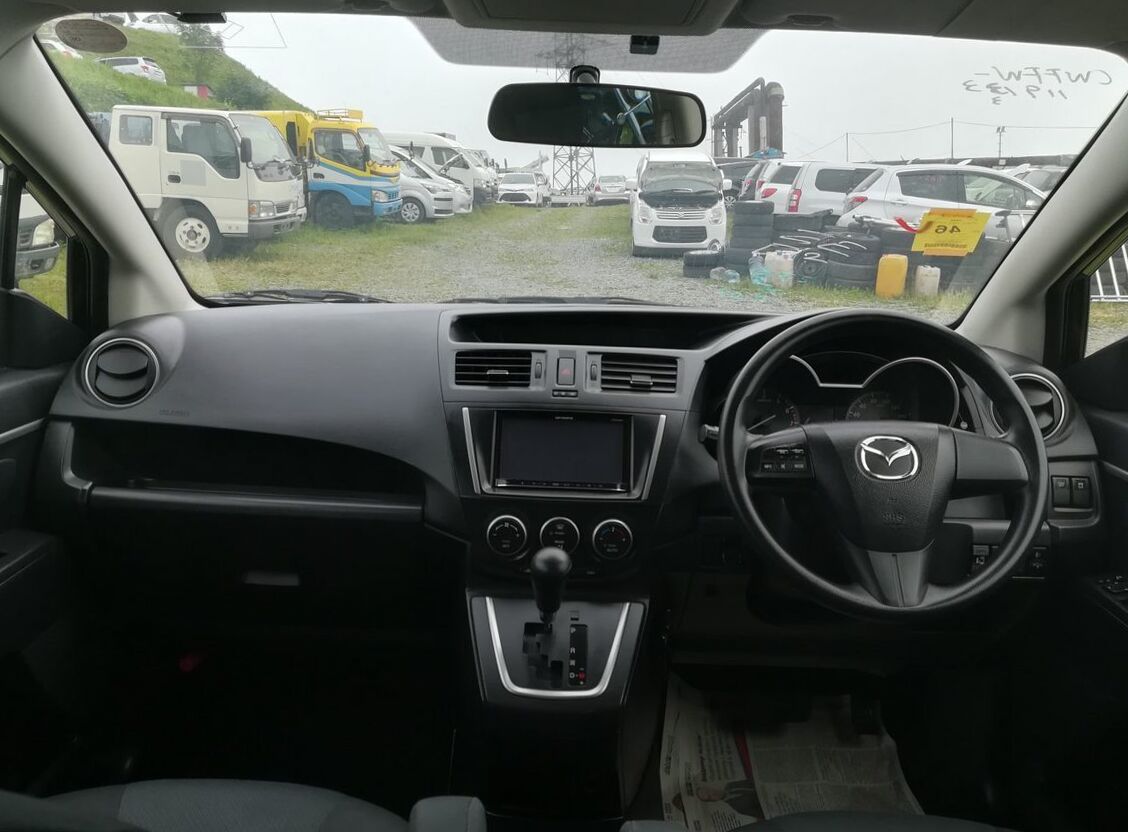

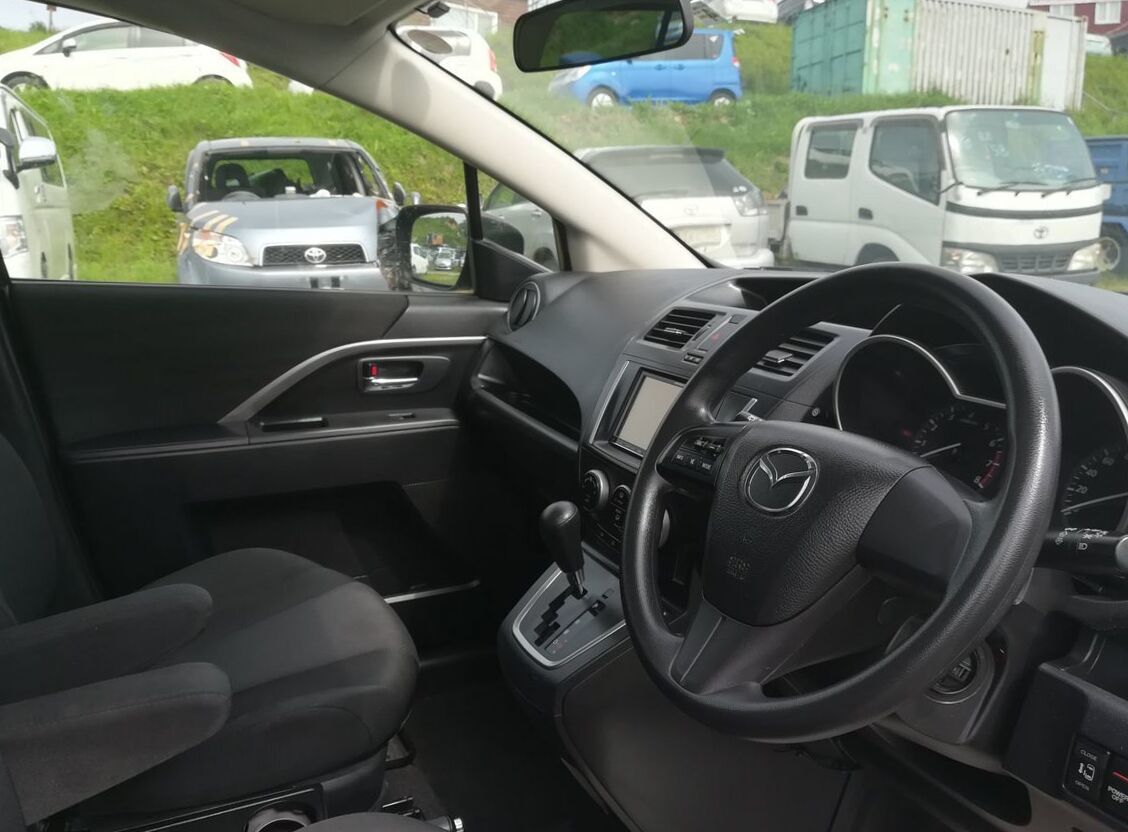

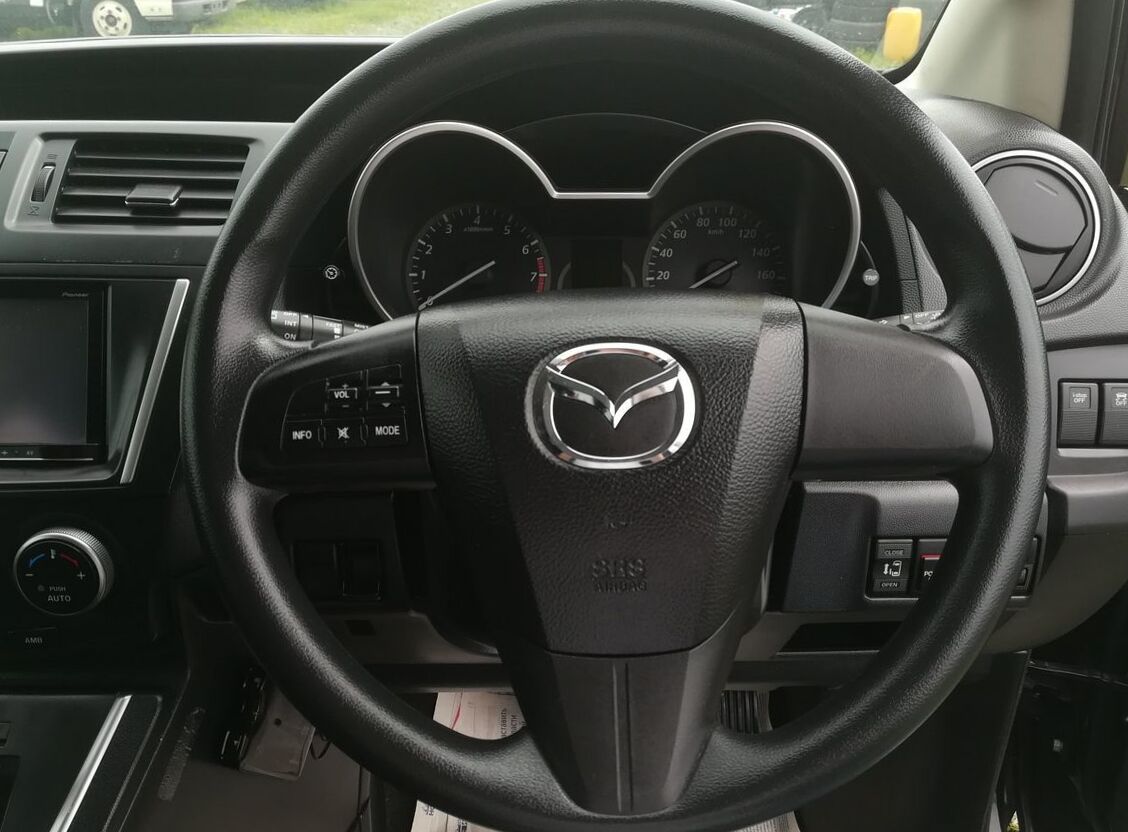

Steering wheel and center panel | |
| Leather winding | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Utility color display | yes |

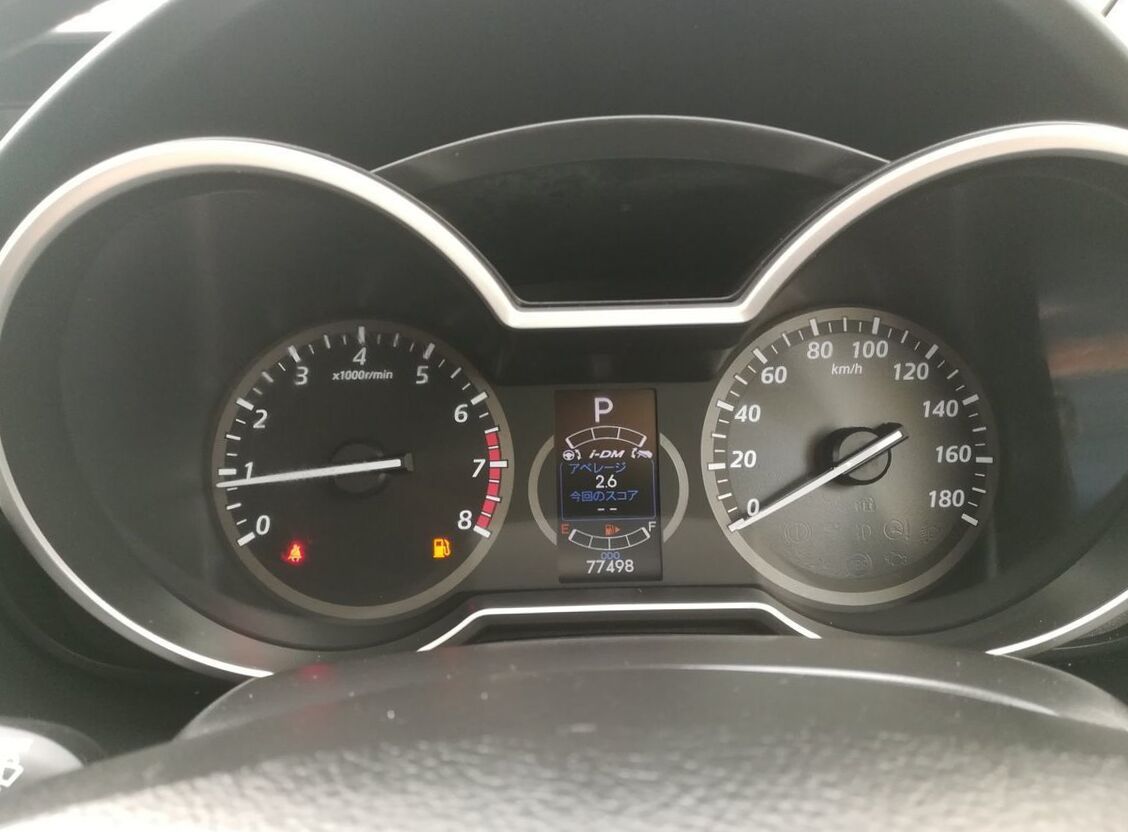

| Tachometer | yes |
| Env temp | yes |
| Engine start button | yes |
Interior design | |
| Cloth upholstery | yes |
| Water-repellent | no |

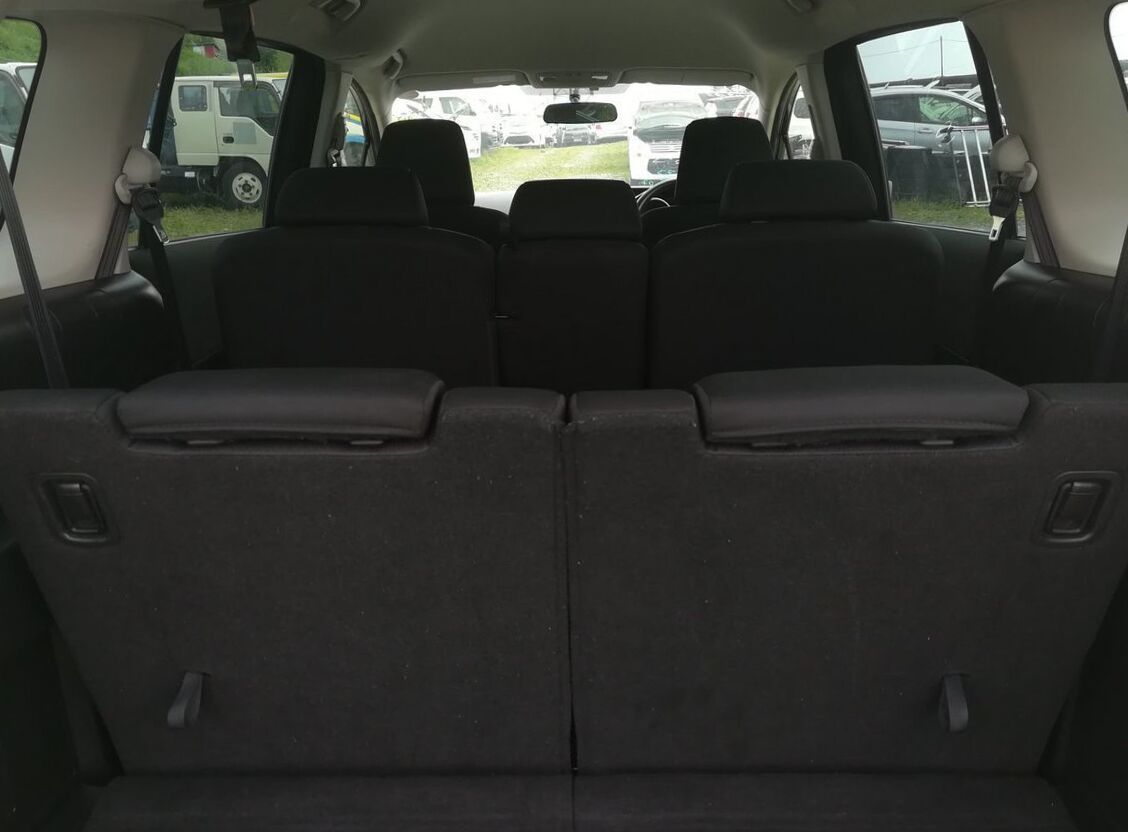

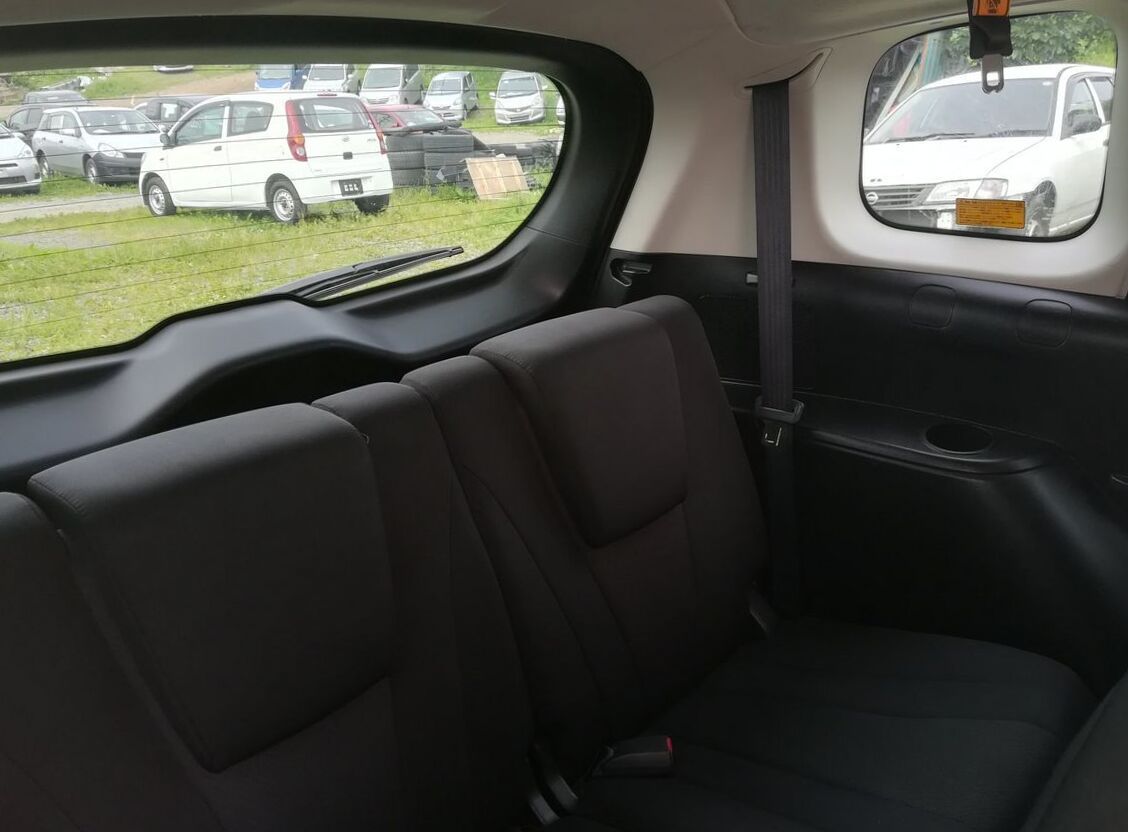

Seats | |

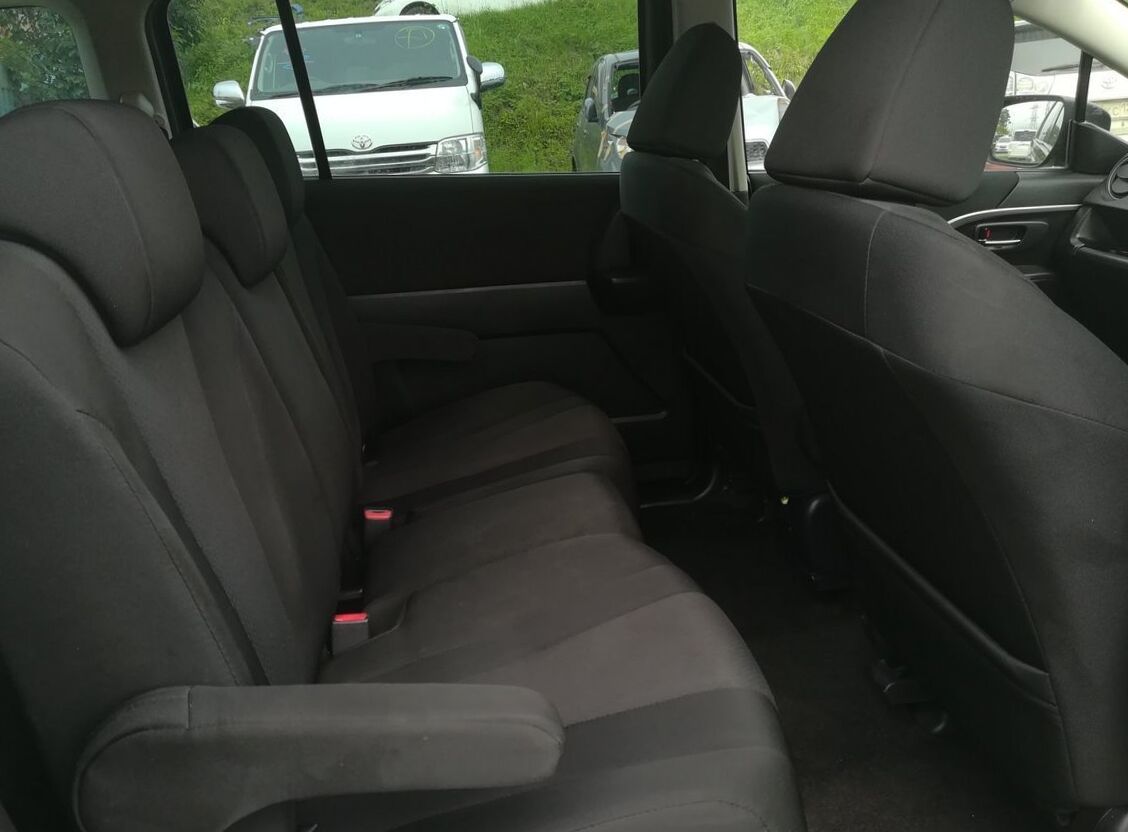

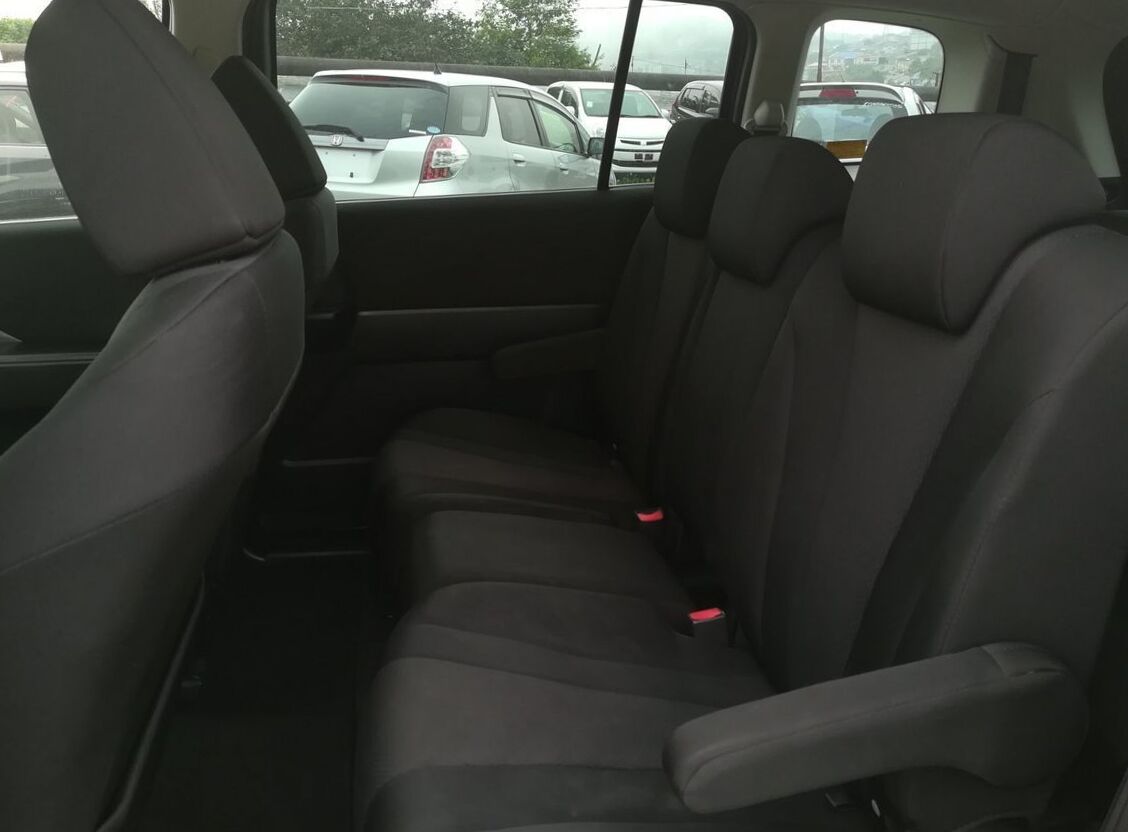

| 2nd row | adds up to a 40/20/40 ratio |

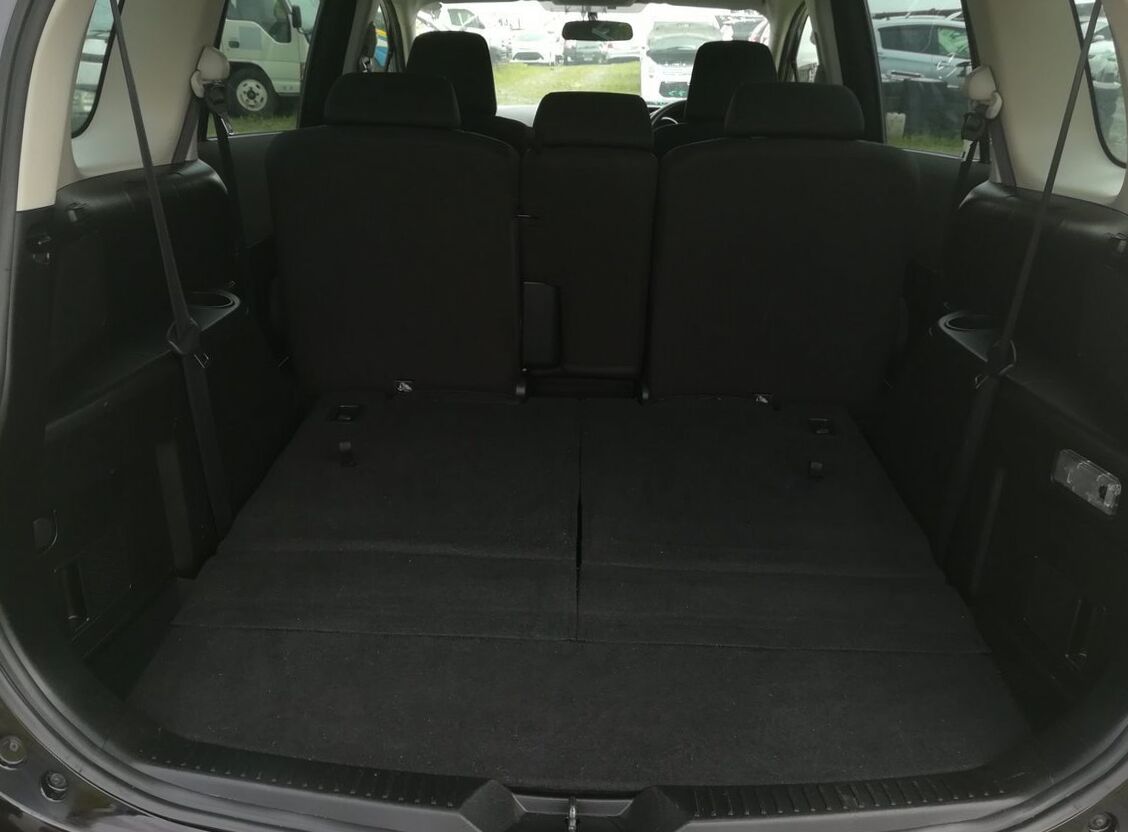

| 3nd row | 50/50 ratio fold seat |
| Seat lifter | yes |
| Headrests for seats | 7 |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Seats pockets | yes |
| Walk throught | yes |
| 2nd row throught | yes |
Electric interior package | |

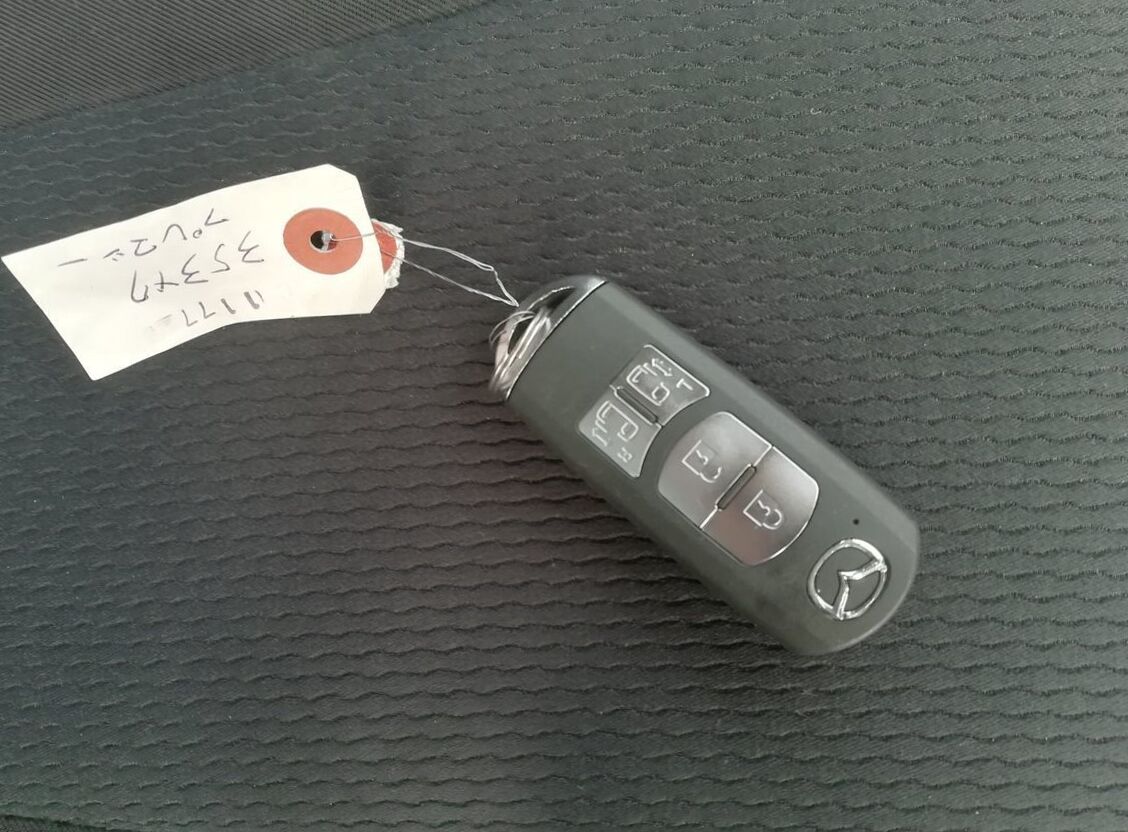

| Keyless enter | yes |
| Keyless | yes |

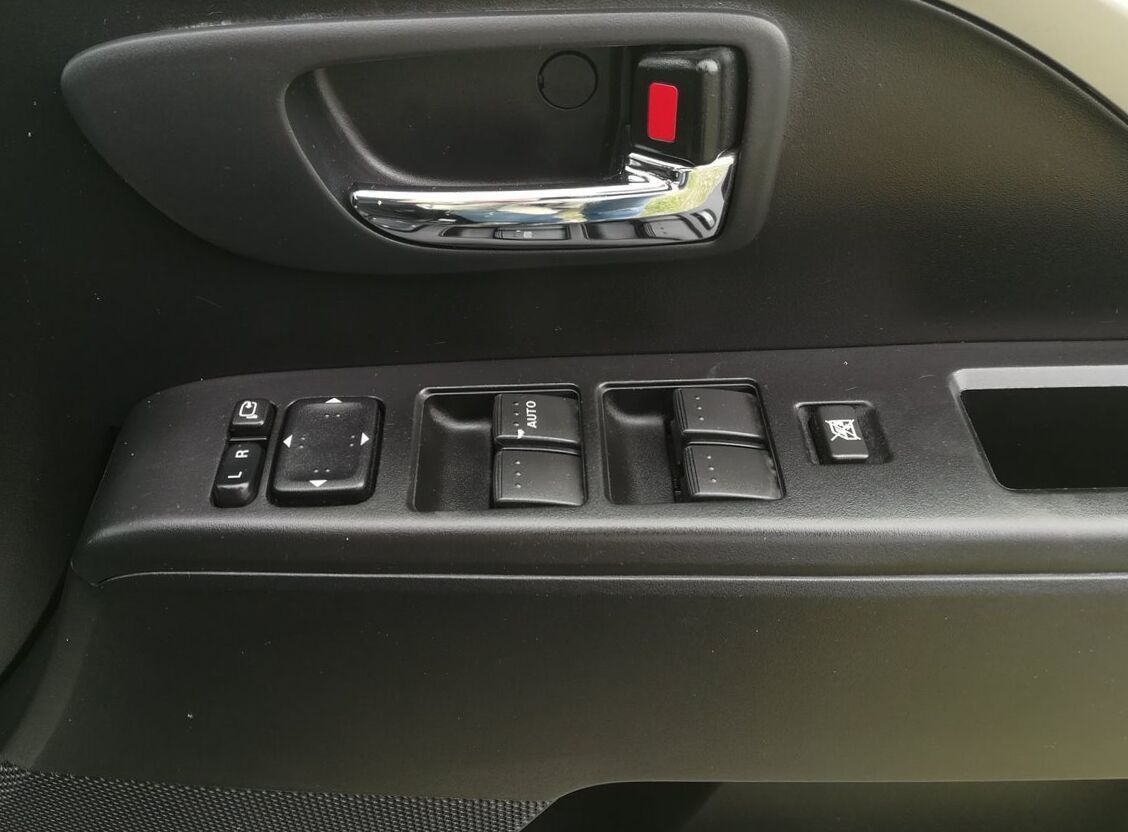

| Power window front | yes |
| Power window rear | yes |
Additional interior equipment | |
| Holders for bottles in doors | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Active headrest | yes |
| Side impact bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| Cruise control | option |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Air filter | yes |
| Odor absorber | yes |
Audio systems | |
| Additional sound equipment | 4 speakers, antenna |
Navigation and video equipment | |
| Back monitor | option |
Additional amenities | |
| Antidazzle rearview mirror | option |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Alarm system | yes |
2014 Mazda Premacy III DBA-CWFFW 2.0 20S SkyActiv L Package (151 Hp) specs
|
The first generation Premacy was a 2 or 3-row, 5 or 7-passenger vehicle, while the second generation adds a third row of seats for up to 6 passengers in American form, and 7 passengers outside the United States. Both generations were true vans with near-flat floors, folding or removable 2nd row, and fold-flat rear seats. When released in 1999, the Mazda Premacy was one of the cheapest 7-seaters available on market. The 1999 Premacy used Mazda's CP platform. It was available with either front or all wheel drive and was equipped with 4-speed automatic transmission. As the Premacy was based on a sedan platform, it was less modular than some if its adversaries such as the Opel Zafira and Toyota Ipsum and was therefore relatively easy to maneuver. The second and third row seats could be folded and removed as on many other minivans. This generation Premacy was also sold in some Asian markets as the Ford Ixion. The first generation Premacy is still manufactured by China's FAW Haima Automobile Co., Ltd. where it is called the Haima Freema. » Read More About Mazda Premacy |
