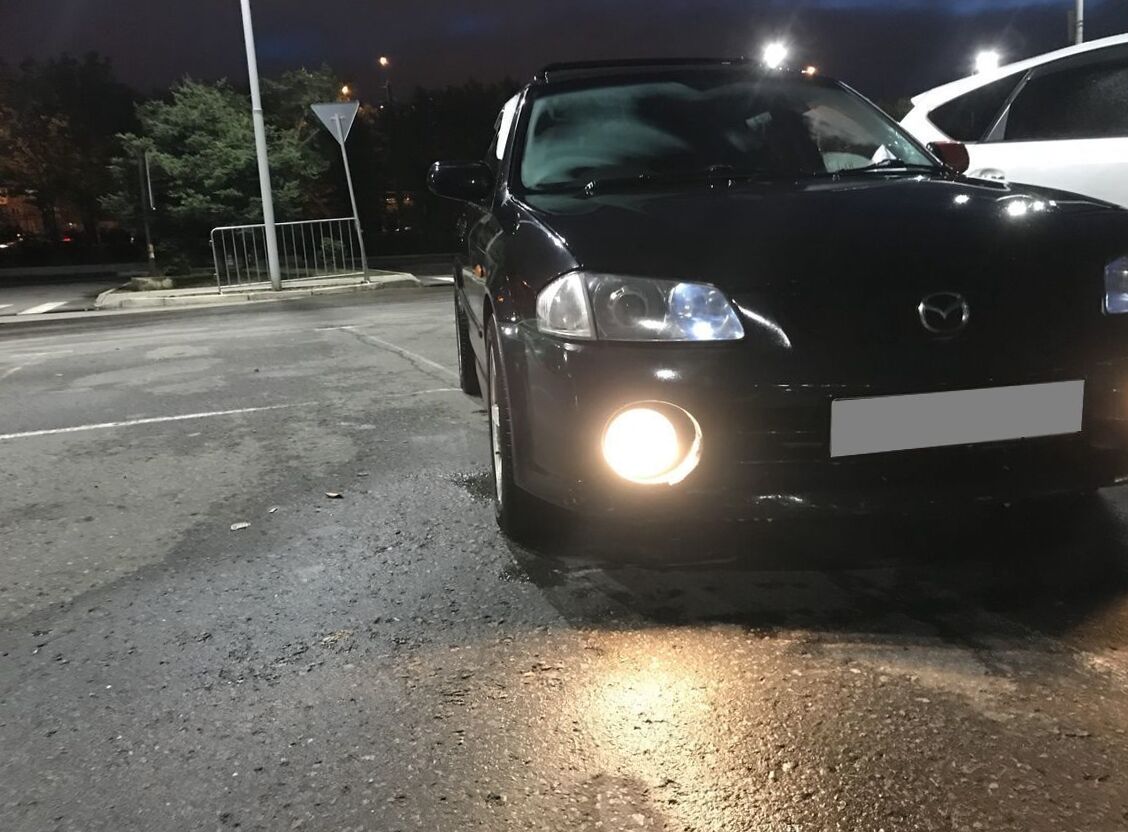

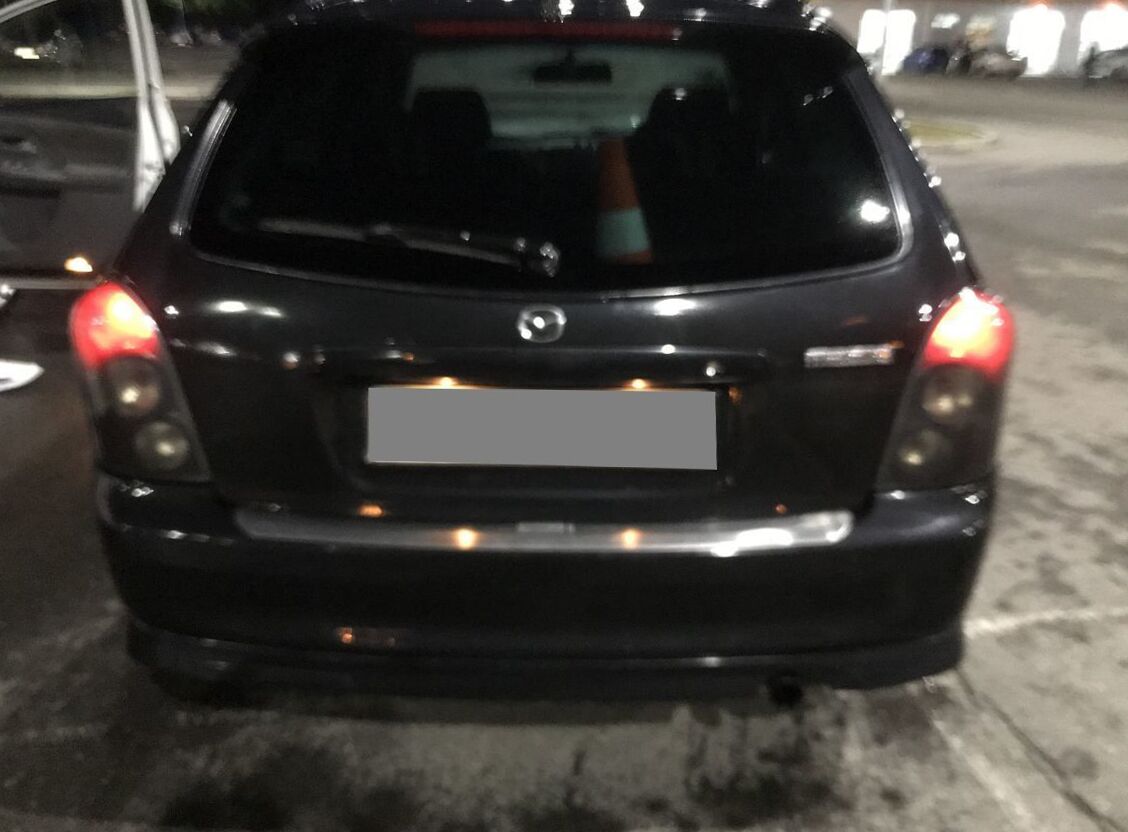

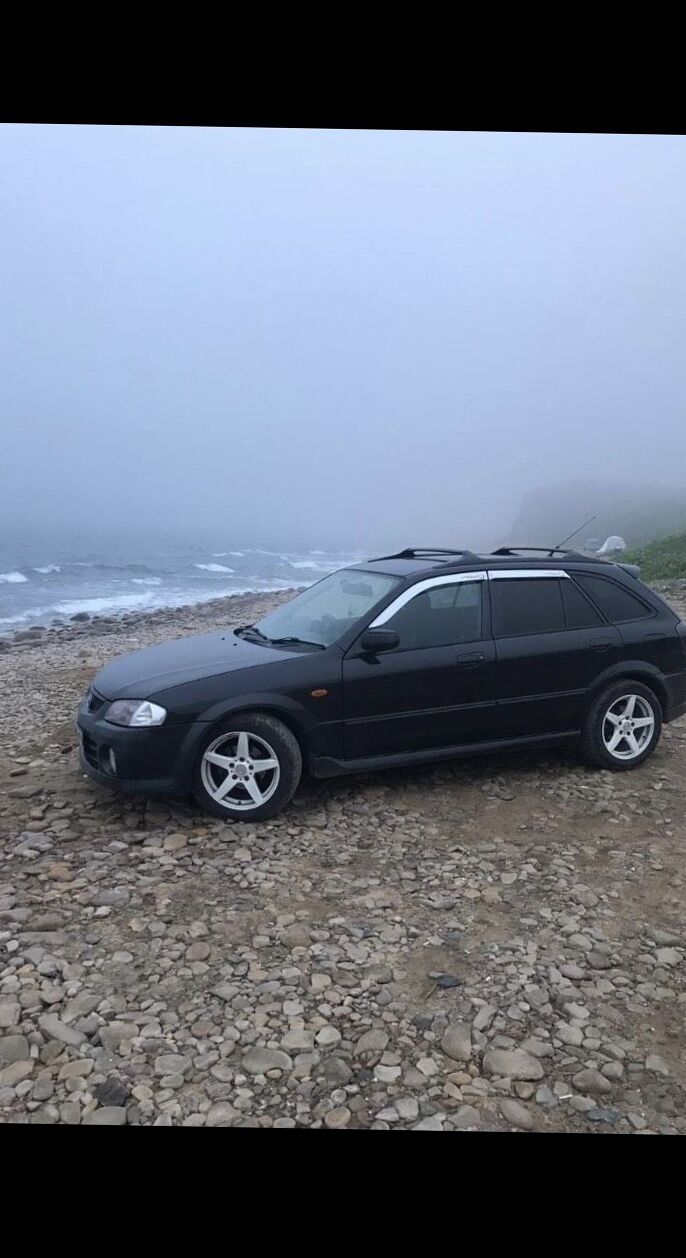

2004 Mazda Familia S-Wagon VIII 2.0 Sport 20 Special 4WD
Mazda Familia S-Wagon Problems
Engine Vibration and Loss of Power
1991, I have a Mazda Familia Station Wagon.
Currently the problem it has is the engine
vibrati...
Engine Vibrating and Loss of Power
2000, The Engine is vibrating and there is no
power in gear mode. The Engine vibrations turn
t...
Need replacement left tail light
2000, Left Tail light smashed, need a
replacement cannot find any dealer in zambia...
| Body type | Wagon |
|---|---|
| Power | 170 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | black |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 31068 Miles |
| Vin | BGFW****99 |
| Price (out of date) | $3917 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2004 Mazda Familia S-Wagon VIII? | Wagon, 5 Seats, 5 Doors |
| How much power, Mazda Familia S-Wagon Wagon 2004? | 170 Hp |
| What is the engine size, Mazda Familia S-Wagon GH-BJFW 2004? | 2L or 1991cm3 |
| How many gears, What type is the gearbox, 2004 Mazda Familia S-Wagon 2.0 Sport 20 Special 4WD? | 5 speed Manual |
| What is the drivetrain, Mazda Familia S-Wagon VIII 2004 Wagon 2.0 Sport 20 Special 4WD (170 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2004 Mazda Familia S-Wagon Wagon 2.0 Sport 20 Special 4WD (170 Hp)? | 4265 mm |
| How wide is the vehicle, 2004 Mazda Familia S-Wagon VIII? | 1695 mm |
Mazda Familia S-Wagon VIII GH-BJFW 2.0 Sport 20 Special 4WD (170 Hp) 2002, 2003, 2004 Specs
General information | |
|---|---|
| Production start year | 2002 |
| Production end year | 2004 |
| Frame type | Wagon |
| Drive type | All wheel drive (4x4) |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1991 |
| Frame name | GH-BJFW |
| Clearance, mm | 155 |
| Doors | 5 |
| Winter complectation | no |
| Steering locaton | right |
Vehicle generation | |
| Generation name | BJ |
| Generation number | 8 |
| Facelift number | 1 |
| Production start year | 2000 |
| Production end year | 2004 |
Engine, transmission and steering specs | |
Engine specs | |

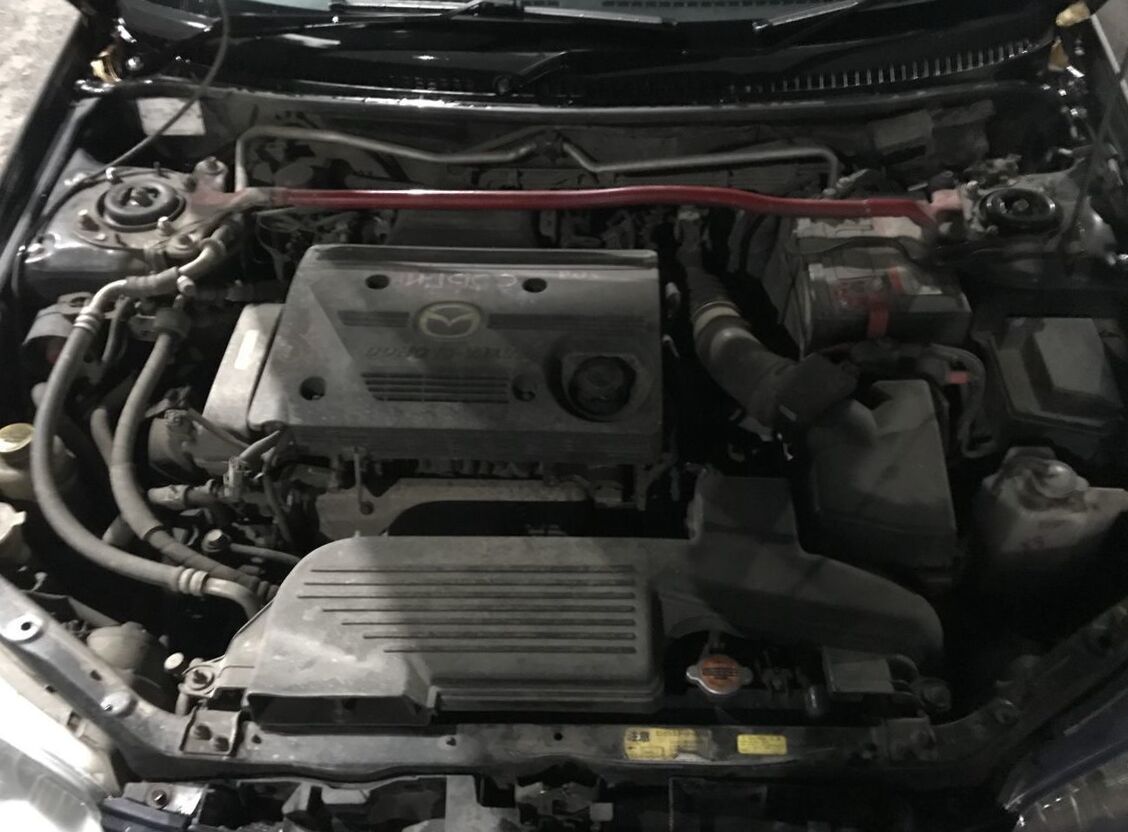

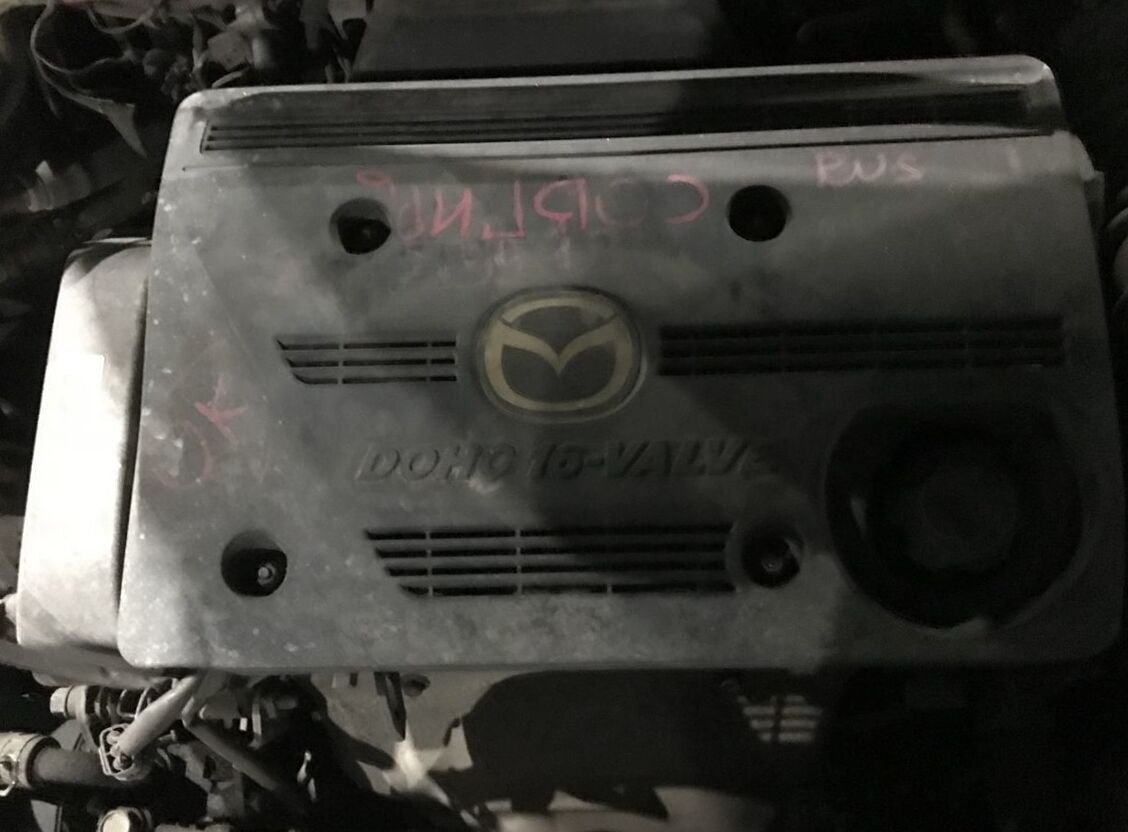

| Engine name | FS-ZE |
| Fuel | High octane premium gasoline |
| Engine type | 4 cylinder DOHC |
| Max power, hp | 170 |
| Max power RPM, rpm | 6800 |
| Max power, hp (kWt) / rpm | 170(125)/6800 |
| Max torque, N*m | 180 |
| Max torque RPM, rpm | 5000 |
| Max torque, N*m (kg*m) / rpm | 180(18.4)/5000 |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 125?170?/6800 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 180?18.4?/5000 |
| Start stop system | no |
Fuel consumption | |
| Fuel consumption (10/15 mode), km/l | 11.8 |
| Fuel consumption (10/15 mode), l/100km | 8.47458 |
Transmission | |
| Shifter position | On the floor. |
Steering | |
| Power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4265 |
| Exterior width, mm | 1695 |
| Exterior height, mm | 1435 |
| Exterior size (L x W x H), mm | 4265x1695x1435?mm? |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior size (L x W x H), mm | 1825x1440x1170?mm? |
| Interior length, mm | 1825 |
| Interior width, mm | 1440 |
| Interior height, mm | 1170 |
Chassis dimensions | |
| Wheel base, mm | 2610 |
| Front axle length, mm | 1460 |
| Rear axle length, mm | 1470 |
| Turning radius, m | 5.2 |
| Front/rear axis length | 1460/1470?mm? |
| Wheel spacing front | 1460 |
| Wheel spacing rear | 1470 |
Weight and permissible load | |
| Mass, kg | 1330 |
| Total weight | 1605 |
Volumes | |
| Fuel tank capacity, l | 60 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, Spring McPherson |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |

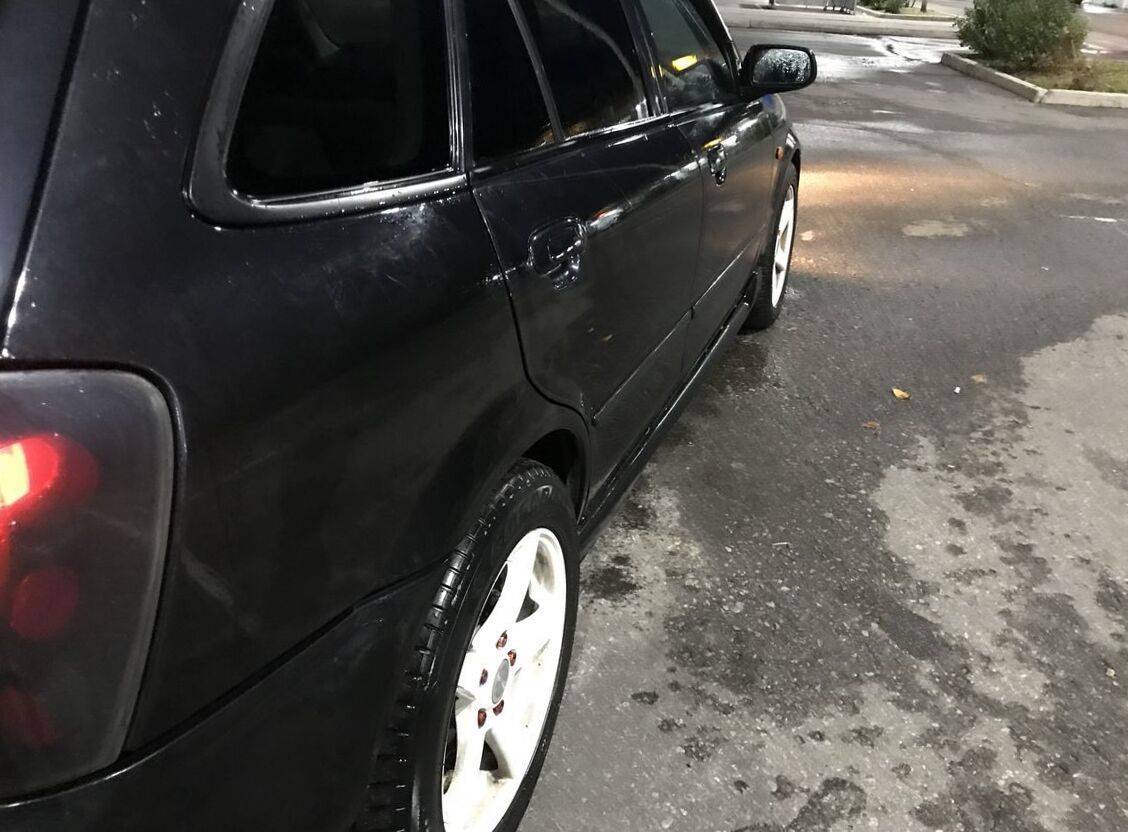

Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |
Tires | |
| Front wheels | 195/50R16 |
| Rear wheels | 195/50R16 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Brakes equipment | |
Exterior | |

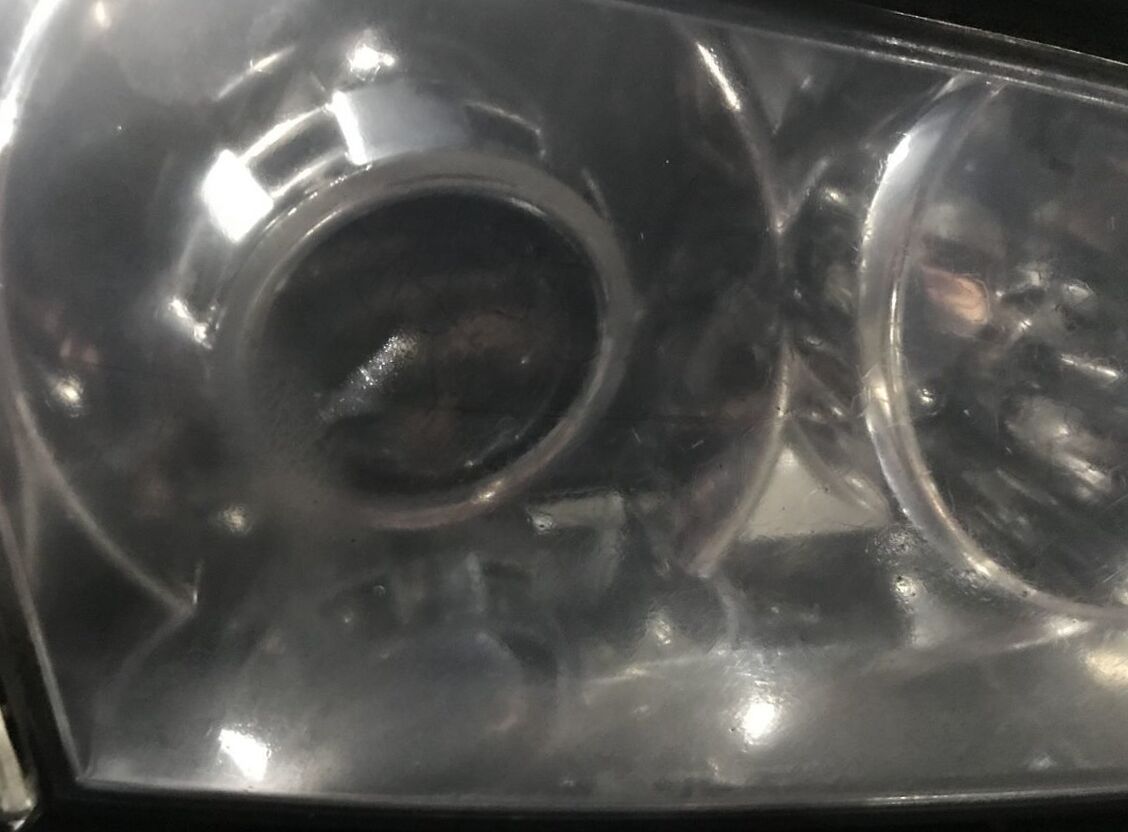

Headlights | |
| Xenon lamps | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | no |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |
| Roof rail | yes |
| Front spoiler | yes |
| Rear spoiler | yes |
Body color | |
| Colors | 647 552 628 2695 2455 |
| Option interior colors | snowflake white pearl mica |
Interior | |

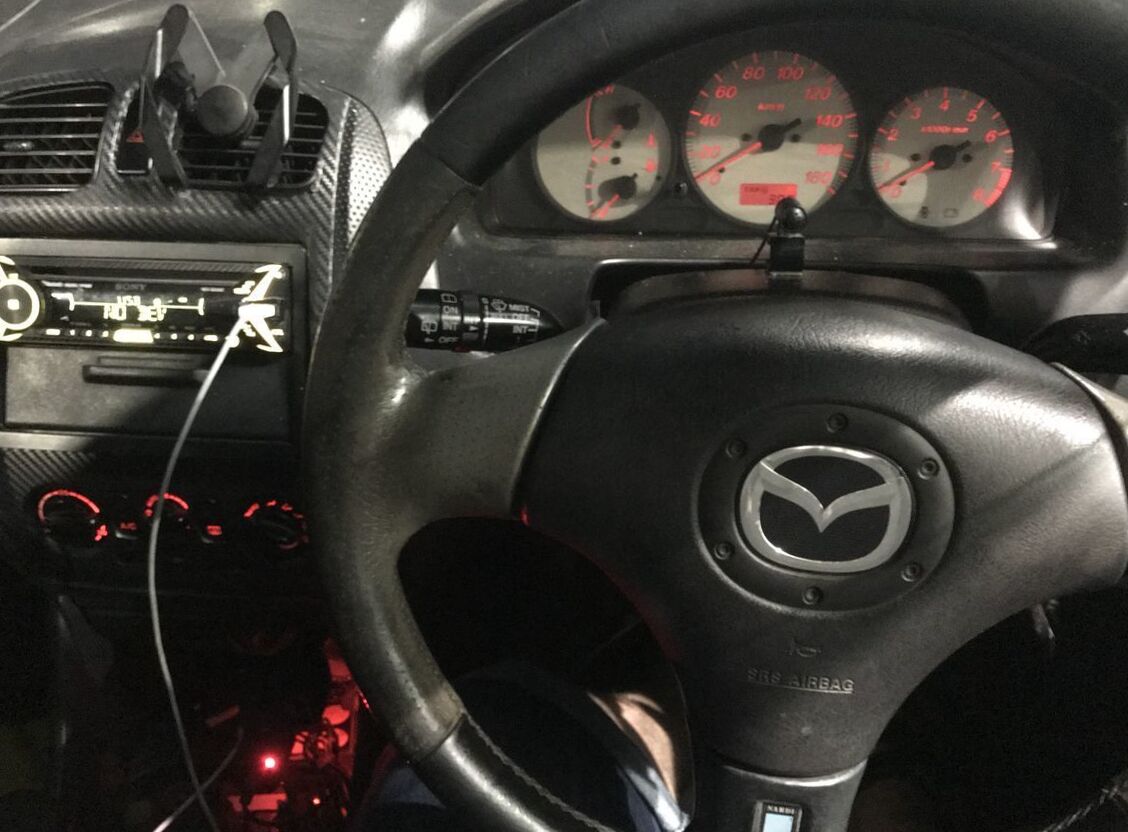

Steering wheel and center panel | |
| Engine start button | no |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |
Seats | |
| Bucket seat | no |
| 2nd row | 50/50 ratio fold seat |
| 3nd row | no |
| Seat lifter | yes |
| Full flat seats | |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | no |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | no |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | ABS with EBD ? standard ? |
| Break assist | yes |
| ESP | no |
| traction control | no |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | autoair conditioning(standard) |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |

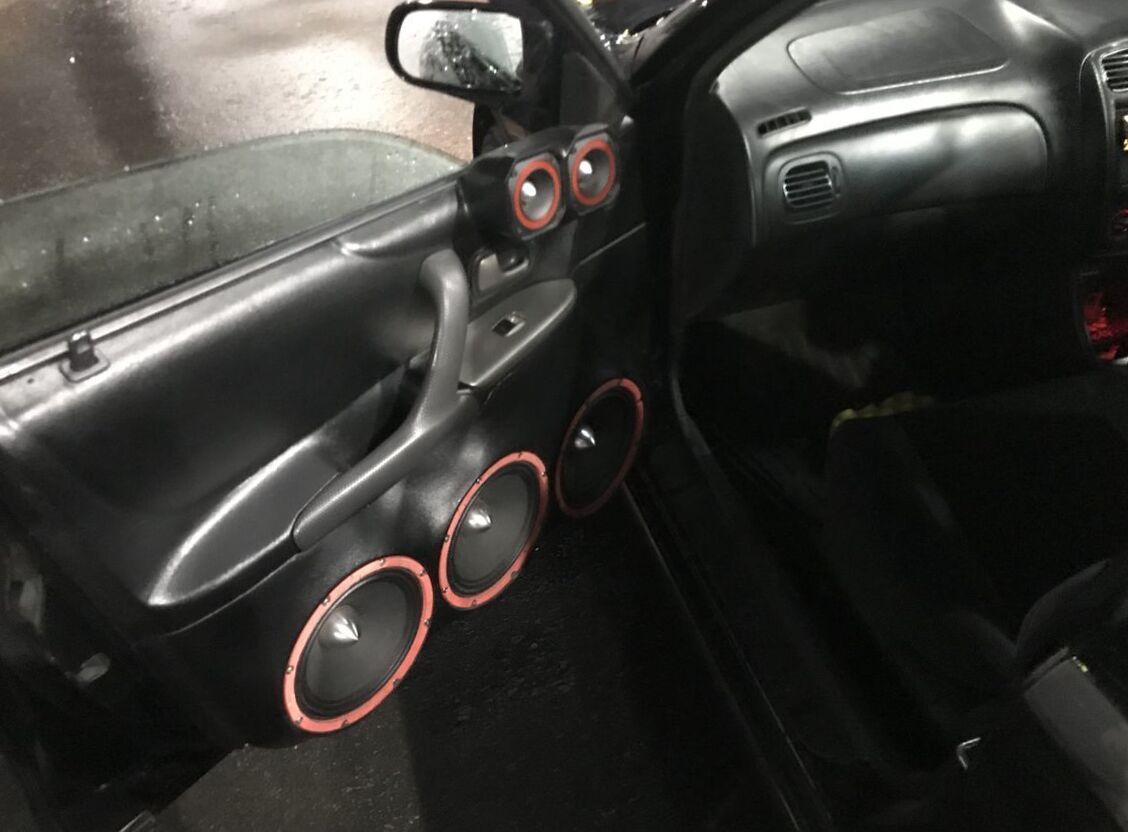

Audio systems | |
| Radio | yes |
| Autoreverse casette | no |
| CD player | yes |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |

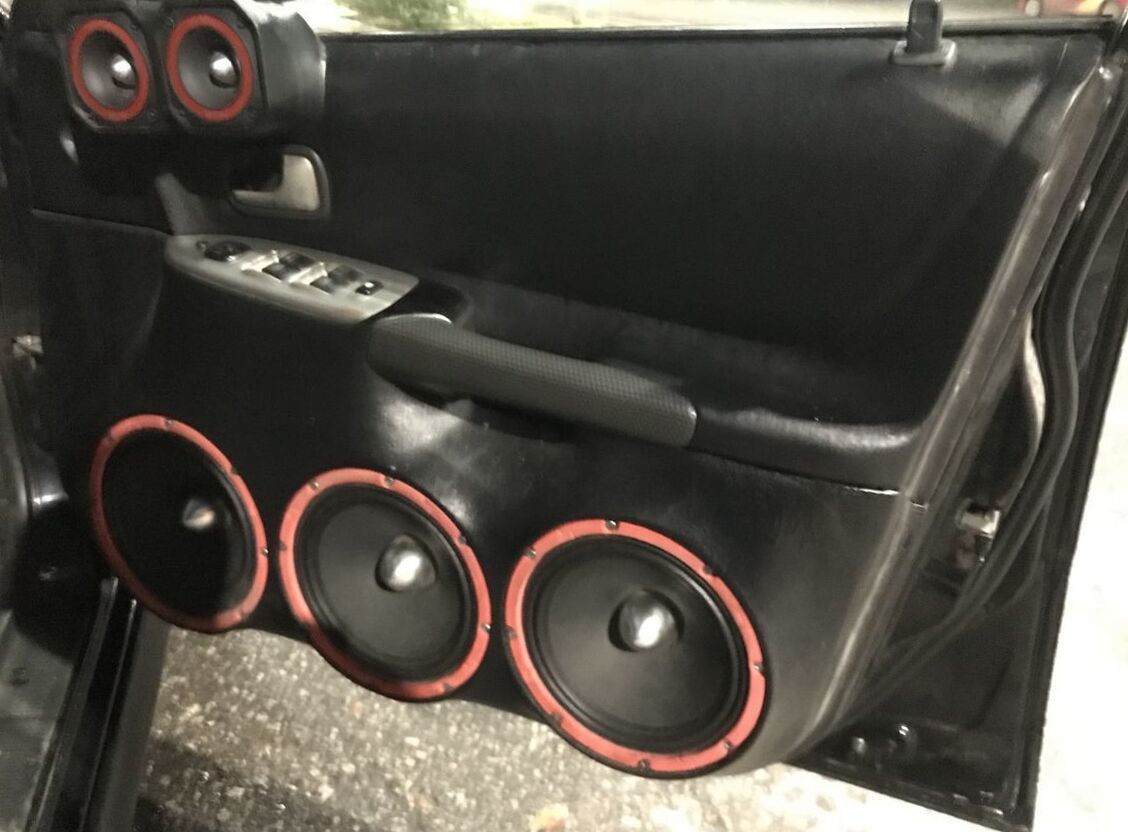

| Speaker | yes |
| Rear entertainment system | no |
| Additional sound equipment | |
Navigation and video equipment | |
| Full color LCD display | |
| Navigation system | |
| Optional navigation system | no |
| Traffic jam assist | no |
| Parking assist system | no |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | no |
Additional amenities | |
| Lagage box | yes |
| Etc | no |
Car safety | |
| Alarm system | no |
| Security alarm | no |
2004 Mazda Familia S-Wagon VIII GH-BJFW 2.0 Sport 20 Special 4WD (170 Hp) specs
|
Familias were built in Hiroshima, Japan, although they were also assembled in Taiwan, Malaysia, South Africa, Colombia and New Zealand. The Familia line was replaced by the Mazda Axela in 2004. (This vehicle will be referred to as the “Familia” throughout this article for consistency.) The first production Familia appeared in October 1963, and was a commercial two-door wagon called the Familia Van. It was joined in 1964 with a sedan, styled by Giugiaro, and was later sold in other markets as the 800. Both were powered by a 782cc aluminum inline 4 engine. The Familia received a larger 985cc engine for 1965, and a coupé variant was introduced as well. The new Familia appeared in 1967 with a 987cc engine. It was sold as the Mazda 1000 in some markets. It also formed the basis for the Mazda R100 rotary car. A larger 1169cc I4 engine came along later, becoming the Mazda 1200 for export. The 1970 Familia featured a 1.3L TC engine and new styling. It was exported as the Mazda 1300 and Mazda 818. » Read More About Mazda Familia S-Wagon |
