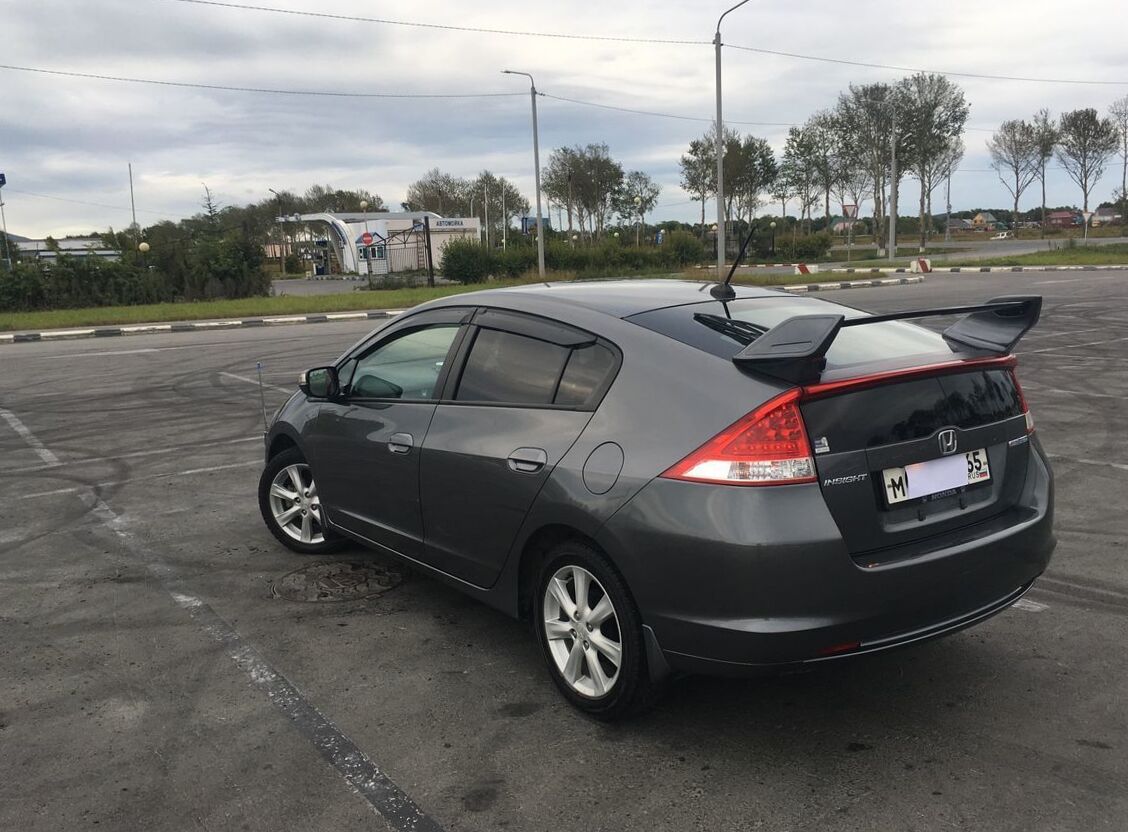

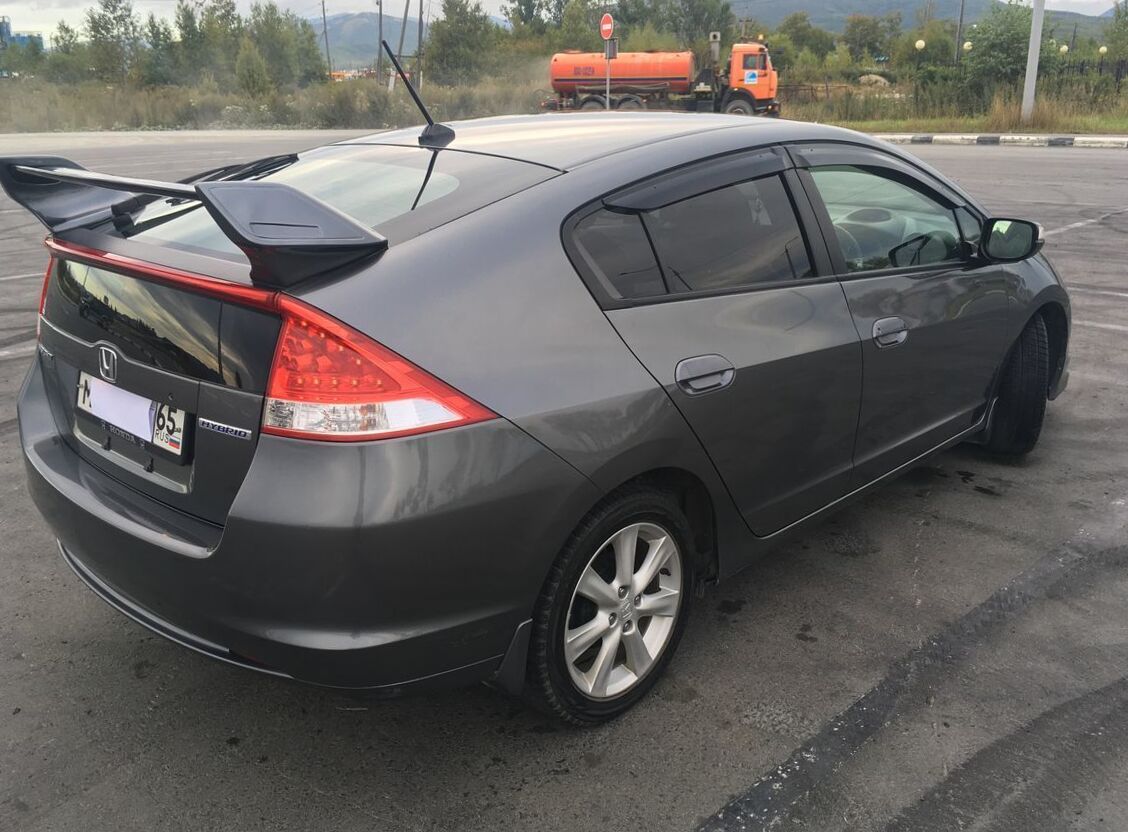

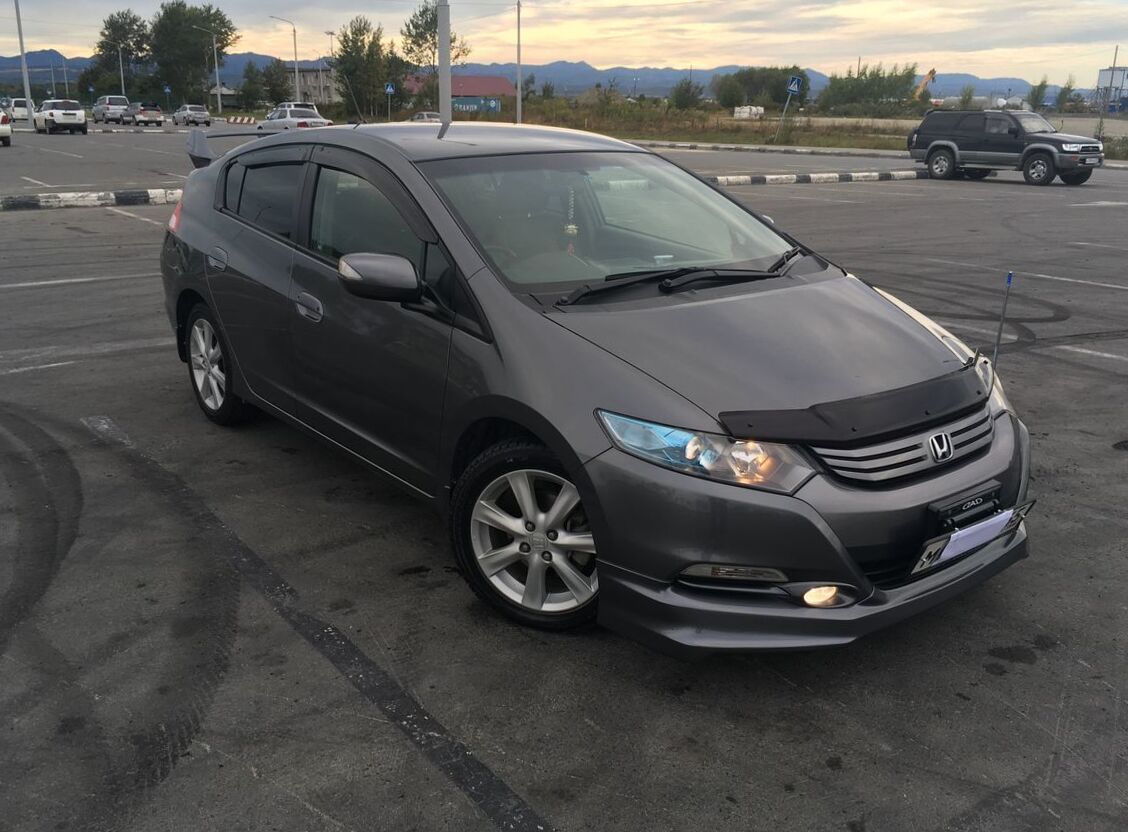

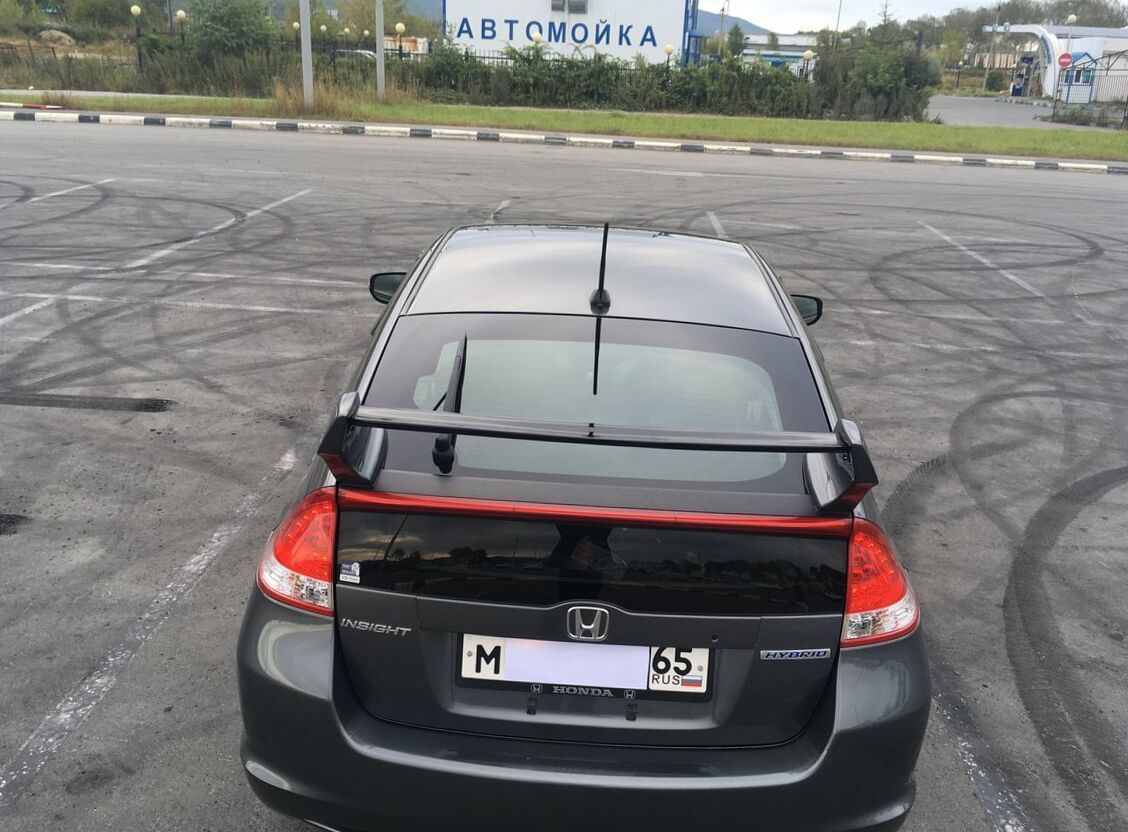

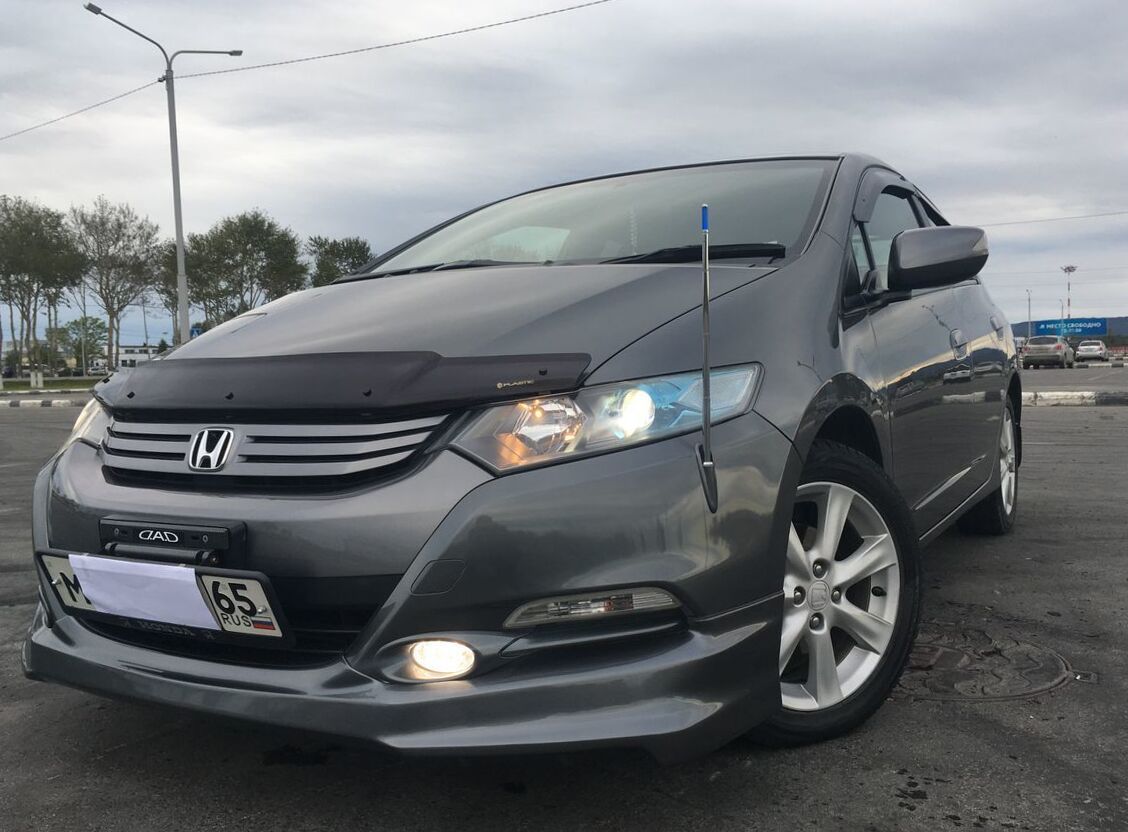

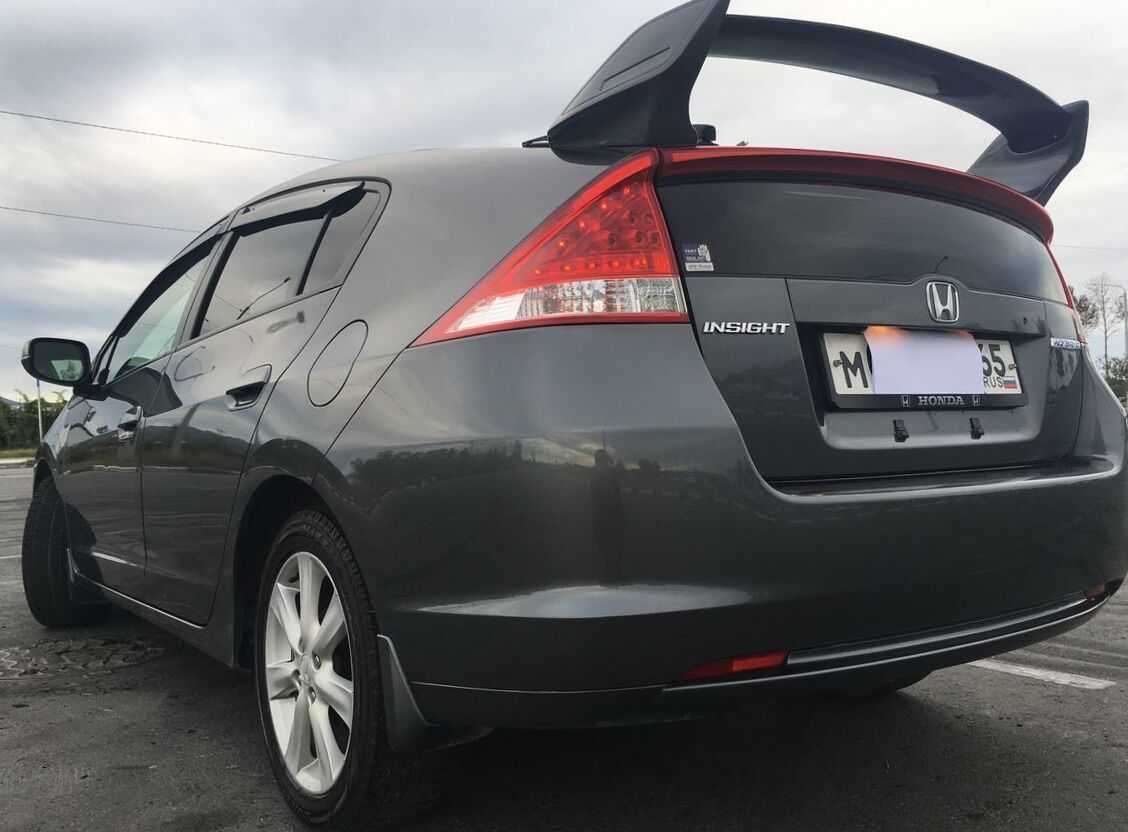

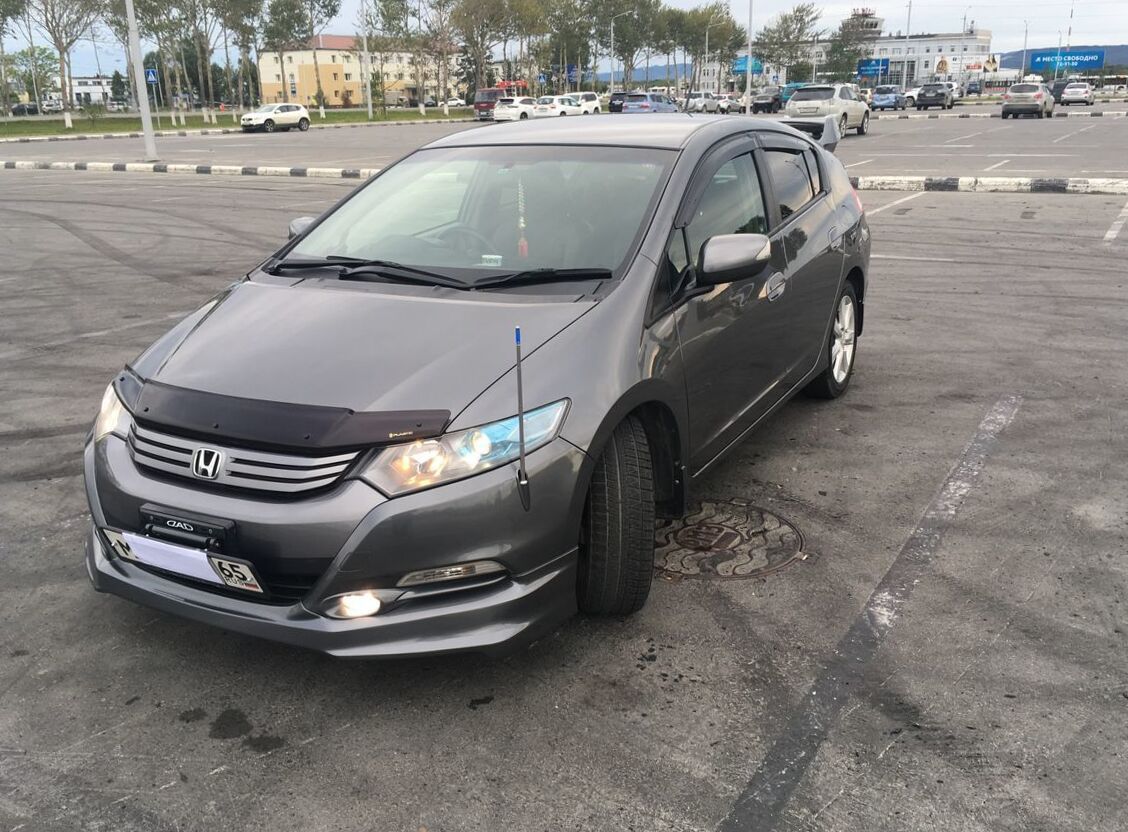

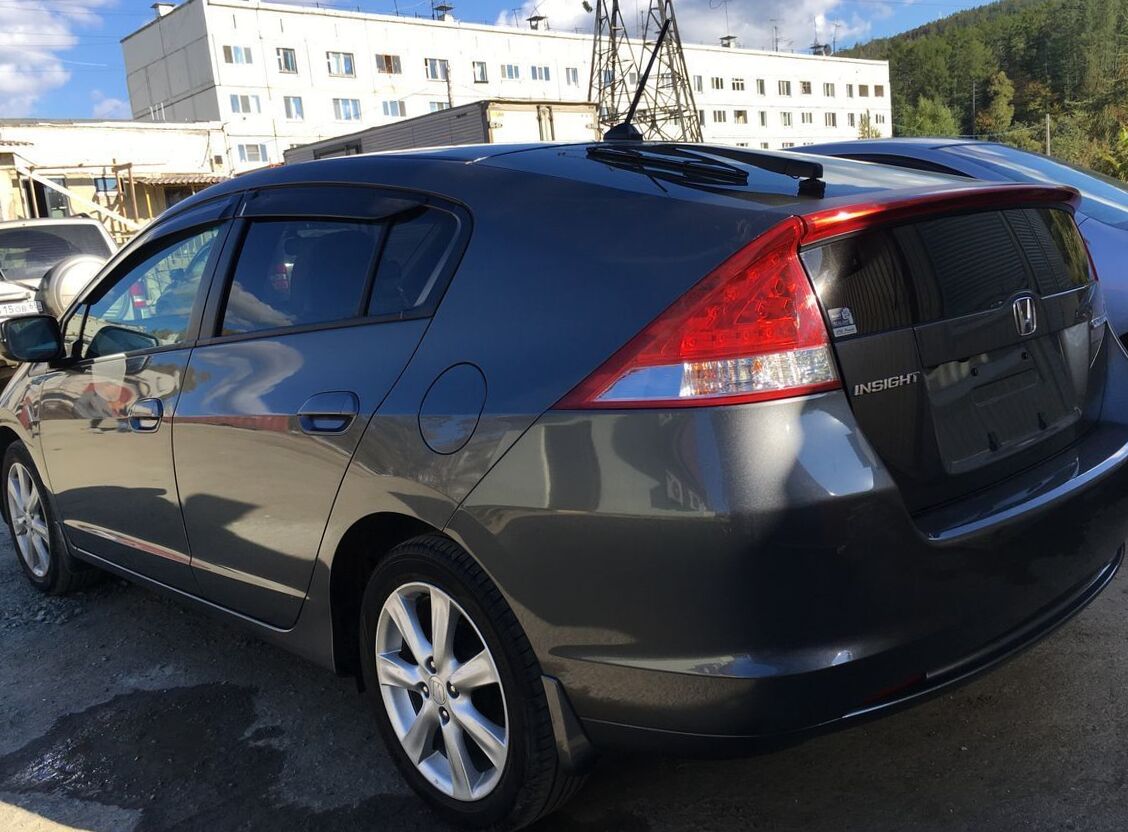

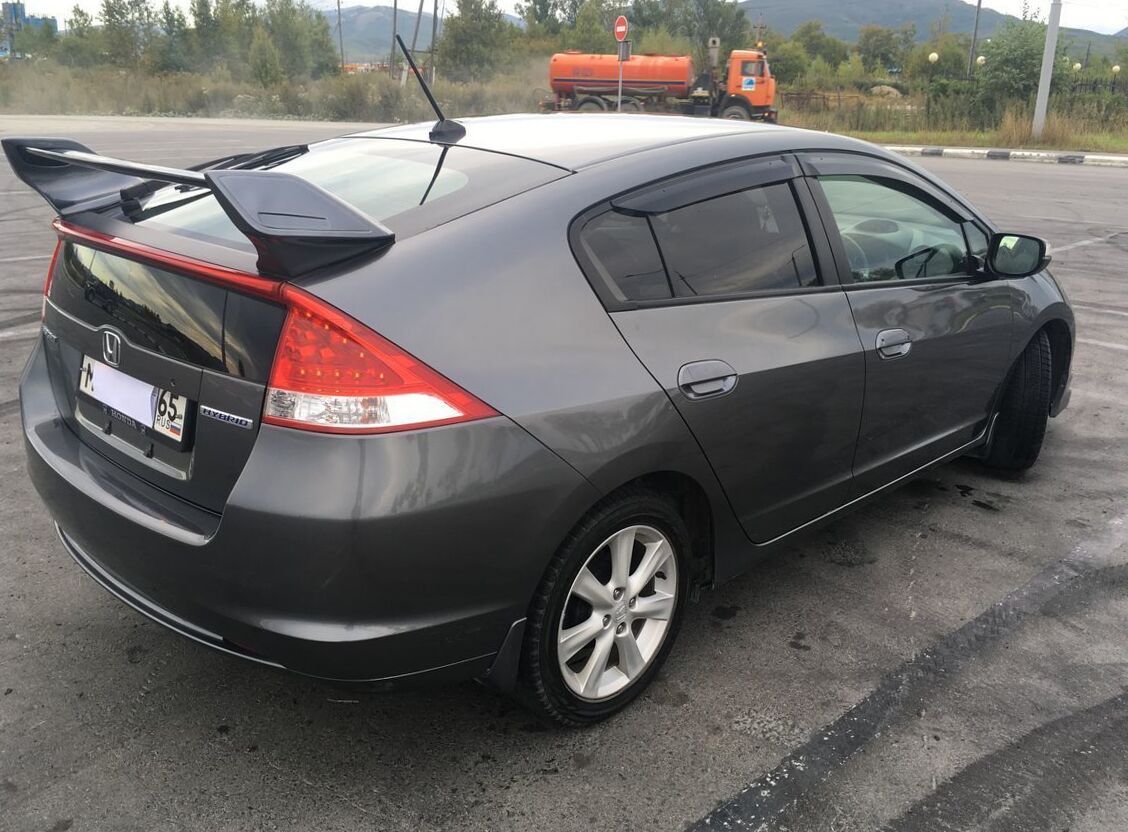

2009 Honda Insight II 1.3 LS
Honda Insight Problems
Wind noise at windscreen
2011, when I drive 100~110km/h got wind sound
at my windscreen. Send to Honda PJ still cannot
...
Languge Change
2009, Can anybody tell is there a way to change
the display language of Honda Insight domestic...
| Body type | Hatchback |
|---|---|
| Power | 88 Hp |
| Engine Displacement | 1300 cm3 or 1.3L or 79.3 cu-in |
| Color | gray |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Vin | ZE2-1****02 |
| Price (out of date) | $9683 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2009 Honda Insight II? | Lifbeck, 5 Seats, 5 Doors |
| How much power, Honda Insight Lifbeck 2009? | 88 Hp |
| What is the engine size, Honda Insight DAA-ZE2 2009? | 1.3L or 1339cm3 |
| How many gears, What type is the gearbox, 2009 Honda Insight 1.3 LS? | Variator |
| What is the drivetrain, Honda Insight II 2009 Lifbeck 1.3 LS (88 Hp)? | Front |
| How long is this vehicle, 2009 Honda Insight Lifbeck 1.3 LS (88 Hp)? | 4390 mm |
| How wide is the vehicle, 2009 Honda Insight II? | 1695 mm |
Honda Insight II DAA-ZE2 1.3 LS (88 Hp) 2009, 2010 Specs
General information | |
|---|---|
| Production start year | 2009 |
| Production end year | 2010 |
| Drive type | Front |
| Frame type | Lifbeck |
| Transmission type | Variator |
| Engine volume, cc | 1339 |
| Frame name | DAA-ZE2 |
| Clearance, mm | 145 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | yes |
| Steering locaton | right |
| Hybrid | yes |
Vehicle generation | |
| Generation name | ZE2 |
| Generation number | 2 |
| Production start year | 2009 |
| Production end year | 2011 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | LDA |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 88 |
| Max power RPM, rpm | 5800 |
| Max power, hp (kWt) / rpm | 88(65)/5800 |
| Max torque, N*m | 121 |
| Max torque RPM, rpm | 4500 |
| Max torque, N*m (kg*m) / rpm | 121 (12.3) / 4500 |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 65?88?/5800 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 121?12.3?/4500 |
| Start stop system | yes |
Electric Power | |
| Electro Max power, (kWt) | 10 |
| Electro Max torque, Nm | 78 |
| Max electro power | 10 (14) |
Fuel consumption | |
| Fuel consumption (10/15 mode), km/l | 28 |
| Fuel consumption (10/15 mode), l/100km | 3.6 |
Transmission | |
| Shifter position | On the floor. |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4390 |
| Exterior width, mm | 1695 |
| Exterior height, mm | 1425 |
| Exterior size (L x W x H), mm | 4390x1695x1425?mm? |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior size (L x W x H), mm | 1935x1430x1150?mm? |
| Interior length, mm | 1935 |
| Interior width, mm | 1430 |
| Interior height, mm | 1150 |
Chassis dimensions | |
| Wheel base, mm | 2550 |
| Front axle length, mm | 1475 |
| Rear axle length, mm | 1460 |
| Turning radius, m | 5 |
| Front/rear axis length | 1475/1460?mm? |
| Wheel spacing front | 1475 |
| Wheel spacing rear | 1460 |
Weight and permissible load | |
| Mass, kg | 1200 |
Volumes | |
| Fuel tank capacity, l | 40 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |
Tires | |
| Front wheels | 185/55R16 |
| Rear wheels | 185/55R16 |
| Run flat tires | no |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
| Brakes equipment | no |
Exterior | |

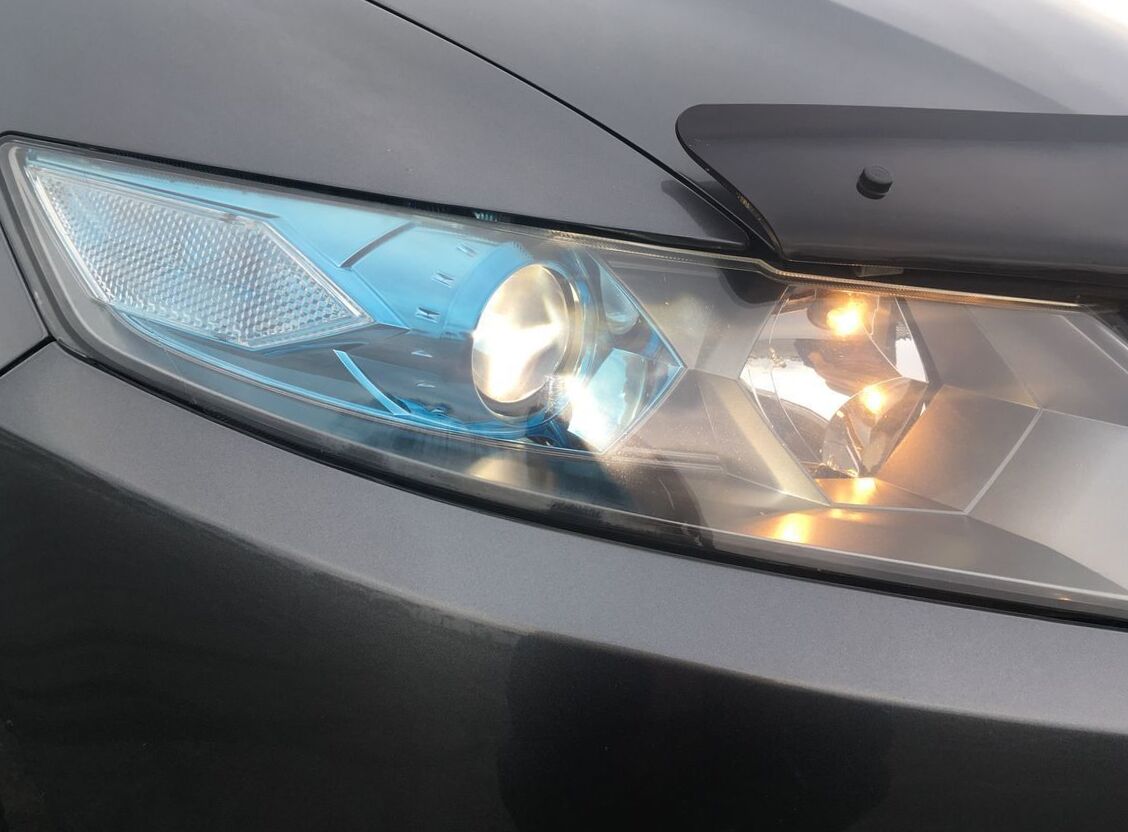

Headlights | |
| Xenon lamps | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |
| Roof rail | no |

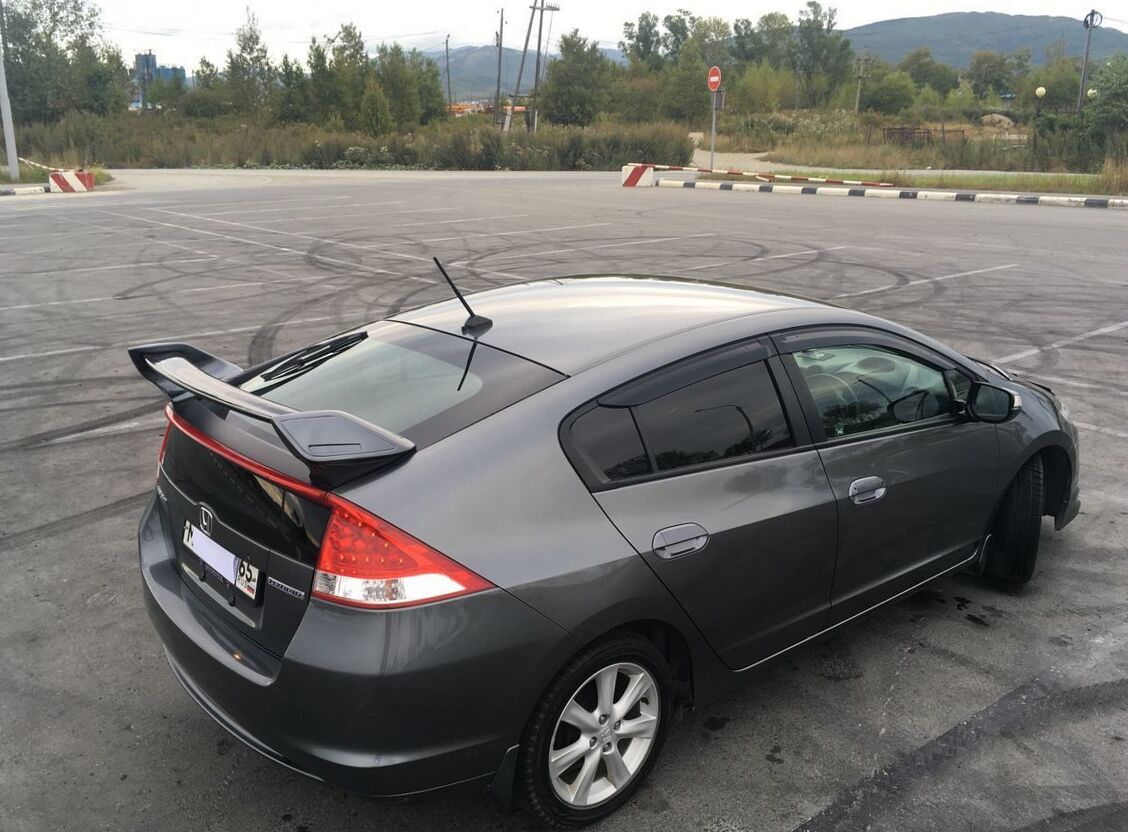

| Front spoiler | yes |
| Rear spoiler | no |
Body color | |
| Colors | 2491 2501 2499 2500 2594 266 |

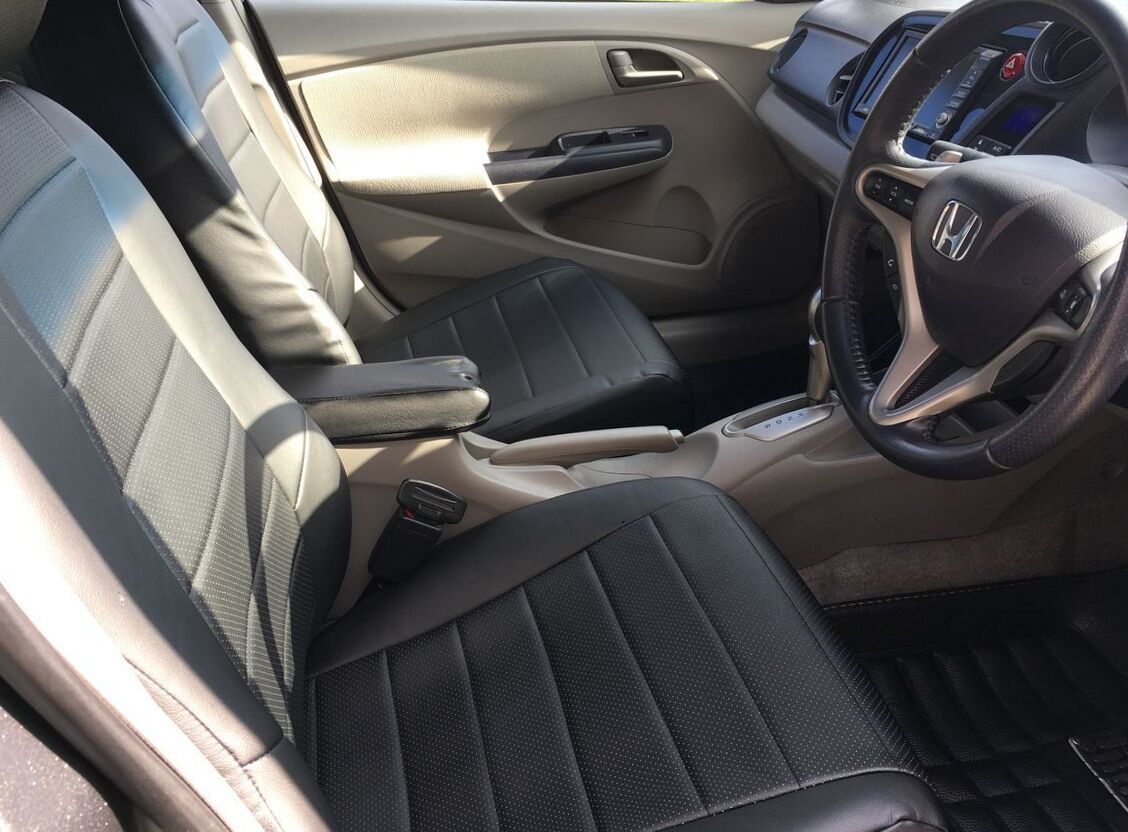

Interior | |

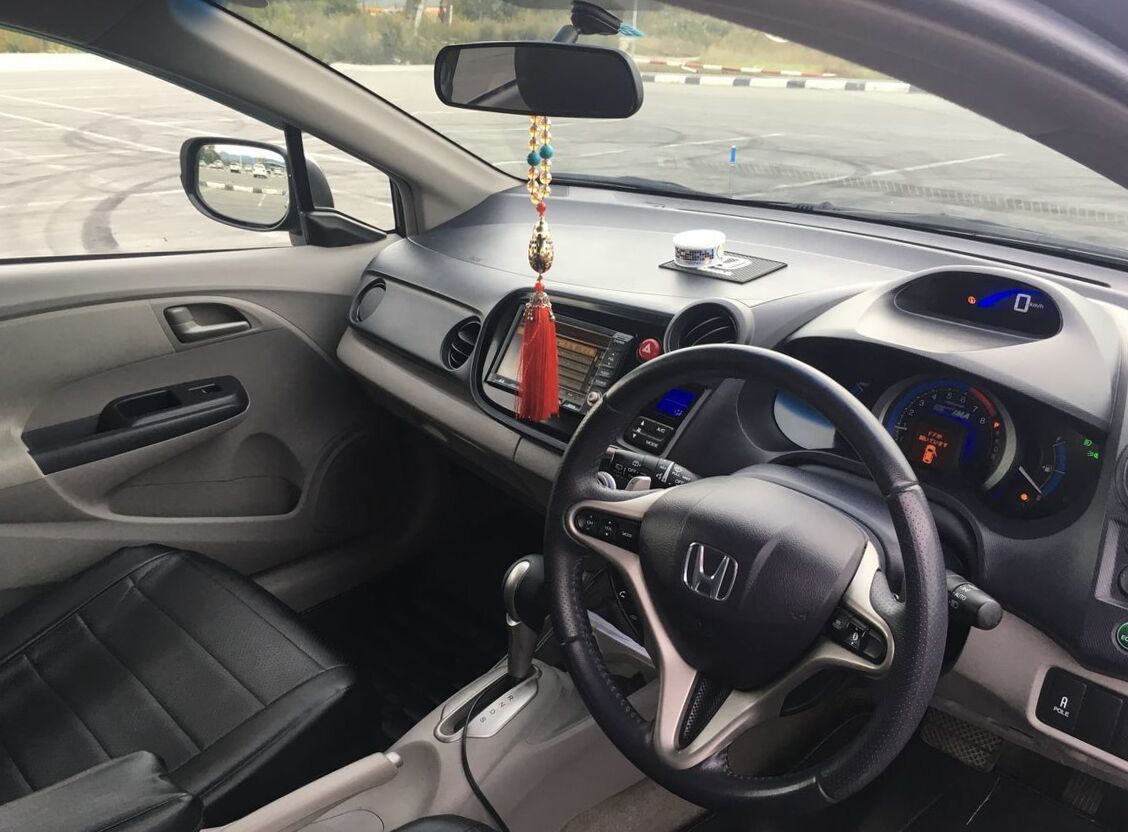

Steering wheel and center panel | |
| Engine start button | option |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |

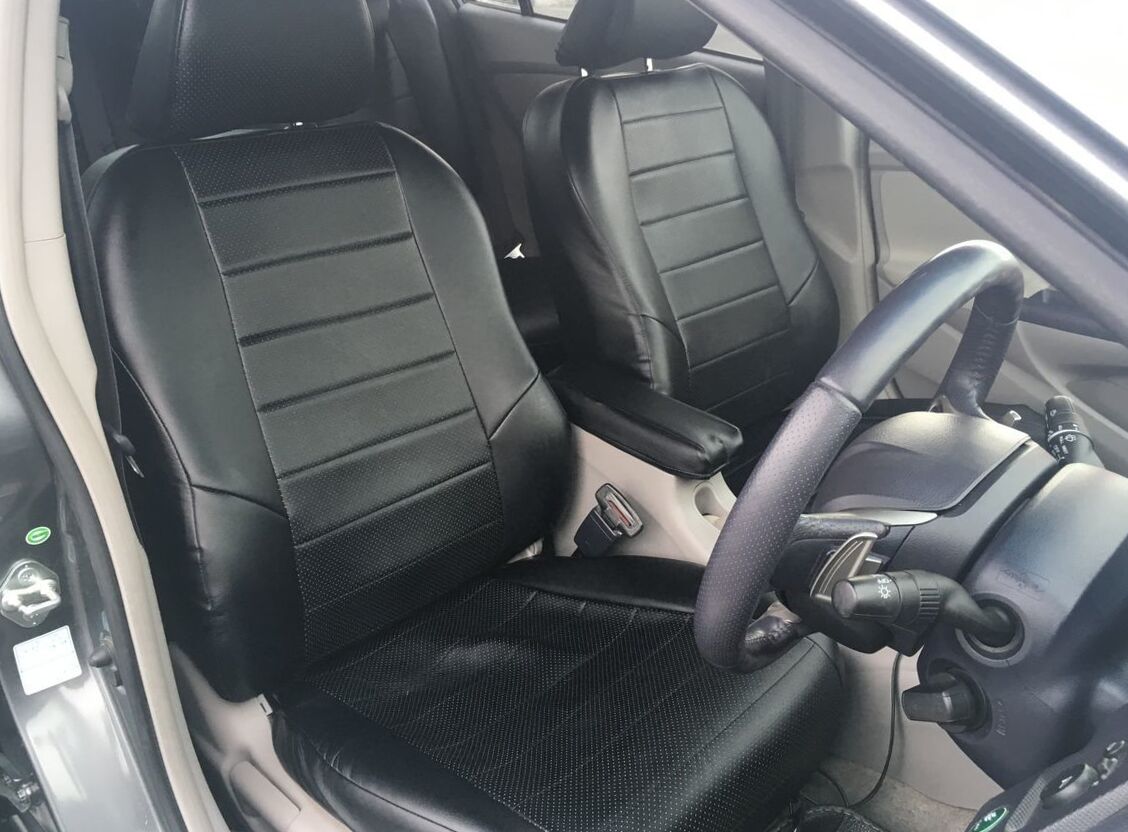

Seats | |
| Bucket seat | no |
| 2nd row | 60/40 ratio fold seat |
| 3nd row | no |
| Seat lifter | yes |
| Full flat seats | no |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | no |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
| Curtain airbags | option |
| 2 airbags | no |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | yes |
| Road Service | QQ call (option) |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |
Audio systems | |
| Radio | option |
| Autoreverse casette | no |
| CD player | option |
| DVD-audio | option |
| MD palyer | no |
| Audio HDD | option |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
| Optional navigation system | no |
| Parking assist system | option |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | option |
Additional amenities | |

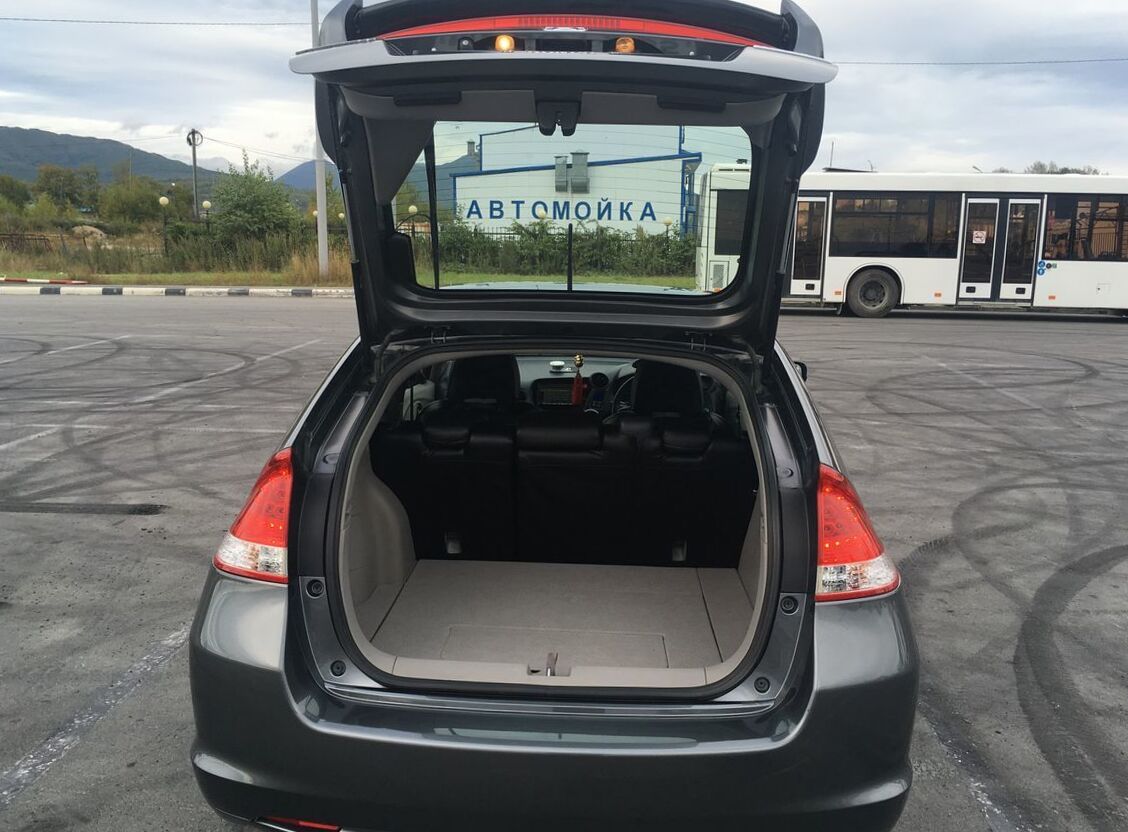

| Lagage box | yes |
| Etc | option |
Car safety | |
| Alarm system | yes |
| Security alarm | yes |
The innovative hybrid system is powered with an Integrated Motor Assist (IMA), which combines a 1.0 liter, 3-cylinder engine and an electric motor. The IMA system gives the Insight the most fuel-efficient gasoline-powered engine. It delivers an EPA fuel economy of 61 mpg city and 70 mpg highway.
2009 Honda Insight II DAA-ZE2 1.3 LS (88 Hp) specs
|
Honda will introduce the forthcoming second-generation Insight in early 2009 as a five-door hatchback. HistoryBased on the Honda J-VX concept car unveiled at the 1997 Tokyo Motor Show, the Insight was introduced in 1999 and was the first production vehicle to feature Honda's Integrated Motor Assist system. The Insight was also the first hybrid sold in North America. It featured optimized aerodynamics and a lightweight aluminum structure to maximize fuel efficiency and minimize emissions. Total global sales for the Insight amounted to only around 18,000. DesignThe Honda Insight was a subcompact hatchback 3,945mm (155.3in) in length with a wheelbase of 2,400mm (94.5in) a height of 1,355mm (53.3in) and a width of 1,695mm (66.7in). The Insight was only available as a two-seater. Only three different trims were available: a manual transmission without air-conditioning, a manual transmission with air-conditioning, and a continuously variable transmission with air-conditioning. Although produced until 2006, the only major change was the introduction of a trunk mounted, front controlled, multiple CD changer. » Read More About Honda Insight |
