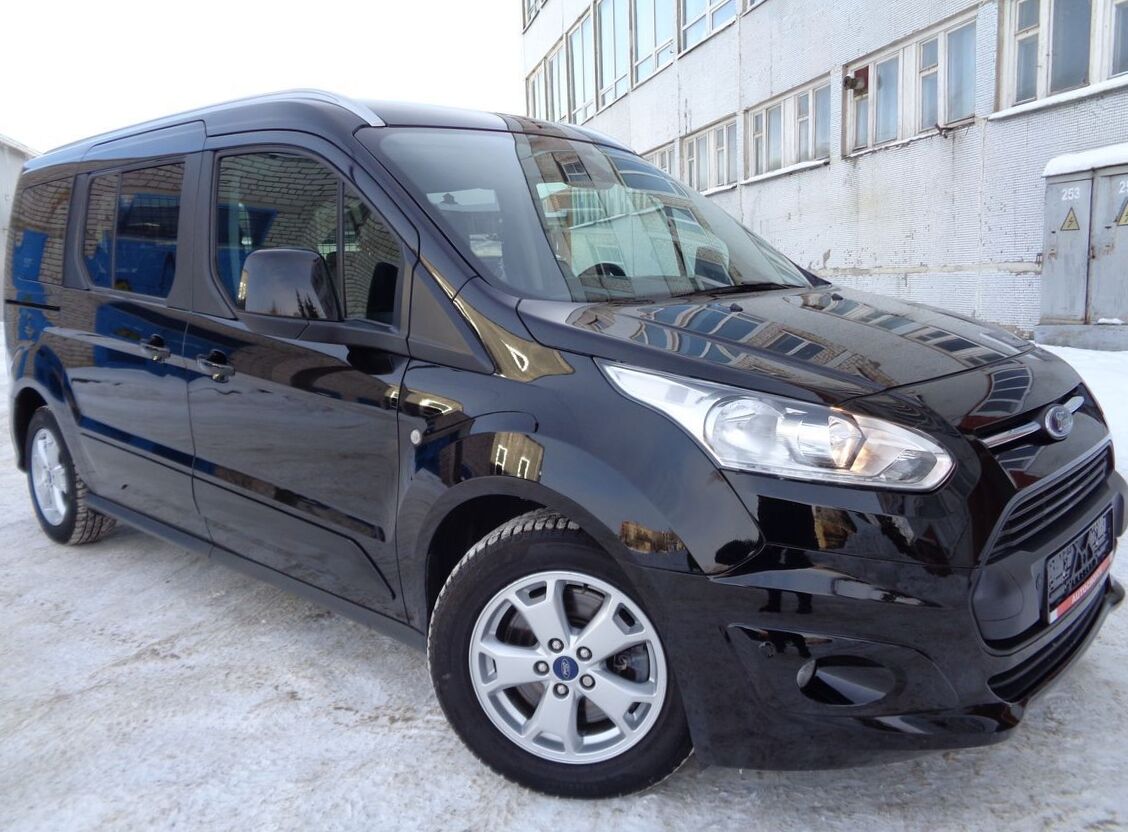

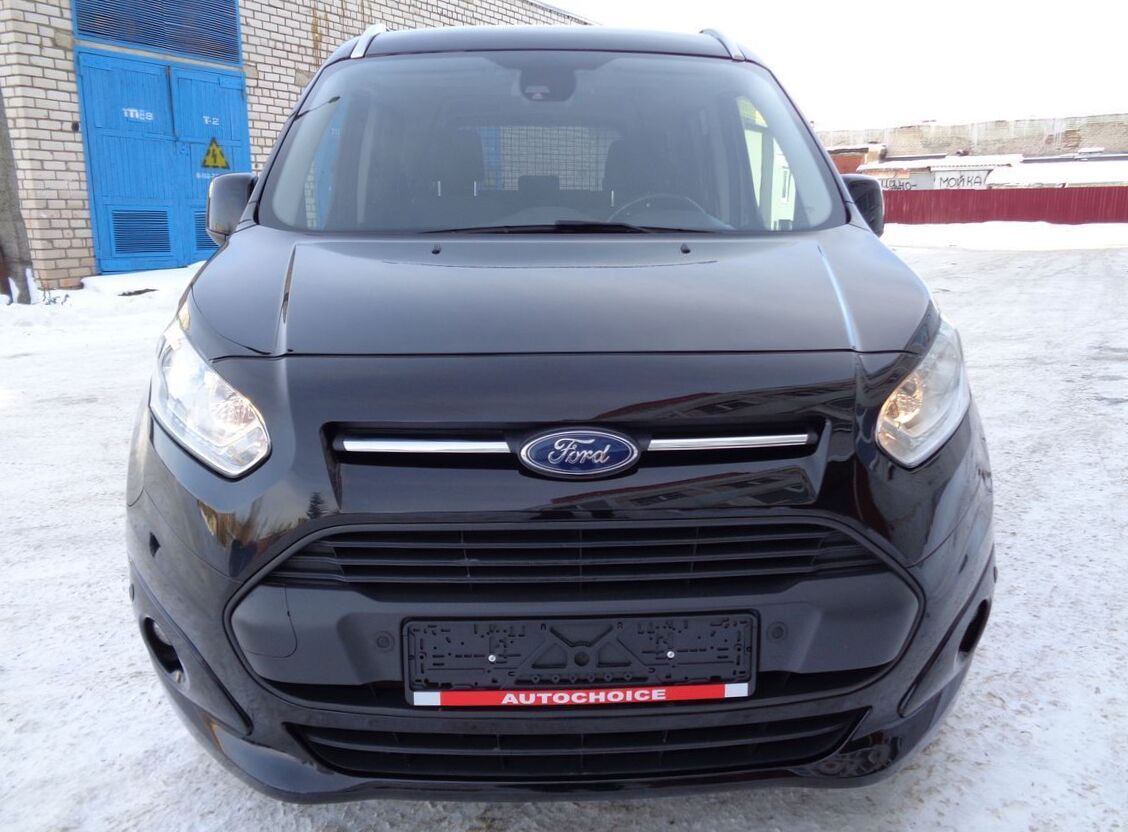

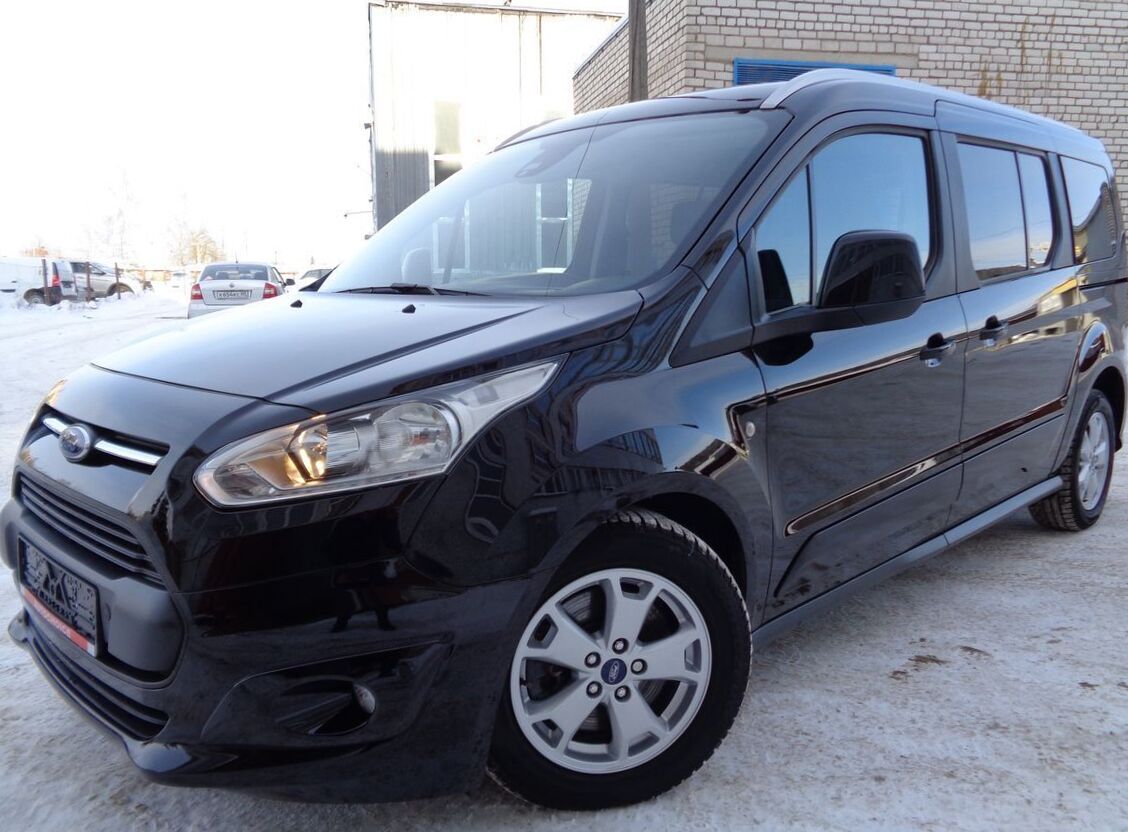

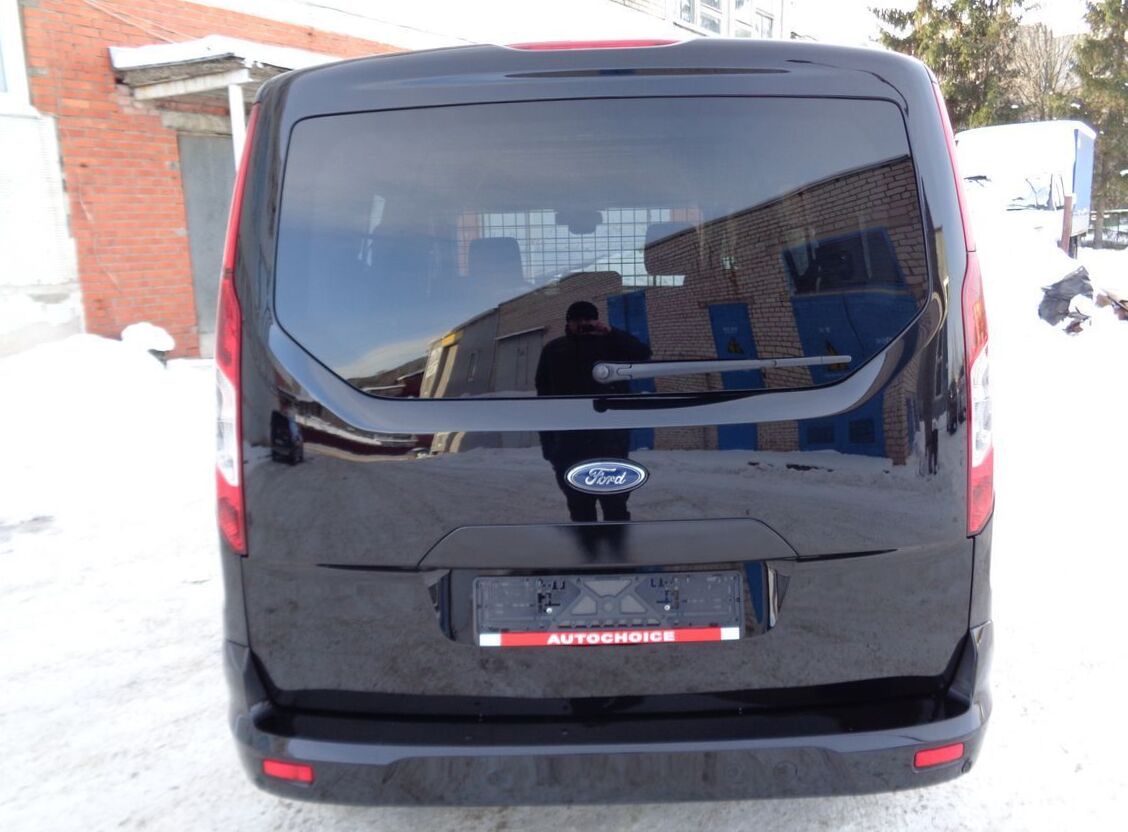

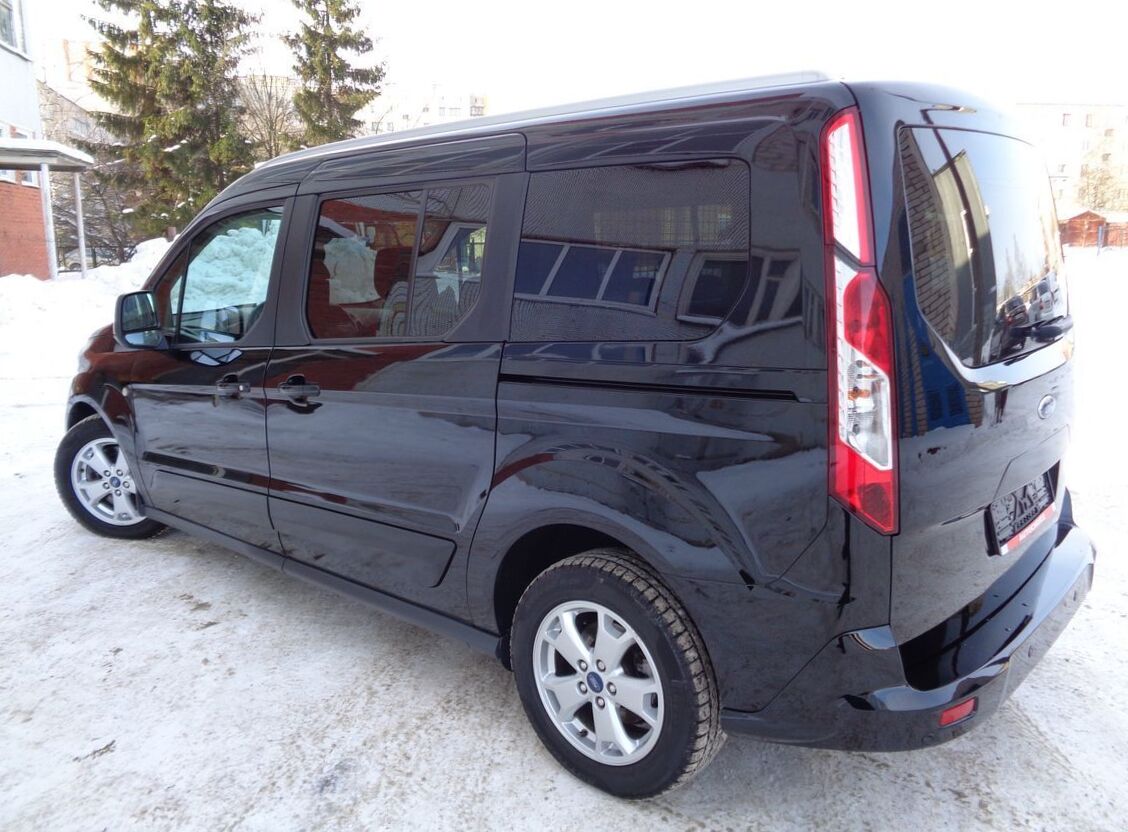

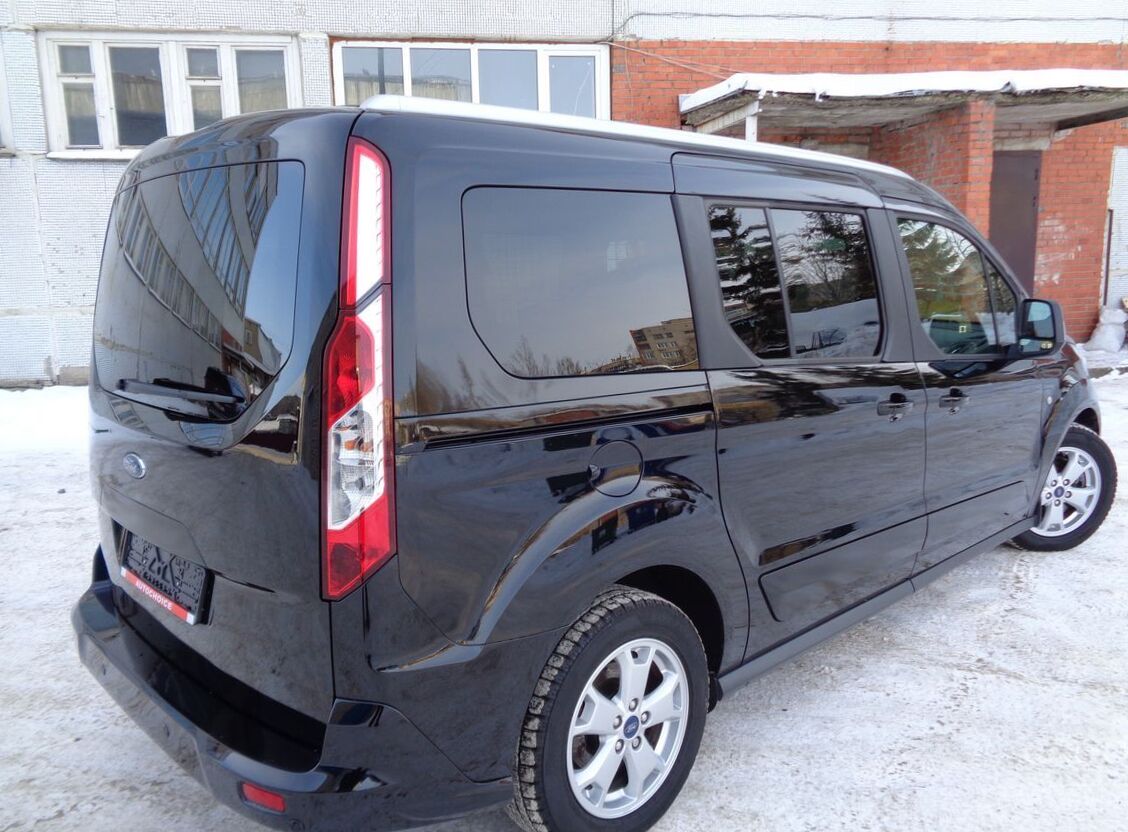

2017 Ford Tourneo Connect II 1.5 TDCi (120) MT Tourneo Trend
| Body type | Minivan |
|---|---|
| Power | 120 Hp |
| Engine Displacement | 1500 cm3 or 1.5L or 91.5 cu-in |
| Color | black |
| Transmission Gearbox | Manual |
| Fuel Type | Diesel |
| Drive wheel | FF |
| Mileage | 34796 Miles |
| Vin | 466*** |
| Price (out of date) | $16082 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2017 Ford Tourneo Connect II? | Minivan, 5 Seats, 5 Doors |
| What is the fuel economy, 2017 Ford Tourneo Connect 1.5 TDCi (120) MT Tourneo Trend? | 4.6 l/100 km |
| How fast is the car, Ford Tourneo Connect II 2017 Minivan 1.5 TDCi (120) MT Tourneo Trend (120 Hp)? | 171 km/h, 0-100 km/h: 12.6 sec |
| How much power, 2017 Ford Tourneo Connect Minivan 1.5 TDCi (120) MT Tourneo Trend (120 Hp)? | 120 Hp |
| What is the engine size, 2017 Ford Tourneo Connect II? | 1.5L or 1499cm3 |
| How many gears, What type is the gearbox, 2017 Ford Tourneo Connect 1.5 TDCi (120) MT Tourneo Trend? | 6 speed Manual |
| What is the drivetrain, Ford Tourneo Connect II 2017 Minivan 1.5 TDCi (120) MT Tourneo Trend (120 Hp)? | Front |
| How long is this vehicle, 2017 Ford Tourneo Connect Minivan 1.5 TDCi (120) MT Tourneo Trend (120 Hp)? | 4418 mm |
| How wide is the vehicle, 2017 Ford Tourneo Connect II? | 1835 mm |
| What is the gross weigh, 2017 Ford Tourneo Connect 1.5 TDCi (120) MT Tourneo Trend? | 2040 kg |
| How much trunk (boot) space, Ford Tourneo Connect II 2017 Minivan 1.5 TDCi (120) MT Tourneo Trend (120 Hp)? | 1029 l |
Ford Tourneo Connect II 1.5 TDCi (120) MT Tourneo Trend (120 Hp) 2015, 2016, 2017, 2018 Specs
General information | |
|---|---|
| Production start year | 2015 |
| Production end year | 2018 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | 6 speed Manual |
| Engine volume, cc | 1499 |
| 0 to 100 time | 12.6 |
| Max speed | 171 |
| Clearance, mm | 166 |
| Manufacturing country | Germany |
| Doors | 5 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | XWGA; XWGB |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 120 |
| Max power RPM, rpm | 3600 |
| Max power, hp (kWt) / rpm | 120 (88) / 3600 |
| Max torque, N*m | 270 |
| Max torque RPM, rpm | 2500 |
| Max torque, N*m (kg*m) / rpm | 270 (28) / 2500 |
| Valves per cylinder | 2 |
| Compression ratio | 16 |
| Bore, mm | 73.5 |
| Stroke, mm | 88.3 |
| Engine additional info | SOHC |
| Eco type | Euro-6 |
| Cooling system | 5.8 |
| Lubrication engine system | 3.8 |
| Start stop system | option |
Fuel consumption | |
| City | 4.9 |
| Country side | 4.4 |
| Combined | 4.6 |
| Co2 emission | 119 |
Transmission | |
| 1st gear ratio | 3.583 |
| 2nd gear ratio | 1.864 |
| 3rd gear ratio | 1.194 |
| 4th fear ratio | 0.868 |
| 5th gear ratio | 0.686 |
| 6th gear ratio | 0.573 |
| Rear gear ratio | 2.943 |
| Main gear ratio | 3.688 |
Steering | |
| Power steering | no |
| Electro-hydraulic power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4418 |
| Exterior width, mm | 1835 |
| Exterior height, mm | 1852 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2662 |
| Turning radius, m | 5.65 |
| Wheel spacing front | 1582 |
| Wheel spacing rear | 1568 |
Weight and permissible load | |
| Mass, kg | 1540 |
| Max capacity | 500 |
| Max. weight | 2040 |
| Trailer max weight wobrakes | 750 |
| Trailer max weight wbrakes | 1200 |
Volumes | |
| Fuel tank capacity, l | 60 |
| Trunk volume | 1029 |
Other | |
| Aerodynamic drag | 0.35 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Dependent, spring loaded |

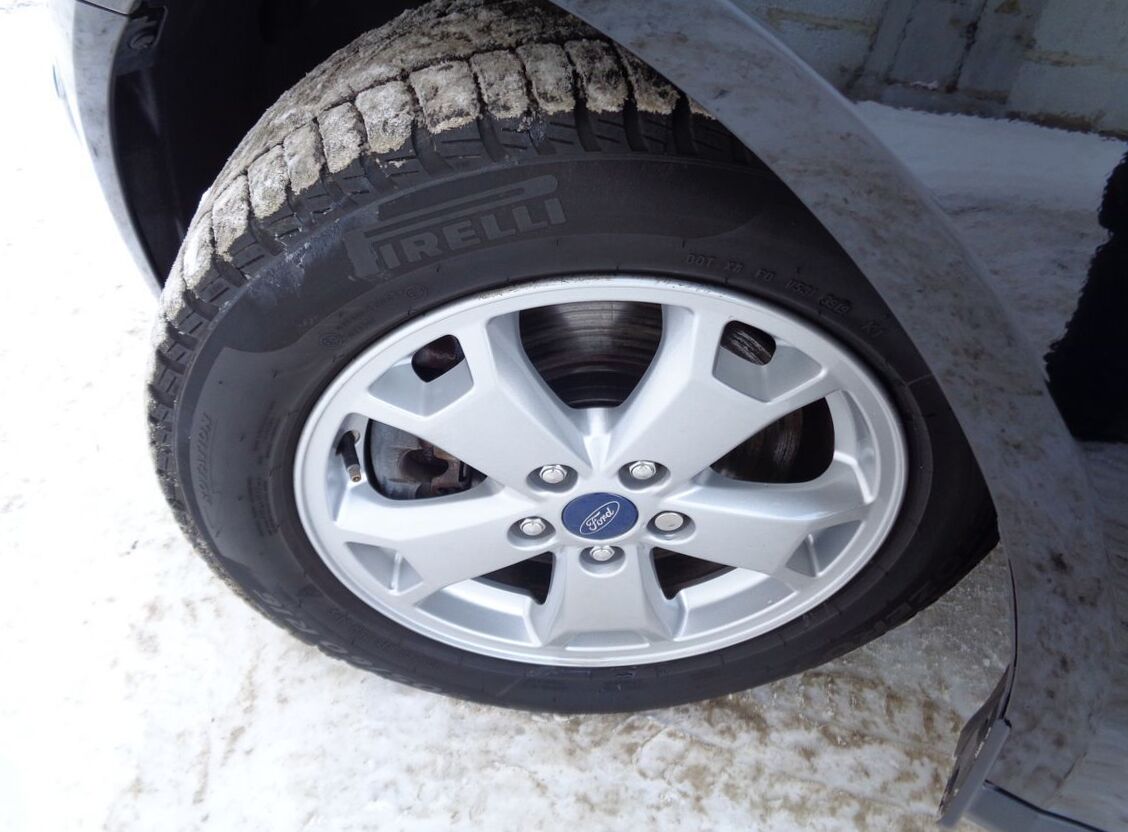

Wheel rims | |
| Aluminium wheel | option |
| Front wheel disk | 16X6.5J |
| opt. | 17X6.5J |
| Rear wheel disk | 16X6.5J |
| opt. | 17X6.5J |
Tires | |
| Front wheels opt. | 215/55 R17 |
| Front wheels | 205/50 R16 |
| Rear wheels | 205/50 R16 |
| Rear wheels opt. | 215/55 R17 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Front fog lamps | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | option |
| Rain sensor | option |
Side mirrors | |
| Exterior mirrors in body color | option |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Sliding doors | yes |
| Door handles in body color | option |
Windows | |
| Privacy glass | option |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |

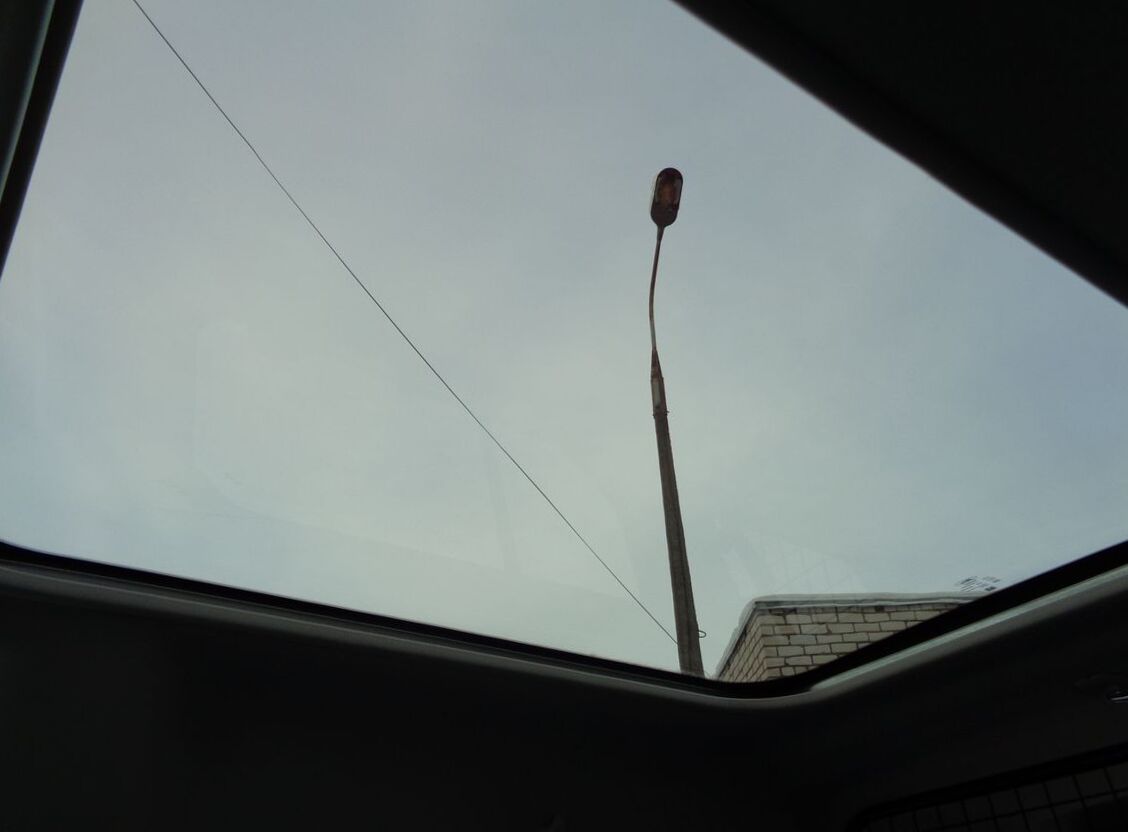

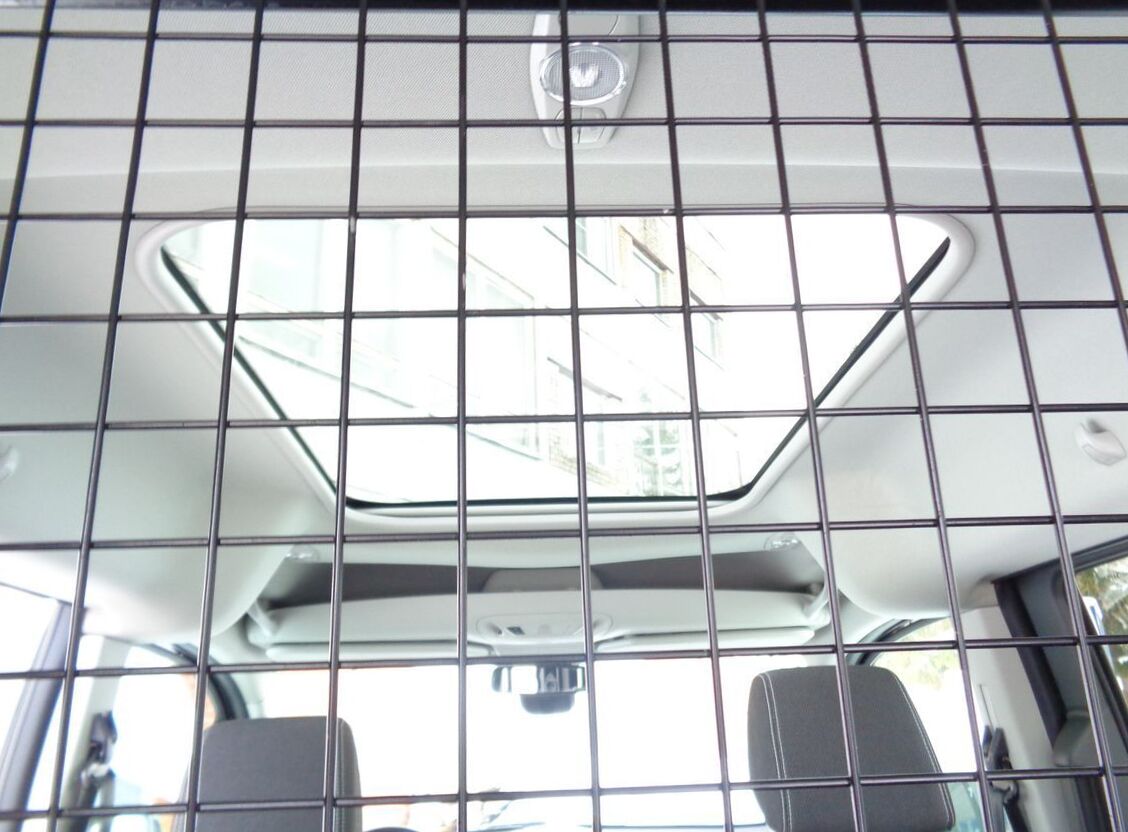

| Panoramic roof | option |
Accessories | |
| Roof rail | option |
| Front spoiler | yes |
| Rear spoiler | no |
| Bumpers | painted in body color |
| Back wiper | yes |
| Rear mudflaps | option |
Body color | |
| Metallic paint Body | option |
Interior | |

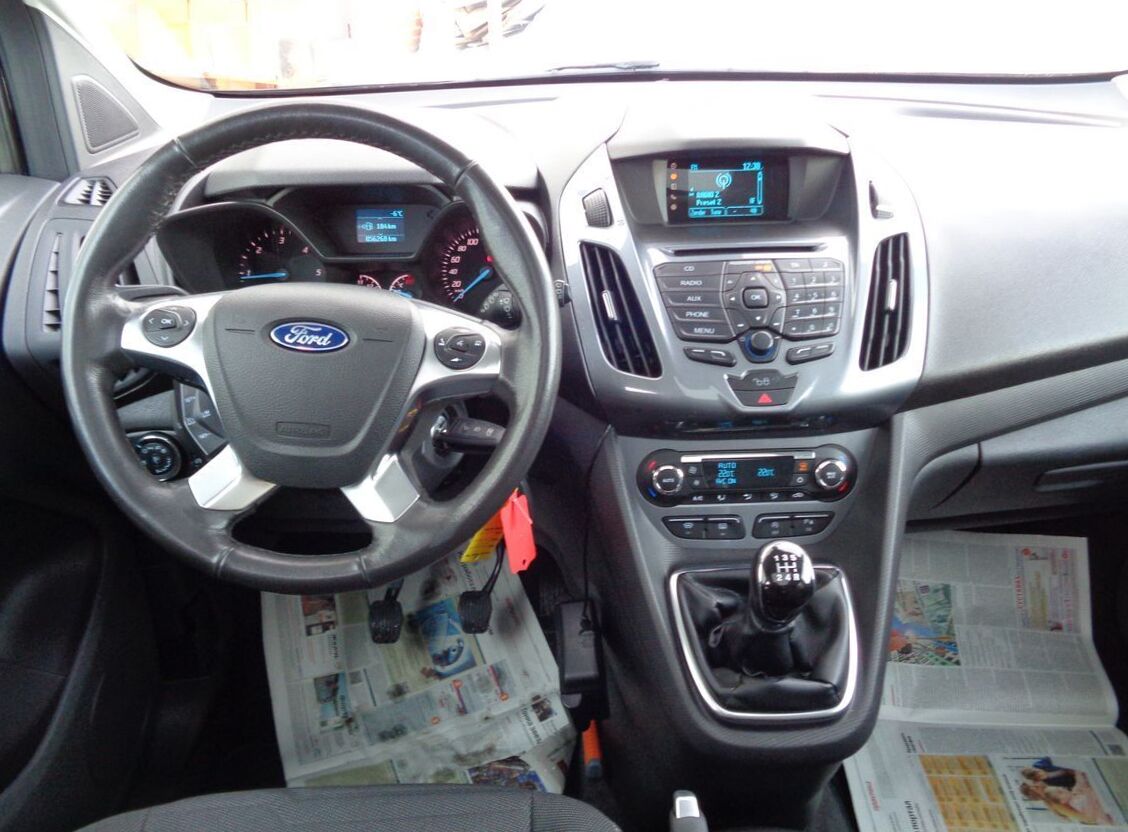

Steering wheel and center panel | |

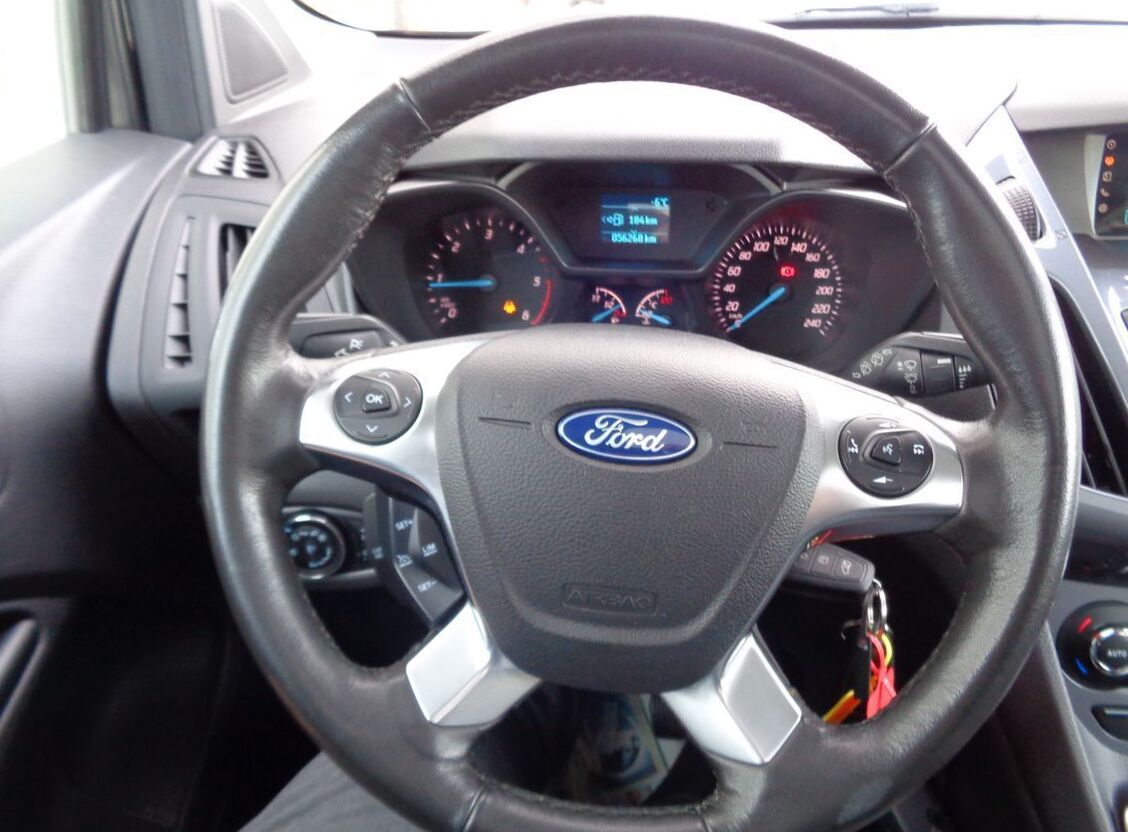

| Leather winding | option |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Tachometer | yes |
| Env temp | yes |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | no |
| Panels | aluminum inserts |

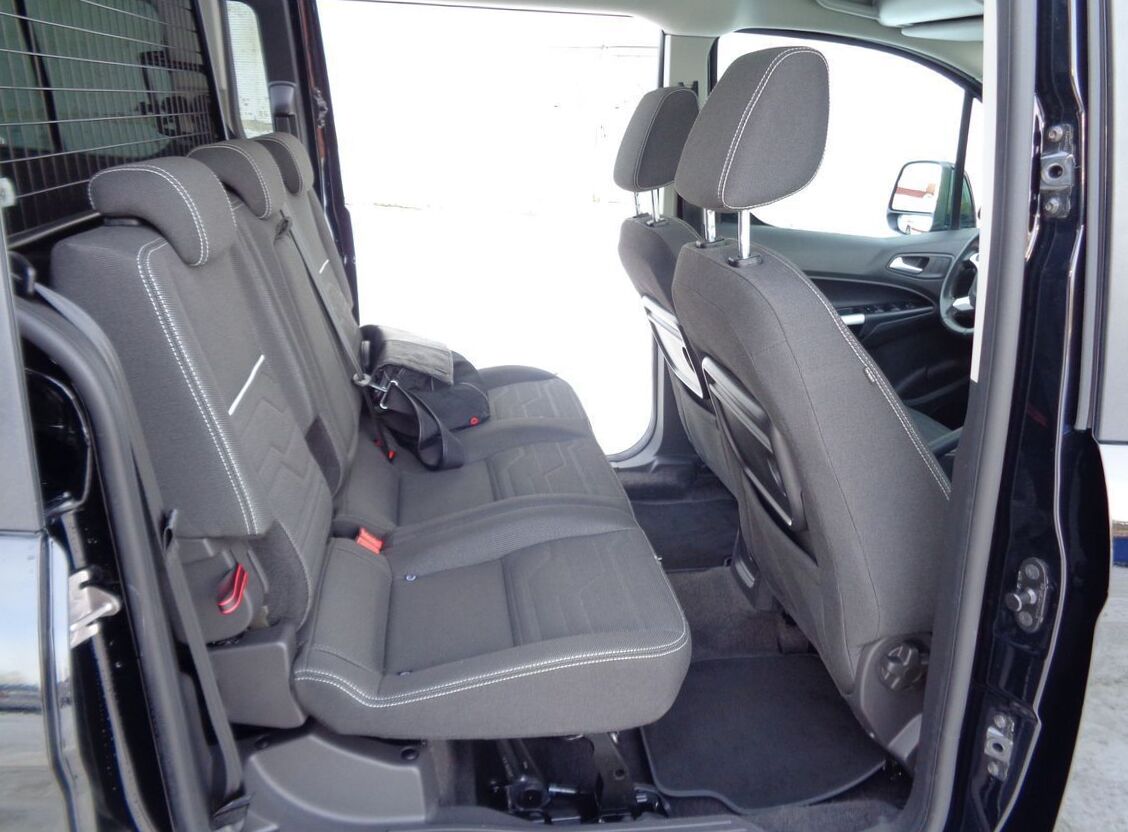

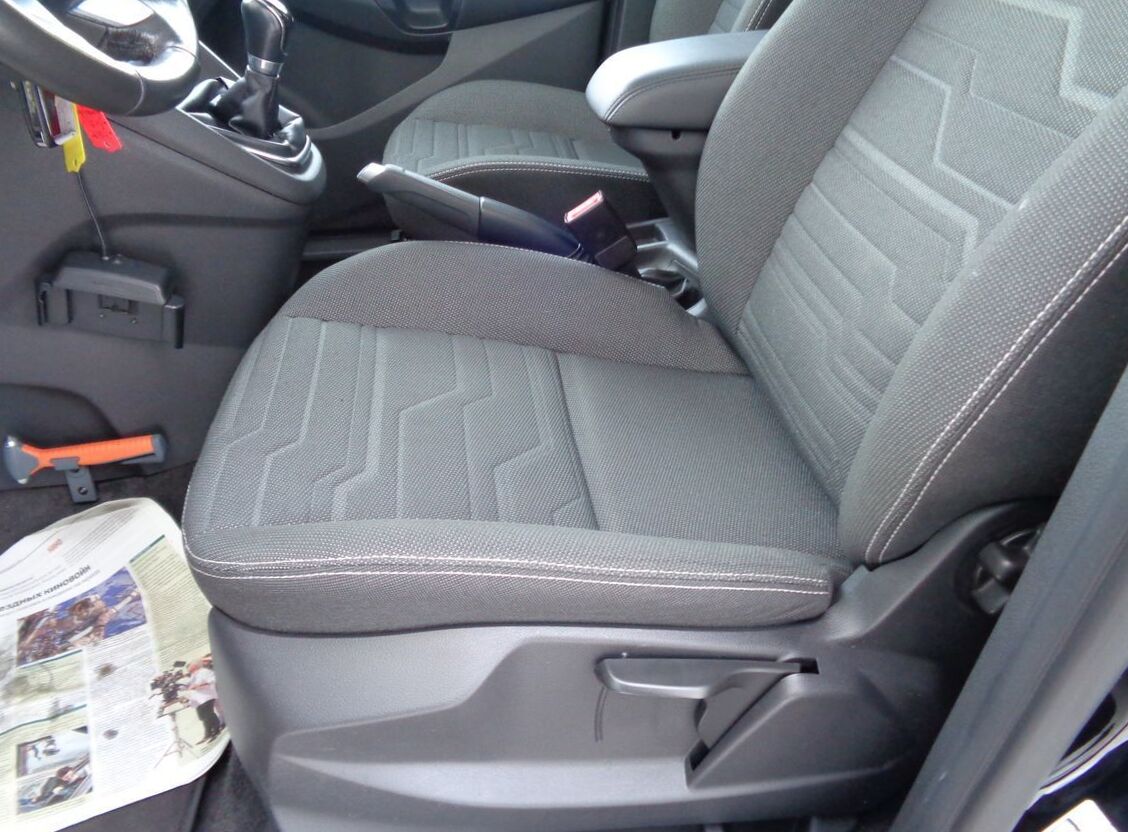

Seats | |
| Front seats ajust | in 4 directions |

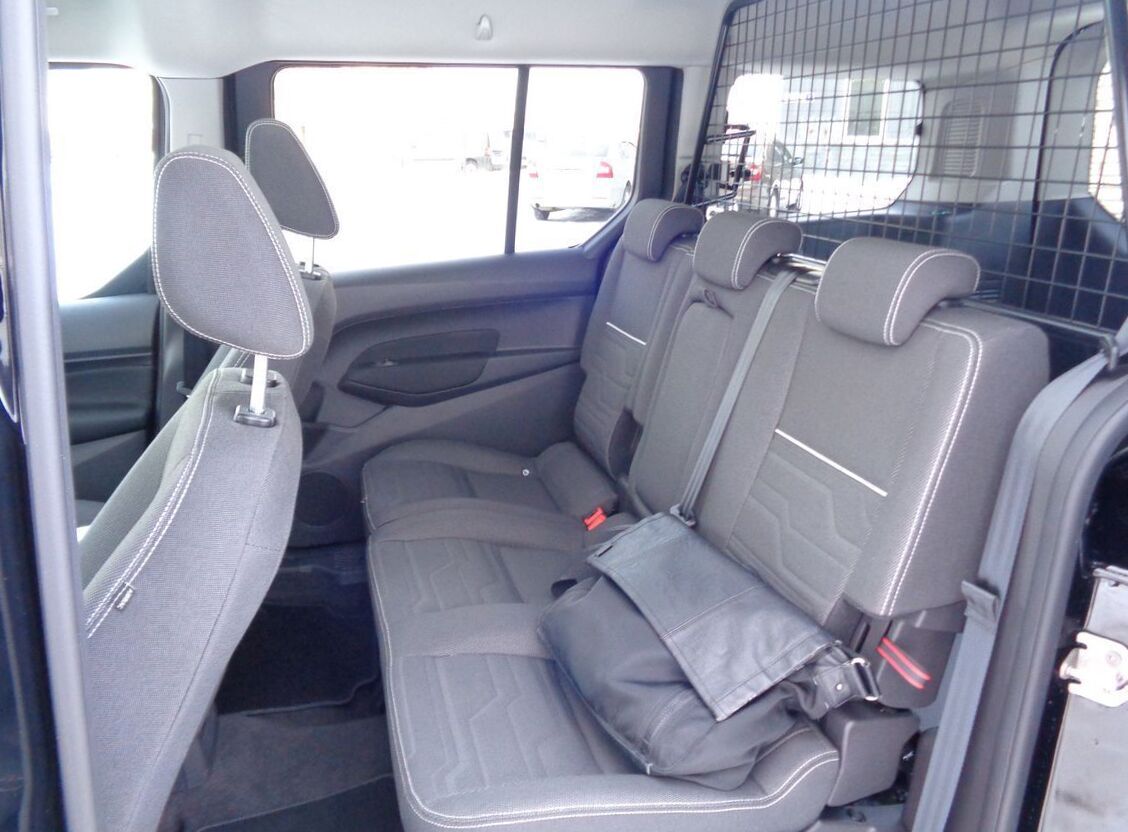

| 2nd row | 60/40 ratio fold seat |
| 3nd row | no |
| opt. | two individual seats |
| Loin reliance | yes |
| Seat lifter | yes |
| Headrests for seats | 5 |
| Separating armrest front | option |
| Separating armrest rear | no |
| Seats pockets | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Front seat heater | option |
| Centralized door lock | yes |

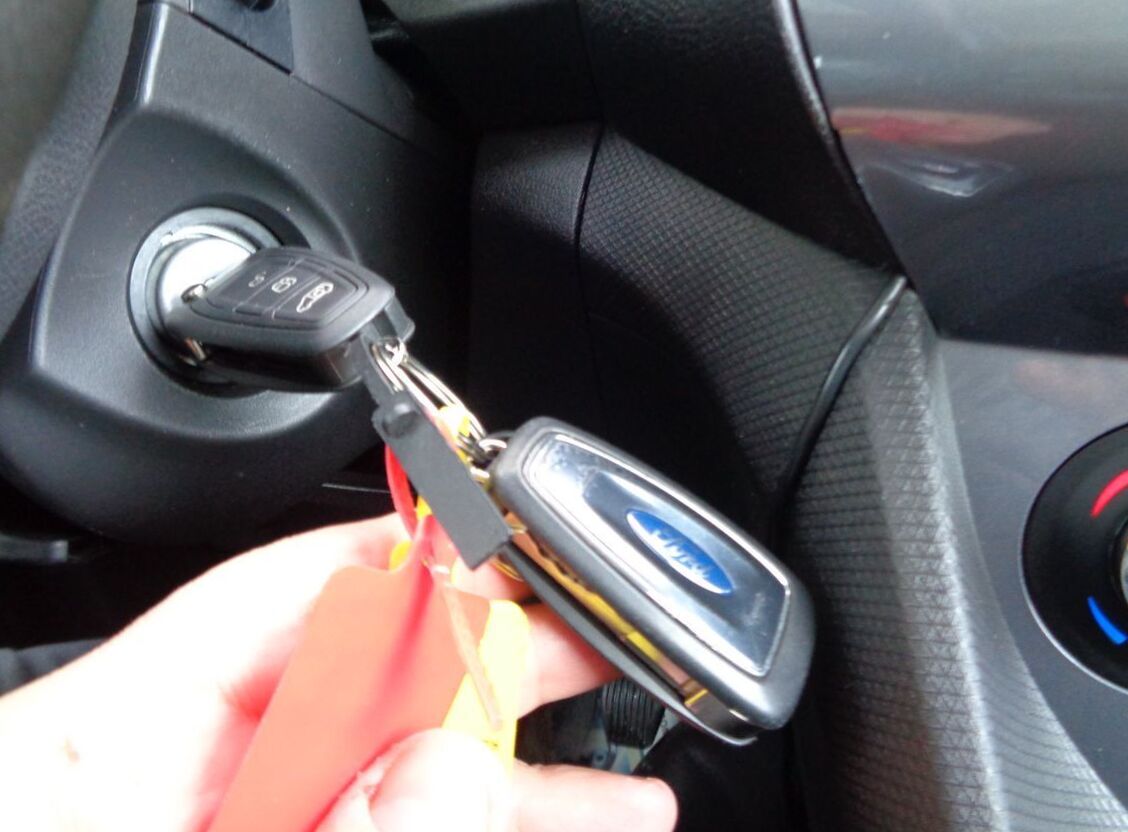

| Keyless enter | yes |
| Power window front | yes |
| Power window rear | yes |
| Injectors heat | option |
Additional interior equipment | |
| Smokers packet | option |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Passenger airbag deactivation function with | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| The system control lanes | option |
| Cruise control | option |
| Control system of a headlight | option |
| Dynamic cornering light | option |
| Blind zone monitoring | option |
| Road sign recognition | option |
| System tire pressure monitoring | yes |

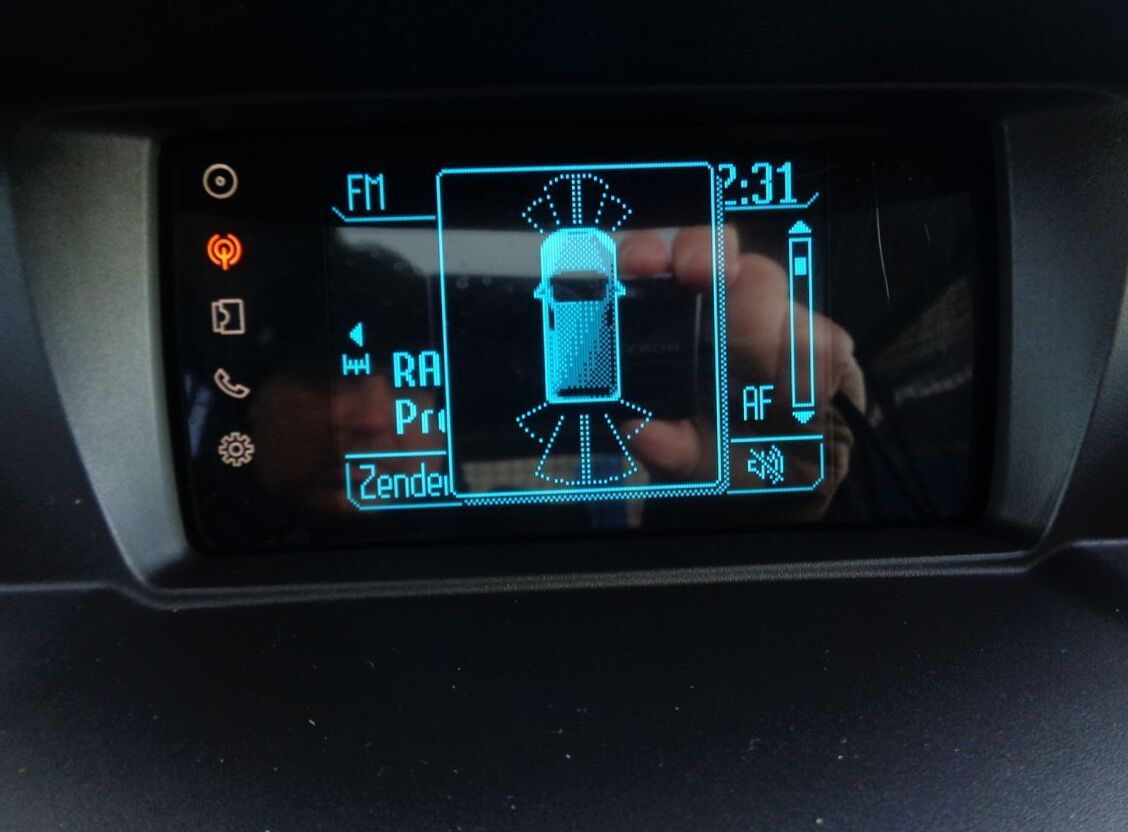

| Front sonar | option |
| Rear sonars | option |
| Driver tired system | no |
Amenity | |
Microclimate | |

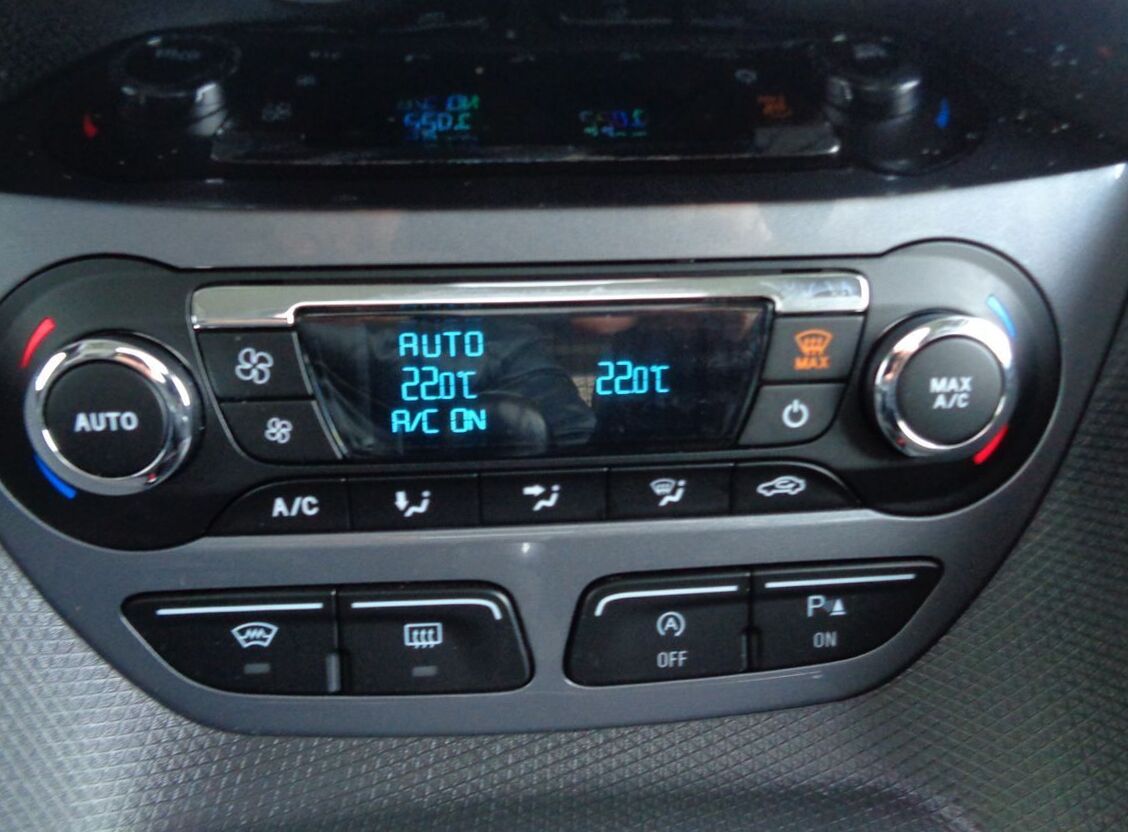

| Air conditioner | yes |
| Twin conditioning system | option |
| Air filter | yes |

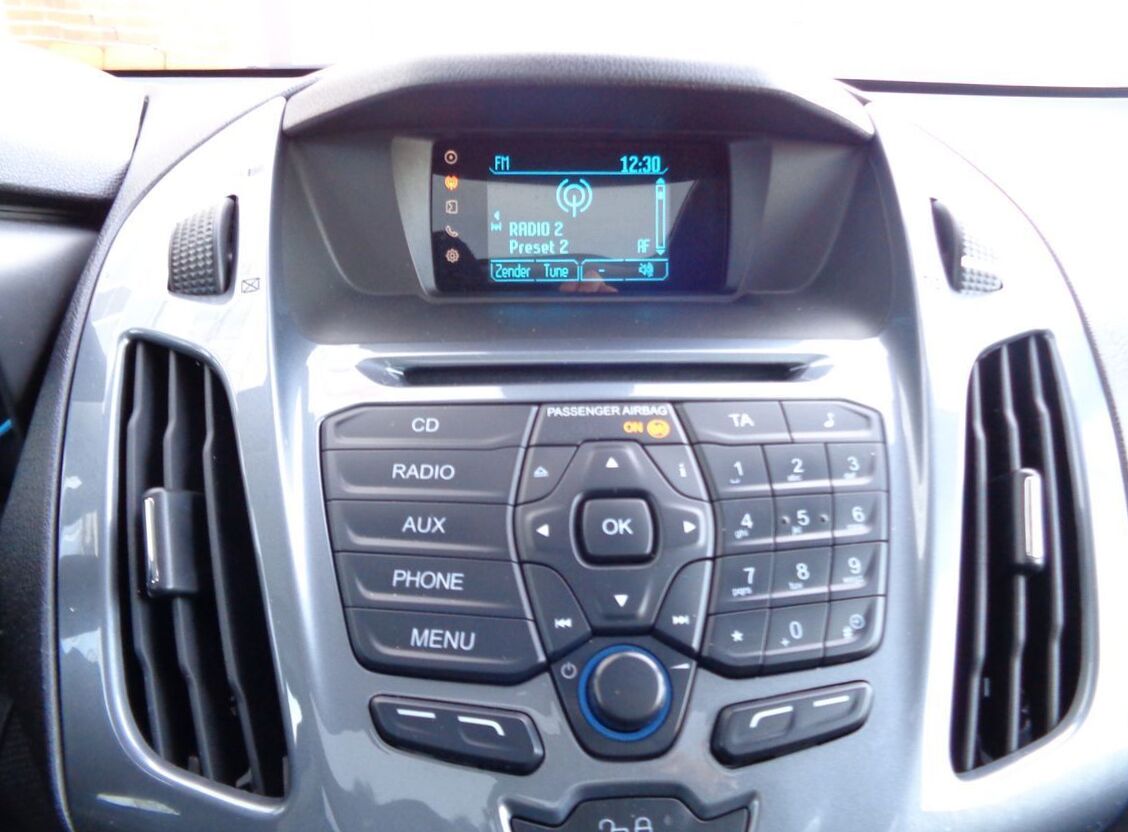

Audio systems | |
| Radio | yes |
| CD player | yes |
| MP3 Support | yes |
| Hands free | option |
| Rear entertainment system | option |
| Additional sound equipment | 6 speakers, USB, AUX |
Navigation and video equipment | |
| Full color LCD display | no |
| Full color LCD display (option) | 3.5" / 6" touchscreen |
| Navigation system | option |
| Back monitor | option |
Additional amenities | |
| Antidazzle rearview mirror | option |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
| Security alarm | option |
2017 Ford Tourneo Connect II 1.5 TDCi (120) MT Tourneo Trend (120 Hp) specs
|
