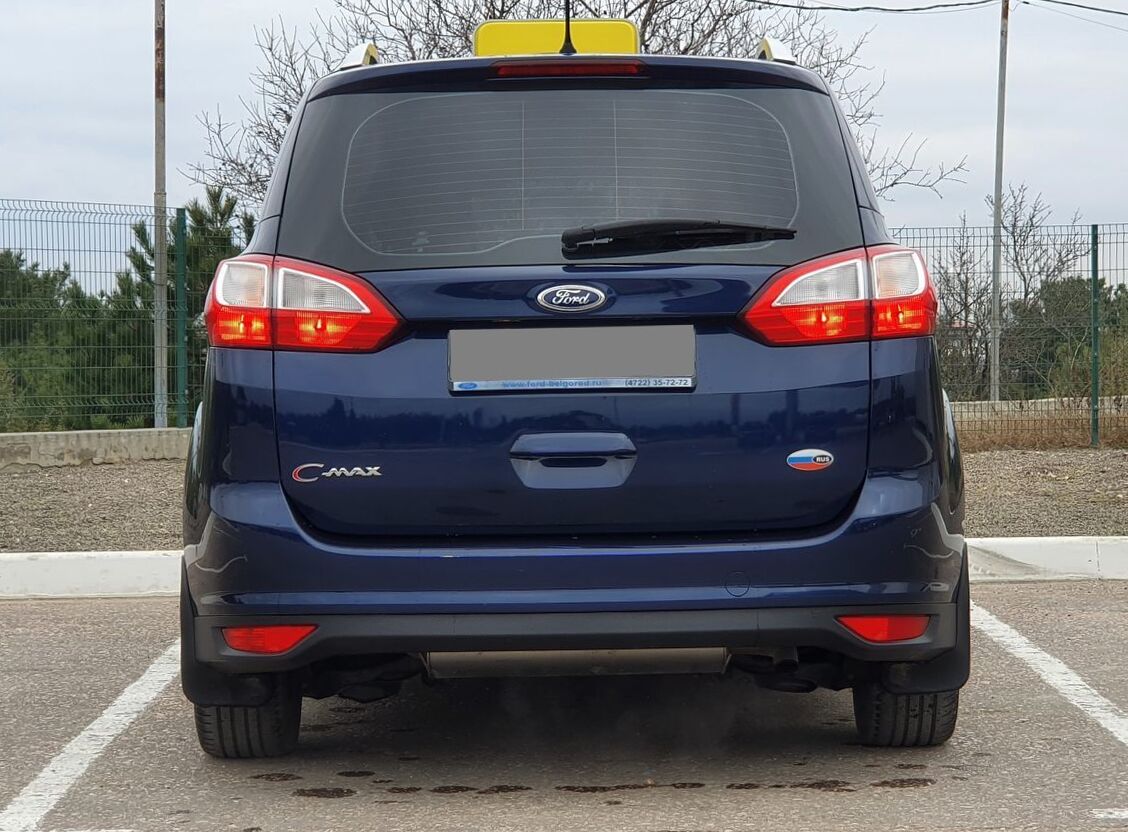

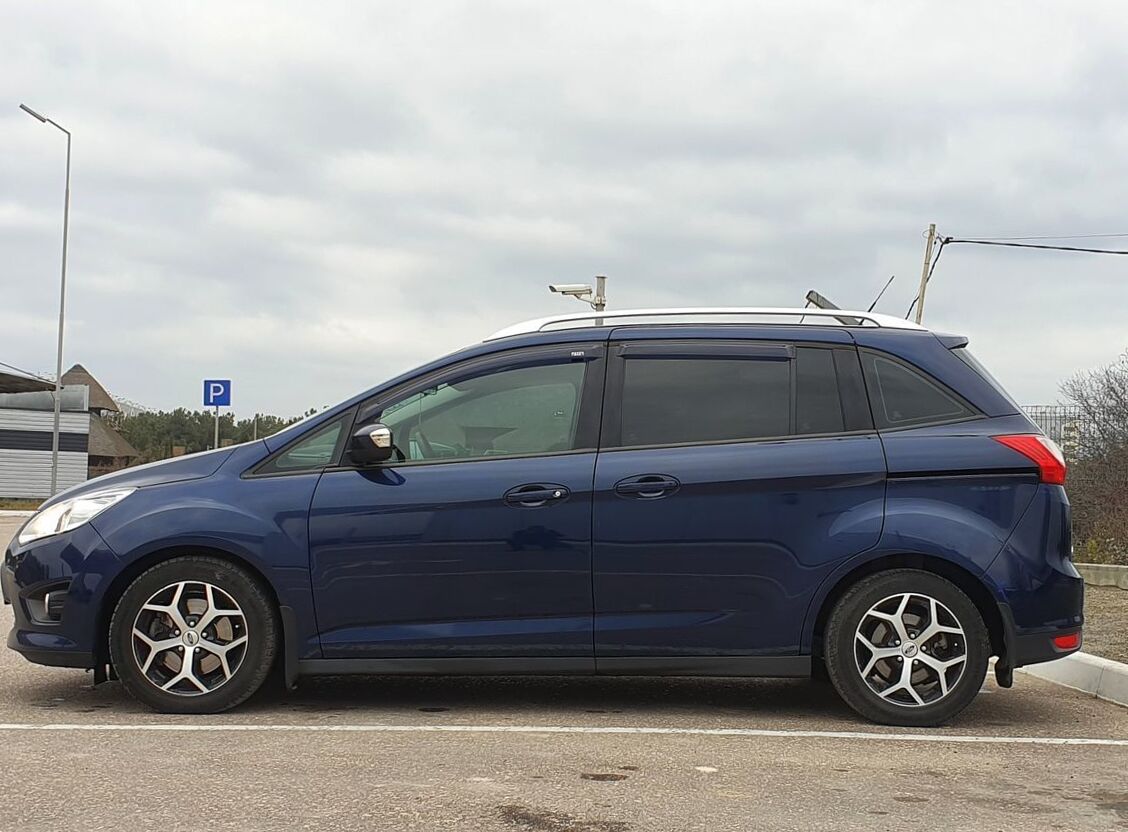

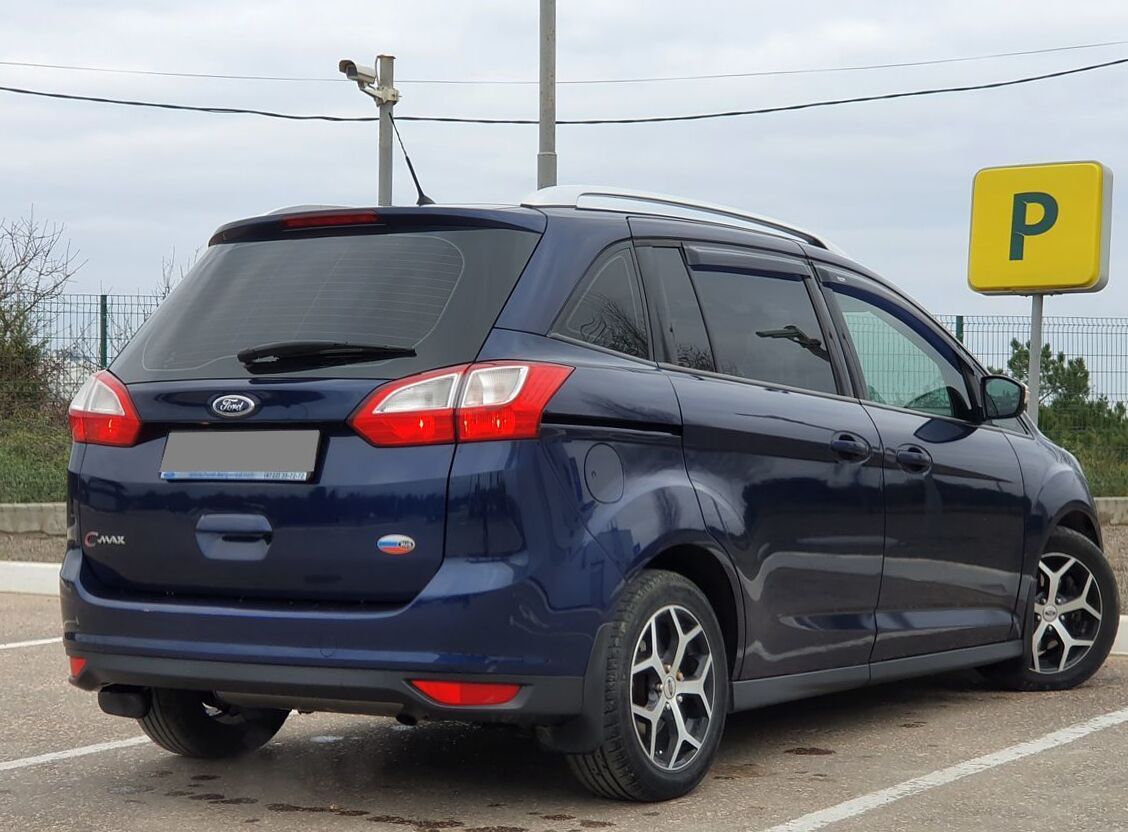

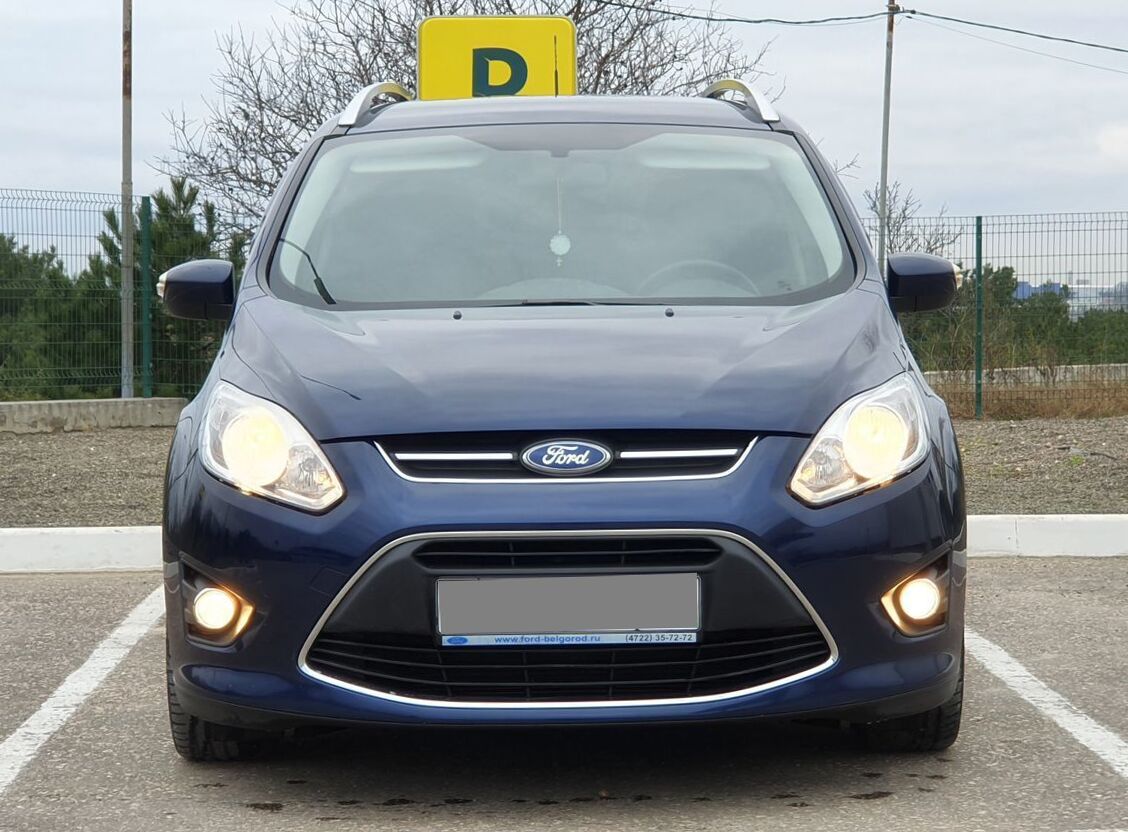

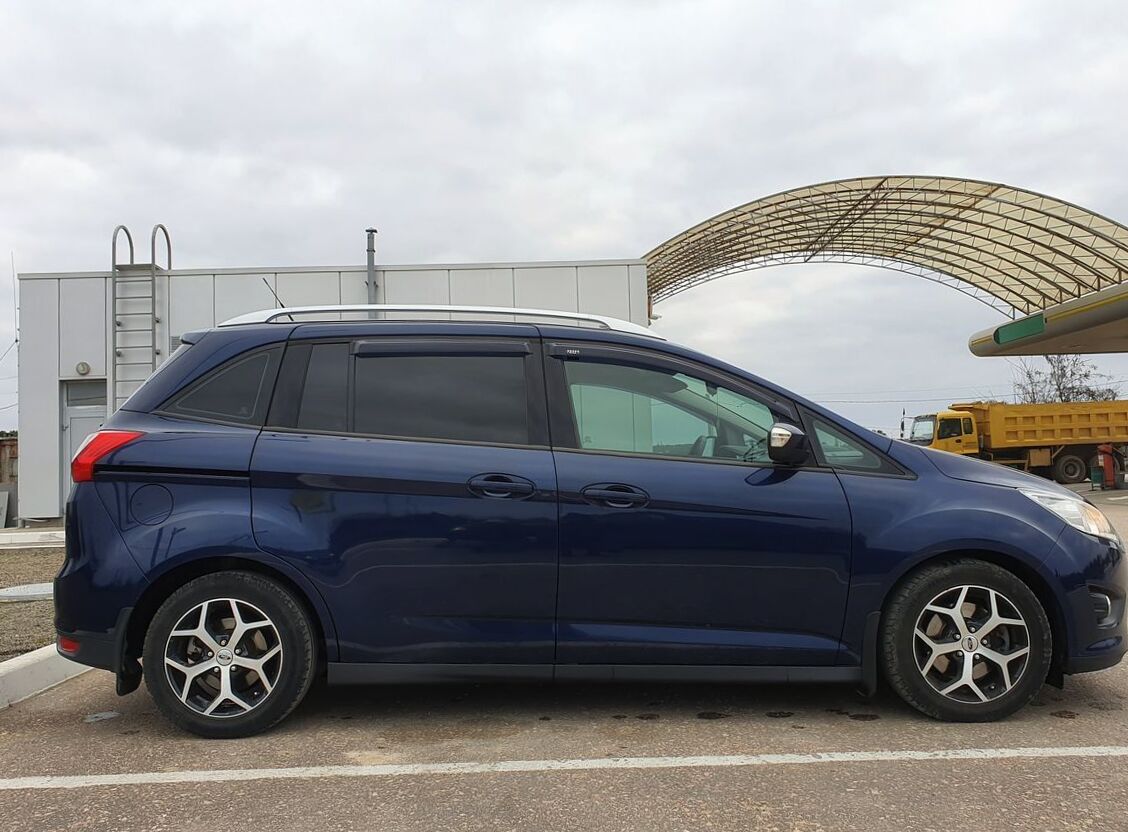

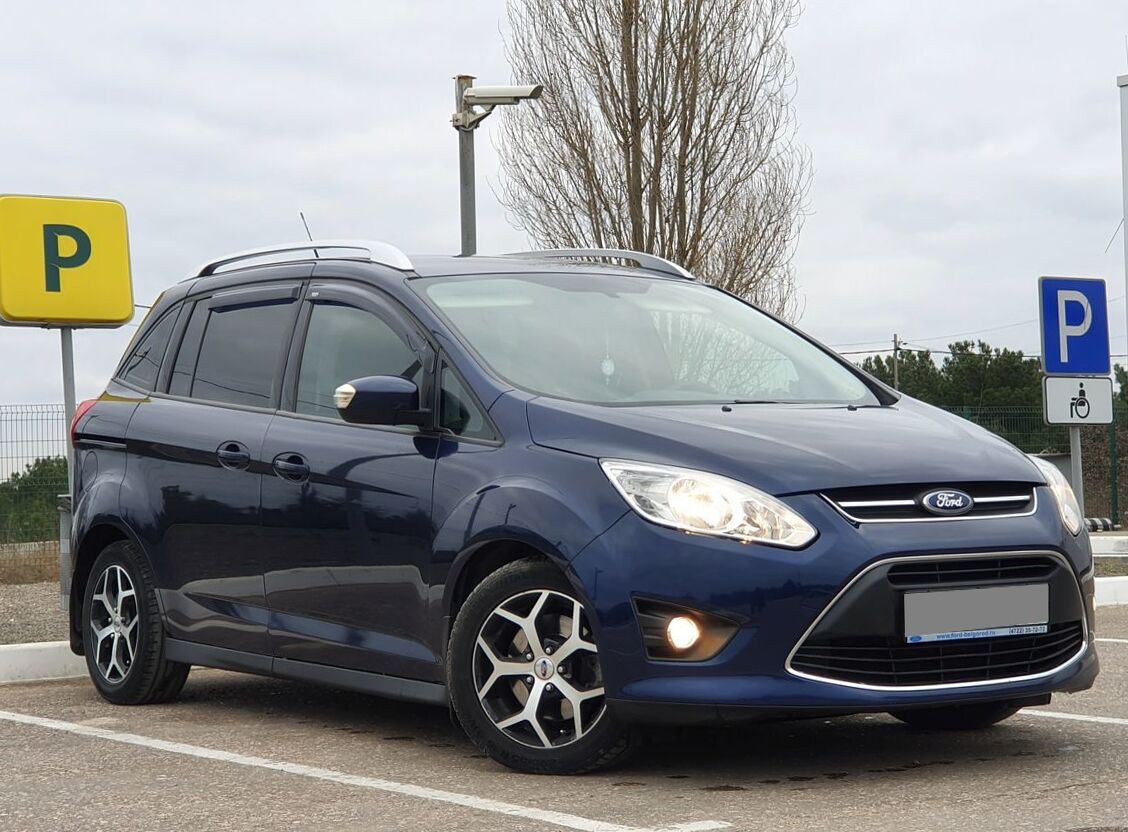

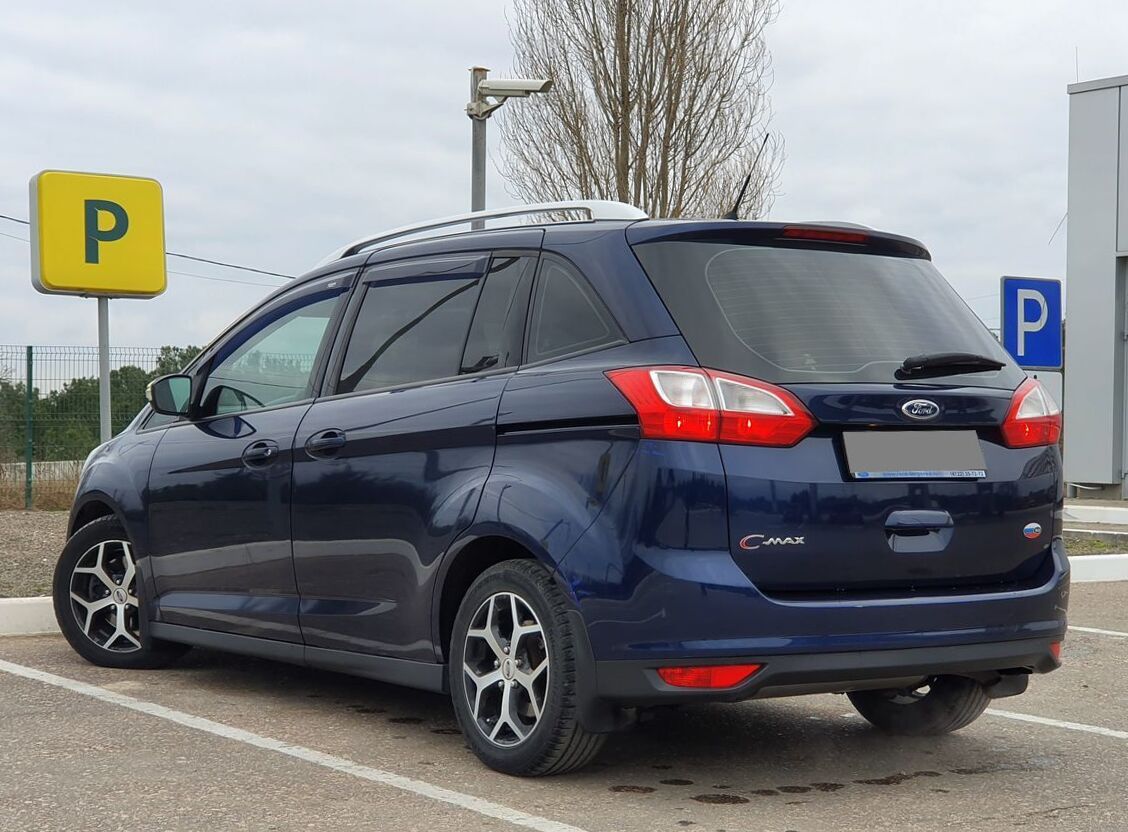

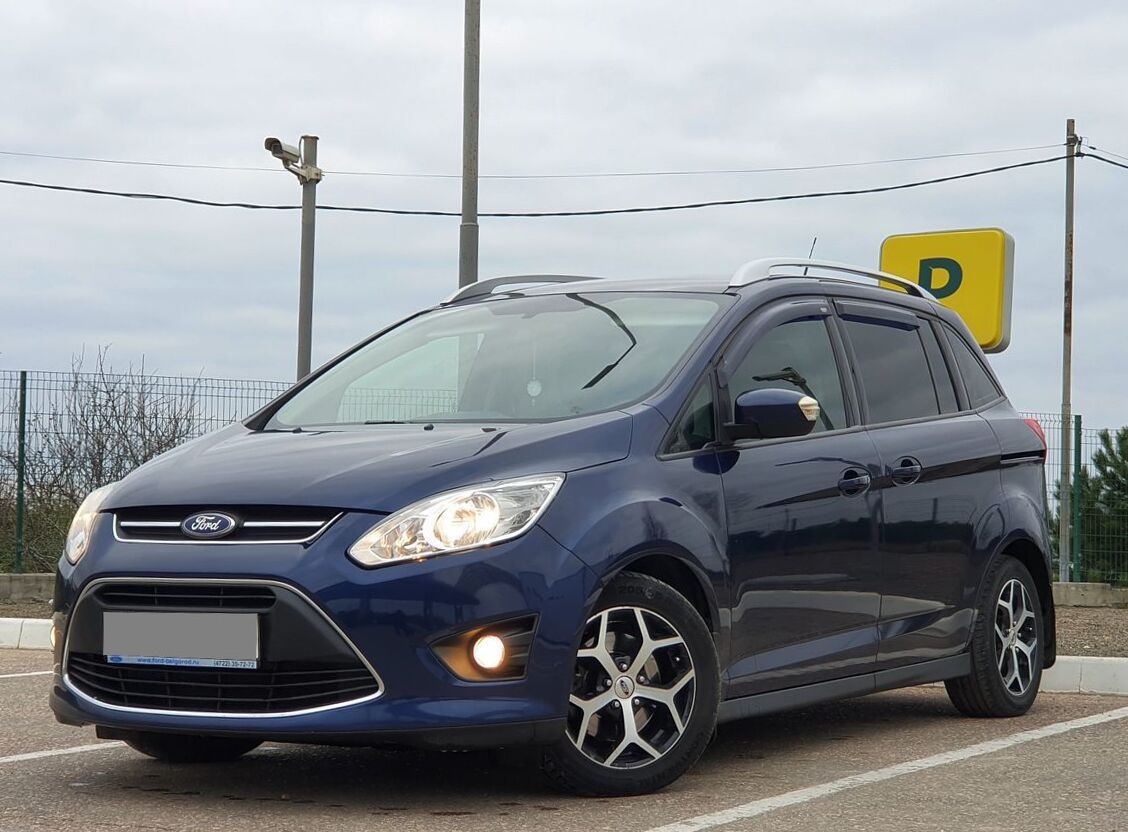

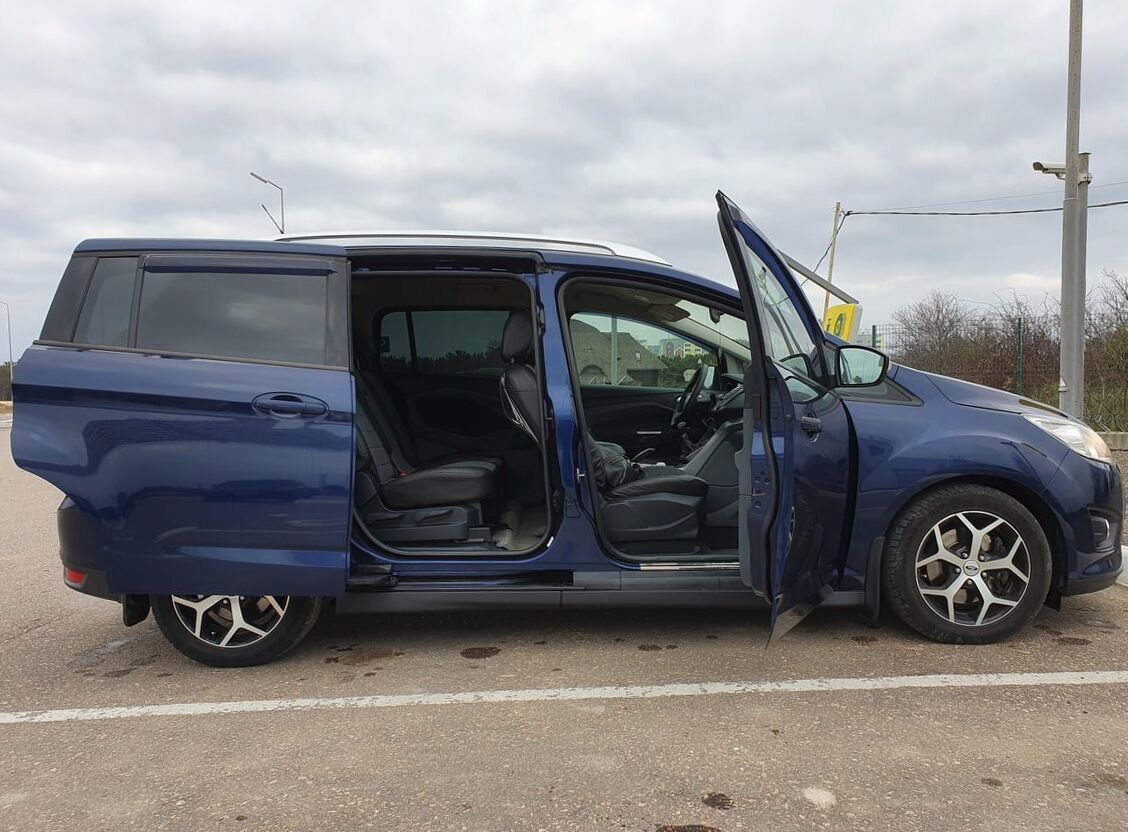

2012 Ford C-MAX II 1.6 MT Champions Edition
| Body type | Minivan |
|---|---|
| Power | 125 Hp |
| Engine Displacement | 1600 cm3 or 1.6L or 97.6 cu-in |
| Color | blue |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 52816 Miles |

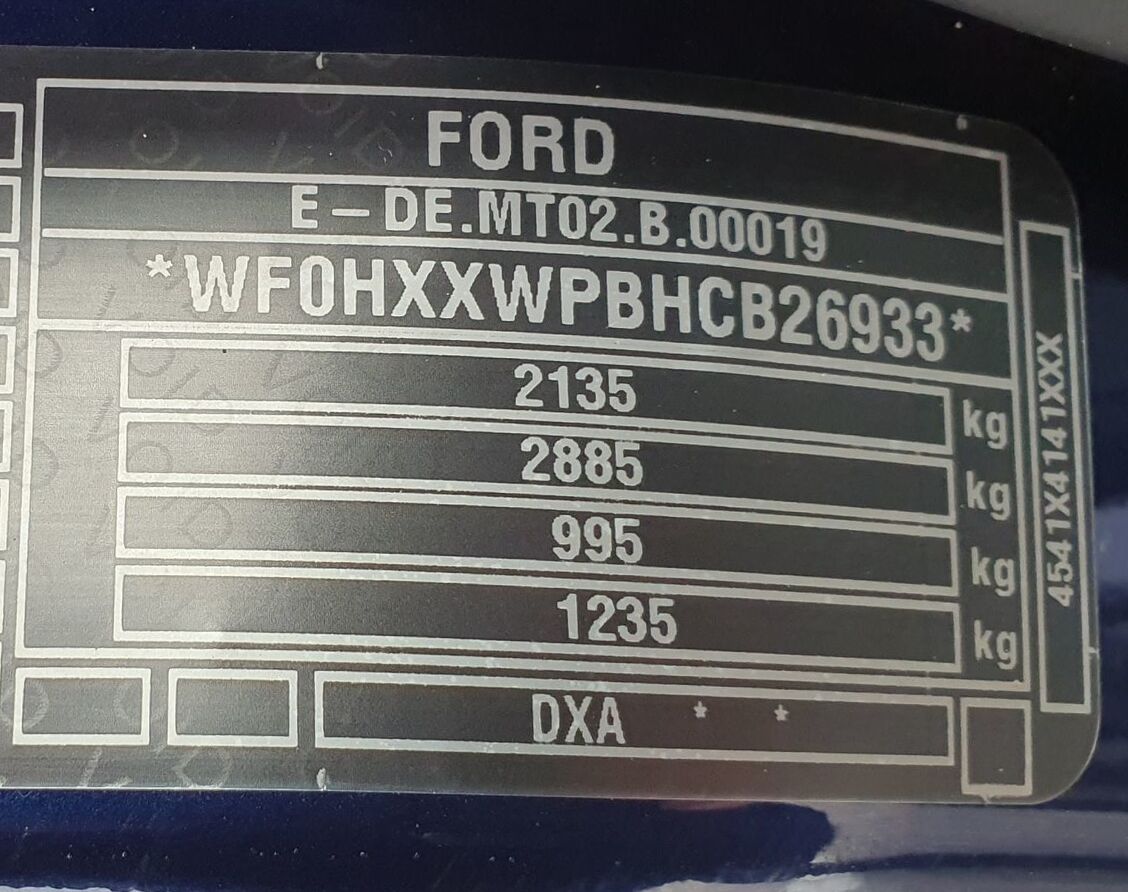

| Vin | WF0HXXWPBHC****33 |
| Price (out of date) | $8169 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2012 Ford C-MAX II? | Minivan, 5 Seats, 5 Doors |
| What is the fuel economy, Ford C-MAX Minivan 2012? | 6.6 l/100 km |
| How fast is the car, Ford C-MAX C344 2012? | 188 km/h, 0-100 km/h: 11.5 sec |
| How much power, 2012 Ford C-MAX 1.6 MT Champions Edition? | 125 Hp |
| What is the engine size, Ford C-MAX II 2012 Minivan 1.6 MT Champions Edition (125 Hp)? | 1.6L or 1596cm3 |
| How many gears, What type is the gearbox, 2012 Ford C-MAX Minivan 1.6 MT Champions Edition (125 Hp)? | 5 speed Manual |
| What is the drivetrain, 2012 Ford C-MAX II? | Front |
| How long is this vehicle, Ford C-MAX Minivan 2012? | 4380 mm |
| How wide is the vehicle, Ford C-MAX C344 2012? | 1828 mm |
| What is the gross weigh, 2012 Ford C-MAX 1.6 MT Champions Edition? | 1860 kg |
| How much trunk (boot) space, Ford C-MAX II 2012 Minivan 1.6 MT Champions Edition (125 Hp)? | 471 l |
Ford C-MAX II C344 1.6 MT Champions Edition (125 Hp) 2012, 2013 Specs
General information | |
|---|---|
| Complectation name | 1.6 MT Champions Edition |
| Production start year | 2012 |
| Production end year | 2013 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1596 |
| Frame name | C344 |
| 0 to 100 time | 11.5 |
| Max speed | 188 |
| Clearance, mm | 130 |
| Manufacturing country | Spain |
| Doors | 5 |
Vehicle generation | |
| Generation name | Mk2 |
| Generation number | 2 |
| Production start year | 2010 |
| Production end year | 2015 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | PNDA |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 125 |
| Max power RPM, rpm | 6300 |
| Max power, hp (kWt) / rpm | 125 (92) / 6300 |
| Max torque, N*m | 159 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 159 (16) / 4000 |
| Valves per cylinder | 4 |
| Compression ratio | 11 |
| Bore, mm | 79 |
| Stroke, mm | 81.4 |
| Engine additional info | DOHC, Ti-VCT |
| Eco type | Euro-5 |
| Start stop system | option |
Fuel consumption | |
| City | 8.7 |
| Country side | 5.3 |
| Combined | 6.6 |
| Co2 emission | 154 |
Transmission | |
| 1st gear ratio | 3.58 |
| 2nd gear ratio | 2.04 |
| 3rd gear ratio | 1.41 |
| 4th fear ratio | 1.11 |
| 5th gear ratio | 0.88 |
| Rear gear ratio | 3.61 |
| Main gear ratio | 4.07 |
Steering | |
| Power steering | no |
| Electric power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4380 |
| Exterior width, mm | 1828 |
| Exterior height, mm | 1626 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2648 |
| Turning radius, m | 5.7 |
| Wheel spacing front | 1559 |
| Wheel spacing rear | 1569 |
Weight and permissible load | |
| Mass, kg | 1375 |
| Max. weight | 1860 |
| Trailer max weight wobrakes | 685 |
| Trailer maxweight 12deg | 1000 |
Volumes | |
| Fuel tank capacity, l | 55 |

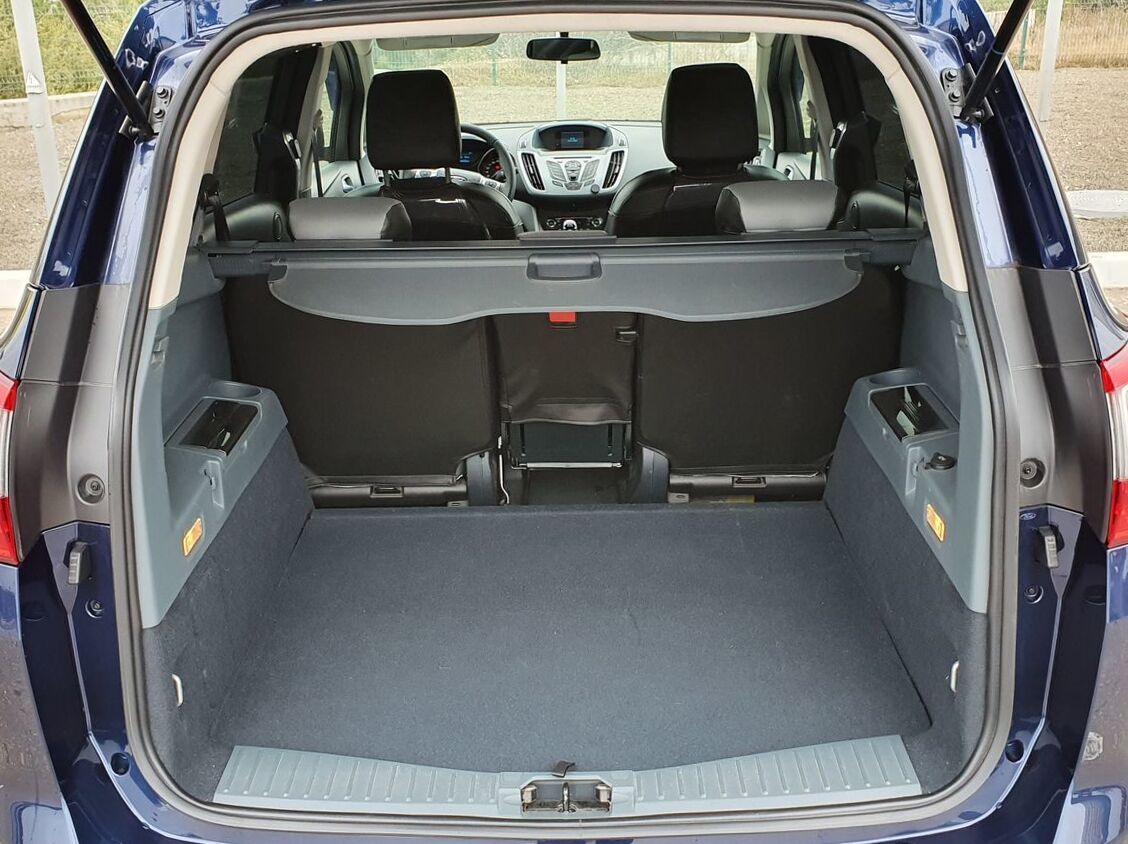

| Trunk volume | 471 |
Other | |
| Aerodynamic drag | 0.3 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, spring multi-link |
Wheel rims | |
| Aluminium wheel | yes |
| Front wheel disk | 16X7J |
| Rear wheel disk | 16X7J |
Tires | |
| Front wheels | 215/55 R16 |
| Rear wheels | 215/55 R16 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
Exterior | |

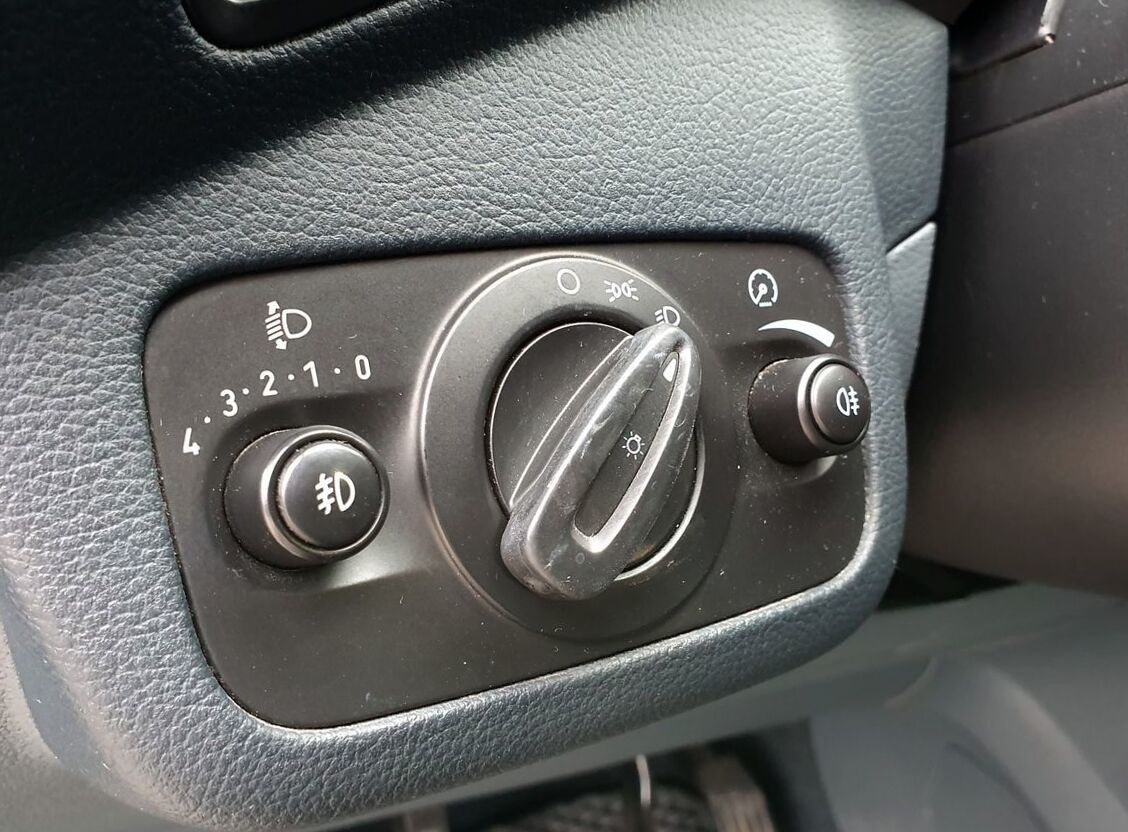

Headlights | |
| Halogen headlights | yes |
| Bixenon | option |
| Head lights washer | option |
| Front fog lamps | yes |
| Additional stop light | yes |
| Light sensor | option |
| Rain sensor | option |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Door handles in body color | yes |
| Power rear door | option |
Roof | |
| Tilt sunroof | option |
Accessories | |
| Rear spoiler | yes |
| Bumpers | painted in body color |
Body color | |
| Metallic paint Body | option |

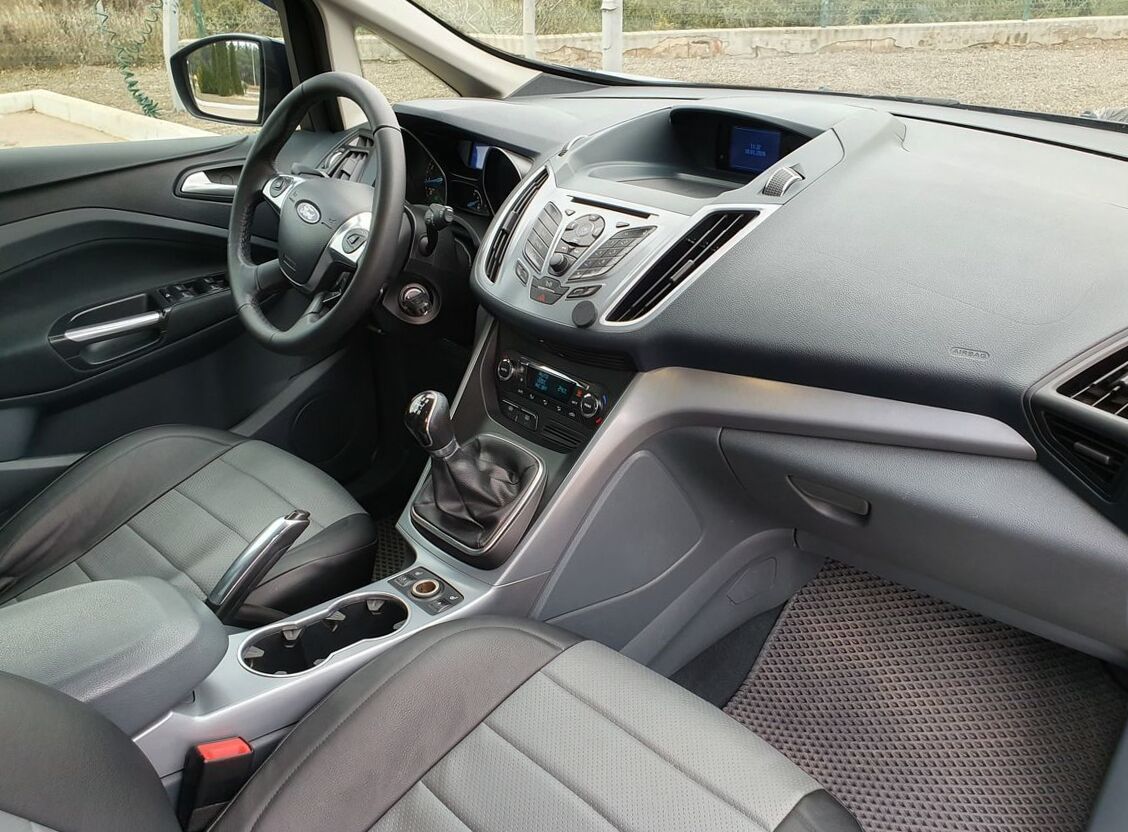

Interior | |

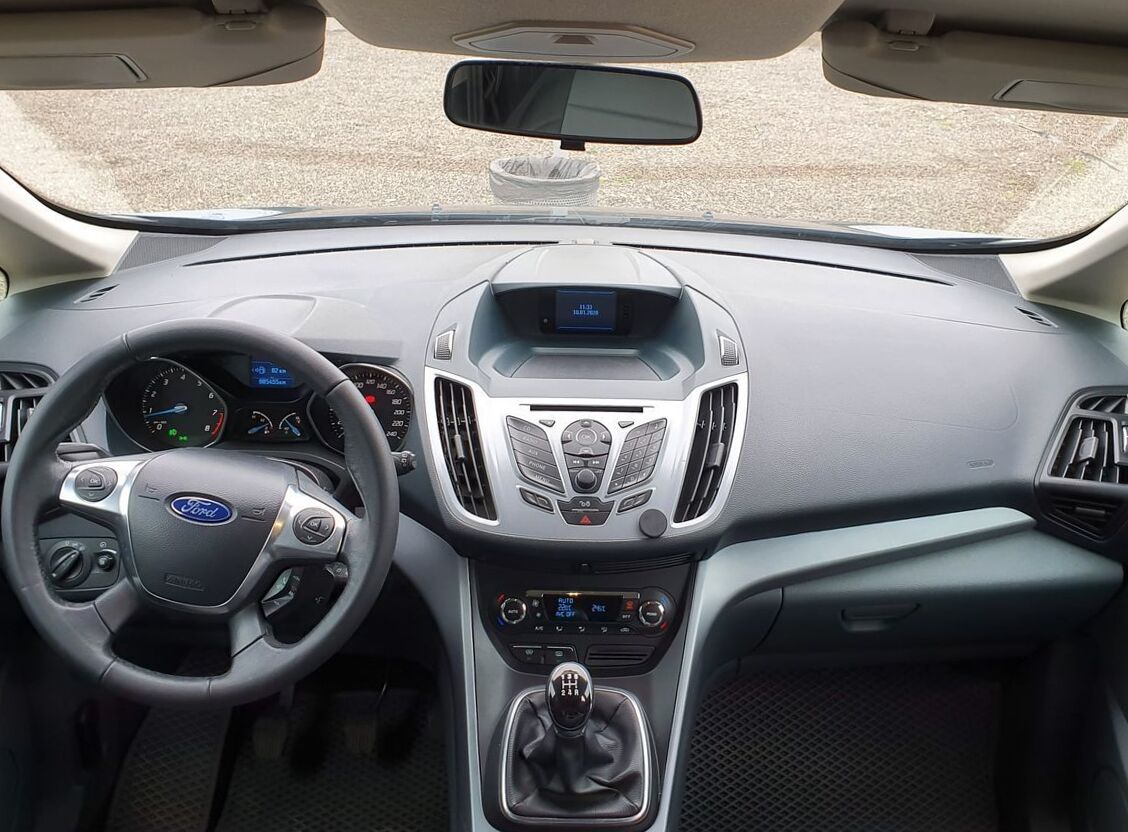

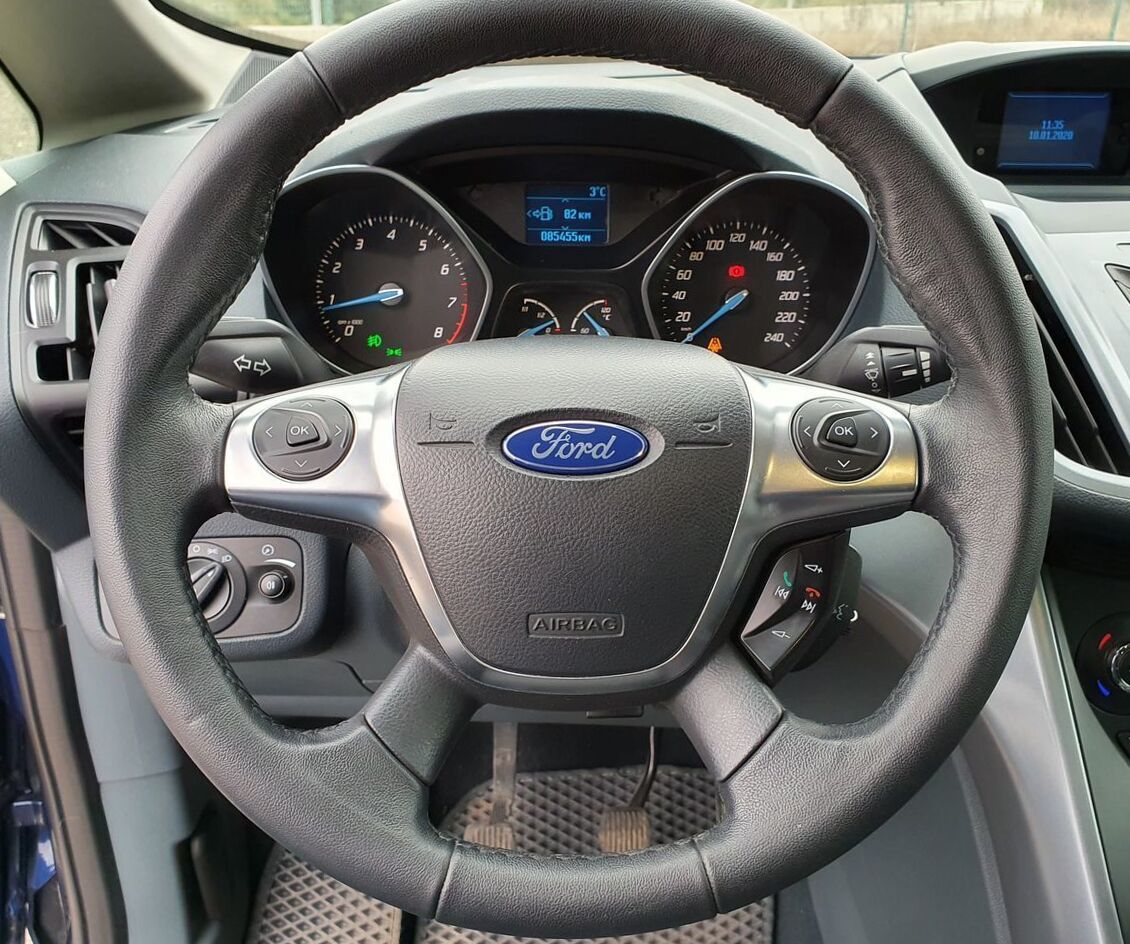

Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | no |
| Env temp | yes |
| Engine start button | no |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | no |
| Combined obivka Salon | no |

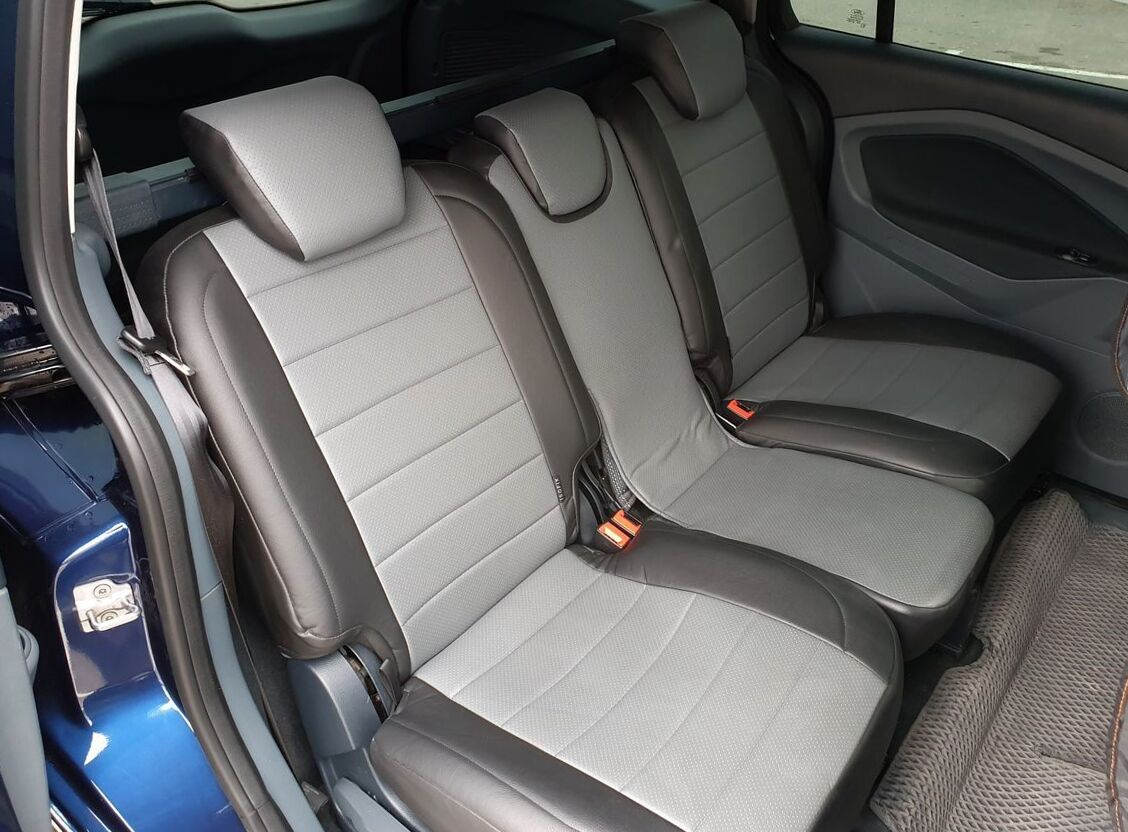

Seats | |
| Bucket seat | no |
| Front seats ajust | driver's and front passenger's seats are height-adjustable |
| Loin reliance | yes |
| Separating armrest front | yes |
| Seats pockets | yes |
Electric interior package | |
| Power adjustable driver seat | option |
| Power ajustable front seat | no |
| Front seat heater | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | no |

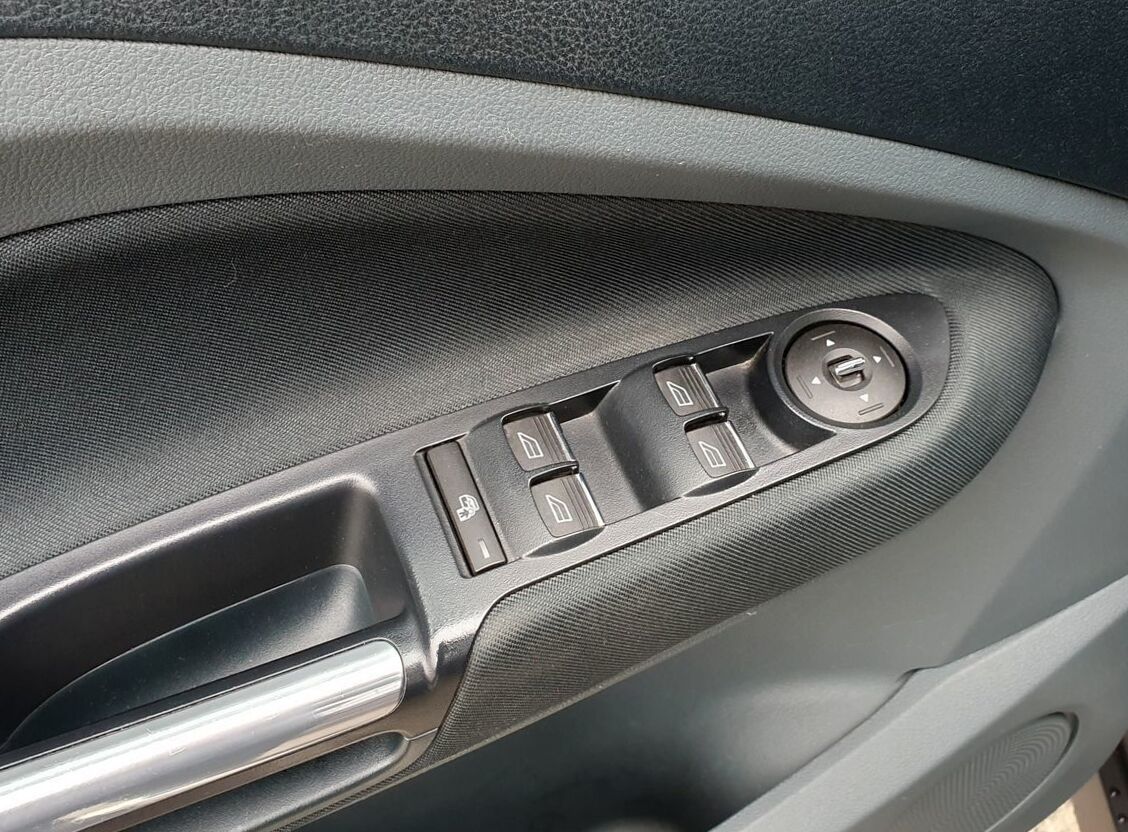

| Power window front | yes |
| Power window rear | yes |
| Injectors heat | option |
Additional interior equipment | |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | no |
| Cruise control | option |
| Function "Take me home" | option |
| Dynamic cornering light | option |
| Blind zone monitoring | no |
| System tire pressure monitoring | yes |
| Front sonar | yes |
| Rear sonars | yes |
| Intelligent parking assist | yes |

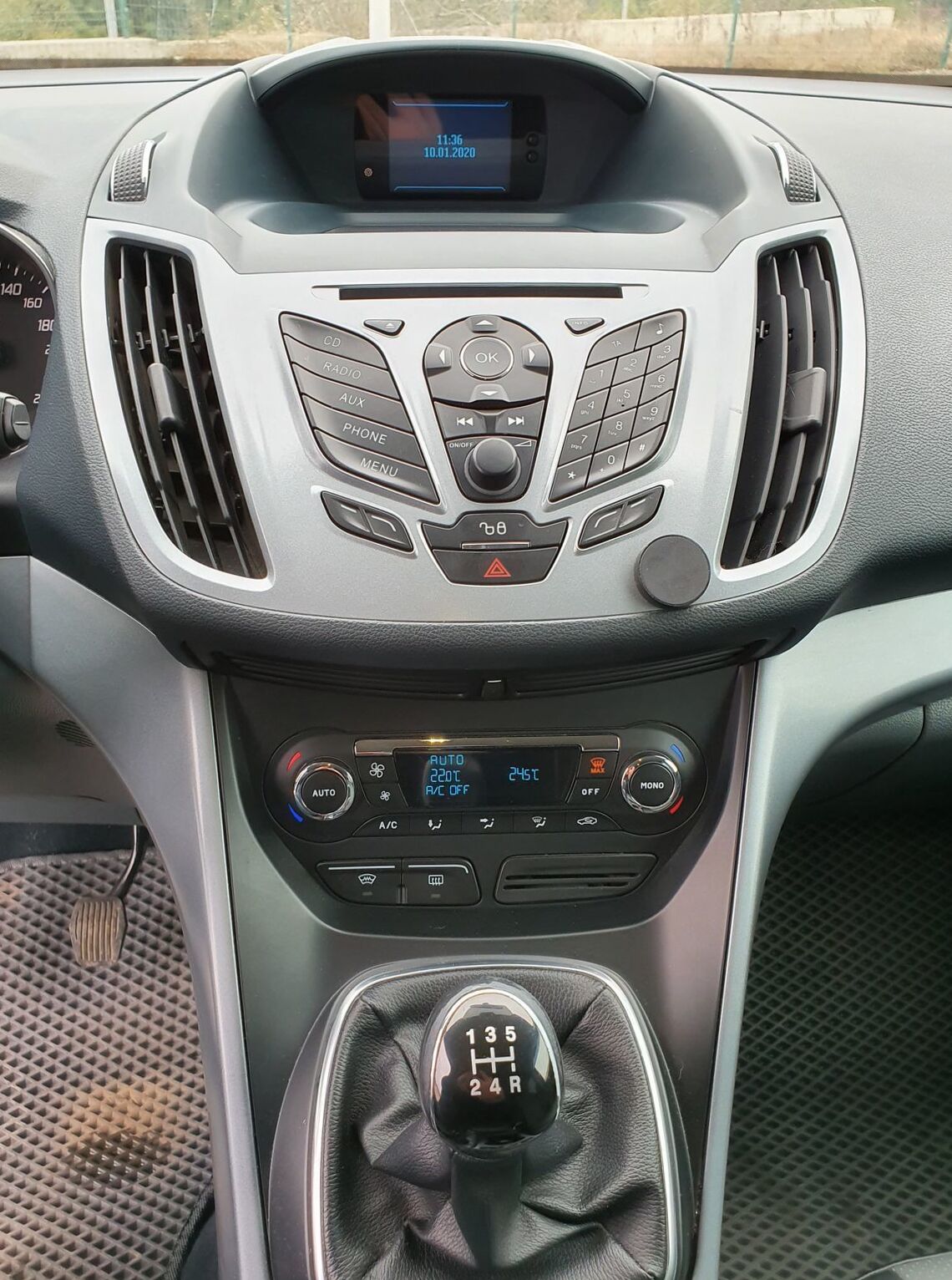

Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | option |
| Part climat equipment | 2 zones (optional) |
Audio systems | |
| Radio | yes |
| CD player | yes |
| MP3 Support | yes |
| Hands free | yes |
| Additional sound equipment | 6 speakers, USB |
Navigation and video equipment | |
| Full color LCD display | 3.5" |
| Navigation system | option |
| Back monitor | option |
Additional amenities | |
| Antidazzle rearview mirror | option |
| Mirrors in sunshields | yes |
| Blind in luggage compartment | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
| Security alarm | option |
2012 Ford C-MAX II C344 1.6 MT Champions Edition (125 Hp) specs
|
In December 2006, the facelifted version of the C-Max was revealed at the 2006 Bologna Motor Show and went on sale in late spring 2007. The facelift brought the car in line with Ford's 'Kinetic Design' design language, evidenced through its twin trapezoidal grilles, large wheelarches and angular headlights. However, as the car does not have a bodyshell originally designed for 'Kinetic Design,' Ford officially states that the car contains only 'elements' of the design language. It seats five passengers and has a large amount of cargo space, which can be increased by folding the rear seats flat. Some models feature diagonally sliding outer rear seats. It also shares the control blade independent rear suspension from the Focus. The available engines are the same as the Focus — the petrol versions are the 1.6L, 1.8L and 2.0L aluminium Duratec, and the 1.8L Duratec Flexifuel, which runs on E85 bioethanol or petrol, while the diesel engines are the PSA-developed Duratorq 66kW (90hp) and 85kW (109hp) 1.6 (1560cc)L, Ford's own Lynx Duratorq 1.8L 85kW (115hp), and the PSA-designed 100kW (136hp) 2.0L. » Read More About Ford C-MAX |
