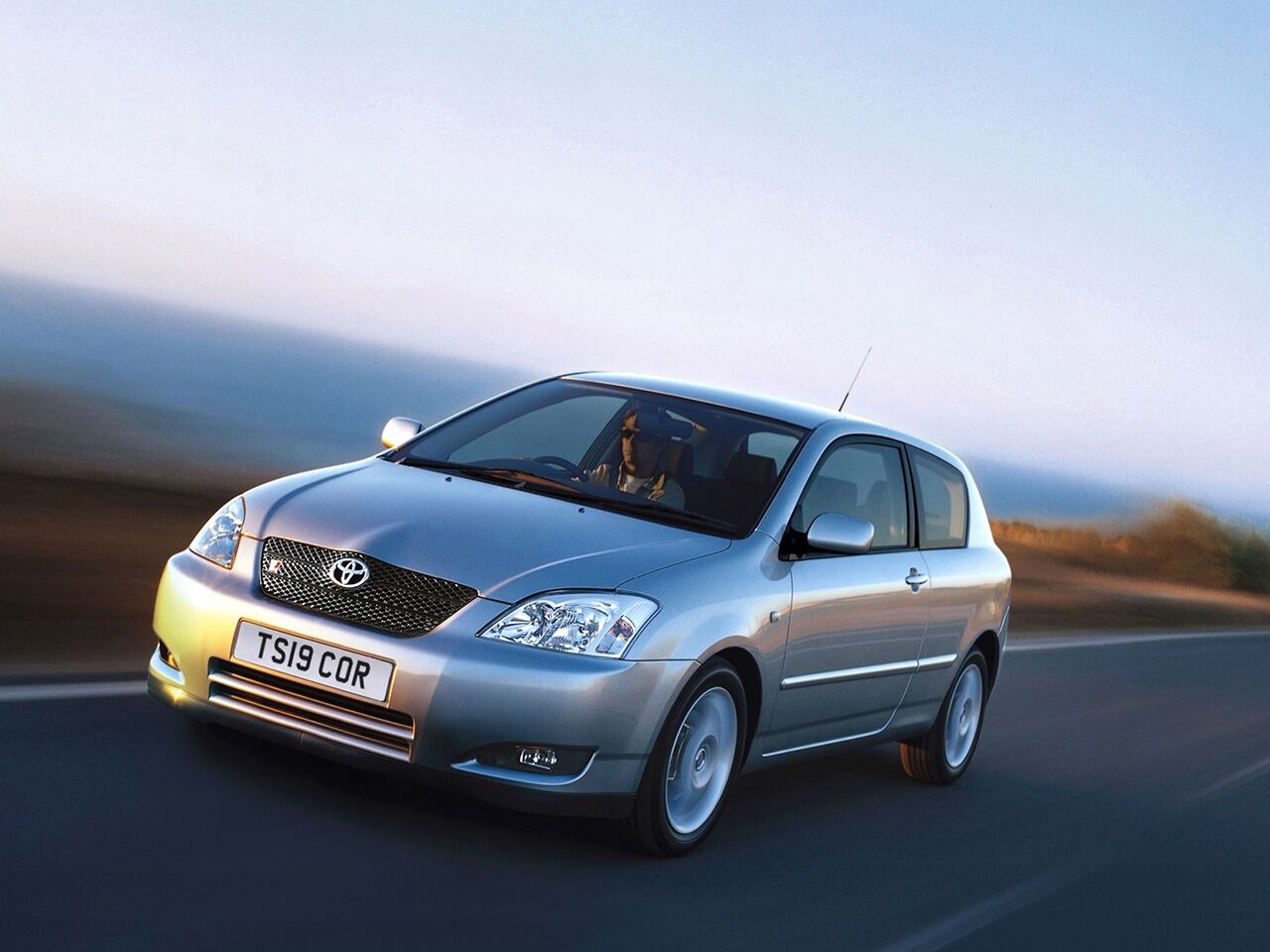

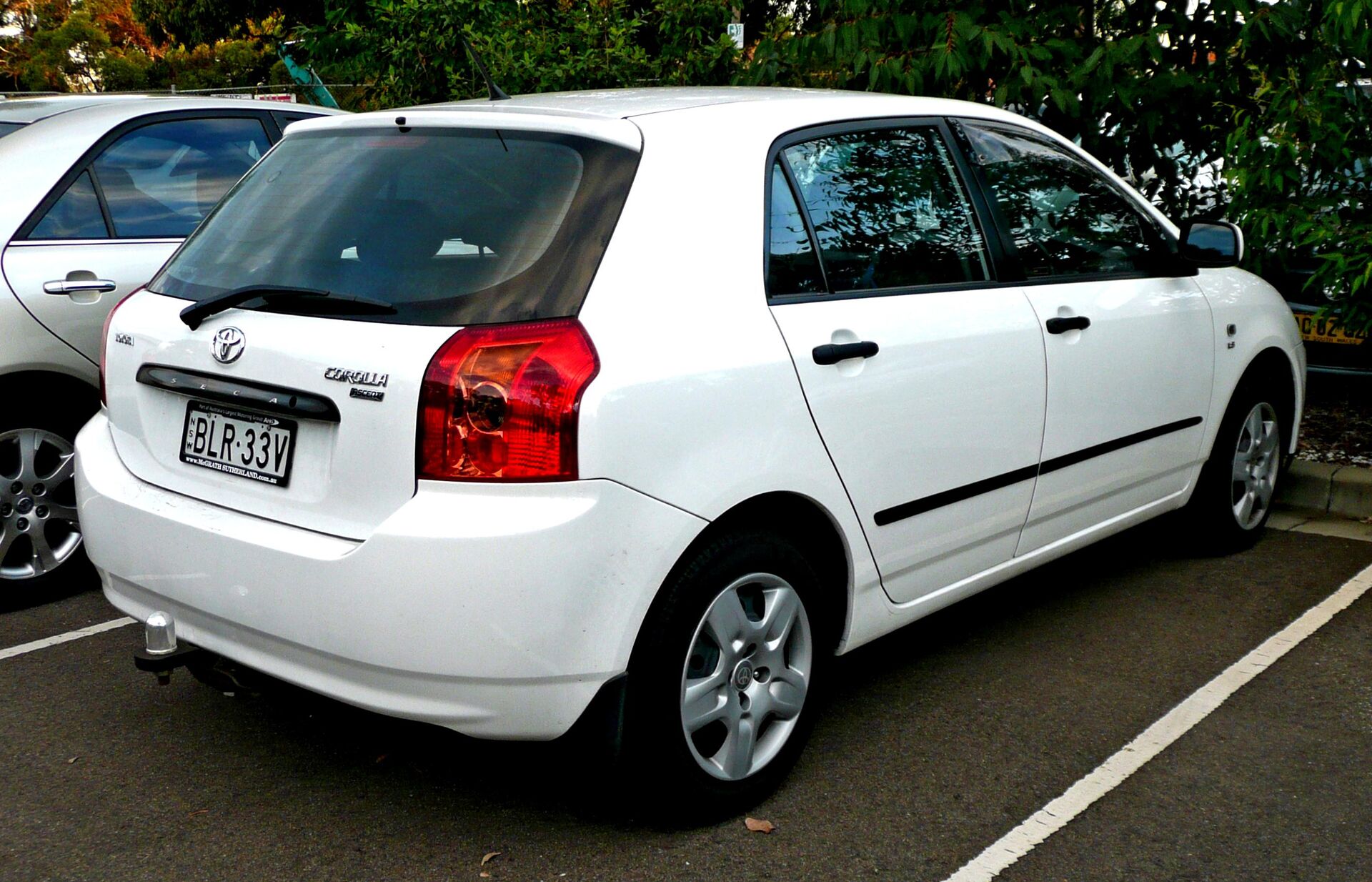

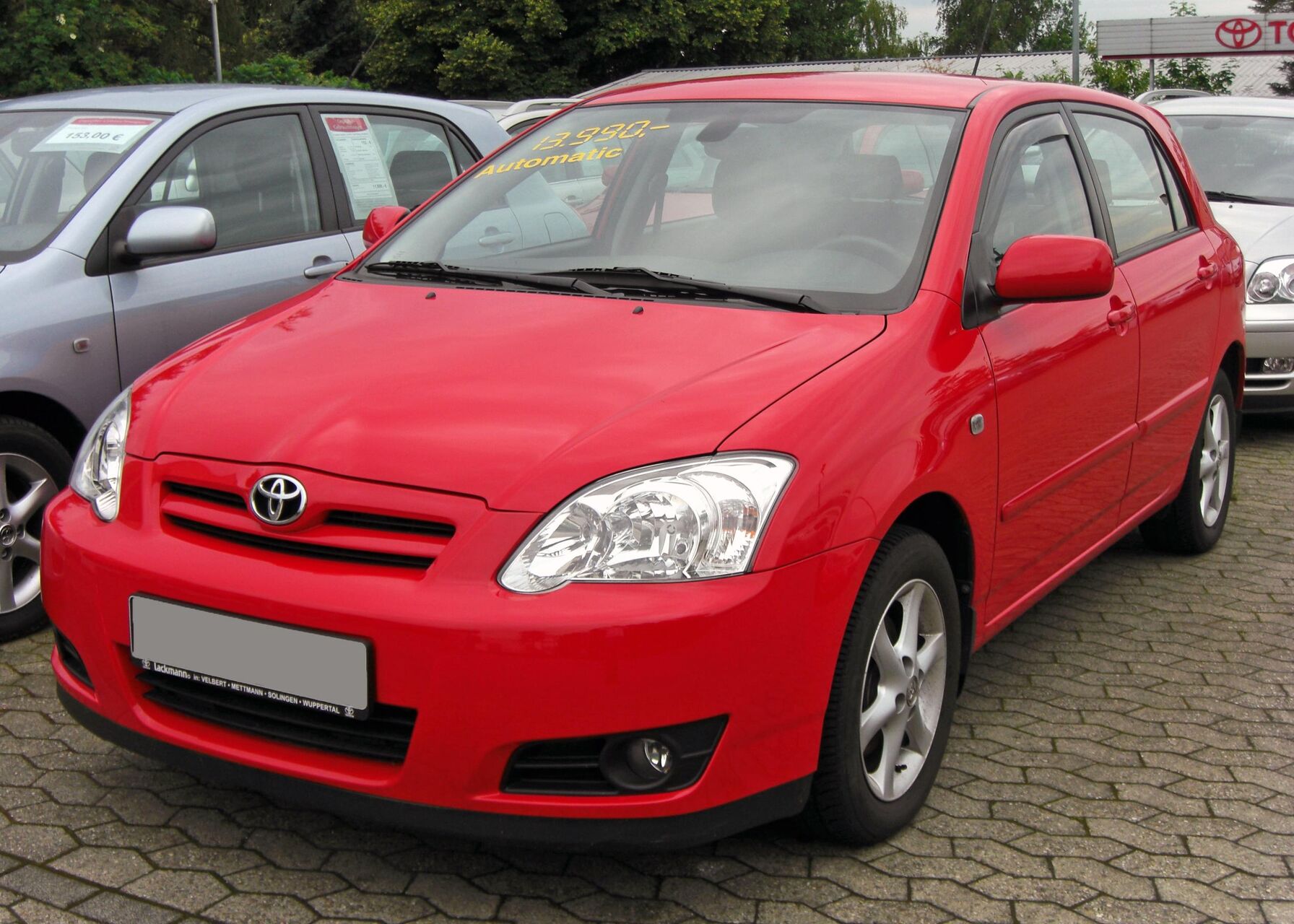

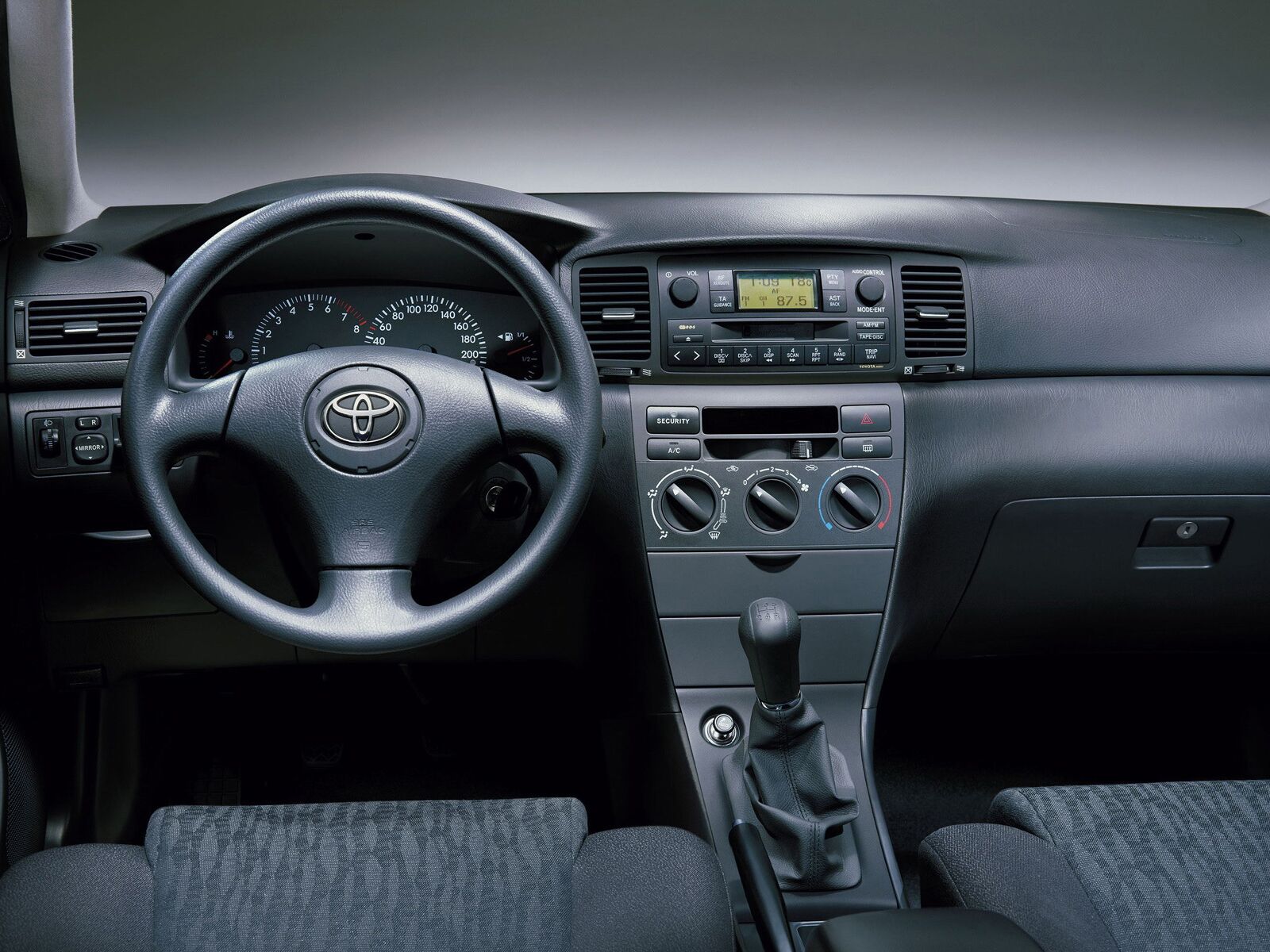

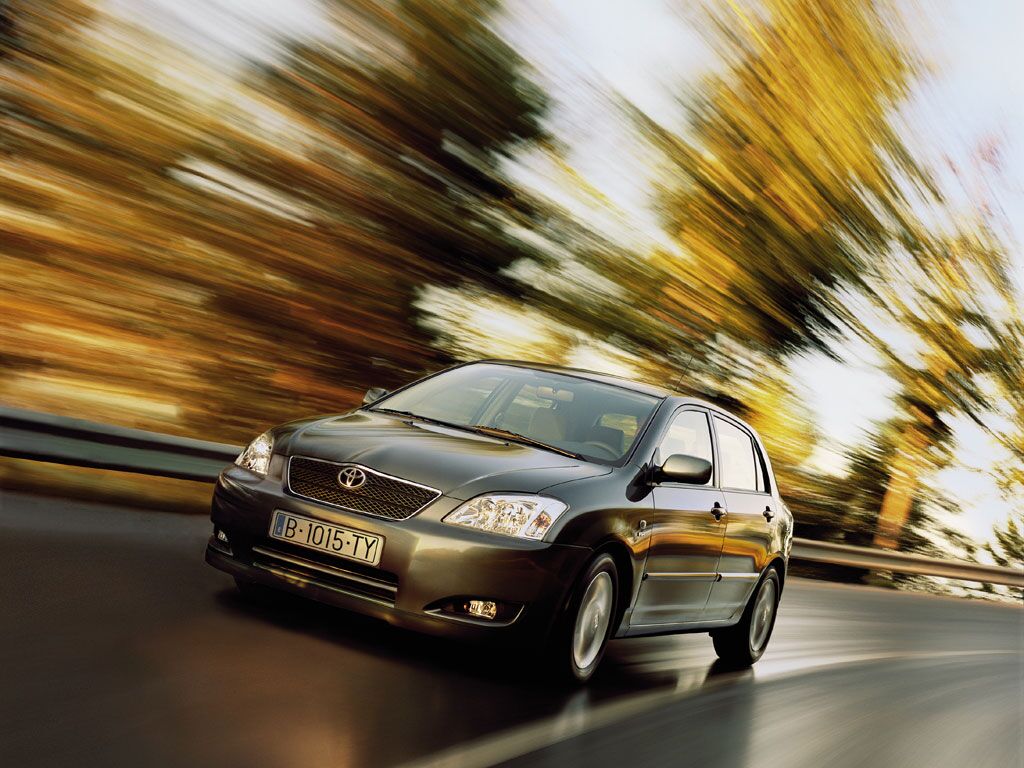

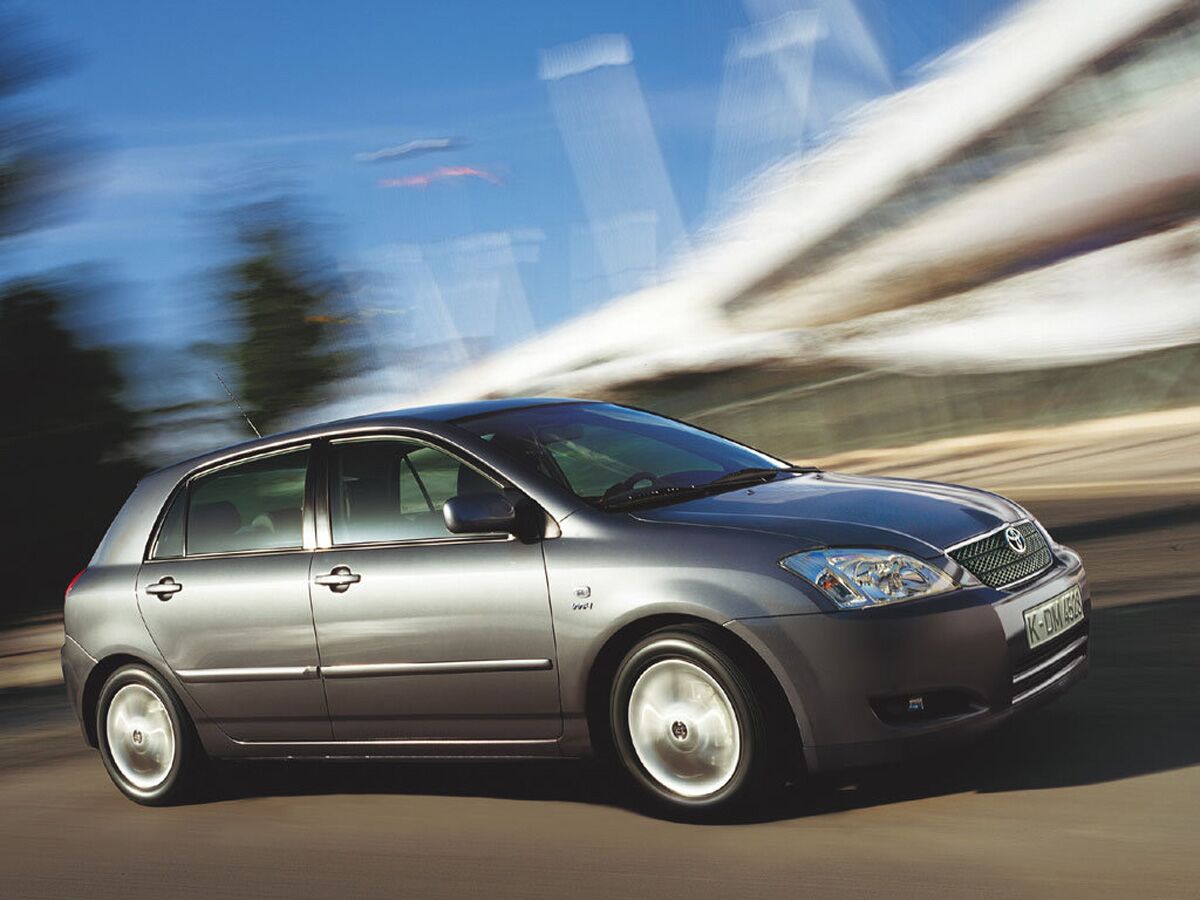

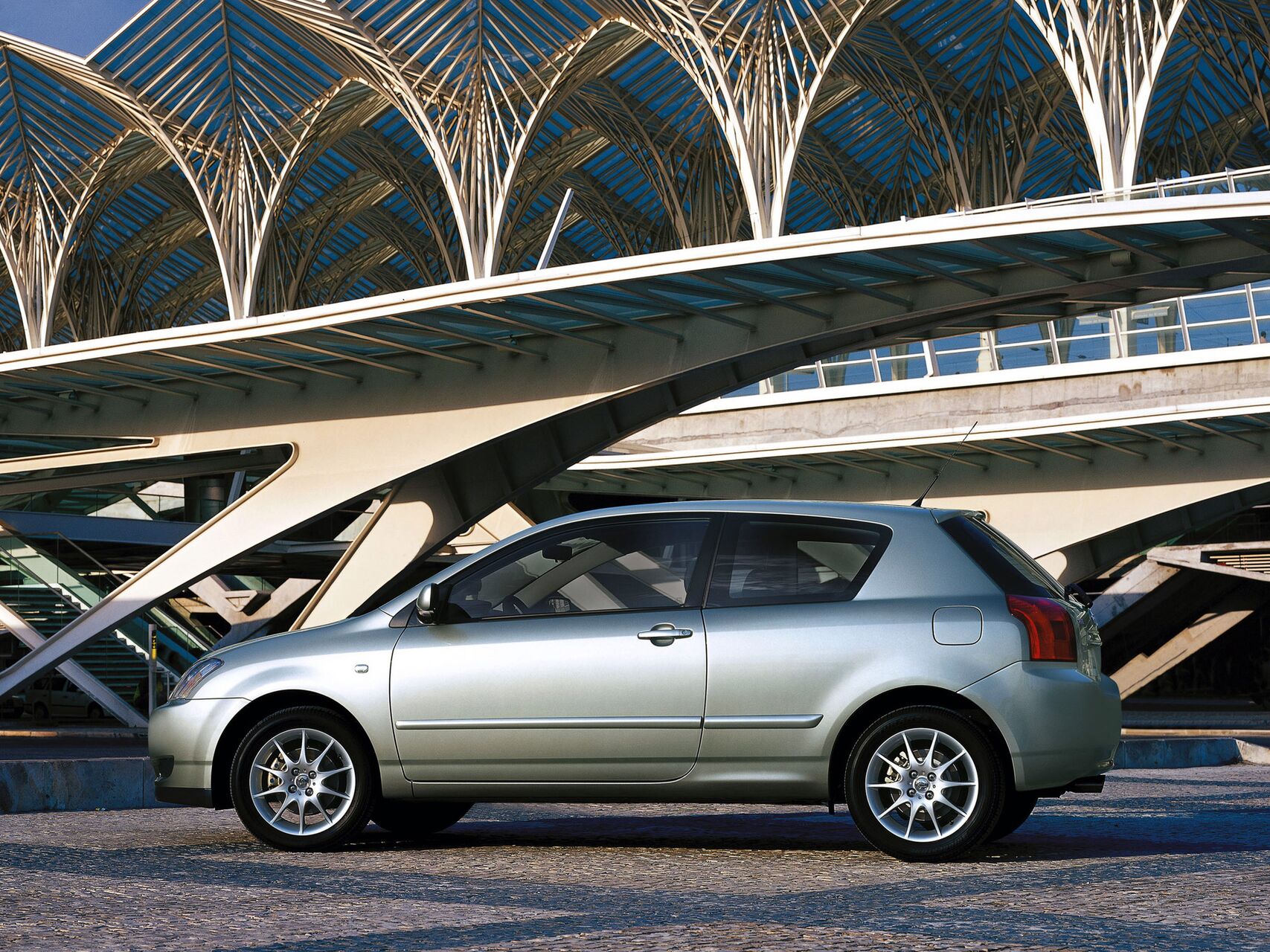

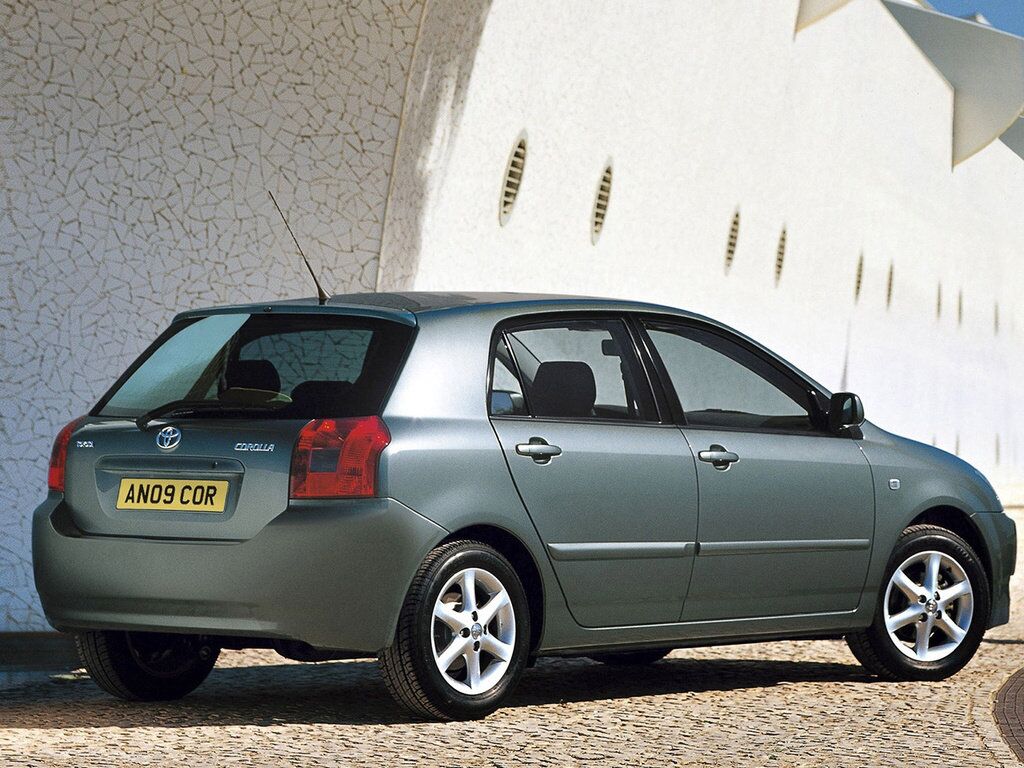

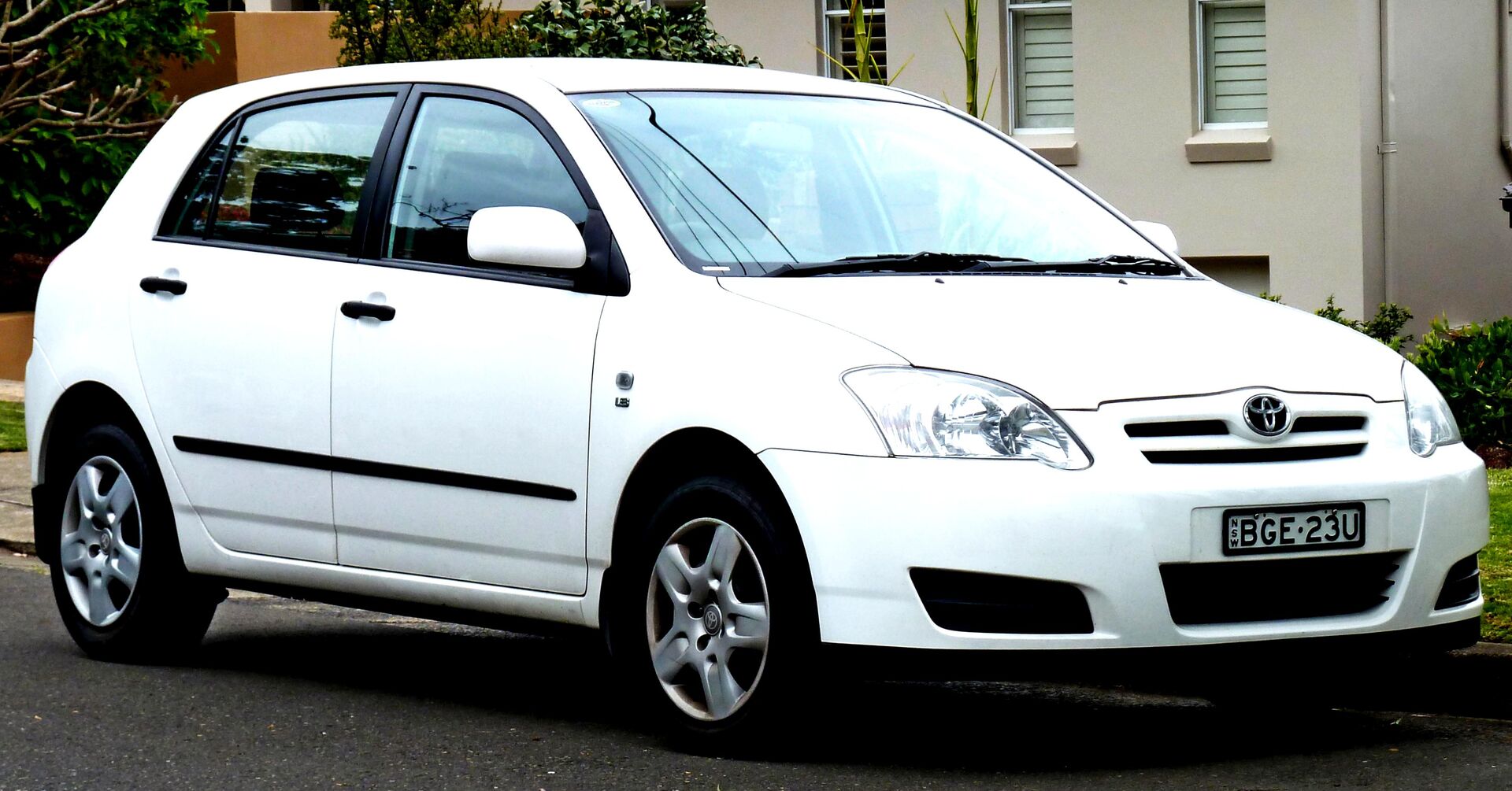

Toyota Corolla Hatch IX (E120, E130) 2.0 D-4D (110 Hp) Specs
Toyota Corolla Hatch IX (E120, E130) 2.0 D-4D (110 Hp) has been in production since 2001 - 2006. Cars comes in Hatchback body types and can be suited with Diesel engine types with a volume of 2L liters, engines produces a power of 110 Hp. Fuel consumption of Toyota Corolla Hatch IX (E120, E130) 2.0 D-4D (110 Hp) is 7.3 l/100 km. The overall dimensions of the car are 4180x1710x1475 mm, and the weight is from 1290 kg.
General data Generation Corolla Hatch IX (E120, E130) Modification 2.0 D-4D (110 Hp) Start of production 2001 year End of production 2006 year Powertrain Architecture Internal Combustion engine Body type Hatchback Seats 5 Doors 3-5 Fuel Type Diesel Model 1CD-FTV Fuel consumption (economy), emissions Fuel consumption - urban 7.3 l/100 km Fuel consumption - extra urban 4.7 l/100 km Performance specs Acceleration 0 - 100 km/h (0 - 62 mph) 10.9 sec Maximum speed 189 km/h Weight-to-power ratio 11.7 kg/Hp, 85.3 Hp/tonne Engine technical data Power 110 Hp @ 4000 rpm. Power per litre 55.1 Hp/l Torque 250 Nm @ 2000 rpm. Engine location Front, Transverse Engine displacement 1995 cm3 Number of cylinders 4 Position of cylinders Inline Cylinder Bore 82.2 mm Piston Stroke 94 mm Compression ratio 18.6 Number of valves per cylinder 4 Fuel System Diesel Commonrail Engine aspiration Turbocharger Valvetrain OHC Engine oil capacity 5.9 l Coolant 7.6 l Suspension and brakes specs Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle. Drive wheel Front wheel drive Number of Gears (manual transmission) 5 Front suspension Spring Strut Rear suspension Helical spring Front brakes Ventilated discs Rear brakes Disc Assisting systems ABS (Anti-lock braking system) Steering type Steering rack and pinion Tires size 195/60 R15 Dimensions Length 4180 mm Width 1710 mm Height 1475 mm Wheelbase 2600 mm Front track 1490 mm Rear (Back) track 1470 mm Weights, volume and space Kerb Weight 1290 kg Max. weight 1780 kg Max load 490 kg Trunk (boot) space - minimum 289 l Trunk (boot) space - maximum 960 l Fuel tank capacity 55 l
