1996 Toyota Mega Cruiser 4.1DT

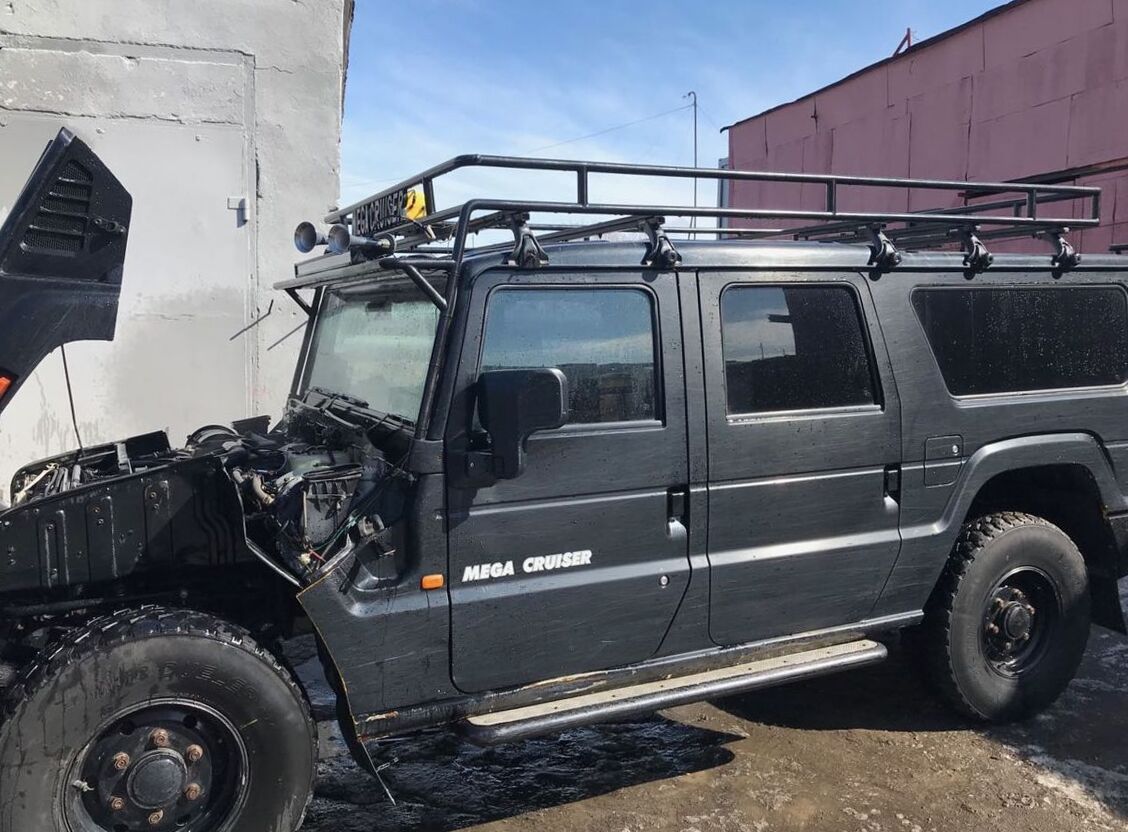

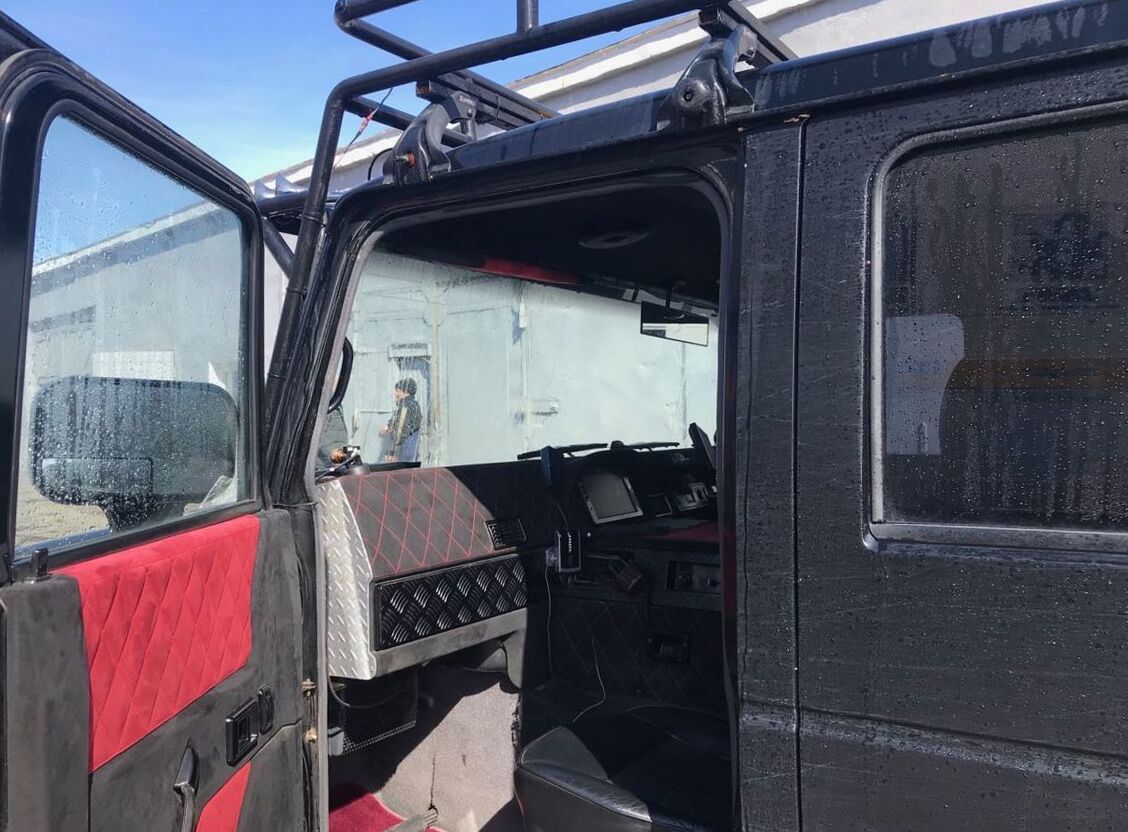

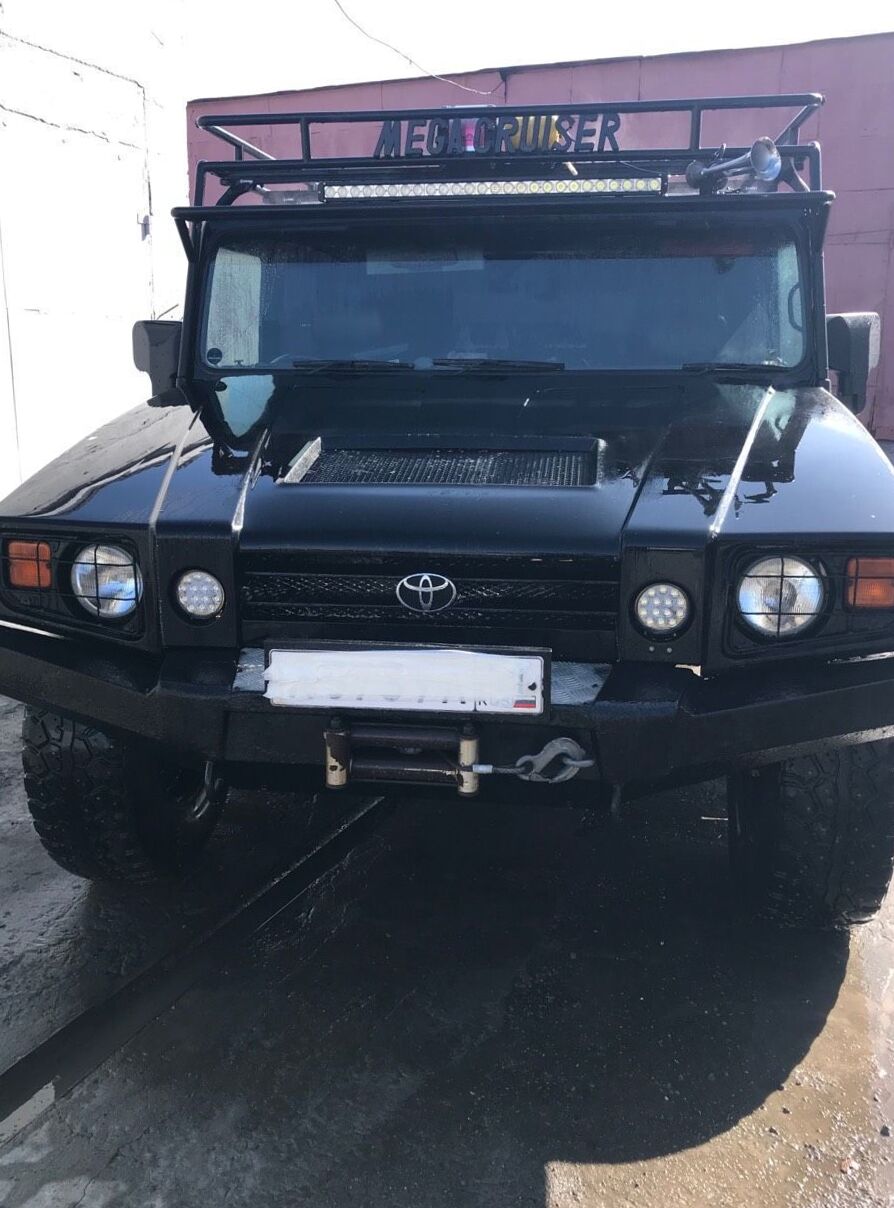

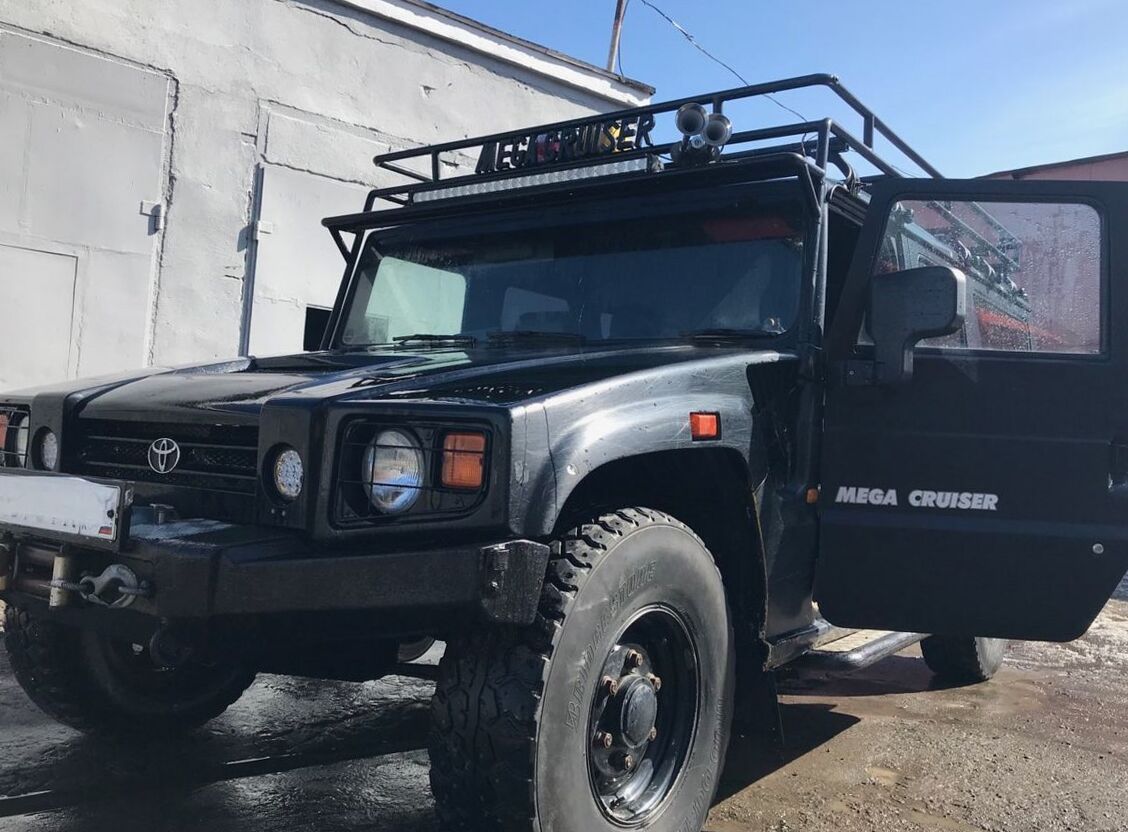

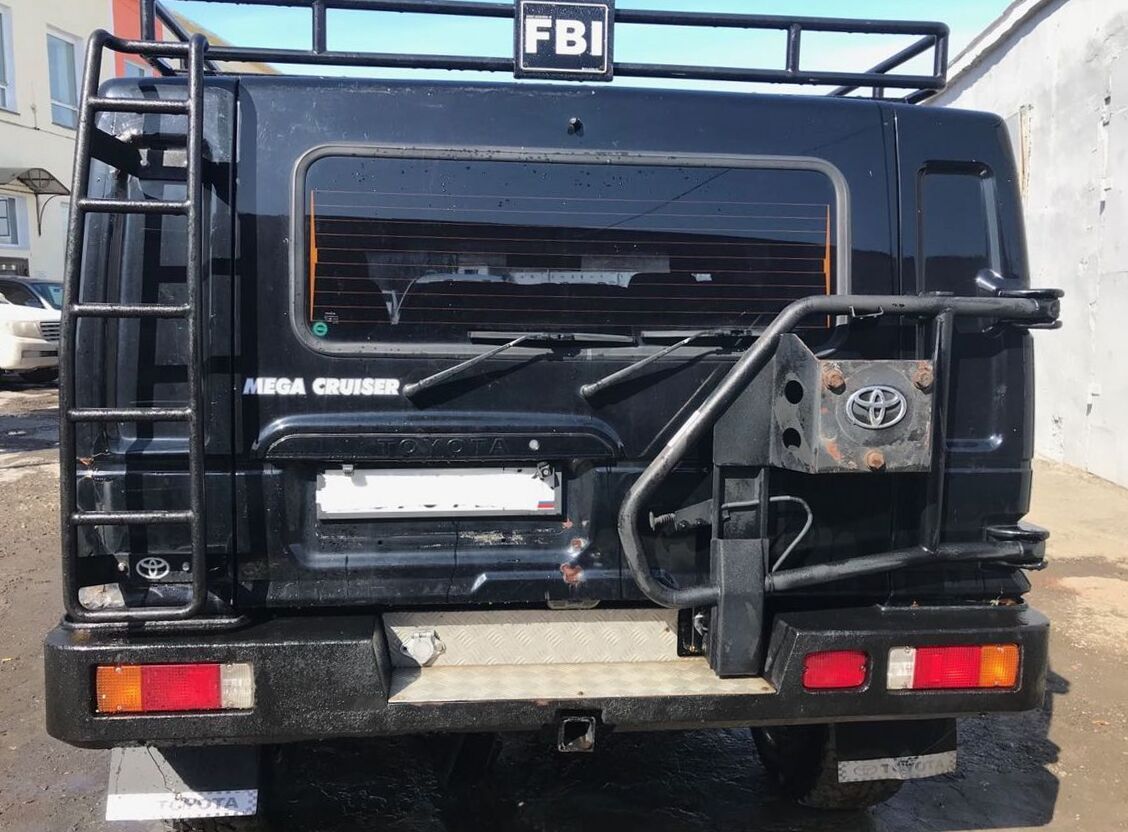

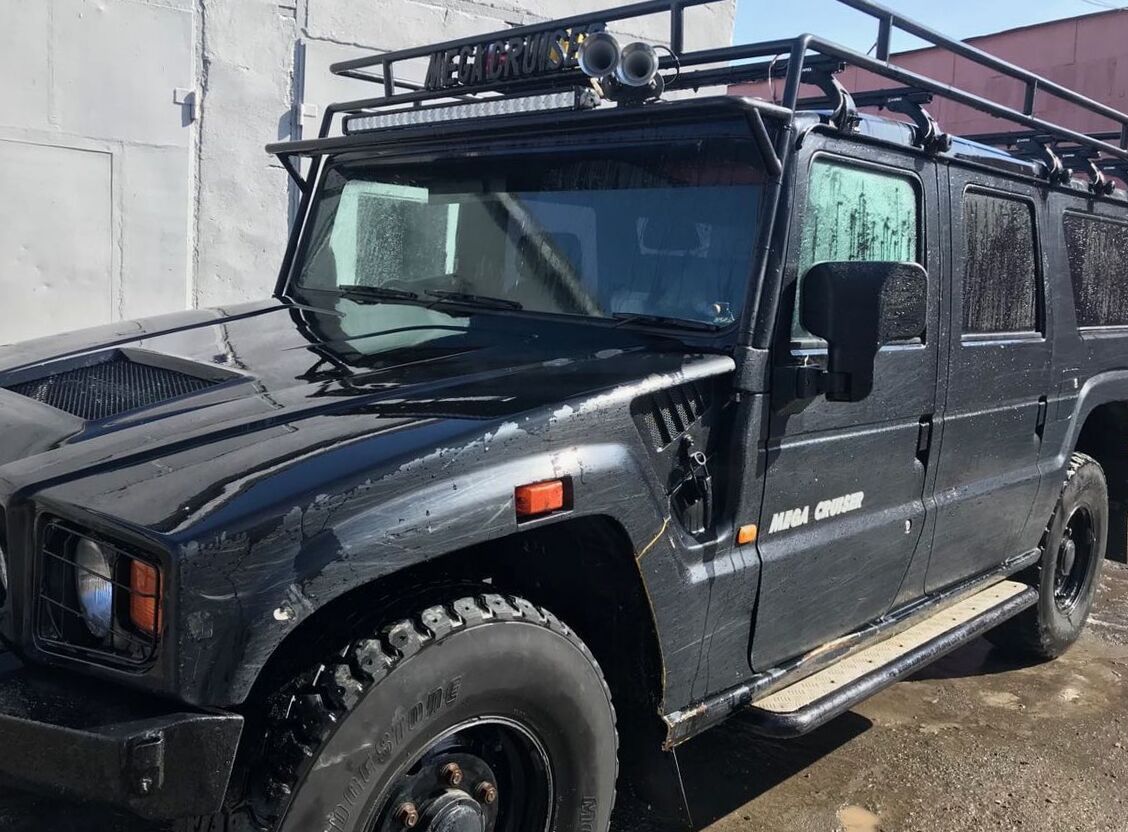

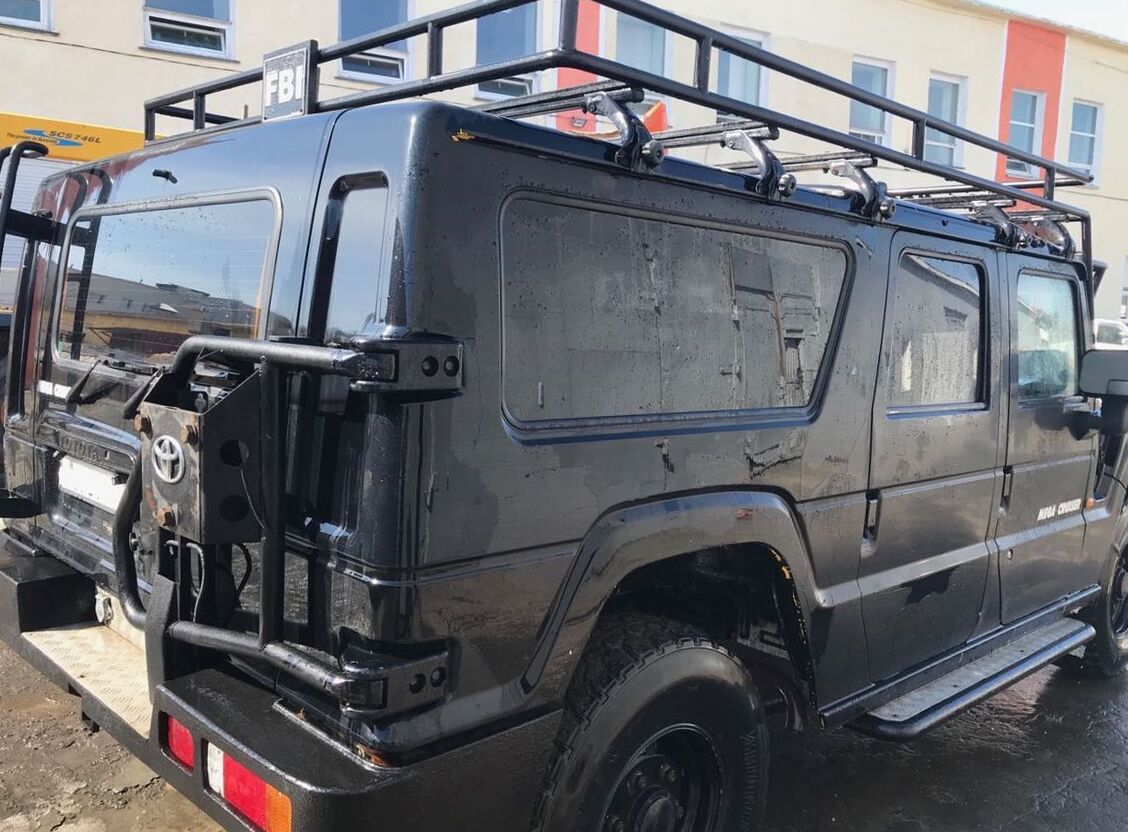

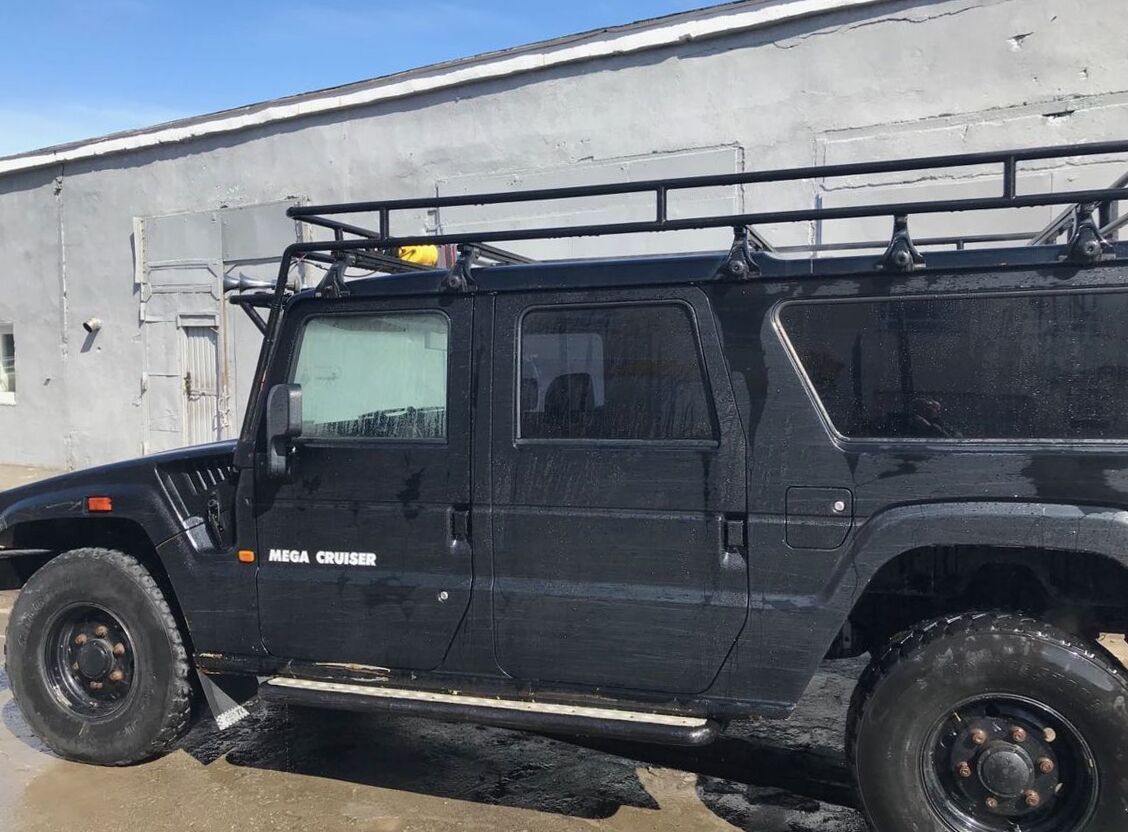

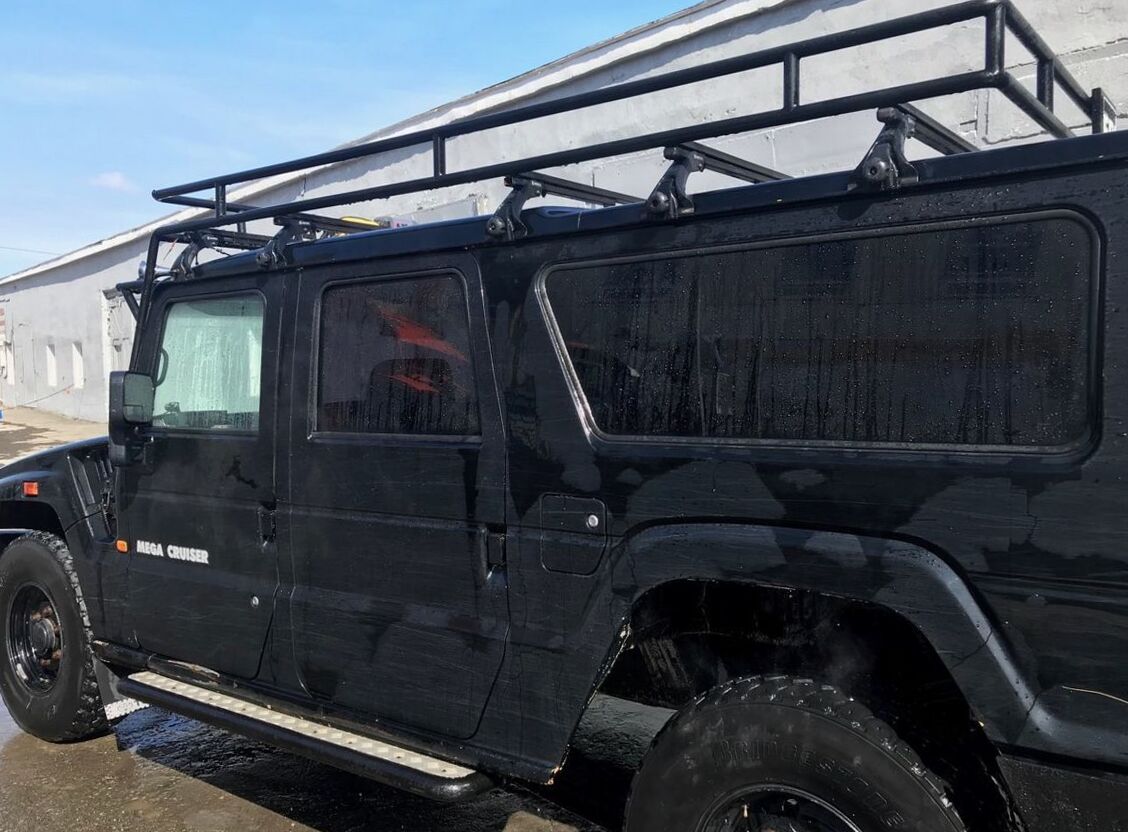

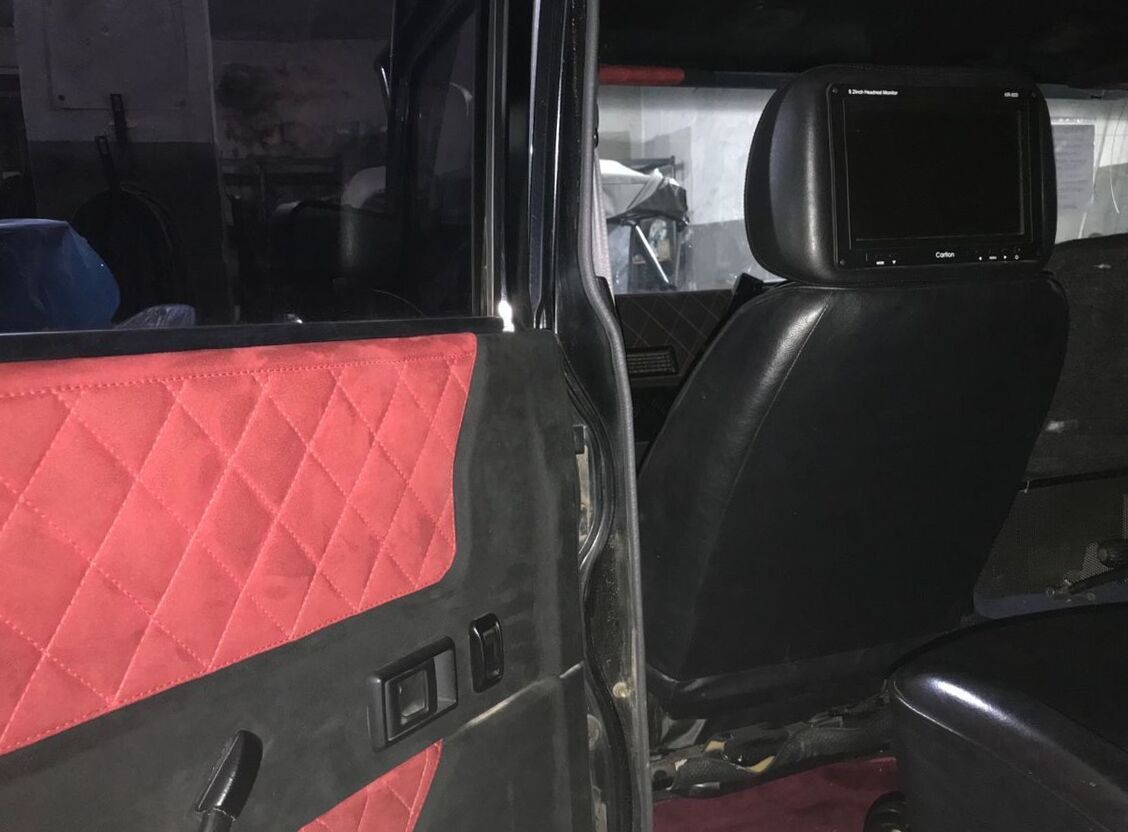

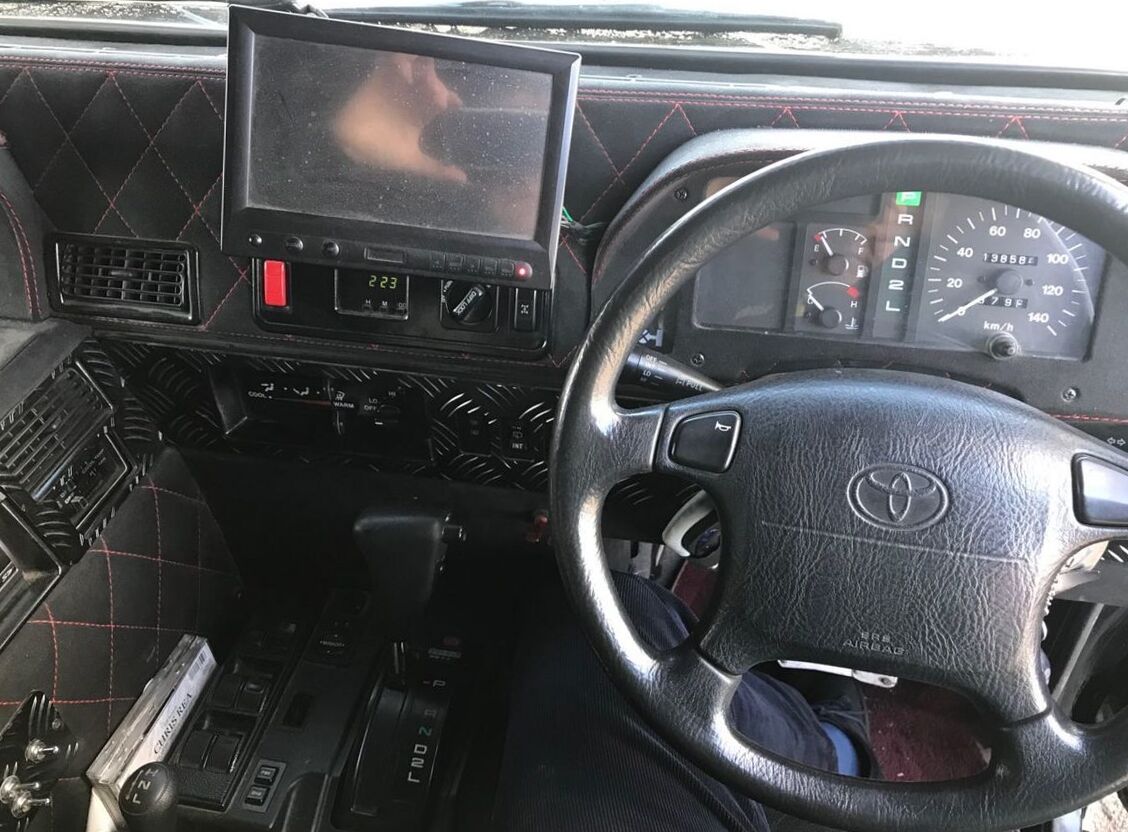

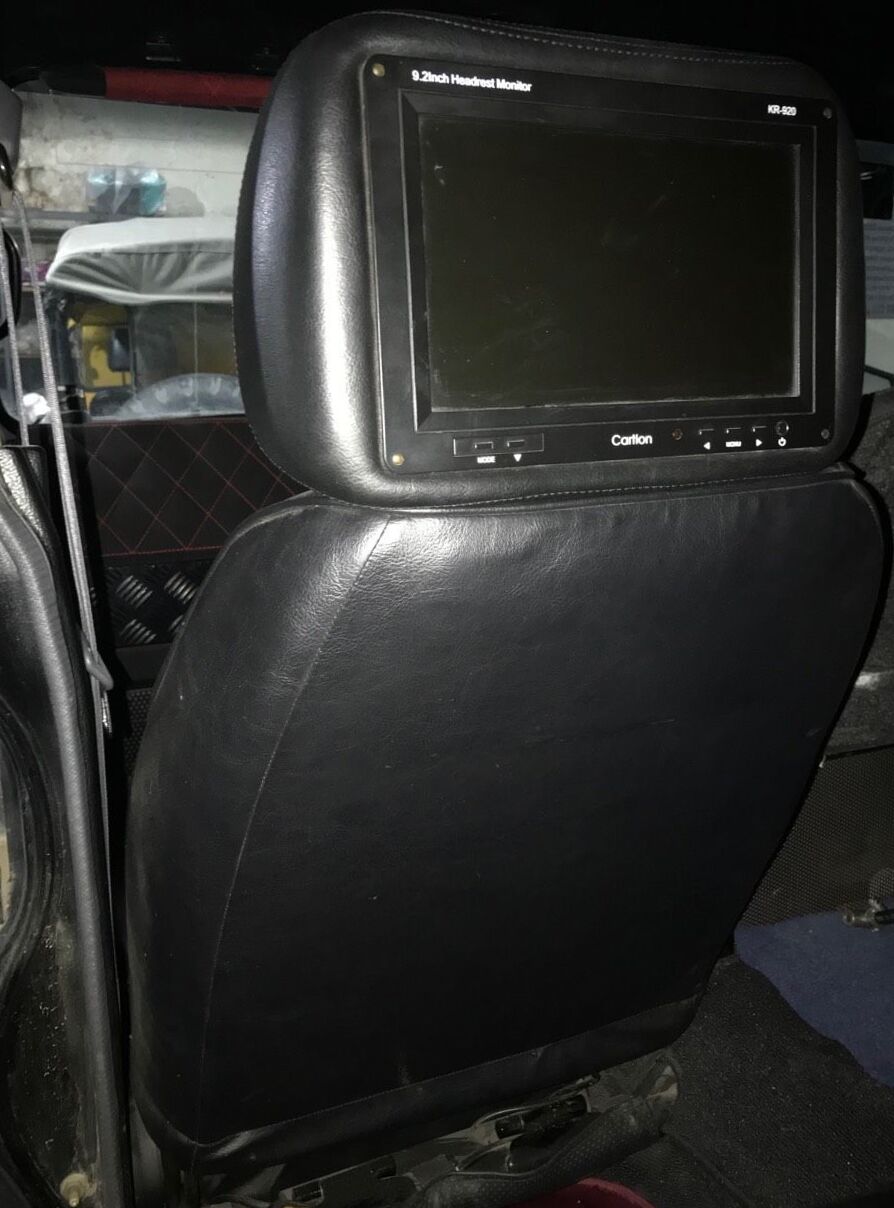

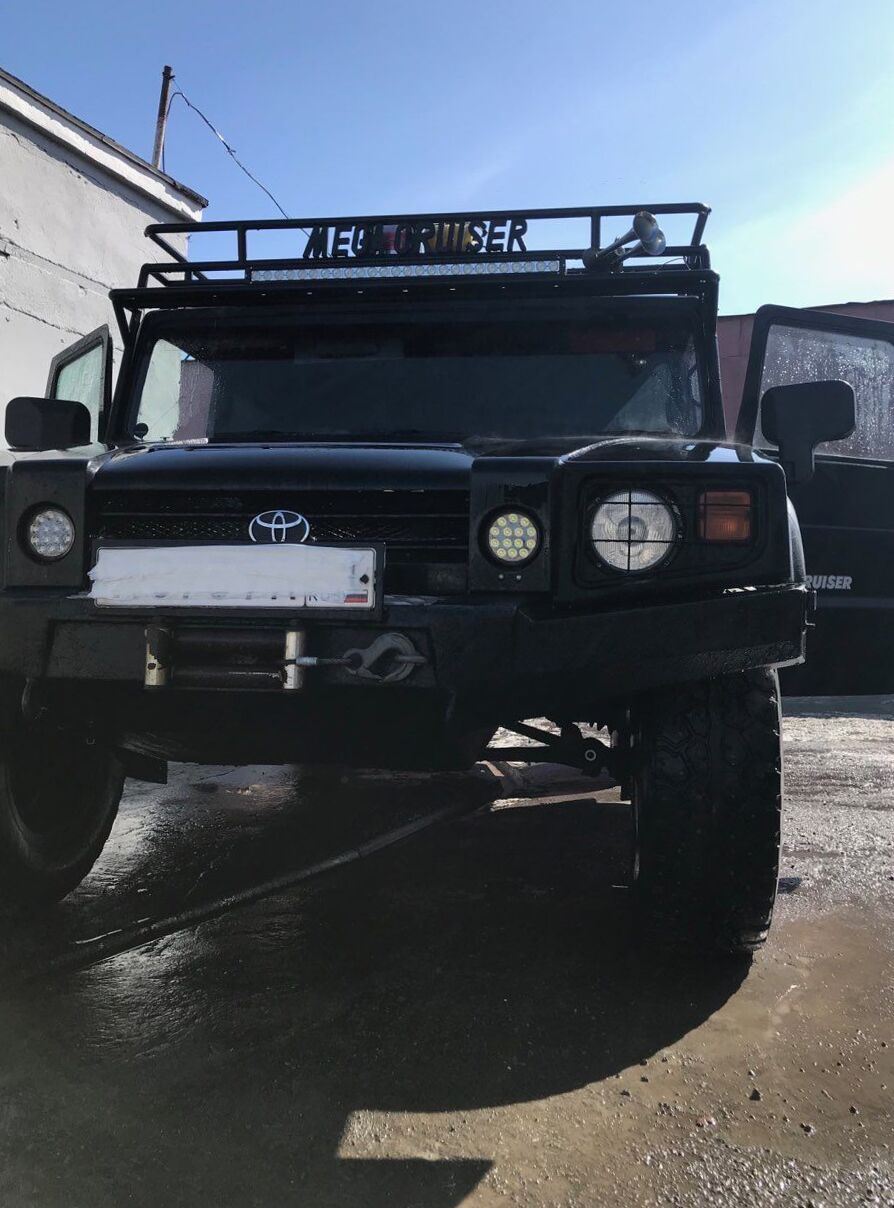

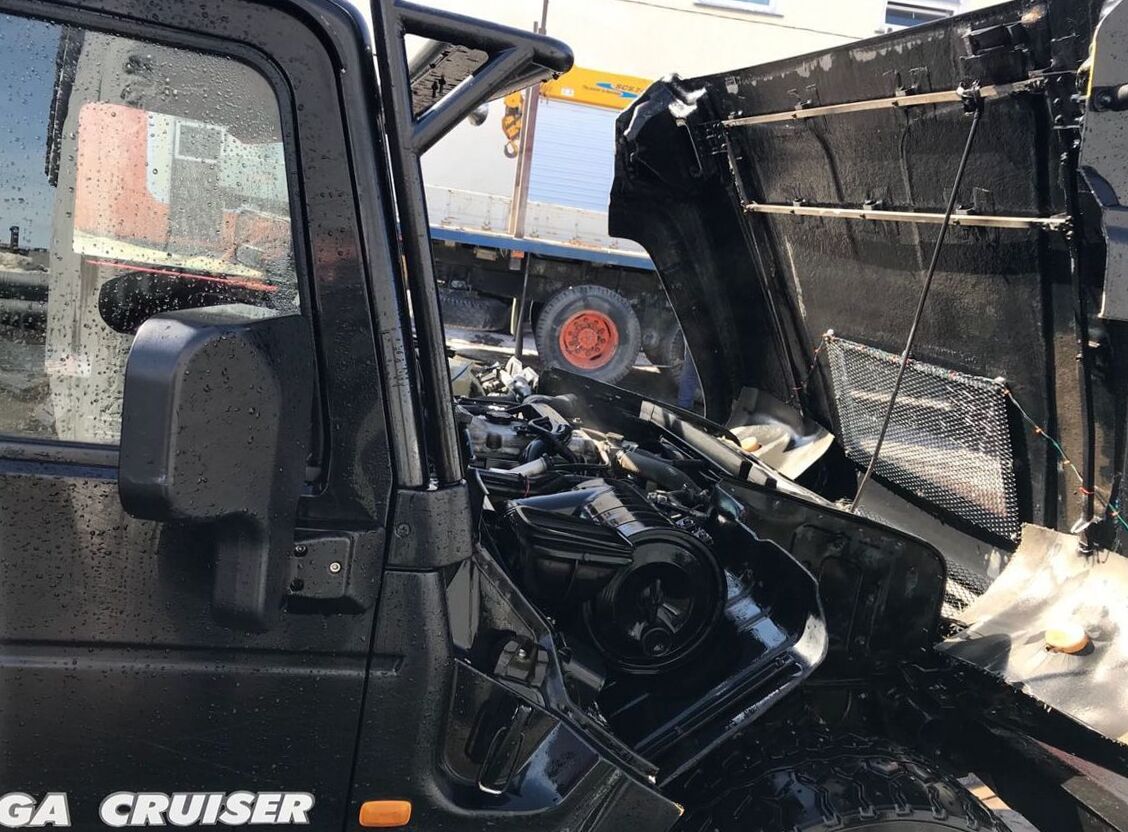

More photos of Toyota Mega Cruiser
| Body type | SUV |
|---|---|
| Power | 155 Hp |
| Engine Displacement | 4100 cm3 or 4.1L or 250.1 cu-in |
| Color | black |
| Transmission Gearbox | Automatic |
| Fuel Type | Diesel |
| Drive wheel | 4WD |
| Mileage | 84438 Miles |
| Vin | BDX20-0****27 |
| Price (out of date) | $39831 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Toyota Mega Cruiser SUV 1996? | SUV, 6 Seats, 5 Doors |
| How much power, Toyota Mega Cruiser KC-BXD20V 1996? | 155 Hp |
| What is the engine size, 1996 Toyota Mega Cruiser 4.1DT? | 4.1L or 4104cm3 |
| How many gears, What type is the gearbox, Toyota Mega Cruiser 1996 SUV 4.1DT (155 Hp)? | Automatic transmission 4 |
| What is the drivetrain, 1996 Toyota Mega Cruiser SUV 4.1DT (155 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, Toyota Mega Cruiser SUV 1996? | 5090 mm |
| How wide is the vehicle, Toyota Mega Cruiser KC-BXD20V 1996? | 2170 mm |
Toyota Mega Cruiser KC-BXD20V 4.1DT (155 Hp) 1996, 1997, 1998, 1999 Specs
General information | |
|---|---|
| Complectation name | 4.1DT |
| Production start year | 1996 |
| Production end year | 1999 |
| Price of new car in Tokyo, yen | 9620000 |
| Drive type | All wheel drive (4x4) |
| Frame type | SUV |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 4104 |
| Frame name | KC-BXD20V |
| Clearance, mm | 420 |
| Manufacturing country | Japan |
| Doors | 5 |
| Right hand drive | yes |
| Left hand drive | no |
Vehicle generation | |
| Generation name | XD20 |
| Generation number | 1 |
| Production start year | 1996 |
| Production end year | 2001 |
Engine, transmission and steering specs | |
Engine specs | |

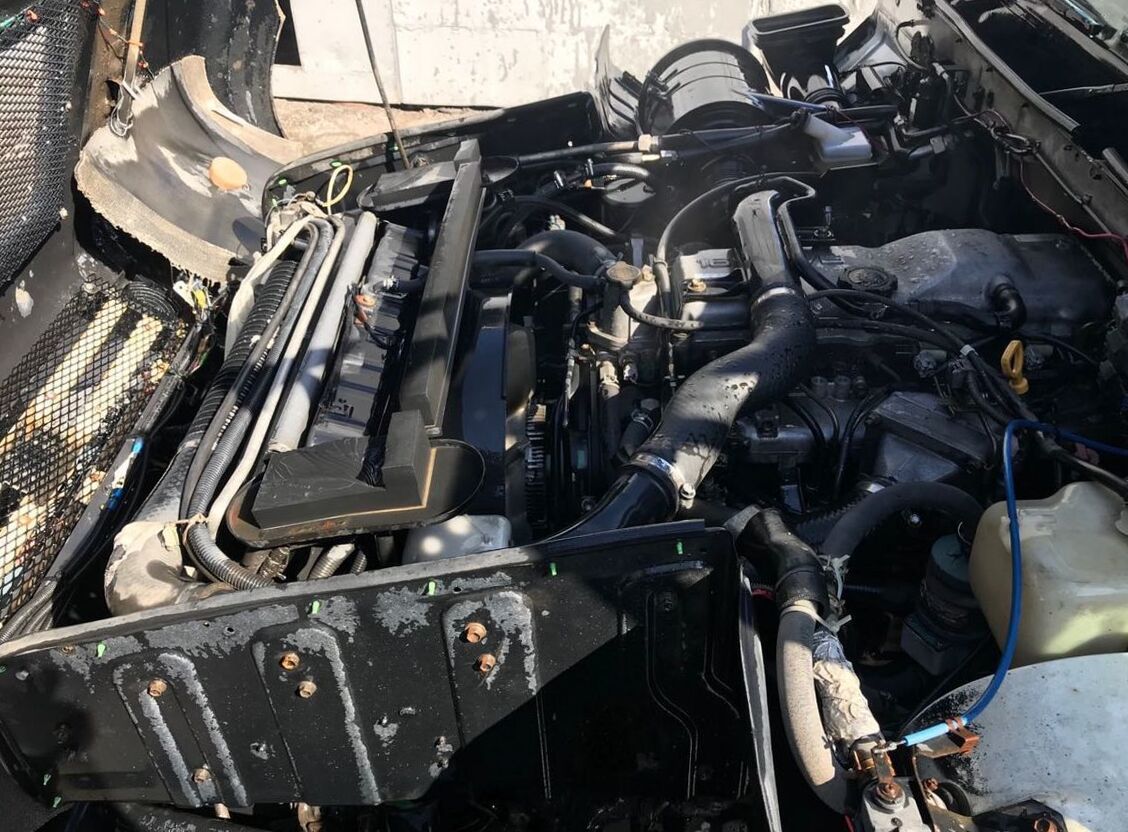

| Engine name | 15B-FT |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 155 |
| Max power RPM, rpm | 3200 |
| Max power, hp (kWt) / rpm | 155 (114) / 3200 |
| Max torque, N*m | 383 |
| Max torque RPM, rpm | 1800 |
| Max torque, N*m (kg*m) / rpm | 383 (39) / 1800 |
| Compression ratio | 17.8 |
| Bore, mm | 108 |
| Stroke, mm | 112 |
Transmission | |
| 1st gear ratio | 3.018 |
| 2nd gear ratio | 1.548 |
| 3rd gear ratio | 1 |
| 4th fear ratio | 0.765 |
| Rear gear ratio | 2.678 |
Steering | |
| Power steering | yes |
| Steereing gear type | Ball nut screw |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5090 |
| Exterior width, mm | 2170 |
| Exterior height, mm | 2075 |
Interior dimensions | |
| Capacity | 6 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 3395 |
| Front axle length, mm | 1795 |
| Rear axle length, mm | 1775 |
| Turning radius, m | 5.6 |
| Wheel spacing front | 1795 |
| Wheel spacing rear | 1775 |
Weight and permissible load | |
| Mass, kg | 2850 |
| Total weight | 3780 |
| Max capacity | 600 |
Volumes | |
| Fuel tank capacity, l | 108 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear stablilizer | no |
| Rear suspension | Independent on double wishbones |
| Cenral diff lock | yes |
| LSD | yes |
| 4ws | yes |
Wheel rims | |
| Aluminium wheel | no |
Tires | |
| Front wheels | 37*12.50R17.5-8PRLT |
| Rear wheels | 37*12.50R17.5-8PRLT |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Ventilated discs |
| Brake front search | 1 |
| Rear brake | 1 |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Xenon lamps | no |
| Front fog lamps | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
Side mirrors | |
| Power adjustable door mirrors | no |
Windows | |
| Ultraviolet glass protection | no |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | option |
| Twin sunroof | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
| Back wiper | yes |
Interior | |
Steering wheel and center panel | |
| Leather winding | no |
| Telescopic steering | no |
| Tilt steering | no |
| Tachometer | no |
Interior design | |
| Leather seat | no |
| Wood panel | no |
Seats | |
| Reclining seats | yes |
| Removable seats | yes |
| Turning seats | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Centralized door lock | yes |
| Keyless enter | no |
| Power window | yes |
Safety | |
Airbags | |
| Drivers airbag | option |
| Passengers airbag | no |
| Side airbag | no |
Active and passive safety | |
| 3 point safety belt | yes |
| Safety belt pretensioner | no |
| Safety belt limiter | no |
Electronic security and traffic control systems | |
| ABS | no |
| Break assist | no |
| traction control | no |
| Cruise control | no |
| System tire pressure monitoring | option |
Amenity | |
Microclimate | |
| Cooler | yes |
| Air conditioner | no |
| Automatic air conditioning | no |
| Twin conditioning system | no |
| Air purifier | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | yes |
| CD player | no |
| CD changer | no |
| MD palyer | no |
| MD changer | no |
| Additional sound equipment | 4 speakers |
Navigation and video equipment | |
| Parking assist system | no |
Driver Kit | |
| Spare tire | yes |
1996 Toyota Mega Cruiser KC-BXD20V 4.1DT (155 Hp) specs
|

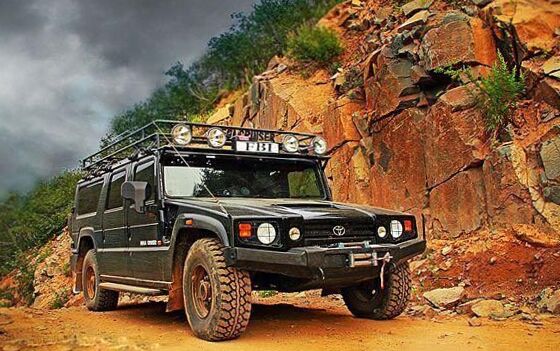

The Mega Cruiser was never largely intended for civilian use and thus was sold only in Japan mostly for the police, fire rescue, military transports, etc. This vehicle was intended to test designs that would eventually make their way into mass produced Toyota SUV's (like the Land Cruiser), but was an unsuccessful sale. The Mega Cruiser featured a 4.1 L turbodiesel I4 engine. The engine focused on producing high amounts of torque at low revs. The SUV featured front, center, and rear differentials, as well as four wheel steering, and proved as a workhorse of an SUV at the time. » Read More About Toyota Mega Cruiser |
