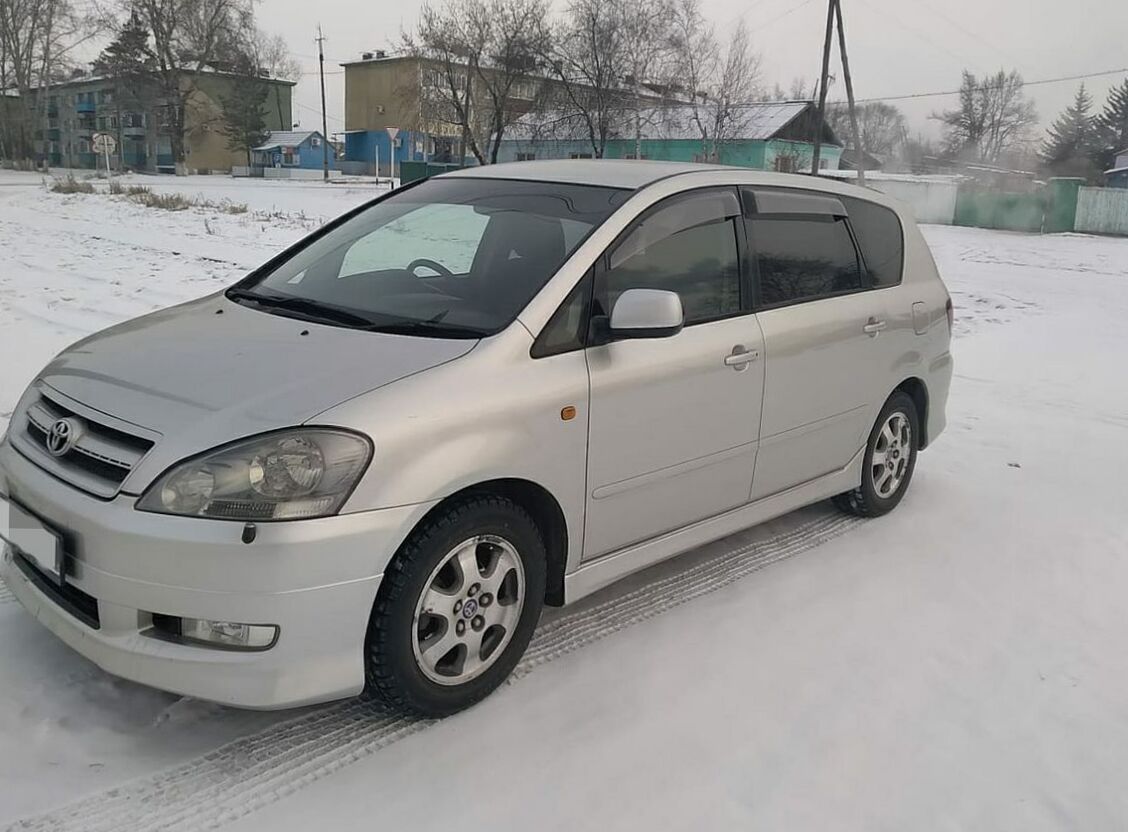

1990 Toyota Ipsum II 2.4 240s
More photos of Toyota Ipsum
Toyota Ipsum Problems
Fault
1998, Speedometer not working, straining the
engine to engage first gear, overdrive light
flas...
High consumption
1999, the problem is high fuel consumption when
i put for instance 5litres it can't even ...
Ac
2004, I start car and on Ac but button ac
bliking and compressor not running I try scan
comput...
Toyota Ipsum Problems
Fault
1998, Speedometer not working, straining the
engine to engage first gear, overdrive light
flas...
High consumption
1999, the problem is high fuel consumption when
i put for instance 5litres it can't even ...
Ac
2004, I start car and on Ac but button ac
bliking and compressor not running I try scan
comput...
Body type | Minivan |
---|---|
Power | 160 Hp |
Engine Displacement | 2400 cm3 or 2.4L or 146.4 cu-in |
Color | silver |
Transmission Gearbox | Automatic |
Fuel Type | Gasoline |
Drive wheel | FF |
Mileage | 198838 Miles |
Vin | ACM210****61 |
Price (out of date) | $6371 |
Frequently Asked Questions | |
---|---|
What is the body type, 1990 Toyota Ipsum II? | Minivan, 7 Seats, 5 Doors |
How much power, Toyota Ipsum Minivan 1990? | 160 Hp |
What is the engine size, Toyota Ipsum TA-ACM21W 1990? | 2.4L or 2362cm3 |
How many gears, What type is the gearbox, 1990 Toyota Ipsum 2.4 240s? | Automatic transmission 4 |
What is the drivetrain, Toyota Ipsum II 1990 Minivan 2.4 240s (160 Hp)? | Front |
How long is this vehicle, 1990 Toyota Ipsum Minivan 2.4 240s (160 Hp)? | 4670 mm |
How wide is the vehicle, 1990 Toyota Ipsum II? | 1760 mm |
Toyota Ipsum II TA-ACM21W 2.4 240s (160 Hp) 2001, 2002, 2003 Specs
General information | |
---|---|
Complectation name | 2.4 240s |
Production start year | 2001 |
Production end year | 2003 |
Price of new car in Tokyo, yen | 2380000 |
Drive type | Front |
Frame type | Minivan |
Transmission type | Automatic transmission 4 |
Engine volume, cc | 2362 |
Frame name | TA-ACM21W |
Clearance, mm | 155 |
Manufacturing country | Japan |
Doors | 5 |
Right hand drive | yes |
Left hand drive | no |
Vehicle generation | |
Generation name | ACM20 |
Generation number | 2 |
Production start year | 2001 |
Production end year | 2003 |
Engine, transmission and steering specs | |
Engine specs | |
Engine name | 2AZ-FE |
Fuel | Petrol (Gasoline) |
Engine type | In-line, 4-cylinder |
Has turbo | no |
Max power, hp | 160 |
Max power RPM, rpm | 5600 |
Max power, hp (kWt) / rpm | 160 (118) / 5600 |
Max torque, N*m | 221 |
Max torque RPM, rpm | 4000 |
Max torque, N*m (kg*m) / rpm | 221 (23) / 4000 |
Valves per cylinder | 4 |
Compression ratio | 9.6 |
Bore, mm | 88.5 |
Stroke, mm | 96 |
Actuator valves | DOHC |
Engine additional info | VVT-i |
LEV | G-LEV |
Fuel consumption | |
Fuel consumption (10/15 mode), l/100km | 8.3 |
Transmission | |
1st gear ratio | 3.943 |
2nd gear ratio | 2.197 |
3rd gear ratio | 1.413 |
4th fear ratio | 1.02 |
Rear gear ratio | 3.145 |
Steering | |
Power steering | yes |
Dimensions | |
Frame dimensions | |
Exterior length, mm | 4670 |
Exterior width, mm | 1760 |
Exterior height, mm | 1660 |
Interior dimensions | |
Capacity | 7 |
Seat rows | 3 |
Interior length, mm | 2755 |
Interior width, mm | 1505 |
Interior height, mm | 1250 |
Chassis dimensions | |
Wheel base, mm | 2825 |
Front axle length, mm | 1505 |
Rear axle length, mm | 1500 |
Turning radius, m | 5.5 |
Wheel spacing front | 1505 |
Wheel spacing rear | 1500 |
Weight and permissible load | |
Mass, kg | 1490 |
Volumes | |
Fuel tank capacity, l | 60 |
Suspension specs | |
Suspension specs | |
Front stabilizer | yes |
Front suspension | Independent, Spring McPherson |
Rear stablilizer | yes |
Rear suspension | Semi-independent, torsion bar |
LSD | no |
Tires | |
Front wheels | 205/60R16 |
Rear wheels | 205/60R16 |
Brakes | |
Front brake | Ventilated discs |
Rear brake | Discs |
Brake front search | 1 |
Rear brake | 1 |
Exterior | |
Headlights | |
Xenon lamps | yes |
Front fog lamps | yes |
Rear fog lamps | option |
Additional stop light | yes |
Cornering lamps | no |
Side mirrors | |
Power adjustable door mirrors | yes |
Windows | |
Ultraviolet glass protection | yes |
Roof | |
Sunroof | no |
Tilt sunroof | no |
Twin sunroof | option |
Accessories | |
Roof rail | option |
Front spoiler | no |
Rear spoiler | yes |
Back wiper | yes |
Body color | |
Colors | 7 25 6 2049 |
Interior | |
Steering wheel and center panel | |
Leather winding | yes |
Telescopic steering | no |
Tilt steering | yes |
Tachometer | yes |
Interior design | |
Leather seat | no |
Wood panel | yes |
Seats | |
Reclining seats | yes |
Removable seats | yes |
Turning seats | no |
Electric interior package | |
Power adjustable driver seat | no |
Power ajustable front seat | no |
Power ajustable back seat | no |
Centralized door lock | yes |
Keyless enter | yes |
Power window | yes |
Central power window control | yes |
Safety | |
Airbags | |
Drivers airbag | yes |
Passengers airbag | yes |
Side airbag | option |
Children safety | |
Child car restraints | yes |
Active and passive safety | |
Durable frame | yes |
Side impact bar | yes |
3 point safety belt | yes |
Safety belt pretensioner | yes |
Safety belt limiter | yes |
Electronic security and traffic control systems | |
Break assist | yes |
traction control | no |
Cruise control | no |
Amenity | |
Microclimate | |
Cooler | no |
Automatic air conditioning | yes |
Twin conditioning system | yes |
Air purifier | no |
Audio systems | |
Radio | no |
Autoreverse casette | no |
CD player | no |
CD changer | no |
MD palyer | no |
MD changer | no |
Navigation and video equipment | |
Parking assist system | no |
1990 Toyota Ipsum II TA-ACM21W 2.4 240s (160 Hp) specs
|
