1990 Nissan Urvan 2.5 D MT SWB Minivan (9 seats)
Nissan Urvan Problems
Both back wheel loose from inside out
2009, Hi,I'm a mechanic and found out the
both back wheel loose / free from inside out.is...
| Body type | Minivan |
|---|---|
| Power | 80 Hp |
| Engine Displacement | 2500 cm3 or 2.5L or 152.5 cu-in |
| Color | white |
| Transmission Gearbox | Manual |
| Fuel Type | Diesel |
| Drive wheel | FR or RR |
| Mileage | 91341 Miles |
| Vin | W1GE24****47 |
| Price (out of date) | $1513 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 1990 Nissan Urvan 2.5 D MT SWB Minivan (9 seats)? | Minivan, 9 Seats, 4 Doors |
| What is the fuel economy, Nissan Urvan 1990 Minivan 2.5 D MT SWB Minivan (9 seats) (80 Hp)? | 8.1 l/100 km |
| How fast is the car, 1990 Nissan Urvan Minivan 2.5 D MT SWB Minivan (9 seats) (80 Hp)? | 130 km/h |
| How much power, 1990 Nissan Urvan 2.5 D MT SWB Minivan (9 seats)? | 80 Hp |
| What is the engine size, Nissan Urvan 1990 Minivan 2.5 D MT SWB Minivan (9 seats) (80 Hp)? | 2.5L or 2494cm3 |
| How many gears, What type is the gearbox, 1990 Nissan Urvan Minivan 2.5 D MT SWB Minivan (9 seats) (80 Hp)? | 5 speed Manual |
| What is the drivetrain, 1990 Nissan Urvan 2.5 D MT SWB Minivan (9 seats)? | Rear |
| How long is this vehicle, Nissan Urvan 1990 Minivan 2.5 D MT SWB Minivan (9 seats) (80 Hp)? | 4590 mm |
| How wide is the vehicle, 1990 Nissan Urvan Minivan 2.5 D MT SWB Minivan (9 seats) (80 Hp)? | 1690 mm |
| What is the gross weigh, 1990 Nissan Urvan 2.5 D MT SWB Minivan (9 seats)? | 2750 kg |
Nissan Urvan 2.5 D MT SWB Minivan (9 seats) (80 Hp) 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 Specs
General information | |
|---|---|
| Complectation name | 2.5 D MT SWB Minivan (9 seats) |
| Production start year | 1986 |
| Production end year | 2001 |
| Drive type | Rear |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 2494 |
| Max speed | 130 |
| Clearance, mm | 190 |
| Manufacturing country | Japan |
| Doors | 4 |
Vehicle generation | |
| Generation name | E24 |
| Generation number | 1 |
| Production start year | 1986 |
| Production end year | 2001 |
Engine, transmission and steering specs | |
Engine specs | |

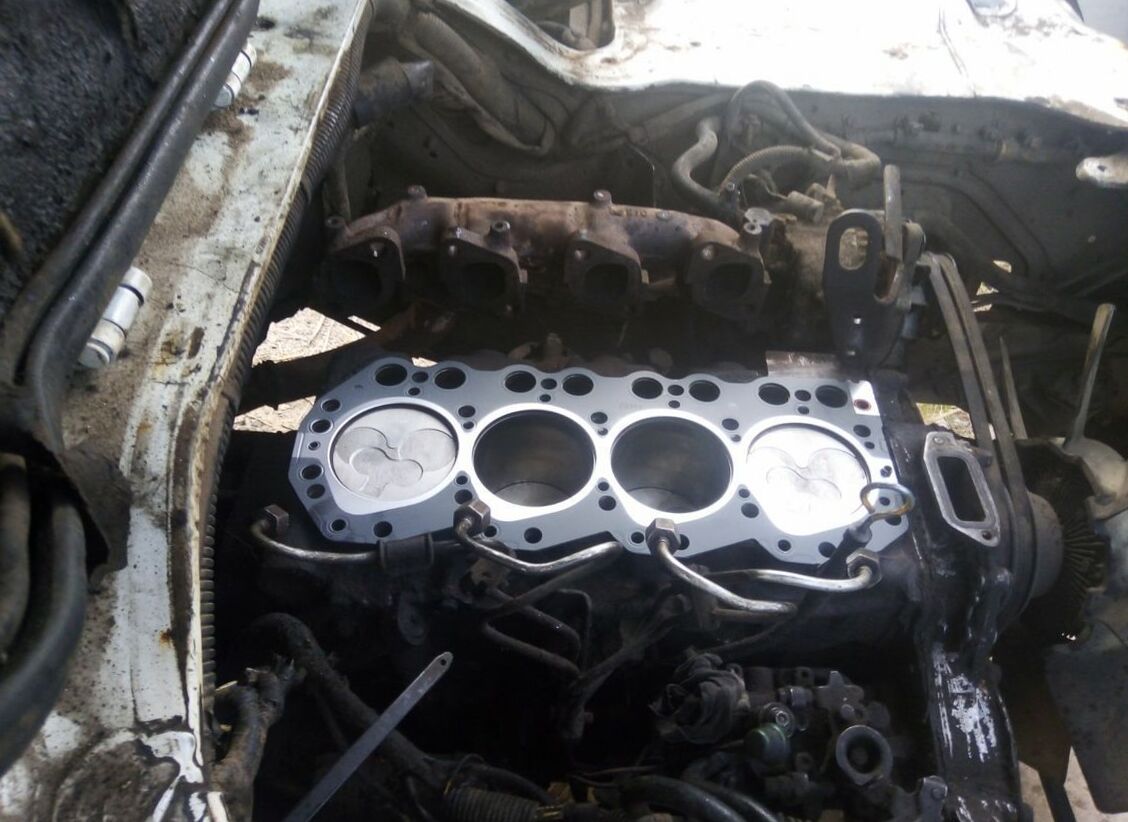

| Engine name | TD25 |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 80 |
| Max power RPM, rpm | 4300 |
| Max power, hp (kWt) / rpm | 80 (59) / 4300 |
| Max torque, N*m | 163 |
| Max torque RPM, rpm | 2200 |
| Max torque, N*m (kg*m) / rpm | 163 (17) / 2200 |
| Compression ratio | 22.2 |
| Bore, mm | 92.9 |
| Stroke, mm | 92 |
Fuel consumption | |
| Combined | 8.1 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4590 |
| Exterior width, mm | 1690 |
| Exterior height, mm | 1960 |
Interior dimensions | |
| Capacity | 9 |
| Seat rows | 4 |
Chassis dimensions | |
| Wheel base, mm | 2380 |
| Turning radius, m | 5.7 |
| Wheel spacing front | 1440 |
| Wheel spacing rear | 1410 |
| Front overhang | 1160 |
| Rear overhang | 1060 |
Weight and permissible load | |
| Mass, kg | 1185 |
| Max. weight | 2750 |
| Front axe load | 1350 |
| Rear axe load | 1680 |
Volumes | |
| Fuel tank capacity, l | 65 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent on double wishbones |
| Rear suspension | Dependent, spring loaded |
Wheel rims | |
| Aluminium wheel | no |
| Front wheel disk | 14x5J |
| Rear wheel disk | 14x5J |
Tires | |
| Front wheels | 185 R14 |
| Rear wheels | 185 R14 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
1990 Nissan Urvan 2.5 D MT SWB Minivan (9 seats) (80 Hp) specs
|
From 1986 until 1987, a KD-ARE24 chassis was used. The 1988 to 1997 models used the E24 chassis, models from 1998 onward use the TA-QGE25 chassis and VWE25 chassis. Currently, the Caravan outsells the Toyota Hiace since 2004. One main reason is due it having more power and cargo room. E20 / E21 / E22 The Urvan was a transporter vehicle manufactured by Datsun with 3, 5, 7 and up to 10 seats (minibus). It was especially popular in Europe, and was again very popular in Fire Departments and as ambulances in certain countries. It had a somewhat difficult handling, as it was heavy to steer, and did not come with power steering. Also, the gear shifter was located at the floor and went all the way up to the height of the hand, and had a slight curve. The gear shifter was nearly 80 centimetres long, so it was somewhat clumsy to shift, but it came with 5 gears, unusual in Europe at that time. It was delivered with a 1.6 litre (1596 cc) engine, a 1.8 litre (1798 cc) engine and a 2.0 litre (1998 cc) engine. It was produced from 1978 to 1983, when the Datsun brand ceased. The Urvan was rebadged into Nissan Vanette in 1984. » Read More About Nissan Urvan |
