| Body type | Hatchback |
|---|---|
| Power | 111 Hp |
| Engine Displacement | 1500 cm3 or 1.5L or 91.5 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 36660 Miles |
| Vin | BL5FW-****99 |
| Price (out of date) | $10286 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2013 Mazda Axela II? | Hatchback, 5 Seats, 5 Doors |
| How much power, Mazda Axela Hatchback 2013? | 111 Hp |
| What is the engine size, Mazda Axela DBA-BL5FW 2013? | 1.5L or 1498cm3 |
| How many gears, What type is the gearbox, 2013 Mazda Axela 1.5 15S Sport Edition? | Variator |
| What is the drivetrain, Mazda Axela II 2013 Hatchback 1.5 15S Sport Edition (111 Hp)? | Front |
| How long is this vehicle, 2013 Mazda Axela Hatchback 1.5 15S Sport Edition (111 Hp)? | 4460 mm |
| How wide is the vehicle, 2013 Mazda Axela II? | 1755 mm |
Mazda Axela II DBA-BL5FW 1.5 15S Sport Edition (111 Hp) 2012, 2013 Specs
General information | |
|---|---|
| Production start year | 2012 |
| Production end year | 2013 |
| Drive type | Front |
| Frame type | Hatchback |
| Transmission type | Variator |
| Engine volume, cc | 1498 |
| Frame name | DBA-BL5FW |
| Clearance, mm | 135 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | no |
| Steering locaton | right |
Vehicle generation | |
| Generation name | BL |
| Generation number | 2 |
| Facelift number | 1 |
| Production start year | 2011 |
| Production end year | 2013 |
Engine, transmission and steering specs | |

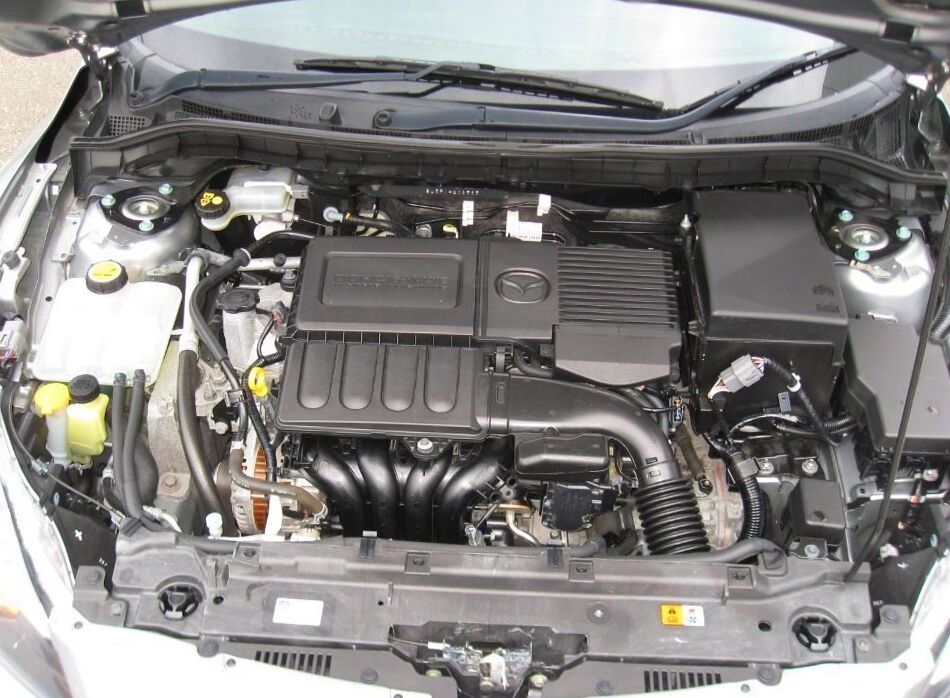

Engine specs | |
| Engine name | ZY-VE |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 111 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 111(82)/6000 |
| Max torque, N*m | 140 |
| Max torque RPM, rpm | 4500 |
| Max torque, N*m (kg*m) / rpm | 140 (14.3) / 4500 |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 82?111?/6000 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 140?14.3?/4500 |
| Start stop system | no |
Transmission | |

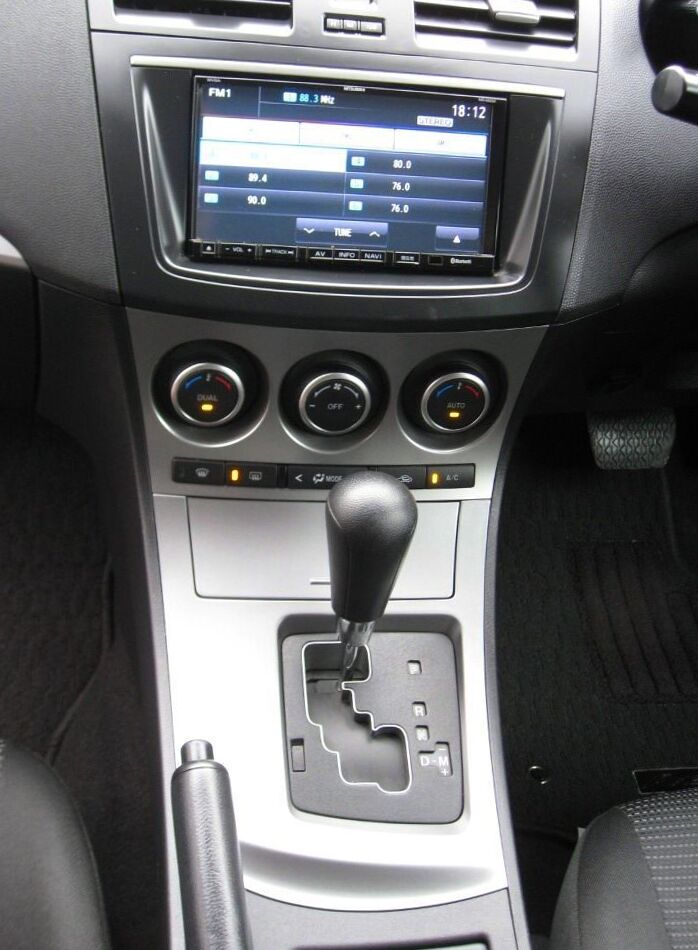

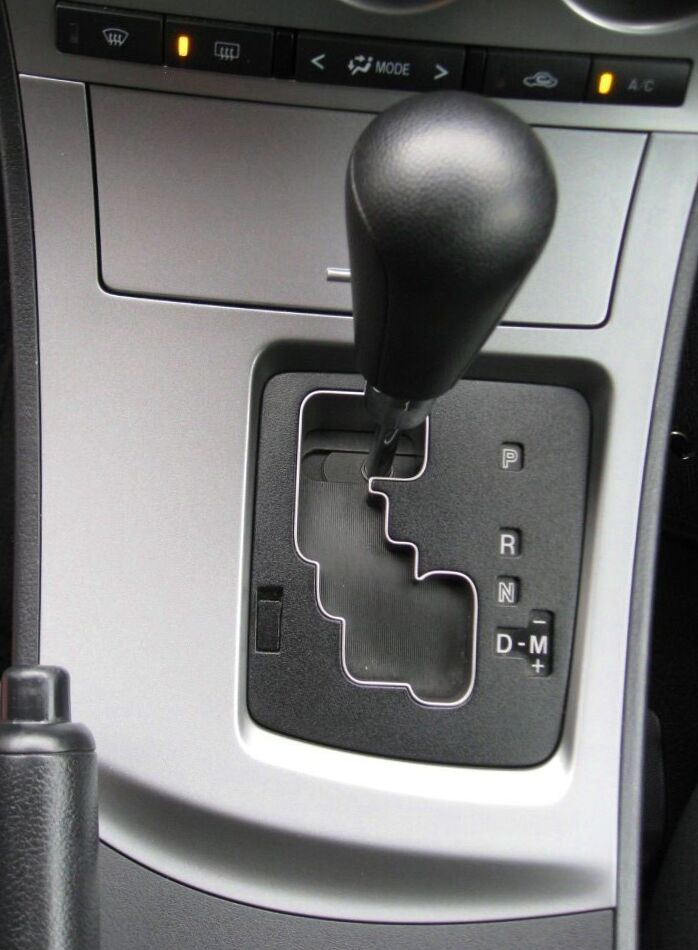

| Shifter position | On the floor. |
| Manual mode | yes |
Steering | |
| Power steering | no |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
| Electro-hydraulic power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4460 |
| Exterior width, mm | 1755 |
| Exterior height, mm | 1490 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior length, mm | 1980 |
| Interior width, mm | 1475 |
| Interior height, mm | 1200 |
Chassis dimensions | |
| Wheel base, mm | 2640 |
| Front axle length, mm | 1535 |
| Rear axle length, mm | 1520 |
| Turning radius, m | 5.1 |
| Wheel spacing front | 1535 |
| Wheel spacing rear | 1520 |
Weight and permissible load | |
| Mass, kg | 1250 |
Volumes | |
| Fuel tank capacity, l | 55 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, spring multi-link |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |
Tires | |
| Front wheels | 205/55R16 |
| Rear wheels | 205/55R16 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Brakes equipment | no |
| Brake front search | 1 |
| Rear brake | 1 |
Exterior | |
Headlights | |

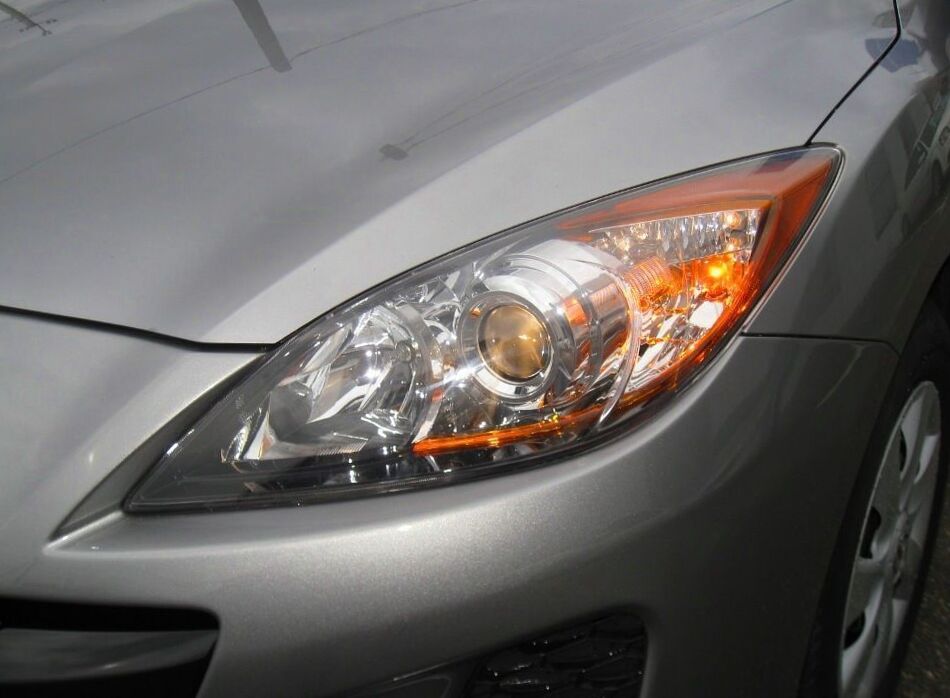

| Xenon lamps | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |

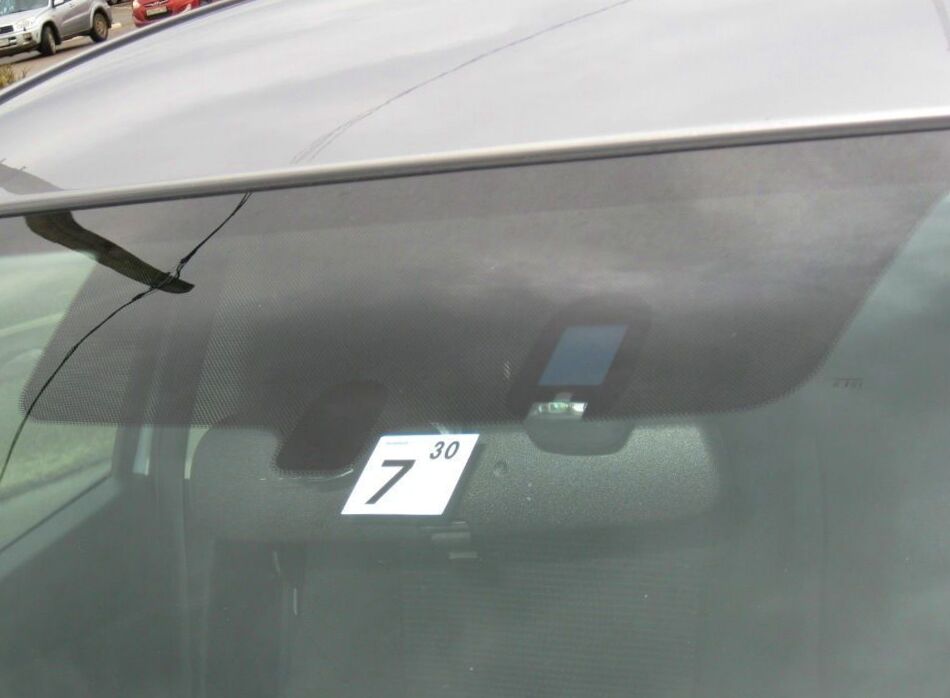

| Rain sensor | yes |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | yes |

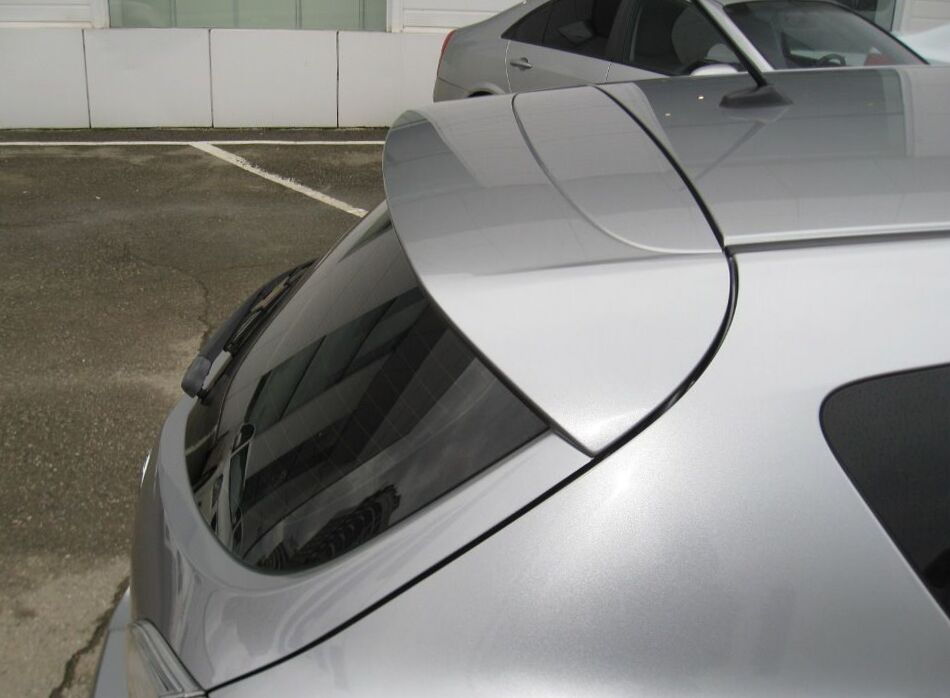

| Rear spoiler | yes |

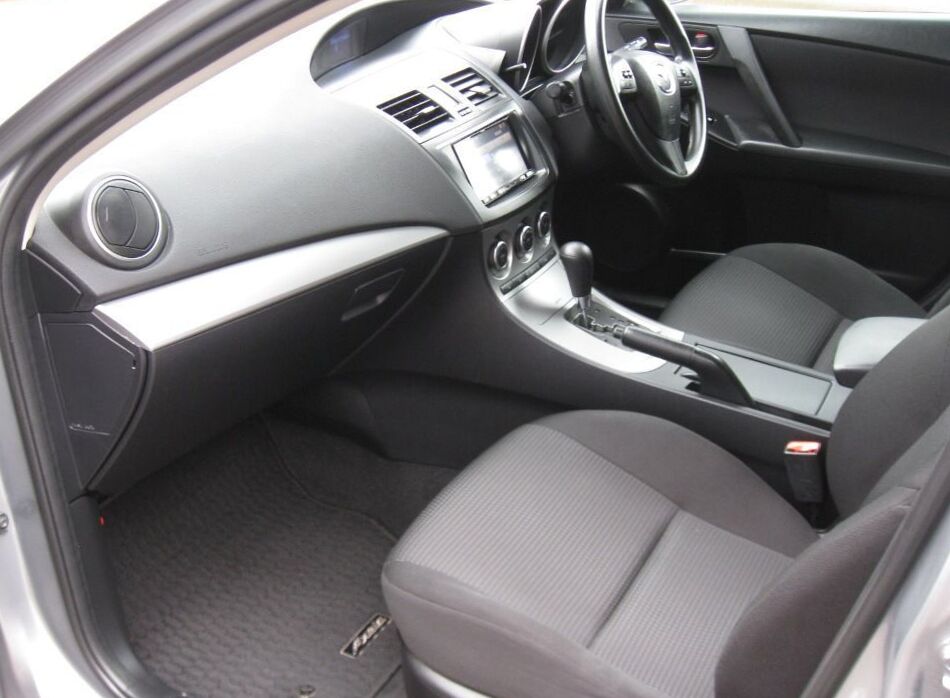

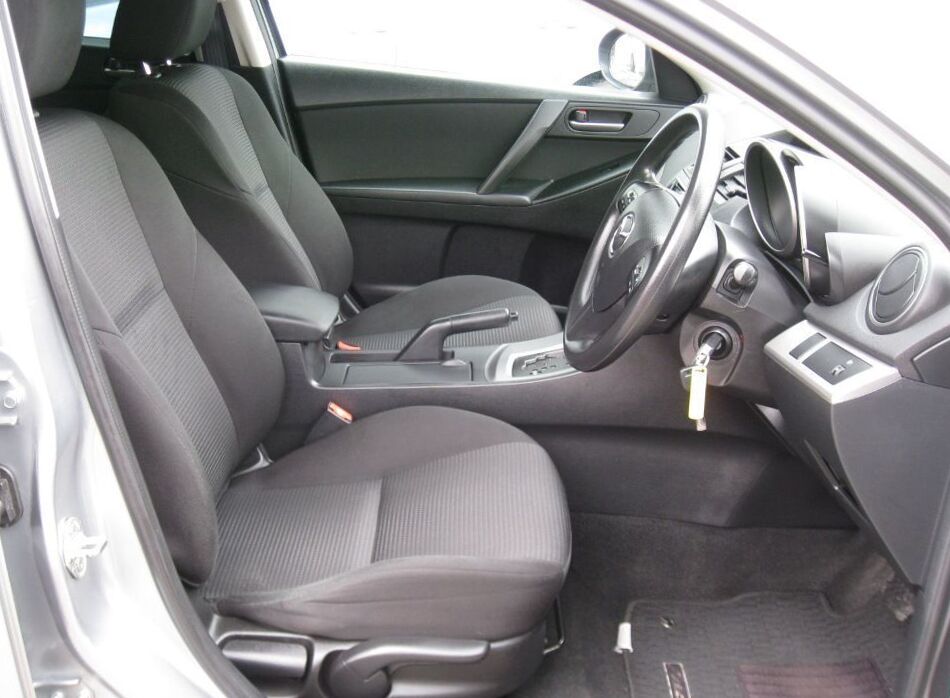

Interior | |

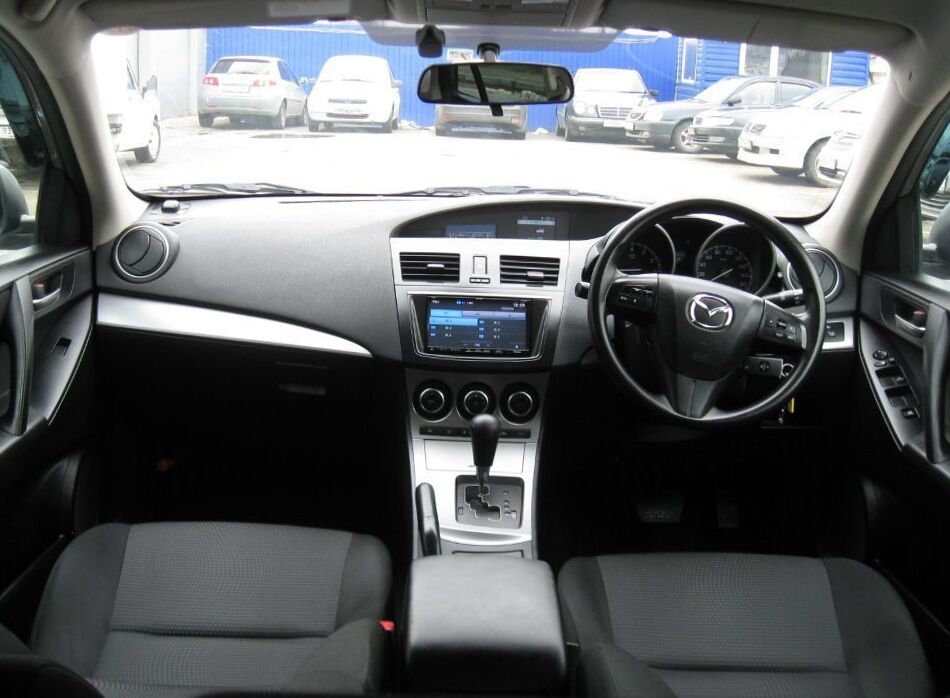

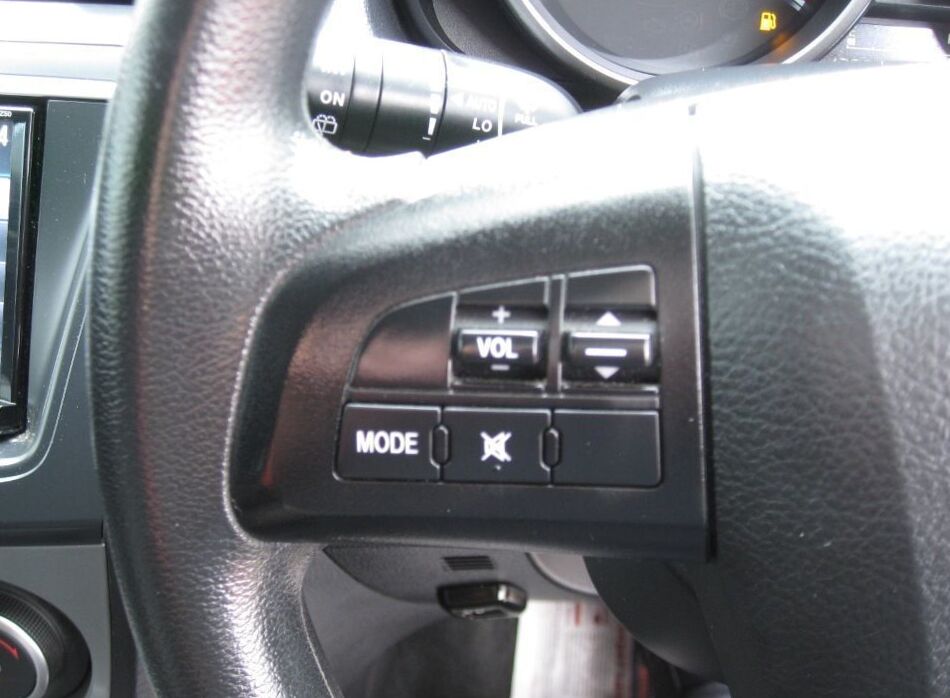

Steering wheel and center panel | |
| Engine start button | yes |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |

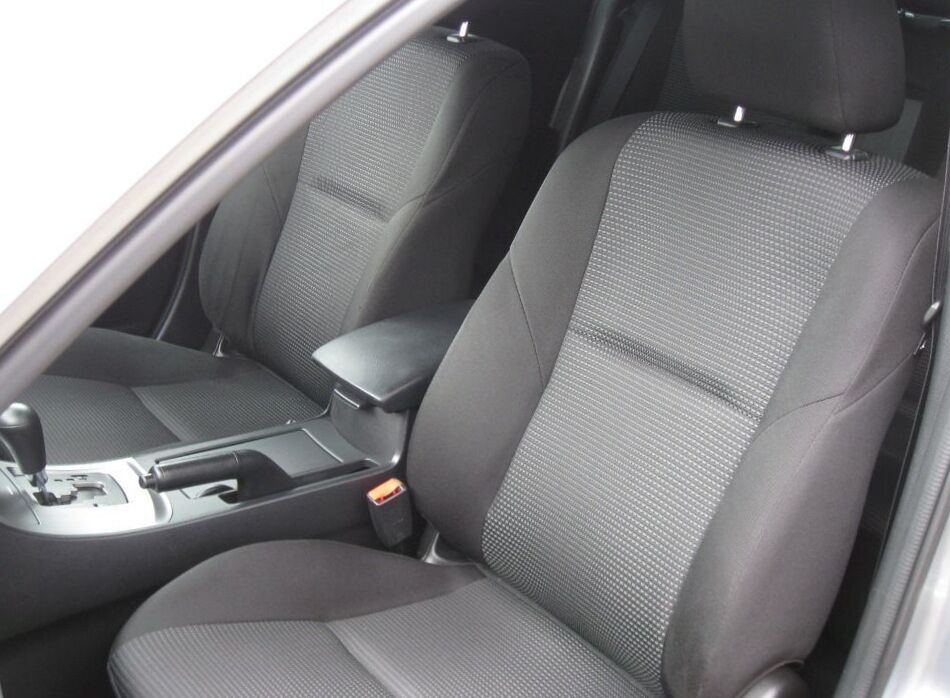

Seats | |
| Bucket seat | no |

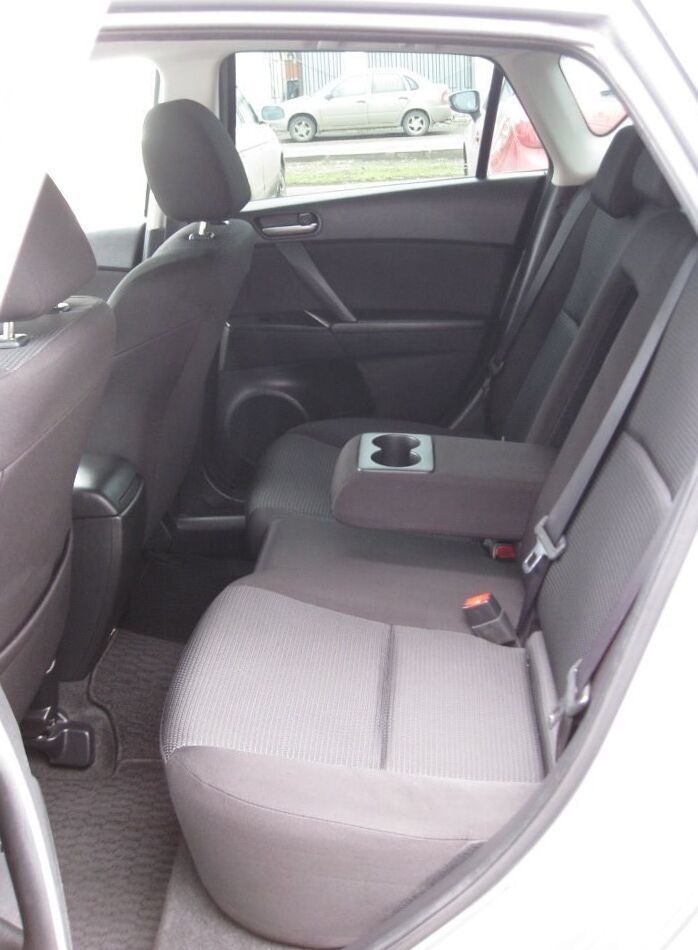

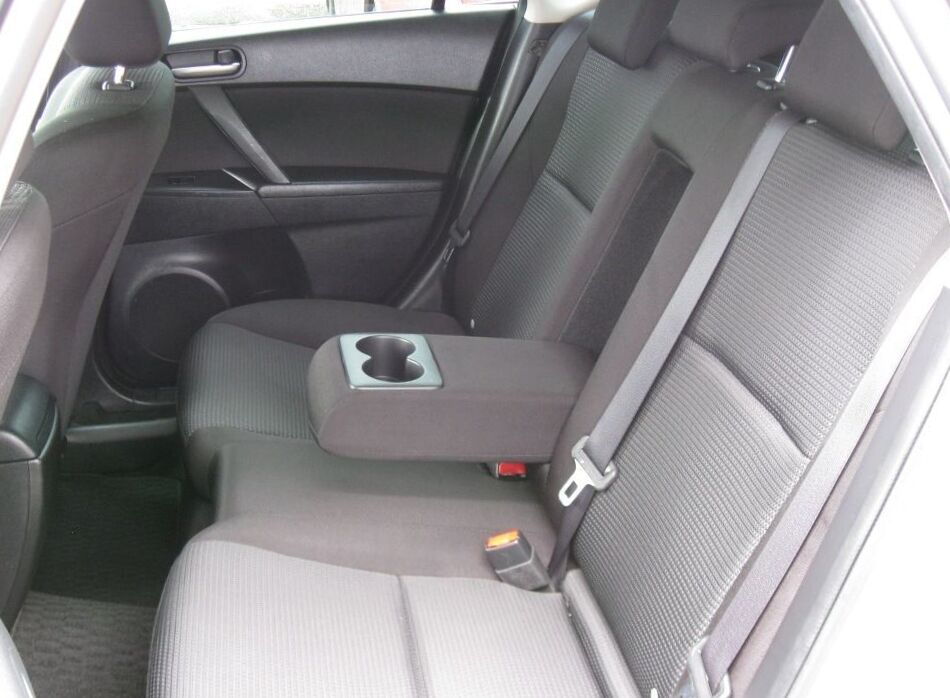

| 2nd row | 60/40 ratio fold seat |
| 3nd row | no |

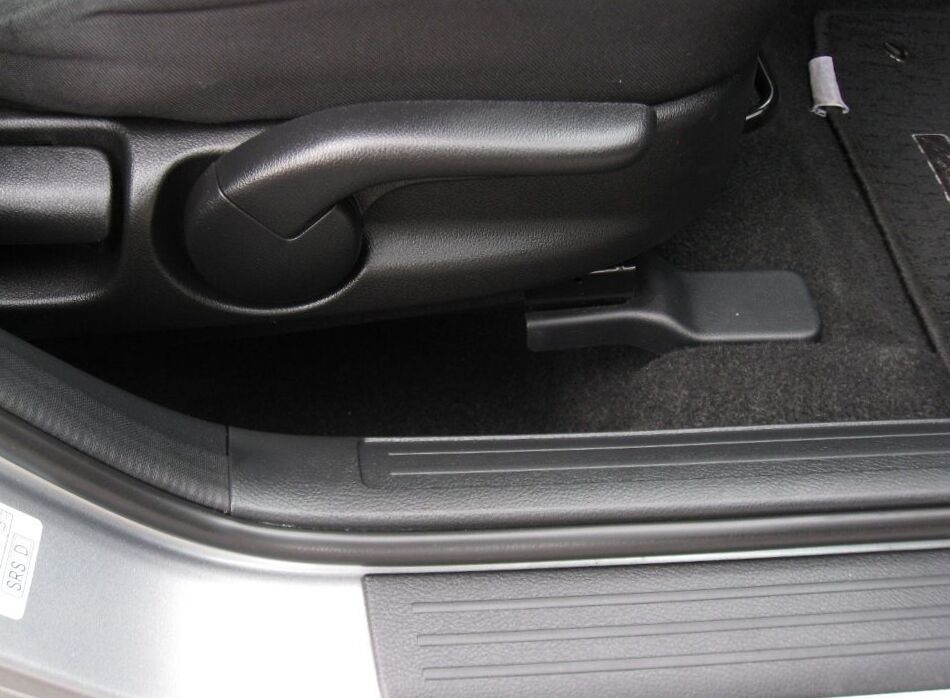

| Seat lifter | yes |
| Full flat seats | no |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | no |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |

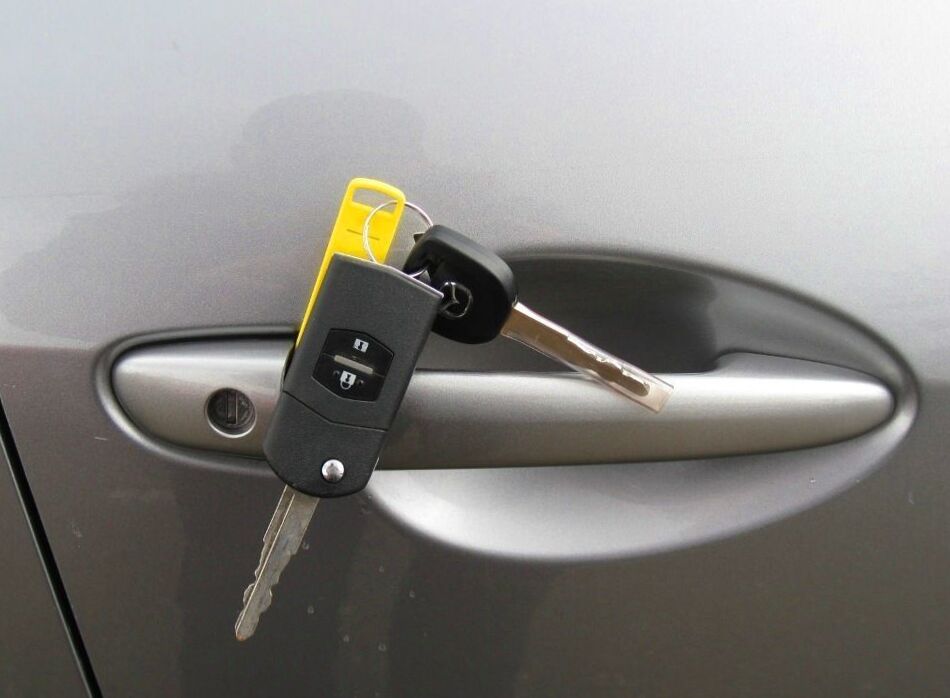

| Keyless enter | yes |

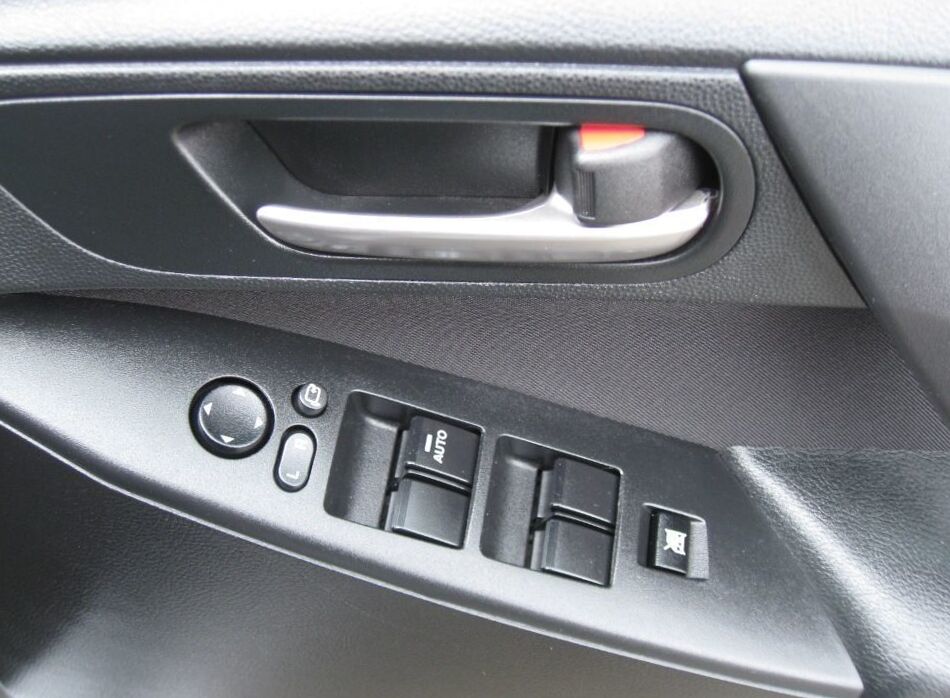

| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |

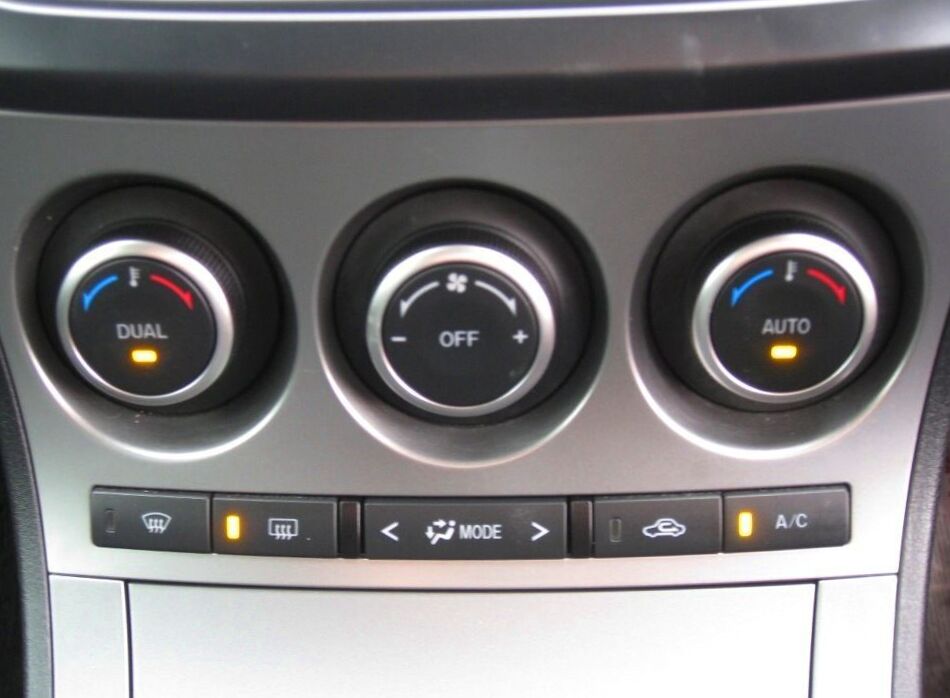

Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |
Audio systems | |
| Radio | no |
| Autoreverse casette | no |
| CD player | no |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
| Optional navigation system | no |
| Traffic jam assist | no |
| Parking assist system | no |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | no |
Additional amenities | |

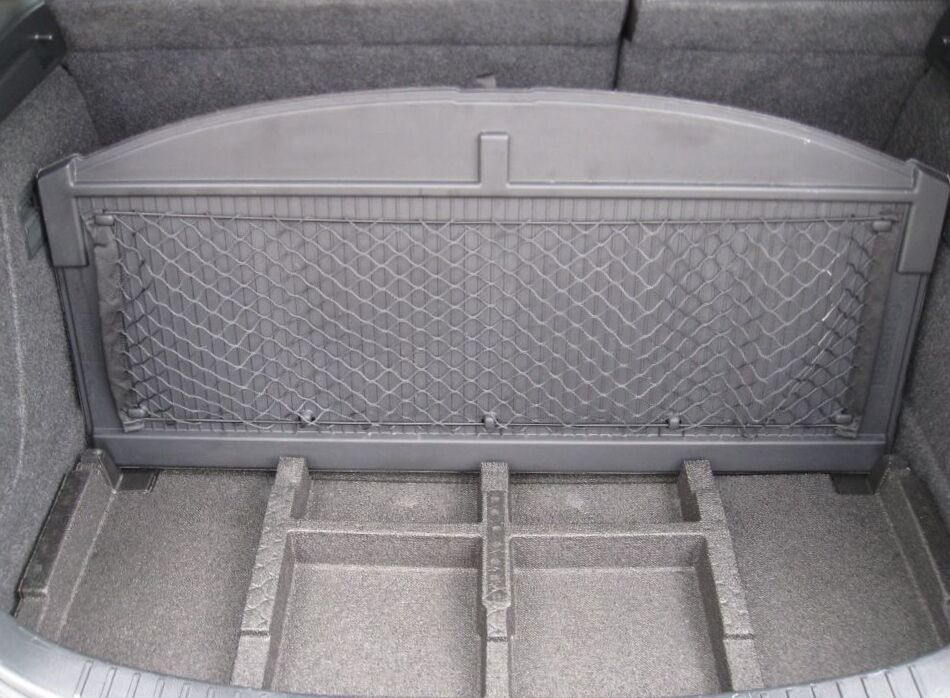

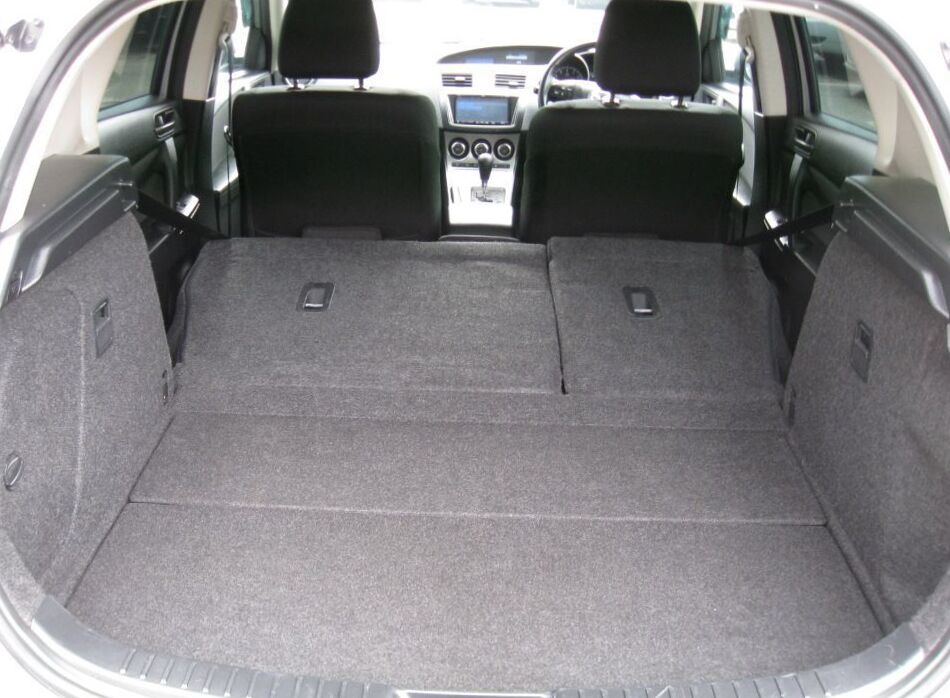

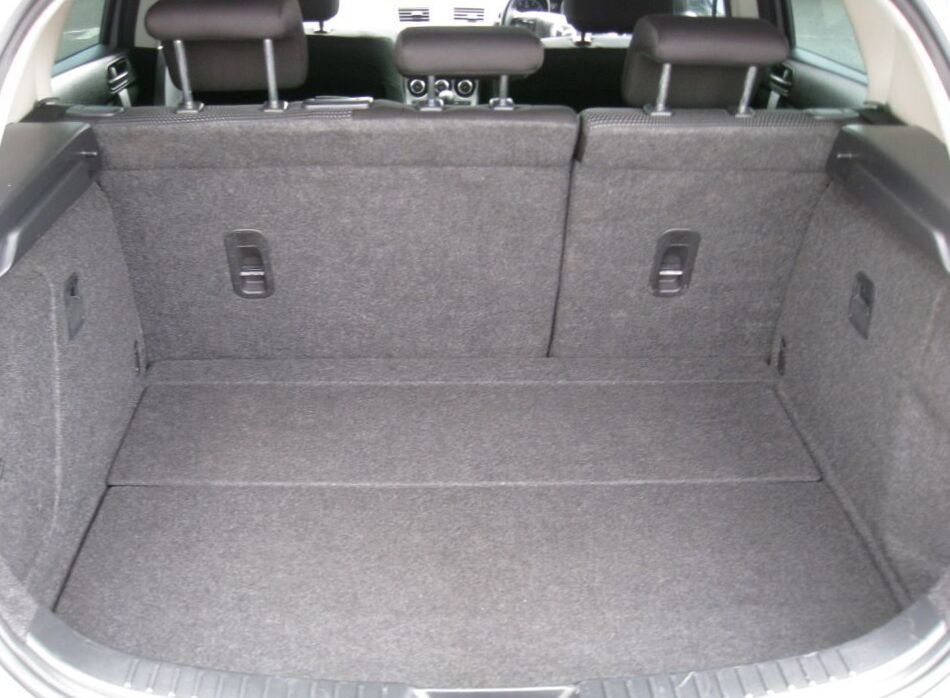

| Lagage box | yes |
| Etc | no |
Car safety | |
| Alarm system | yes |
| Security alarm | no |
2013 Mazda Axela II DBA-BL5FW 1.5 15S Sport Edition (111 Hp) specs
|
The Mazda3 has been generally well-received by the automotive press. In 2006 the 3 was the second best-selling car in Canada and the best selling car in Israel during 2005-2007. Mazda is increasing production of the 3 at its Hofu 1 and 2 factories to meet heavy worldwide demand of over 300,000 units per year. The Axela is based on Ford's global C1 platform, which was developed by Mazda, Volvo and Ford and is shared with the latest European Ford Focus and Volvo S40. Based on the styling of the MX-Sportif concept car, the Axela is available in two body styles, a four-door sedan, marketed as "coupĂ© style" in Europe, and a five-door hatchback, branded the Sport version in Canada, Japan, and the United States. Front suspension is by MacPherson struts, with coil springs and an anti-roll bar. Rear suspension is a Ford-designed "E-link" multi-link suspension, with four locating links per wheel and an anti-roll bar, suspended on coil springs that are mounted inboard of the shock absorbers to reduce suspension intrusion into the cargo area. Disc brakes are standard at all four wheels, with 300mm (11.8in) discs front and 279mm (11in) discs rear; ABS and electronic brake force distribution are available or standard, depending on the model. Wheel and tire sizes vary with model, from 15in on base models to option 17in wheels on upper-level models. » Read More About Mazda Axela |
