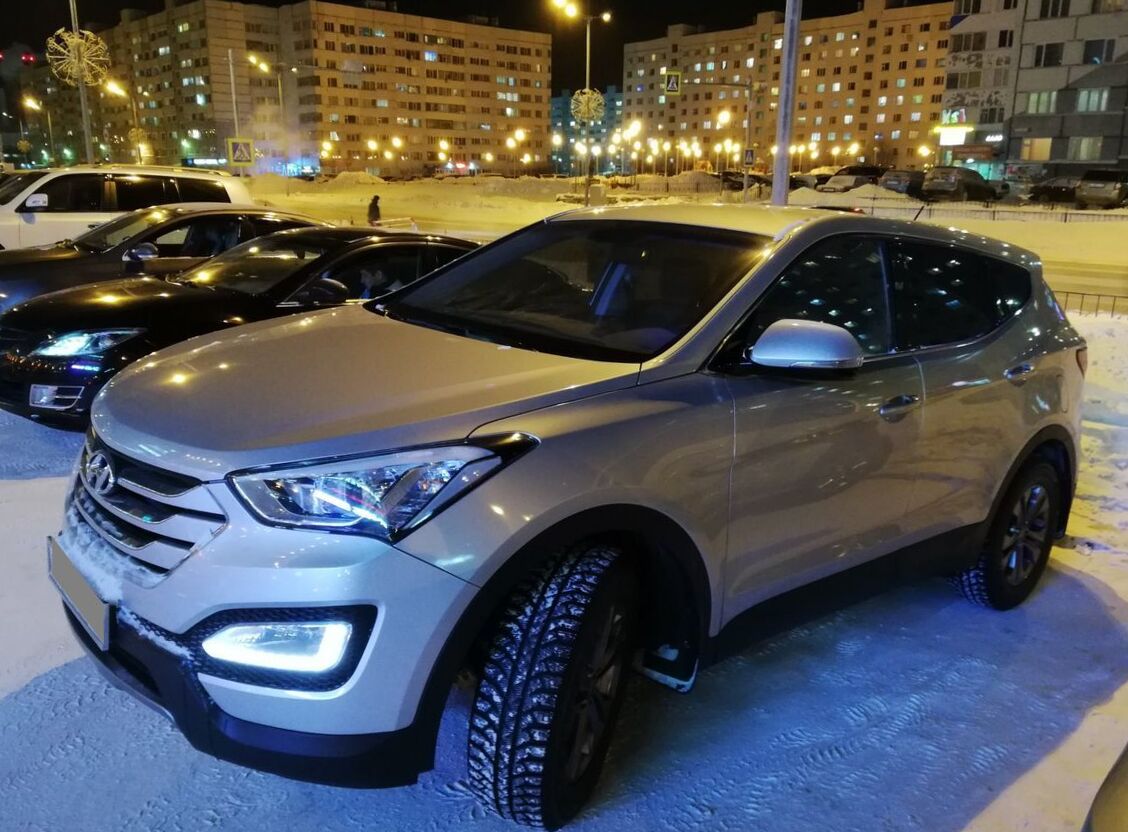

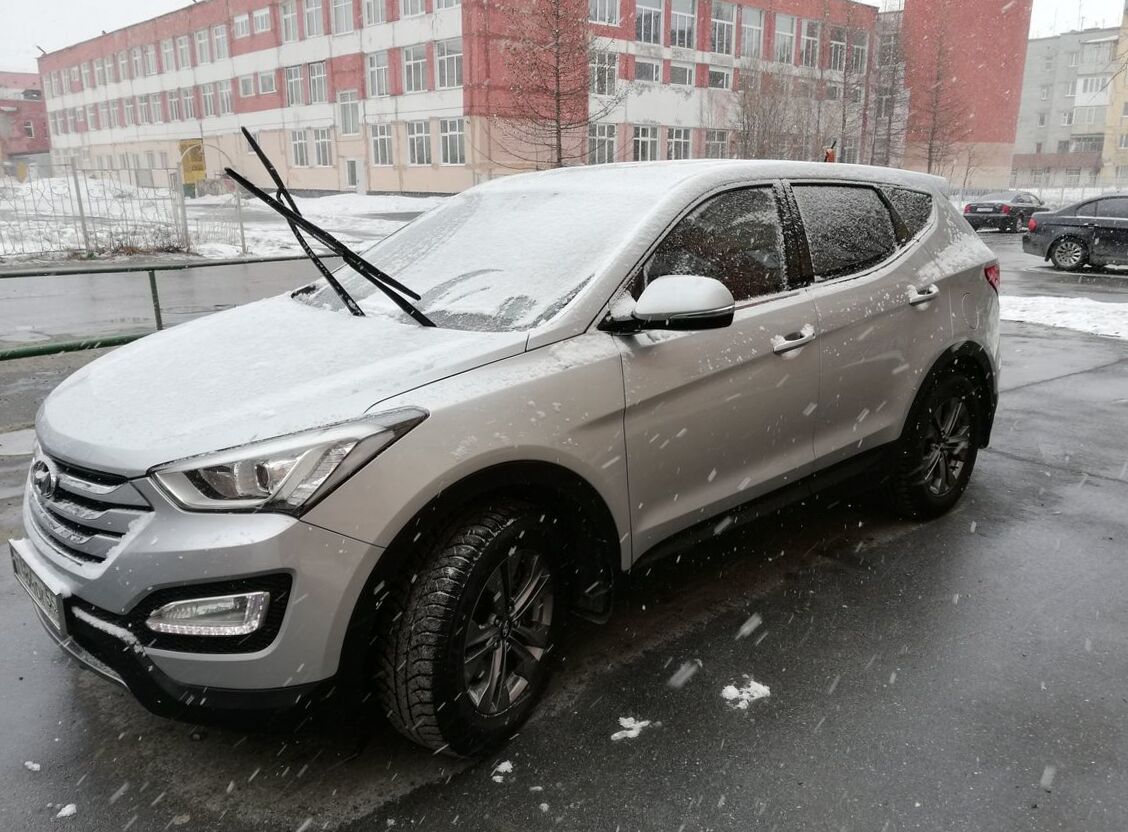

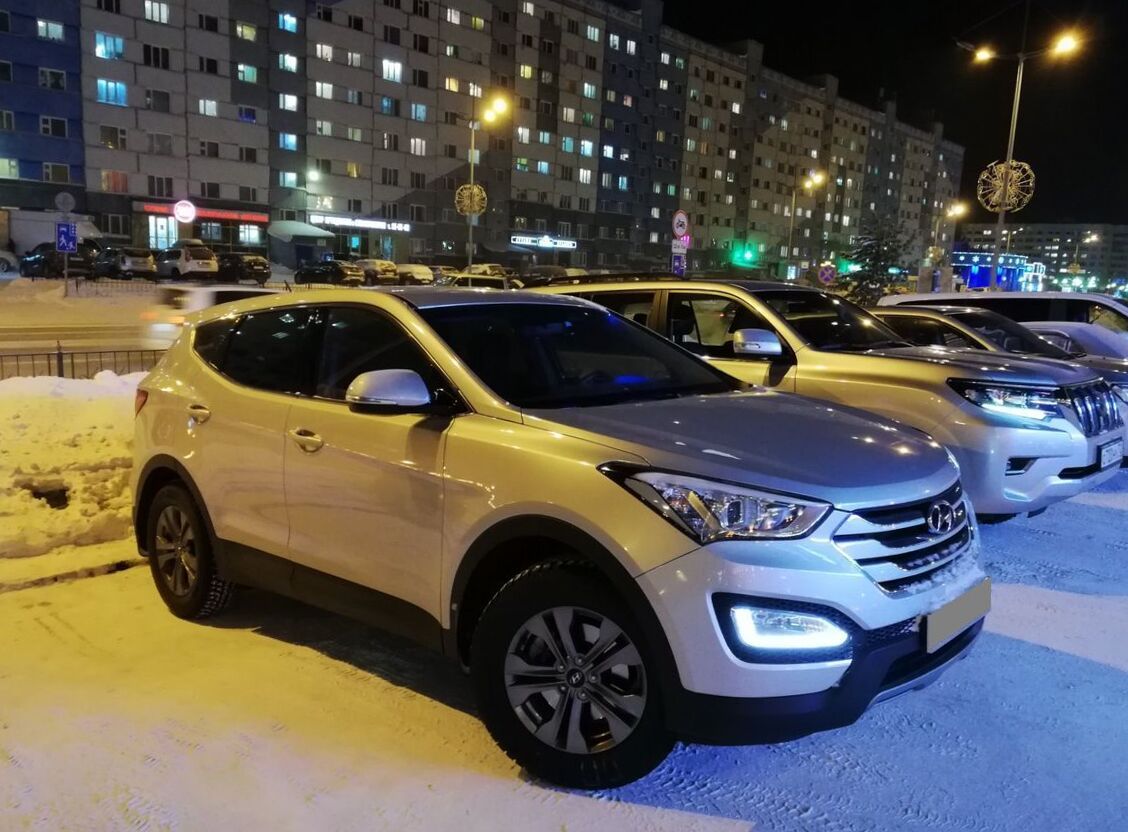

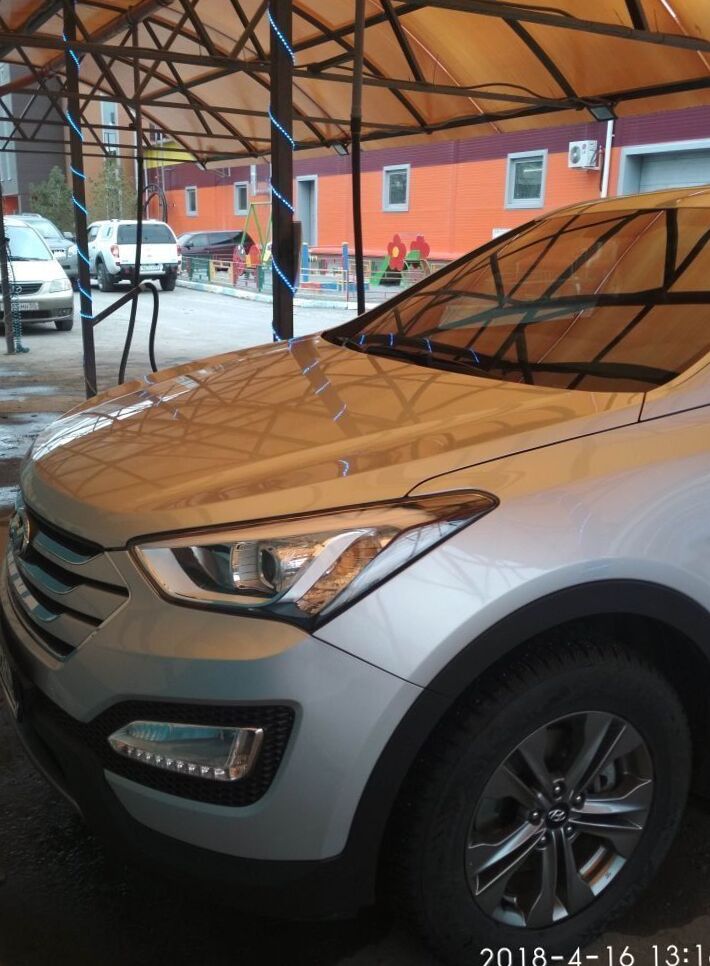

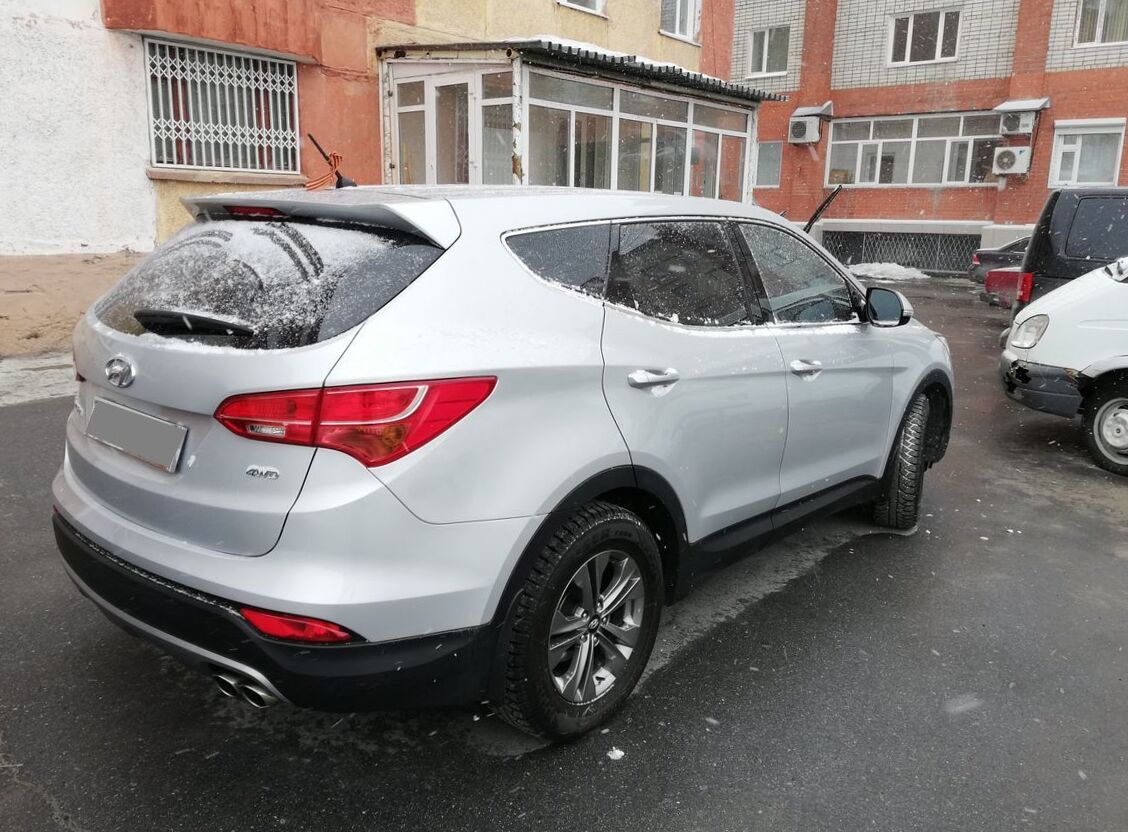

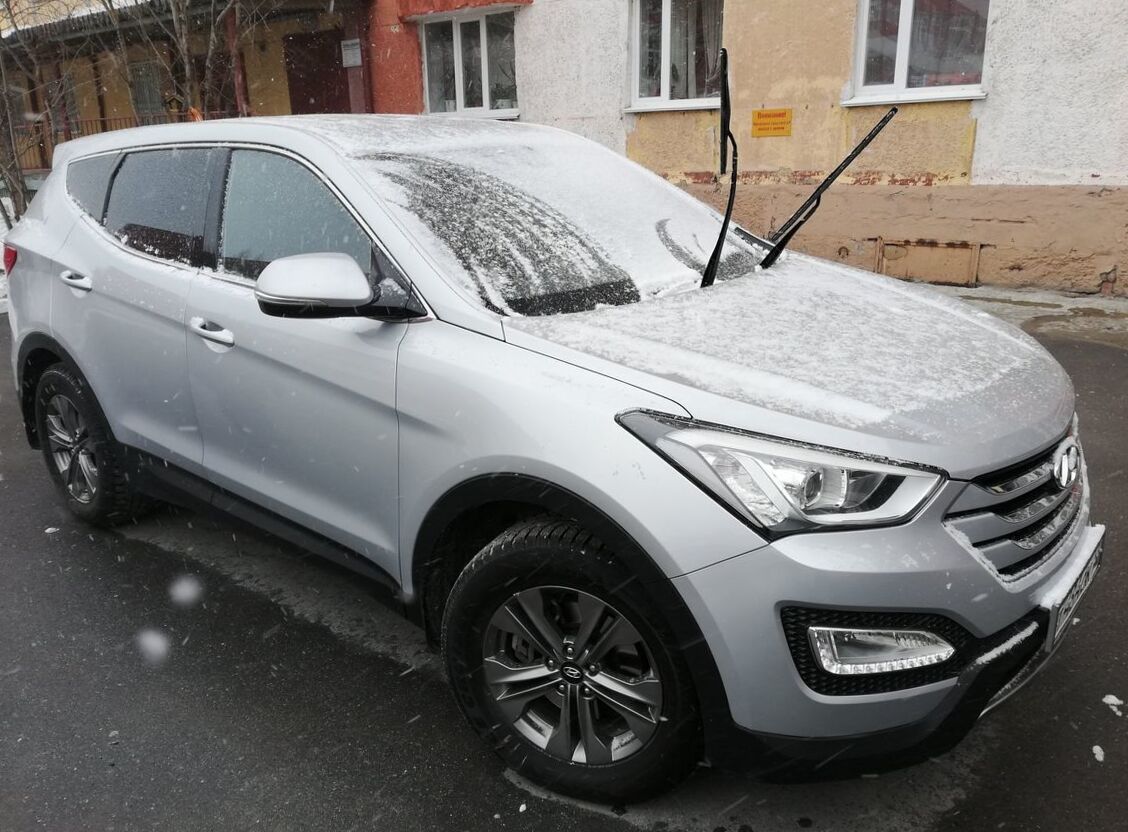

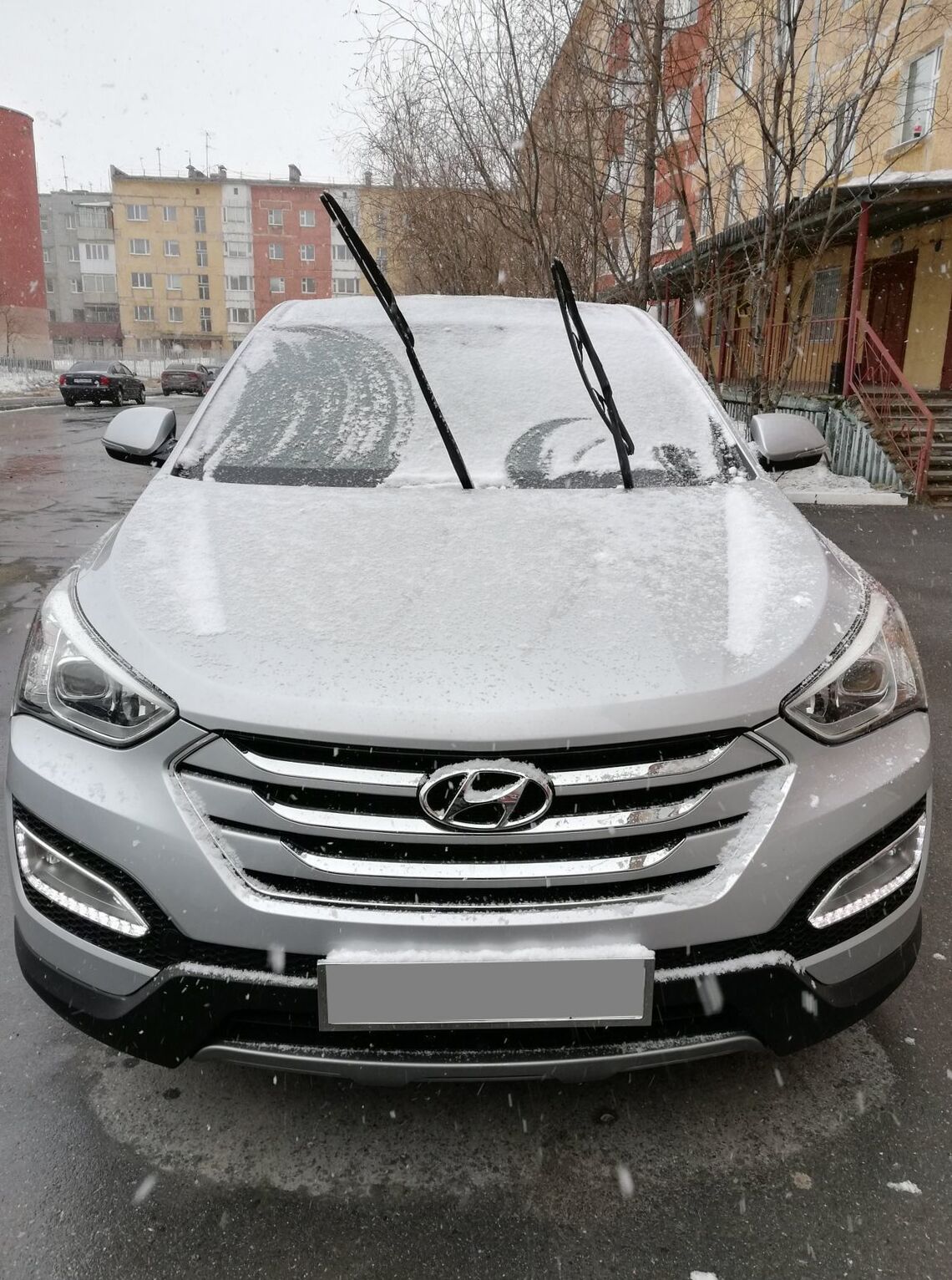

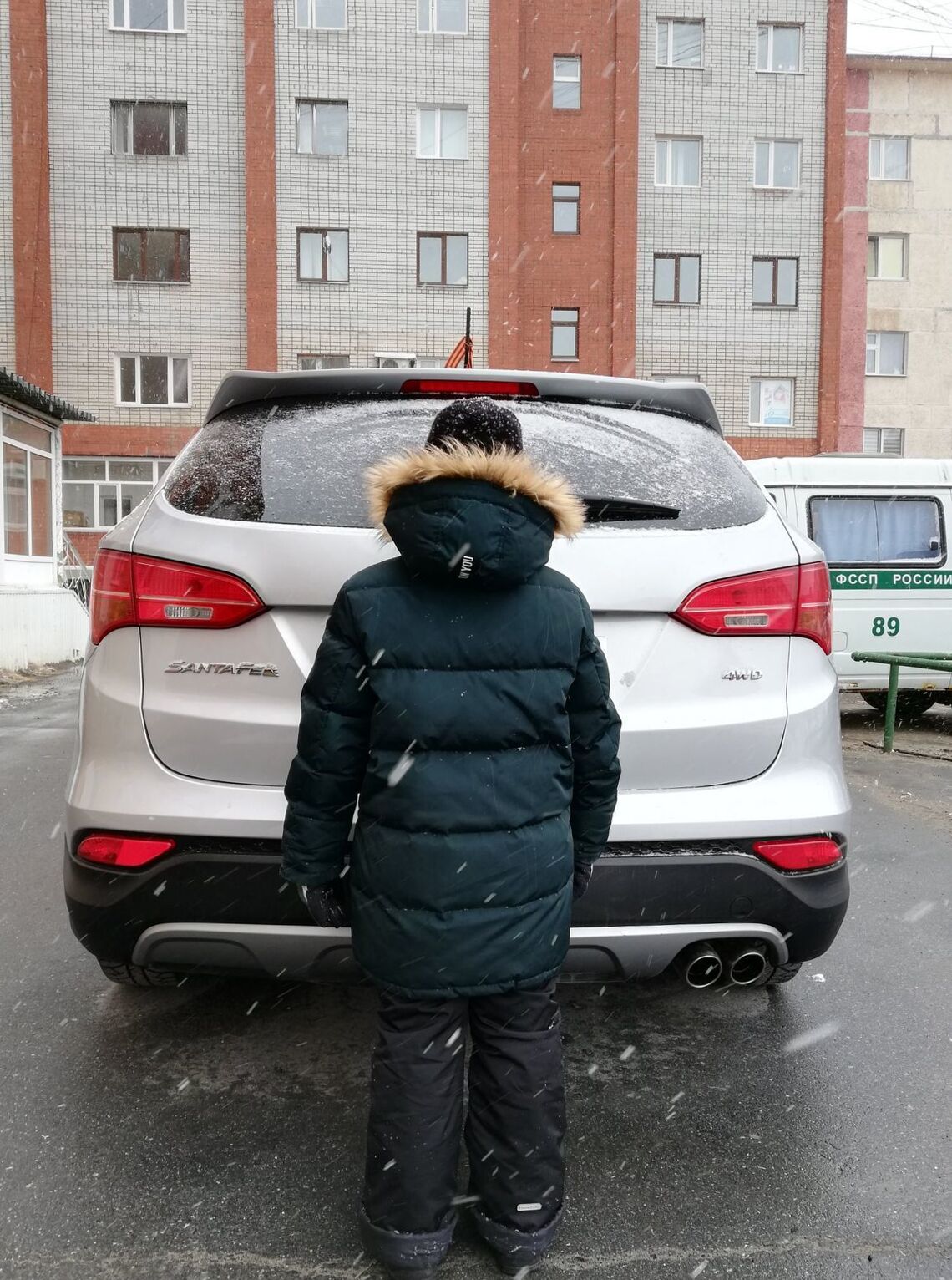

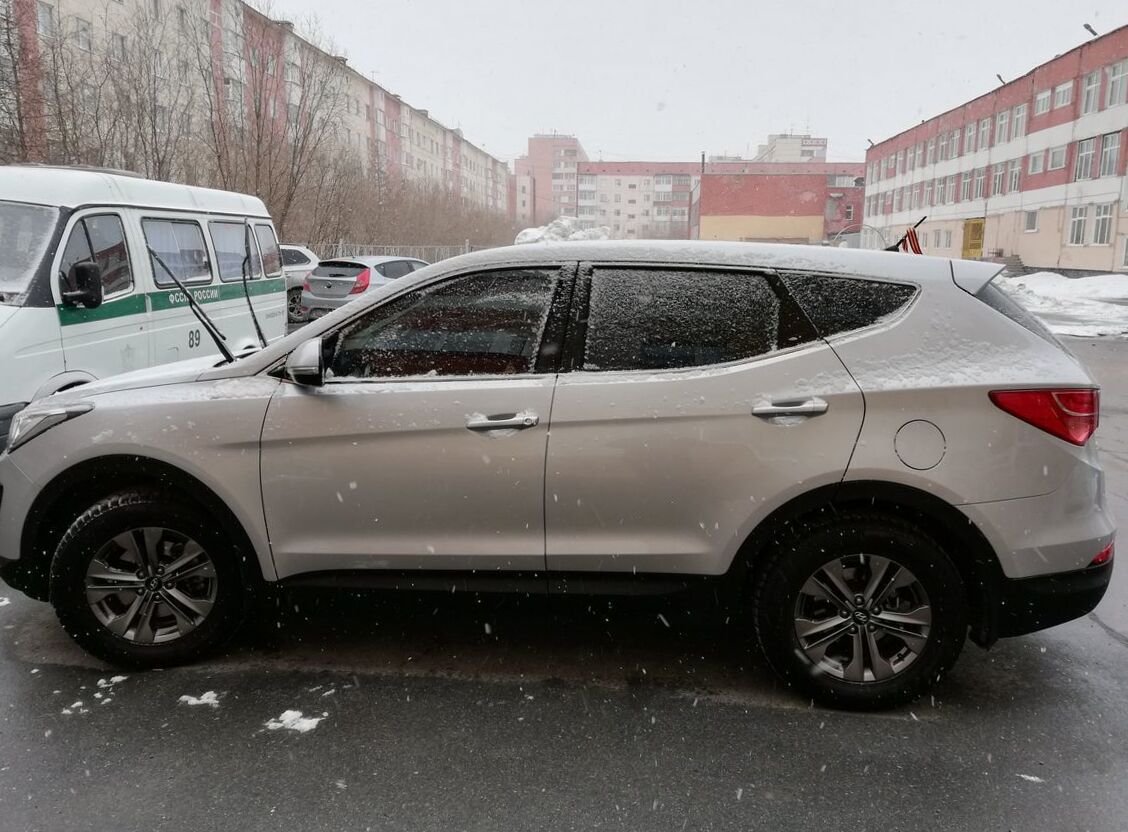

2014 Hyundai Santa Fe III 2.4 MT 4WD Comfort
Hyundai Santa Fe Problems
The ABS and Stability warning lights came and s...
2011, The ABS and Traction Stability warning
lights came and stayed on. Is this something I
s...
Smoking,and slow speed
2004, Thick smoke coming out of exhaust, speed
dropped to 40. that IS WHAT I CAN DESCRIBE FOR...
Hyundai SantaFe 2002 diesel engine
2002, A 2002 diesel engine HyundaiSantaFe
always display check engine and stop . When
restart...
| Body type | SUV |
|---|---|
| Power | 175 Hp |
| Engine Displacement | 2400 cm3 or 2.4L or 146.4 cu-in |
| Color | silver |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 22058 Miles |
| Vin | KMHST81CCFU****02 |
| Price (out of date) | $23832 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2014 Hyundai Santa Fe III? | SUV, 5 Seats, 5 Doors |
| What is the fuel economy, Hyundai Santa Fe SUV 2014? | 8.9 l/100 km |
| How fast is the car, Hyundai Santa Fe DM 2014? | 190 km/h, 0-100 km/h: 11.4 sec |
| How much power, 2014 Hyundai Santa Fe 2.4 MT 4WD Comfort? | 175 Hp |
| What is the engine size, Hyundai Santa Fe III 2014 SUV 2.4 MT 4WD Comfort (175 Hp)? | 2.4L or 2359cm3 |
| How many gears, What type is the gearbox, 2014 Hyundai Santa Fe SUV 2.4 MT 4WD Comfort (175 Hp)? | 6 speed Manual |
| What is the drivetrain, 2014 Hyundai Santa Fe III? | All wheel drive (4x4) |
| How long is this vehicle, Hyundai Santa Fe SUV 2014? | 4690 mm |
| How wide is the vehicle, Hyundai Santa Fe DM 2014? | 1880 mm |
| What is the gross weigh, 2014 Hyundai Santa Fe 2.4 MT 4WD Comfort? | 2510 kg |
| How much trunk (boot) space, Hyundai Santa Fe III 2014 SUV 2.4 MT 4WD Comfort (175 Hp)? | 585 l |
Hyundai Santa Fe III DM 2.4 MT 4WD Comfort (175 Hp) 2012, 2013, 2014 Specs
General information | |
|---|---|
| Complectation name | 2.4 MT 4WD Comfort |
| Production start year | 2012 |
| Production end year | 2014 |
| Drive type | All wheel drive (4x4) |
| Frame type | SUV |
| Transmission type | 6 speed Manual |
| Engine volume, cc | 2359 |
| Frame name | DM |
| 0 to 100 time | 11.4 |
| Max speed | 190 |
| Clearance, mm | 185 |
| Manufacturing country | South Korea |
| Diler name | 2.4, MT, 4WD, Comfort C599 |
| Doors | 5 |
| Winter complectation | yes |
| Warranty | 5 years or 150,000 km |
Vehicle generation | |
| Generation name | DM |
| Generation number | 3 |
| Production start year | 2012 |
| Production end year | 2016 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | G4KE |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 175 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 175 (129) / 6000 |
| Max torque, N*m | 227 |
| Max torque RPM, rpm | 3750 |
| Max torque, N*m (kg*m) / rpm | 227 (23) / 3750 |
Fuel consumption | |
| City | 11.7 |
| Country side | 7.3 |
| Combined | 8.9 |
Steering | |
| Steering vgs vgrs | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4690 |
| Exterior width, mm | 1880 |
| Exterior height, mm | 1675 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2700 |
| Turning radius, m | 5.45 |
| Wheel spacing front | 1633 |
| Wheel spacing rear | 1644 |
Weight and permissible load | |
| Mass, kg | 1737 |
| Max. weight | 2510 |
Volumes | |
| Fuel tank capacity, l | 64 |

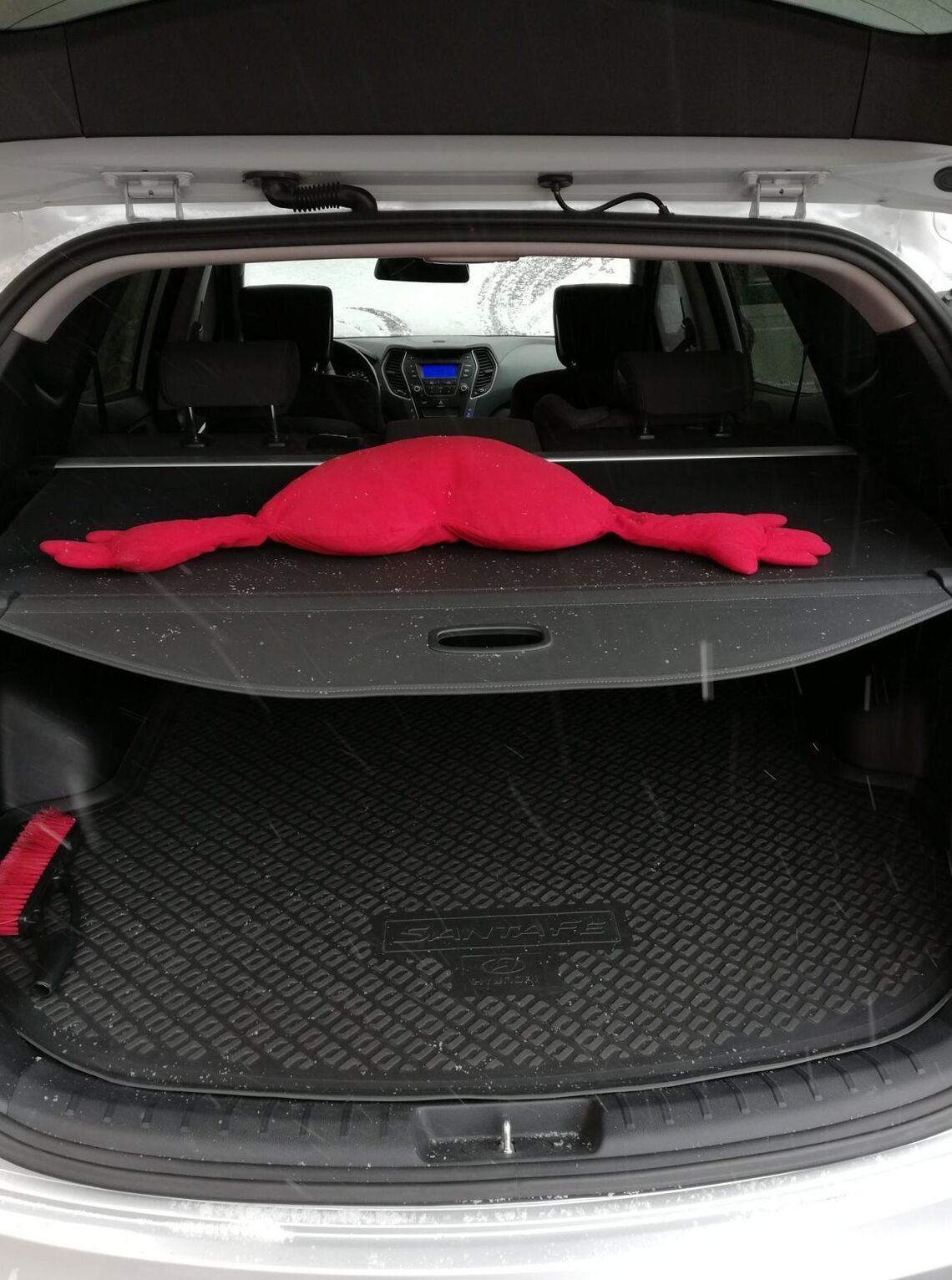

| Trunk volume | 585 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent, spring multi-link |
| Air suspension | no |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |

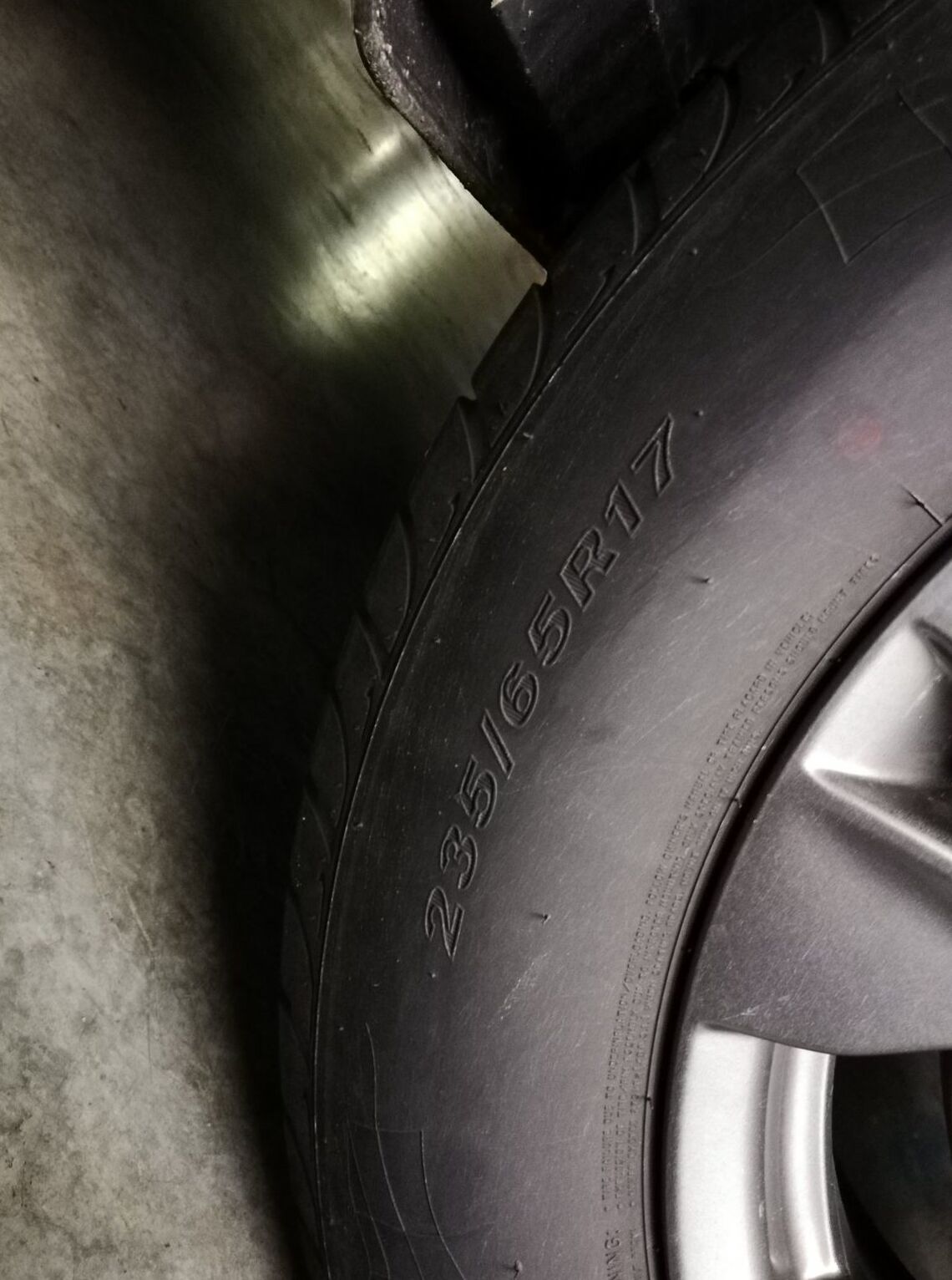

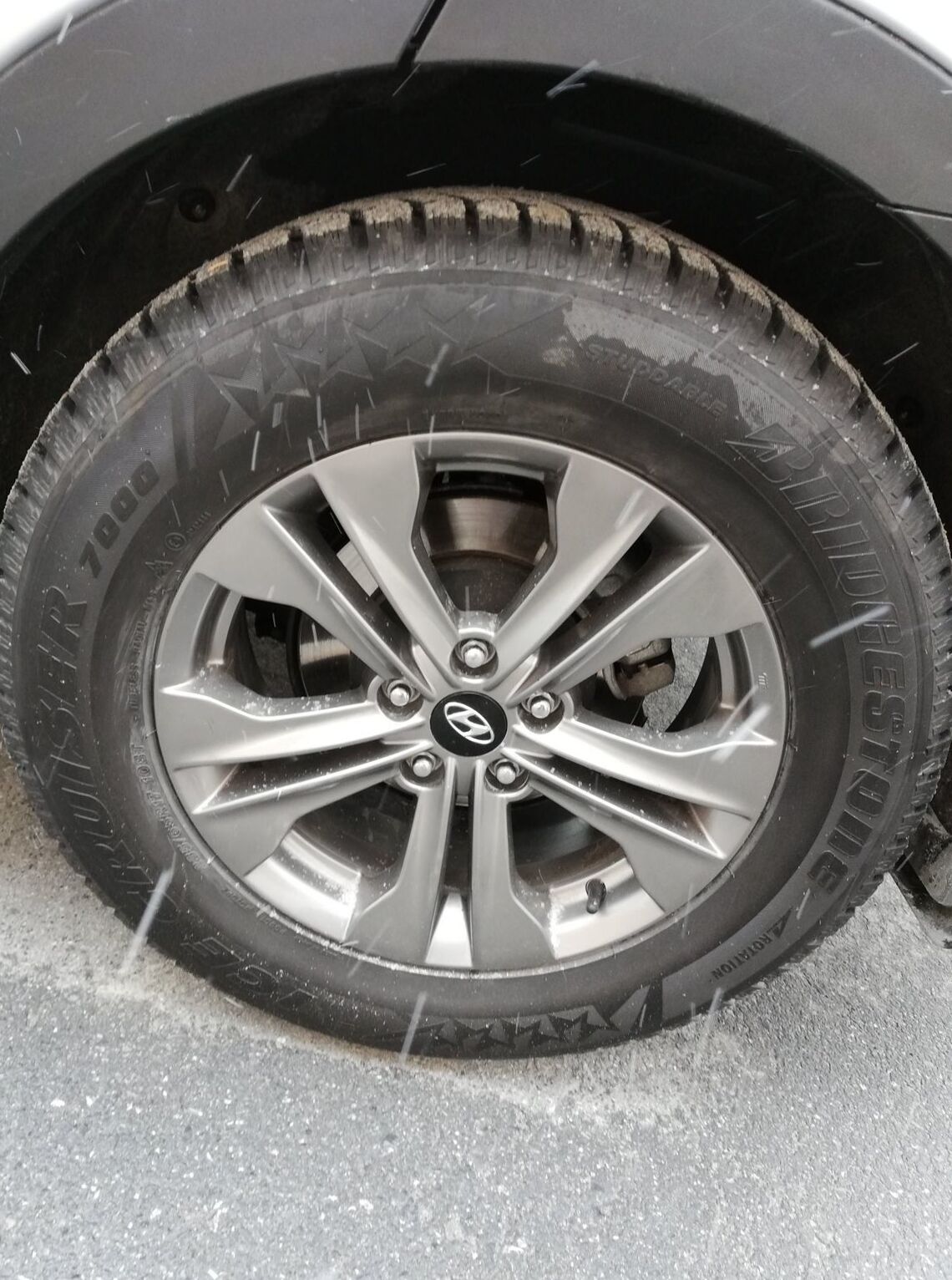

| Front wheels | 235/65 R17 |
| Rear wheels | 235/65 R17 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Parking brake | Mechanical |
| Parking brake new first | Mechanical |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Xenon lamps | no |
| Led lights | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Led backlights | no |
| Light sensor | no |
| Rain sensor | yes |
Side mirrors | |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Windows | |
| Termoglass | no |
Roof | |
| Sunroof | no |
| Panoramic roof | no |
Accessories | |
| Roof rail | no |
| Rear spoiler | yes |
Interior | |

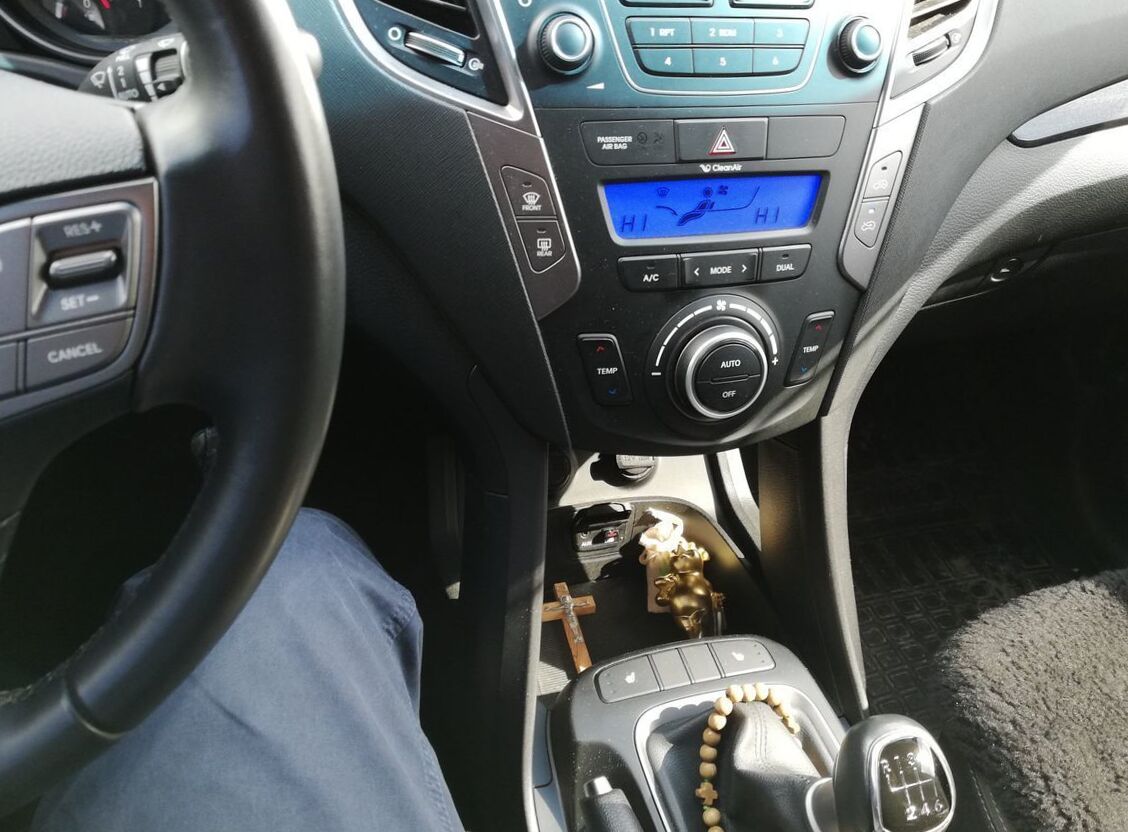

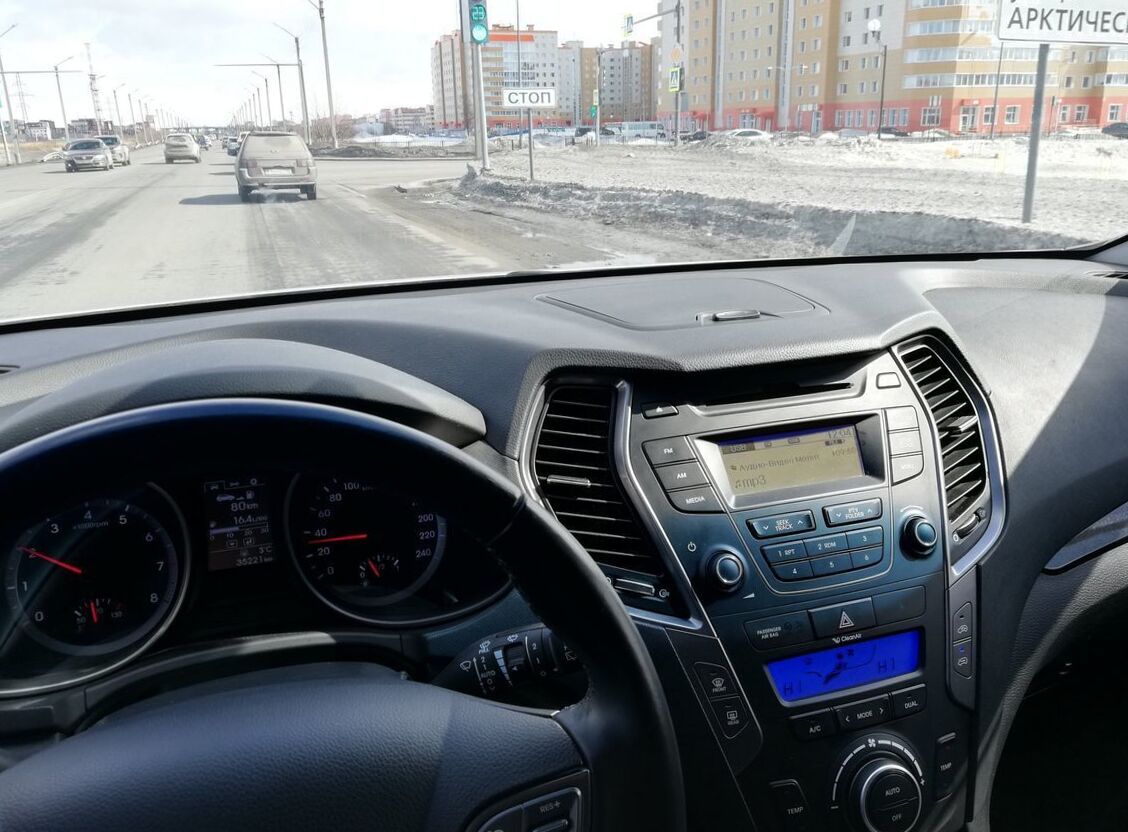

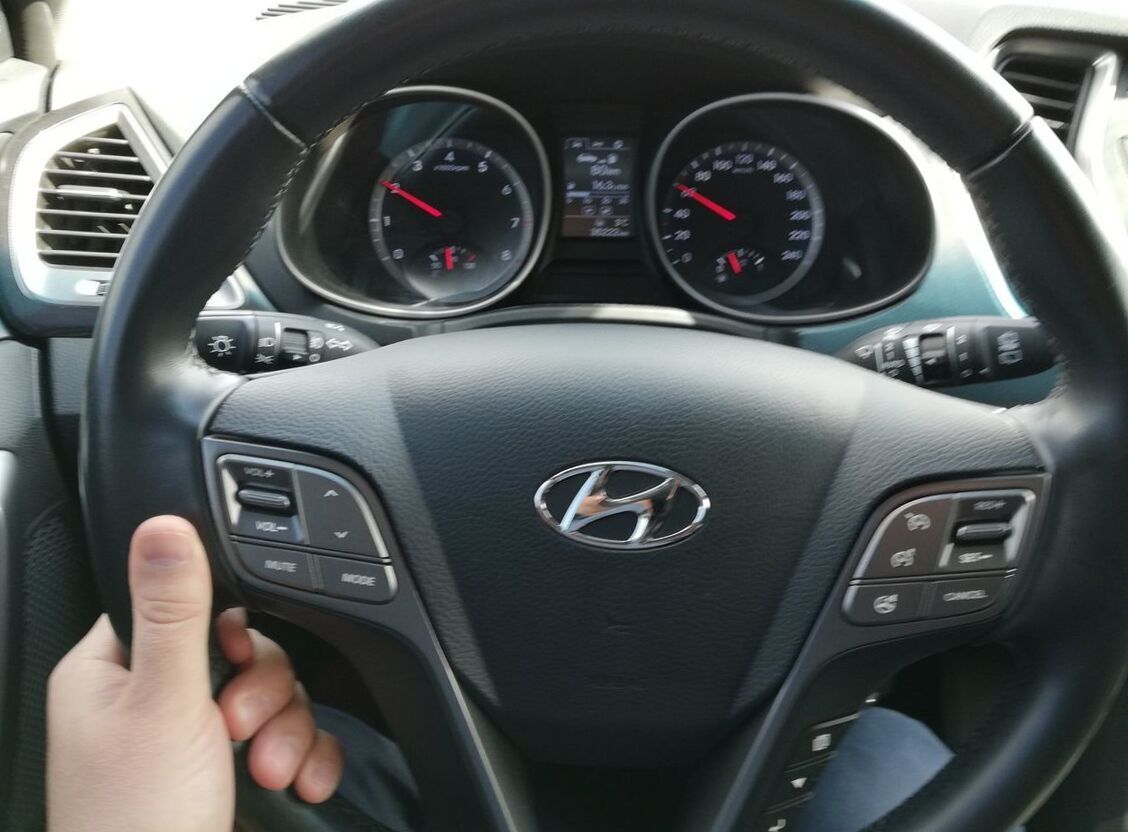

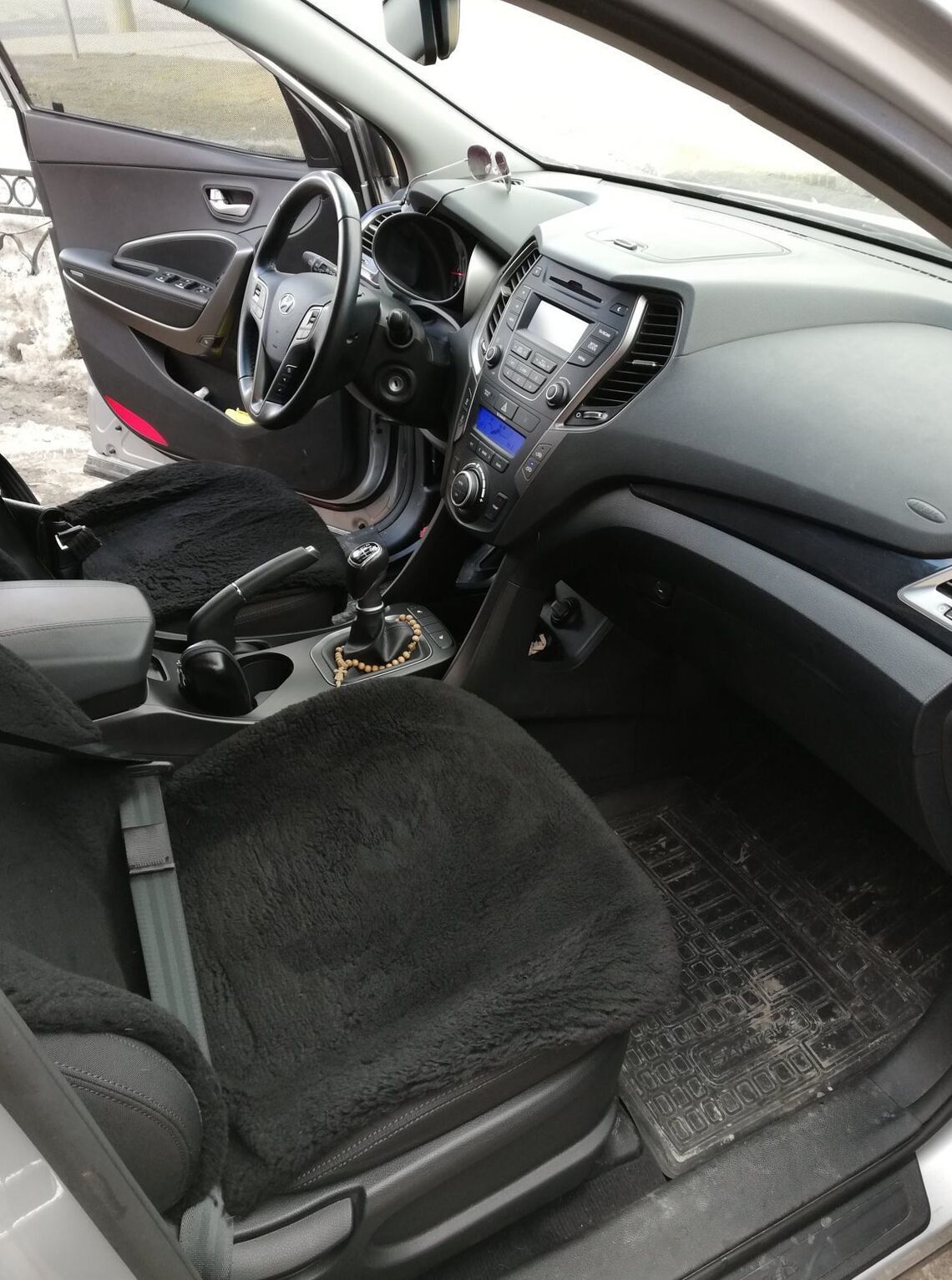

Steering wheel and center panel | |
| Leather winding | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Utility color display | no |
| Engine start button | no |
Interior design | |

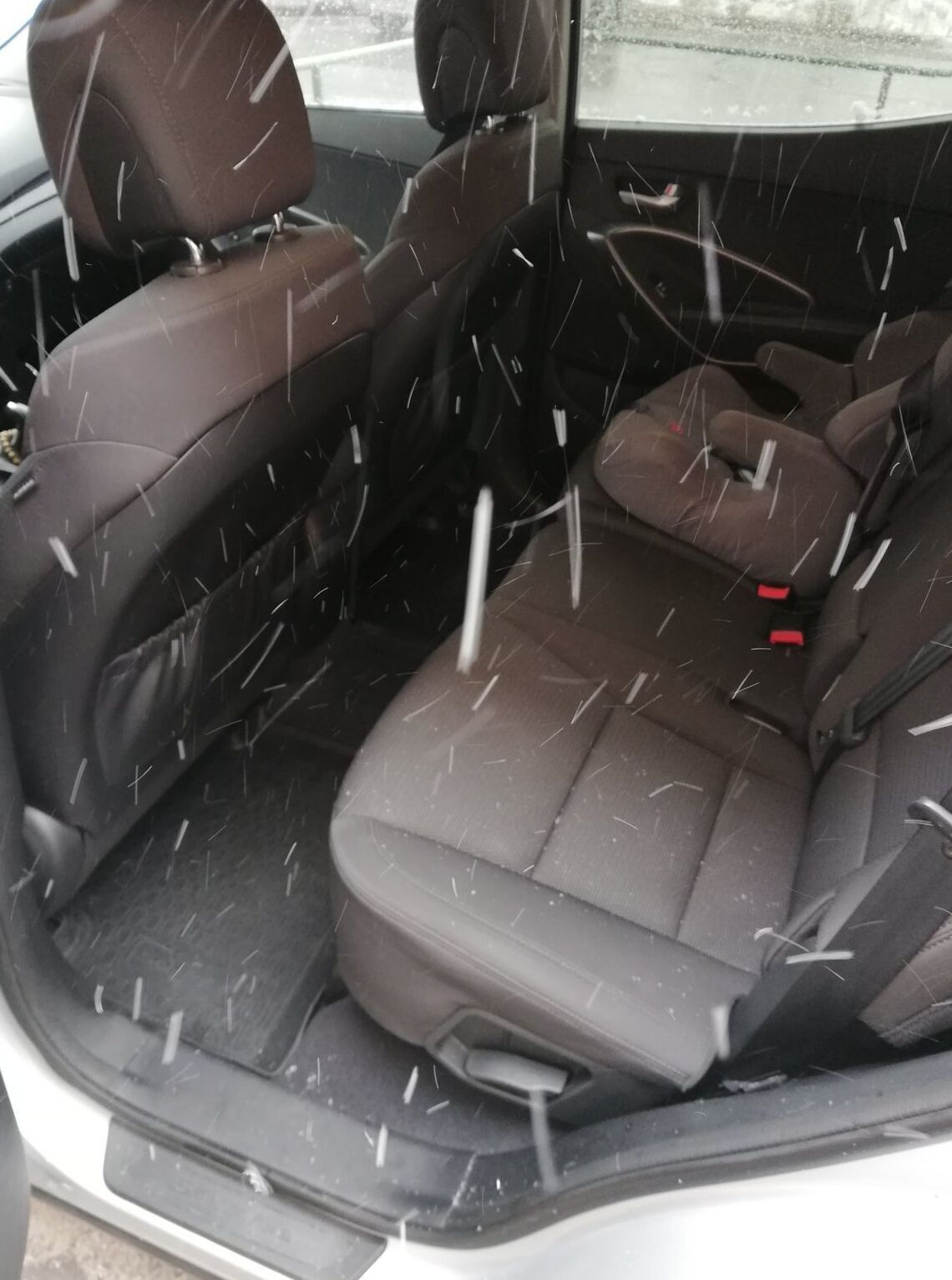

| Cloth upholstery | yes |
| Leather upholstery | no |
Seats | |
| Front seats ajust | Driver's seat height adjustment |
| 2nd row | adds up to a 40/20/40 ratio |
| 3nd row | no |
| Loin reliance | yes |
| Separating armrest front | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Front seat heater | yes |
| Rear seats heater | no |
| Seat position memory | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Power window rear | yes |
| Stearing wheel heater | no |
| Injectors heat | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
| Airbag for the driver's knees | no |
Active and passive safety | |
| Active headrest | yes |
| Safety belt pretensioner | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| Down hill assist | yes |
| Hill-start assist control system | yes |
| Intelligent AFS | no |
| System tire pressure monitoring | no |
| Front sonar | no |
| Rear sonars | no |
| Intelligent parking assist | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Twin conditioning system | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| MP3 Support | yes |
| Hands free | no |
| Additional sound equipment | 6 speakers, equalizer, USB, AUX, iPod |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
| Back monitor | no |
Additional amenities | |
| Antidazzle rearview mirror | no |
| Compass | no |
| Illumination in the cabin during landing | no |

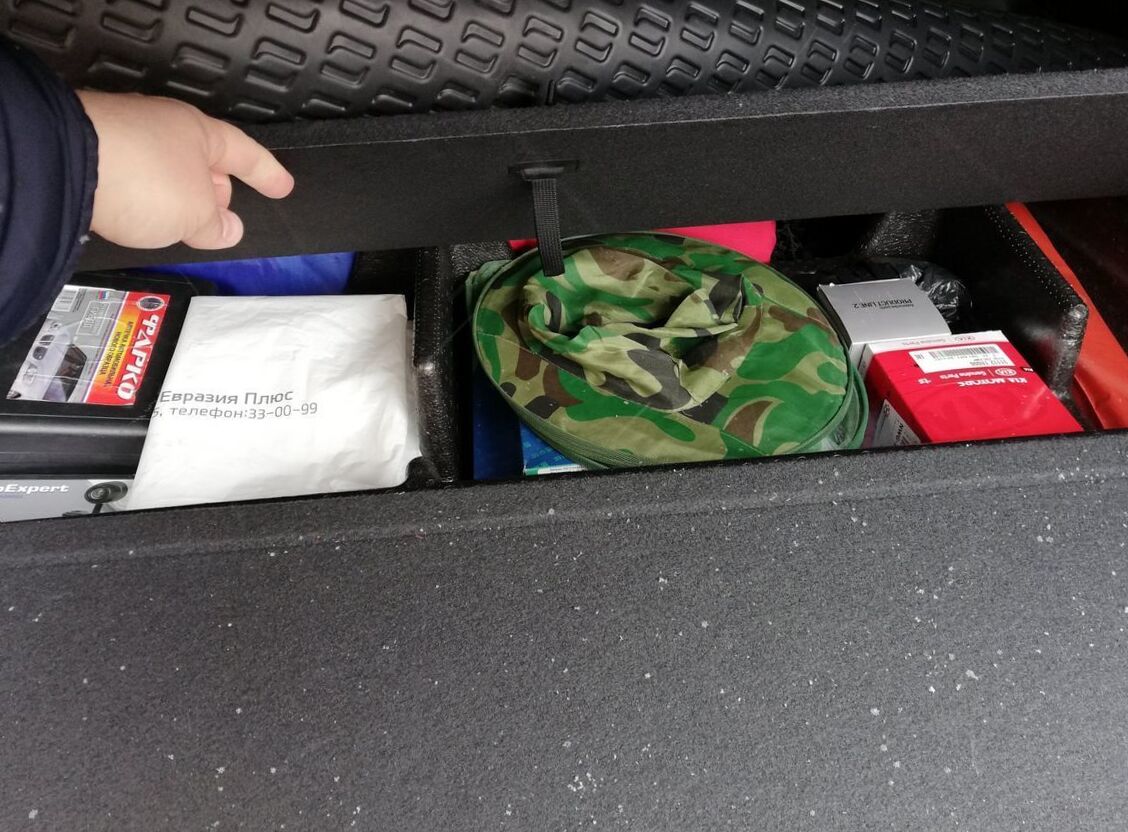

| Lagage box | yes |
| Blind in luggage compartment | yes |
| Onboard computer | yes |
Car safety | |

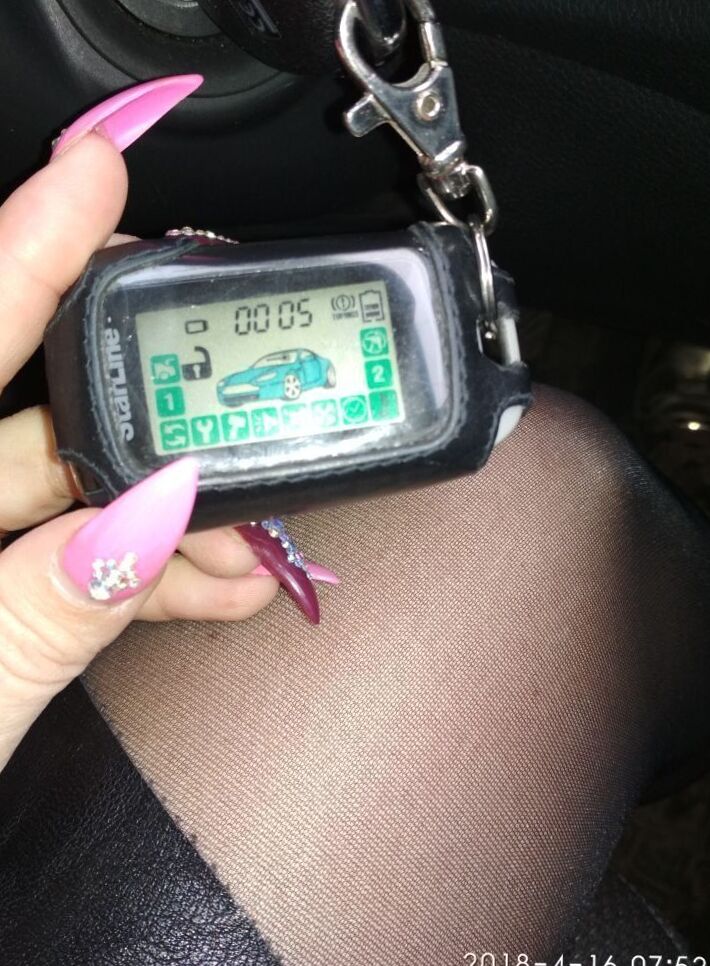

| Immobilizer | yes |

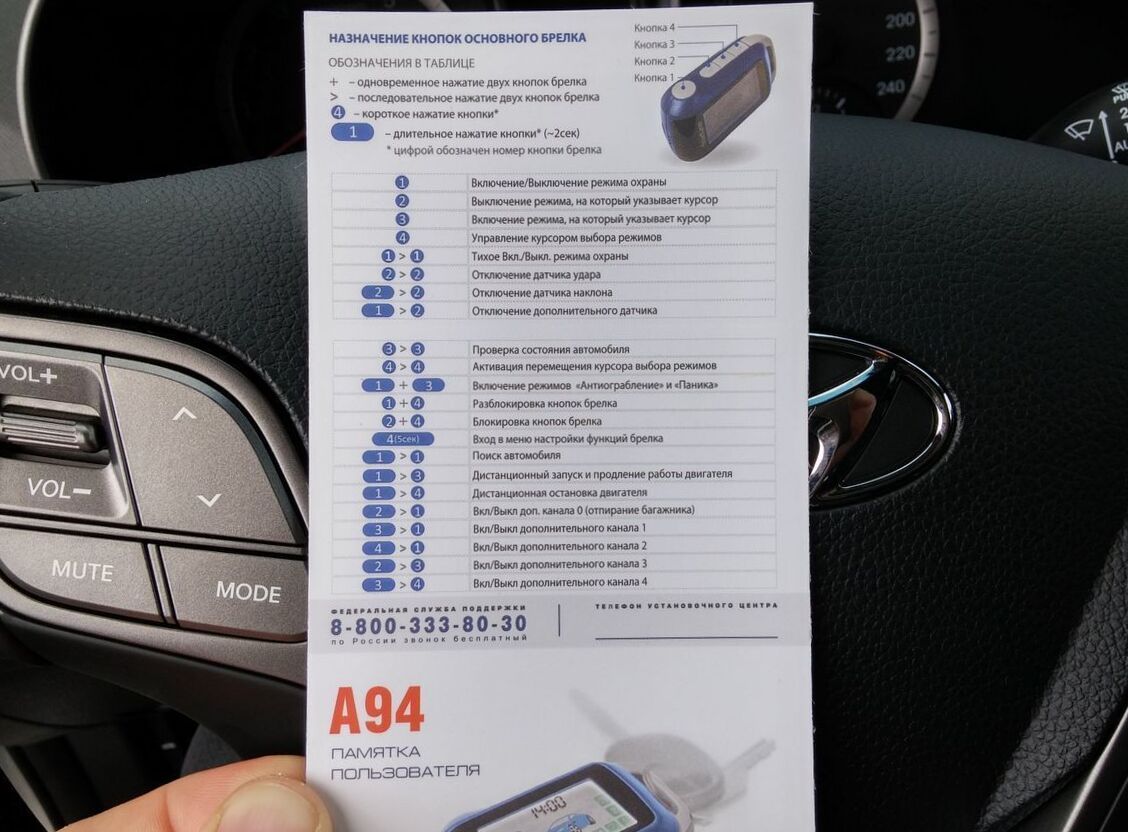

| Security alarm | yes |
Driver Kit | |
| Spare tire | yes |
Hyundai enters the SUV market with the 2001 Santa Fe. All models, except the Base 2WD, come equipped with 4-wheel disc brakes, a 2.7L 6-cylinder engine and a 4-speed Shiftronic automatic transmission.
2014 Hyundai Santa Fe III DM 2.4 MT 4WD Comfort (175 Hp) specs
|
The 2nd Gen Hyundai Santa Fe was awarded 2008 Consumer Reports "top pick" and was among the top 10 vehicles for 2008 unveiled in the magazine's issue. The magazine's annual ratings, based on road tests and predicted safety and reliability, are considered highly influential among consumers. 2001In its first year in production, the Santa Fe was offered with one of two engine and transmission combinations. In North America, a fuel-efficient although underpowered 2.4L four cylinder engine was standard equipment and could be mated with either a 5-speed manual or a 4-speed automatic. A 2.7L (2656cc, 162cuin) Delta V6 offered more power than the four-cylinder but was only available with the automatic. Front wheel drive was standard (with traction control optional with the V6) and 4WD was optional. A 2.0L Common Rail Turbo Diesel (CRTD) was offered outside the United States. Australian Santa Fes went on sale in November 2000 with only one engine/ transmission choice - a 2.7L V6 mated to a four-speed semi-automatic transmission. 4WD was standard. A cheaper 2.4L four cylinder joined the range several months later in 2001, but was only available with a manual transmission. » Read More About Hyundai Santa Fe |
