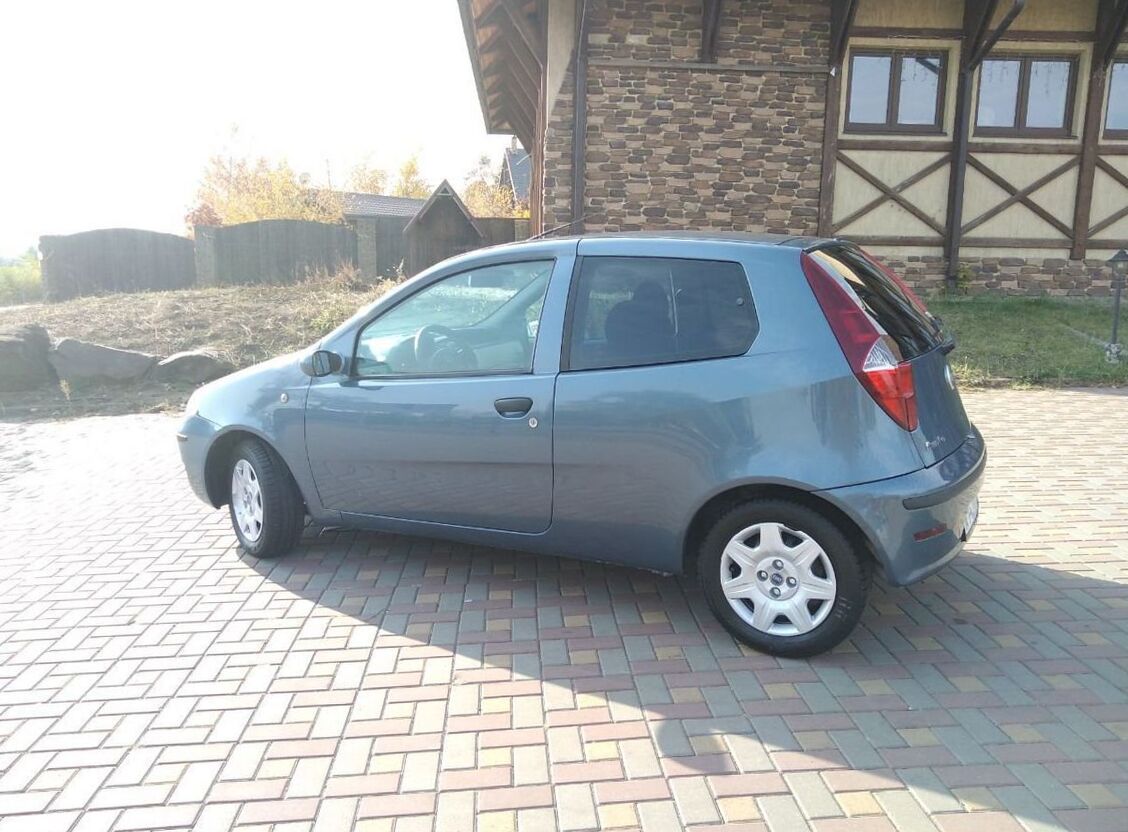

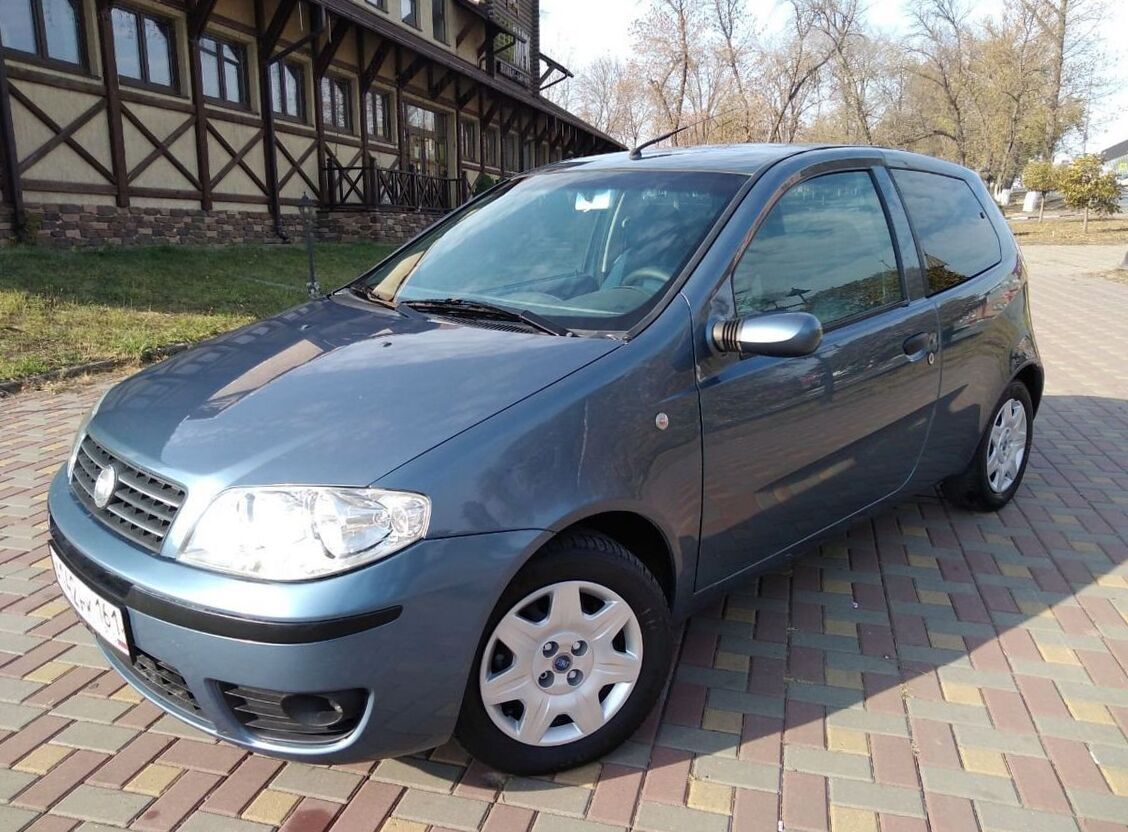

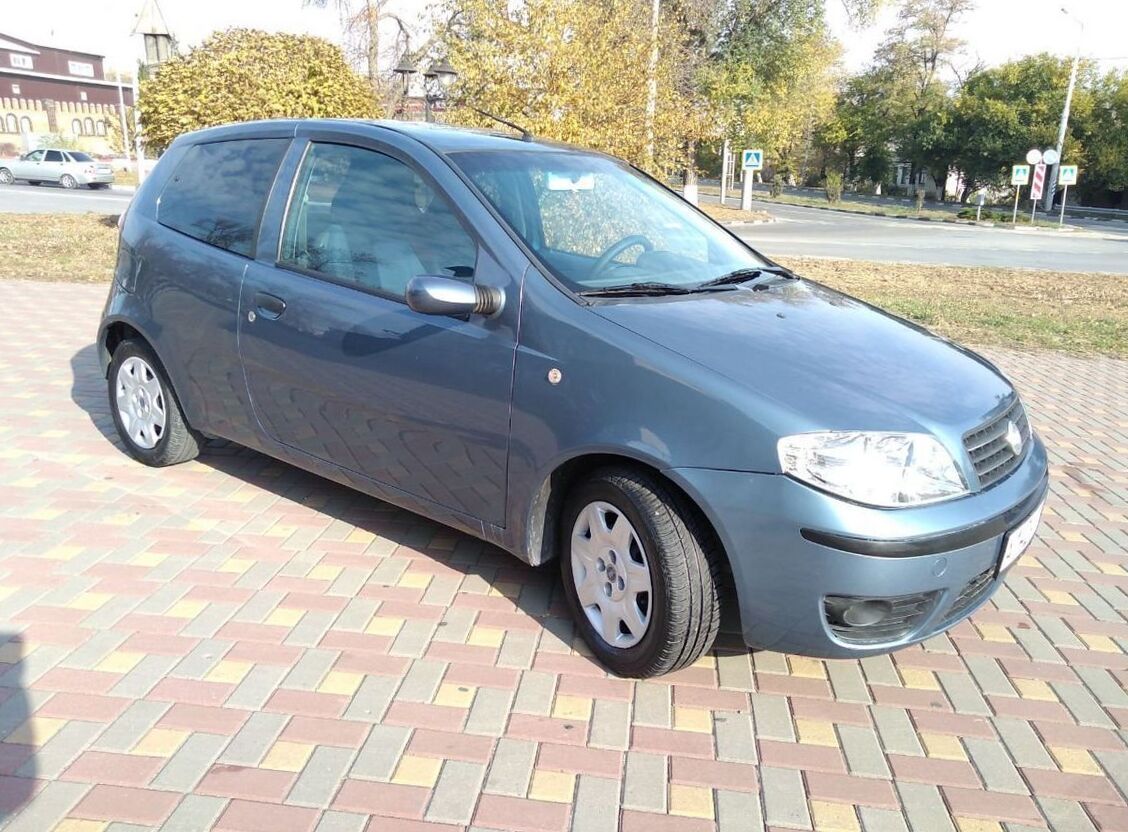

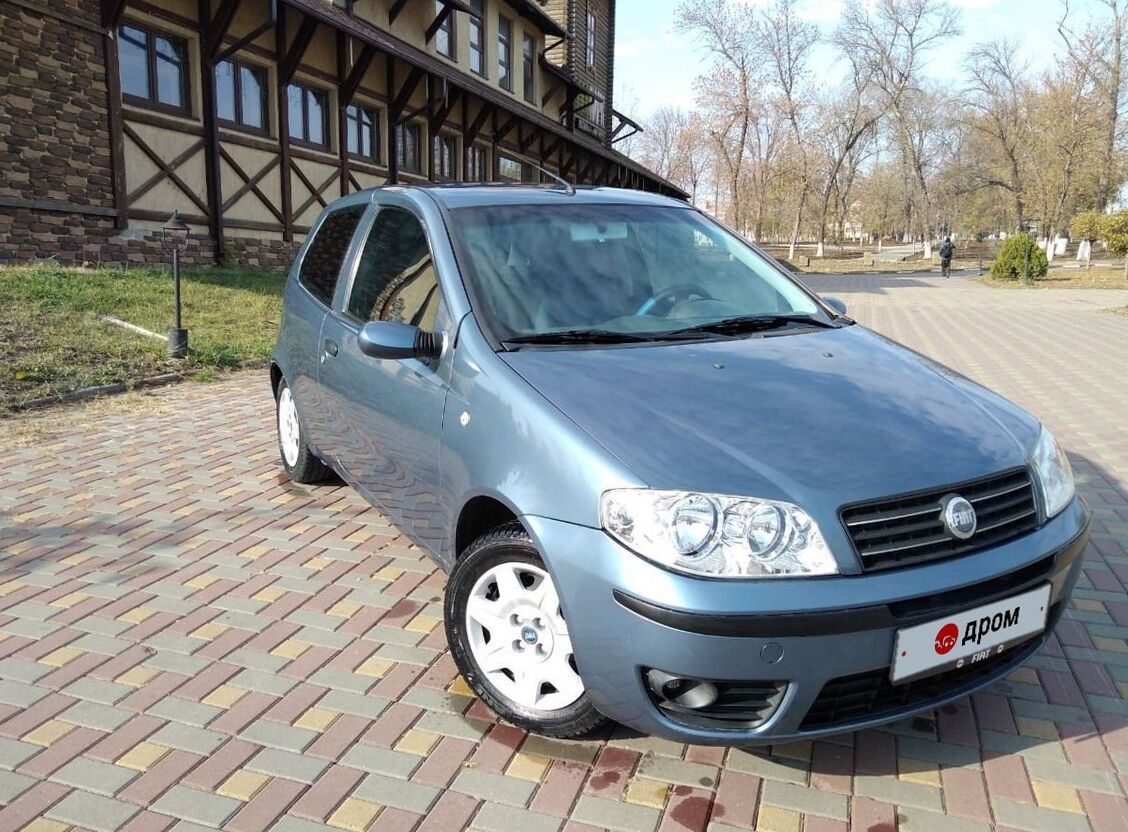

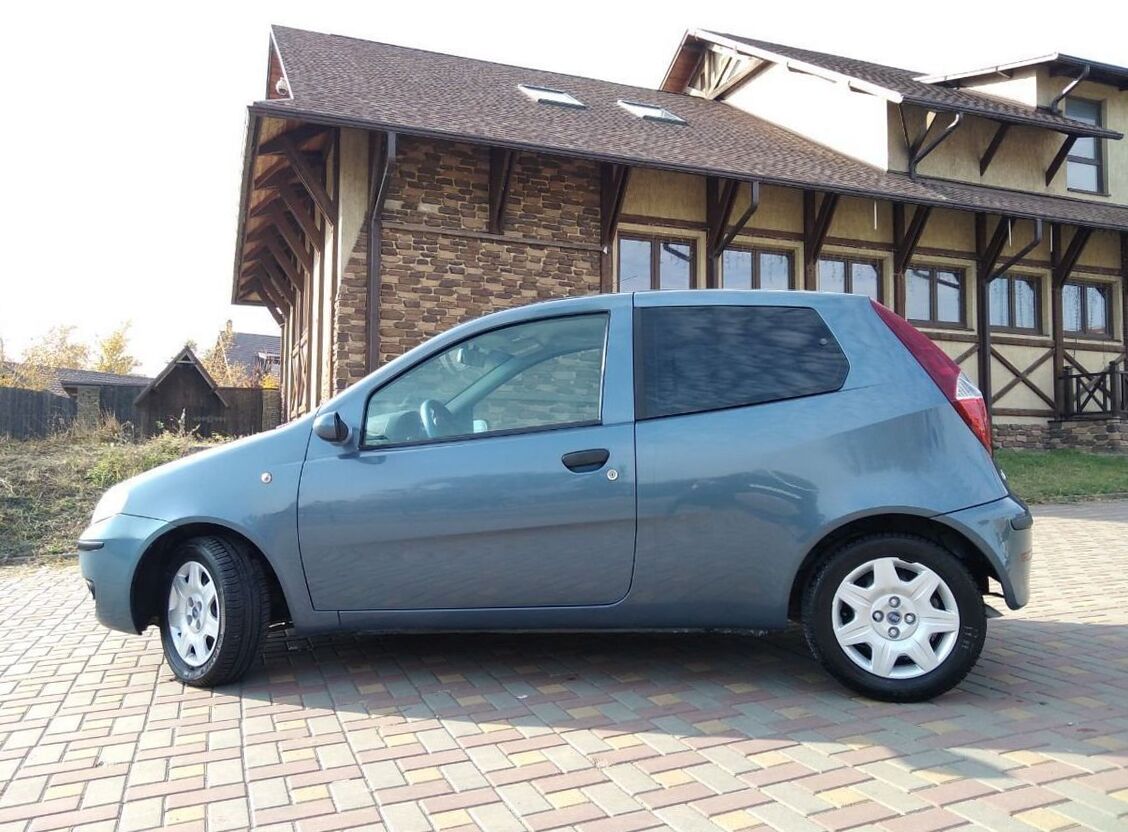

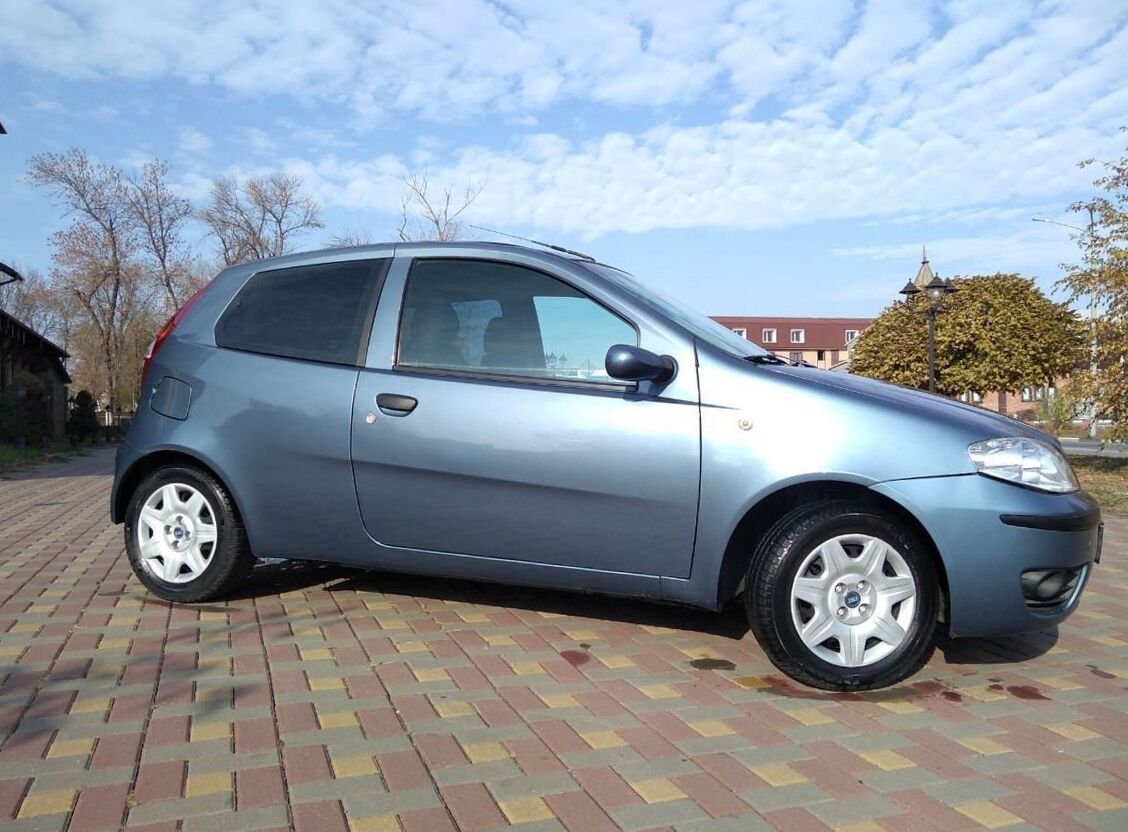

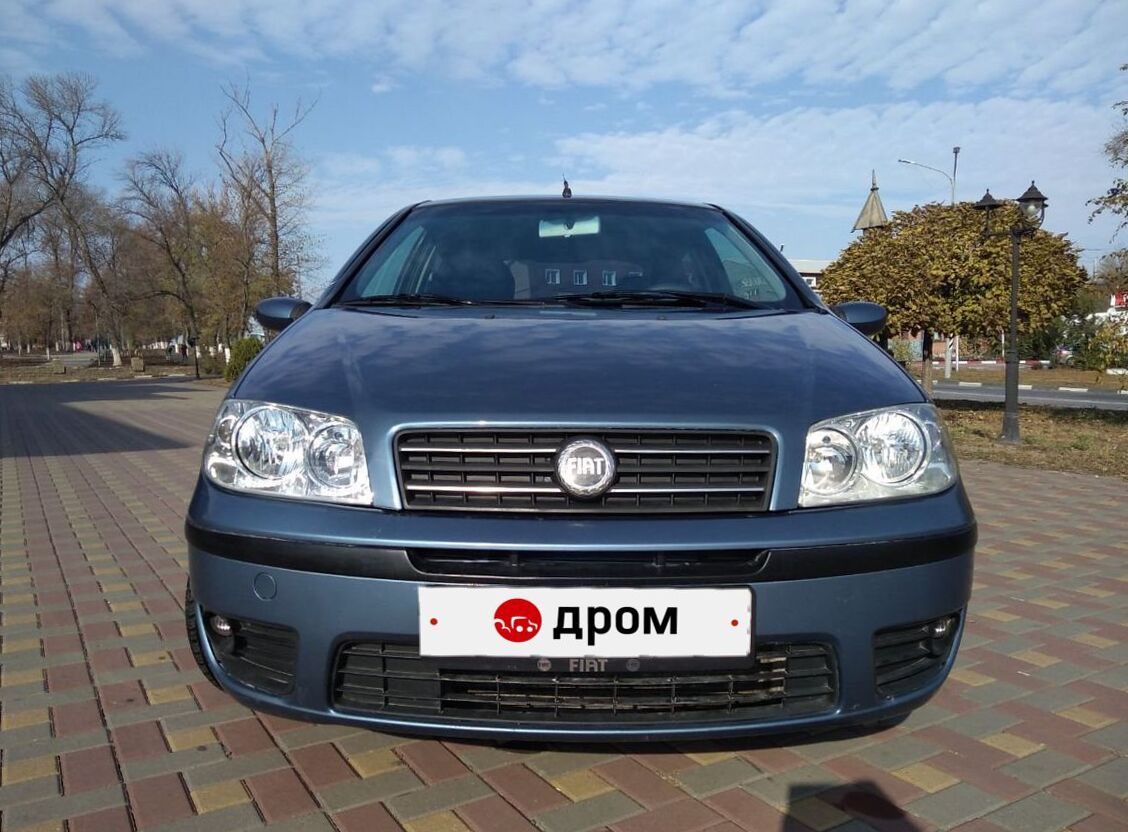

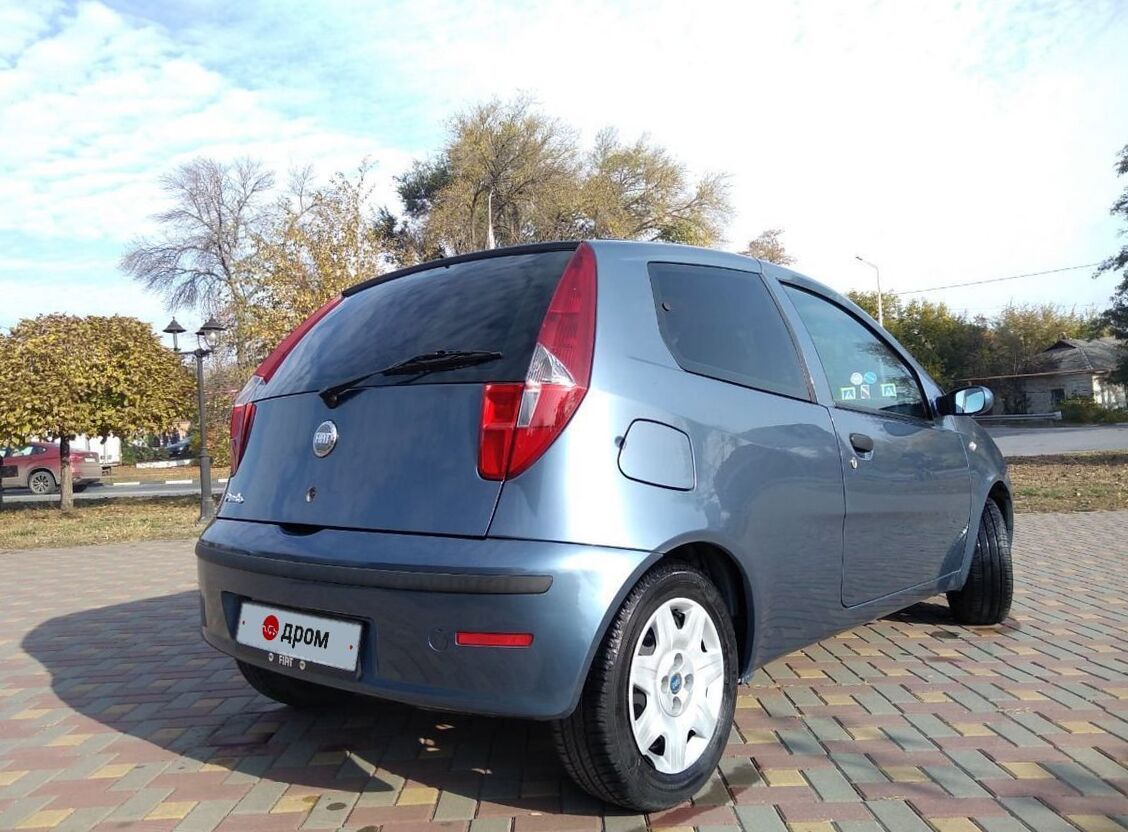

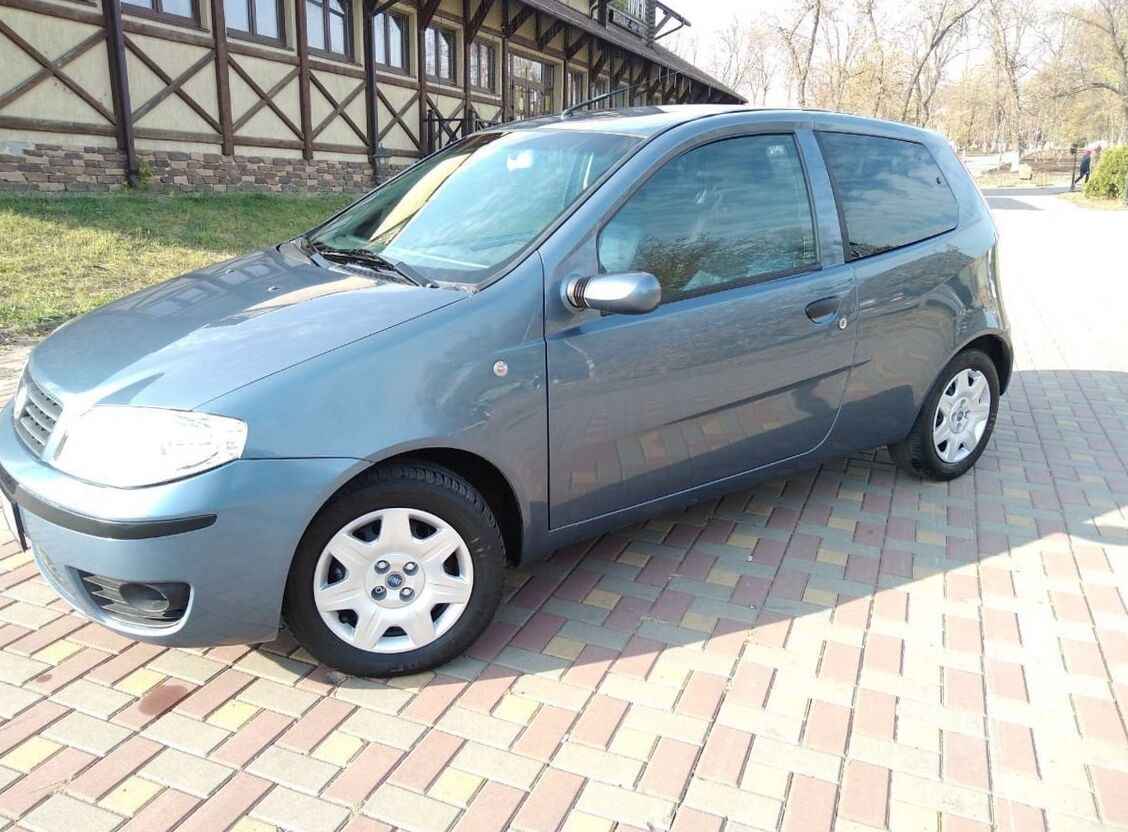

2004 Fiat Punto II 1.2 MT Dynamic 5dr
Fiat Punto Problems
Where is the engine oil reservoir cap located
2000, Cannot locate reservoir cap for engine
oil...
| Body type | Hatchback |
|---|---|
| Power | 80 Hp |
| Engine Displacement | 1200 cm3 or 1.2L or 73.2 cu-in |
| Color | blue |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 97555 Miles |
| Vin | ZFA18800004****32 |
| Price (out of date) | $3207 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2004 Fiat Punto II? | Hatchback, 5 Seats, 5 Doors |
| What is the fuel economy, Fiat Punto Hatchback 2004? | 5.8 l/100 km |
| How fast is the car, Fiat Punto 188 2004? | 172 km/h, 0-100 km/h: 11.4 sec |
| How much power, 2004 Fiat Punto 1.2 MT Dynamic 5dr? | 80 Hp |
| What is the engine size, Fiat Punto II 2004 Hatchback 1.2 MT Dynamic 5dr (80 Hp)? | 1.2L or 1242cm3 |
| How many gears, What type is the gearbox, 2004 Fiat Punto Hatchback 1.2 MT Dynamic 5dr (80 Hp)? | 5 speed Manual |
| What is the drivetrain, 2004 Fiat Punto II? | Front |
| How long is this vehicle, Fiat Punto Hatchback 2004? | 3865 mm |
| How wide is the vehicle, Fiat Punto 188 2004? | 1660 mm |
| What is the gross weigh, 2004 Fiat Punto 1.2 MT Dynamic 5dr? | 1445 kg |
| How much trunk (boot) space, Fiat Punto II 2004 Hatchback 1.2 MT Dynamic 5dr (80 Hp)? | 297 l |
Fiat Punto II 188 1.2 MT Dynamic 5dr (80 Hp) 2003, 2004, 2005, 2006 Specs
General information | |
|---|---|
| Complectation name | 1.2 MT Dynamic 5dr |
| Production start year | 2003 |
| Production end year | 2006 |
| Drive type | Front |
| Frame type | Hatchback |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1242 |
| Frame name | 188 |
| 0 to 100 time | 11.4 |
| Max speed | 172 |
| Clearance, mm | 150 |
| Manufacturing country | Italy |
| Doors | 5 |
| Winter complectation | option |
Vehicle generation | |
| Generation name | 188 |
| Generation number | 2 |
| Facelift number | 1 |
| Production start year | 2003 |
| Production end year | 2007 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | 188 A5.000 |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 80 |
| Max power RPM, rpm | 5000 |
| Max power, hp (kWt) / rpm | 60 (44) / 5000 |
| Max torque, N*m | 114 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 102 (10) / 2500 |
| Valves per cylinder | 4 |
| Compression ratio | 10.6 |
| Bore, mm | 70.8 |
| Stroke, mm | 78.9 |
| Engine additional info | Distributed fuel injection, OHC |
| Eco type | Euro-4 |
| Start stop system | yes |
Fuel consumption | |
| City | 7.6 |
| Country side | 4.8 |
| Combined | 5.8 |
| Co2 emission | 142 |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3865 |
| Exterior width, mm | 1660 |
| Exterior height, mm | 1480 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2460 |
| Turning radius, m | 5.25 |
| Wheel spacing front | 1398 |
| Wheel spacing rear | 1392 |
Weight and permissible load | |
| Mass, kg | 1010 |
| Max capacity | 435 |
| Max. weight | 1445 |
Volumes | |
| Fuel tank capacity, l | 47 |

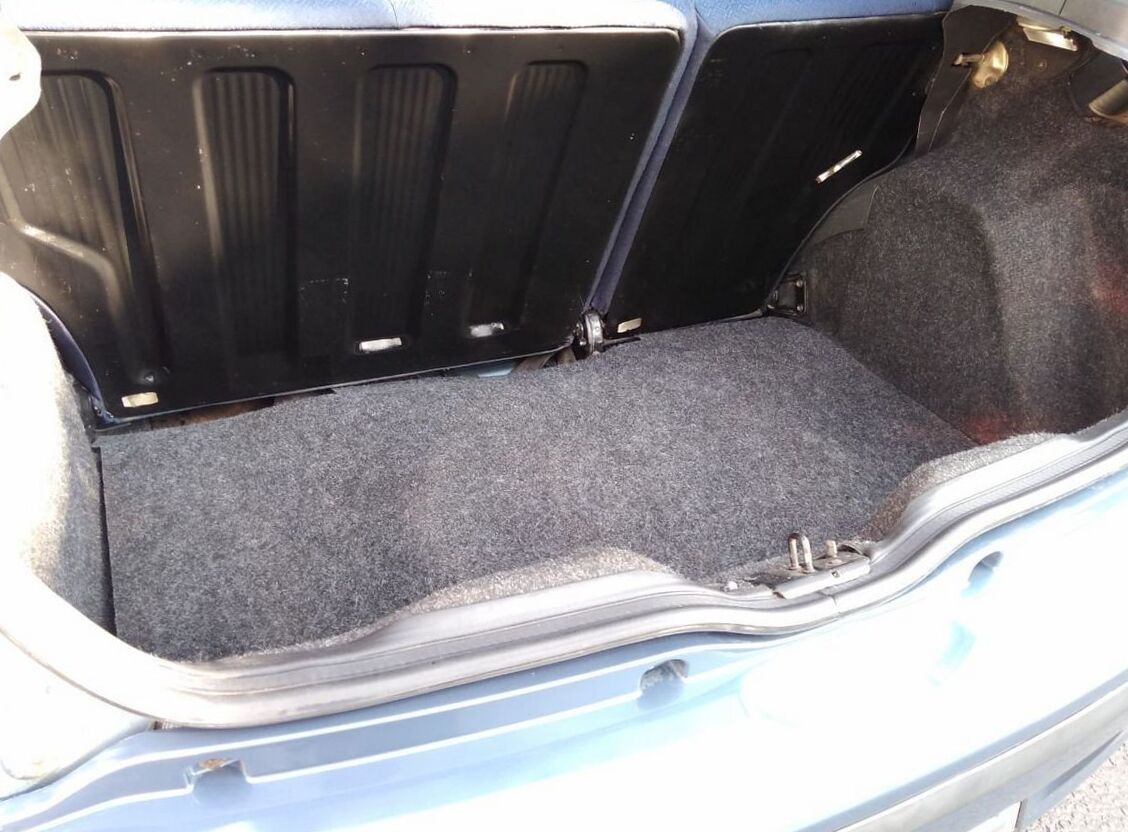

| Trunk volume | 297 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
| Sport suspension | no |
Wheel rims | |
| Aluminium wheel | option |
Tires | |
| Front wheels | 165/70 R14 81T |
| Rear wheels | 165/70 R14 81T |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Front fog lamps | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Rain sensor | option |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Door handles in body color | yes |
Windows | |
| Privacy glass | option |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | no |
Accessories | |
| Rear spoiler | no |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |

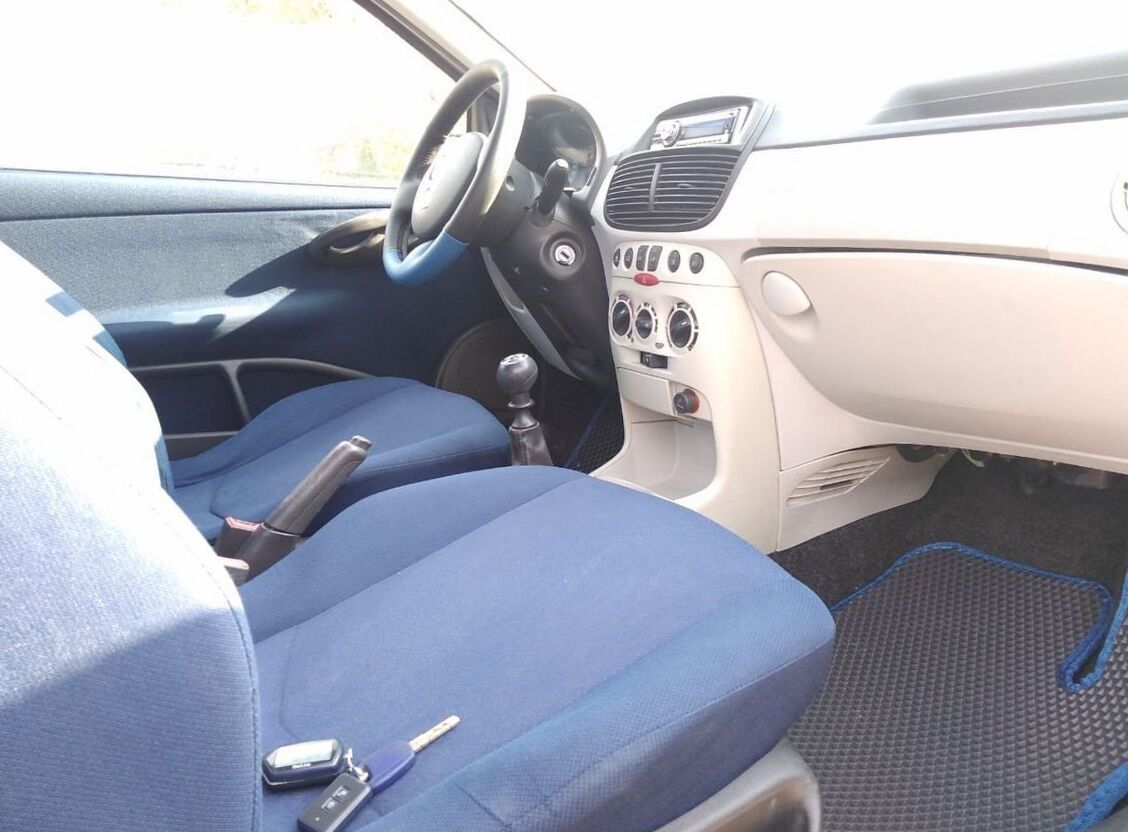

Interior | |

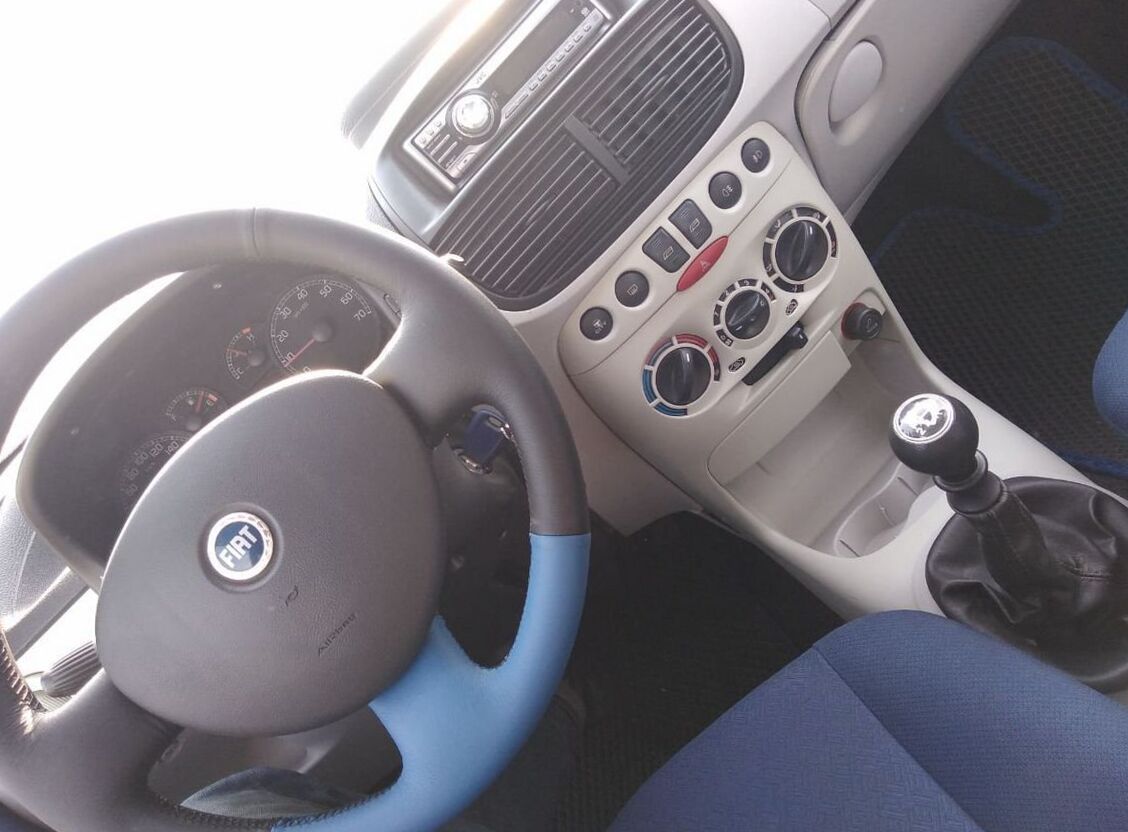

Steering wheel and center panel | |
| Leather winding | no |
| Adjustable steering | yes |
| Telescopic steering | no |
| Tilt steering | yes |
| Audio control on steering wheel | option |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | no |

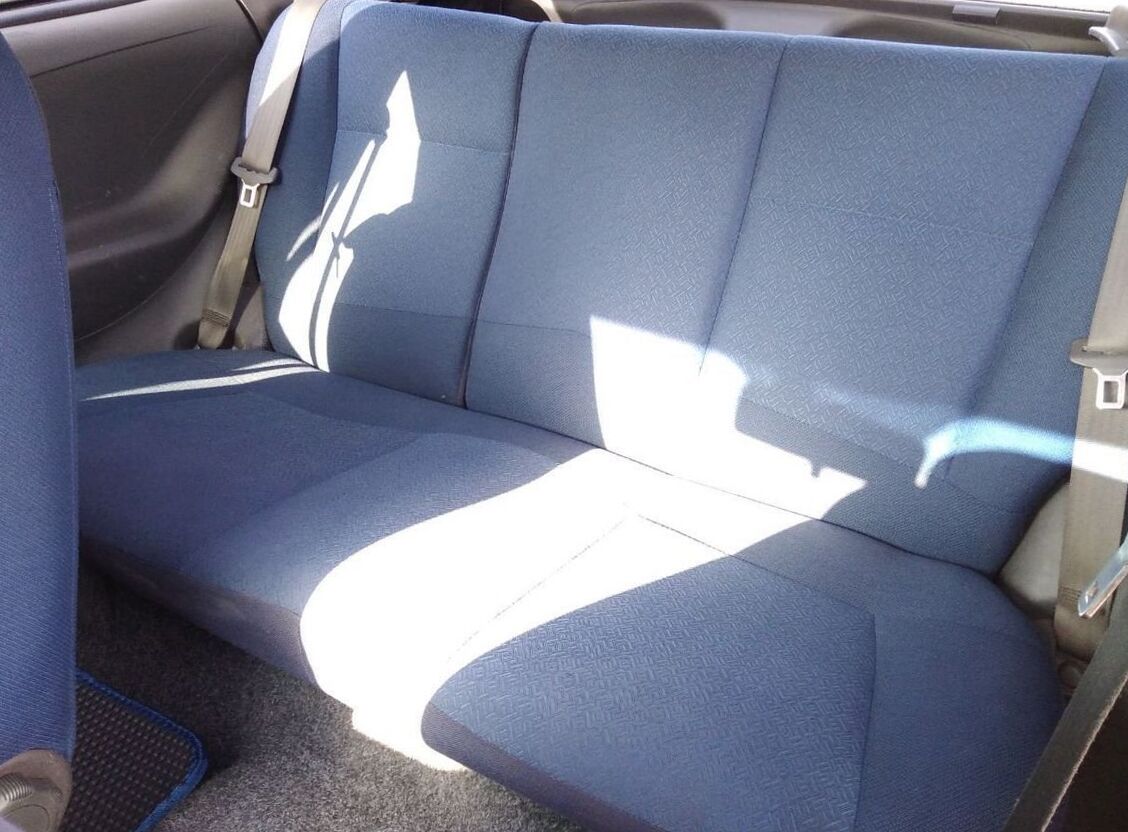

Seats | |
| Bucket seat | no |
| Front seats ajust | Height-adjustable driver's seat |
| 2nd row | 60/40 ratio fold seat |
| Loin reliance | yes |
| Separating armrest front | no |
| Separating armrest rear | no |
| Seats pockets | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Front seat heater | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Power window rear | no |
Additional interior equipment | |
| Holders for bottles in doors | yes |
| Smokers packet | yes |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |

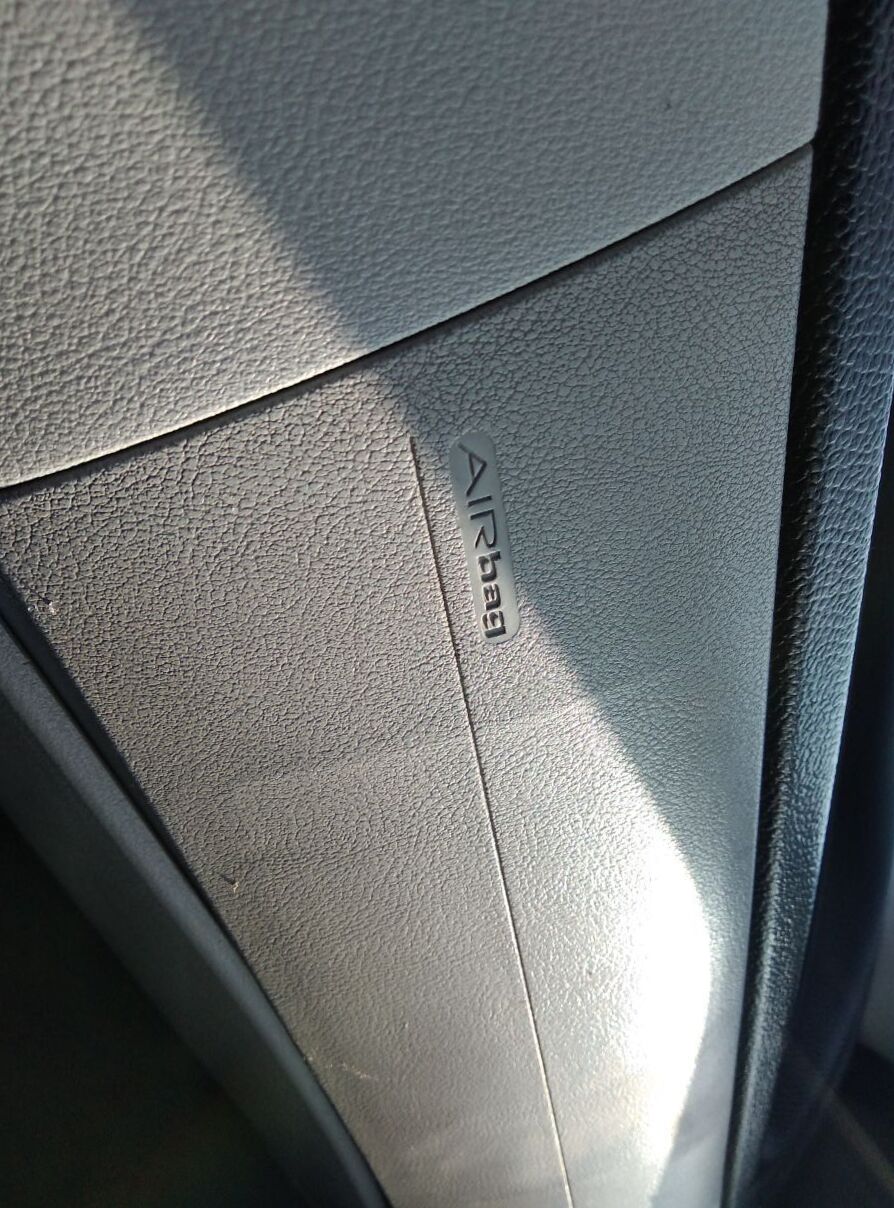

| Passengers airbag | yes |
| Side airbag | option |
| Curtain airbags | option |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Active headrest | option |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | no |
| ESP | no |
| traction control | no |
| Hill-start assist control system | no |
| Cruise control | no |
| Rear sonars | option |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | option |
| Part climat equipment | 2 zones (optional) |
| Air filter | option |
Audio systems | |
| Radio | option |
| Autoreverse casette | option |
| CD player | option |
| CD changer | option |
| MP3 Support | option |
| Hands free | no |
| Additional sound equipment | Audio equipment, 4 speakers |
Navigation and video equipment | |
| Full color LCD display | no |
Additional amenities | |
| Antidazzle rearview mirror | no |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
Driver Kit | |
| Spare tire | yes |
| Spare tyre small | no |
2004 Fiat Punto II 188 1.2 MT Dynamic 5dr (80 Hp) specs
|
Entry levelEntry-level in the Punto range were the 1.1 and 1.2L petrol engines and the 1.7 diesel engine. The 1.2 engine's actual capacity is 1.242 liters, available in 3 versions. The first, was fitted in the Punto ELX 75 and produced 75 hp at 6000 rpm while the second, fitted to Punto ELX 85 produced 86 hp at 6000 rpm. The third was a 60hp engine which eventually replaced the 1.1 54hp engine. Sporting versionsA 1.6 Sporting was also available producing 88 bhp (replaced in 1997 by the more economic 16 valve 1.2 unit), but the best performing version was the 136PS (134hp/ 100kW) 1.4 GT using an evolution of the turbocharged 128 SOHC engine originally found in the Fiat Uno Turbo Mk II- capable of running over 200km/ h (124mph) and reaching 100km/ h (62mph) in just 7.9 seconds. This car was also fitted with a 5-speed manual gearbox, with different gear ratios than the ELX series. During the years the GT was made in three different "series" with power 136PS (134hp/ 100kW) (1993-1995),133PS (131hp/ 98kW) (1995-1997) and 130PS (128hp/ 96kW) (1997-1999). » Read More About Fiat Punto |
