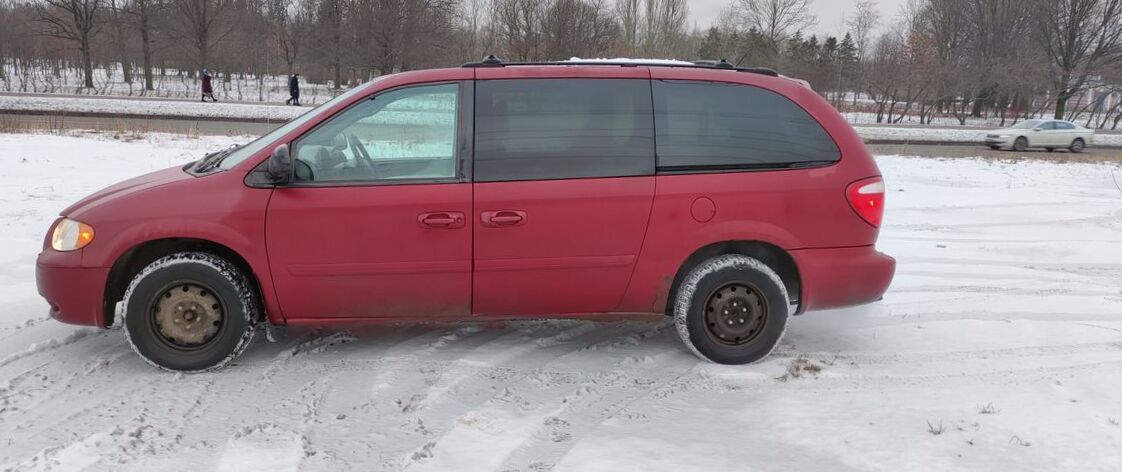

2004 Dodge Grand Caravan IV 3.3 AT SE
Dodge Grand Caravan Problems
Heater
2012, I can not get heat in the front of car,
seems to be ok in the rear. Fluids check ok.
The...
CHECK ENGINE
2002, CHECK ENGINE LIGHT IS ON AT ALL
TIMES.......THE COLOR IS KINDA
FADING.......WHAT SHOULD ...
AC NOT WORKING
2008, I RECENTLY NOTICED THAT THE AC IS NOT
WORKING. I PUT THE GAGES ON THE SYSTEM AND
FOUND ...
| Body type | Minivan |
|---|---|
| Power | 170 Hp |
| Engine Displacement | 3300 cm3 or 3.3L or 201.3 cu-in |
| Color | red |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 229907 Miles |
| Vin | 2D4GP24R35R****80 |
| Price (out of date) | $4394 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2004 Dodge Grand Caravan IV? | Minivan, 7 Seats, 5 Doors |
| What is the fuel economy, Dodge Grand Caravan Minivan 2004? | 11.2 l/100 km |
| How fast is the car, Dodge Grand Caravan RG 2004? | 188 km/h, 0-100 km/h: 10.9 sec |
| How much power, 2004 Dodge Grand Caravan 3.3 AT SE? | 170 Hp |
| What is the engine size, Dodge Grand Caravan IV 2004 Minivan 3.3 AT SE (170 Hp)? | 3.3L or 3301cm3 |
| How many gears, What type is the gearbox, 2004 Dodge Grand Caravan Minivan 3.3 AT SE (170 Hp)? | Automatic transmission 4 |
| What is the drivetrain, 2004 Dodge Grand Caravan IV? | Front |
| How long is this vehicle, Dodge Grand Caravan Minivan 2004? | 5093 mm |
| How wide is the vehicle, Dodge Grand Caravan RG 2004? | 1997 mm |
| What is the gross weigh, 2004 Dodge Grand Caravan 3.3 AT SE? | 2995 kg |
| How much trunk (boot) space, Dodge Grand Caravan IV 2004 Minivan 3.3 AT SE (170 Hp)? | 920 l |
Dodge Grand Caravan IV RG 3.3 AT SE (170 Hp) 2003, 2004, 2005, 2006, 2007 Specs
General information | |
|---|---|
| Production start year | 2003 |
| Production end year | 2007 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 3301 |
| Frame name | RG |
| 0 to 100 time | 10.9 |
| Max speed | 188 |
| Clearance, mm | 138 |
| Manufacturing country | USA, Canada |
| Doors | 5 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | EGM; EGA |
| Fuel | Petrol (Gasoline) |
| Engine type | V6 |
| Has turbo | no |
| Max power, hp | 170 |
| Max power RPM, rpm | 5000 |
| Max power, hp (kWt) / rpm | 170 (125) / 5000 |
| Max torque, N*m | 270 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 270 (28) / 4000 |
| Valves per cylinder | 2 |
| Compression ratio | 9.3 |
| Bore, mm | 93 |
| Stroke, mm | 81 |
| Engine additional info | DOHC |
Fuel consumption | |
| City | 12.4 |
| Country side | 9 |
| Combined | 11.2 |
Transmission | |
| 1st gear ratio | 2.84 |
| 2nd gear ratio | 1.57 |
| 3rd gear ratio | 1 |
| 4th fear ratio | 0.69 |
| Rear gear ratio | 2.21 |
| Main gear ratio | 3.62 |
Steering | |
| Power steering | yes |
| Electric power steering | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5093 |
| Exterior width, mm | 1997 |
| Exterior height, mm | 1750 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 3030 |
| Turning radius, m | 6 |
| Wheel spacing front | 1600 |
| Wheel spacing rear | 1626 |
Weight and permissible load | |
| Mass, kg | 1740 |
| Max capacity | 1255 |
| Max. weight | 2995 |
Volumes | |
| Fuel tank capacity, l | 76 |
| Trunk volume | 920 |
Other | |
| Aerodynamic drag | 0.35 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Semi-independent, torsion bar |
| Air suspension | no |
Wheel rims | |
| Aluminium wheel | option |
| Front wheel disk | 15X6.5J |
| Rear wheel disk | 15X6.5J |
Tires | |
| Front wheels | 215/70 R15 |
| Rear wheels | 215/70 R15 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Front fog lamps | no |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | option |
Side mirrors | |
| Exterior mirrors in body color | no |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | yes |
| Door mirrors heating | option |
Doors | |
| Sliding doors | yes |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door handles in body color | no |
| Chrome door handles | no |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | no |
Accessories | |
| Roof rail | option |
| Rear spoiler | no |
| Bumpers | painted in body color |
| Back wiper | option |
Interior | |
Steering wheel and center panel | |
| Leather winding | no |
| Adjustable steering | yes |
| Telescopic steering | no |
| Tilt steering | yes |
| Audio control on steering wheel | option |
| Tachometer | option |
| Env temp | no |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | no |
| Combined obivka Salon | no |
Seats | |
| Bucket seat | no |
| Front seats ajust | in 8 directions |
| 2nd row | two individual seats |
| 3nd row | 60/40 ratio fold seat |
| Removable seats | yes |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Seats pockets | yes |
| Mats | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Front seat heater | no |
| Rear seats heater | no |
| Centralized door lock | option |
| Keyless enter | option |
| Keyless | option |
| Power window front | option |
| Power window rear | no |
Additional interior equipment | |
| Smokers packet | option |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | option |
Children safety | |
| isofix bar | yes |
| Build-in child seat | option |
Active and passive safety | |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | no |
| ESP | no |
| traction control | no |
| Cruise control | yes |
| Function "Take me home" | yes |
| System tire pressure monitoring | no |
| Rear sonars | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | no |
| Part climat equipment | no |
| Air filter | no |
Audio systems | |
| Radio | option |
| Autoreverse casette | option |
| CD player | option |
| CD changer | no |
| DVD-audio | no |
| MP3 Support | no |
| Hands free | no |
| Rear entertainment system | no |
| Additional sound equipment | Audio Prep |
| Additional sound equipment opt. | 6 speakers |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
Additional amenities | |
| Antidazzle rearview mirror | no |
| Anti-glare effect | yes |
| Mirrors in sunshields | option |
| Onboard computer | no |
Car safety | |
| Immobilizer | option |
| Alarm system | no |
| Security alarm | no |
Driver Kit | |
| Spare tire | option |
| Spare tyre small | option |
2004 Dodge Grand Caravan IV RG 3.3 AT SE (170 Hp) specs
|
Chrysler manufactures and markets its minivan series worldwide. Together with its nameplate variants, the Chrysler Town and Country, Chrysler Voyager, Plymouth Voyager and Chrysler Town & Country, the Chrysler minivans have ranked as the 13th bestselling automotive nameplate worldwide, with over 12 million sold. Chrysler introduced the Dodge and Plymouth minivans in November 1983 for the 1984 model year, using an extended derivative of the Chrysler K platform, the Chrysler S platform. Chrysler followed with a long wheelbase (LWB) model, the Grand Caravan in 1987, also based on the Chrysler S platform. The idea of a modern minivan had been conceived by Lee Iaccoca and Hal Sperlich during their earlier tenure at Ford Motor Company. Henry Ford II had rejected Iaccoca's and Sperlich's idea (and a prototype) of a minivan in 1974, then rumored to carry the name "Maxivan". After Iaccoca moved to Chrysler Corporation, he recruited Sperlich to also join Chrysler and together they created the T115 minivan — a prototype that was to become the Caravan and Voyager. » Read More About Dodge Grand Caravan |
