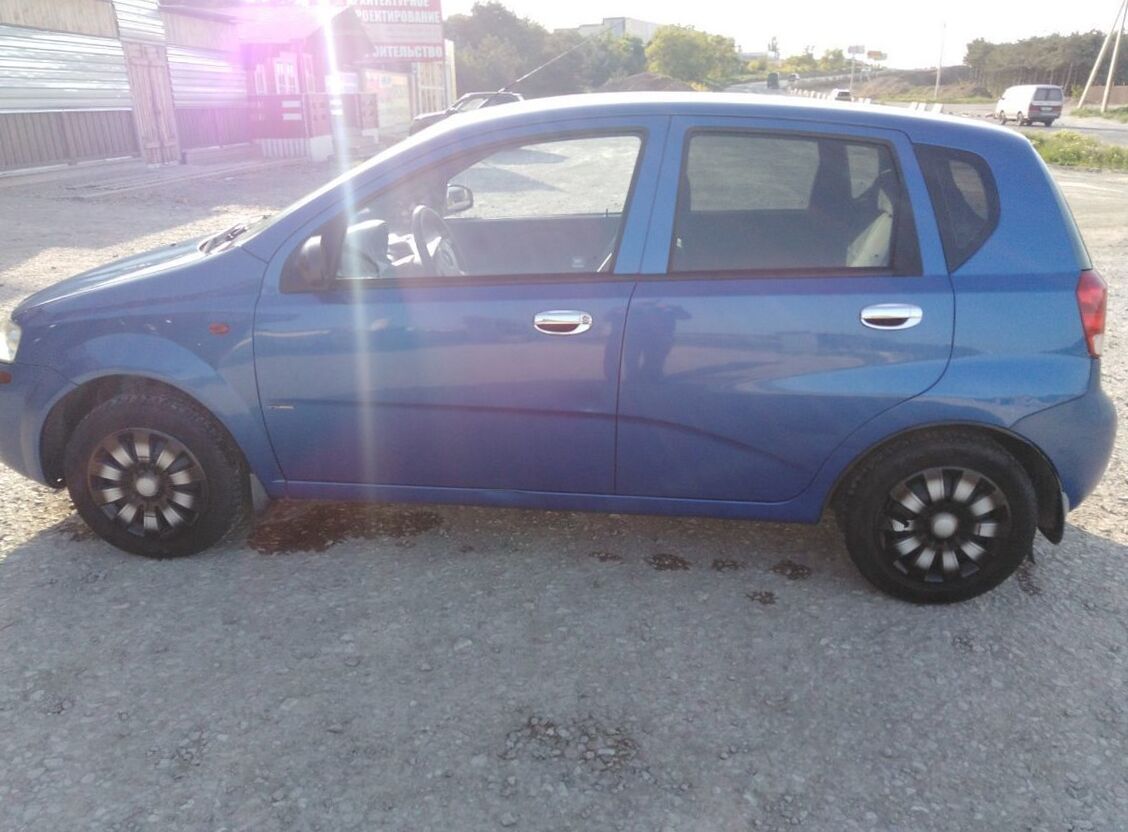

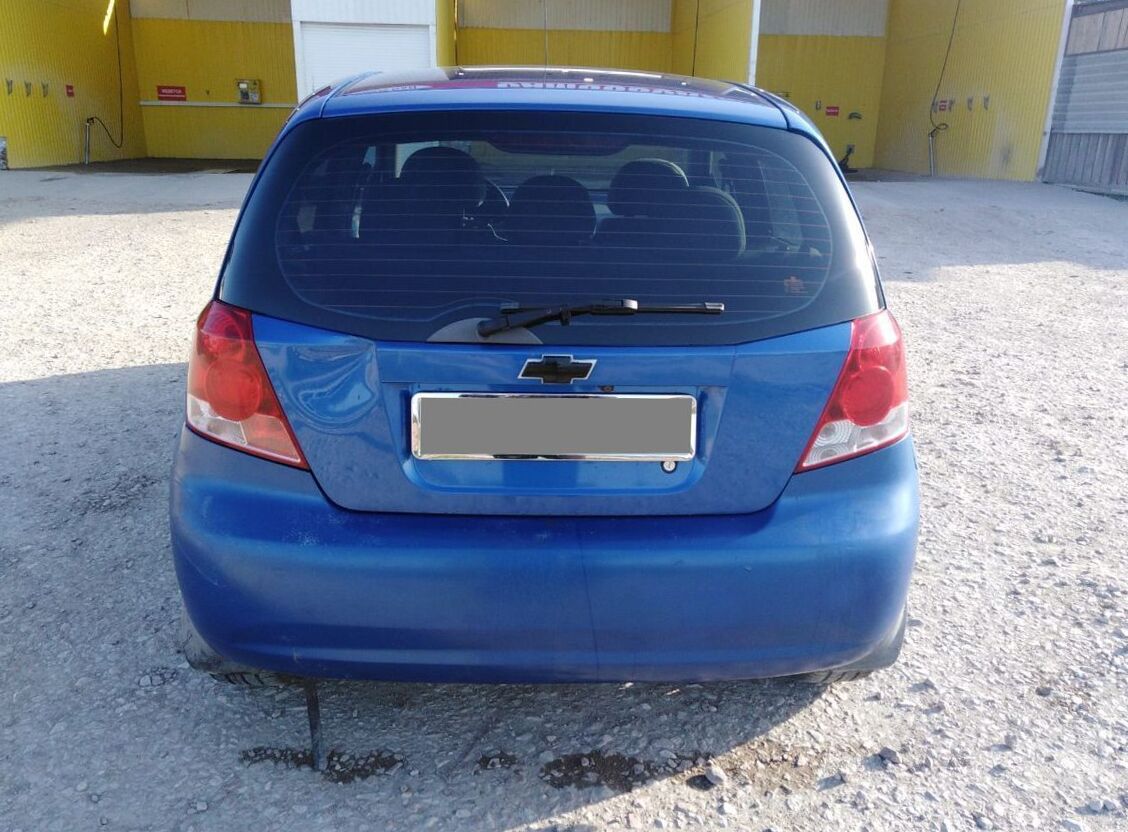

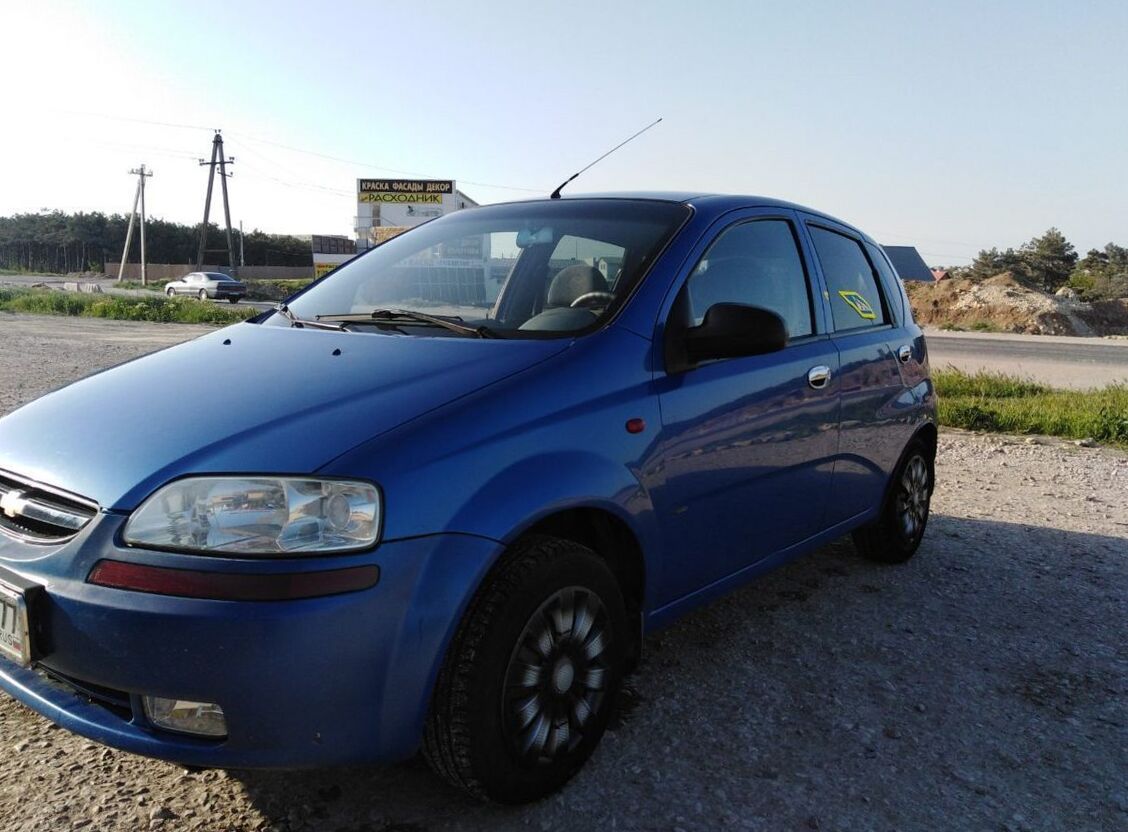

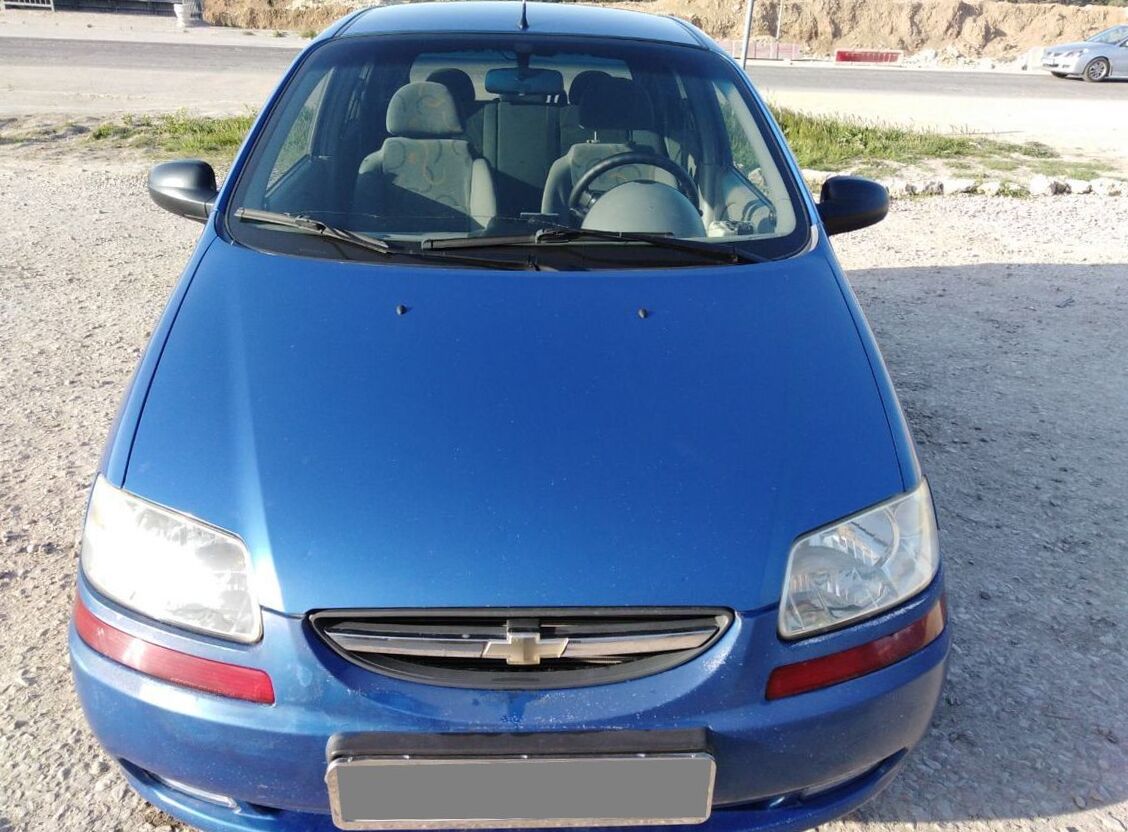

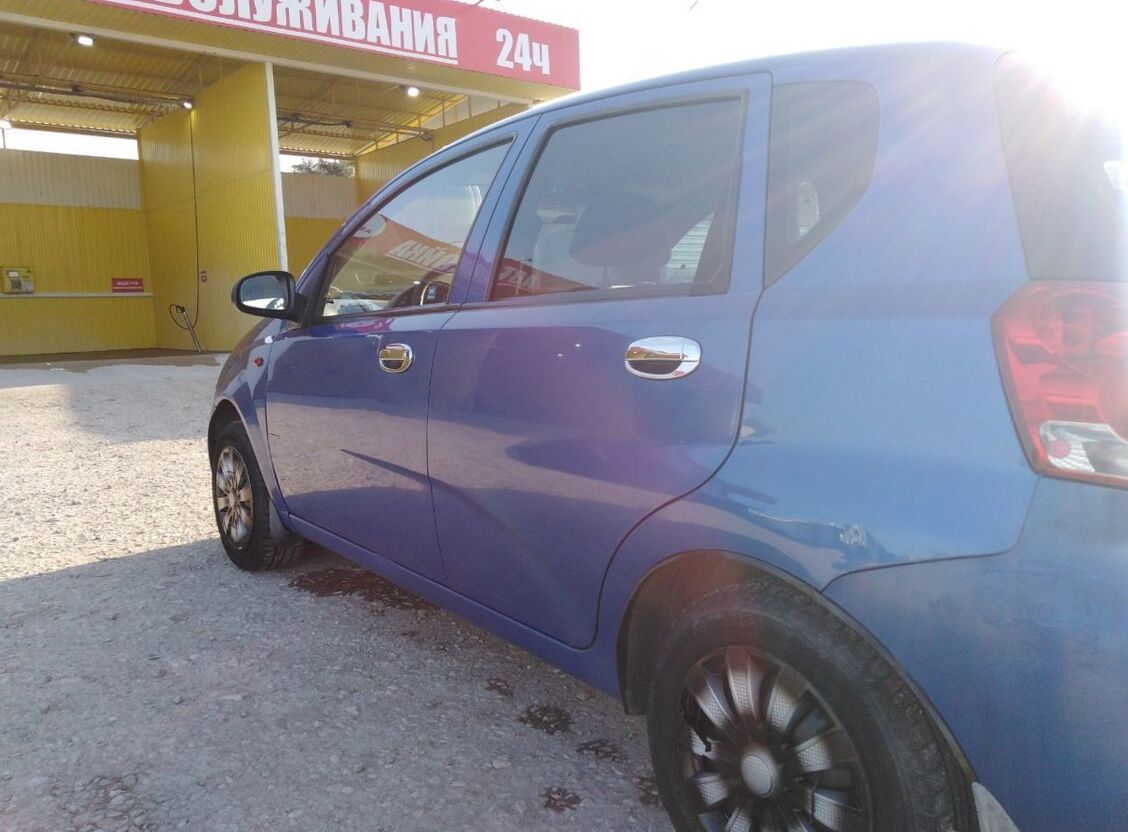

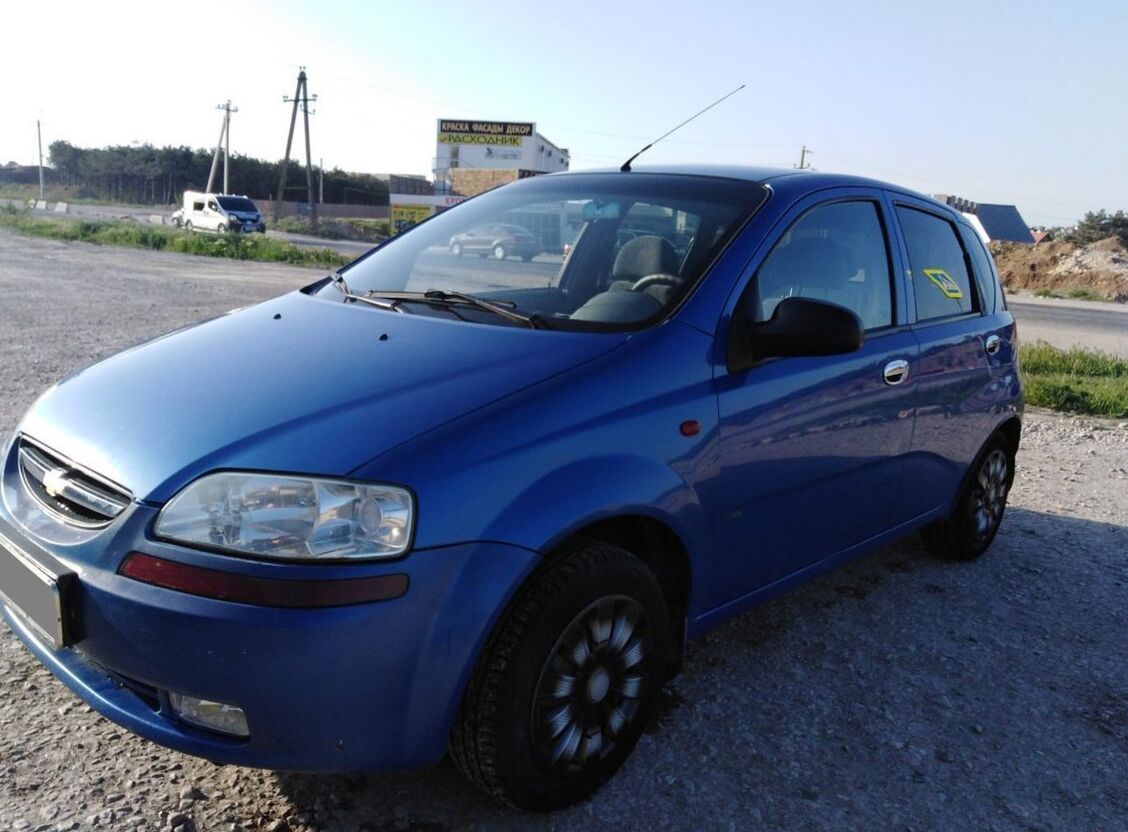

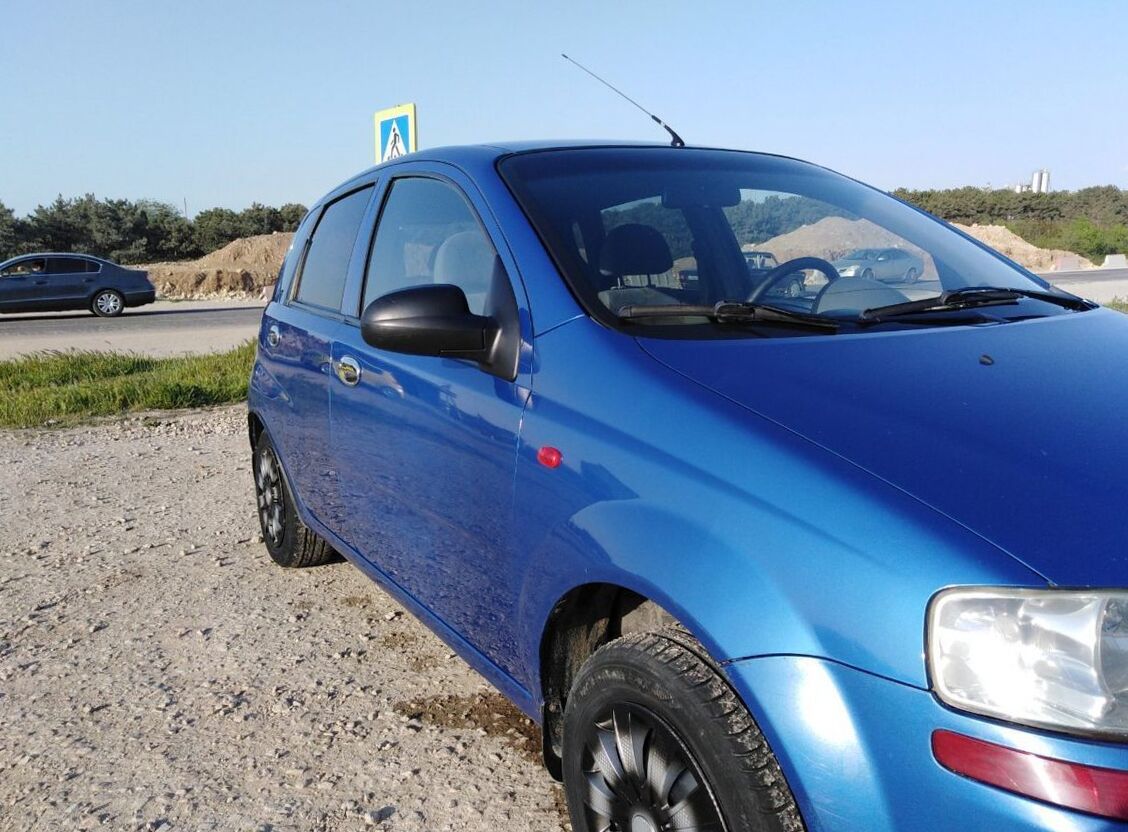

2003 Chevrolet Aveo 1.2 MT S H5LA 514
Chevrolet Aveo Problems
Suspension
2009, cluncking noise when going over bump or
hit pot hole, in passenger side rear. sounds
lik...
Gears
2009, gears ... gear leaver when in first gear
has too much movement like if it was in neutral...
Price of Engine
2004, the engine of the car is bad. we need new
one and the price...
| Body type | Hatchback |
|---|---|
| Power | 72 Hp |
| Engine Displacement | 1200 cm3 or 1.2L or 73.2 cu-in |
| Color | blue |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 136080 Miles |
| Vin | KLASF48T14B****01 |
| Price (out of date) | $2862 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Chevrolet Aveo Hatchback 2003? | Hatchback, 5 Seats, 5 Doors |
| What is the fuel economy, Chevrolet Aveo T200 2003? | 6.6 l/100 km |
| How fast is the car, 2003 Chevrolet Aveo 1.2 MT S H5LA 514? | 157 km/h, 0-100 km/h: 13.7 sec |
| How much power, Chevrolet Aveo 2003 Hatchback 1.2 MT S H5LA 514 (72 Hp)? | 72 Hp |
| What is the engine size, 2003 Chevrolet Aveo Hatchback 1.2 MT S H5LA 514 (72 Hp)? | 1.2L or 1150cm3 |
| How many gears, What type is the gearbox, Chevrolet Aveo Hatchback 2003? | 5 speed Manual |
| What is the drivetrain, Chevrolet Aveo T200 2003? | Front |
| How long is this vehicle, 2003 Chevrolet Aveo 1.2 MT S H5LA 514? | 3880 mm |
| How wide is the vehicle, Chevrolet Aveo 2003 Hatchback 1.2 MT S H5LA 514 (72 Hp)? | 1670 mm |
| How much trunk (boot) space, 2003 Chevrolet Aveo Hatchback 1.2 MT S H5LA 514 (72 Hp)? | 198 l |
Chevrolet Aveo T200 1.2 MT S H5LA 514 (72 Hp) 2002, 2003, 2004, 2005 Specs
General information | |
|---|---|
| Complectation name | 1.2 MT S H5LA 514 |
| Production start year | 2002 |
| Production end year | 2005 |
| Drive type | Front |
| Frame type | Hatchback |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1150 |
| Frame name | T200 |
| 0 to 100 time | 13.7 |
| Max speed | 157 |
| Clearance, mm | 155 |
| Manufacturing country | Ukraine |
| Diler name | H5LA 514 |
| Doors | 5 |
| Warranty | 2 years or 50,000 km of mileage |
Vehicle generation | |
| Generation name | T200 |
| Generation number | 1 |
| Production start year | 2002 |
| Production end year | 2008 |
Engine, transmission and steering specs | |
Engine specs | |

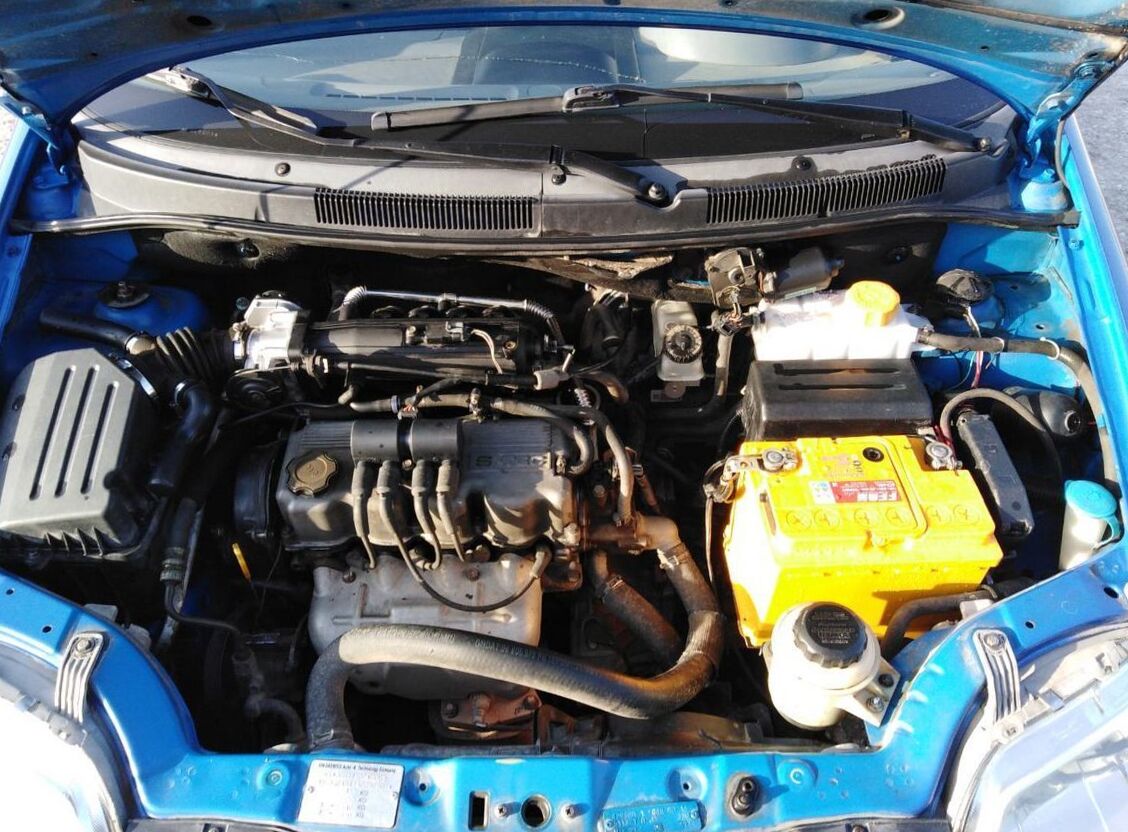

| Engine name | F12S3 |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 72 |
| Max power RPM, rpm | 5400 |
| Max power, hp (kWt) / rpm | 72 (53) / 5400 |
| Max torque, N*m | 104 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 104 (11) / 4400 |
| Valves per cylinder | 2 |
| Compression ratio | 9.3 |
| Bore, mm | 68.5 |
| Stroke, mm | 78 |
| Engine additional info | SOHC |
| Eco type | Euro-3 |
Fuel consumption | |
| City | 8.5 |
| Country side | 5.5 |
| Combined | 6.6 |
Transmission | |
| 1st gear ratio | 3.54 |
| 2nd gear ratio | 1.95 |
| 3rd gear ratio | 1.27 |
| 4th fear ratio | 0.97 |
| 5th gear ratio | 0.76 |
| Rear gear ratio | 3.33 |
| Main gear ratio | 3.94 |
Steering | |
| Power steering | yes |
| Wheel ratio | 16 |
| Steering wheel turn | 3 |
Battery and alternator | |
| Max generator amper | 85 |
| Battery volume | 55 |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3880 |
| Exterior width, mm | 1670 |
| Exterior height, mm | 1495 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2480 |
| Turning radius, m | 4.9 |
| Wheel spacing front | 1450 |
| Wheel spacing rear | 1410 |
Weight and permissible load | |
| Mass, kg | 1036 |
Volumes | |
| Fuel tank capacity, l | 45 |
| Trunk volume | 198 |
Other | |
| Aerodynamic drag | 0.36 |
| Addinfo | Children's lock; Electronic clock; Sunglasses storage case |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
Wheel rims | |
| Aluminium wheel | no |
| Front wheel disk | 14X5.5J |
| Rear wheel disk | 14X5.5J |
Tires | |
| Front wheels | 185/60 R14 |
| Rear wheels | 185/60 R14 |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Front fog lamps | no |
| Additional stop light | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Power adjustable door mirrors | no |
| Door mirrors heating | no |
Doors | |
| Door handles in body color | yes |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | no |
Accessories | |
| Rear spoiler | no |
| Back wiper | yes |
Interior | |
Steering wheel and center panel | |
| Leather winding | option |
| Adjustable steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | no |
| Utility color display | no |
| Tachometer | no |
| Env temp | yes |
Interior design | |
| Cloth upholstery | yes |
| Panels | Leather trim on gearbox lever (optional), Door upholstery with fabric inserts (optional) |
Seats | |
| Front seats ajust | Height adjustment of the driver's seat |
| 2nd row | 60/40 ratio fold seat |
| Separating armrest front | option |
| Seats pockets | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Front seat heater | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | no |
| Power window rear | no |
Additional interior equipment | |
| Smokers packet | yes |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | no |
| Side airbag | no |
| Curtain airbags | no |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Rests knee | yes |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | no |
Amenity | |
Microclimate | |
| Air conditioner | no |
| Automatic air conditioning | option |
| Air filter | yes |
Audio systems | |
| Radio | yes |
| CD player | no |
| MP3 Support | no |
| Additional sound equipment | 4 speakers |
Additional amenities | |
| Anti-glare effect | yes |
| Mirrors in sunshields | yes |
| Blind in luggage compartment | yes |

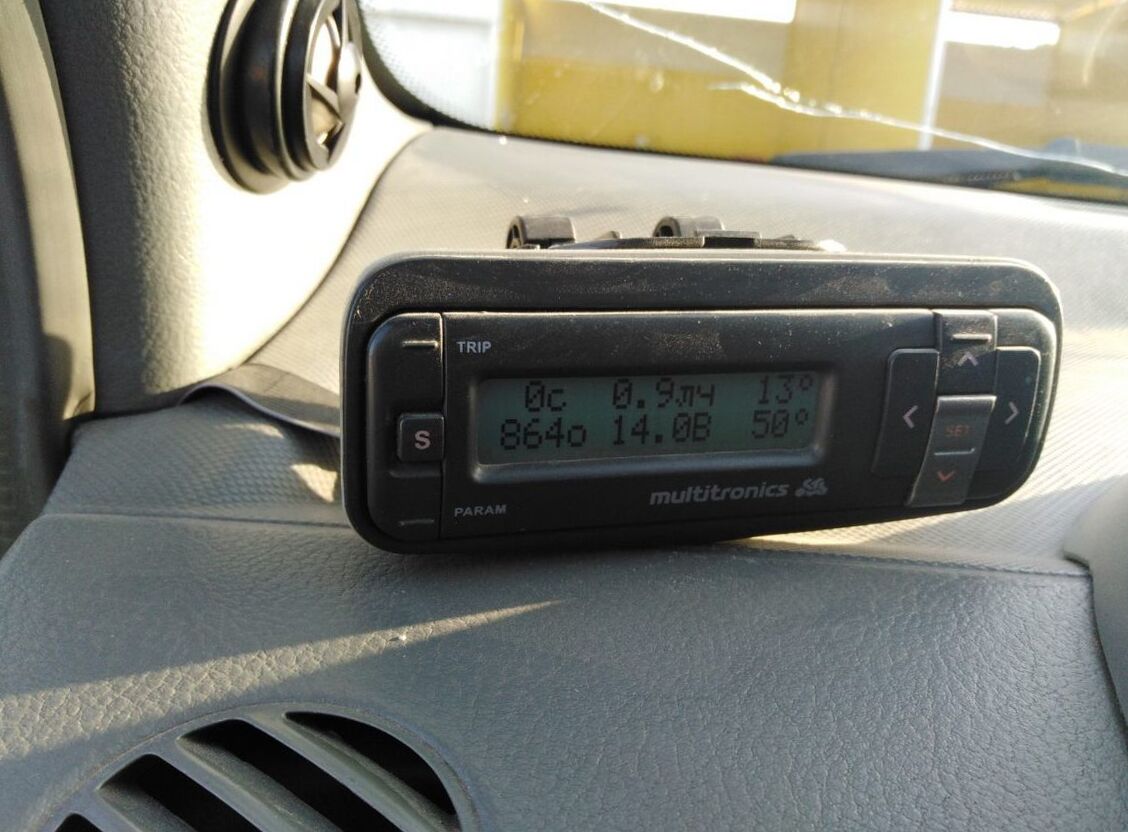

| Onboard computer | option |
Car safety | |
| Immobilizer | yes |
| Security alarm | no |
Driver Kit | |
| Spare tire | yes |
The Aveo is available in sedan and hatchback bodystyles in base and LS trim levels.
2003 Chevrolet Aveo T200 1.2 MT S H5LA 514 (72 Hp) specs
|
The nameplate "Kalos" derives from the Greek word kalos (καλός) for "beautiful". The original Daewoo Kalos was introduced in 2002, based on a then-new Daewoo platform named T200, replacing the Daewoo Lanos (T100). Under development before Daewoo's bankruptcy, the Kalos was the company's first new model introduction following its subsequent takeover by General Motors. Manufacture of the Kalos began in early March, 2002 , with pre-production prototypes shown at the Geneva Auto Show in April 2002. ConceptionOriginally designed by Italdesign Giugiaro, the Kalos derives directly from the Kalos Dream concept vehicle first presented at the 2000 Paris Motor Show and subsequent developmental concepts at the 2001 Frankfurt Motor Show, 2002 Geneva Auto Show, and 2003 at the Geneva Show. (Kalos Dream photos) During this three-year development period Daewoo was struggling financially, with the ultimate fate of the company and the concept vehicle remaining uncertain. » Read More About Chevrolet Aveo |
