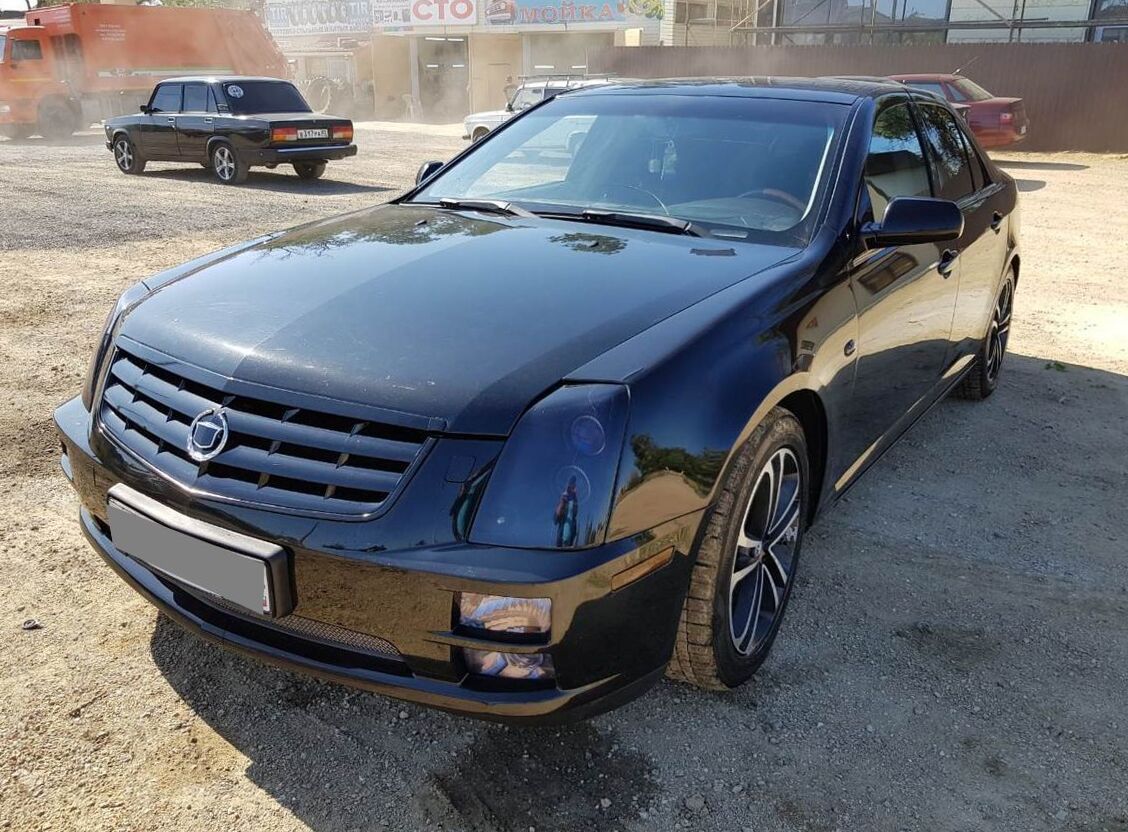

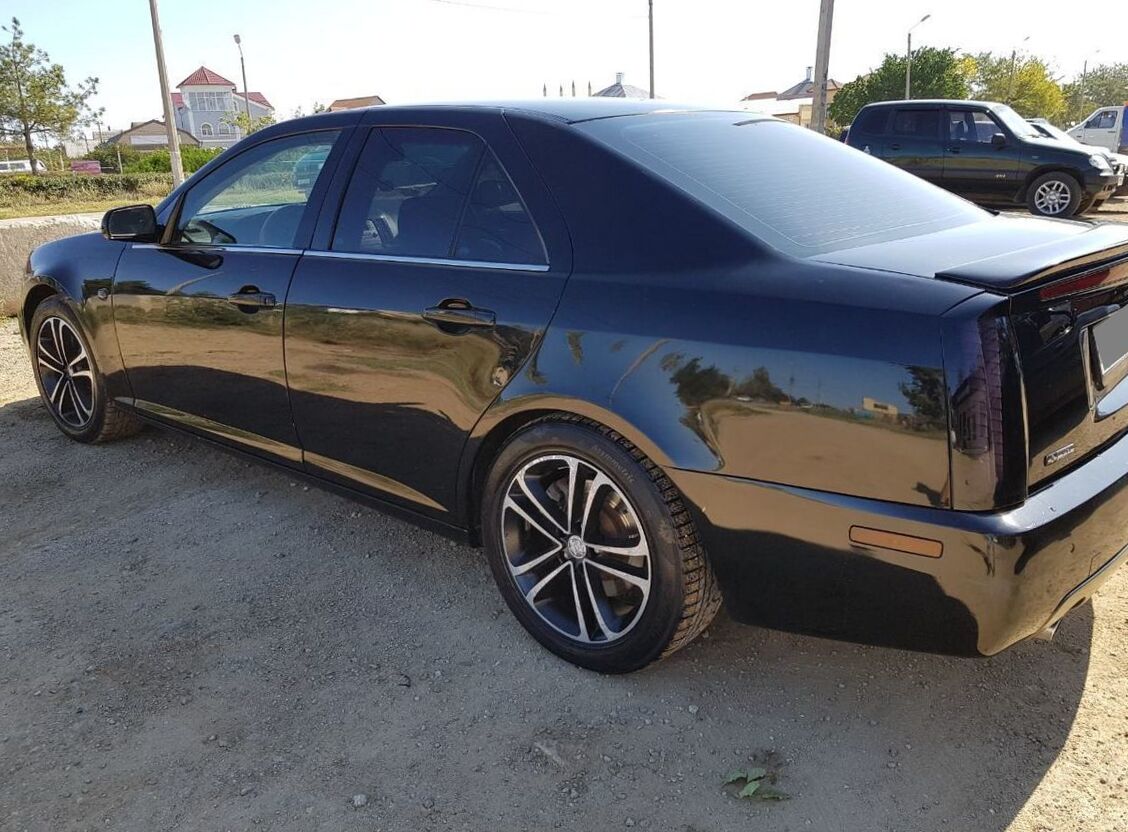

2005 Cadillac STS 4.6 AT AWD Base
Cadillac STS Problems
Blue smoke emission
1997, when my car is on and stand still for 5
minuts. when i want ted to move it will emit sm...
GAS GAGES
1999, fuel gage is bouncing back forth to full
empty only when gas gets under half of tank of ...
| Body type | Sedan |
|---|---|
| Power | 325 Hp |
| Engine Displacement | 4600 cm3 or 4.6L or 280.7 cu-in |
| Color | black |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 124895 Miles |
| Vin | X4XDC67A150****19 |
| Price (out of date) | $5601 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2005 Cadillac STS 4.6 AT AWD Base? | Sedan, 5 Seats, 4 Doors |
| What is the fuel economy, Cadillac STS 2005 Sedan 4.6 AT AWD Base (325 Hp)? | 14.1 l/100 km |
| How fast is the car, 2005 Cadillac STS Sedan 4.6 AT AWD Base (325 Hp)? | 250 km/h, 0-100 km/h: 7 sec |
| How much power, 2005 Cadillac STS 4.6 AT AWD Base? | 325 Hp |
| What is the engine size, Cadillac STS 2005 Sedan 4.6 AT AWD Base (325 Hp)? | 4.6L or 4565cm3 |
| How many gears, What type is the gearbox, 2005 Cadillac STS Sedan 4.6 AT AWD Base (325 Hp)? | Automatic transmission 5 |
| What is the drivetrain, 2005 Cadillac STS 4.6 AT AWD Base? | All wheel drive (4x4) |
| How long is this vehicle, Cadillac STS 2005 Sedan 4.6 AT AWD Base (325 Hp)? | 4986 mm |
| How wide is the vehicle, 2005 Cadillac STS Sedan 4.6 AT AWD Base (325 Hp)? | 1844 mm |
| What is the gross weigh, 2005 Cadillac STS 4.6 AT AWD Base? | 2565 kg |
| How much trunk (boot) space, Cadillac STS 2005 Sedan 4.6 AT AWD Base (325 Hp)? | 465 l |
Cadillac STS 4.6 AT AWD Base (325 Hp) 2005, 2006, 2007 Specs
General information | |
|---|---|
| Complectation name | 4.6 AT AWD Base |
| Production start year | 2005 |
| Production end year | 2007 |
| Drive type | All wheel drive (4x4) |
| Frame type | Sedan |
| Transmission type | Automatic transmission 5 |
| Engine volume, cc | 4565 |
| 0 to 100 time | 7 |
| Max speed | 250 |
| Clearance, mm | 150 |
| Manufacturing country | USA |
| Doors | 4 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | LH2 |
| Fuel | Petrol (Gasoline) |
| Engine type | V8 |
| Has turbo | no |
| Max power, hp | 325 |
| Max power RPM, rpm | 6400 |
| Max power, hp (kWt) / rpm | 320 (235) / 6400 |
| Max torque, N*m | 427 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 427 (44) / 4400 |
| Valves per cylinder | 4 |
| Compression ratio | 10.5 |
| Engine additional info | DOHC, VVT |
Fuel consumption | |
| City | 19.7 |
| Country side | 10.9 |
| Combined | 14.1 |
| Co2 emission | 343 |
Transmission | |
| 1st gear ratio | 3.42 |
| 2nd gear ratio | 2.21 |
| 3rd gear ratio | 1.6 |
| 4th fear ratio | 1 |
| 5th gear ratio | 0.75 |
| Rear gear ratio | 3.03 |
| Main gear ratio | 3.42 |
| Manual mode | yes |
Steering | |
| Power steering | yes |
| Steering vgs vgrs | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4986 |
| Exterior width, mm | 1844 |
| Exterior height, mm | 1463 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2956 |
| Turning radius, m | 6.2 |
| Wheel spacing front | 1569 |
| Wheel spacing rear | 1581 |
Weight and permissible load | |
| Mass, kg | 1950 |
| Max capacity | 615 |
| Max. weight | 2565 |
Volumes | |
| Fuel tank capacity, l | 66 |
| Trunk volume | 465 |
Other | |
| Aerodynamic drag | 0.32 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear stablilizer | yes |
| Rear suspension | Independent, spring multi-link |
| Sport suspension | yes |
| Air suspension | yes |
Wheel rims | |
| Aluminium wheel | yes |
| Front wheel disk | 18X8J |
| Rear wheel disk | 18X8.5J |
Tires | |
| Front wheels | 235/45 R18 |
| Rear wheels | 255/40 R18 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Ventilated discs |
Exterior | |
Headlights | |
| Halogen headlights | no |
| Xenon lamps | yes |
| Head lights washer | yes |
| Front fog lamps | yes |
| Led backlights | no |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Rain sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Door handles in body color | yes |
| Power rear door | yes |
Windows | |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | option |
Accessories | |
| Rear spoiler | yes |

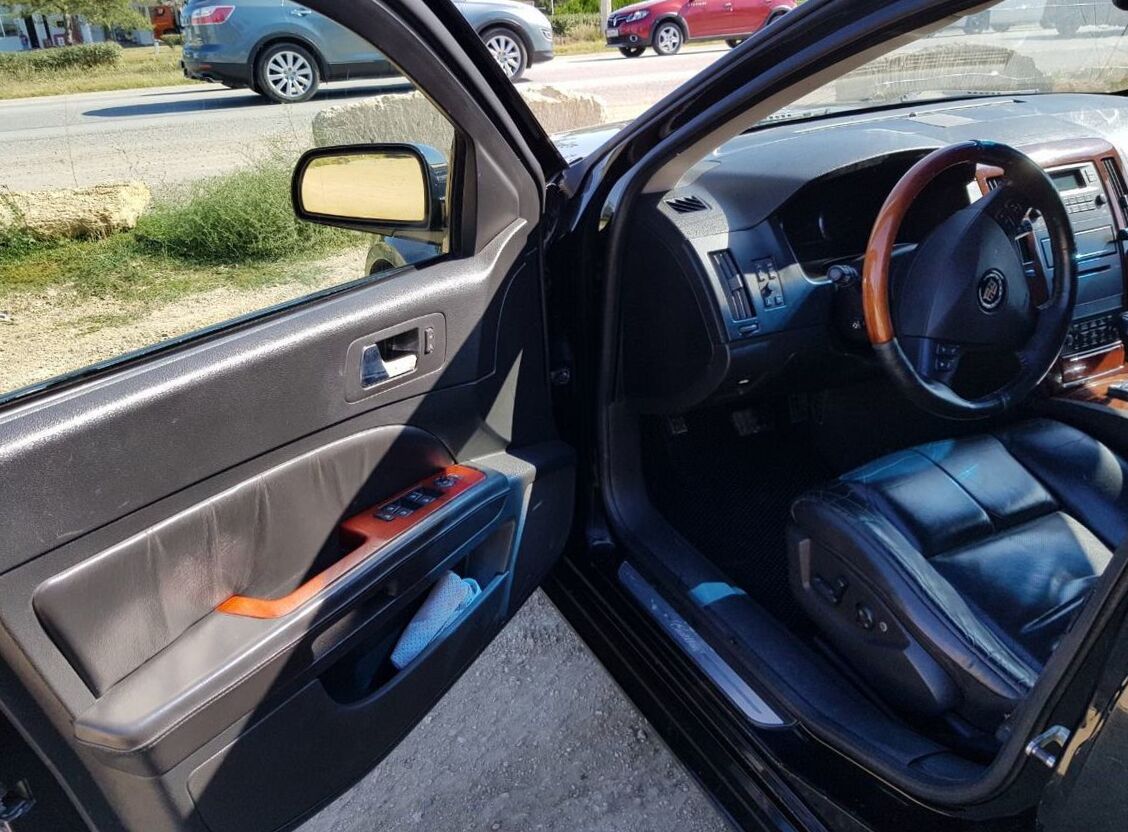

Interior | |
Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |

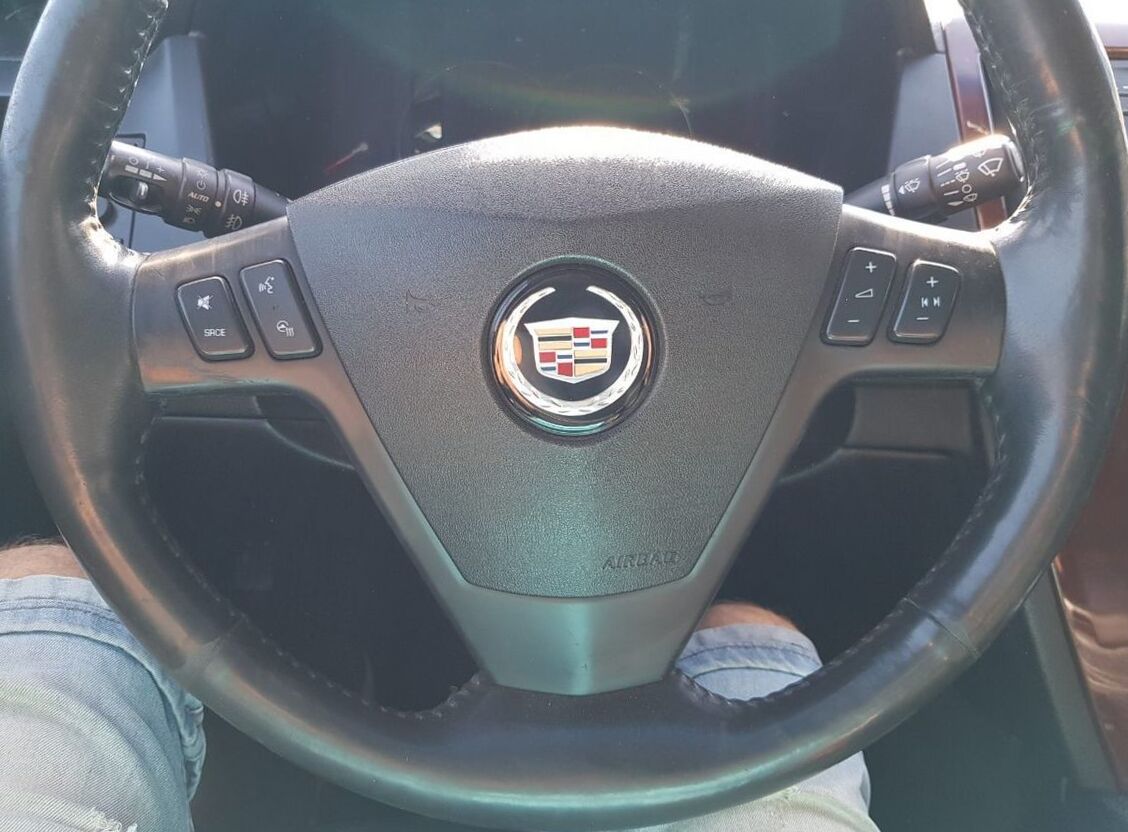

| Audio control on steering wheel | yes |
| Projective system of indications of a speedometer | option |

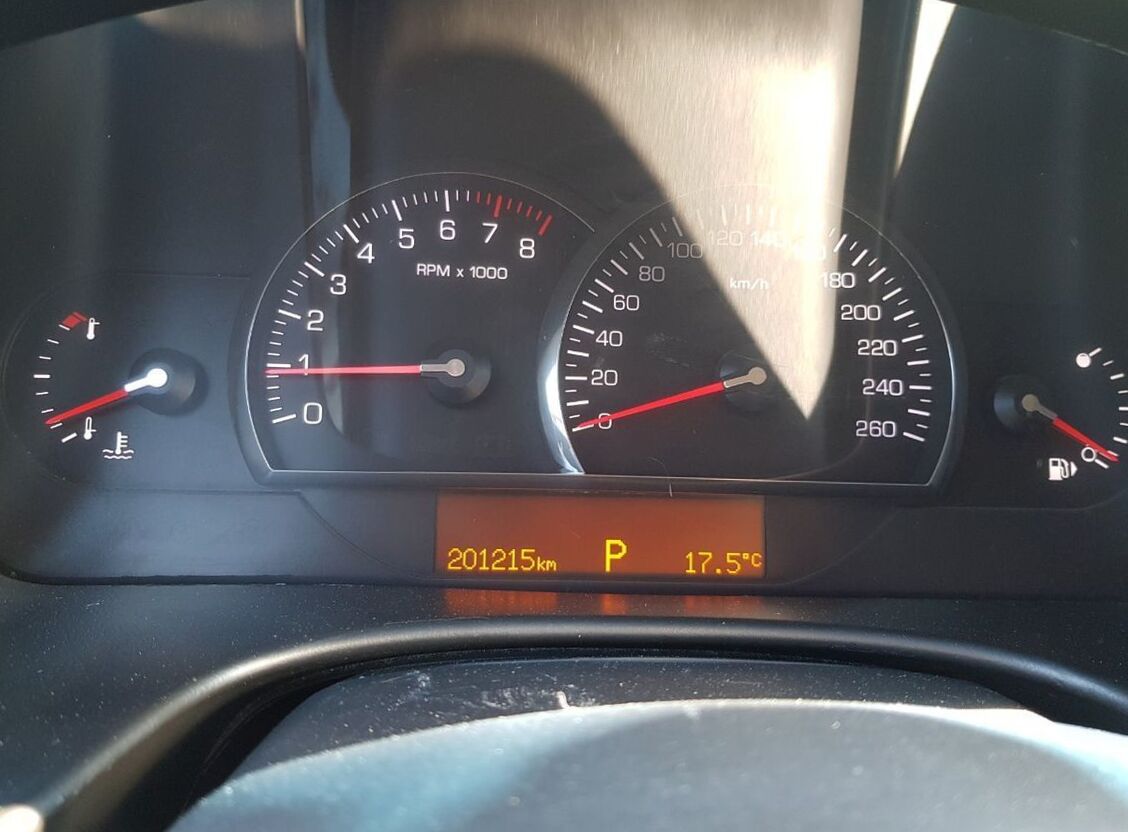

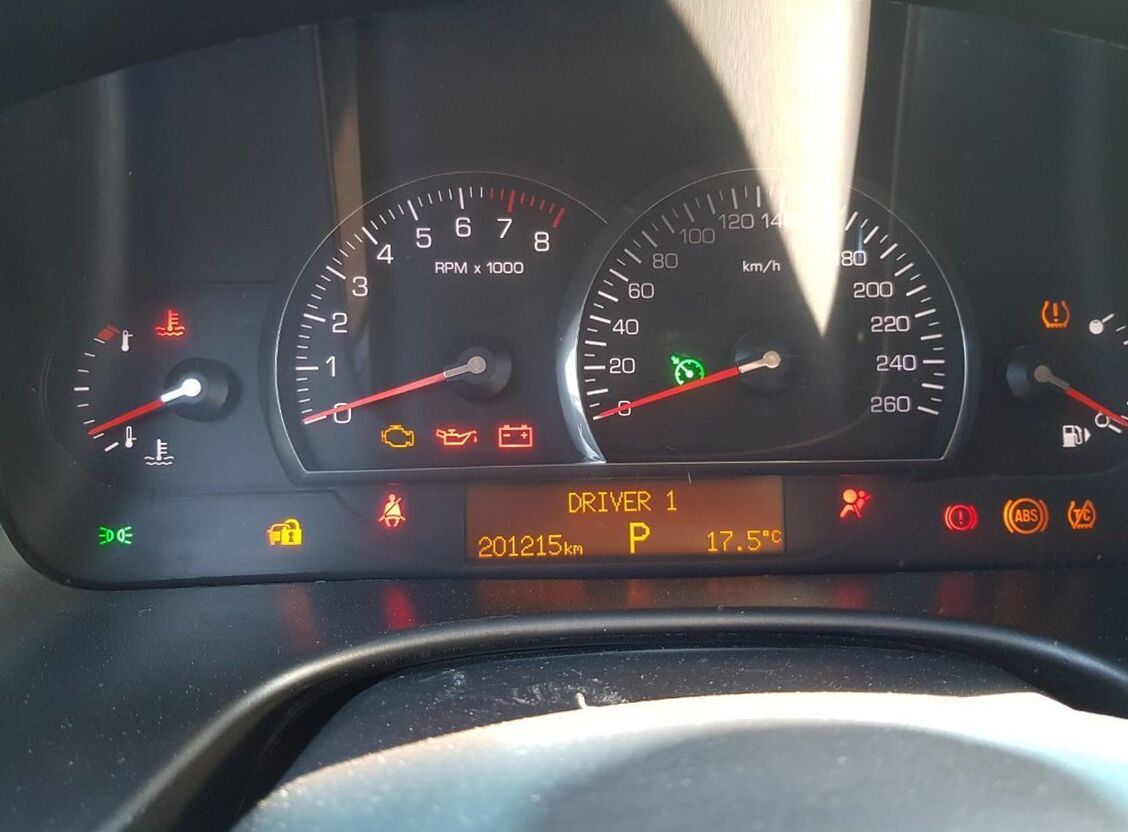

| Tachometer | yes |
Interior design | |
| Cloth upholstery | no |

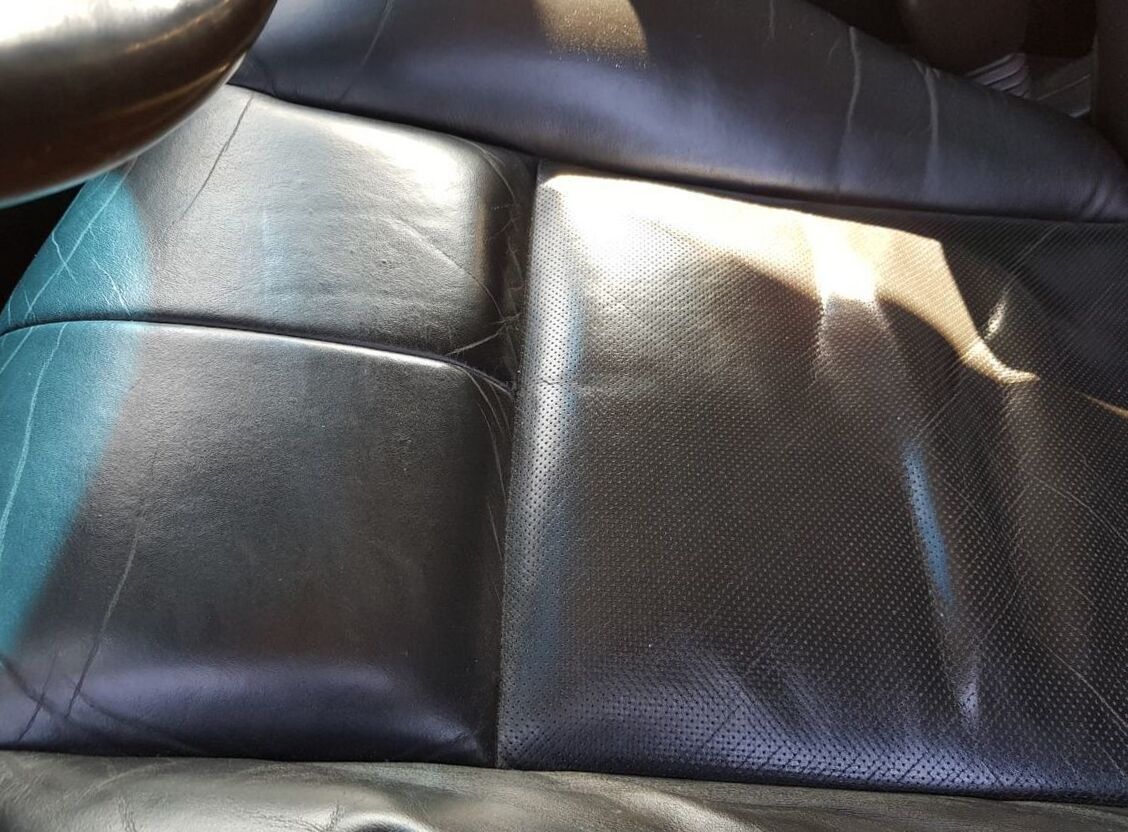

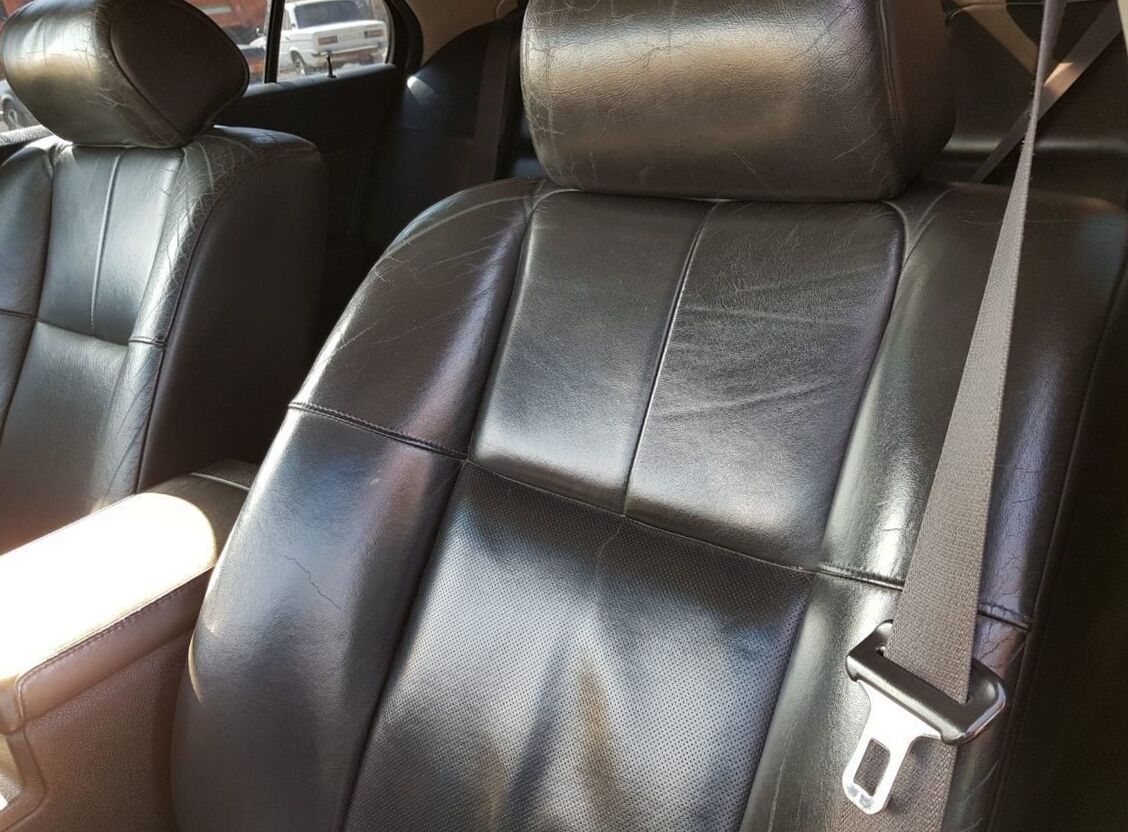

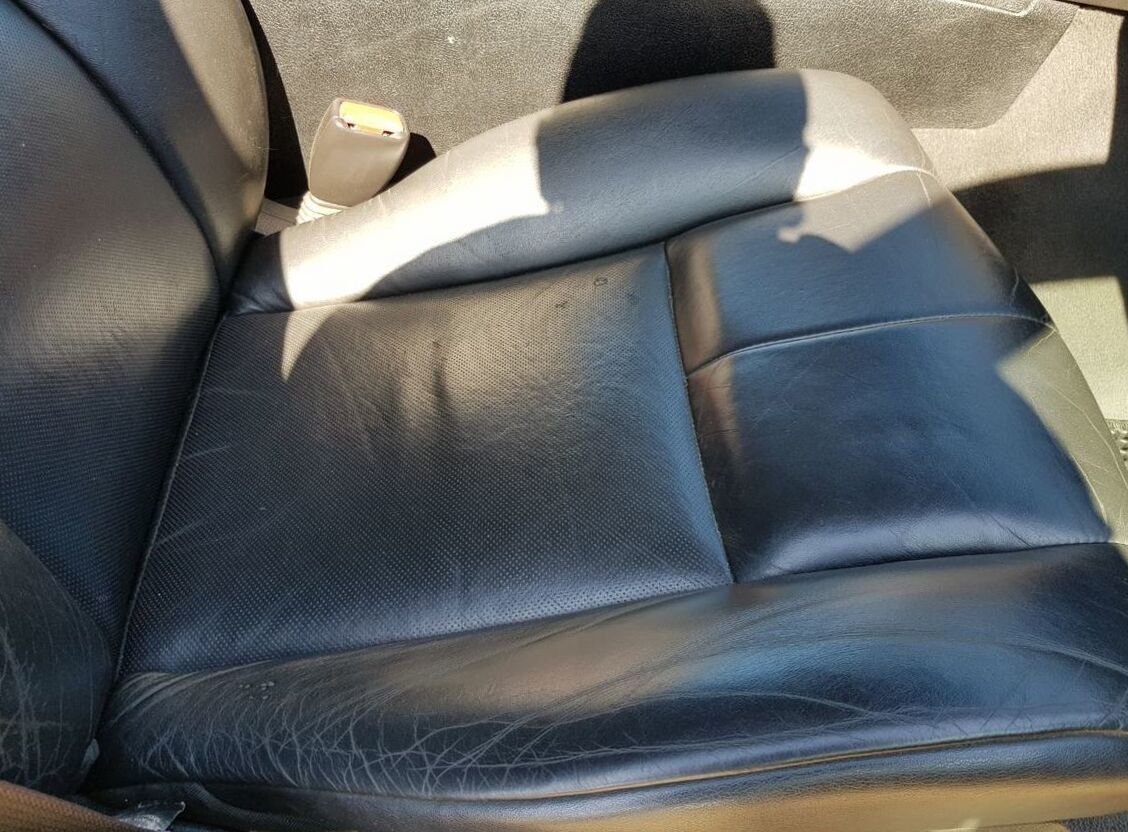

| Leather upholstery | yes |
| Panels | wooden inserts |
Seats | |
| Front seats ajust | in 8 directions |
| Loin reliance | yes |

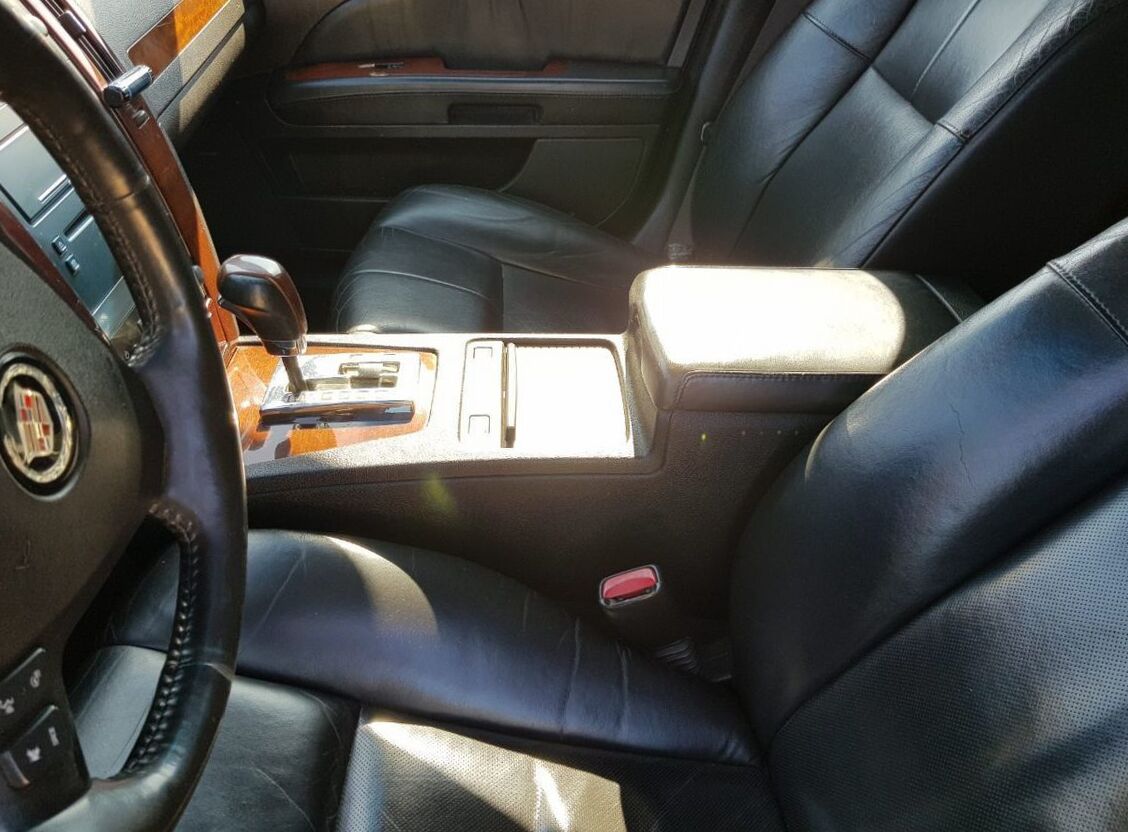

| Separating armrest front | yes |
| Separating armrest rear | yes |

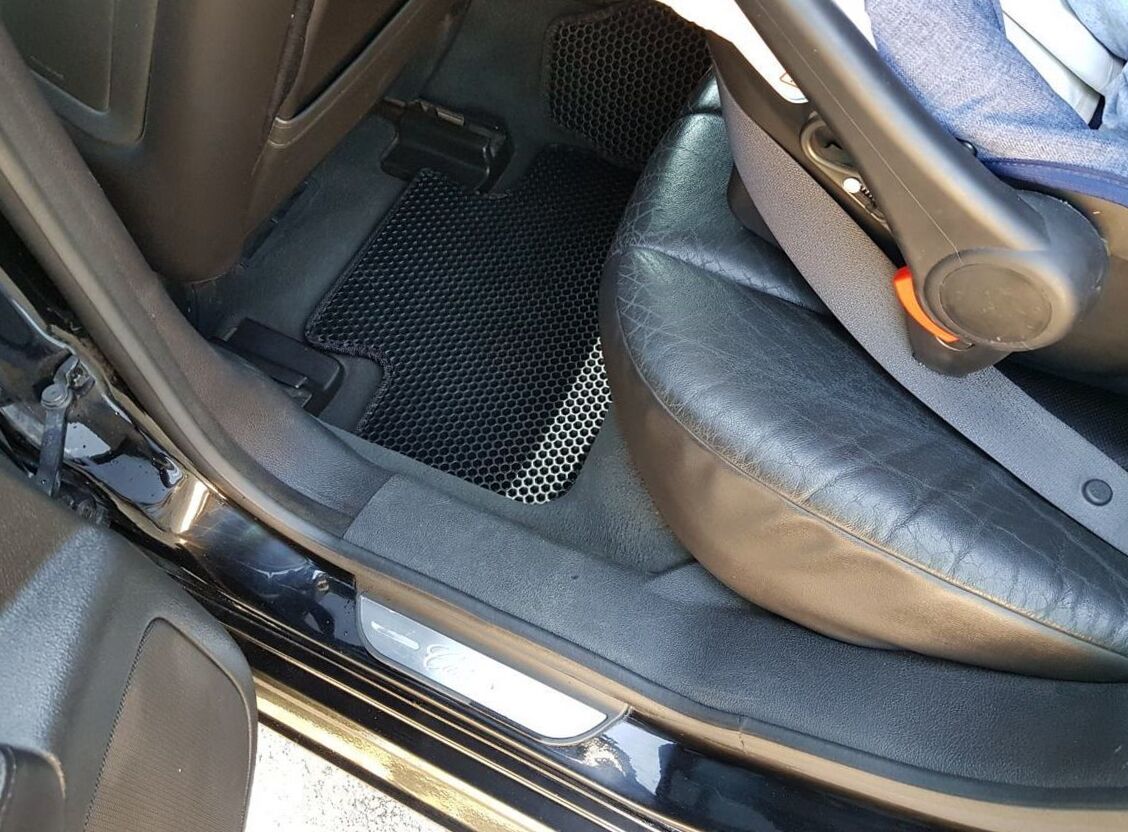

| Mats | yes |
Electric interior package | |
| Power adjustable driver seat | yes |
| Power ajustable front seat | yes |
| Front seat heater | yes |
| Front seats ventilation | no |
| Rear seats heater | yes |
| Seat position memory | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | yes |

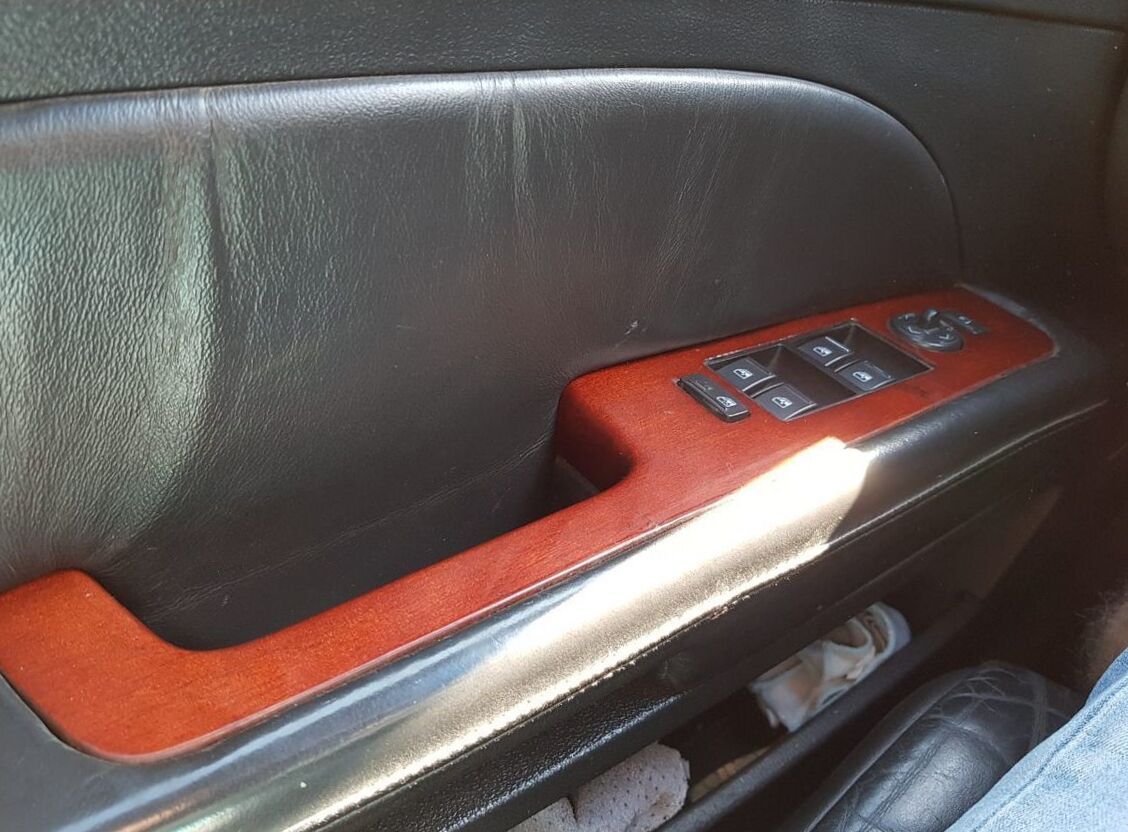

| Power window front | yes |
| Power window rear | yes |
| Stearing wheel heater | yes |
| Injectors heat | yes |
Additional interior equipment | |
| Smokers packet | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Passenger airbag deactivation function with | no |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |

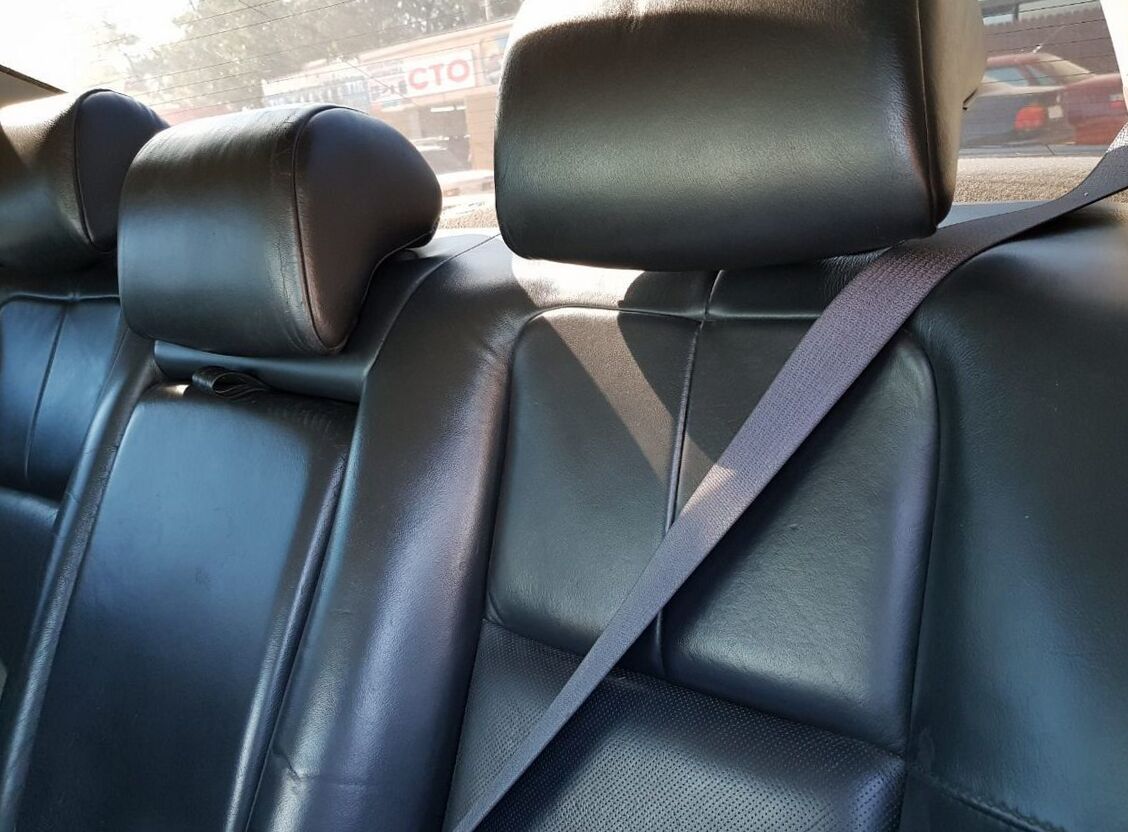

| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Cruise control | yes |
| Distance control system | option |
| System tire pressure monitoring | yes |
| Rear sonars | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |

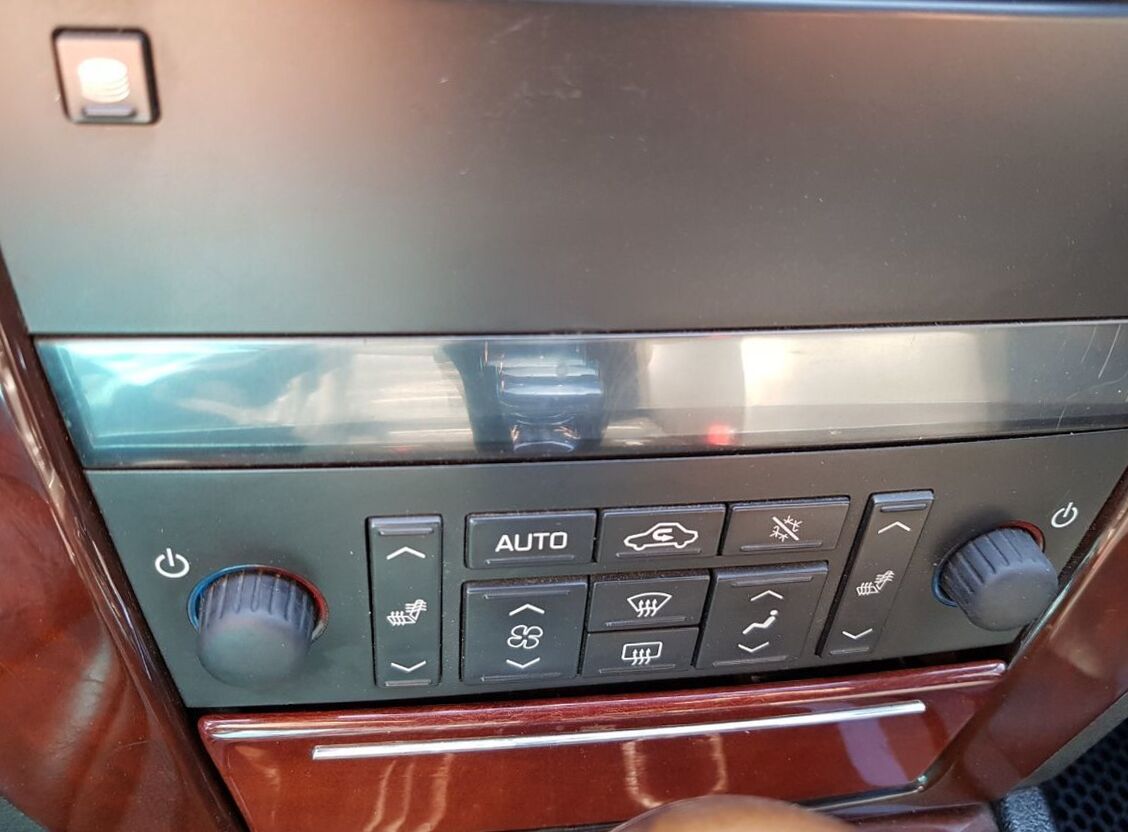

| Automatic air conditioning | yes |
| Part climat equipment | 2 zones |
| Air filter | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| CD changer | yes |

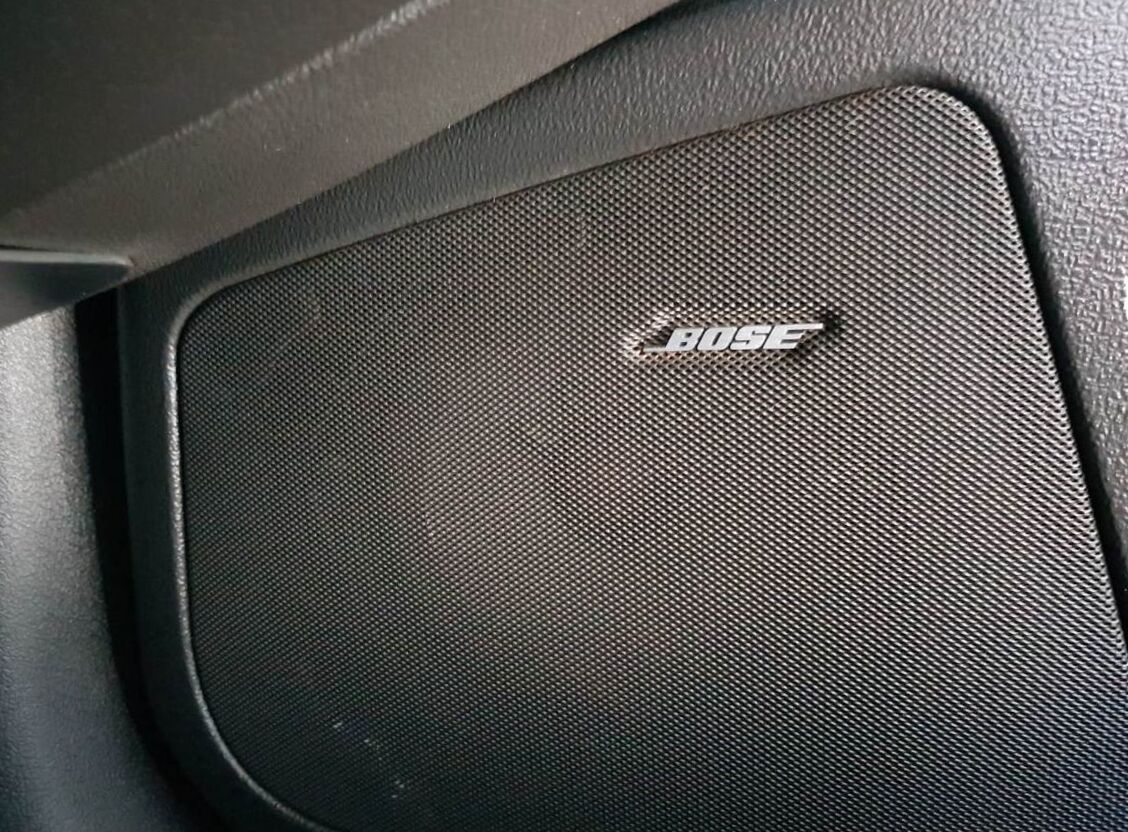

| Additional sound equipment | Bose audio system, 8 speakers |
Additional amenities | |
| Antidazzle rearview mirror | yes |
| Carkey memory | yes |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
| Alarm system | yes |
| Bolt-card | no |
Driver Kit | |
| Spare tyre small | yes |
2005 Cadillac STS 4.6 AT AWD Base (325 Hp) specs
|
The Cadillac STS is given an overall "Good" score in the Insurance Institute for Highway Safety frontal crash test. And an "Acceptable" rating in the side impact test. In the side impact test injury measurements to the driver's pelvis was rated "Poor" and for the torso "Acceptable." The front wheel drive Seville was retired in 2004, replaced by an entirely new STS model based on the rear wheel drive GM Sigma platform. All wheel drive is offered as an option, the first Cadillac sedan to be available with this drive system. The STS carries on the Magnetic Ride Control suspension, which has bragging rights as being the 'fastest reacting suspension ever,' before it was ever utilized on newer Corvettes and Ferraris. The Cadillac STS is assembled at GM's Lansing Grand River facility in Lansing, Michigan along with the smaller Cadillac CTS sedan and Cadillac SRX crossover SUV. As of 2007, engines are a 3.6L High Feature LY7 V6 with 255hp (190kW) and 252lb·ft (342N·m) and the 4.6L Northstar LH2 V8 which puts out 320hp (239kW) and 315lb·ft (427N·m) in the STS. All engine models feature dual overhead camshafts with VVT. Remote ignition is standard. Although most 2005 and 2006 Cadillac STS models offer a 255hp (190kW) engine, an option for a 3.6L 320hp (239kW) engine was available at the time through Cadillac's performance packages. As of 2007, Cadillac now has different packages and car models, which no longer support this option. » Read More About Cadillac STS |
