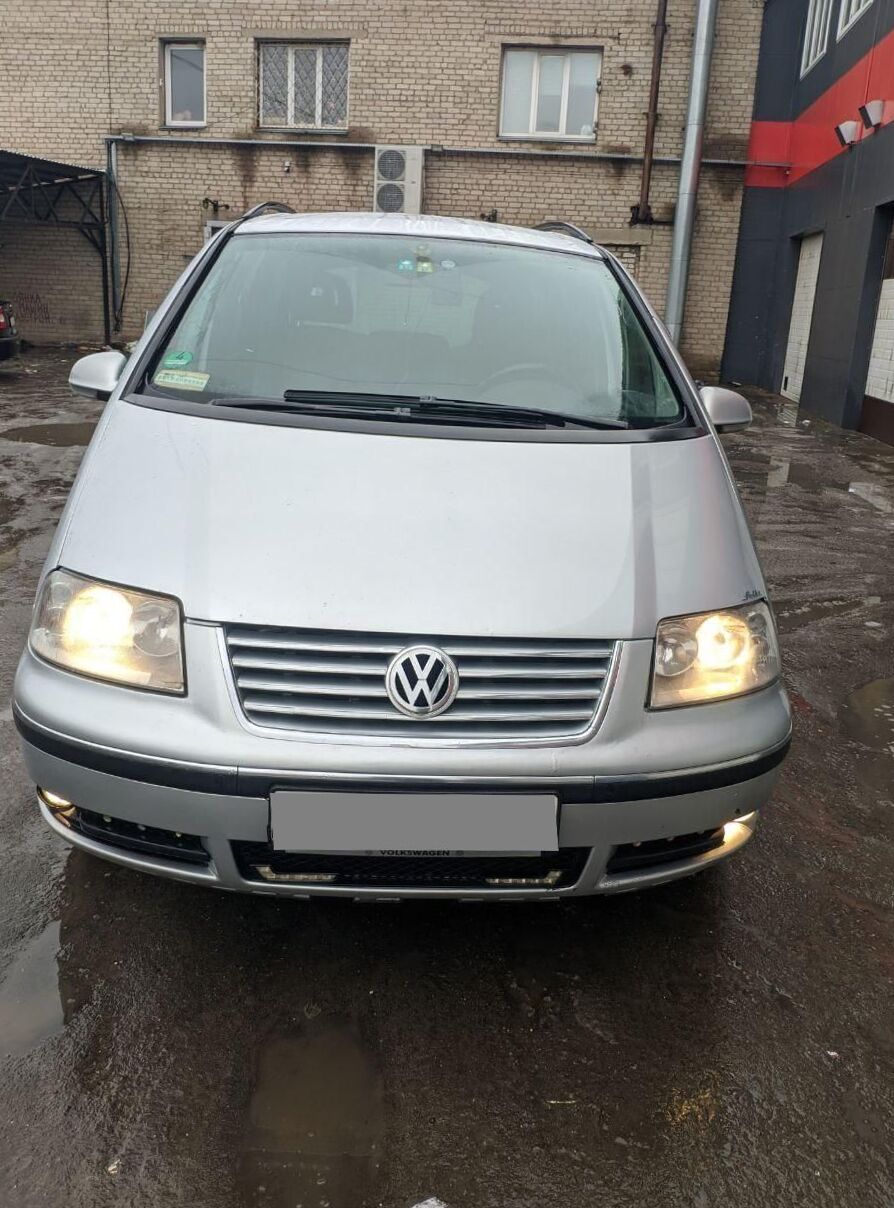

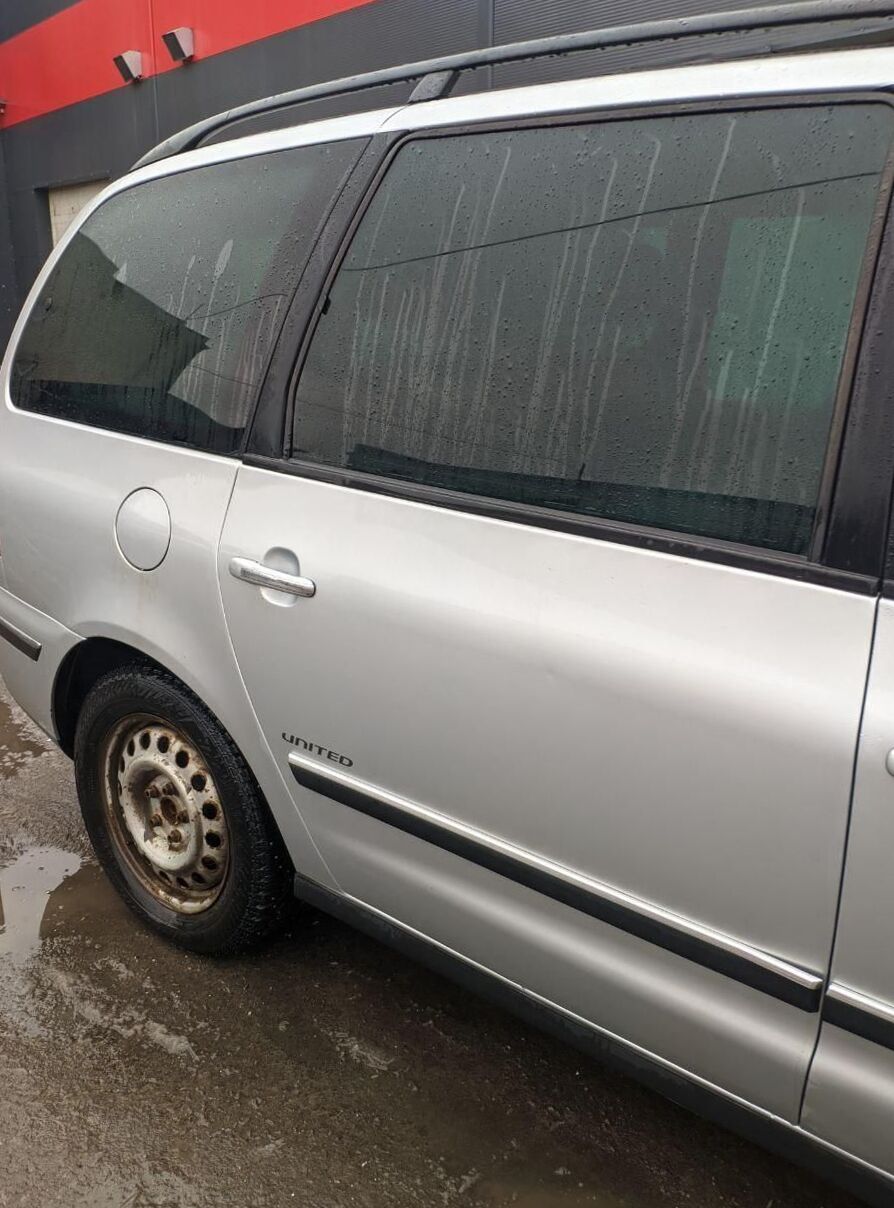

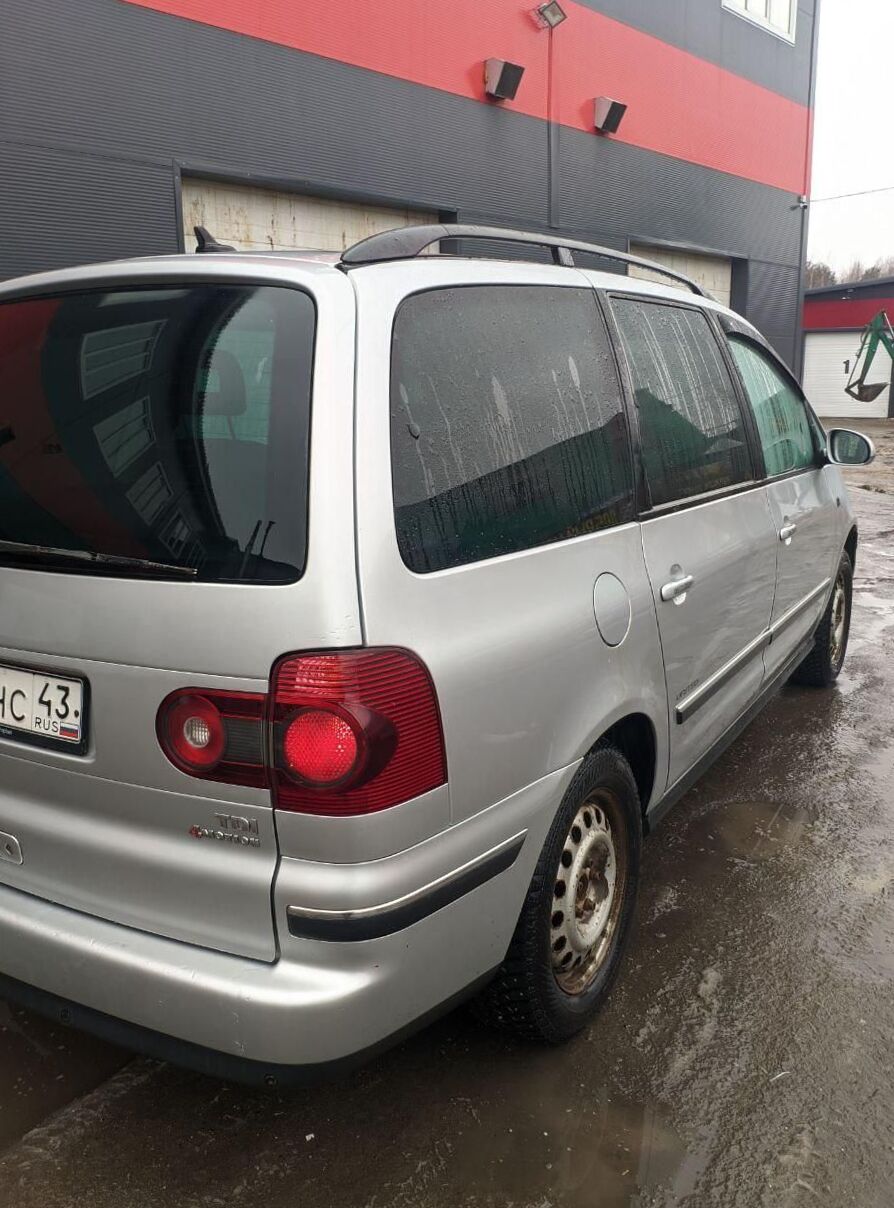

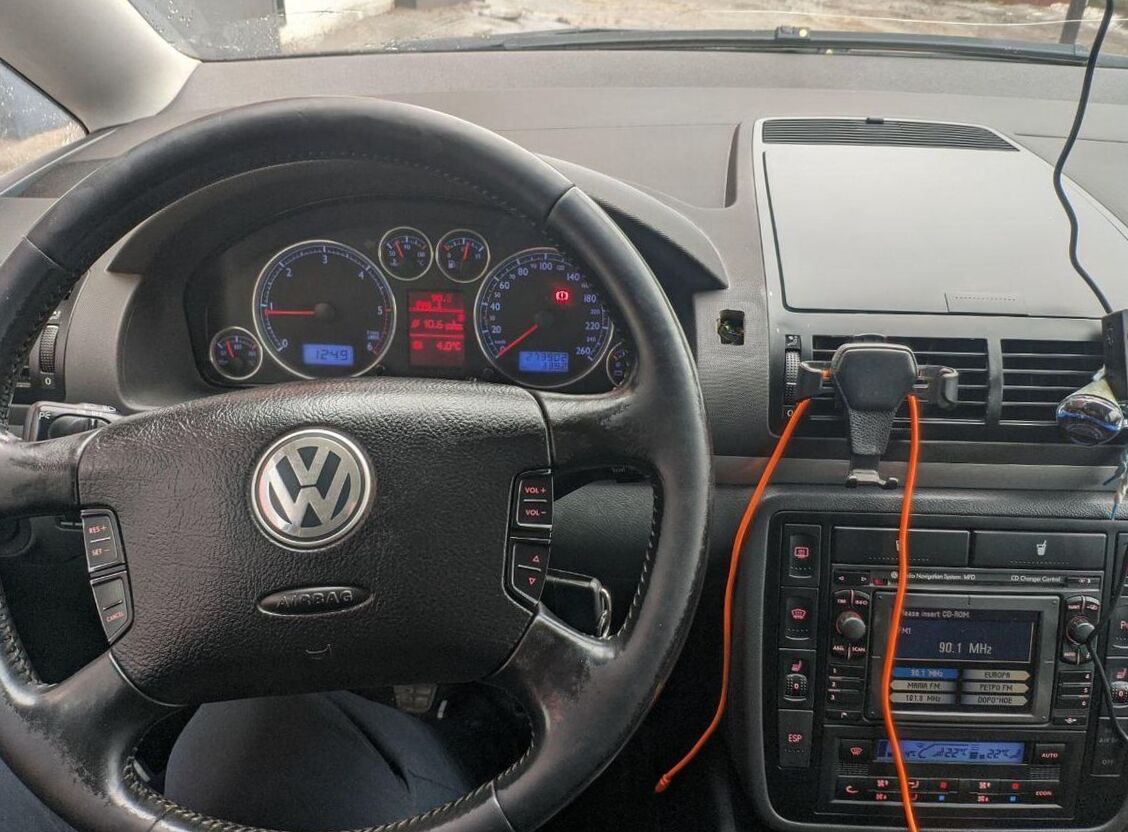

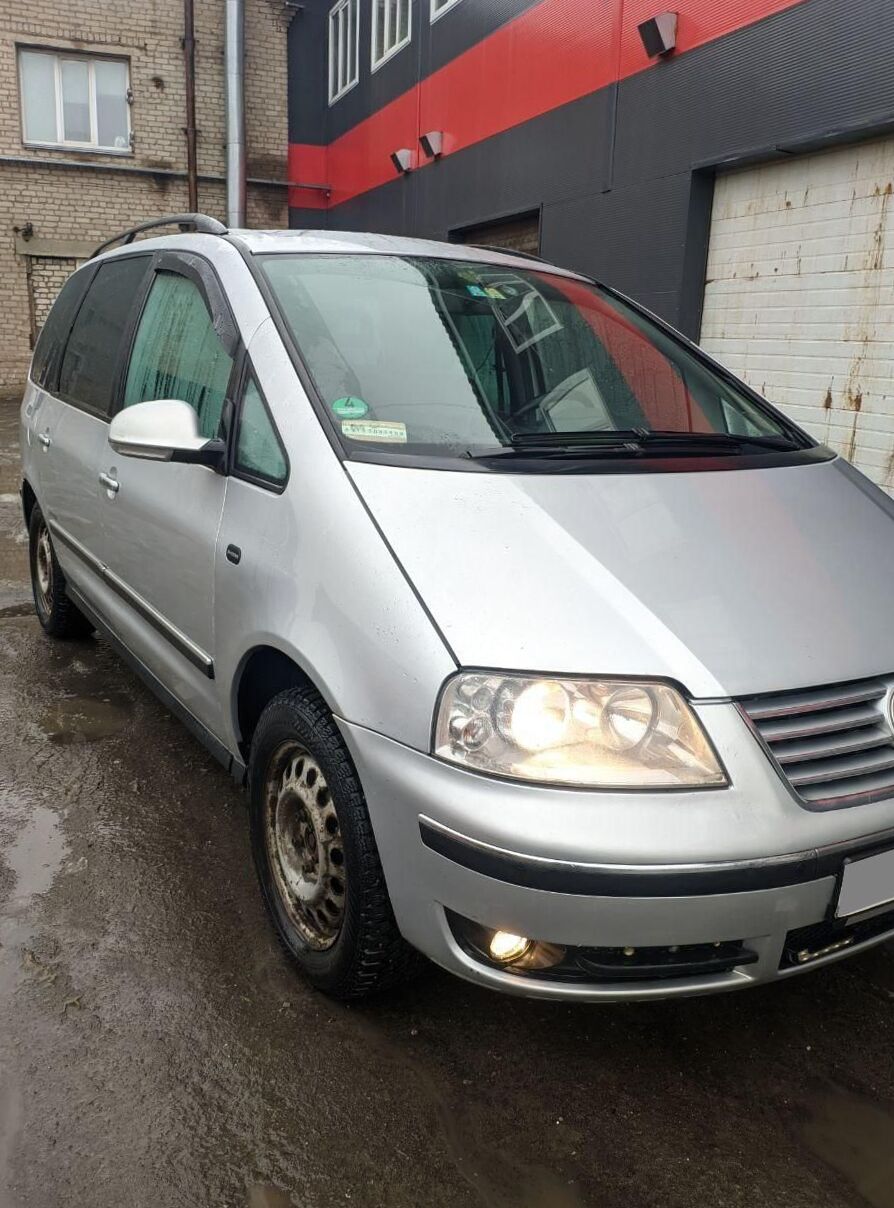

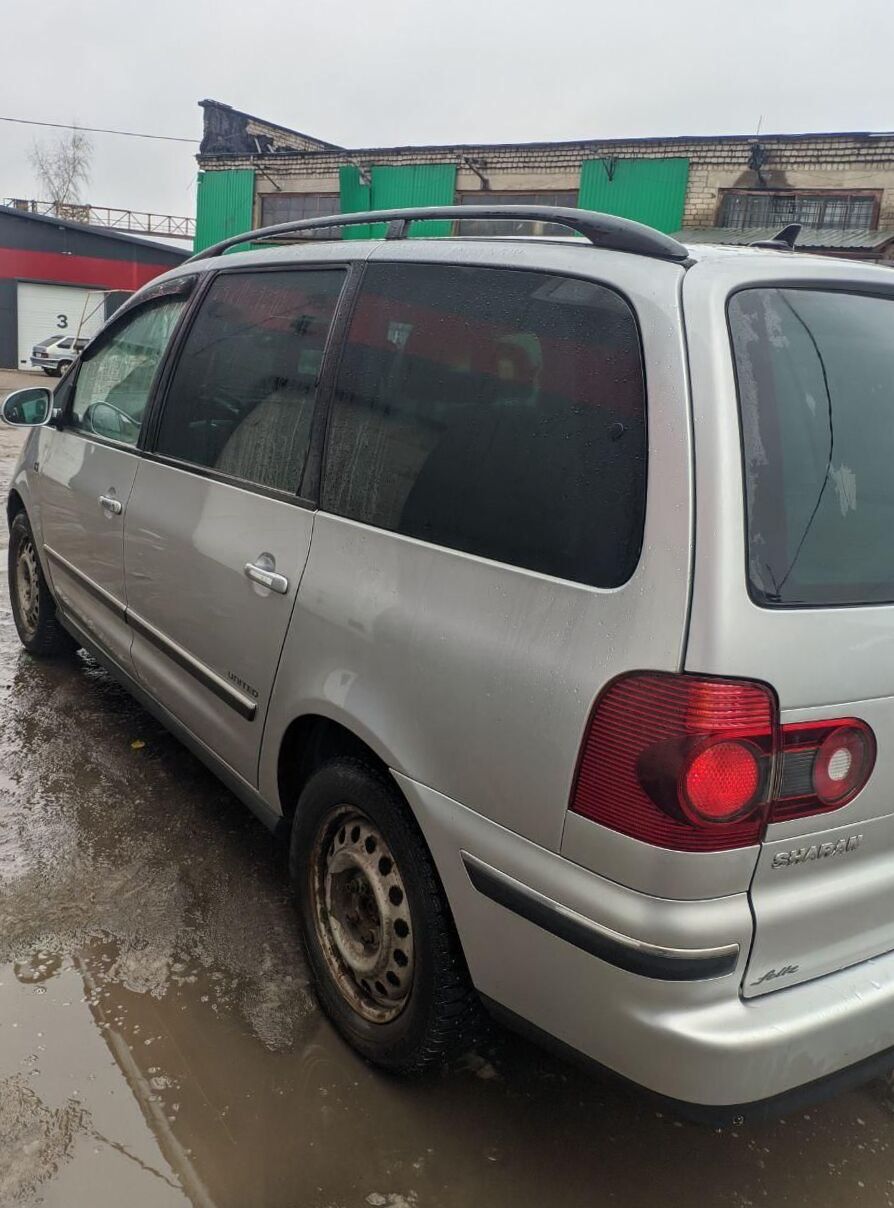

2009 Volkswagen Sharan 1.9 TDI Comfortline
Volkswagen Sharan Problems
Car starting probelm
2003, i have to wait 30 minutes to get enough
heat to warm the car before moving always .and
t...
Debitmetre d air massique
1996, we have problem of debitmetre d'air
massique for whath we wante you gars to help us...
Parts problems
1999, The doors are not locked while driving.
the alarm not working properly (malfunction),
th...
| Body type | Minivan |
|---|---|
| Power | 115 Hp |
| Engine Displacement | 1900 cm3 or 1.9L or 115.9 cu-in |
| Color | silver |
| Transmission Gearbox | Manual |
| Fuel Type | Diesel |
| Drive wheel | 4WD |
| Mileage | 167770 Miles |
| Vin | WVWZZZ7MZAV****23 |
| Price (out of date) | $9232 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Volkswagen Sharan Minivan 2009? | Minivan, 5 Seats, 4 Doors |
| What is the fuel economy, Volkswagen Sharan 7M9 2009? | 7.1 l/100 km |
| How fast is the car, 2009 Volkswagen Sharan 1.9 TDI Comfortline? | 178 km/h, 0-100 km/h: 14.7 sec |
| How much power, Volkswagen Sharan 2009 Minivan 1.9 TDI Comfortline (115 Hp)? | 115 Hp |
| What is the engine size, 2009 Volkswagen Sharan Minivan 1.9 TDI Comfortline (115 Hp)? | 1.9L or 1896cm3 |
| How many gears, What type is the gearbox, Volkswagen Sharan Minivan 2009? | 6 speed Manual |
| What is the drivetrain, Volkswagen Sharan 7M9 2009? | All wheel drive (4x4) |
| How long is this vehicle, 2009 Volkswagen Sharan 1.9 TDI Comfortline? | 4634 mm |
| How wide is the vehicle, Volkswagen Sharan 2009 Minivan 1.9 TDI Comfortline (115 Hp)? | 1810 mm |
| What is the gross weigh, 2009 Volkswagen Sharan Minivan 1.9 TDI Comfortline (115 Hp)? | 2500 kg |
| How much trunk (boot) space, Volkswagen Sharan Minivan 2009? | 852 l |
Volkswagen Sharan 7M9 1.9 TDI Comfortline (115 Hp) 2005, 2006, 2007, 2008, 2009, 2010 Specs
General information | |
|---|---|
| Complectation name | 1.9 TDI Comfortline |
| Production start year | 2005 |
| Production start month | 10 |
| Production end year | 2010 |
| Production end month | 8 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | 6 speed Manual |
| Engine volume, cc | 1896 |
| Frame name | 7M9 |
| 0 to 100 time | 14.7 |
| Max speed | 178 |
| Manufacturing country | Germany, Portugal |
| Doors | 4 |
Vehicle generation | |
| Generation name | 7M |
| Generation number | 1 |
| Facelift number | 2 |
| Production start year | 2005 |
| Production end year | 2010 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | AUY, BVK |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Max power, hp | 115 |
| Max power RPM, rpm | 4000 |
| Max power, hp (kWt) / rpm | 115 (85) / 4000 |
| Max torque, N*m | 310 |
| Max torque RPM, rpm | 1900 |
| Max torque, N*m (kg*m) / rpm | 310 (32) / 1900 |
| Valves per cylinder | 2 |
| Compression ratio | 19 |
| Bore, mm | 79.5 |
| Stroke, mm | 95.5 |
| Engine additional info | 8-valve |
| Eco type | Euro-4 |
Fuel consumption | |
| City | 9.1 |
| Country side | 5.9 |
| Combined | 7.1 |
| Co2 emission | 188 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4634 |
| Exterior width, mm | 1810 |
| Exterior height, mm | 1759 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2841 |
| Turning radius, m | 5.95 |
| Wheel spacing front | 1530 |
| Wheel spacing rear | 1524 |
Weight and permissible load | |
| Mass, kg | 2082 |
| Max capacity | 418 |
| Max. weight | 2500 |
| Max roof weight | 75 |
| Max towbar effort | 75 |
| Trailer max weight wobrakes | 720 |
| Front axe load | 1070 |
| Rear axe load | 960 |
| Trailer maxweight 12deg | 2000 |
Volumes | |
| Fuel tank capacity, l | 70 |
| Trunk volume | 852 |
Other | |
| Addinfo | Electrical socket in the luggage compartment |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, on the wishbone |
Wheel rims | |
| Disc | 6J x 16 |
Tires | |
| Wheels | 195 /60 R16 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
Exterior | |
Headlights | |
| Halogen headlights | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
Doors | |
| Door handles in body color | yes |
Accessories | |
| Bumpers | painted in body color |
Interior | |
Steering wheel and center panel | |
| Adjustable steering | yes |
Seats | |
| Front seats ajust | Driver and passenger seats are height-adjustable |
Electric interior package | |
| Centralized door lock | yes |
| Power window | yes |
| Power window front | yes |
| Power window rear | yes |
Additional interior equipment | |
| Cooled glovebox | yes |
| Holders for bottles in doors | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Passenger airbag deactivation function with | yes |
| Side airbag | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Function "Take me home" | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
Audio systems | |
| Additional sound equipment | Audio system "Delta" 10 speakers |
Additional amenities | |
| Mirrors in sunshields | yes |
| Light | Blue instrument illumination, adjustable; red night illumination of switches, luggage compartment illumination, glove box illumination, interior background illumination, front and rear reading lights |
Car safety | |
| Immobilizer | yes |
Driver Kit | |
| Emergency triangle | yes |
2009 Volkswagen Sharan 7M9 1.9 TDI Comfortline (115 Hp) specs
|
The Volkswagen Group subsequently rebadged the Volkswagen version in 1996, and sold it also as the SEAT Alhambra alongside the Sharan. Each of the three MPV models has its own subtle differences in exterior, and, for the Ford Galaxy, in interior design. As of 2007, the annual production for the Sharan is in the 50,000 unit range; it is sold in Europe, South Africa and some Asia-Pacific and Latin American countries. In Mexico it is available with the 1.8L Turbo 4 cil 150hp with 5 speed Tiptronic gearbox in Comfortline trim only, while in Argentina it is available with the 1.8L Turbo 4 cil, and the 1.9L TDI 4 cil 115hp in both 5 speed manual and 5 speed Tiptronic transmissions in Trendline trim only. The Sharan is not sold in the United States and Canada. Originally this was due to an agreement between Ford and Volkswagen, leaving the market free from competition for Ford's Aerostar minivan. More recently, Volkswagen decided not to introduce the Sharan in North America, ceased developing the Microbus concept, and instead introduced a badge-engineered nameplate variant of the Chrysler minivans as the Routan. » Read More About Volkswagen Sharan |
