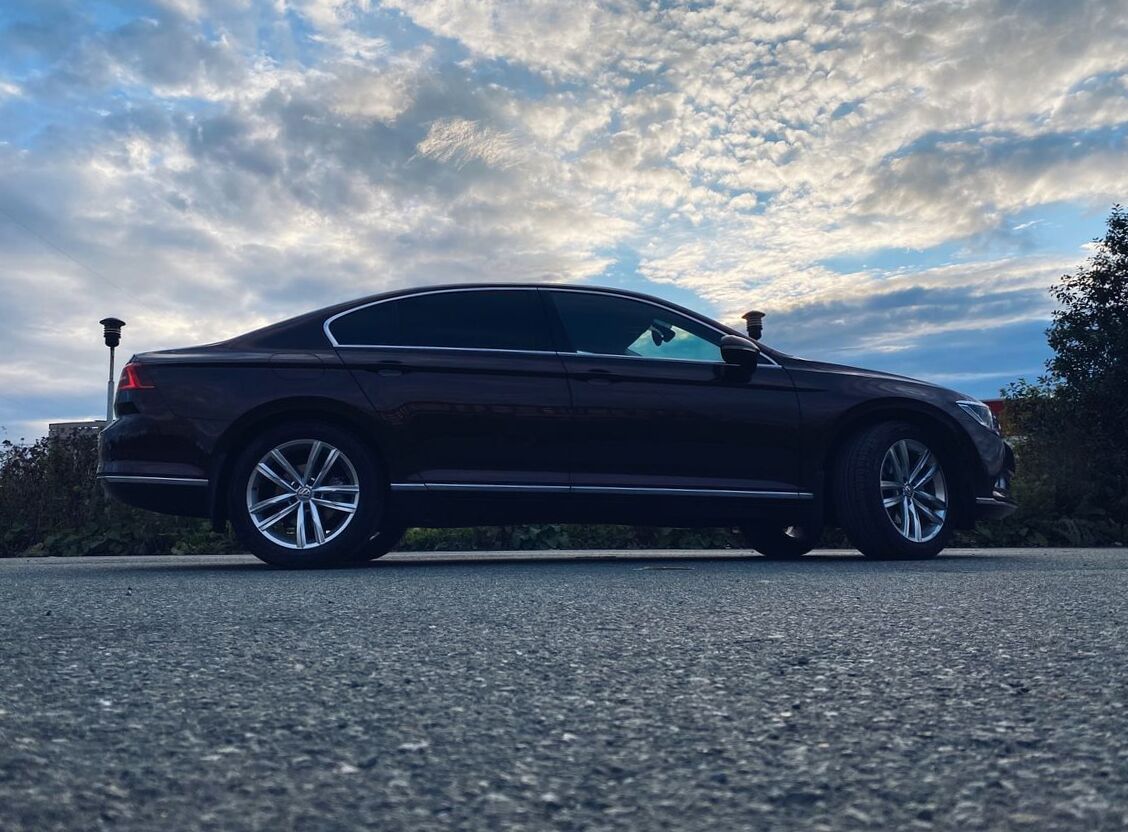

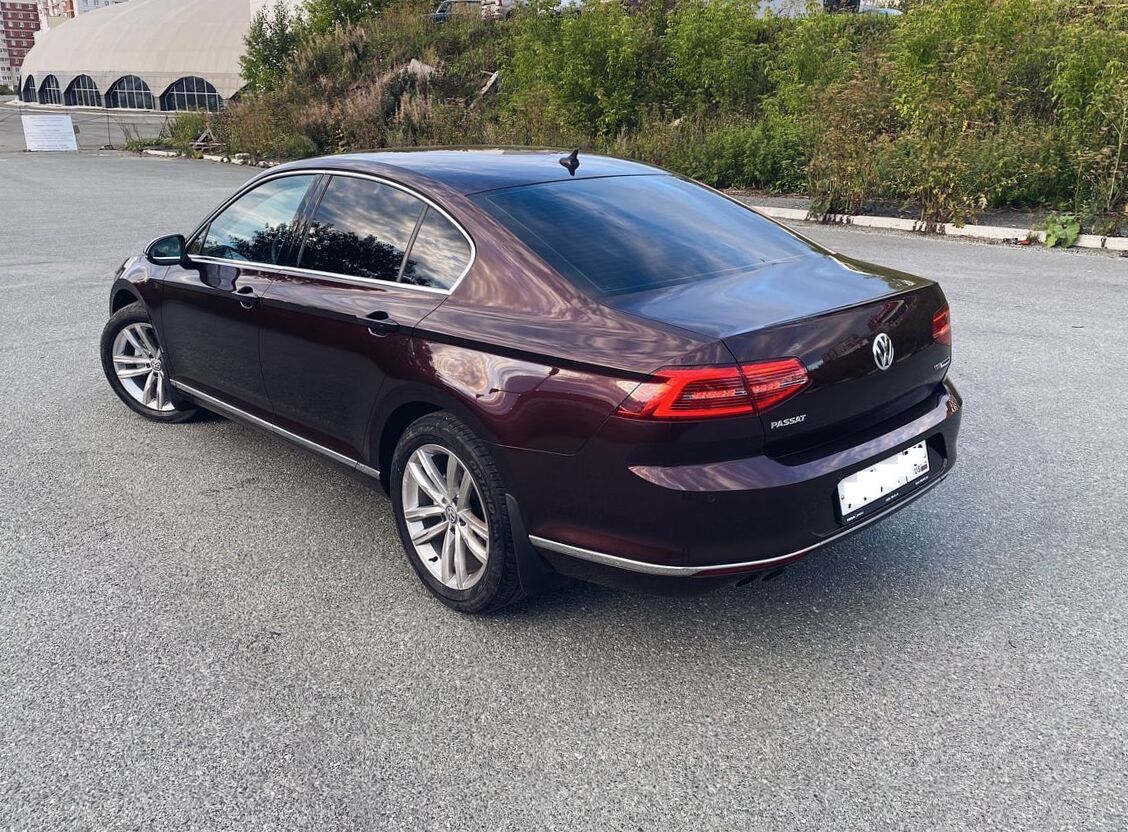

2016 Volkswagen Passat VIII 1.8 TSI DSG Highline
Volkswagen Passat Problems
Cooling and heating
2002, there is corrosion in the cooling fluid
that rotted to drain cap; the heater does not
bl...
Tie rod end
1986, i do notfaund the tie rod end here in
Queenstown I do not East london can have it. I
als...
Suspention problems
1985, car drives vary hard on road and that is
after i had replace shocks( front and rear). Th...
| Body type | Sedan |
|---|---|
| Power | 180 Hp |
| Engine Displacement | 1800 cm3 or 1.8L or 109.8 cu-in |
| Color | red |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 98176 Miles |
| Vin | 225*** |
| Price (out of date) | $15359 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2016 Volkswagen Passat VIII? | Sedan, 5 Seats, 4 Doors |
| What is the fuel economy, Volkswagen Passat Sedan 2016? | 5.8 l/100 km |
| How fast is the car, Volkswagen Passat 3G2 2016? | 232 km/h, 0-100 km/h: 7.9 sec |
| How much power, 2016 Volkswagen Passat 1.8 TSI DSG Highline? | 180 Hp |
| What is the engine size, Volkswagen Passat VIII 2016 Sedan 1.8 TSI DSG Highline (180 Hp)? | 1.8L or 1795cm3 |
| How many gears, What type is the gearbox, 2016 Volkswagen Passat Sedan 1.8 TSI DSG Highline (180 Hp)? | Manual Transmission Automatically Shifted 7 |
| What is the drivetrain, 2016 Volkswagen Passat VIII? | Front |
| How long is this vehicle, Volkswagen Passat Sedan 2016? | 4767 mm |
| How wide is the vehicle, Volkswagen Passat 3G2 2016? | 1832 mm |
| What is the gross weigh, 2016 Volkswagen Passat 1.8 TSI DSG Highline? | 2030 kg |
| How much trunk (boot) space, Volkswagen Passat VIII 2016 Sedan 1.8 TSI DSG Highline (180 Hp)? | 586 l |
Volkswagen Passat VIII 3G2 1.8 TSI DSG Highline (180 Hp) 2015, 2016, 2017, 2018 Specs
General information | |
|---|---|
| Complectation name | 1.8 TSI DSG Highline |
| Production start year | 2015 |
| Production end year | 2018 |
| Drive type | Front |
| Frame type | Sedan |
| Transmission type | Manual Transmission Automatically Shifted 7 |
| Engine volume, cc | 1895 |
| Frame name | 3G2 |
| 0 to 100 time | 7.9 |
| Max speed | 232 |
| Clearance, mm | 160 |
| Manufacturing country | Germany |
| Diler name | NEW 1.8 TSI DSG Highline |
| Doors | 4 |
| Winter complectation | yes |
| Warranty | 2 years regardless of mileage |
Vehicle generation | |
| Generation name | B8 |
| Generation number | 8 |
| Production start year | 2014 |
| Production end year | 2020 |
Engine, transmission and steering specs | |

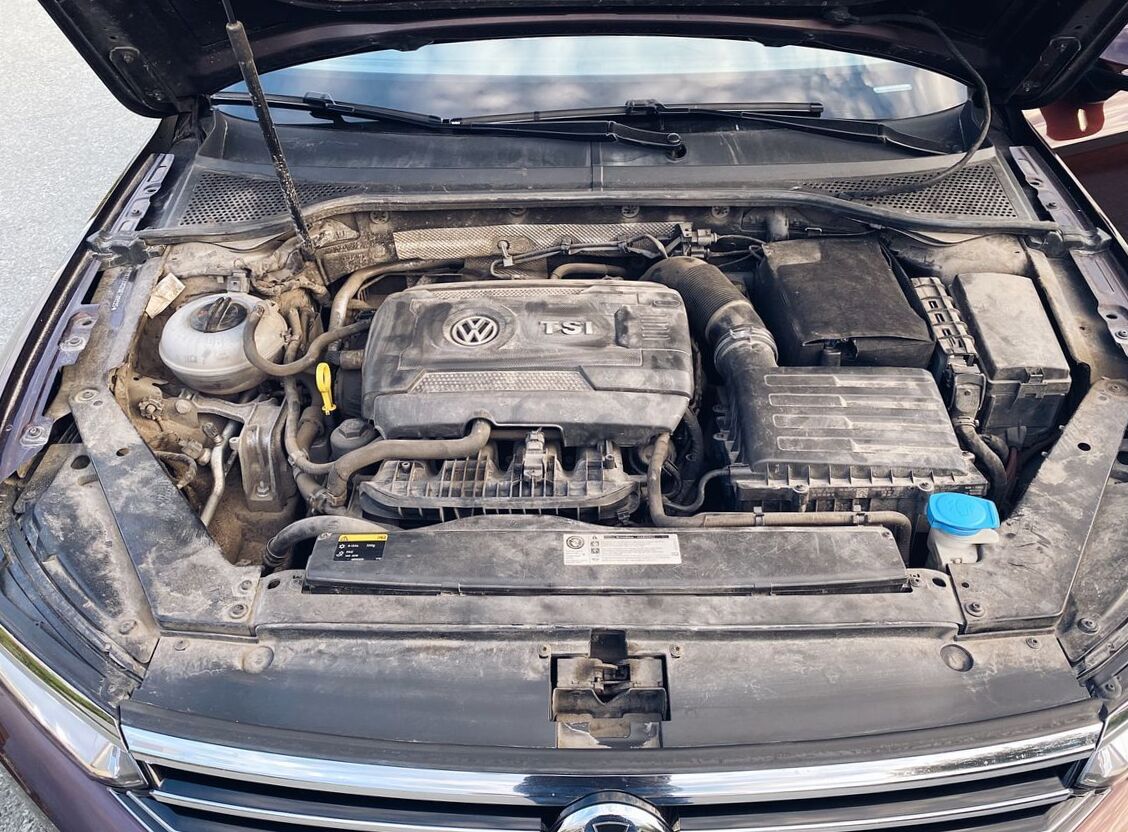

Engine specs | |
| Engine name | CJSA, CJSC |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 180 |
| Max power RPM, rpm | 5100 |
| Max power, hp (kWt) / rpm | 180 (132) / 5100 |
| Max torque, N*m | 250 |
| Max torque RPM, rpm | 1250 |
| Max torque, N*m (kg*m) / rpm | 250 (26) / 1250 |
| Valves per cylinder | 4 |
| Compression ratio | 9.6 |
| Bore, mm | 82.5 |
| Stroke, mm | 84.1 |
| Engine additional info | direct fuel injection |
| Eco type | Euro-5 |
| Start stop system | yes |
Fuel consumption | |
| City | 7.1 |
| Country side | 5 |
| Combined | 5.8 |
| Co2 emission | 130 |
Transmission | |
| Manual mode | yes |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steering vgs vgrs | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4767 |
| Exterior width, mm | 1832 |
| Exterior height, mm | 1456 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior width, mm | 1506 |
Chassis dimensions | |
| Wheel base, mm | 2791 |
| Turning radius, m | 5.85 |
| Wheel spacing front | 1584 |
| Wheel spacing rear | 1568 |
Weight and permissible load | |
| Mass, kg | 1480 |
| Max capacity | 625 |
| Max. weight | 2030 |
| Max roof weight | 100 |
| Max towbar effort | 90 |
| Trailer max weight wobrakes | 740 |
| Front axe load | 1050 |
| Rear axe load | 1030 |
Volumes | |
| Fuel tank capacity, l | 59 |

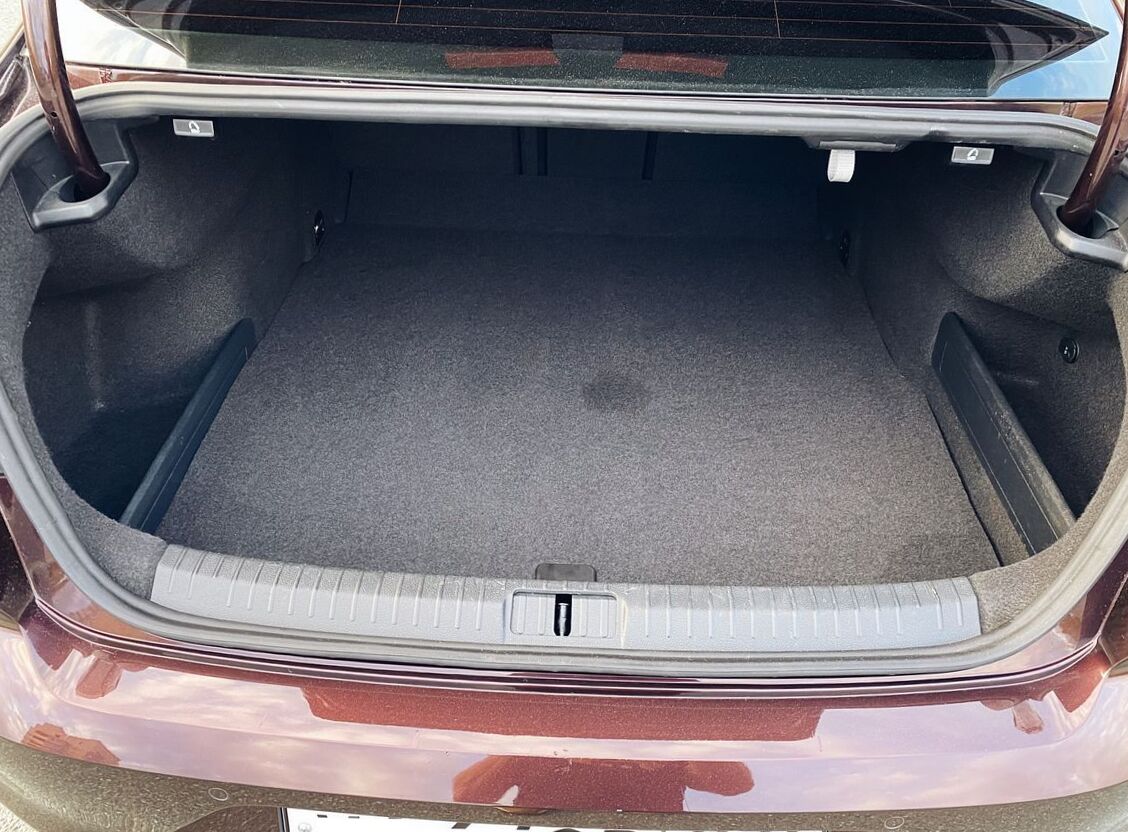

| Trunk volume | 586 |
Other | |
| Addinfo | Chrome side windows; Chrome side moldings; Plastic door sills; Analog clock in center console; R-Line design package (optional) |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent, spring multi-link |

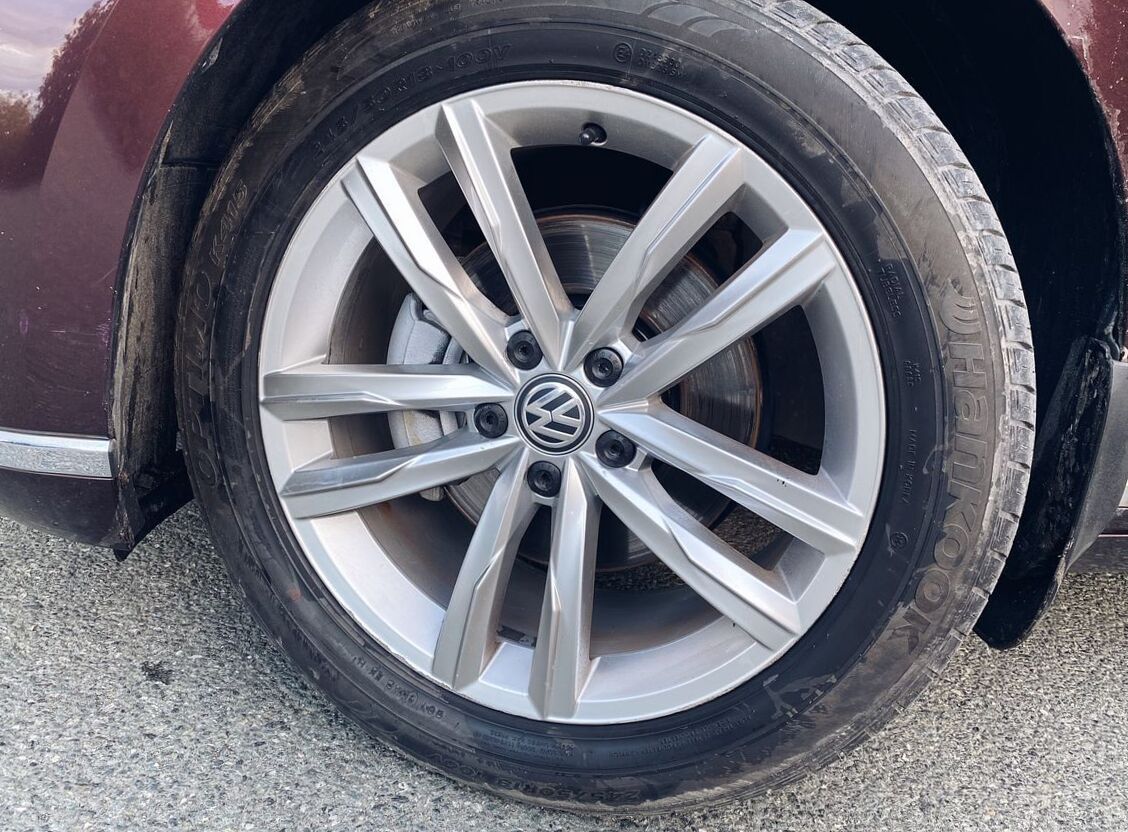

Wheel rims | |
| Aluminium wheel | yes |
| Disc | 7J x 17 |

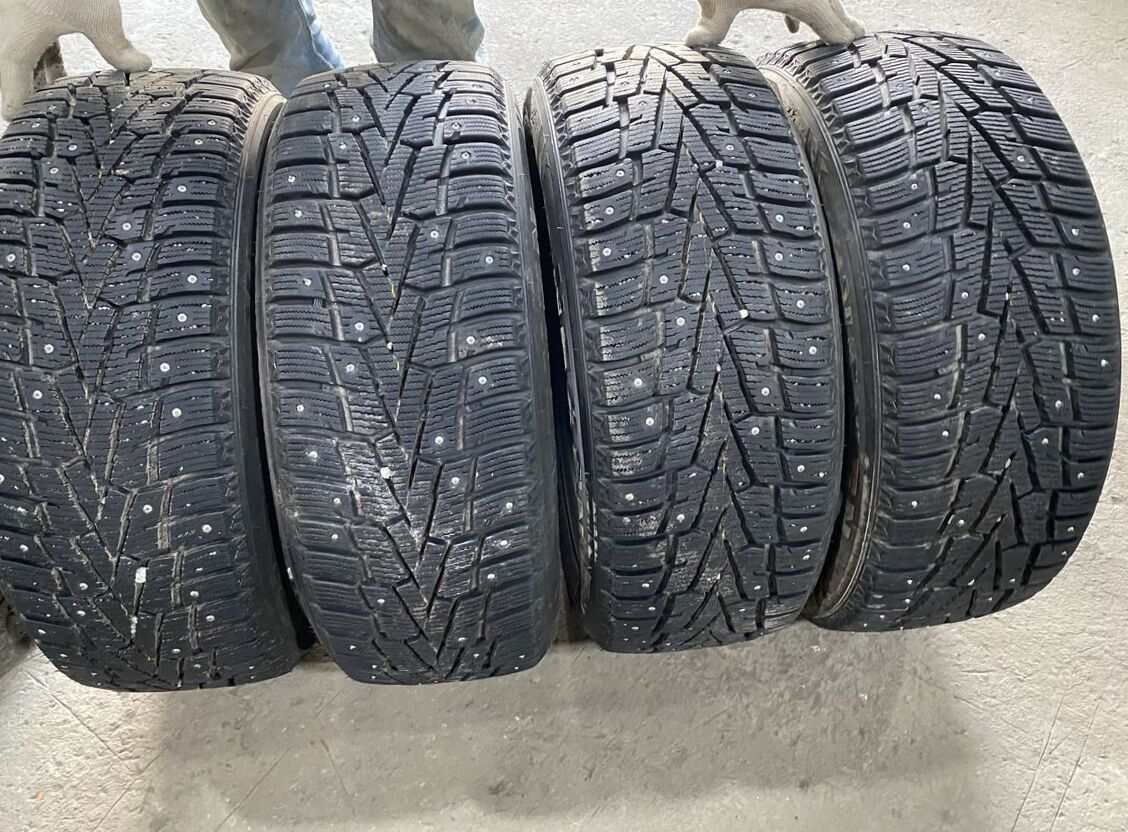

Tires | |
| Front wheels | 215/55 R17 |
| Rear wheels | 215/55 R17 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Parking brake | Electronic |
| Regenerative braking | yes |
| Parking brake new first | Electronic |
Exterior | |

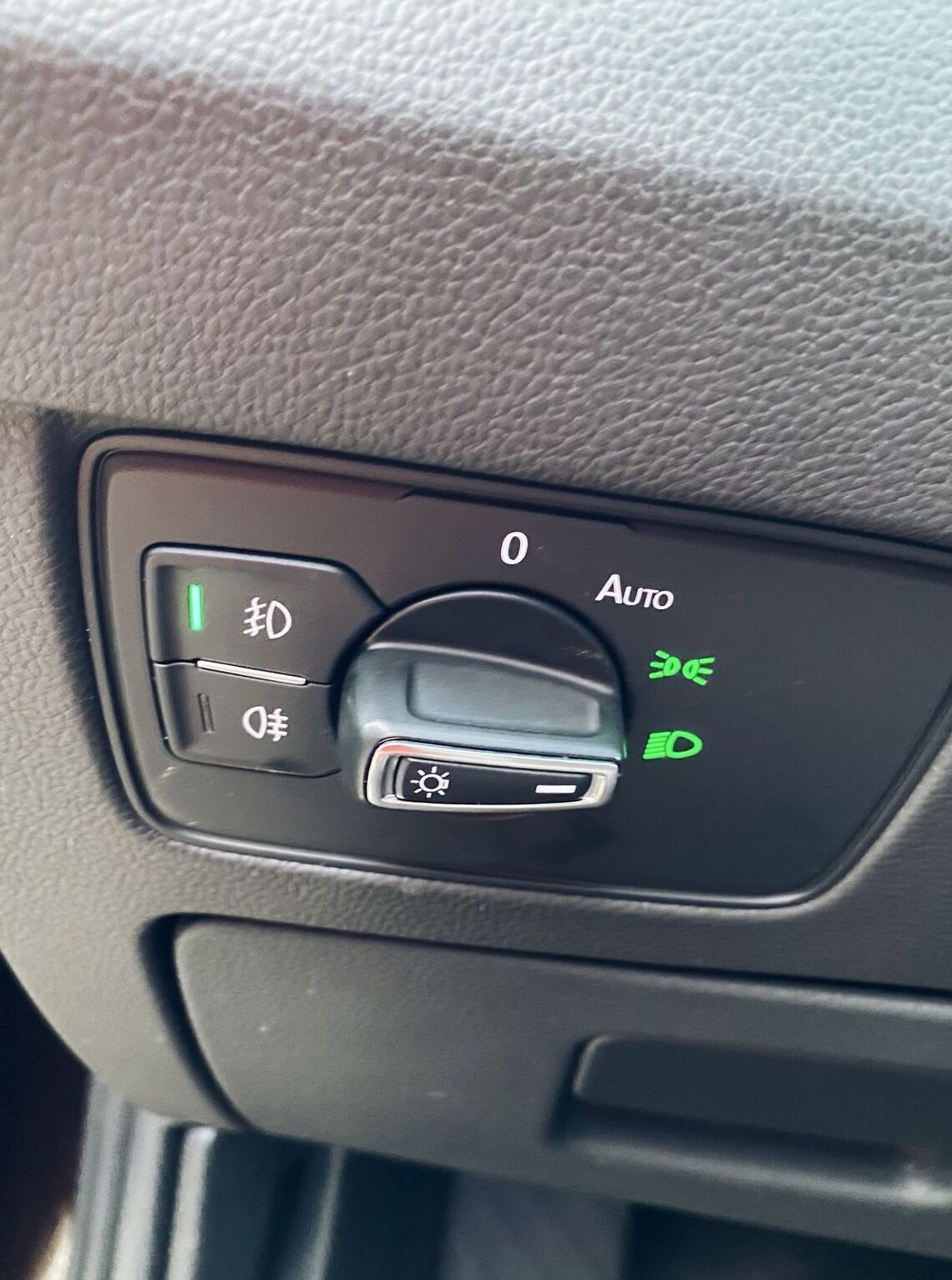

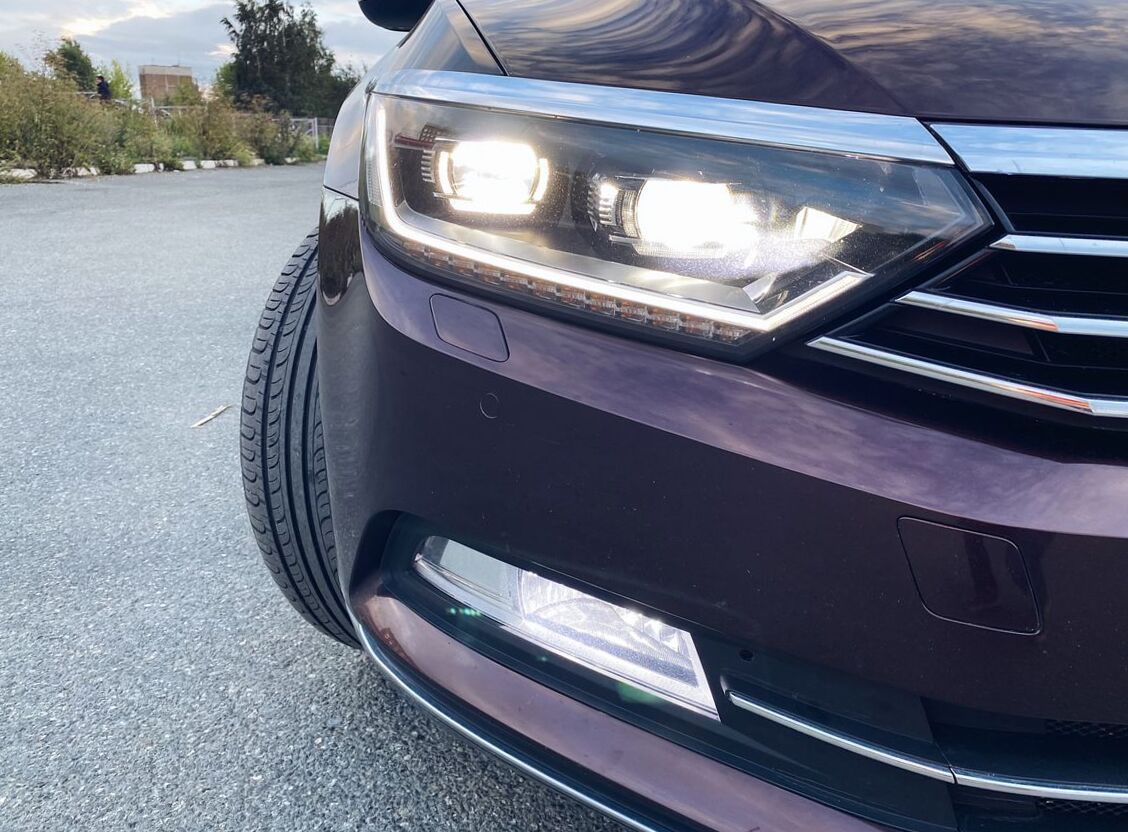

Headlights | |
| Halogen headlights | no |
| Bixenon | no |
| Led lights | yes |
| Diod head lights | yes |
| Head lights washer | yes |
| Front fog lamps | yes |

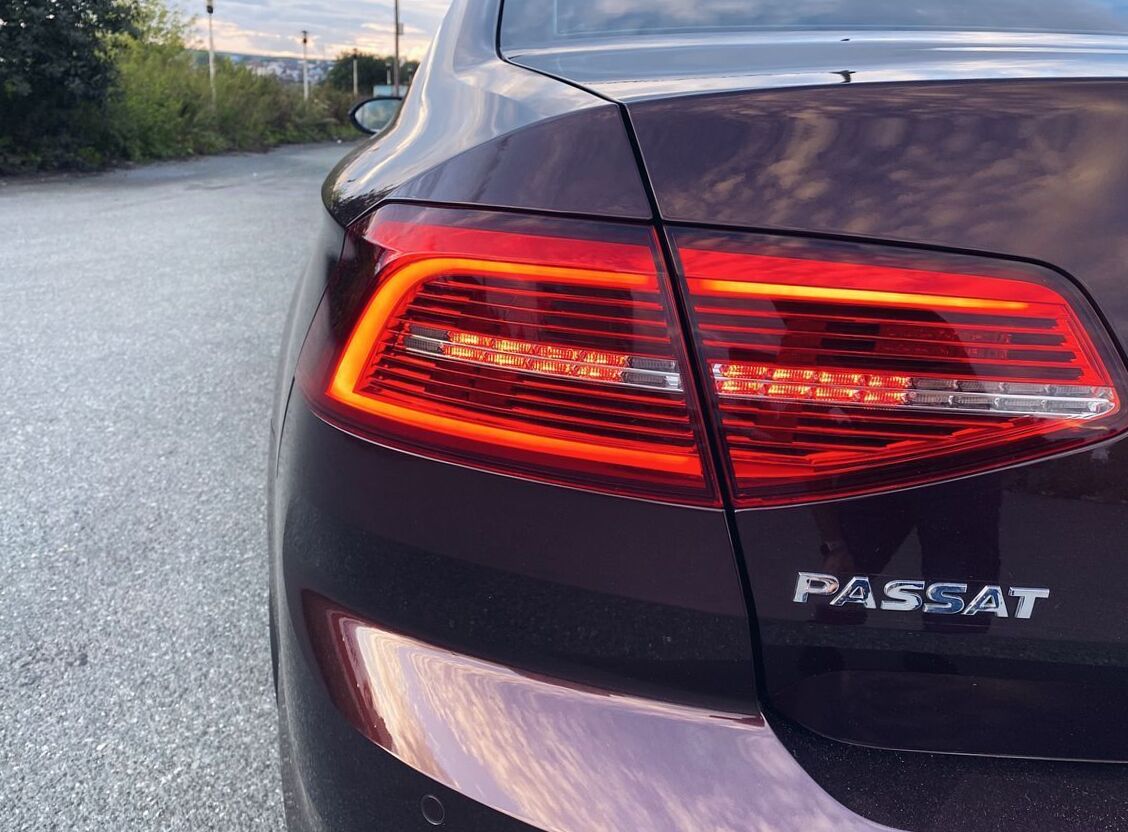

| Led backlights | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | yes |

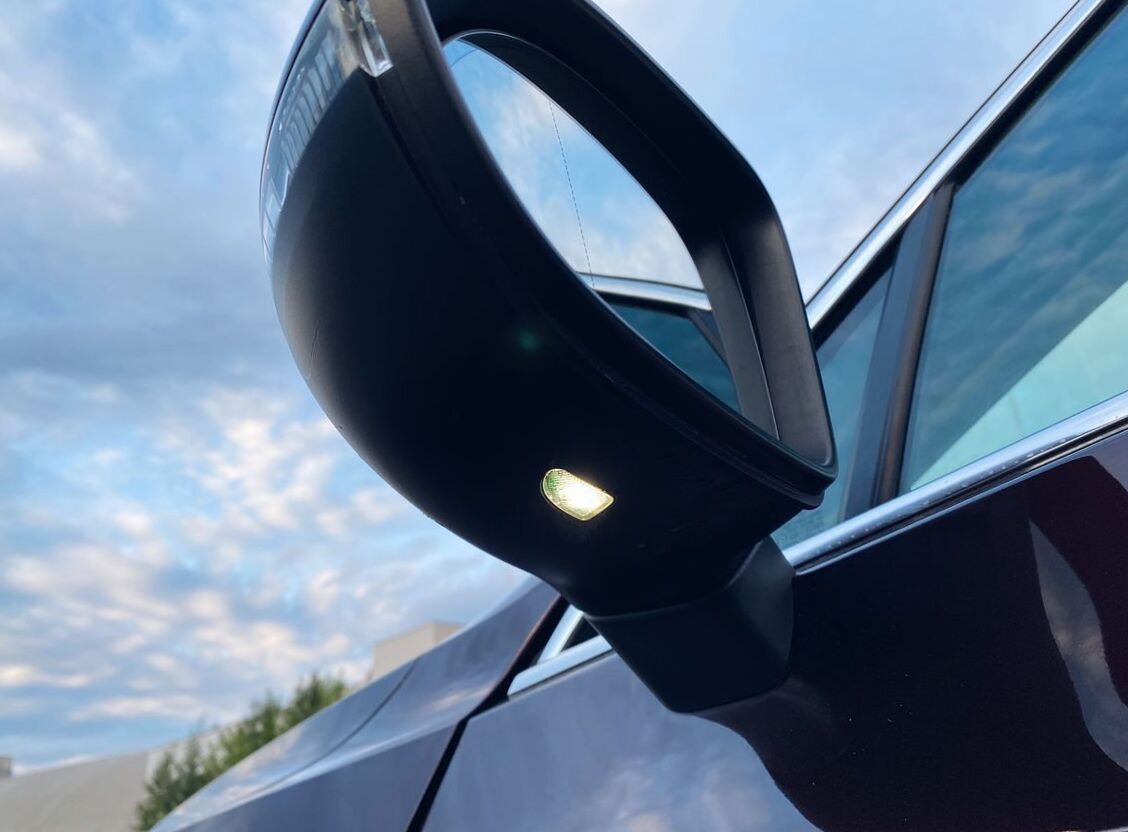

Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |

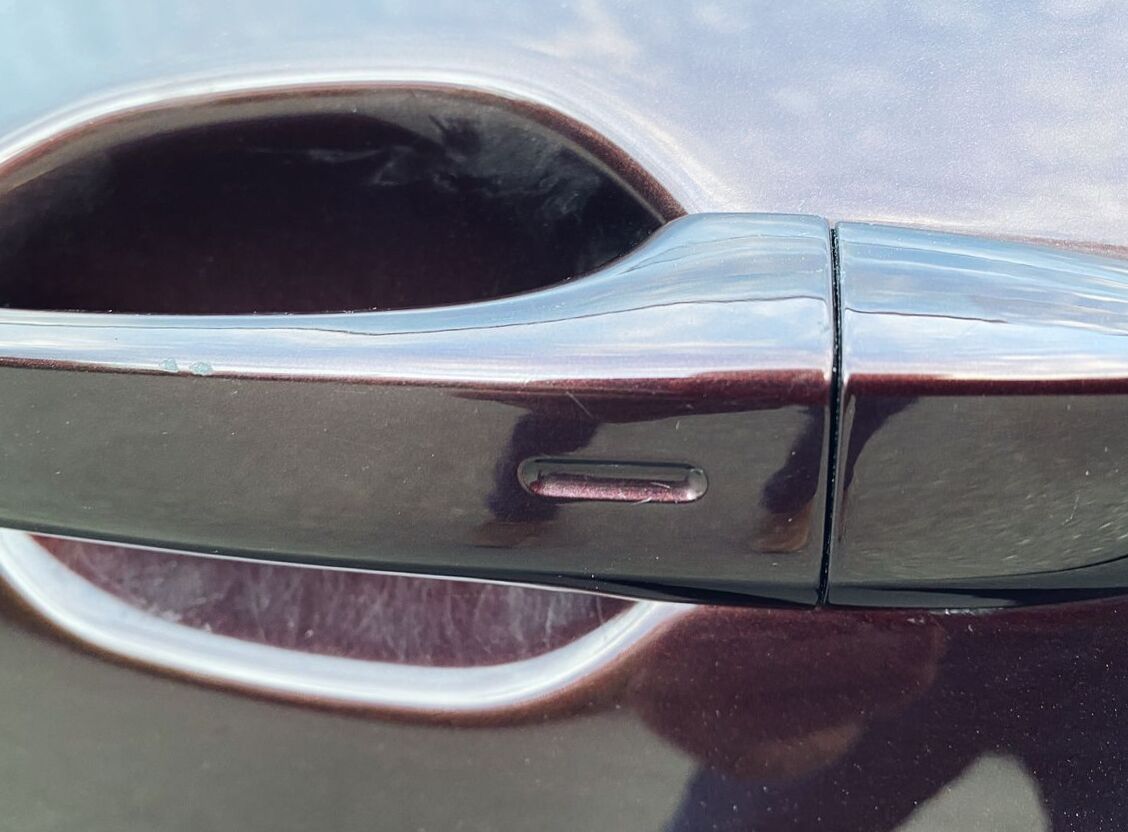

| Door handles in body color | yes |
| Power rear door | yes |
| Keyless rear door | yes |
Windows | |
| Privacy glass | option |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | option |
Accessories | |
| Bumpers | in body color with chrome moldings |
Body color | |
| Metallic paint Body | option |

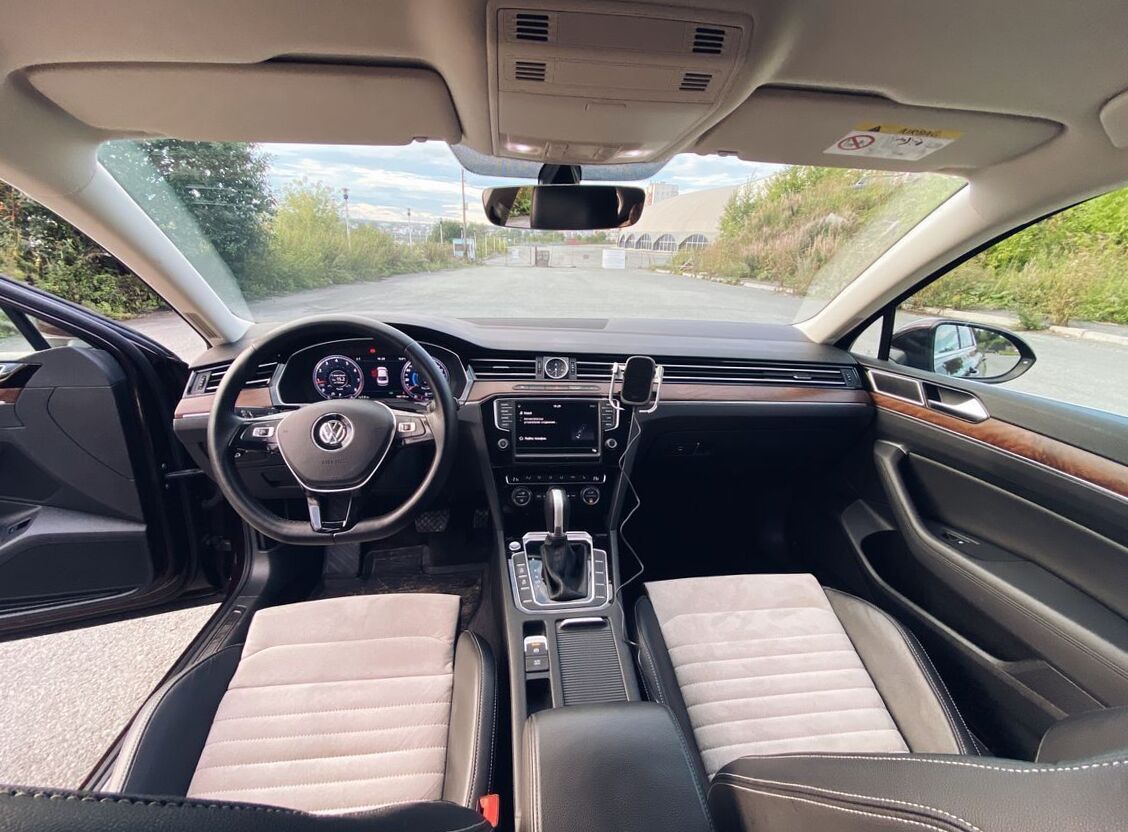

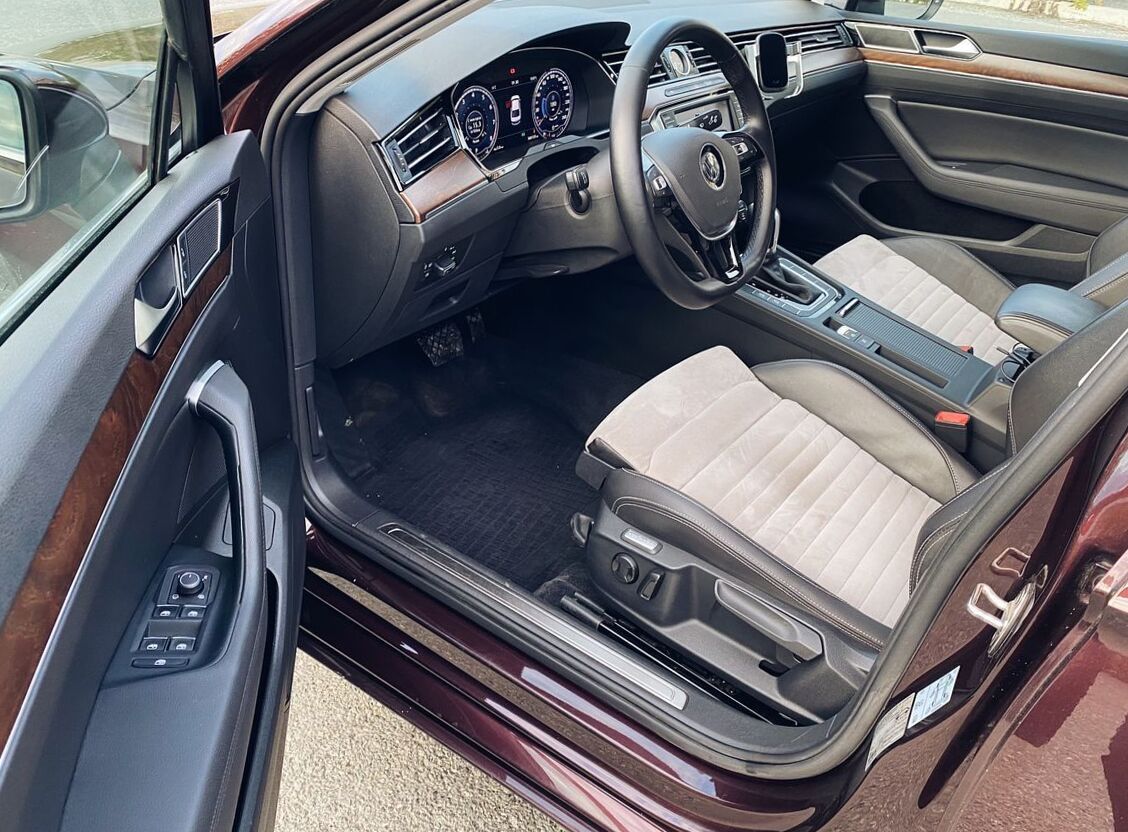

Interior | |

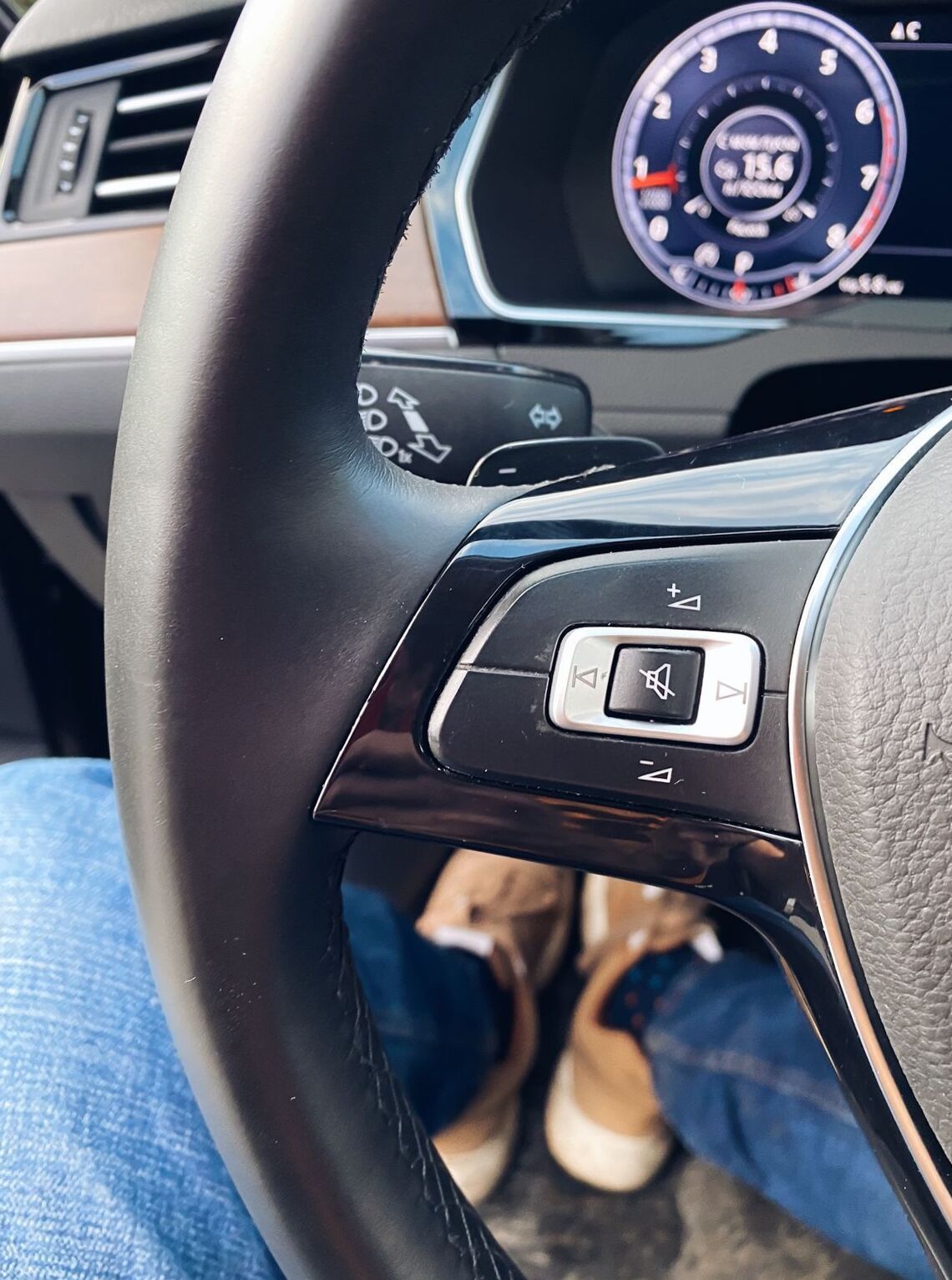

Steering wheel and center panel | |

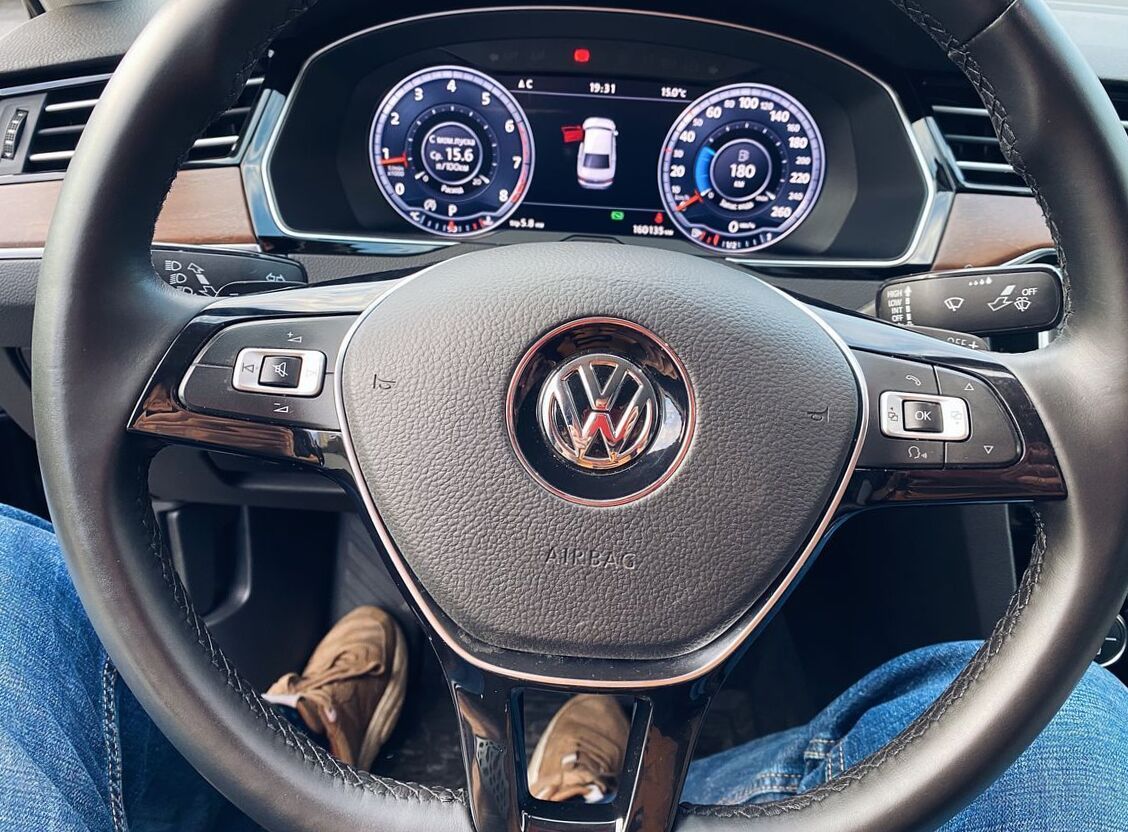

| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |

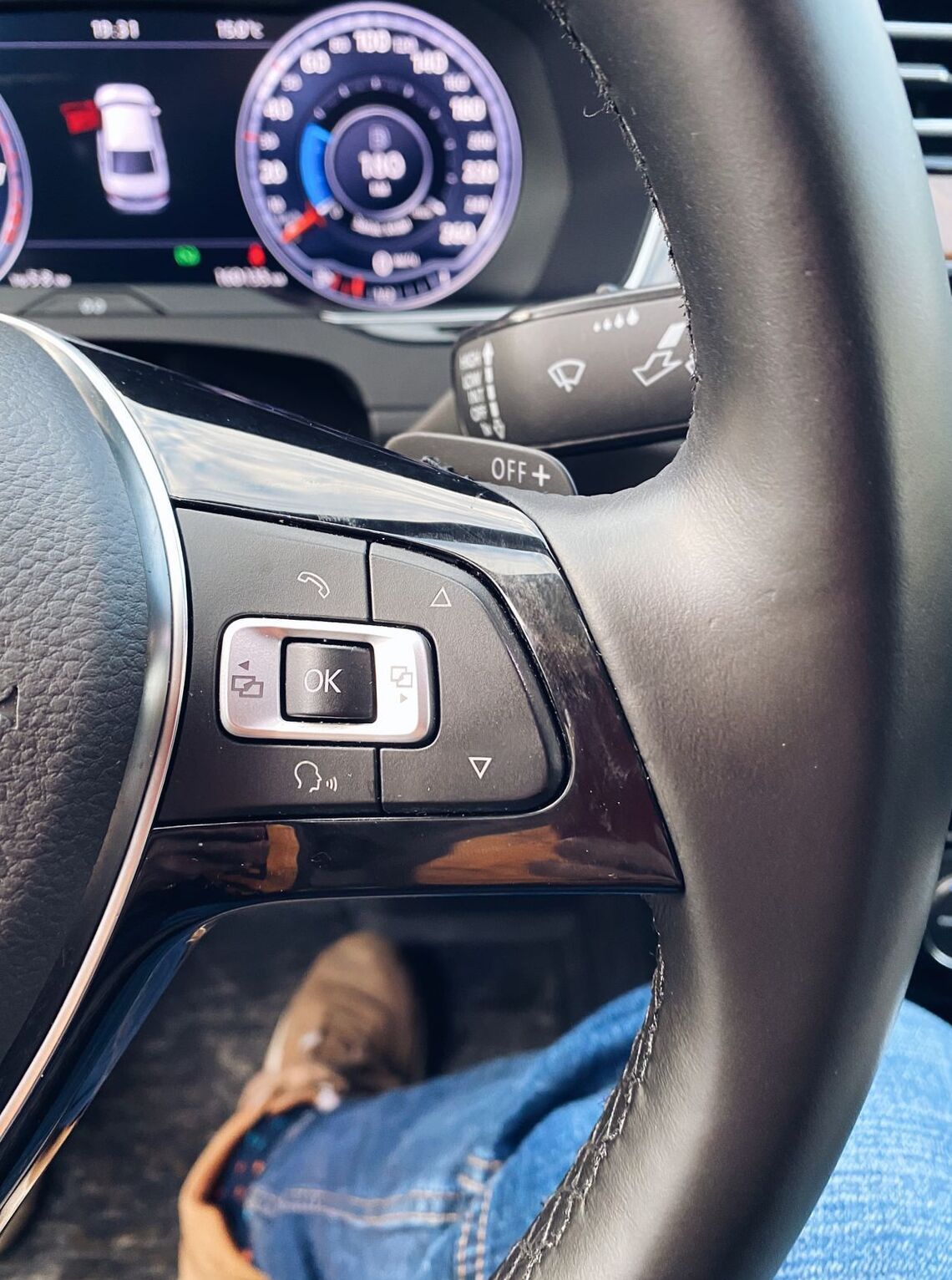

| Audio control on steering wheel | yes |

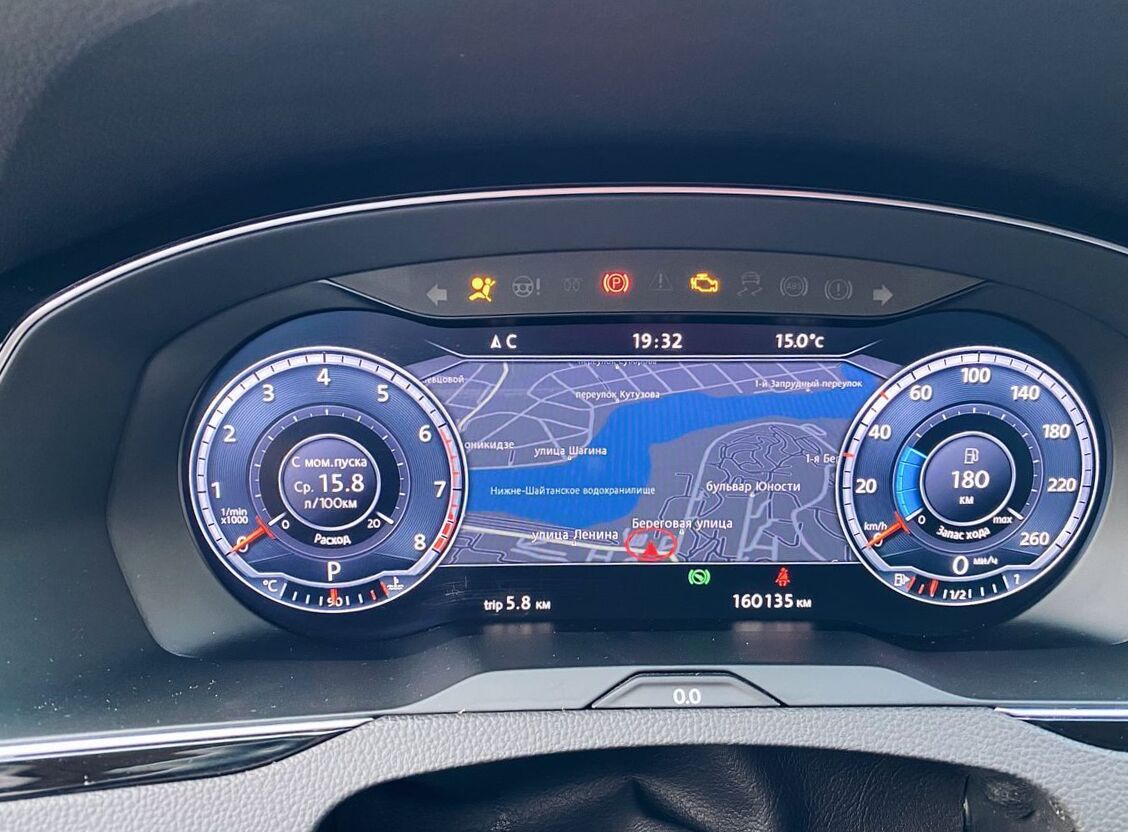

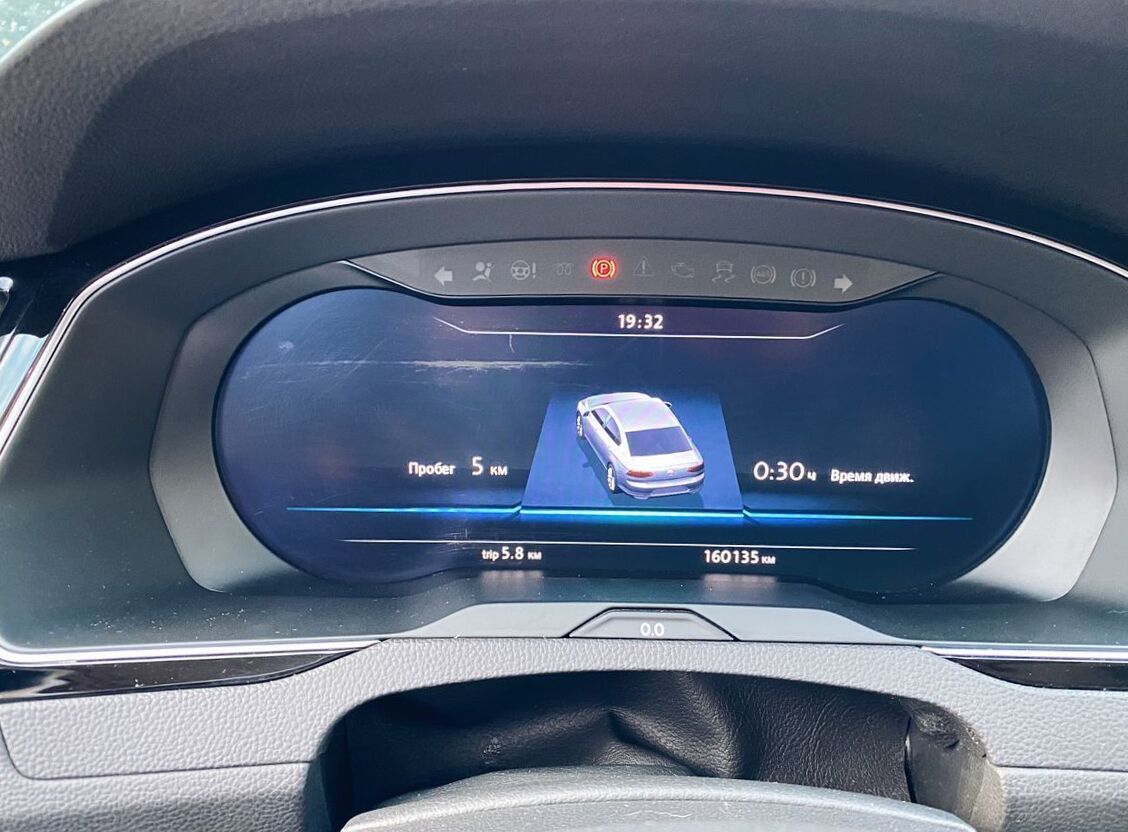

| Utility color display | 12" |
| Projective system of indications of a speedometer | no |
| Tachometer | yes |
| Env temp | yes |

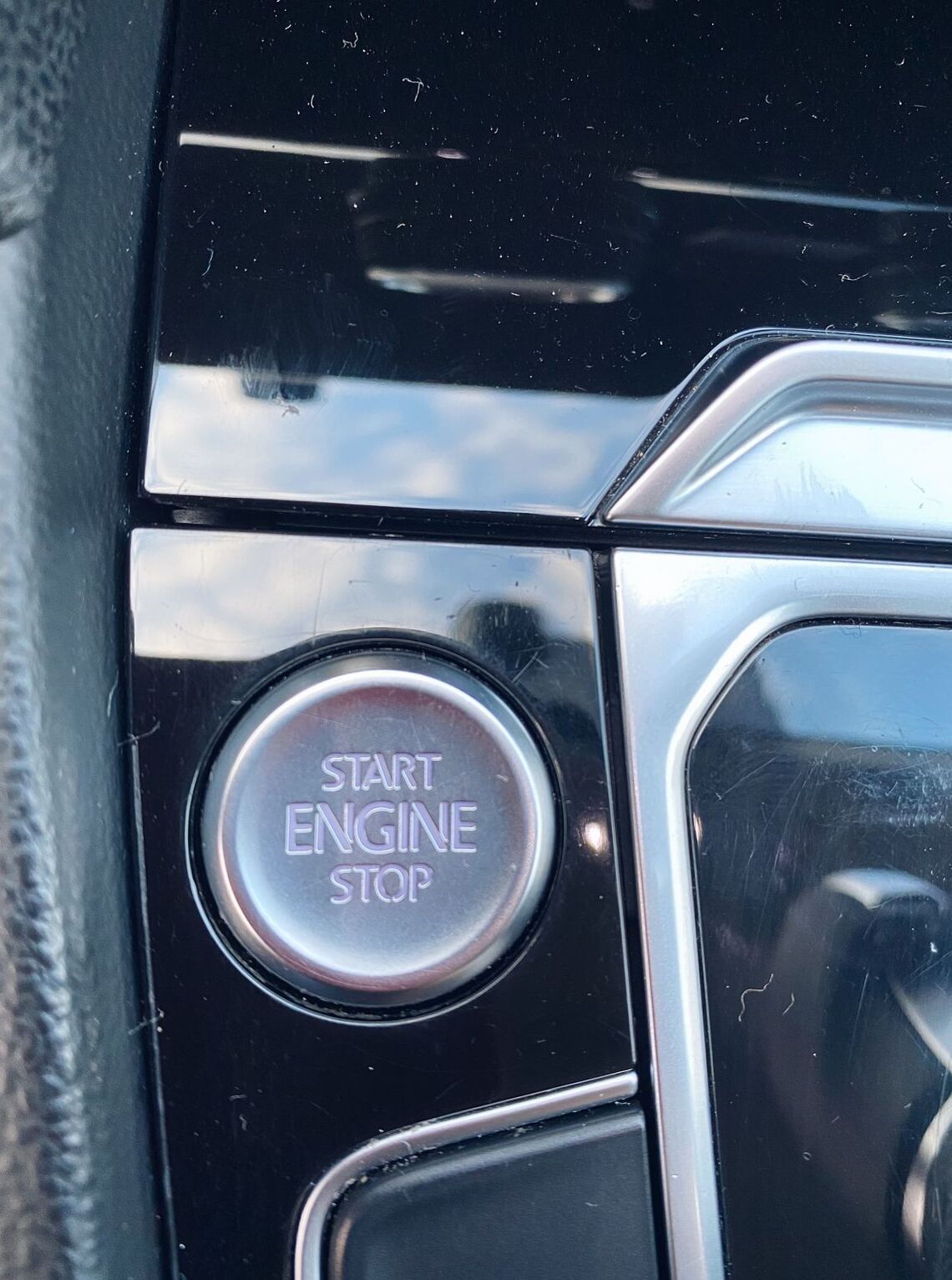

| Engine start button | yes |

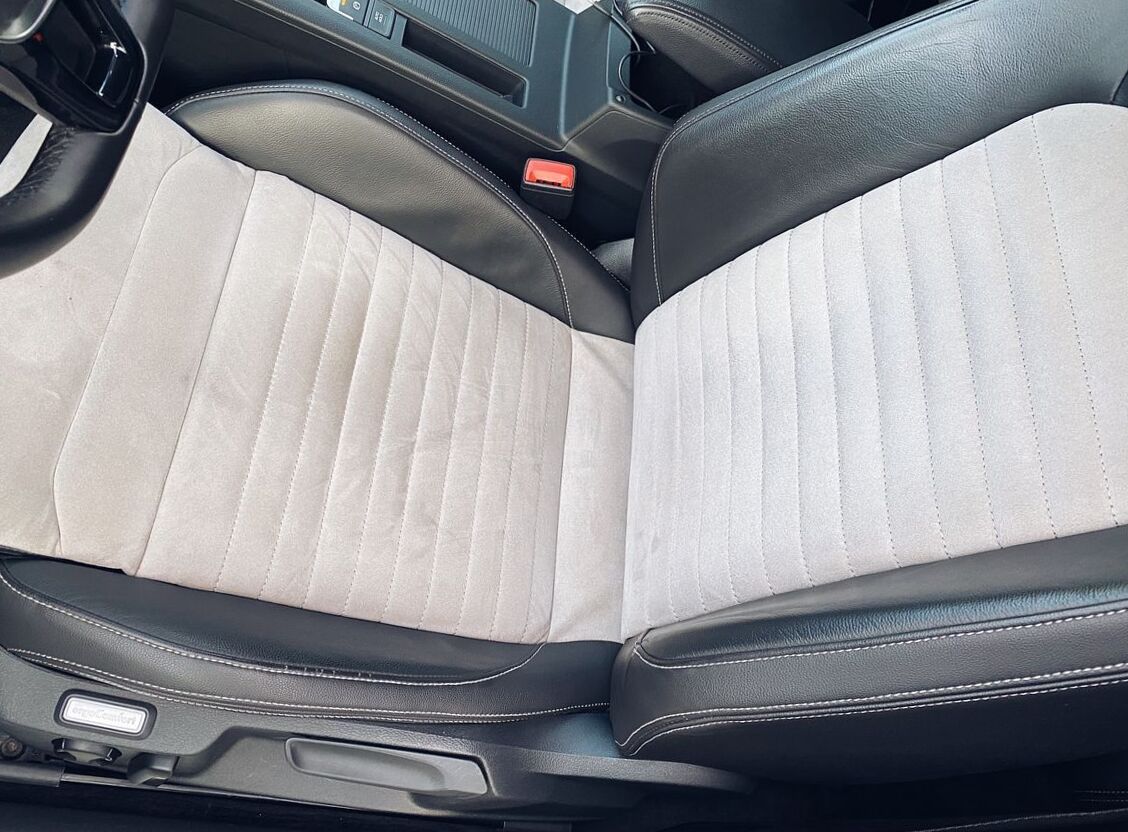

Interior design | |
| Cloth upholstery | no |
| Leather upholstery | option |
| Combined obivka Salon | yes |
| Panels | Brushed aluminum and Piano Black decorative inserts, faux leather door panels trim / Olive Ash Satine decorative inserts (optional) |

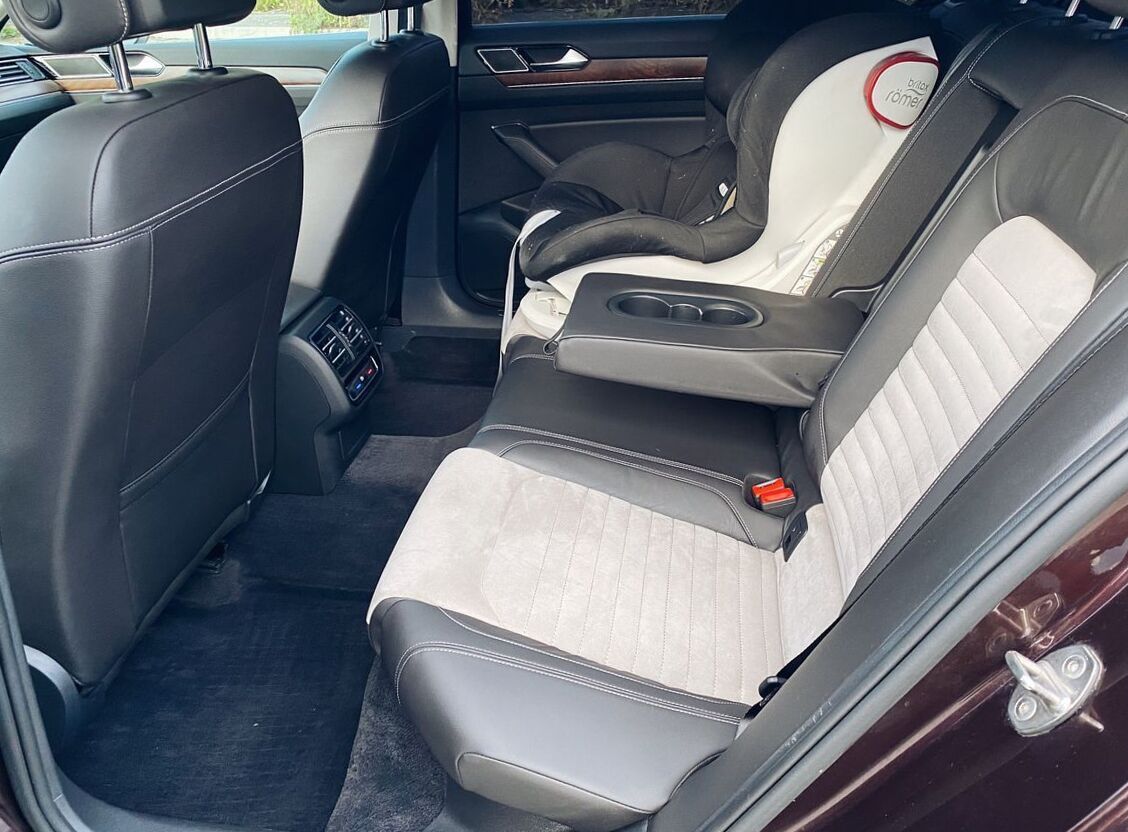

Seats | |

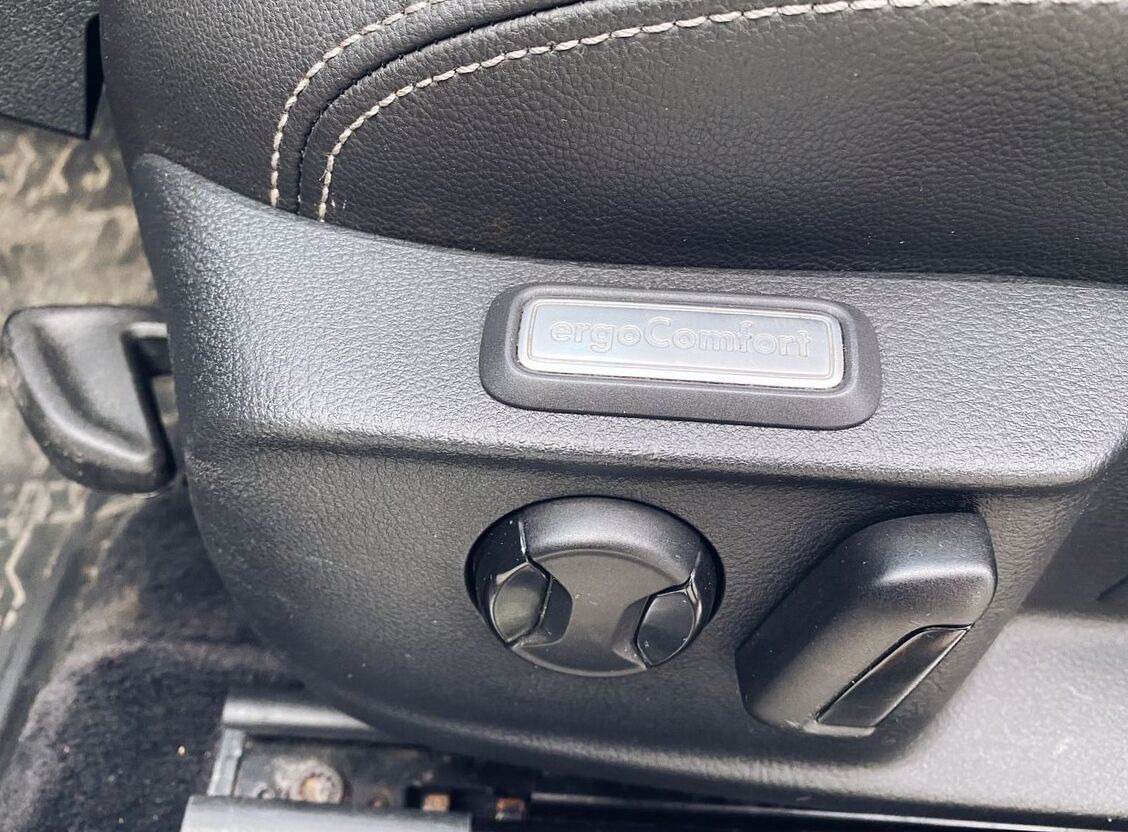

| Front seats ajust | Height-adjustable front seats |
| 2nd row | 60/40 ratio fold seat |
| Loin reliance | yes |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Seats pockets | yes |
| Mats | yes |
Electric interior package | |
| Power adjustable driver seat | option |
| Power ajustable front seat | no |
| Front seat heater | yes |
| Front seats ventilation | option |
| Rear seats heater | option |
| Seat position memory | no |
| Massage seats | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | yes |
| Power window front | yes |
| Power window rear | yes |
| Stearing wheel heater | yes |
| Front sheeld electro heater | yes |
| Injectors heat | yes |
Additional interior equipment | |
| Cooled glovebox | yes |
| Holders for bottles in doors | yes |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Passenger airbag deactivation function with | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Glonass | option |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | no |
| Damping Control System | no |
| Lane Keep Assist | no |
| Cruise control | option |
| Distance control system | no |
| Function "Take me home" | yes |
| Autolight | yes |
| Control system of a headlight | option |
| Dynamic cornering light | yes |
| Intelligent AFS | no |
| System tire pressure monitoring | yes |
| Front sonar | yes |
| Rear sonars | yes |
| Intelligent parking assist | no |
| Collision mitigation system | no |
| Driver tired system | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |

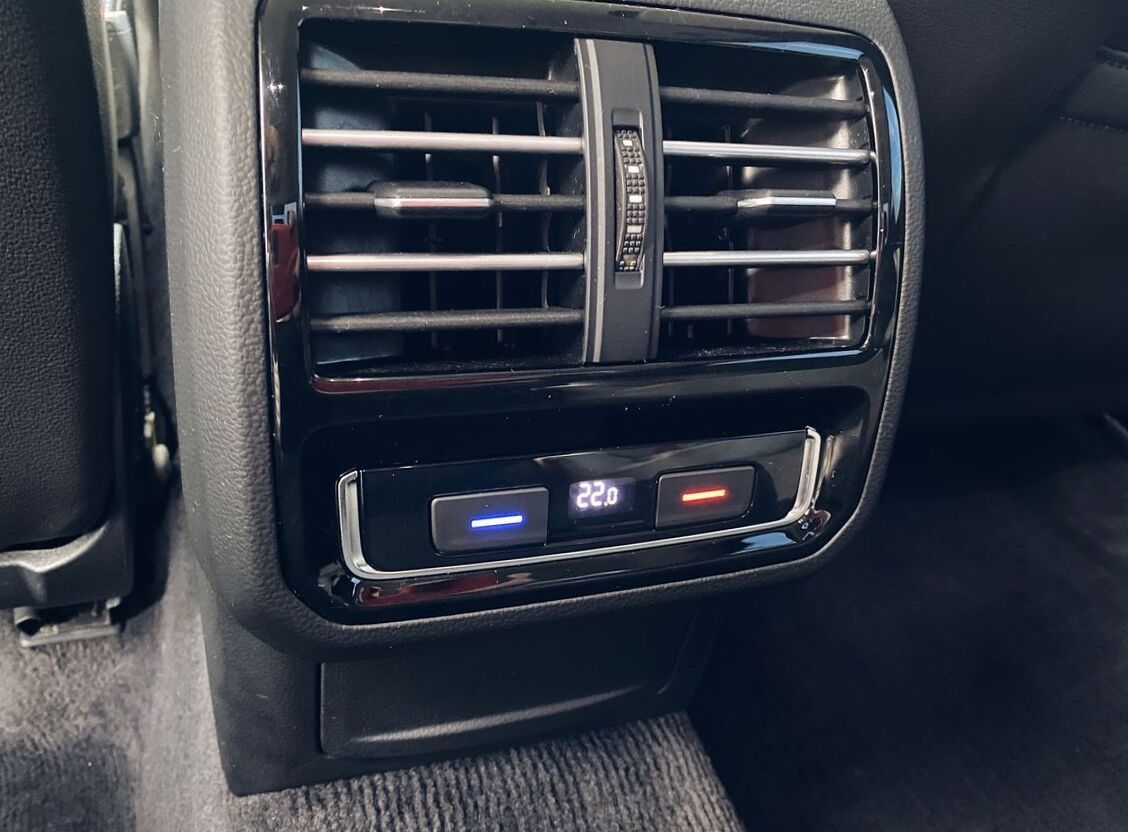

| Part climat equipment | 3 zones |
Audio systems | |
| Radio | yes |
| CD player | yes |
| DVD-audio | yes |
| MP3 Support | yes |
| Hands free | yes |

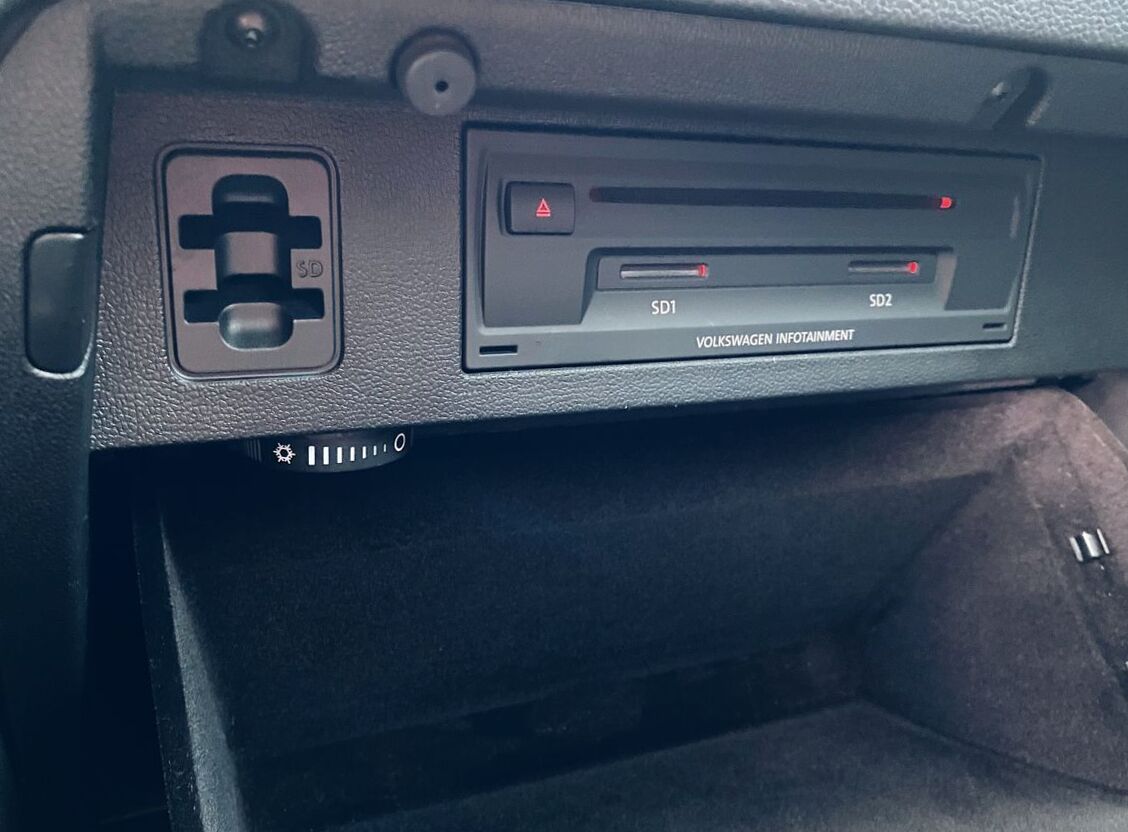

| Additional sound equipment | Composition Media" audio system, 8 speakers, SD, USB, AUX / 11 speakers, SD, USB, AUX (optional) |
Navigation and video equipment | |

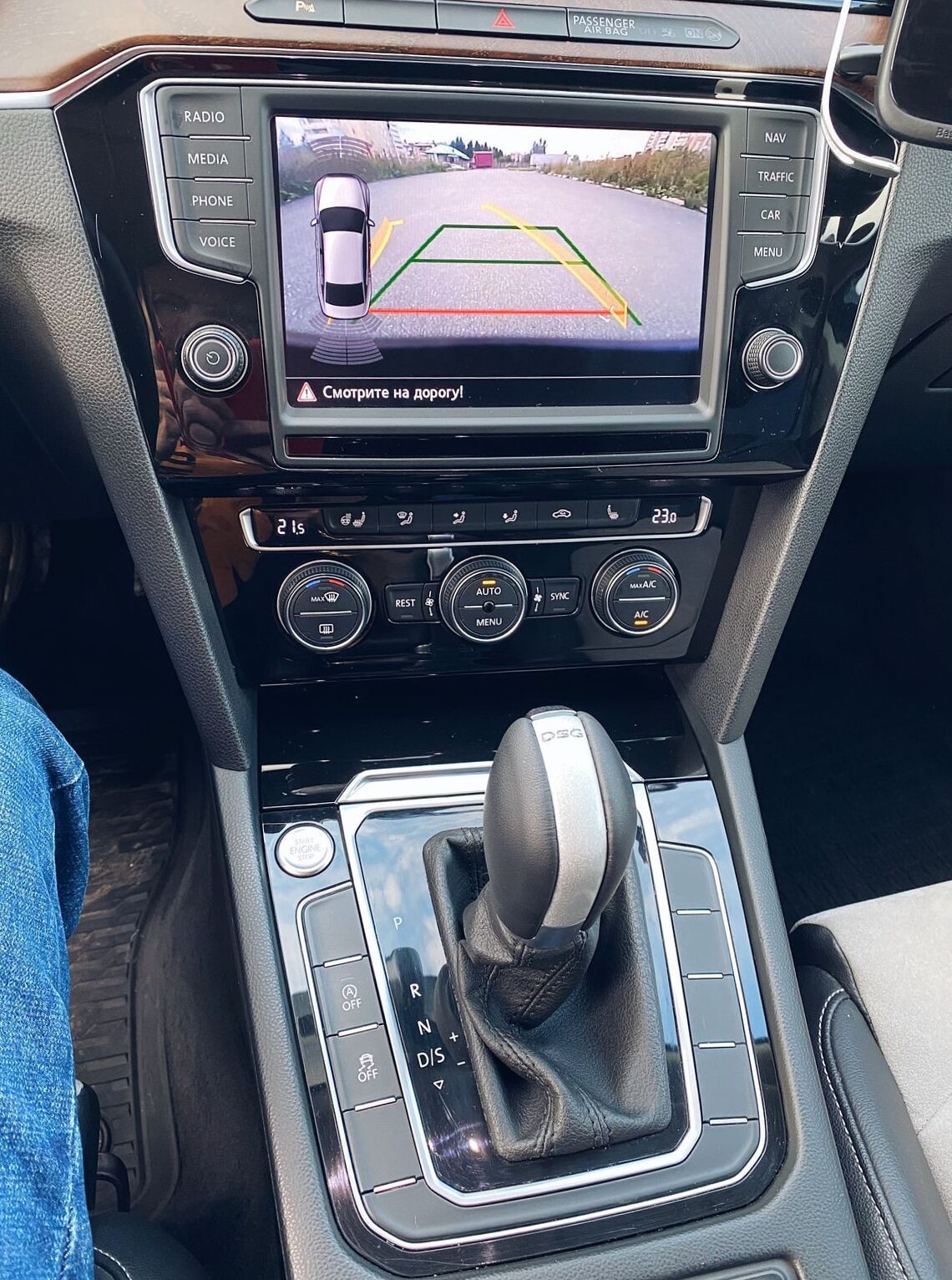

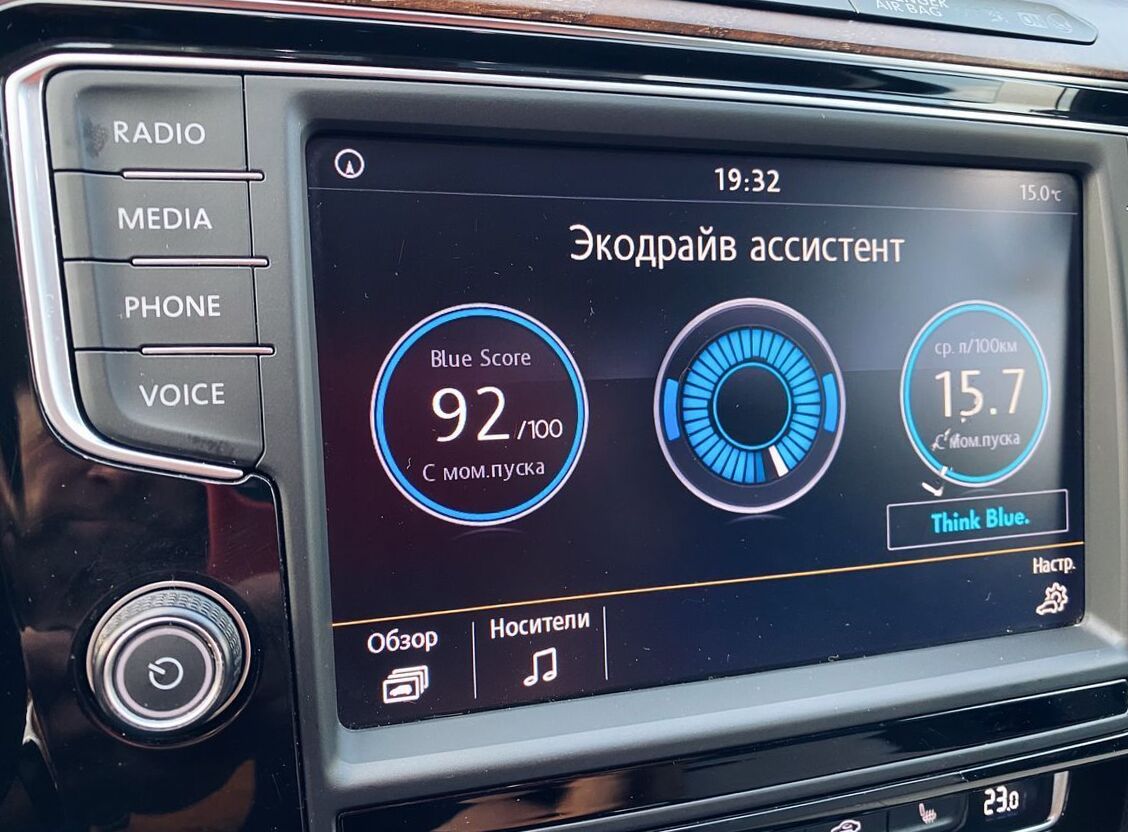

| Full color LCD display | 8" |
| Navigation system | yes |
| Front monitor | option |
| Sides monitors | option |

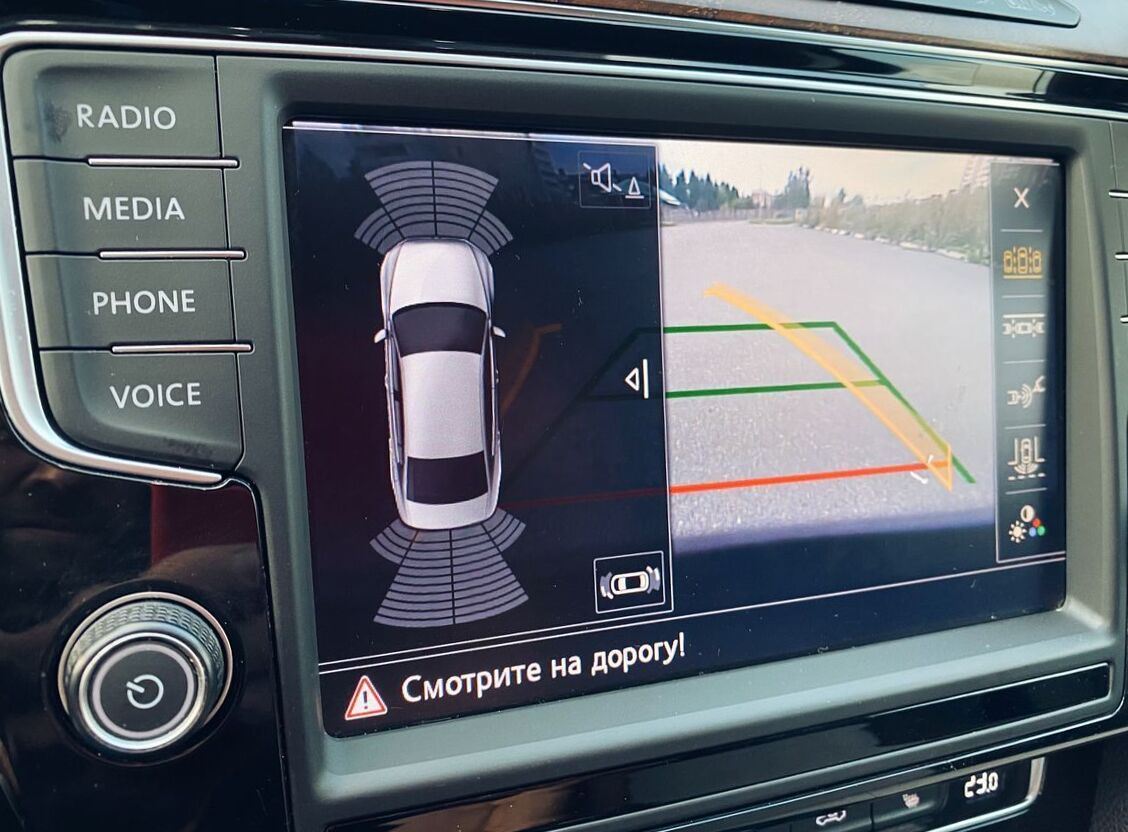

| Back monitor | yes |
Additional amenities | |

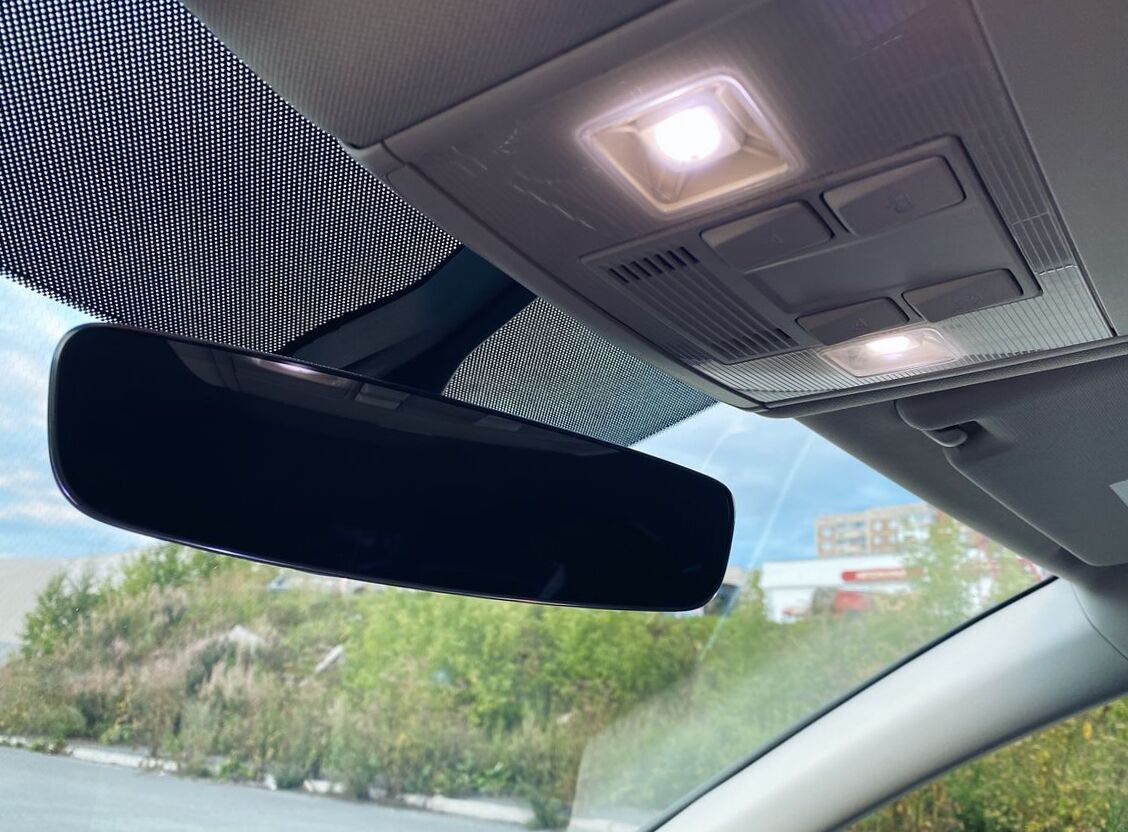

| Antidazzle rearview mirror | yes |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
| Light | LED interior lights (standard) / 3-color interior lighting "Plus" |
Car safety | |
| Immobilizer | yes |
| Alarm system | option |
| Bolt-card | yes |
Driver Kit | |

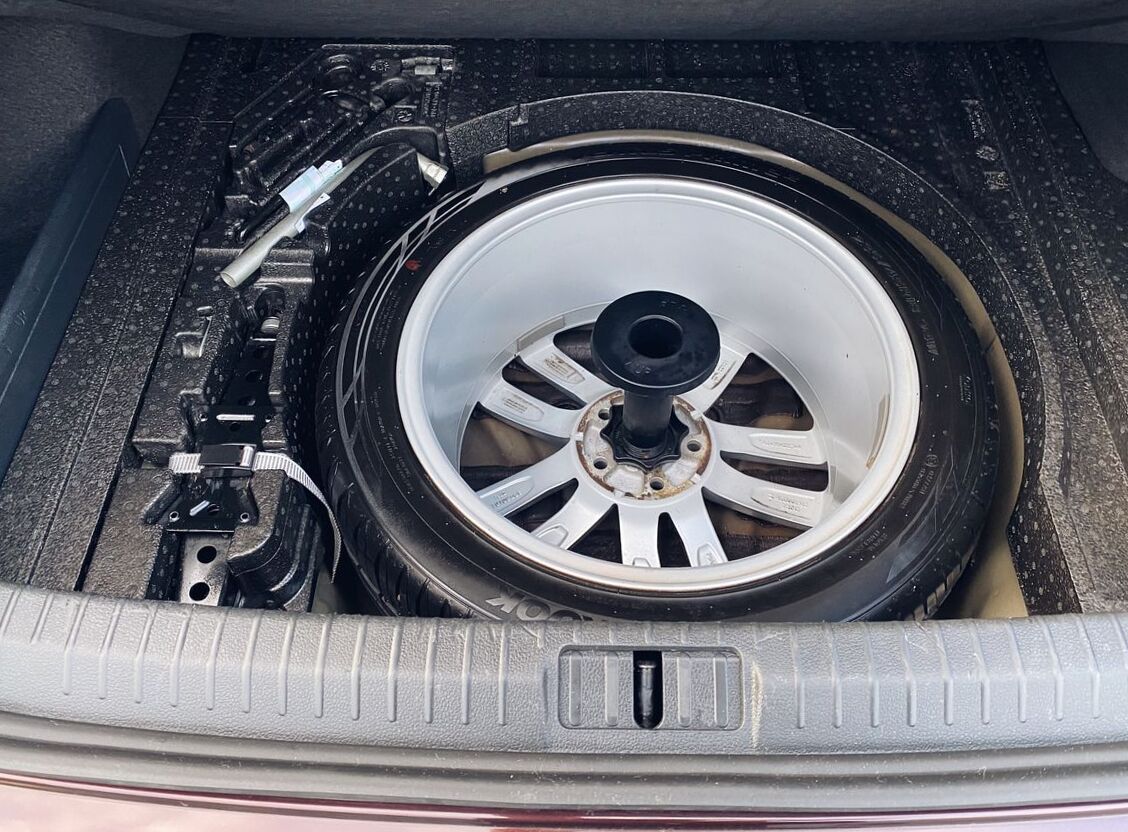

| Spare tire | yes |
The Passat is offered as a four-door sedan or four-door wagon with a 1.8-liter/150-hp turbocharged inline-four or a 2.8-liter/190-hp V-6. Choose between a 5-speed manual or 5-speed automatic transmission. ABS is standard.
2016 Volkswagen Passat VIII 3G2 1.8 TSI DSG Highline (180 Hp) specs
|
More recently, Volkswagen has extended its range with the launch of the Passat CC, a 4-door "coupĂ©" version of the Passat. The Passat falls in the middle of the sedan/ saloon market segment and was critical to Volkswagen on its introduction in 1973, as the sales of the aging Beetle were declining, and larger air-cooled rear-engined models like the Volkswagen Type 3 and 411 and 412 based on older technology were also failing to take hold in the market.[citation needed] Following the Volkswagen Group's acquisition of Audi in 1964, Volkswagen used new engineering expertise to develop a modern front-wheel drive car with a water-cooled engine, and thus the Passat and Golf (the latter being introduced in 1974) were the first of a new generation of Volkswagens. The first Passat was developed directly from the Audi 80/ Fox and until 2005 the two shared a history. EuropeThe original Volkswagen Passat was launched in 1973. The body types offered originally were 2- and 4-door sedans and similar looking three- and five-door versions. Externally all four shared a modern fastback style design, styled by the Italian designer Giorgetto Giugiaro. In essence, the first Passat was a fastback version of the mechanically identical Audi 80 sedan, introduced a year earlier. A five-door station wagon/ estate was introduced in 1974. In Europe, the Passat was equipped with 2 rectangular, 2 round 7", or 4 round 5.5" headlights depending on specification. » Read More About Volkswagen Passat |
