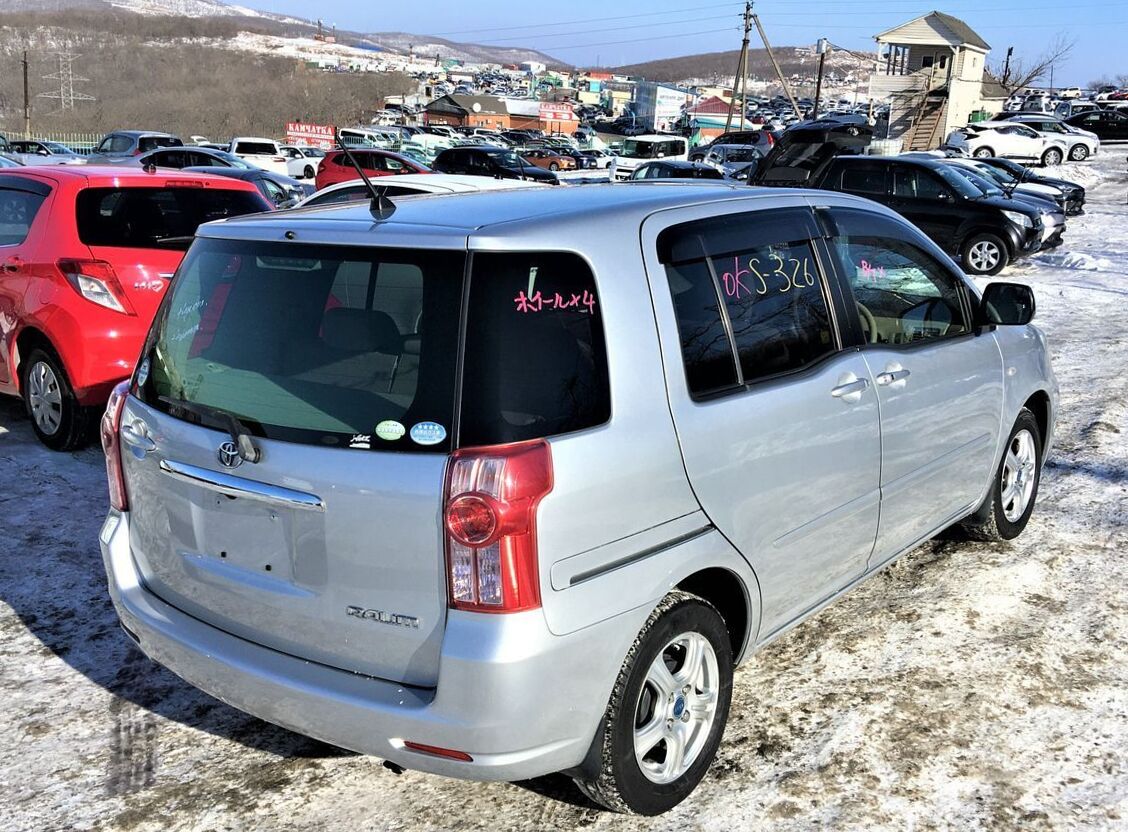

2011 Toyota Raum II 1.5 HID selection


2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp)
Raum II CBA-NCZ20 1.5 HID selection (109 Hp)

More photos of Toyota Raum

Toyota Raum Problems
Fuel
2005, Fueling smelling in the car while am
driving under the back passenger seats. Kindly
adv...
در سر بالای بسیار آهسته با...
2005, در سر بالای بسیار
آهسته حرکت میکنه یک مشکل
دیگه ه...
Front seat fold problem
2009, I used to fold the front passenger seat
easily by lifting it up to the front near the
da...

Body typeWagon
Power109 Hp
Engine Displacement1500 cm3 or 1.5L or 91.5 cu-in
Colorsilver
Transmission GearboxAutomatic
Fuel TypeGasoline
Drive wheelFF
Mileage62137 Miles

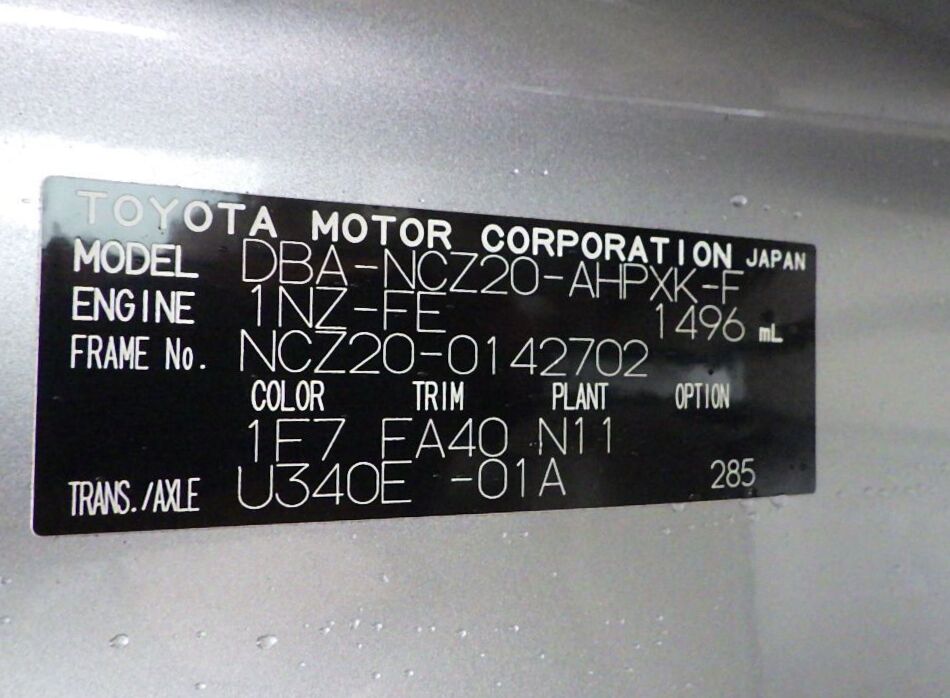

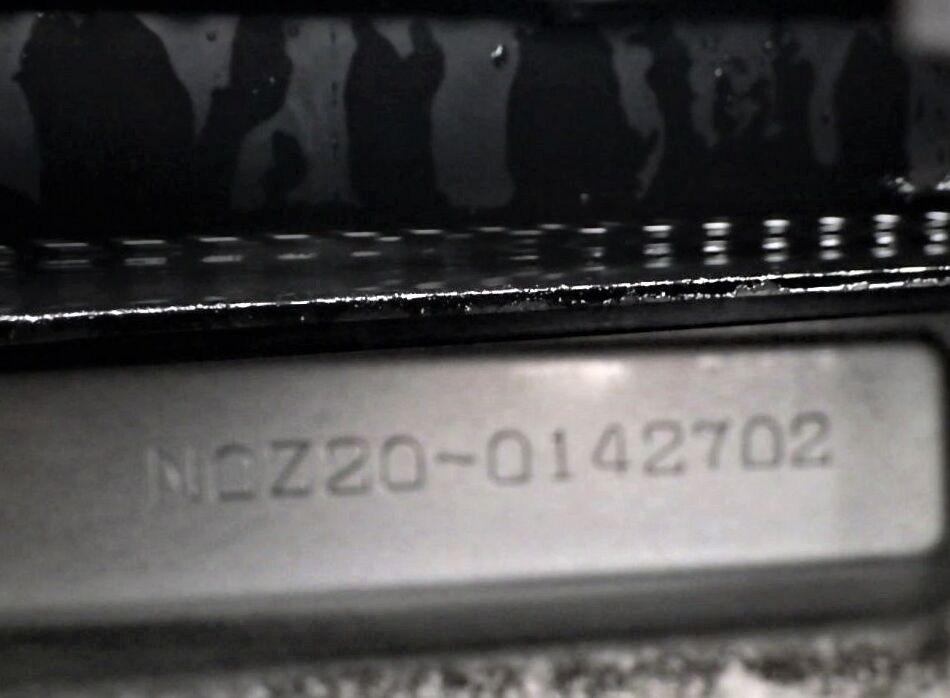

VinNCZ20-0****02
Price (out of date)$8388

Frequently Asked Questions

What is the body type, 2011 Toyota Raum II?Wagon, 5 Seats, 5 Doors
How much power, Toyota Raum Wagon 2011?109 Hp
What is the engine size, Toyota Raum CBA-NCZ20 2011?1.5L or 1496cm3
How many gears, What type is the gearbox, 2011 Toyota Raum 1.5 HID selection?Automatic transmission 4
What is the drivetrain, Toyota Raum II 2011 Wagon 1.5 HID selection (109 Hp)?Front
How long is this vehicle, 2011 Toyota Raum Wagon 1.5 HID selection (109 Hp)?4045 mm
How wide is the vehicle, 2011 Toyota Raum II?1690 mm

Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp) 2009, 2010, 2011 Specs

General information

Production start year2009
Production end year2011
Frame typeWagon
Drive typeFront
Transmission typeAutomatic transmission 4
Engine volume, cc1496
Frame nameCBA-NCZ20
Clearance, mm150
Doors5
Winter complectationoption
Steering locatonright

Vehicle generation

Generation nameZ20
Generation number2
Facelift number1
Production start year2006
Production end year2011

Engine, transmission and steering specs

Engine specs

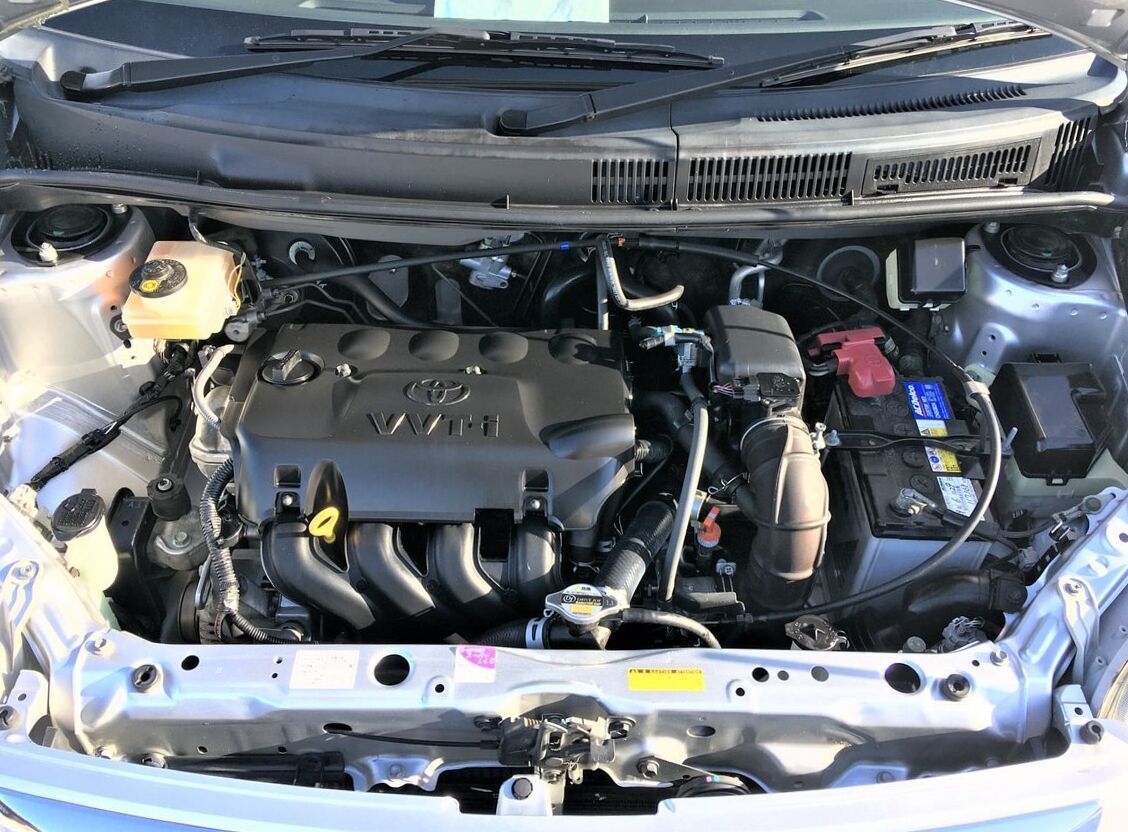

Engine name1NZ-FE
FuelPetrol (Gasoline)
Engine type4 cylinder DOHC
Max power, hp109
Max power RPM, rpm6000
Max power, hp (kWt) / rpm109(80)/6000
Max torque, N*m141
Max torque RPM, rpm4200
Max torque, N*m (kg*m) / rpm141 (14.4) / 4200
Eco type2005 emission regulation 50% reduction
Variable cylinder systemno
Max power, kw (ps) / rpm80?109?/6000
Max torque, N*m (kg*m) / rpm (carsensor)141?14.4?/4200
Start stop systemno

Fuel consumption

Fuel consumption (10/15 mode), km/l16.2
Fuel consumption (10/15 mode), l/100km6.2

Transmission

Shifter positionOn the dashboard

Steering

Power steeringyes
Steereing gear typeGear rail
Steering vgs vgrsno

Dimensions

Frame dimensions

Exterior length, mm4045
Exterior width, mm1690
Exterior height, mm1535
Exterior size (L x W x H), mm4045x1690x1535?mm?

Interior dimensions

Capacity5
Seat rows2
Interior size (L x W x H), mm1990x1400x1220?mm?
Interior length, mm1990
Interior width, mm1400
Interior height, mm1220

Chassis dimensions

Wheel base, mm2500
Front axle length, mm1455
Rear axle length, mm1430
Turning radius, m4.9
Front/rear axis length1455/1430?mm?
Wheel spacing front1455
Wheel spacing rear1430

Weight and permissible load

Mass, kg1150
Total weight1425

Volumes

Fuel tank capacity, l45

Suspension specs

Suspension specs

Front suspensionIndependent, Spring McPherson
Rear suspensionSemi-independent, torsion bar
Sport suspensionno
Low downno
Air suspensionno
Cenral diff lockno
LSDno
4wsno

Wheel rims

Aluminium wheeloption
Magnesium wheelsno

Tires

Front wheels175/65R14
Rear wheels175/65R14
Run flat tiresno

Brakes

Front brakeVentilated discs
Rear brakedrum brakes
Brakes equipment
Brake front search1
Rear brake2

Exterior

Headlights

Xenon lampsyes
Head lights washerno
Front fog lampsyes
Rear fog lampsno
Rain sensorno

Side mirrors

autocorrected mirrorsno

Doors

Side sliding doorno
Sliding doorsyes
Sliding electric dooryes
Sliding electric doorsno
Door easy closerno
Power rear doorno

Windows

Privacy glassyes
Ultraviolet glass protectionyes

Roof

Sunroofno
Big sunroofno
T bar roofno
Roof equipment
Targa roofno
Hard topno
Soft topno
Metal topno
Canvas topno

Accessories

Roof railno
Front spoilerno
Rear spoilerno

Body color

Colors2019 2456 2455 1997

Interior

Steering wheel and center panel

Engine start buttonno

Interior design

Water-repellentno
Leather seatno
Antibacterial repellentno

Seats

Bucket seatno

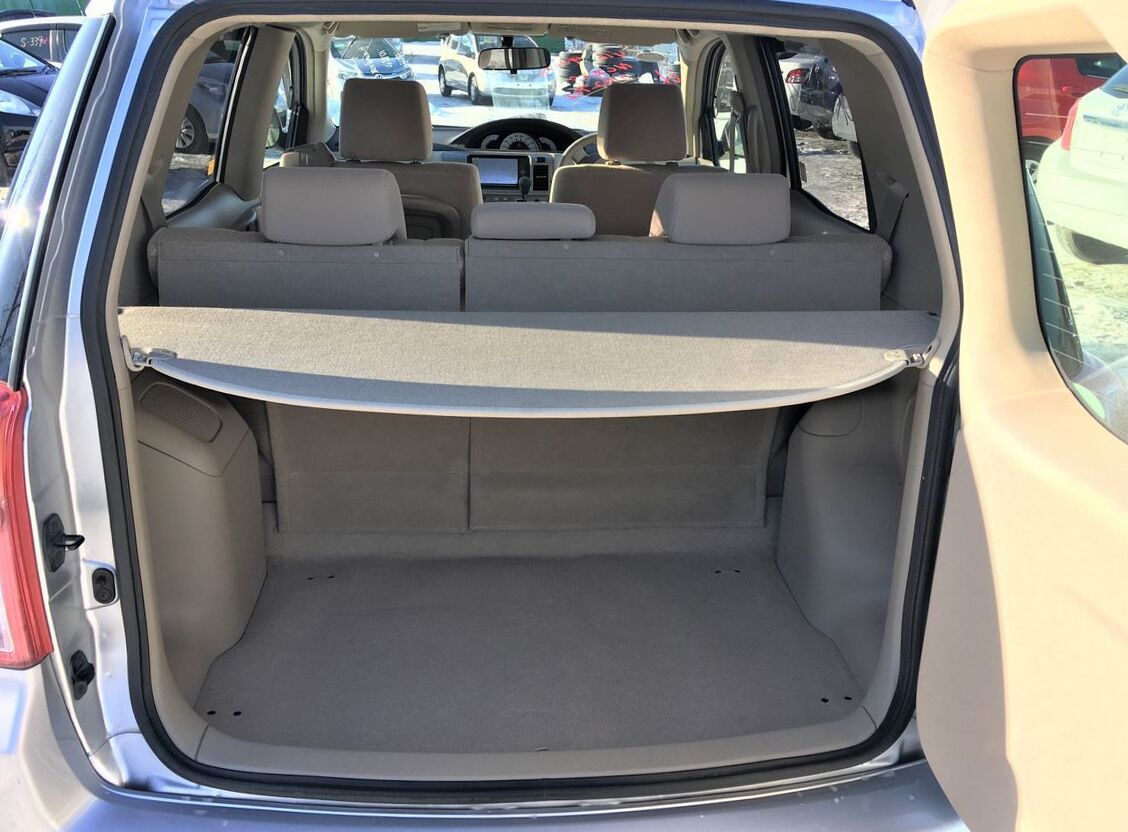

2nd row60/40 ratio fold seat
3nd rowno
Seat lifteryes
Full flat seats
Removable seatsno
Ottoman seatno
Front bench seatno
Walk throughtno
2nd row throughtno

Electric interior package

Power adjustable driver seatno
Power ajustable front seatno
Adjustable 3rd rowno
Front seat heaterno
Rear seats heaterno
Seat position memoryno
Keyless enteryes
Power windowyes
Stearing wheel heaterno

Additional interior equipment

AC plugno

Safety

Airbags

Drivers airbagyes
Passengers airbagyes
Side airbagno
Curtain airbagsno
2 airbagsno

Children safety

isofix baryes
Build-in child seatno

Active and passive safety

Active headrestno
Road ServiceHELPNET (option)

Electronic security and traffic control systems

ABS
Break assistyes
ESPno
traction controlno
Down hill assistno
AYCno
SH-4WDno
Lane Keep Assistno
Cruise controlno
Distance control systemno
Intelligent AFSno
Night visionno
Parktronicno
Intelligent parking assistno
Collision mitigation systemno

Amenity

Microclimate

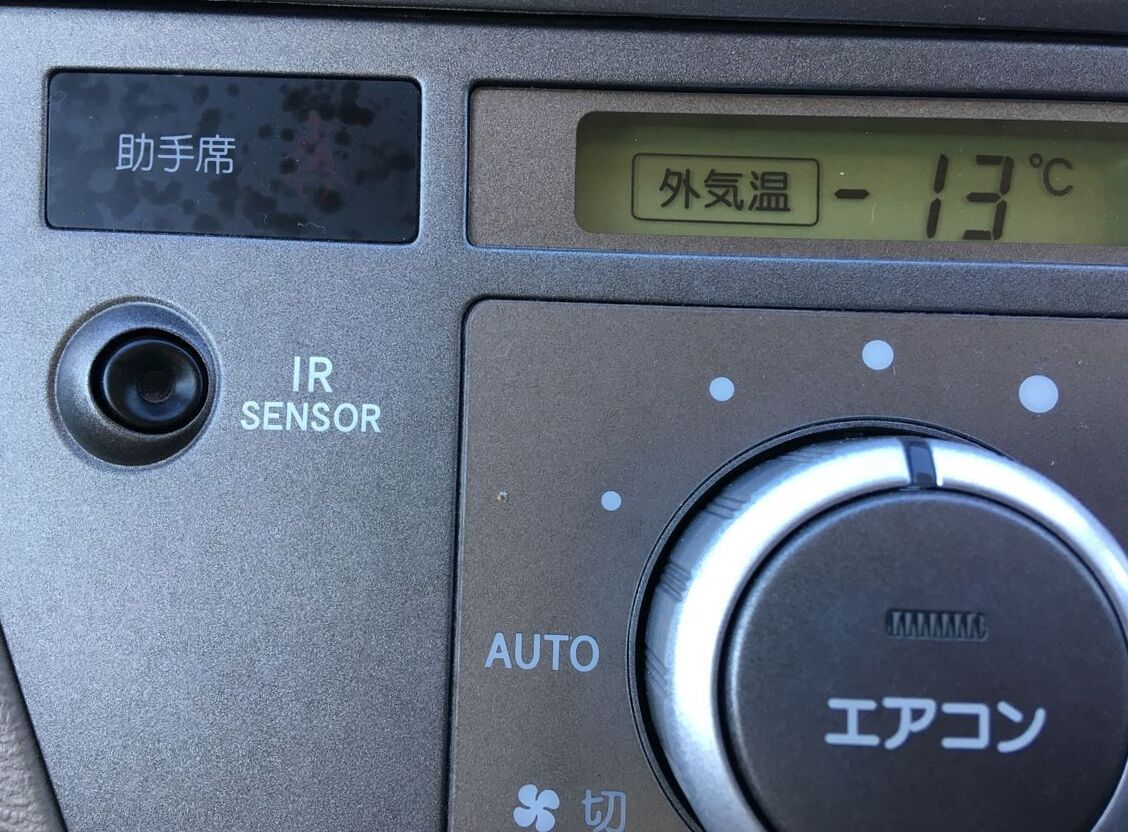

Air conditioner
Air purifierno
Humidifierno
Air filteryes
Odor absorberno

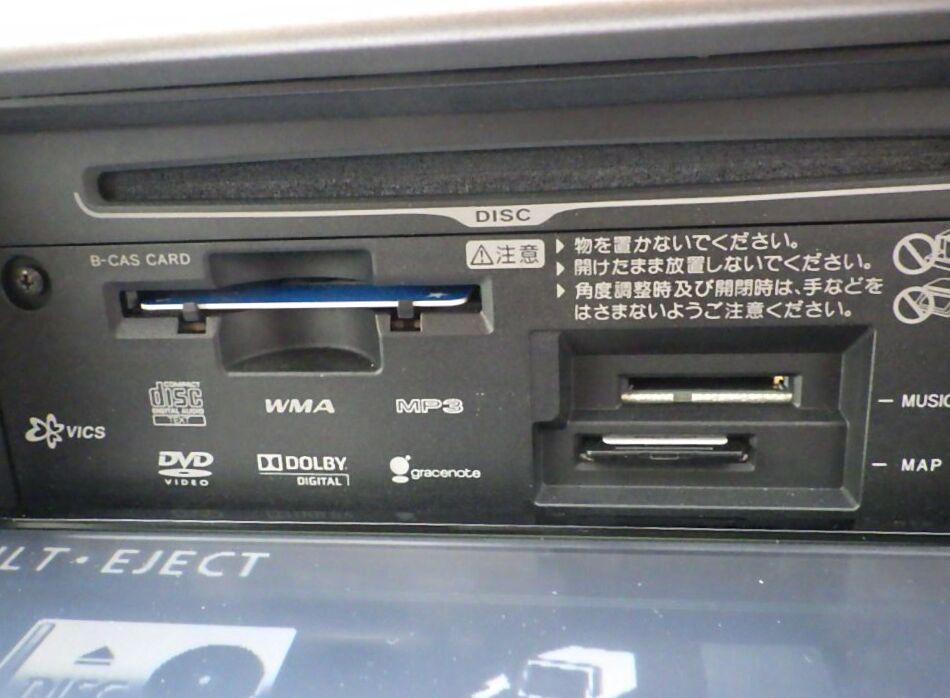

Audio systems

Radiooption
Autoreverse casetteno
CD playeroption
DVD-audiono
MD palyeroption
Audio HDDoption
Speakeryes
Rear entertainment systemno

Navigation and video equipment

Full color LCD display
Navigation system
Optional navigation systemno
Traffic jam assistoption
Parking assist systemoption
Front monitorno
Sides monitorsno

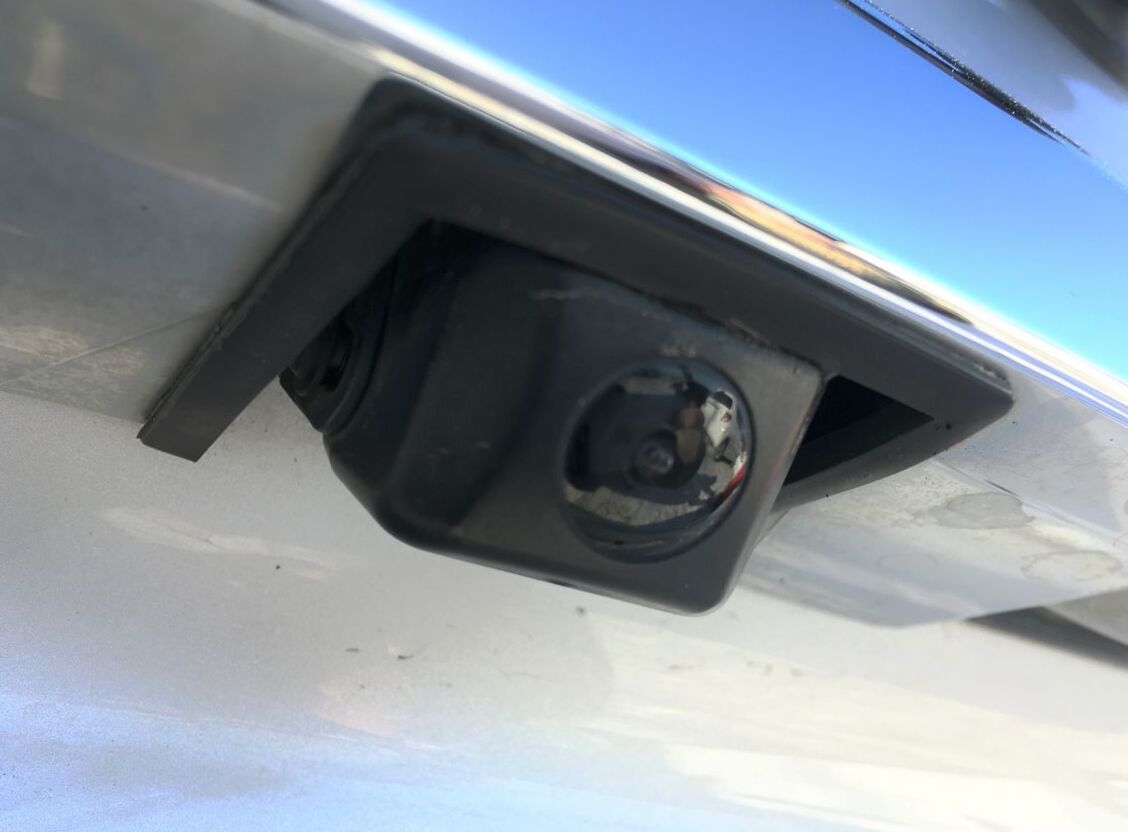

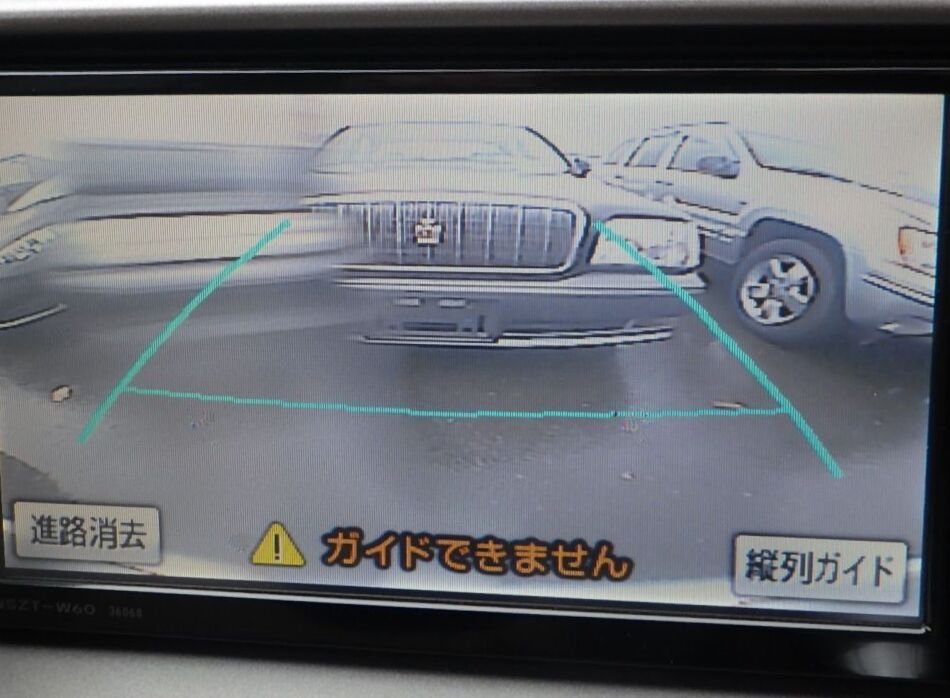

Back monitoroption

Additional amenities

Lagage boxno
Etcno

Car safety

Alarm systemno
Security alarmno


2011 Toyota Raum II CBA-NCZ20 1.5 HID selection (109 Hp) specs

The Toyota Raum is a small, five-seat mini MPV that first appeared in May 1997. The second generation was released in May 2003. It is sold only in Japan. It is primarily marketed to elderly drivers, and its name derives from the vast amount of space it contains relative to its size.


  • Fist generation (05.1997-04.2003) - engine 5E-FE (Toyota E engine) chassis EXZ-10(FF) and EXZ-15 (4WD).
  • Second generation (05.2003-...) - engine 1NZ-FE (Toyota NZ engine)
