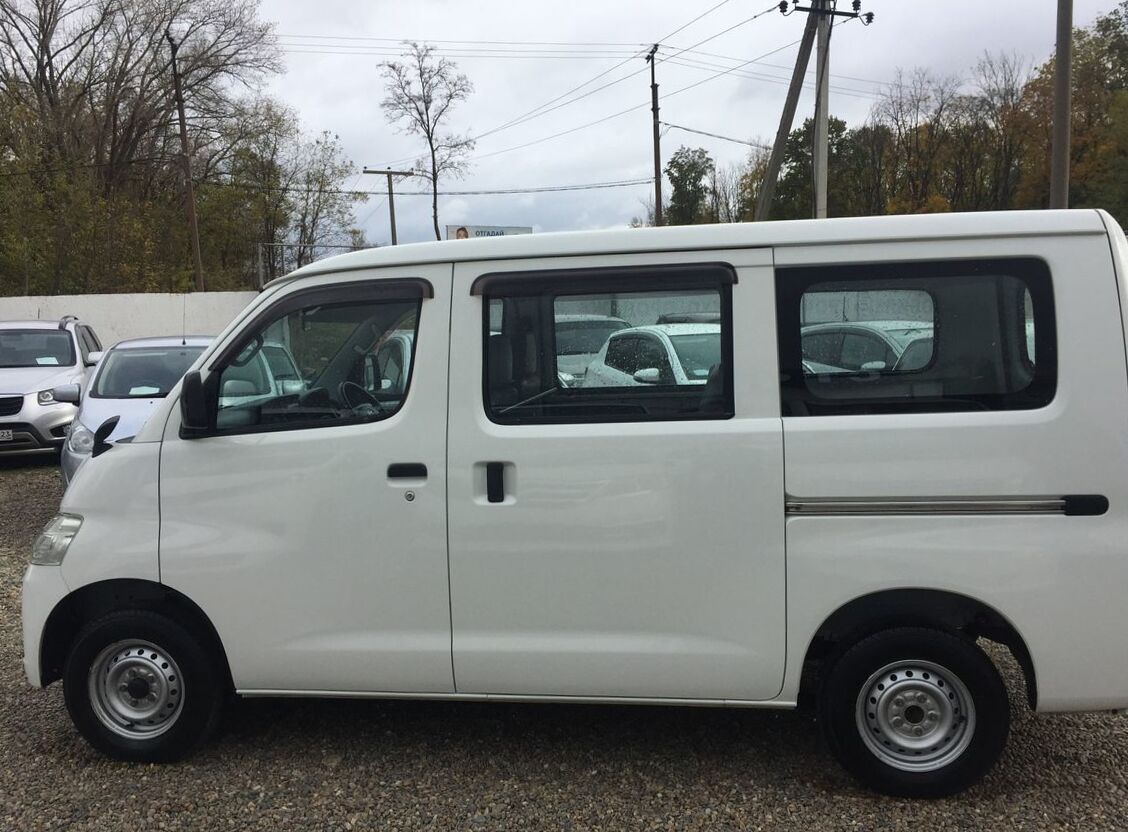

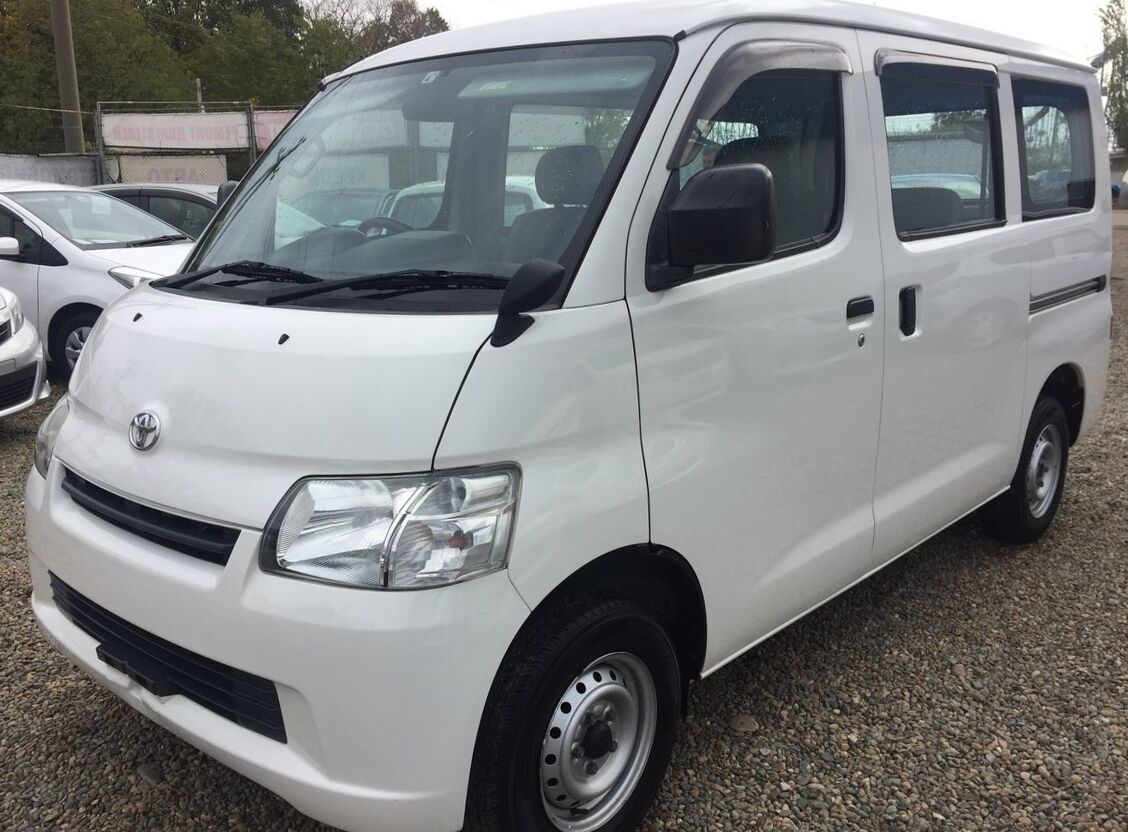

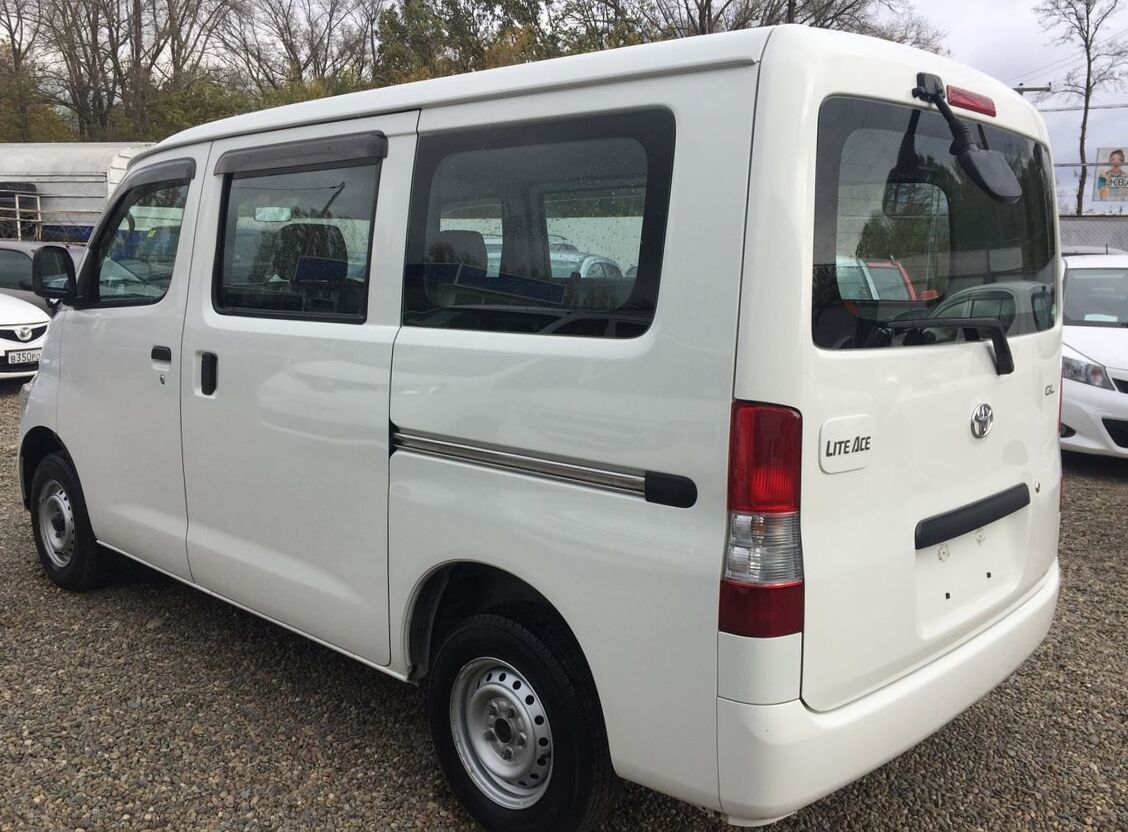

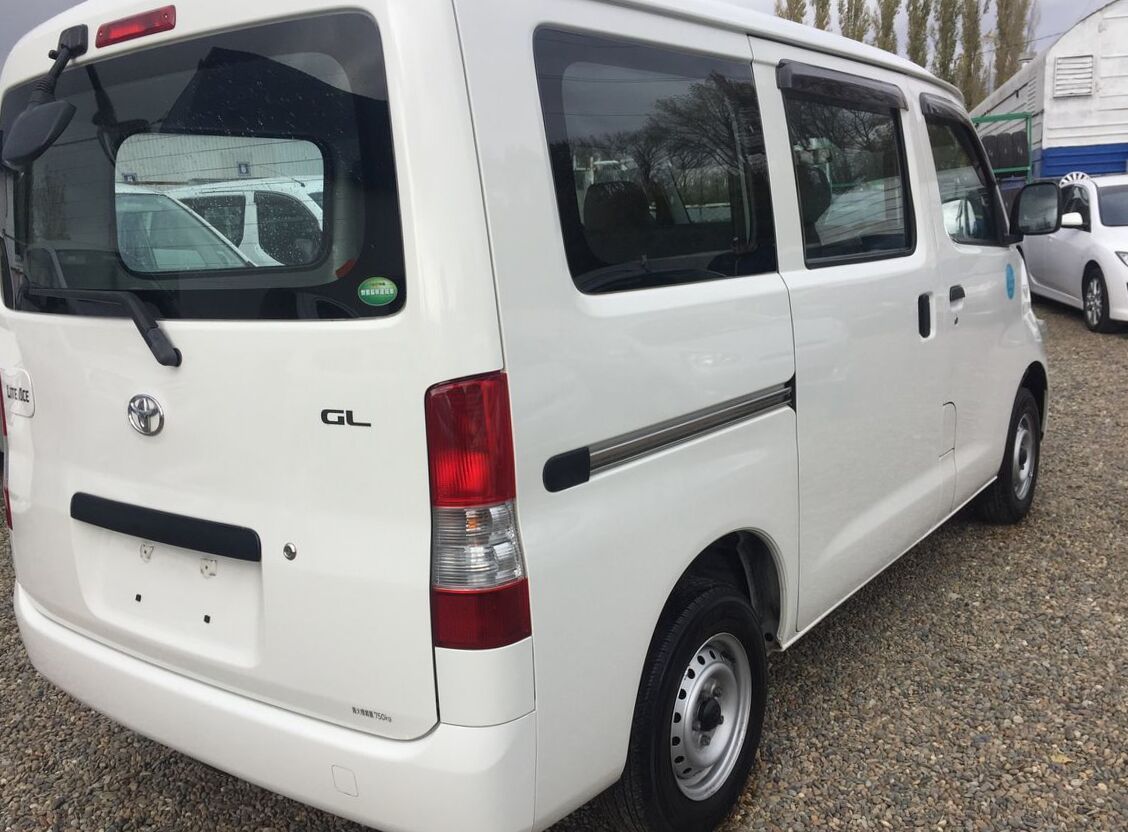

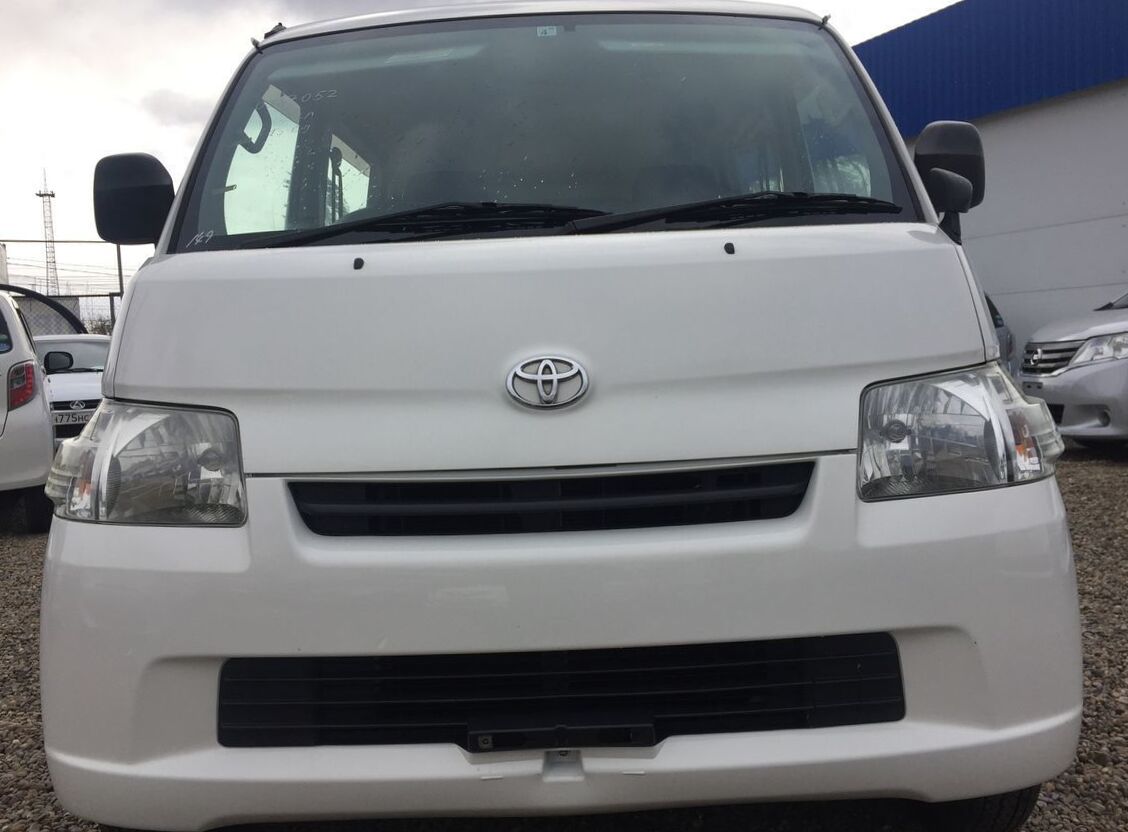

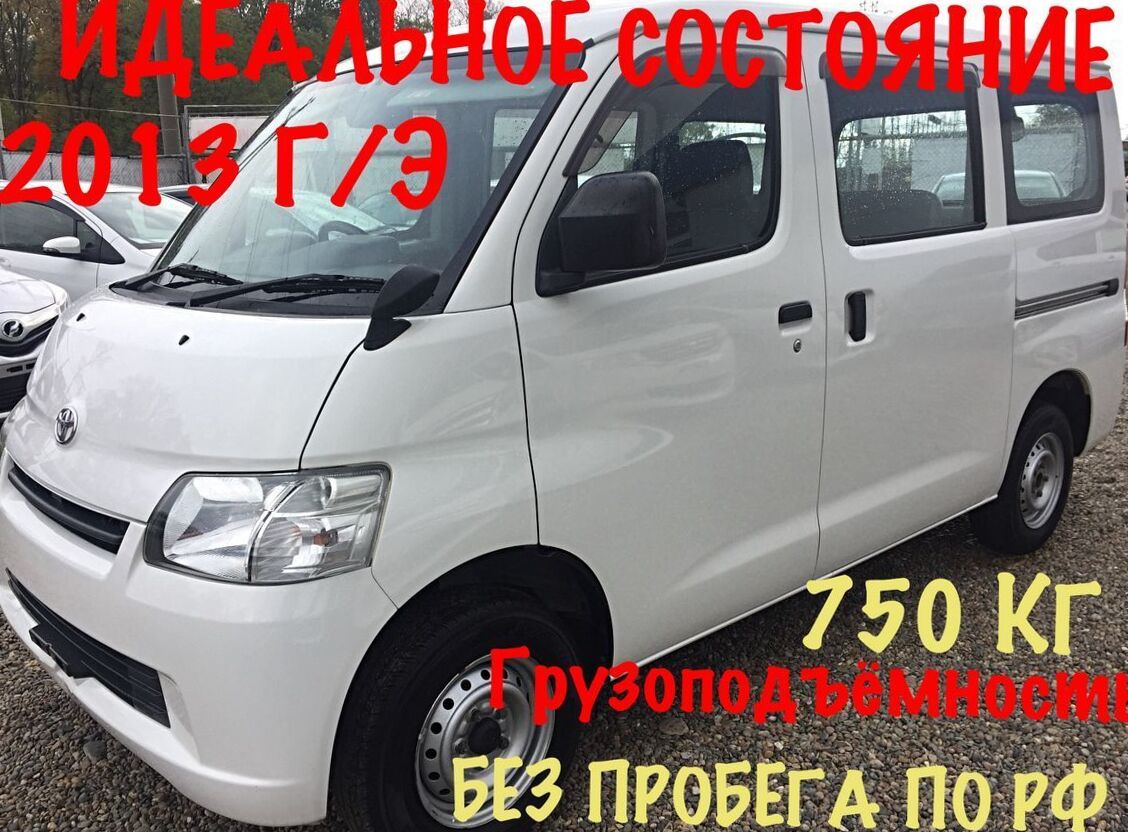

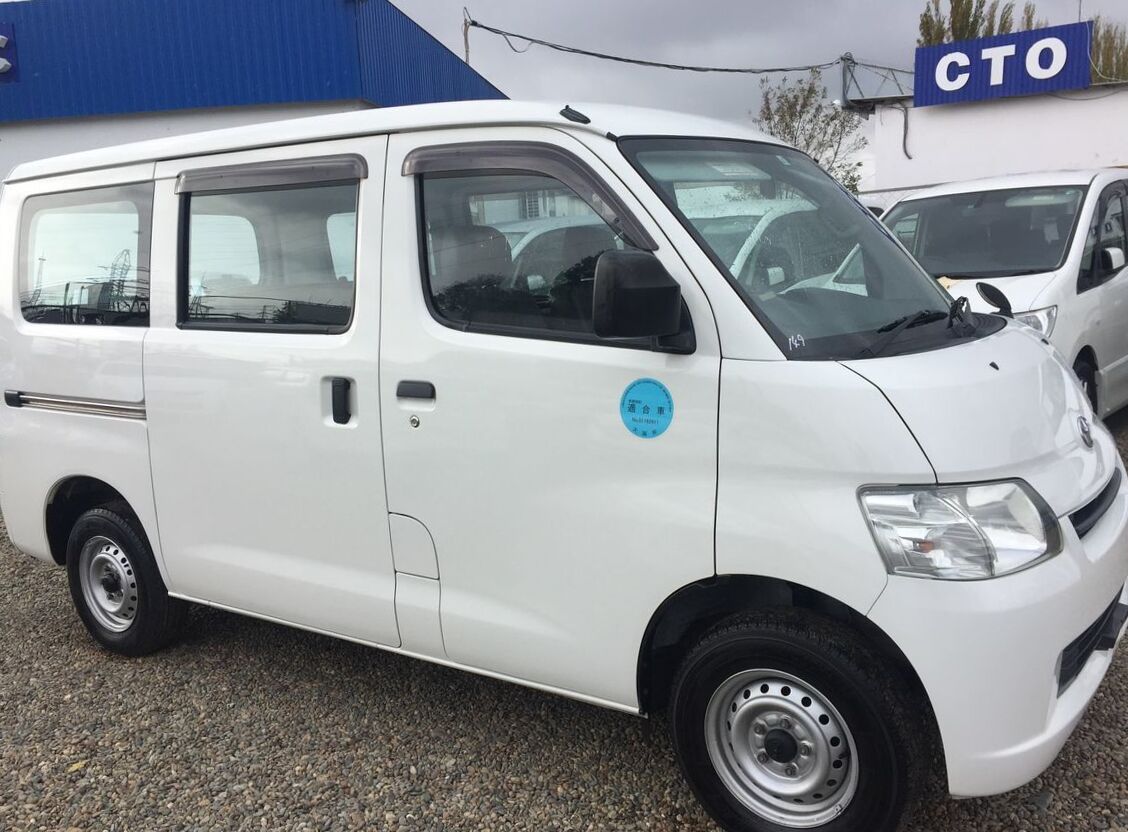

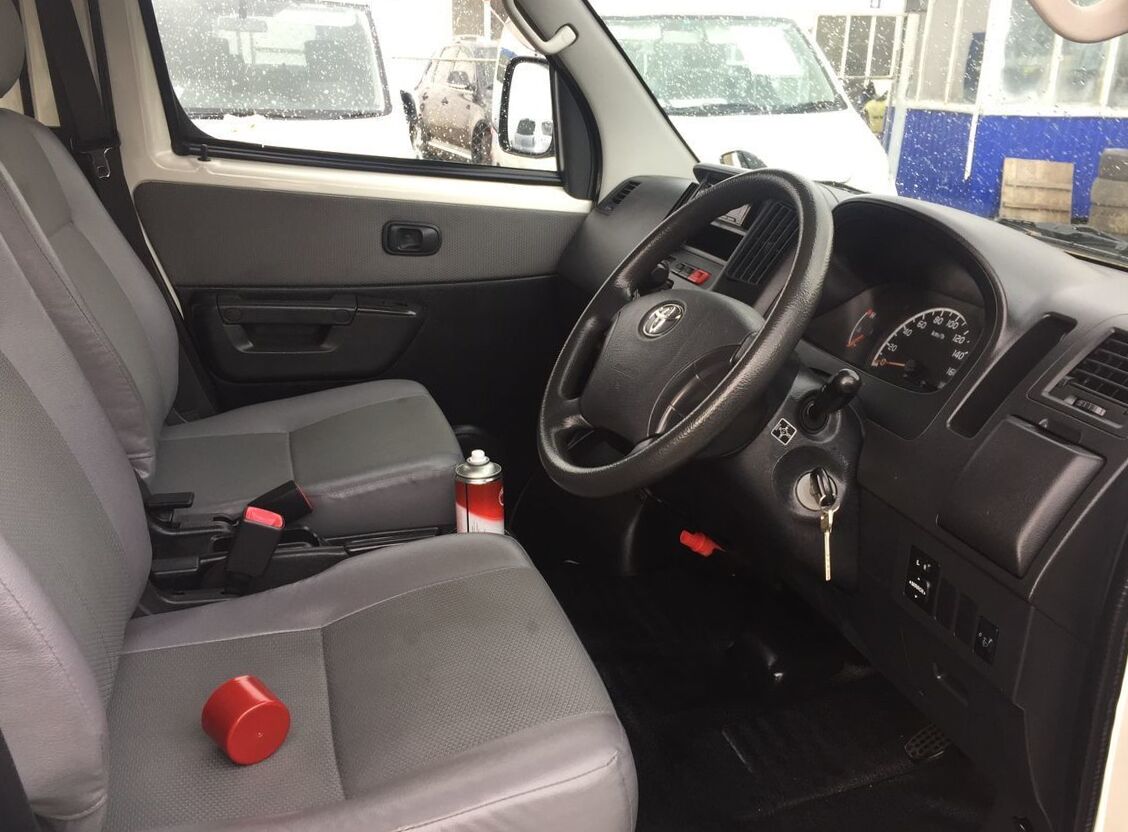

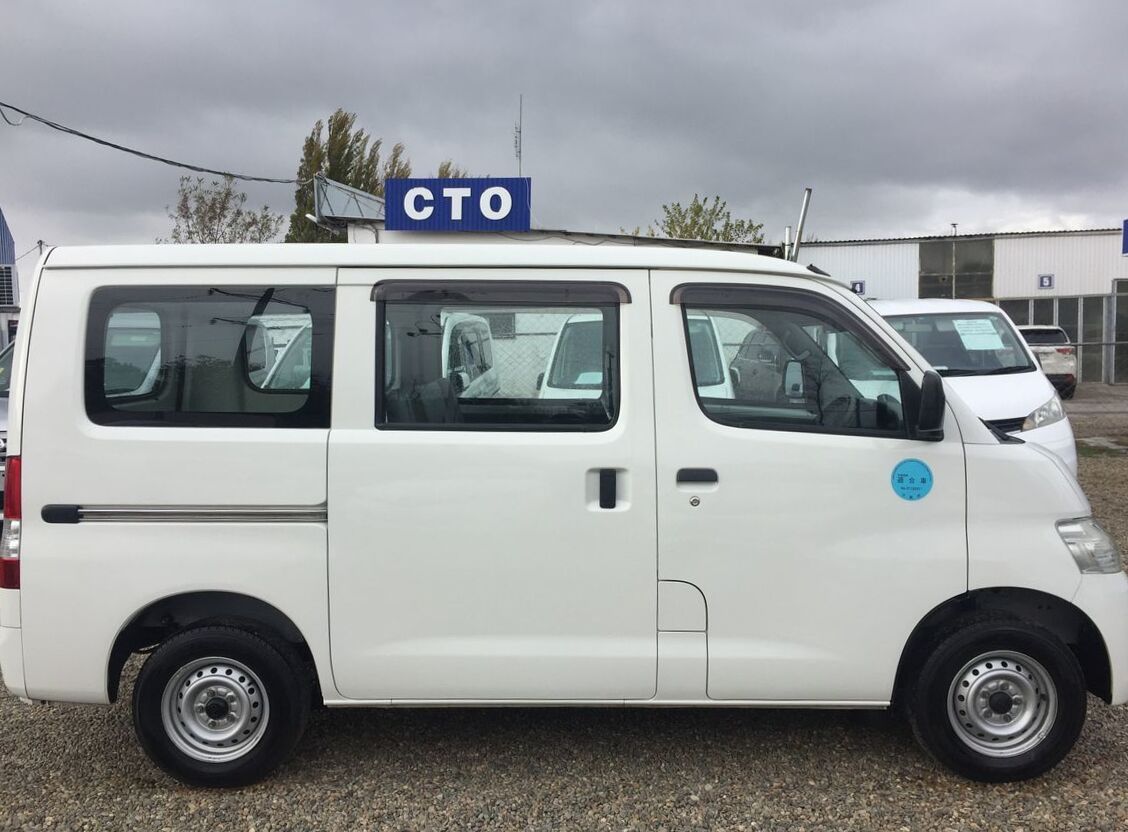

2012 Toyota Lite Ace VI 1.5 GL


2012 Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)
2012 Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp)

More photos of Toyota Lite Ace

Toyota Lite Ace Problems
Yemem
2014, Delay in the reverse mode, and I want to
know the type of transmission fluid And the mai...
Tiene timón cambiado y debe sacarse el t...
1987, Es japonesa sin puerta al lado derecho,
solo al izquierdo. Para abastecer de agua o
acei...
Shock absober front
1990, Over coner left side rim/tyre touch the
fender body..after change ruber bump stoper.so
s...

Body typeMinivan
Power97 Hp
Engine Displacement1500 cm3 or 1.5L or 91.5 cu-in
Colorwhite
Transmission GearboxAutomatic
Fuel TypeGasoline
Drive wheelFR or RR
Mileage29204 Miles
VinCD****09
Price (out of date)$12200

Frequently Asked Questions

What is the body type, 2012 Toyota Lite Ace VI?Minivan, 5 Seats, 5 Doors
How much power, Toyota Lite Ace Minivan 2012?97 Hp
What is the engine size, Toyota Lite Ace ABF-S402M 2012?1.5L or 1495cm3
How many gears, What type is the gearbox, 2012 Toyota Lite Ace 1.5 GL?Automatic transmission 4
What is the drivetrain, Toyota Lite Ace VI 2012 Minivan 1.5 GL (97 Hp)?Rear
How long is this vehicle, 2012 Toyota Lite Ace Minivan 1.5 GL (97 Hp)?4045 mm
How wide is the vehicle, 2012 Toyota Lite Ace VI?1665 mm

Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp) 2012, 2013, 2014 Specs

General information

Production start year2012
Production end year2014
Frame typeMinivan
Drive typeRear
Transmission typeAutomatic transmission 4
Engine volume, cc1495
Frame nameABF-S402M
Clearance, mm175
Doors5
Winter complectationoption
Steering locatonright

Vehicle generation

Generation nameS400
Generation number6
Production start year2008
Production end year2020

Engine, transmission and steering specs

Engine specs

Engine name3SZ-VE
FuelPetrol (Gasoline)
Engine type4 cylinder DOHC
Max power, hp97
Max power RPM, rpm6000
Max power, hp (kWt) / rpm97(71)/6000
Max torque, N*m134
Max torque RPM, rpm4400
Max torque, N*m (kg*m) / rpm134 (13.7) / 4400
Variable cylinder systemno
Max power, kw (ps) / rpm71?97?/6000
Max torque, N*m (kg*m) / rpm (carsensor)134?13.7?/4400
Start stop systemno

Fuel consumption

Achieve fuel efficiency standardsCompliance with the 2015 fuel consumption standard
Fuel consumption (10/15 mode), km/l12.6
Fuel consumption (10/15 mode), l/100km7.9

Transmission

Shifter positionOn the dashboard

Steering

Power steeringyes
Steereing gear typeGear rail
Steering vgs vgrsno

Dimensions

Frame dimensions

Exterior length, mm4045
Exterior width, mm1665
Exterior height, mm1900
Exterior size (L x W x H), mm4045x1665x1900?mm?

Interior dimensions

Capacity5
Seat rows2
Interior size (L x W x H), mm-x-x-?mm?

Chassis dimensions

Wheel base, mm2650
Front axle length, mm1460
Rear axle length, mm1440
Turning radius, m4.7
Front/rear axis length1460/1440?mm?
Wheel spacing front1460
Wheel spacing rear1440

Weight and permissible load

Mass, kg1230
Total weight2090
Max capacity750

Volumes

Fuel tank capacity, l43

Suspension specs

Suspension specs

Front suspensionIndependent, Spring McPherson
Rear suspensionDependent, on longitudinal arms
Sport suspensionno
Low downno
Air suspensionno
Cenral diff lockno
LSDno
4wsno

Wheel rims

Aluminium wheelno
Magnesium wheelsno

Tires

Front wheels165R13LT
Rear wheels165R13LT
Run flat tiresno

Brakes

Front brakeVentilated discs
Rear brakedrum brakes
Brakes equipmentno

Exterior

Headlights

Xenon lampsno
Head lights washerno
Front fog lampsno
Rear fog lampsoption
Rain sensorno

Side mirrors

autocorrected mirrorsno

Doors

Side sliding doorno
Sliding doorsyes
Sliding electric doorno
Sliding electric doorsno
Door easy closerno
Power rear doorno

Windows

Privacy glassno
Ultraviolet glass protectionno

Roof

Sunroofno
Big sunroofno
T bar roofno
Roof equipmentno
Targa roofno
Hard topno

Accessories

Roof railno
Front spoilerno
Rear spoilerno

Body color

Colors2508 1300

Interior

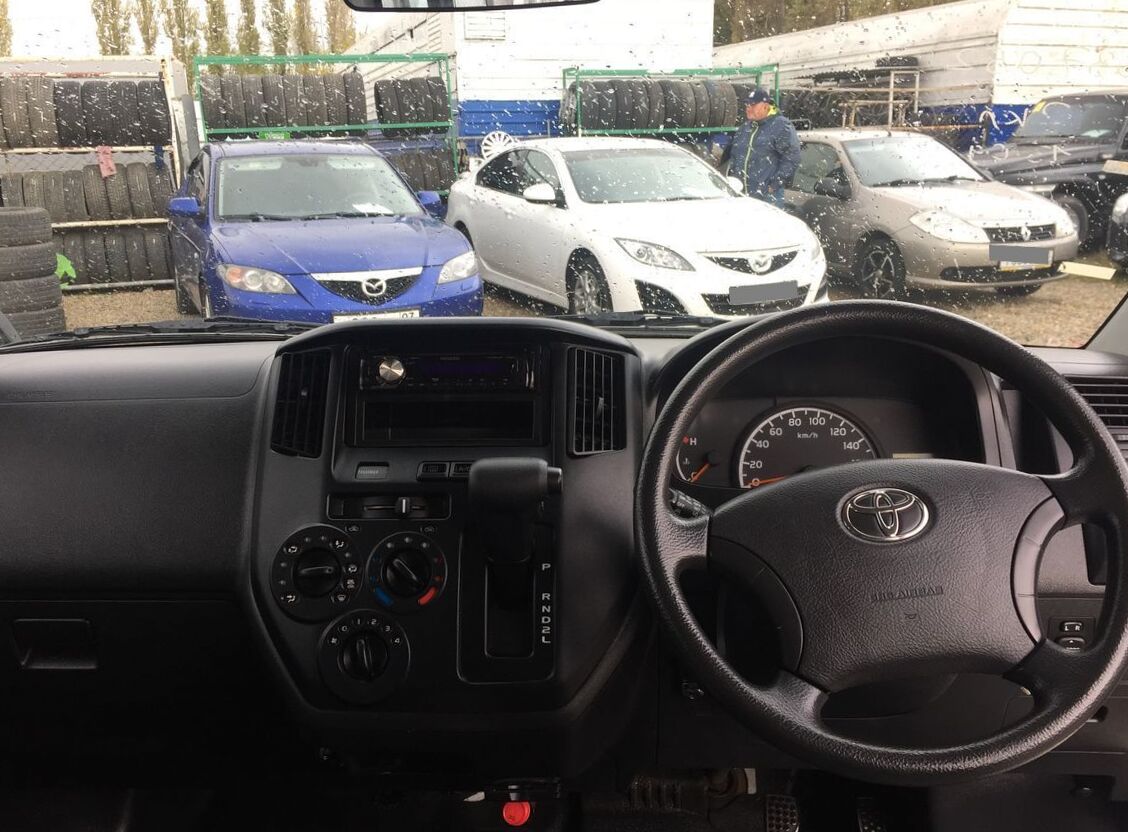

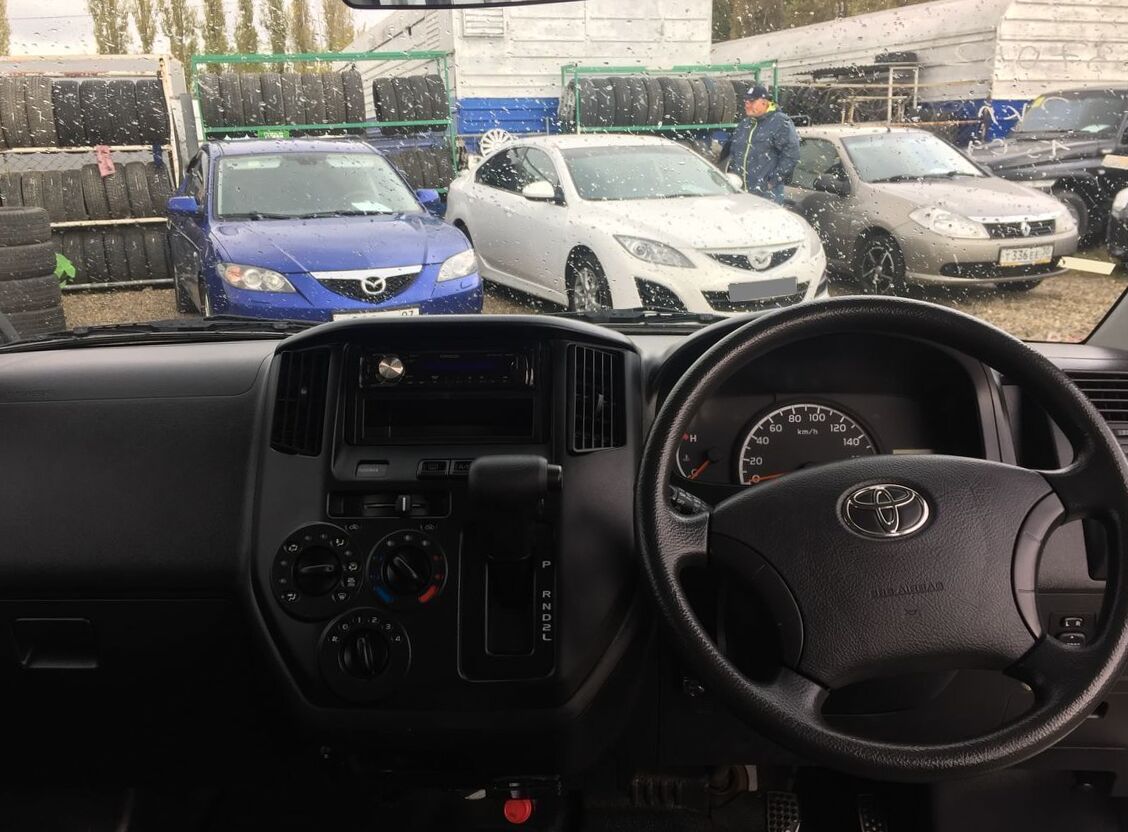

Steering wheel and center panel

Engine start buttonno

Interior design

Water-repellentno
Leather seatno
Antibacterial repellentno

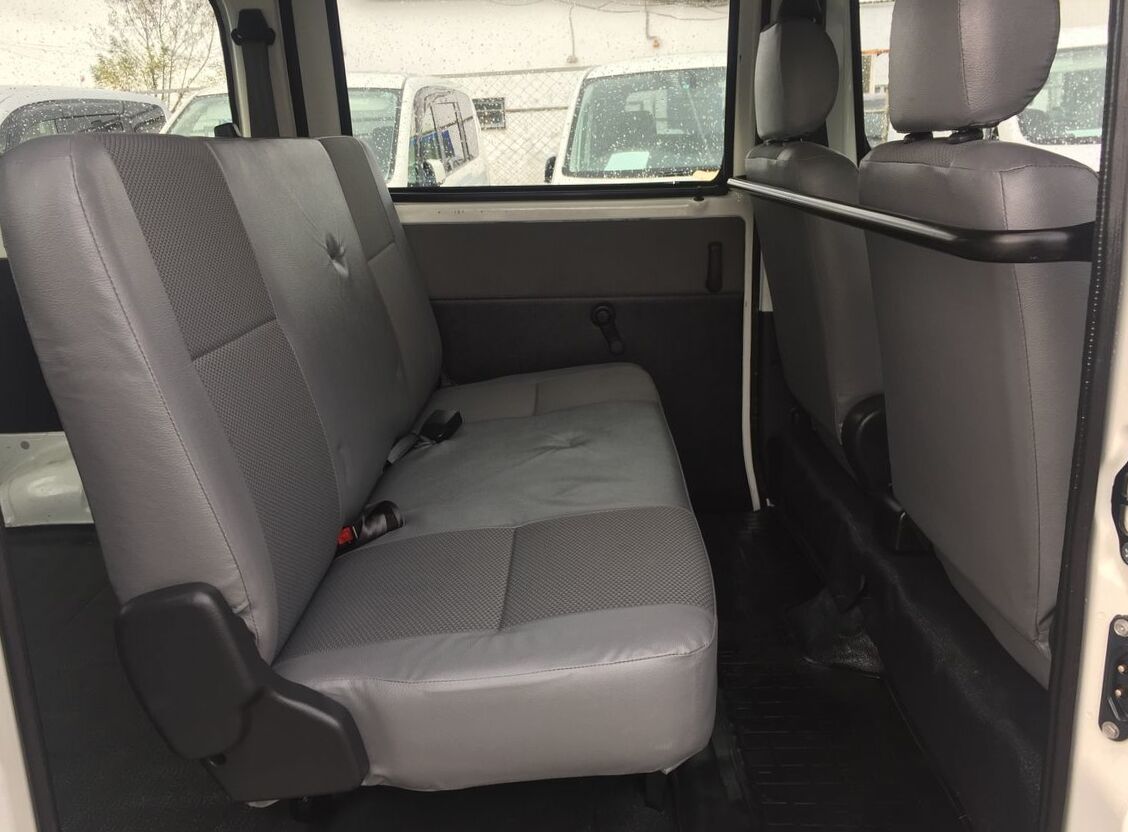

Seats

Bucket seatno

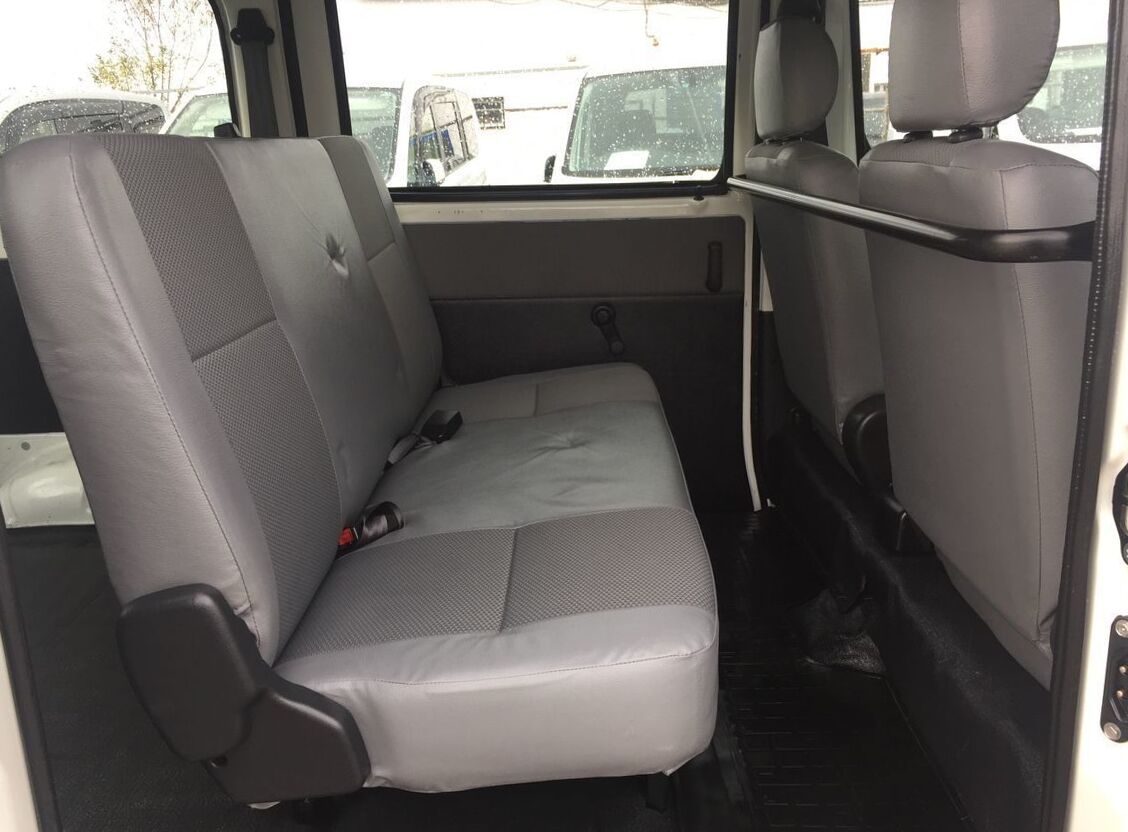

2nd rowfoldable, backrest is indivisible
Seat lifterno
Full flat seatsno
Removable seatsno
Ottoman seatno
Front bench seatno
Walk throughtno
2nd row throughtno

Electric interior package

Power adjustable driver seatno
Power ajustable front seatno
Adjustable 3rd rowno
Front seat heaterno
Rear seats heaterno
Seat position memoryno
Keyless enteryes
Power windowyes
Stearing wheel heaterno

Additional interior equipment

AC plugno

Safety

Airbags

Drivers airbagyes
Passengers airbagyes
Side airbagno
Curtain airbagsno
2 airbagsno

Children safety

isofix barno
Build-in child seatno

Active and passive safety

Active headrestno
Road Service

Electronic security and traffic control systems

ABSyes
Break assistno
ESPno
traction controlno
Down hill assistno
AYCno
SH-4WDno
Lane Keep Assistno
Cruise controlno
Distance control systemno
Intelligent AFSno
Night visionno
Parktronicno
Intelligent parking assistno
Collision mitigation systemno

Amenity

Microclimate

Air conditioneryes
Air purifierno
Humidifierno
Air filterno
Odor absorberno

Audio systems

Radiono
Autoreverse casetteno
CD playerno
DVD-audiono
MD palyerno
Audio HDDno
Speakeryes
Rear entertainment systemno

Navigation and video equipment

Full color LCD displayno
Navigation systemno
Optional navigation systemno
Traffic jam assistno
Parking assist systemno
Front monitorno
Sides monitorsno
Back monitorno

Additional amenities

Lagage boxno
Etcno

Car safety

Alarm systemno
Security alarmno


2012 Toyota Lite Ace VI ABF-S402M 1.5 GL (97 Hp) specs

The Toyota Liteace is a line of motor vehicles produced by the Japanese manufacturer Toyota. Launched in 1970, the Liteace is a medium-sized van commonly distributed to Asia, Australia and Africa for personal or commercial use.


The Liteace was marketed in two different forms:

  • A box-like and more angular design, similar to a Nissan C22 (Vanette).
  • A more MPV-like design, with design cues of the Toyota Hiace.

The Toyota Liteace Noah, an MPV replaced by the Toyota Noah, was also released.

In 2008, a new model based on the Daihatsu Gran Max which launch in Indonesia in late 2007 replace the Toyota LiteAce along with Toyota TownAce in Japan. Both truck and van type are available in 1.5L engine.
