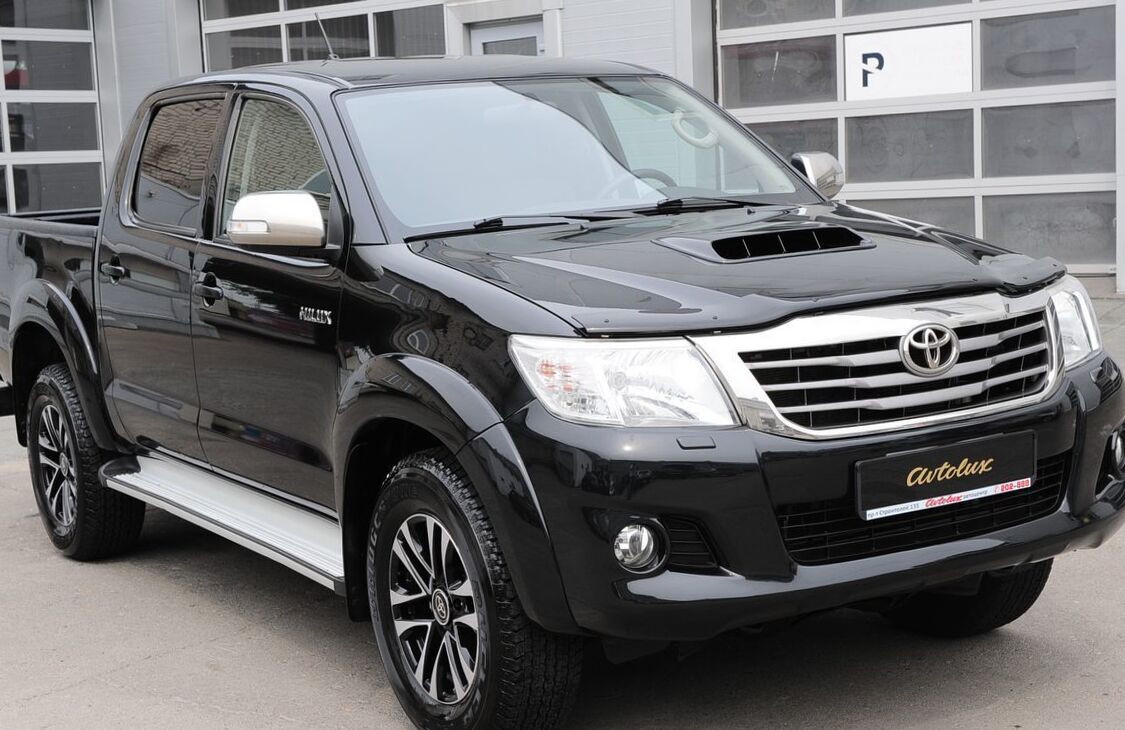

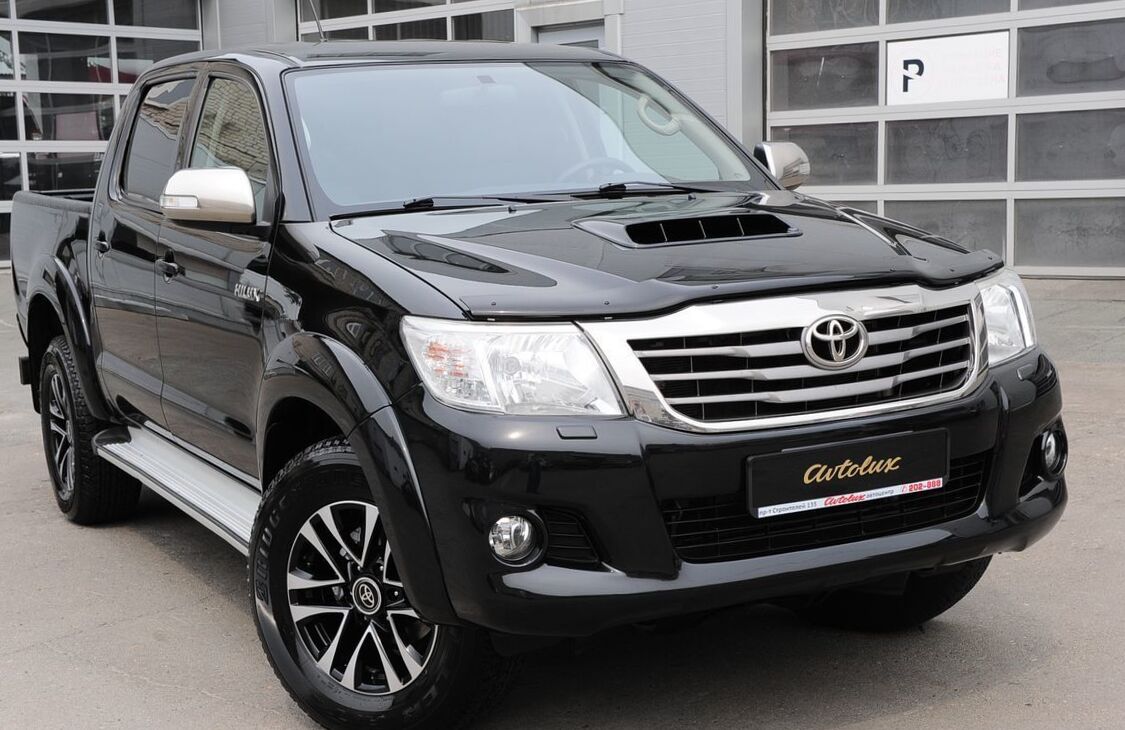

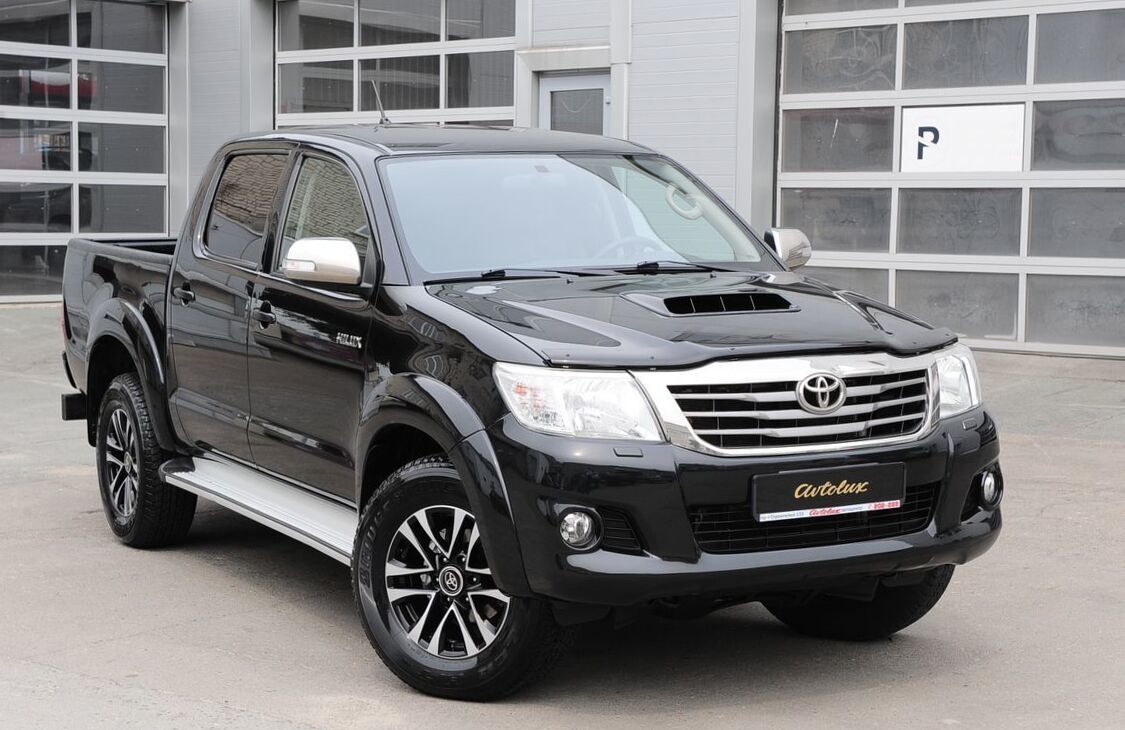

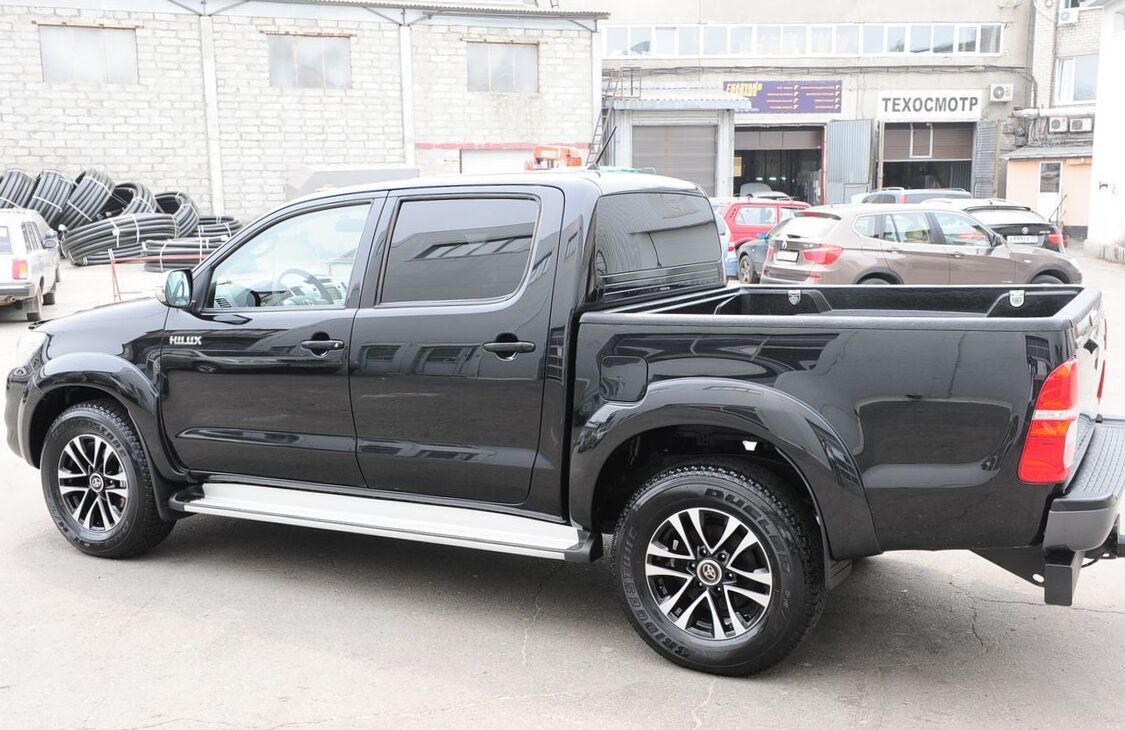

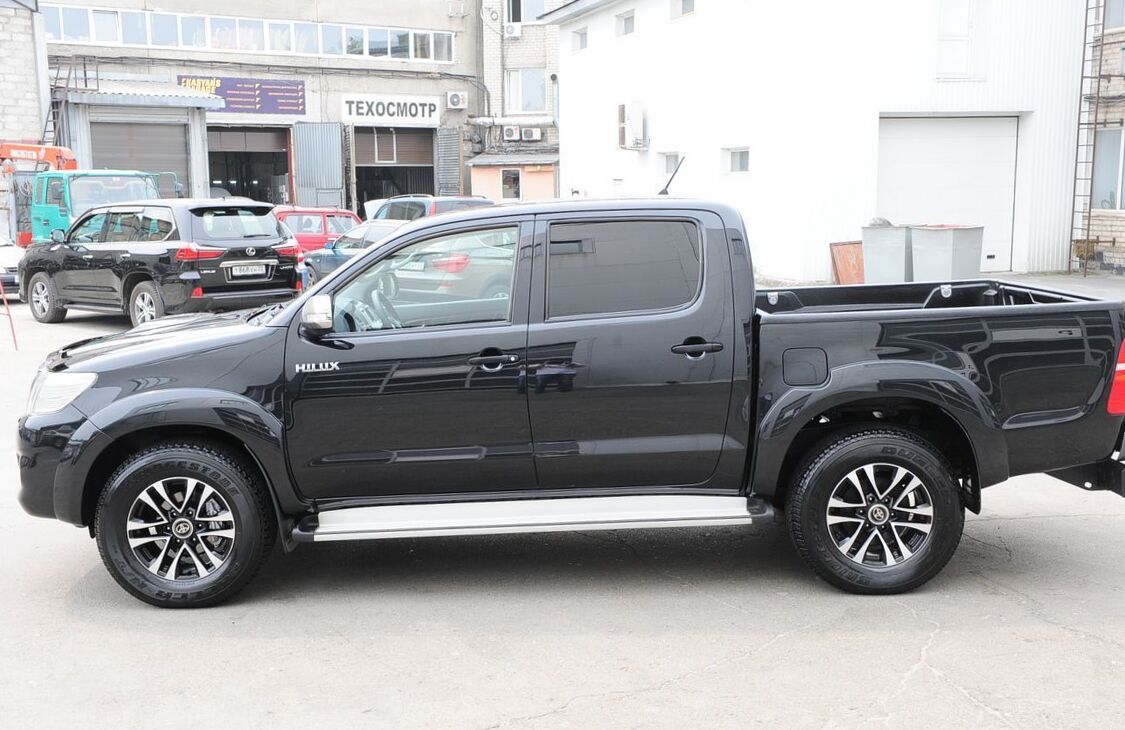

2013 Toyota Hilux Pick Up VII 2.5D MT Elegance
Toyota Hilux Pick Up Problems
Low Speed
2010, Low speed, the Pickup is not moving fast.
The highest speed is 70KM per Hour. All effect...
Air ondition problem
2010, Air condition not working. Evaporator
replaced, compressor replaced. After 15 minutes
of...
Air ondition problem
2010, Air condition not working. Evaporator
replaced, compressor replaced. After 15 minutes
of...
| Body type | Pickup |
|---|---|
| Power | 144 Hp |
| Engine Displacement | 2500 cm3 or 2.5L or 152.5 cu-in |
| Color | black |
| Transmission Gearbox | Manual |
| Fuel Type | Diesel |
| Drive wheel | 4WD |
| Vin | AHTFR29G707****63 |
| Price (out of date) | $18741 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2013 Toyota Hilux Pick Up VII? | Pickup, 5 Seats, 4 Doors |
| What is the fuel economy, Toyota Hilux Pick Up Pickup 2013? | 8.3 l/100 km |
| How fast is the car, Toyota Hilux Pick Up KUN25L 2013? | 170 km/h, 0-100 km/h: 12.5 sec |
| How much power, 2013 Toyota Hilux Pick Up 2.5D MT Elegance? | 144 Hp |
| What is the engine size, Toyota Hilux Pick Up VII 2013 Pickup 2.5D MT Elegance (144 Hp)? | 2.5L or 2494cm3 |
| How many gears, What type is the gearbox, 2013 Toyota Hilux Pick Up Pickup 2.5D MT Elegance (144 Hp)? | 5 speed Manual |
| What is the drivetrain, 2013 Toyota Hilux Pick Up VII? | All wheel drive (4x4) |
| How long is this vehicle, Toyota Hilux Pick Up Pickup 2013? | 5260 mm |
| How wide is the vehicle, Toyota Hilux Pick Up KUN25L 2013? | 1760 mm |
| What is the gross weigh, 2013 Toyota Hilux Pick Up 2.5D MT Elegance? | 2690 kg |
Toyota Hilux Pick Up VII KUN25L 2.5D MT Elegance (144 Hp) 2011, 2012, 2013, 2014, 2015 Specs
General information | |
|---|---|
| Complectation name | 2.5D MT Elegance |
| Production start year | 2011 |
| Production end year | 2015 |
| Drive type | All wheel drive (4x4) |
| Frame type | Pickup |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 2494 |
| Frame name | KUN25L |
| 0 to 100 time | 12.5 |
| Max speed | 170 |
| Clearance, mm | 212 |
| Manufacturing country | Thailand, South Africa |
| Doors | 4 |
| Winter complectation | yes |
| Warranty | 3 years or 100,000 km |
Vehicle generation | |
| Generation name | AN10, AN20, AN30 |
| Generation number | 7 |
| Production start year | 2011 |
| Production end year | 2015 |

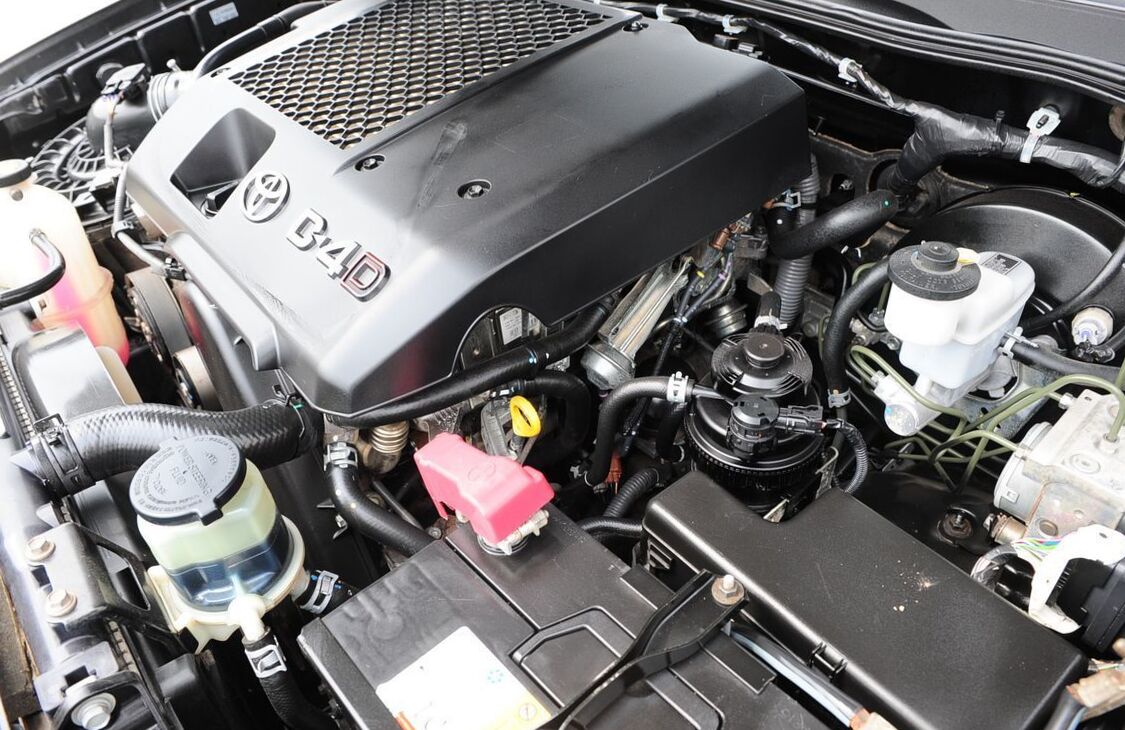

Engine, transmission and steering specs | |
Engine specs | |
| Engine name | 2KD-FTV |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 144 |
| Max power RPM, rpm | 3400 |
| Max power, hp (kWt) / rpm | 144 (106) / 3400 |
| Max torque, N*m | 343 |
| Max torque RPM, rpm | 2800 |
| Max torque, N*m (kg*m) / rpm | 343 (35) / 2800 |
| Valves per cylinder | 4 |
| Compression ratio | 17.4 |
| Bore, mm | 92 |
| Stroke, mm | 93.8 |
| Engine additional info | DOHC, COMMON RAIL |
| Eco type | Euro-4 |
Fuel consumption | |
| City | 10.1 |
| Country side | 7.2 |
| Combined | 8.3 |
Transmission | |
| 1st gear ratio | 4.313 |
| 2nd gear ratio | 2.33 |
| 3rd gear ratio | 1.436 |
| 4th fear ratio | 1 |
| 5th gear ratio | 0.838 |
| Rear gear ratio | 4.22 |
| Main gear ratio | 3.909 |
Steering | |
| Power steering | yes |
| Wheel ratio | 19.4 |
| Steering wheel turn | 3.7 |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5260 |
| Exterior width, mm | 1760 |
| Exterior height, mm | 1860 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior length, mm | 1765 |
| Interior width, mm | 1475 |
| Interior height, mm | 1195 |

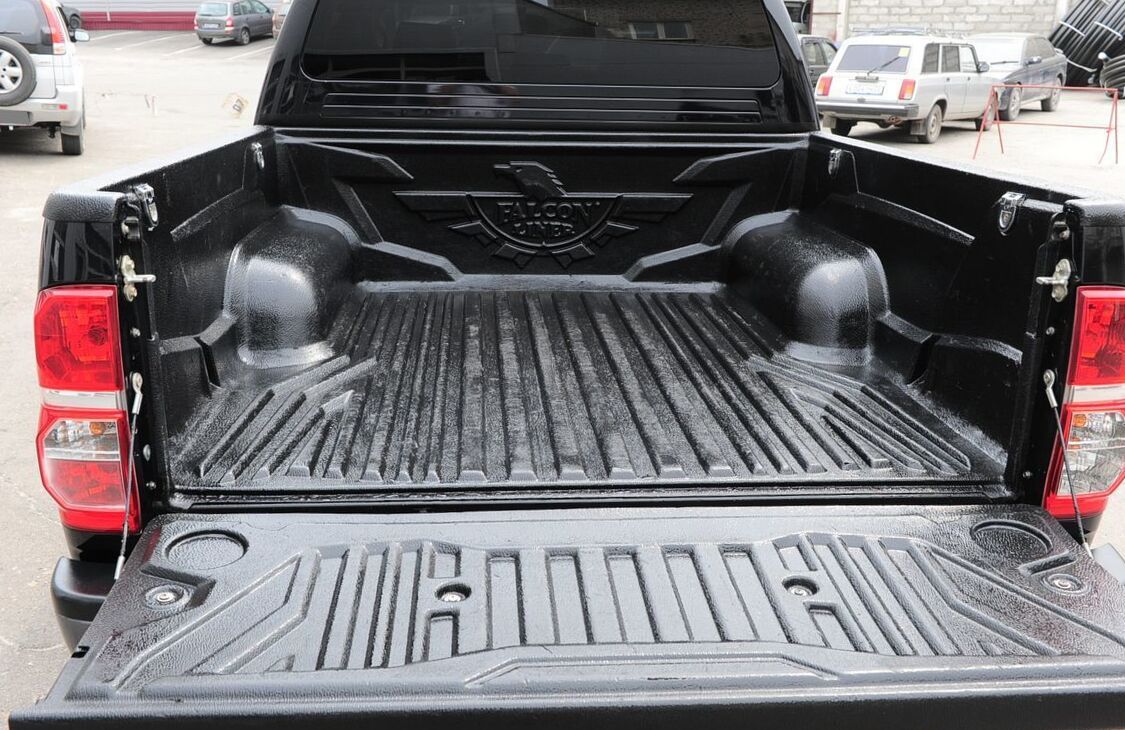

| Cargo l | 1545 |
| Cargo w | 1515 |
| Cargo h | 450 |
Chassis dimensions | |
| Wheel base, mm | 3085 |
| Turning radius, m | 6.2 |
| Wheel spacing front | 1540 |
| Wheel spacing rear | 1540 |
| Front overhang | 890 |
| Rear overhang | 1285 |
Weight and permissible load | |
| Mass, kg | 1885 |
| Max capacity | 805 |
| Max. weight | 2690 |
| Trailer max weight wobrakes | 750 |
| Trailer max weight wbrakes | 2800 |
| Front axe load | 1235 |
| Rear axe load | 1480 |
Volumes | |
| Fuel tank capacity, l | 80 |
Other | |
| Addinfo | Rear tailgate (with lock), side steps, additional cabin heating |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear stablilizer | yes |
| Rear suspension | Dependent, spring loaded |
| LSD | yes |

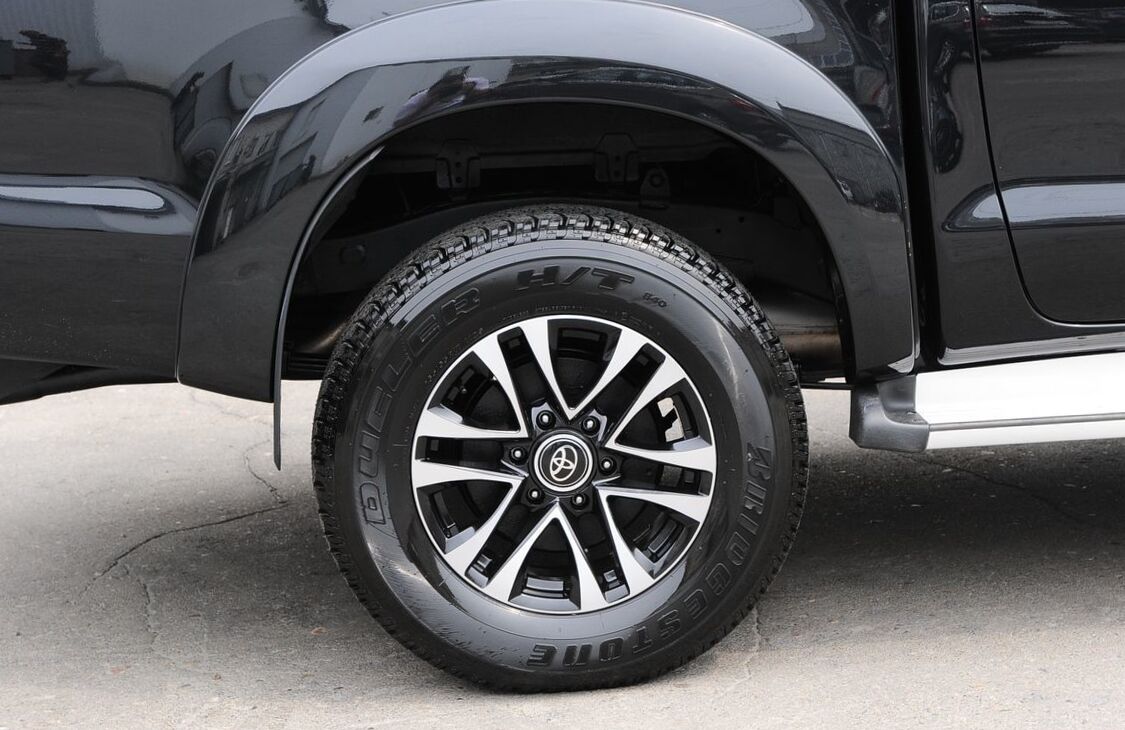

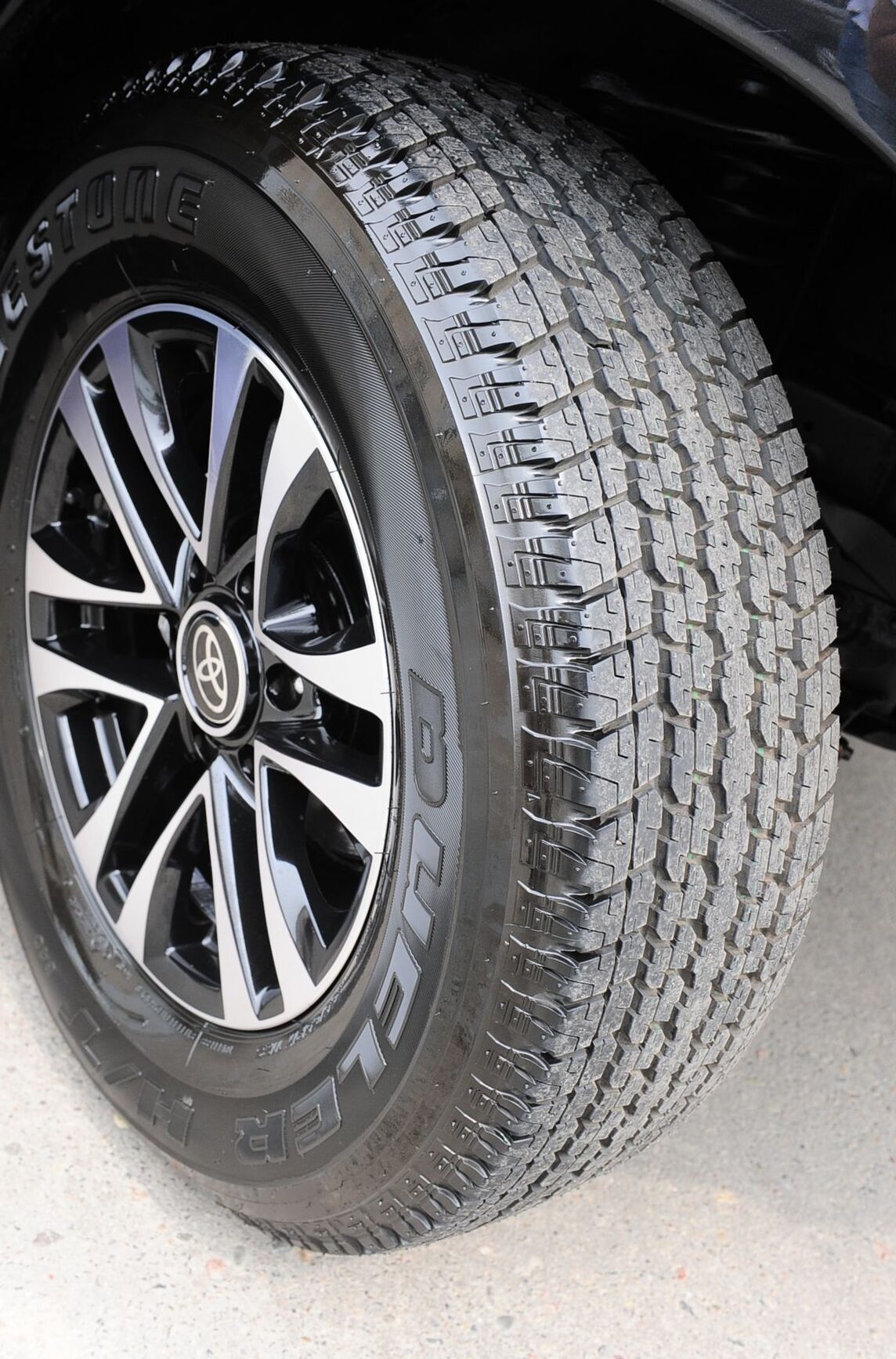

Wheel rims | |
| Aluminium wheel | yes |
| Disc | 15" |
Tires | |
| Front wheels | 255/70 R15 |
| Rear wheels | 255/70 R15 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Led lights | no |
| Diod head lights | yes |
| Head lights washer | yes |
| Front fog lamps | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | no |
Side mirrors | |
| Exterior mirrors in body color | no |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |

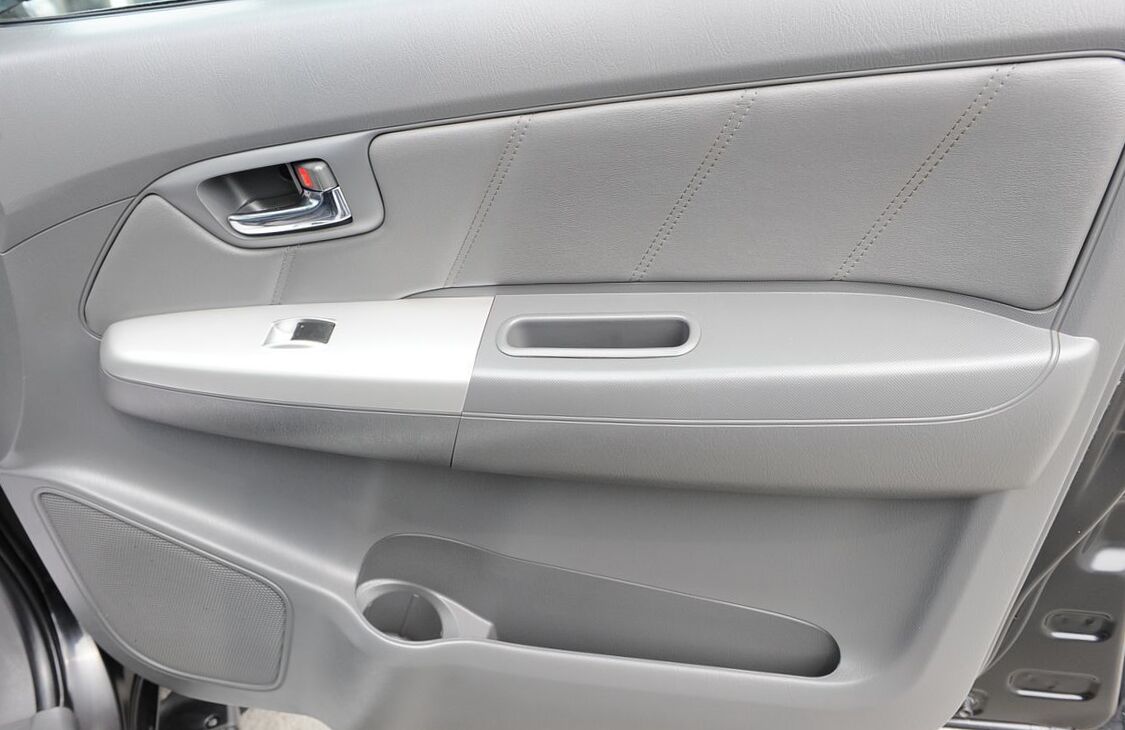

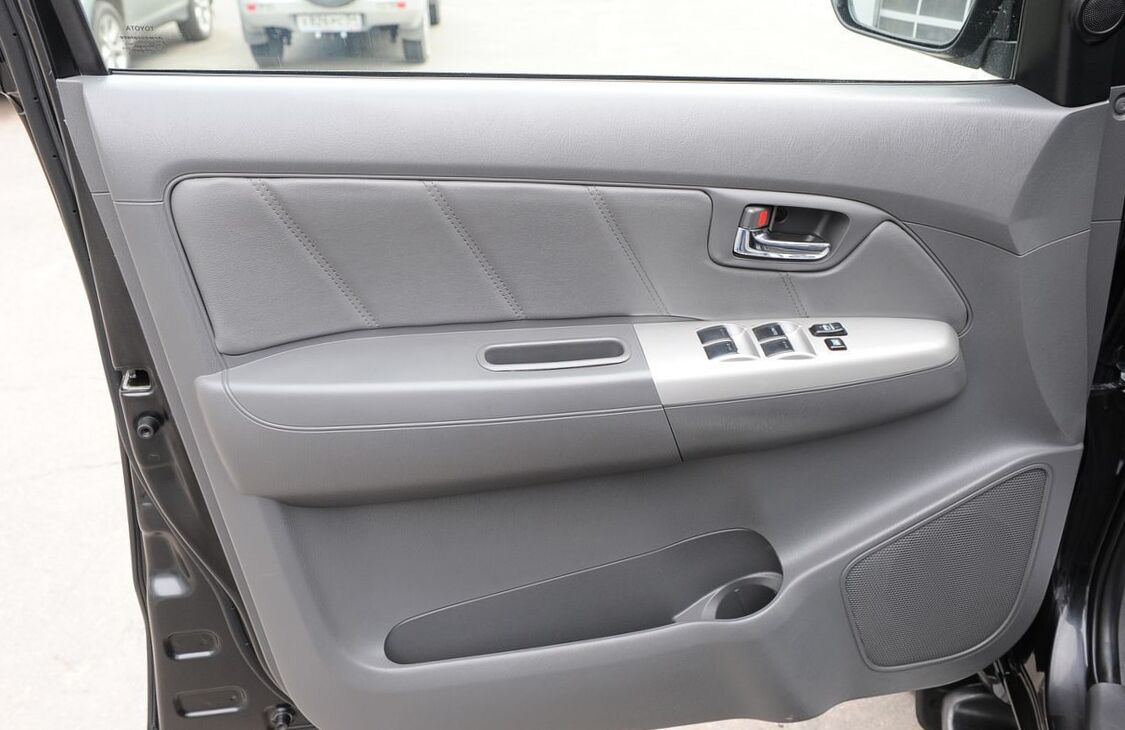

Doors | |
| Door handles in body color | no |
| Chrome door handles | no |
Windows | |
| Privacy glass | yes |
| Termoglass | yes |
| Rear glass heat | yes |
Accessories | |
| Rear mudflaps | yes |
Body color | |
| Metallic paint Body | option |
Interior | |

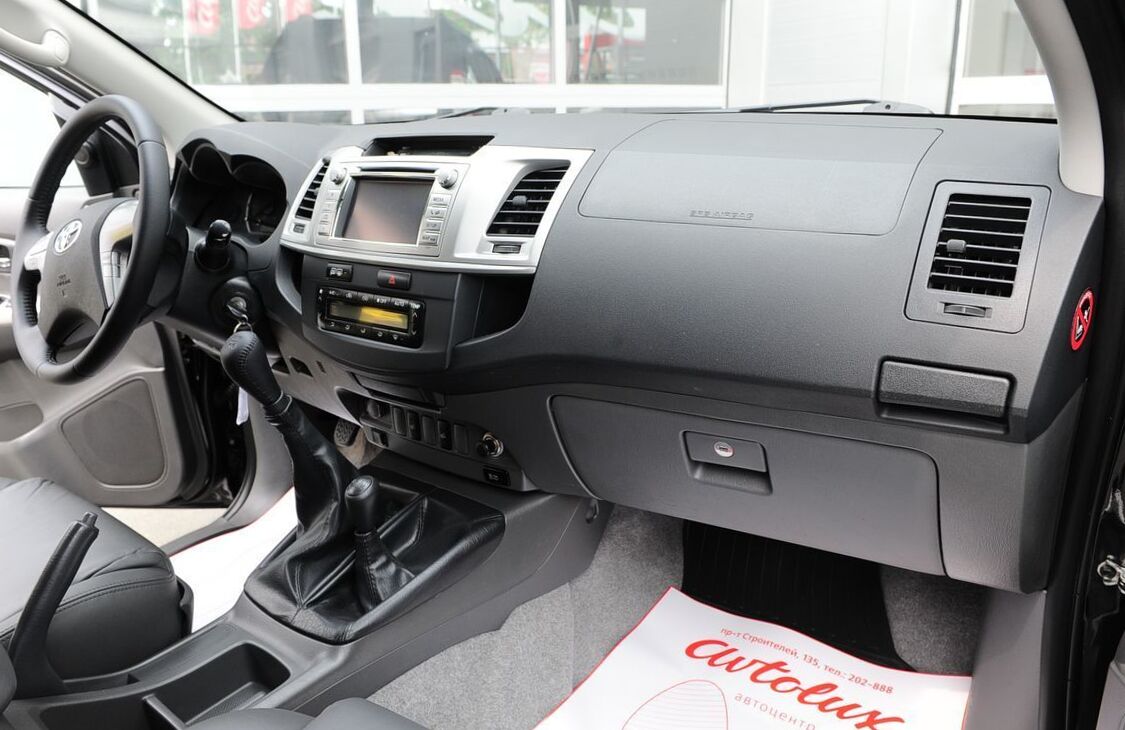

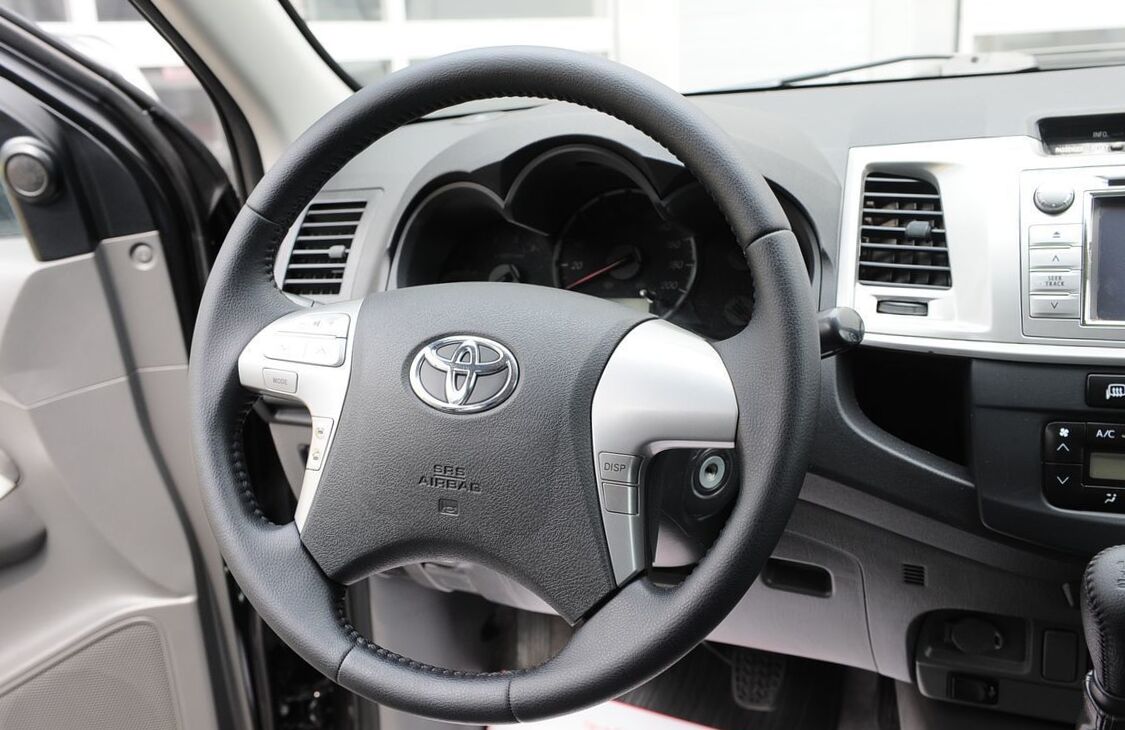

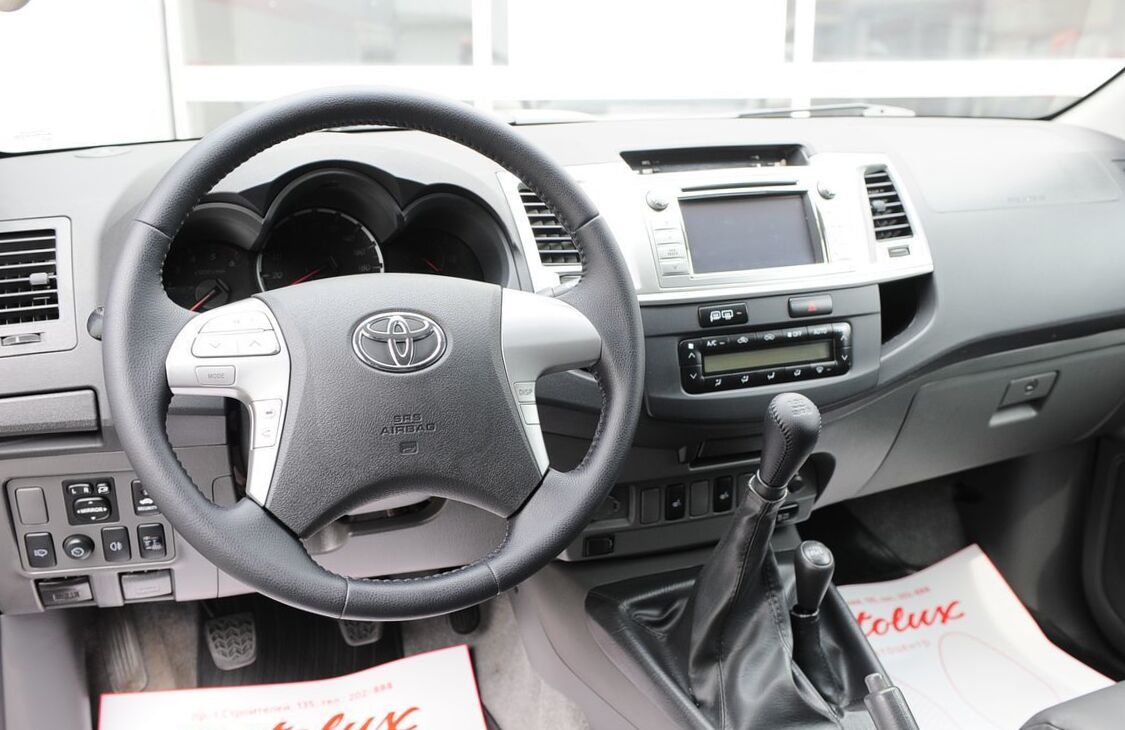

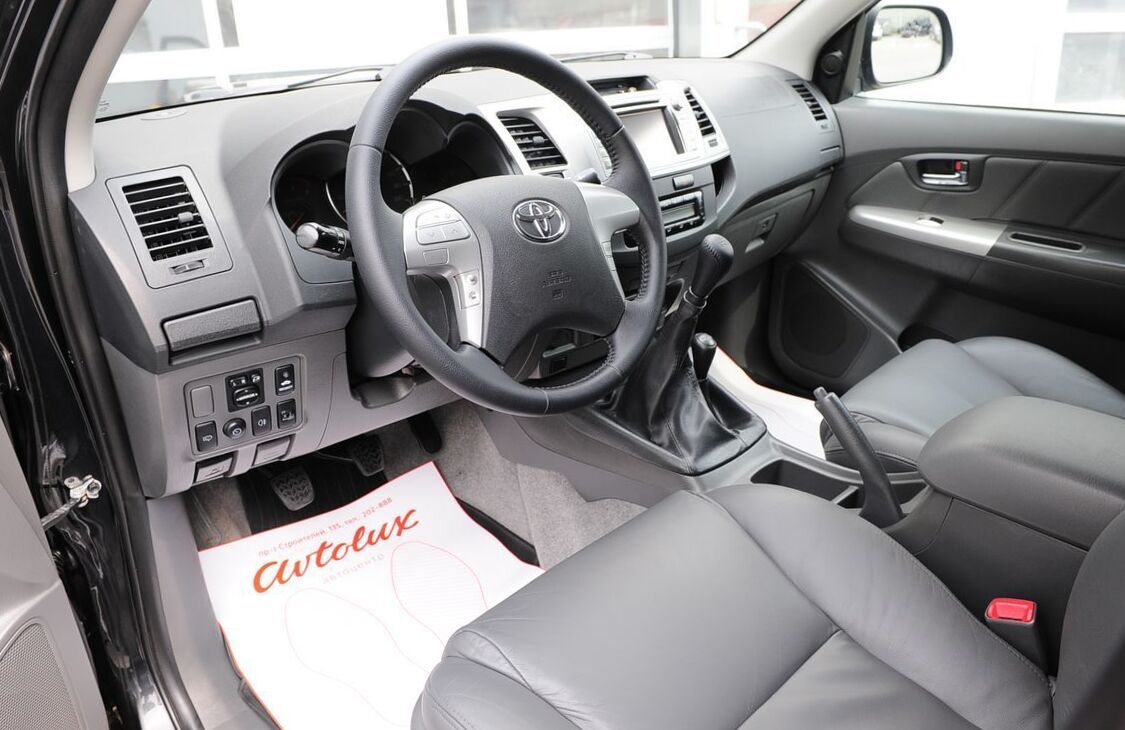

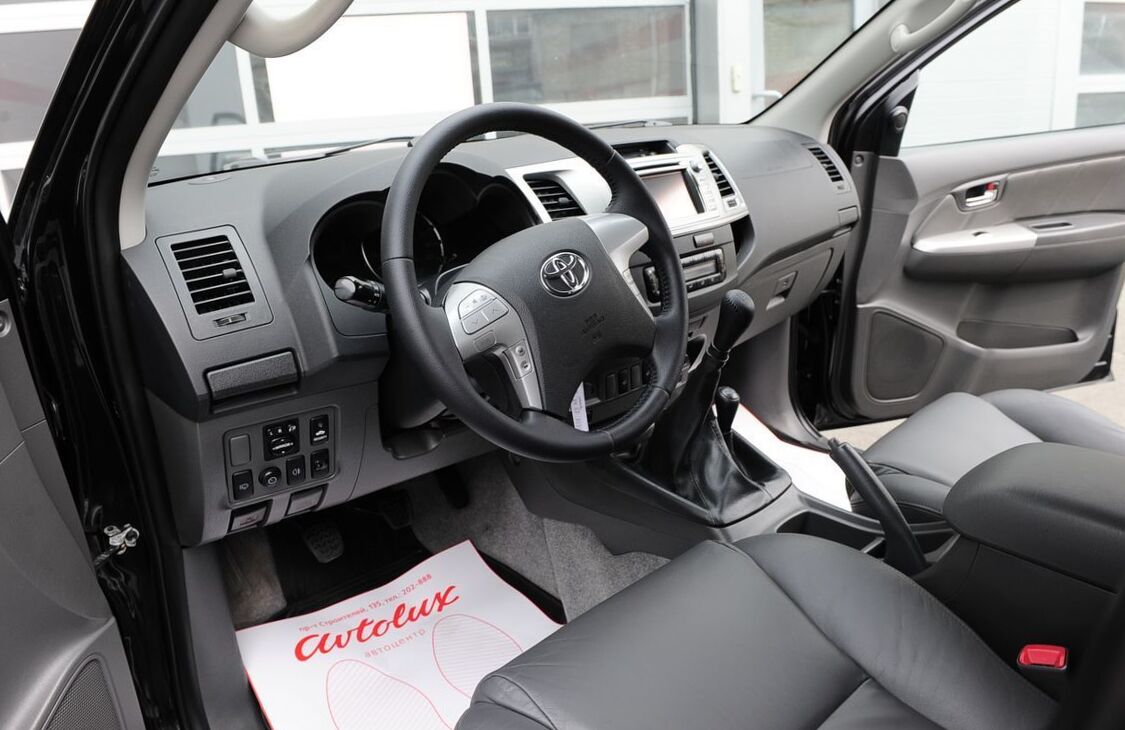

Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Utility color display | no |
| Tachometer | yes |
| Engine start button | no |
Interior design | |
| Cloth upholstery | no |
| Leather upholstery | yes |
| Combined obivka Salon | no |

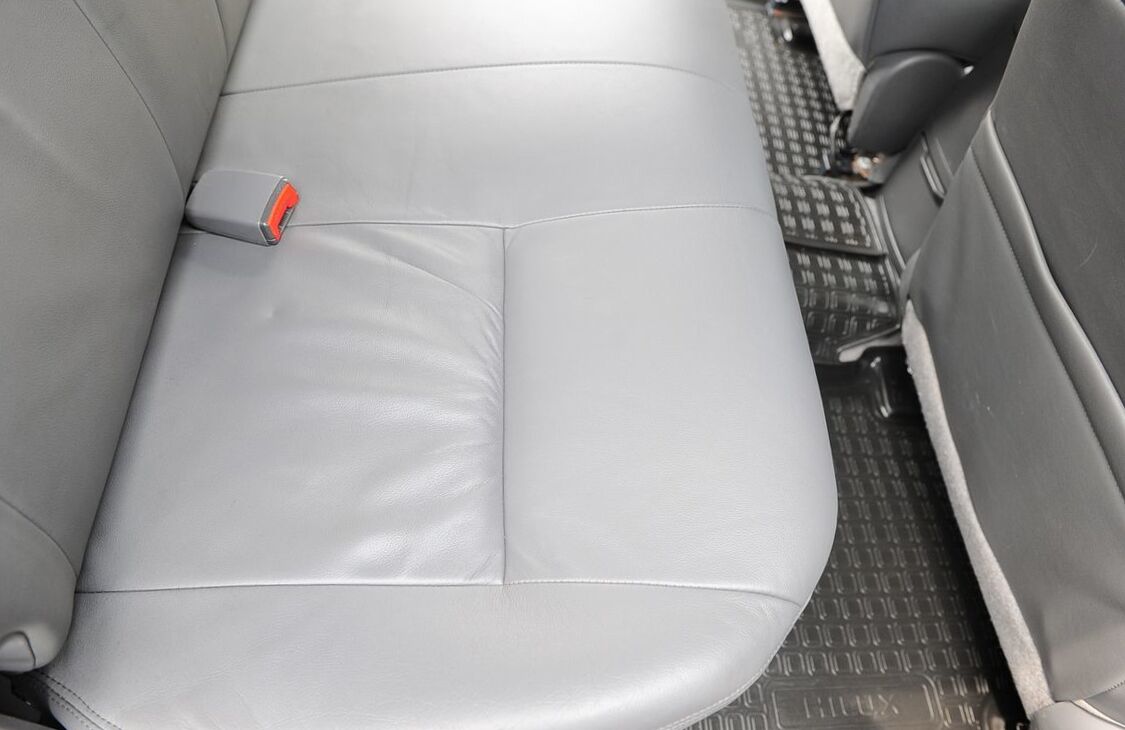

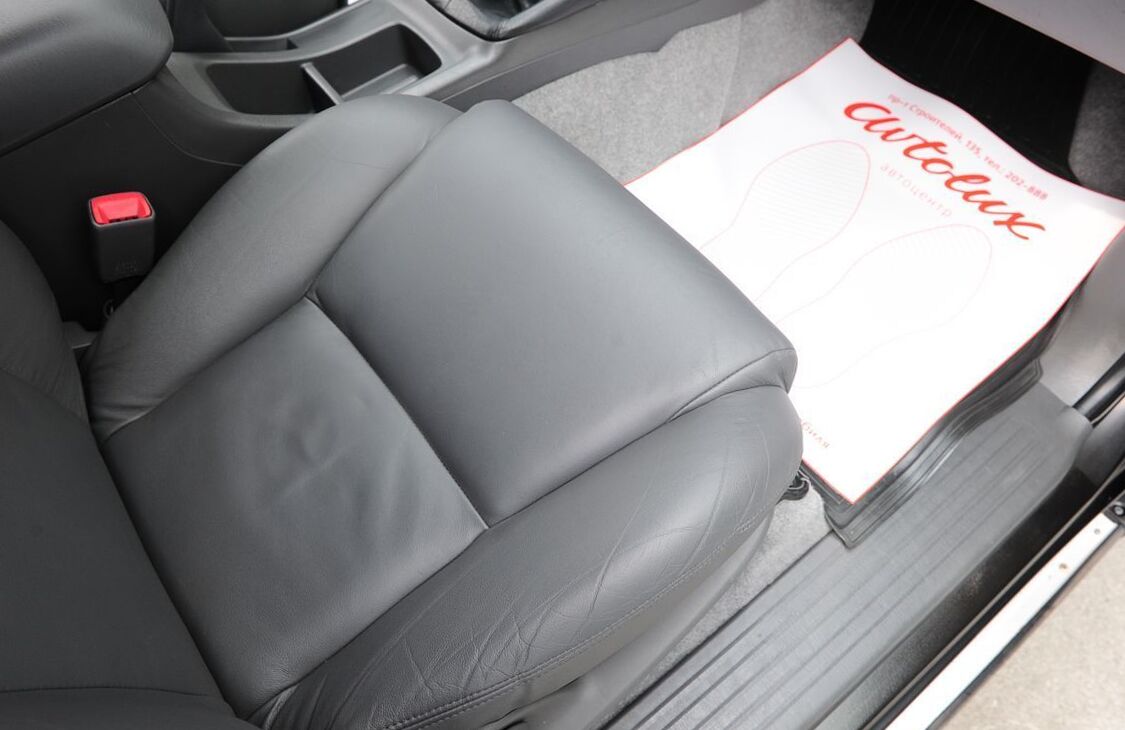

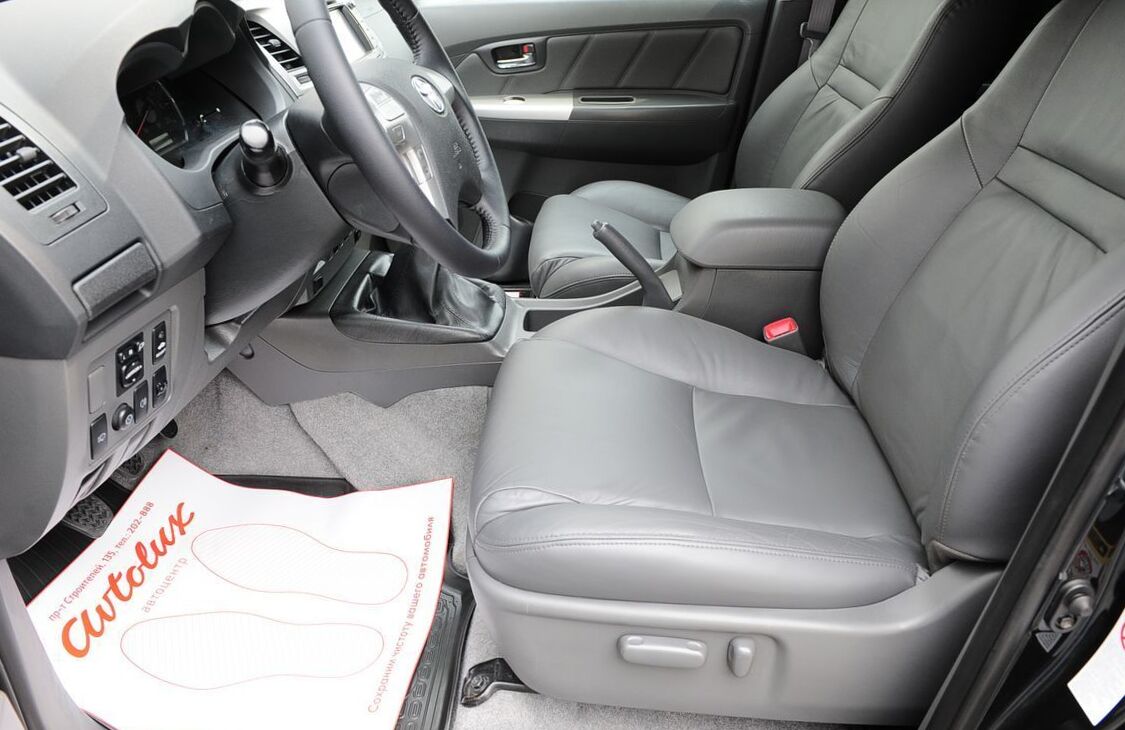

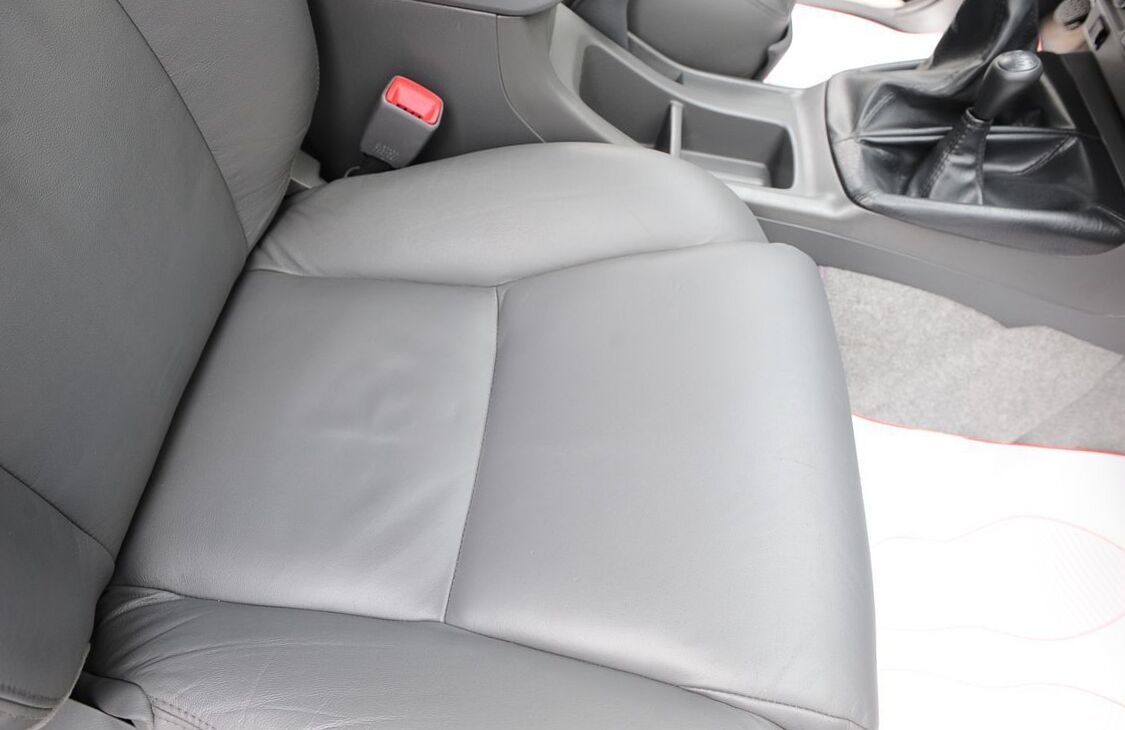

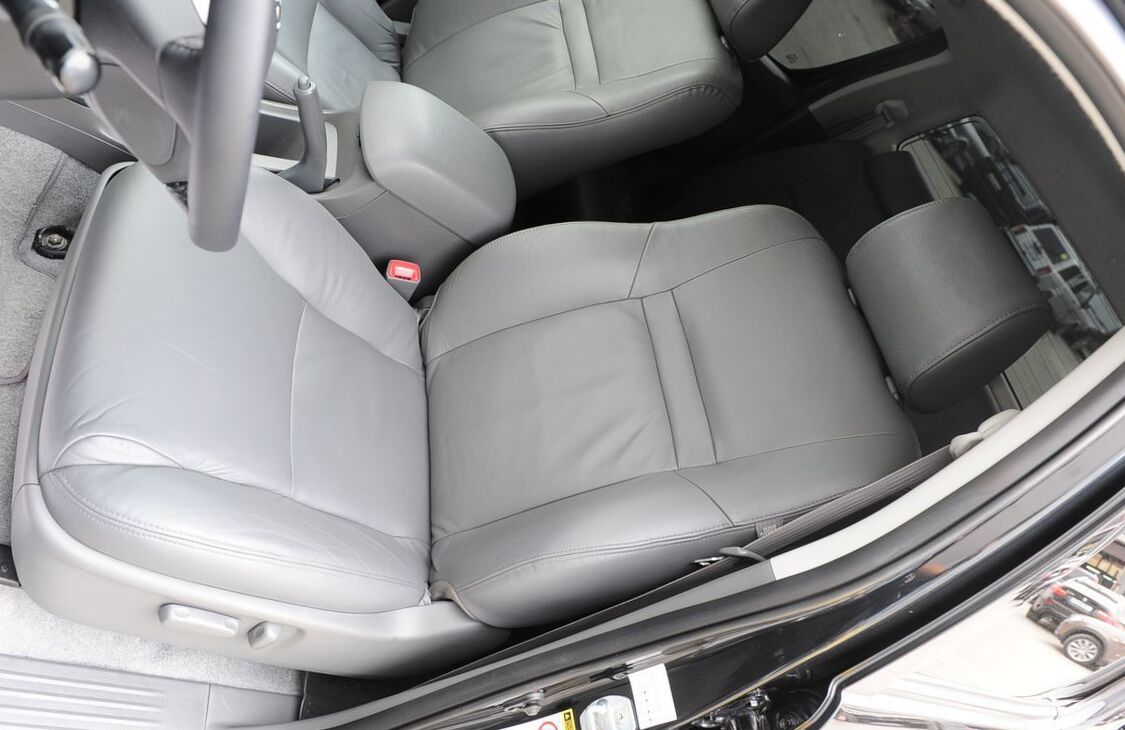

Seats | |
| Front seats ajust | Adjustment of the driver's seat in 6 directions, the passenger seat in 4 directions |

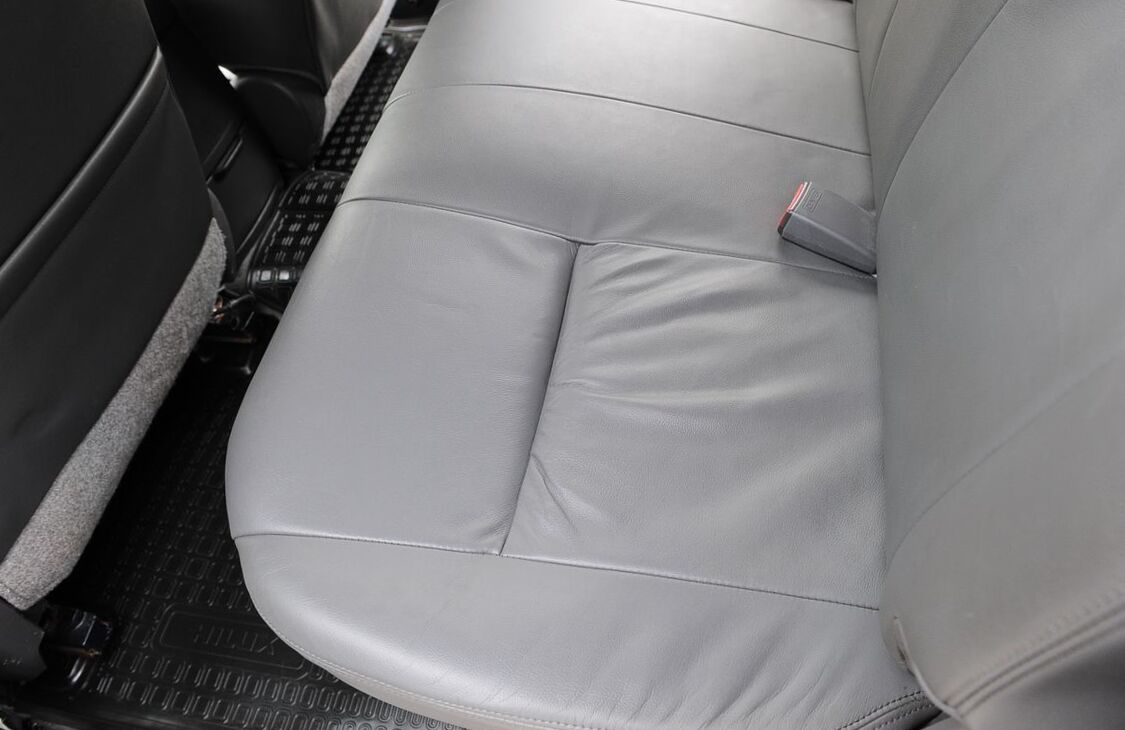

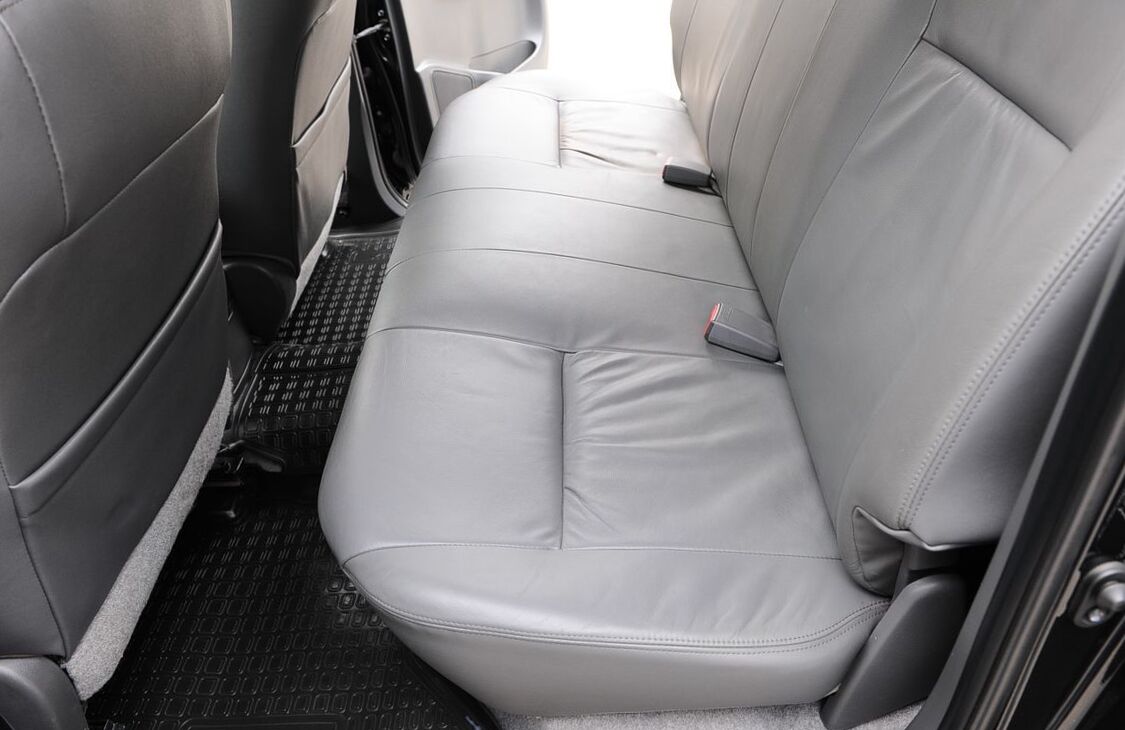

| 2nd row | foldable, backrest is indivisible |

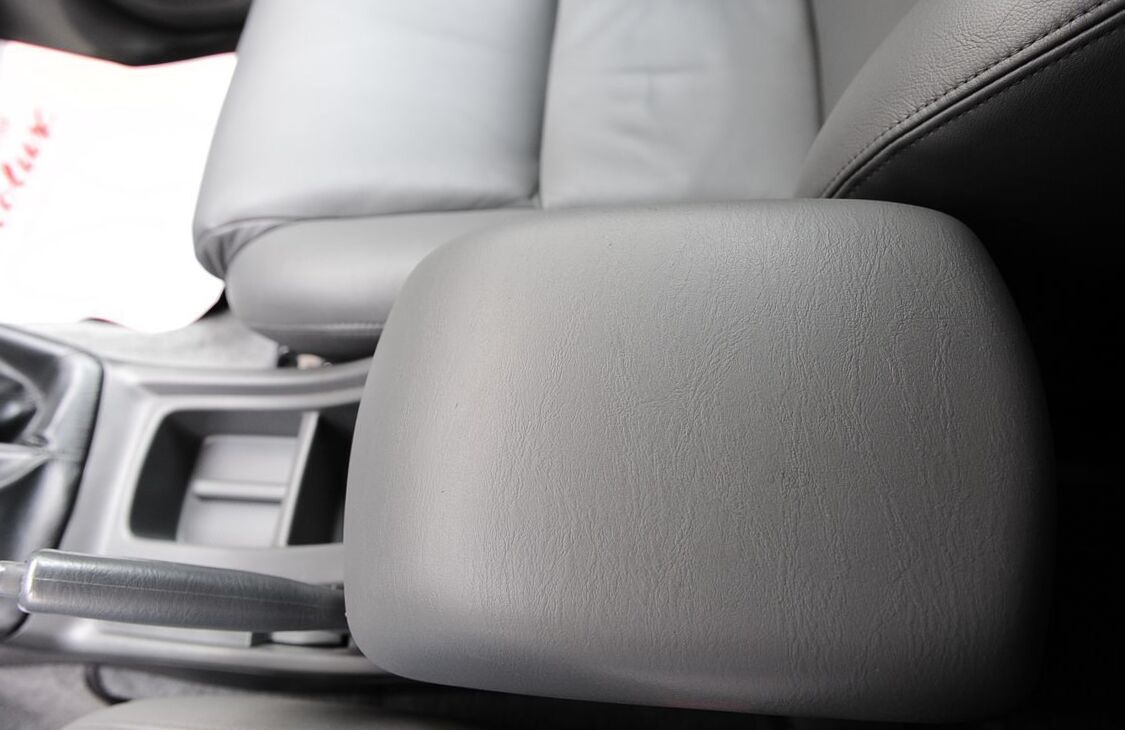

| Separating armrest front | yes |
| Separating armrest rear | no |
| Seats pockets | yes |
Electric interior package | |
| Power adjustable driver seat | yes |
| Power ajustable front seat | no |
| Front seat heater | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | no |
| Power window front | yes |
| Power window rear | yes |
Additional interior equipment | |
| Cooled glovebox | no |
| Smokers packet | yes |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | no |
Active and passive safety | |
| Glonass | no |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | no |
| Break assist | no |
| ESP | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Road sign recognition | no |
| Front sonar | no |
| Rear sonars | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| DVD-audio | no |
| MP3 Support | yes |
| Hands free | yes |
| Additional sound equipment | 6 speakers, AUX, USB |
Navigation and video equipment | |
| Full color LCD display | 6.1" |
| Navigation system | no |

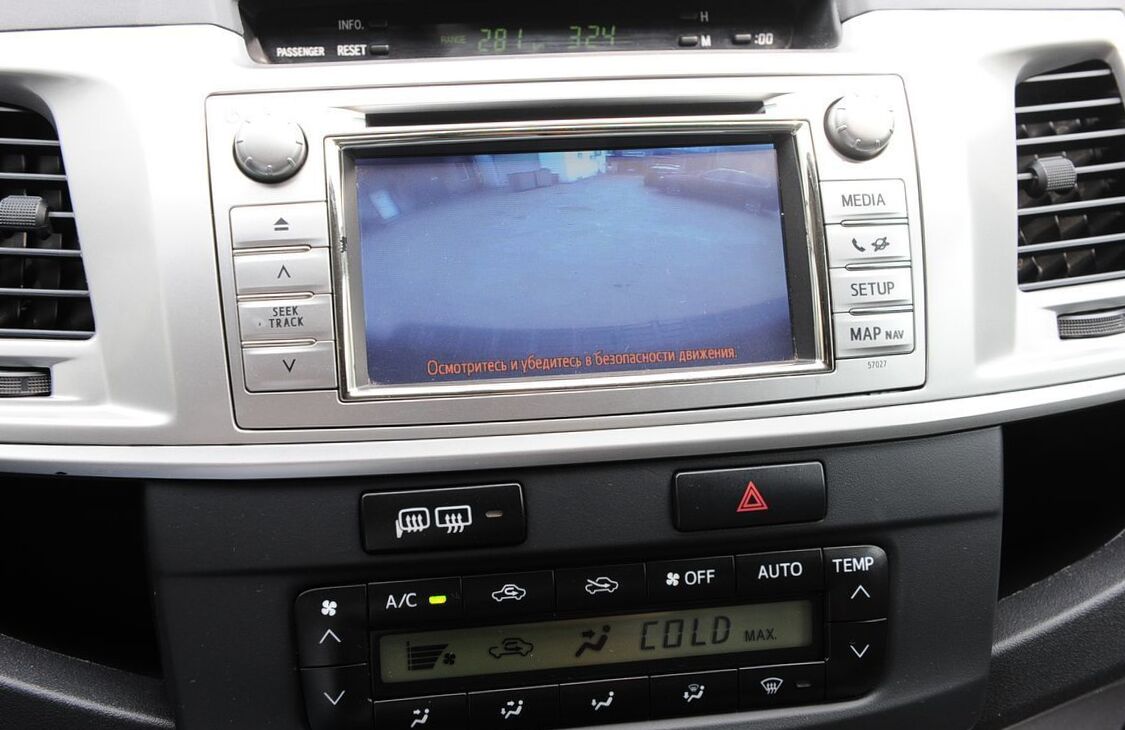

| Back monitor | yes |
Additional amenities | |
| Anti-glare effect | yes |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
Driver Kit | |
| Spare tire | yes |
2013 Toyota Hilux Pick Up VII KUN25L 2.5D MT Elegance (144 Hp) specs
|
As the Hilux name was dropped in the US in 1976, any details listed here purporting to relate to the Hilux from that date may not be entirely correct when applied to the vehicle that continues to be marketed by Toyota as the Hilux throughout the rest of the world. The product lines for the US and elsewhere diverged at that point and in many cases on a year for year basis the vehicles sold in the US only resemble the Hilux, with major mechanical/ chassis differences. 1935The original Toyota pickup was the 1935 Type G1 truck. It shared many components with the company's Type A1 sedan, and was a 1.5ton stake-bed commercial truck. 1947After World War II, Toyota returned with a compact pickup truck, the Toyopet Model SB. This was the ancestor of the Stout, and remained in production from 1947 through 1957. Engine:
1964Toyota entered the American market with the 1964 introduction of the second generation Stout. It was larger than the similar Datsun and Mazda compact trucks, and looked like a Chevrolet C/ K. » Read More About Toyota Hilux Pick Up |
