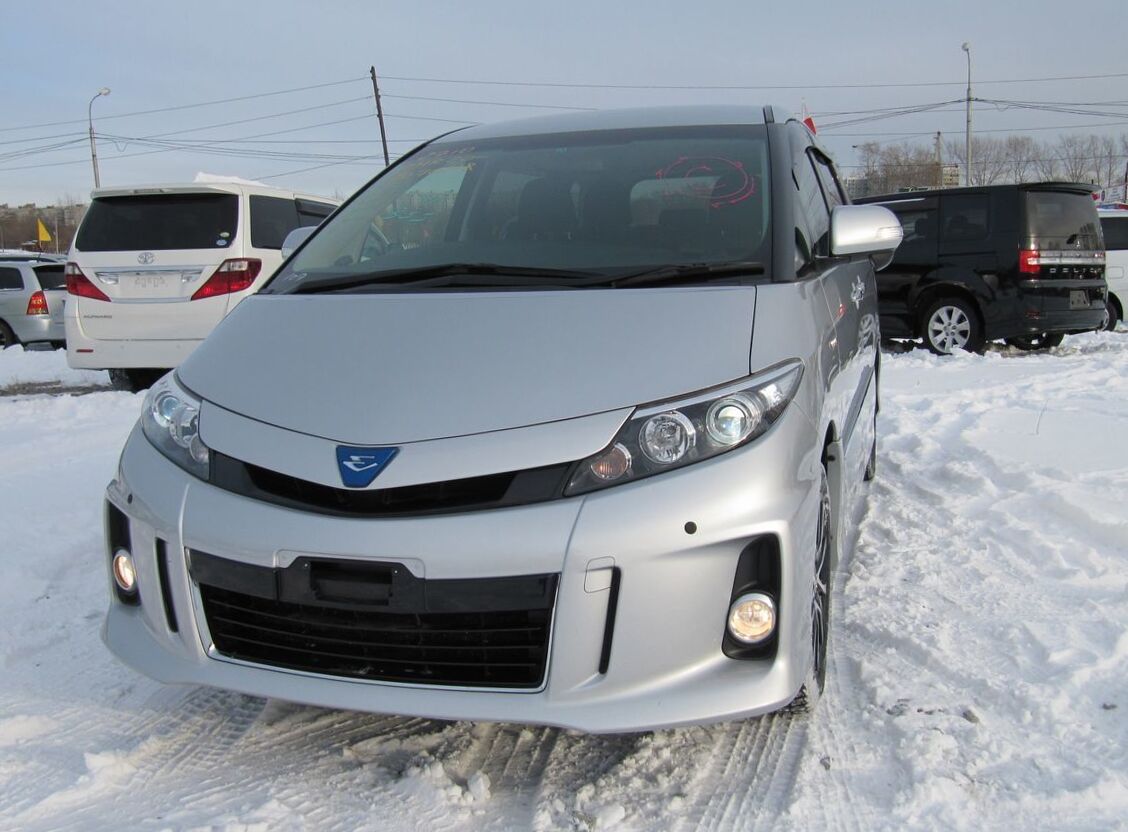

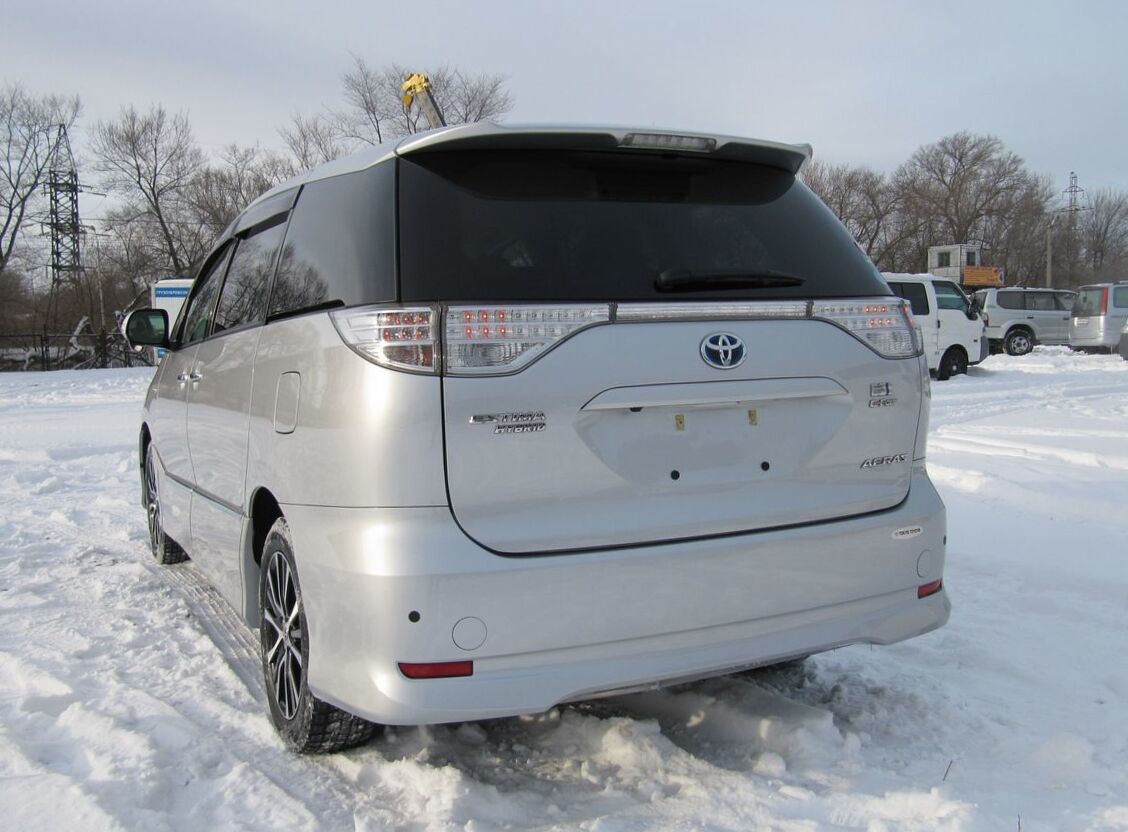

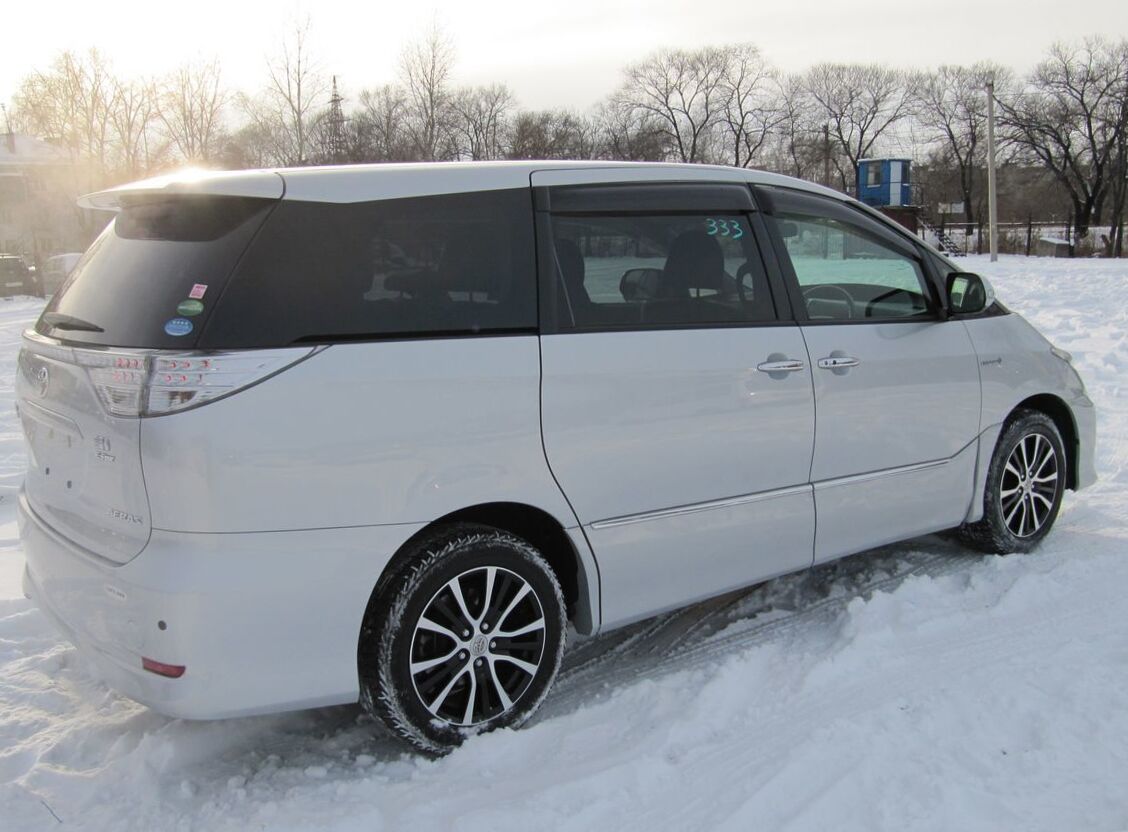

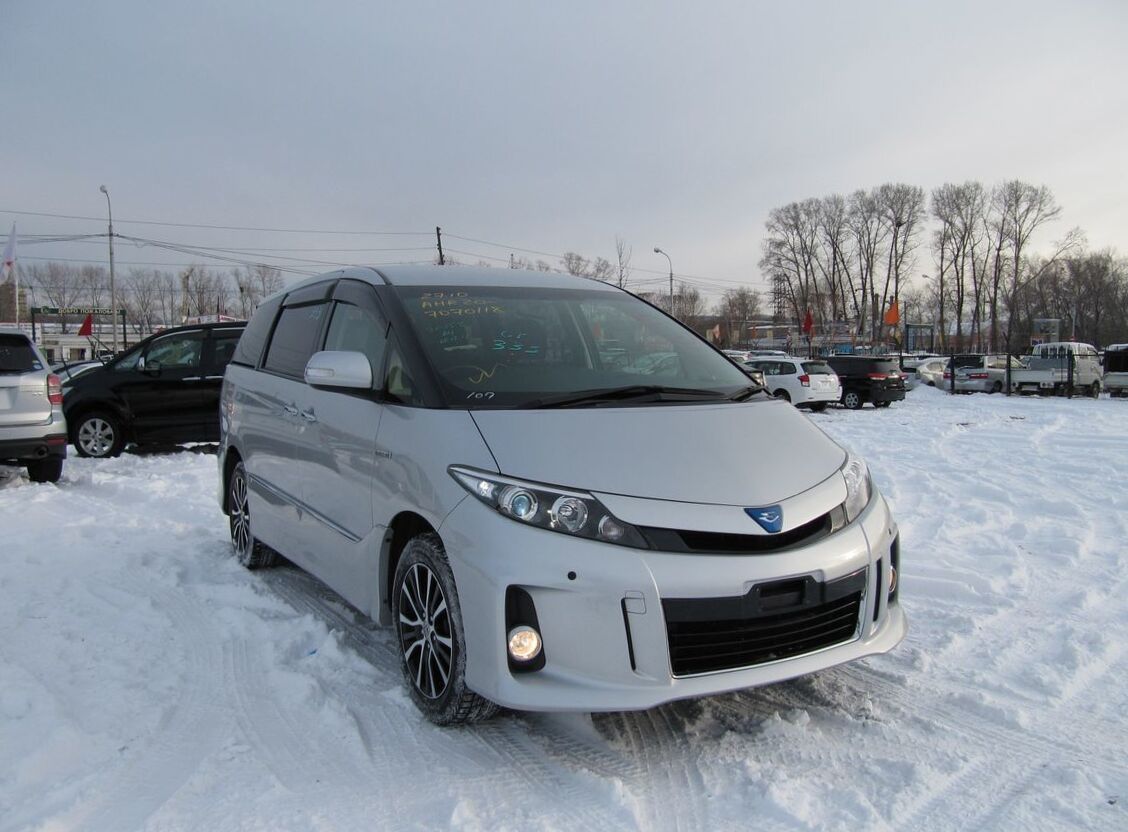

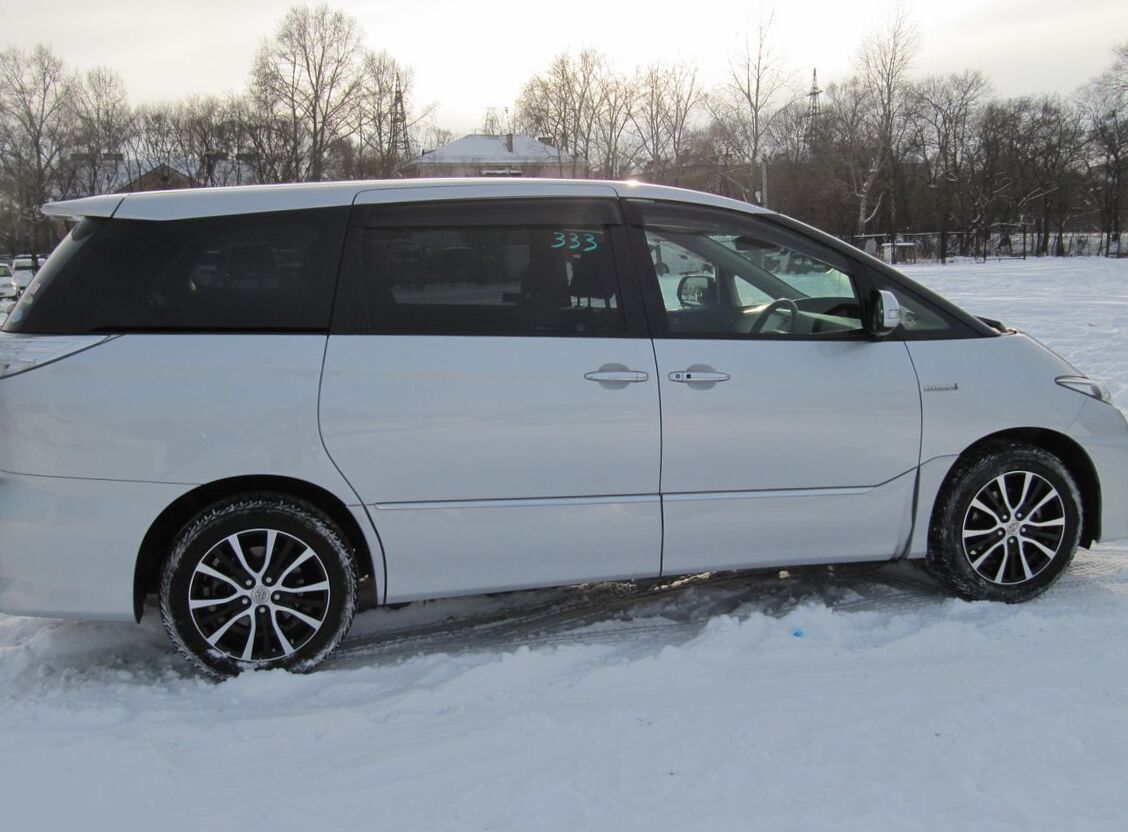

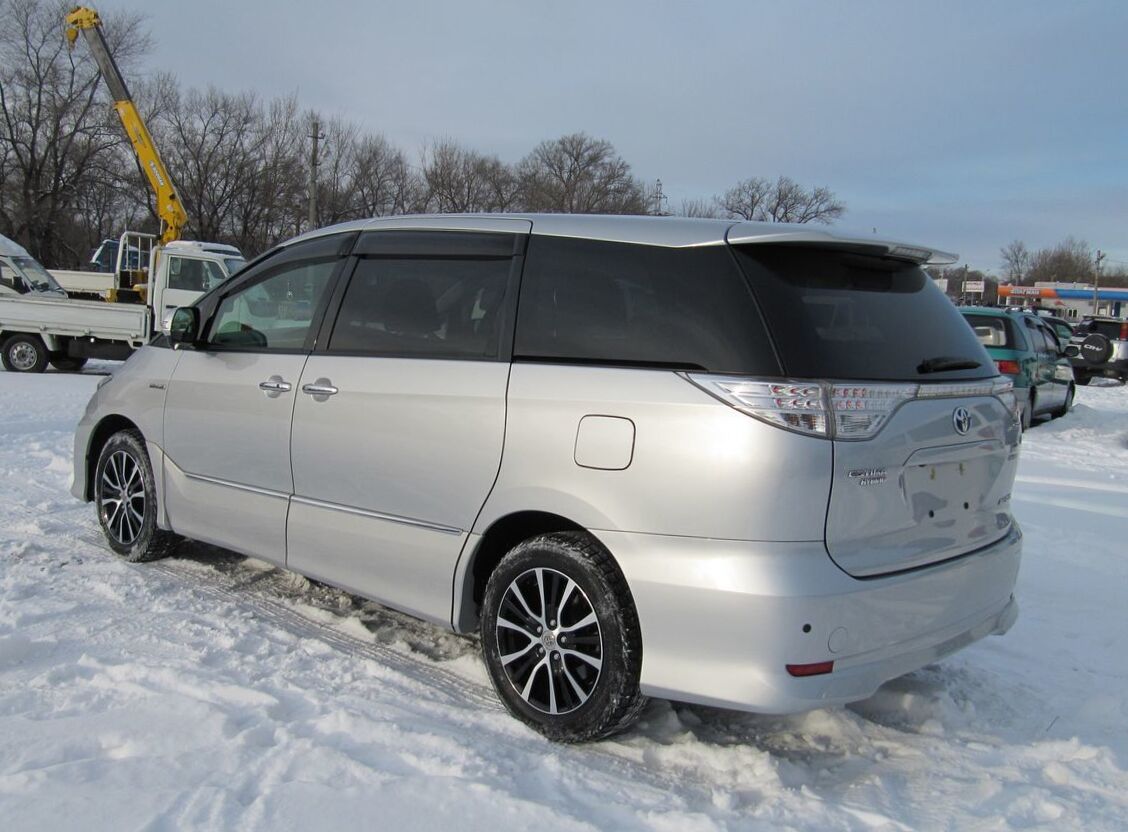

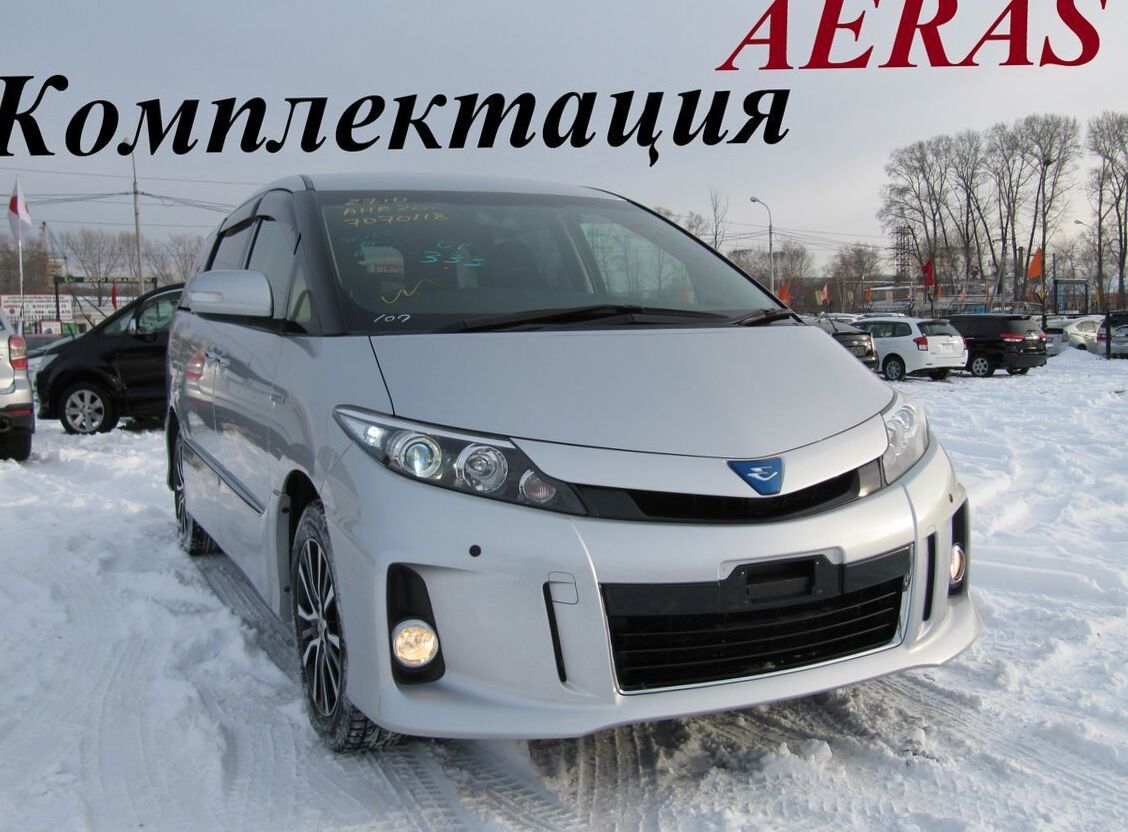

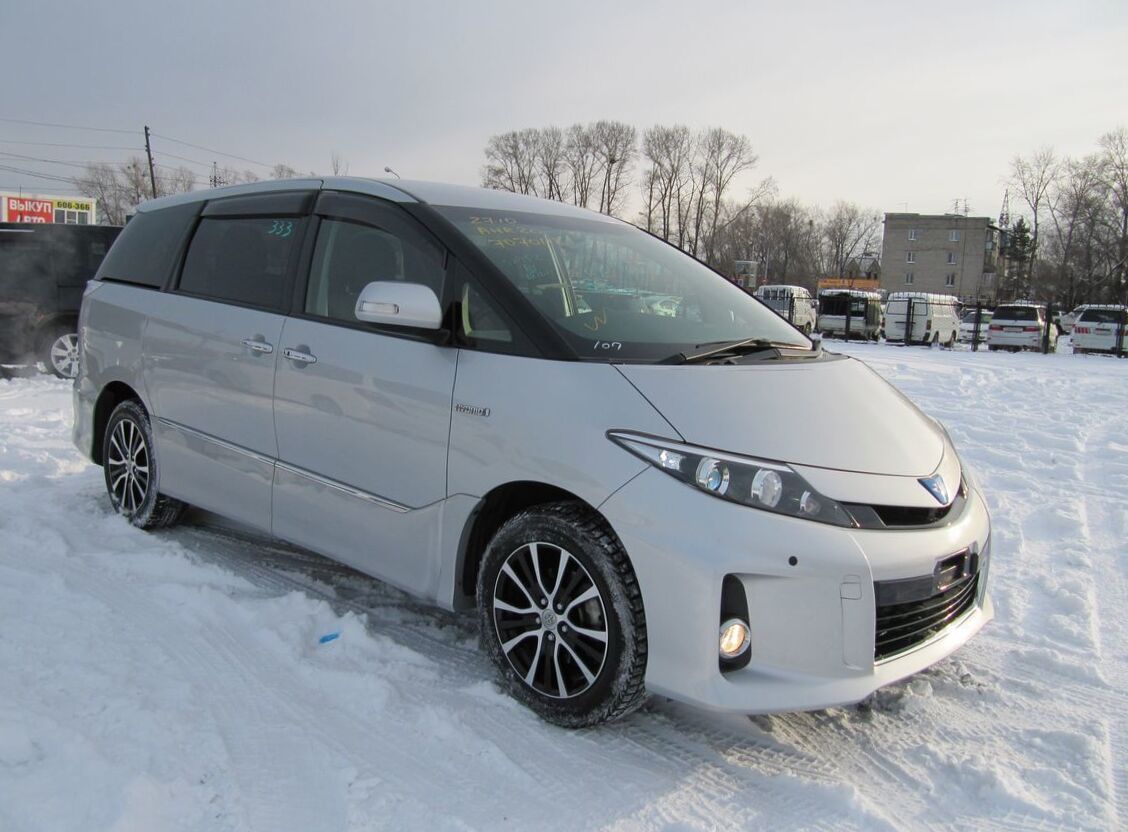

2013 Toyota Estima III 2.4 Aeras Premium Edition 4WD
More photos of Toyota Estima
Toyota Estima Problems
Non.repairable.tailshaft
1999,
I.had.mechanic.send.to.spicers.in.Sydney.fo.pps
sible.repair.they.ilnfomed.mechanic.it..w...
Toyota estim
2000, go to turn around corners feels like the
steering wheel is goibg to lock up ..pwersterin...
Not changing gear smoothly
2003, Transmission is not changing out
smoothly. It eventually burned and I have to
replace ...
Toyota Estima Problems
Non.repairable.tailshaft
1999,
I.had.mechanic.send.to.spicers.in.Sydney.fo.pps
sible.repair.they.ilnfomed.mechanic.it..w...
Toyota estim
2000, go to turn around corners feels like the
steering wheel is goibg to lock up ..pwersterin...
Not changing gear smoothly
2003, Transmission is not changing out
smoothly. It eventually burned and I have to
replace ...
| Body type | Minivan |
|---|---|
| Power | 150 Hp |
| Engine Displacement | 2400 cm3 or 2.4L or 146.4 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |

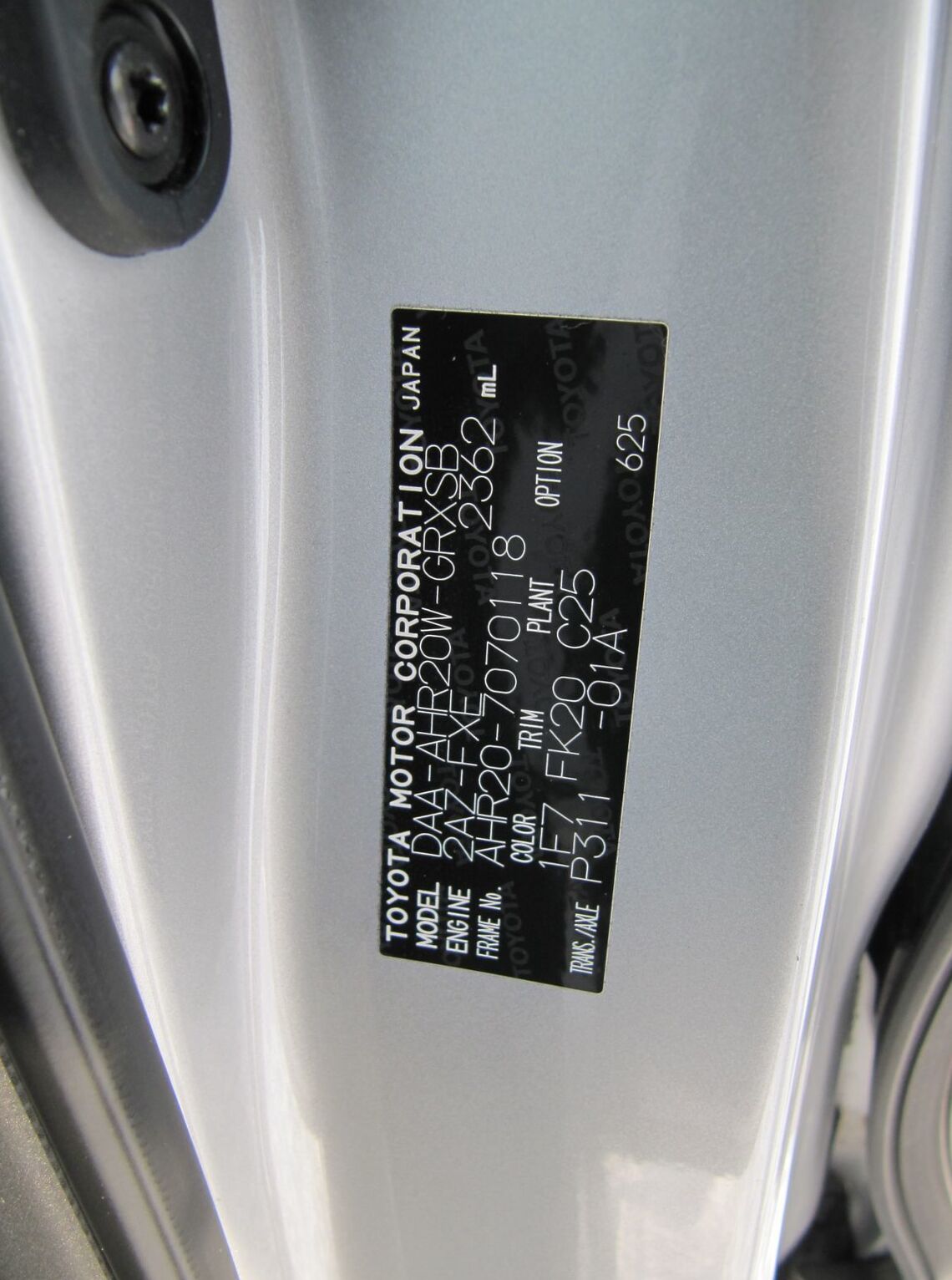

| Vin | AHR20-7****18 |
| Price (out of date) | $22921 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2013 Toyota Estima III? | Minivan, 7 Seats, 5 Doors |
| How much power, Toyota Estima Minivan 2013? | 150 Hp |
| What is the engine size, Toyota Estima DAA-AHR20W 2013? | 2.4L or 2362cm3 |
| How many gears, What type is the gearbox, 2013 Toyota Estima 2.4 Aeras Premium Edition 4WD? | Variator |
| What is the drivetrain, Toyota Estima III 2013 Minivan 2.4 Aeras Premium Edition 4WD (150 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2013 Toyota Estima Minivan 2.4 Aeras Premium Edition 4WD (150 Hp)? | 4815 mm |
| How wide is the vehicle, 2013 Toyota Estima III? | 1820 mm |
Toyota Estima III DAA-AHR20W 2.4 Aeras Premium Edition 4WD (150 Hp) 2013, 2014 Specs
General information | |
|---|---|
| Production start year | 2013 |
| Production end year | 2014 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | Variator |
| Engine volume, cc | 2362 |
| Frame name | DAA-AHR20W |
| Clearance, mm | 160 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | option |
| Steering locaton | right |
| Hybrid | yes |
Vehicle generation | |
| Generation name | AHR20, XR50 |
| Generation number | 3 |
| Facelift number | 2 |
| Production start year | 2012 |
| Production end year | 2016 |
Engine, transmission and steering specs | |

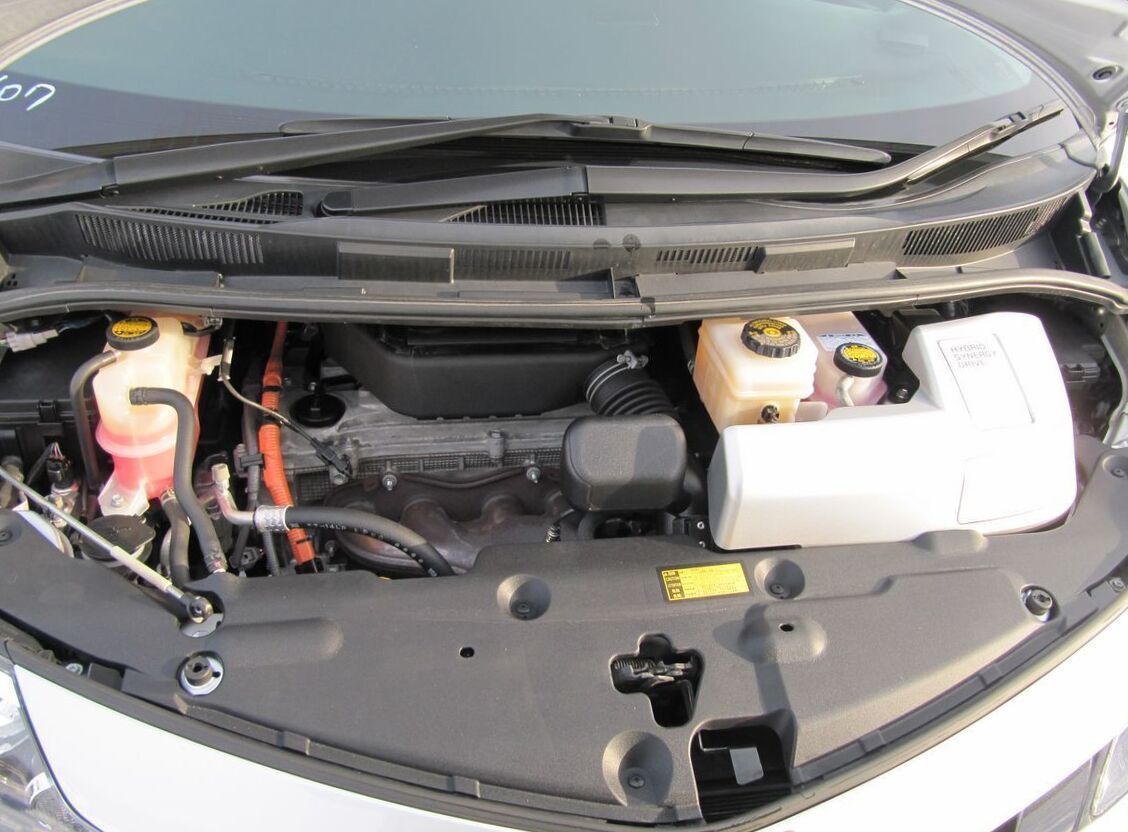

Engine specs | |
| Engine name | 2AZ-FXE |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 150 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 150 (110) / 6000 |
| Max torque, N*m | 190 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 190 (19) / 4000 |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | no |
| Start stop system | yes |
Electric Power | |
| Electro Max power, (kWt) | 105 |
| Electro Max torque, Nm | 270 |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with 2015 fuel consumption standard +20% |
Transmission | |
| Shifter position | On the dashboard |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4815 |
| Exterior width, mm | 1820 |
| Exterior height, mm | 1760 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
| Interior length, mm | 3010 |
| Interior width, mm | 1580 |
| Interior height, mm | 1255 |
Chassis dimensions | |
| Wheel base, mm | 2950 |
| Front axle length, mm | 1545 |
| Rear axle length, mm | 1550 |
| Turning radius, m | 5.7 |
| Wheel spacing front | 1545 |
| Wheel spacing rear | 1550 |
Weight and permissible load | |
| Mass, kg | 1960 |
| Total weight | 2345 |
Volumes | |
| Fuel tank capacity, l | 65 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |

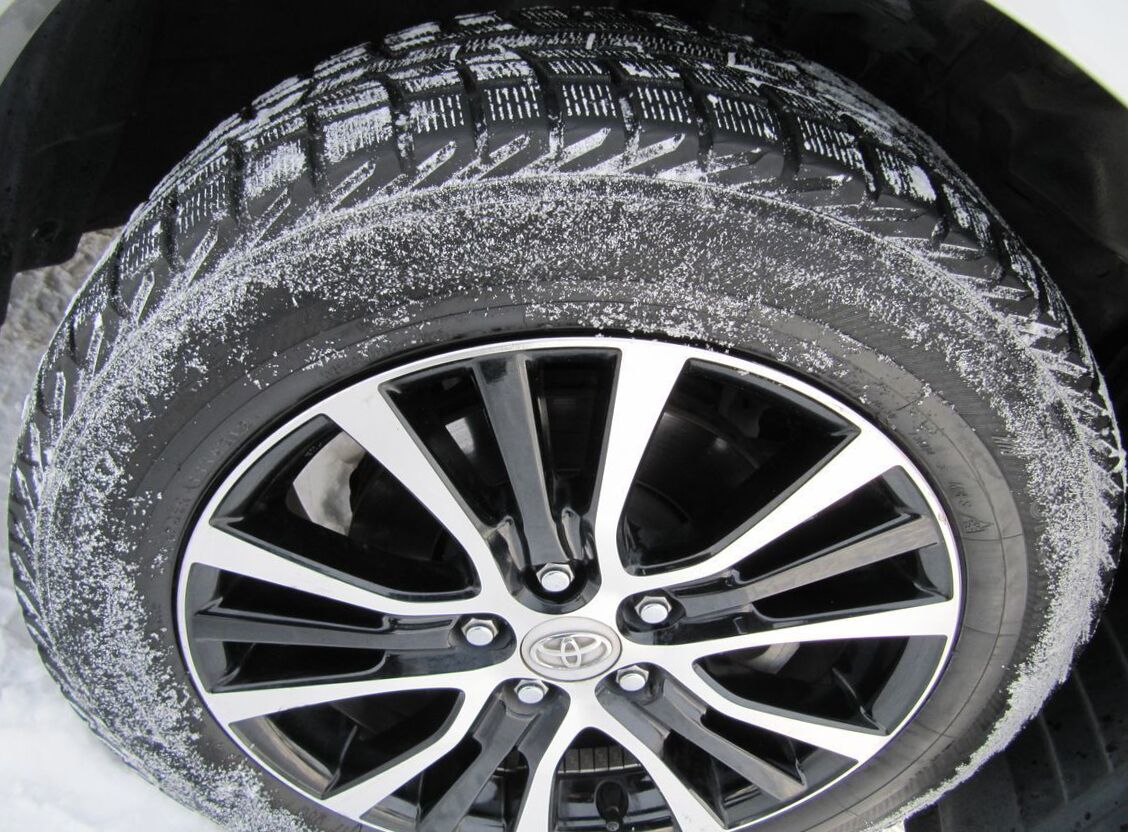

Tires | |
| Front wheels | 215/60R17 |
| Rear wheels | 215/60R17 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Brakes equipment | no |
Exterior | |
Headlights | |
| Xenon lamps | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |

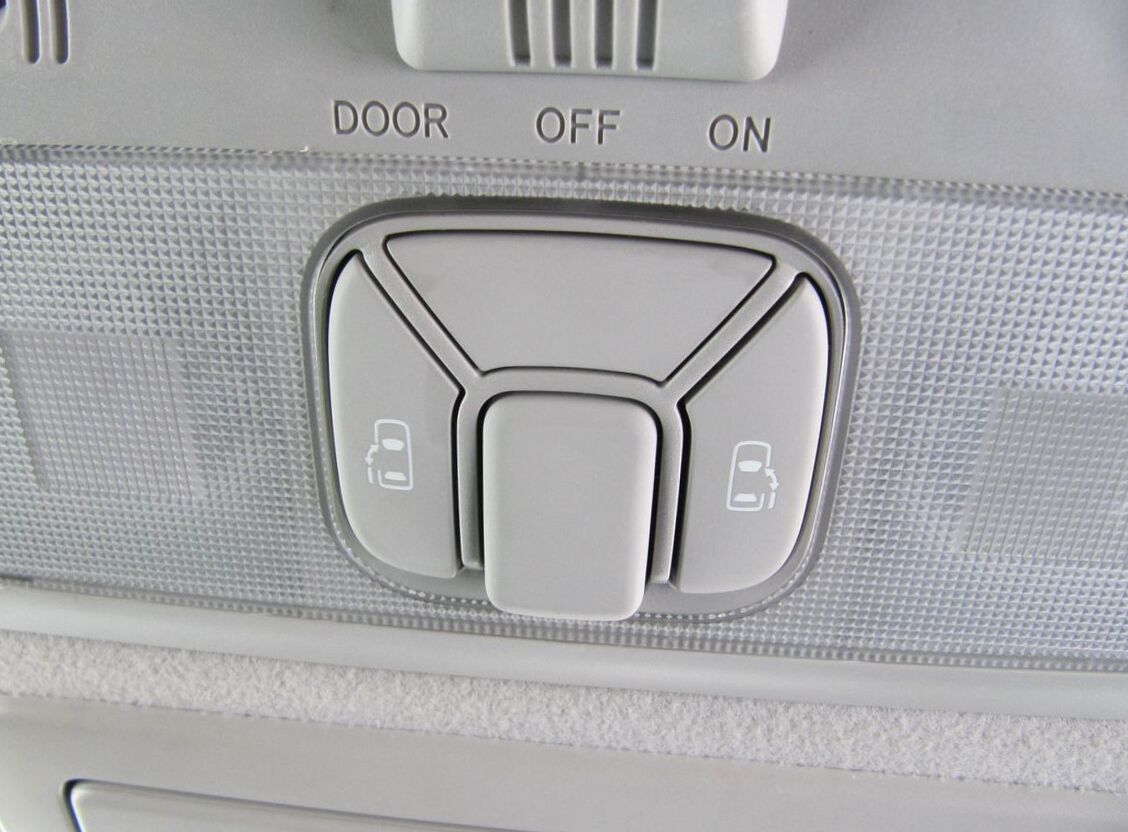

| Sliding electric doors | yes |
| Door easy closer | yes |
| Power rear door | option |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | option |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | yes |
| Rear spoiler | yes |
Interior | |
Steering wheel and center panel | |

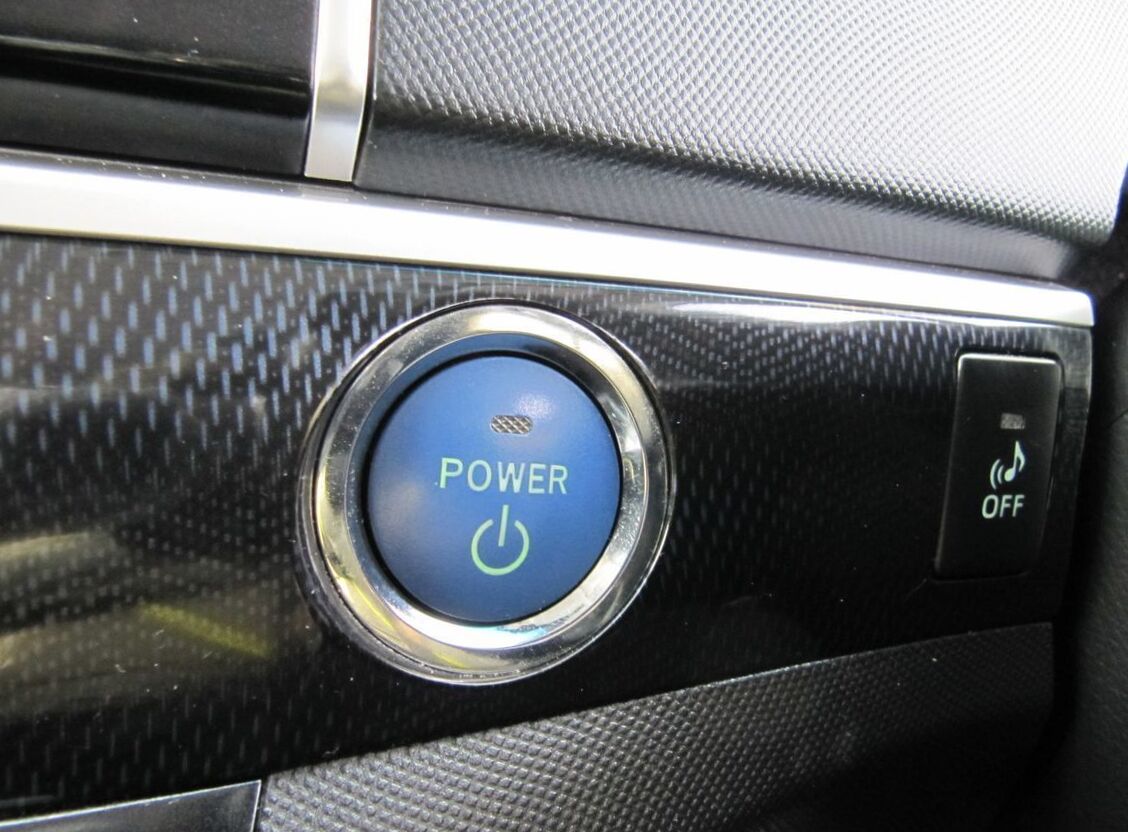

| Engine start button | yes |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |

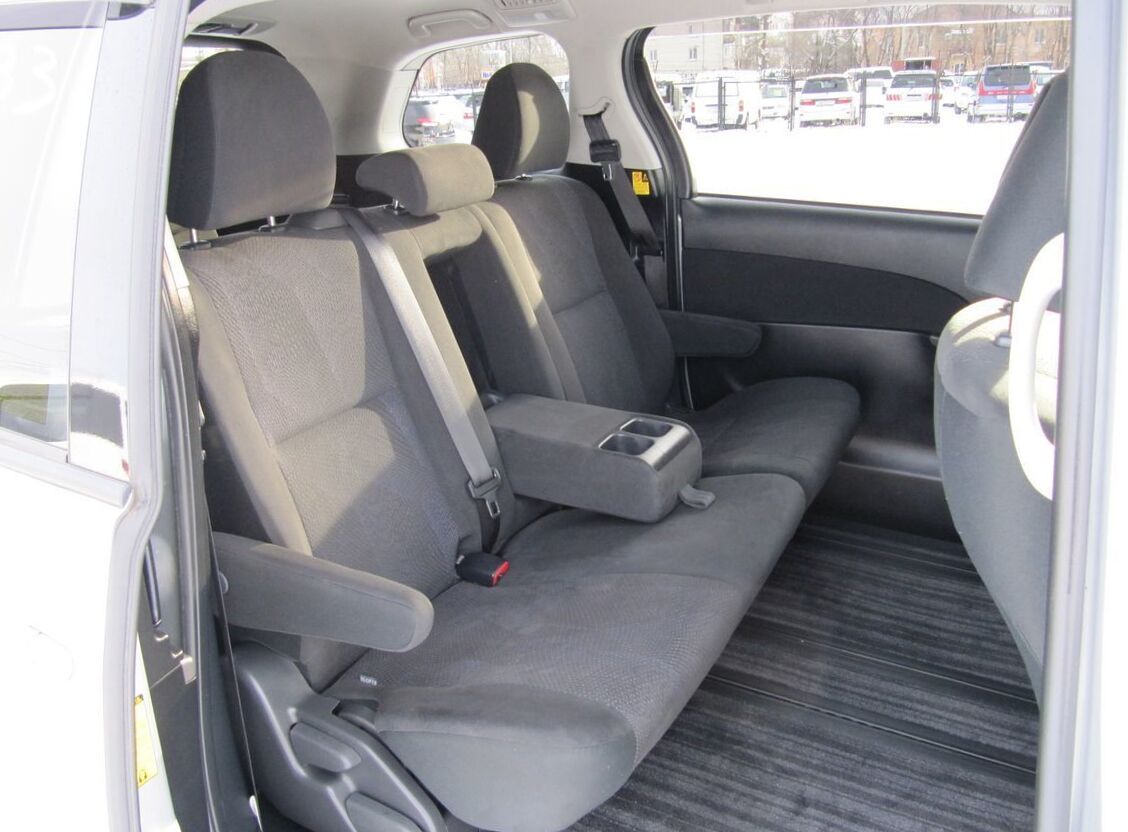

Seats | |
| Bucket seat | no |
| 3nd row | 60/40 ratio fold seat |
| Seat lifter | yes |
| Full flat seats | no |
| Removable seats | no |
| Ottoman seat | yes |
| Front bench seat | no |
| Walk throught | no |
| 2nd row throught | yes |
Electric interior package | |

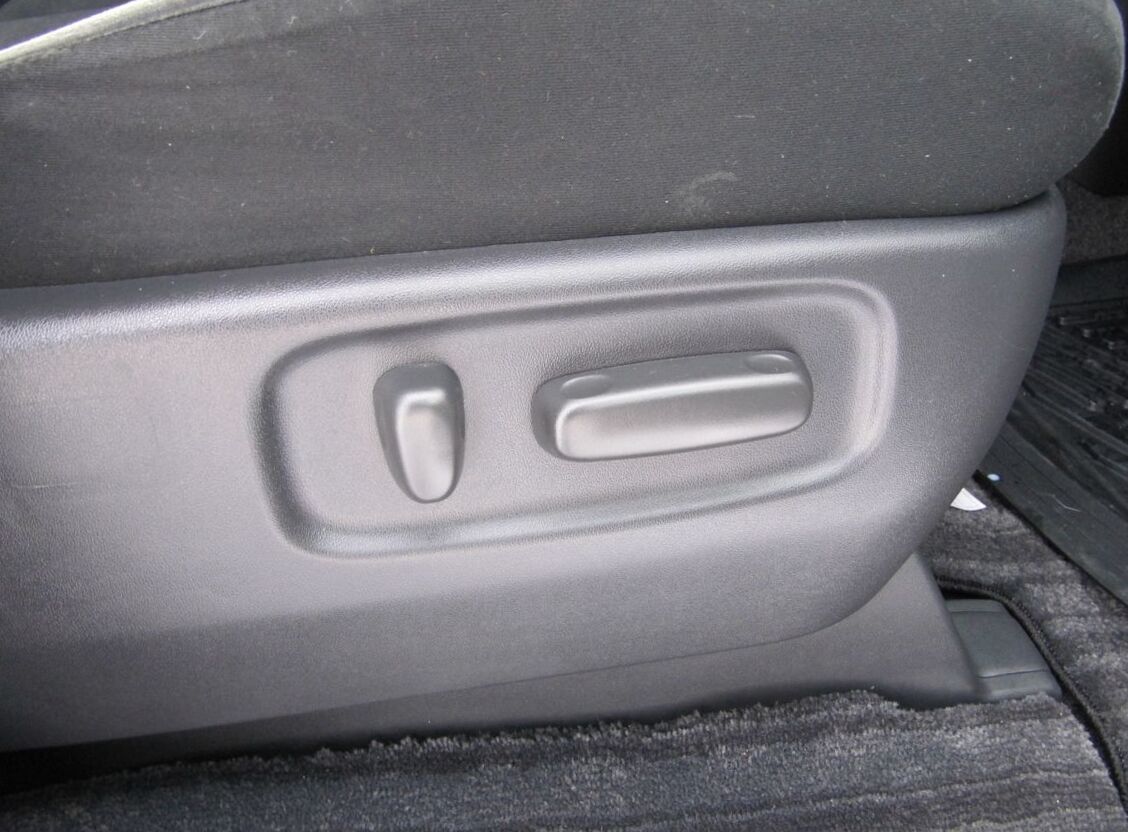

| Power adjustable driver seat | yes |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |

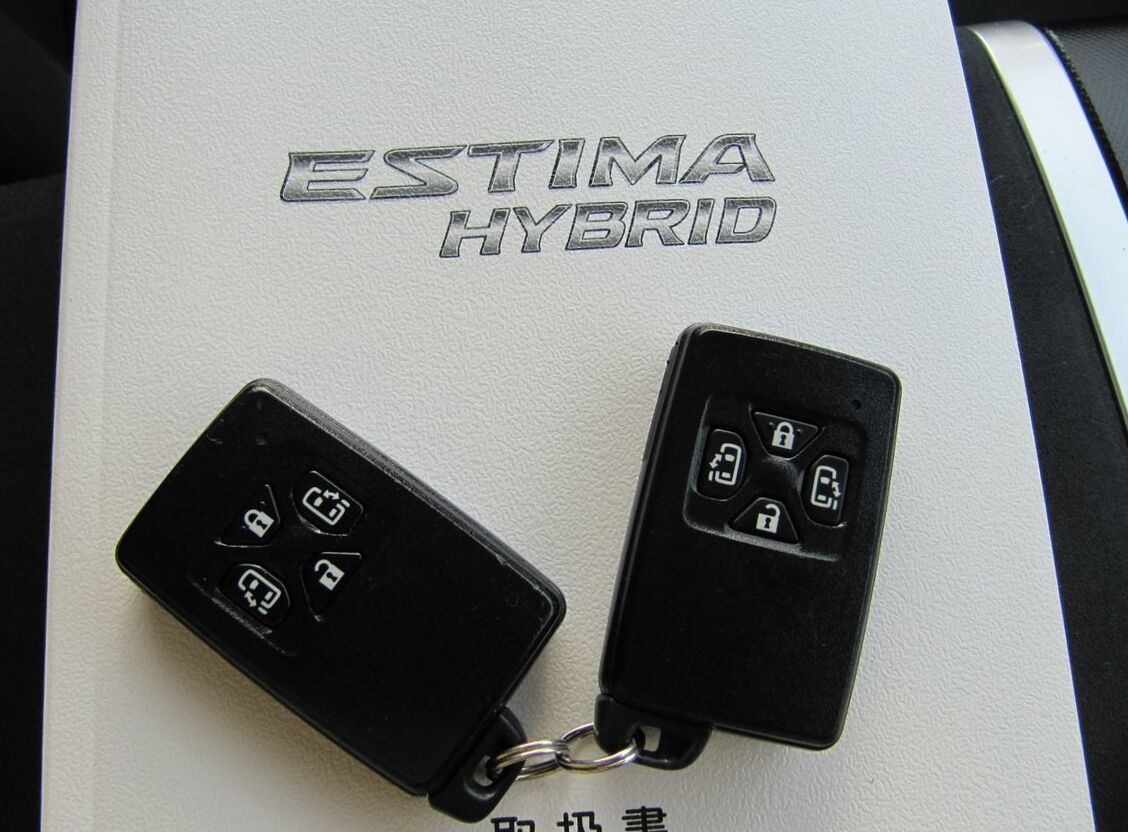

| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
| Curtain airbags | option |
| 2 airbags | option |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | yes |
| Distance control system | no |
| Intelligent AFS | yes |
| Night vision | no |

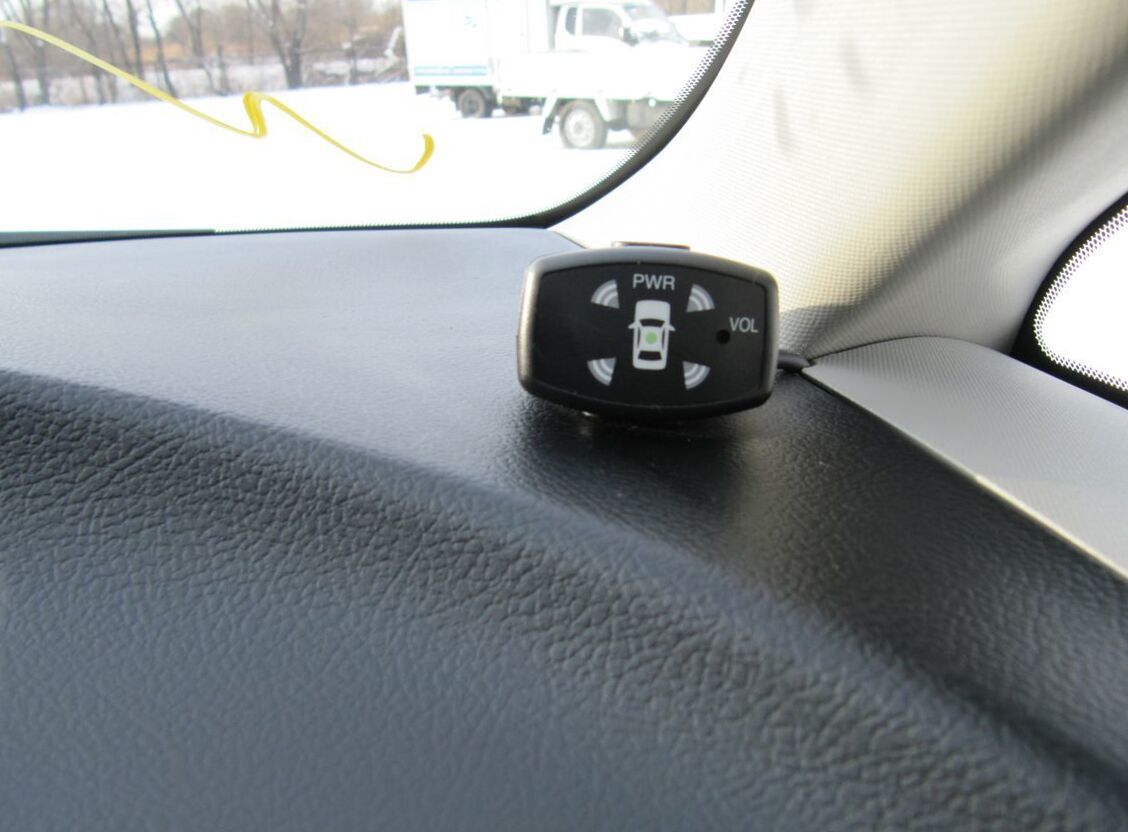

| Parktronic | yes |
| Intelligent parking assist | yes |
| Collision mitigation system | no |
Amenity | |

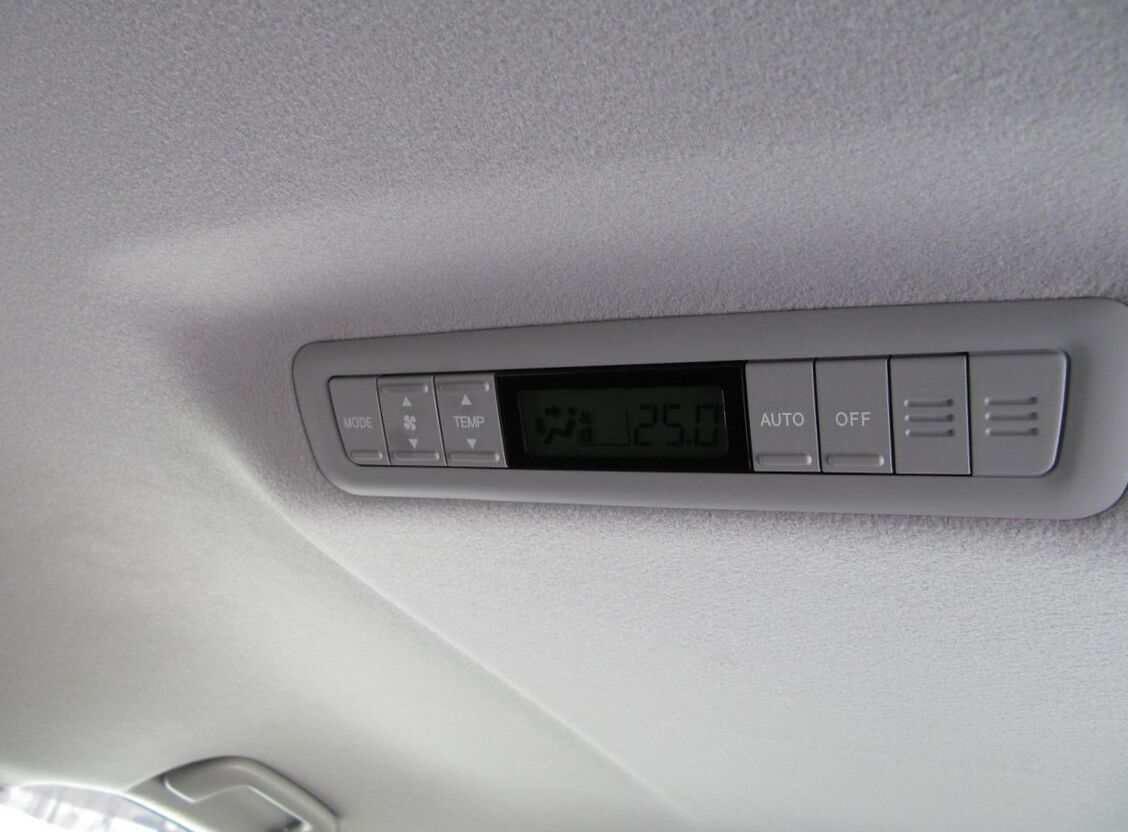

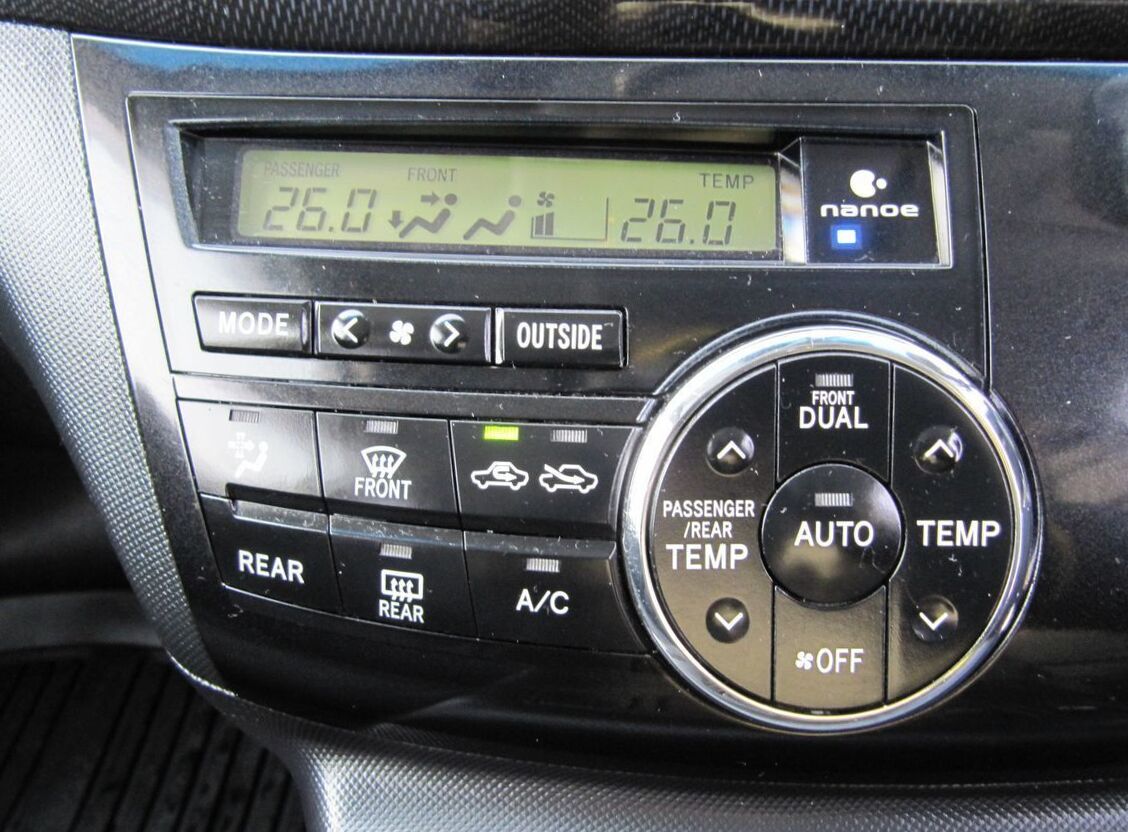

Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |

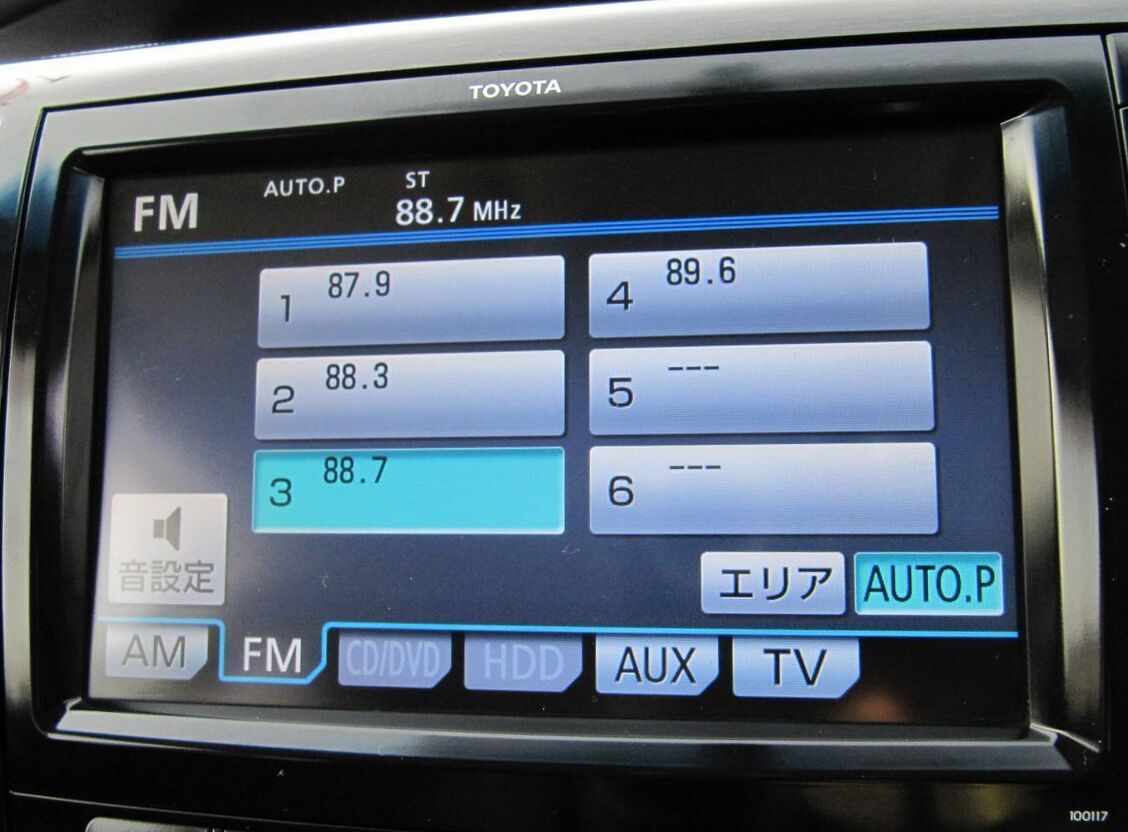

Audio systems | |
| Radio | option |
| Autoreverse casette | no |
| CD player | option |
| DVD-audio | option |
| MD palyer | no |
| Audio HDD | option |
| Speaker | yes |
| Rear entertainment system | option |

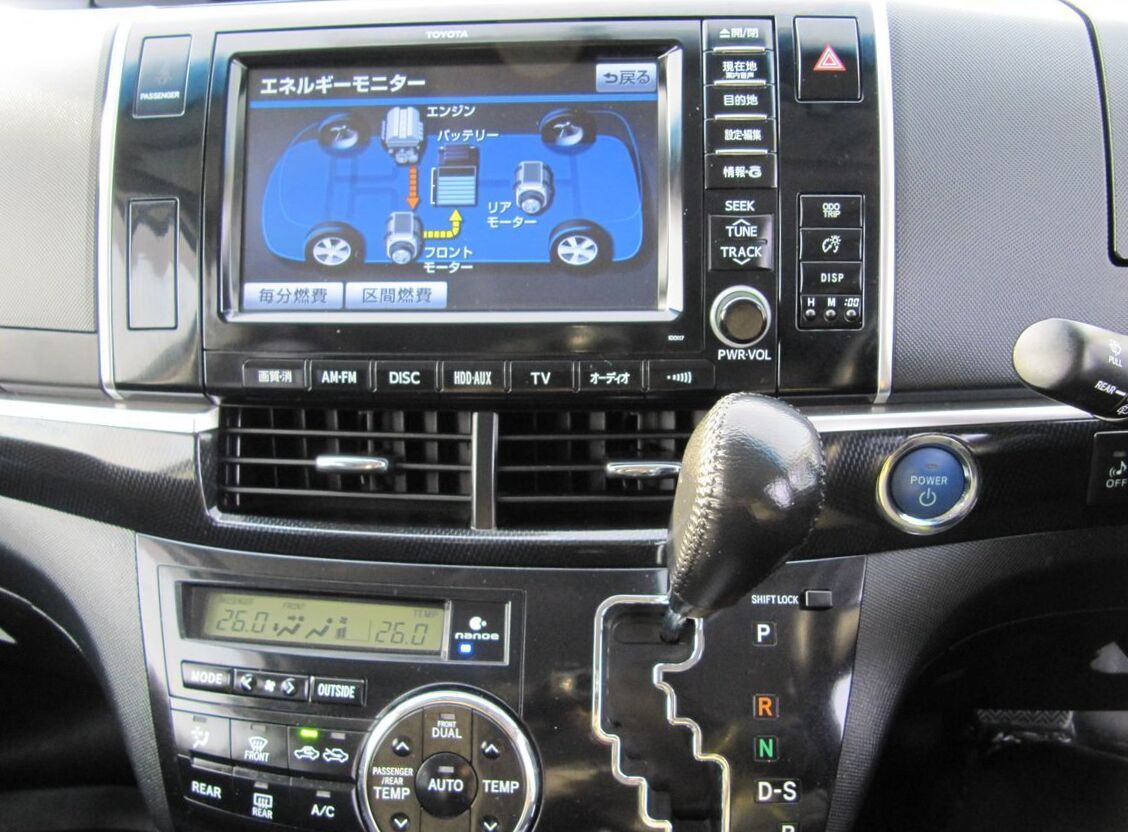

Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
| Optional navigation system | no |
| Traffic jam assist | yes |
| Parking assist system | yes |
| Front monitor | yes |
| Sides monitors | yes |

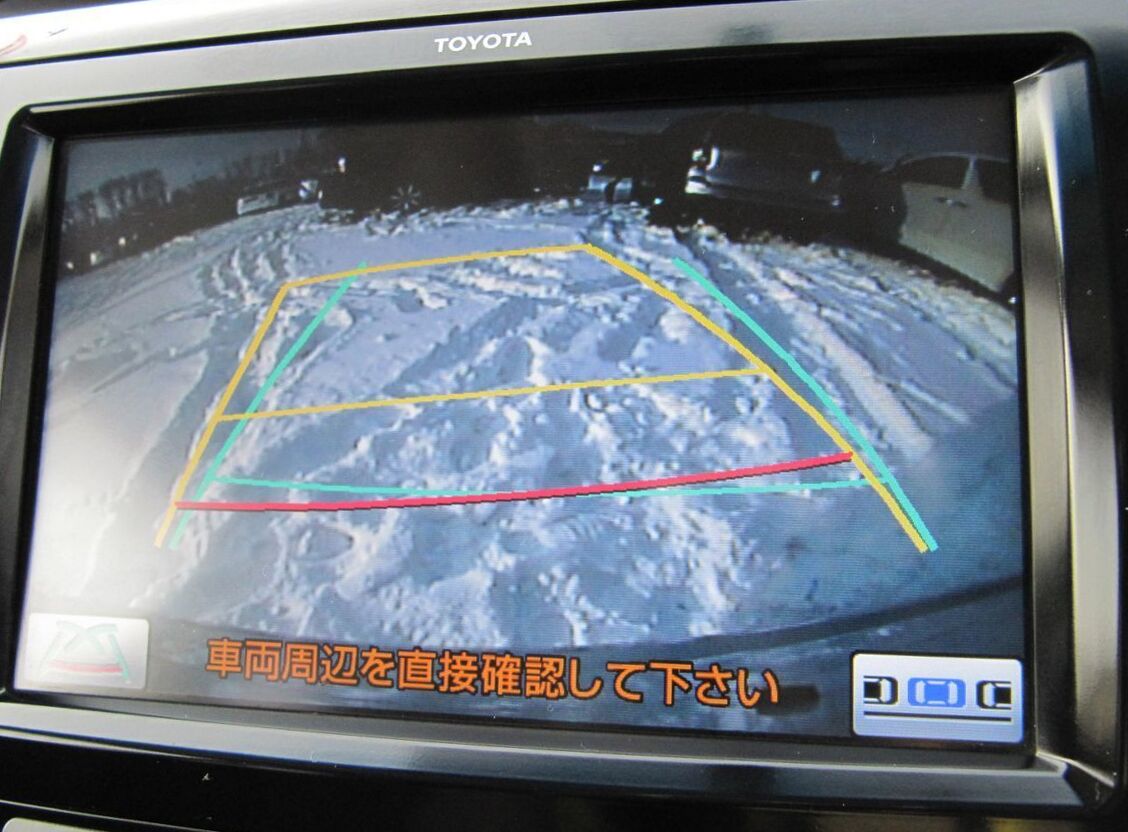

| Back monitor | yes |
Additional amenities | |
| Lagage box | yes |
Car safety | |
| Alarm system | yes |
| Security alarm | option |
2013 Toyota Estima III DAA-AHR20W 2.4 Aeras Premium Edition 4WD (150 Hp) specs
|
The first generation, introduced in 1990, had only one sliding side door for the rear passengers. It featured a unique mid-engined platform, where the in-line 4-cylinder gasoline-powered engine was installed almost flat (at a 75-degree angle), beneath the front seats. Installing the engine in this configuration allowed easy access to the spark plugs, which were located underneath a panel on the upper right-side of the vehicle, after tilting the front seat backward. All engine-driven accessories, such as the alternator, power steering pump, air conditioning compressor, and radiator fan, are accessible from the front hood, driven off the front of the engine by an accessory driveshaft, and is known as the Supplemental Accessory Drive System, or "SADS." This allows for even front/ rear weight distribution, which benefits ride quality and handling. However, it also prevents the installation of a larger engine, while the cost could not be relayed by sharing the platform with other vehicles.[citation needed] » Read More About Toyota Estima |
