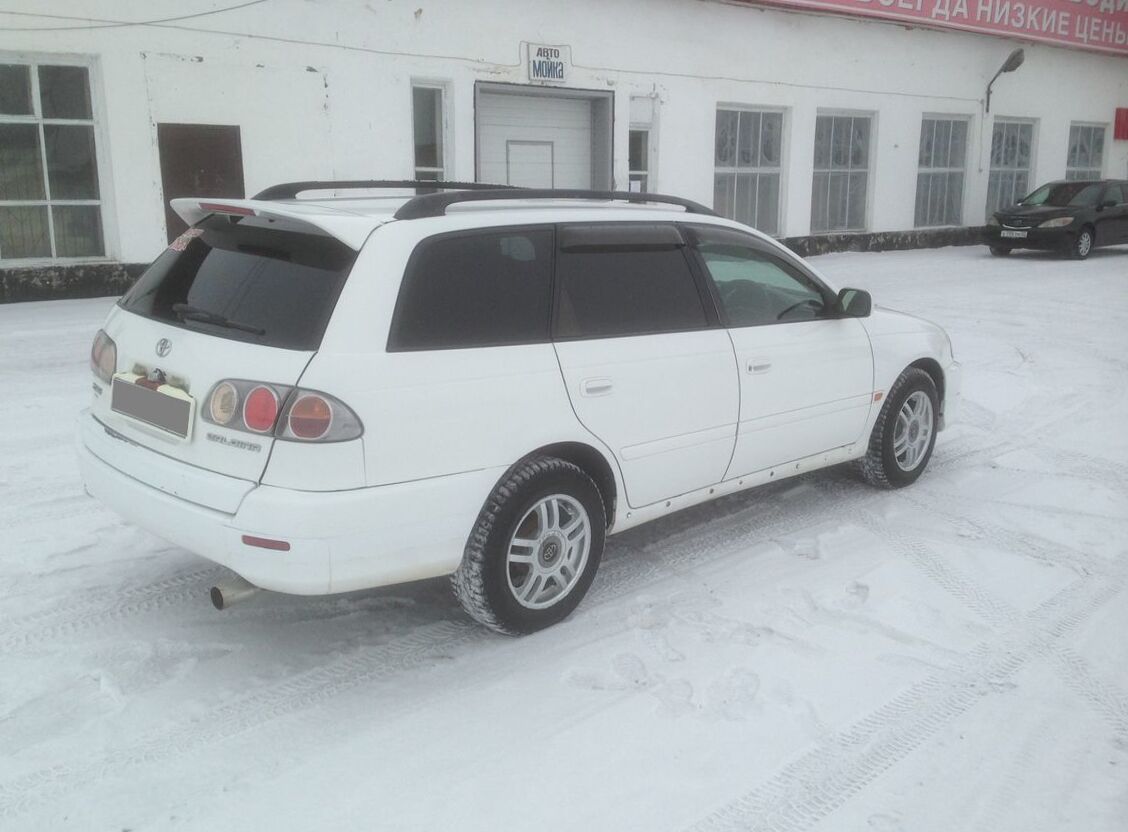

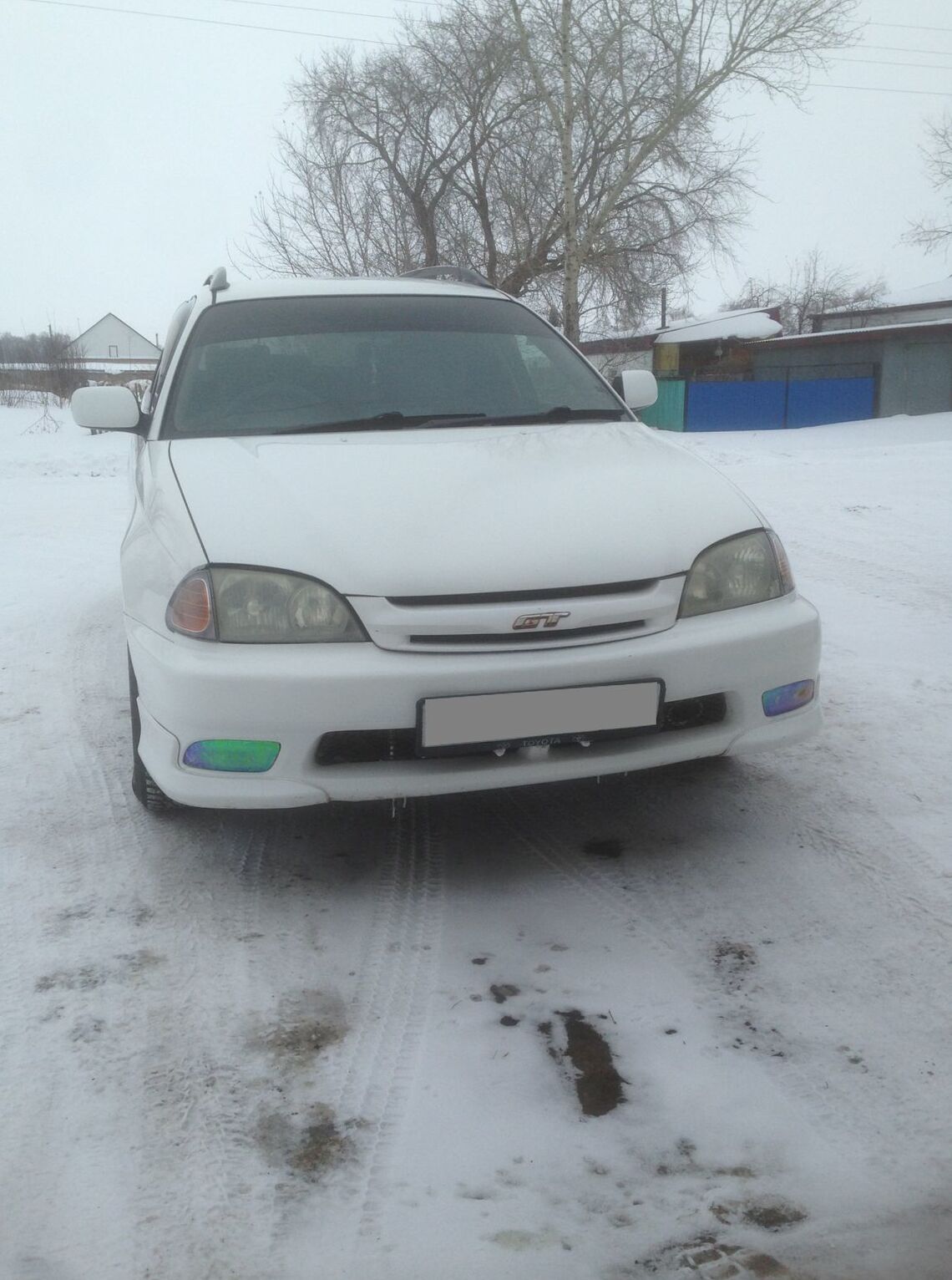

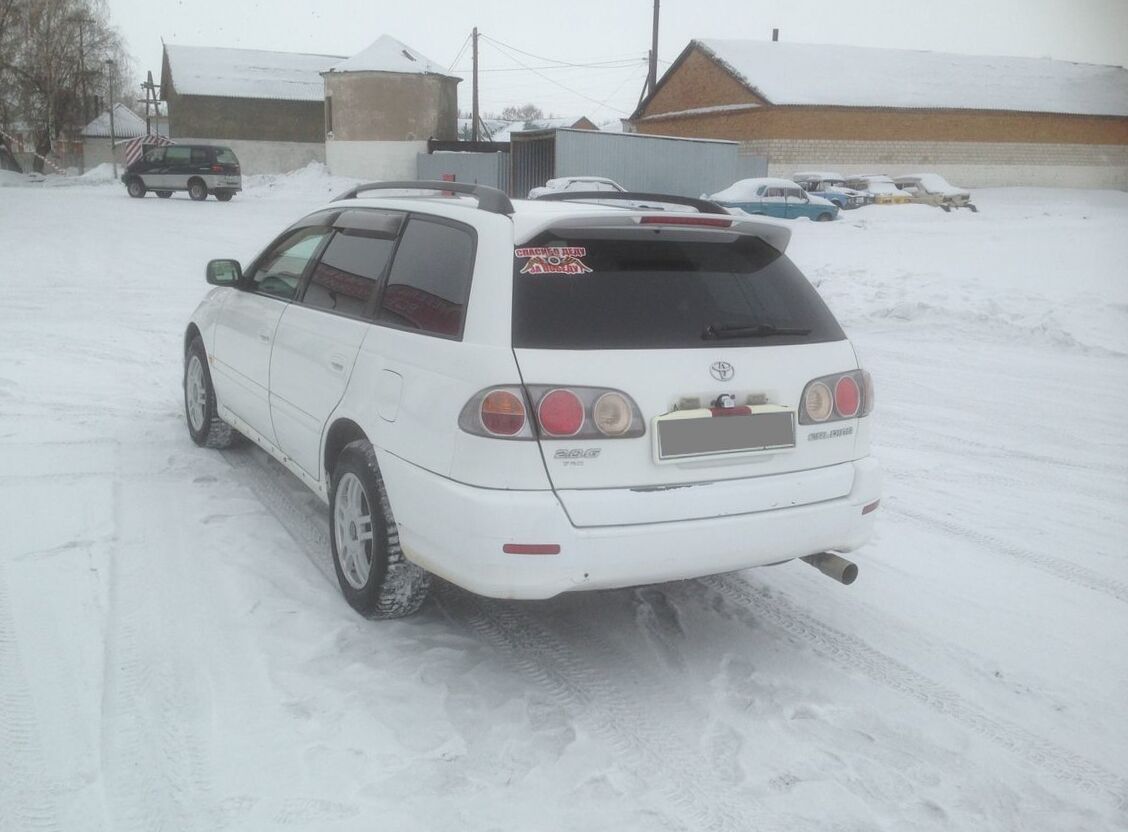

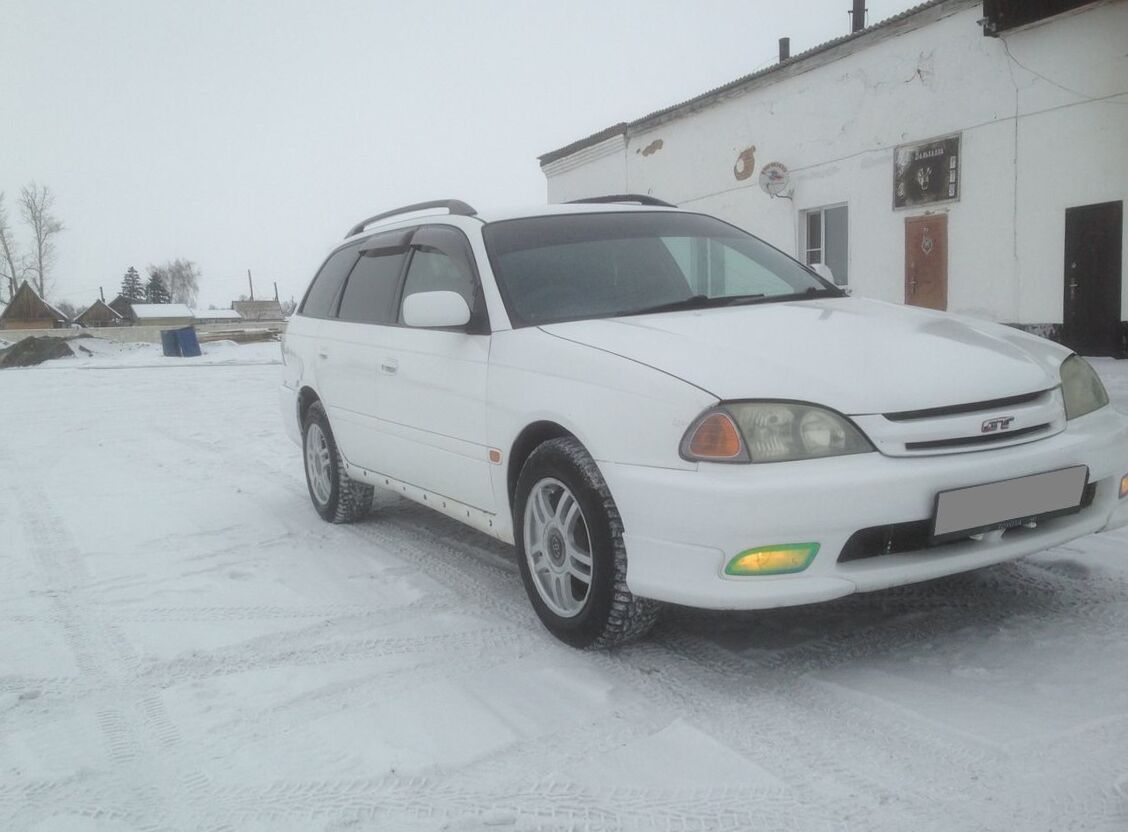

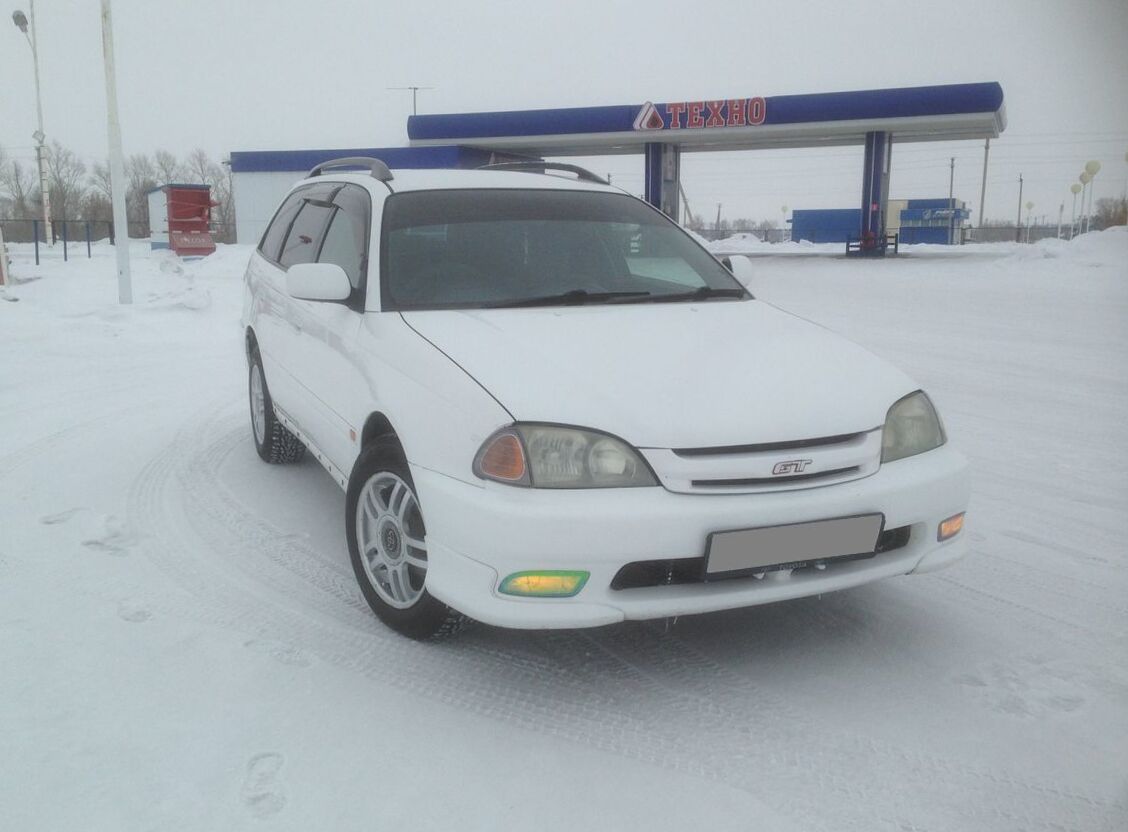

1990 Toyota Caldina II 2.0 G
Toyota Caldina Problems
Car not driving in any gear
1999, Car will not drive in any gear tried in
tiptronic mode and still won't move have
ch...
Engine hard start
1995, Thisonce vehicle was once washed on these
side of d the engine and after a few hours was...
No Service Manual in English available for this...
1993, Problems with starting system. No service
manual available in English. Extremely diffic...
| Body type | Wagon |
|---|---|
| Power | 140 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Vin | ST210-4****62 |
| Price (out of date) | $4123 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 1990 Toyota Caldina II? | Universal, 5 Seats, 5 Doors |
| How much power, Toyota Caldina Universal 1990? | 140 Hp |
| What is the engine size, Toyota Caldina GF-ST210G 1990? | 2L or 1998cm3 |
| How many gears, What type is the gearbox, 1990 Toyota Caldina 2.0 G? | Automatic transmission 4 |
| What is the drivetrain, Toyota Caldina II 1990 Universal 2.0 G (140 Hp)? | Front |
| How long is this vehicle, 1990 Toyota Caldina Universal 2.0 G (140 Hp)? | 4570 mm |
| How wide is the vehicle, 1990 Toyota Caldina II? | 1695 mm |
Toyota Caldina II GF-ST210G 2.0 G (140 Hp) 2000, 2001, 2002 Specs
General information | |
|---|---|
| Complectation name | 2.0 G |
| Production start year | 2000 |
| Production end year | 2002 |
| Price of new car in Tokyo, yen | 2078000 |
| Drive type | Front |
| Frame type | Universal |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1998 |
| Frame name | GF-ST210G |
| Clearance, mm | 155 |
| Manufacturing country | Japan |
| Doors | 5 |
| Right hand drive | yes |
| Left hand drive | no |
Vehicle generation | |
| Generation name | T210 |
| Generation number | 2 |
| Facelift number | 1 |
| Production start year | 2000 |
| Production end year | 2002 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | 3S-FE |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 140 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 140 (103) / 6000 |
| Max torque, N*m | 186 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 186 (19) / 4400 |
| Valves per cylinder | 4 |
| Compression ratio | 9.5 |
| Bore, mm | 86 |
| Stroke, mm | 86 |
| Actuator valves | DOHC |
Fuel consumption | |
| Fuel consumption (10/15 mode), l/100km | 8.3 |
Transmission | |
| 1st gear ratio | 3.643 |
| 2nd gear ratio | 2.008 |
| 3rd gear ratio | 1.296 |
| 4th fear ratio | 0.892 |
| Rear gear ratio | 2.977 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4570 |
| Exterior width, mm | 1695 |
| Exterior height, mm | 1475 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior length, mm | 1860 |
| Interior width, mm | 1475 |
| Interior height, mm | 1185 |
Chassis dimensions | |
| Wheel base, mm | 2580 |
| Front axle length, mm | 1465 |
| Rear axle length, mm | 1450 |
| Turning radius, m | 5.3 |
| Wheel spacing front | 1465 |
| Wheel spacing rear | 1450 |
Weight and permissible load | |
| Mass, kg | 1280 |
Volumes | |
| Fuel tank capacity, l | 60 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent, Spring McPherson |
| LSD | no |
Tires | |
| Front wheels | 185/65R14 86S |
| Rear wheels | 185/65R14 86S |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Front fog lamps | yes |
| Rear fog lamps | option |
| Additional stop light | yes |
| Cornering lamps | no |
Side mirrors | |
| Power adjustable door mirrors | yes |
Windows | |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Tilt sunroof | option |
| Twin sunroof | no |
Accessories | |
| Roof rail | yes |
| Front spoiler | no |
| Rear spoiler | yes |
| Back wiper | yes |
Body color | |
| Colors | 7 2 25 4 5 6 |

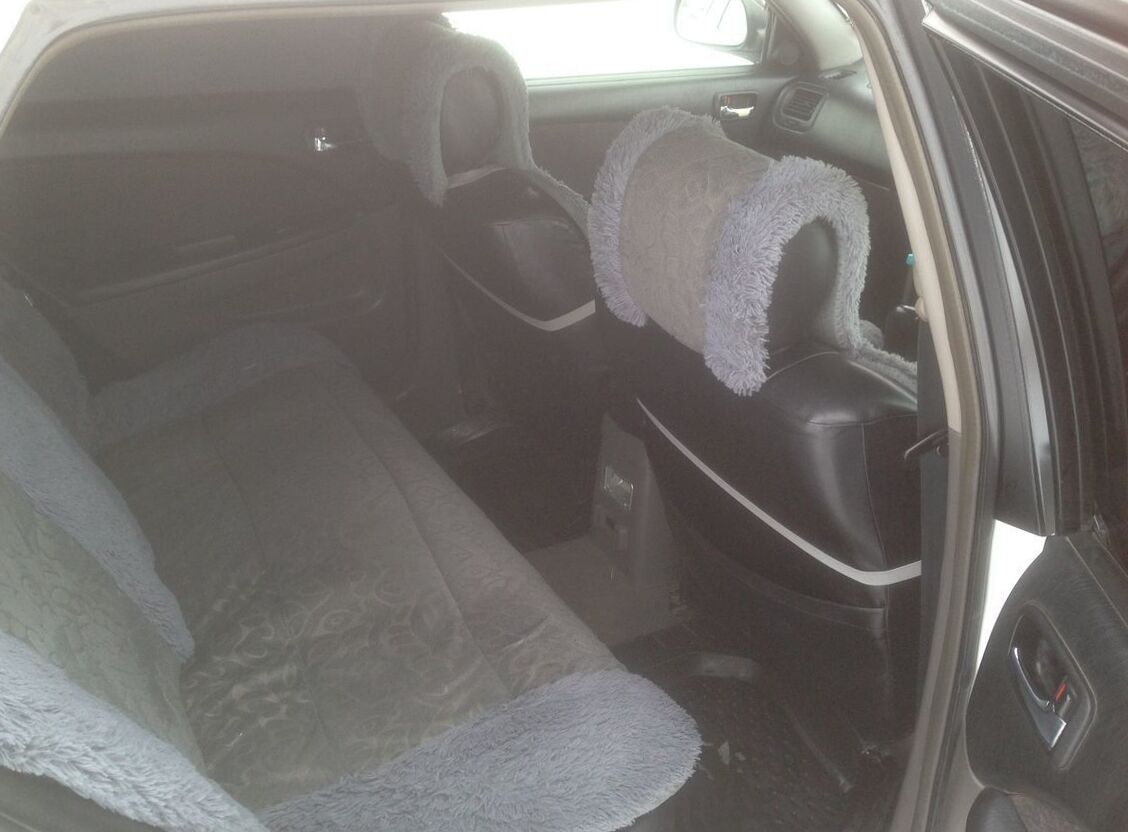

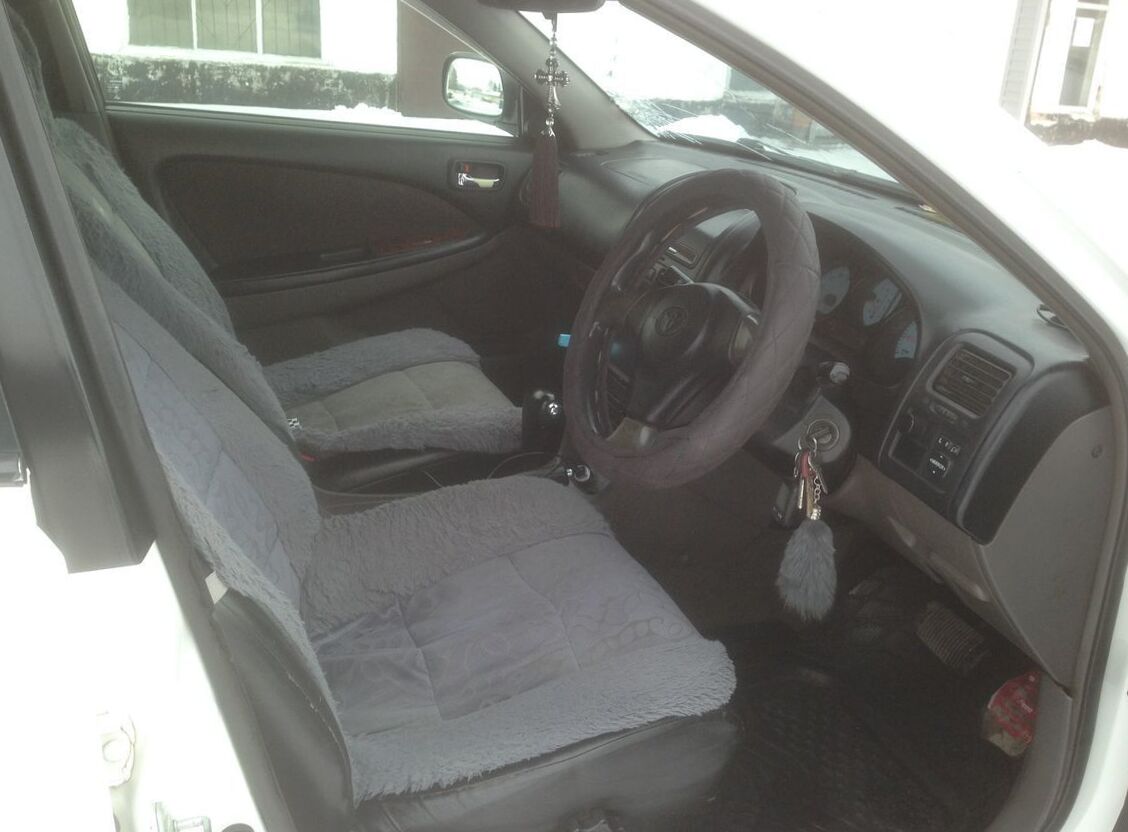

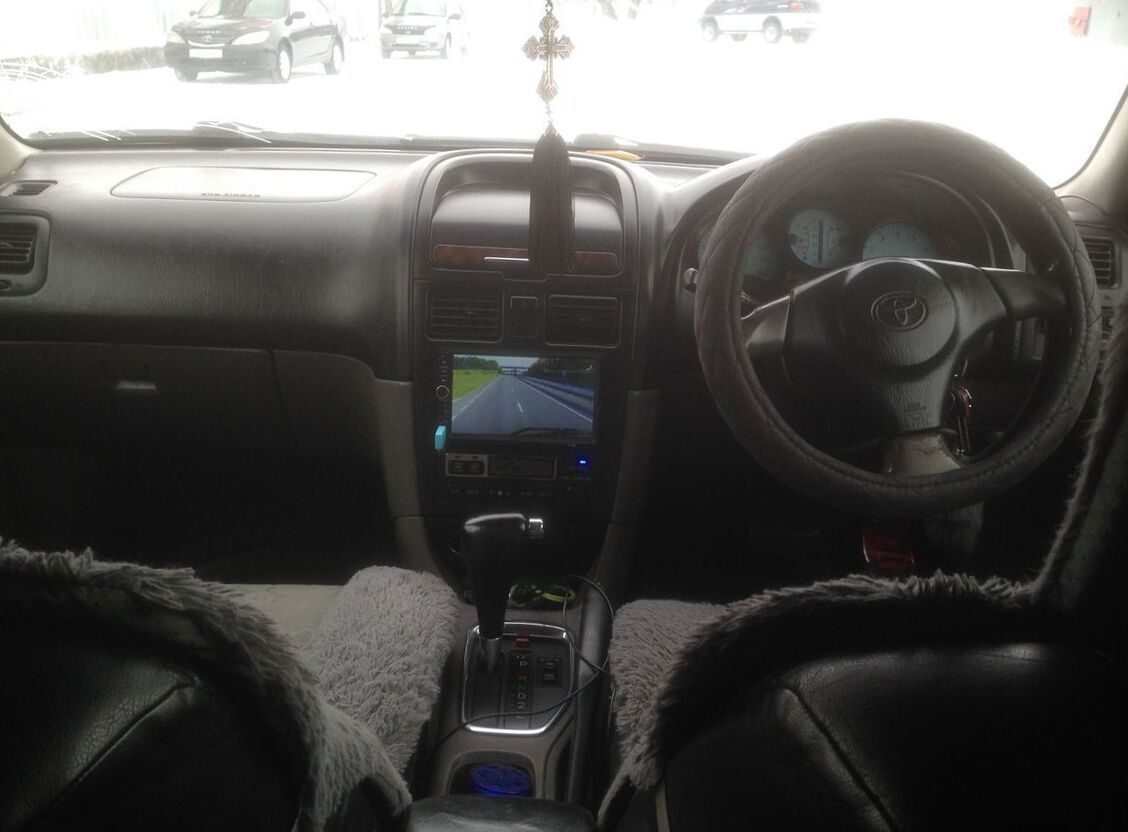

Interior | |
Steering wheel and center panel | |
| Leather winding | no |
| Telescopic steering | no |
| Tilt steering | yes |
| Tachometer | yes |
Interior design | |
| Leather seat | no |
| Wood panel | no |
Seats | |
| Reclining seats | no |
| Removable seats | yes |
| Turning seats | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window | yes |
| Central power window control | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
Children safety | |
| Child car restraints | yes |
Active and passive safety | |
| Durable frame | yes |
| Side impact bar | yes |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | no |
| traction control | no |
| Cruise control | no |
Amenity | |
Microclimate | |
| Cooler | no |
| Automatic air conditioning | yes |
| Twin conditioning system | no |
| Air purifier | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | yes |
| CD player | no |
| CD changer | no |
| MD palyer | no |
| MD changer | no |
Navigation and video equipment | |
| Parking assist system | no |
1990 Toyota Caldina II GF-ST210G 2.0 G (140 Hp) specs
|
1st Generation (1992-1997)The original Toyota Caldina was the 5-door wagon or commercial van version of the four-door sedan Toyota Corona in Japan. The wagon has independent strut rear suspension while the commercial wagon has semi-independent leaf springs. 2nd Generation (1997-2002)Sharing a platform with Toyota Allion and Toyota Premio, the Caldina is the Japanese version of Toyota Avensis wagon. The 4WD models are coded ST215, and are offered as Active Sports GT with the 3S-GE engine. The top of the line GT-T came with the turbocharged 260PS (256hp/ 191kW) 4th generation 3S-GTE engine, and included an all-wheel drive system similar to the Toyota Celica GT-Four.The GT-T also came with optional electronic stability control(VSC). Weighing 1470kg, the Caldina GT-T offers similar performance to a Subaru WRX wagon achieving 0–100km/ h in 7 seconds. A refresh was given in 2000 with new bumpers and lamps with a refreshed interior. » Read More About Toyota Caldina |
