| Body type | Minivan |
|---|---|
| Power | 152 Hp |
| Engine Displacement | 2500 cm3 or 2.5L or 152.5 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Vin | 612*** |
| Price (out of date) | $33592 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2015 Toyota Alphard III? | Minivan, 7 Seats, 5 Doors |
| What is the fuel economy, Toyota Alphard Minivan 2015? | 5.4 l/100 km |
| How much power, Toyota Alphard DAA-AYH30W 2015? | 152 Hp |
| What is the engine size, 2015 Toyota Alphard Hybrid 2.5 SR 4WD? | 2.5L or 2493cm3 |
| How many gears, What type is the gearbox, Toyota Alphard III 2015 Minivan Hybrid 2.5 SR 4WD (152 Hp)? | Variator |
| What is the drivetrain, 2015 Toyota Alphard Minivan Hybrid 2.5 SR 4WD (152 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2015 Toyota Alphard III? | 4935 mm |
| How wide is the vehicle, Toyota Alphard Minivan 2015? | 1850 mm |
Toyota Alphard III DAA-AYH30W Hybrid 2.5 SR 4WD (152 Hp) 2015, 2016, 2017 Specs
General information | |
|---|---|
| Production start year | 2015 |
| Production end year | 2017 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | Variator |
| Engine volume, cc | 2493 |
| Frame name | DAA-AYH30W |
| Clearance, mm | 165 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | option |
| Steering locaton | right |
| Hybrid | yes |
Vehicle generation | |
| Generation name | H30 |
| Generation number | 3 |
| Production start year | 2015 |
| Production end year | 2017 |
Engine, transmission and steering specs | |
Engine specs | |

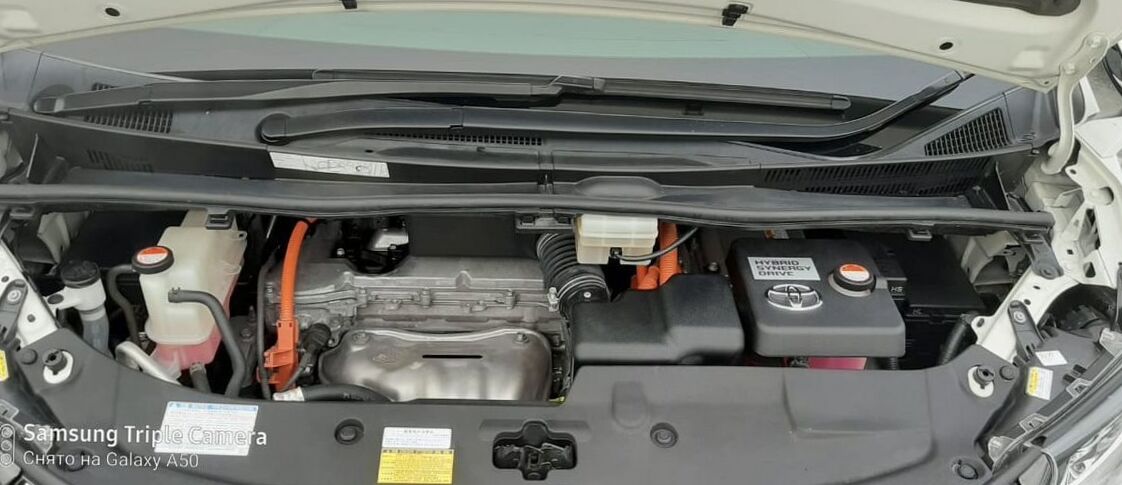

| Engine name | 2AR-FXE |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 152 |
| Max power RPM, rpm | 5700 |
| Max power, hp (kWt) / rpm | 152 (112) / 5700 |
| Max torque, N*m | 206 |
| Max torque RPM, rpm | 4800 |
| Max torque, N*m (kg*m) / rpm | 206 (21) / 4800 |
| Compression ratio | 12.5 |
| Bore, mm | 90 |
| Stroke, mm | 98 |
| Engine additional info | VVT, electronic fuel injection system |
| Eco type | 2005 emission regulation 75% reduction |
| Start stop system | yes |
Electric Power | |
| Electro Max power, (kWt) | 105 |
| Electro Max torque, Nm | 270 |
| Electro engine addition | 2 electric motors (front 105 kW, rear 50 kW) installed |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with 2015 fuel consumption standard +20% |
| Combined | 5.4 |
| Co2 emission | 126 |
Transmission | |

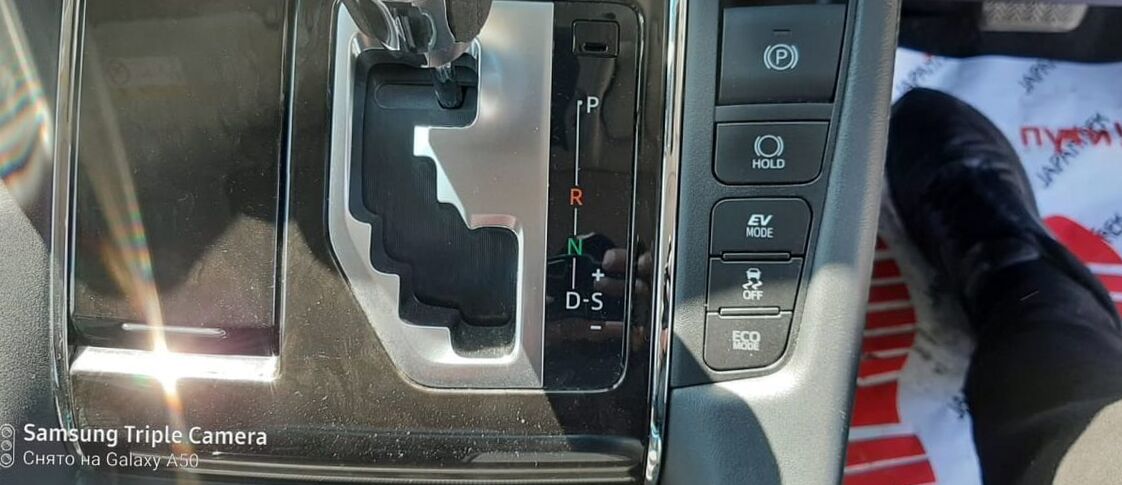

| Shifter position | On the dashboard |
| Manual mode | yes |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4935 |
| Exterior width, mm | 1850 |
| Exterior height, mm | 1895 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
| Interior length, mm | 3210 |
| Interior width, mm | 1590 |
| Interior height, mm | 1400 |
Chassis dimensions | |
| Wheel base, mm | 3000 |
| Front axle length, mm | 1600 |
| Rear axle length, mm | 1595 |
| Turning radius, m | 5.6 |
| Wheel spacing front | 1600 |
| Wheel spacing rear | 1595 |
Weight and permissible load | |
| Mass, kg | 2140 |
| Total weight | 2525 |
Volumes | |
| Fuel tank capacity, l | 65 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent on double wishbones |
| Air suspension | no |
| Cenral diff lock | no |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |

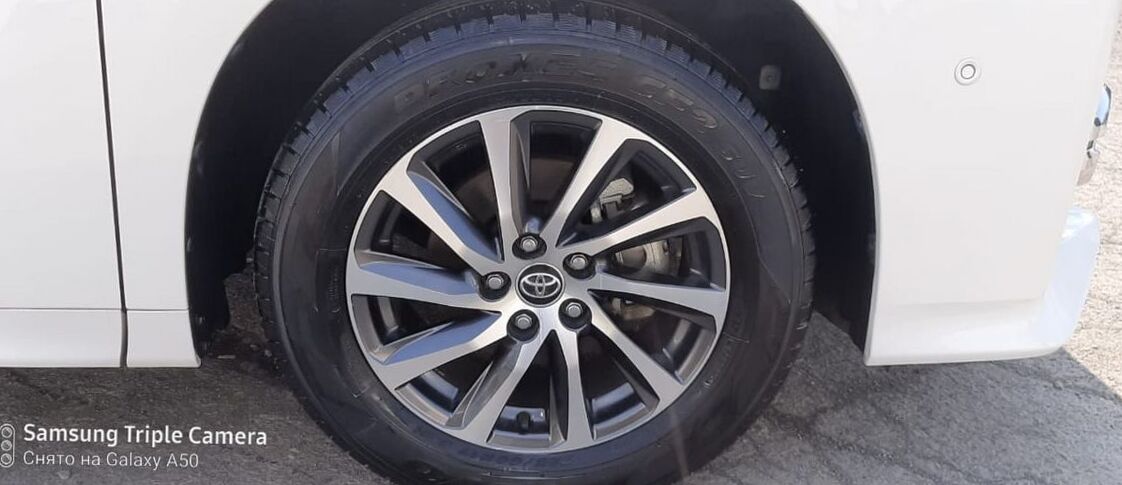

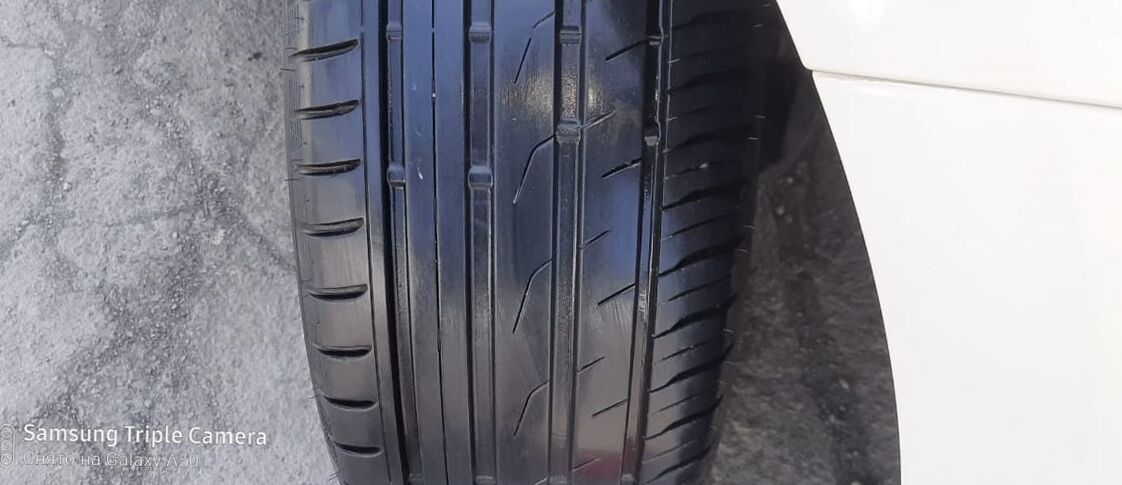

| Front wheels | 225/60R17 |
| Rear wheels | 225/60R17 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Ventilated discs |
| Parking brake | Electronic |
| Brake front search | 1 |
| Rear brake | 1 |
| Parking brake new first | Electronic |
Exterior | |
Headlights | |
| Led lights | yes |
| Diod head lights | yes |
| Front fog lamps | yes |
| Diod fog lights | yes |
| Rear fog lamps | option |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| autocorrected mirrors | yes |
| Door mirrors heating | no |
Doors | |
| Sliding doors | yes |
| Sliding electric door | no |

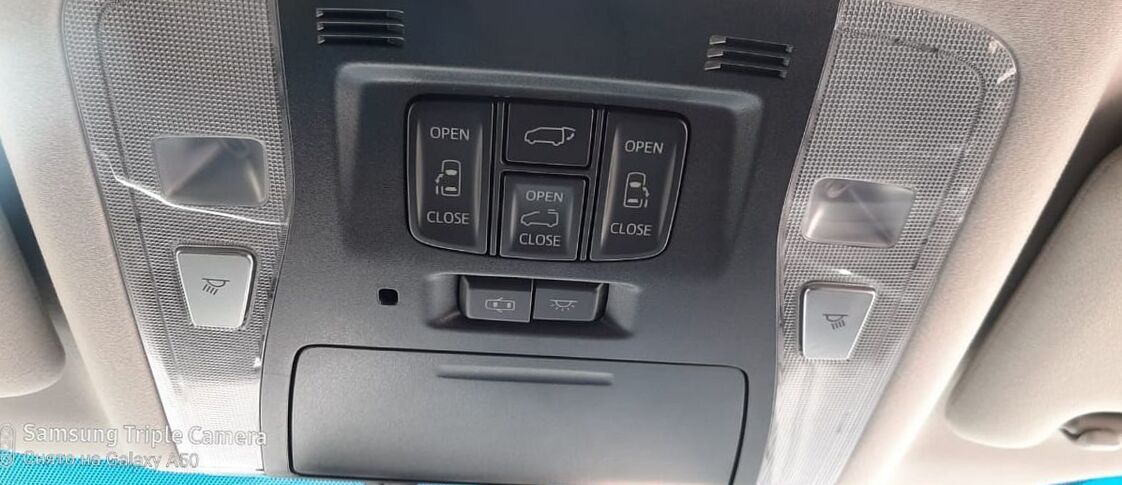

| Sliding electric doors | yes |
| Door easy closer | yes |
| Chrome door handles | yes |

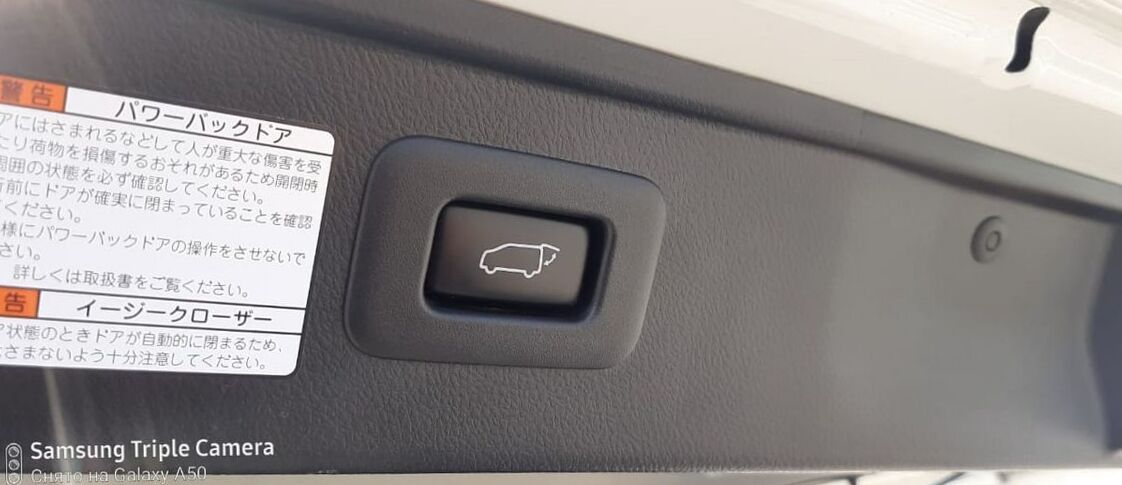

| Power rear door | option |
| Trunk closer | yes |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Roof | |

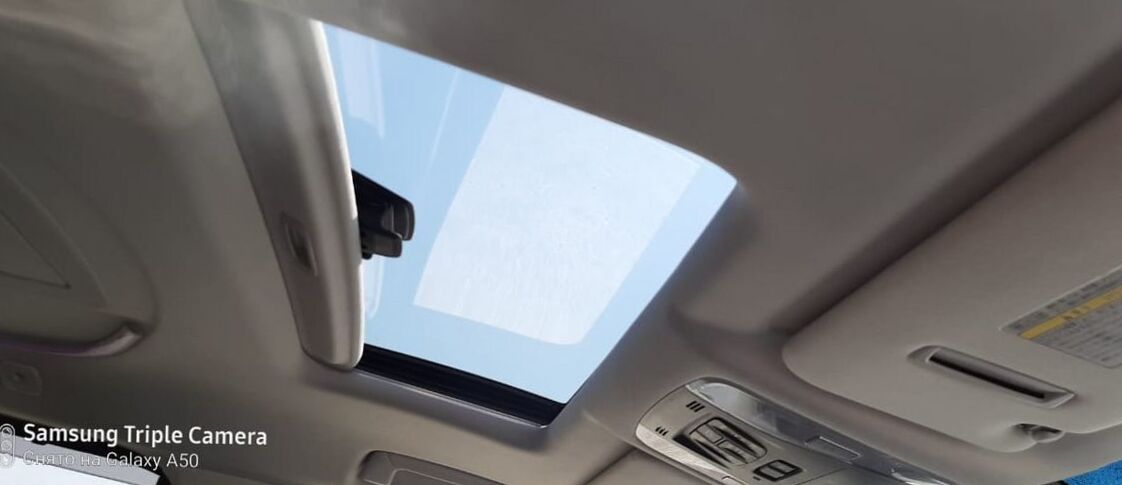

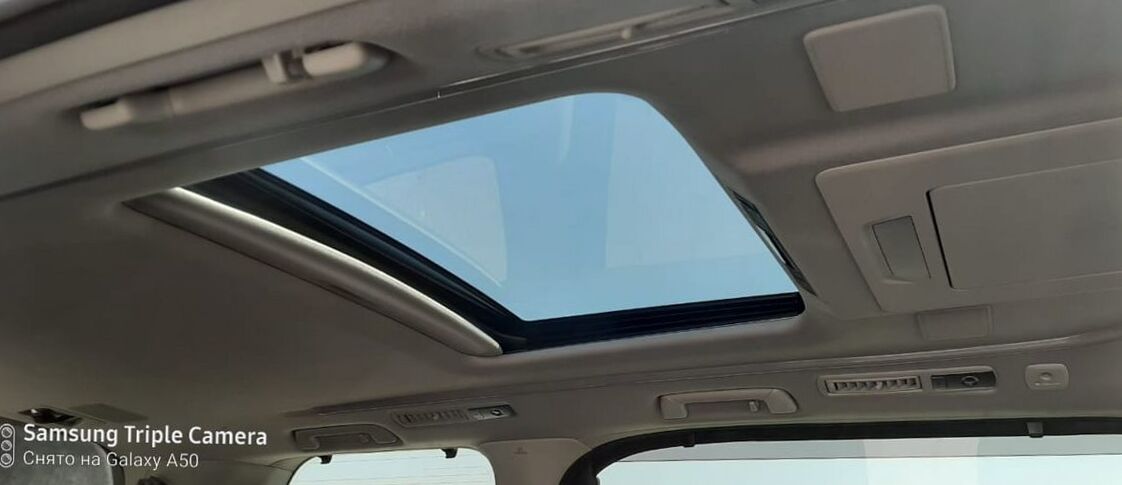

| Twin sunroof | option |
Accessories | |
| Front spoiler | yes |
| Rear spoiler | yes |
| Back wiper | yes |
| Rear mudflaps | yes |
Interior | |

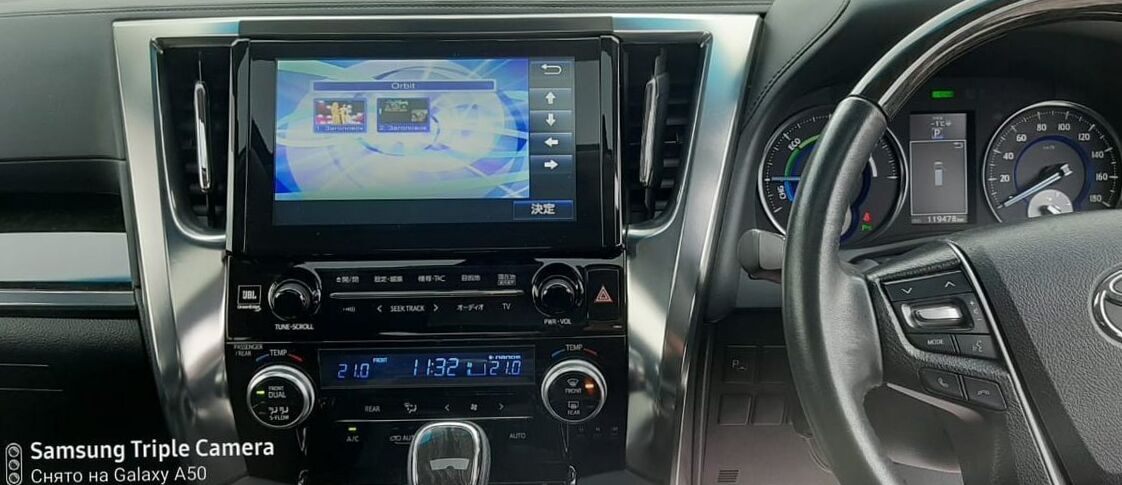

Steering wheel and center panel | |

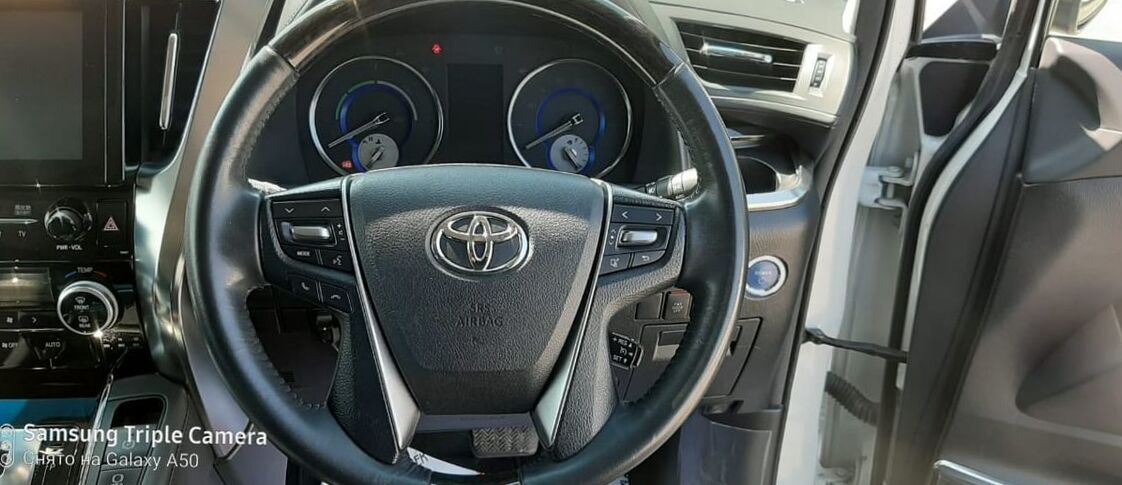

| Leather winding | yes |
| Telescopic steering | yes |
| Tilt steering | yes |

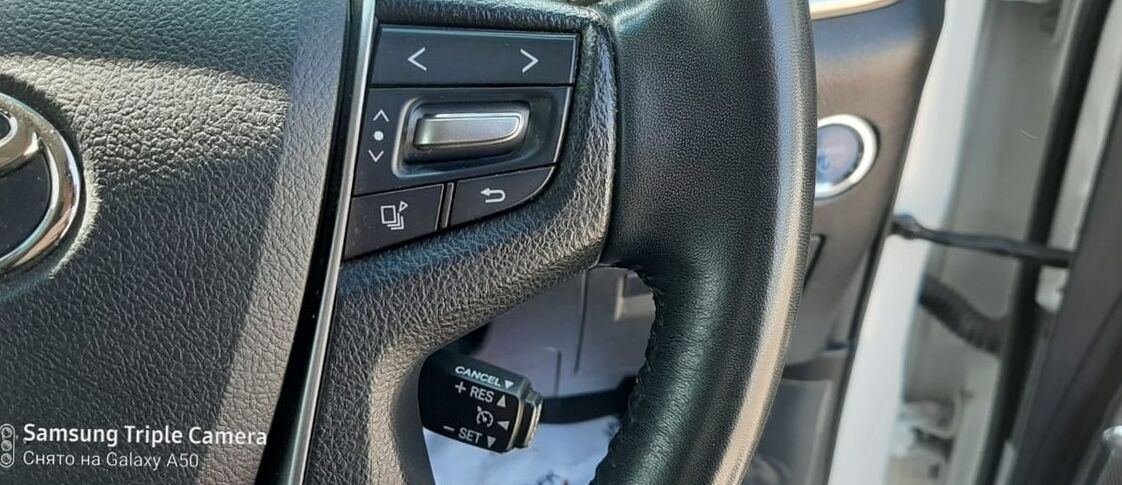

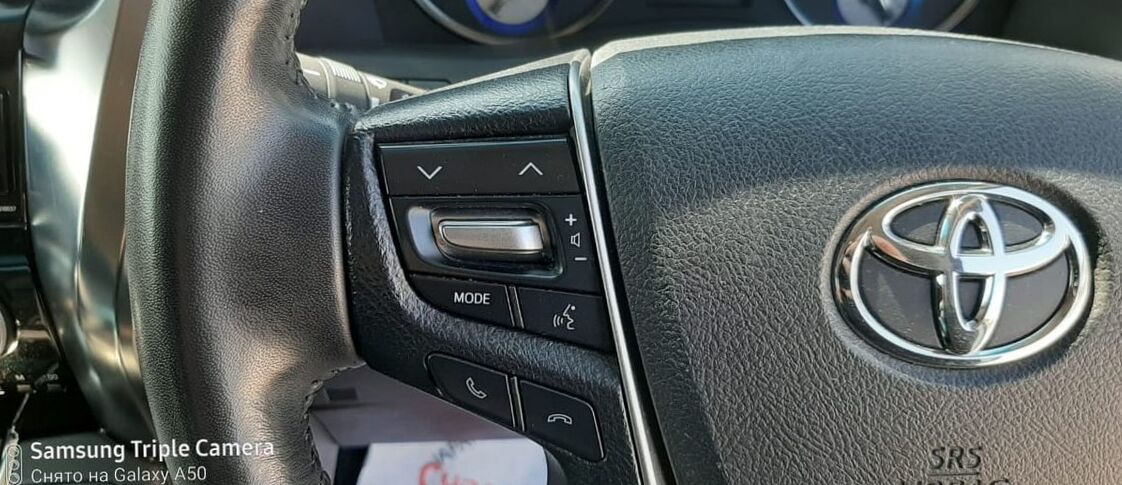

| Audio control on steering wheel | yes |
| Utility color display | 4.2" |

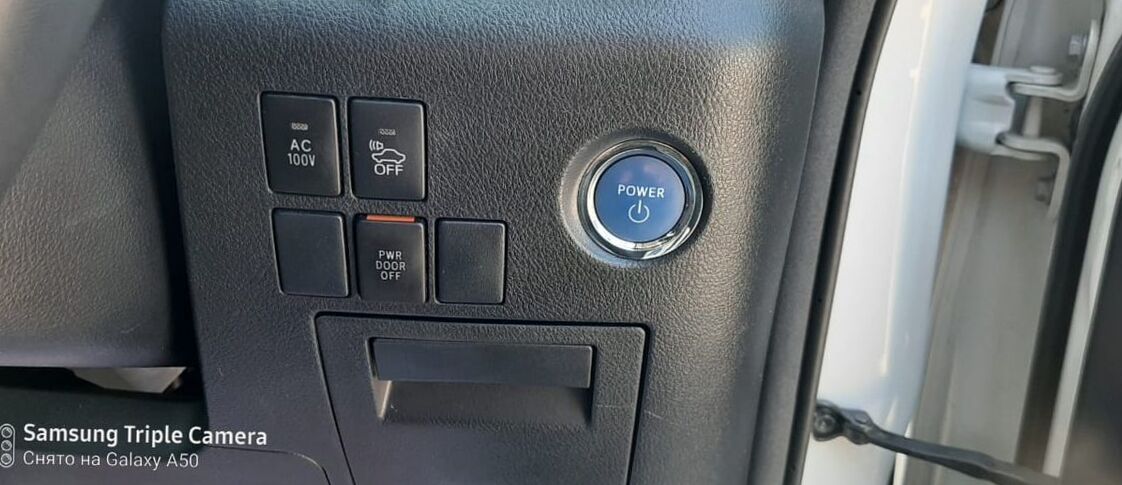

| Engine start button | yes |
Interior design | |
| Cloth upholstery | no |
| Leather upholstery | no |
| Combined obivka Salon | yes |
Seats | |

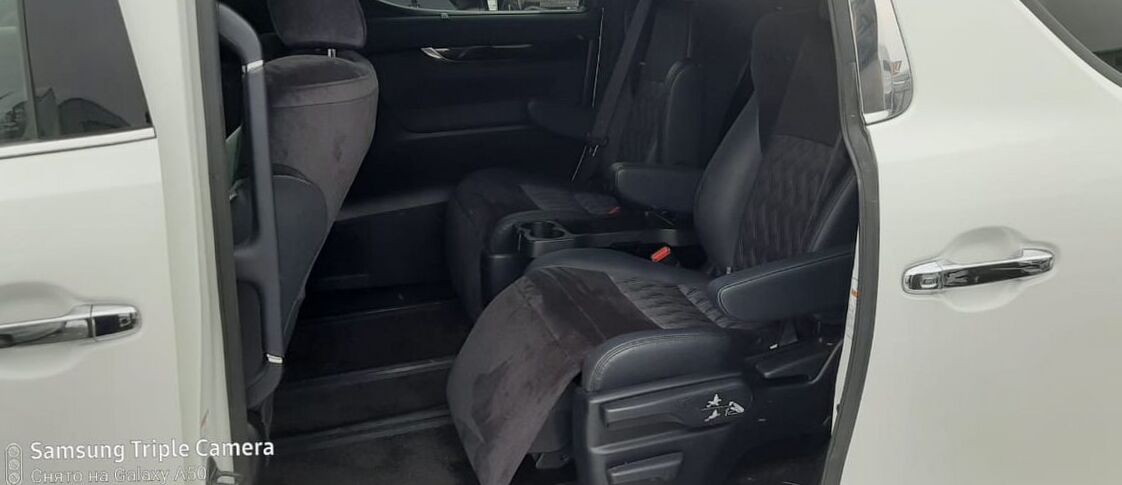

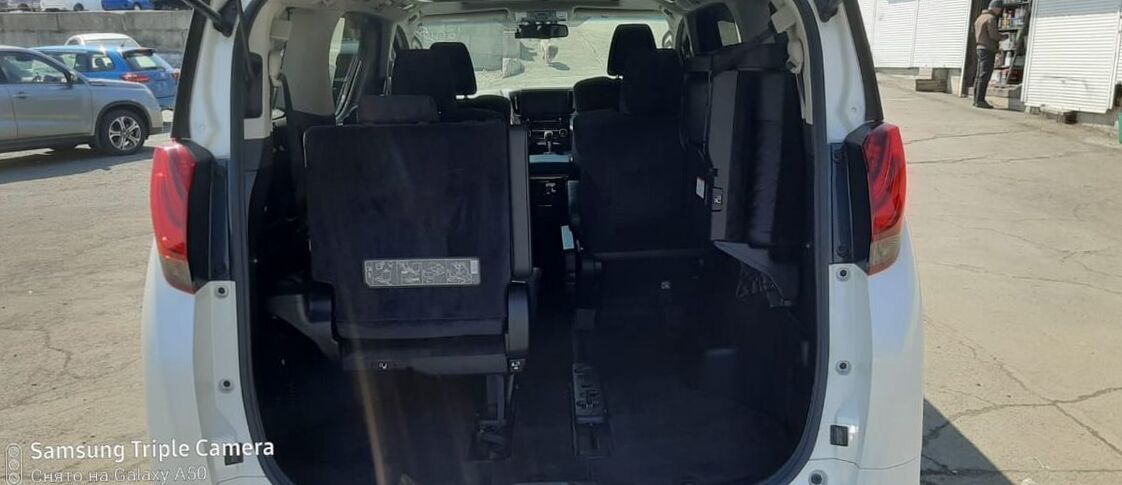

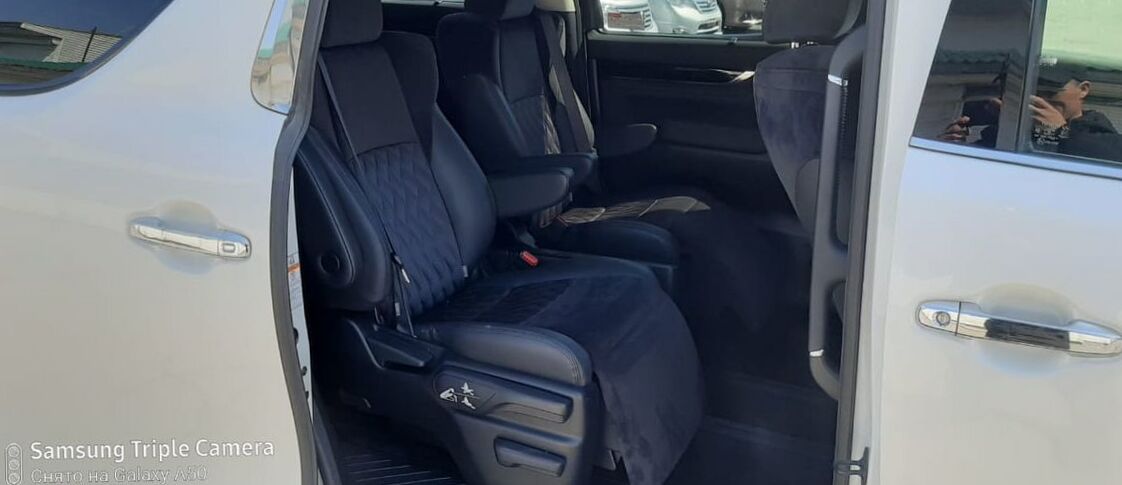

| 2nd row | two individual seats |
| 3nd row | 50/50 ratio fold seat |
| Seat lifter | yes |

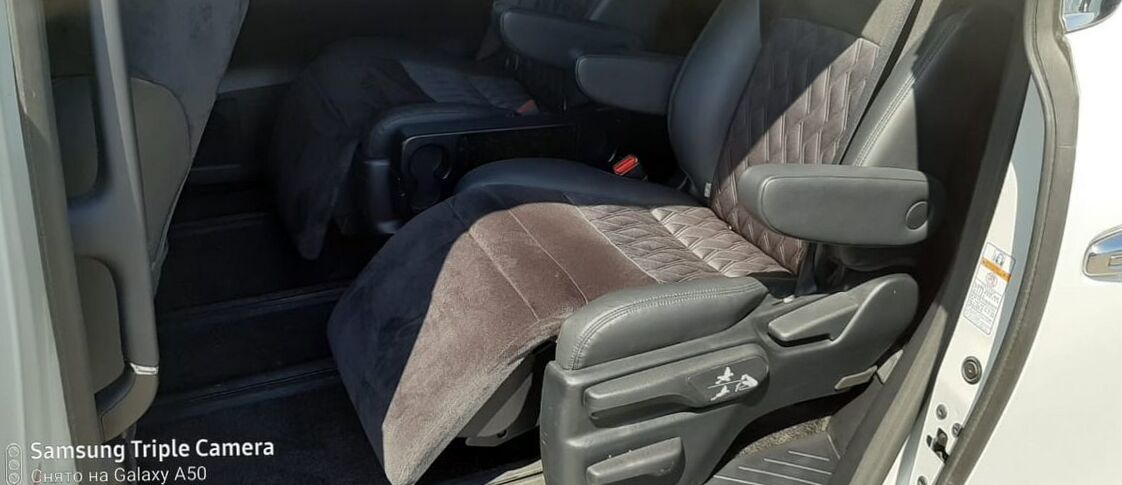

| Ottoman seat | yes |
| Headrests for seats | 7 |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Seats pockets | yes |
| 2nd row throught | yes |
Electric interior package | |

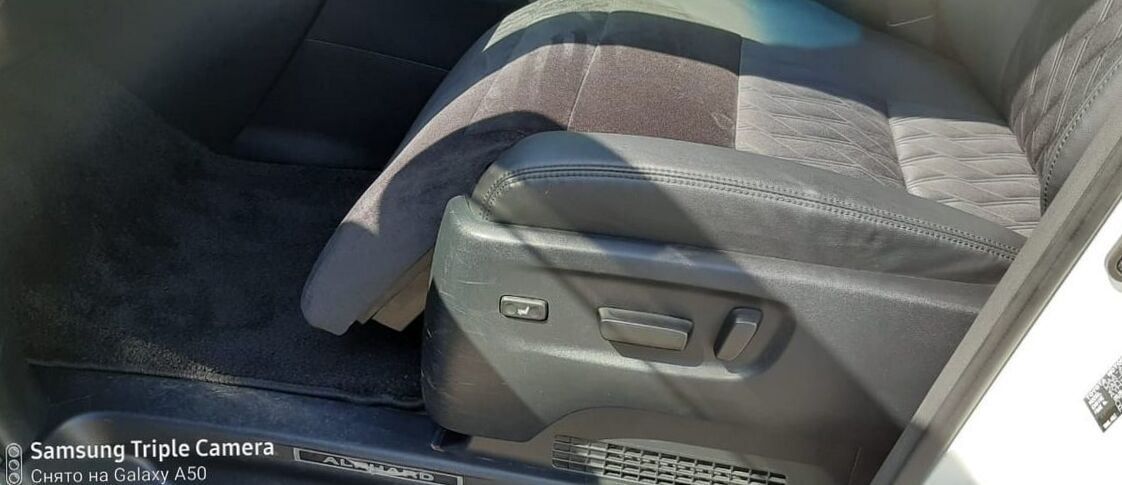

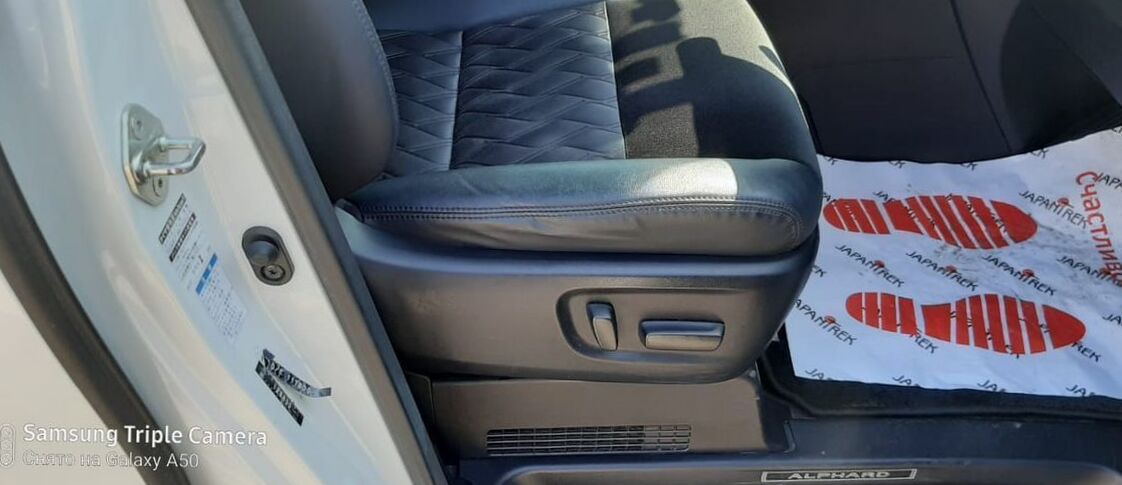

| Power adjustable driver seat | yes |
| Power ajustable front seat | yes |
| Power ajustable back seat | no |
| Front seat heater | no |
| Rear seats heater | no |

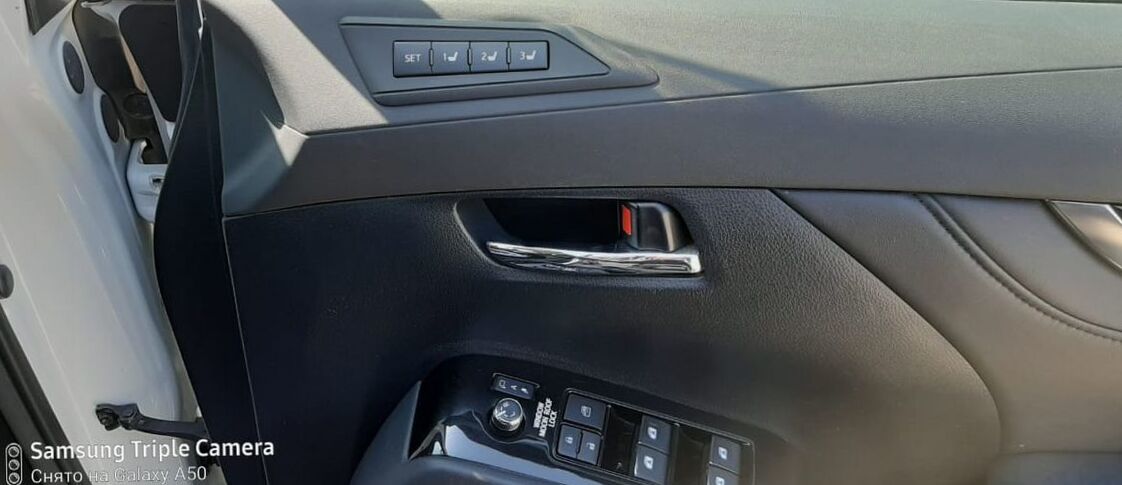

| Seat position memory | yes |
| Centralized door lock | yes |

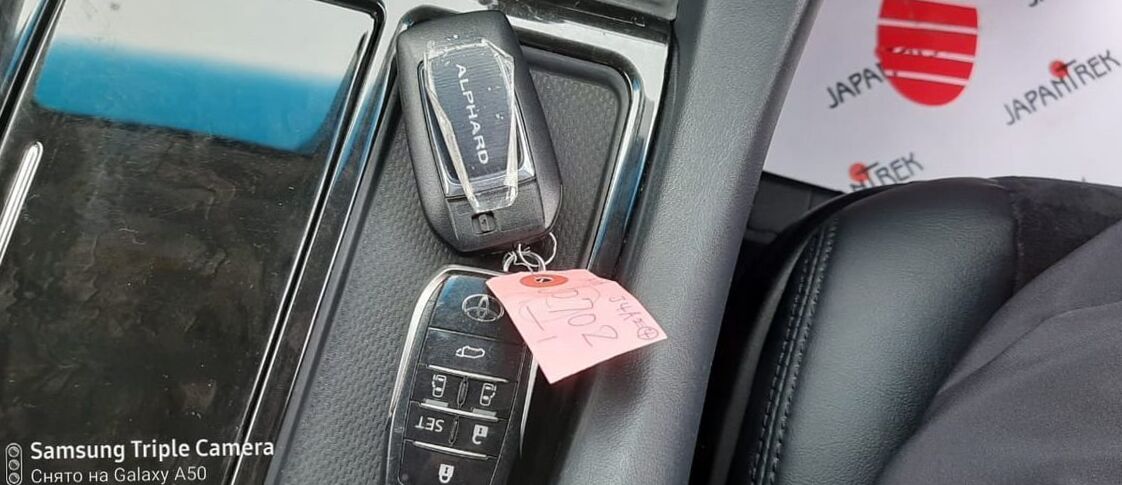

| Keyless enter | yes |
| Keyless | yes |
| Power window front | yes |
| Power window rear | yes |
| Stearing wheel heater | no |
| Front sheeld electro heater | option |
Additional interior equipment | |
| Holders for bottles in doors | yes |
| AC plug | option |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |

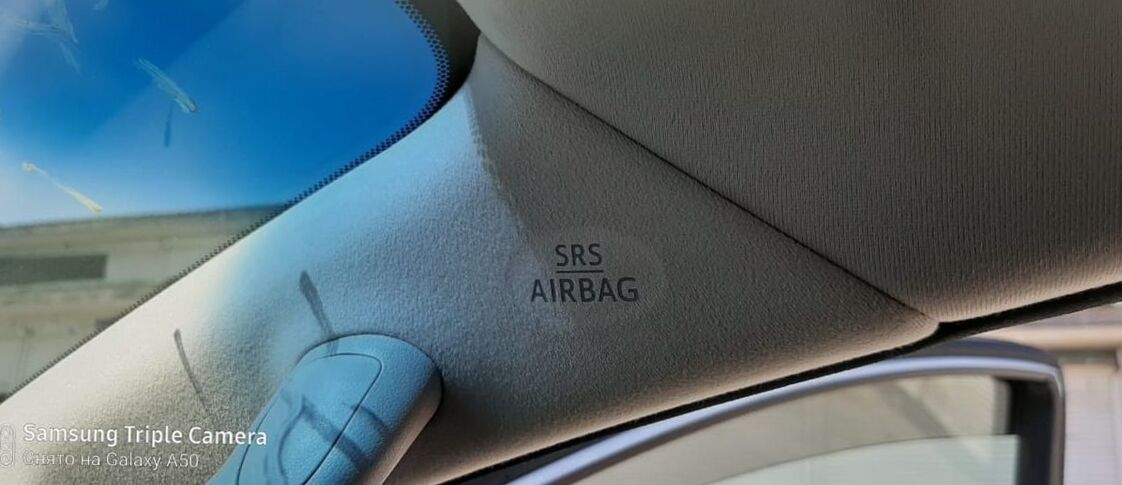

| Curtain airbags | yes |
| Airbag for the driver's knees | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Active headrest | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| Cruise control | yes |
| Distance control system | option |
| Autolock doors | yes |
| Control system of a headlight | no |
| Front sonar | yes |
| Rear sonars | yes |
| Intelligent parking assist | option |
| Collision mitigation system | option |
Amenity | |
Microclimate | |
| Air conditioner | yes |

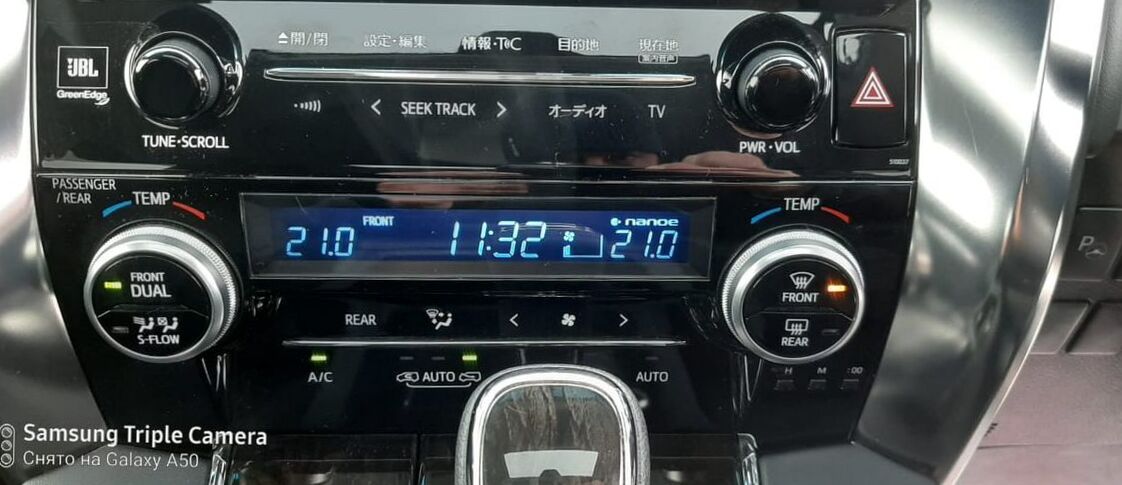

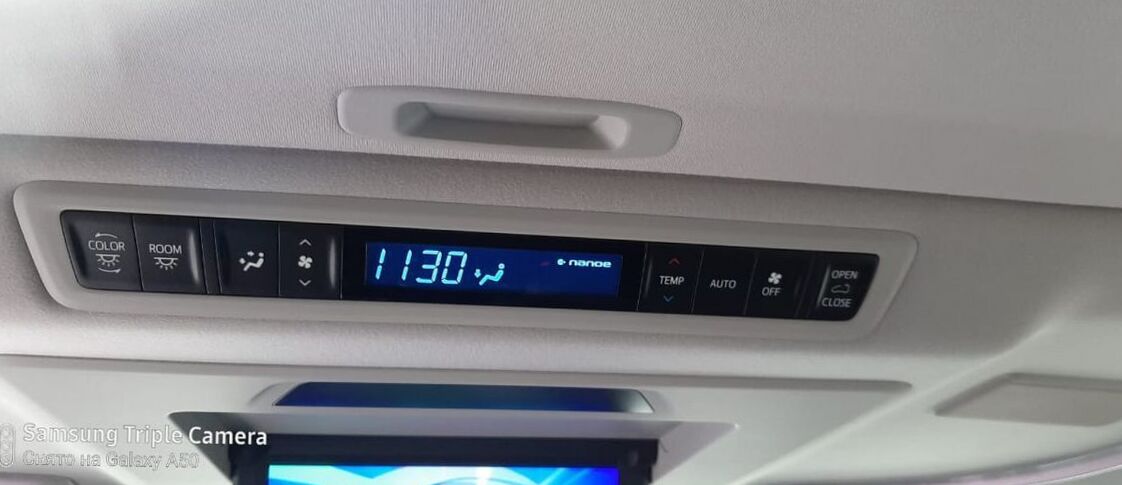

| Part climat equipment | 3 zones |
| Air filter | yes |

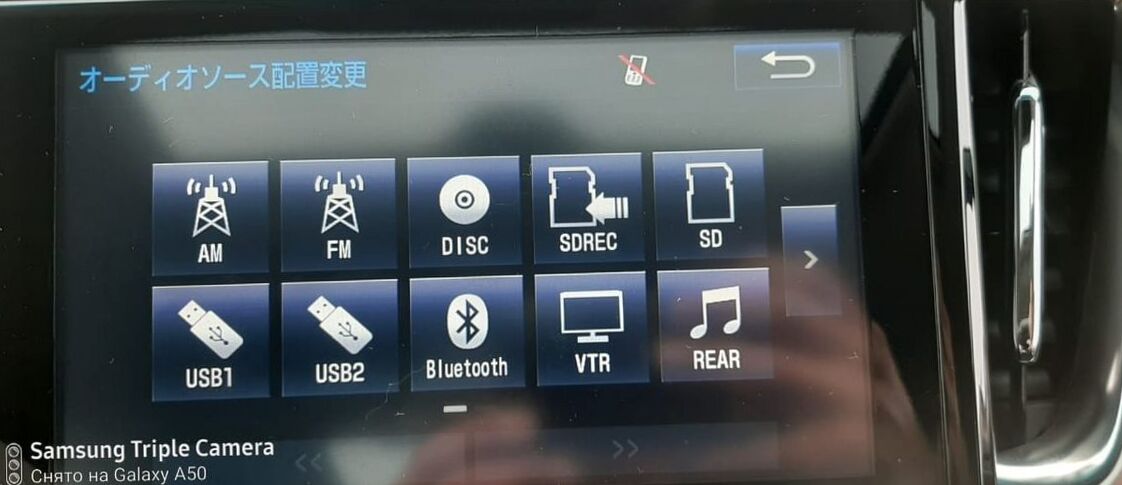

Audio systems | |
| Radio | option |
| CD player | option |
| DVD-audio | option |
| Audio HDD | option |
| Hands free | option |

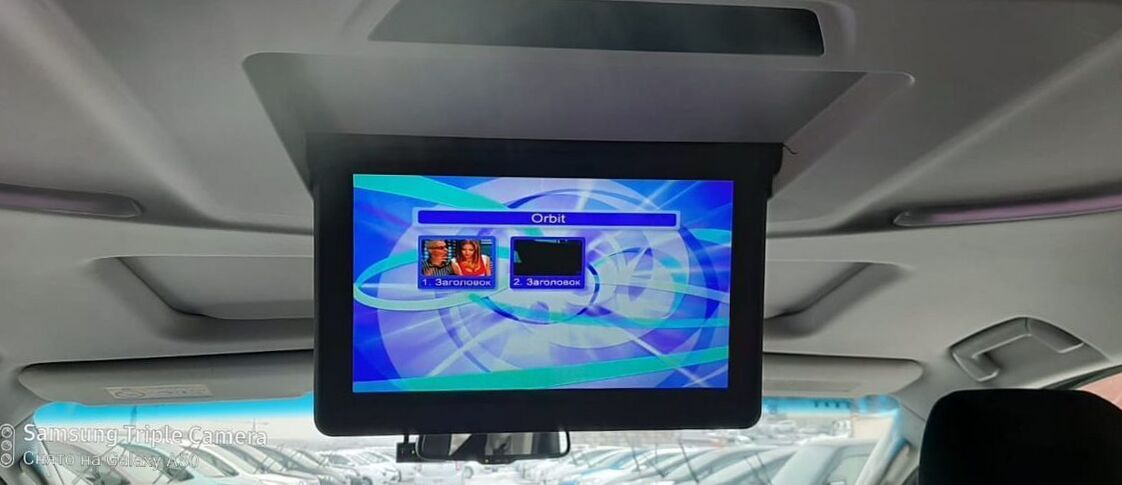

| Rear entertainment system | option |
| Additional sound equipment | JBL premium sound system (option) |
Navigation and video equipment | |

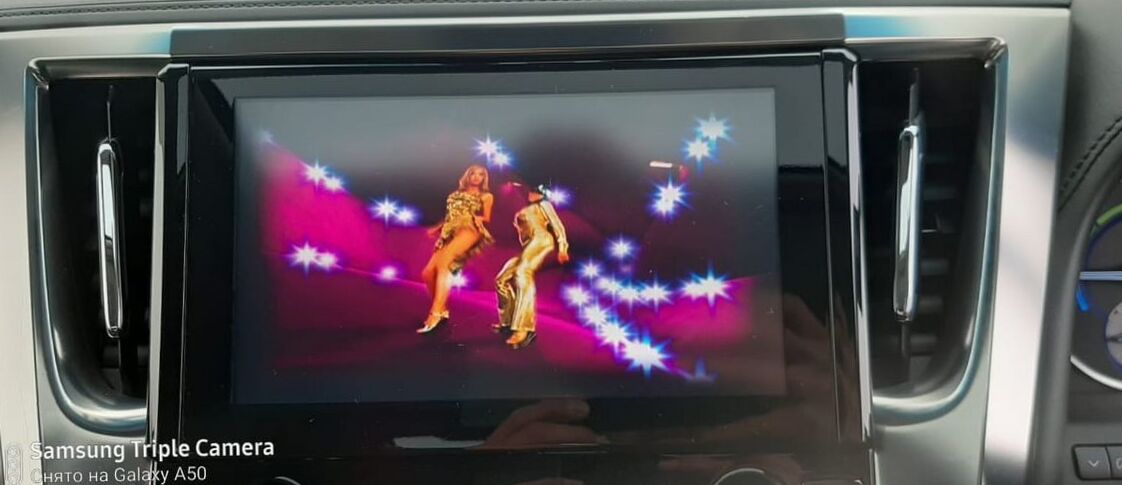

| Full color LCD display | option |
| Navigation system | option |
| Traffic jam assist | option |
| Parking assist system | option |
| Front monitor | option |
| Sides monitors | option |

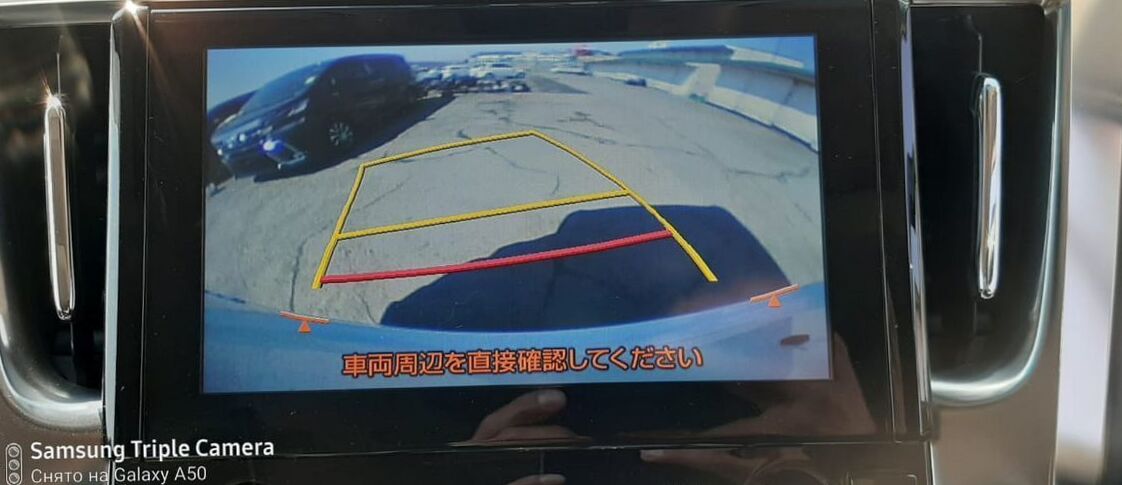

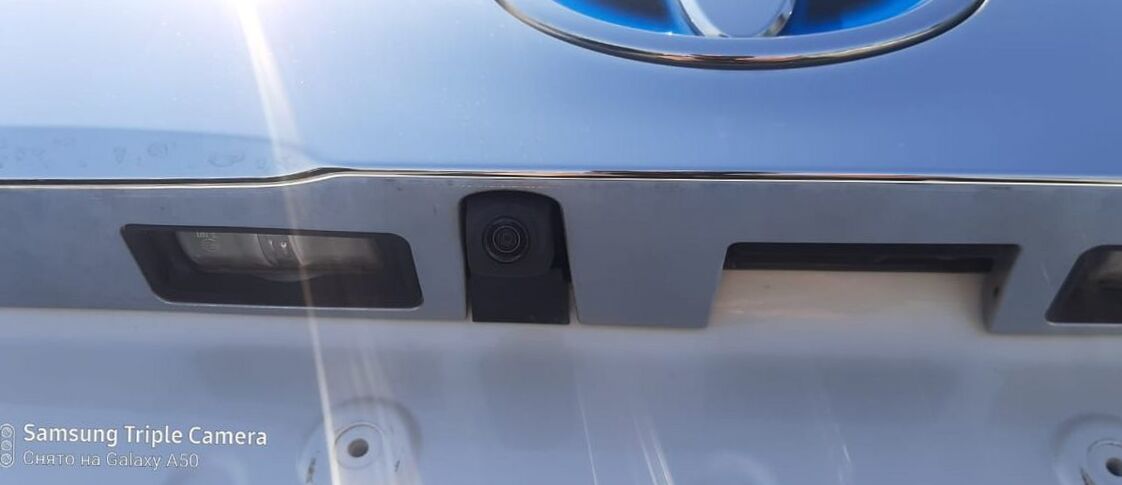

| Back monitor | option |
Additional amenities | |
| Antidazzle rearview mirror | yes |
| Mirrors in sunshields | yes |
| Illumination in the cabin during landing | yes |
| Lagage box | yes |
| Onboard computer | yes |
| Etc | option |
Car safety | |
| Alarm system | yes |
| Security alarm | no |
Driver Kit | |
| Spare tyre small | option |
| Jack | yes |
| Balonnik | yes |
2015 Toyota Alphard III DAA-AYH30W Hybrid 2.5 SR 4WD (152 Hp) specs
|
Toyota states its "E-Four electric 4WD system that regulates a rear-mounted, rear-wheel-propelling electric motor and coordinates electric power distribution to all four wheels. An ECB (Electrically Controlled Brake system) provides efficient wheel-by-wheel brake control." The full-size Alphard Hybrid MPV qualifies as an Ultra-Low Emissions Vehicle (ULEV), achieving levels 75% lower emissions than the Japanese government's 2000 benchmark. The 2.4-litre gasoline engine has been developed specifically for use in Toyota's hybrid systems and features a high-expansion ratio cycle that raises efficiency and reduces friction. In 2006, a Royal Lounge Alphard was introduced. It is a luxurious, four-seat version of the Alphard. The Alphard Hybrid uses "by-wire" technology that monitors brake pedal pressure and vehicle speed in order to calculate the optimum hydraulic pressure. By-wire works with the E-Four to maximize the collection of kinetic energy from braking for conversion into electric power. » Read More About Toyota Alphard |
