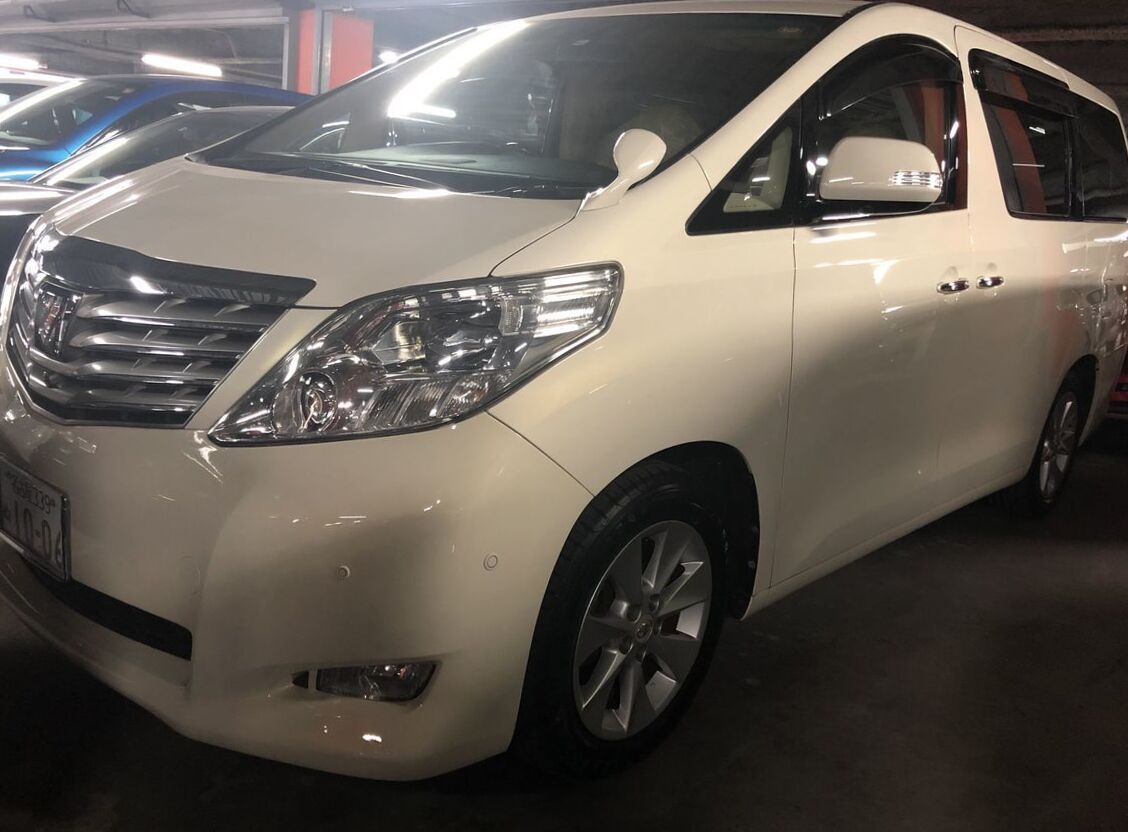

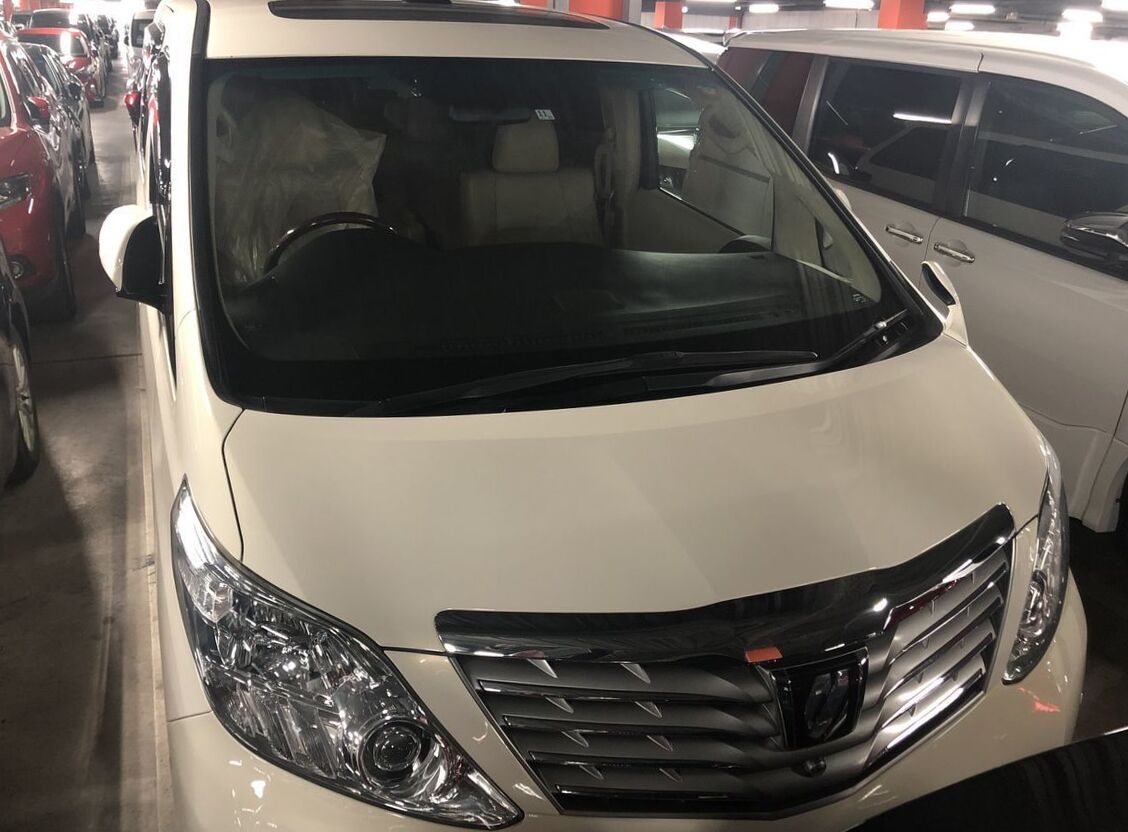

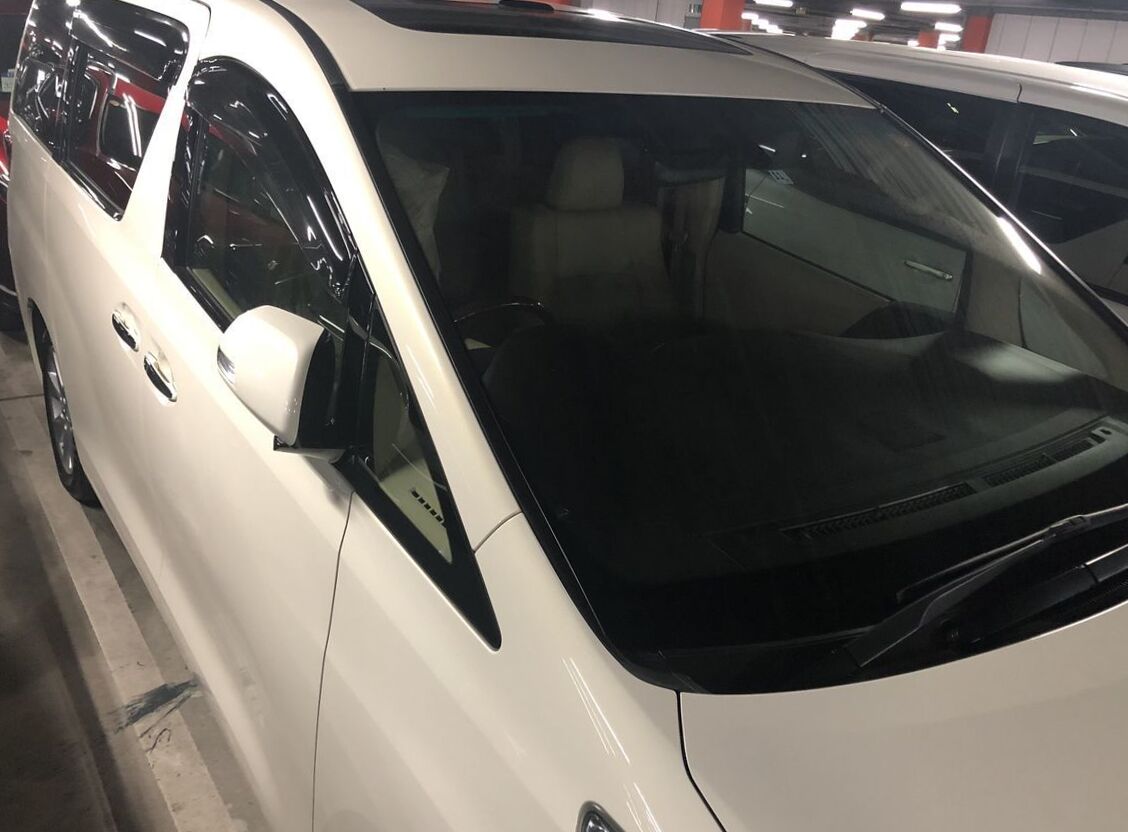

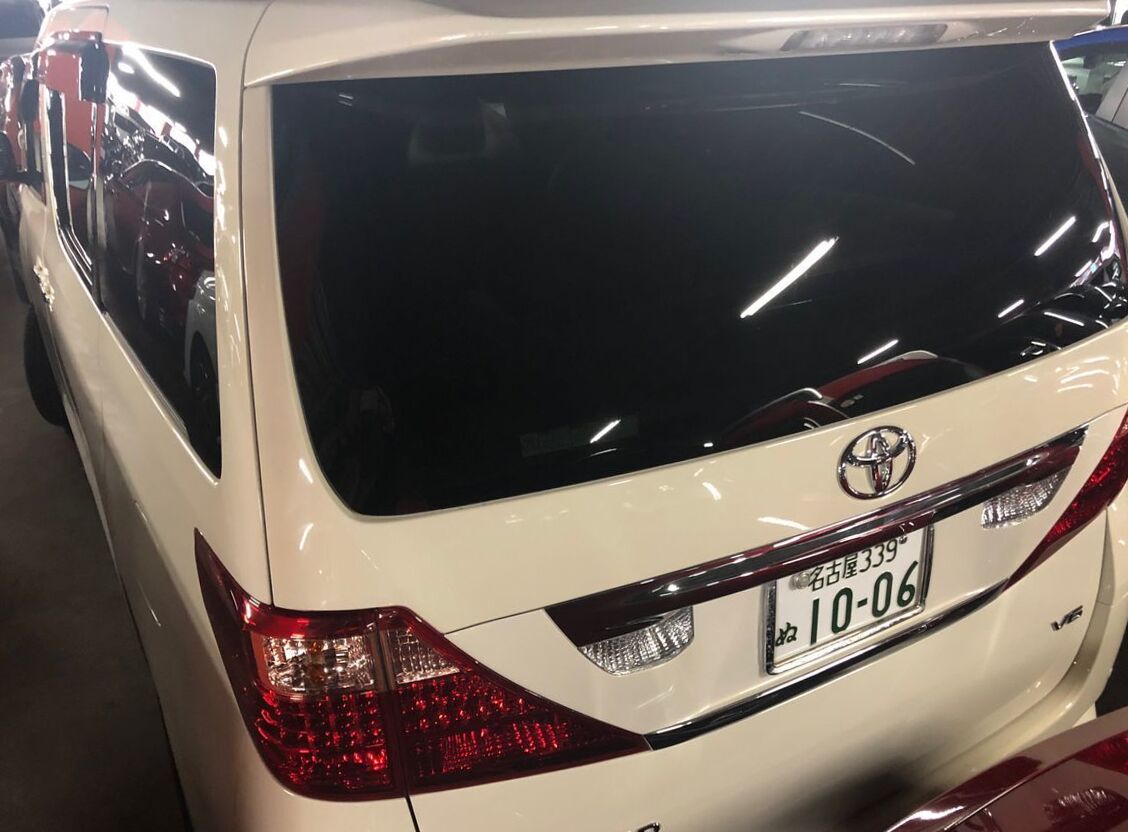

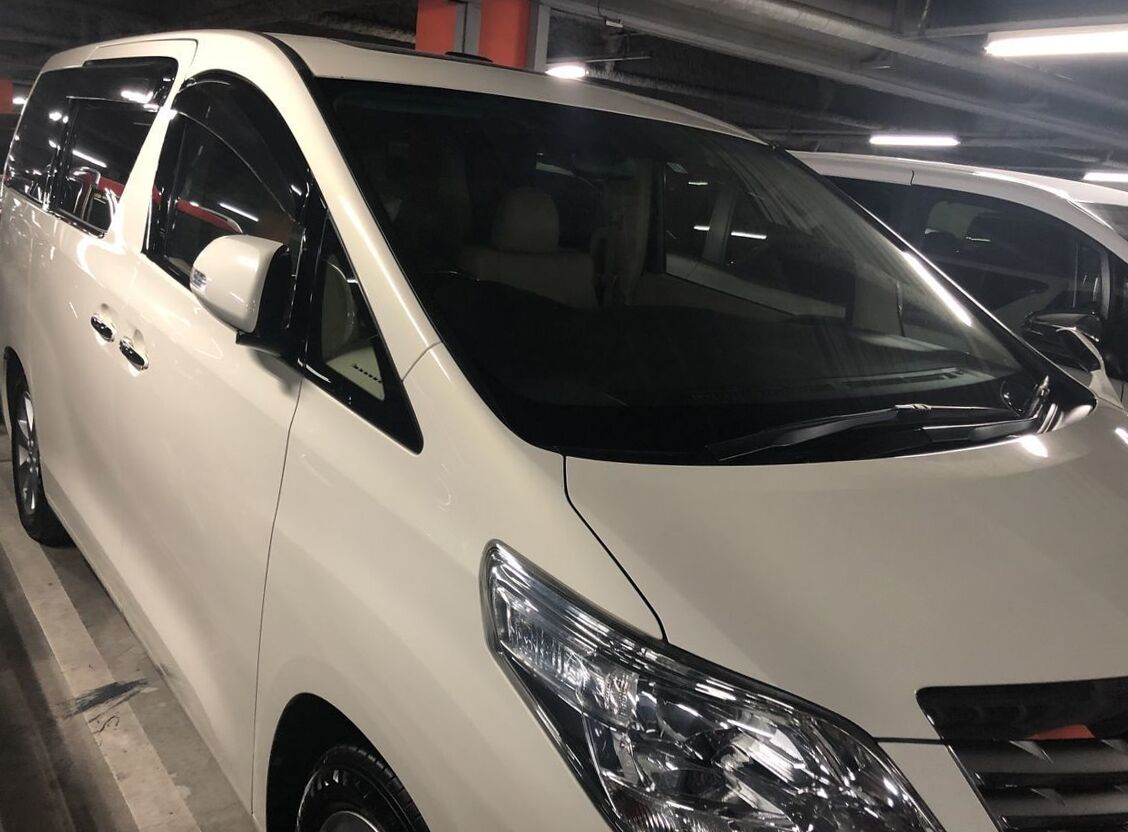

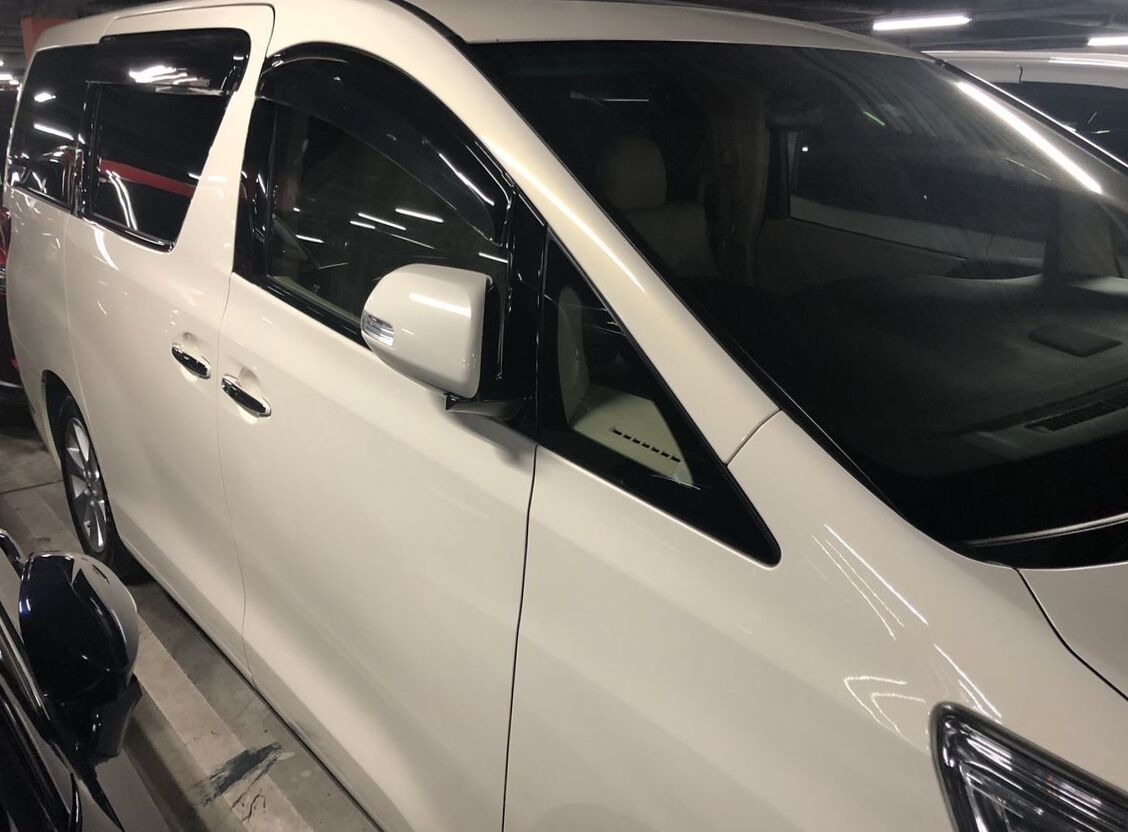

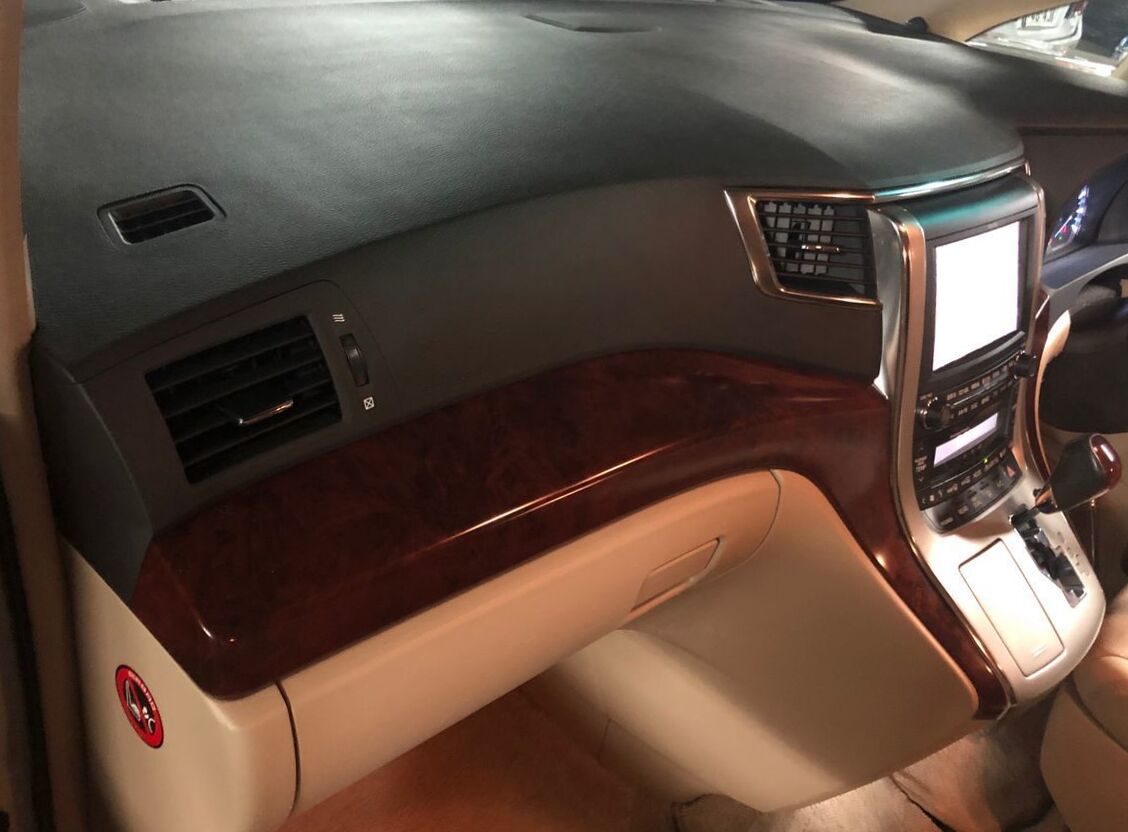

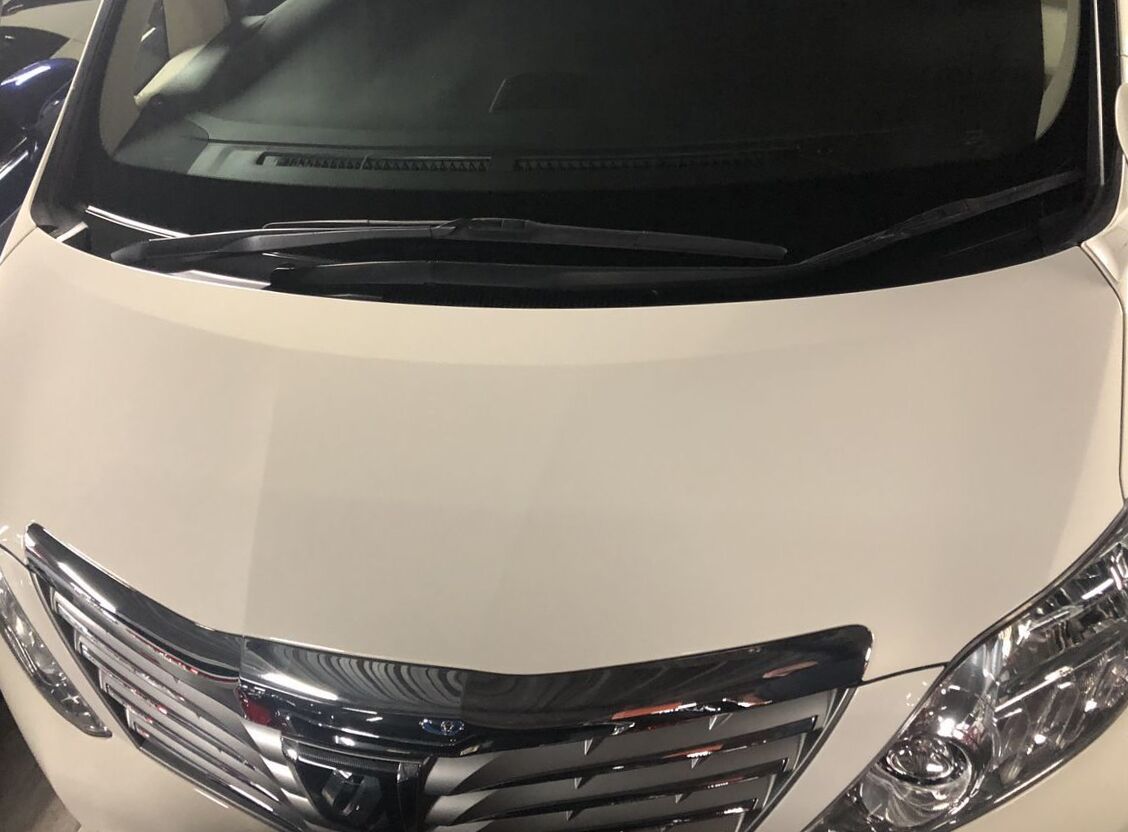

2009 Toyota Alphard II 3.5 350G L package
Toyota Alphard Problems
Alphard
2021, Why when engine idle for 30min engine
tarpet sound too loud… how to solve it??
Af...
Car dont break
2003, the car does not lock and the parking
lights stay on on the dashboard In driving it
is ...
Need help
2004, I parked the vehicle and went into a
spare shop. upon coming back check whether the
air...
| Body type | Minivan |
|---|---|
| Power | 280 Hp |
| Engine Displacement | 3500 cm3 or 3.5L or 213.5 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 73321 Miles |
| Vin | GGH20-0****03 |
| Price (out of date) | $13371 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2009 Toyota Alphard II? | Minivan, 7 Seats, 5 Doors |
| How much power, Toyota Alphard Minivan 2009? | 280 Hp |
| What is the engine size, Toyota Alphard DBA-GGH20W 2009? | 3.5L or 3456cm3 |
| How many gears, What type is the gearbox, 2009 Toyota Alphard 3.5 350G L package? | Automatic transmission 6 |
| What is the drivetrain, Toyota Alphard II 2009 Minivan 3.5 350G L package (280 Hp)? | Front |
| How long is this vehicle, 2009 Toyota Alphard Minivan 3.5 350G L package (280 Hp)? | 4850 mm |
| How wide is the vehicle, 2009 Toyota Alphard II? | 1830 mm |
Toyota Alphard II DBA-GGH20W 3.5 350G L package (280 Hp) 2008, 2009, 2010, 2011 Specs
General information | |
|---|---|
| Production start year | 2008 |
| Production end year | 2011 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Automatic transmission 6 |
| Engine volume, cc | 3456 |
| Frame name | DBA-GGH20W |
| Clearance, mm | 160 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | yes |
| Steering locaton | right |
Vehicle generation | |
| Generation name | H20 |
| Generation number | 2 |
| Production start year | 2008 |
| Production end year | 2011 |
Engine, transmission and steering specs | |
Engine specs | |

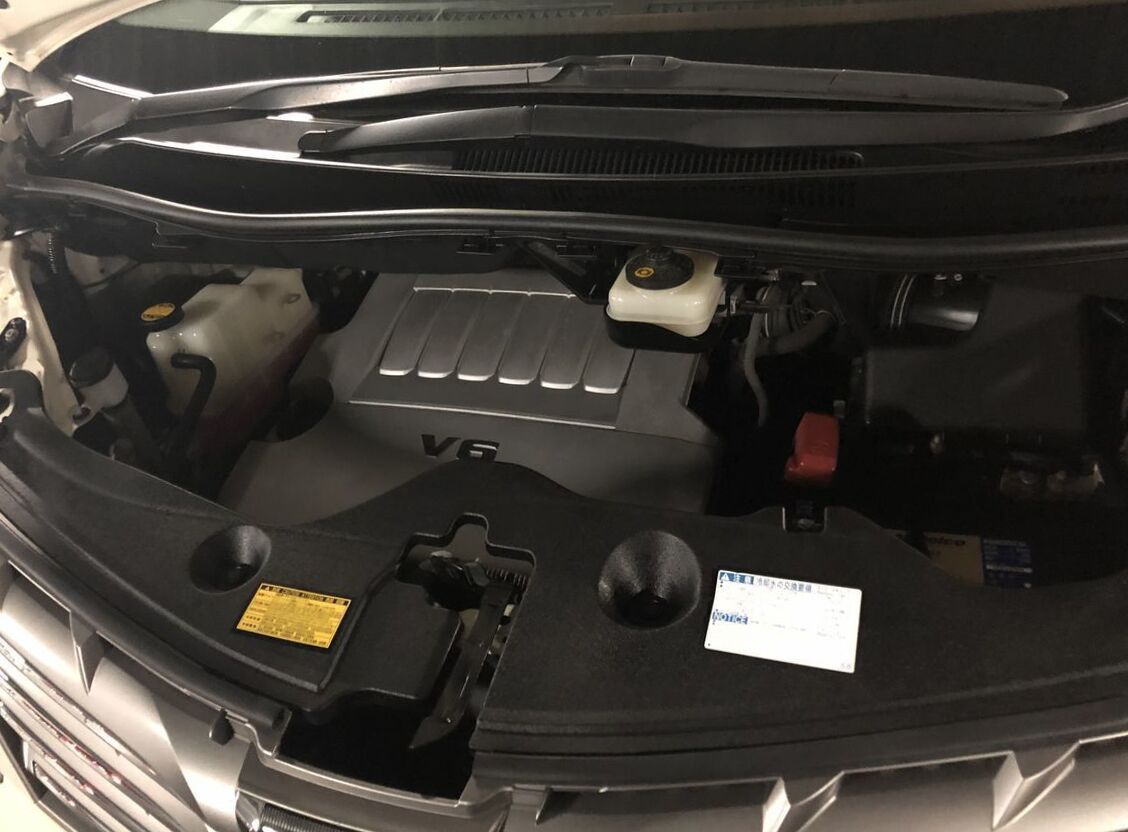

| Engine name | 2GR-FE |
| Fuel | High octane premium gasoline |
| Engine type | V6 |
| Has turbo | no |
| Max power, hp | 280 |
| Max power RPM, rpm | 6200 |
| Max power, hp (kWt) / rpm | 280(206)/6200 |
| Max torque, N*m | 344 |
| Max torque RPM, rpm | 4700 |
| Max torque, N*m (kg*m) / rpm | 344 (35.1) / 4700 |
| Actuator valves | DOHC |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 206?280?/6200 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 344?35.1?/4700 |
| Start stop system | no |
Fuel consumption | |
| Fuel consumption (10/15 mode), km/l | 9.2 |
| Fuel consumption (10/15 mode), l/100km | 10.9 |
Transmission | |
| Shifter position | On the dashboard |
| Manual mode | yes |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4850 |
| Exterior width, mm | 1830 |
| Exterior height, mm | 1890 |
| Exterior size (L x W x H), mm | 4850x1830x1890?mm? |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
| Interior size (L x W x H), mm | 3160x1585x1360?mm? |
| Interior length, mm | 3160 |
| Interior width, mm | 1585 |
| Interior height, mm | 1360 |
Chassis dimensions | |
| Wheel base, mm | 2950 |
| Front axle length, mm | 1580 |
| Rear axle length, mm | 1585 |
| Turning radius, m | 5.7 |
| Front/rear axis length | 1580/1585?mm? |
| Wheel spacing front | 1580 |
| Wheel spacing rear | 1585 |
Weight and permissible load | |
| Mass, kg | 2030 |
| Total weight | 2415 |
Volumes | |
| Fuel tank capacity, l | 65 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |
Tires | |

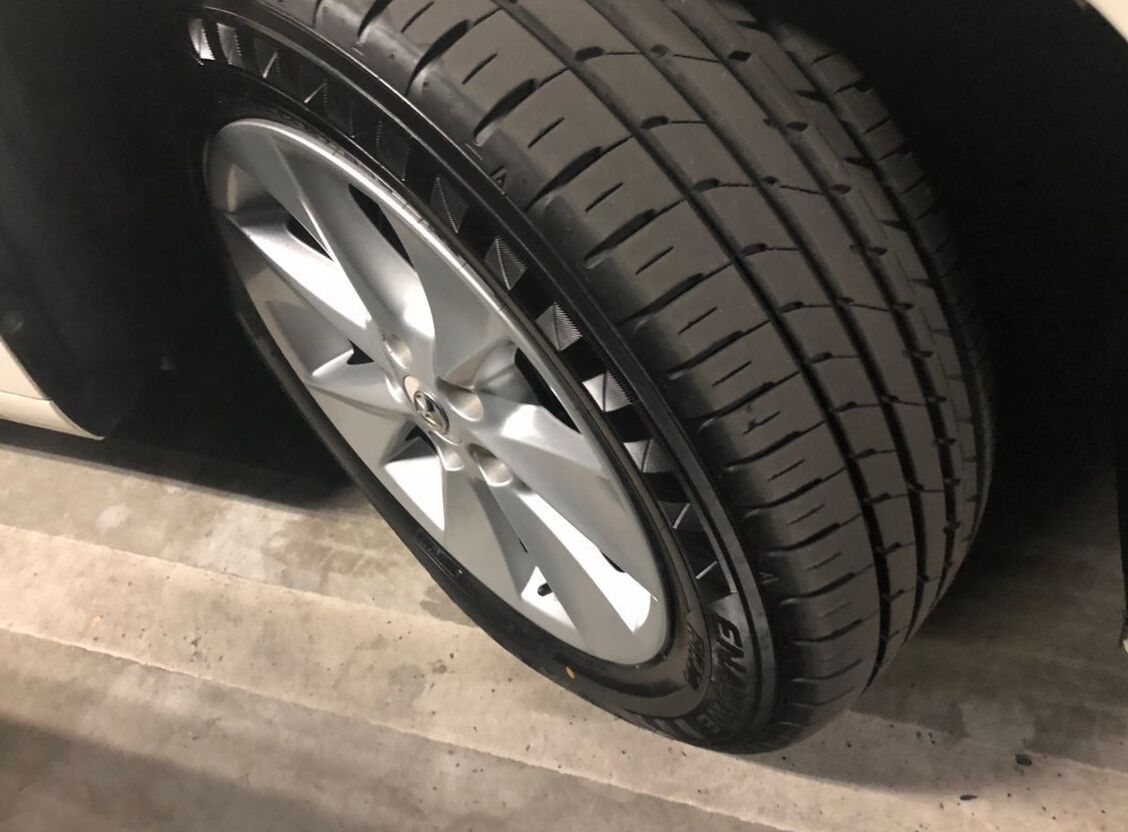

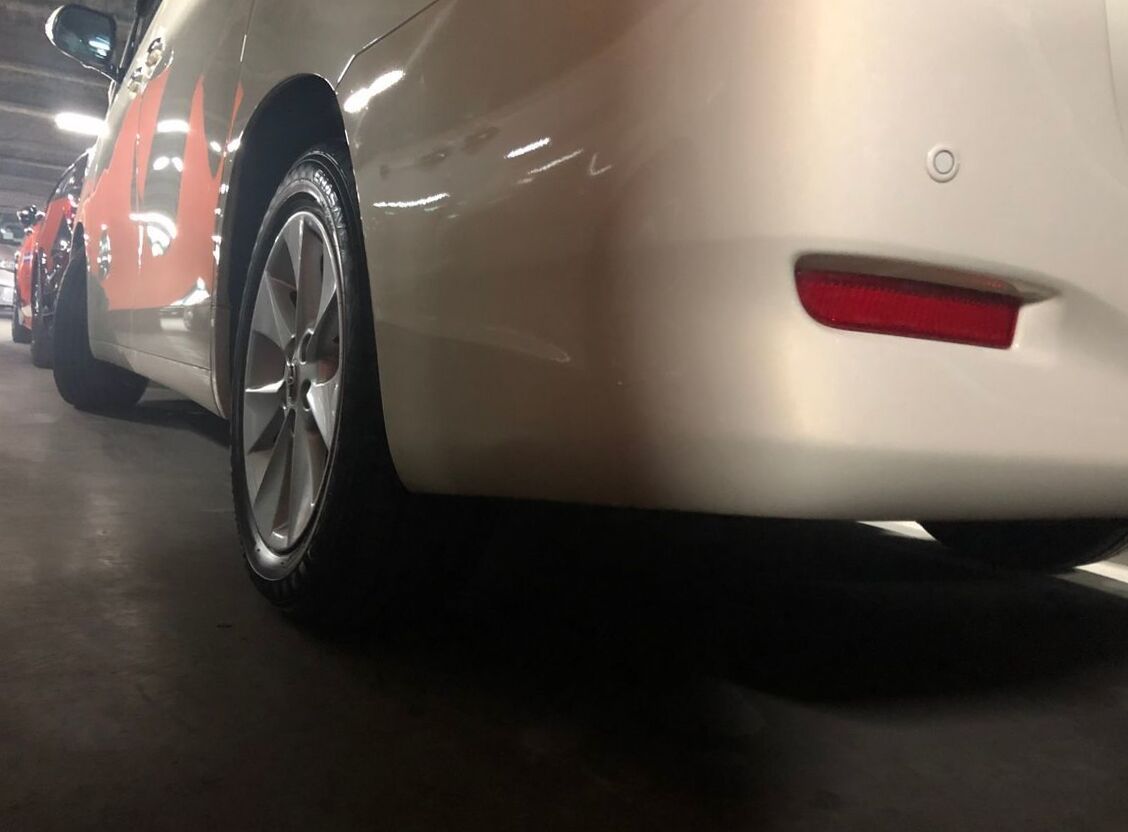

| Front wheels | 215/60R17 |
| Rear wheels | 215/60R17 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Brakes equipment | no |
| Brake front search | 1 |
| Rear brake | 1 |
Exterior | |
Headlights | |

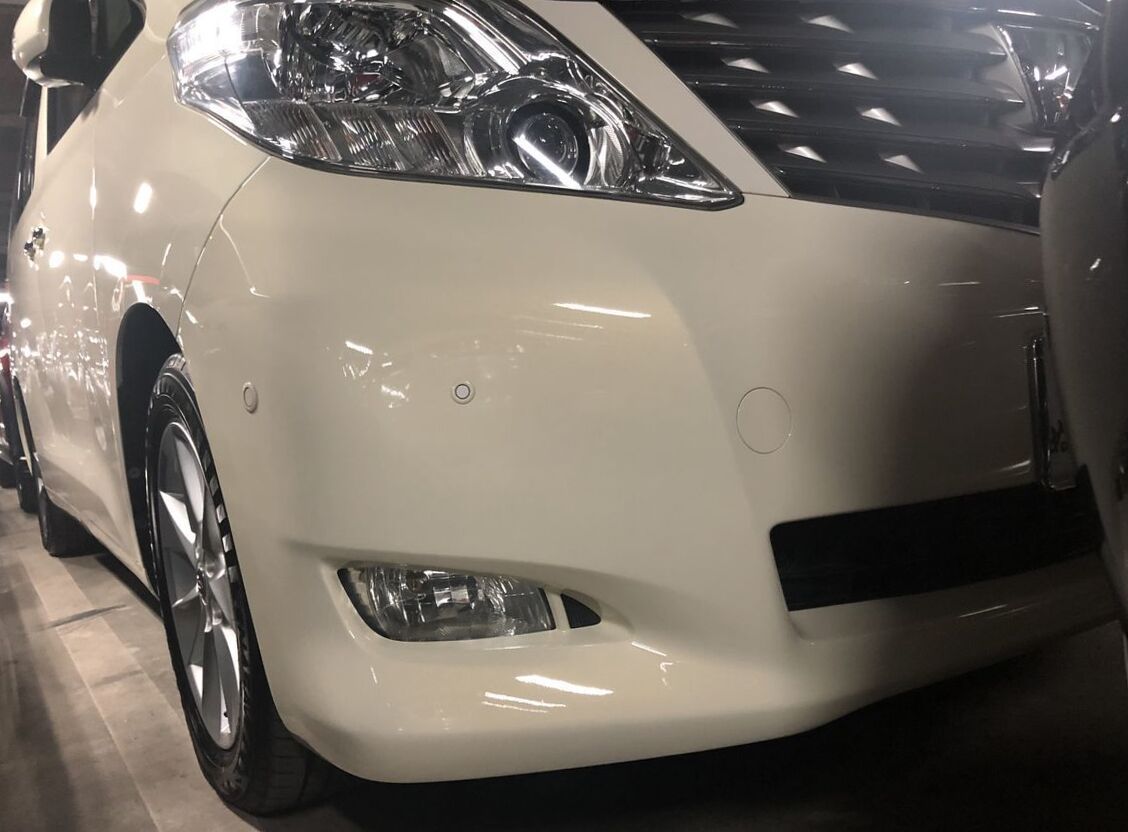

| Xenon lamps | yes |
| Head lights washer | no |

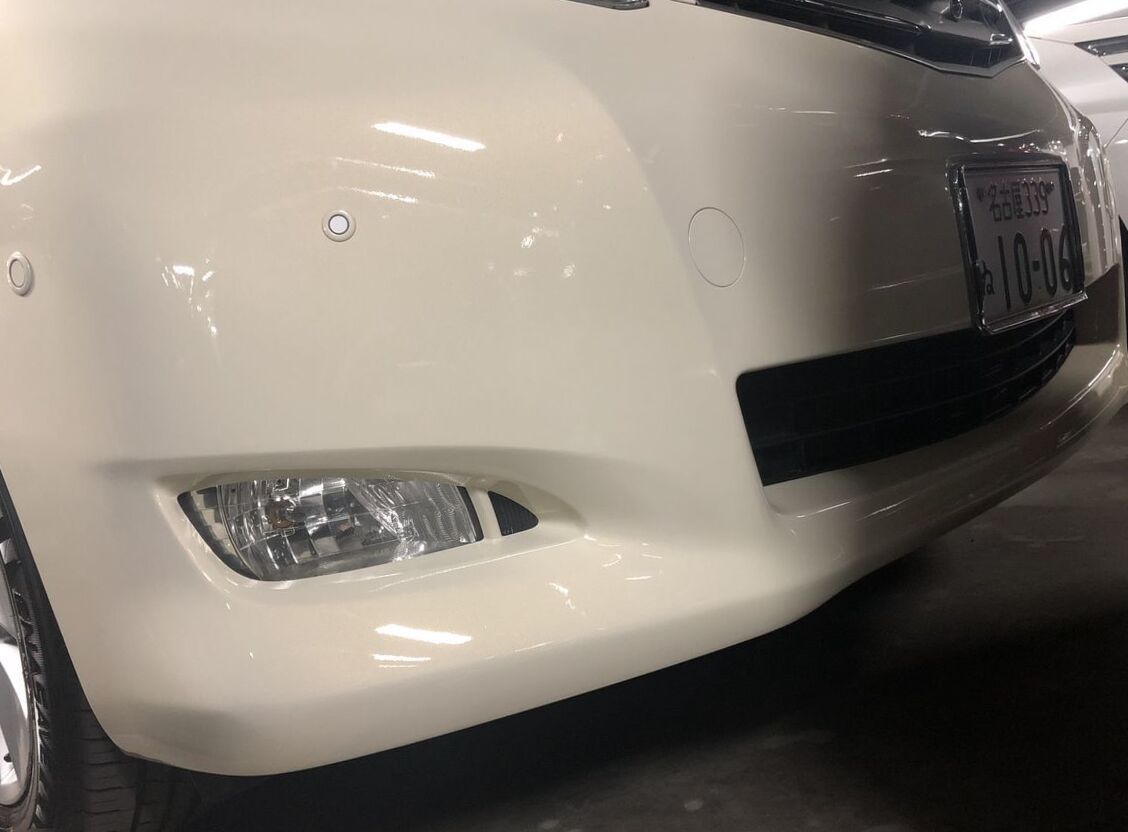

| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | yes |
Side mirrors | |
| autocorrected mirrors | yes |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |

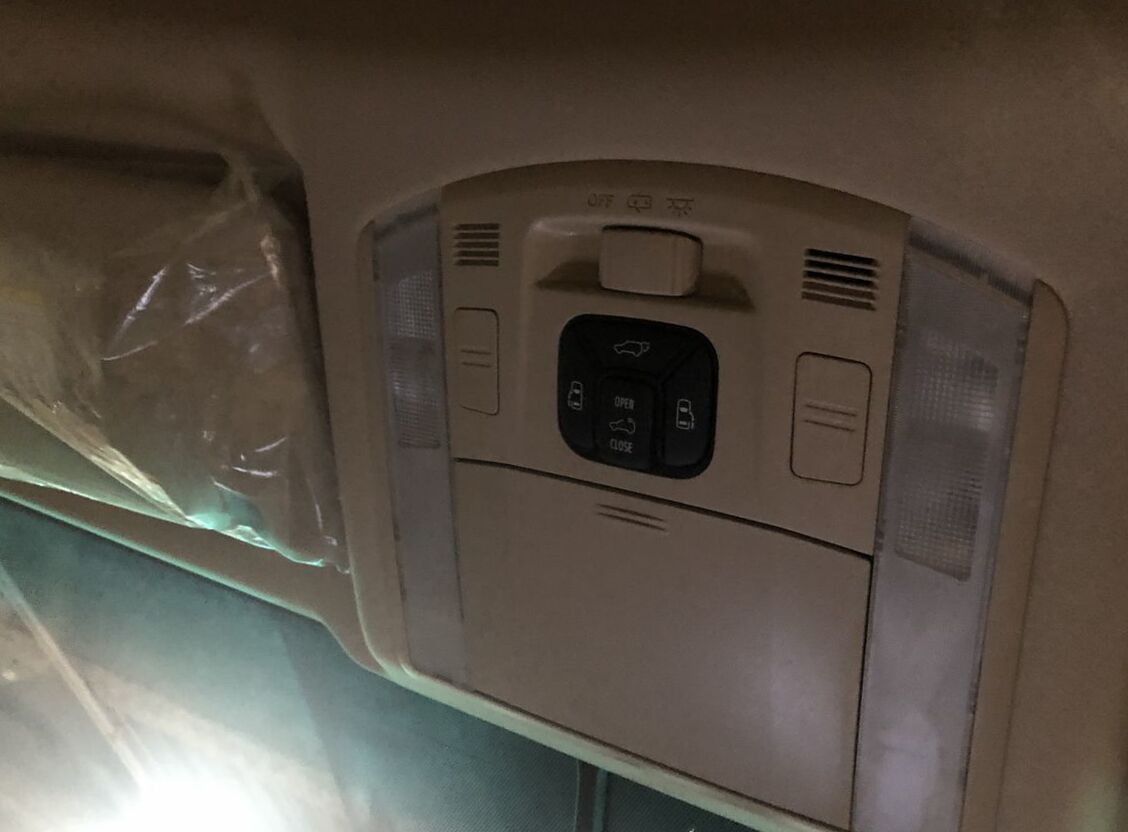

| Sliding electric doors | yes |
| Door easy closer | yes |

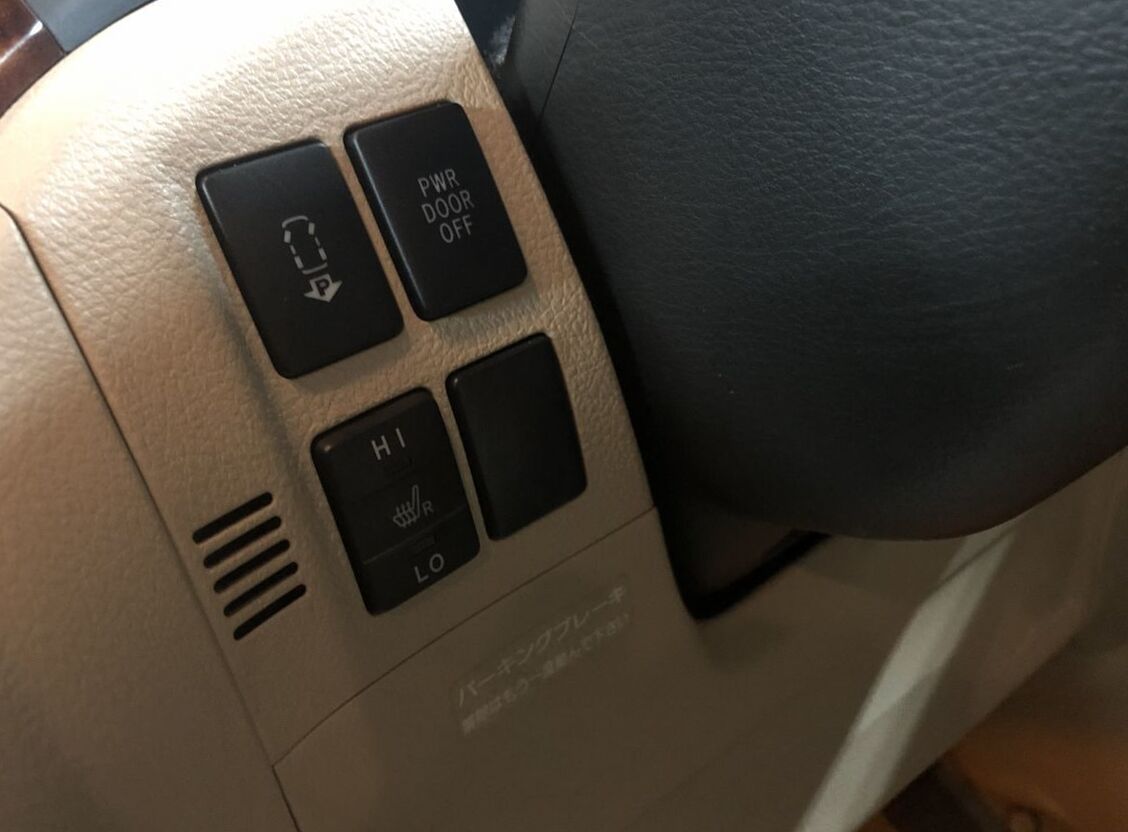

| Power rear door | yes |
Windows | |

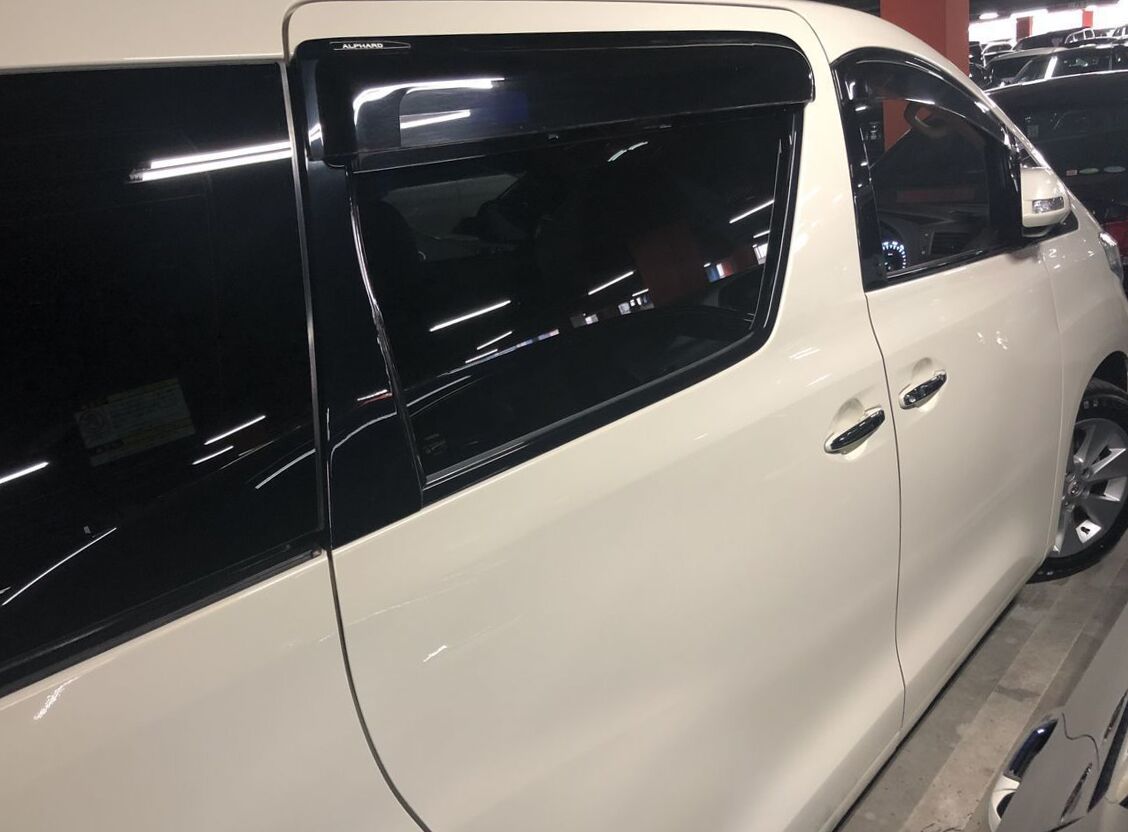

| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |

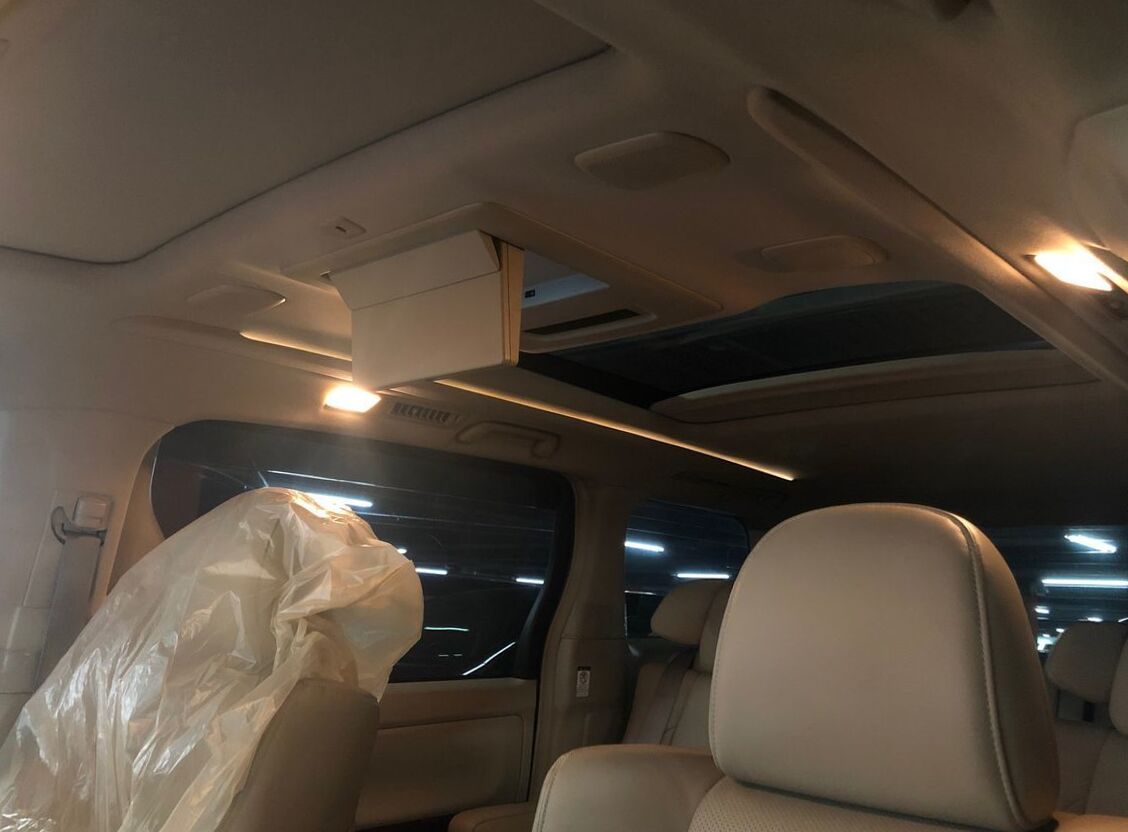

| Sunroof | yes |
| Big sunroof | no |
| T bar roof | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |

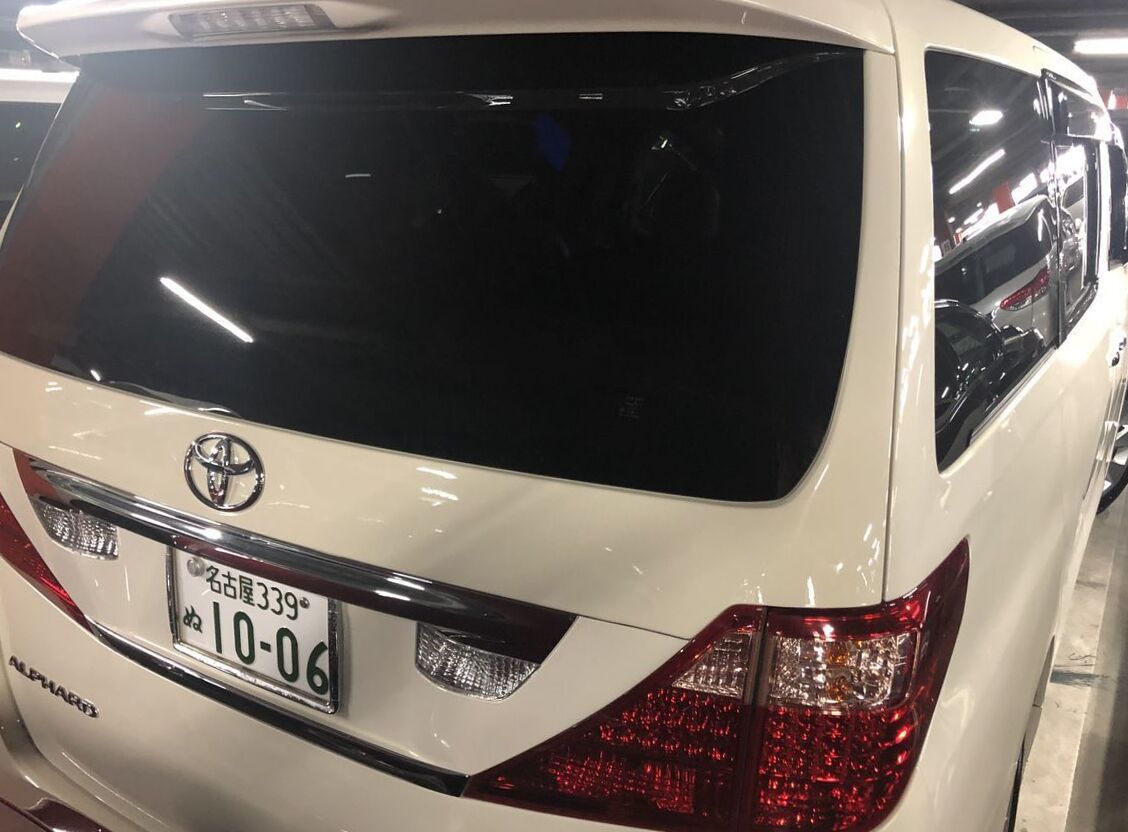

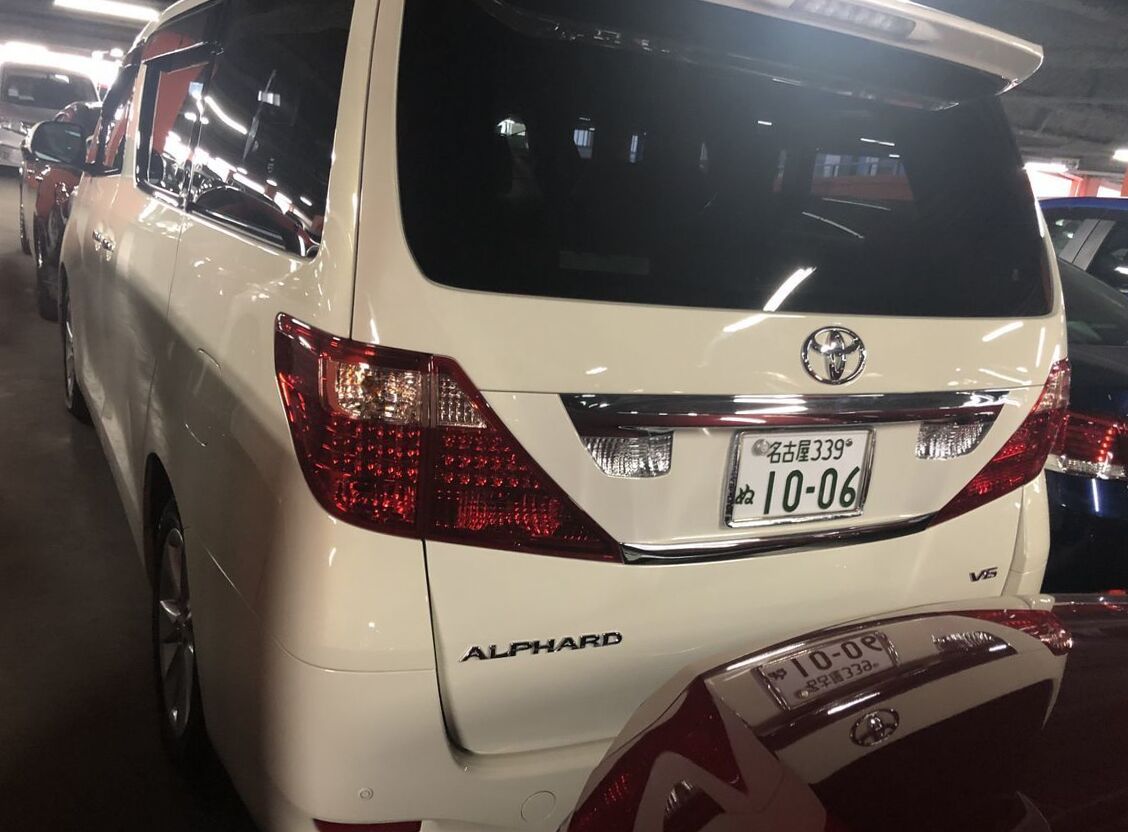

| Rear spoiler | yes |
Body color | |
| Colors | 2019 2041 2182 32 |
Interior | |
Steering wheel and center panel | |

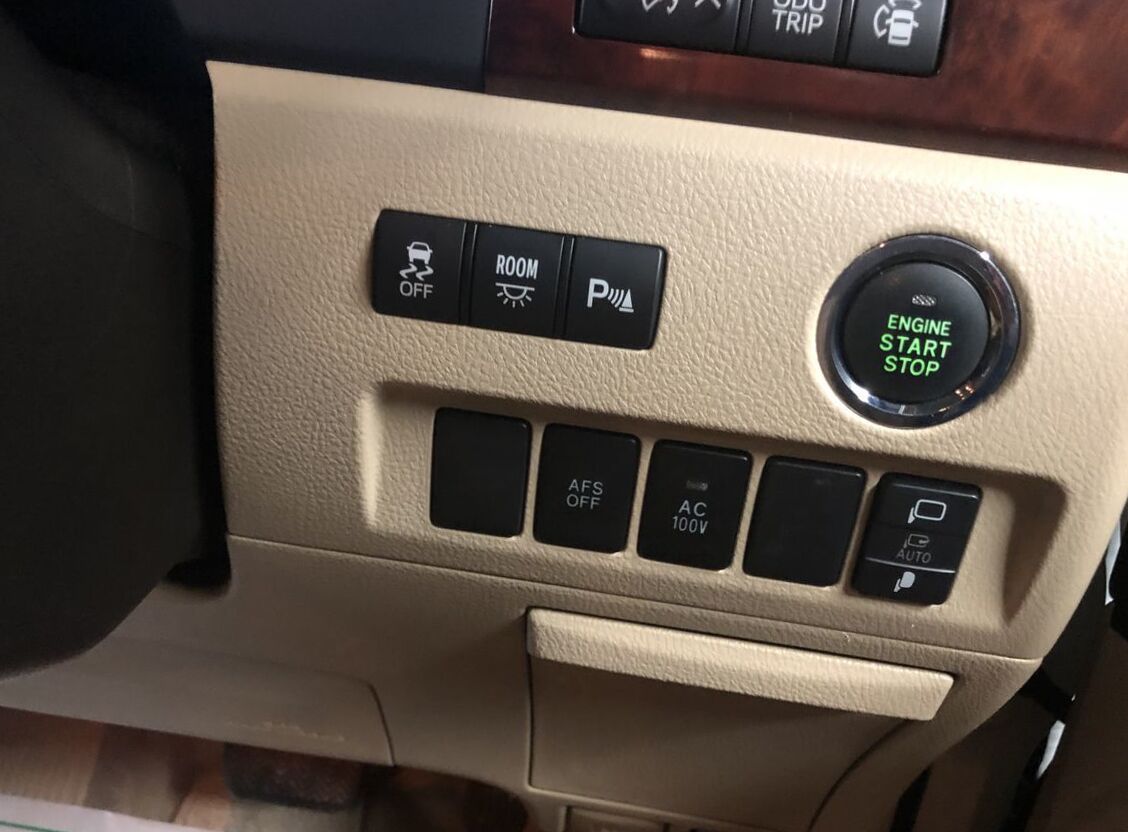

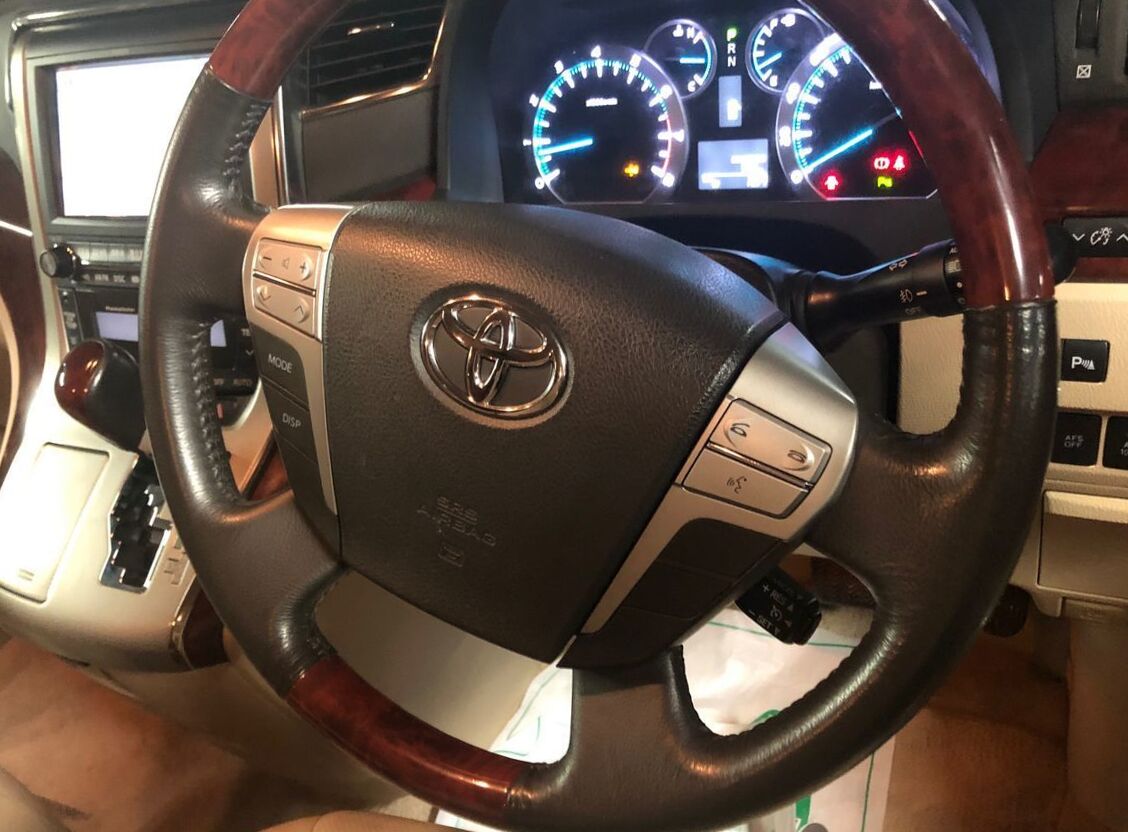

| Engine start button | yes |
Interior design | |
| Water-repellent | no |

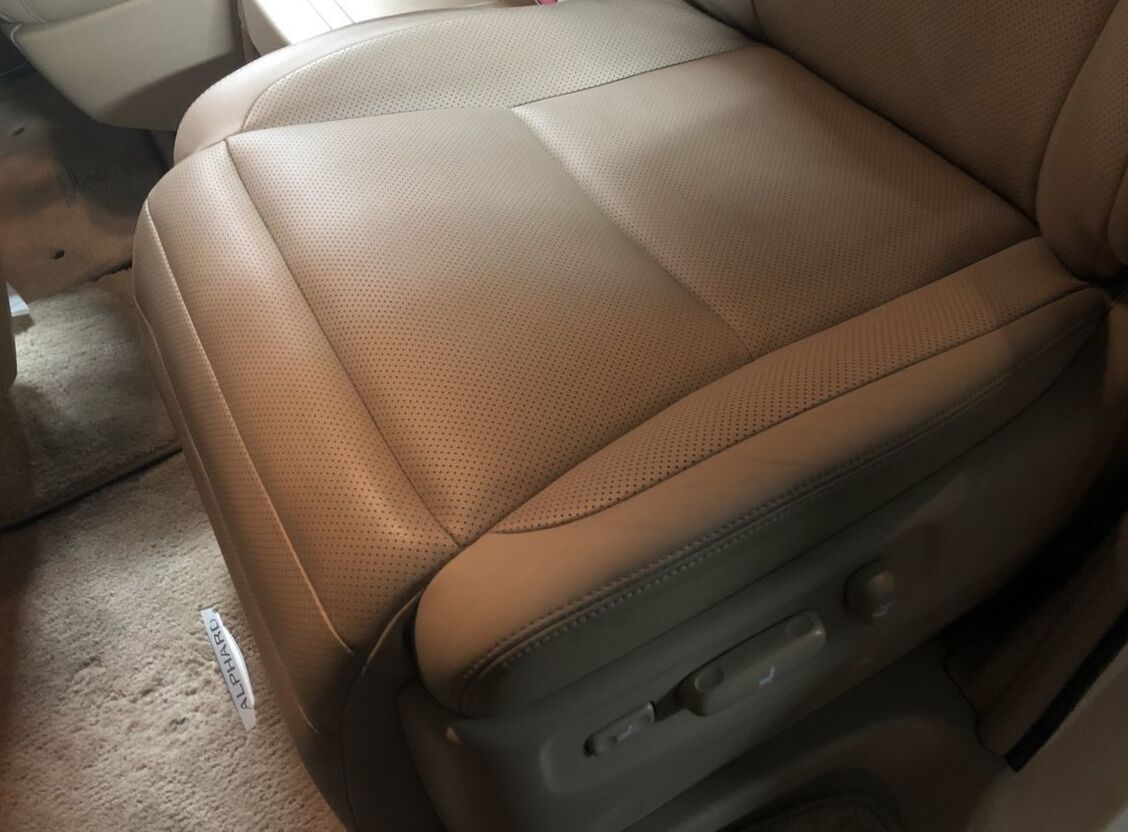

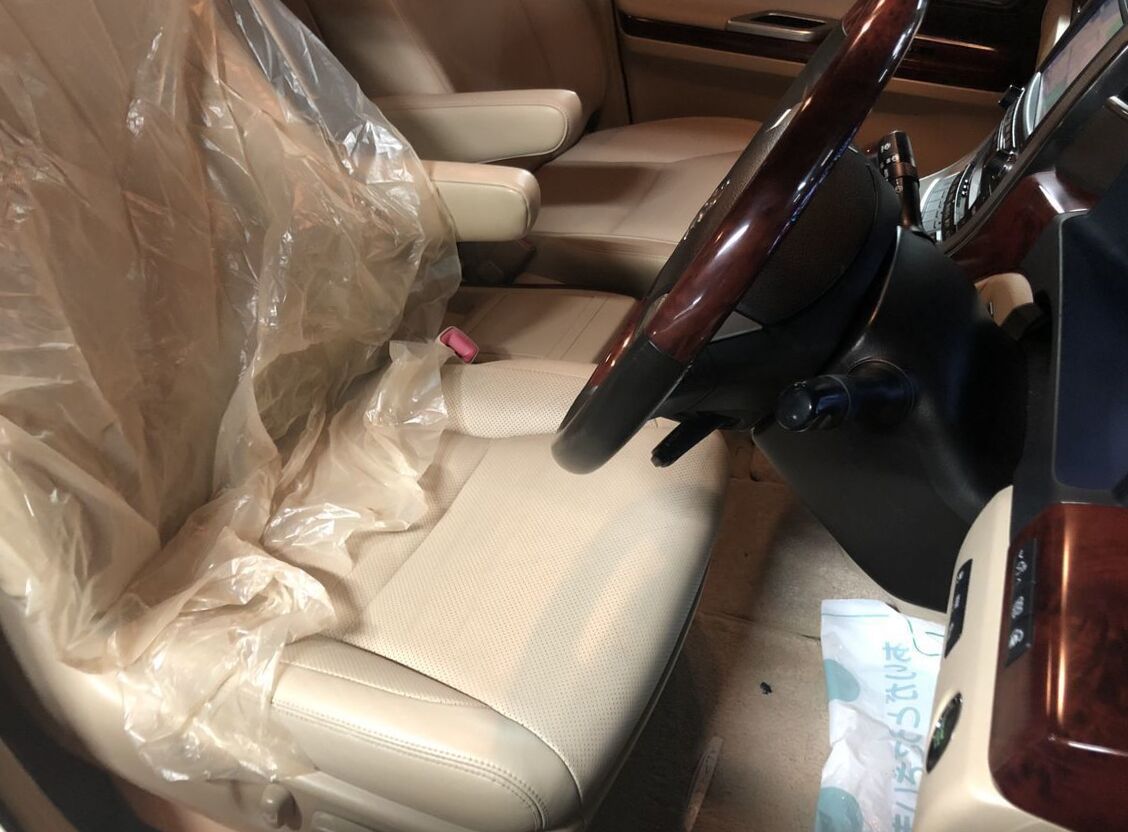

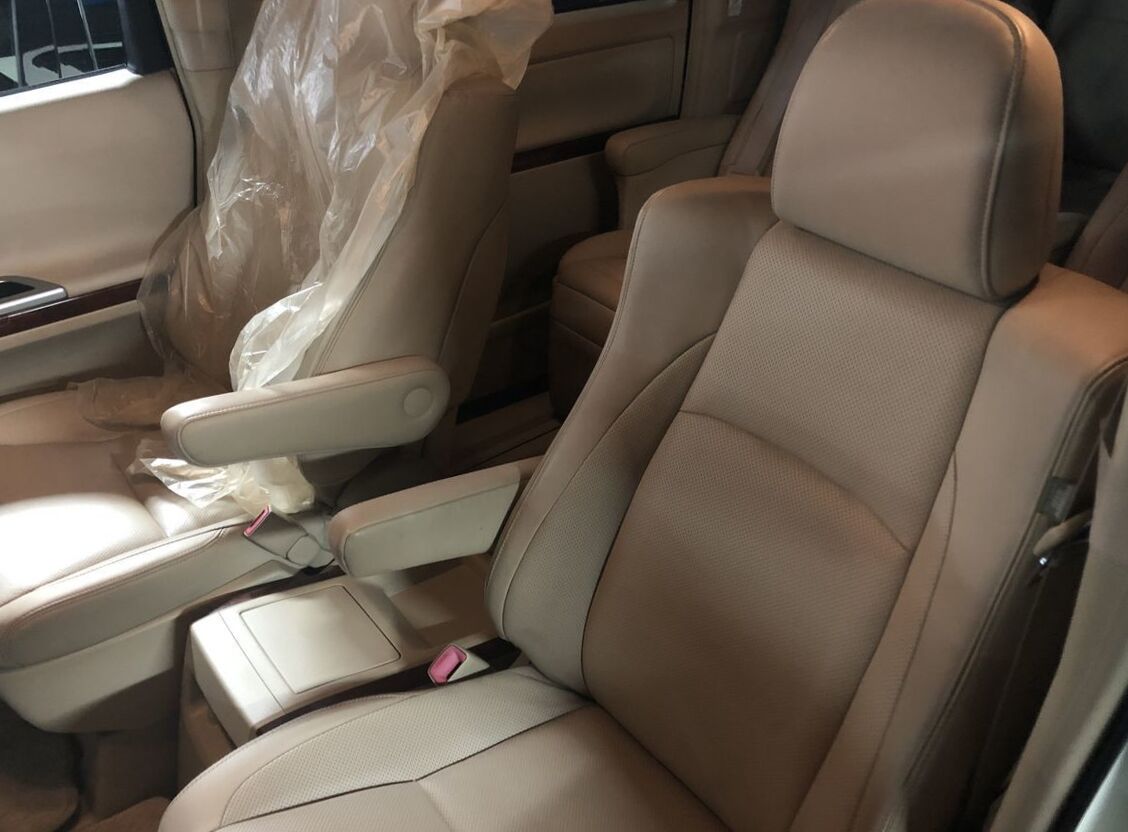

| Leather seat | yes |
| Antibacterial repellent | no |
Seats | |
| Bucket seat | no |

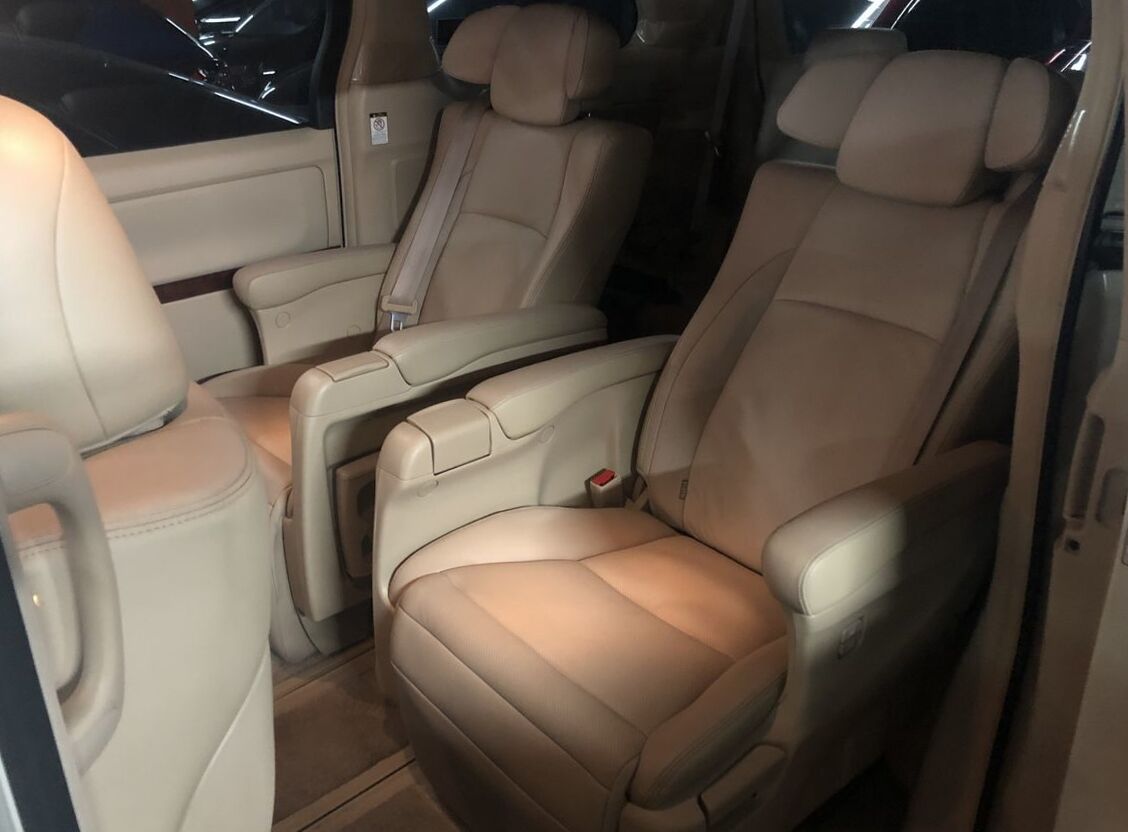

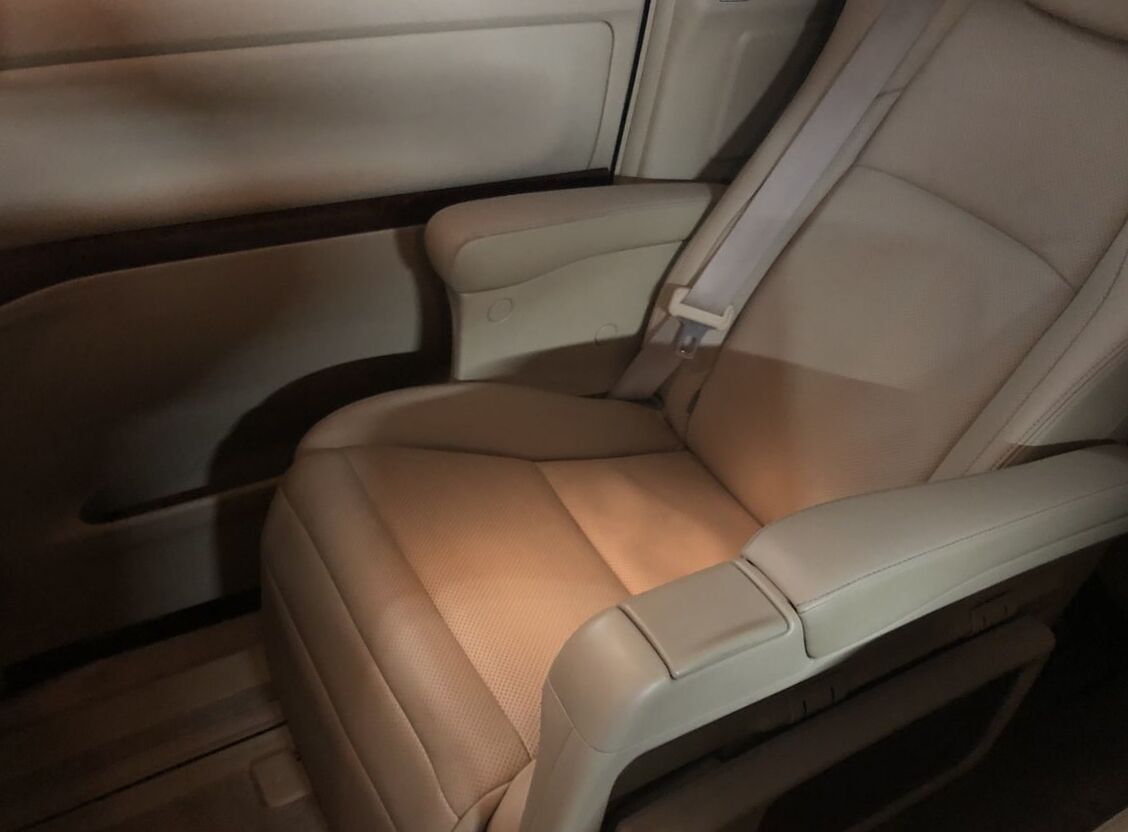

| 2nd row | two individual seats |

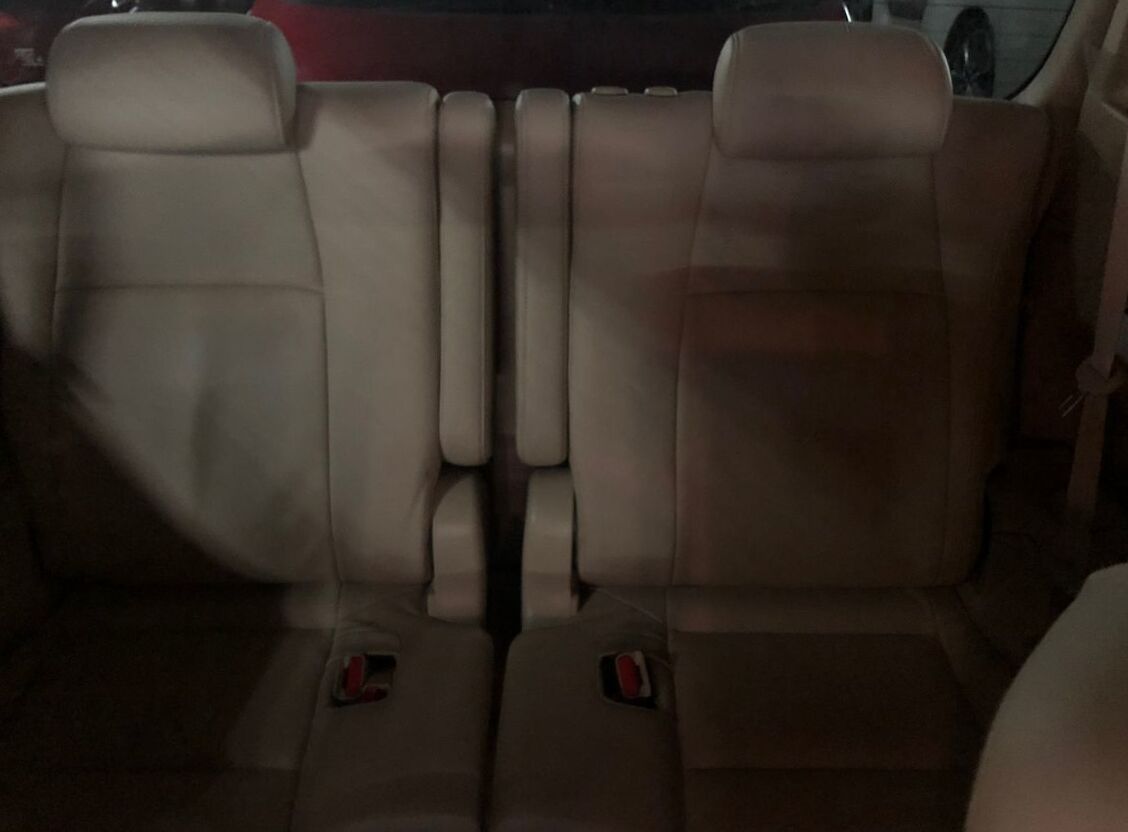

| 3nd row | 50/50 ratio fold seat |
| Seat lifter | yes |
| Full flat seats | no |
| Removable seats | no |
| Ottoman seat | yes |
| Front bench seat | no |
| Walk throught | no |
| 2nd row throught | yes |
Electric interior package | |

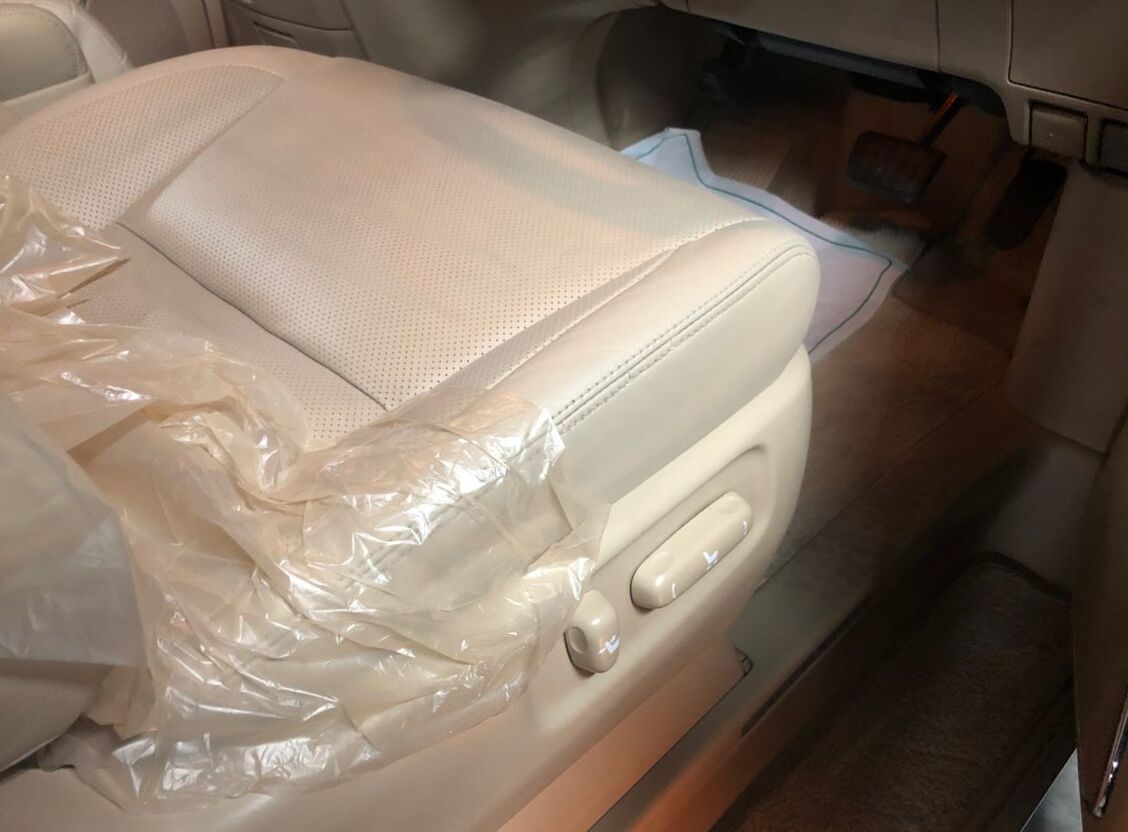

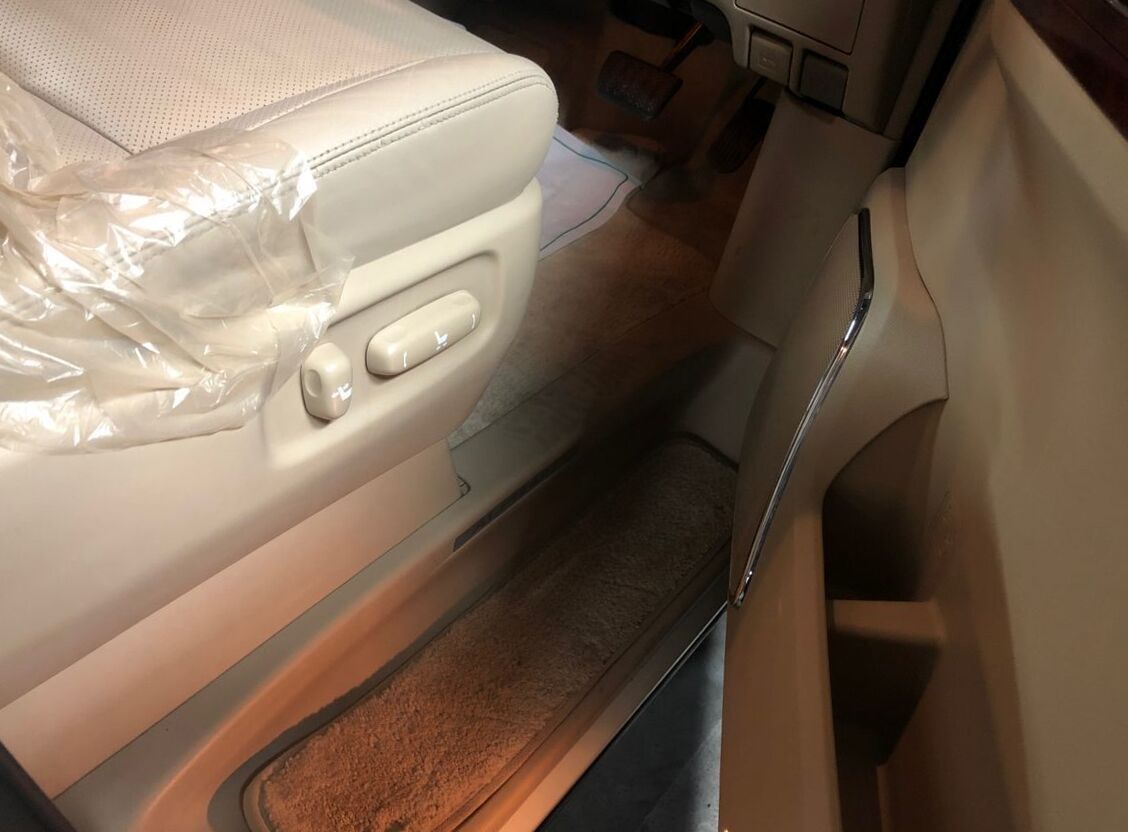

| Power adjustable driver seat | yes |
| Power ajustable front seat | yes |
| Adjustable 3rd row | no |
| Front seat heater | yes |
| Rear seats heater | no |
| Seat position memory | yes |
| Keyless enter | yes |

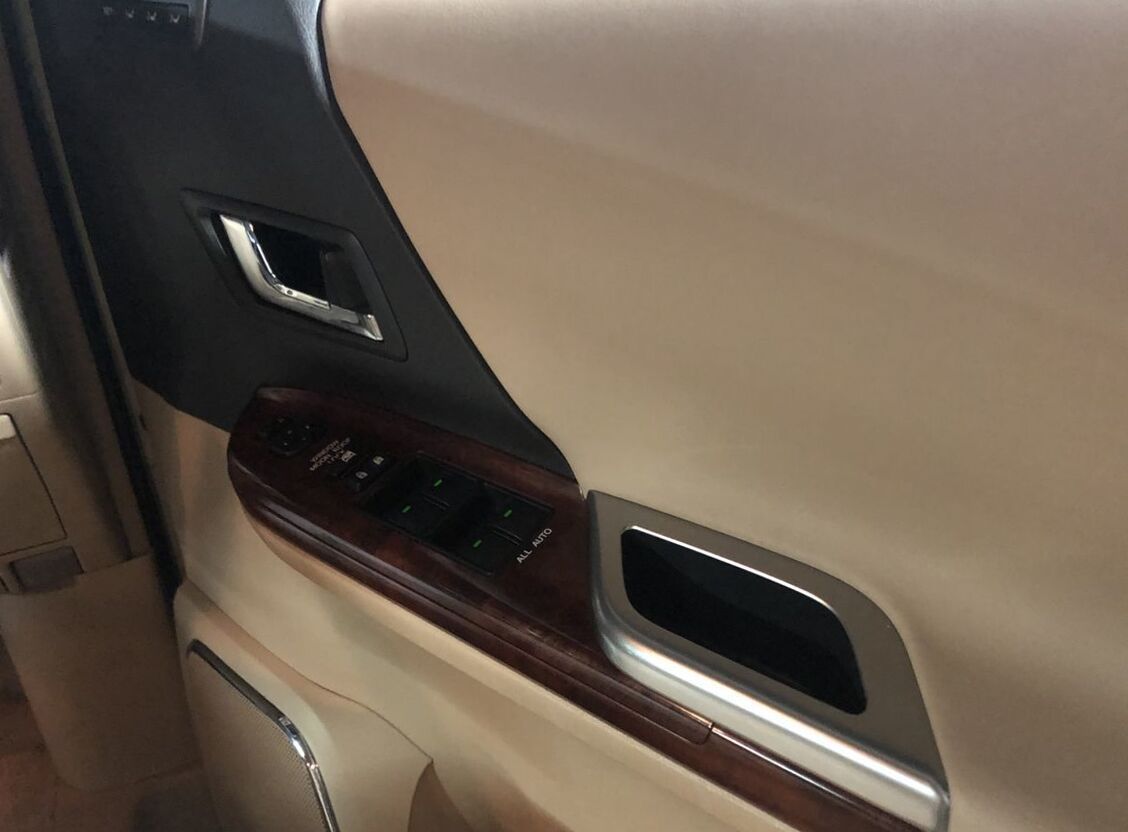

| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
| 2 airbags | yes |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | yes |
| Road Service | HELPNET (option) |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | option |
| Cruise control | yes |
| Distance control system | option |
| Intelligent AFS | yes |
| Night vision | no |

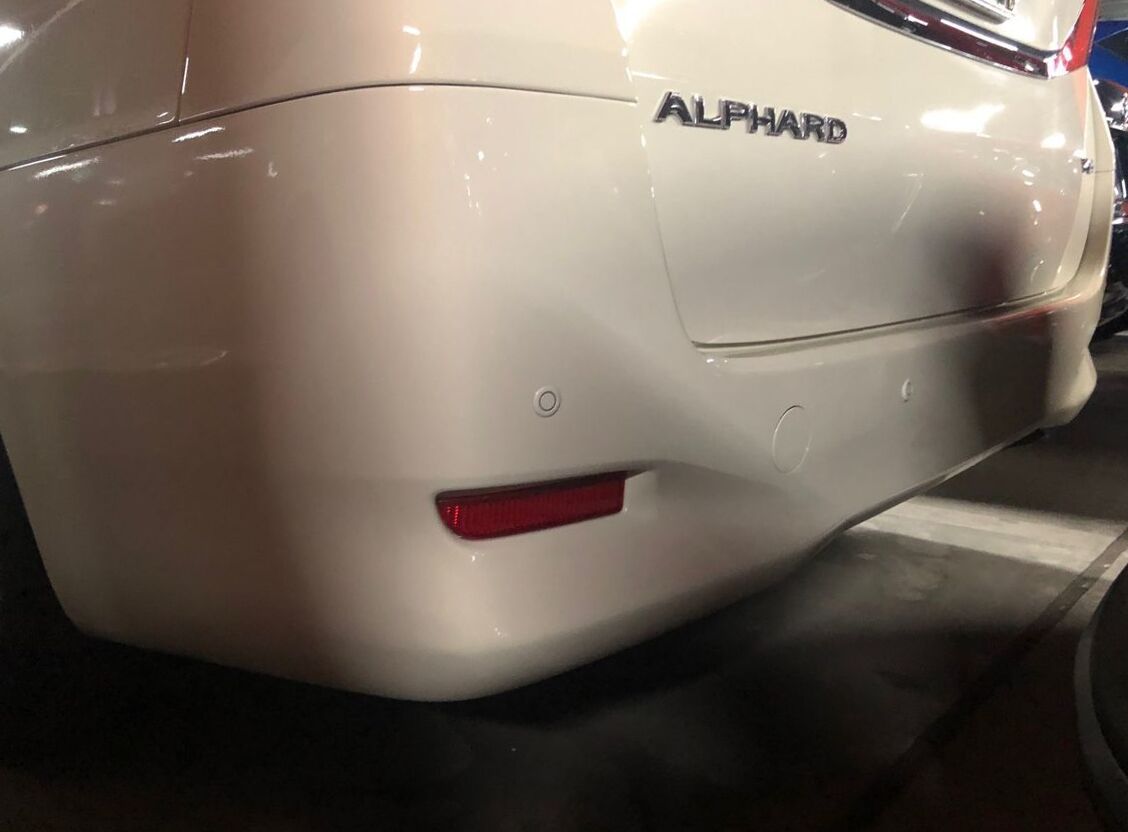

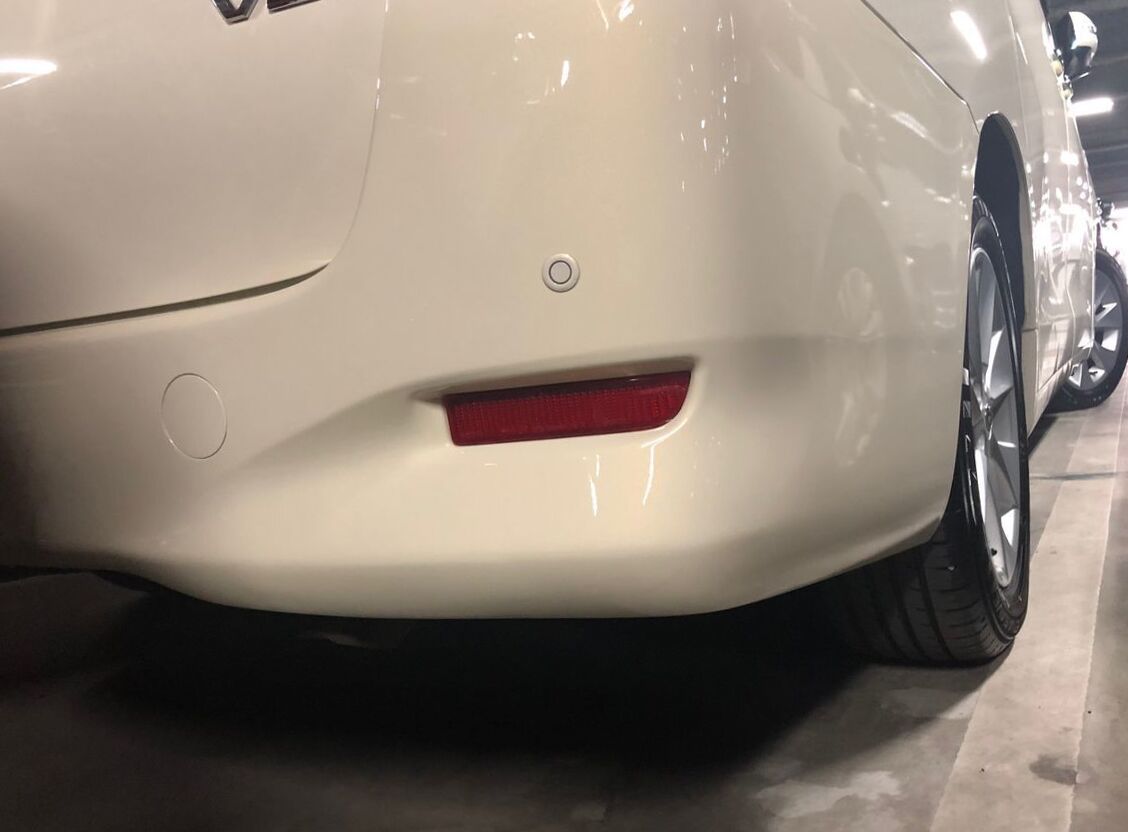

| Parktronic | yes |
| Intelligent parking assist | option |
| Collision mitigation system | option |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |
Audio systems | |
| Radio | option |
| Autoreverse casette | no |
| CD player | option |
| DVD-audio | option |
| MD palyer | option |
| Audio HDD | option |
| Speaker | yes |
| Rear entertainment system | option |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
| Optional navigation system | no |
| Parking assist system | option |
| Front monitor | option |
| Sides monitors | option |
| Back monitor | option |
Additional amenities | |
| Lagage box | no |
| Etc | option |
Car safety | |
| Alarm system | yes |
| Security alarm | option |
2009 Toyota Alphard II DBA-GGH20W 3.5 350G L package (280 Hp) specs
|
Toyota states its "E-Four electric 4WD system that regulates a rear-mounted, rear-wheel-propelling electric motor and coordinates electric power distribution to all four wheels. An ECB (Electrically Controlled Brake system) provides efficient wheel-by-wheel brake control." The full-size Alphard Hybrid MPV qualifies as an Ultra-Low Emissions Vehicle (ULEV), achieving levels 75% lower emissions than the Japanese government's 2000 benchmark. The 2.4-litre gasoline engine has been developed specifically for use in Toyota's hybrid systems and features a high-expansion ratio cycle that raises efficiency and reduces friction. In 2006, a Royal Lounge Alphard was introduced. It is a luxurious, four-seat version of the Alphard. The Alphard Hybrid uses "by-wire" technology that monitors brake pedal pressure and vehicle speed in order to calculate the optimum hydraulic pressure. By-wire works with the E-Four to maximize the collection of kinetic energy from braking for conversion into electric power. » Read More About Toyota Alphard |
