Body typeSUV 3 Doors
Power64 Hp
Engine Displacement700 cm3 or 0.7L or 42.7 cu-in
Colorsilver
Transmission GearboxManual
Fuel TypeGasoline
Drive wheel4WD
Mileage46602 Miles
Vin263***
Price (out of date)$10284

Frequently Asked Questions

What is the body type, 2016 Suzuki Jimny III?SUV, 4 Seats, 3 Doors
What is the fuel economy, Suzuki Jimny SUV 2016?6.8 l/100 km
How much power, Suzuki Jimny ABA-JB23W 2016?64 Hp
What is the engine size, 2016 Suzuki Jimny 660 XG 4WD?0.7L or 658cm3
How many gears, What type is the gearbox, Suzuki Jimny III 2016 SUV 660 XG 4WD (64 Hp)?5 speed Manual
What is the drivetrain, 2016 Suzuki Jimny SUV 660 XG 4WD (64 Hp)?All wheel drive (4x4)
How long is this vehicle, 2016 Suzuki Jimny III?3395 mm
How wide is the vehicle, Suzuki Jimny SUV 2016?1475 mm

Suzuki Jimny III ABA-JB23W 660 XG 4WD (64 Hp) 2012, 2013, 2014, 2015, 2016, 2017, 2018 Specs

General information

Production start year2012
Production end year2018
Drive typeAll wheel drive (4x4)
Frame typeSUV
Transmission type5 speed Manual
Engine volume, cc658
Frame nameABA-JB23W
Clearance, mm200
Manufacturing countryJapan
Doors3
Steering locatonright

Vehicle generation

Generation nameJB23
Generation number3
Facelift number2
Production start year2012
Production end year2018

Engine, transmission and steering specs

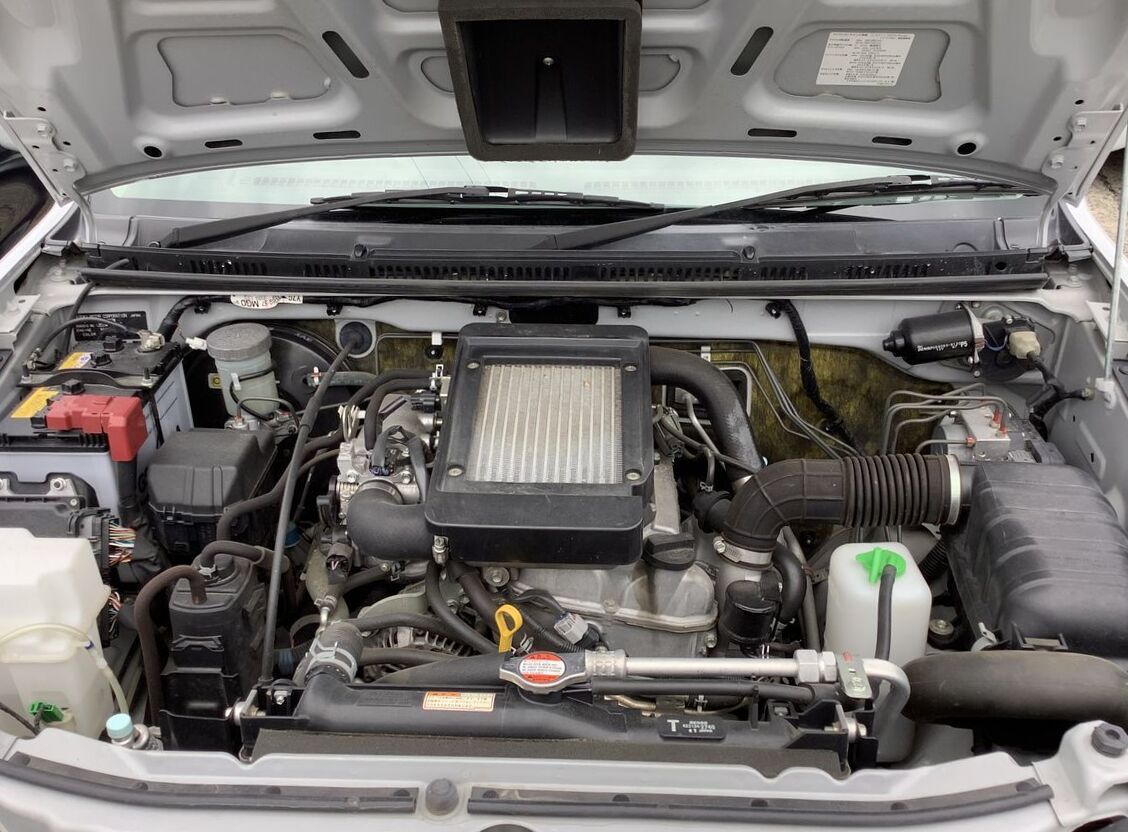

Engine specs

Engine nameK6A
FuelPetrol (Gasoline)
Engine type3 cylinder DOHC
Has turboyes
Turbo typeTurbine
Max power, hp64
Max power RPM, rpm6500
Max power, hp (kWt) / rpm64 (47) / 6500
Max torque, N*m103
Max torque RPM, rpm3500
Max torque, N*m (kg*m) / rpm103 (11) / 3500
Valves per cylinder4
Compression ratio8.4
Bore, mm68
Stroke, mm60.4
Engine additional infoelectronic fuel injection system

Fuel consumption

Combined6.8

Transmission

1st gear ratio5.106
2nd gear ratio3.017
3rd gear ratio1.908
4th fear ratio1.264
5th gear ratio1
Rear gear ratio5.151
Main gear ratio4.3
Shifter positionOn the floor.

Steering

Electric power steeringyes
Steereing gear typeBall nut screw

Dimensions

Frame dimensions

Exterior length, mm3395
Exterior width, mm1475
Exterior height, mm1680
Exterior size (L x W x H), mm3395x1475x1680?mm?

Interior dimensions

Capacity4
Seat rows2
Interior size (L x W x H), mm1680x1220x1210?mm?
Interior length, mm1680
Interior width, mm1220
Interior height, mm1210

Chassis dimensions

Wheel base, mm2250
Front axle length, mm1265
Rear axle length, mm1275
Turning radius, m4.8
Front/rear axis length1265/1275?mm?
Wheel spacing front1265
Wheel spacing rear1275

Weight and permissible load

Mass, kg980

Volumes

Fuel tank capacity, l40

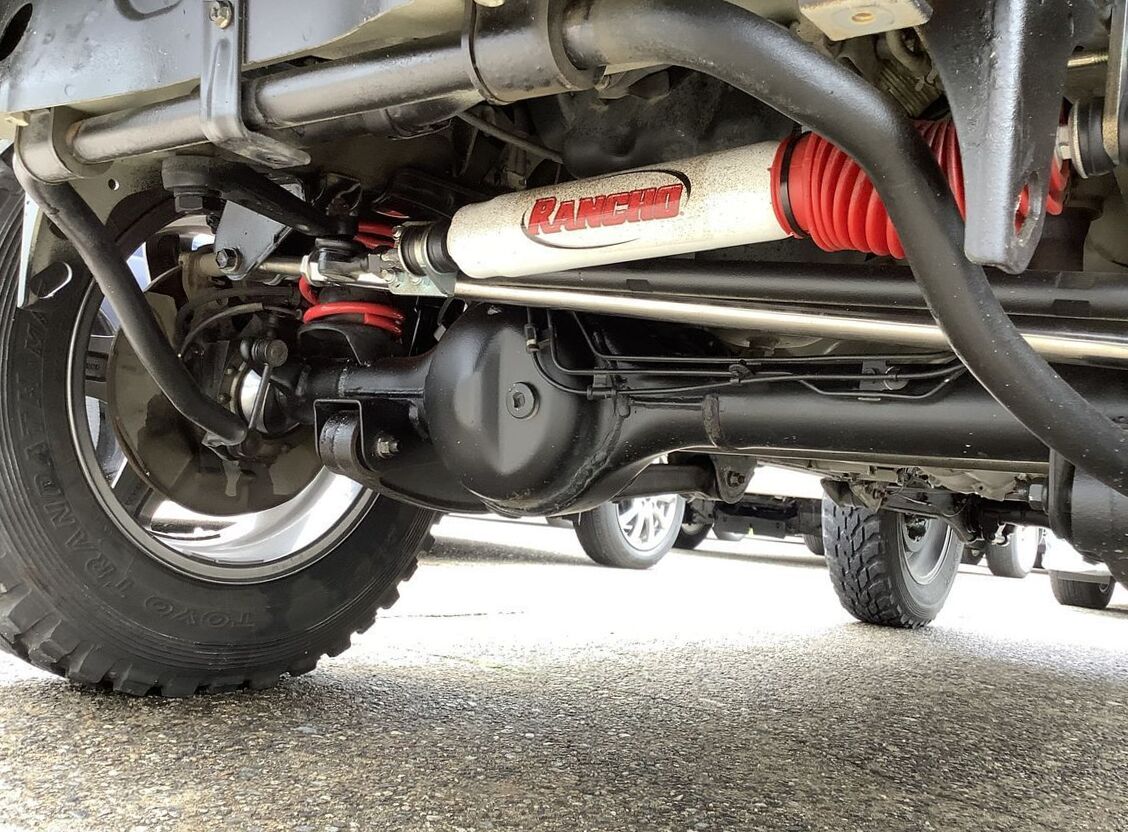

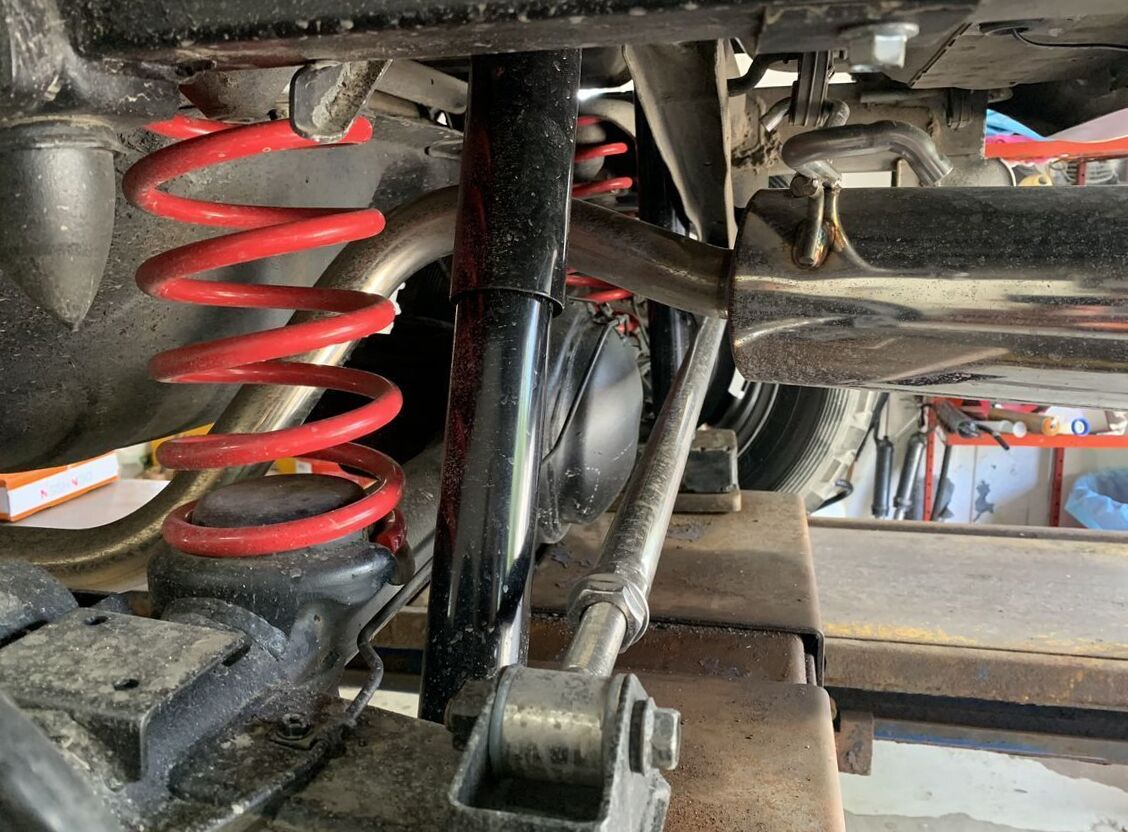

Suspension specs

Suspension specs

Front stabilizeryes

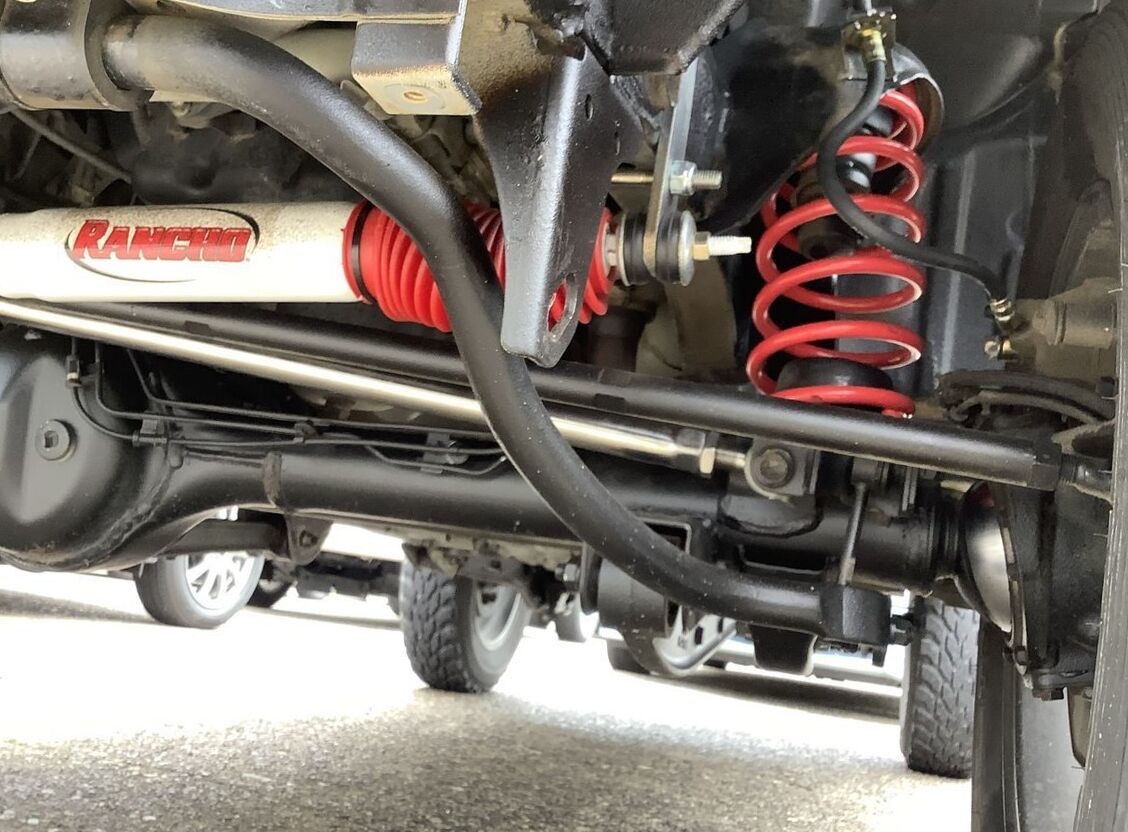

Front suspensionDependent, spring loaded
Rear suspensionDependent, spring loaded

Wheel rims

Aluminium wheelno

Tires

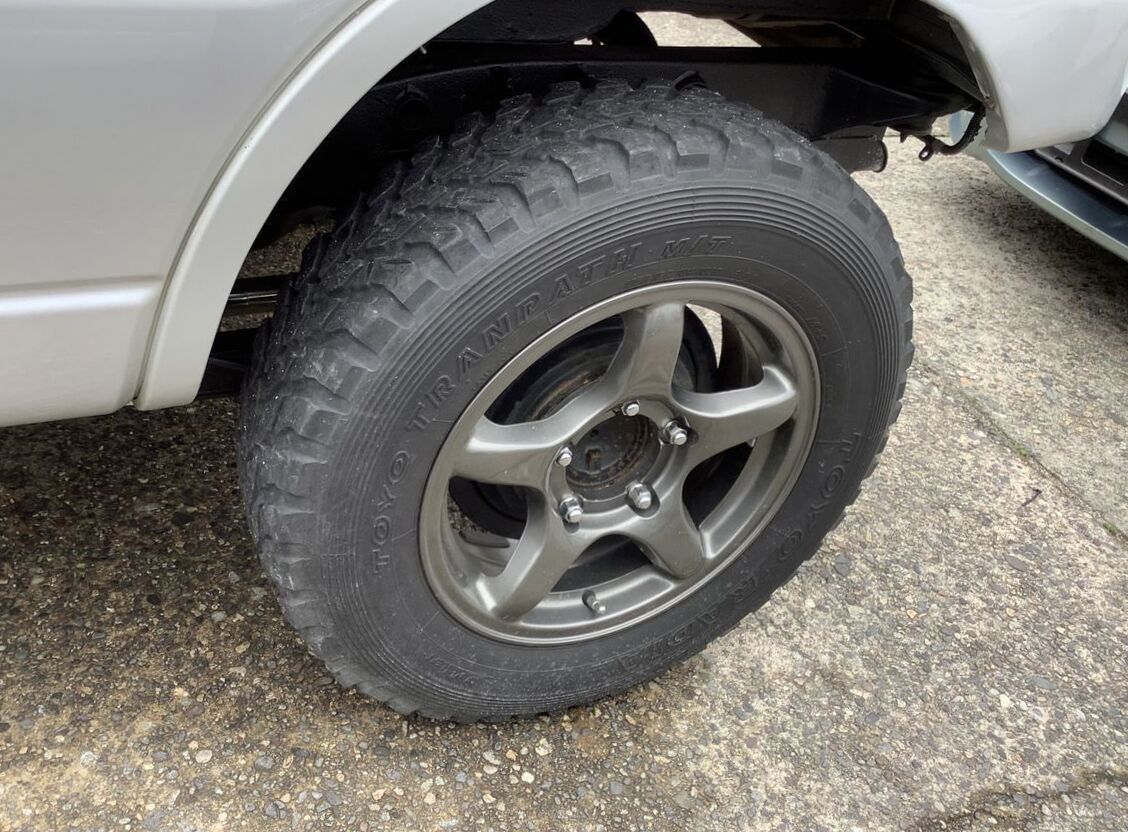

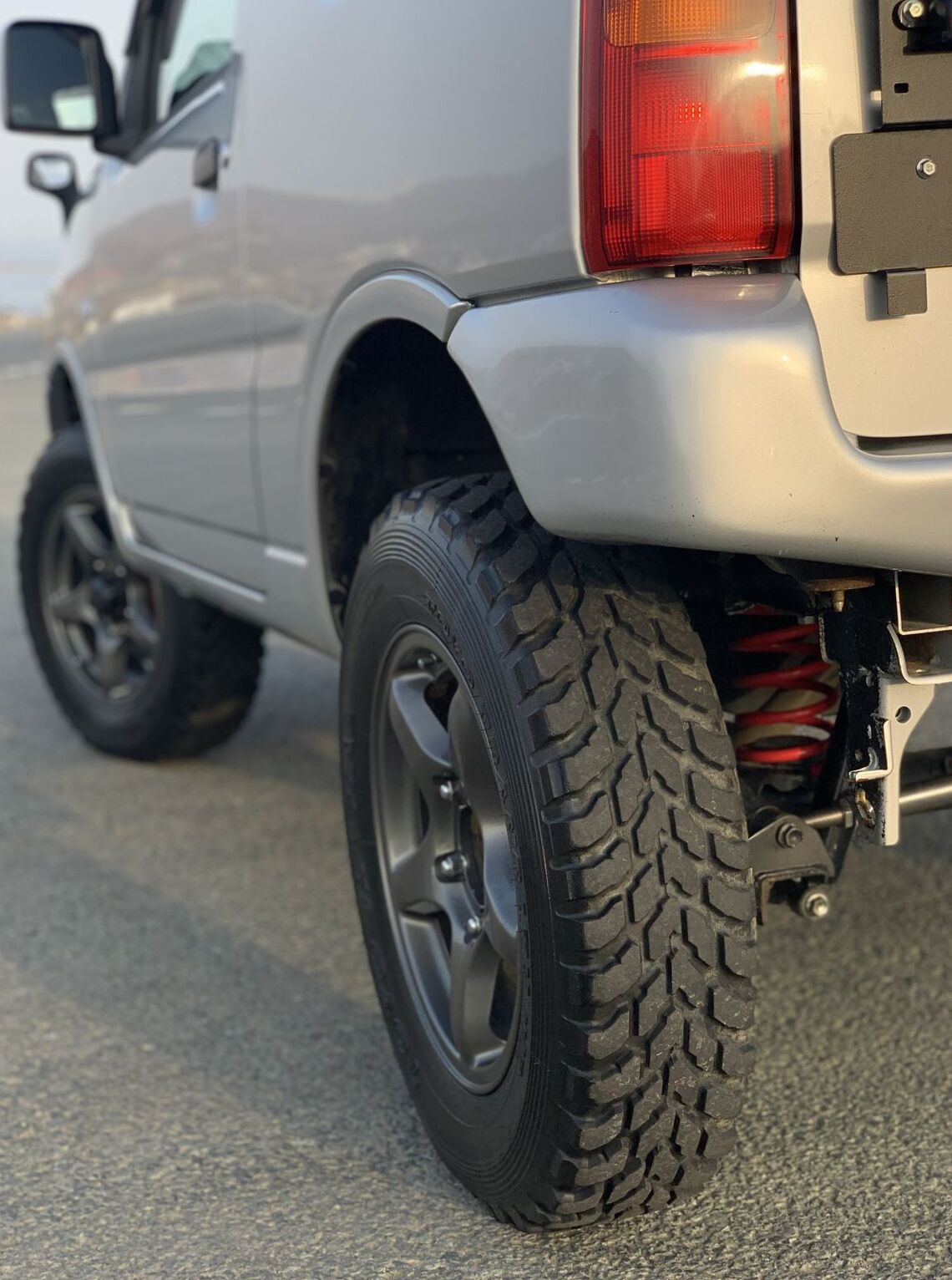

Front wheels175/80R16
Rear wheels175/80R16

Brakes

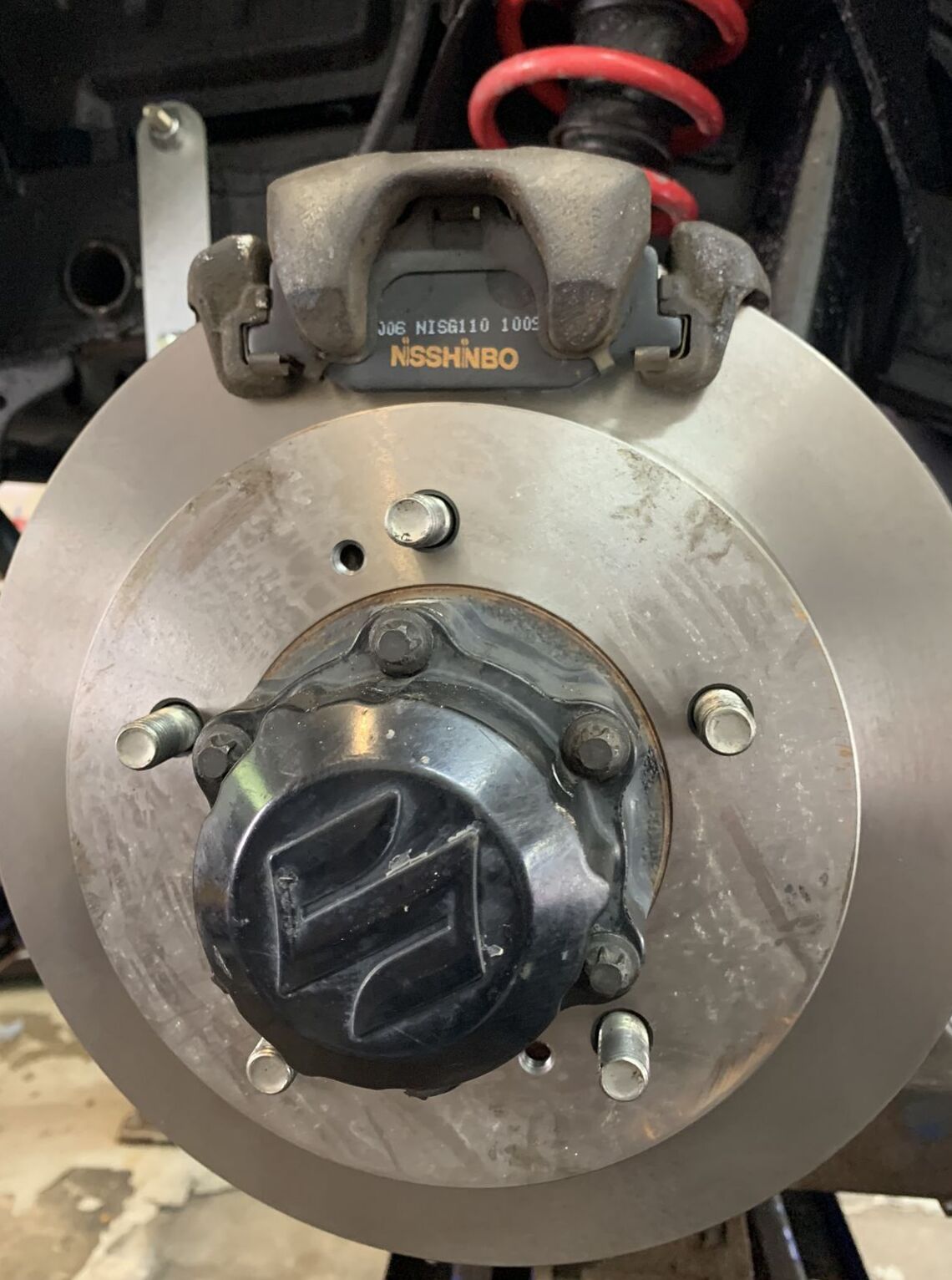

Front brakeDiscs
Rear brakedrum brakes

Exterior

Headlights

Halogen headlightsyes
Front fog lampsno
Additional stop lightyes

Side mirrors

Exterior mirrors in body colorno
Side mirrors with repeaters indicatorsno
Power adjustable door mirrorsno
Door mirrors heatingno

Doors

Door handles in body colorno
Chrome door handlesno

Windows

Privacy glassno
Ultraviolet glass protectionyes
Rear glass heatyes

Accessories

Roof railno
Bumperspainted
Back wiperyes

Interior

Steering wheel and center panel

Leather windingno
Audio control on steering wheelno
Tachometeryes

Interior design

Cloth upholsteryyes
Combined obivka Salonno
Water-repellentno

Seats

2nd row50/50 ratio fold seat
Headrests for seats2

Electric interior package

Front seat heaterno
Centralized door lockyes
Keyless enteryes
Power windowyes

Additional interior equipment

Smokers packetyes

Safety

Airbags

Drivers airbagyes
Passengers airbagyes

Children safety

isofix baryes

Active and passive safety

Side impact baryes
Road Service

Electronic security and traffic control systems

ABSyes

Amenity

Microclimate

Air conditioneryes
Air filteryes

Audio systems

Radiono
CD playerno

Additional amenities

Mirrors in sunshieldsyes
Lagage boxyes
Onboard computeryes

Driver Kit

Spare tireyes


2016 Suzuki Jimny III ABA-JB23W 660 XG 4WD (64 Hp) specs

See also the Suzuki LJ and Suzuki SJ, which used the Jimny name in some markets

The Suzuki Jimny is a small four wheel drive built by the Japanese manufacturer Suzuki. Three body styles are available: a metal top, a hard top and soft top. The Jimny replaced the popular Sierra/ Samurai model in most markets in 1999, though its predecessor remains in limited production in some regions. The Jimny (3rd generation) was equipped with a newly designed 1.3L 16-valve four-cylinder electronically fuel injected engine or a 1.5 Diesel engine (again Market specific). A ladder type chassis and a dual ratio transfer case is standard, unlike many competing compact 4WDs which lack a low range, and are strictly in the crossover category.


The Jimny's vacuum-locking hubs allow the vehicle to be shifted from 2WD to 4WD while travelling at up to 100km/ h (62mph). Shifting to low range requires the vehicle to be stopped, but there is no need to exit the vehicle. Newer Jimnys feature electronic "push-button" selectable four-wheel drive.

The Jimny features large windows, giving excellent visibility, apart from a rather serious blind spot caused by the oversized "B" pillar. The large amount of glass also creates a greenhouse effect, and the Jimny comes with air conditioning as a standard feature in some regions.

Two models of the Jimny are available in some markets, the standard hard top, and a canvas roofed "Cabrio" version. Both models come in JX and JLX specifications. These are fairly standard designations across the Suzuki off road range, with the JLX being the fully-optioned "luxury" version. In the case of the Jimny, the JLX adds roof rails, power steering, power windows, electronically adjustable exterior mirrors, and several interior comfort improvements. Both models are available in 5 speed manual or 4 speed automatic gearbox. There is also a 2WD option, only available in 5 speed manual.
