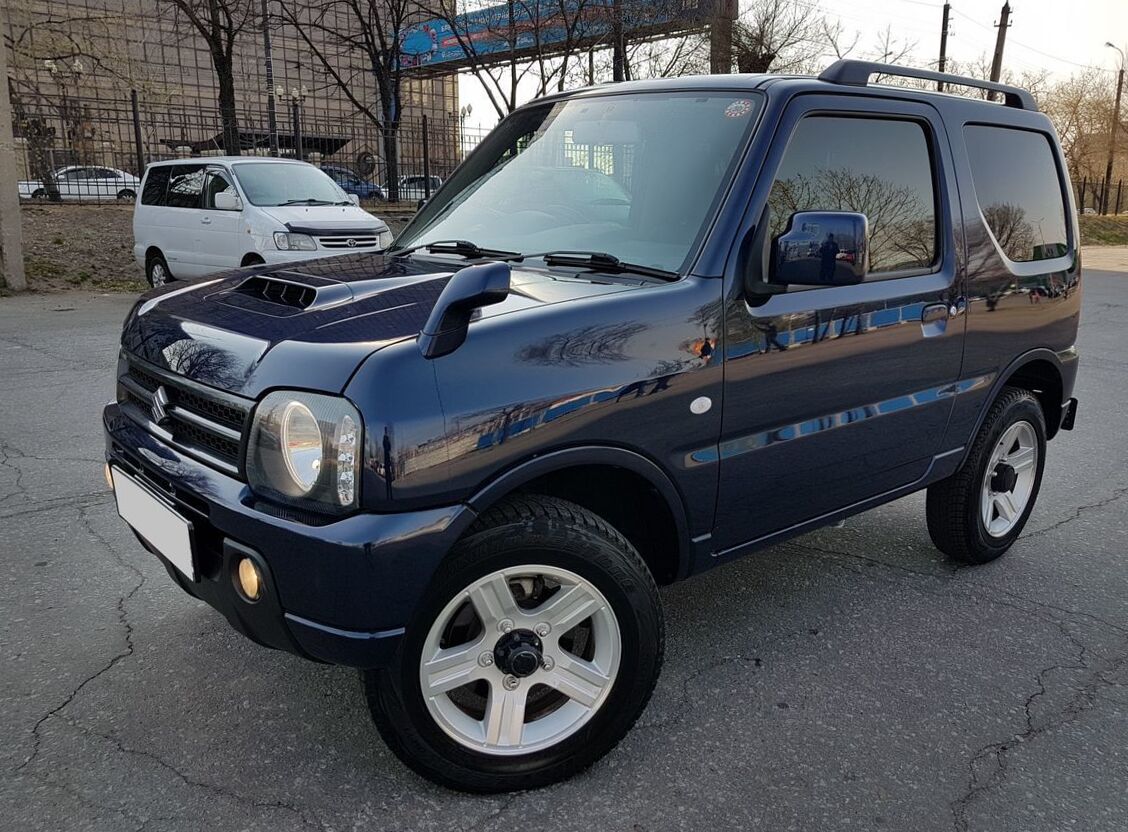

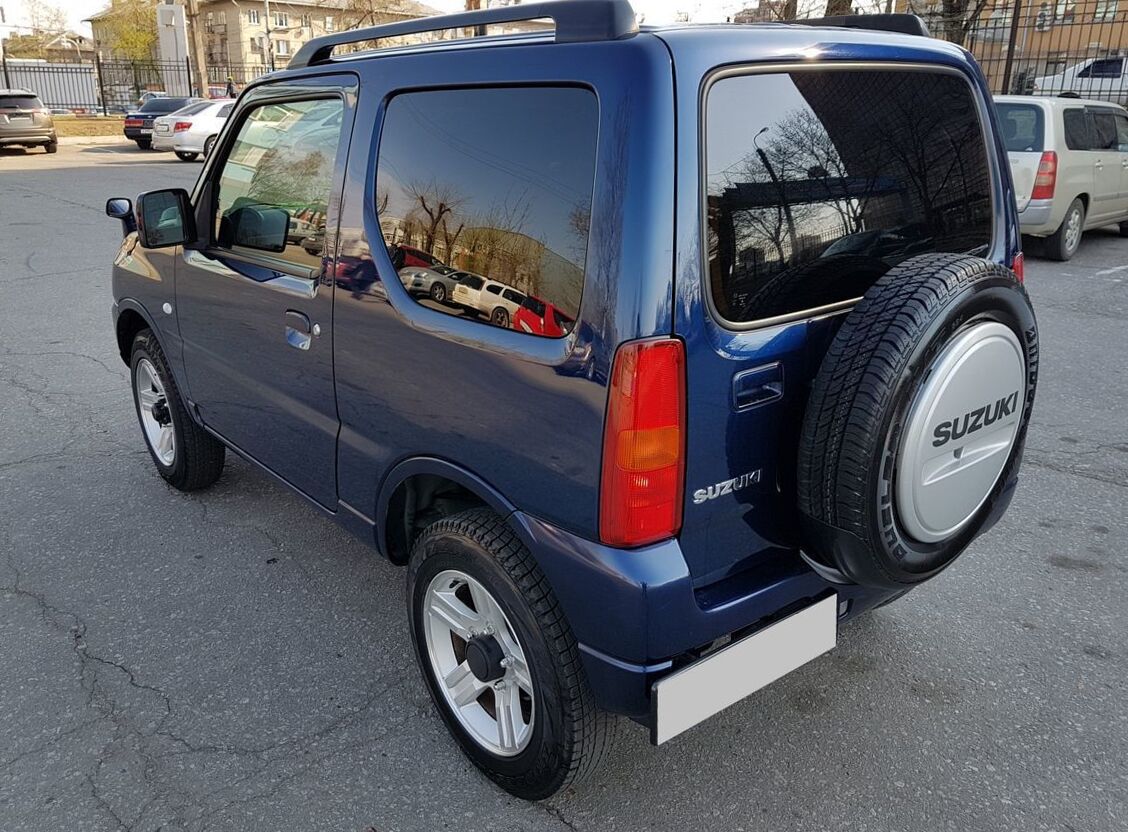

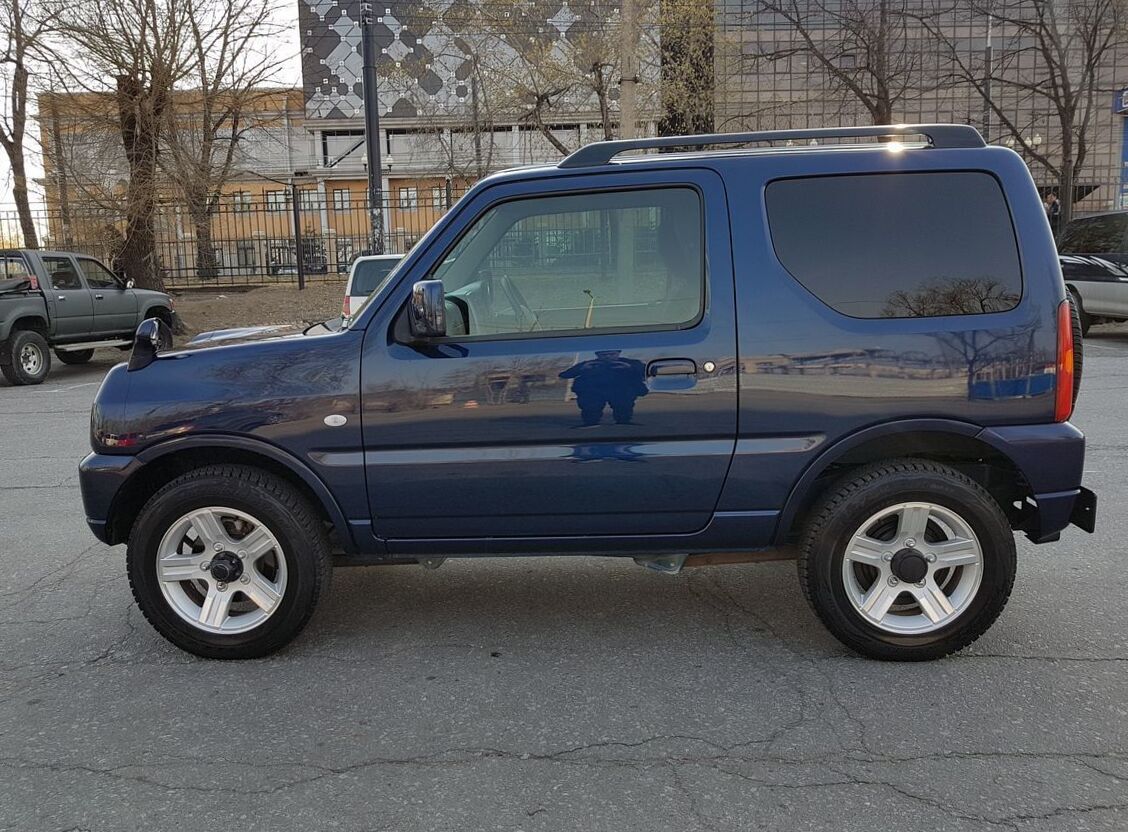

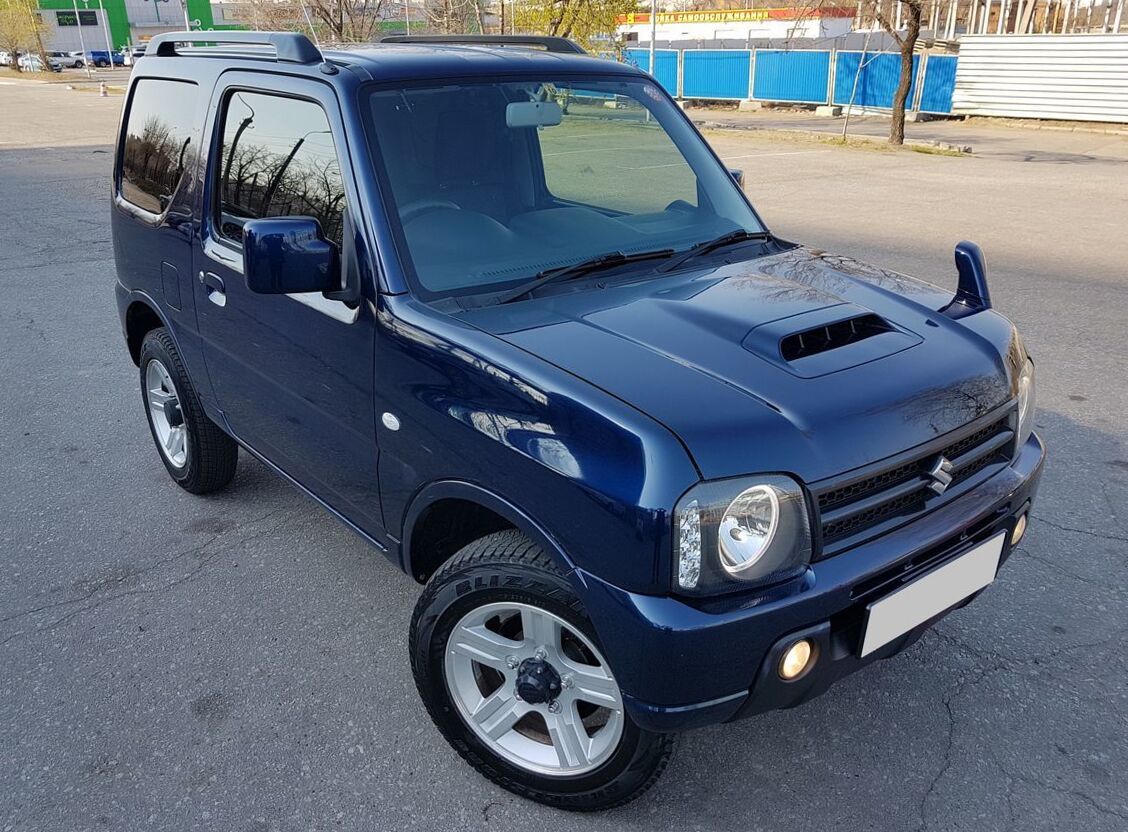

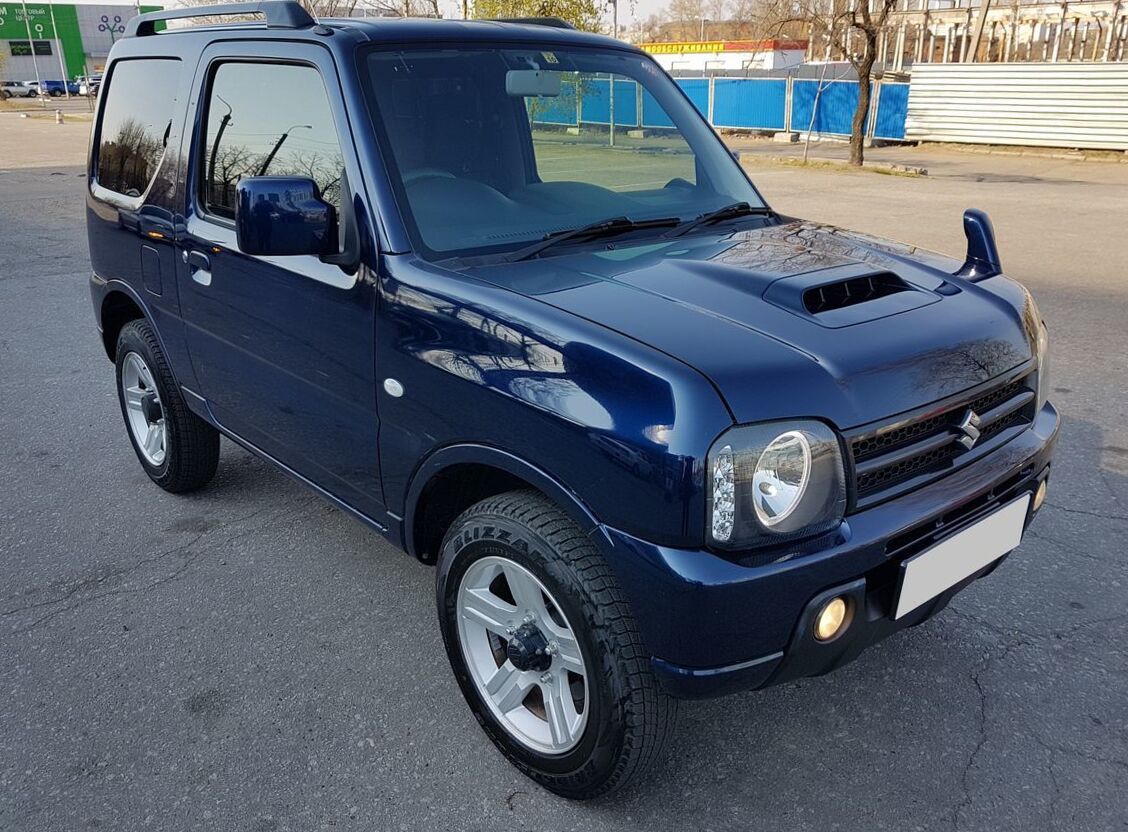

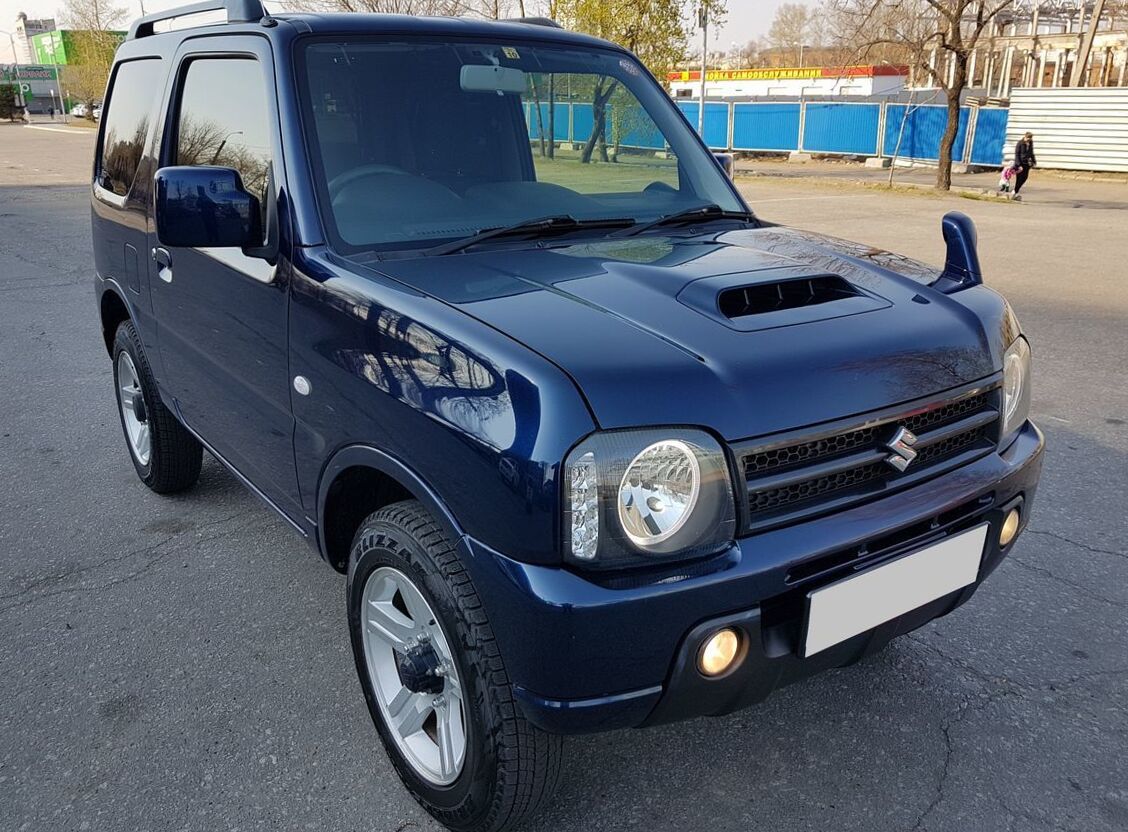

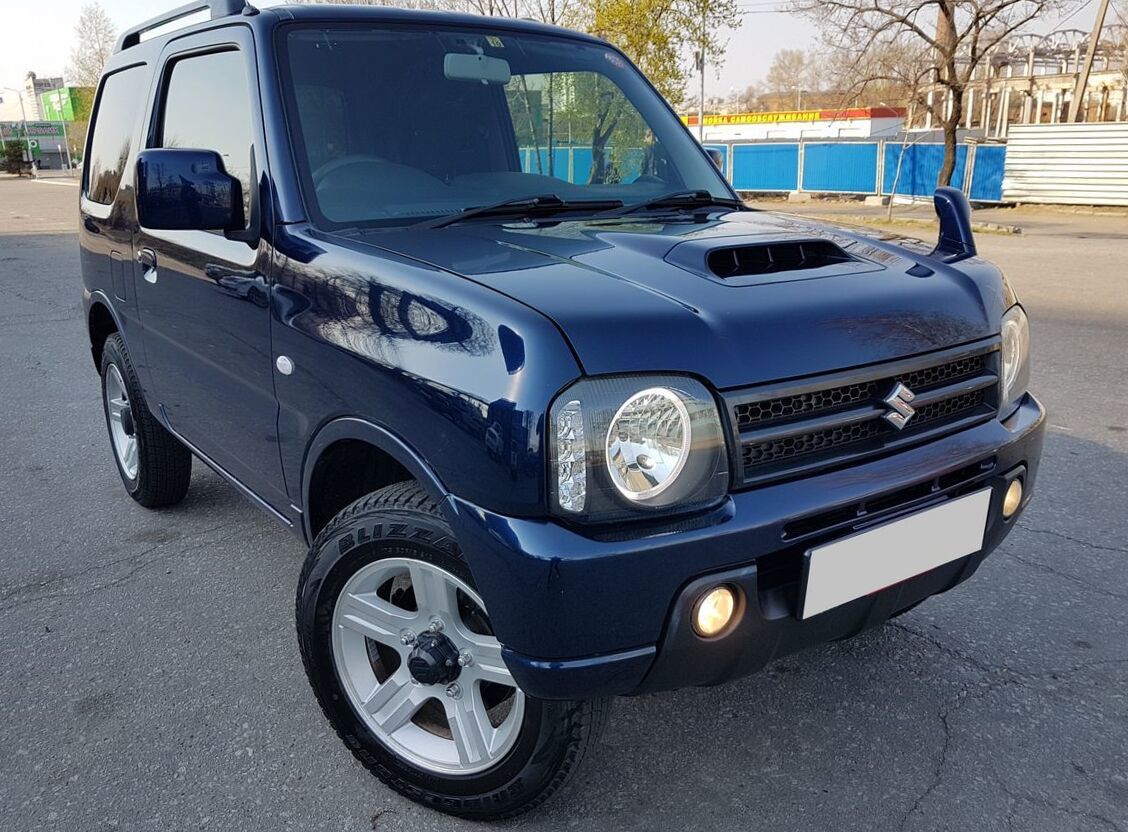

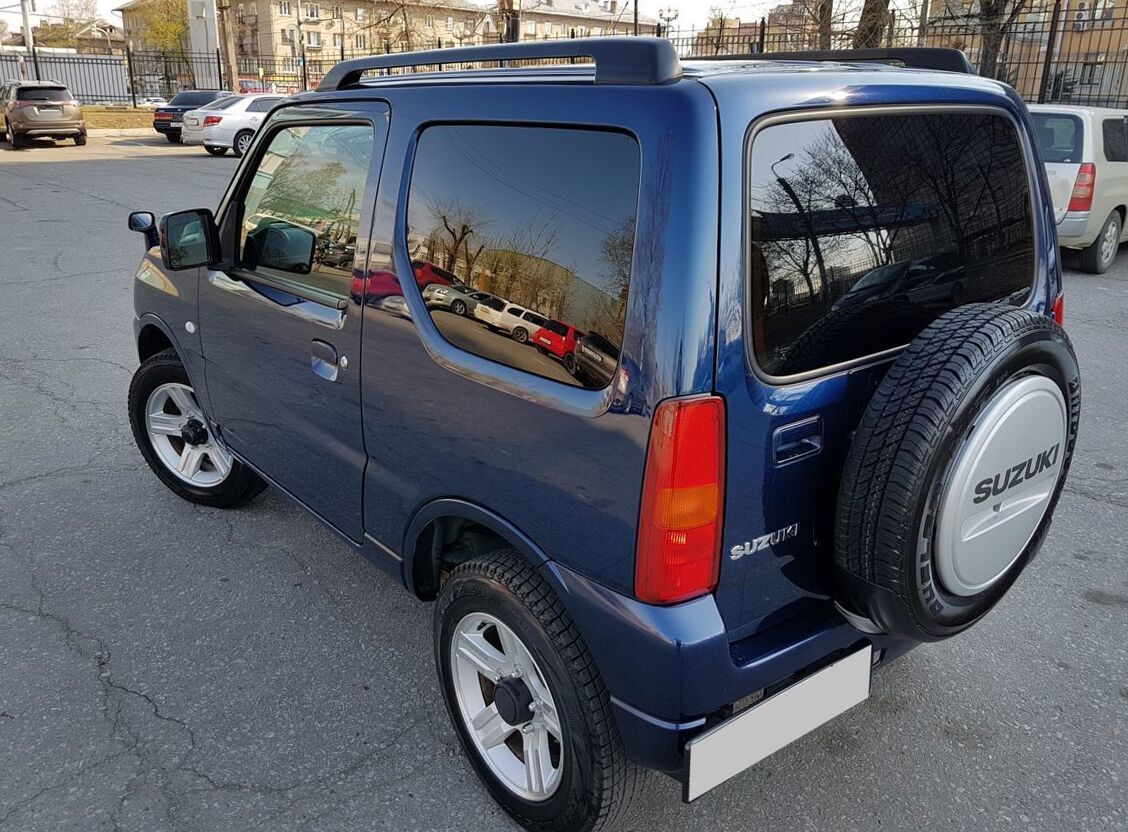

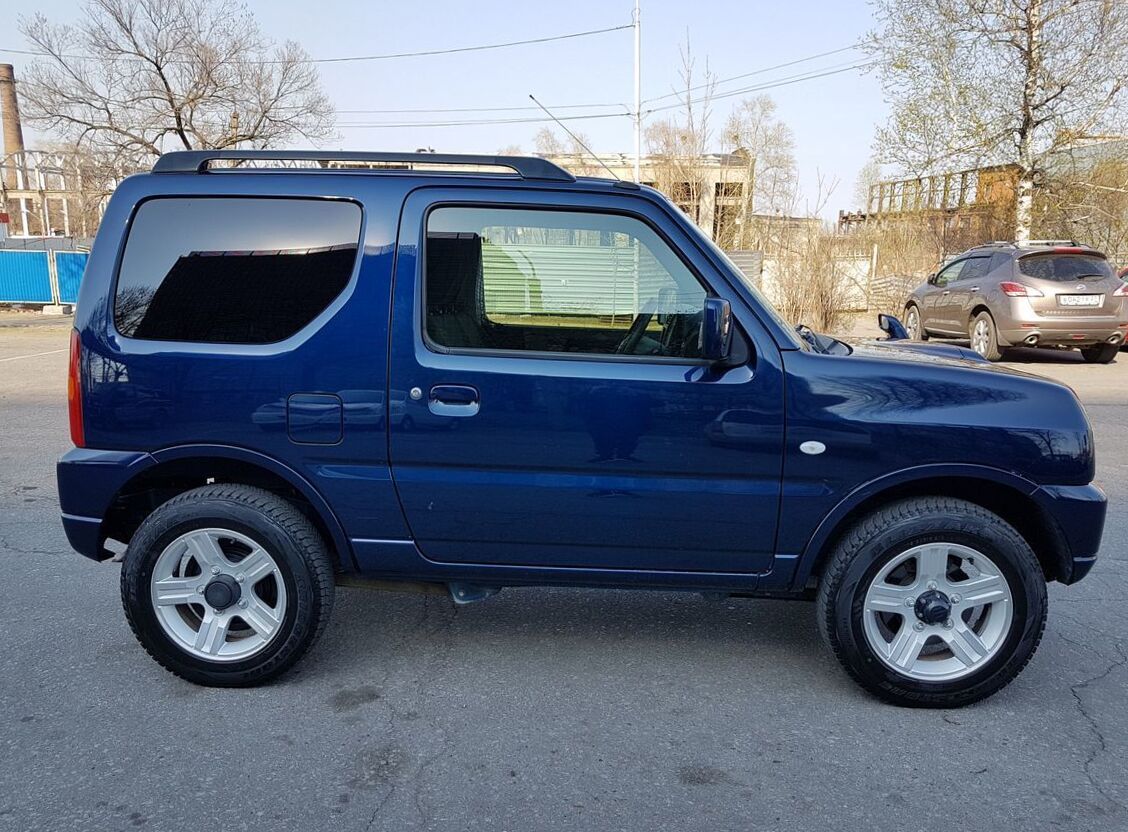

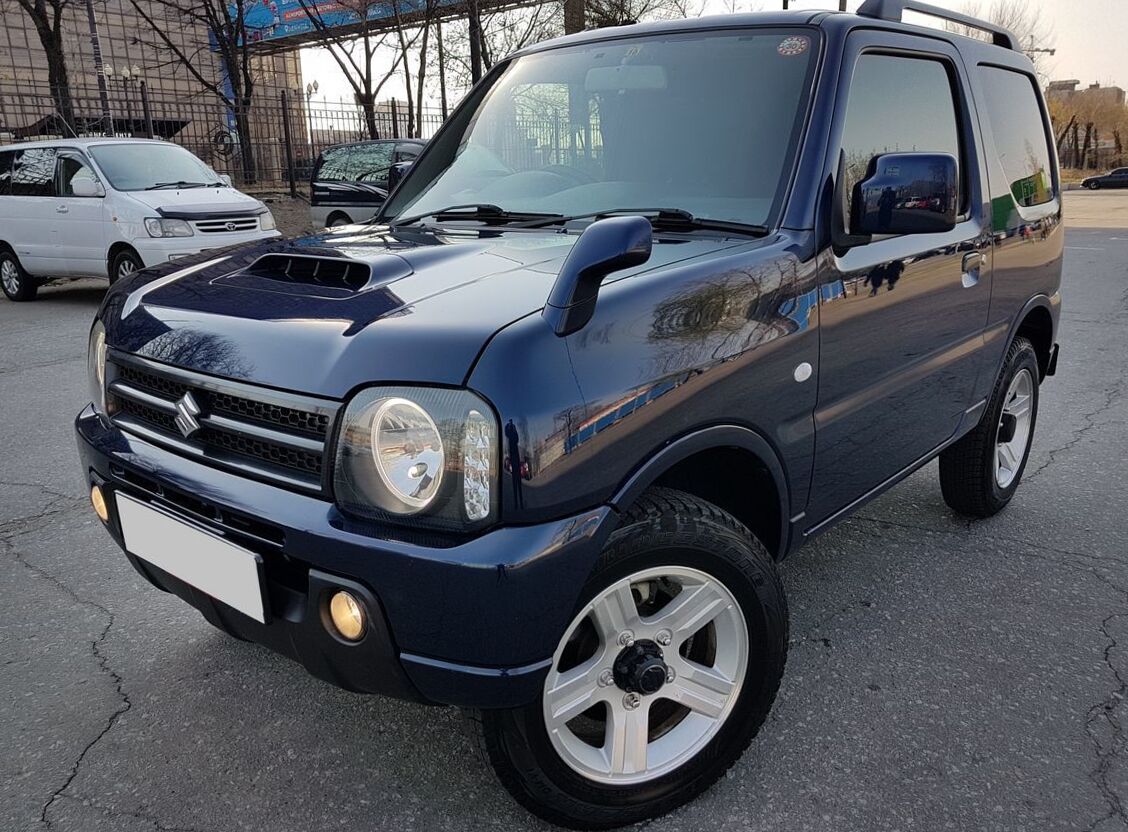

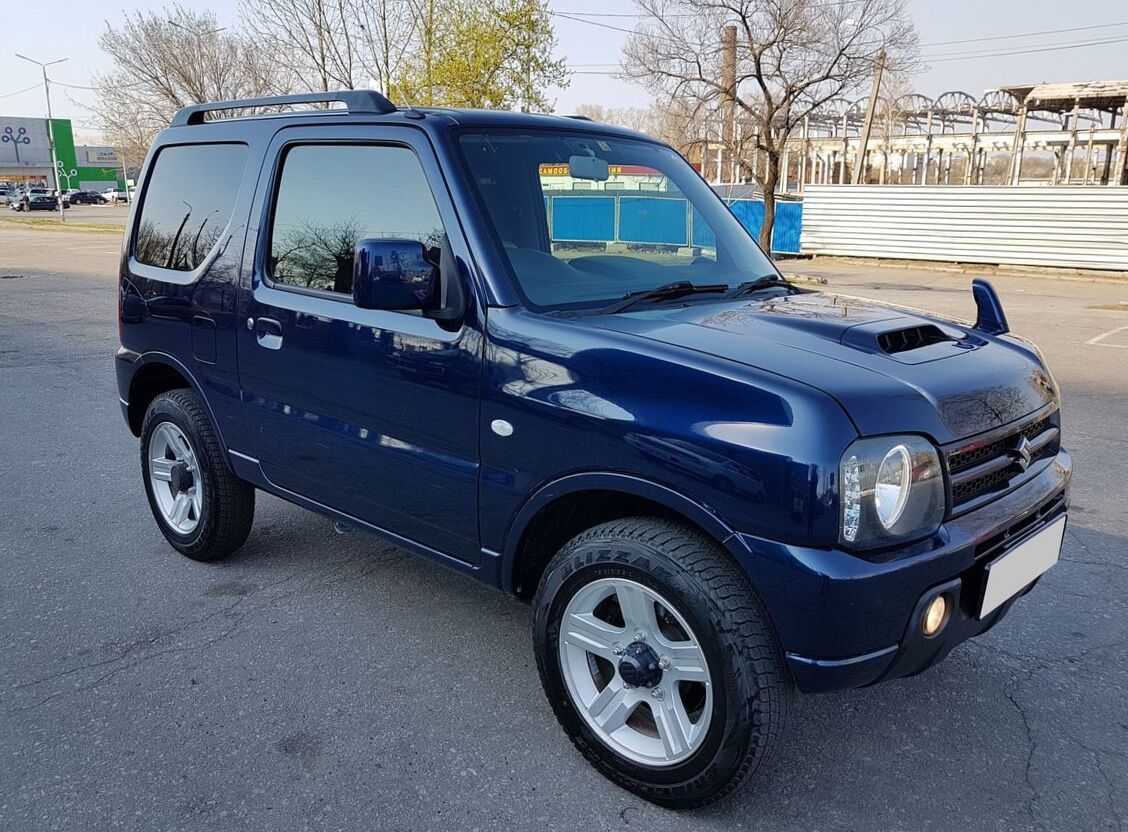

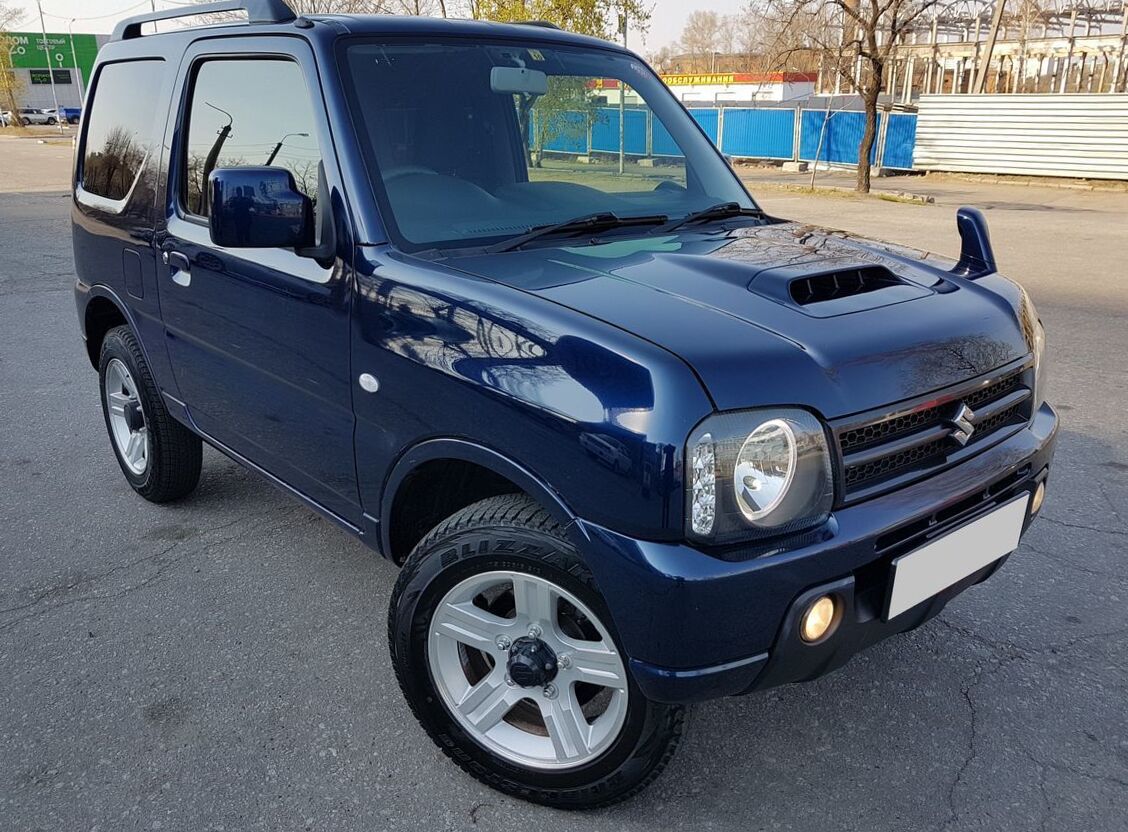

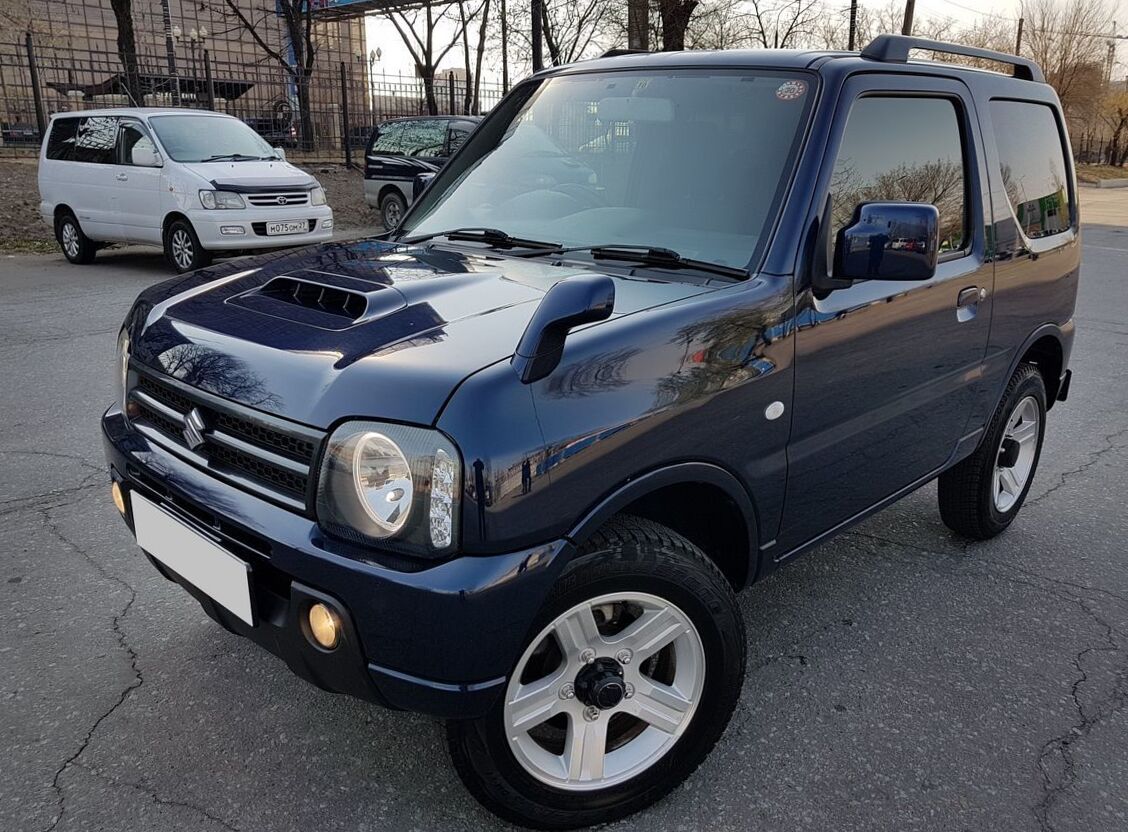

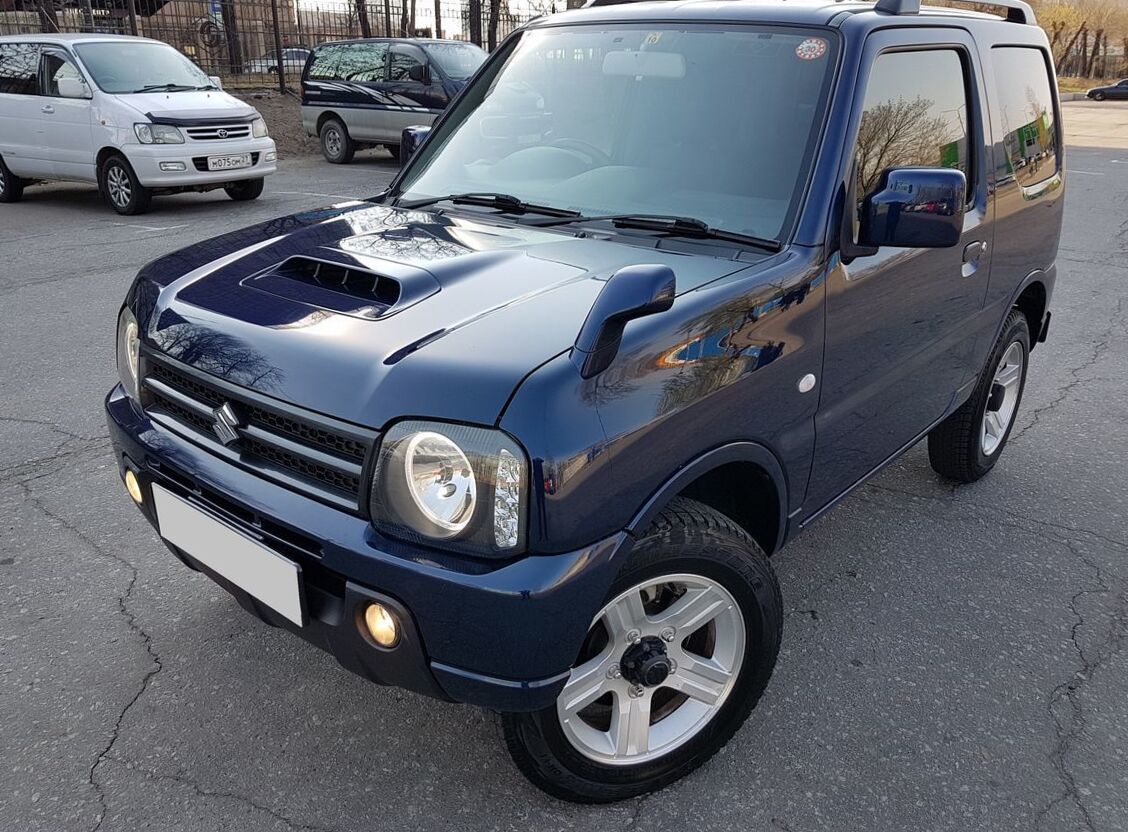

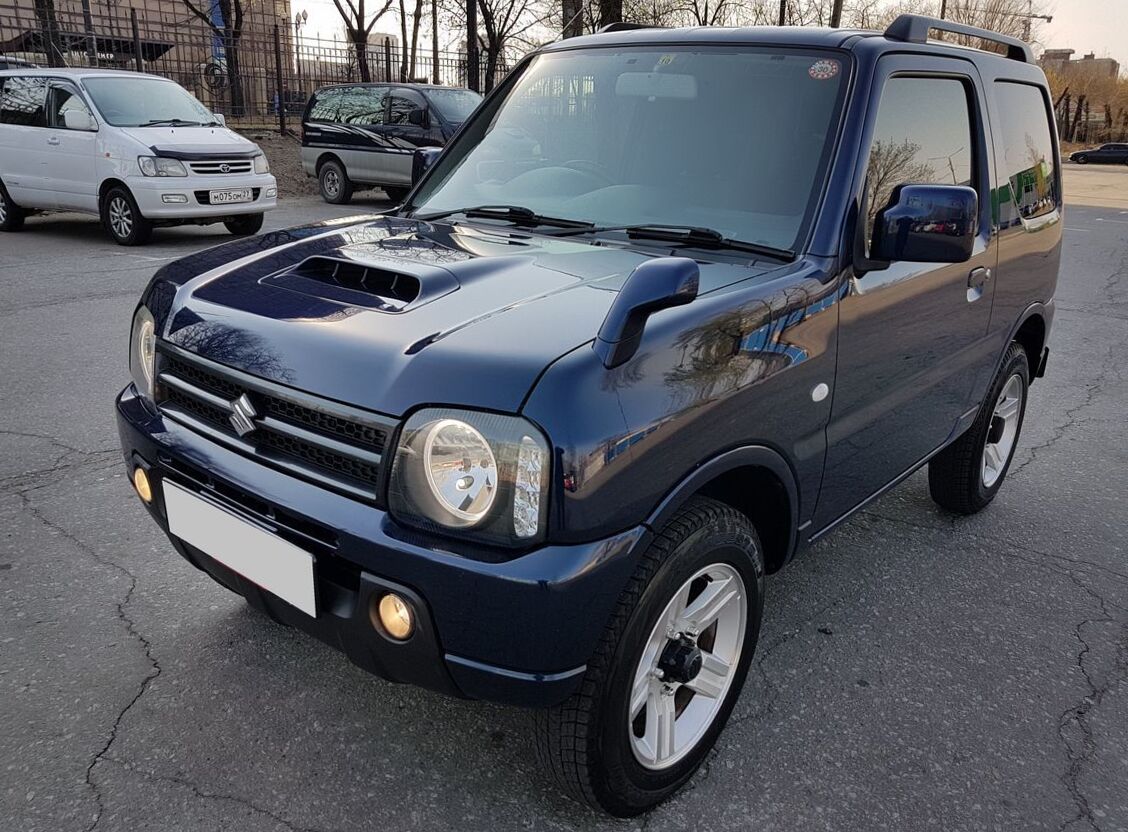

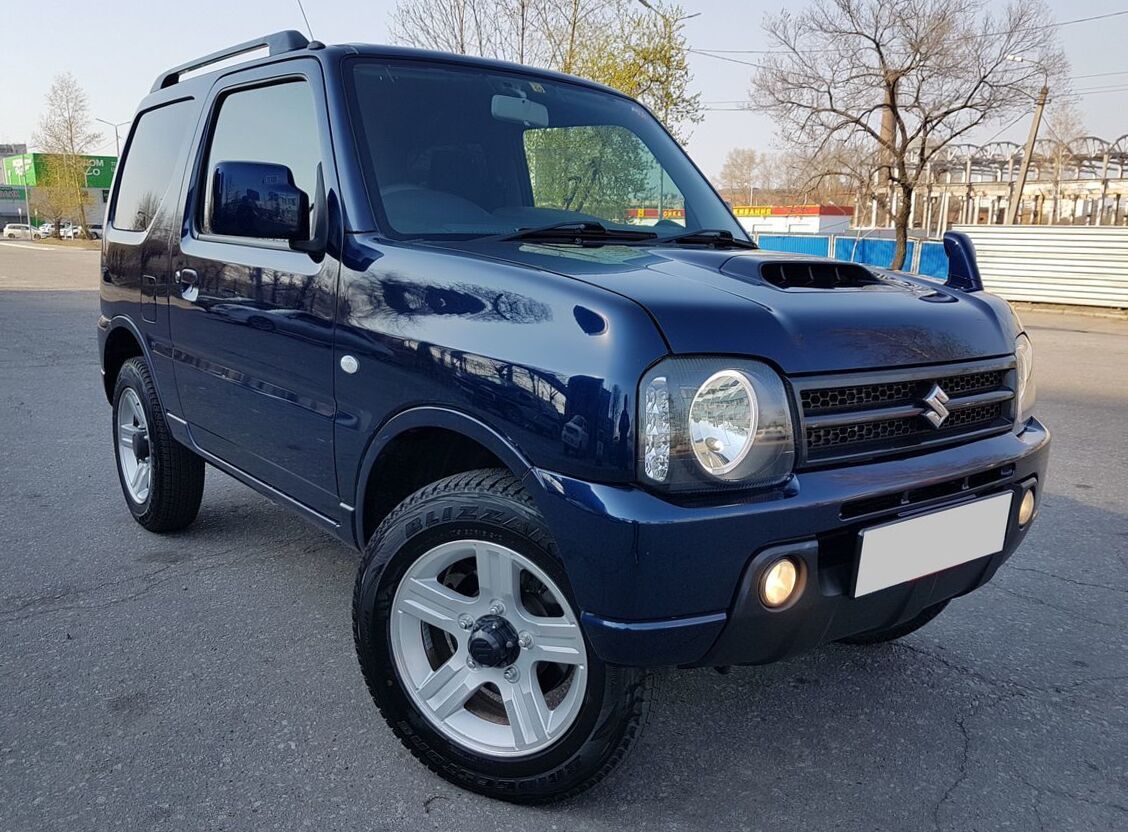

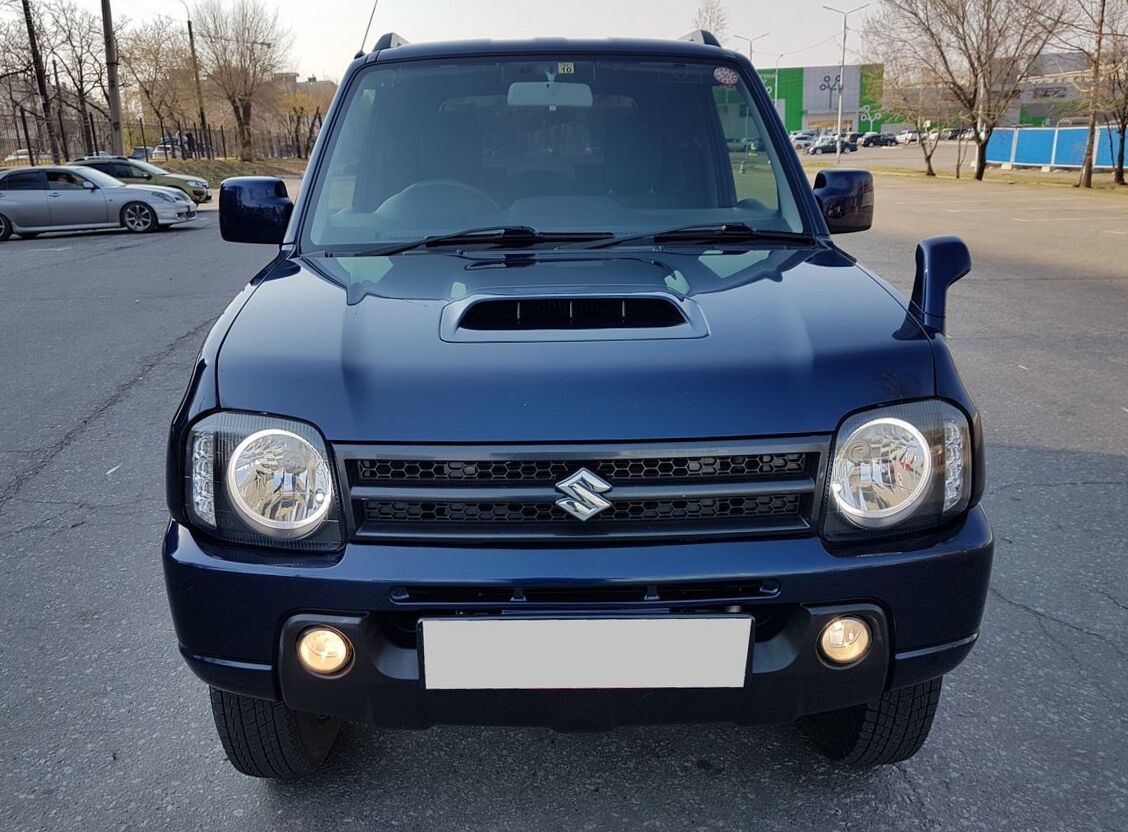

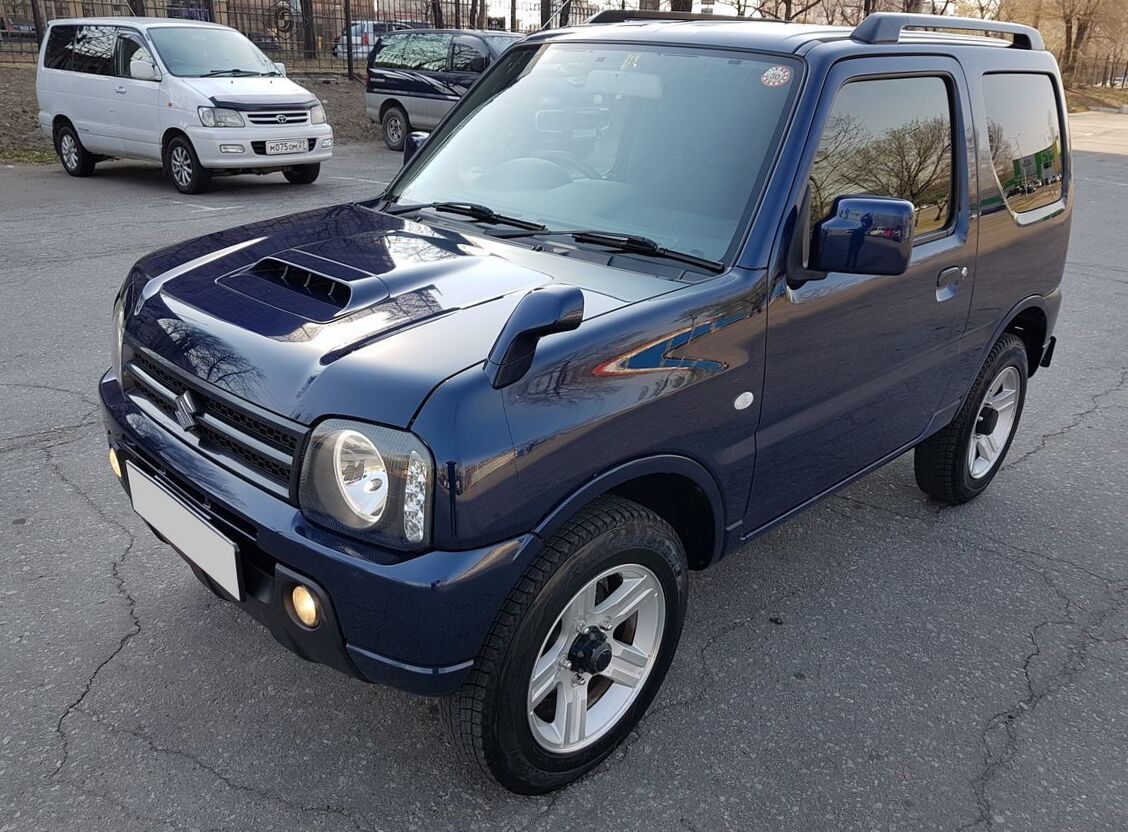

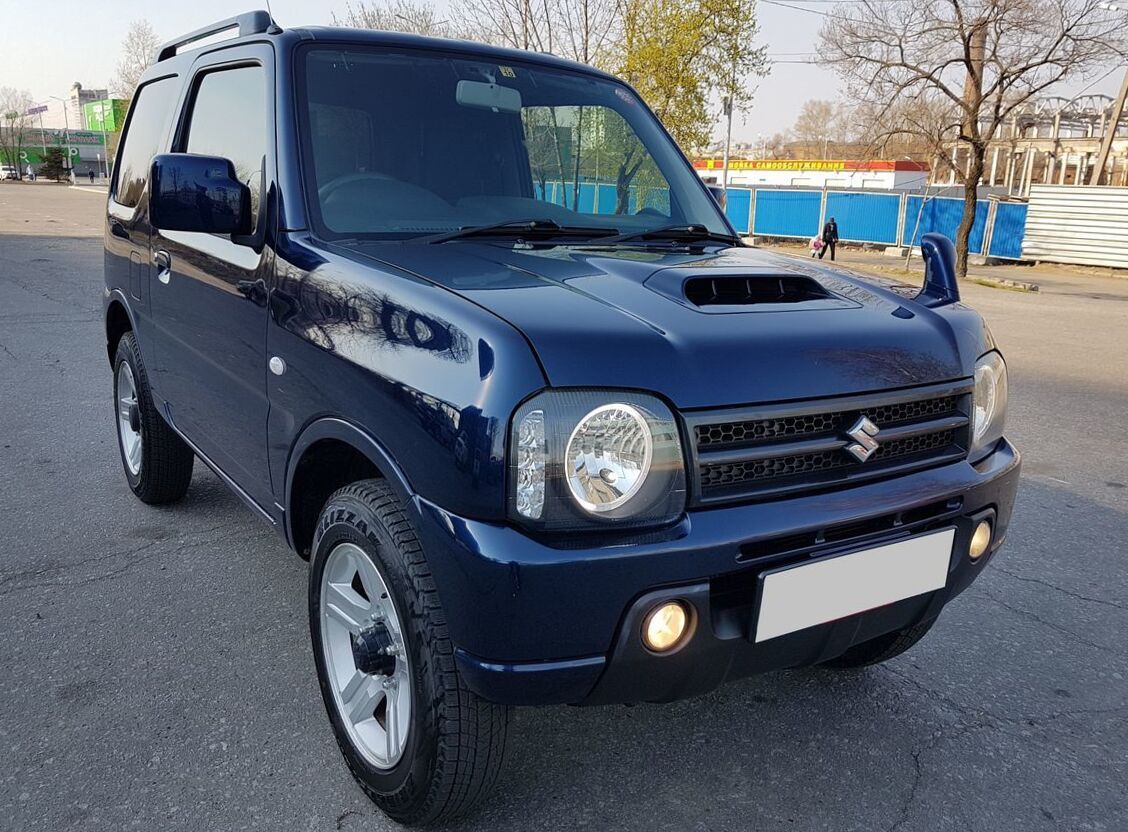

2015 Suzuki Jimny III 660 XG 4WD
Suzuki Jimny Problems
Rough idle and steering wheel instability
2007, Rough idling with back firing at times
and slow progresion up hills ,at times. Also
sch...
Dont have spark with new coils
1998, bought this car not running so history
unknown but the fuel pump work when key is on,
st...
Pls help me
1999, my suzuki jimmy 1999 is automatic but wen
i go in drive it is not changing out at all so...
| Body type | SUV |
|---|---|
| Power | 64 Hp |
| Engine Displacement | 700 cm3 or 0.7L or 42.7 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 23487 Miles |
| Vin | JB23W-****38 |
| Price (out of date) | $8320 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2015 Suzuki Jimny III? | SUV, 4 Seats, 3 Doors |
| What is the fuel economy, Suzuki Jimny SUV 2015? | 7.4 l/100 km |
| How much power, Suzuki Jimny ABA-JB23W 2015? | 64 Hp |
| What is the engine size, 2015 Suzuki Jimny 660 XG 4WD? | 0.7L or 658cm3 |
| How many gears, What type is the gearbox, Suzuki Jimny III 2015 SUV 660 XG 4WD (64 Hp)? | Automatic transmission 4 |
| What is the drivetrain, 2015 Suzuki Jimny SUV 660 XG 4WD (64 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2015 Suzuki Jimny III? | 3395 mm |
| How wide is the vehicle, Suzuki Jimny SUV 2015? | 1475 mm |
Suzuki Jimny III ABA-JB23W 660 XG 4WD (64 Hp) 2012, 2013, 2014, 2015, 2016, 2017, 2018 Specs
General information | |
|---|---|
| Production start year | 2012 |
| Production end year | 2018 |
| Drive type | All wheel drive (4x4) |
| Frame type | SUV |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 658 |
| Frame name | ABA-JB23W |
| Clearance, mm | 200 |
| Manufacturing country | Japan |
| Doors | 3 |
| Steering locaton | right |
Vehicle generation | |
| Generation name | JB23 |
| Generation number | 3 |
| Facelift number | 2 |
| Production start year | 2012 |
| Production end year | 2018 |
Engine, transmission and steering specs | |
Engine specs | |

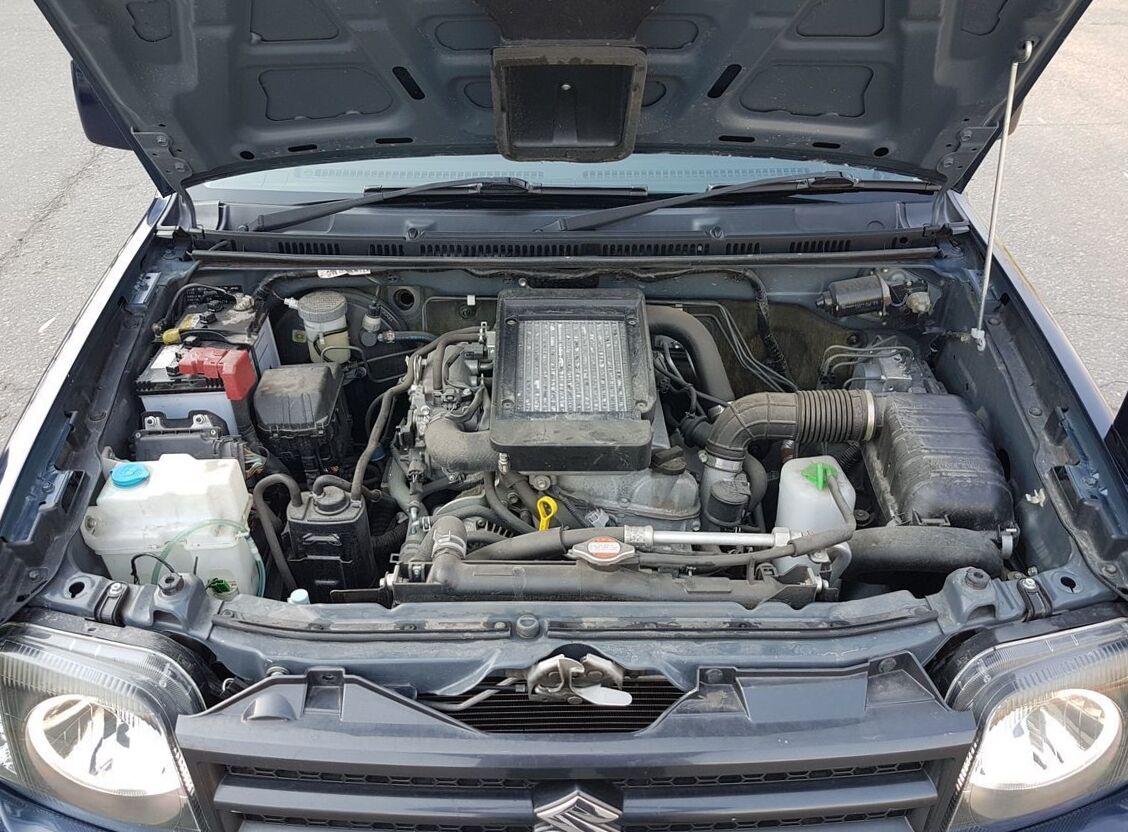

| Engine name | K6A |
| Fuel | Petrol (Gasoline) |
| Engine type | 3 cylinder DOHC |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 64 |
| Max power RPM, rpm | 6500 |
| Max power, hp (kWt) / rpm | 64 (47) / 6500 |
| Max torque, N*m | 103 |
| Max torque RPM, rpm | 3500 |
| Max torque, N*m (kg*m) / rpm | 103 (11) / 3500 |
| Valves per cylinder | 4 |
| Compression ratio | 8.4 |
| Bore, mm | 68 |
| Stroke, mm | 60.4 |
| Engine additional info | electronic fuel injection system |
Fuel consumption | |
| Combined | 7.4 |
Transmission | |
| 1st gear ratio | 2.875 |
| 2nd gear ratio | 1.568 |
| 3rd gear ratio | 1 |
| 4th fear ratio | 0.696 |
| Rear gear ratio | 2.3 |
| Main gear ratio | 5.375 |
| Shifter position | On the floor. |
Steering | |
| Electric power steering | yes |
| Steereing gear type | Ball nut screw |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3395 |
| Exterior width, mm | 1475 |
| Exterior height, mm | 1680 |
Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
| Interior length, mm | 1680 |
| Interior width, mm | 1220 |
| Interior height, mm | 1210 |
Chassis dimensions | |
| Wheel base, mm | 2250 |
| Front axle length, mm | 1265 |
| Rear axle length, mm | 1275 |
| Turning radius, m | 4.8 |
| Wheel spacing front | 1265 |
| Wheel spacing rear | 1275 |
Weight and permissible load | |
| Mass, kg | 990 |
Volumes | |
| Fuel tank capacity, l | 40 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Dependent, spring loaded |
| Rear suspension | Dependent, spring loaded |
Wheel rims | |
| Aluminium wheel | no |
Tires | |
| Front wheels | 175/80R16 |
| Rear wheels | 175/80R16 |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
Exterior | |
Headlights | |

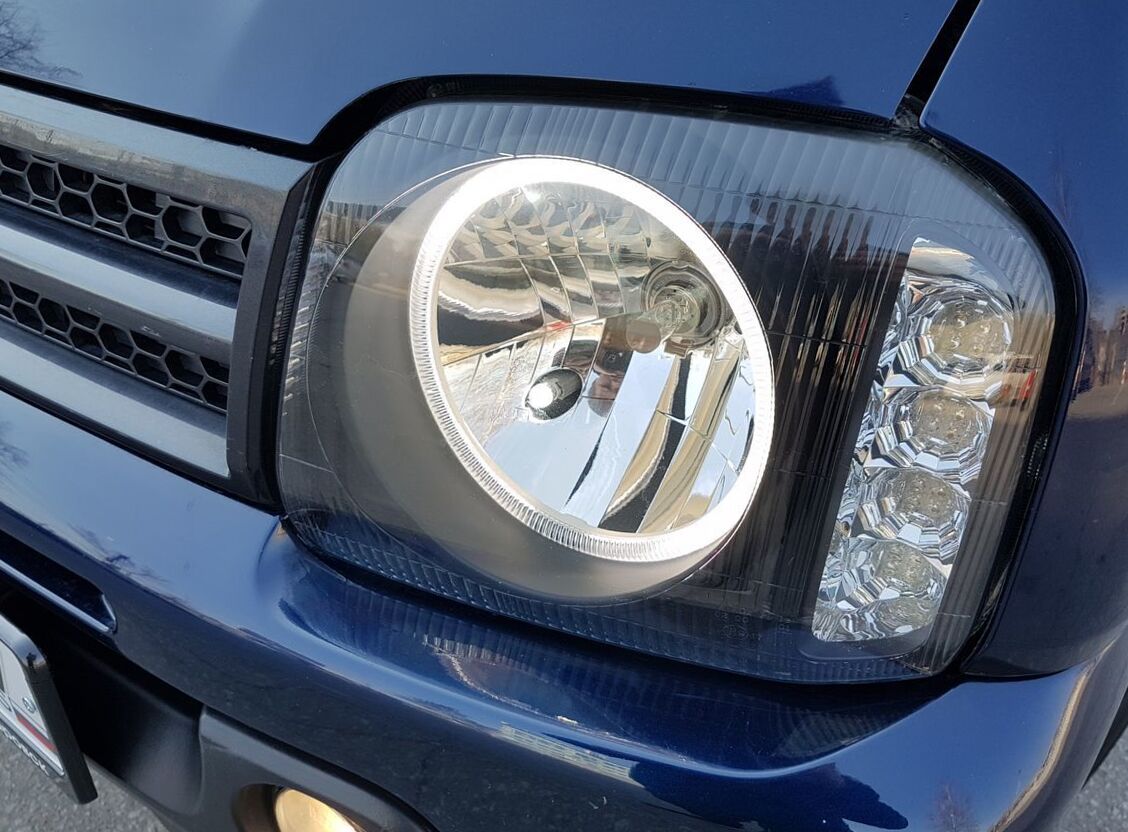

| Halogen headlights | yes |
| Front fog lamps | no |
| Additional stop light | yes |
Side mirrors | |
| Exterior mirrors in body color | no |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | no |
| Door mirrors heating | no |
Doors | |
| Door handles in body color | no |
| Chrome door handles | no |
Windows | |
| Privacy glass | no |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Accessories | |
| Roof rail | no |
| Bumpers | painted |
| Back wiper | yes |

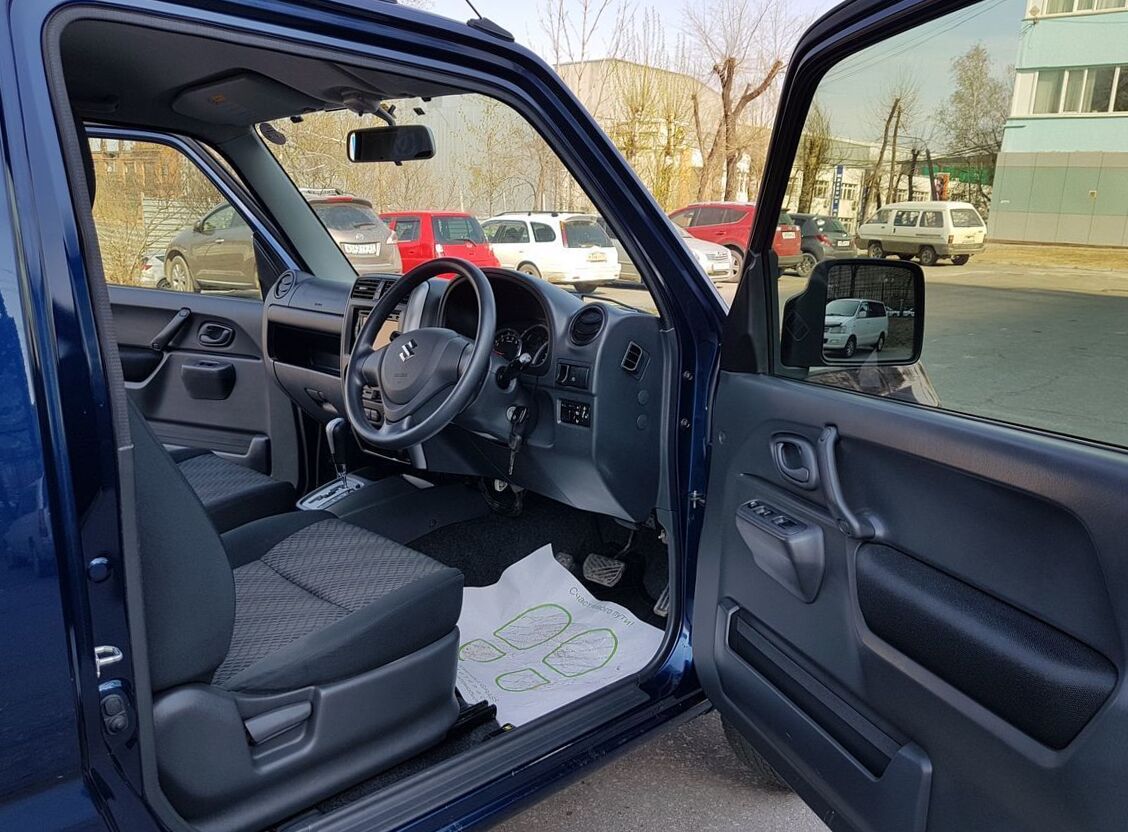

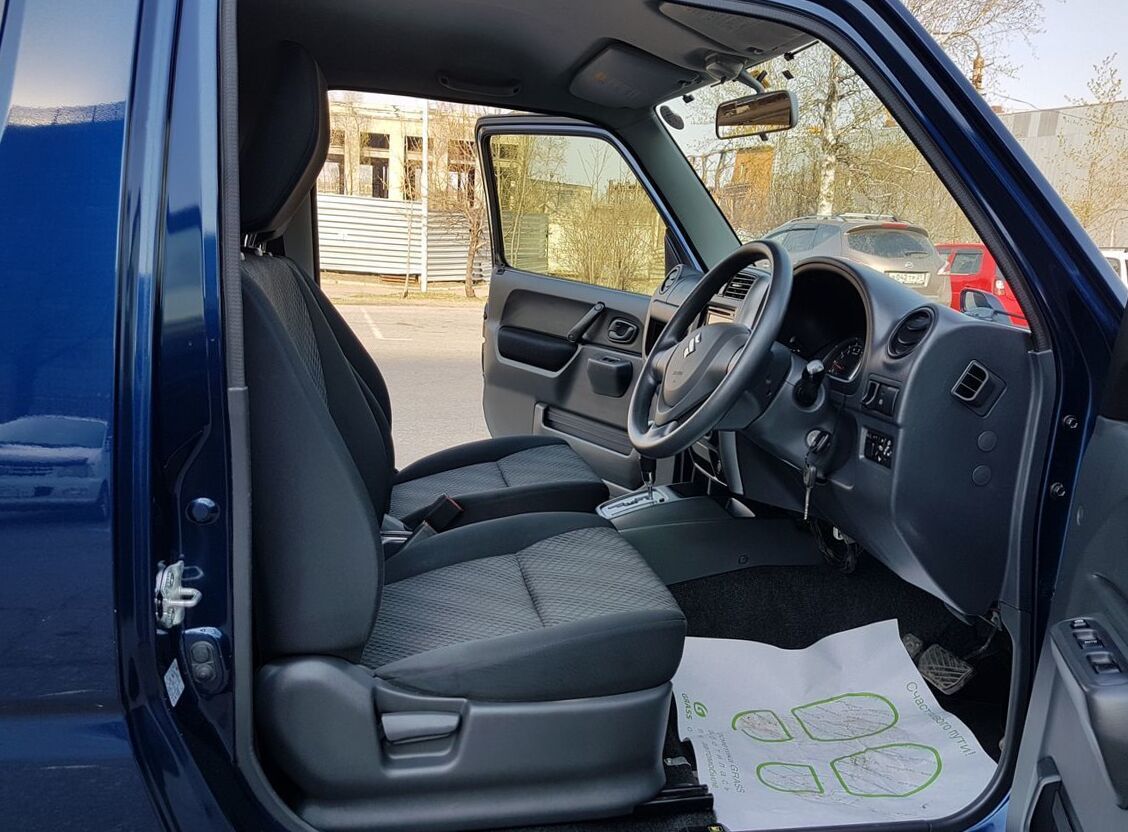

Interior | |

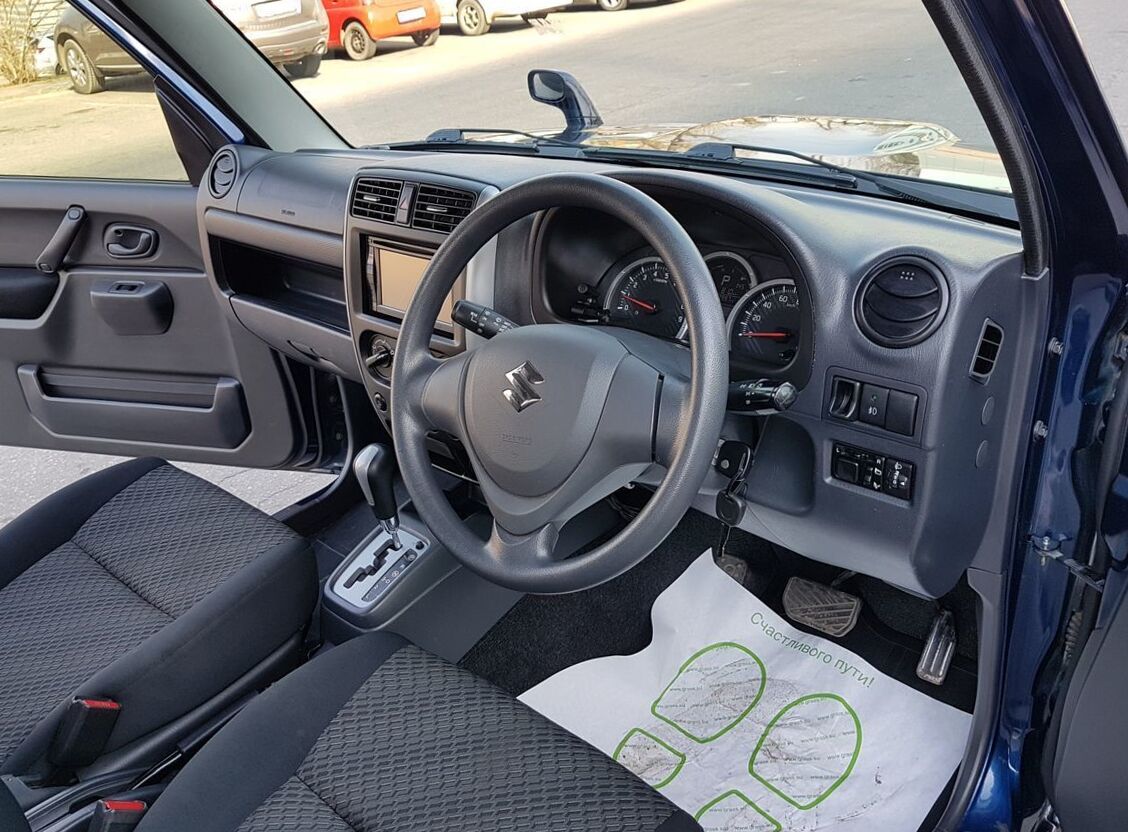

Steering wheel and center panel | |
| Leather winding | no |
| Audio control on steering wheel | no |

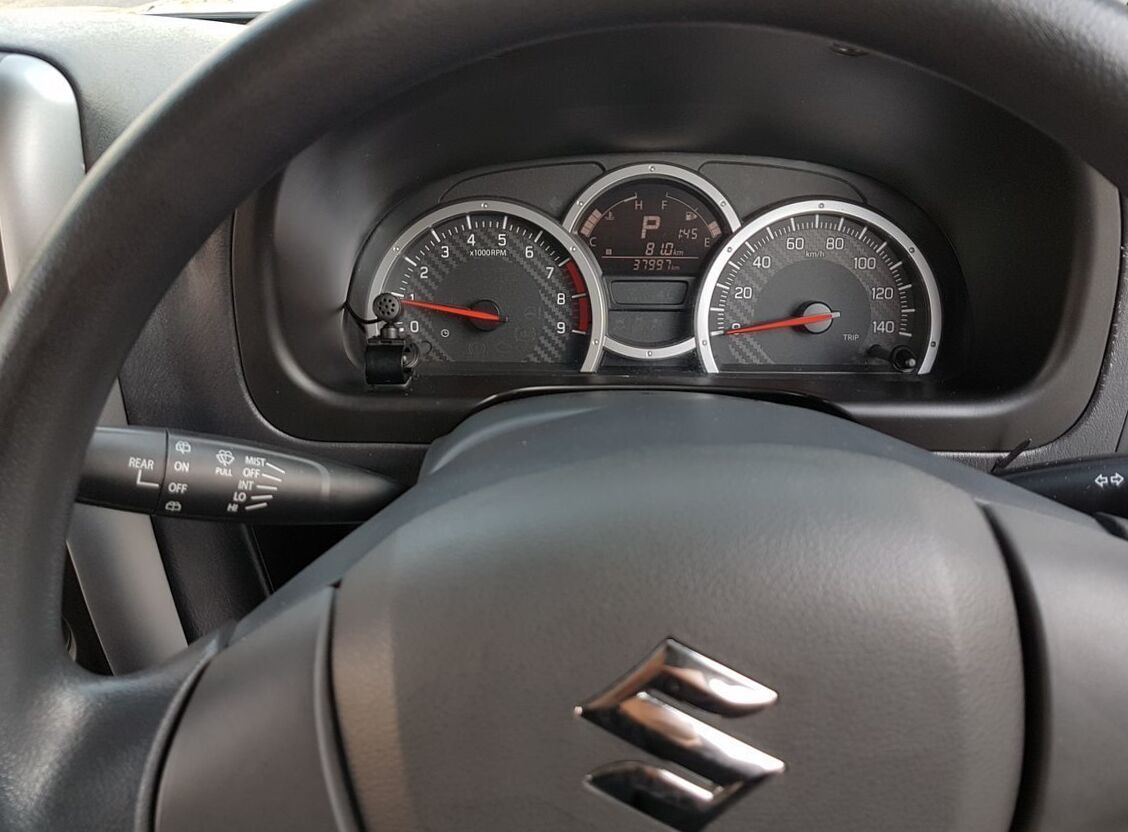

| Tachometer | yes |
Interior design | |

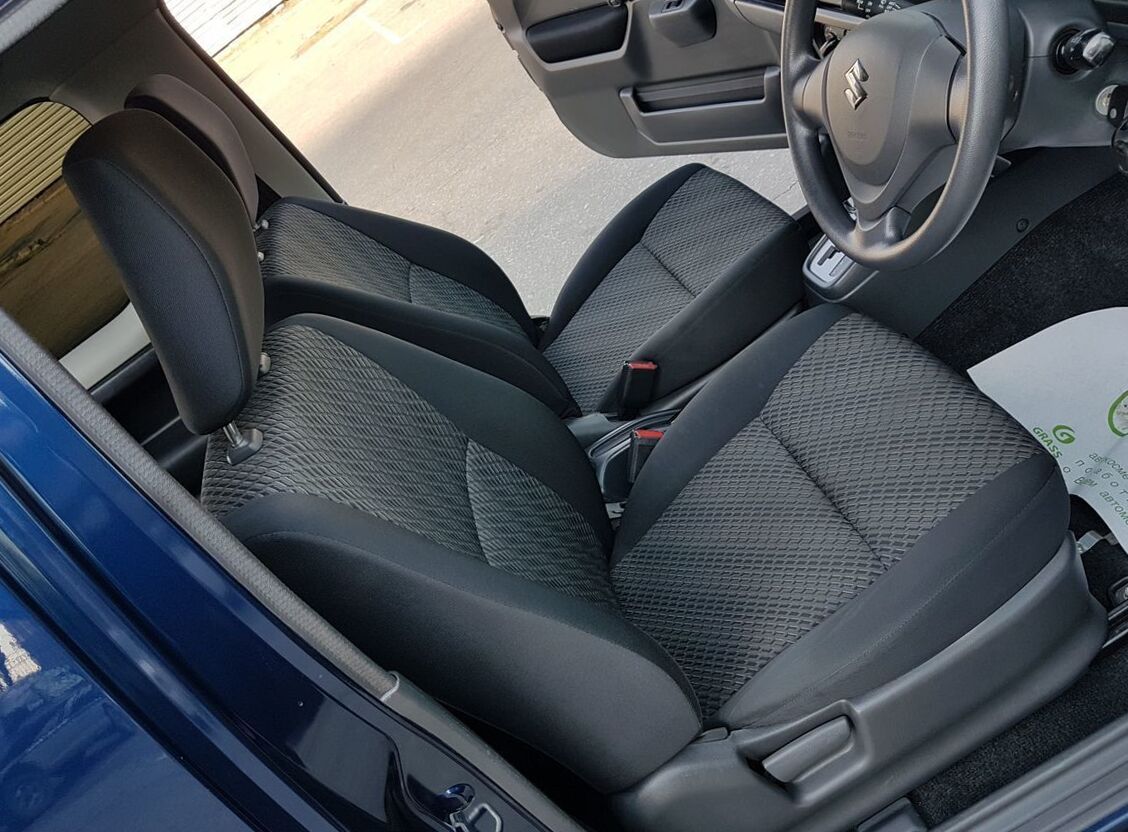

| Cloth upholstery | yes |
| Combined obivka Salon | no |
| Water-repellent | no |
Seats | |
| 2nd row | 50/50 ratio fold seat |
| Headrests for seats | 2 |
Electric interior package | |
| Front seat heater | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window | yes |
Additional interior equipment | |
| Smokers packet | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Side impact bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air filter | yes |

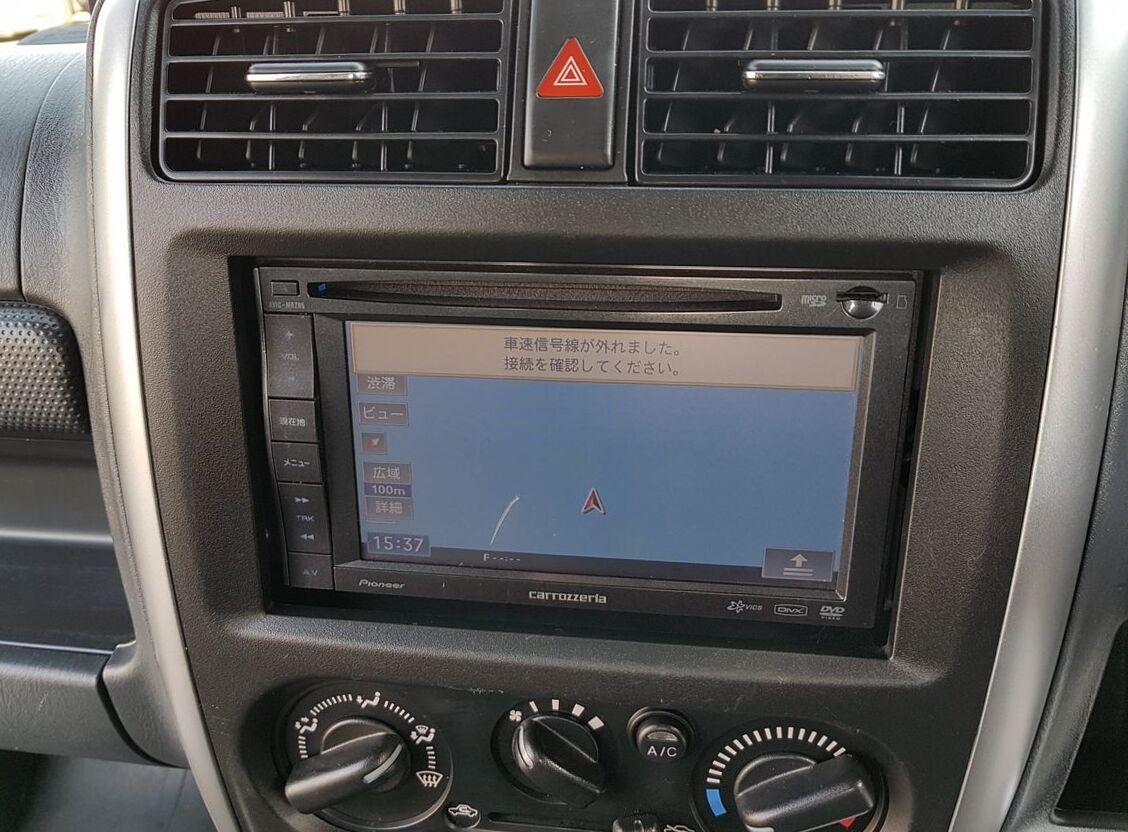

Audio systems | |
| Radio | no |
| CD player | no |
Additional amenities | |
| Mirrors in sunshields | yes |

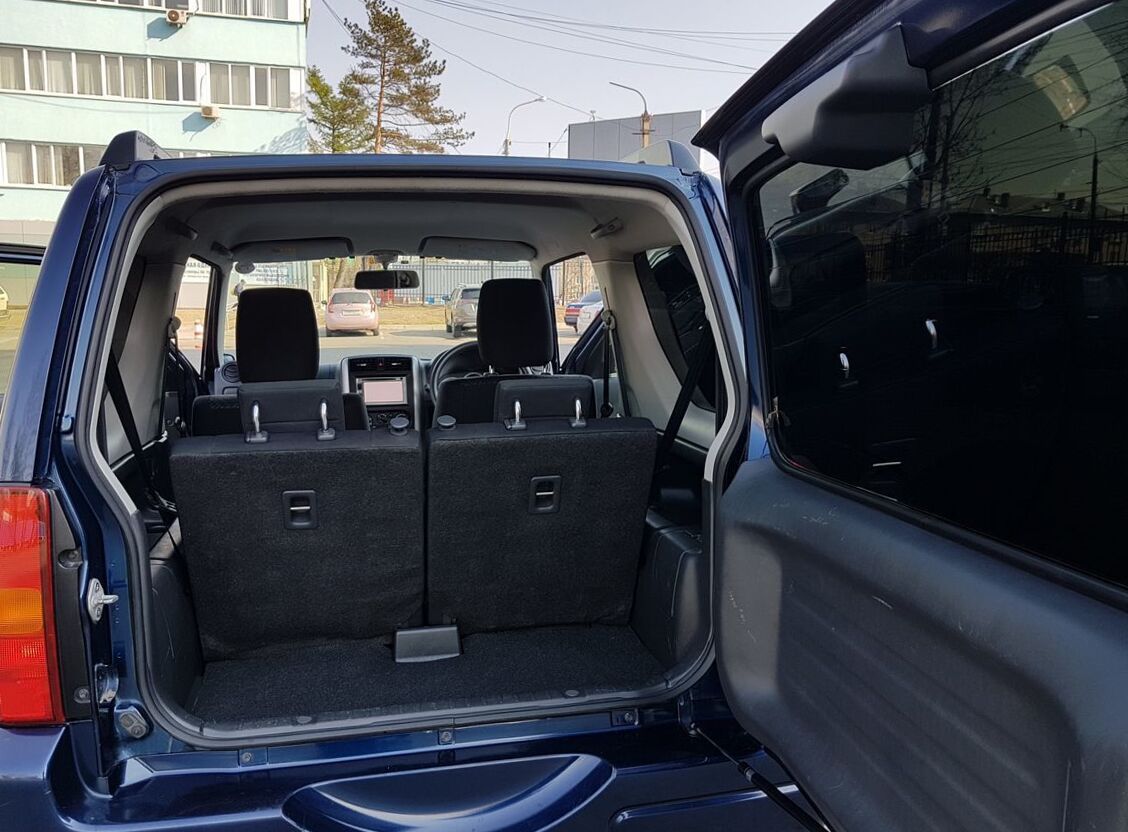

| Lagage box | yes |
| Onboard computer | yes |
Driver Kit | |

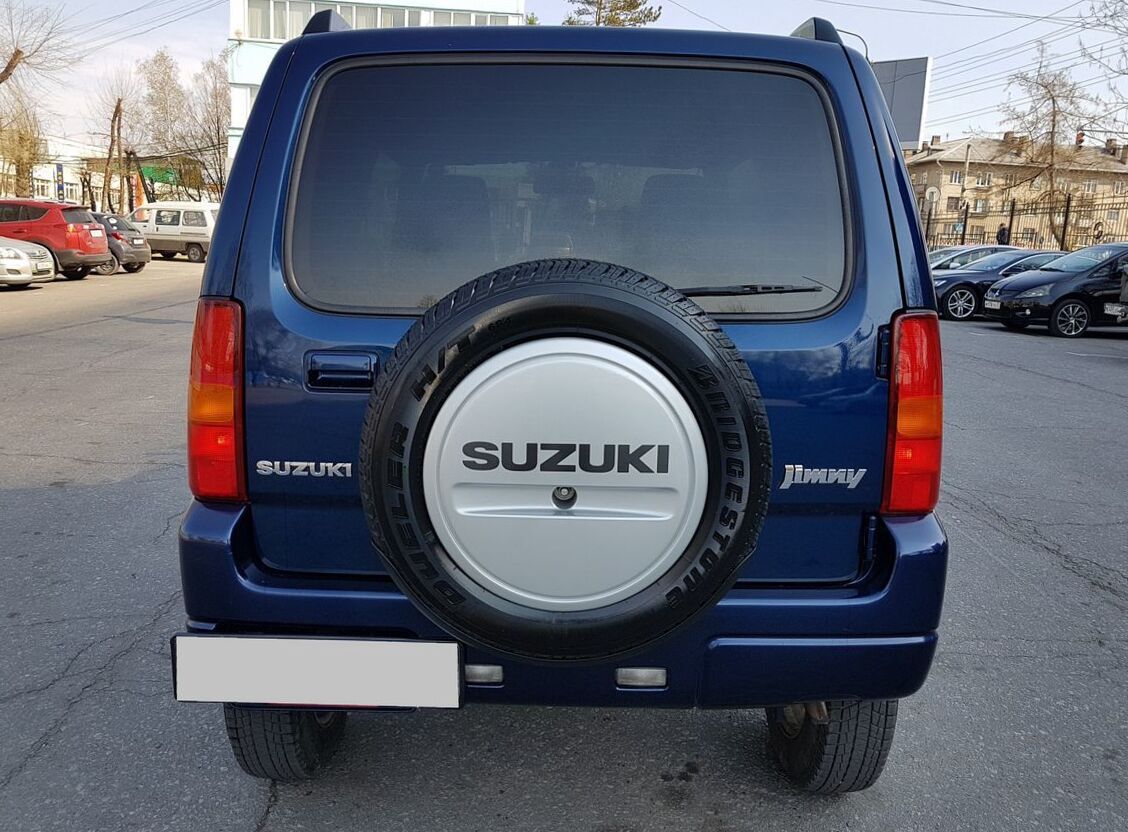

| Spare tire | yes |
2015 Suzuki Jimny III ABA-JB23W 660 XG 4WD (64 Hp) specs
|

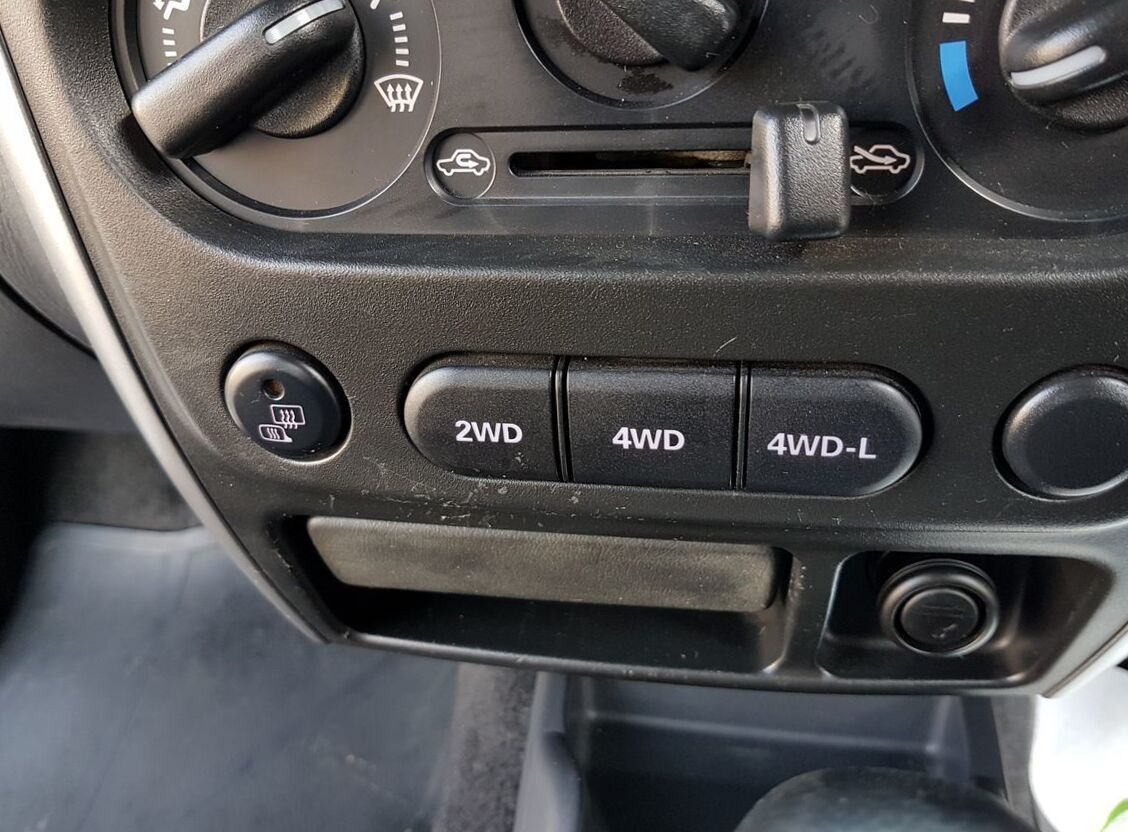

The Jimny's vacuum-locking hubs allow the vehicle to be shifted from 2WD to 4WD while travelling at up to 100km/ h (62mph). Shifting to low range requires the vehicle to be stopped, but there is no need to exit the vehicle. Newer Jimnys feature electronic "push-button" selectable four-wheel drive. The Jimny features large windows, giving excellent visibility, apart from a rather serious blind spot caused by the oversized "B" pillar. The large amount of glass also creates a greenhouse effect, and the Jimny comes with air conditioning as a standard feature in some regions. Two models of the Jimny are available in some markets, the standard hard top, and a canvas roofed "Cabrio" version. Both models come in JX and JLX specifications. These are fairly standard designations across the Suzuki off road range, with the JLX being the fully-optioned "luxury" version. In the case of the Jimny, the JLX adds roof rails, power steering, power windows, electronically adjustable exterior mirrors, and several interior comfort improvements. Both models are available in 5 speed manual or 4 speed automatic gearbox. There is also a 2WD option, only available in 5 speed manual. » Read More About Suzuki Jimny |
