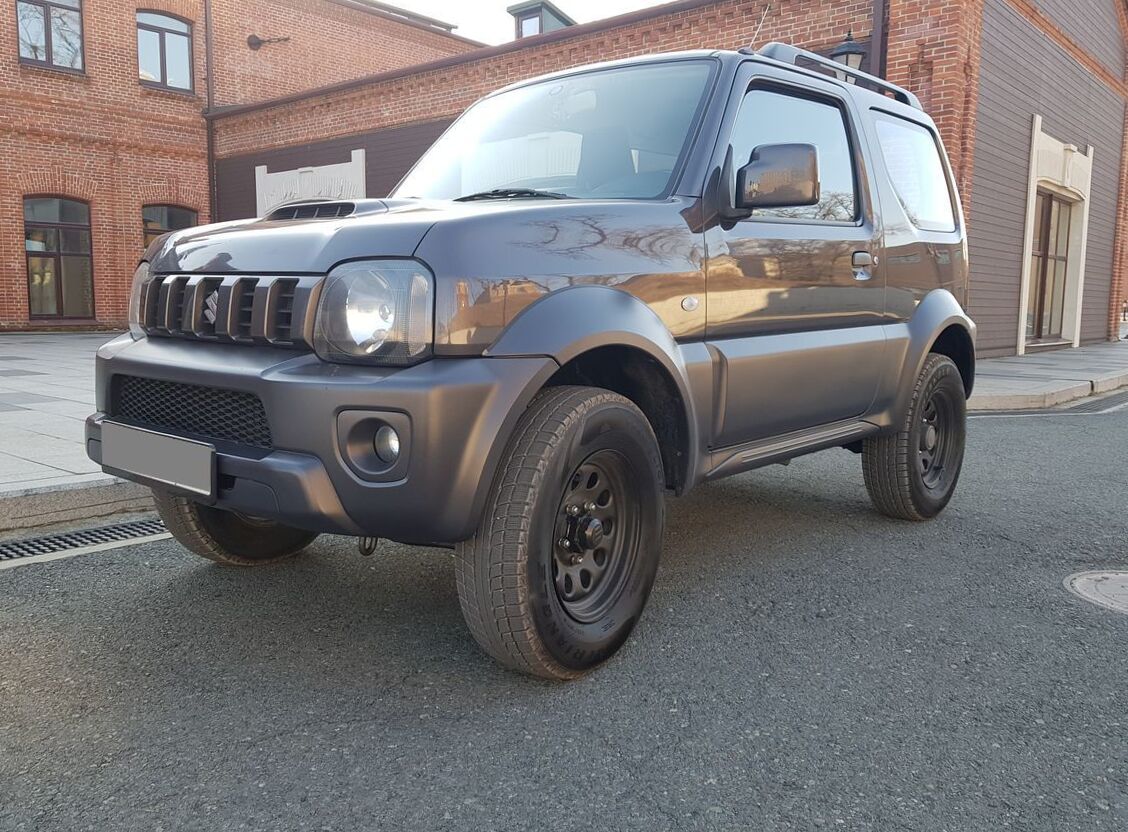

2014 Suzuki Jimny III 1.3 MT JLX


2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Jimny III JB43 1.3 MT JLX  (85 Hp)
Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)
2014 Suzuki Jimny III JB43 1.3 MT JLX  (85 Hp)

More photos of Suzuki Jimny

Suzuki Jimny Problems
Rough idle and steering wheel instability
2007, Rough idling with back firing at times
and slow progresion up hills ,at times. Also
sch...
Dont have spark with new coils
1998, bought this car not running so history
unknown but the fuel pump work when key is on,
st...
Pls help me
1999, my suzuki jimmy 1999 is automatic but wen
i go in drive it is not changing out at all so...

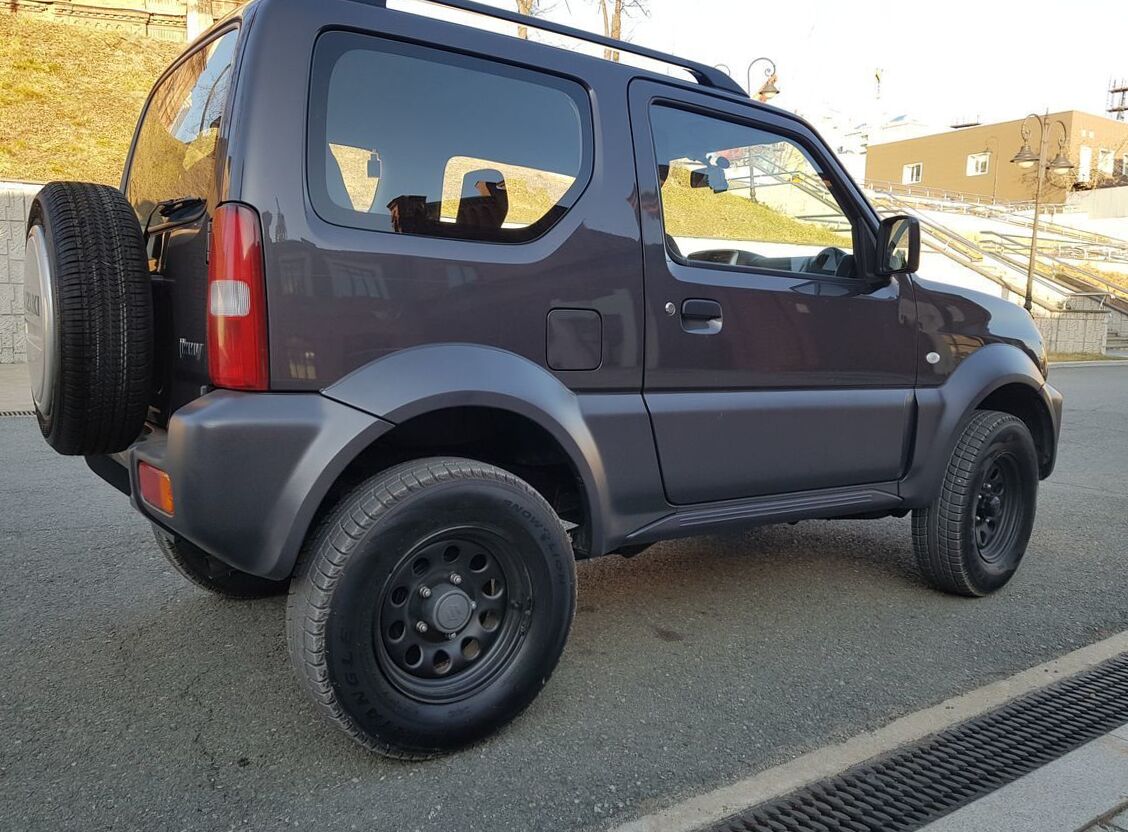

Body typeSUV 3 Doors
Power85 Hp
Engine Displacement1300 cm3 or 1.3L or 79.3 cu-in
Colorgray
Transmission GearboxManual
Fuel TypeGasoline
Drive wheel4WD

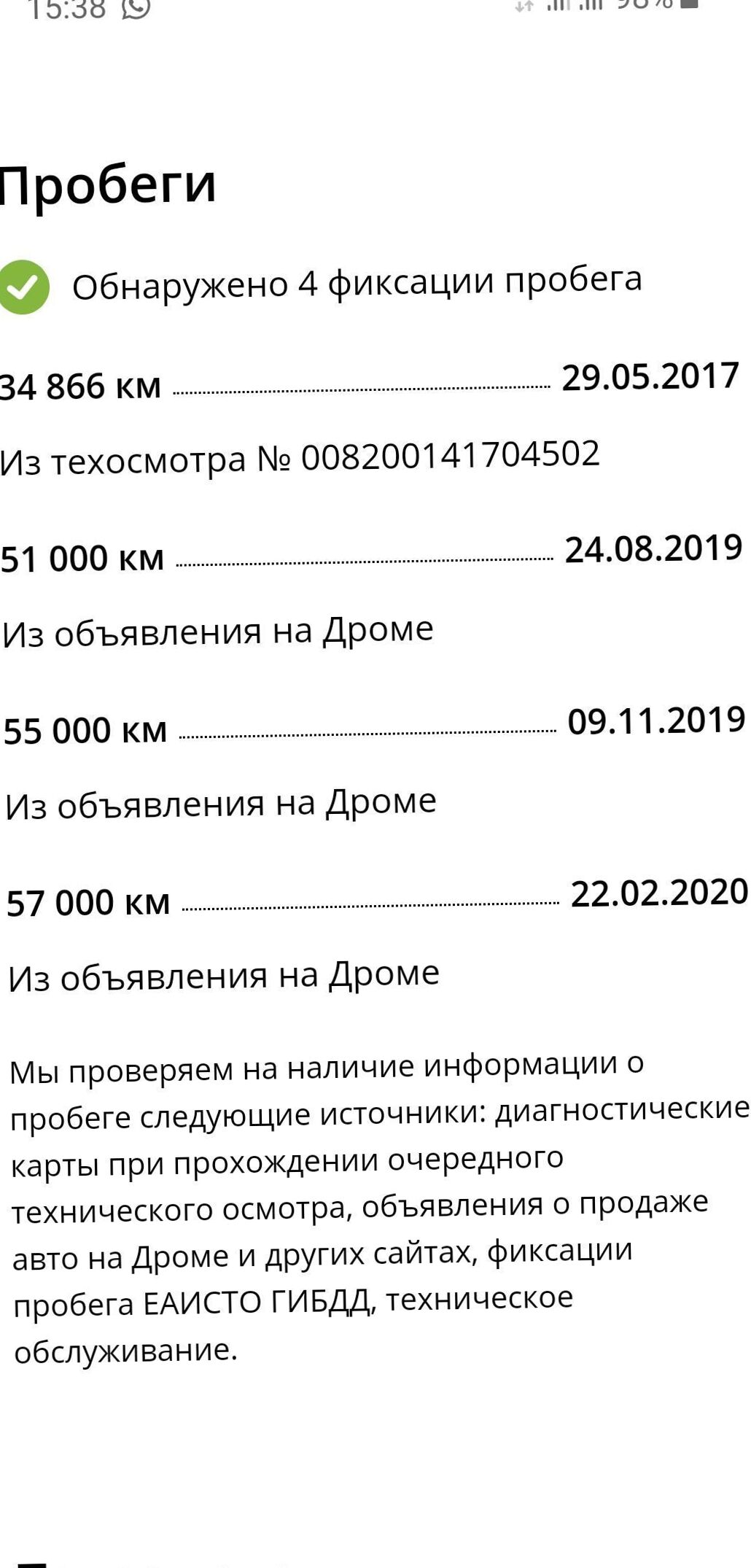

Mileage35418 Miles
VinJSAFJB43V00****75
Price (out of date)$11204

Frequently Asked Questions

What is the body type, 2014 Suzuki Jimny III?SUV, 4 Seats, 3 Doors
What is the fuel economy, Suzuki Jimny SUV 2014?7.3 l/100 km
How fast is the car, Suzuki Jimny JB43 2014?140 km/h, 0-100 km/h: 14.1 sec
How much power, 2014 Suzuki Jimny 1.3 MT JLX?85 Hp
What is the engine size, Suzuki Jimny III 2014 SUV 1.3 MT JLX (85 Hp)?1.3L or 1328cm3
How many gears, What type is the gearbox, 2014 Suzuki Jimny SUV 1.3 MT JLX (85 Hp)?5 speed Manual
What is the drivetrain, 2014 Suzuki Jimny III?All wheel drive (4x4)
How long is this vehicle, Suzuki Jimny SUV 2014?3695 mm
How wide is the vehicle, Suzuki Jimny JB43 2014?1600 mm
What is the gross weigh, 2014 Suzuki Jimny 1.3 MT JLX?1420 kg
How much trunk (boot) space, Suzuki Jimny III 2014 SUV 1.3 MT JLX (85 Hp)?113 l

Suzuki Jimny III JB43 1.3 MT JLX (85 Hp) 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Specs

General information

Complectation name1.3 MT JLX
Production start year2012
Production start month7
Drive typeAll wheel drive (4x4)
Frame typeSUV

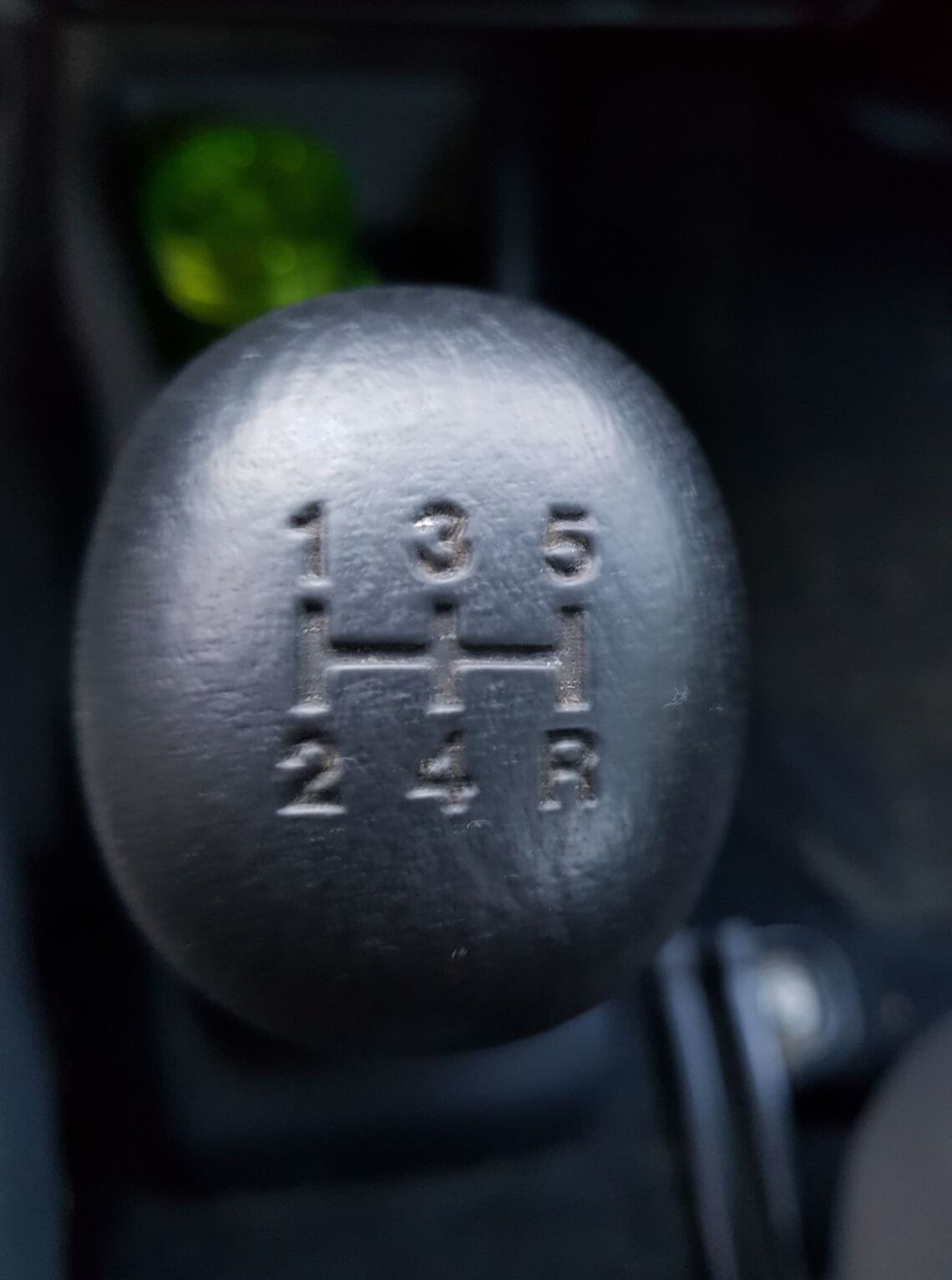

Transmission type5 speed Manual
Engine volume, cc1328
Frame nameJB43
0 to 100 time14.1
Max speed140
Clearance, mm190
Manufacturing countryJapan
Doors3
Winter complectationyes
Warranty3 years or 100,000 km

Vehicle generation

Generation nameJB43
Generation number3
Facelift number2
Production start year2012
Production end year2019

Engine, transmission and steering specs

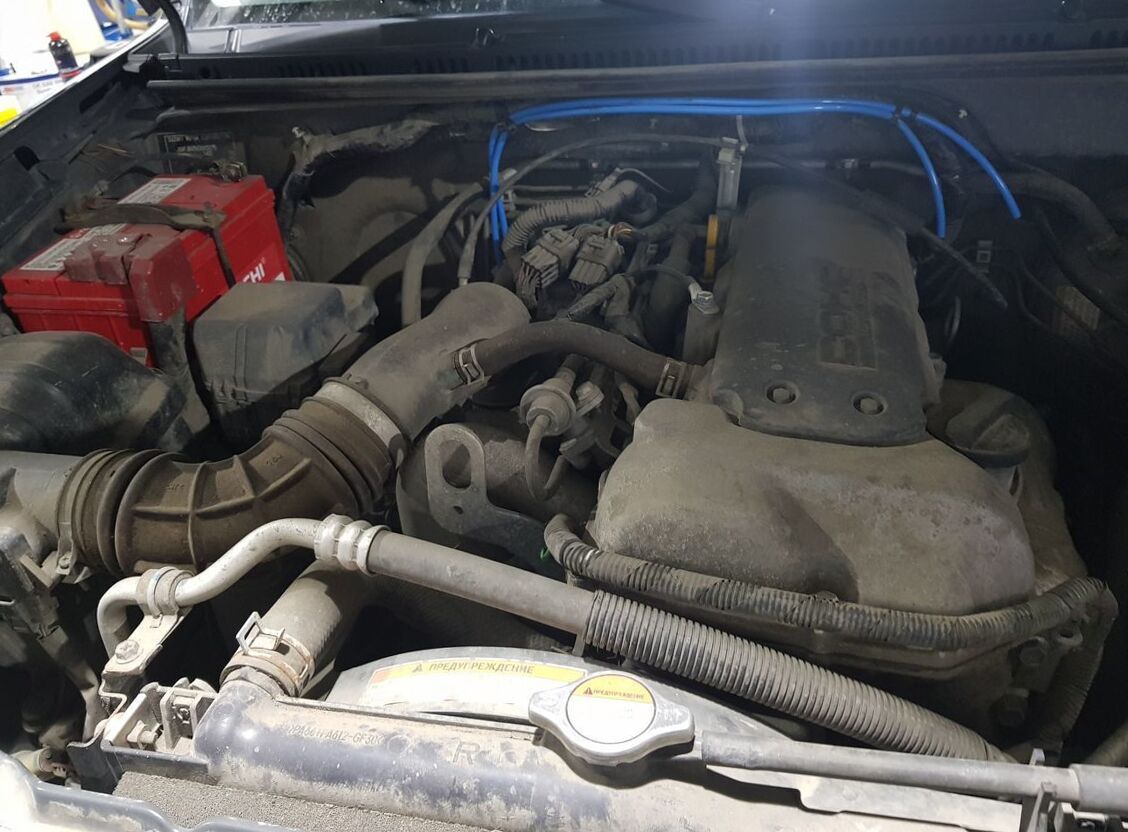

Engine specs

Engine nameM13A
FuelPetrol (Gasoline)
Engine typeIn-line, 4-cylinder
Has turbono
Max power, hp85
Max power RPM, rpm6000
Max power, hp (kWt) / rpm85 (63) / 6000
Max torque, N*m110
Max torque RPM, rpm4100
Max torque, N*m (kg*m) / rpm110 (11) / 4100
Valves per cylinder4
Compression ratio9.5
Bore, mm78
Stroke, mm69.5
Engine additional infoVVT, multi-point injection

Fuel consumption

City9.3
Country side6.2
Combined7.3
Co2 emission174

Transmission

1st gear ratio4.425
2nd gear ratio2.304
3rd gear ratio1.674
4th fear ratio1.19
5th gear ratio1
Rear gear ratio5.151
Main gear ratio4.3

Steering

Power steeringyes
Steereing gear typeBall nut screw

Dimensions

Frame dimensions

Exterior length, mm3695
Exterior width, mm1600
Exterior height, mm1705

Interior dimensions

Capacity4
Seat rows2

Chassis dimensions

Wheel base, mm2250
Turning radius, m4.9
Wheel spacing front1355
Wheel spacing rear1365

Weight and permissible load

Mass, kg1060
Max. weight1420

Volumes

Fuel tank capacity, l40
Trunk volume113

Suspension specs

Suspension specs

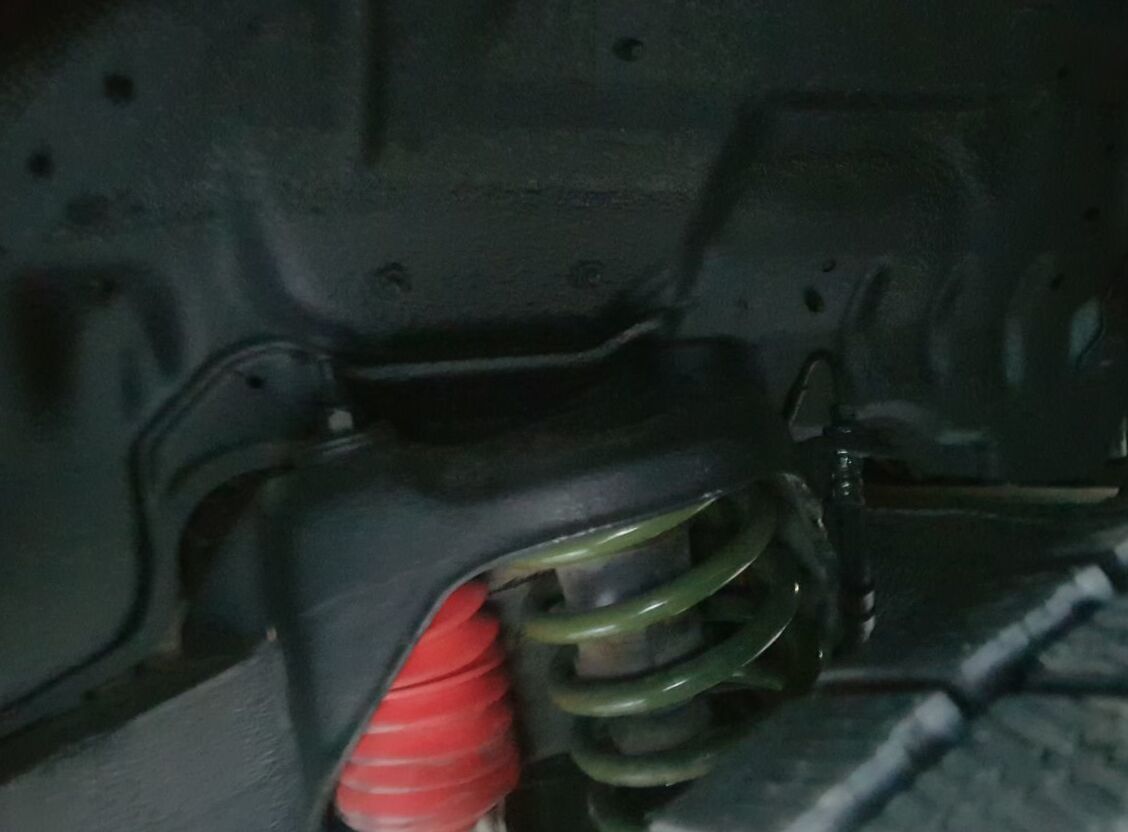

Front suspensionDependent, spring loaded
Rear suspensionDependent, spring loaded

Wheel rims

Aluminium wheelno

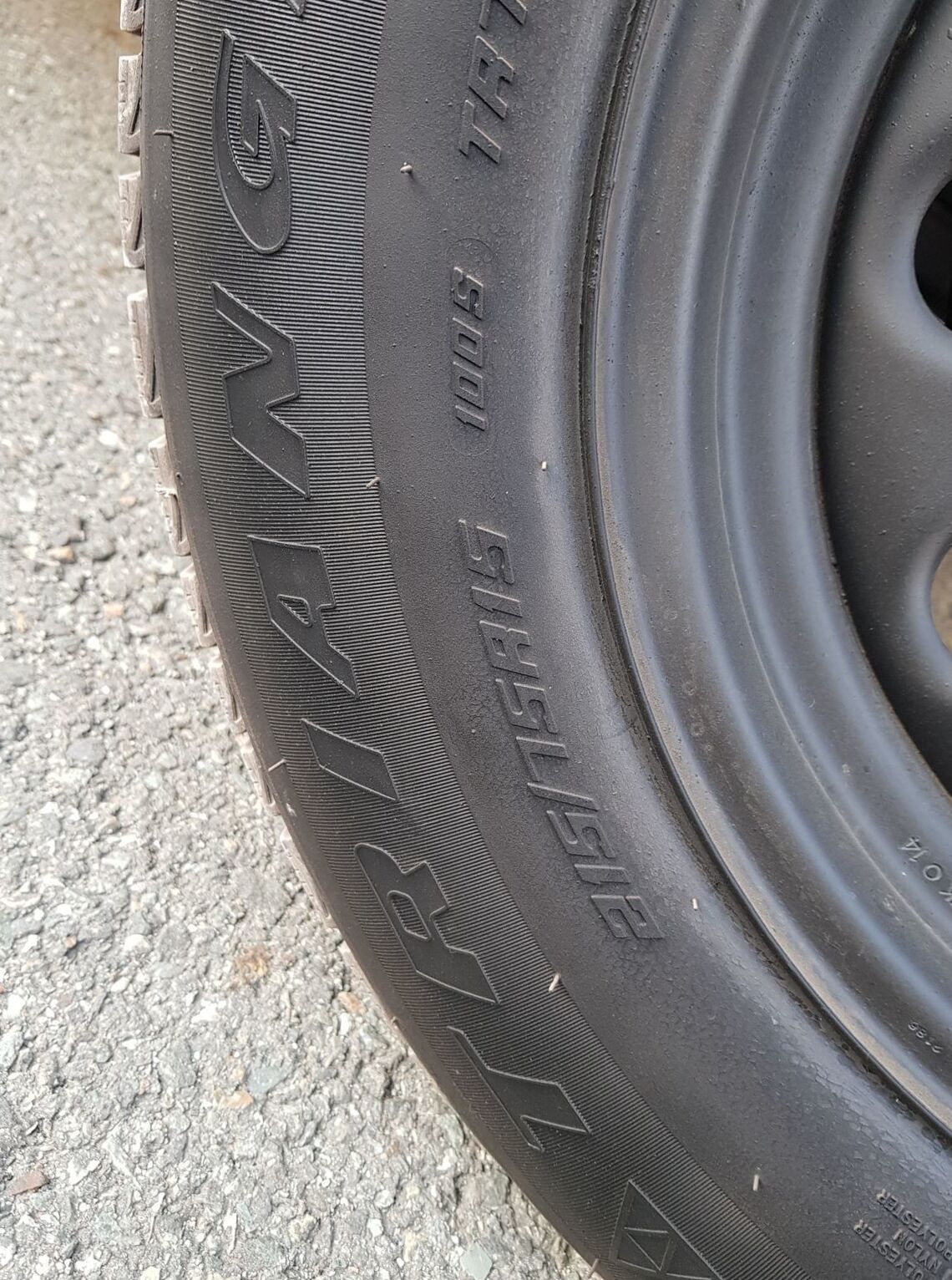

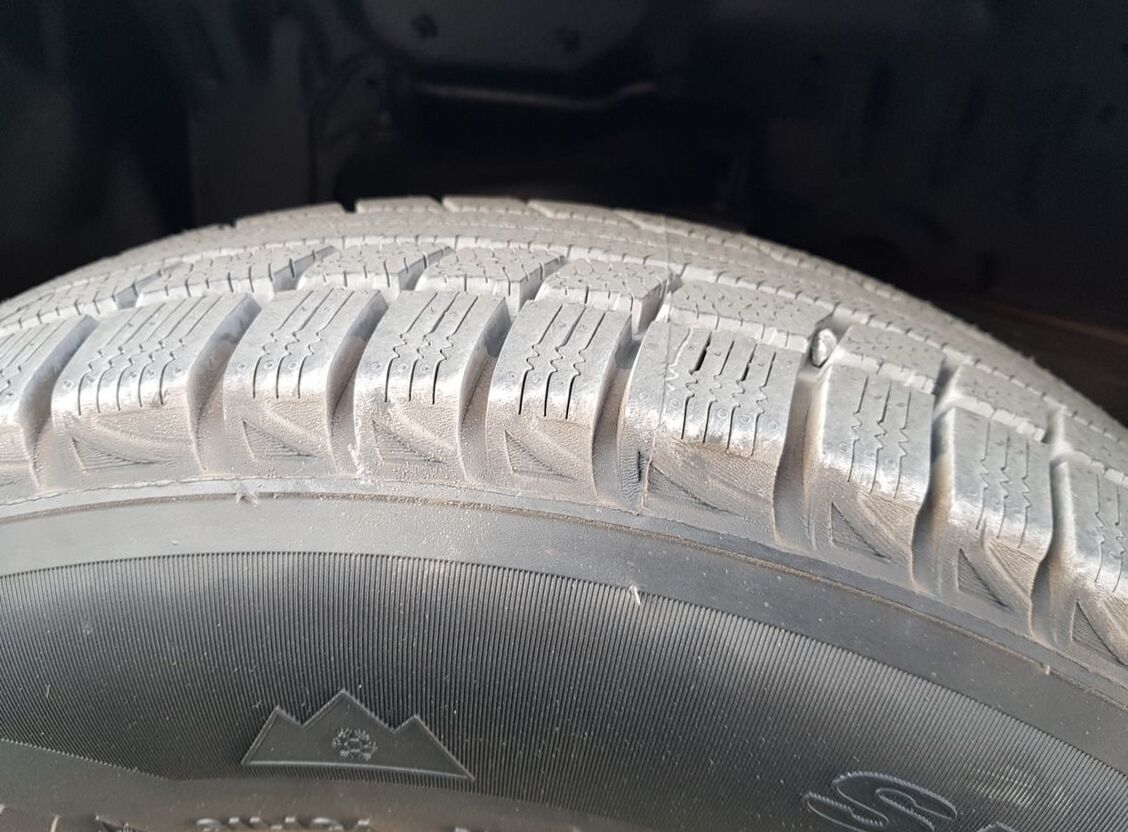

Tires

Front wheels205/70R15
Rear wheels205/70R15

Brakes

Front brakeDiscs
Rear brakedrum brakes
Brake front search1
Rear brake2

Exterior

Headlights

Halogen headlightsyes

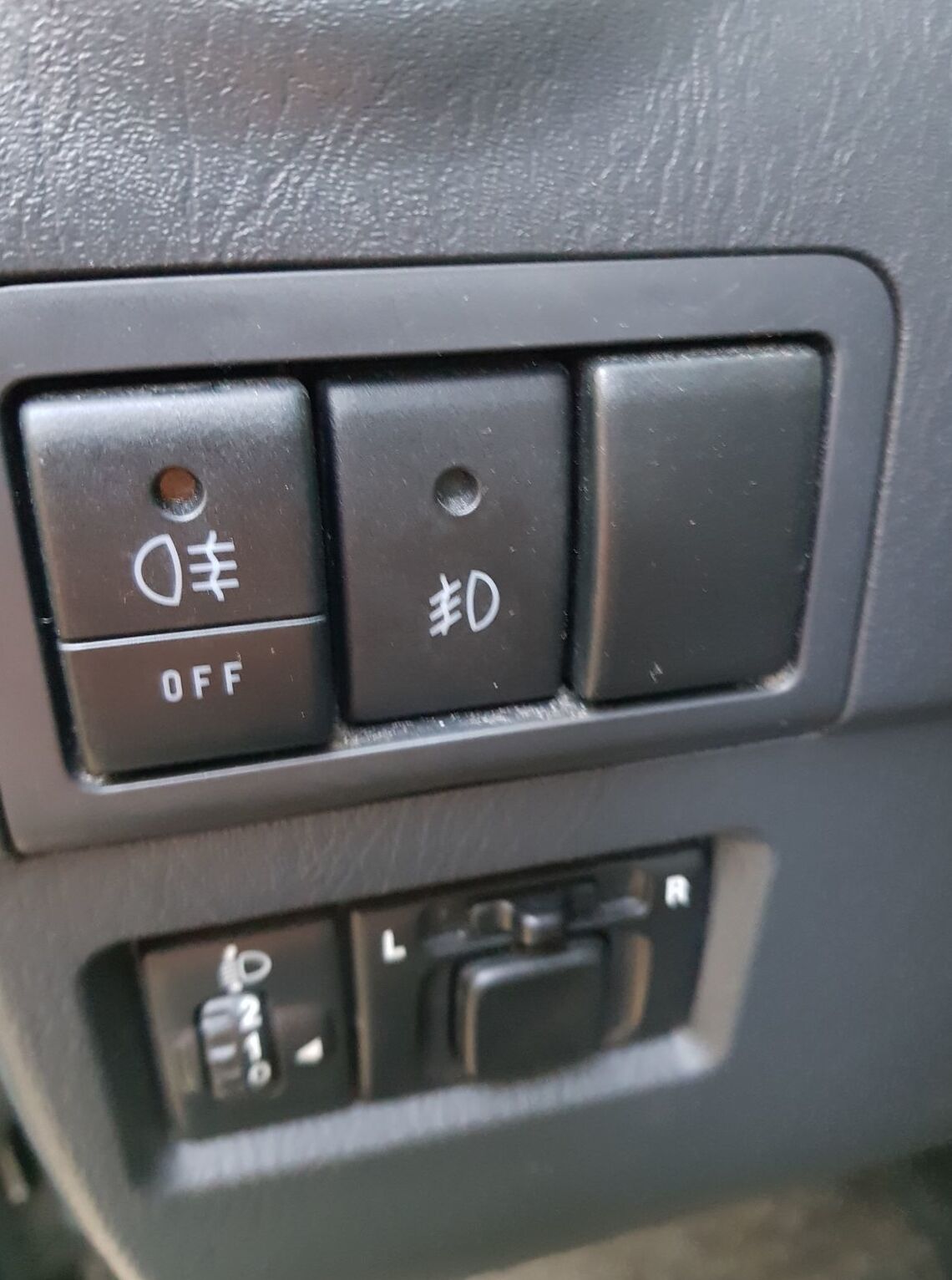

Front fog lampsyes

Side mirrors

Exterior mirrors in body coloryes
Power adjustable door mirrorsyes
Door mirrors heatingyes

Doors

Door handles in body colorno

Windows

Rear glass heatyes

Accessories

Roof railyes
Bumperspainted in body color
Back wiperyes

Body color

Metallic paint Bodyoption

Interior

Interior design

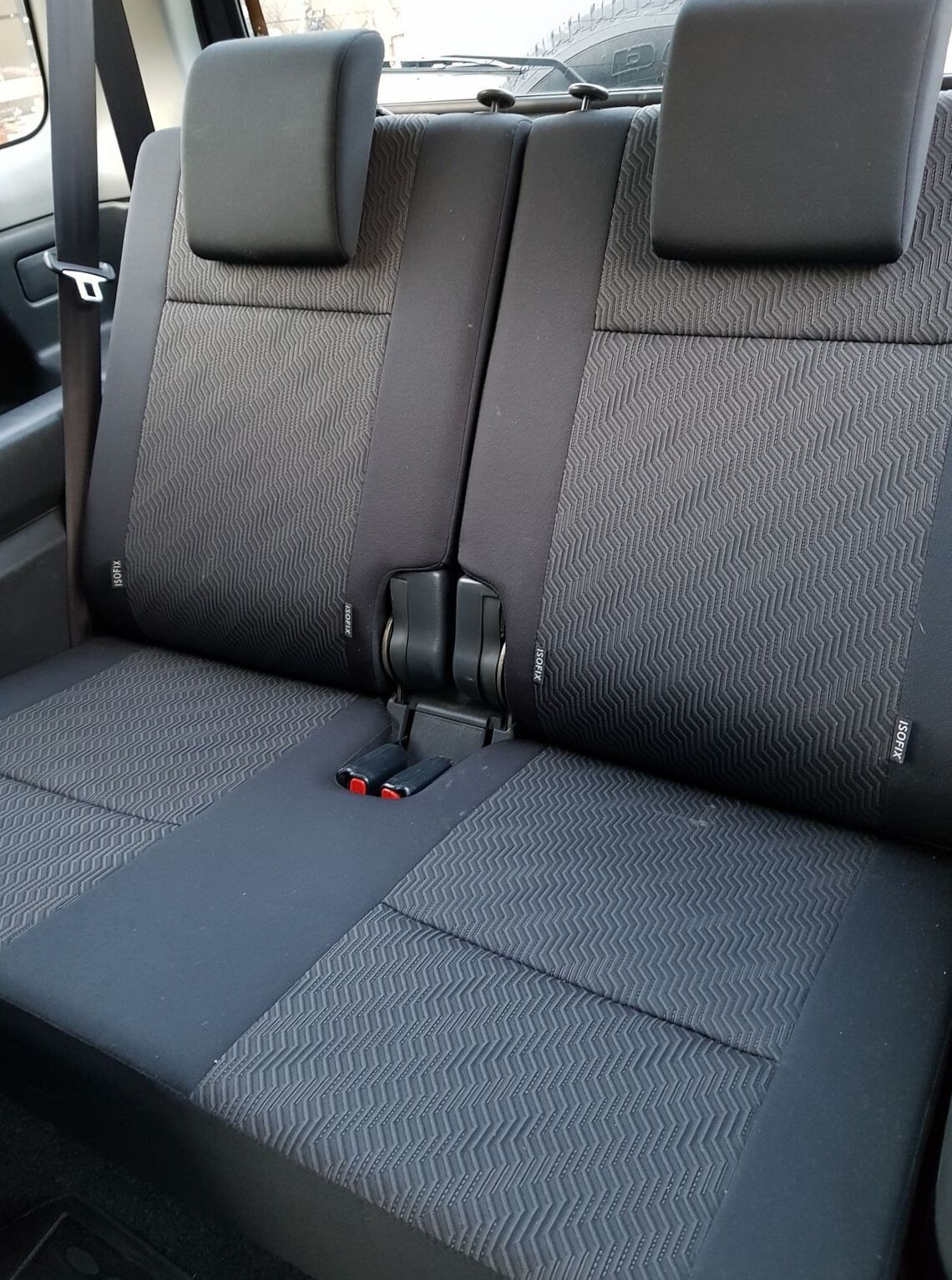

Cloth upholsteryyes
Leather upholsteryno

Seats

Headrests for seats4

Electric interior package

Front seat heateryes
Centralized door lockyes

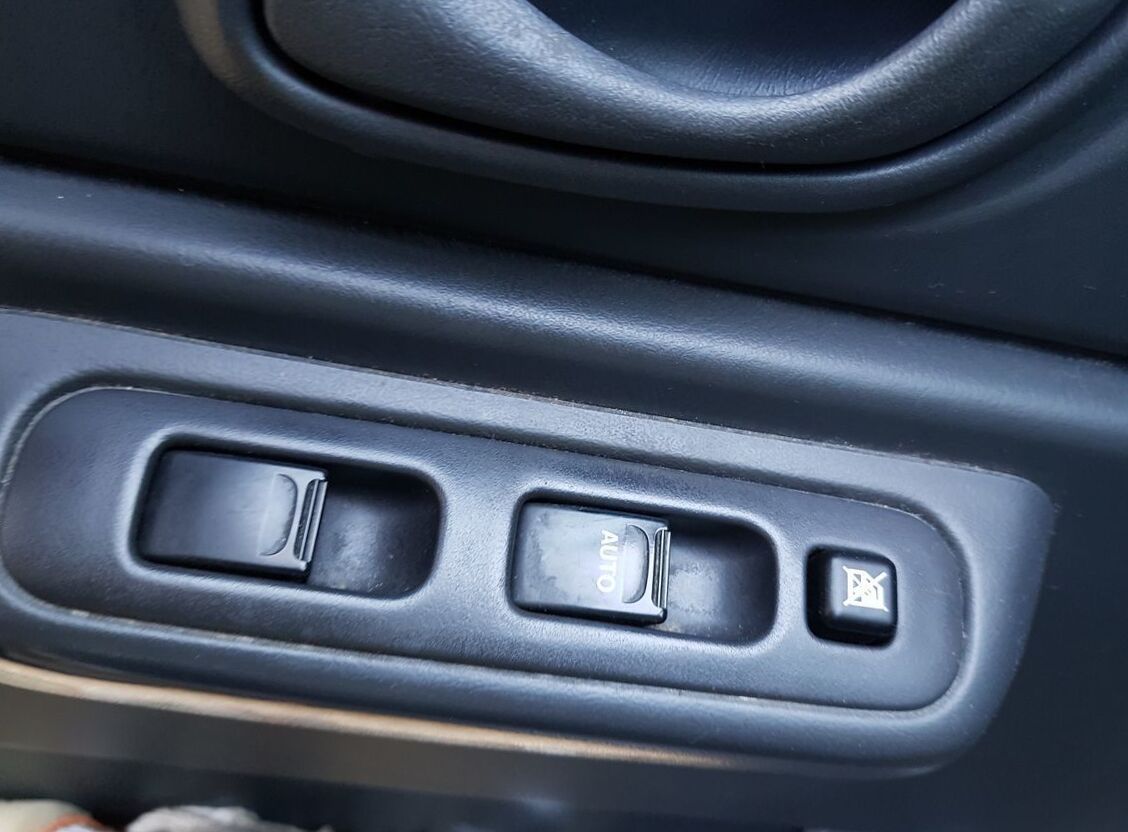

Power windowyes

Safety

Airbags

Drivers airbagyes
Passengers airbagyes

Children safety

isofix baryes

Active and passive safety

Side impact baryes
3 point safety beltyes
Safety belt pretensioneryes
Safety belt limiteryes

Electronic security and traffic control systems

ABSyes

Amenity

Microclimate

Air conditioneryes

Audio systems

Radioyes
CD playeryes
Additional sound equipment2 speakers

Additional amenities

Mirrors in sunshieldsyes


2014 Suzuki Jimny III JB43 1.3 MT JLX (85 Hp) specs

See also the Suzuki LJ and Suzuki SJ, which used the Jimny name in some markets

The Suzuki Jimny is a small four wheel drive built by the Japanese manufacturer Suzuki. Three body styles are available: a metal top, a hard top and soft top. The Jimny replaced the popular Sierra/ Samurai model in most markets in 1999, though its predecessor remains in limited production in some regions. The Jimny (3rd generation) was equipped with a newly designed 1.3L 16-valve four-cylinder electronically fuel injected engine or a 1.5 Diesel engine (again Market specific). A ladder type chassis and a dual ratio transfer case is standard, unlike many competing compact 4WDs which lack a low range, and are strictly in the crossover category.

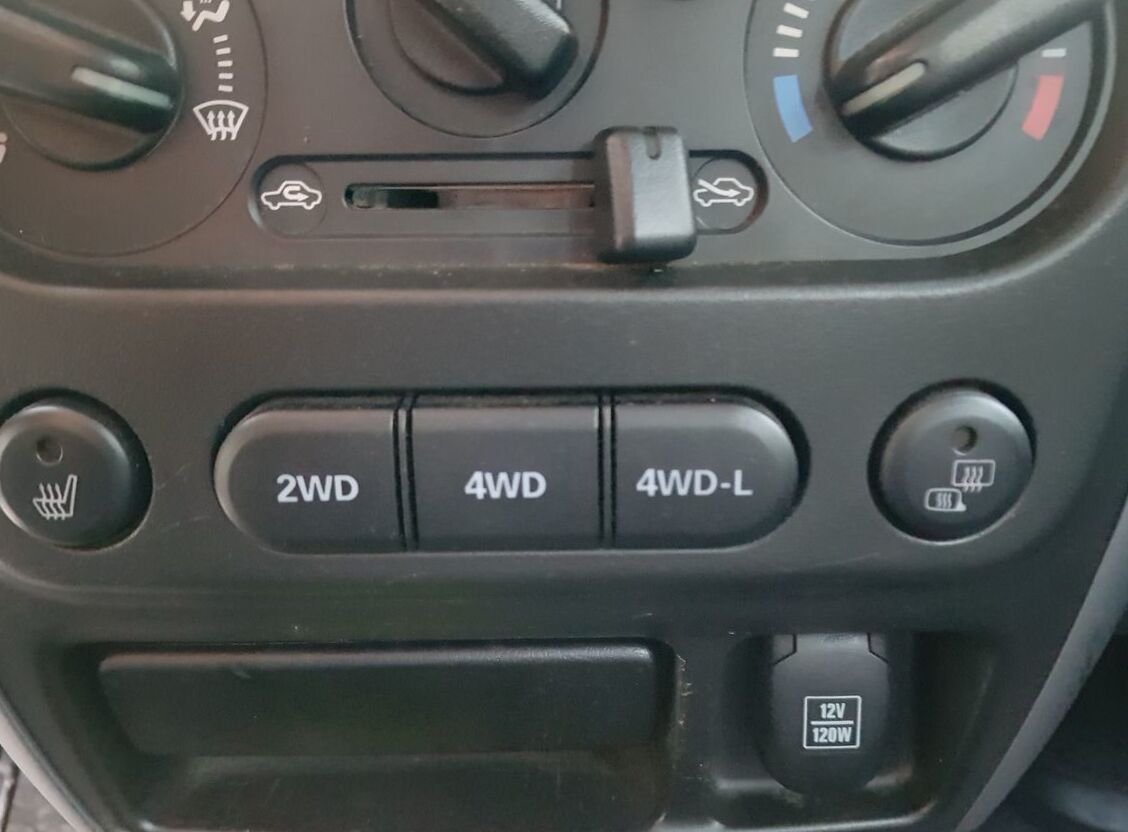

The Jimny's vacuum-locking hubs allow the vehicle to be shifted from 2WD to 4WD while travelling at up to 100km/ h (62mph). Shifting to low range requires the vehicle to be stopped, but there is no need to exit the vehicle. Newer Jimnys feature electronic "push-button" selectable four-wheel drive.

The Jimny features large windows, giving excellent visibility, apart from a rather serious blind spot caused by the oversized "B" pillar. The large amount of glass also creates a greenhouse effect, and the Jimny comes with air conditioning as a standard feature in some regions.

Two models of the Jimny are available in some markets, the standard hard top, and a canvas roofed "Cabrio" version. Both models come in JX and JLX specifications. These are fairly standard designations across the Suzuki off road range, with the JLX being the fully-optioned "luxury" version. In the case of the Jimny, the JLX adds roof rails, power steering, power windows, electronically adjustable exterior mirrors, and several interior comfort improvements. Both models are available in 5 speed manual or 4 speed automatic gearbox. There is also a 2WD option, only available in 5 speed manual.
