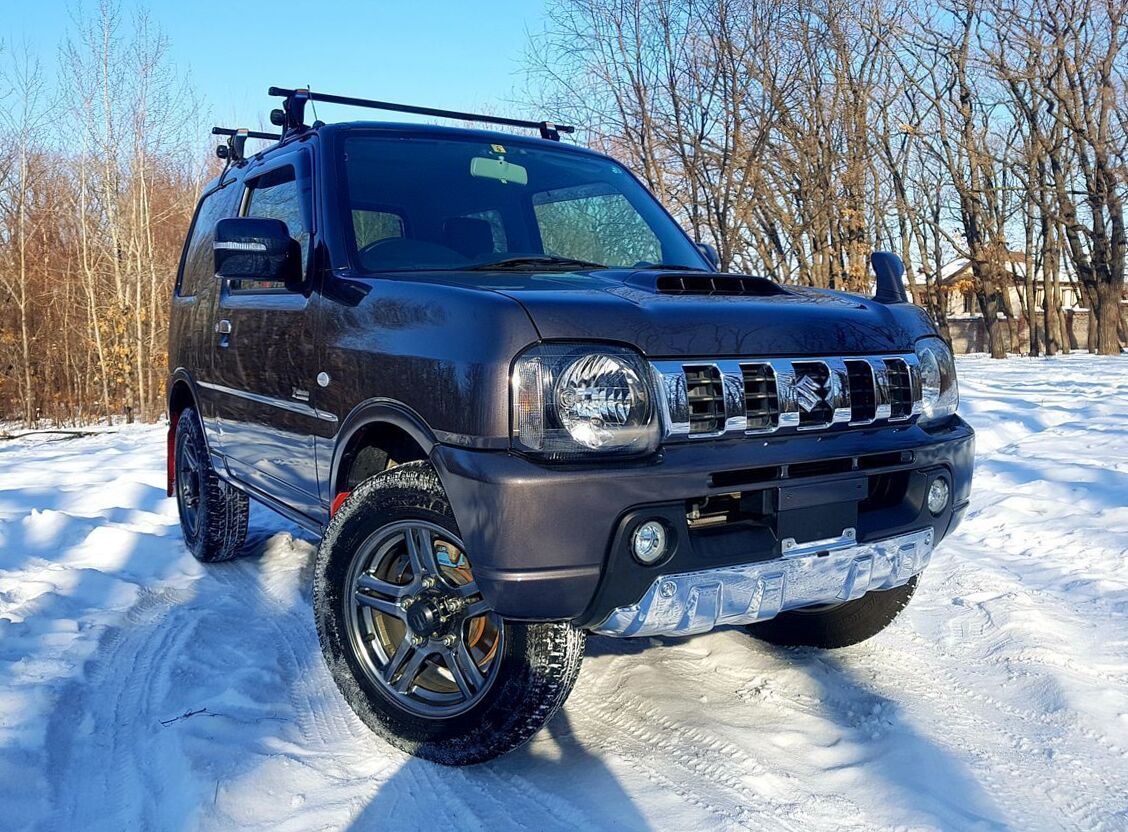

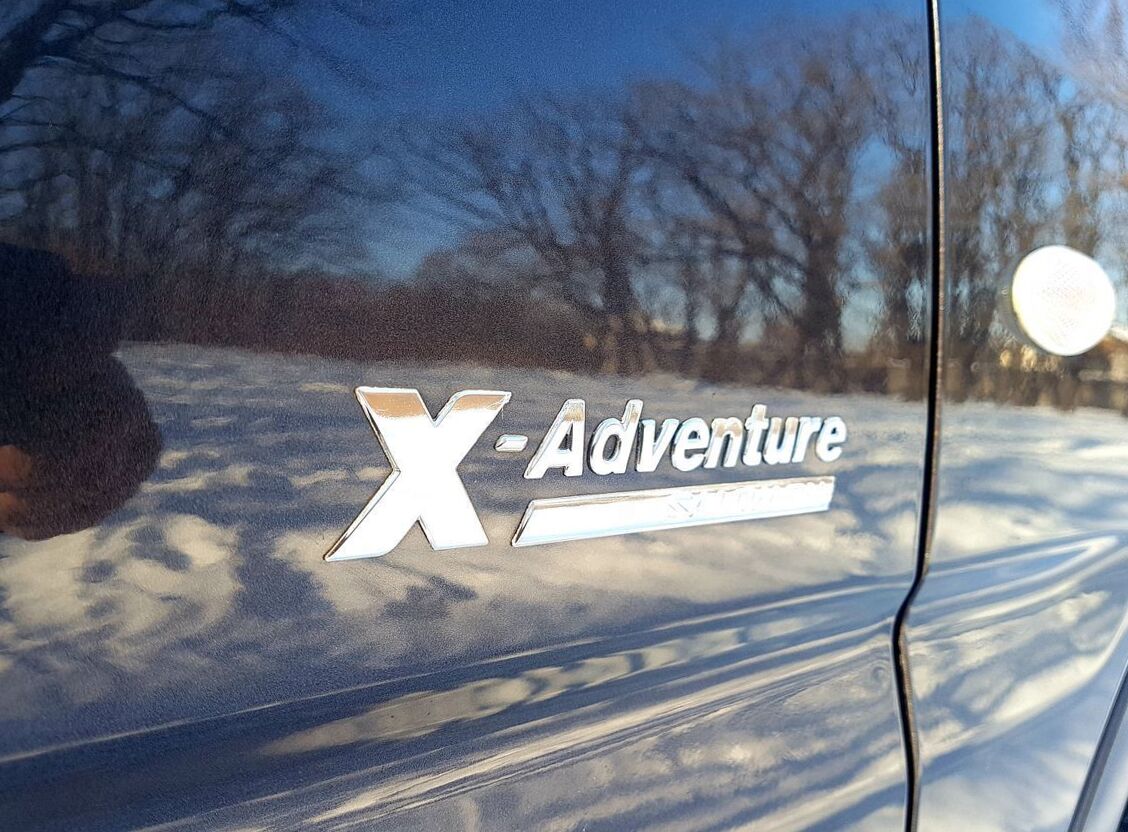

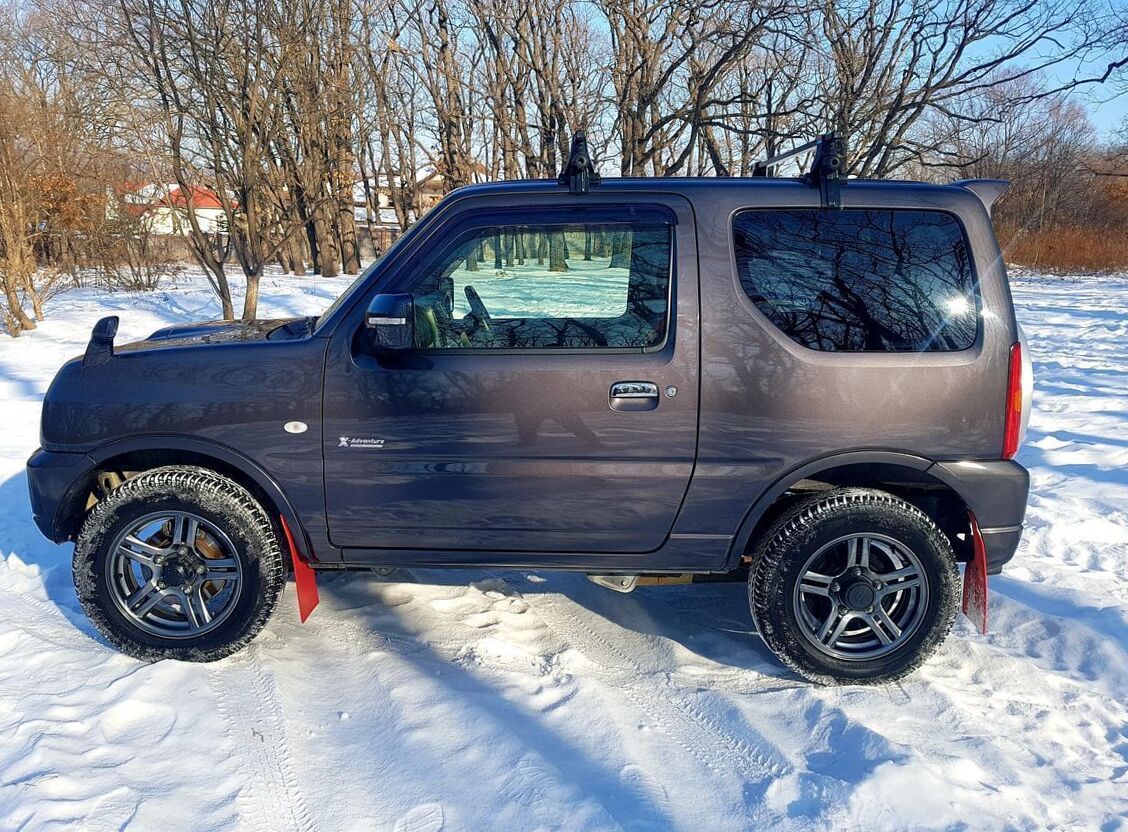

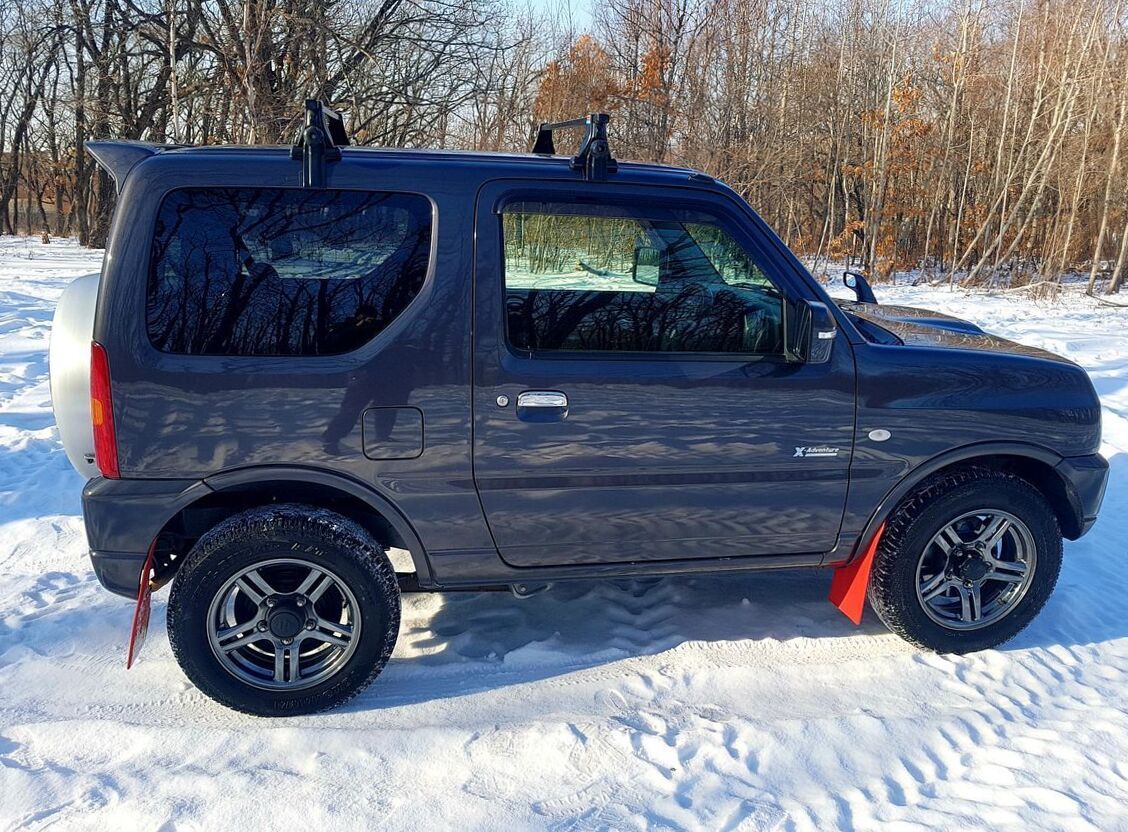

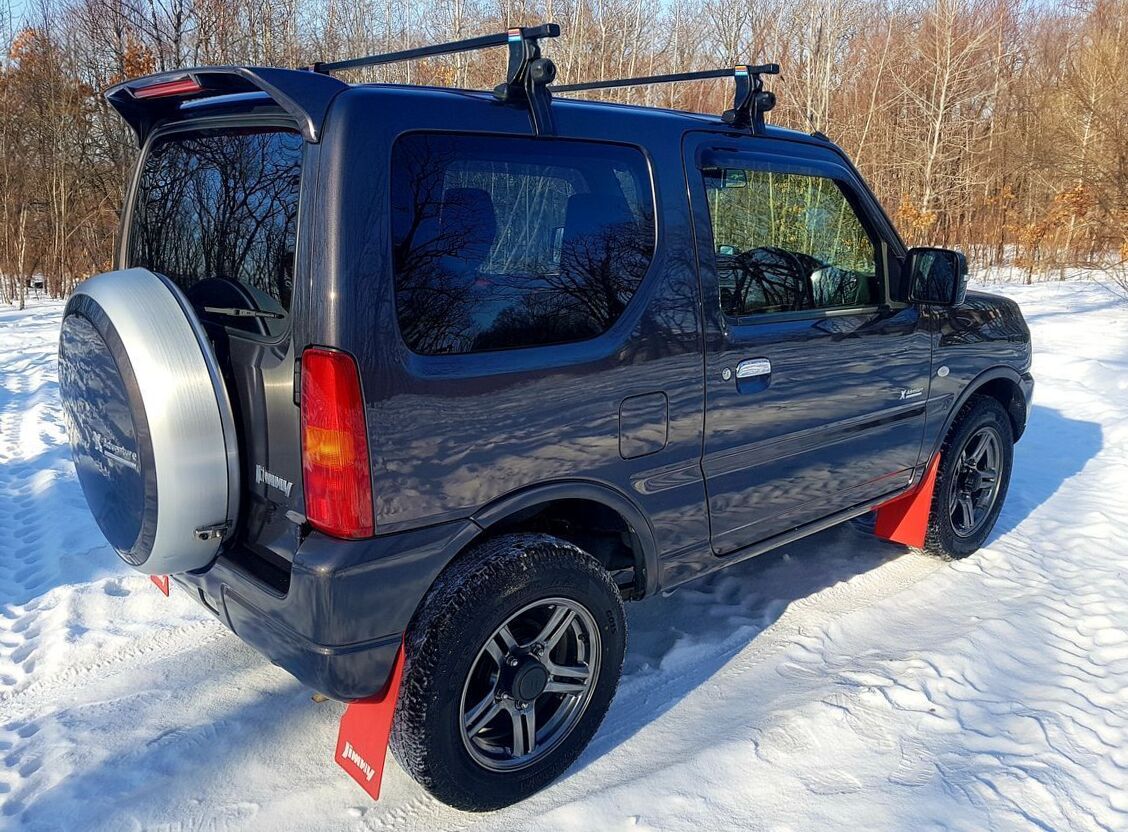

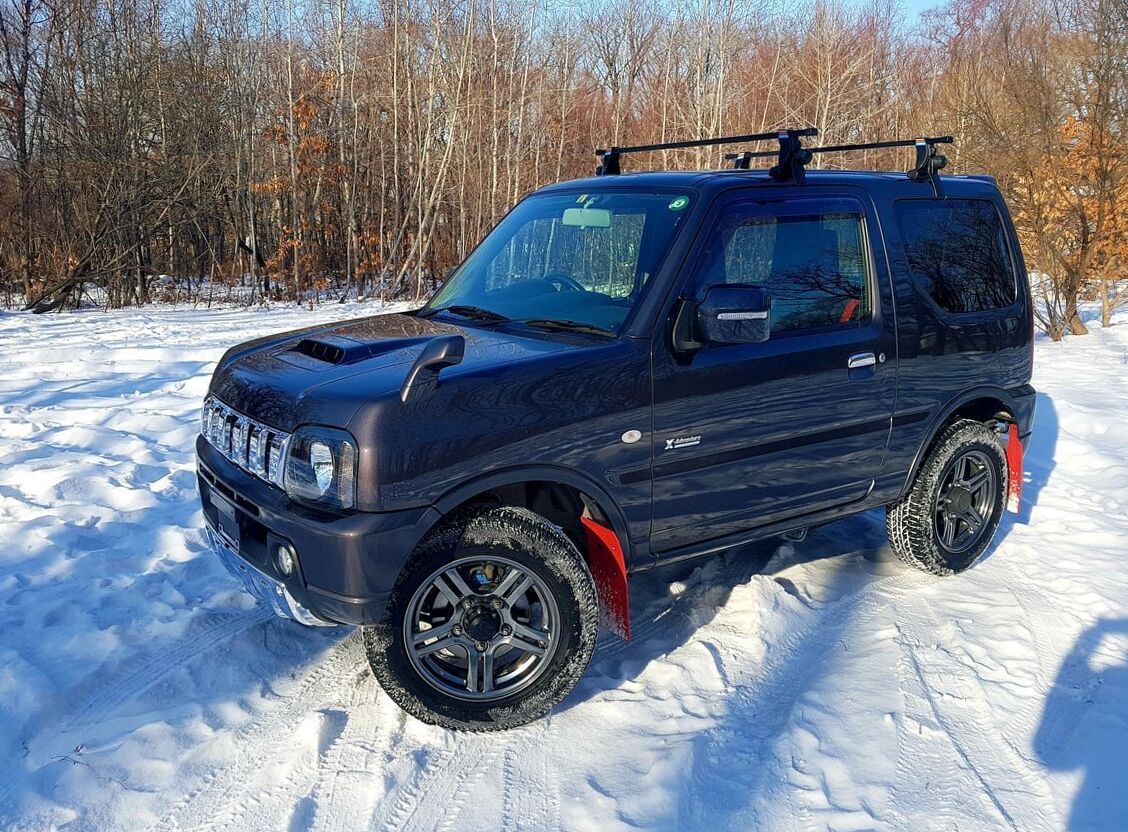

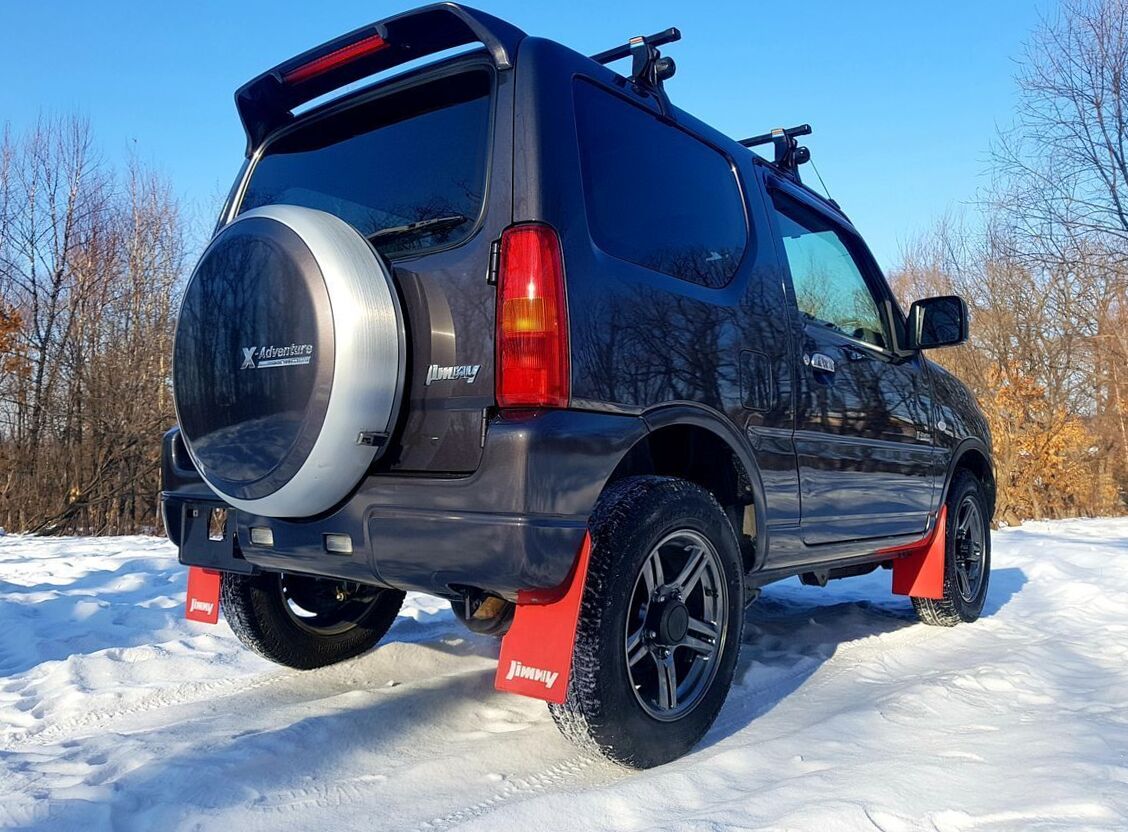

2013 Suzuki Jimny III 660 X Adventure 4WD
Suzuki Jimny Problems
Rough idle and steering wheel instability
2007, Rough idling with back firing at times
and slow progresion up hills ,at times. Also
sch...
Dont have spark with new coils
1998, bought this car not running so history
unknown but the fuel pump work when key is on,
st...
Pls help me
1999, my suzuki jimmy 1999 is automatic but wen
i go in drive it is not changing out at all so...
| Body type | SUV 3 Doors |
|---|---|
| Power | 64 Hp |
| Engine Displacement | 700 cm3 or 0.7L or 42.7 cu-in |
| Color | gray |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 47845 Miles |
| Vin | 865*** |
| Price (out of date) | $9160 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2013 Suzuki Jimny III? | SUV 3 Doors, 4 Seats, 3 Doors |
| How much power, Suzuki Jimny SUV 3 Doors 2013? | 64 Hp |
| What is the engine size, Suzuki Jimny ABA-JB23W 2013? | 0.7L or 658cm3 |
| How many gears, What type is the gearbox, 2013 Suzuki Jimny 660 X Adventure 4WD? | Automatic transmission 4 |
| What is the drivetrain, Suzuki Jimny III 2013 SUV 3 Doors 660 X Adventure 4WD (64 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2013 Suzuki Jimny SUV 3 Doors 660 X Adventure 4WD (64 Hp)? | 3395 mm |
| How wide is the vehicle, 2013 Suzuki Jimny III? | 1475 mm |
Suzuki Jimny III ABA-JB23W 660 X Adventure 4WD (64 Hp) 2012, 2013, 2014 Specs
General information | |
|---|---|
| Production start year | 2012 |
| Production end year | 2014 |
| Frame type | SUV 3 Doors |
| Drive type | All wheel drive (4x4) |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 658 |
| Frame name | ABA-JB23W |
| Clearance, mm | 200 |
| Doors | 3 |
| Winter complectation | no |
| Steering locaton | right |
Vehicle generation | |
| Generation name | JB23 |
| Generation number | 3 |
| Facelift number | 2 |
| Production start year | 2012 |
| Production end year | 2018 |

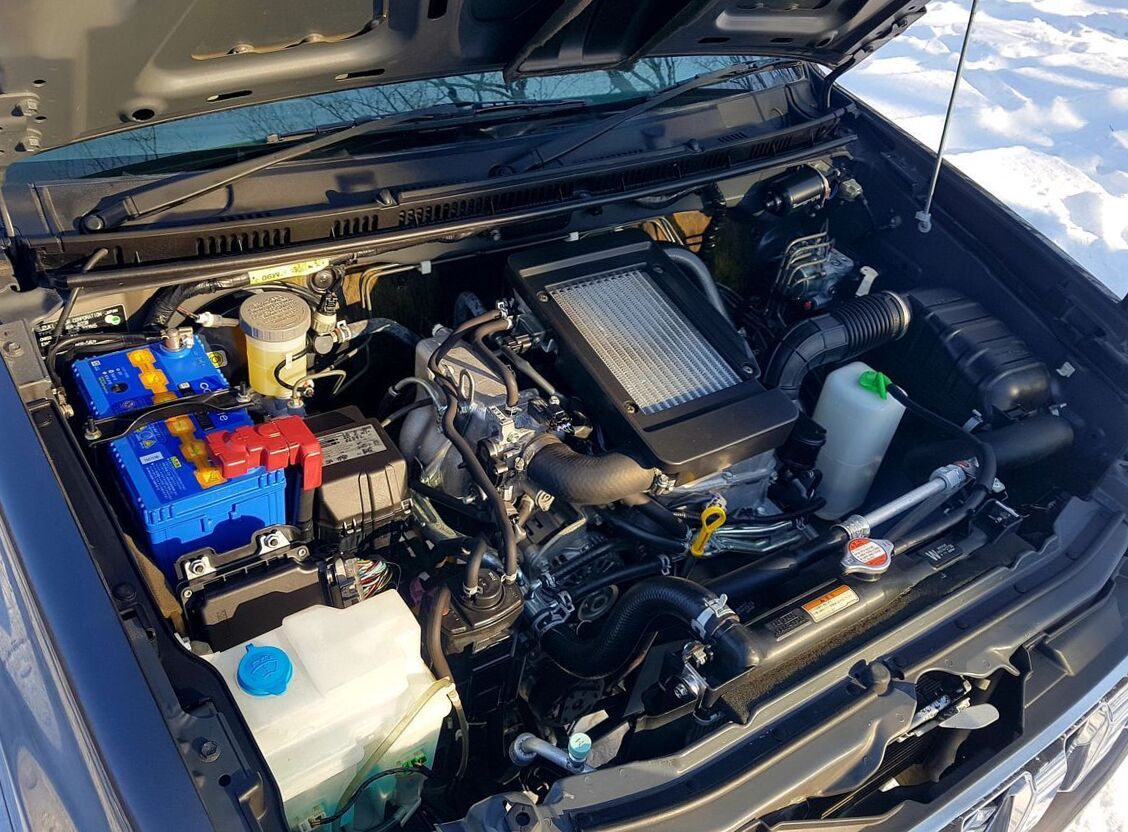

Engine, transmission and steering specs | |

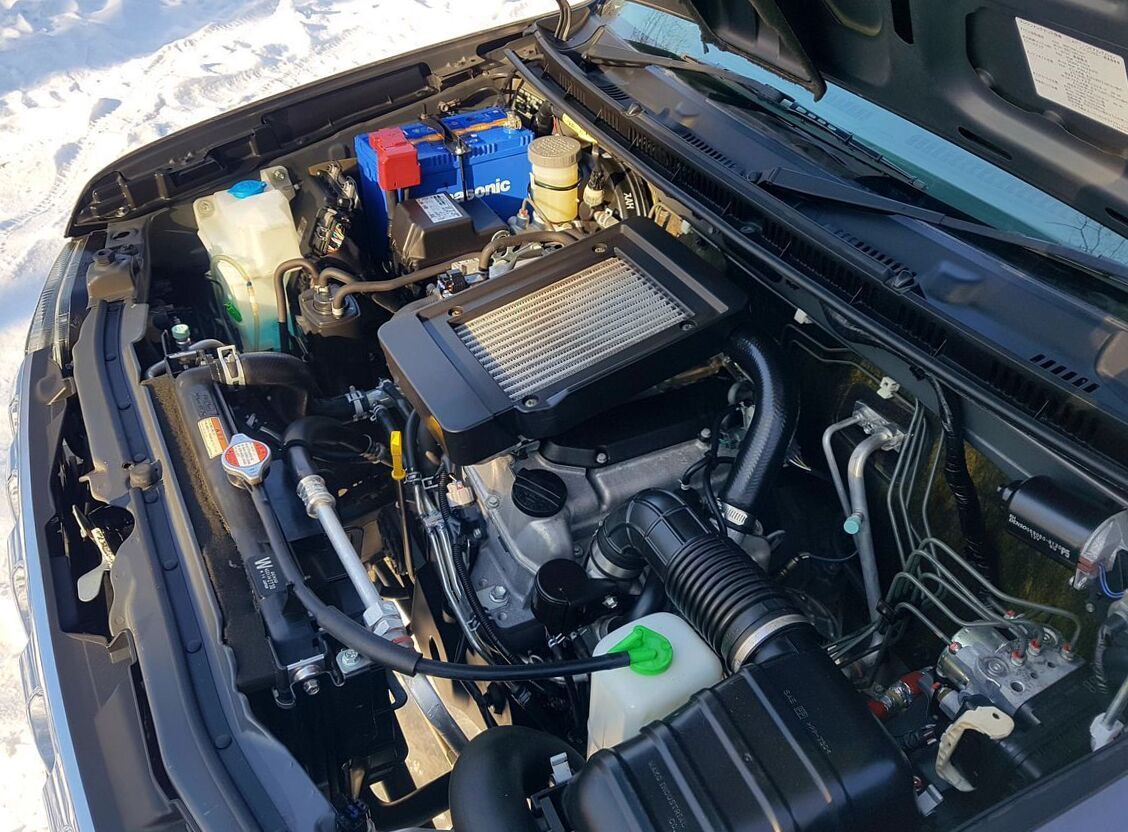

Engine specs | |
| Engine name | K6A |
| Fuel | Petrol (Gasoline) |
| Engine type | 3 cylinder DOHC |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 64 |
| Max power RPM, rpm | 6500 |
| Max power, hp (kWt) / rpm | 64(47)/6500 |
| Max torque, N*m | 103 |
| Max torque RPM, rpm | 3500 |
| Max torque, N*m (kg*m) / rpm | 103 (10.5) / 3500 |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 47?64?/6500 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 103?10.5?/3500 |
| Start stop system | no |
Fuel consumption | |
| Fuel consumption (10/15 mode), km/l | 14.8 |
| Fuel consumption (10/15 mode), l/100km | 6.8 |
Transmission | |

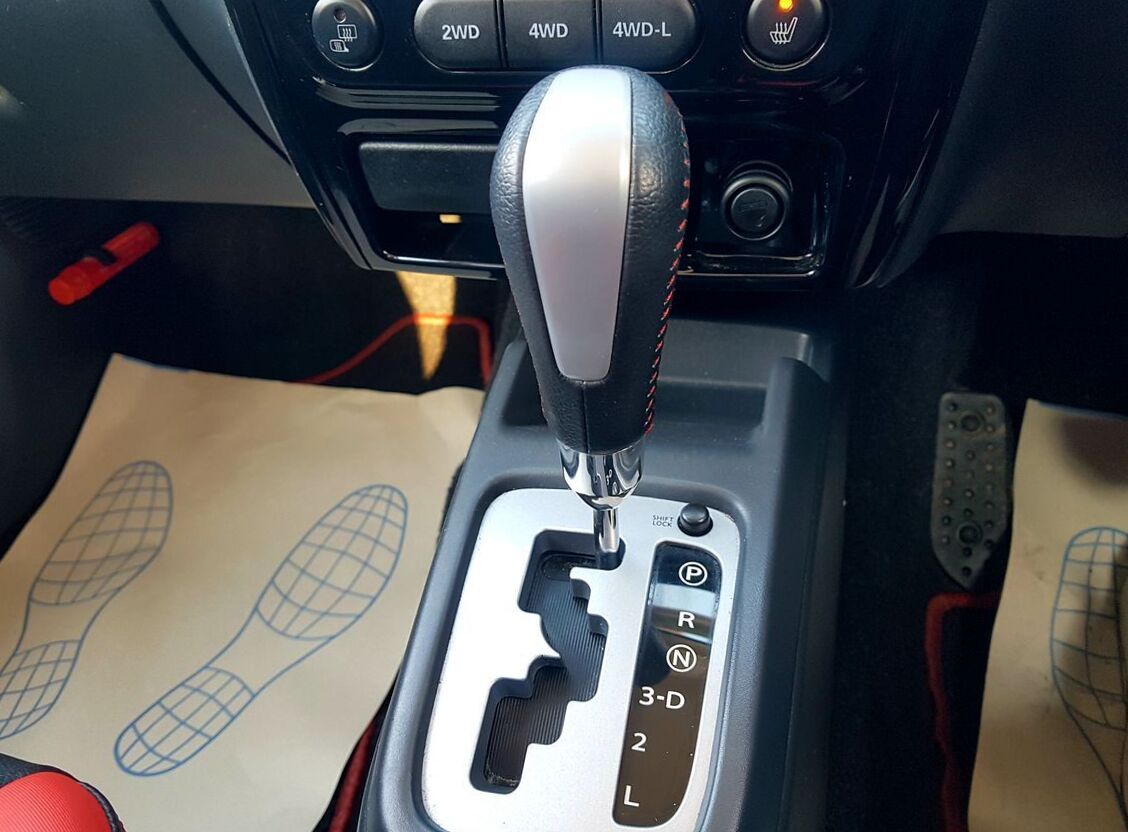

| Shifter position | On the floor. |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3395 |
| Exterior width, mm | 1475 |
| Exterior height, mm | 1680 |
| Exterior size (L x W x H), mm | 3395x1475x1680?mm? |
Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
| Interior size (L x W x H), mm | 1685x1220x1210?mm? |
| Interior length, mm | 1685 |
| Interior width, mm | 1220 |
| Interior height, mm | 1210 |
Chassis dimensions | |
| Wheel base, mm | 2250 |
| Front axle length, mm | 1265 |
| Rear axle length, mm | 1275 |
| Turning radius, m | 4.8 |
| Front/rear axis length | 1265/1275?mm? |
| Wheel spacing front | 1265 |
| Wheel spacing rear | 1275 |
Weight and permissible load | |
| Mass, kg | 990 |
Volumes | |
| Fuel tank capacity, l | 40 |
Suspension specs | |
Suspension specs | |
| Front suspension | Dependent, spring loaded |
| Rear suspension | Dependent, spring loaded |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |

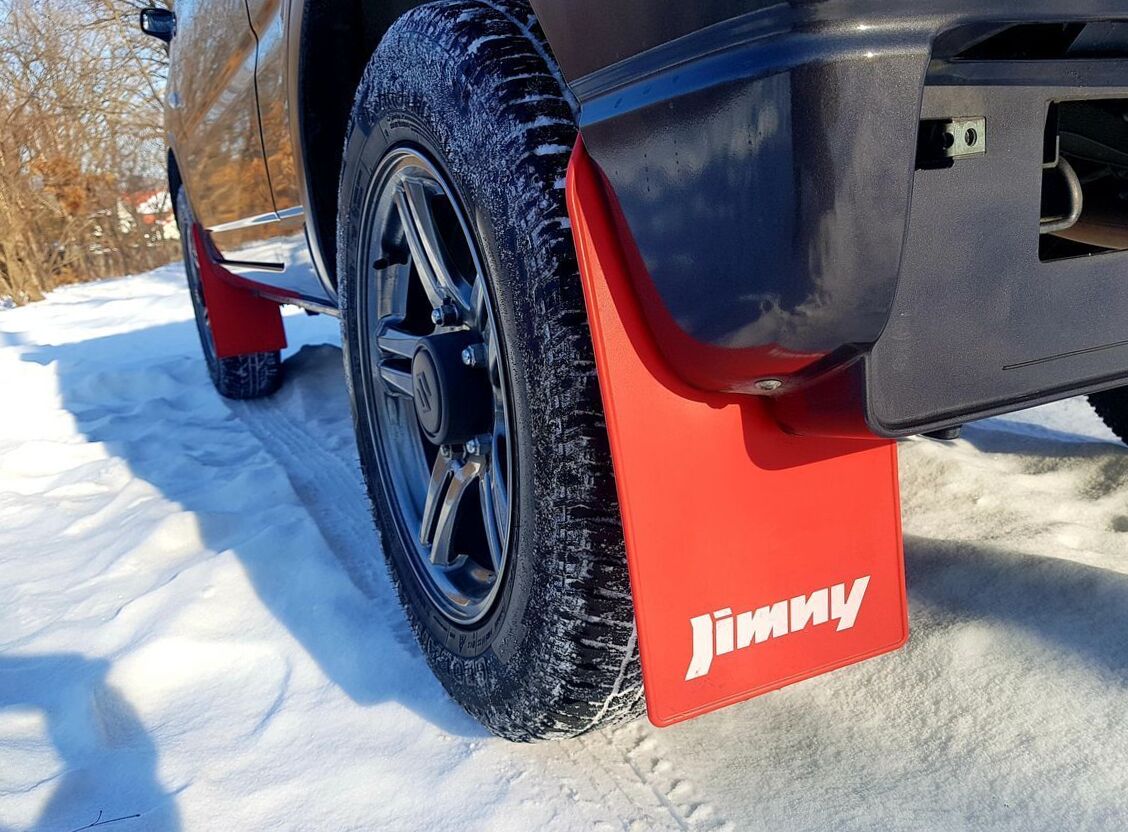

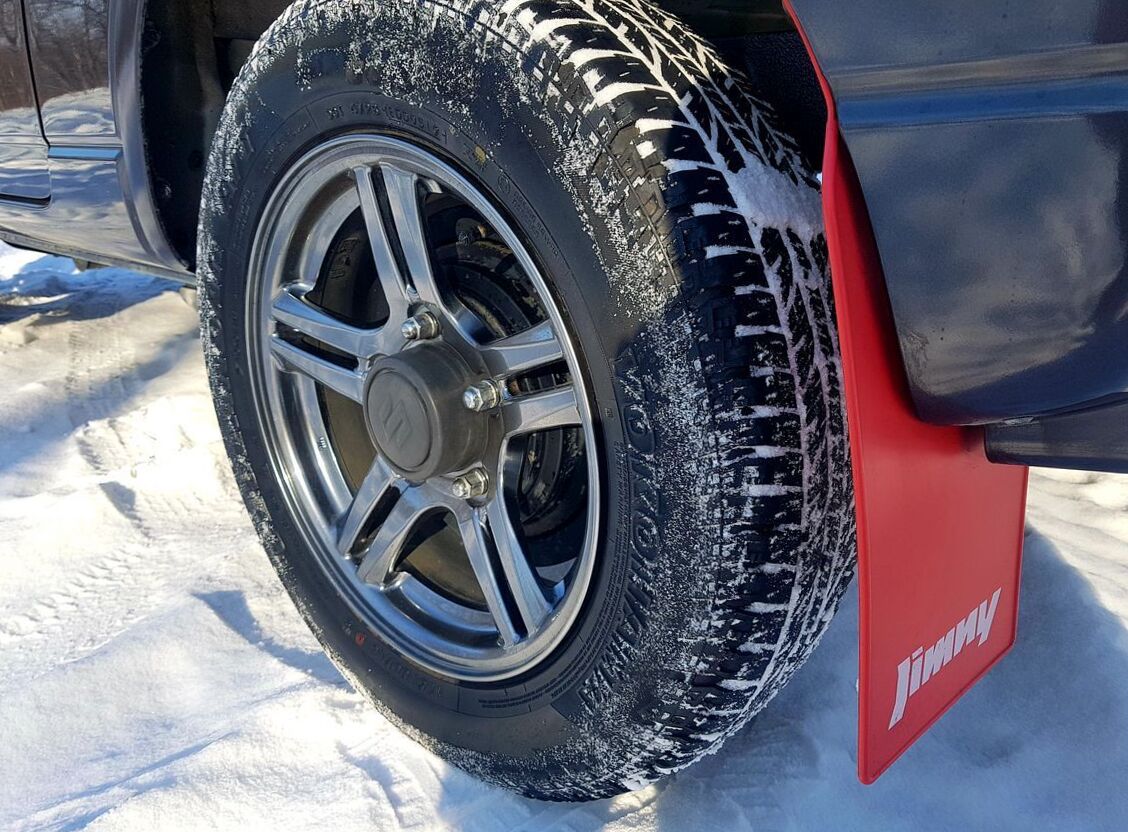

Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |
Tires | |
| Front wheels | 175/80R16 |
| Rear wheels | 175/80R16 |
| Run flat tires | no |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
| Brakes equipment | no |
Exterior | |

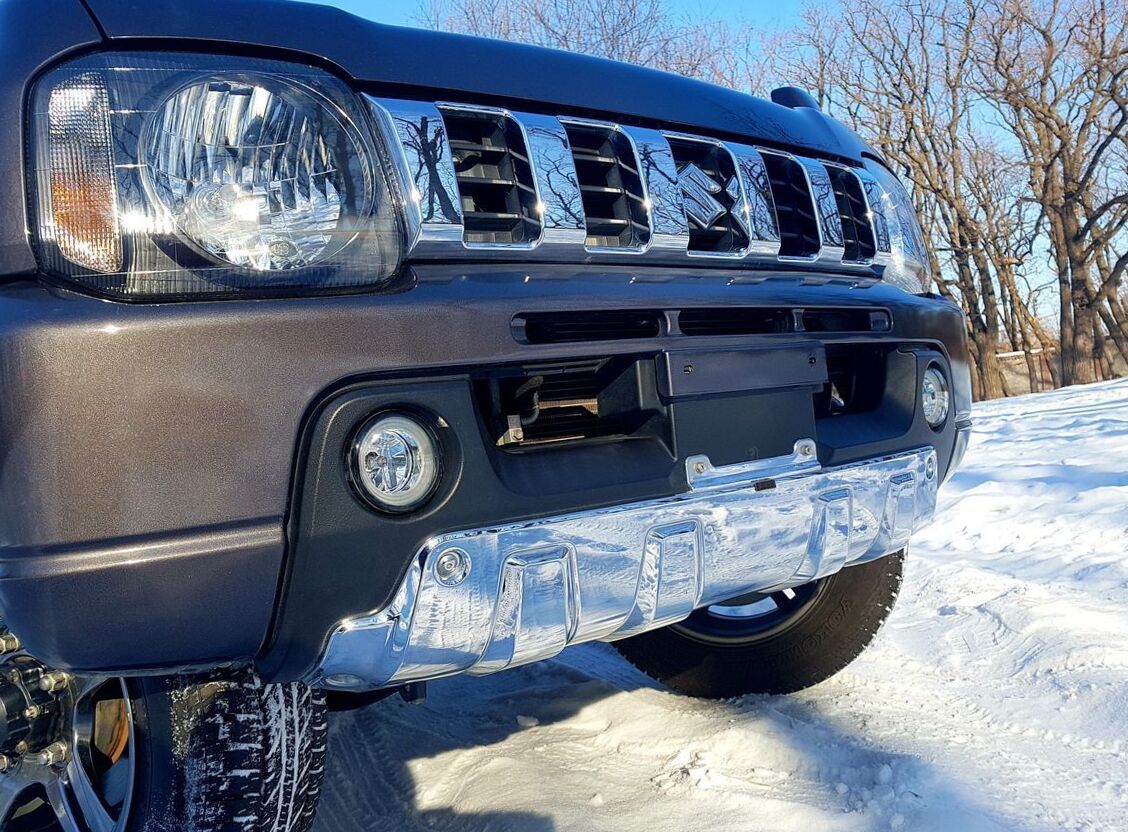

Headlights | |
| Xenon lamps | no |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |

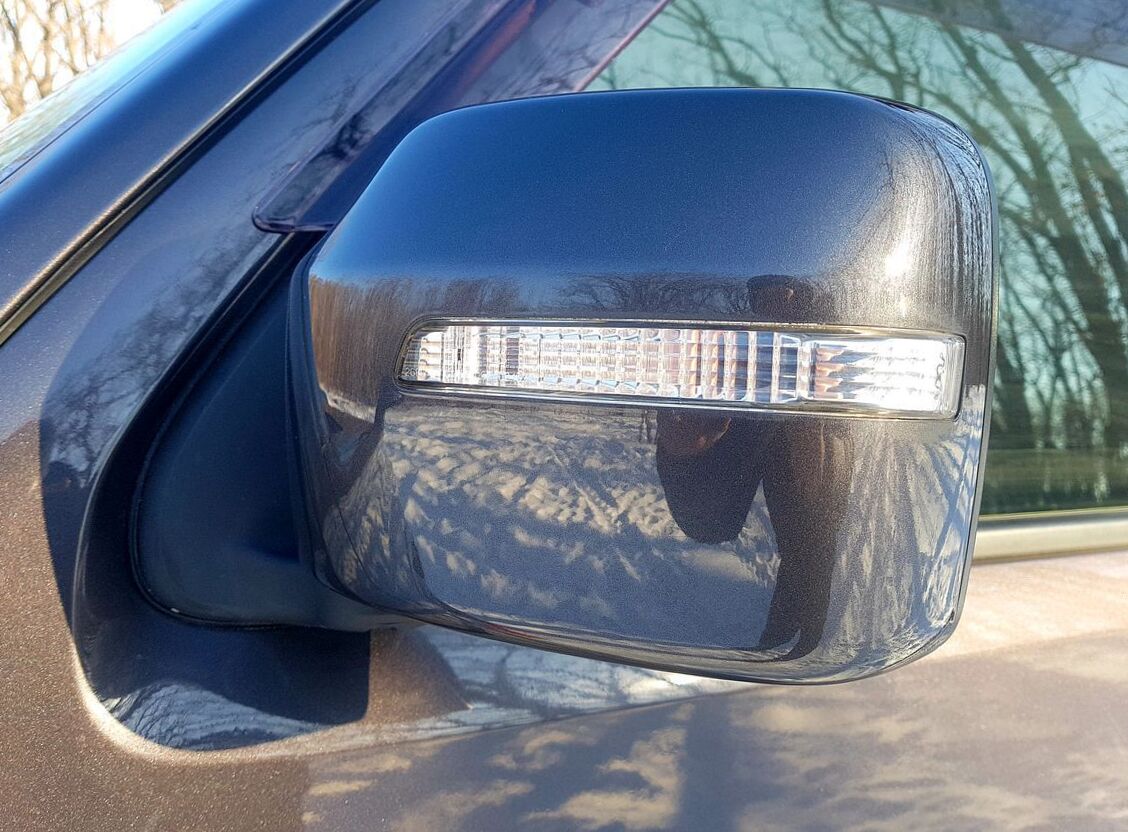

Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | option |
| Ultraviolet glass protection | option |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |

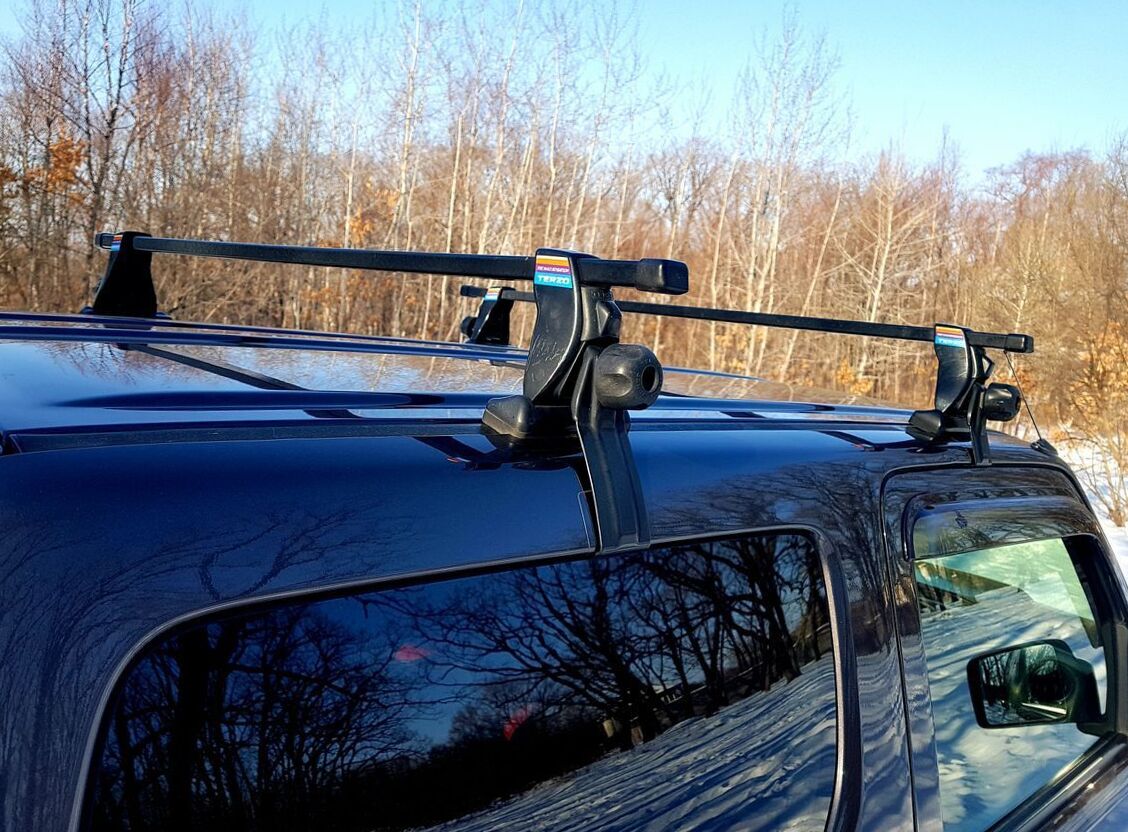

| Roof rail | no |
| Front spoiler | no |

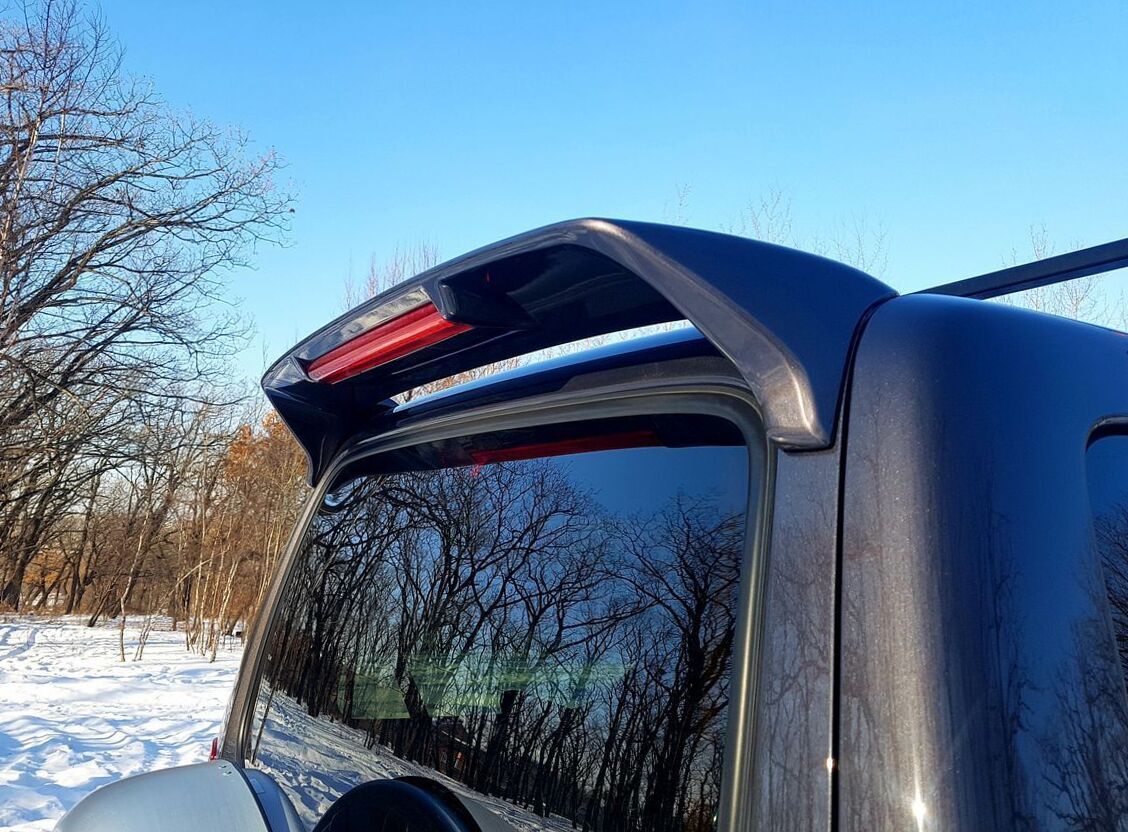

| Rear spoiler | no |
Body color | |
| Colors | 3533 2992 2721 2720 |

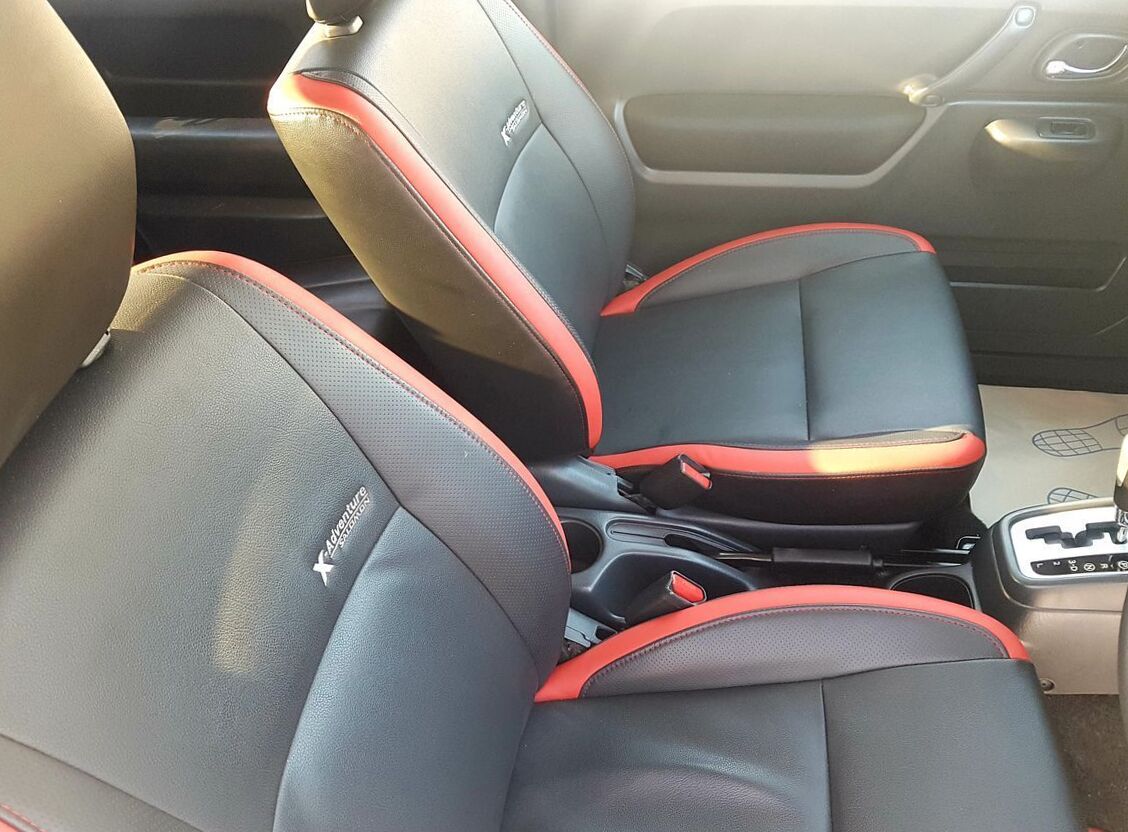

Interior | |
Steering wheel and center panel | |
| Engine start button | no |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |

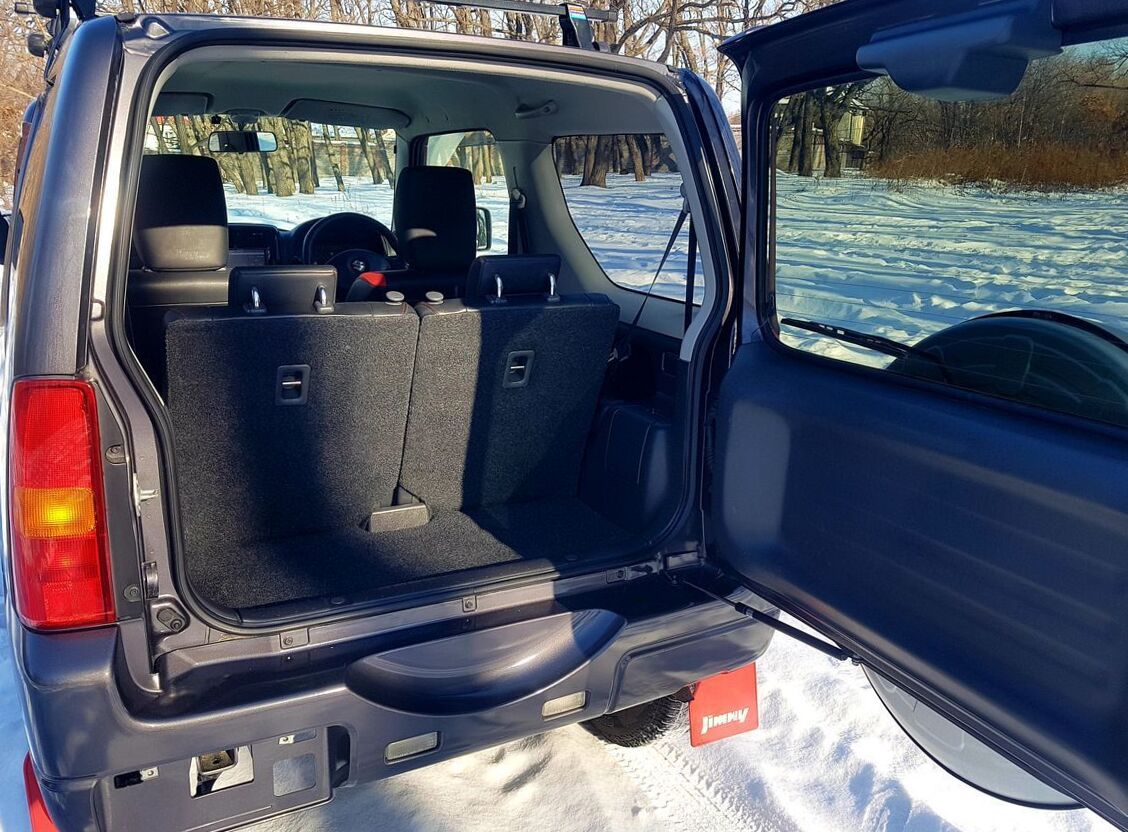

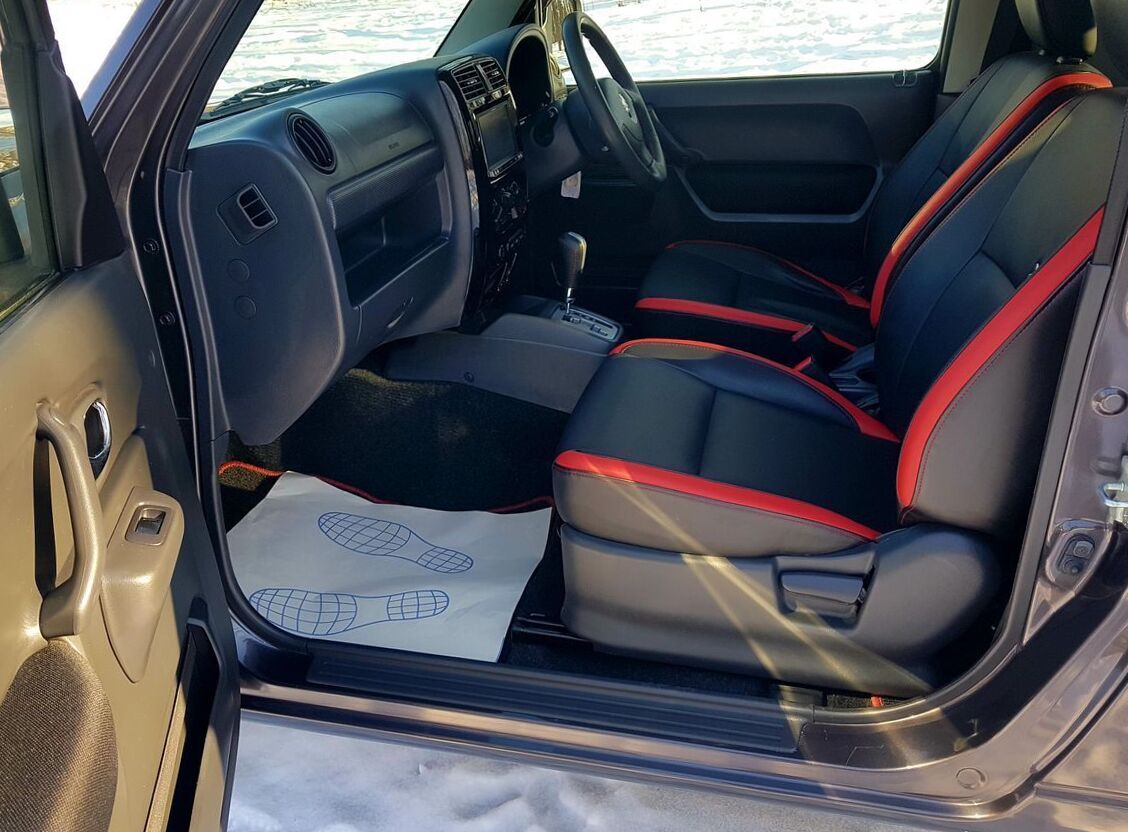

Seats | |
| Bucket seat | no |
| 2nd row | 50/50 ratio fold seat |
| 3nd row | no |
| Seat lifter | no |
| Full flat seats | no |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | no |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | yes |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | no |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | no |
| ESP | no |
| traction control | no |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | no |
| Odor absorber | no |
Audio systems | |
| Radio | no |
| Autoreverse casette | no |
| CD player | no |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
| Optional navigation system | no |
| Parking assist system | no |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | no |
Additional amenities | |
| Lagage box | yes |
| Etc | no |
Car safety | |
| Alarm system | no |
| Security alarm | no |
2013 Suzuki Jimny III ABA-JB23W 660 X Adventure 4WD (64 Hp) specs
|

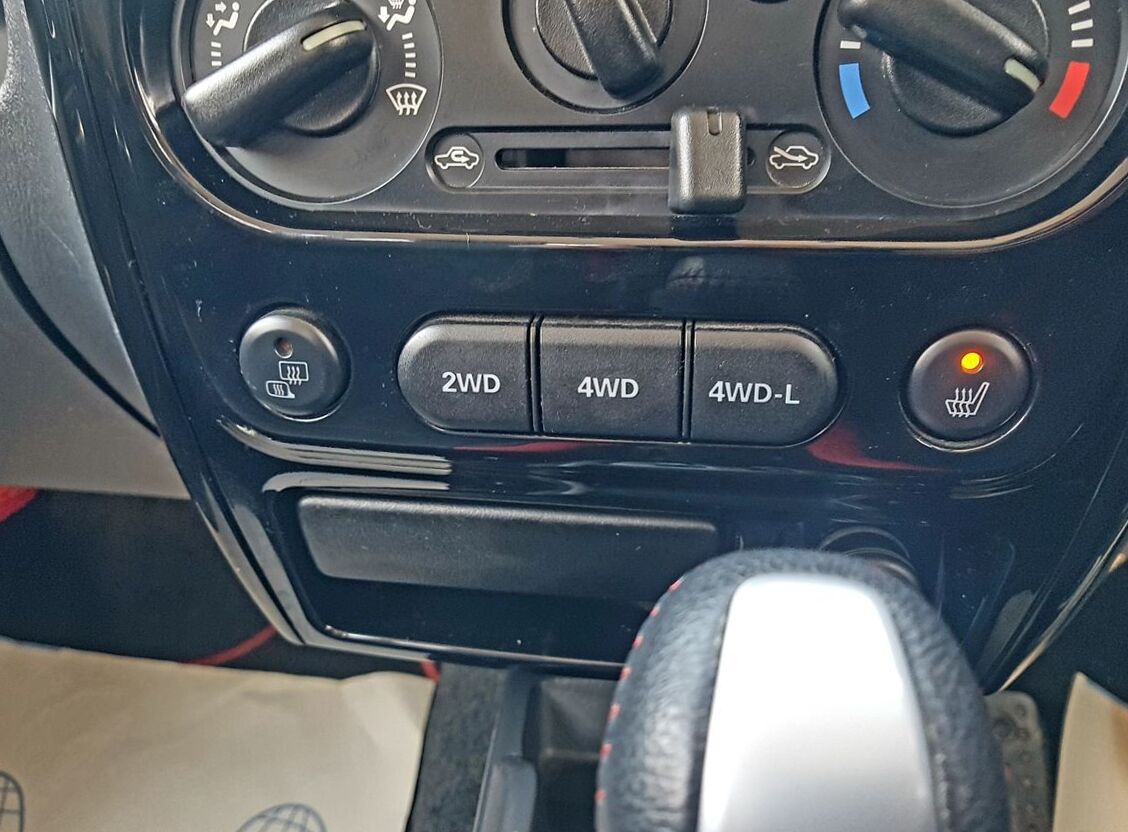

The Jimny's vacuum-locking hubs allow the vehicle to be shifted from 2WD to 4WD while travelling at up to 100km/ h (62mph). Shifting to low range requires the vehicle to be stopped, but there is no need to exit the vehicle. Newer Jimnys feature electronic "push-button" selectable four-wheel drive. The Jimny features large windows, giving excellent visibility, apart from a rather serious blind spot caused by the oversized "B" pillar. The large amount of glass also creates a greenhouse effect, and the Jimny comes with air conditioning as a standard feature in some regions. Two models of the Jimny are available in some markets, the standard hard top, and a canvas roofed "Cabrio" version. Both models come in JX and JLX specifications. These are fairly standard designations across the Suzuki off road range, with the JLX being the fully-optioned "luxury" version. In the case of the Jimny, the JLX adds roof rails, power steering, power windows, electronically adjustable exterior mirrors, and several interior comfort improvements. Both models are available in 5 speed manual or 4 speed automatic gearbox. There is also a 2WD option, only available in 5 speed manual. » Read More About Suzuki Jimny |
