Body type | SUV |
---|---|
Power | 166 Hp |
Engine Displacement | 2400 cm3 or 2.4L or 146.4 cu-in |
Color | white |
Transmission Gearbox | Automatic |
Fuel Type | Gasoline |
Drive wheel | 4WD |
Mileage | 44738 Miles |
Vin | TDA4W-****24 |
Price (out of date) | $14183 |
Frequently Asked Questions | |
---|---|
What is the body type, 2011 Suzuki Escudo III? | SUV, 5 Seats, 5 Doors |
How much power, Suzuki Escudo SUV 2011? | 166 Hp |
What is the engine size, Suzuki Escudo CBA-TDA4W 2011? | 2.4L or 2393cm3 |
How many gears, What type is the gearbox, 2011 Suzuki Escudo 2.4 XG 4WD? | Automatic transmission 4 |
What is the drivetrain, Suzuki Escudo III 2011 SUV 2.4 XG 4WD (166 Hp)? | All wheel drive (4x4) |
How long is this vehicle, 2011 Suzuki Escudo SUV 2.4 XG 4WD (166 Hp)? | 4420 mm |
How wide is the vehicle, 2011 Suzuki Escudo III? | 1810 mm |
Suzuki Escudo III CBA-TDA4W 2.4 XG 4WD (166 Hp) 2008, 2009, 2010, 2011, 2012 Specs
General information | |
---|---|
Production start year | 2008 |
Production end year | 2012 |
Frame type | SUV |
Drive type | All wheel drive (4x4) |
Transmission type | Automatic transmission 4 |
Engine volume, cc | 2393 |
Frame name | CBA-TDA4W |
Clearance, mm | 200 |
Doors | 5 |
Winter complectation | no |
Steering locaton | right |
Engine, transmission and steering specs | |
Engine specs | |
Engine name | J24B |
Fuel | Petrol (Gasoline) |
Engine type | 4 cylinder DOHC |
Max power, hp | 166 |
Max power RPM, rpm | 6000 |
Max power, hp (kWt) / rpm | 166(122)/6000 |
Max torque, N*m | 225 |
Max torque RPM, rpm | 4000 |
Max torque, N*m (kg*m) / rpm | 225 (22.9) / 4000 |
Eco type | 2005 emission regulation 50% reduction |
Variable cylinder system | no |
Max power, kw (ps) / rpm | 122?166?/6000 |
Max torque, N*m (kg*m) / rpm (carsensor) | 225?22.9?/4000 |
Start stop system | no |
Fuel consumption | |
Fuel consumption (10/15 mode), km/l | 10.6 |
Fuel consumption (10/15 mode), l/100km | 9.4 |
Transmission | |
1st gear ratio | 2.826 |
2nd gear ratio | 1.493 |
3rd gear ratio | 1 |
4th fear ratio | 0.689 |
Rear gear ratio | 2.703 |
Main gear ratio | 5.125 |
Shifter position | On the floor. |
Steering | |
Power steering | yes |
Steereing gear type | Gear rail |
Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
Exterior length, mm | 4420 |
Exterior width, mm | 1810 |
Exterior height, mm | 1695 |
Exterior size (L x W x H), mm | 4420x1810x1695?mm? |
Interior dimensions | |
Capacity | 5 |
Seat rows | 2 |
Interior size (L x W x H), mm | 1955x1490x1230?mm? |
Interior length, mm | 1955 |
Interior width, mm | 1490 |
Interior height, mm | 1230 |
Chassis dimensions | |
Wheel base, mm | 2640 |
Front axle length, mm | 1540 |
Rear axle length, mm | 1560 |
Turning radius, m | 5.5 |
Front/rear axis length | 1540/1560?mm? |
Wheel spacing front | 1540 |
Wheel spacing rear | 1560 |
Weight and permissible load | |
Mass, kg | 1620 |
Volumes | |
Fuel tank capacity, l | 66 |
Suspension specs | |
Suspension specs | |
Front suspension | Independent, Spring McPherson |
Rear suspension | Independent, spring multi-link |
Sport suspension | no |
Low down | no |
Air suspension | no |
Cenral diff lock | yes |
LSD | no |
4ws | no |
Wheel rims | |
Aluminium wheel | yes |
Magnesium wheels | no |
Tires | |
Front wheels | 225/65R17 |
Rear wheels | 225/65R17 |
Run flat tires | no |
Brakes | |
Front brake | Ventilated discs |
Rear brake | Ventilated discs |
Brakes equipment | no |
Brake front search | 1 |
Rear brake | 1 |
Exterior | |
Headlights | |
Xenon lamps | yes |
Head lights washer | no |
Front fog lamps | yes |
Rear fog lamps | no |
Rain sensor | no |
Side mirrors | |
autocorrected mirrors | no |
Doors | |
Side sliding door | no |
Sliding doors | no |
Sliding electric door | no |
Sliding electric doors | no |
Door easy closer | no |
Power rear door | no |
Windows | |
Privacy glass | yes |
Ultraviolet glass protection | yes |
Roof | |
Sunroof | no |
Big sunroof | no |
T bar roof | no |
Roof equipment | no |
Targa roof | no |
Hard top | no |
Soft top | no |
Metal top | no |
Canvas top | no |
Accessories | |
Roof rail | no |
Front spoiler | no |
Rear spoiler | no |
Body color | |
Colors | 2434 1991 2720 |
Interior | |
Steering wheel and center panel | |
Engine start button | yes |
Interior design | |
Water-repellent | no |
Leather seat | no |
Antibacterial repellent | yes |
Seats | |
Bucket seat | no |
2nd row | 60/40 ratio fold seat |
3nd row | no |
Seat lifter | yes |
Full flat seats | no |
Removable seats | no |
Ottoman seat | no |
Front bench seat | no |
Walk throught | no |
2nd row throught | no |
Electric interior package | |
Power adjustable driver seat | no |
Power ajustable front seat | no |
Adjustable 3rd row | no |
Front seat heater | yes |
Rear seats heater | no |
Seat position memory | no |
Keyless enter | yes |
Power window | yes |
Stearing wheel heater | no |
Additional interior equipment | |
AC plug | no |
Safety | |
Airbags | |
Drivers airbag | yes |
Passengers airbag | yes |
Side airbag | option |
Curtain airbags | option |
2 airbags | no |
Children safety | |
isofix bar | yes |
Build-in child seat | no |
Active and passive safety | |
Active headrest | no |
Road Service | |
Electronic security and traffic control systems | |
ABS | yes |
Break assist | yes |
ESP | option |
traction control | option |
Down hill assist | option |
AYC | no |
SH-4WD | no |
Lane Keep Assist | no |
Cruise control | yes |
Distance control system | no |
Intelligent AFS | no |
Night vision | no |
Parktronic | no |
Intelligent parking assist | no |
Collision mitigation system | no |
Amenity | |
Microclimate | |
Air conditioner | yes |
Automatic air conditioning | yes |
Air purifier | no |
Humidifier | no |
Air filter | yes |
Odor absorber | no |
Audio systems | |
Radio | option |
Autoreverse casette | no |
CD player | option |
DVD-audio | option |
MD palyer | option |
Audio HDD | option |
Speaker | yes |
Rear entertainment system | no |
Navigation and video equipment | |
Full color LCD display | option |
Navigation system | option |
Optional navigation system | no |
Parking assist system | no |
Front monitor | no |
Sides monitors | no |
Back monitor | no |
Additional amenities | |

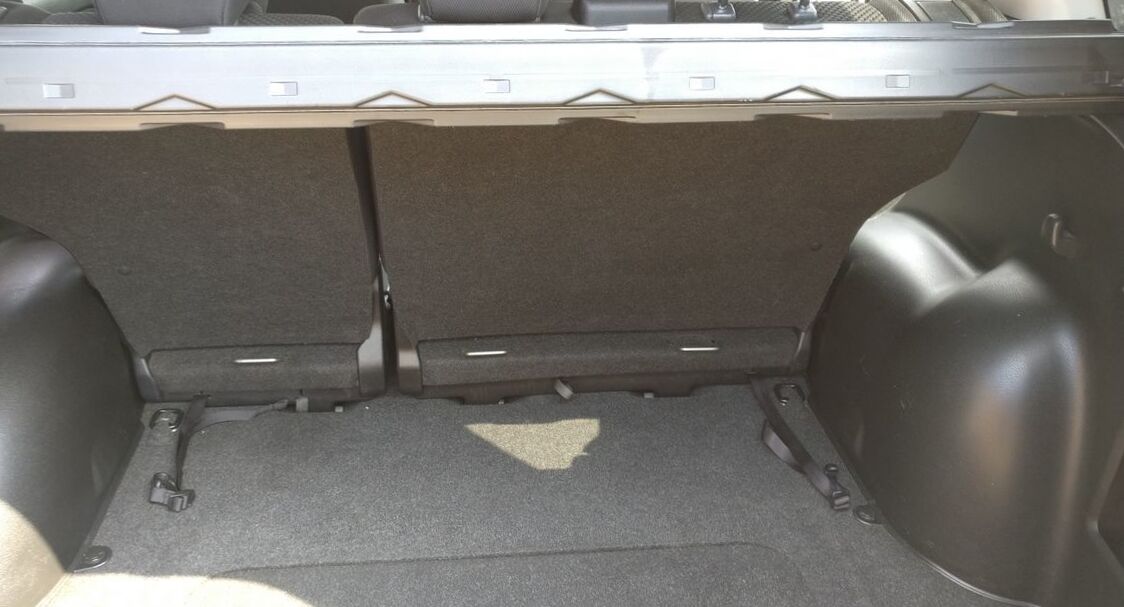

Lagage box | yes |
Etc | no |
Car safety | |
Alarm system | yes |
Security alarm | yes |
2011 Suzuki Escudo III CBA-TDA4W 2.4 XG 4WD (166 Hp) specs
|
The Sidekick was sold in various badges such as the Geo Tracker (Chevrolet Tracker after 1998) in the United States, and as the GMC Tracker, Chevrolet Tracker, Asüna Sunrunner and Pontiac Sunrunner in Canada. It was also sold as the Santana 300 and 350 in Spain. In the Japanese home market, it was variously sold also with Mazda badge. The 1st Generation Escudo was sold in Mexico as the Chevrolet Vitara. The 2nd Generation is currently sold in Mexico as the Chevrolet Tracker, as the Chevrolet Grand Vitara in other Central and South American countries, while in Argentina, Uruguay, Paraguay and Chile is sold as the Suzuki Grand Vitara. The original 1989 North American Sidekick was available as a 2-door convertible or hardtop, in 1.3 liter JA and more powerful 4-wheel-drive JX & JLX trims. An 80hp (60kW) 1.6 liter, 8-valve, 4-cylinder engine was available on the JX & JLX. 1990 brought the deletion of the upscale JLX version. In 1991, a 4-door Sidekick with a lengthened wheelbase was introduced and the following year a 95hp (71kW), 1.6 liter, 16-valve engine was introduced. 1991 also brought the introduction of rear antilock brakes. The original Sidekick was updated in 1996 with a new Sport version available with 120hp (89kW), 1.8 liter 16-valve 4-cylinder engine. The Sport also had dual airbags, 2-tone paint and 16" Alloy wheels. » Read More About Suzuki Escudo |
