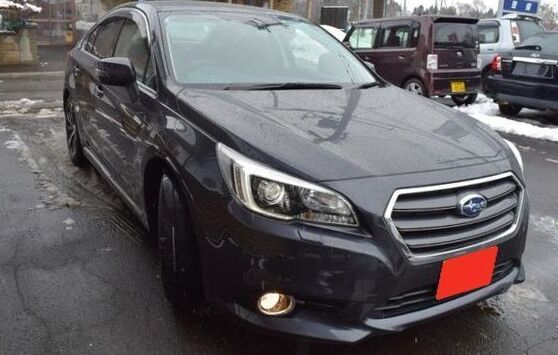

2017 Subaru Legacy B4 VI 2.5 Limited 4WD
Subaru Legacy B4 Problems
Subaru
2000, indicate green light power high
temperature and boiling ineed new engine what
can I do t...
TWIN BOXER TURBO
2001, Power and dragging when starting. it was
diconnected one turbo after a while a power but...
Oil leak
2000, the car is having an oil leak which
sometimes makes it to produce a burning smell.
Some ...
Body type | Sedan |
---|---|
Power | 175 Hp |
Engine Displacement | 2500 cm3 or 2.5L or 152.5 cu-in |
Color | gray |
Transmission Gearbox | Automatic |
Fuel Type | Gasoline |
Drive wheel | 4WD |
Vin | 479*** |
Price (out of date) | $14876 |
Frequently Asked Questions | |
---|---|
What is the body type, 2017 Subaru Legacy B4 VI? | Sedan, 5 Seats, 4 Doors |
What is the fuel economy, Subaru Legacy B4 Sedan 2017? | 6.8 l/100 km |
How much power, Subaru Legacy B4 DBA-BN9 2017? | 175 Hp |
What is the engine size, 2017 Subaru Legacy B4 2.5 Limited 4WD? | 2.5L or 2498cm3 |
How many gears, What type is the gearbox, Subaru Legacy B4 VI 2017 Sedan 2.5 Limited 4WD (175 Hp)? | Variator |
What is the drivetrain, 2017 Subaru Legacy B4 Sedan 2.5 Limited 4WD (175 Hp)? | All wheel drive (4x4) |
How long is this vehicle, 2017 Subaru Legacy B4 VI? | 4795 mm |
How wide is the vehicle, Subaru Legacy B4 Sedan 2017? | 1840 mm |
Subaru Legacy B4 VI DBA-BN9 2.5 Limited 4WD (175 Hp) 2016, 2017 Specs
General information | |
---|---|
Production start year | 2016 |
Production end year | 2017 |
Drive type | All wheel drive (4x4) |
Frame type | Sedan |
Transmission type | Variator |
Engine volume, cc | 2498 |
Frame name | DBA-BN9 |
Clearance, mm | 150 |
Manufacturing country | Japan |
Doors | 4 |
Steering locaton | right |
Vehicle generation | |
Generation name | BN |
Generation number | 6 |
Production start year | 2014 |
Production end year | 2017 |
Engine, transmission and steering specs | |
Engine specs | |
Engine name | FB25 |
Fuel | Petrol (Gasoline) |
Engine type | horizontal opposite 4 cylinder DOHC |
Max power, hp | 175 |
Max power RPM, rpm | 5800 |
Max power, hp (kWt) / rpm | 175 (129) / 5800 |
Max torque, N*m | 235 |
Max torque RPM, rpm | 4000 |
Max torque, N*m (kg*m) / rpm | 235 (24) / 4000 |
Compression ratio | 10.3 |
Bore, mm | 94 |
Stroke, mm | 90 |
Engine additional info | EGI electronic fuel injection system |
Eco type | 2005 emission regulation 75% reduction |
Start stop system | yes |
Fuel consumption | |
Achieve fuel efficiency standards | Compliance with the 2015 fuel consumption standard |
Combined | 6.8 |
Transmission | |
Range gear ratio | 3.581 - 0.570 |
Rear gear ratio | 3.667 |
Main gear ratio | 3.9 |
Shifter position | On the floor. |
Manual mode | yes |
Steering | |
Electric power steering | yes |
Steereing gear type | Gear rail |
Wheel ratio | 14.5 |
Dimensions | |
Frame dimensions | |
Exterior length, mm | 4795 |
Exterior width, mm | 1840 |
Exterior height, mm | 1500 |
Interior dimensions | |
Capacity | 5 |
Seat rows | 2 |
Interior length, mm | 2030 |
Interior width, mm | 1545 |
Interior height, mm | 1220 |
Chassis dimensions | |
Wheel base, mm | 2750 |
Front axle length, mm | 1580 |
Rear axle length, mm | 1595 |
Turning radius, m | 5.6 |
Wheel spacing front | 1580 |
Wheel spacing rear | 1595 |
Weight and permissible load | |
Mass, kg | 1530 |
Total weight | 1805 |
Volumes | |
Fuel tank capacity, l | 60 |
Suspension specs | |
Suspension specs | |
Front stabilizer | yes |
Front suspension | Independent, Spring McPherson |
Rear stablilizer | yes |
Rear suspension | Independent on double wishbones |
Wheel rims | |
Aluminium wheel | yes |
Tires | |

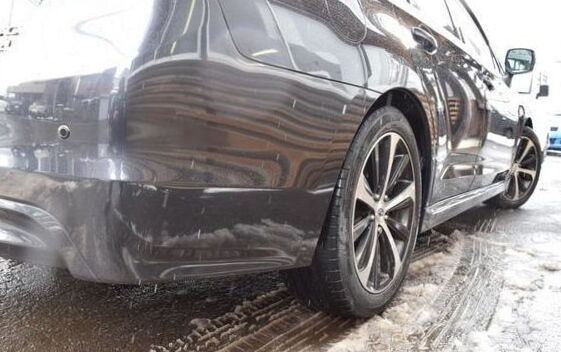

Front wheels | 225/50R18 |
Rear wheels | 225/50R18 |
Brakes | |
Front brake | Ventilated discs |
Rear brake | Ventilated discs |
Parking brake | Electronic |
Parking brake new first | Electronic |
Exterior | |
Headlights | |
Led lights | yes |

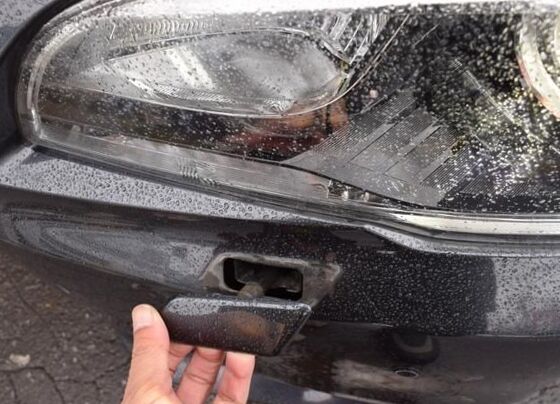

Head lights washer | yes |
Front fog lamps | yes |
Led backlights | yes |
Rear fog lamps | yes |
Additional stop light | yes |
Light sensor | yes |
Rain sensor | yes |
Side mirrors | |
Side mirrors with repeaters indicators | yes |
Power adjustable door mirrors | yes |
Door mirrors heating | yes |
Windows | |
Privacy glass | yes |
Ultraviolet glass protection | yes |
Rear glass heat | yes |
Roof | |
Sunroof | option |
Accessories | |
Back wiper | yes |
Interior | |
Steering wheel and center panel | |
Leather winding | yes |
Telescopic steering | yes |
Tilt steering | yes |

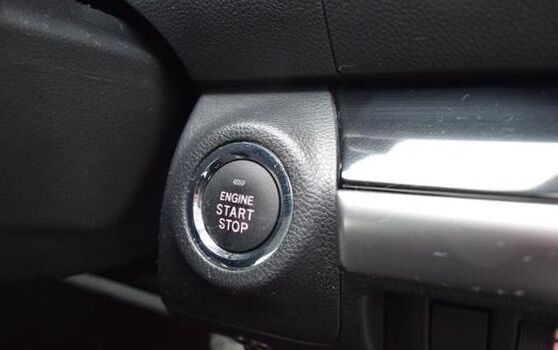

Engine start button | yes |
Interior design | |
Cloth upholstery | no |

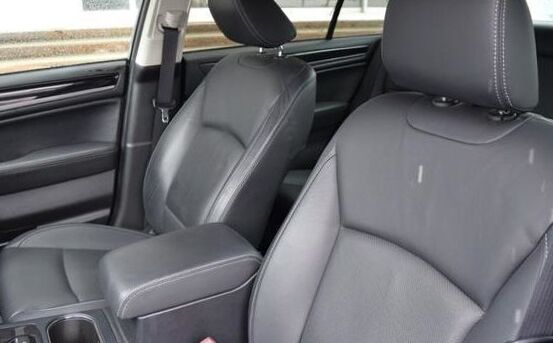

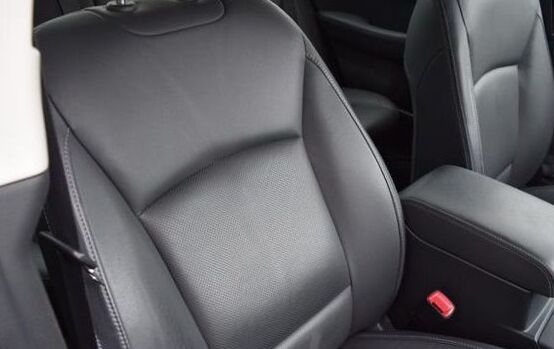

Leather upholstery | yes |
Leather seat | option |
Seats | |
Front seats ajust | Driver's seat is adjustable in 10 directions, passenger's - in 8 directions |

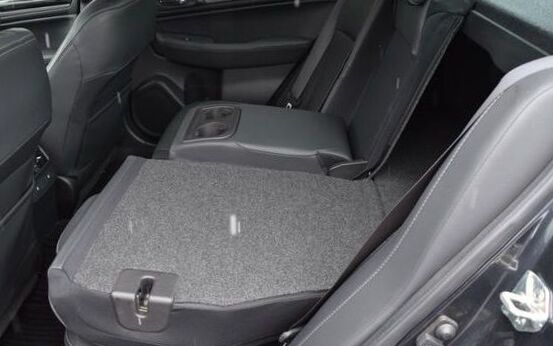

2nd row | 60/40 ratio fold seat |
Seat lifter | yes |
Headrests for seats | 5 |
Separating armrest front | yes |
Separating armrest rear | yes |
Seats pockets | yes |
Electric interior package | |

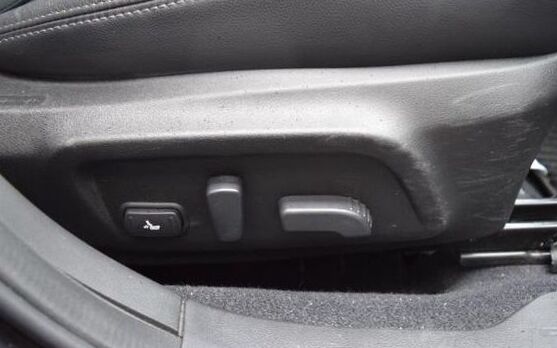

Power adjustable driver seat | yes |
Power ajustable front seat | yes |
Front seat heater | yes |
Rear seats heater | yes |

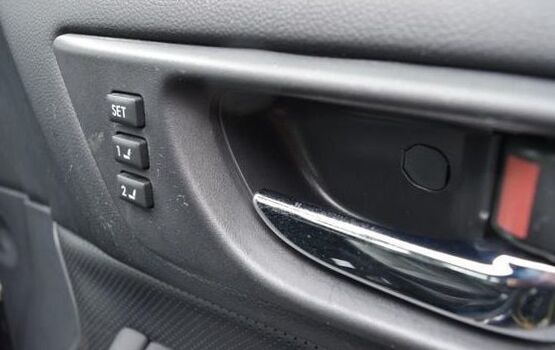

Seat position memory | yes |
Centralized door lock | yes |
Keyless enter | yes |
Power window front | yes |
Power window rear | yes |
Stearing wheel heater | yes |
Additional interior equipment | |
Holders for bottles in doors | yes |
Safety | |
Airbags | |
Drivers airbag | yes |
Passengers airbag | yes |
Side airbag | yes |
Curtain airbags | yes |
Airbag for the driver's knees | yes |
Children safety | |
isofix bar | yes |
Electronic security and traffic control systems | |
ABS | yes |
Electronic Brake Distribution | yes |
Break assist | yes |
Automatic activation of alarm in emergency braking | yes |
ESP | yes |
traction control | yes |
Damping Control System | yes |
Lane Keep Assist | yes |
Cruise control | yes |
Distance control system | yes |
Control system of a headlight | yes |
Blind zone monitoring | yes |
Collision mitigation system | yes |
Amenity | |
Microclimate | |
Air conditioner | yes |
Twin conditioning system | yes |
Air filter | yes |
Audio systems | |
Radio | option |
CD player | option |
DVD-audio | option |
Hands free | option |
Additional sound equipment | Harman/Kardon audio system (optional) |
Navigation and video equipment | |

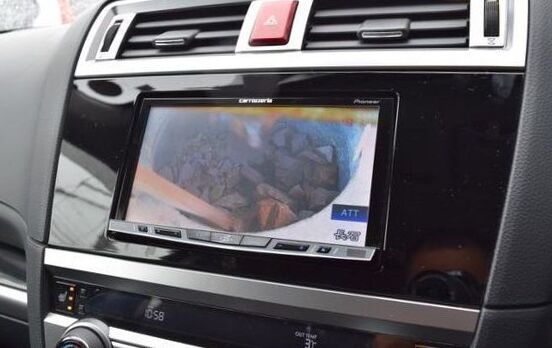

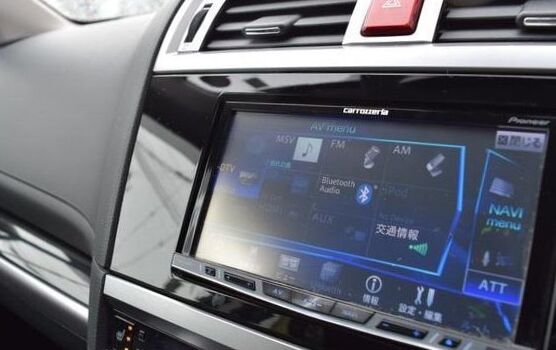

Full color LCD display | option |
Navigation system | option |
Parking assist system | option |
Back monitor | option |
Additional amenities | |
Antidazzle rearview mirror | yes |
Mirrors in sunshields | yes |
Car safety | |
Alarm system | yes |
Security alarm | yes |
2017 Subaru Legacy B4 VI DBA-BN9 2.5 Limited 4WD (175 Hp) specs
|
The standard equipped symmetrical all-wheel drive system is currently unique to the Legacy in this class size of vehicle. In the USA market, the Legacy competes with the Toyota Camry, the Honda Accord, the Mitsubishi Galant, and the Nissan Altima. German automaker Volkswagen offers AWD as an option on the Volkswagen Group A5 PQ46 platform, however it is an extra cost option on upper trim level cars. The Ford CD3 platform can also be equipped with AWD for the USA market, but it too is an extra cost option only on the uplevel V6 models. Main article: First Generation Subaru LegacyThe worldwide introduction of the Legacy was a notable departure from Subaru products in the past. Subaru had earned a reputation of building vehicles that were regarded as "quirky" and other Asian manufacturers were bringing more upscale and conventional appearing models to the market. The Legacy appeared at the same time as the USA introduction of Lexus and Infiniti and a couple years after Acura. However, Subaru didn't have a large displacement V6 or V8. The Legacy was more aerodynamic than previously built products, with soft edges and a more coherent appearance. The sedan has a break in the beltline where it drops down from the windshield to the front door glass, and then juts up from the rear door glass to the rear window, and the beltline is interrupted as it transitions down to the rear window on the wagon. The beltline treatment was used again on the SVX when it was introduced in 1992. The Legacy was interpreted by some as Subaru's attempt at participating in the growing, upscale market. The Legacy broke with many Subaru traditions, such as no longer locating the spare tire in the engine compartment, behind the engine and above the transmission. The Legacy was an all-new model, and slotted above the Leone in Subaru's model range. The Legacy also introduced an entirely new engine series, called the Subaru EJ engine, which was quieter than the previous Subaru EA engine. » Read More About Subaru Legacy B4 |
