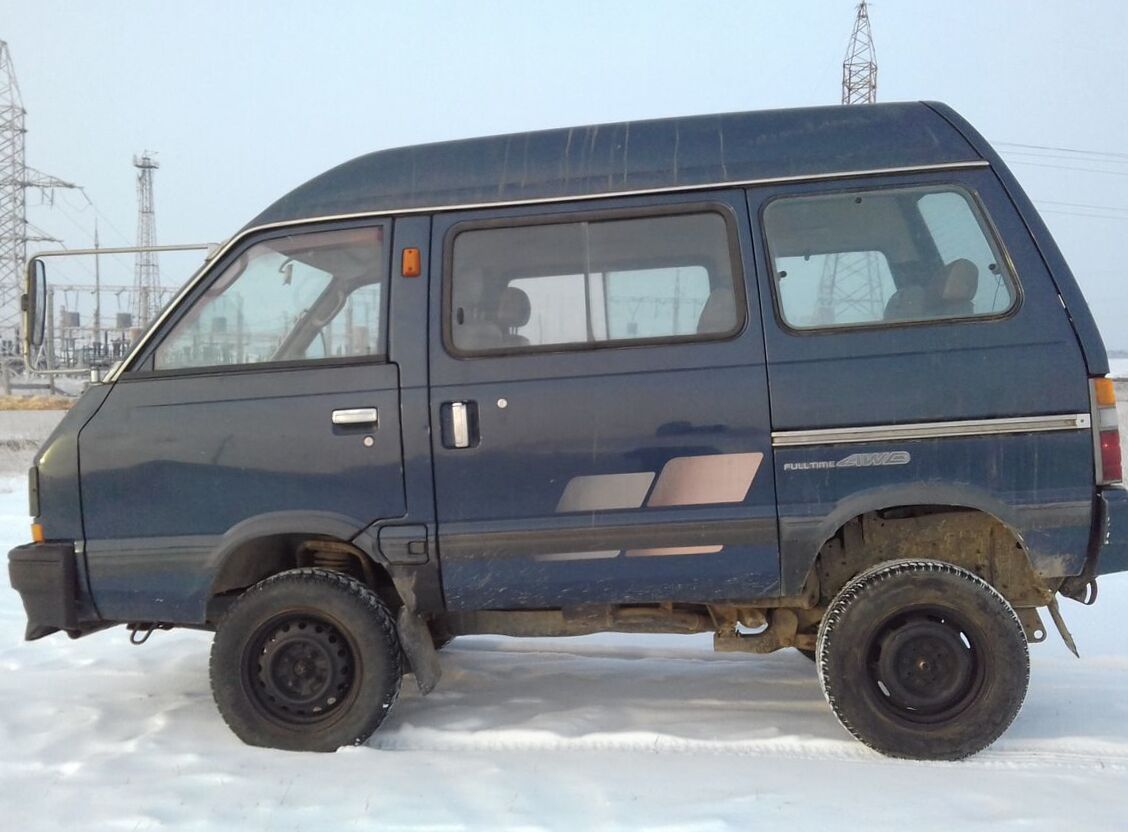

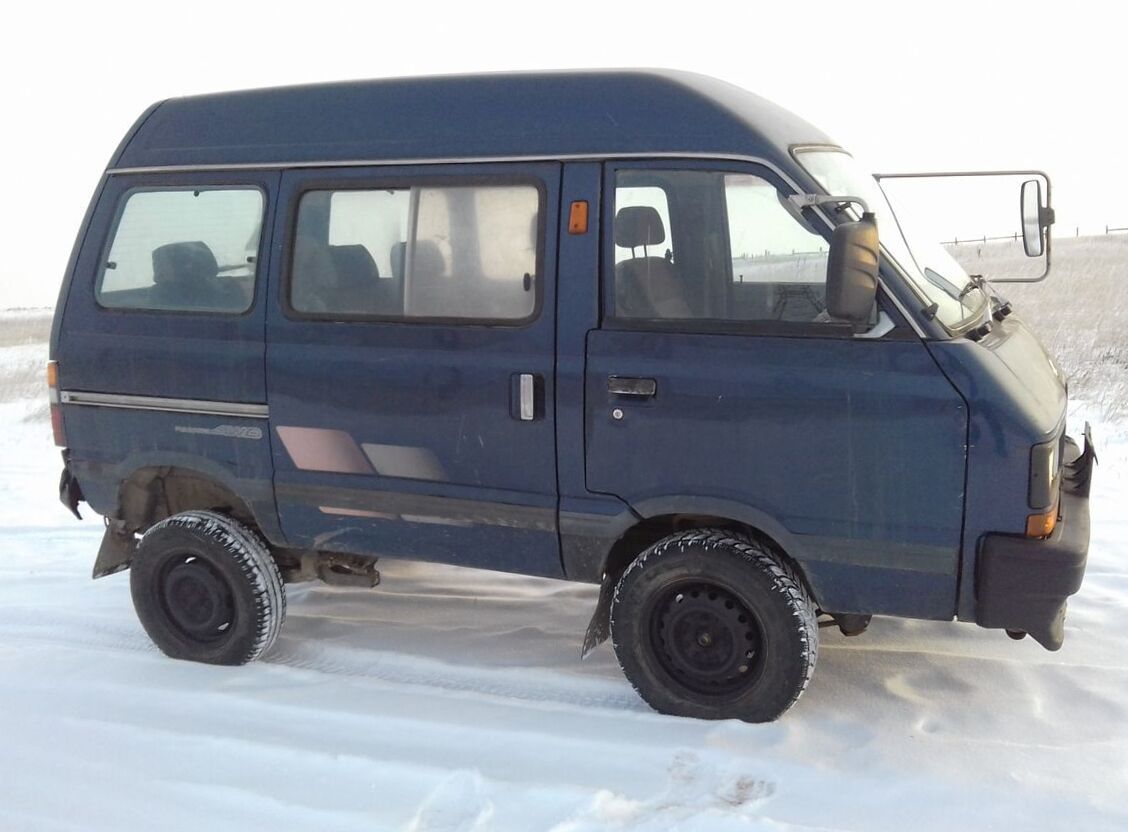

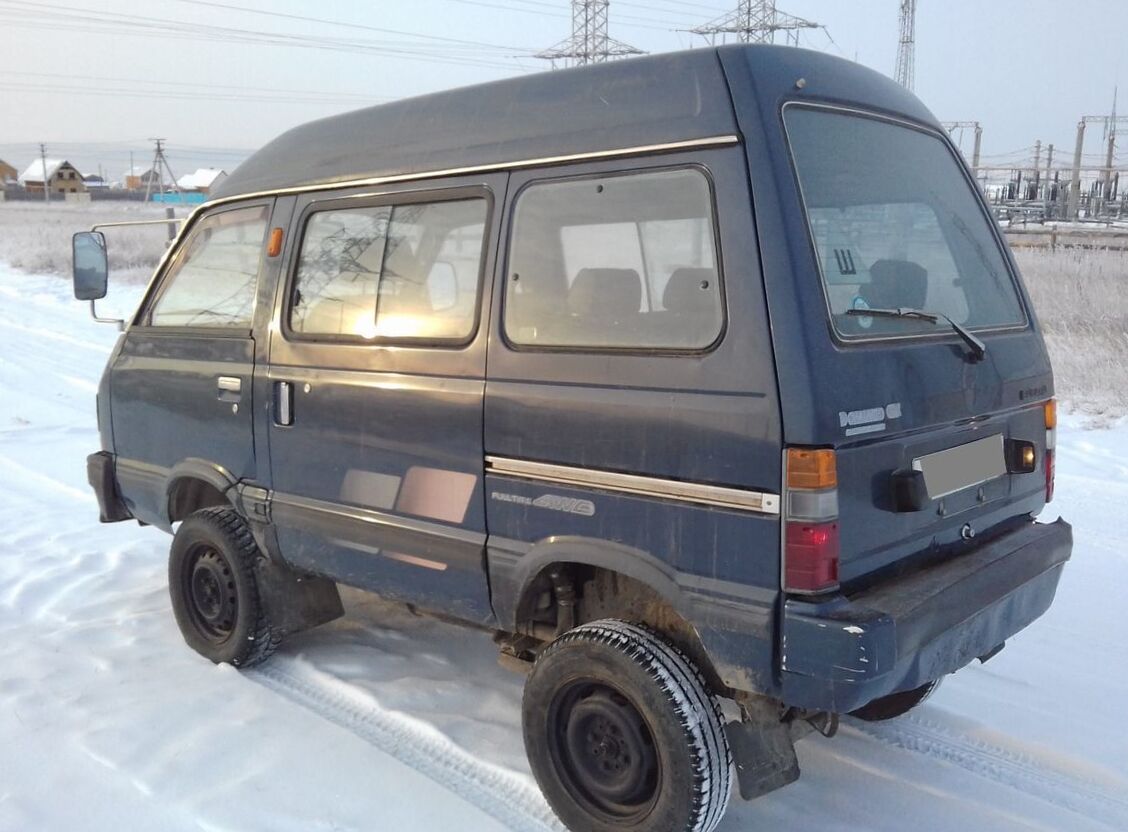

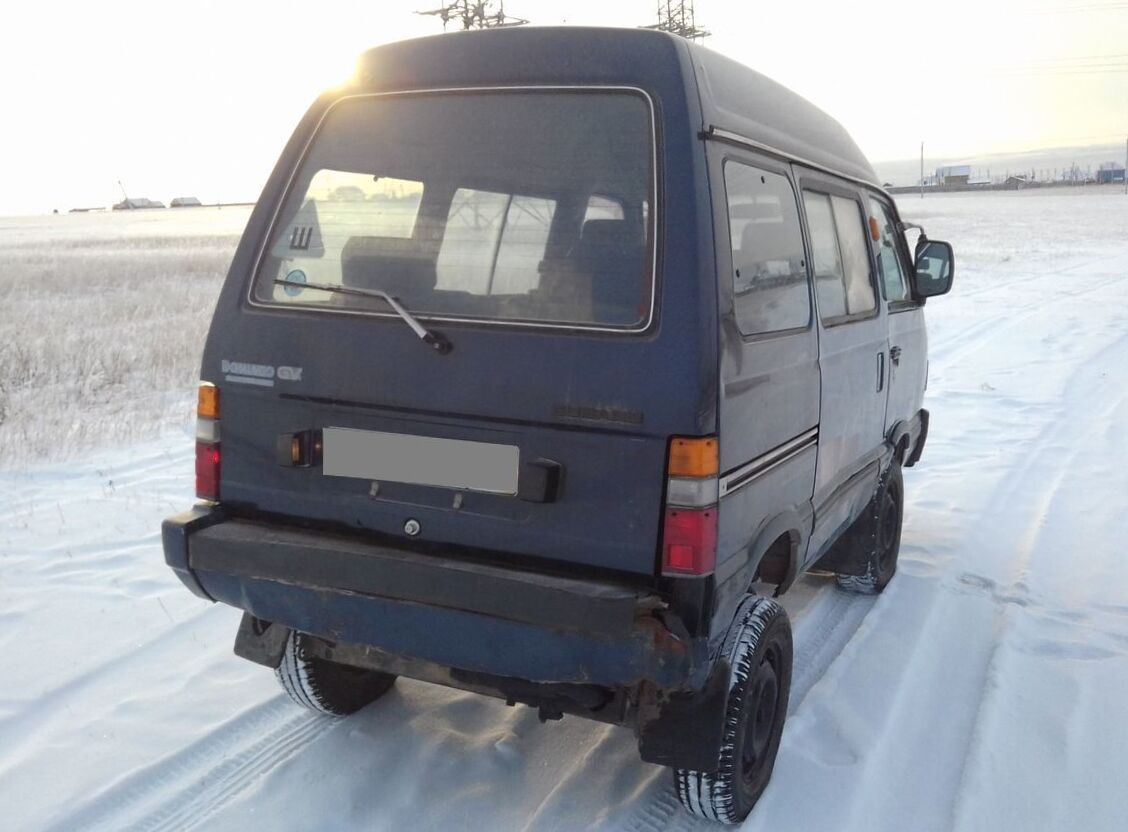

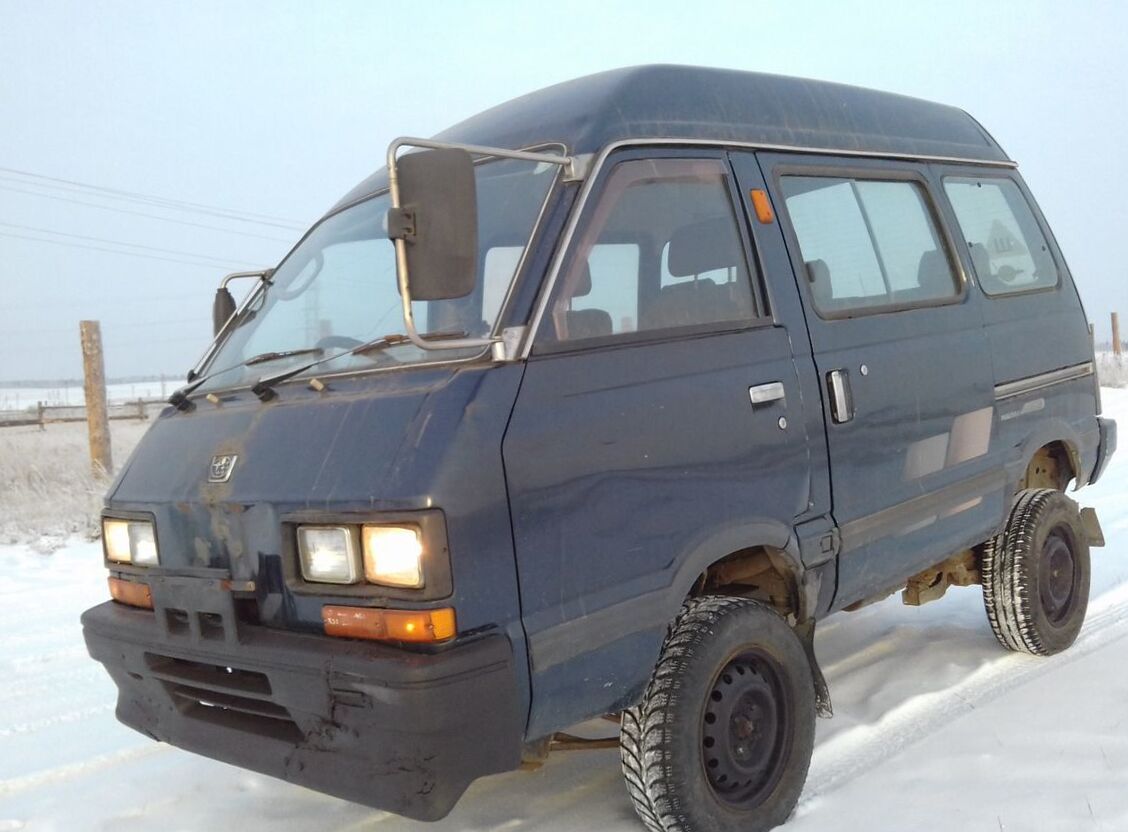

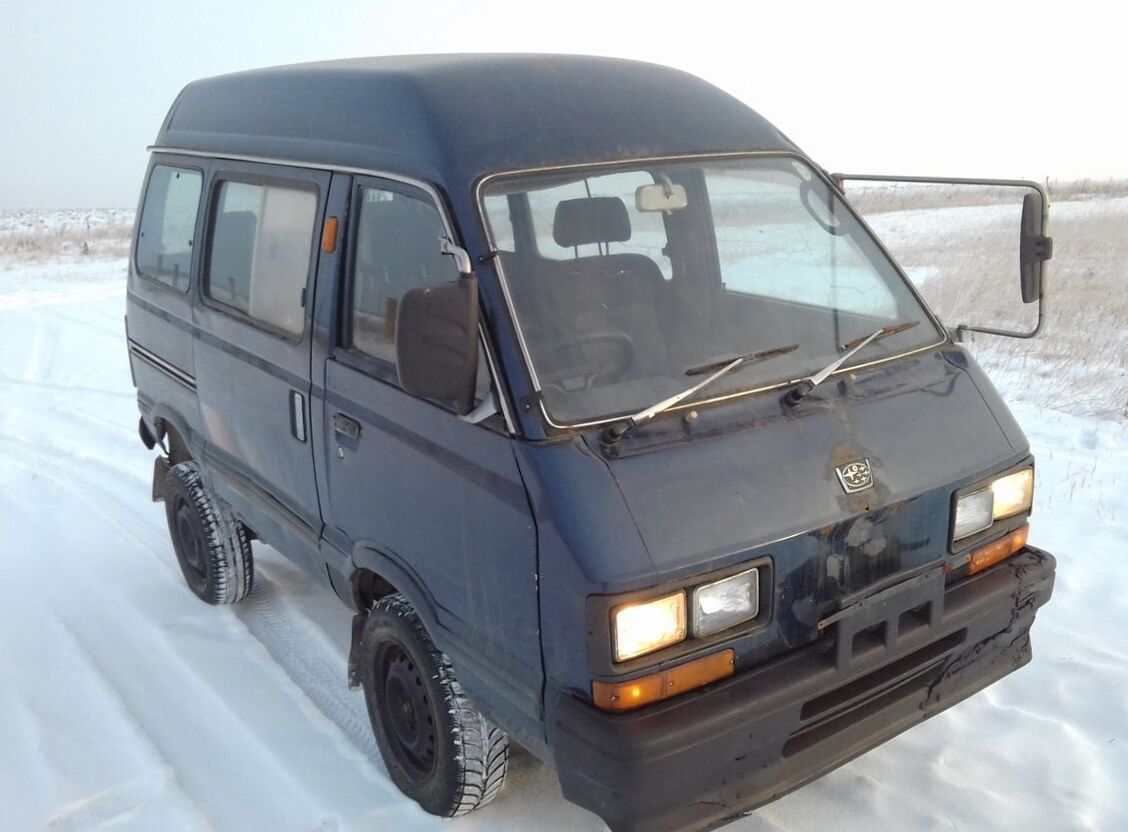

1991 Subaru Domingo 1.2 GV
Subaru Domingo Problems
Engine EF10 valve/tappet clearance
1988, How much valve/tappet clearance to keep
at cold engine in EF10 engine of Subaru
domingo/...
CARBURETOR HITACHI DFC 328
1990, Hi. I'm looking for a new carb for
my Subaru Libero ( Sambar in UK ) E12 4WD year
1...
Engine parts
1988, Dear Sir All engine parts gas
kit,head,cam,crank,water body or blades,are not
available...
| Body type | Minivan |
|---|---|
| Power | 52 Hp |
| Engine Displacement | 1200 cm3 or 1.2L or 73.2 cu-in |
| Color | blue |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 54059 Miles |
| Vin | KJ8-****71 |
| Price (out of date) | $1144 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Subaru Domingo Minivan 1991? | Minivan, 7 Seats, 5 Doors |
| How much power, Subaru Domingo E-KJ8 1991? | 52 Hp |
| What is the engine size, 1991 Subaru Domingo 1.2 GV? | 1.2L or 1189cm3 |
| How many gears, What type is the gearbox, Subaru Domingo 1991 Minivan 1.2 GV (52 Hp)? | 5 speed Manual |
| What is the drivetrain, 1991 Subaru Domingo Minivan 1.2 GV (52 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, Subaru Domingo Minivan 1991? | 3425 mm |
| How wide is the vehicle, Subaru Domingo E-KJ8 1991? | 1430 mm |
Subaru Domingo E-KJ8 1.2 GV (52 Hp) 1991, 1992, 1993, 1994 Specs
General information | |
|---|---|
| Complectation name | 1.2 GV |
| Production start year | 1991 |
| Production end year | 1994 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1189 |
| Frame name | E-KJ8 |
| Clearance, mm | 205 |
| Manufacturing country | Japan |
| Doors | 5 |
| Right hand drive | yes |
| Left hand drive | no |
Vehicle generation | |
| Generation name | KJ |
| Generation number | 1 |
| Production start year | 1983 |
| Production end year | 1994 |
Engine, transmission and steering specs | |

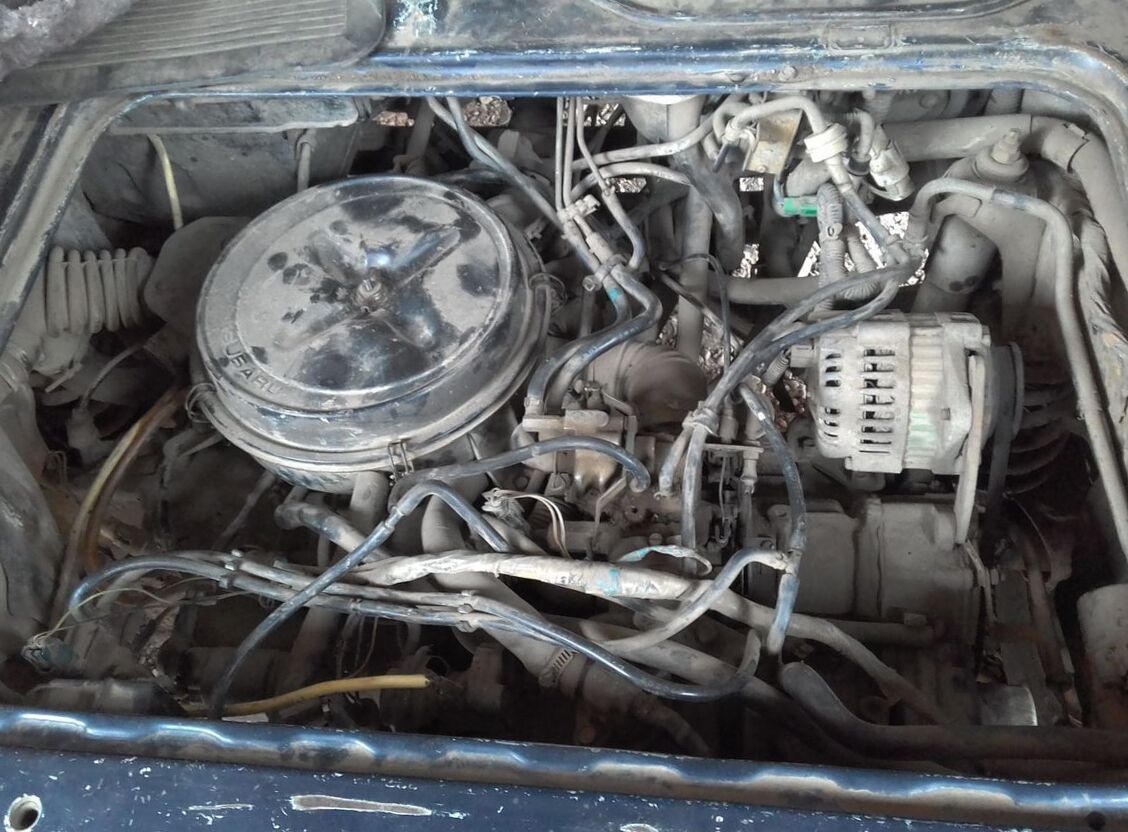

Engine specs | |
| Engine name | EF12 |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 3-cylinder |
| Has turbo | no |
| Max power, hp | 52 |
| Max power RPM, rpm | 4800 |
| Max power, hp (kWt) / rpm | 52 (38) / 4800 |
| Max torque, N*m | 95 |
| Max torque RPM, rpm | 3200 |
| Max torque, N*m (kg*m) / rpm | 95 (10) / 3200 |
| Compression ratio | 9.1 |
| Bore, mm | 78 |
| Stroke, mm | 83 |
| Actuator valves | SOHC |
Fuel consumption | |
| Fuel consumption (10/15 mode), l/100km | 8.2 |
| Fuel consumption (60 km/h mode), l/100km | 5.2 |
Transmission | |
| 1st gear ratio | 3.083 |
| 2nd gear ratio | 1.809 |
| 3rd gear ratio | 1.185 |
| 4th fear ratio | 0.843 |
| 5th gear ratio | 0.685 |
| Rear gear ratio | 2.928 |
Steering | |
| Power steering | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3425 |
| Exterior width, mm | 1430 |
| Exterior height, mm | 1870 |

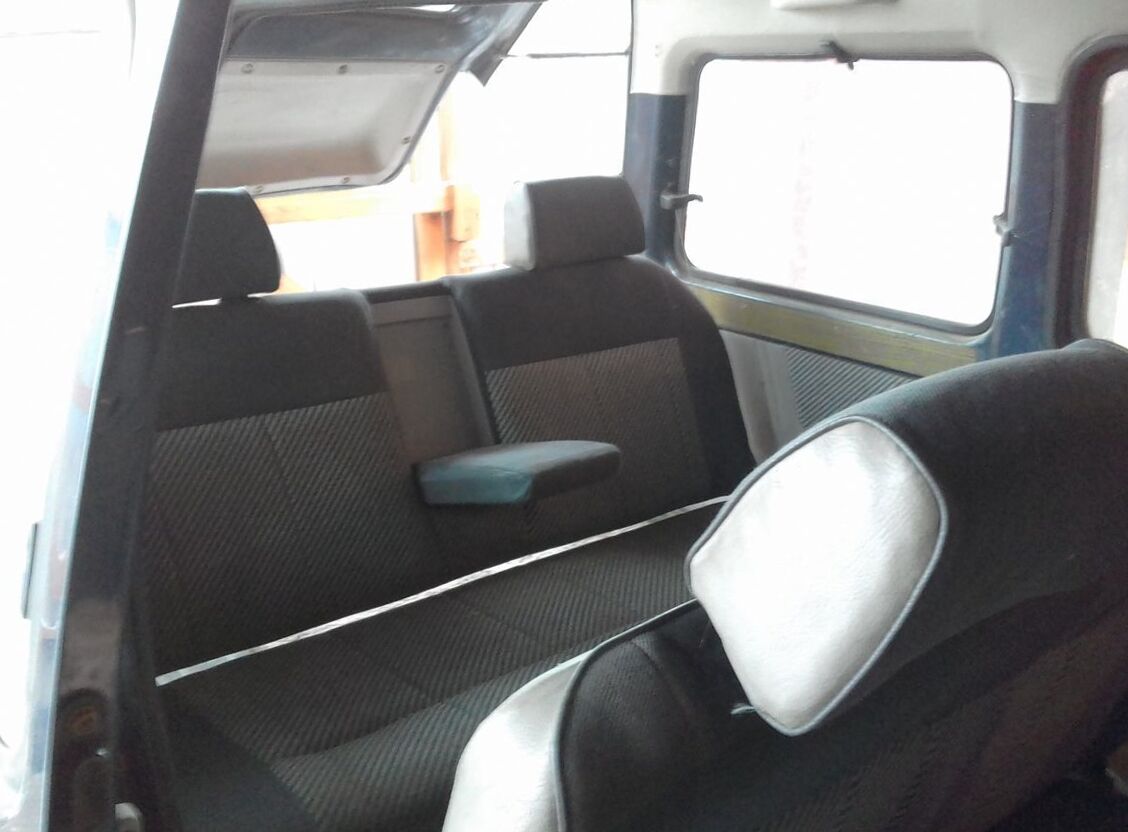

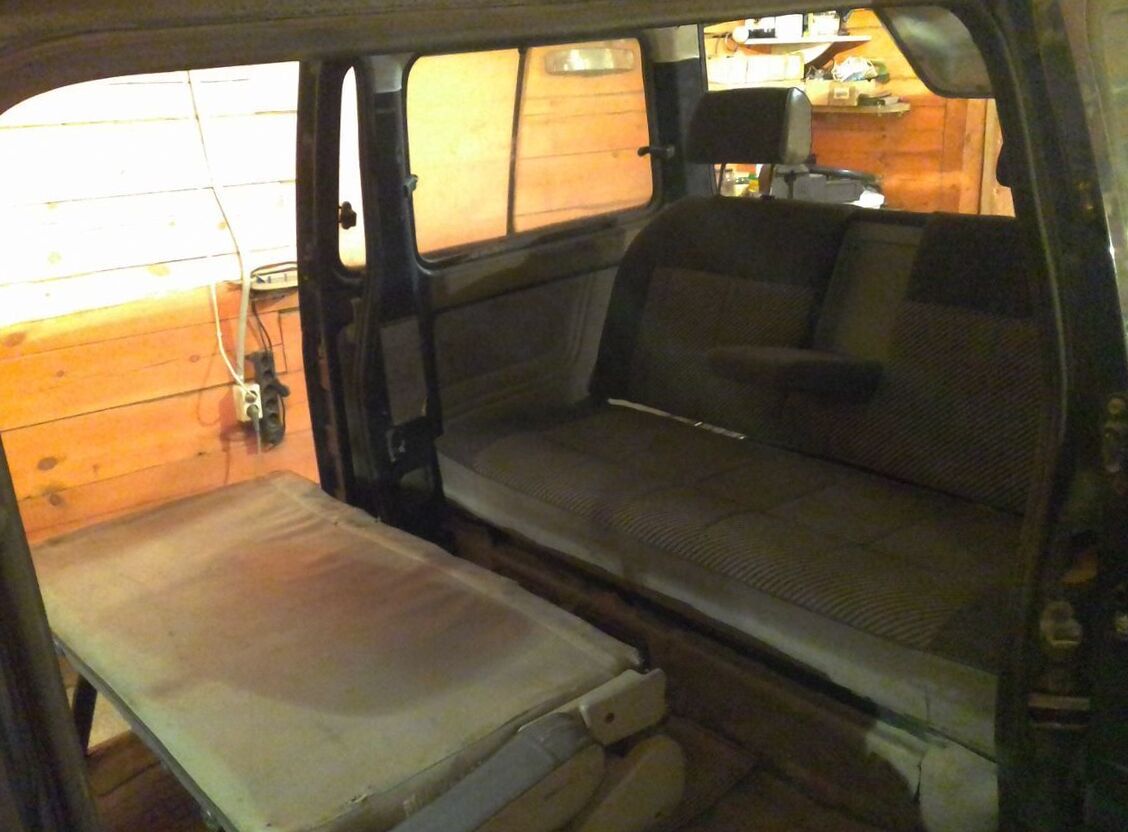

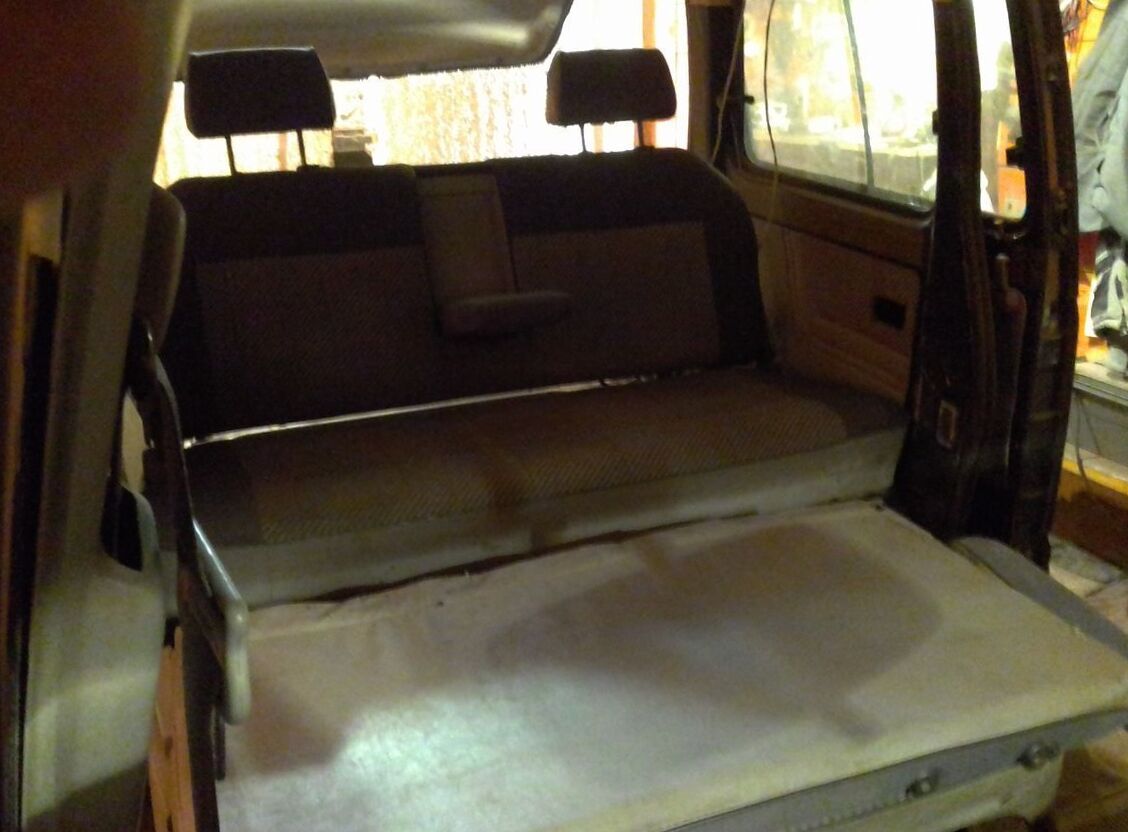

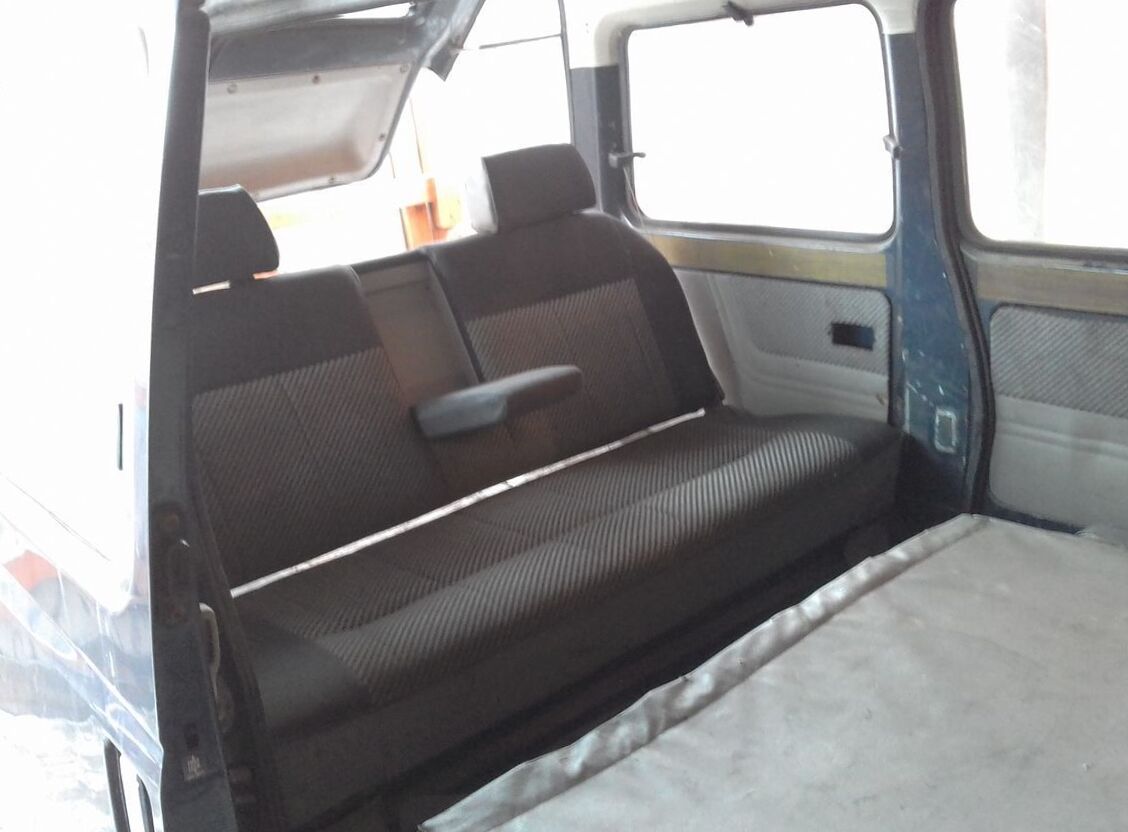

Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
| Interior length, mm | 2455 |
| Interior width, mm | 1265 |
| Interior height, mm | 1345 |
Chassis dimensions | |
| Wheel base, mm | 1805 |
| Front axle length, mm | 1210 |
| Rear axle length, mm | 1210 |
| Turning radius, m | 3.9 |
| Wheel spacing front | 1210 |
| Wheel spacing rear | 1210 |
Weight and permissible load | |
| Mass, kg | 930 |
Volumes | |
| Fuel tank capacity, l | 40 |
Other | |
| Remarks (temporary) | Information of fuel consumption in mode \"10-15\" is not available as they were absent in the sale documents. Therefore data for mode \"10\" were inserted. |
Suspension specs | |
Suspension specs | |
| Front stabilizer | no |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | no |
| Rear suspension | Independent, on the wishbone |
| LSD | no |
Wheel rims | |
| Aluminium wheel | option |
Tires | |
| Front wheels | 155SR12 |
| Rear wheels | 155SR12 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Front fog lamps | no |
| Rear fog lamps | no |
| Additional stop light | no |
| Cornering lamps | no |
Side mirrors | |
| Power adjustable door mirrors | no |
Windows | |
| Ultraviolet glass protection | no |
Roof | |
| Sunroof | no |
| Tilt sunroof | no |
| Twin sunroof | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
| Back wiper | yes |
Body color | |
| Colors | 20 25 1822 |
Interior | |

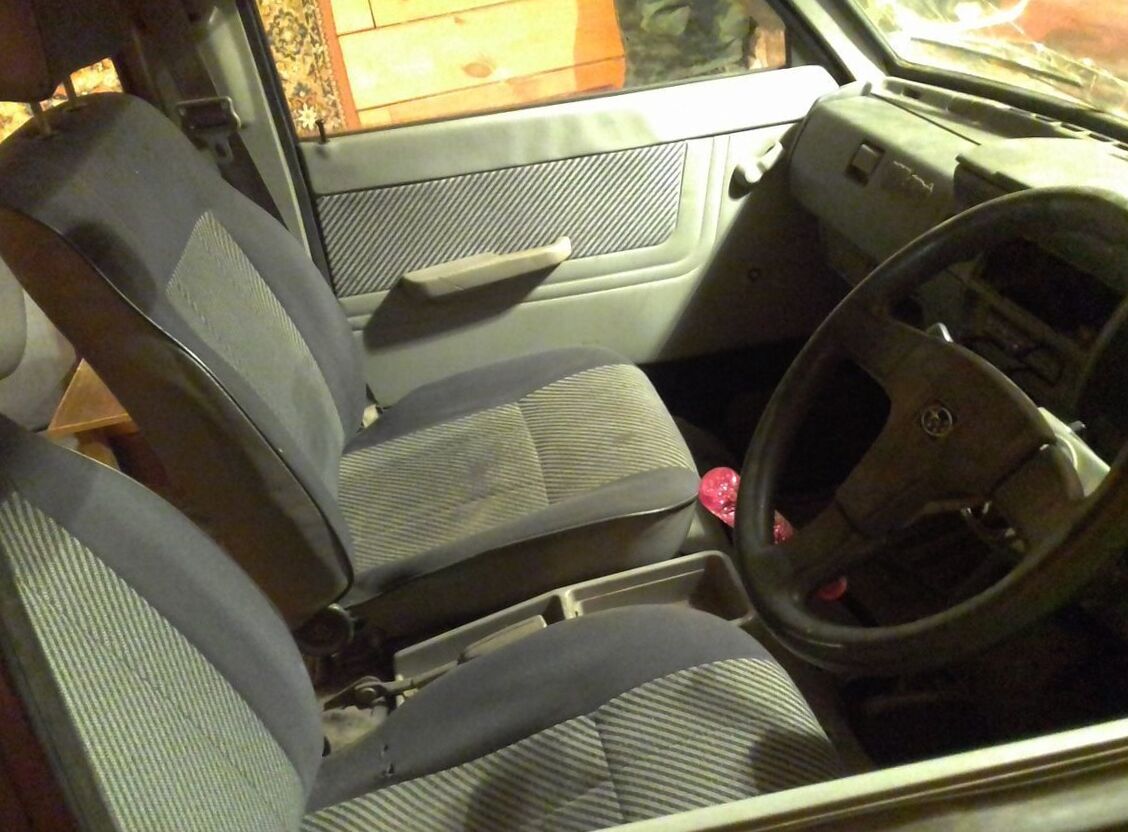

Steering wheel and center panel | |
| Leather winding | no |
| Telescopic steering | no |
| Tilt steering | no |
| Tachometer | yes |
Interior design | |
| Leather seat | no |
| Wood panel | no |

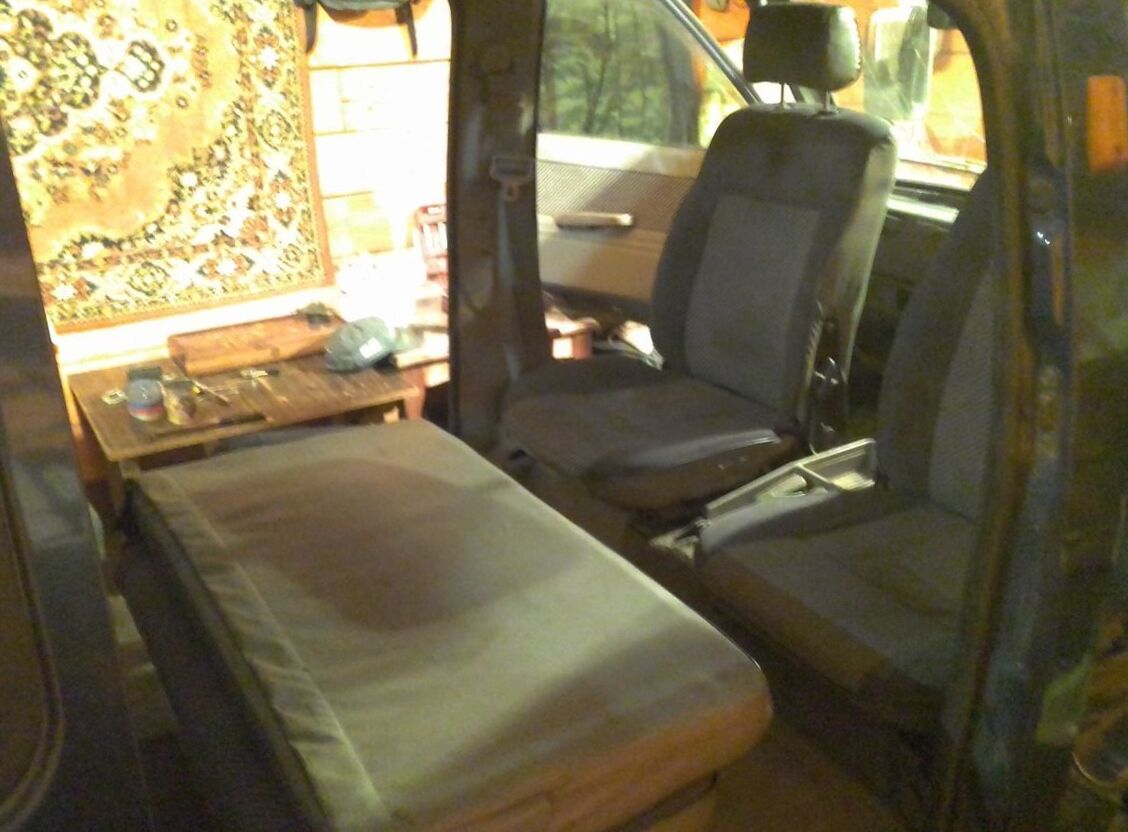

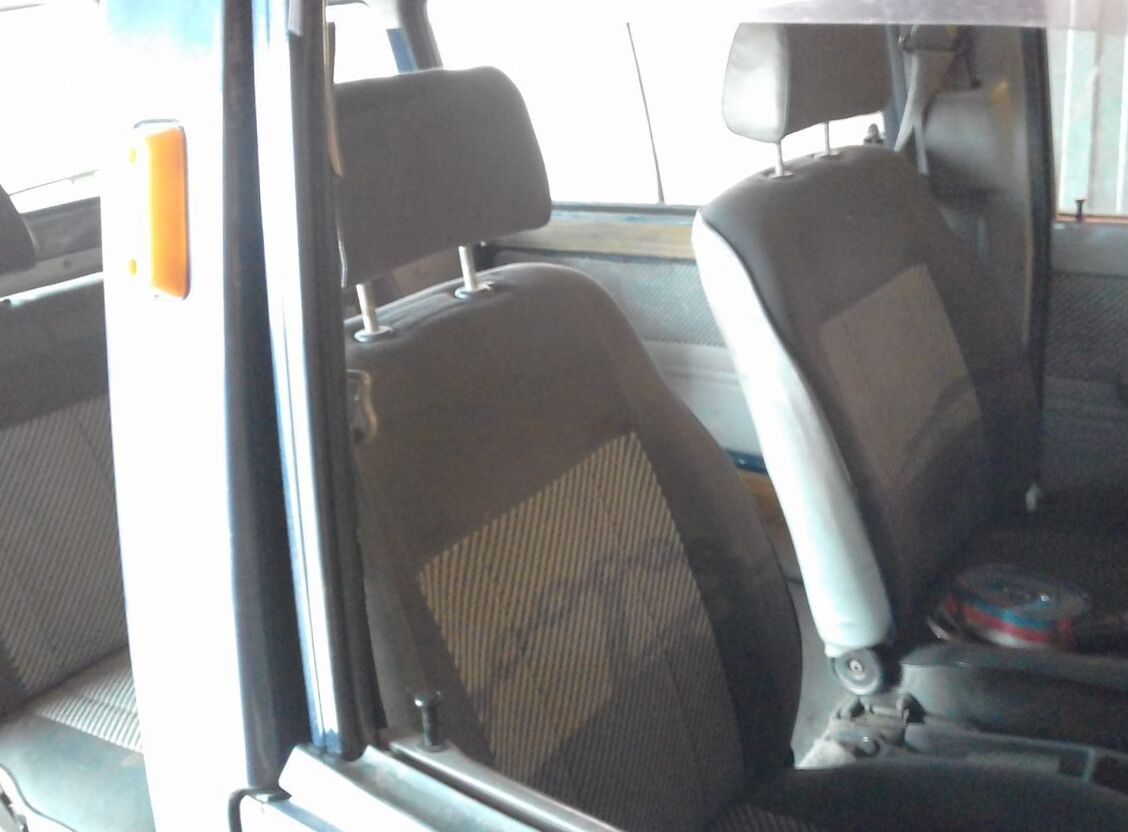

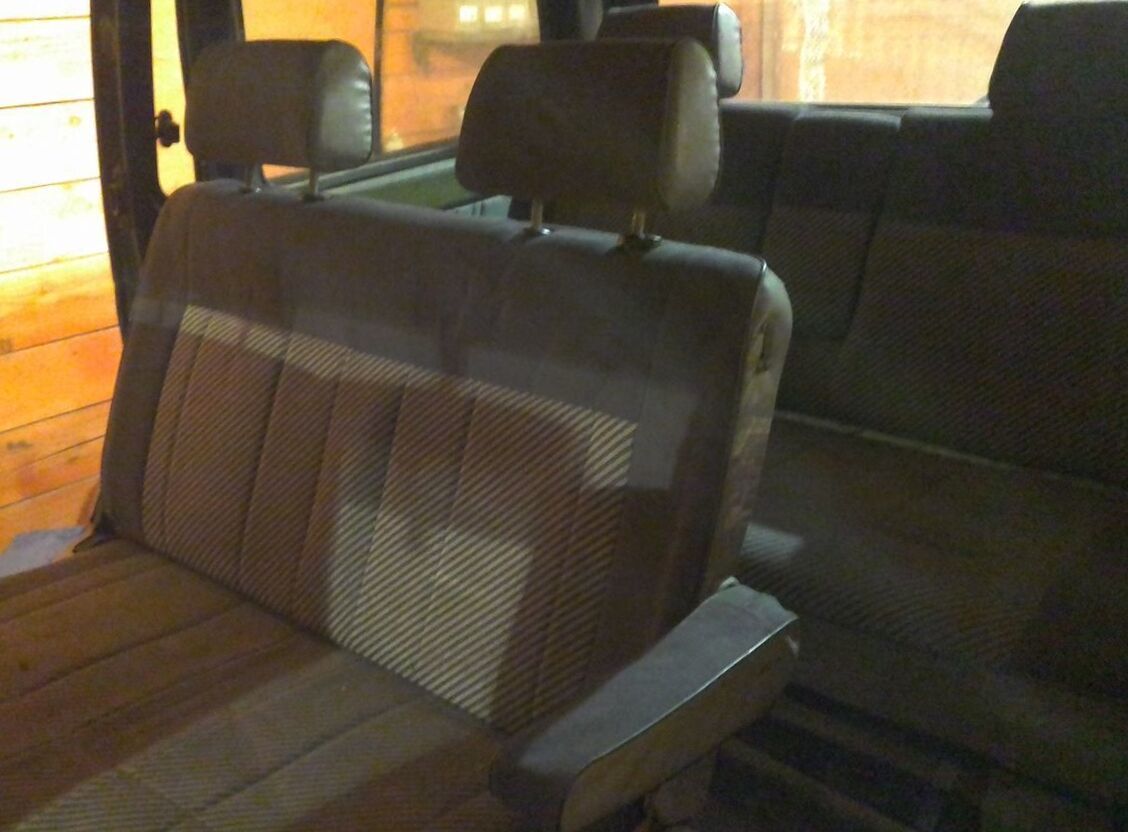

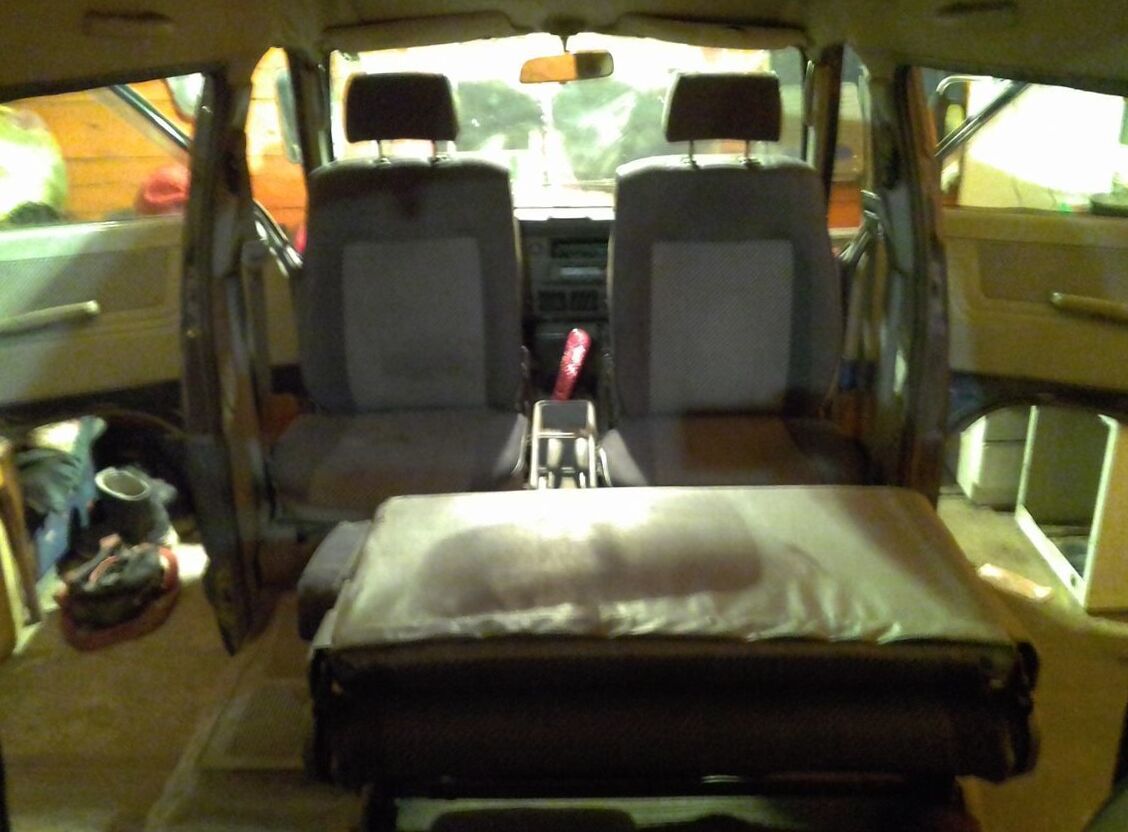

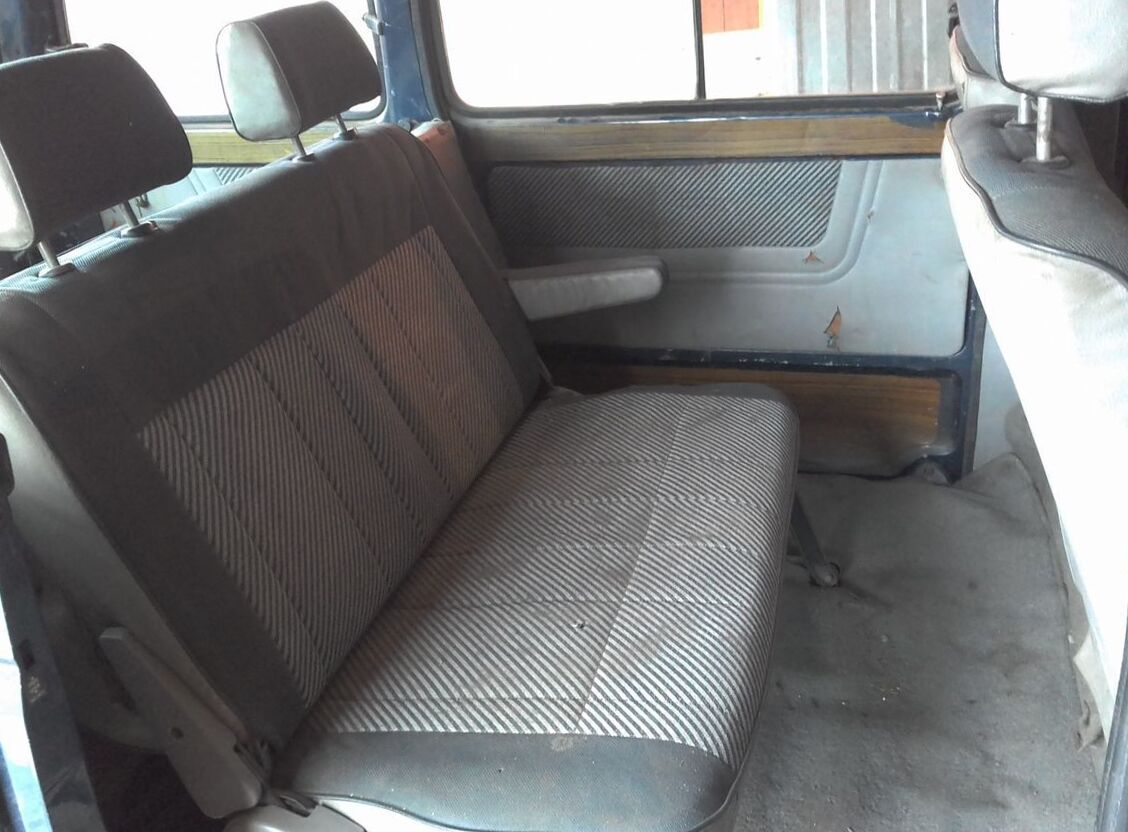

Seats | |
| Reclining seats | yes |
| Removable seats | no |
| Turning seats | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Centralized door lock | no |
| Keyless enter | no |
| Power window | no |
| Central power window control | no |
Safety | |
Airbags | |
| Drivers airbag | no |
| Passengers airbag | no |
| Side airbag | no |
Children safety | |
| Child car restraints | no |
Active and passive safety | |
| Durable frame | no |
| Side impact bar | no |
| 3 point safety belt | no |
| Safety belt pretensioner | no |
| Safety belt limiter | no |
Electronic security and traffic control systems | |
| Break assist | no |
| traction control | no |
| Cruise control | no |
Amenity | |
Microclimate | |
| Cooler | no |
| Automatic air conditioning | no |
| Twin conditioning system | no |
| Air purifier | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | no |
| CD player | no |
| CD changer | no |
| MD palyer | no |
| MD changer | no |
Navigation and video equipment | |
| Parking assist system | no |
1991 Subaru Domingo E-KJ8 1.2 GV (52 Hp) specs
|
A more passenger-car-like Subaru Domingo high-roof van with 997 cc, later 1189 cc engines and coil springs at the rear was added in October, 1983. It had a length of 341/ 342.5 cm and a width of 143 cm. This vehicle would stay available well after the release of the next generation Sambar. In the export the engine became a 665 cc and the vehicle was called Subaru 700 (length 322.5 cm). The larger versions were called Subaru E10 and Subaru E12 respectively. » Read More About Subaru Domingo |
