2020 Nissan Serena V 1.2 e-Power AUTECH Safety Package
Nissan Serena Problems
Car loosing power on the road
2013, My car is loosing power on the road what
could be the problem. It was serviced I change...
Ecu not detected
1997, ECU not detected,, i need diagram and
schematic of ecu, when i connect obd ecu not
detec...
Electrical and mechanical
2010, catalyst converter problems belt
wobbling when ac is on making noise ac not
cold whe...
| Body type | Minivan |
|---|---|
| Power | 84 Hp |
| Engine Displacement | 1200 cm3 or 1.2L or 73.2 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Vin | 612*** |
| Price (out of date) | $23239 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2020 Nissan Serena V? | Minivan, 7 Seats, 5 Doors |
| How much power, Nissan Serena Minivan 2020? | 84 Hp |
| What is the engine size, Nissan Serena DAA-HFC27 2020? | 1.2L or 1198cm3 |
| How many gears, What type is the gearbox, 2020 Nissan Serena 1.2 e-Power AUTECH Safety Package? | Gearbox |
| What is the drivetrain, Nissan Serena V 2020 Minivan 1.2 e-Power AUTECH Safety Package (84 Hp)? | Front |
| How long is this vehicle, 2020 Nissan Serena Minivan 1.2 e-Power AUTECH Safety Package (84 Hp)? | 4810 mm |
| How wide is the vehicle, 2020 Nissan Serena V? | 1740 mm |
Nissan Serena V DAA-HFC27 1.2 e-Power AUTECH Safety Package (84 Hp) 2019, 2020 Specs
General information | |
|---|---|
| Production start year | 2019 |
| Production end year | 2020 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Gearbox |
| Engine volume, cc | 1198 |
| Frame name | DAA-HFC27 |
| Clearance, mm | 140 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | option |
| Steering locaton | right |
| Hybrid | yes |
Vehicle generation | |
| Generation name | C27 |
| Generation number | 5 |
| Facelift number | 1 |
| Production start year | 2019 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | HR12DE |
| Fuel | Petrol (Gasoline) |
| Engine type | 3 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 84 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 84 (62) / 6000 |
| Max torque, N*m | 103 |
| Max torque RPM, rpm | 5200 |
| Max torque, N*m (kg*m) / rpm | 103 (11) / 5200 |
| Compression ratio | 12 |
| Bore, mm | 78 |
| Stroke, mm | 83.6 |
| Engine additional info | EGI electronic fuel injection system (ECCS) |
| Start stop system | yes |
Electric Power | |
| Electro Max power, (kWt) | 100 |
| Electro Max torque, Nm | 320 |
Transmission | |
| Main gear ratio | 7.388 |
| Shifter position | On the dashboard |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4810 |
| Exterior width, mm | 1740 |
| Exterior height, mm | 1865 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
| Interior length, mm | 3240 |
| Interior width, mm | 1545 |
| Interior height, mm | 1400 |
Chassis dimensions | |
| Wheel base, mm | 2860 |
| Turning radius, m | 5.7 |
| Wheel spacing front | 1485 |
| Wheel spacing rear | 1485 |
Weight and permissible load | |
| Mass, kg | 1800 |
| Total weight | 2185 |
Volumes | |
| Fuel tank capacity, l | 55 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Semi-independent, torsion bar |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |
| Front wheels | 195/60R16 |
| Rear wheels | 195/60R16 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Parking brake | Electronic (optional) |
| Parking brake new first | Electronic (optional) |
Exterior | |
Headlights | |
| Halogen headlights | no |
| Led lights | yes |
| Diod head lights | no |
| Front fog lamps | yes |
| Diod fog lights | yes |
| Led backlights | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | no |
Side mirrors | |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Sliding electric door | no |

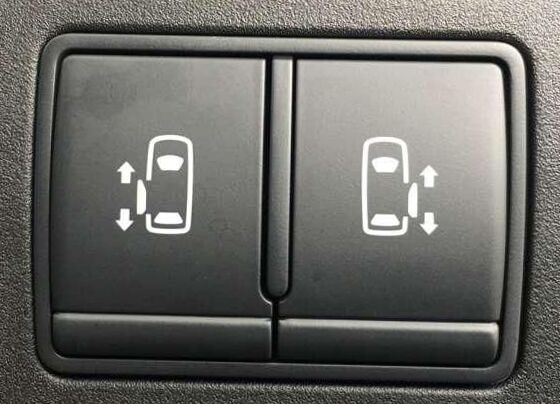

| Sliding electric doors | yes |
| Door easy closer | yes |
| Chrome door handles | yes |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Accessories | |
| Front spoiler | yes |
| Rear spoiler | yes |
| Back wiper | yes |
Interior | |

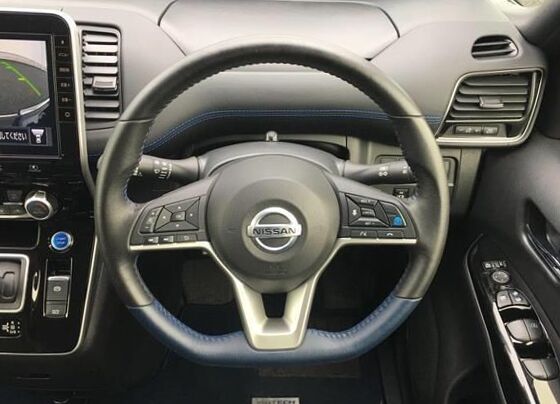

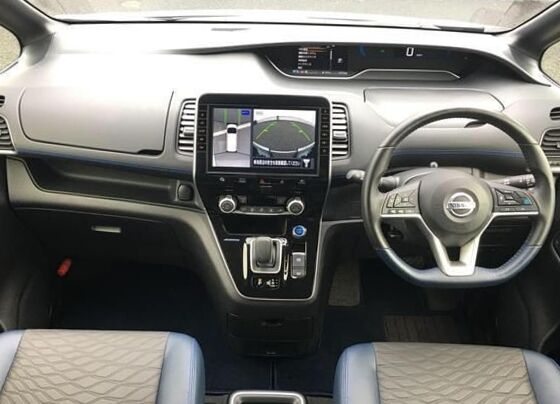

Steering wheel and center panel | |
| Leather winding | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Utility color display | yes |
| Engine start button | yes |
Interior design | |

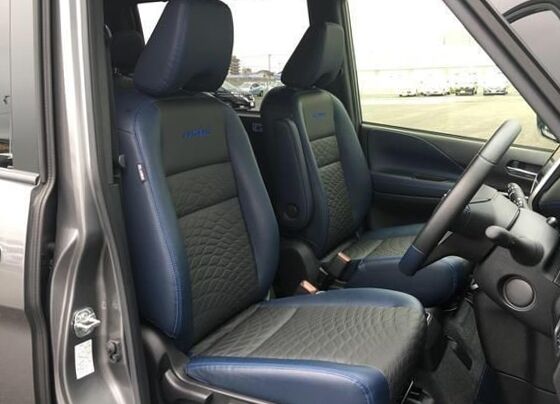

| Cloth upholstery | yes |
| Leather upholstery | no |
| Combined obivka Salon | no |
| Water-repellent | no |

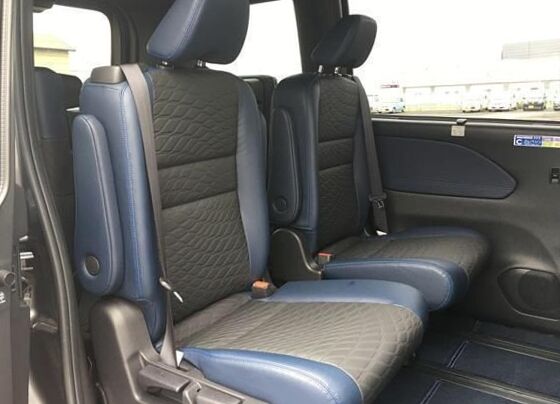

Seats | |
| Bucket seat | no |
| 2nd row | two individual seats |

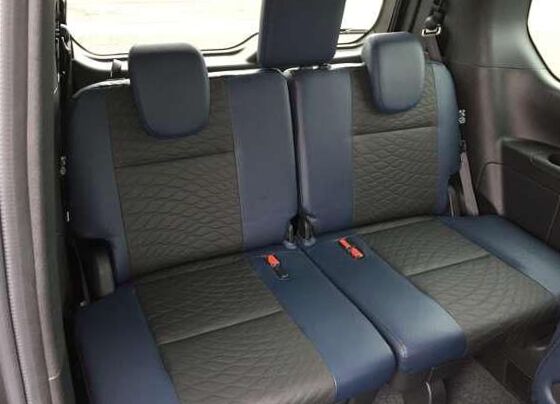

| 3nd row | 50/50 ratio fold seat |
| Seat lifter | yes |
| Headrests for seats | 7 |
| Separating armrest rear | yes |
| Seats pockets | yes |
Electric interior package | |
| Front seat heater | option |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | yes |
| Power window front | yes |
| Power window rear | yes |
| Stearing wheel heater | option |
Additional interior equipment | |
| Holders for bottles in doors | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| Damping Control System | yes |
| Lane Keep Assist | yes |
| Cruise control | yes |
| Distance control system | option |
| Control system of a headlight | yes |
| Intelligent AFS | yes |
| Blind zone monitoring | yes |
| Road sign recognition | yes |
| Front sonar | yes |
| Rear sonars | yes |
| Intelligent parking assist | option |
| Collision mitigation system | yes |
| Driver tired system | yes |
Amenity | |

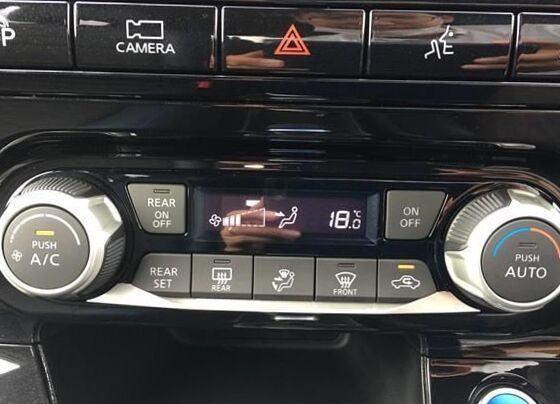

Microclimate | |
| Automatic air conditioning | yes |
| Twin conditioning system | yes |
| Air filter | yes |
Audio systems | |
| Additional sound equipment | 6 speakers, USB |
Navigation and video equipment | |
| Parking assist system | yes |

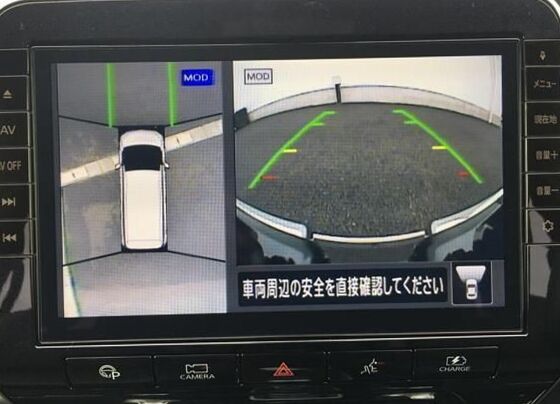

| Front monitor | yes |
| Sides monitors | yes |
| Back monitor | yes |
Additional amenities | |
| Mirrors in sunshields | yes |
| Lagage box | yes |
| Onboard computer | yes |
| Etc | no |
Car safety | |
| Alarm system | yes |
2020 Nissan Serena V DAA-HFC27 1.2 e-Power AUTECH Safety Package (84 Hp) specs
|
These versions had 1.6 and 2.0 petrol or 2.3 diesel engines. Trim levels were LX, SLX, SGX and SGXi. Until around 2002 the standard petrol engine was an SR20DE. In the early nineties, Nissan produced a version with the turbocharged SR20DET to carry people very rapidly. From 2002 onwards the Serena used the QR20DE and QR25DE. A variety of other engines were used over the years, including diesels specifically the CD20 (for commercial van version) and the CD20T 1973 cc Diesel Turbo for people movers. Models were manufactured in Japan from 1991 onwards, many have now been imported into Australasia and the United Kingdom. Nissan produced many different versions FX, SX etc. Full-Auto (full time) 4WD versions were also produced providing greater stability and better handling. The 2.3 non turbo diesel was never manufactured for the Japanese market and its seating arrangement and interior fittings are not the same as the 2.0 petrol (SR20DE), 2.0 Diesel (CD20) and Turbo Diesel (CD20T) models manufactured in Japan for the local market. » Read More About Nissan Serena |
