Body typeMinivan
Power147 Hp
Engine Displacement2000 cm3 or 2L or 122 cu-in
Colorwhite
Transmission GearboxAutomatic
Fuel TypeGasoline
Drive wheelFF
Mileage34796 Miles
VinHFC26-****15
Price (out of date)$16809

Frequently Asked Questions

What is the body type, 2015 Nissan Serena IV?Minivan, 8 Seats, 5 Doors
What is the fuel economy, Nissan Serena Minivan 2015?6.5 l/100 km
How much power, Nissan Serena DAA-HFC26 2015?147 Hp
What is the engine size, 2015 Nissan Serena 2.0 Highway Star V Aero Mode+Safety II S-HYBRID?2L or 1997cm3
How many gears, What type is the gearbox, Nissan Serena IV 2015 Minivan 2.0 Highway Star V Aero Mode+Safety II S-HYBRID (147 Hp)?Variator
What is the drivetrain, 2015 Nissan Serena Minivan 2.0 Highway Star V Aero Mode+Safety II S-HYBRID (147 Hp)?Front
How long is this vehicle, 2015 Nissan Serena IV?4795 mm
How wide is the vehicle, Nissan Serena Minivan 2015?1735 mm

Nissan Serena IV DAA-HFC26 2.0 Highway Star V Aero Mode+Safety II S-HYBRID (147 Hp) 2015, 2016 Specs

General information

Production start year2015
Production end year2016
Drive typeFront
Frame typeMinivan
Transmission typeVariator
Engine volume, cc1997
Frame nameDAA-HFC26
Clearance, mm160
Manufacturing countryJapan
Doors5
Winter complectationyes
Steering locatonright
Hybridyes

Vehicle generation

Generation nameC26
Generation number4
Facelift number1
Production start year2013
Production end year2016

Engine, transmission and steering specs

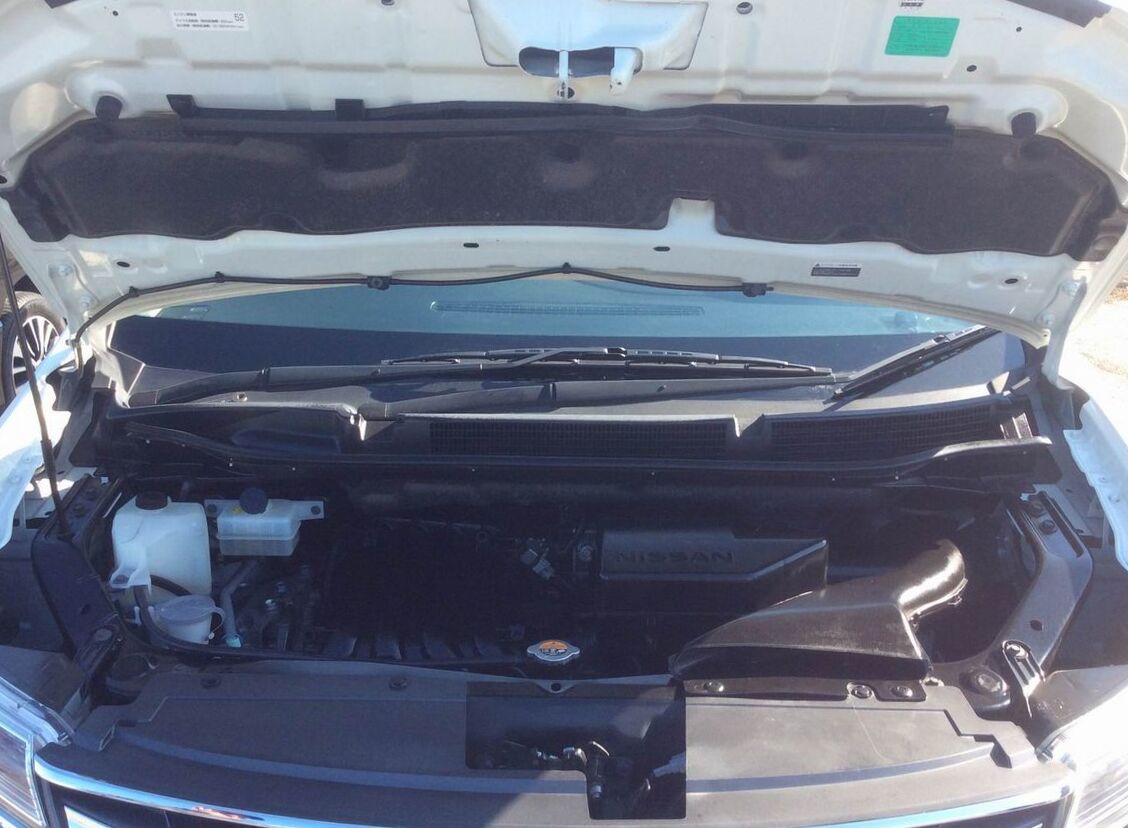

Engine specs

Engine nameMR20DD
FuelPetrol (Gasoline)
Engine type4 cylinder DOHC
Has turbono
Max power, hp147
Max power RPM, rpm5600
Max power, hp (kWt) / rpm147 (108) / 5600
Max torque, N*m210
Max torque RPM, rpm4400
Max torque, N*m (kg*m) / rpm210 (21) / 4400
Eco type2005 emission regulation 75% reduction
Variable cylinder systemno
Start stop systemyes

Electric Power

Electro Max power, (kWt)1.8
Electro Max torque, Nm53.6

Fuel consumption

Achieve fuel efficiency standardsCompliance with the 2020 fuel consumption standard
Combined6.5

Transmission

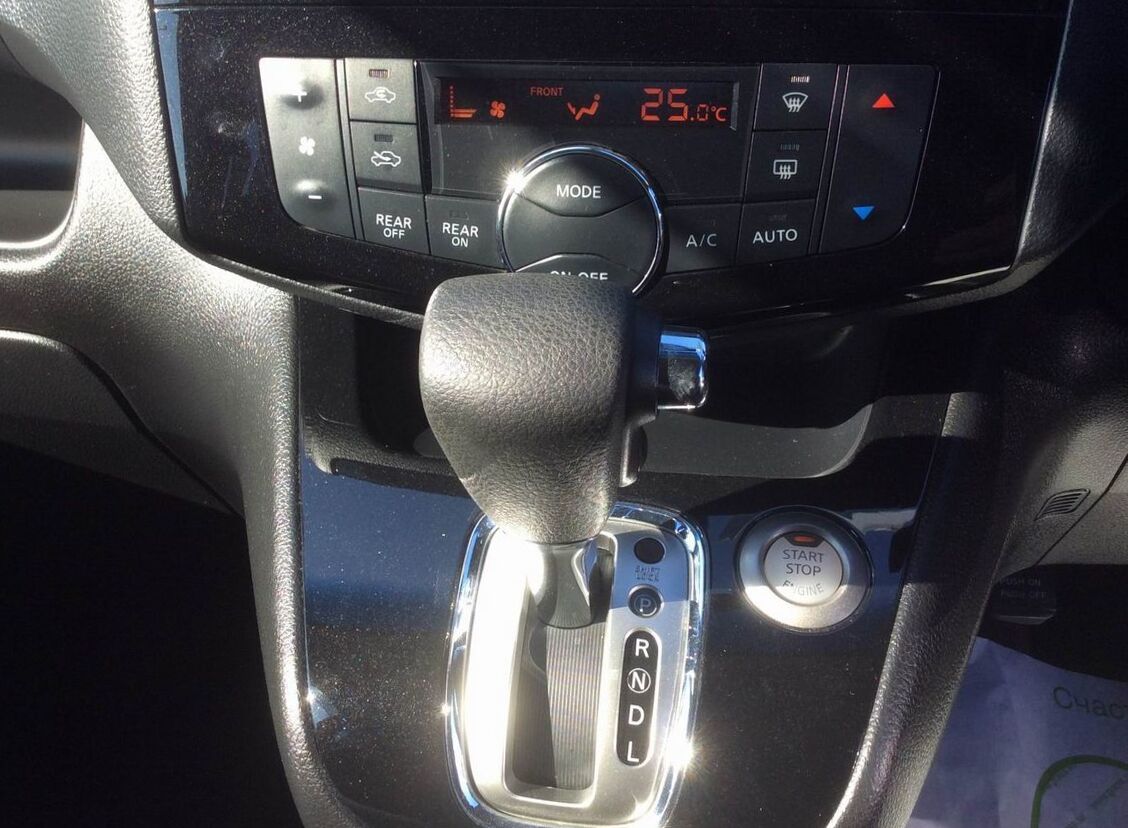

Shifter positionOn the dashboard

Steering

Power steeringno
Electric power steeringyes
Steereing gear typeGear rail
Steering vgs vgrsno

Dimensions

Frame dimensions

Exterior length, mm4795
Exterior width, mm1735
Exterior height, mm1865

Interior dimensions

Capacity8
Seat rows3
Interior length, mm3060
Interior width, mm1480
Interior height, mm1380

Chassis dimensions

Wheel base, mm2860
Front axle length, mm1480
Rear axle length, mm1485
Turning radius, m5.7
Wheel spacing front1480
Wheel spacing rear1485

Weight and permissible load

Mass, kg1680
Total weight2120

Volumes

Fuel tank capacity, l60

Suspension specs

Suspension specs

Front suspensionIndependent, Spring McPherson
Rear suspensionSemi-independent, torsion bar
Sport suspensionno
Low downno
Air suspensionno
Cenral diff lockno
LSDno
4wsno

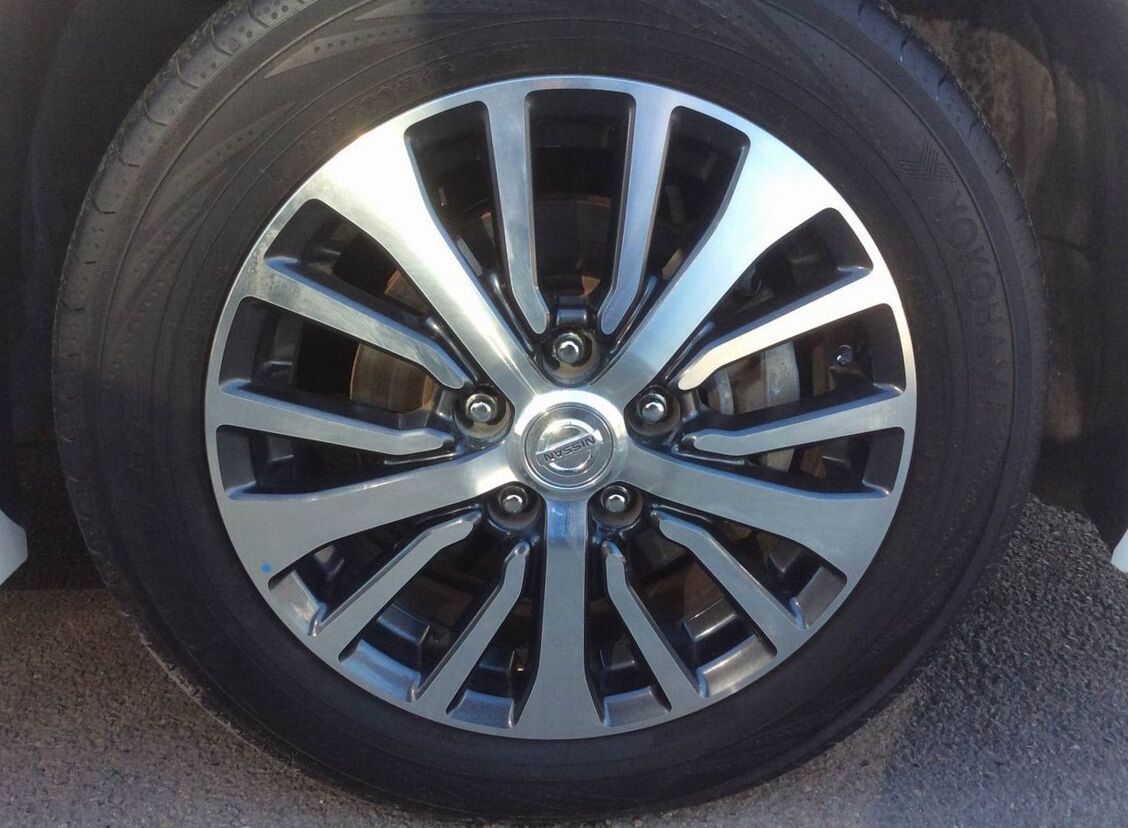

Wheel rims

Aluminium wheelyes
Magnesium wheelsno

Tires

Front wheels195/60R16
Rear wheels195/60R16
Run flat tiresno

Brakes

Front brakeVentilated discs
Rear brakeDiscs
Brakes equipmentno

Exterior

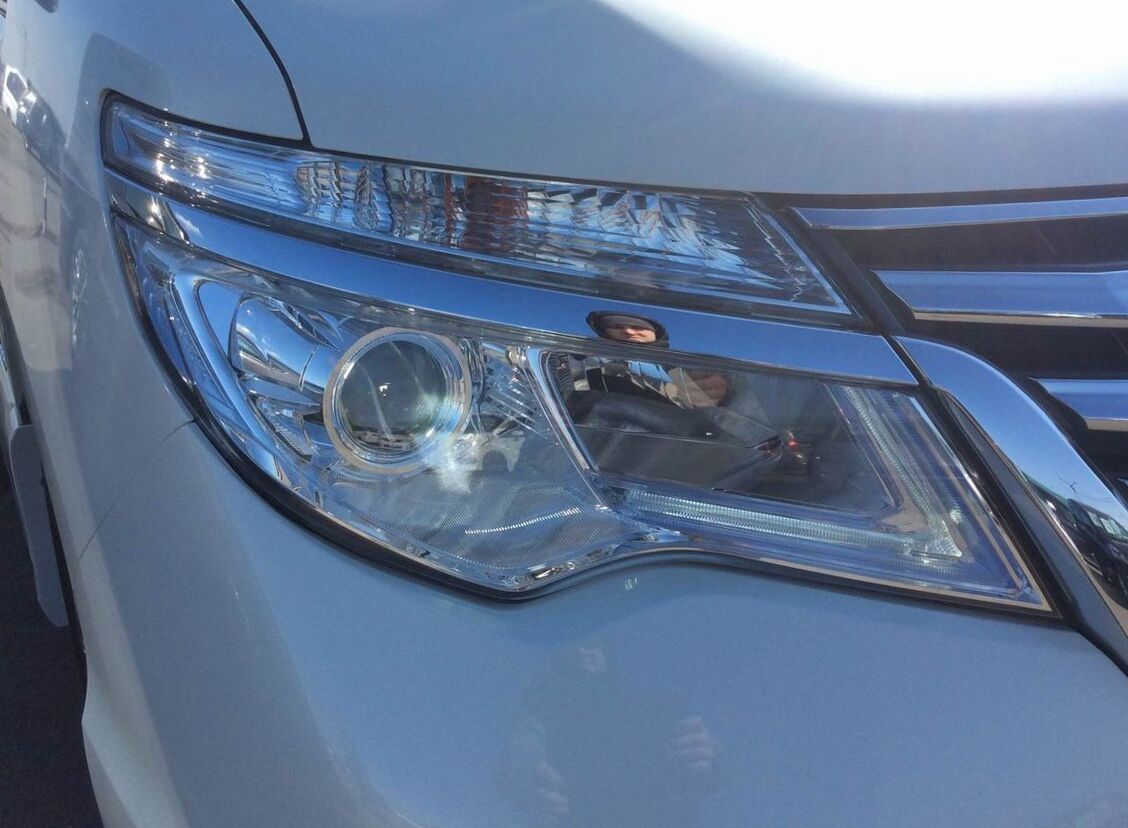

Headlights

Xenon lampsno
Head lights washerno

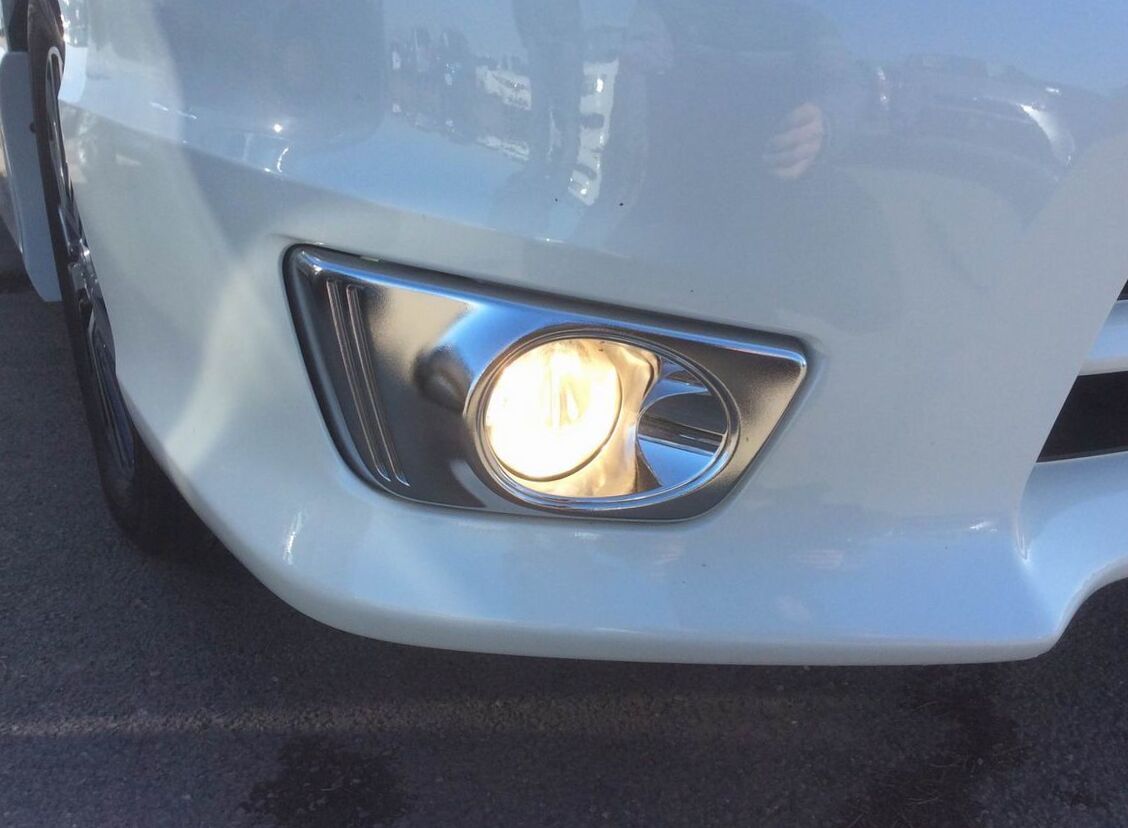

Front fog lampsyes
Rear fog lampsno
Rain sensorno

Side mirrors

autocorrected mirrorsno

Doors

Side sliding doorno
Sliding doorsno
Sliding electric doorno
Sliding electric doorsyes
Door easy closeryes
Power rear doorno

Windows

Privacy glassyes
Ultraviolet glass protectionyes

Roof

Sunroofno
Big sunroofno
T bar roofno
Roof equipmentno
Targa roofno
Hard topno

Accessories

Roof railno
Front spoileryes

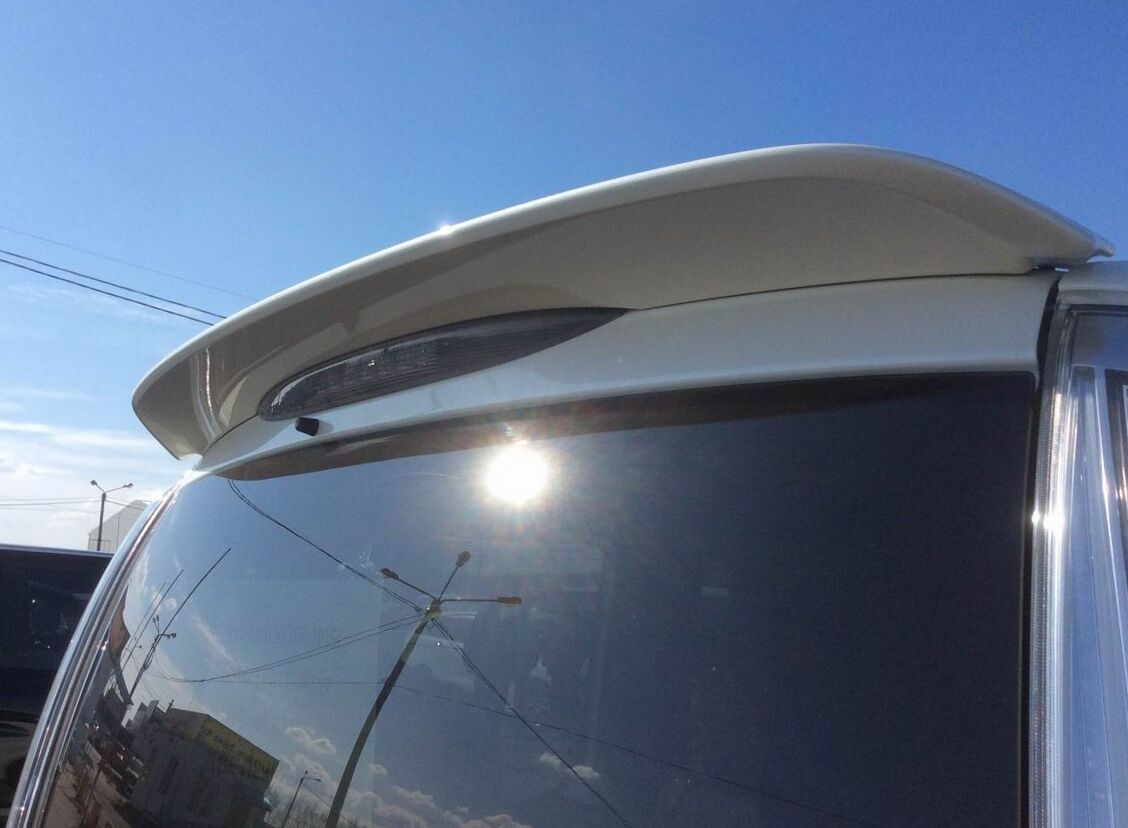

Rear spoileryes

Interior

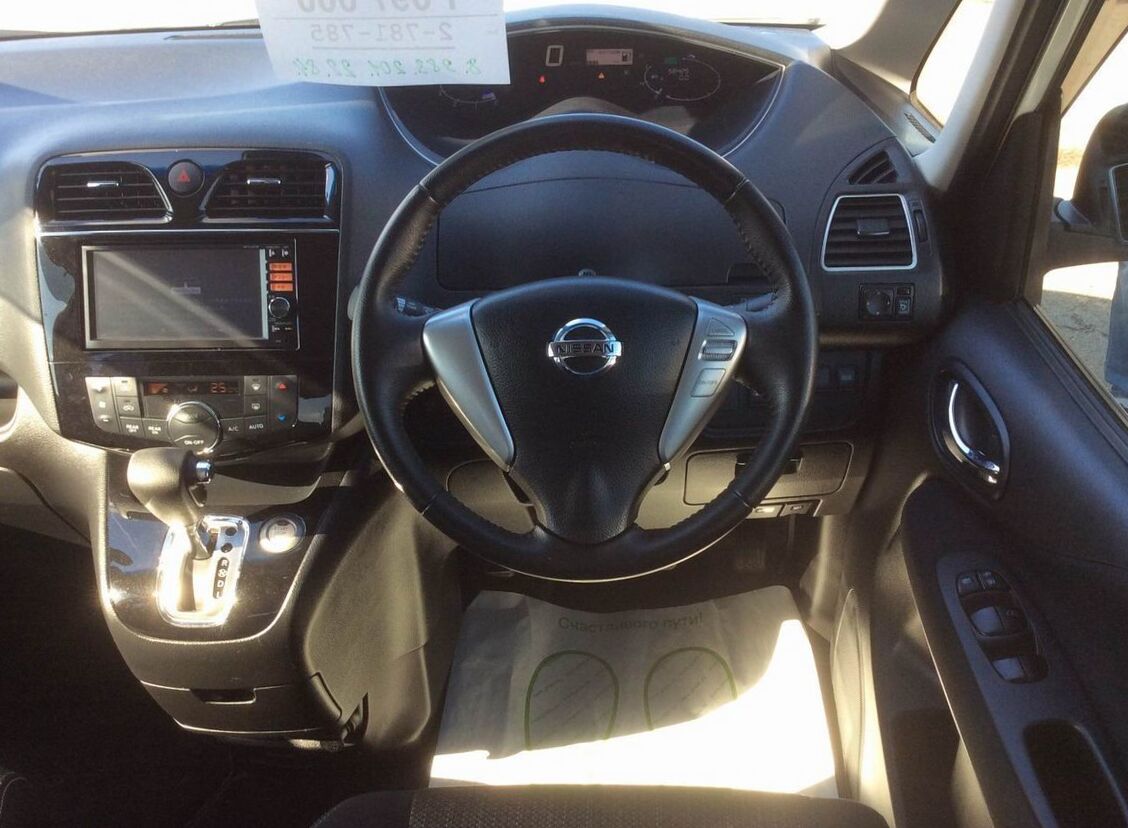

Steering wheel and center panel

Engine start buttonyes

Interior design

Water-repellentoption
Leather seatno
Antibacterial repellentno

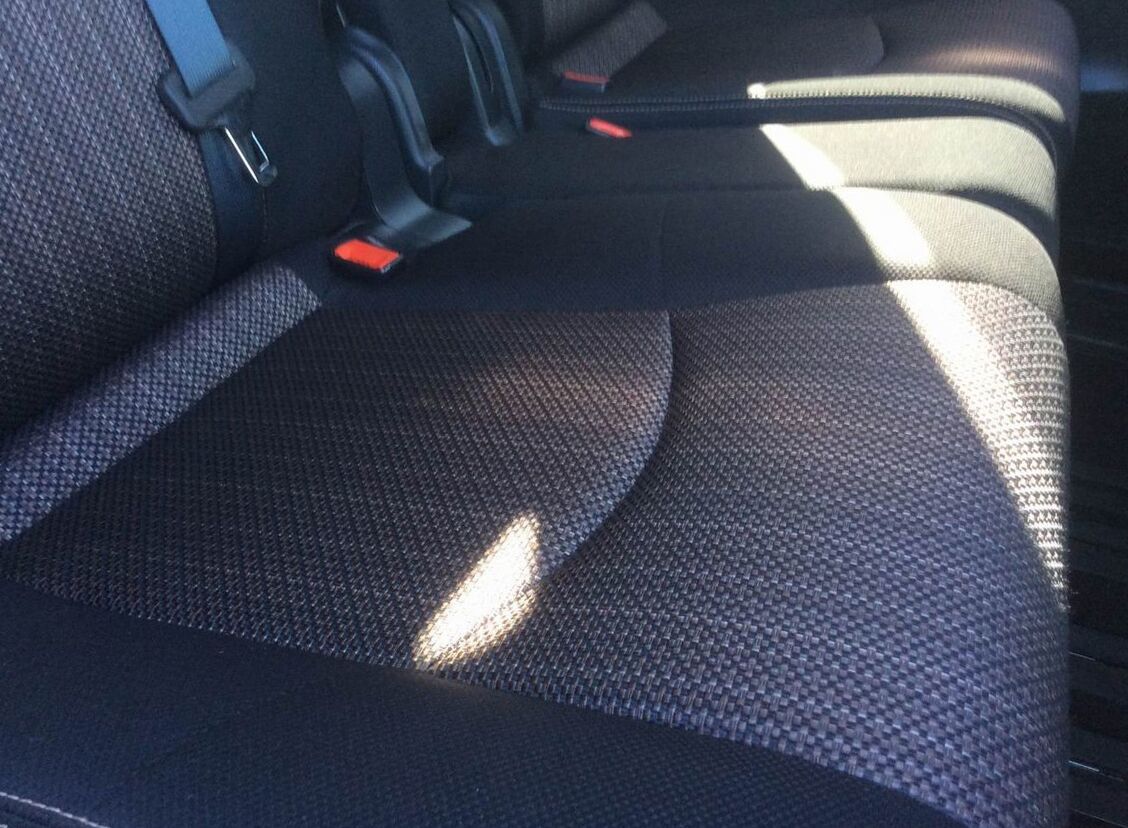

Seats

Bucket seatno
2nd rowadds up to a 40/20/40 ratio
3nd row50/50 ratio fold seat
Seat lifteryes
Full flat seatsno
Removable seatsyes
Ottoman seatno
Front bench seatno
Walk throughtyes
2nd row throughtyes

Electric interior package

Power adjustable driver seatno
Power ajustable front seatno
Adjustable 3rd rowno
Front seat heaterno
Rear seats heaterno
Seat position memoryno
Keyless enteryes

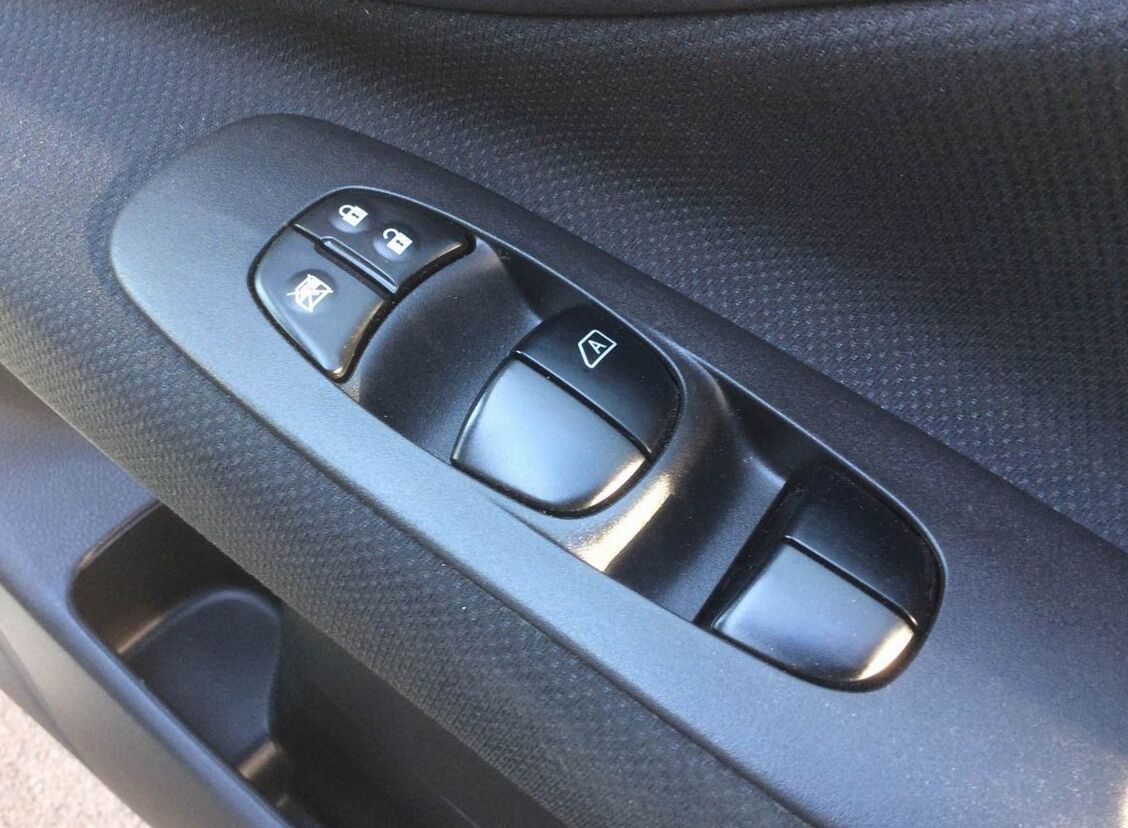

Power windowyes
Stearing wheel heaterno

Additional interior equipment

AC plugoption

Safety

Airbags

Drivers airbagyes
Passengers airbagyes
Side airbagoption
Curtain airbagsoption
2 airbagsno

Children safety

isofix baryes
Build-in child seatno

Active and passive safety

Active headrestyes

Electronic security and traffic control systems

ABSABS with EBD ? standard ?
Break assistyes
ESPyes
traction controlyes
Down hill assistno
AYCno
SH-4WDno
Lane Keep Assistyes

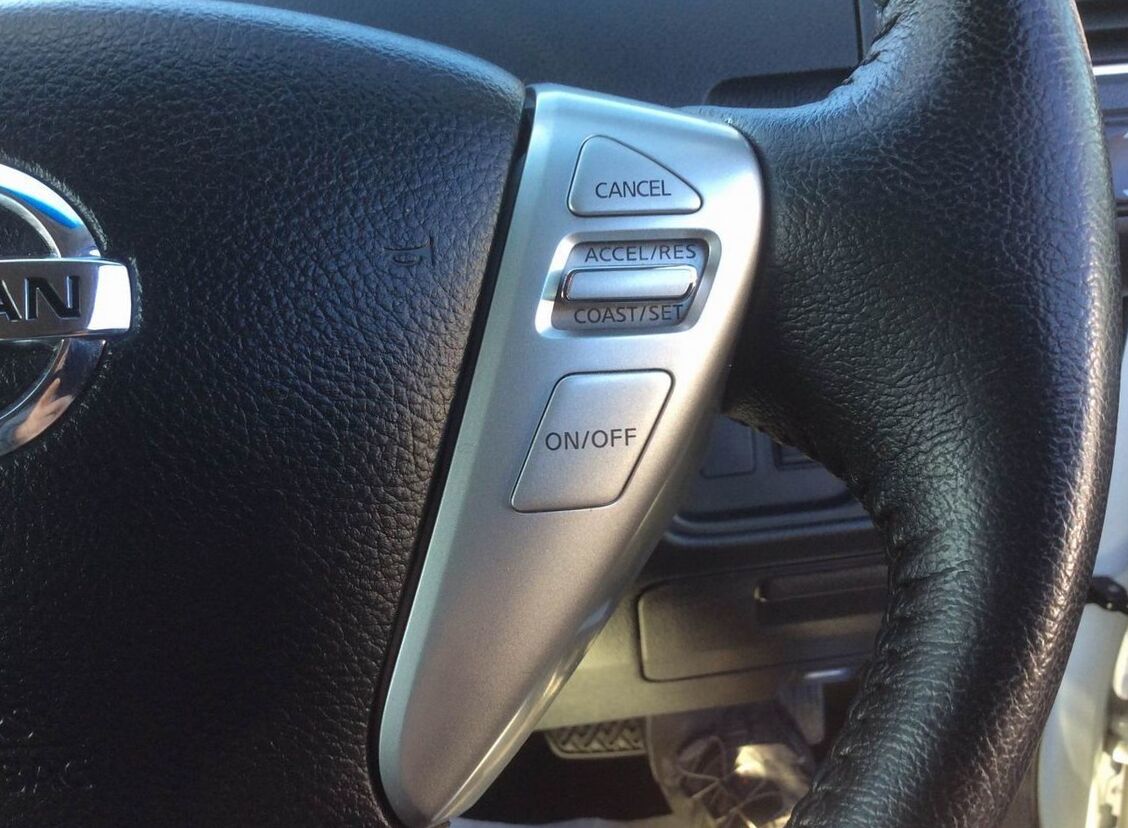

Cruise controlyes
Distance control systemno
Intelligent AFSno
Night visionno
Parktronicyes
Intelligent parking assistno
Collision mitigation systemyes

Amenity

Microclimate

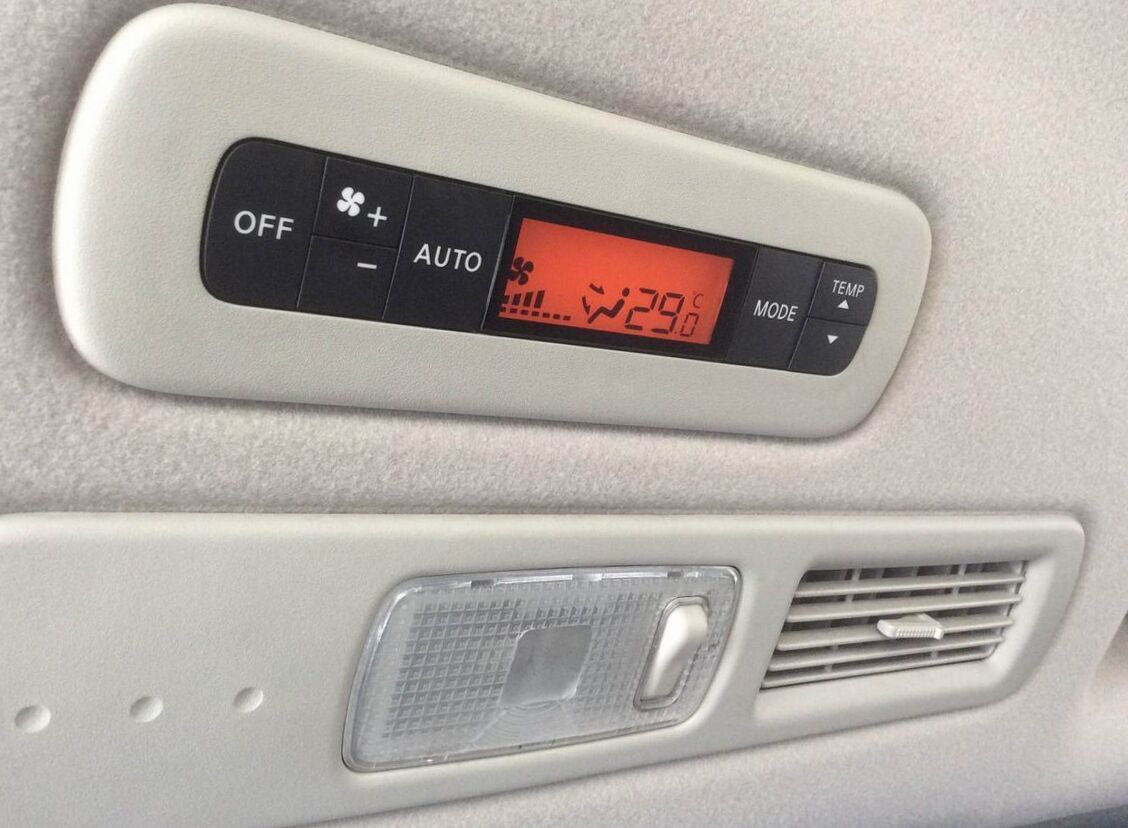

Air conditionerautoair conditioning(standard)
Air purifierno
Humidifierno
Air filterno
Odor absorberno

Audio systems

Radiooption
Autoreverse casetteno
CD playeroption
DVD-audiooption
MD palyerno
Audio HDDoption
Speakeryes
Rear entertainment systemoption

Navigation and video equipment

Full color LCD displayoption
Navigation systemno
Optional navigation systemoption
Traffic jam assistoption
Parking assist systemyes
Front monitoryes
Sides monitorsyes

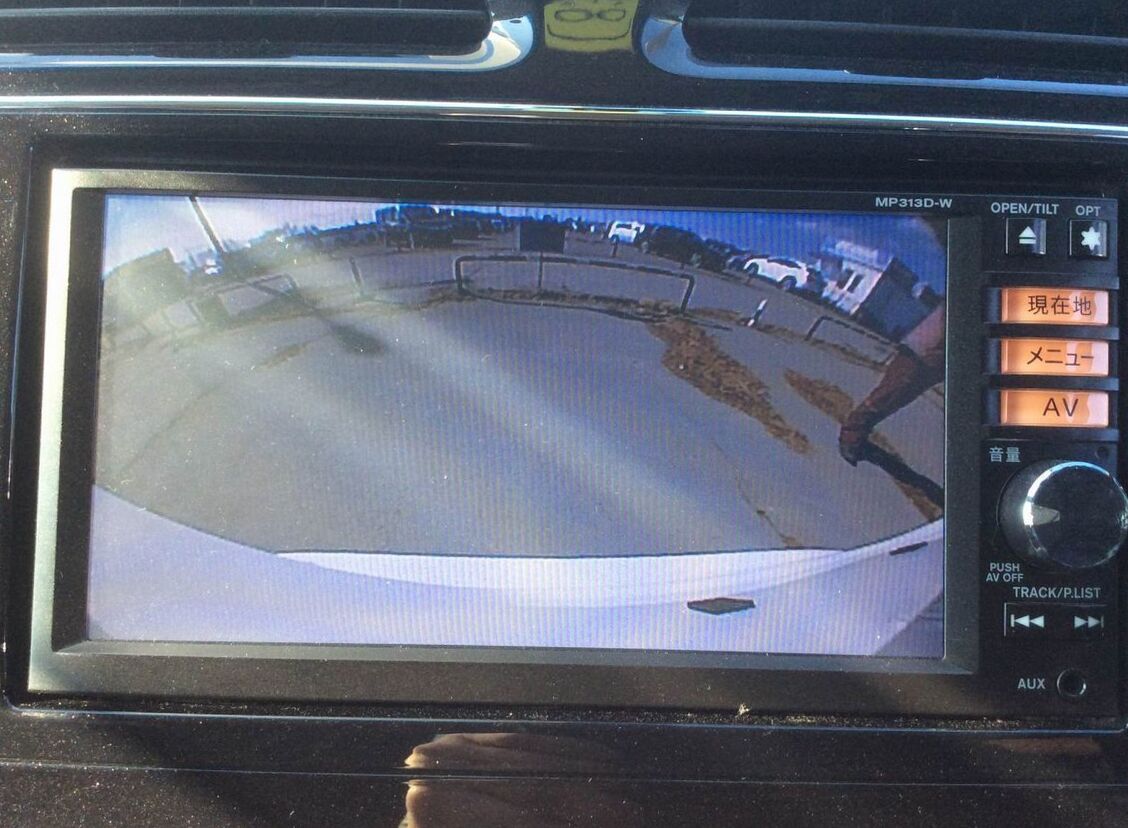

Back monitoryes

Additional amenities

Lagage boxyes
Etcoption

Car safety

Alarm systemyes
Security alarmno


2015 Nissan Serena IV DAA-HFC26 2.0 Highway Star V Aero Mode+Safety II S-HYBRID (147 Hp) specs

The Nissan Serena started life as a very small people carrier, but grew larger over time. Earlier versions were FR layout with a live axle mounted on leaf springs. Later versions had a multilink independent rear suspension, and were FF layout or 4WD. The most popular versions were the 2.3 diesel engines and it was unusual as the MPV had 8 seats instead of the usual 7.


These versions had 1.6 and 2.0 petrol or 2.3 diesel engines. Trim levels were LX, SLX, SGX and SGXi.

Until around 2002 the standard petrol engine was an SR20DE. In the early nineties, Nissan produced a version with the turbocharged SR20DET to carry people very rapidly. From 2002 onwards the Serena used the QR20DE and QR25DE. A variety of other engines were used over the years, including diesels specifically the CD20 (for commercial van version) and the CD20T 1973 cc Diesel Turbo for people movers.

Models were manufactured in Japan from 1991 onwards, many have now been imported into Australasia and the United Kingdom. Nissan produced many different versions FX, SX etc. Full-Auto (full time) 4WD versions were also produced providing greater stability and better handling. The 2.3 non turbo diesel was never manufactured for the Japanese market and its seating arrangement and interior fittings are not the same as the 2.0 petrol (SR20DE), 2.0 Diesel (CD20) and Turbo Diesel (CD20T) models manufactured in Japan for the local market.
