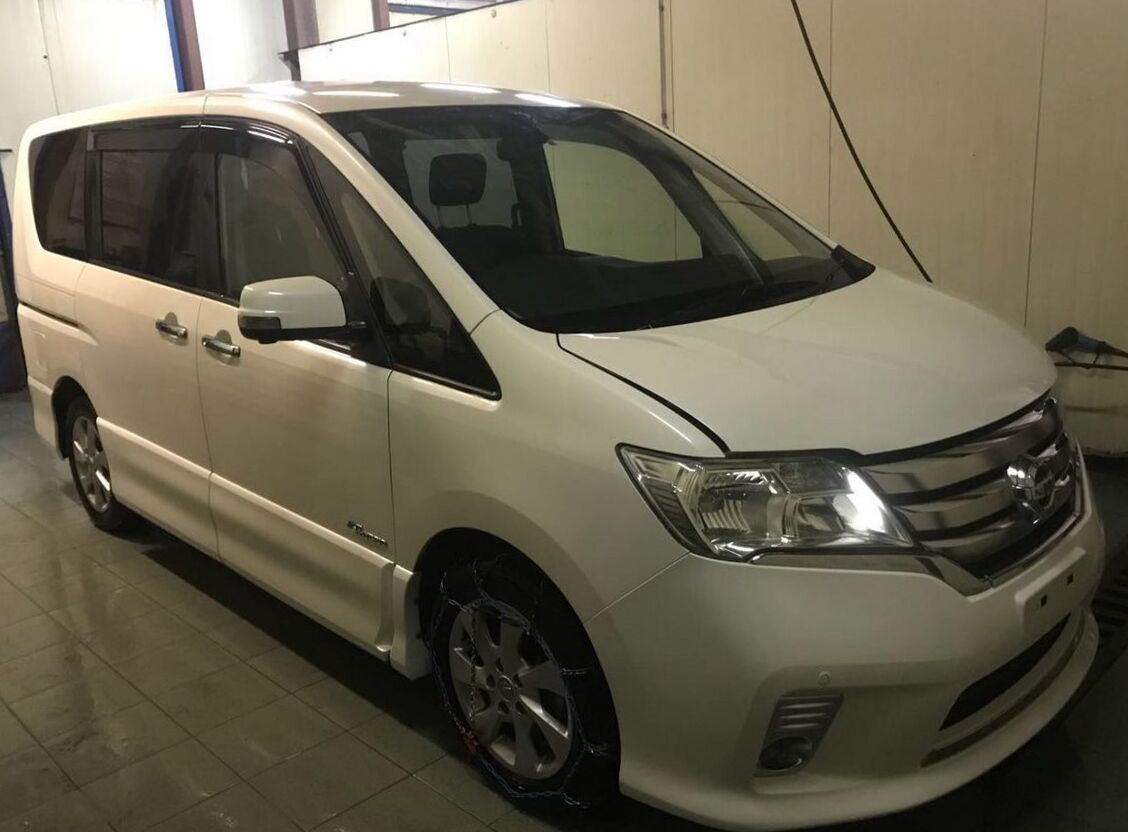

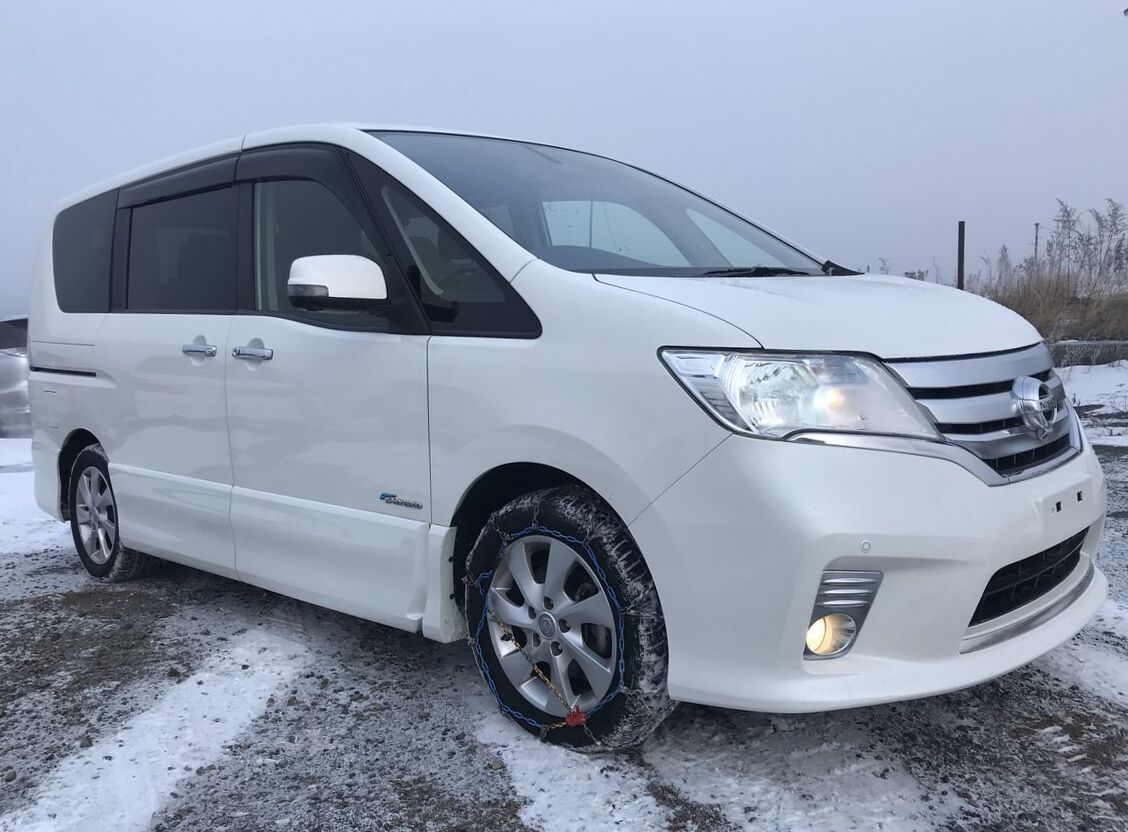

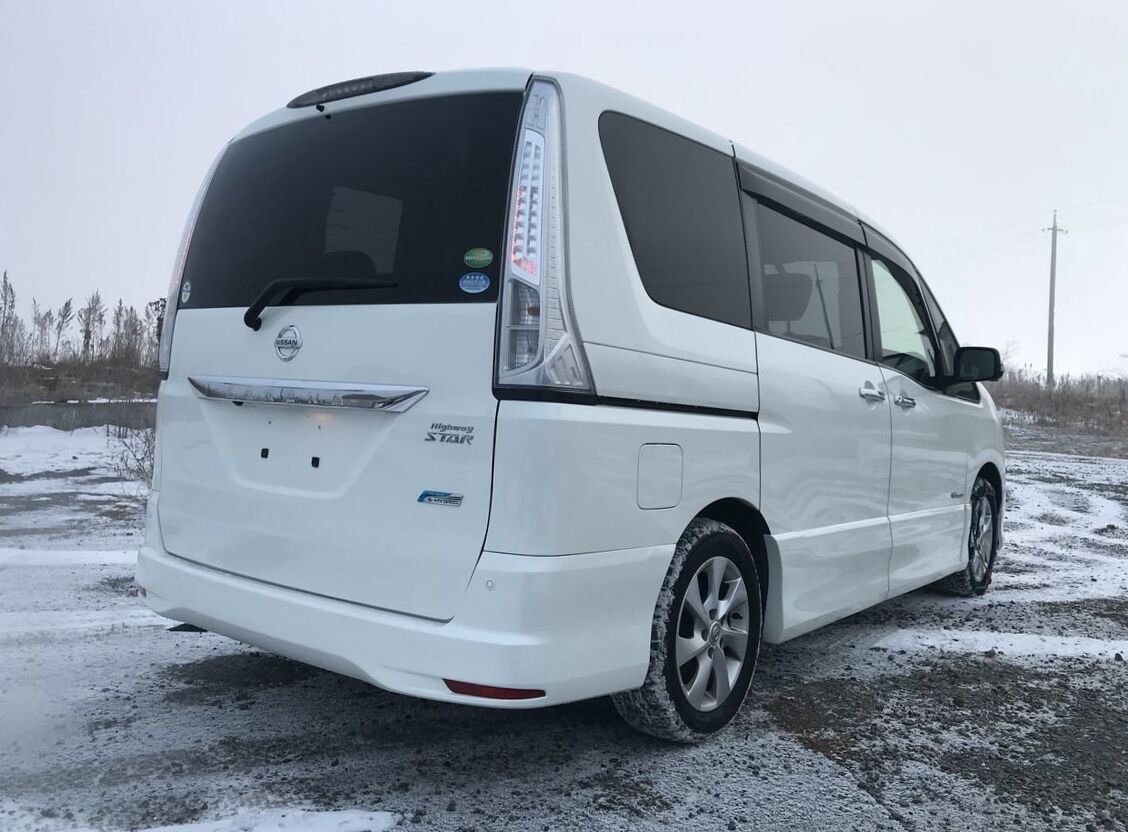

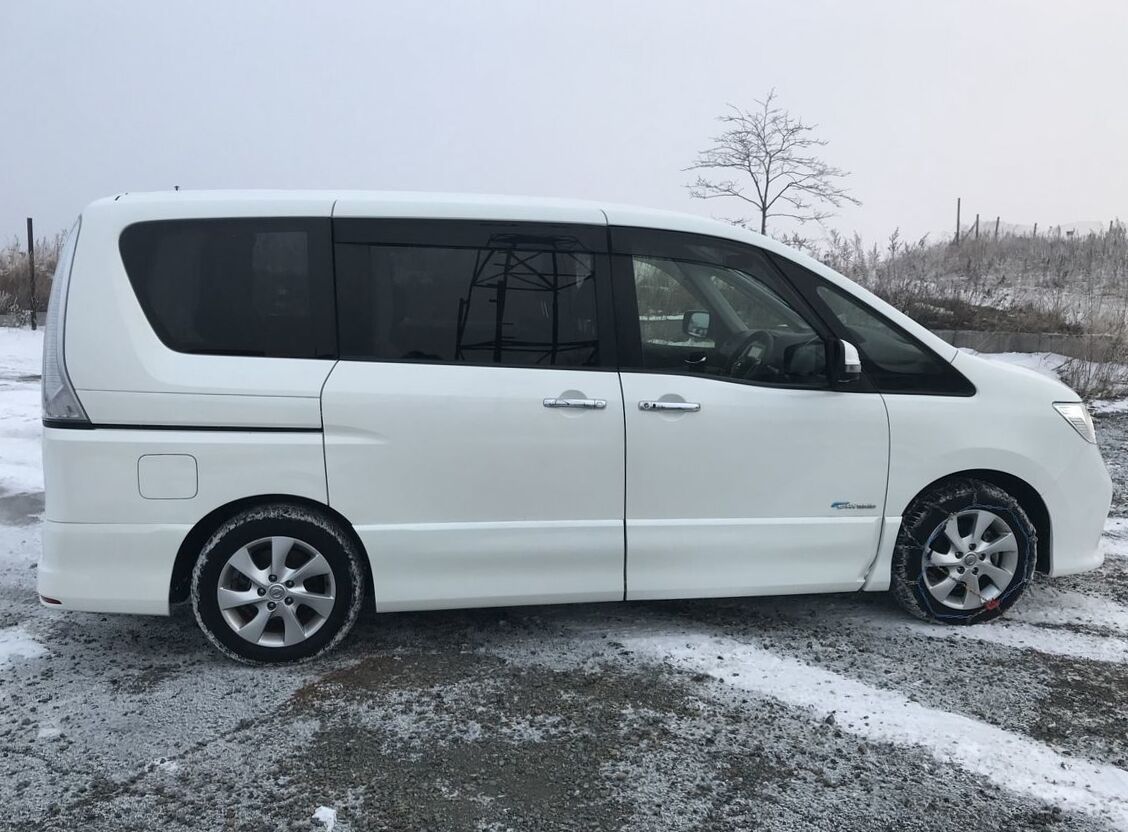

2013 Nissan Serena IV 2.0 Highway Star G S-HYBRID
Nissan Serena Problems
Ecu not detected
1997, ECU not detected,, i need diagram and
schematic of ecu, when i connect obd ecu not
detec...
Electrical and mechanical
2010, catalyst converter problems belt
wobbling when ac is on making noise ac not
cold whe...
A ton of oil disappearing
2013, Car has used over 20 litres of oil in a
year. No sign of leaks or blowing smoke. And
no...
| Body type | Minivan |
|---|---|
| Power | 147 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Vin | HFC26-****74 |
| Price (out of date) | $14323 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2013 Nissan Serena IV? | Minivan, 8 Seats, 5 Doors |
| What is the fuel economy, Nissan Serena Minivan 2013? | 6.6 l/100 km |
| How much power, Nissan Serena DAA-HFC26 2013? | 147 Hp |
| What is the engine size, 2013 Nissan Serena 2.0 Highway Star G S-HYBRID? | 2L or 1997cm3 |
| How many gears, What type is the gearbox, Nissan Serena IV 2013 Minivan 2.0 Highway Star G S-HYBRID (147 Hp)? | Variator |
| What is the drivetrain, 2013 Nissan Serena Minivan 2.0 Highway Star G S-HYBRID (147 Hp)? | Front |
| How long is this vehicle, 2013 Nissan Serena IV? | 4770 mm |
| How wide is the vehicle, Nissan Serena Minivan 2013? | 1735 mm |
Nissan Serena IV DAA-HFC26 2.0 Highway Star G S-HYBRID (147 Hp) 2012, 2013 Specs
General information | |
|---|---|
| Production start year | 2012 |
| Production end year | 2013 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Variator |
| Engine volume, cc | 1997 |
| Frame name | DAA-HFC26 |
| Clearance, mm | 160 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | yes |
| Steering locaton | right |

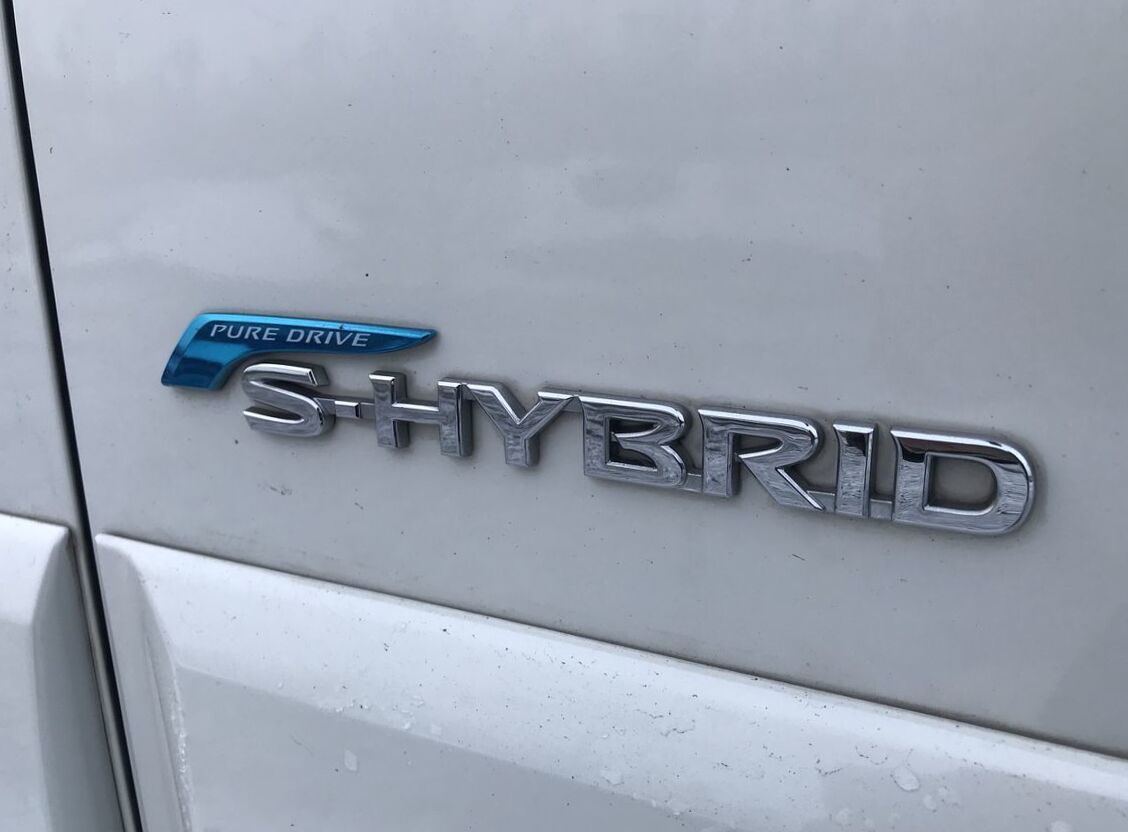

| Hybrid | yes |
Vehicle generation | |
| Generation name | C26 |
| Generation number | 4 |
| Production start year | 2010 |
| Production end year | 2013 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | MR20DD |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 147 |
| Max power RPM, rpm | 5600 |
| Max power, hp (kWt) / rpm | 147(108)/5600 |
| Max torque, N*m | 210 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 210 (21.4) / 4400 |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 108?147?/5600 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 210?21.4?/4400 |

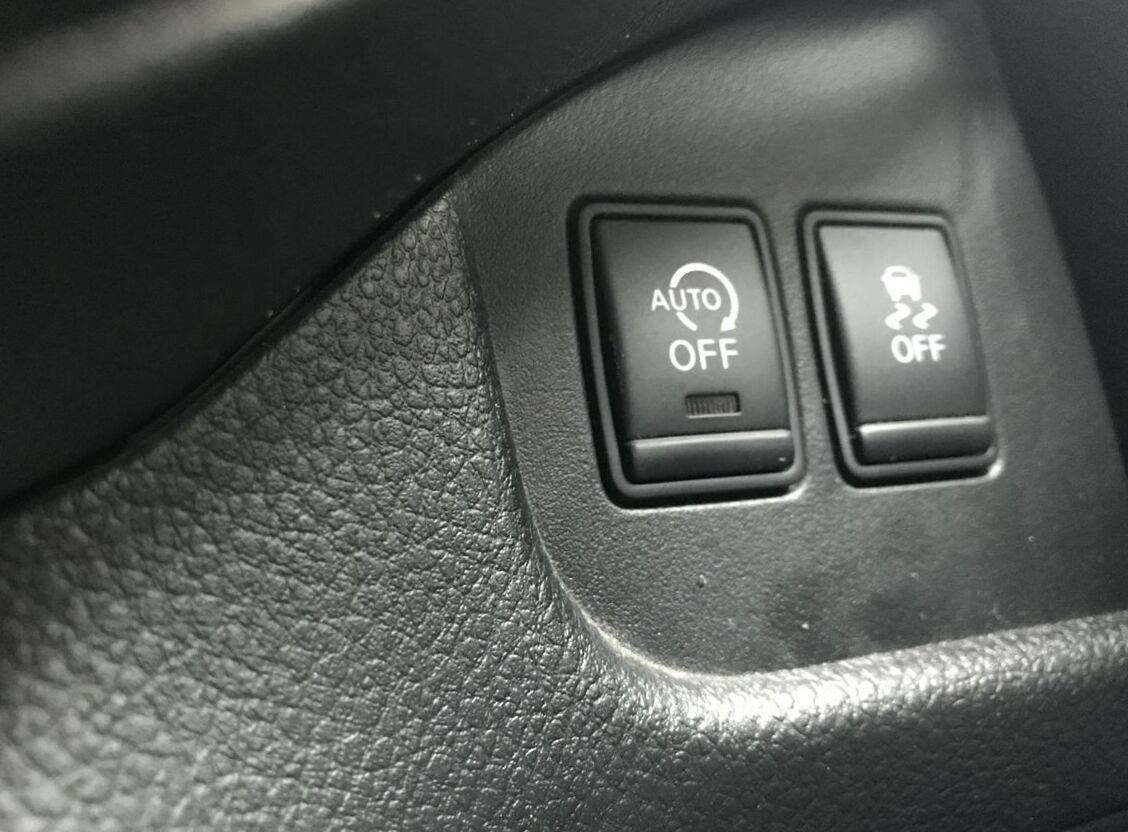

| Start stop system | yes |
Electric Power | |
| Electro Max power, (kWt) | 1.8 |
| Electro Max torque, Nm | 53.6 |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with 2015 fuel consumption standard +20% |
| Combined | 6.6 |
Transmission | |
| Shifter position | On the dashboard |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4770 |
| Exterior width, mm | 1735 |
| Exterior height, mm | 1865 |

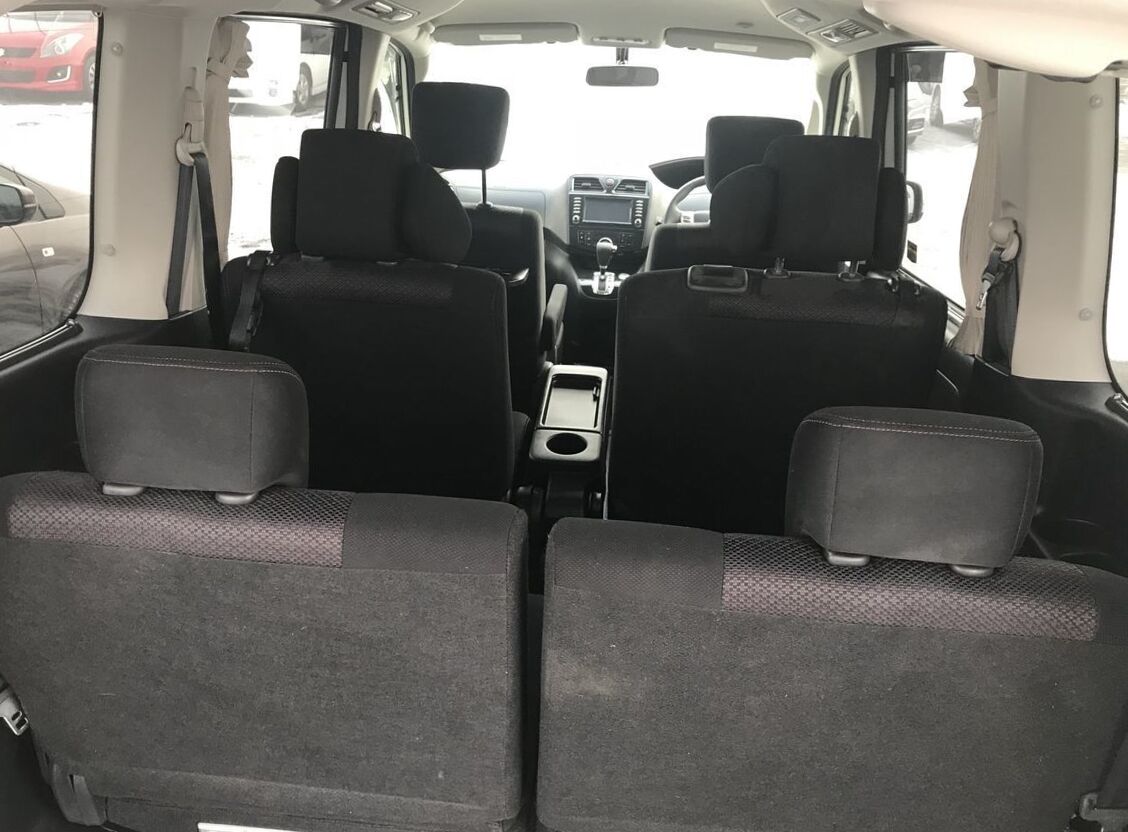

Interior dimensions | |
| Capacity | 8 |
| Seat rows | 3 |
| Interior length, mm | 3060 |
| Interior width, mm | 1480 |
| Interior height, mm | 1380 |
Chassis dimensions | |
| Wheel base, mm | 2860 |
| Front axle length, mm | 1480 |
| Rear axle length, mm | 1485 |
| Turning radius, m | 5.7 |
| Wheel spacing front | 1480 |
| Wheel spacing rear | 1485 |
Weight and permissible load | |
| Mass, kg | 1660 |
| Total weight | 2100 |
Volumes | |
| Fuel tank capacity, l | 60 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |
Tires | |
| Front wheels | 195/60R16 |
| Rear wheels | 195/60R16 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Brakes equipment | no |
Exterior | |
Headlights | |
| Xenon lamps | option |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |

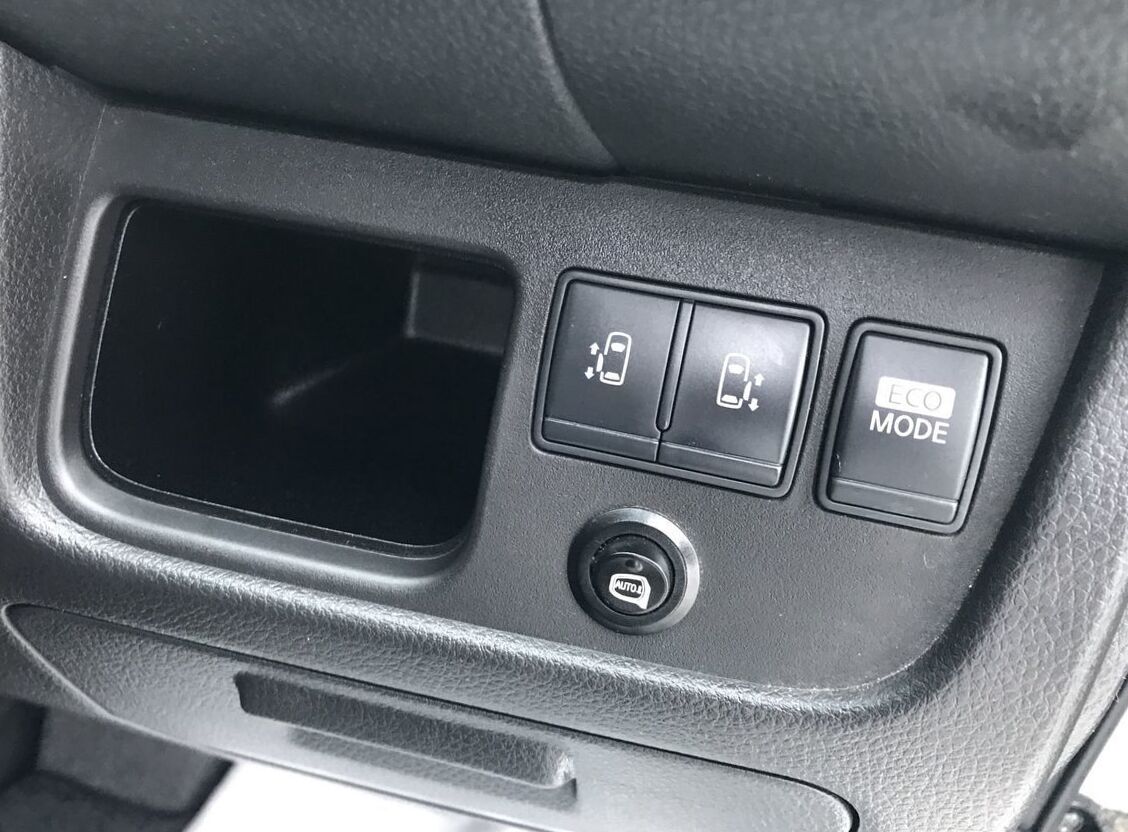

| Sliding electric doors | yes |
| Door easy closer | yes |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | option |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | yes |
| Rear spoiler | yes |
Interior | |

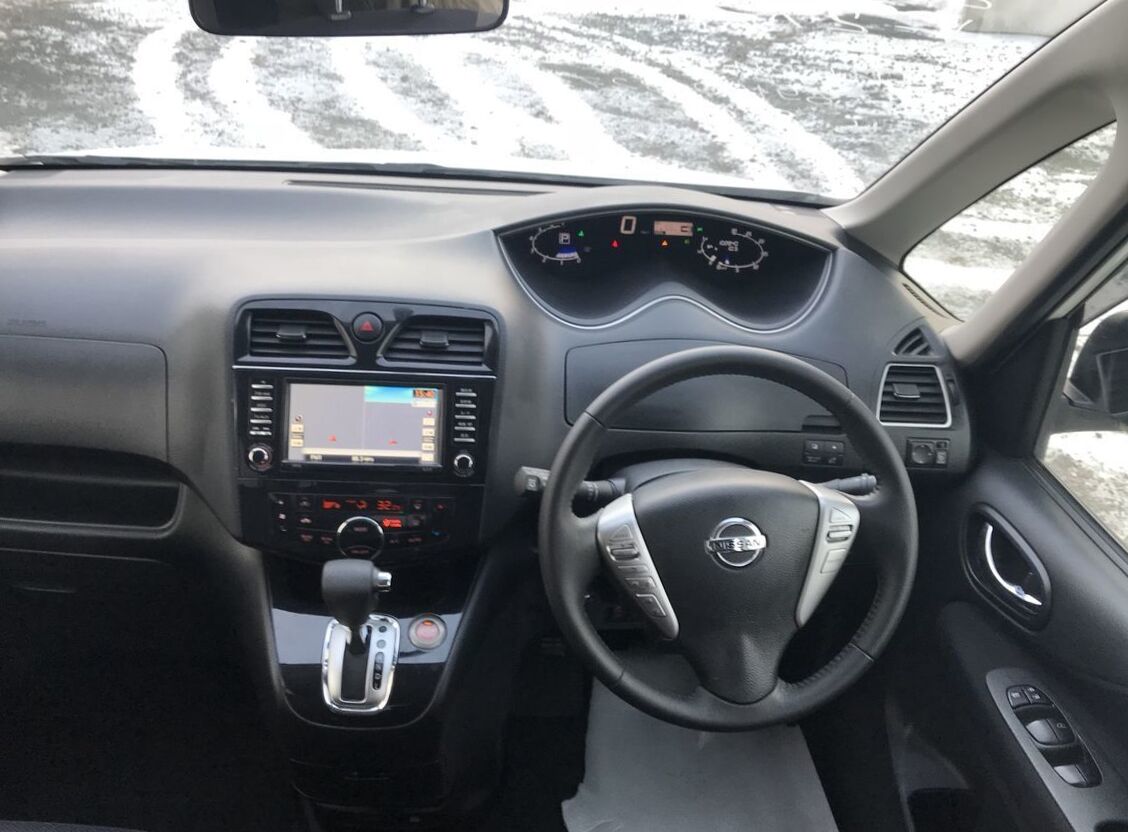

Steering wheel and center panel | |
| Engine start button | yes |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | yes |

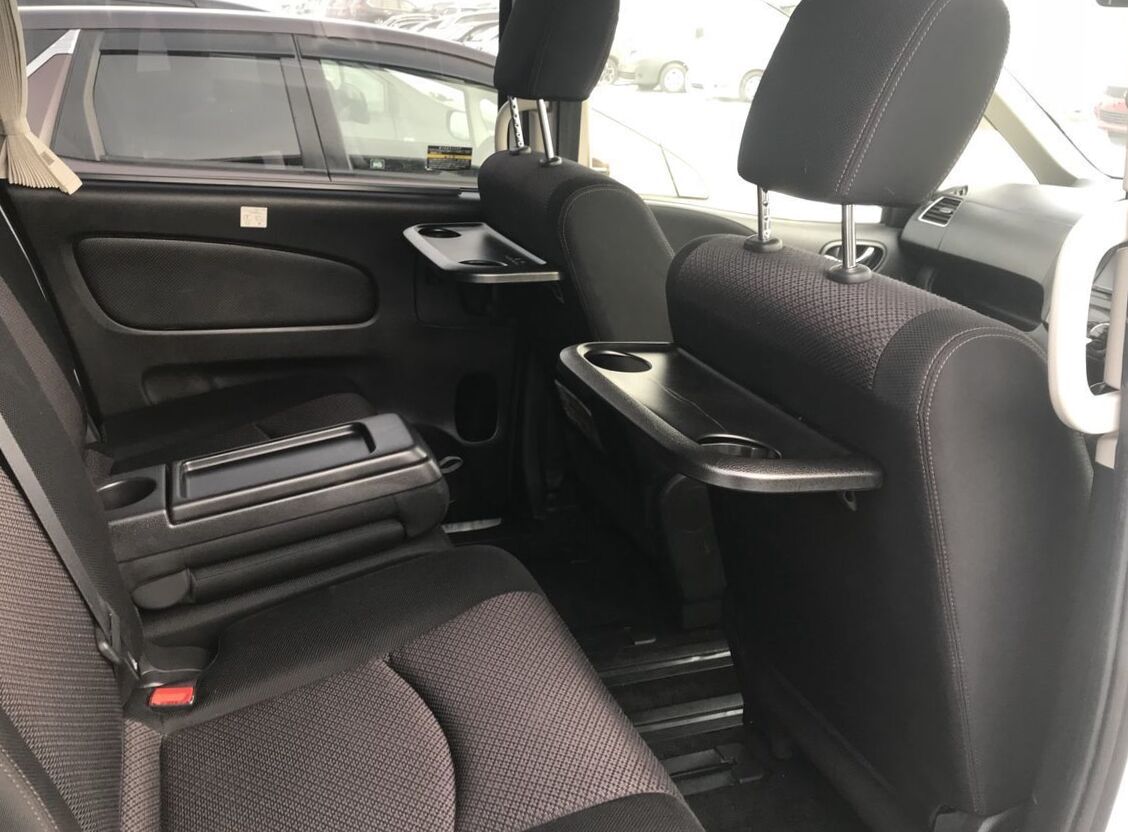

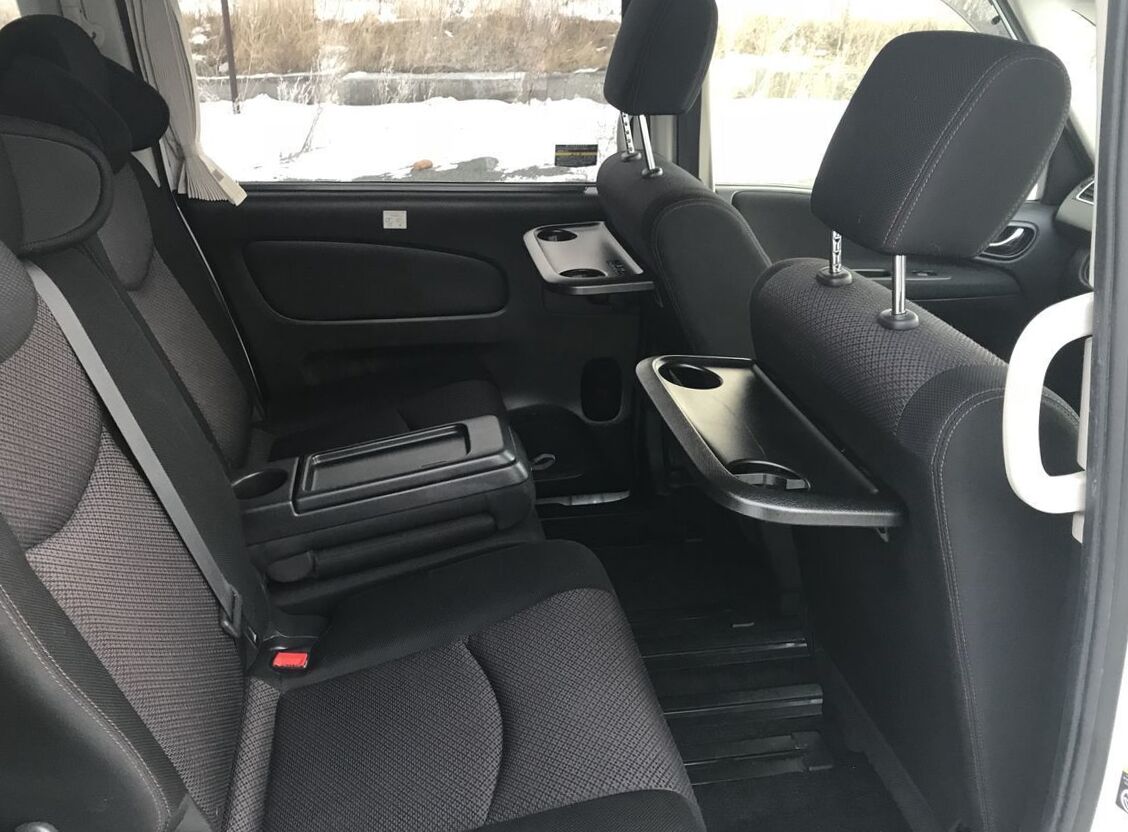

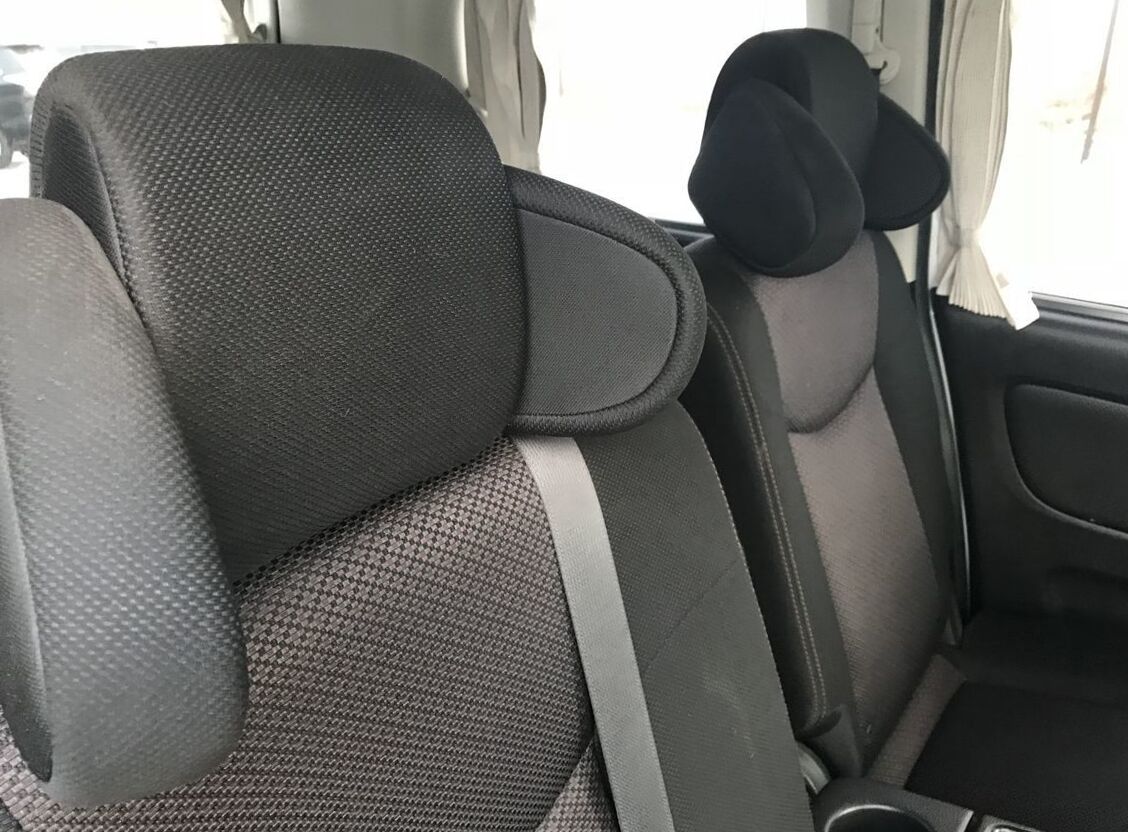

Seats | |
| Bucket seat | no |
| 2nd row | adds up to a 40/20/40 ratio |
| 3nd row | 50/50 ratio fold seat |
| Seat lifter | yes |
| Full flat seats | no |
| Removable seats | yes |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | yes |
| 2nd row throught | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | option |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
| Curtain airbags | option |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | yes |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |

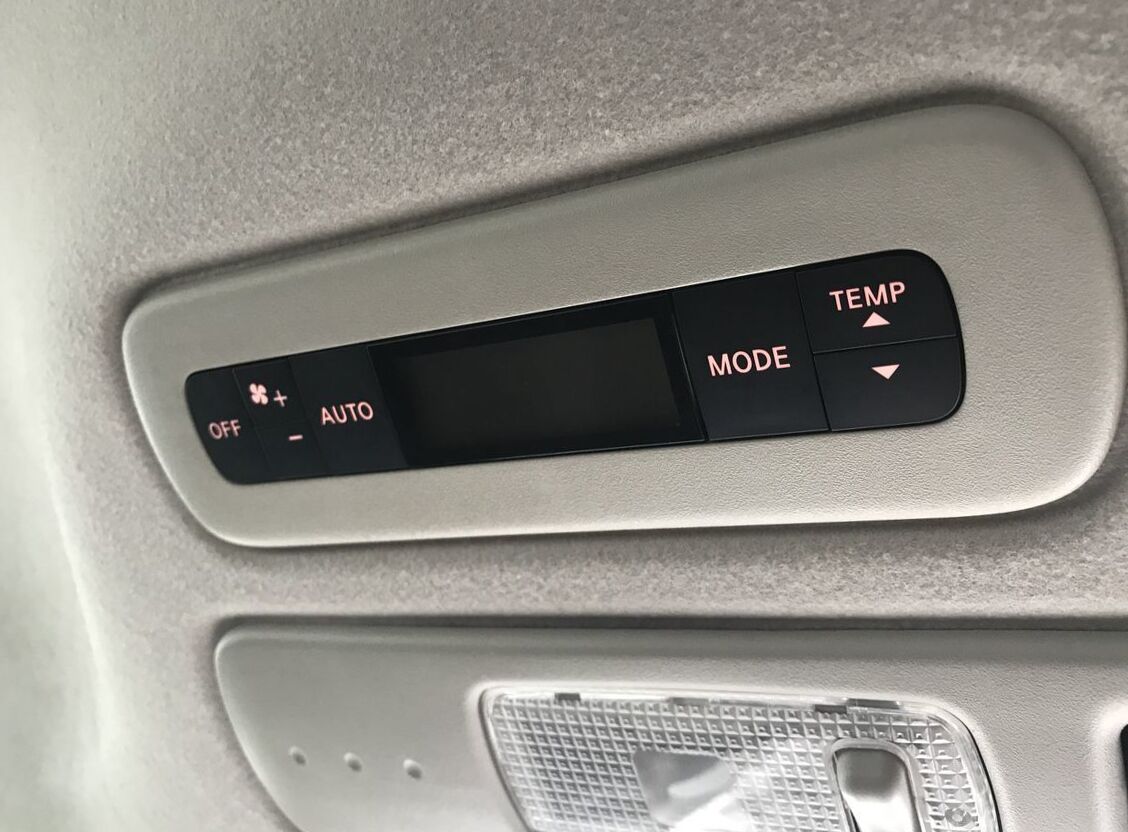

| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |
Audio systems | |
| Radio | option |
| Autoreverse casette | no |
| CD player | option |
| DVD-audio | option |
| MD palyer | no |
| Audio HDD | option |
| Speaker | yes |
| Rear entertainment system | option |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
| Optional navigation system | no |
| Traffic jam assist | option |

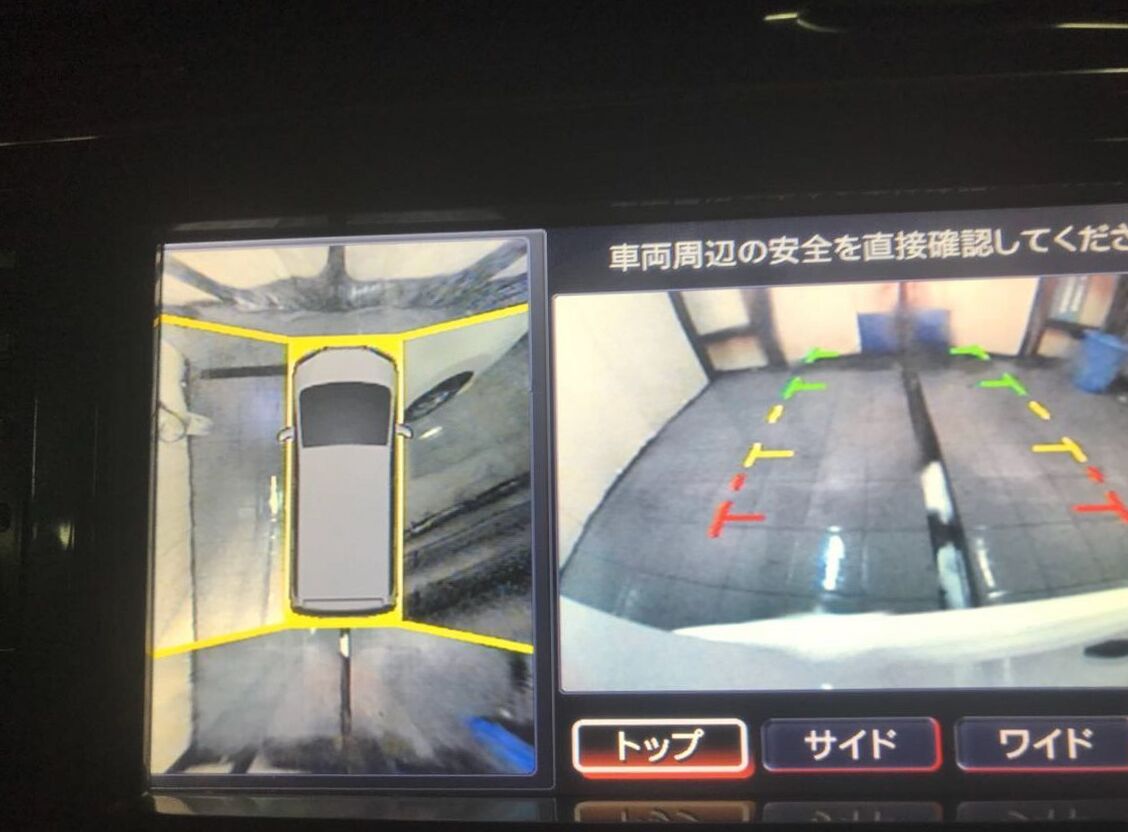

| Parking assist system | option |

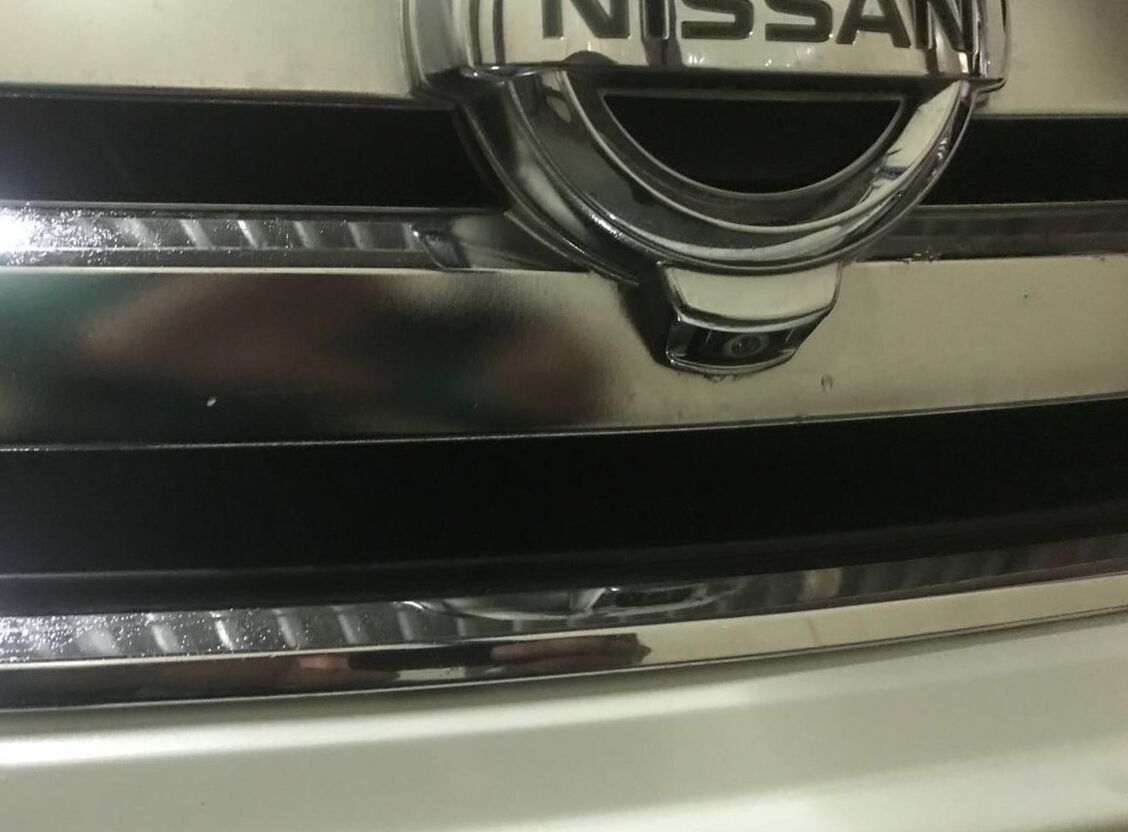

| Front monitor | option |

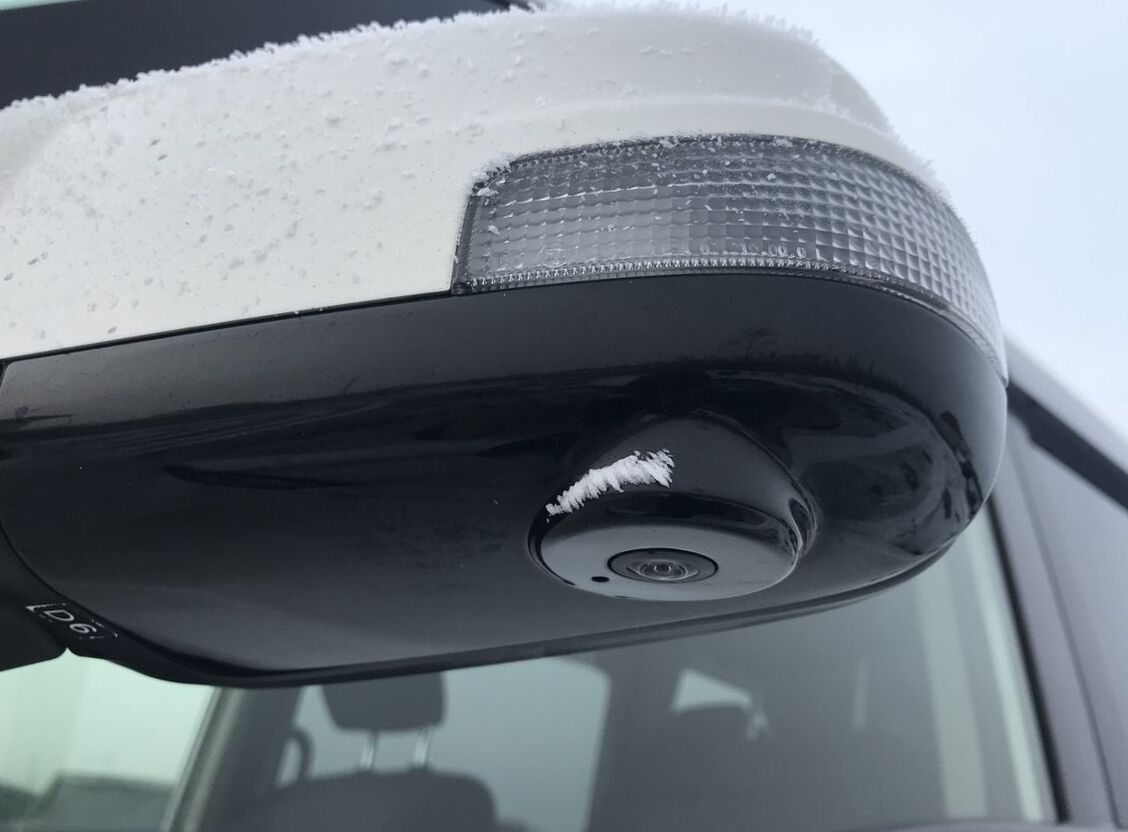

| Sides monitors | option |

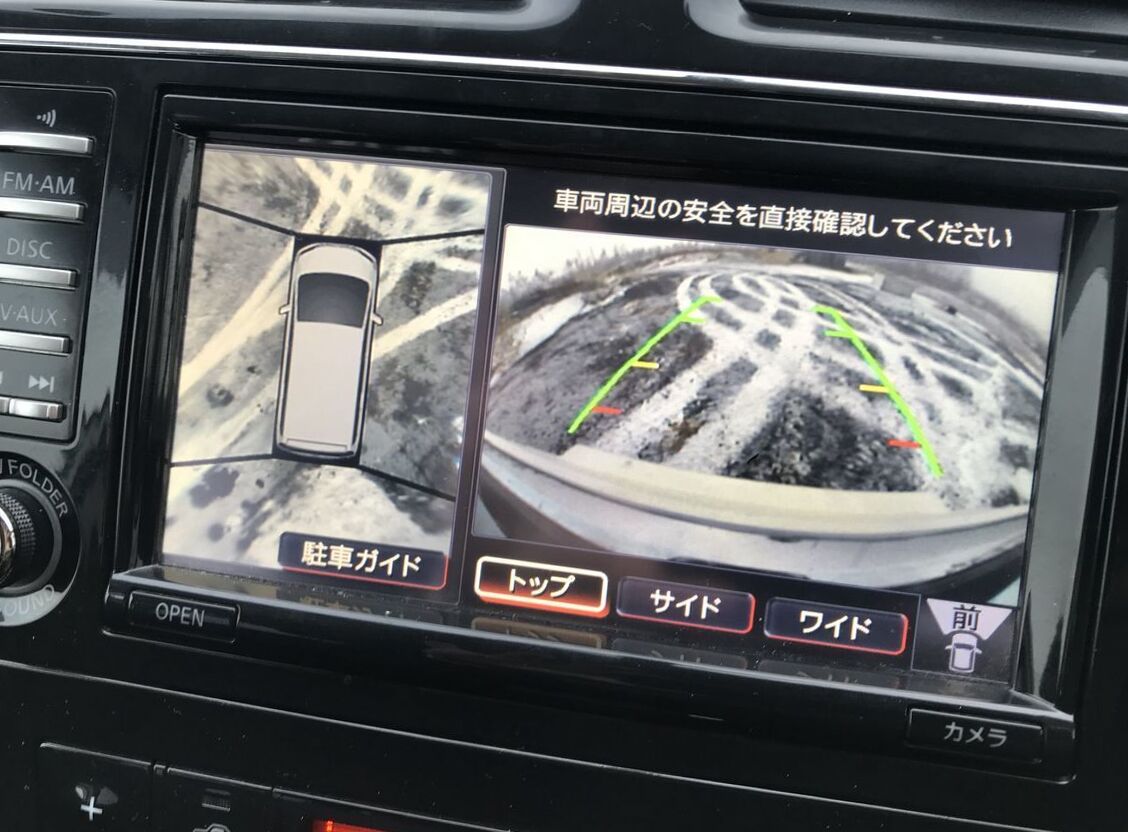

| Back monitor | option |
Additional amenities | |
| Lagage box | yes |
Car safety | |
| Alarm system | yes |
| Security alarm | no |
2013 Nissan Serena IV DAA-HFC26 2.0 Highway Star G S-HYBRID (147 Hp) specs
|
These versions had 1.6 and 2.0 petrol or 2.3 diesel engines. Trim levels were LX, SLX, SGX and SGXi. Until around 2002 the standard petrol engine was an SR20DE. In the early nineties, Nissan produced a version with the turbocharged SR20DET to carry people very rapidly. From 2002 onwards the Serena used the QR20DE and QR25DE. A variety of other engines were used over the years, including diesels specifically the CD20 (for commercial van version) and the CD20T 1973 cc Diesel Turbo for people movers. Models were manufactured in Japan from 1991 onwards, many have now been imported into Australasia and the United Kingdom. Nissan produced many different versions FX, SX etc. Full-Auto (full time) 4WD versions were also produced providing greater stability and better handling. The 2.3 non turbo diesel was never manufactured for the Japanese market and its seating arrangement and interior fittings are not the same as the 2.0 petrol (SR20DE), 2.0 Diesel (CD20) and Turbo Diesel (CD20T) models manufactured in Japan for the local market. » Read More About Nissan Serena |
