More photos of Nissan Serena

Nissan Serena Problems
Electrical and mechanical
2010, catalyst converter problems belt
wobbling when ac is on making noise ac not
cold whe...
A ton of oil disappearing
2013, Car has used over 20 litres of oil in a
year. No sign of leaks or blowing smoke. And
no...
Oil dropping
2013, Oil level dropping with no signs of
leakages Low power up hill Catalytic
converter...

Body typeMinivan
Power147 Hp
Engine Displacement2000 cm3 or 2L or 122 cu-in
Colorsilver
Transmission GearboxAutomatic
Fuel TypeGasoline
Drive wheelFF
Mileage49088 Miles
VinFC26-****95
Price (out of date)$16044

Frequently Asked Questions

What is the body type, 2012 Nissan Serena IV?Minivan, 8 Seats, 5 Doors
How much power, Nissan Serena Minivan 2012?147 Hp
What is the engine size, Nissan Serena DBA-FC26 2012?2L or 1997cm3
How many gears, What type is the gearbox, 2012 Nissan Serena 2.0 Highway Star V selection?Variator
What is the drivetrain, Nissan Serena IV 2012 Minivan 2.0 Highway Star V selection (147 Hp)?Front
How long is this vehicle, 2012 Nissan Serena Minivan 2.0 Highway Star V selection (147 Hp)?4770 mm
How wide is the vehicle, 2012 Nissan Serena IV?1735 mm

Nissan Serena IV DBA-FC26 2.0 Highway Star V selection (147 Hp) 2011, 2012 Specs

General information

Production start year2011
Production end year2012
Drive typeFront
Frame typeMinivan
Transmission typeVariator
Engine volume, cc1997
Frame nameDBA-FC26
Clearance, mm160
Manufacturing countryJapan
Doors5
Winter complectationoption
Steering locatonright

Vehicle generation

Generation nameC26
Generation number4
Production start year2010
Production end year2013

Engine, transmission and steering specs

Engine specs

Engine nameMR20DD
FuelPetrol (Gasoline)
Engine type4 cylinder DOHC
Has turbono
Max power, hp147
Max power RPM, rpm5600
Max power, hp (kWt) / rpm147(108)/5600
Max torque, N*m210
Max torque RPM, rpm4400
Max torque, N*m (kg*m) / rpm210 (21.4) / 4400
Eco type2005 emission regulation 75% reduction
Variable cylinder systemno
Max power, kw (ps) / rpm108?147?/5600
Max torque, N*m (kg*m) / rpm (carsensor)210?21.4?/4400

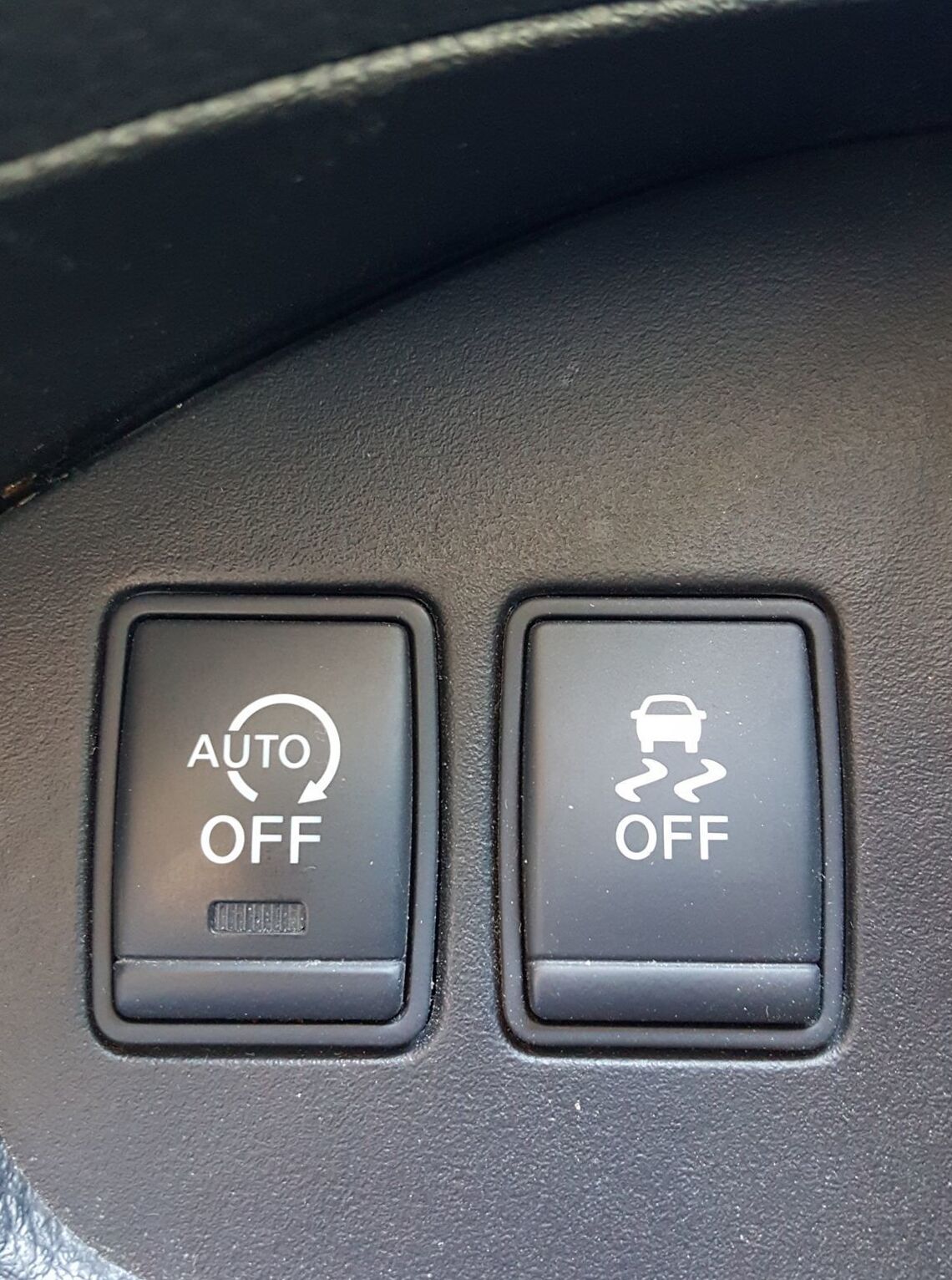

Start stop systemyes

Fuel consumption

Achieve fuel efficiency standardsCompliance with 2010 fuel consumption standard +25%
Fuel consumption (10/15 mode), km/l15.4
Fuel consumption (10/15 mode), l/100km6.5

Transmission

Shifter positionOn the dashboard

Steering

Power steeringno
Electric power steeringyes
Steereing gear typeGear rail
Steering vgs vgrsno

Dimensions

Frame dimensions

Exterior length, mm4770
Exterior width, mm1735
Exterior height, mm1865
Exterior size (L x W x H), mm4770x1735x1865?mm?

Interior dimensions

Capacity8
Seat rows3
Interior size (L x W x H), mm3060x1480x1380?mm?
Interior length, mm3060
Interior width, mm1480
Interior height, mm1380

Chassis dimensions

Wheel base, mm2860
Front axle length, mm1480
Rear axle length, mm1485
Turning radius, m5.7
Front/rear axis length1480/1485?mm?
Wheel spacing front1480
Wheel spacing rear1485

Weight and permissible load

Mass, kg1640
Total weight2080

Volumes

Fuel tank capacity, l60

Suspension specs

Suspension specs

Front suspensionIndependent, Spring McPherson
Rear suspensionSemi-independent, torsion bar
Sport suspensionno
Low downno
Air suspensionno
Cenral diff lockno
LSDno
4wsno

Wheel rims

Aluminium wheelyes
Magnesium wheelsno

Tires

Front wheels195/60R16
Rear wheels195/60R16
Run flat tiresno

Brakes

Front brakeVentilated discs
Rear brakeDiscs
Brakes equipmentno
Brake front search1
Rear brake1

Exterior

Headlights

Xenon lampsoption
Head lights washerno
Front fog lampsyes
Rear fog lampsno
Rain sensorno

Side mirrors

autocorrected mirrorsno

Doors

Side sliding doorno
Sliding doorsno
Sliding electric doorno
Sliding electric doorsyes
Door easy closeryes
Power rear doorno

Windows

Privacy glassyes
Ultraviolet glass protectionyes

Roof

Sunroofno
Big sunroofoption
T bar roofno
Roof equipmentno
Targa roofno
Hard topno
Soft topno
Metal topno
Canvas topno

Accessories

Roof railno
Front spoileryes
Rear spoileryes

Body color

Colors2938 2539 2548

Interior

Steering wheel and center panel

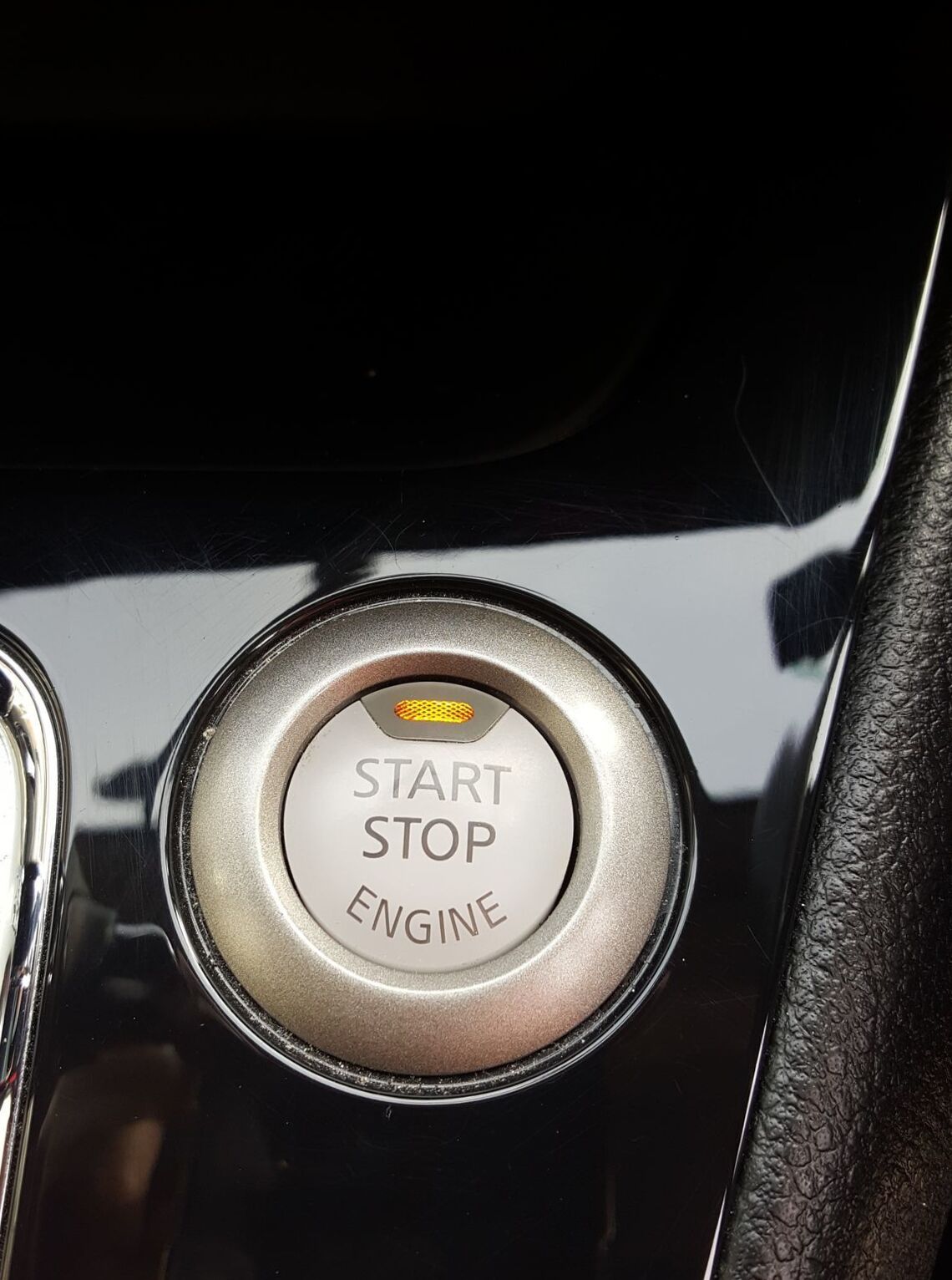

Engine start buttonyes

Interior design

Water-repellentno
Leather seatno
Antibacterial repellentyes

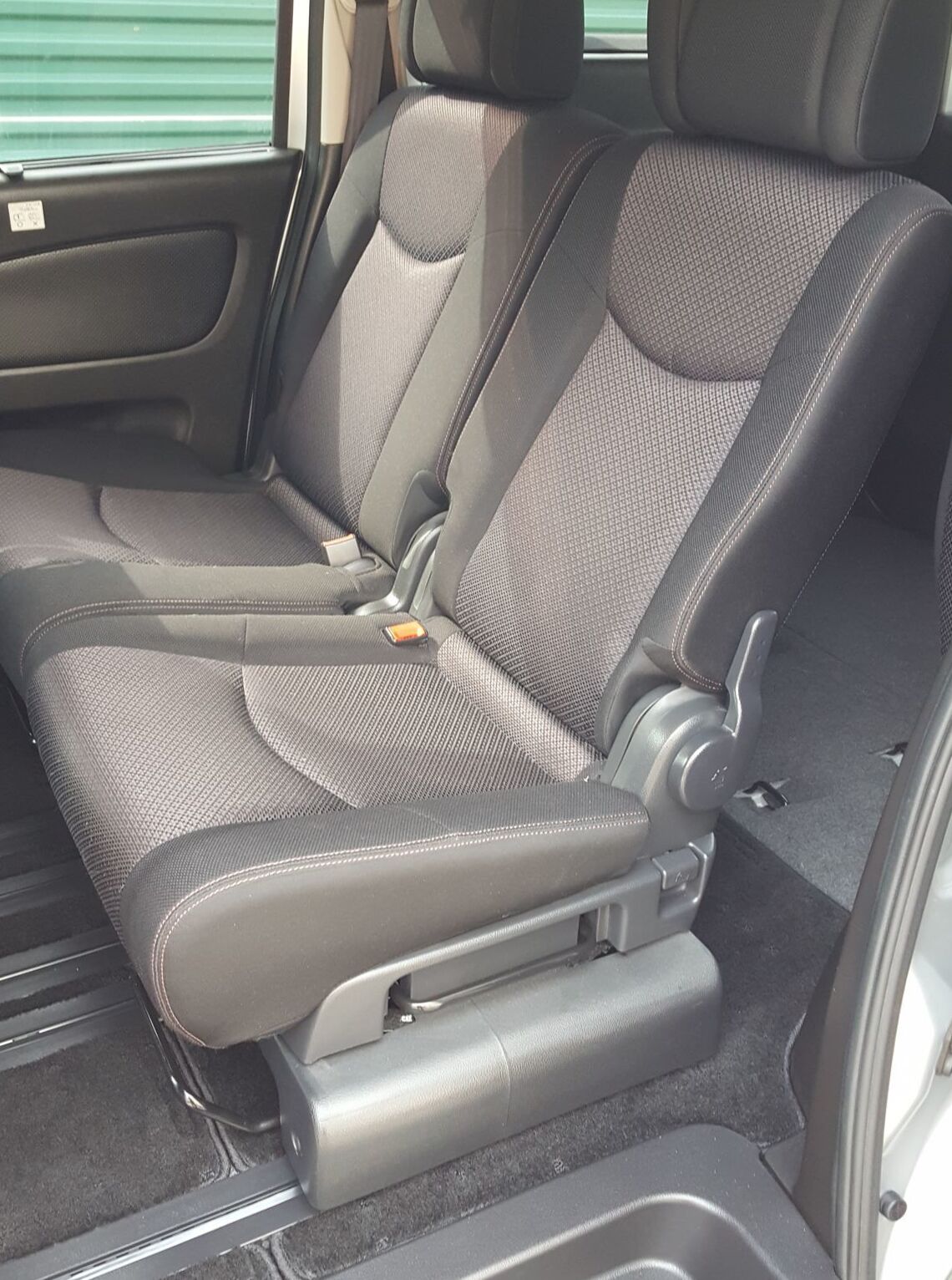

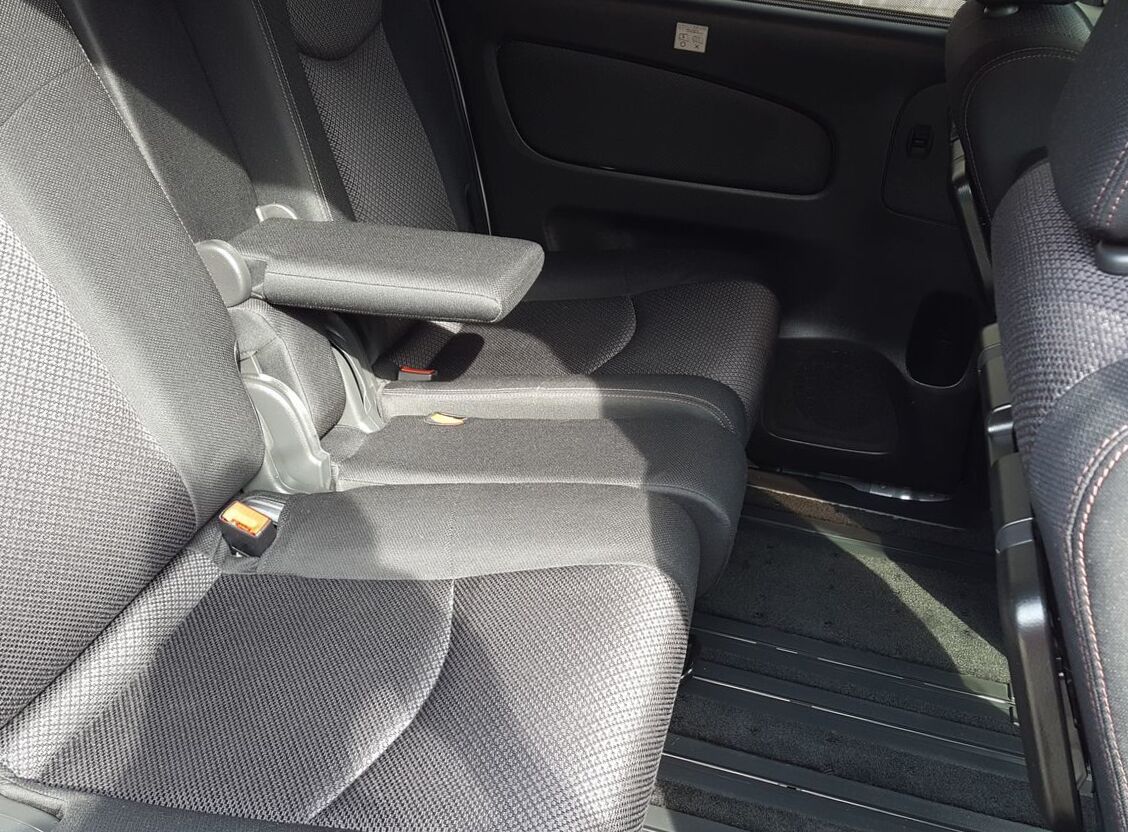

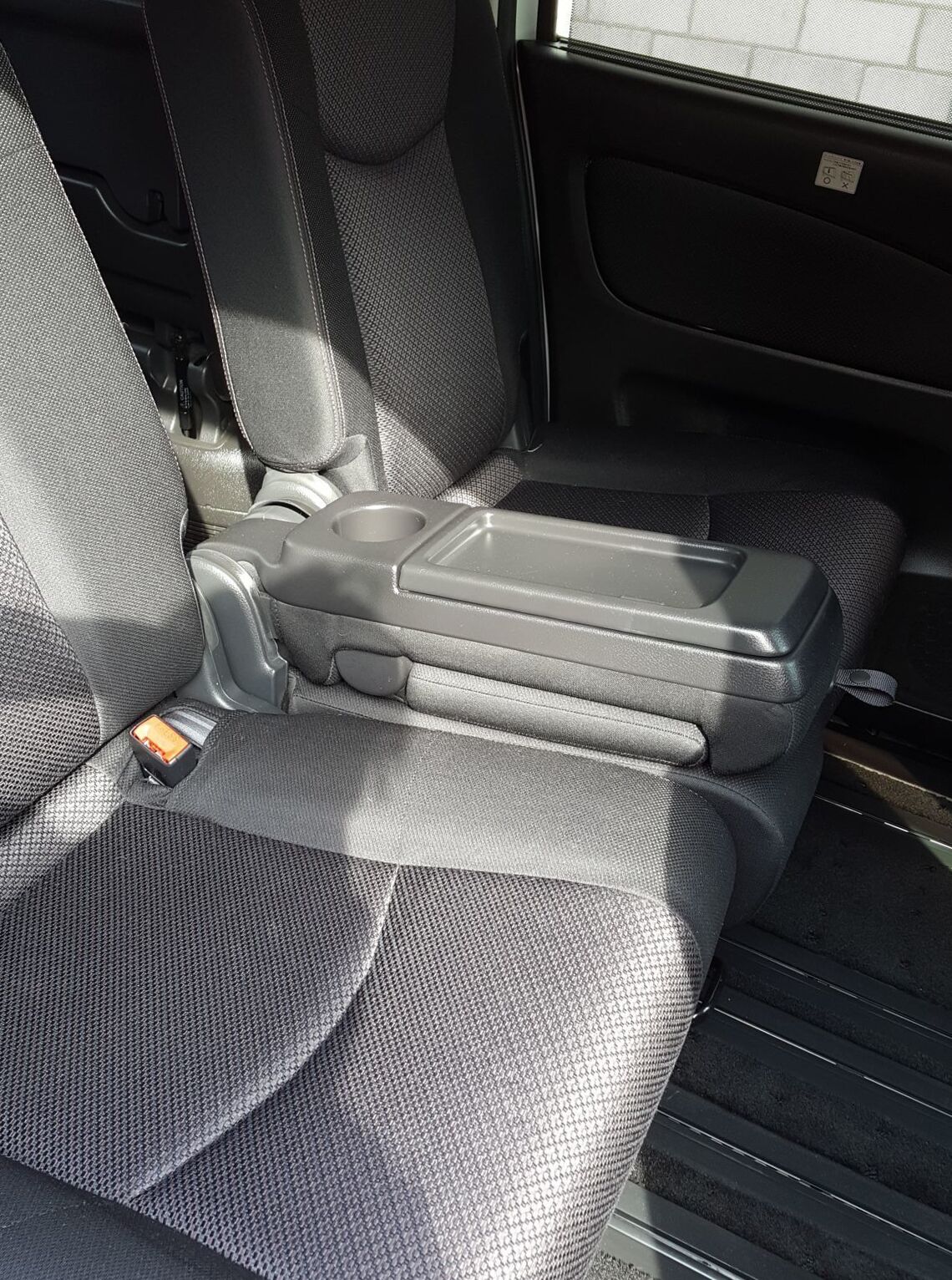

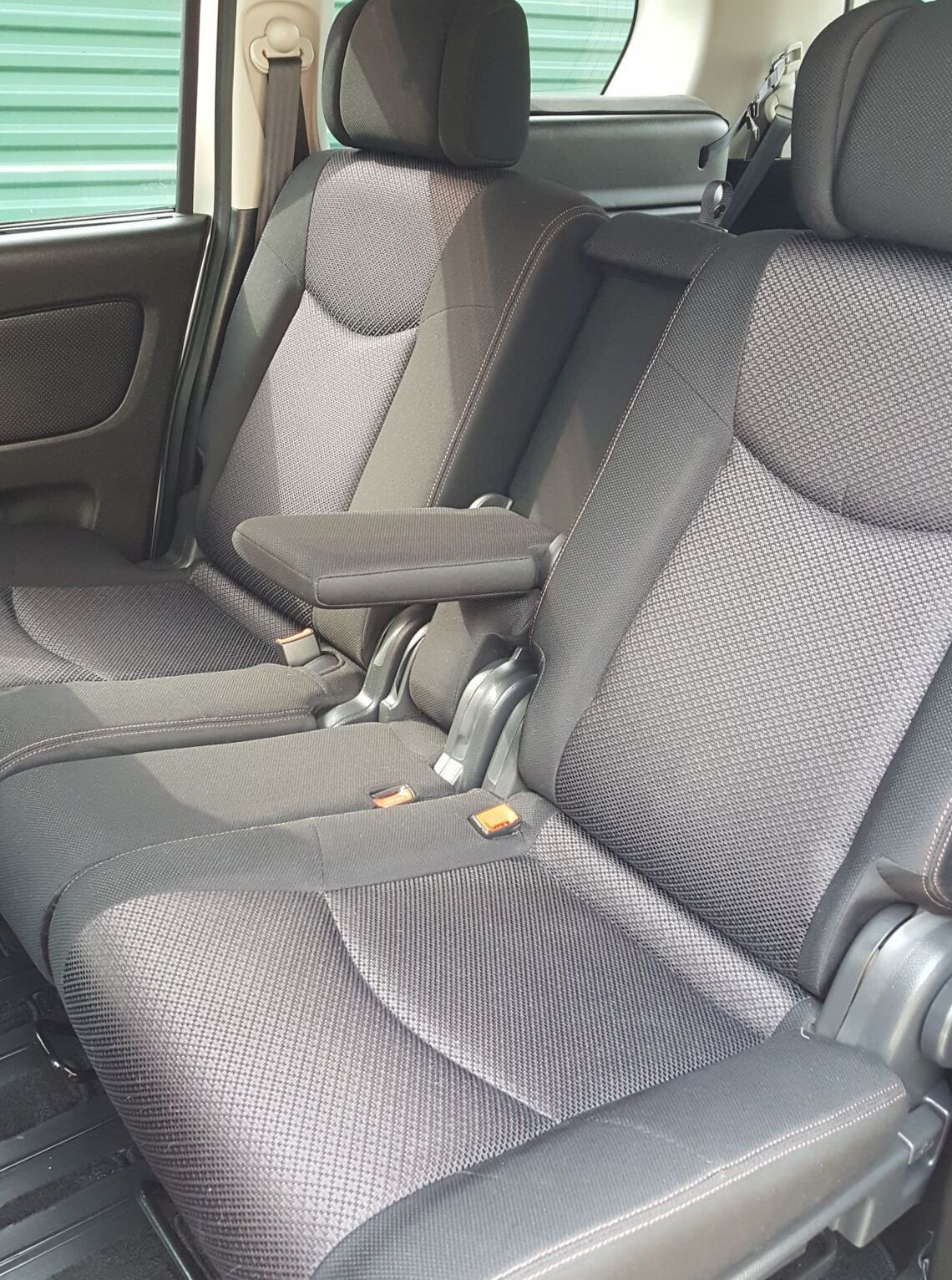

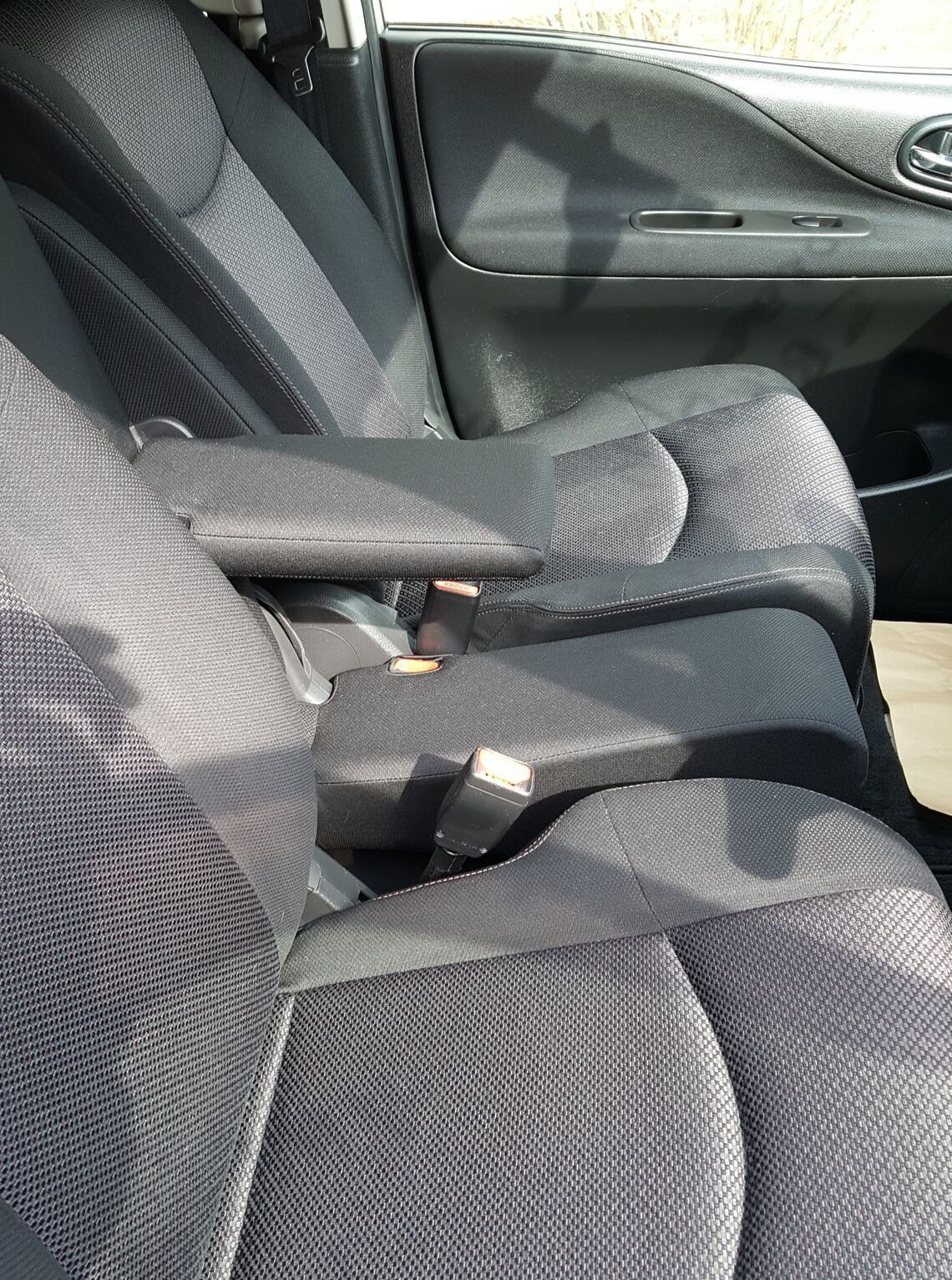

Seats

Bucket seatno

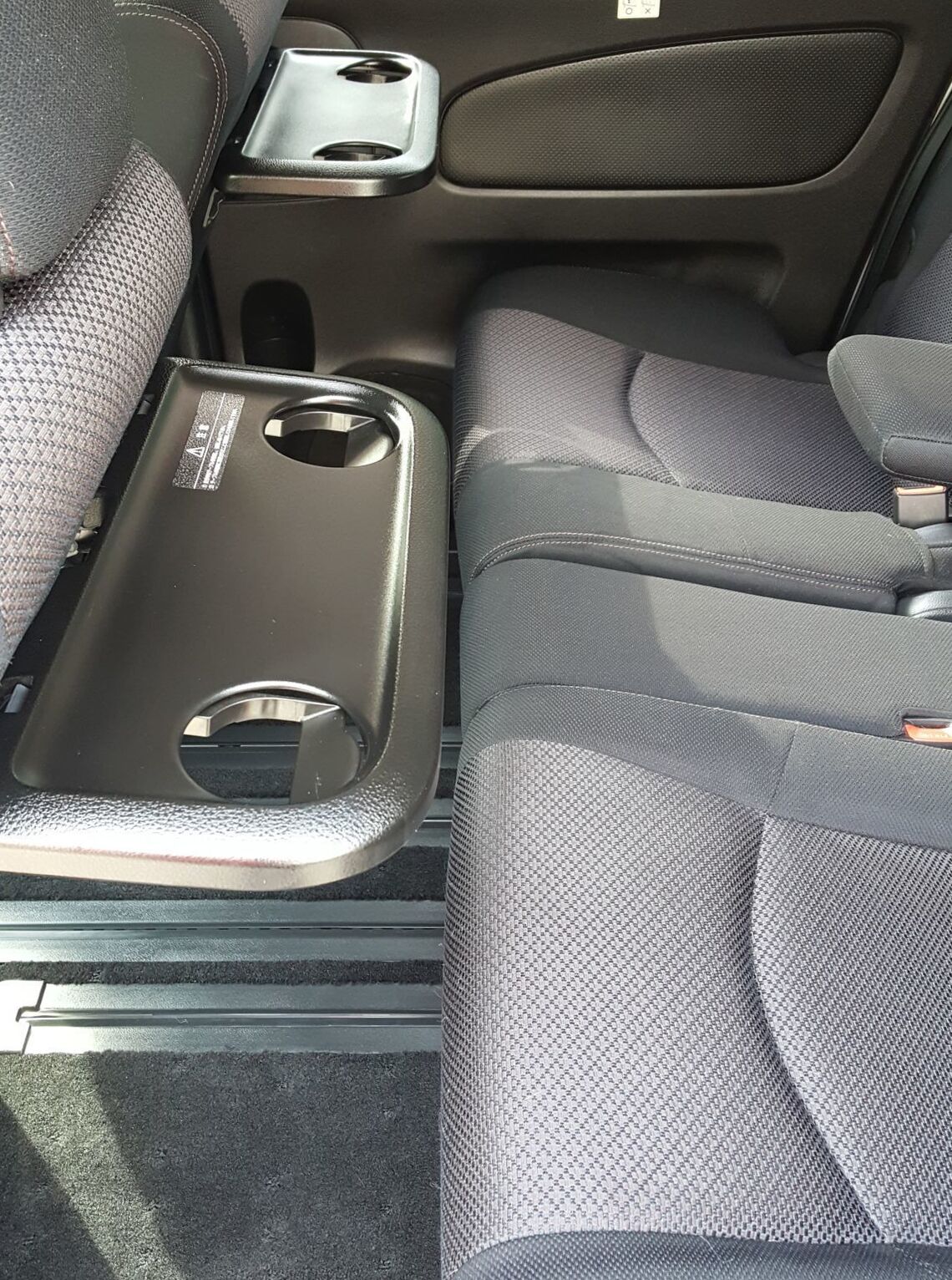

2nd rowadds up to a 40/20/40 ratio
3nd row50/50 ratio fold seat
Seat lifteryes
Full flat seatsno
Removable seatsyes
Ottoman seatno
Front bench seatno
Walk throughtyes
2nd row throughtyes

Electric interior package

Power adjustable driver seatno
Power ajustable front seatno
Adjustable 3rd rowno
Front seat heaterno
Rear seats heaterno
Seat position memoryno

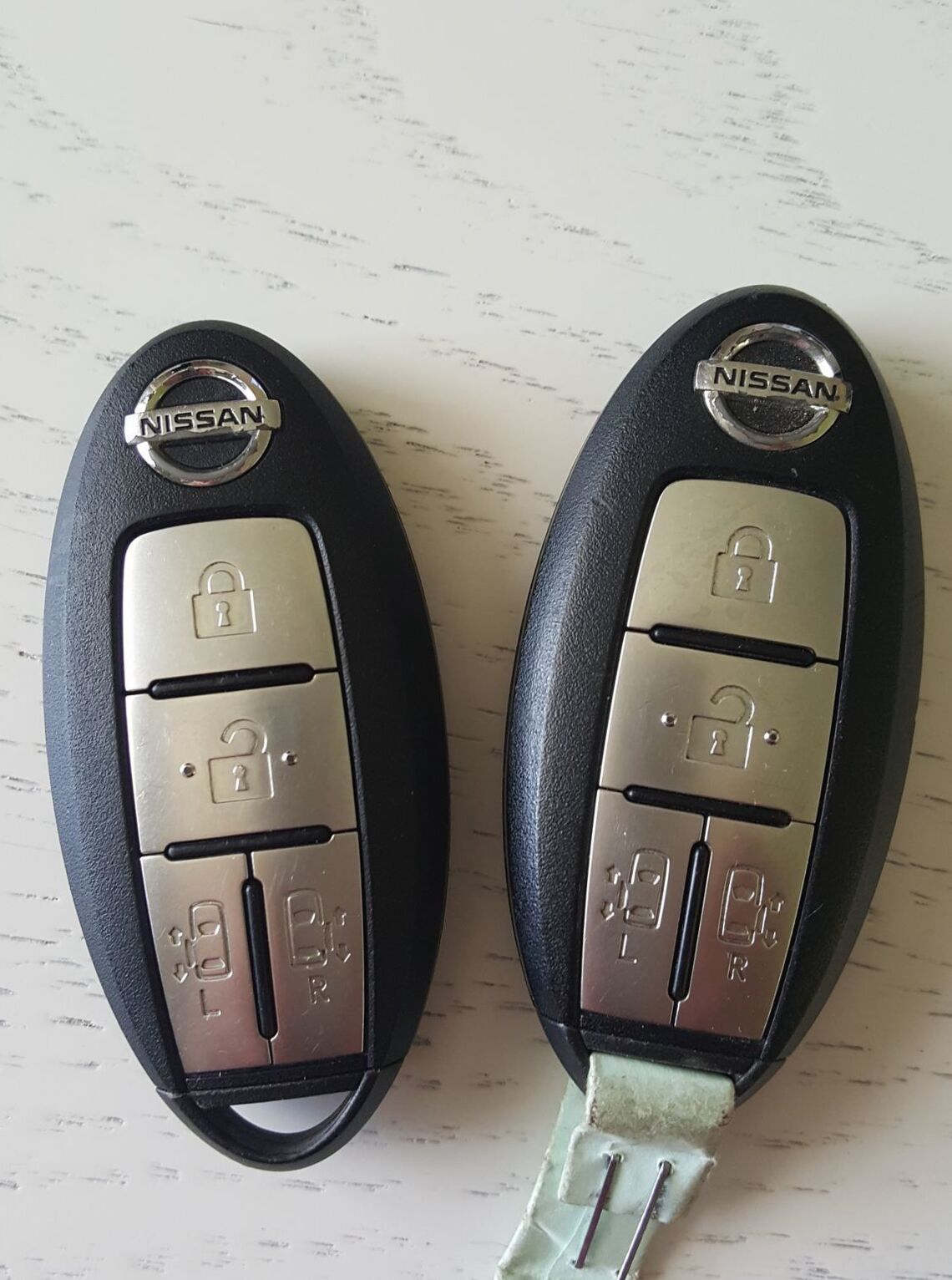

Keyless enteryes
Power windowyes
Stearing wheel heaterno

Additional interior equipment

AC plugoption

Safety

Airbags

Drivers airbagyes
Passengers airbagyes
Side airbagoption
Curtain airbagsoption
2 airbagsno

Children safety

isofix baryes
Build-in child seatno

Active and passive safety

Active headrestyes
Road Service

Electronic security and traffic control systems

ABSyes
Break assistyes
ESPyes
traction controlyes
Down hill assistno
AYCno
SH-4WDno
Lane Keep Assistno
Cruise controlyes
Distance control systemno
Intelligent AFSno
Night visionno
Parktronicno
Intelligent parking assistno
Collision mitigation systemno

Amenity

Microclimate

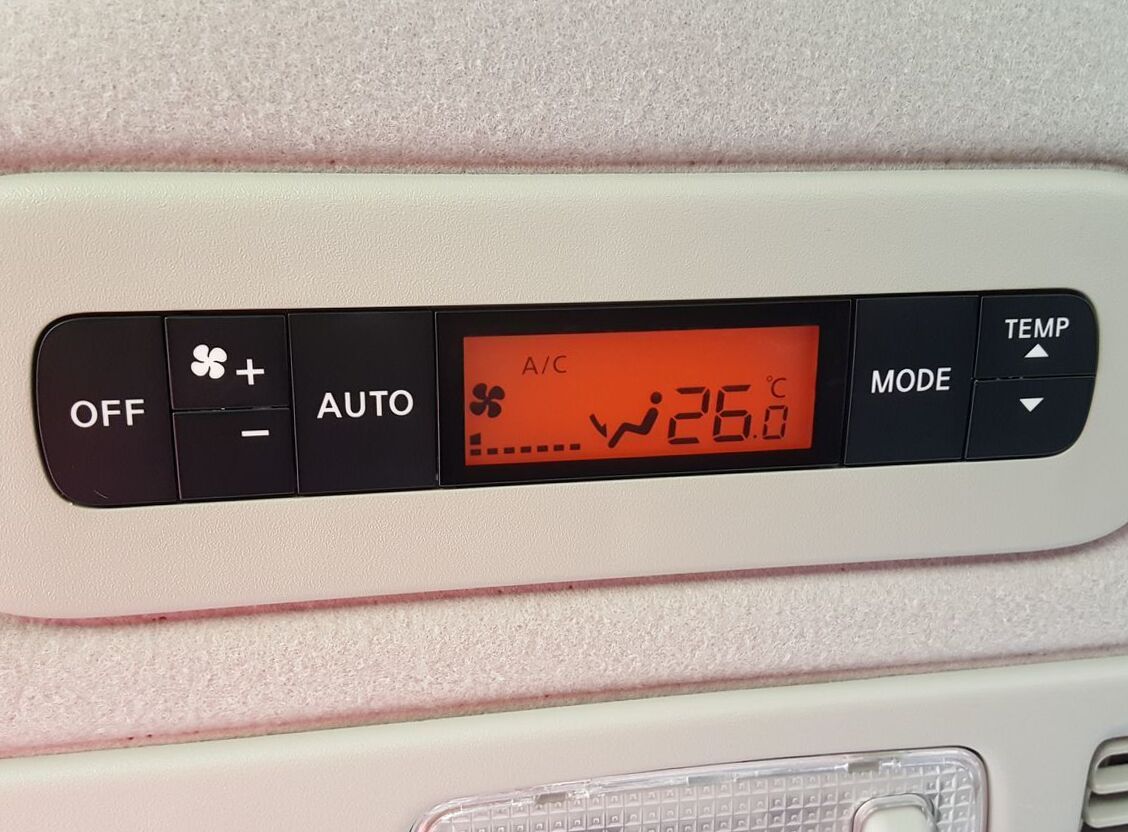

Air conditioneryes
Air purifierno
Humidifierno
Air filteryes
Odor absorberno

Audio systems

Radiooption
Autoreverse casetteno
CD playeroption
DVD-audiooption
MD palyerno
Audio HDDoption
Speakeryes
Rear entertainment systemoption

Navigation and video equipment

Full color LCD displayoption
Navigation systemoption
Optional navigation systemno
Parking assist systemoption
Front monitoroption
Sides monitorsoption

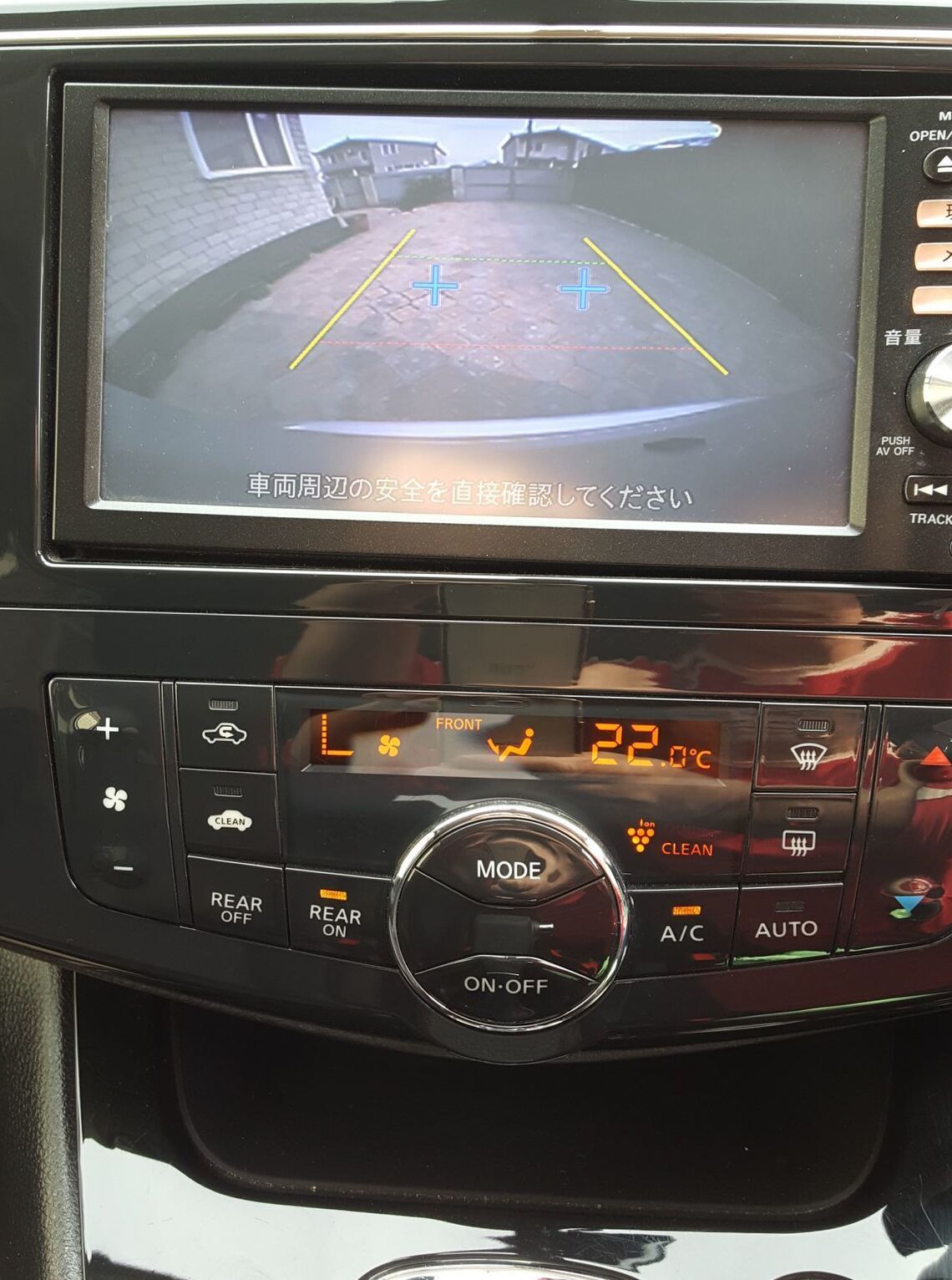

Back monitoroption

Additional amenities

Lagage boxyes
Etcoption

Car safety

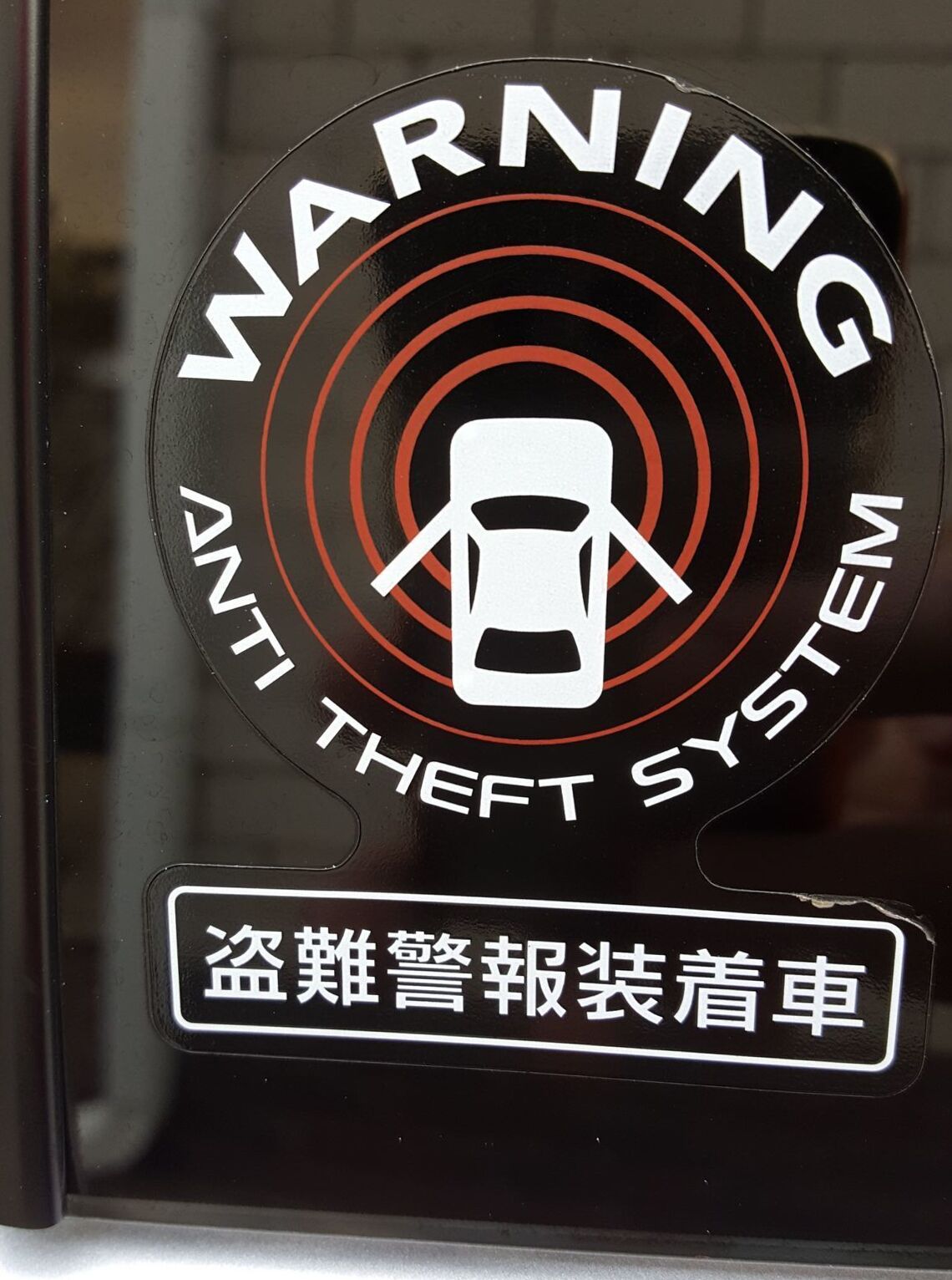

Alarm systemyes
Security alarmno


2012 Nissan Serena IV DBA-FC26 2.0 Highway Star V selection (147 Hp) specs

The Nissan Serena started life as a very small people carrier, but grew larger over time. Earlier versions were FR layout with a live axle mounted on leaf springs. Later versions had a multilink independent rear suspension, and were FF layout or 4WD. The most popular versions were the 2.3 diesel engines and it was unusual as the MPV had 8 seats instead of the usual 7.


These versions had 1.6 and 2.0 petrol or 2.3 diesel engines. Trim levels were LX, SLX, SGX and SGXi.

Until around 2002 the standard petrol engine was an SR20DE. In the early nineties, Nissan produced a version with the turbocharged SR20DET to carry people very rapidly. From 2002 onwards the Serena used the QR20DE and QR25DE. A variety of other engines were used over the years, including diesels specifically the CD20 (for commercial van version) and the CD20T 1973 cc Diesel Turbo for people movers.

Models were manufactured in Japan from 1991 onwards, many have now been imported into Australasia and the United Kingdom. Nissan produced many different versions FX, SX etc. Full-Auto (full time) 4WD versions were also produced providing greater stability and better handling. The 2.3 non turbo diesel was never manufactured for the Japanese market and its seating arrangement and interior fittings are not the same as the 2.0 petrol (SR20DE), 2.0 Diesel (CD20) and Turbo Diesel (CD20T) models manufactured in Japan for the local market.
