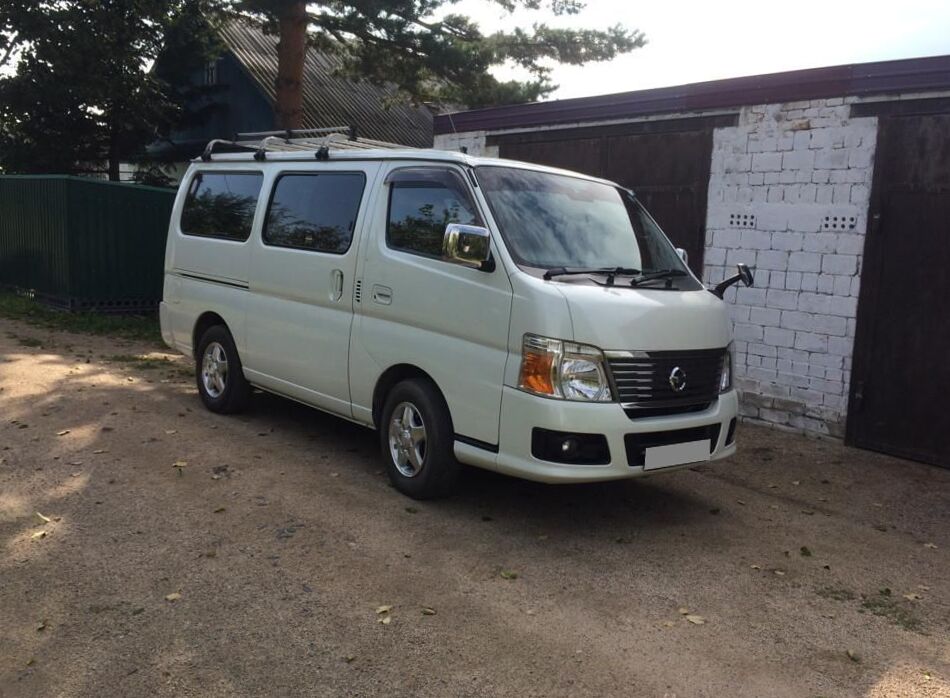

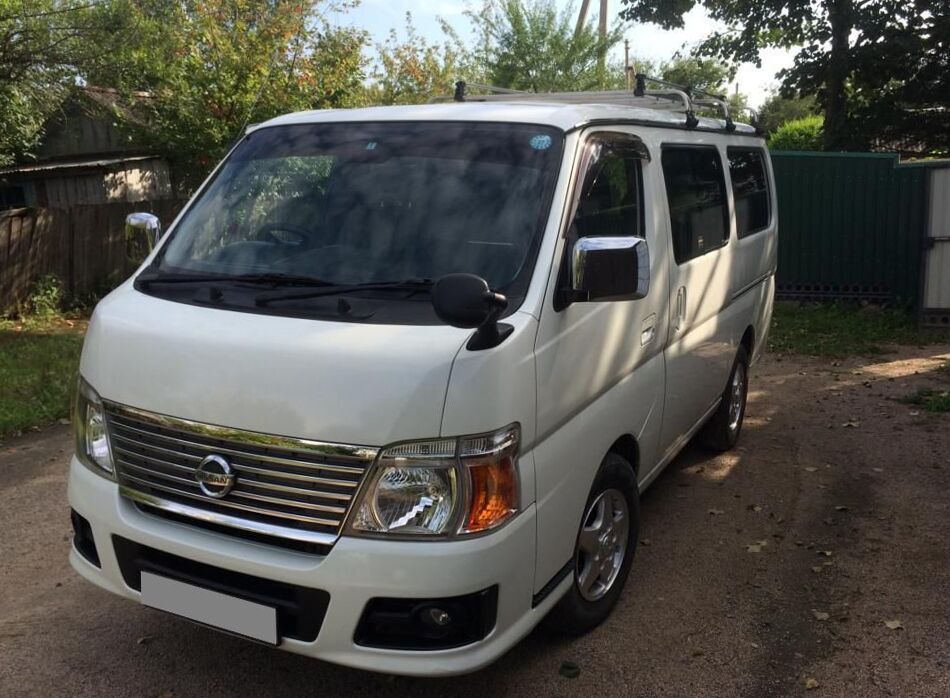

2009 Nissan Caravan IV 2.0 DX long body
Nissan Caravan Problems
When I start the car it cut off
2006, The car cuts off when I start it It only
run for just minutes and it just cut off If y...
Gear box failing to engage properly
2008, Gear box not engaging smoothly, gear 3
delay to engage. Other gears engage properly. I
h...
Nissan Caravan QD32
2002, The engine is starting well but failing
to rave even I depress the accelerator down.
The...
| Body type | Minivan |
|---|---|
| Power | 130 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FR or RR |
| Vin | VRE25-****87 |
| Price (out of date) | $13291 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2009 Nissan Caravan IV? | Commercial van, 6 Seats, 5 Doors |
| How much power, Nissan Caravan Commercial van 2009? | 130 Hp |
| What is the engine size, Nissan Caravan CBF-VRE25 2009? | 2L or 1998cm3 |
| How many gears, What type is the gearbox, 2009 Nissan Caravan 2.0 DX long body? | Automatic transmission 5 |
| What is the drivetrain, Nissan Caravan IV 2009 Commercial van 2.0 DX long body (130 Hp)? | Rear |
| How long is this vehicle, 2009 Nissan Caravan Commercial van 2.0 DX long body (130 Hp)? | 4695 mm |
| How wide is the vehicle, 2009 Nissan Caravan IV? | 1690 mm |
Nissan Caravan IV CBF-VRE25 2.0 DX long body (130 Hp) 2009, 2010 Specs
General information | |
|---|---|
| Production start year | 2009 |
| Production end year | 2010 |
| Drive type | Rear |
| Frame type | Commercial van |
| Transmission type | Automatic transmission 5 |
| Engine volume, cc | 1998 |
| Frame name | CBF-VRE25 |
| Clearance, mm | 170 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | yes |
| Steering locaton | right |
Vehicle generation | |
| Generation name | E25 |
| Generation number | 4 |
| Production start year | 2001 |
| Production end year | 2012 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | QR20DE |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 130 |
| Max power RPM, rpm | 5600 |
| Max power, hp (kWt) / rpm | 130(96)/5600 |
| Max torque, N*m | 178 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 178 (18.1) / 4400 |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 96?130?/5600 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 178?18.1?/4400 |
| Start stop system | no |
Fuel consumption | |
| Fuel consumption (10/15 mode), km/l | 9.4 |
| Fuel consumption (10/15 mode), l/100km | 10.6 |
Transmission | |
| Shifter position | On the steering column |
Steering | |
| Power steering | yes |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4695 |
| Exterior width, mm | 1690 |
| Exterior height, mm | 1990 |
| Exterior size (L x W x H), mm | 4695x1690x1990?mm? |
Interior dimensions | |
| Capacity | 6 |
| Seat rows | 2 |
| Interior size (L x W x H), mm | -x-x-?mm? |
Chassis dimensions | |
| Wheel base, mm | 2415 |
| Front axle length, mm | 1470 |
| Rear axle length, mm | 1450 |
| Turning radius, m | 4.9 |
| Front/rear axis length | 1470/1450?mm? |
| Wheel spacing front | 1470 |
| Wheel spacing rear | 1450 |
Weight and permissible load | |
| Mass, kg | 1740 |
| Total weight | 3020 |
| Max capacity | 1200 |
Volumes | |
| Fuel tank capacity, l | 65 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent on double wishbones |
| Rear suspension | Dependent, spring loaded |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | no |
| Magnesium wheels | no |
Tires | |
| Front wheels | 195/80R15 103/101LLT |
| Rear wheels | 195/80R15 107/105LLT |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brakes equipment | no |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Head lights washer | no |
| Front fog lamps | option |
| Rear fog lamps | no |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |

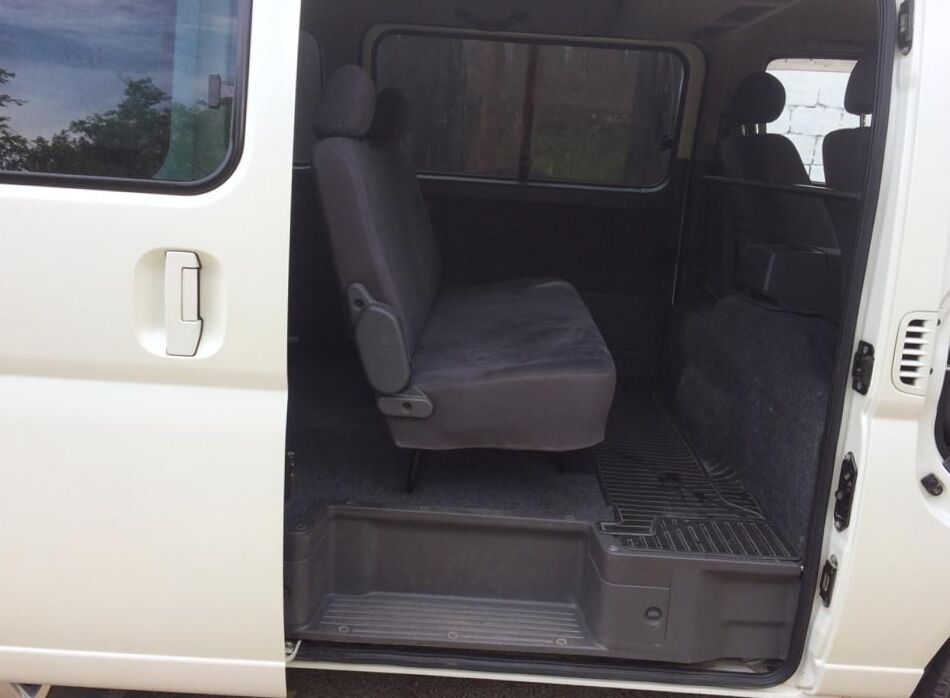

| Sliding doors | yes |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | option |
| Power rear door | no |
Windows | |
| Privacy glass | option |
| Ultraviolet glass protection | option |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
Body color | |
| Colors | 2935 2548 2630 1300 2816 |
Interior | |
Steering wheel and center panel | |
| Engine start button | no |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |
Seats | |
| Bucket seat | no |

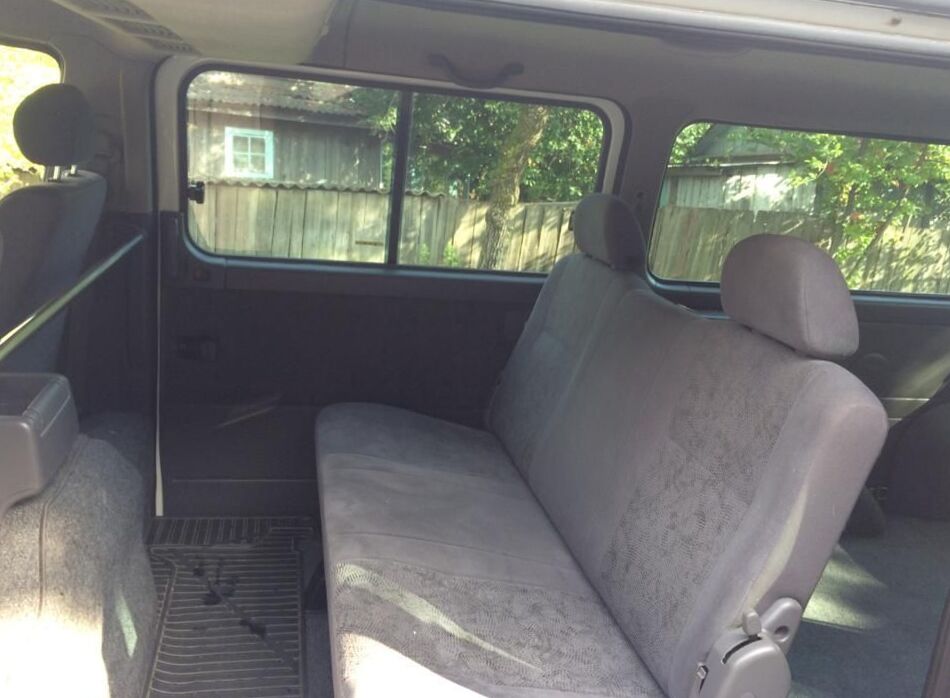

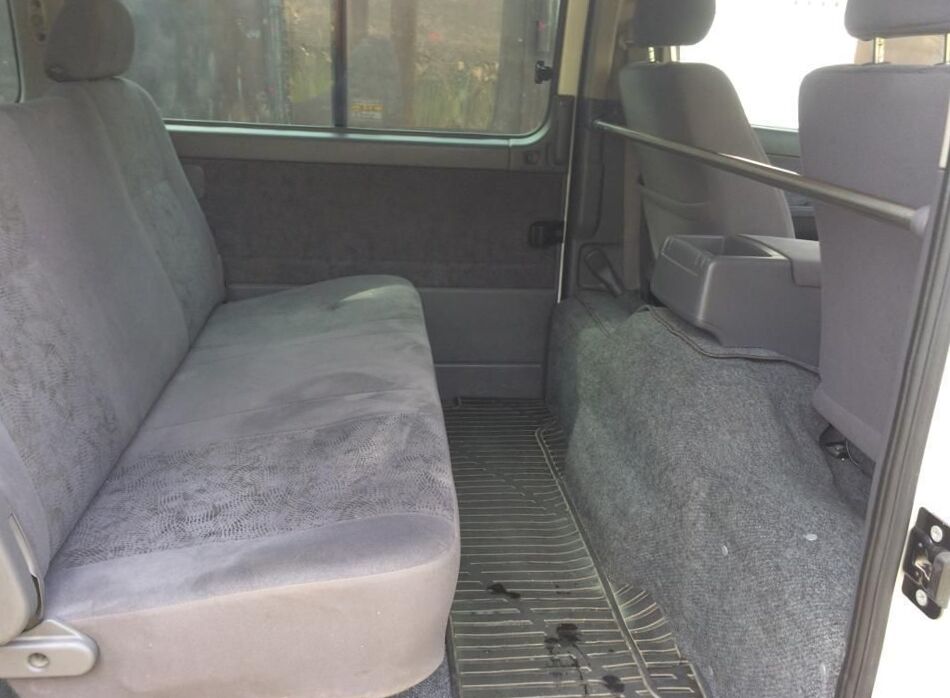

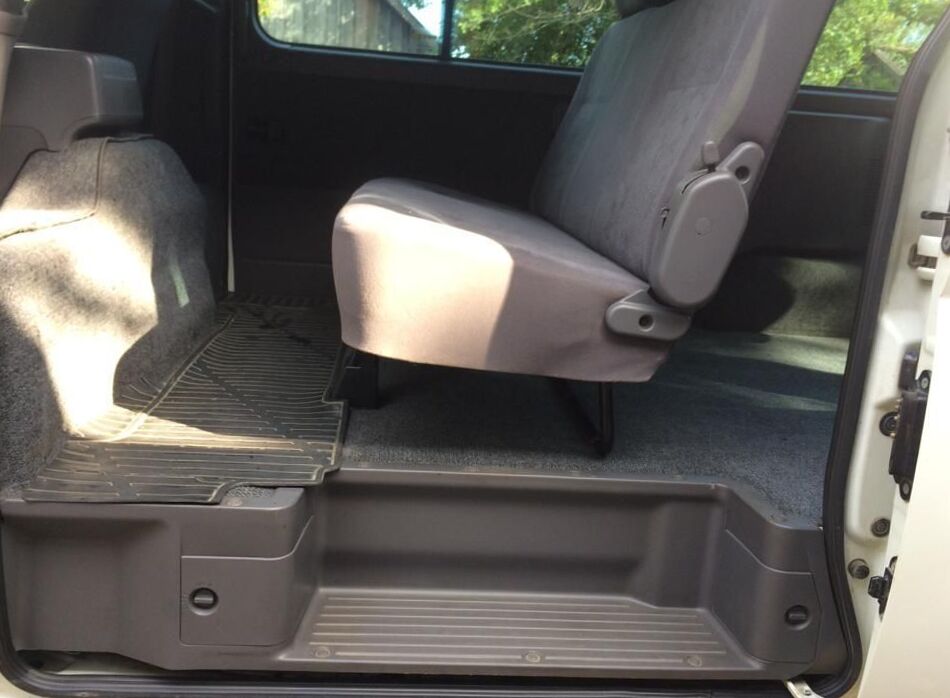

| 2nd row | foldable, backrest is indivisible |
| 3nd row | no |
| Seat lifter | no |
| Full flat seats | no |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | no |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | option |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | no |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | no |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | option |
| Break assist | no |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | no |
| Odor absorber | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | no |
| CD player | option |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
| Optional navigation system | no |
| Parking assist system | option |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | option |
Additional amenities | |
| Lagage box | no |
| Etc | option |
Car safety | |
| Alarm system | no |
| Security alarm | no |
2009 Nissan Caravan IV CBF-VRE25 2.0 DX long body (130 Hp) specs
|
From 1986 until 1987, a KD-ARE24 chassis was used. The 1988 to 1997 models used the E24 chassis, models from 1998 onward use the TA-QGE25 chassis and VWE25 chassis. Currently, the Caravan outsells the Toyota Hiace since 2004. One main reason is due it having more power and cargo room. E20 / E21 / E22 The Urvan was a transporter vehicle manufactured by Datsun with 3, 5, 7 and up to 10 seats (minibus). It was especially popular in Europe, and was again very popular in Fire Departments and as ambulances in certain countries. It had a somewhat difficult handling, as it was heavy to steer, and did not come with power steering. Also, the gear shifter was located at the floor and went all the way up to the height of the hand, and had a slight curve. The gear shifter was nearly 80 centimetres long, so it was somewhat clumsy to shift, but it came with 5 gears, unusual in Europe at that time. It was delivered with a 1.6 litre (1596 cc) engine, a 1.8 litre (1798 cc) engine and a 2.0 litre (1998 cc) engine. It was produced from 1978 to 1983, when the Datsun brand ceased. The Urvan was rebadged into Nissan Vanette in 1984. » Read More About Nissan Caravan |
