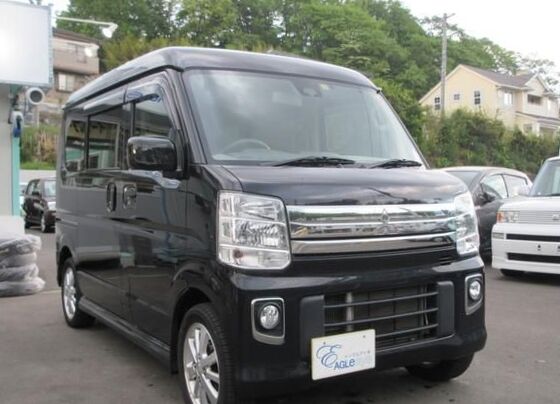

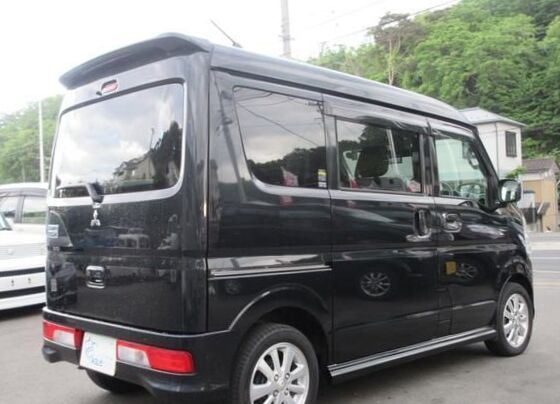

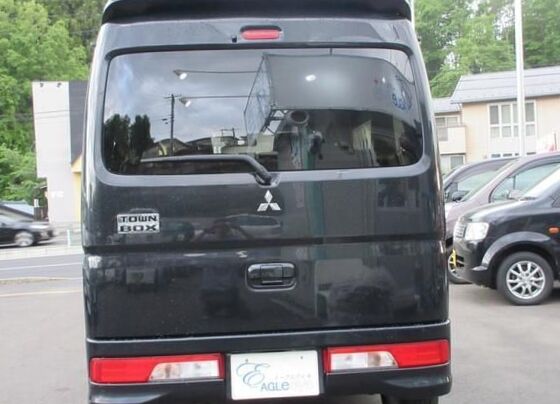

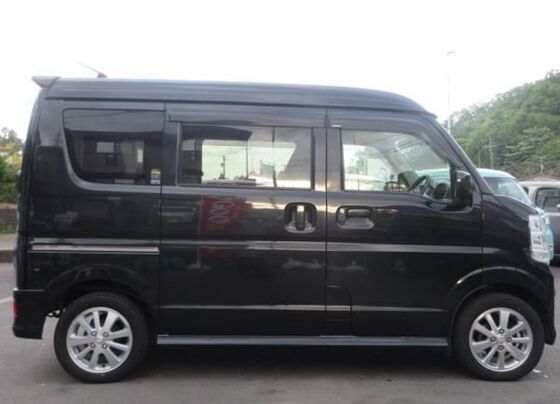

2017 Mitsubishi Town Box III 660 G Special High Roof 4WD
More photos of Mitsubishi Town Box
Mitsubishi Town Box Problems
Power steering pump kit
1999, the power steering pump kit was damaaged
and need to be changed with oil seal size 17-29...
Spare parts
2002, the hard plastic water junction from
radiator,watercoolant,and water over flow from
radi...
Gear box
2001, having problem with my gearbox, it
dificult to transfer to higher range, and then
it wil...
Mitsubishi Town Box Problems
Power steering pump kit
1999, the power steering pump kit was damaaged
and need to be changed with oil seal size 17-29...
Spare parts
2002, the hard plastic water junction from
radiator,watercoolant,and water over flow from
radi...
Gear box
2001, having problem with my gearbox, it
dificult to transfer to higher range, and then
it wil...
| Body type | Minivan |
|---|---|
| Power | 64 Hp |
| Engine Displacement | 700 cm3 or 0.7L or 42.7 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Vin | 871*** |
| Price (out of date) | $6285 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2017 Mitsubishi Town Box III? | Minivan, 4 Seats, 5 Doors |
| What is the fuel economy, Mitsubishi Town Box Minivan 2017? | 6.8 l/100 km |
| How much power, Mitsubishi Town Box ABA-DS17W 2017? | 64 Hp |
| What is the engine size, 2017 Mitsubishi Town Box 660 G Special High Roof 4WD? | 0.7L or 658cm3 |
| How many gears, What type is the gearbox, Mitsubishi Town Box III 2017 Minivan 660 G Special High Roof 4WD (64 Hp)? | Automatic transmission 4 |
| What is the drivetrain, 2017 Mitsubishi Town Box Minivan 660 G Special High Roof 4WD (64 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2017 Mitsubishi Town Box III? | 3395 mm |
| How wide is the vehicle, Mitsubishi Town Box Minivan 2017? | 1475 mm |
Mitsubishi Town Box III ABA-DS17W 660 G Special High Roof 4WD (64 Hp) 2015, 2016, 2017, 2018, 2019 Specs
General information | |
|---|---|
| Production start year | 2015 |
| Production end year | 2019 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 658 |
| Frame name | ABA-DS17W |

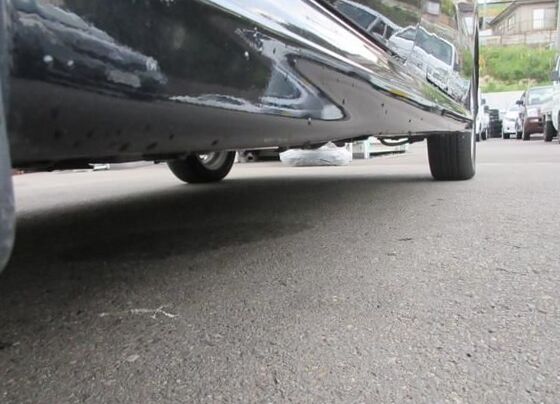

| Clearance, mm | 150 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | yes |
| Steering locaton | right |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | R06A |
| Fuel | Petrol (Gasoline) |
| Engine type | 3 cylinder DOHC |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 64 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 64 (47) / 6000 |
| Max torque, N*m | 95 |
| Max torque RPM, rpm | 3000 |
| Max torque, N*m (kg*m) / rpm | 95 (10) / 3000 |
| Valves per cylinder | 4 |
| Compression ratio | 9.1 |
| Bore, mm | 64 |
| Stroke, mm | 68.2 |
| Engine additional info | VVT, electronic fuel injection system |
Fuel consumption | |
| Combined | 6.8 |
Transmission | |
| 1st gear ratio | 2.875 |
| 2nd gear ratio | 1.568 |
| 3rd gear ratio | 1 |
| 4th fear ratio | 0.696 |
| Rear gear ratio | 2.3 |
| Main gear ratio | 5.375 |

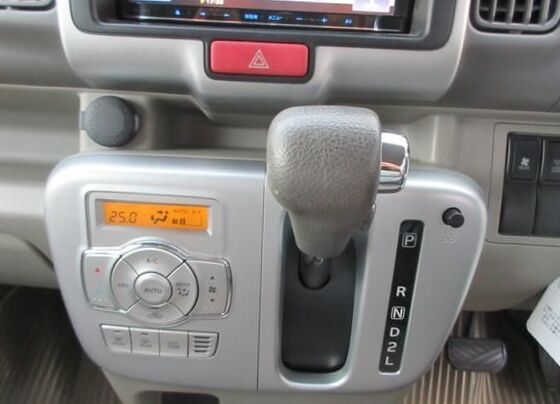

| Shifter position | On the dashboard |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3395 |
| Exterior width, mm | 1475 |
| Exterior height, mm | 1910 |

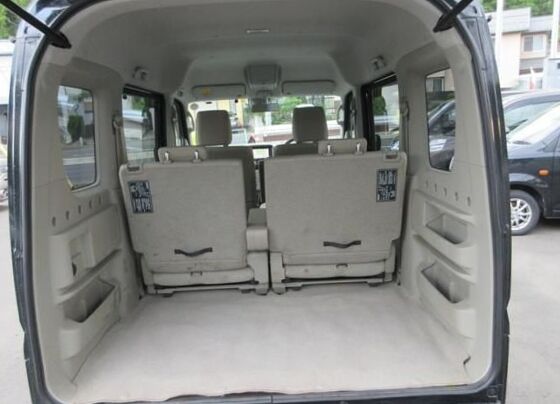

Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
| Interior length, mm | 2240 |
| Interior width, mm | 1355 |
| Interior height, mm | 1420 |
Chassis dimensions | |
| Wheel base, mm | 2430 |
| Front axle length, mm | 1300 |
| Rear axle length, mm | 1280 |
| Turning radius, m | 4.5 |
| Wheel spacing front | 1300 |
| Wheel spacing rear | 1280 |
Weight and permissible load | |
| Mass, kg | 1010 |
Volumes | |
| Fuel tank capacity, l | 37 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Dependent, on longitudinal arms |
Wheel rims | |

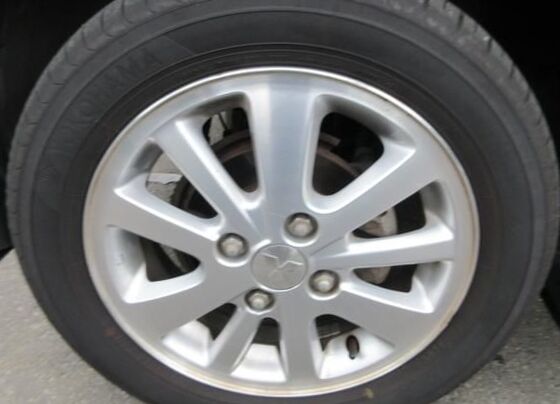

| Aluminium wheel | yes |
Tires | |
| Front wheels | 165/60R14 |
| Rear wheels | 165/60R14 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Parking brake | Foot |
| Brake front search | 1 |
| Rear brake | 2 |
| Parking brake new first | Foot |
Exterior | |

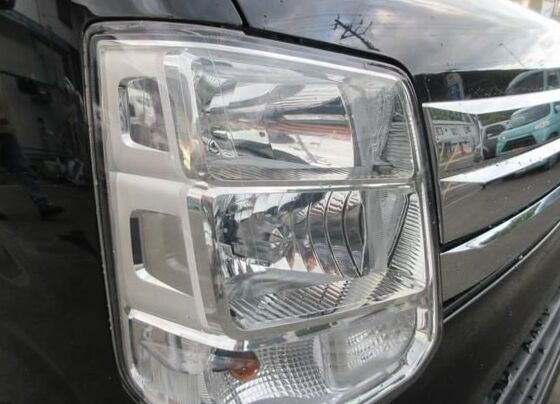

Headlights | |
| Xenon lamps | yes |
| Front fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |

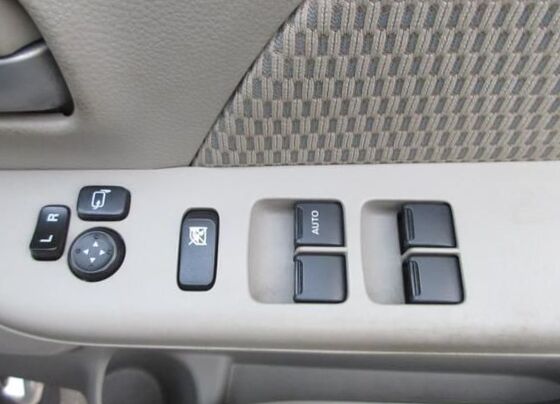

| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |

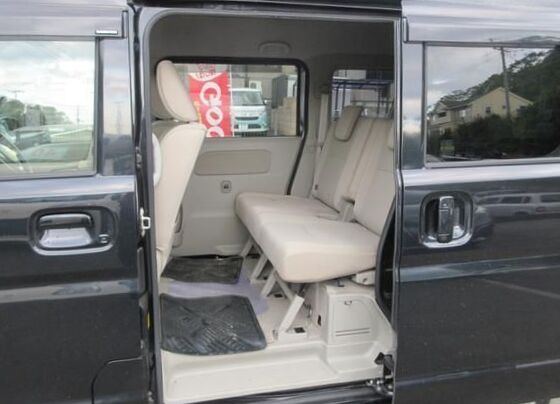

| Sliding doors | yes |
| Sliding electric door | no |
| Sliding electric doors | yes |
| Door easy closer | yes |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Accessories | |
| Front spoiler | yes |
| Rear spoiler | yes |
| Back wiper | yes |
Interior | |

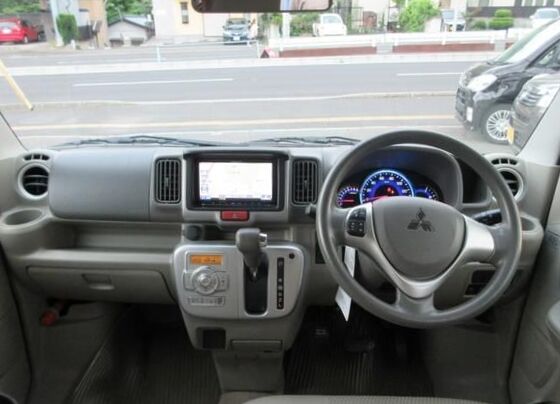

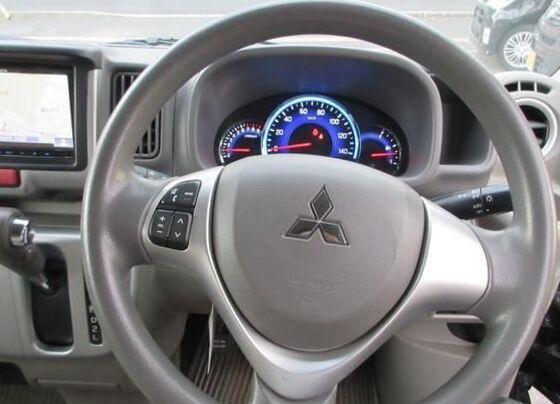

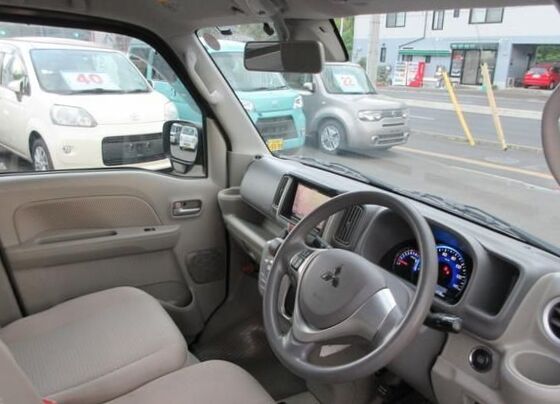

Steering wheel and center panel | |
| Tilt steering | yes |

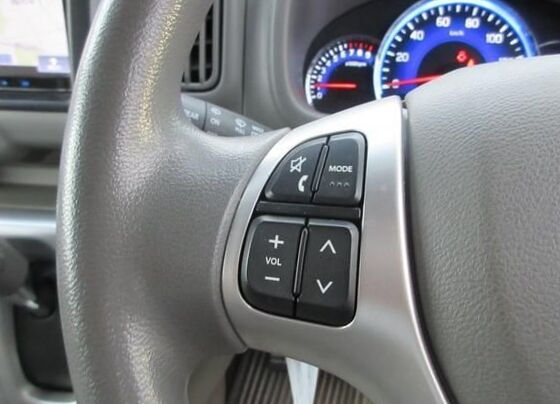

| Audio control on steering wheel | yes |
| Tachometer | yes |

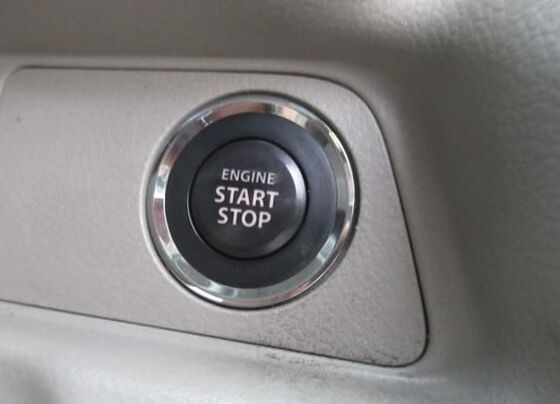

| Engine start button | yes |
Interior design | |
| Cloth upholstery | yes |

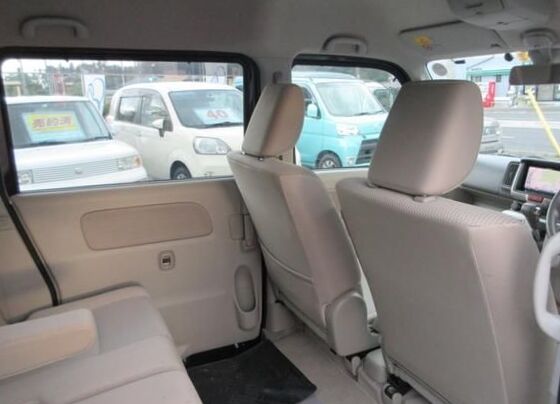

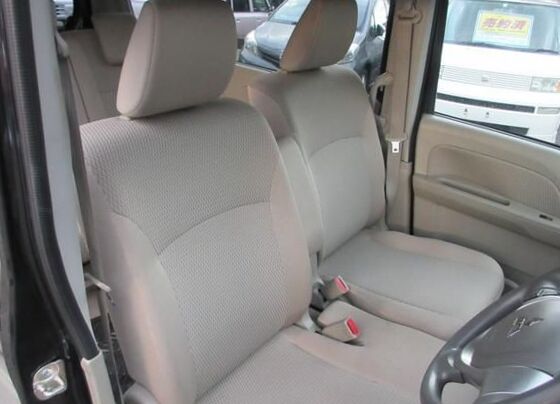

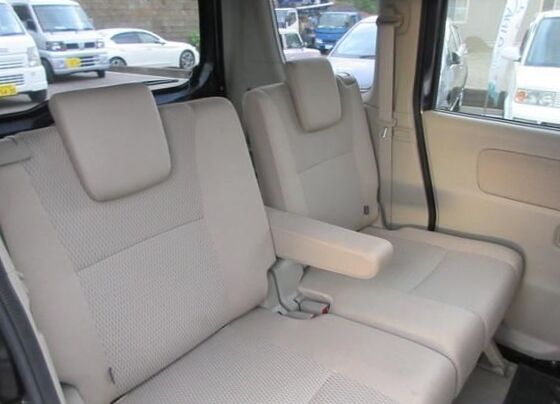

Seats | |

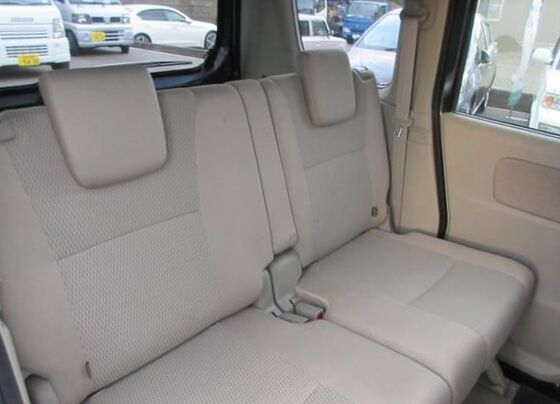

| 2nd row | 50/50 ratio fold seat |

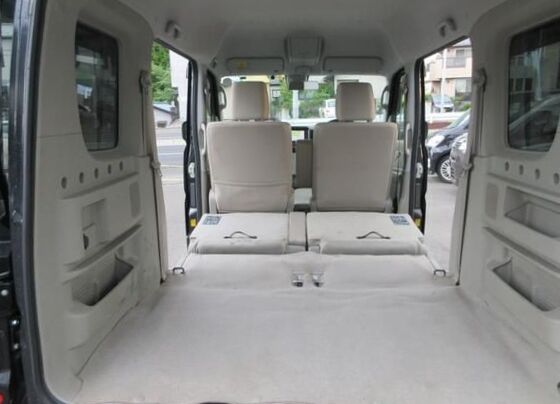

| Full flat seats | yes |
| Front bench seat | yes |
| Headrests for seats | 4 |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Seats pockets | yes |
Electric interior package | |
| Front seat heater | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Power window rear | yes |
Additional interior equipment | |
| Holders for bottles in doors | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Side impact bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | no |
| Lane Keep Assist | no |
| Autolock doors | yes |
| Control system of a headlight | no |
| Rear sonars | no |
| Collision mitigation system | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Air filter | yes |
Audio systems | |
| Additional sound equipment | 6 speakers |
Additional amenities | |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Alarm system | yes |
| Security alarm | yes |
2017 Mitsubishi Town Box III ABA-DS17W 660 G Special High Roof 4WD (64 Hp) specs
|
It is also sold in Japan as the Nissan Clipper and Nissan Clipper Rio, while the Town Box Wide was also produced under licence in Malaysia as the Proton Juara. (Sources: Facts & Figures 2000, Facts & Figures 2005, Facts & Figures 2008, Mitsubishi Motors website) » Read More About Mitsubishi Town Box |
