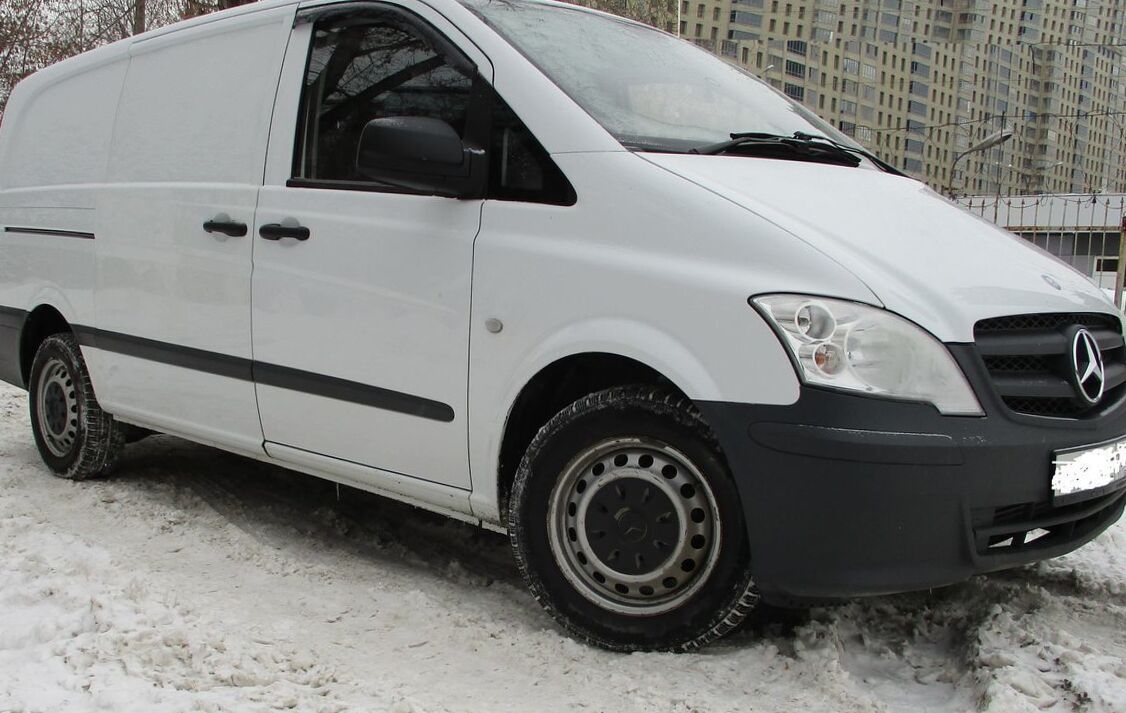

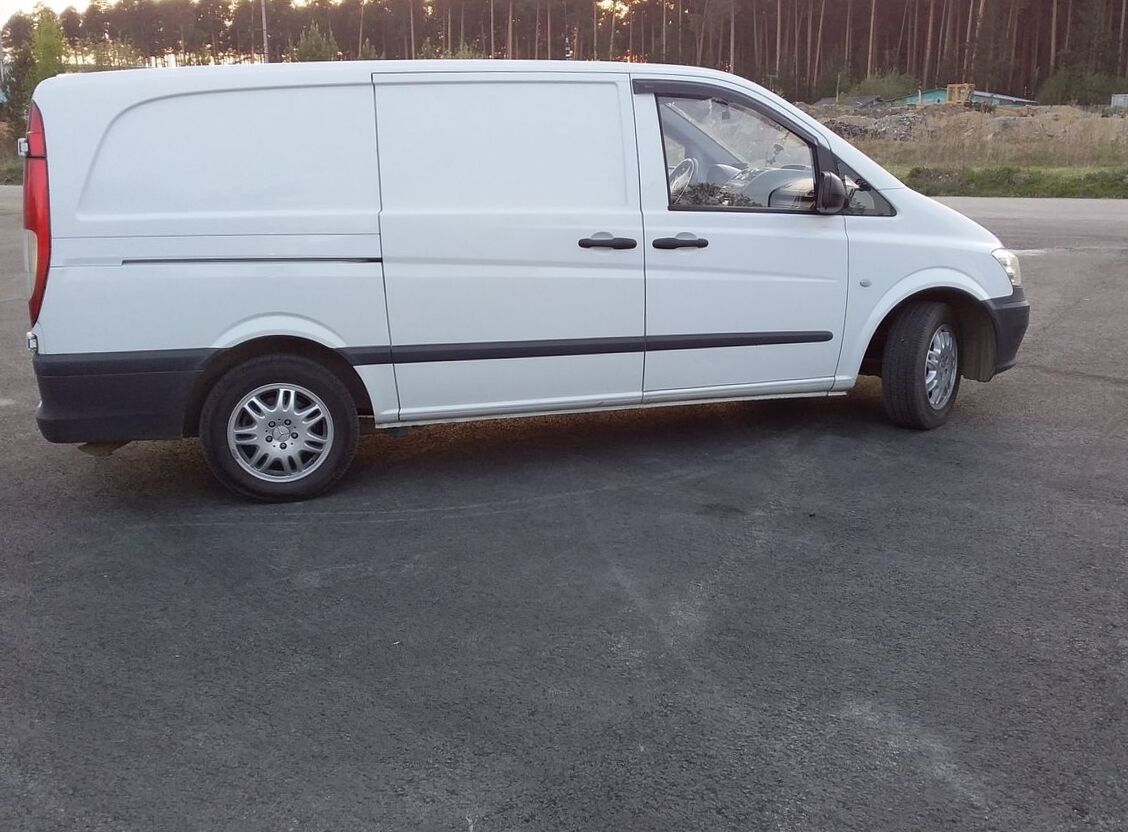

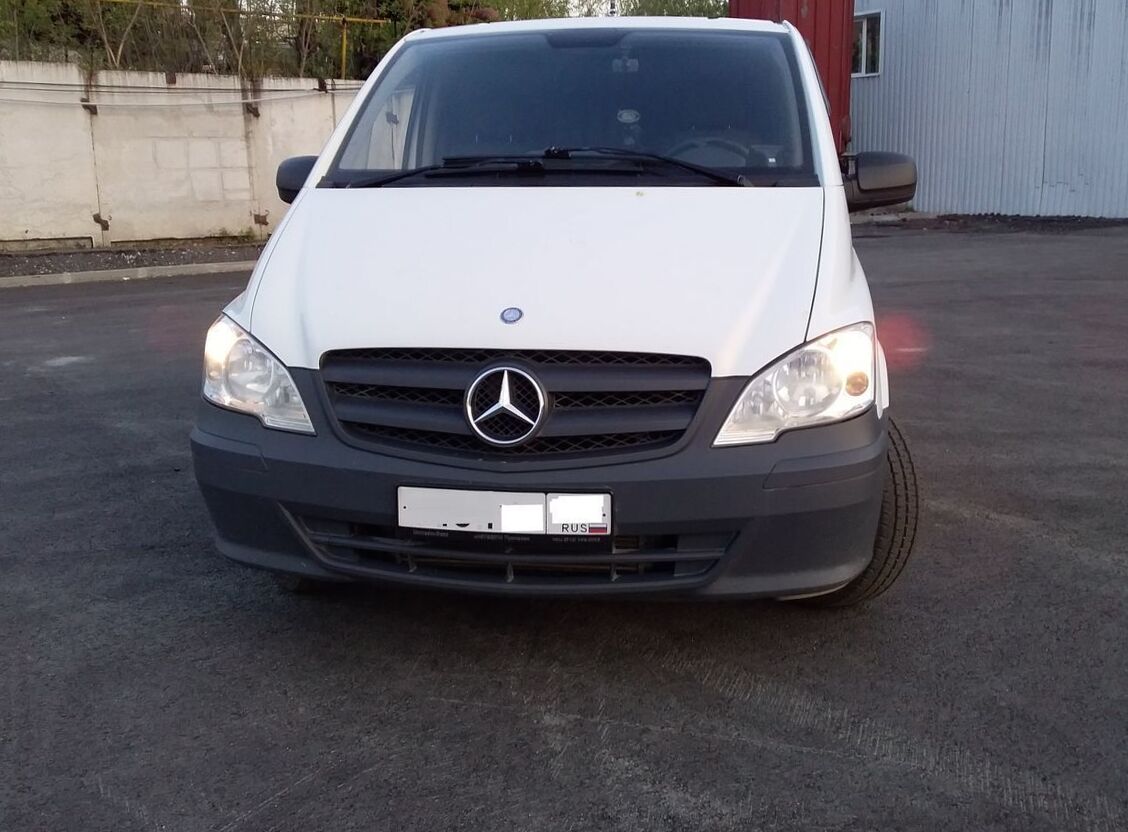

2013 Mercedes-Benz Vito II 110 CDI MT L2H1
Mercedes-Benz Vito Problems
Oil light is on
2003, My oil light is on, machanic said he
can’t find anything wrong, I took the car
in...
Mercedes benz v230
2001, La kaja del cambio automatica no cambiar
e no fonctiona ela ksiratour no marcha............
Problems
2001, Hi,i have a vito 2001,2151cc diesal..Im
currently in limp mode and cant turn it
off.Also...
| Body type | Minivan |
|---|---|
| Power | 95 Hp |
| Engine Displacement | 2100 cm3 or 2.1L or 128.1 cu-in |
| Color | white |
| Transmission Gearbox | Manual |
| Fuel Type | Diesel |
| Drive wheel | FR or RR |
| Mileage | 100662 Miles |
| Vin | WDF63960313****74 |
| Price (out of date) | $11602 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2013 Mercedes-Benz Vito II? | Commercial van, 3 Seats, 4 Doors |
| What is the fuel economy, Mercedes-Benz Vito Commercial van 2013? | 8 l/100 km |
| How much power, Mercedes-Benz Vito W639 2013? | 95 Hp |
| What is the engine size, 2013 Mercedes-Benz Vito 110 CDI MT L2H1? | 2.1L or 2143cm3 |
| How many gears, What type is the gearbox, Mercedes-Benz Vito II 2013 Commercial van 110 CDI MT L2H1 (95 Hp)? | 6 speed Manual |
| What is the drivetrain, 2013 Mercedes-Benz Vito Commercial van 110 CDI MT L2H1 (95 Hp)? | Rear |
| How long is this vehicle, 2013 Mercedes-Benz Vito II? | 5008 mm |
| How wide is the vehicle, Mercedes-Benz Vito Commercial van 2013? | 1901 mm |
| What is the gross weigh, Mercedes-Benz Vito W639 2013? | 2800 kg |
| How much trunk (boot) space, 2013 Mercedes-Benz Vito 110 CDI MT L2H1? | 5700 l |
Mercedes-Benz Vito II W639 110 CDI MT L2H1 (95 Hp) 2010, 2011, 2012, 2013, 2014 Specs
General information | |
|---|---|
| Complectation name | 110 CDI MT L2H1 |
| Production start year | 2010 |
| Production end year | 2014 |
| Drive type | Rear |
| Frame type | Commercial van |
| Transmission type | 6 speed Manual |
| Engine volume, cc | 2143 |
| Frame name | W639 |
| Clearance, mm | 195 |
| Manufacturing country | Spain |
| Doors | 4 |
| Warranty | 2 years or 200,000 km of mileage |
Vehicle generation | |
| Generation name | W639 |
| Generation number | 2 |
| Facelift number | 1 |
| Production start year | 2010 |
| Production end year | 2014 |
Engine, transmission and steering specs | |

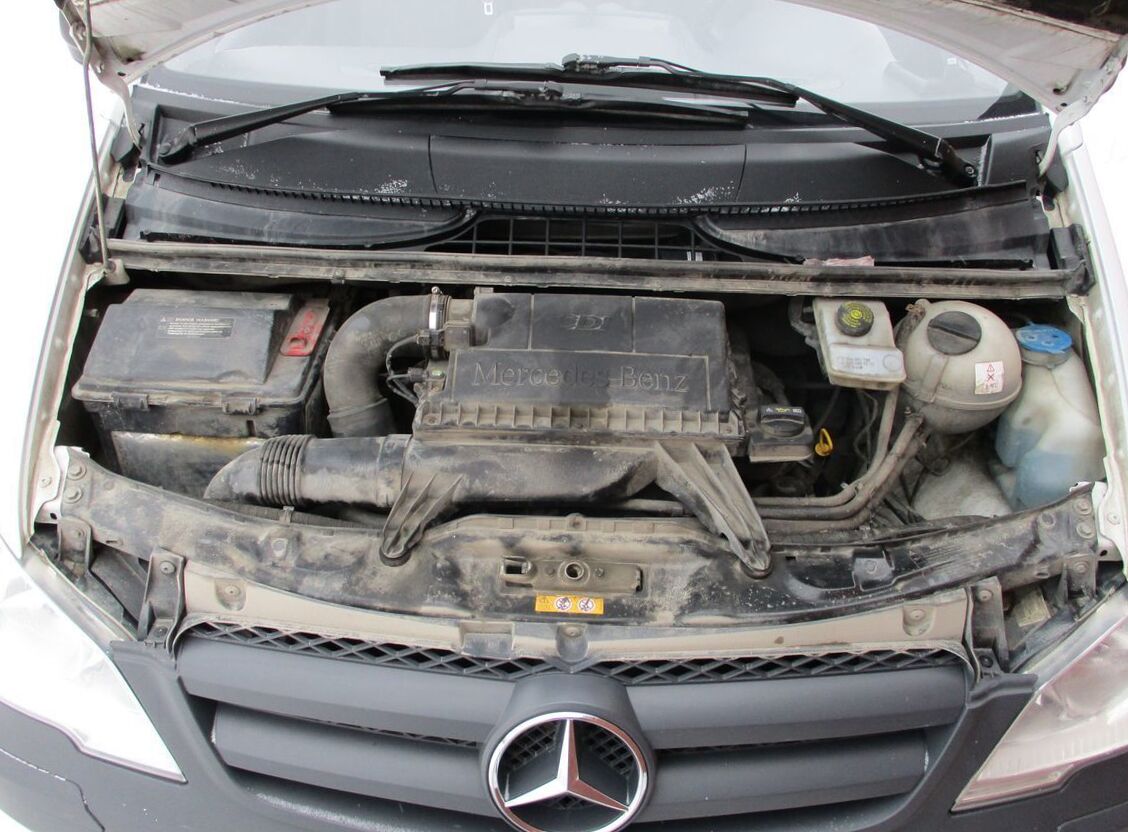

Engine specs | |
| Engine name | OM 651 DE 22 LA |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 95 |
| Max power RPM, rpm | 3800 |
| Max power, hp (kWt) / rpm | 95 (70) / 3800 |
| Max torque, N*m | 250 |
| Max torque RPM, rpm | 2400 |
| Max torque, N*m (kg*m) / rpm | 250 (26) / 2400 |
| Valves per cylinder | 4 |
| Compression ratio | 16.2 |
| Bore, mm | 83 |
| Stroke, mm | 99 |
| Engine additional info | DOHC |
| Eco type | Euro-5 |
Fuel consumption | |
| City | 10.1 |
| Country side | 6.8 |
| Combined | 8 |
| Co2 emission | 211 |
Steering | |
| Power steering | yes |
Battery and alternator | |
| Max generator amper | 200 |
| Battery volume | 74 |

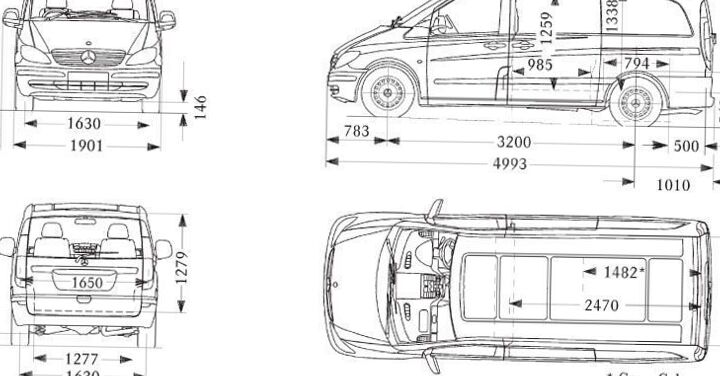

Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5008 |
| Exterior width, mm | 1901 |
| Exterior height, mm | 1902 |
Interior dimensions | |
| Capacity | 3 |
| Seat rows | 1 |

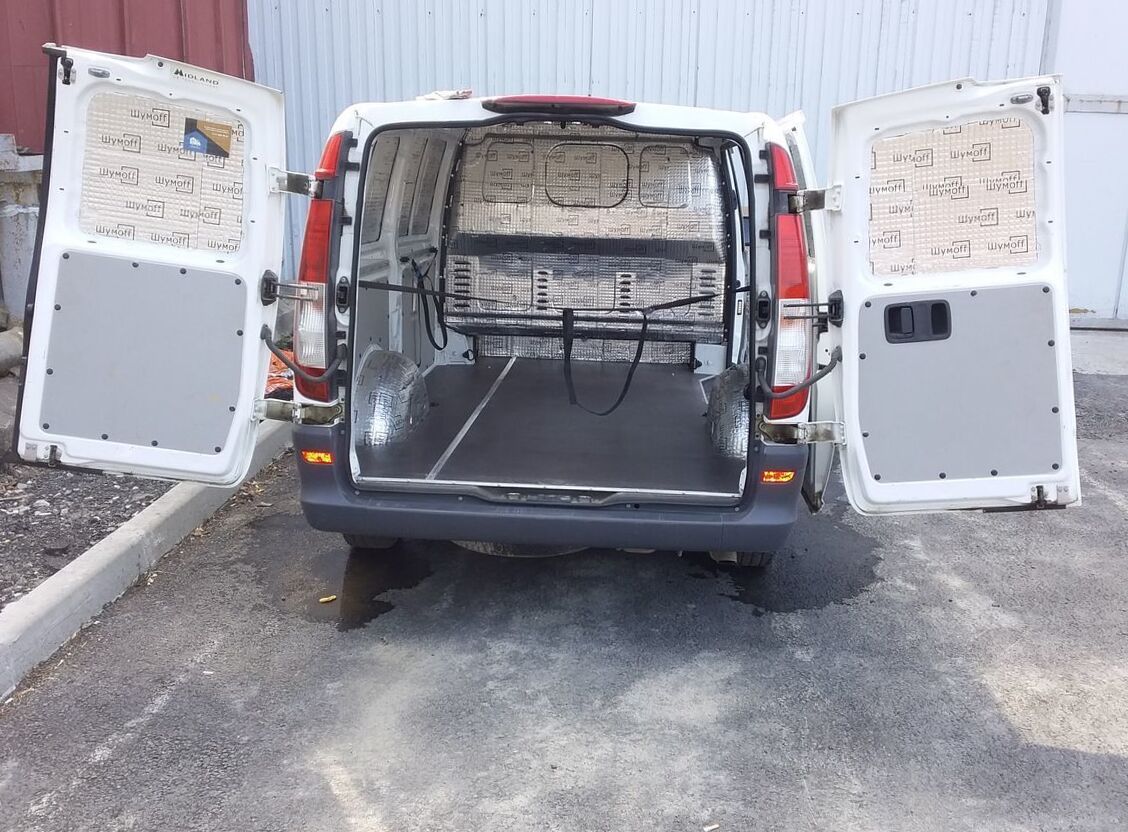

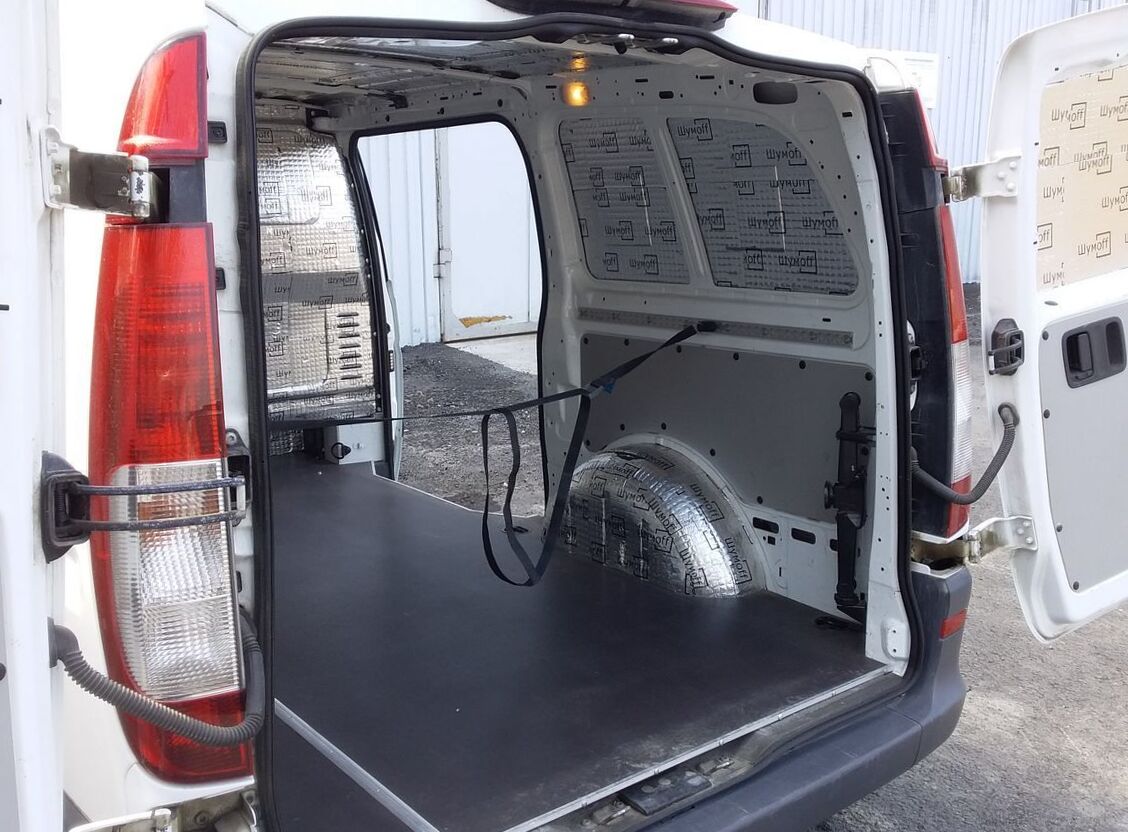

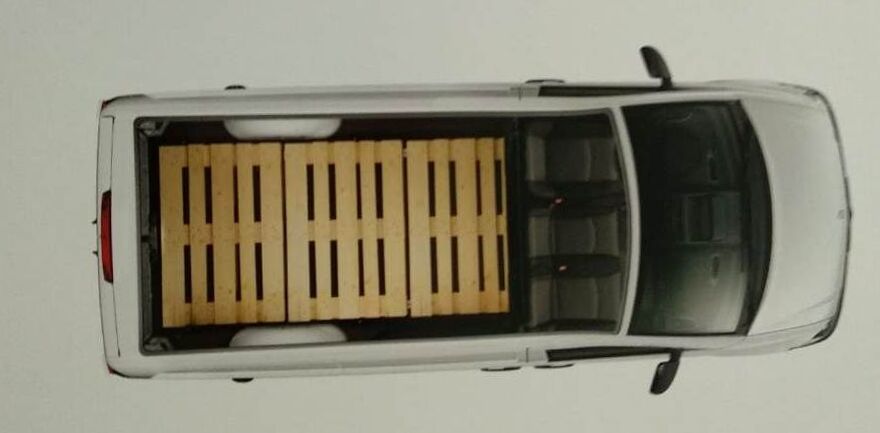

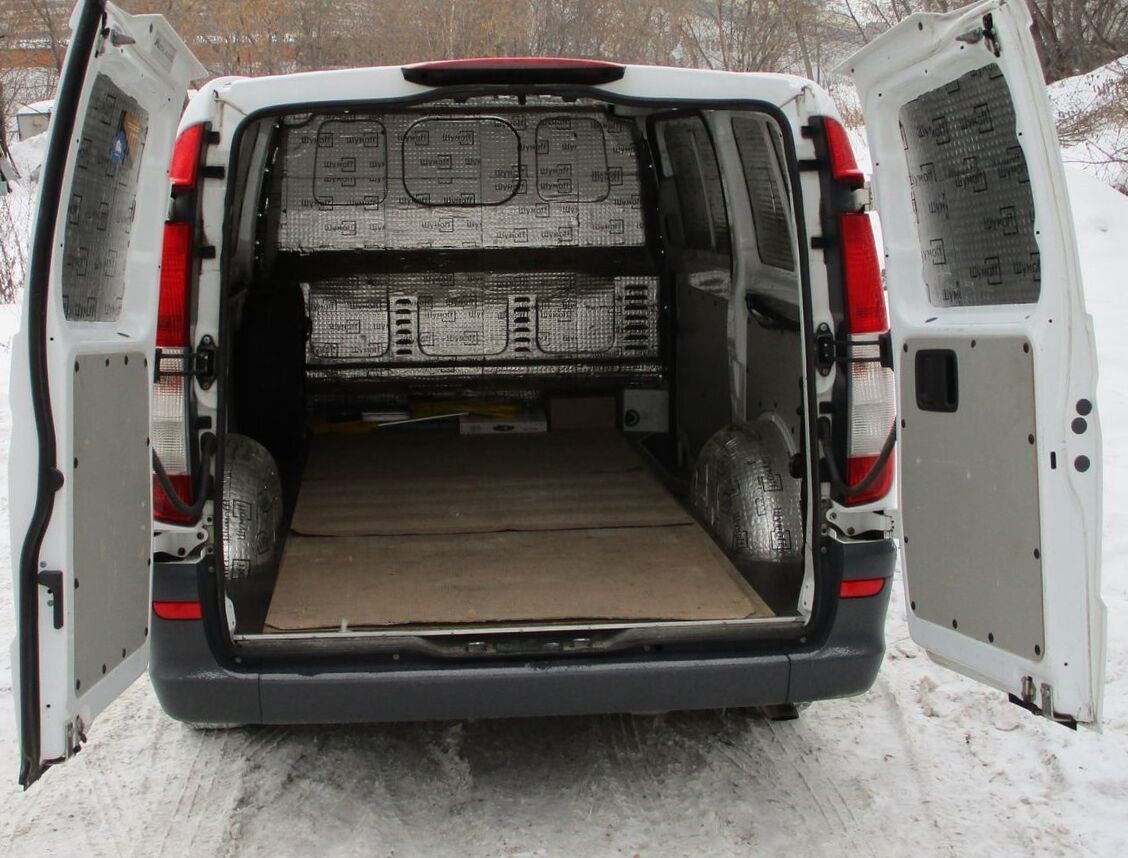

| Cargo Bay | 2667x1650x1259 |
| Cargo l | 2667 |
| Cargo w | 1650 |
| Cargo h | 1259 |
Chassis dimensions | |
| Wheel base, mm | 3200 |
| Turning radius, m | 5.9 |
| Wheel spacing front | 1630 |
| Wheel spacing rear | 1630 |
Weight and permissible load | |
| Mass, kg | 1825 |
| Max capacity | 975 |
| Max. weight | 2800 |
| Max roof weight | 150 |
| Trailer max weight wobrakes | 750 |
| Loading height | 562 |
| Trailer max weight wbrakes | 2000 |
Volumes | |
| Fuel tank capacity, l | 75 |
| Trunk volume | 5700 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, on the wishbone |
| Air suspension | option |
Wheel rims | |
| Aluminium wheel | option |
| Front wheel disk | 16X6.5J |
| Rear wheel disk | 16X6.5J |
Tires | |
| Front wheels | 205/65 R16 |
| Rear wheels | 205/65 R16 |
Brakes | |
| Front brake | Discs |
| Rear brake | Discs |
| Parking brake | Foot |
| Parking brake new first | Foot |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Bixenon | option |
| Head lights washer | option |
| Front fog lamps | yes |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | option |
| Rain sensor | option |
Side mirrors | |
| Exterior mirrors in body color | no |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | option |
| Door mirrors heating | option |
Doors | |
| Side sliding door | yes |
| Sliding doors | no |
Windows | |
| Termoglass | option |
| Rear glass heat | no |
Roof | |
| Tilt sunroof | option |
Accessories | |
| Roof rail | option |
| Bumpers | Painted in body color (optional) |
| Back wiper | no |
Body color | |
| Metallic paint Body | option |
Interior | |

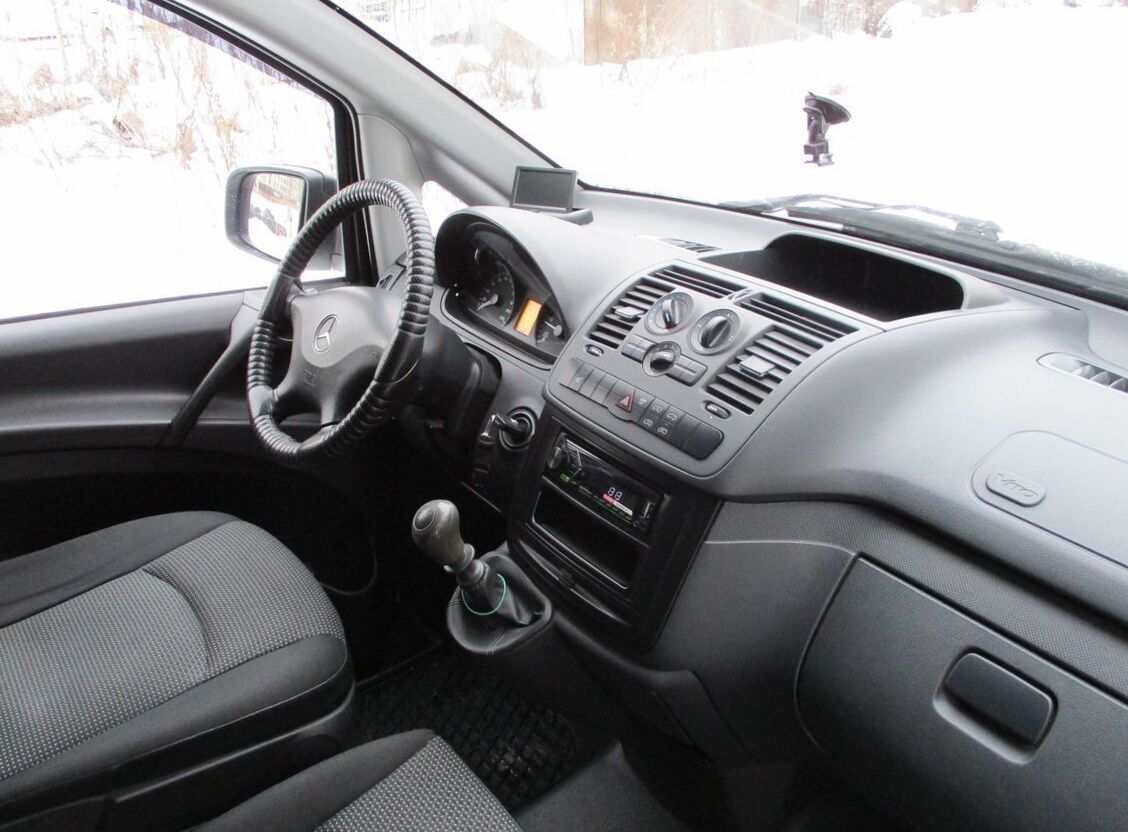

Steering wheel and center panel | |
| Leather winding | option |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | option |
| Tachometer | yes |
| Env temp | option |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | option |
Seats | |
| Loin reliance | option |
| Separating armrest front | option |
Electric interior package | |
| Power ajustable front seat | no |
| Front seat heater | option |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Head light managment | yes |
Additional interior equipment | |
| Smokers packet | option |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | option |
| Side airbag | option |
| Curtain airbags | option |
Active and passive safety | |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | option |
| Cruise control | option |
| System tire pressure monitoring | yes |
| Rear sonars | option |
Amenity | |
Microclimate | |
| Air conditioner | option |
| Automatic air conditioning | option |
| Air filter | yes |
Audio systems | |
| Radio | option |
| Autoreverse casette | no |
| CD player | option |
| CD changer | option |
| DVD-audio | option |
| MP3 Support | option |
| Hands free | option |
| Additional sound equipment | Audio Prep |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
Additional amenities | |
| Antidazzle rearview mirror | option |
| Mirrors in sunshields | option |
| Onboard computer | yes |
| Inadvertent protector | option |
Car safety | |
| Immobilizer | yes |
| Security alarm | option |
Driver Kit | |
| Medkit | option |
| Emergency triangle | option |
| Spare tire | option |
| Jack | option |
2013 Mercedes-Benz Vito II W639 110 CDI MT L2H1 (95 Hp) specs
|
The first generation Mercedes-Benz Vito was produced between 1996 and 2003. It is powered either by a diesel engine with up to 120bhp (89kW; 122PS) or a petrol engine with up to 140bhp (104kW; 142PS) and a front-wheel drive drivetrain. The second generation Mercedes-Benz Vito is more streamlined than its predecessor, but more importantly is powered by a new range of engines and a rear-wheel drive (RWD) drivetrain. The angle of the windshield and A-pillar is closer to horizontal; the dashboard is bigger and the hood smaller. The newer Vito is available in 3 different lengths and 4 diesel engine versions being the 109 cdi, the 111 cdi, the 115 cdi and the powerful 120 cdi. The model numerics conform with the Mercedes pattern that relates to a rough guide to engine power output. In the Vito range currently the 109 has 93 bhp, 111 relates to 116 bhp, 115 to 150bhp (112kW; 152PS) and 120 to 204bhp (152kW; 207PS). The 2nd generation Vitos are all Euro 3 compliant (additionally Euro 4 compliant as of November 2006) and therefore exempt from the upcoming Low Emission Zone in London. This requires commercial vehicles (vans) to reach at least Euro 3 standard from October 2010. » Read More About Mercedes-Benz Vito |
